SSBK1187
Front Shield for the BK2200U
BK2200US-R with the SSBK1187
Front Shield is shown in drawing.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com Page 1 of 4
Center the front shield mounting brackets (Ref.#1) on the front stop. Attach with 5/16” X 2-3/16” X 2-1/2” (Ref.#4) square u-bolts.
Note: The hole pattern on the front shield mounting brackets and the front shield bottom (Ref.#2) must match up before
securing the front shield mounting bracket to the front stop.
Secure with 5/16” lock washers (Ref.#5) and 5/16” hex nuts (Ref.#7).
Mount the front shield bottom to the front shield mounting brackets using four (4) 3/8” X 1” hex bolts (Ref.#3), 3/8” lock
washers (Ref.#6), and 3/8” hex nuts (Ref.#8).
Refer to the parts drawing for proper placement.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com Page 2 of 4
Mount the front side shields to the front shield bottom using
four (4) 1/4” X 3/4” hex bolts (Ref.#4). Secure with 1/4” flat
washers (Ref.#7), 1/4” lock washers (Ref.#6), and 1/4” hex
nuts (Ref.#10).
Remove side lights before mounting side shields (Ref.#2 &3).
After mounting the side shields, remount the side lights with
Mount the front side shields (left and right) to the trailer frame
stake pocket using a front shield shim (Ref.#1), 3/8” X 2” hex
bolt (Ref.#5) and oversized flat washer (Ref.#8). Secure with
a 3/8” lock washer (Ref.#9) and 3/8” hex nut (Ref.#11).
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com Page 3 of 4
#10 X 3/4” self tapping screws to the side shields in
approximately the same location.
Refer to the parts drawing for proper placement.

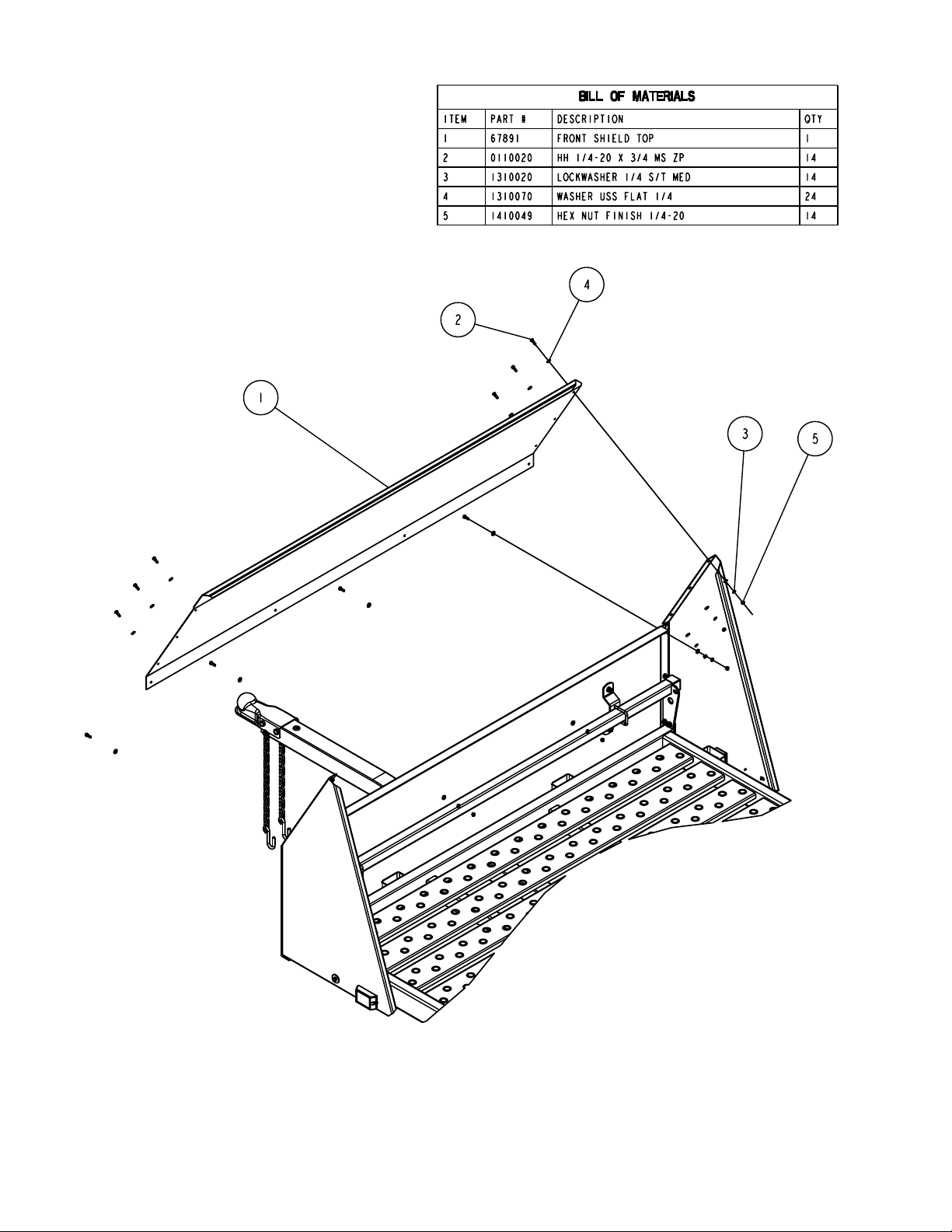

Mount the front shield top (Ref.#1) to the left and right front
side shields and the front shield bottom using 1/4” X 3/4” hex
bolts (Ref.#2) and 1/4” flat washers (Ref.#4). Secure with
1/4” flat washers, 1/4” lock washers (Ref.#3) and 1/4” hex
nuts (Ref.#5).
Refer to the parts drawing for proper placement.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com Page 4 of 4
