SRV31B-_ _
(Service Manual for models after serial number 390327)
SRV31B-_ _ SeaRay 3100 V-Frame
*ST215/75R14C GY TS Dir Rim 80499-_ _ Frame Bundle SR-V31B
66296 Hardware Bag (Bulk Parts) SRV31
69082 Lit Packet - ShoreLand’r - Brakes
4610048 Spring - 5 Leaf Hook
*Check with your dealer/customer service representative for current tire/rim assembly part number.
ShoreLand’r offers its product line in painted finishes. When ordering parts, it is important that you specify the finish or color you have on your product. The 5-digit number along with a 2-digit space _ _, note that the parts can be purchased in various finishes.
03........ |
Black |
14........ |
Blue |
18........ |
Galvanized with Pearl White Plastic |
22........ |
Red |
25........ |
Yellow |
SRV31B-_ _ Specifications: |
|
Capacity: 3100 lbs. |
|
GVWR: 3740 lbs. |
|
GAWR: 3740 lbs. |
|
Ship Wt: 635 lbs. |
|
Frm Size: 2X4 (11 Ga) |
|
Tire Size: ST215/75R14-C |
|
Rim Size: 14 X 6 “J” |
|
Brake: Disc |
|
Coupler: 2” Actuator, 6000 lbs. |
|
Safety Chn: 7600 lb. |
|
Suspension: 5 Leaf Hook Springs |
|
Tongue Size: 3 X 5 X 65” Swing Tongue |
|
Table of Contents: |
Page |
Frame Drawing & Bill of Materials .................. |
2-3 |
More Information.............................................. |
3 |
Swing Tongue, Actuator & Safety Chain.......... |
4 |
Profile 2000 Winch / Jack Dwg/BOM............... |
5-6 |
Tire Size & Carrying Capacity Chart ............... |
7 |
Axle Assembly - Disc....................................... |
7 |

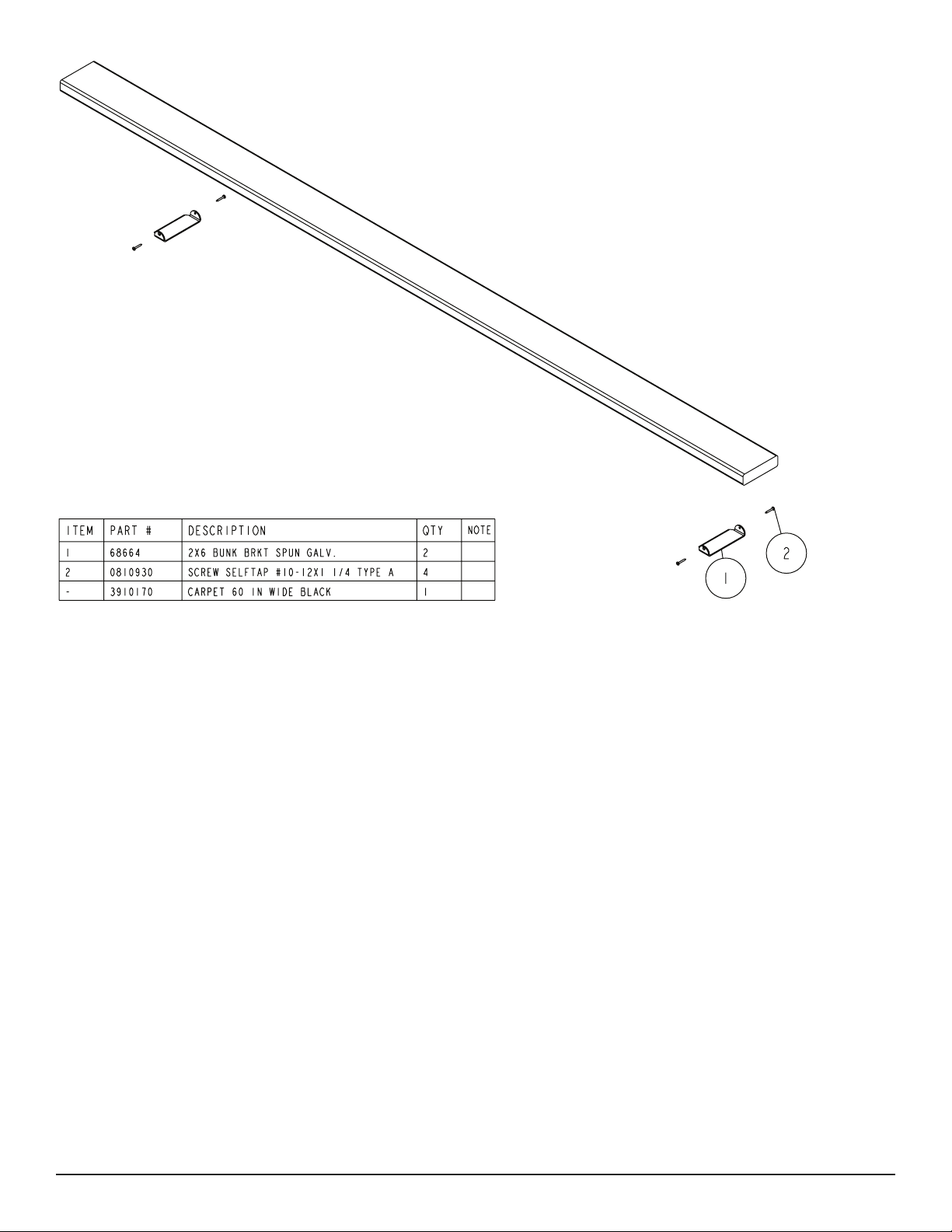

Bunk Dwg/BOM............................................... |
8 |
Midwest Industries, Inc. |
Ida Grove, IA 51445 |
800.859.3028 |
www.shorelandr.com |
0003241 |
Page 1 |
|
|
|
REV E 05/19/2008 |
Midwest Industries, Inc. |
Ida Grove, IA 51445 |
800.859.3028 |
www.shorelandr.com |
0003241 |
Page 2 |
|
|
|
REV E 05/19/2008 |
Your SeaRay trailer is designed, assembled and pre-adjust- ed to fit your boat. If properly maintained it will give your boat maximum support and many years of care free service.
Follow these instructions before using your trailer:
Read your ShoreLand’r Owner’s Guide and all safety decals on the trailer.
Wash and wax your trailer regularly.Always rinse your trailer after each use, especially when boating in salt or brackish water.
The law requires that the white ground wire on both the trailer wire harness and the vehicle harness be properly grounded.
Re-check all fasteners for tightness before towing.
Check the tire pressure before towing.
Contact your authorized ShoreLand’r dealer if you experience a problem with your trailer.
For further information or assistance, contact ShoreLand’r at 1-800-859-3028 or visit www.shorelandr.com.
Midwest Industries, Inc. |
Ida Grove, IA 51445 |
800.859.3028 |
www.shorelandr.com |
0003241 |
Page 3 |
|
|
|
REV E 05/19/2008 |
