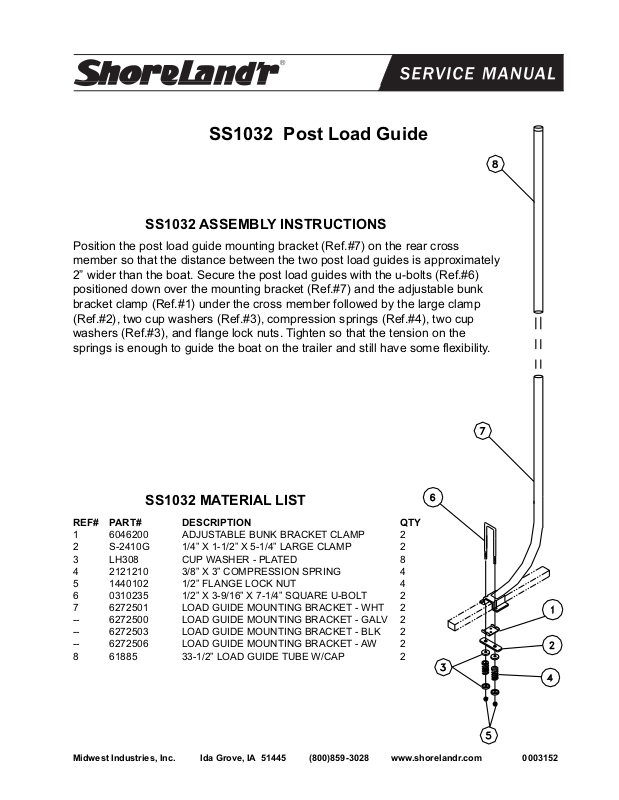

SS1032 Post Load Guide

SS1032 ASSEMBLY INSTRUCTIONS

Position the post load guide mounting bracket (Ref.#7) on the rear cross member so that the distance between the two post load guides is approximately 2” wider than the boat. Secure the post load guides with the u-bolts (Ref.#6) positioned down over the mounting bracket (Ref.#7) and the adjustable bunk bracket clamp (Ref.#1) under the cross member followed by the large clamp (Ref.#2), two cup washers (Ref.#3), compression springs (Ref.#4), two cup washers (Ref.#3), and flange lock nuts. Tighten so that the tension on the springs is enough to guide the boat on the trailer and still have some flexibility.

SS1032 MATERIAL LIST

REF# PART# DESCRIPTION QTY

1 6046200 ADJUSTABLE BUNK BRACKET CLAMP 2 2 S-2410G 1/4” X 1-1/2” X 5-1/4” LARGE CLAMP 2 3 LH308 CUP WASHER - PLATED 8 4 2121210 3/8” X 3” COMPRESSION SPRING 4 5 1440102 1/2” FLANGE LOCK NUT 4 6 0310235 1/2” X 3-9/16” X 7-1/4” SQUARE U-BOLT 2 7 6272501 LOAD GUIDE MOUNTING BRACKET - WHT 2

-- 6272500 LOAD GUIDE MOUNTING BRACKET - GALV 2

-- 6272503 LOAD GUIDE MOUNTING BRACKET - BLK 2

-- 6272506 LOAD GUIDE MOUNTING BRACKET - AW 2 8 61885 33-1/2” LOAD GUIDE TUBE W/CAP 2

Midwest Industries, Inc. Ida Grove, IA 51445 (800)859-3028 www.shorelandr.com 0003152
