SRV50TCBA-03, SRV50TCBA-14 & SRV50TCBA-22
(Service Manual for models after serial number XXXXXX)
SRV50TCBA-03
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
6910503 Frame Bundle
*ST215/75R14C Tire Alum Star Rim
67328 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
3310050 Jack - 1000 lbs. Swivel
SRV50TCBA-14
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
6901514 Frame Bundle
*ST215/75R14C Tire Alum Star Rim
67328 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
3310050 Jack - 1000 lbs. Swivel
SRV50TCBA-22
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
6901522 Frame Bundle
*ST215/75R14C Tire Alum Star Rim
67328 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
3310050 Jack - 1000 lbs. Swivel
*Check with your dealer/customer service representative for current tire/rim assembly part number.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004100
Page 1 07/14/2009
SRV50TCBA Specications
Capacity 5000 lbs.
GVWR: 6450 lbs.
GAWR: 3225 lbs.
Ship Wt: 1330 lbs.
Frm Size: 2X4 (11 Ga.)
Tire Size: ST215X75R14C
Rim Size: 14 X 6 “J”
Brake: Hydraulic Disc
Coupler: 2” Brake Actuator, 7500 lbs.
Safety Chain: 7,600 lbs.
Suspension: 5 Leaf Hook Springs
Tongue Size: 3X5X65” Swing Tongue
Ball Hitch: 7,500 lbs. Rating
Table of Contents
Frame Drawing & Bill of Materials .........................................2-3
Swing Tongue, Actuator, Safety Chain ..................................4
Winch Drawing & BOM .........................................................5

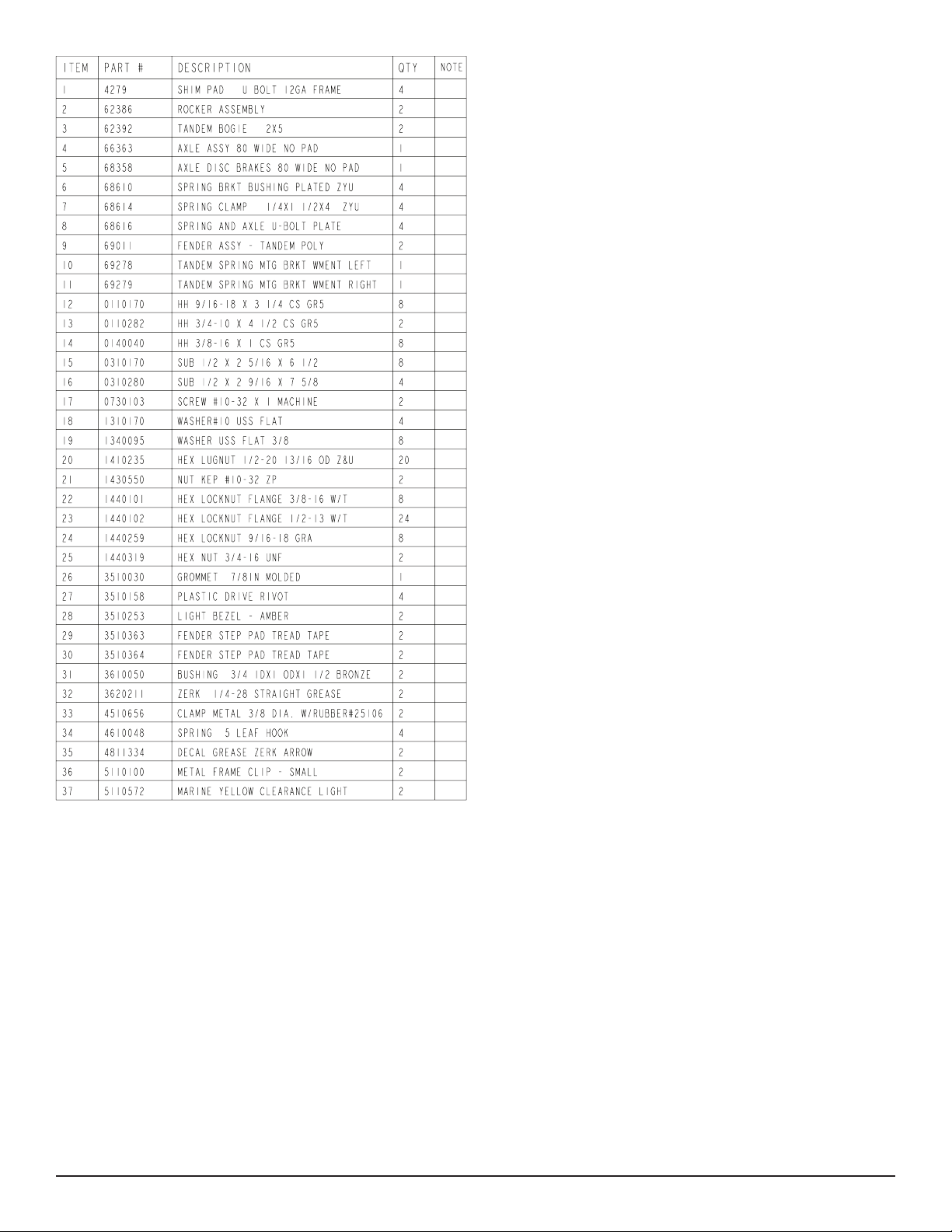

Axle Assembly Dwg / BOM ...................................................6-9
Bunk Dwg / BOM...................................................................10
Jack Dwg / BOM ...................................................................11
More Information ...................................................................12
