SRV50TCB-03, SRV50TCB-14, & SRV50TCB-22
(Service Manual for models after serial number XXXXXX)
SRV50TCB-03
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
8068003 Frame Bundle 2X5 V50TCB
*ST215/75R14C Tire w/TS Dir Rim
69219 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
3310050 Jack - 1000 lbs. Swivel
SRV50TCB-14
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
8068014 Frame Bundle 2X5 V50TCB
*ST215/75R14C Tire w/TS Dir Rim
69219 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
3310050 Jack - 1000 lbs. Swivel
SRV50TCB-22
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
8068022 Frame Bundle 2X5 V50TCB
*ST215/75R14C Tire w/TS Dir Rim
69219 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
3310050 Jack - 1000 lbs. Swivel
*Check with your dealer/customer service representative for current tire/rim assembly part number.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 1 07/14/2009
SRV50TCB Specications
Capacity 5000 lbs.
GVWR: 6450 lbs.
GAWR: 3225 lbs.
Ship Wt: 1330 lbs.
Frm Size: 2X5 (10 Ga.)
Tire Size: ST215X75R14C
Rim Size: 14 X 6 “J”
Brake: Hydraulic Disc
Coupler: 2” Brake Actuator, 7500 lbs.
Safety Chain: 7,600 lbs.
Suspension: 5 Leaf Hook Springs
Tongue Size: 3X5X65” Swing Tongue
Ball Hitch: 7,500 lbs. Rating
Table of Contents
Frame Drawing & Bill of Materials .........................................2-3
Swing Tongue, Actuator, Safety Chain ..................................4
Winch Drawing & BOM .........................................................5
Axle Assembly Dwg / BOM ...................................................6-9

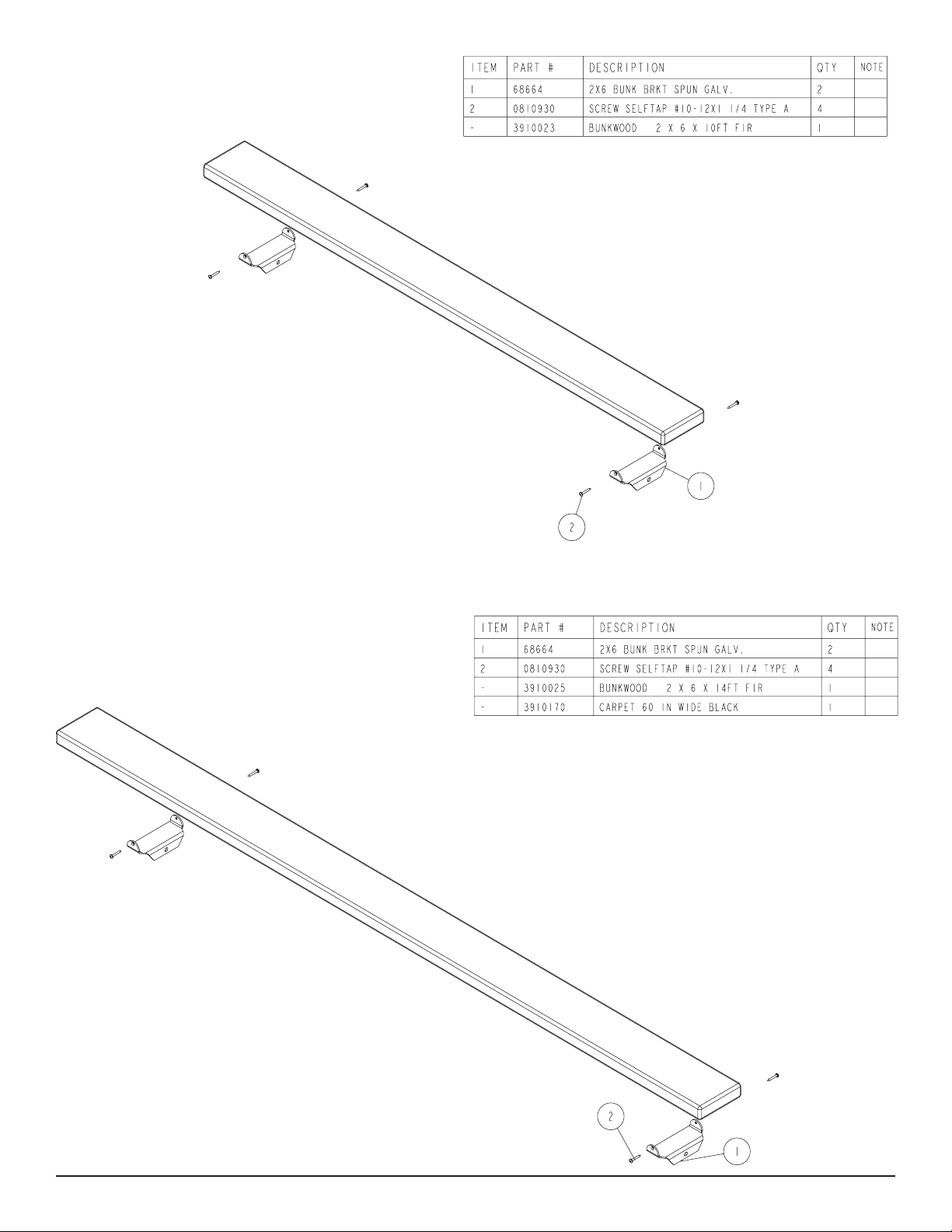

Bunk Dwg / BOM...................................................................10
Jack Dwg / BOM ...................................................................11
More Information ...................................................................12
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 2 07/14/2009
ShoreLand’r offers their product line a painted nish. When ordering
parts it is important that you specify the nish or color you have on
your product. The ve (5) digit number along with a two (2) digit space
_ _, note the parts which can be purchased with various nishes.
When ordering these items use the ve (5) digit number along with
a two (2) digit sufx for the proper nish.
03..........Black
14..........Blue
22..........Red
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 3 07/14/2009
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 4 07/14/2009
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 5 07/14/2009
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 6 07/14/2009
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 7 07/14/2009
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 8 07/14/2009
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 9 07/14/2009
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 10 07/14/2009
Consumer/ Owner:
Your SeaRay trailer is designed, assembled and pre-adjusted to
t your boat. If properly maintained it will give your boat maximum
support and many years of care free service.
Follow these instructions before using your trailer:
Read your ShoreLand’r Owner’s Guide and all safety decals on
the trailer.
Wash and wax your trailer regularly. Always rinse your trailer after
each use, especially when boating in salt or brackish water.
Re-check all fasteners for tighteness before towing.
Re-torque the lug nuts after 50 miles driving and then periodically
thereafter.
Contact your authorized ShoreLand’r dealer if you experience
a problem with your trailer. To locate a dealer, please use www.
shorelandr.com - dealer locator feature.
For further information or assistance, contact ShoreLand’r at 1800-859-3028 or visit www.shorelandr.com.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004099
Page 11 07/14/2009
