SRV50TBA-03, SRV50TBA-14 & SRV50TBA-22
(Service Manual for models after serial number 387205)
SRV50TBA-03
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
6901503 Frame Bundle
*ST215/75R14C Tire w/OWL Alum Star Rim
67328 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
6636303 Axle Assy - 80 Wide
3310050 Jack - 800 lbs. Swivel
3310053 Jack Mounting Hardware Bag
SRV50TBA-14
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
6901514 Frame Bundle
*ST215/75R14C Tire w/OWL Alum Star Rim
67328 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
6636303 Axle Assy - 80 Wide
3310050 Jack - 800 lbs. Swivel
3310053 Jack Mounting Hardware Bag
SRV50TBA-22
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf Hook
6901522 Frame Bundle
*ST215/75R14C Tire w/OWL Alum Star Rim
67328 Hdwe Bag - Bulk Parts
6238600 Rocker Bag - Tandem
6636303 Axle Assy - 80 Wide
3310050 Jack - 800 lbs. Swivel
3310053 Jack Mounting Hardware Bag
SRV50TBA Specications
Capacity 5000 lbs.
GVWR: 6450 lbs.
GAWR: 3225 lbs.
Ship Wt: 1330 lbs.
Frm Size: 2X4 (11 Ga.)
Tire Size: ST215X75R14C
Rim Size: 14 X 6 “J”
Brake: Hydraulic Disc
Coupler: 2” Brake Actuator, 7500 lbs.
Safety Chain: 7,600 lbs.
Suspension: 5 Leaf Hook Springs
Tongue Size: 3X5X65” Swing Tongue
Ball Hitch: 7,500 lbs. Rating
Table of Contents
Frame Drawing & Bill of Materials .........................................2-3
Swing Tongue, Actuator, Safety Chain ..................................4
Winch Drawing & BOM .........................................................5

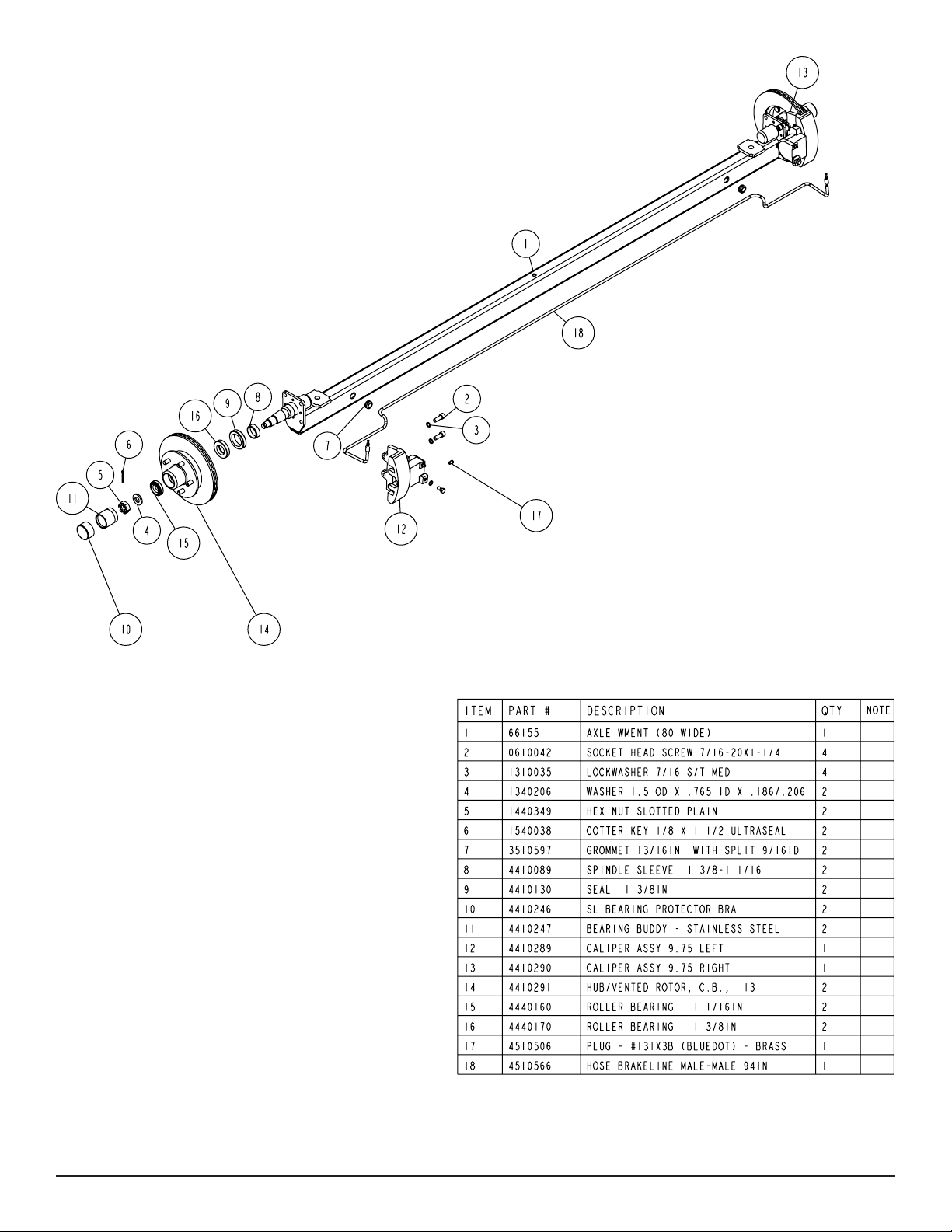

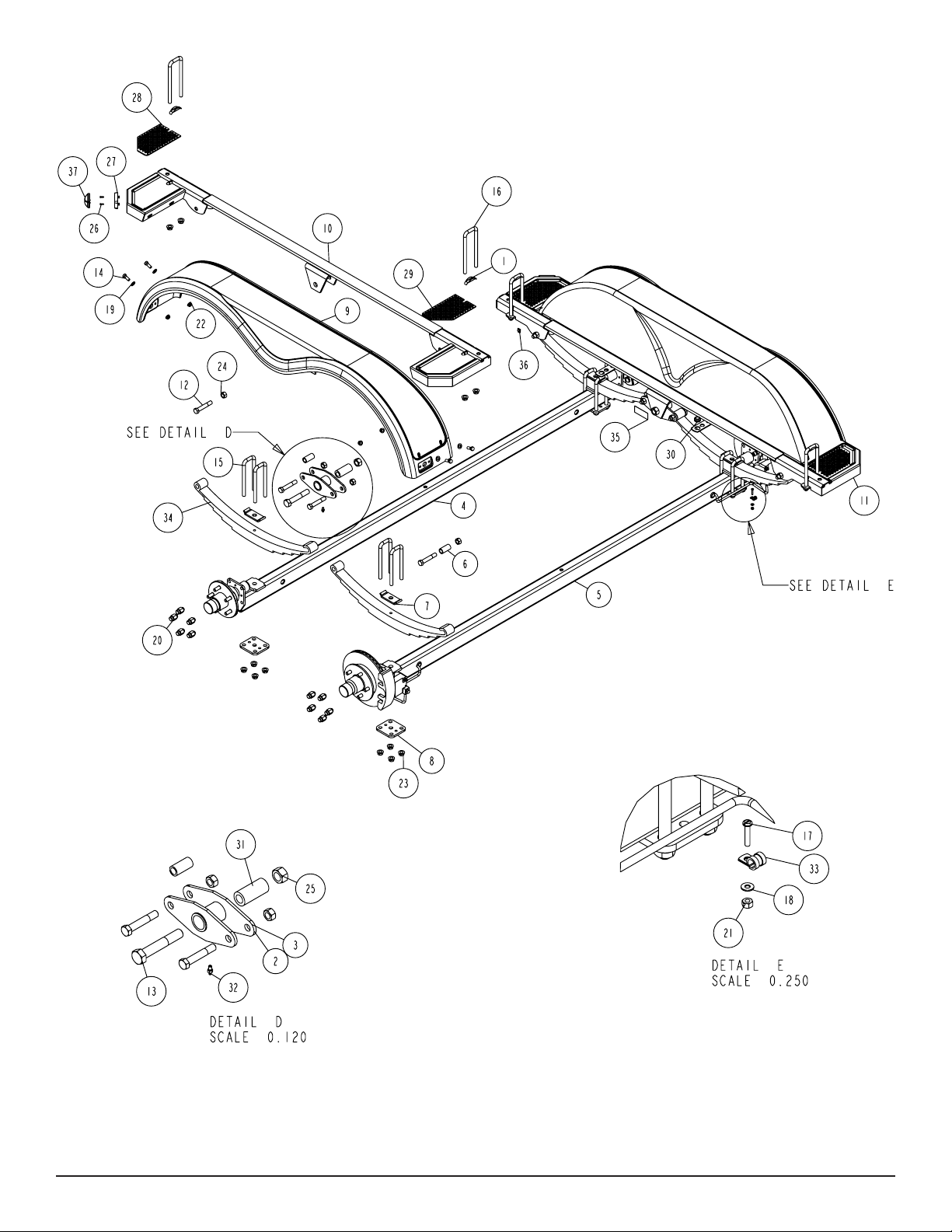

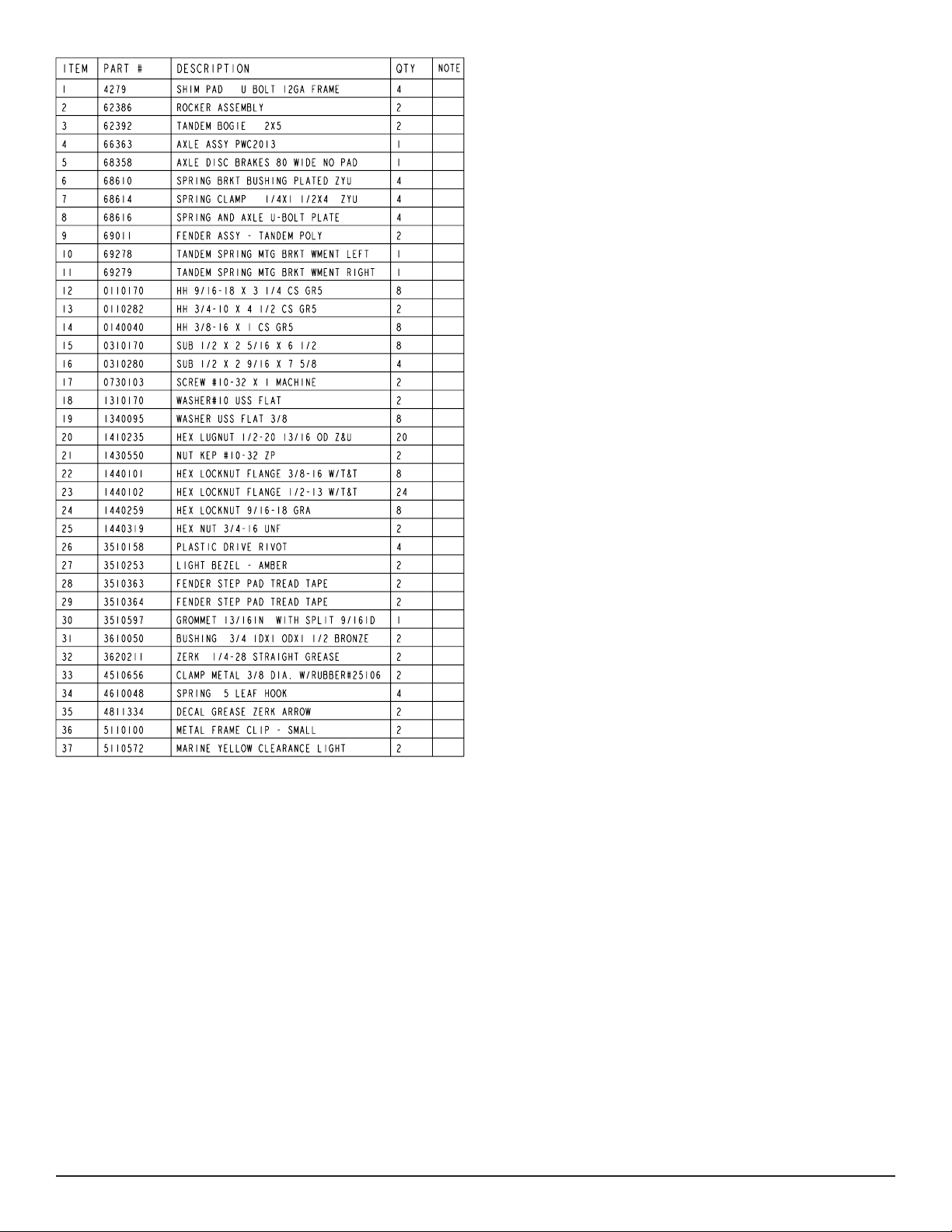

Axle Assembly Dwg / BOM ...................................................6-9
Bunk Dwg / BOM...................................................................10
Jack Dwg / BOM ...................................................................11
More Information ...................................................................12
*Check with your dealer/customer service representative for current tire/rim assembly part number.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 1 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 2 5/29/07
ShoreLand’r offers their product line a painted nish. When ordering
parts it is important that you specify the nish or color you have on
your product. The ve (5) digit number along with a two (2) digit space
_ _, note the parts which can be purchased with various nishes.
When ordering these items use the ve (5) digit number along with
a two (2) digit sufx for the proper nish.
03..........Black
14..........Blue
22..........Red
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 3 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 4 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 5 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 6 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 7 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 8 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 9 5/29/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 10 5/29/07
3310050 - 800 lb. Swivel Jack
3310053 - Jack Mounting Hardware Bag
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003806
Page 11 5/29/07
Consumer/ Owner:
Your SeaRay trailer is designed, assembled and pre-adjust-
ed to t your boat. If properly maintained it will give your boat
maximum support and many years of care free service.
Follow these instructions before using your trailer:
Read your ShoreLand’r Owner’s Guide and all safety decals on the trailer.
Wash and wax your trailer regularly. Always rinse your trailer
after each use, especially when boating in salt or brackish
water.
Re-check all fasteners for tighteness before towing.
Contact your authorized ShoreLand’r dealer if you experience a problem with your trailer. To locate a dealer, please
use www.shorelandr.com - dealer locator feature.
For further information or assistance, contact ShoreLand’r
at 1-800-859-3028 or visit www.shorelandr.com.
