ShoreLand'r SRV46TBA User Manual V.2
SRV46TBA-_ _
(Service Manual for models after serial number 404204)
SRV46TBA-_ _
69082 Literature Bag - Brakes - Trailers
4610048 Spring, 5-Leaf
69012-_ _ Frame Bundle - SRV46TBA
*ST215/75R14C Tire w/Rim
69244 Hdwe Bag - Bulk Parts
*Check with your dealer/customer service representative for current tire/rim assembly part number.
ShoreLand’r offers its product line in painted nishes. When ordering parts, it is important that you specify the nish or color you have
on your product. The 5-digit number along with a 2-digit space _ _,
note that the parts can be purchased in various nishes.
03..........Black
14..........Blue
22..........Red
25..........Yellow
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003880
Page 1 REV C 02/04/2008
SRV46TBA Specications
Capacity 4600 lbs.
GVWR: 5920 lbs.
GAWR: 2960 lbs.
Ship Wt: 928 lbs.
Frm Size: 2X4 (11 Ga.)
Tire Size: ST215/75R14C
Rim Size: 13 X 4 “J”
Brake: Surge Hydraulic
Coupler: 2” Actuator, 6000 lbs.
Safety Chain: 7600 lbs.
Suspension: 5 Leaf Hook Springs
Tongue Size: 3X5X65” Swing Tongue
Table of Contents
Frame Drawing & Bill of Materials .........................................2-3
More Information ...................................................................3
Swing Tongue, Actuator, Safety Chain (Disc) ........................4

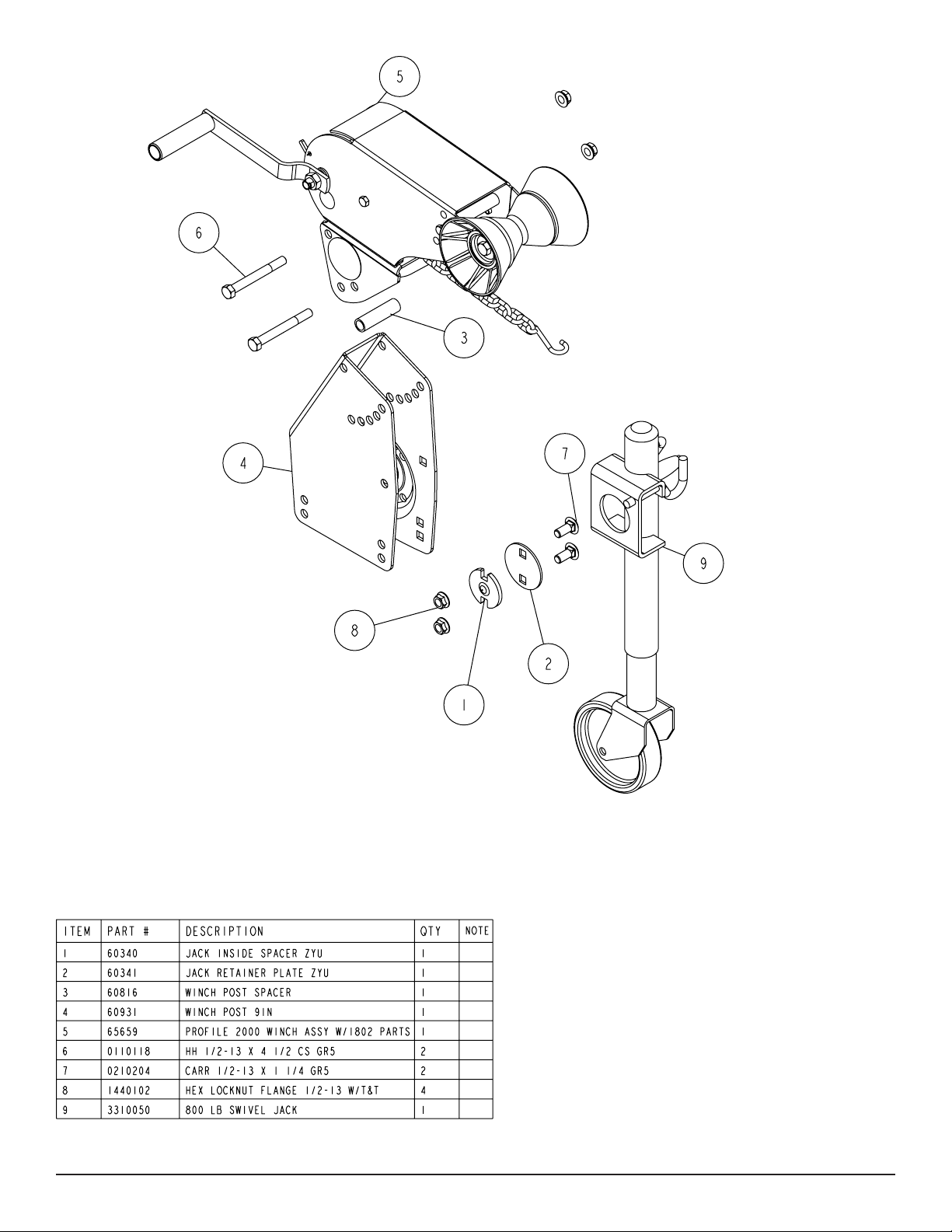

Prole 2000 Winch / Jack Drawing & BOM ..........................5
Winch Dwg / BOM .................................................................6

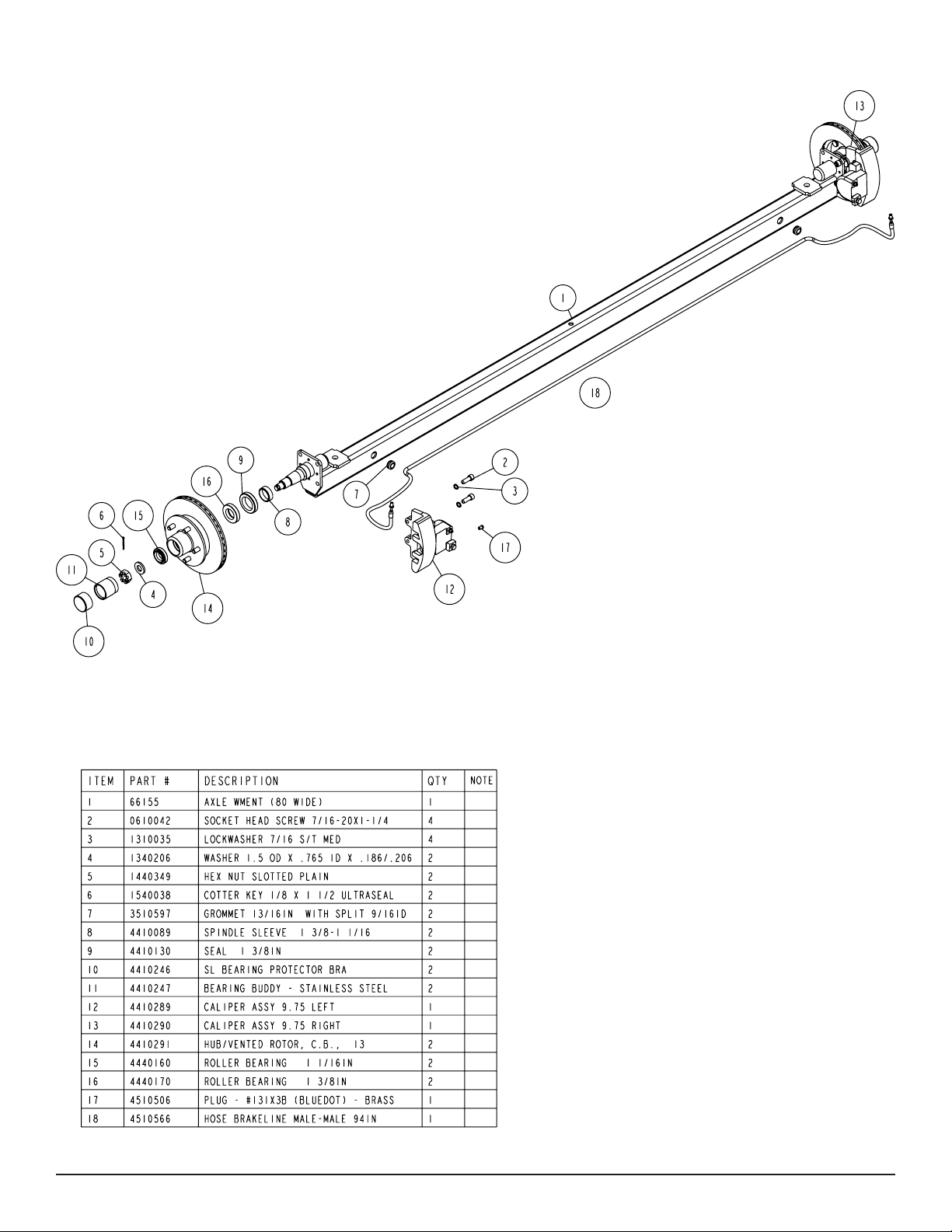

Axle Assembly Dwg / BOM (Disc) .........................................7-9
Bunk Dwg / BOM...................................................................10
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003880
Page 2 REV C 02/04/2008
Your SeaRay trailer is designed, assembled and pre-adjust-
ed to t your boat. If properly maintained it will give your boat
maximum support and many years of care free service.
Follow these instructions before using your trailer:
Read your ShoreLand’r Owner’s Guide and all safety decals on the trailer.
Wash and wax your trailer regularly. Always rinse your trailer
after each use, especially when boating in salt or brackish
water.
Re-check all fasteners for tightness before towing.
Check the tire pressure before towing.
Contact your authorized ShoreLand’r dealer if you experience a problem with your trailer.
For further information or assistance, contact ShoreLand’r
at 1-800-859-3028 or visit www.shorelandr.com.
Tire Size and Carrying Capacity Chart
Tire Size .....................ST215/75R14C
GVWR ........................2960 LB.
Carrying Capacity .......4600 LB.
Axle.............................Single Brake - Standard
Refer to the tire side wall for correct tire pressure.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003880
Page 3 REV C 02/04/2008
