SRV31B-08 & SRV31B-18
SRV31B-08 SeaRay 3100 V-Frame
*ST215/75R14C MR M/S Dir Rim
8049908 Frame Bundle SR-PWV31
66296 Hardware Bag (Bulk Parts) SRV31
69082 Lit Packet - ShoreLand’r - Brakes
SRV31B-18 SeaRay 3100 V-Frame
*ST215/75R14C MR Galv. Dir Rim
8049918 Frame Bundle SR-PWGV31
66296 Hardware Bag (Bulk Parts) SRV31
69082 Lit Packet - ShoreLand’r - Brakes
*Check with your dealer/customer service representative for current tire/rim assembly part number.
ShoreLand’r offers their product line in either galvanized or painted finish. When ordering parts it is
important that you specify the finish or color you
have on your product. The five (5) digit number
along with a two (2) digit space _ _, note the parts
which can be purchased with various finishes.
When ordering these items use the five (5) digit number along with a two (2) digit suffix for the
proper finish.
08 .........Pearl White
18 .........Galvanized with Pearl White Plastic
SRV31B-08 / SRV31B-18 Specifications:
Capacity: 3100 lbs.
GVWR: 3740 lbs.
GAWR: 3740 lbs.
Ship Wt: 635 lbs.
Frm Size: 2X4 (11 Ga)
Tire Size: ST215/75R14-C
Rim Size: 14 X 6 “J”
Brake: Disc
Coupler: 2” Actuator, 6000 lbs.
Safety Chn: 6000 lb.
Suspension: 5 Leaf Hook Springs
Tongue Size: 3 X 5 X 65” Swing Tongue
Table of Contents: Page
Frame Drawing & Bill of Materials ..................2-3
More Information .............................................3
Swing Tongue, Actuator & Safety Chain -
Disc .................................................................4
Profile 2000 Winch / Jack Dwg/BOM ..............5
Tire Size & Carrying Capacity Chart ..............6

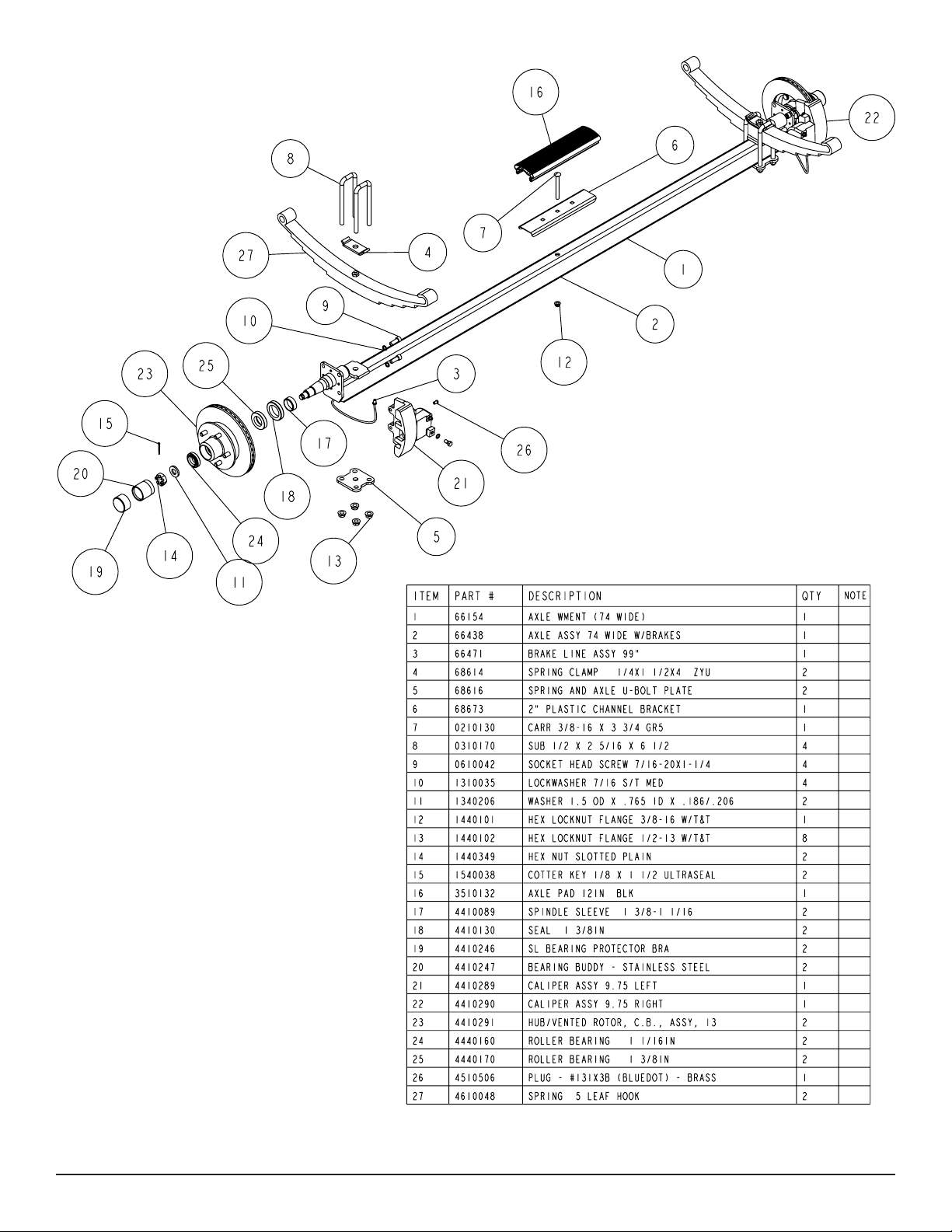

Axle Assembly - Disc .......................................6
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241
Page 1 REV A 4/25/06
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241
Page 2 REV A 4/25/06
Your SeaRay trailer is designed, assembled and pre-adjusted to fit your boat. If properly maintained it will give your boat
maximum support and many years of care free service.
Follow these instructions before using your trailer:
Read your ShoreLand’r Owner’s Guide and all safety decals on the trailer.
Wash and wax your trailer regularly. Always rinse your trailer
after each use, especially when boating in salt or brackish
water.
The law requires that the white ground wire on both the
trailer wire harness and the vehicle harness be properly
grounded.
Re-check all fasteners for tightness before towing.
Check the tire pressure before towing.
Contact your authorized ShoreLand’r dealer if you experience a problem with your trailer.
For further information or assistance, contact ShoreLand’r
at 1-800-859-3028 or visit www.shorelandr.com.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241
Page 3 REV A 4/25/06
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241
Page 4 REV A 4/25/06
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241
Page 5 REV A 4/25/06
Tire Size and Carrying Capacity Chart
Tire Size ............................ST215/75R 14-C
GVWR ...............................3740 lb.
Carrying Capacity ............ .3100 lb.
Axle ...................................Disc Brake
Refer to the tire side wall for correct tire pressure.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241
Page 6 REV A 4/25/06
