ShoreLand'r SRV31B User Manual V.2

SRV31B-_ _

(Service Manual for models after serial number 390327)

SRV31B-_ _ SeaRay 3100 V-Frame

*ST215/75R14C GY TS Dir Rim 80499-_ _ Frame Bundle SR-V31B 66296 Hardware Bag (Bulk Parts) SRV31 69082 Lit Packet - ShoreLand’r - Brakes 4610048 Spring - 5 Leaf Hook

*Check with your dealer/customer service representative for current tire/rim assembly part number.

ShoreLand’r offers its product line in painted nishes. When ordering parts, it is important that you specify the nish or

color you have on your product. The 5-digit number along with a 2-digit space _ _, note that the parts can be purchased

in various nishes.

03 ........ Black

08 ........ Pearl White

14 ........ Blue

18 ........ Galvanized with Pearl White Plastic

22 ........ Red

25 ........ Yellow

SRV31B-_ _ Specications:

Capacity: 3100 lbs.

GVWR: 3740 lbs. GAWR: 3740 lbs. Ship Wt: 635 lbs.

Frm Size: 2X4 (11 Ga) Tire Size: ST215/75R14-C Rim Size: 14 X 6 “J” Brake: Disc Coupler: 2” Actuator, 6000 lbs. Safety Chn: 7600 lb. Suspension: 5 Leaf Hook Springs Tongue Size: 3 X 5 X 65” Swing Tongue

Table of Contents: Page

Frame Drawing & Bill of Materials ..................2-3

More Information .............................................3

Swing Tongue, Actuator & Safety Chain .........4

Prole 2000 Winch / Jack Dwg/BOM ..............5-6

Tire Size & Carrying Capacity Chart ..............7

Axle Assembly - Disc .......................................7

Bunk Dwg/BOM ...............................................8

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 1 REV D 02/04/2008

SEE DETAIL A

SEE DETAIL B

SEE DETAIL C

SEE DETAIL D

DETAIL A SCALE 0.070

DETAIL B SCALE 0.070

DETAIL C SCALE 0.070

DETAIL D SCALE 0.070

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 2 REV D 02/04/2008

ITEM PART # DESCRIPTION QTY

NOTE

1 60403 BUNK BRKT 2 7/8 4

60403.prt60403

2 66157 BUNK ASSY W/BRKTS 9 FT 2

66157.asm66157

3 66277 FRAME WMENT SR-V1831 1

FRAME WMENT SR-V183166277

4 66438 AXLE ASSY 74 WIDE W/BRAKES 1

AXLE ASSY W/BRAKES 2X4 74WIDE66438

5 66494 PROFILE 2000 WINCH CASE ASSY 1

WINCH ASSY 1802/9IN BASE/JACK66494

6 68271 TONGUE COVER PLATE 1

TONGUE PLATE COVER 2X468271

7 68610 SPRING BRKT BUSHING PLATED ZYU 2

SPRING BRKT BUSHING PLATED ZYU68610

8 68614 SPRING CLAMP 1/4X1 1/2X4 ZYU 2

SPRING CLAMP 1/4X1 1/2X4 ZYU68614

9 68616 SPRING AND AXLE U-BOLT PLATE 2

SPRING PLATE 3&9/16X3&13/16 ZYU68616

10 69258 FENDER 10IN POLY RIGHT 1 HOLE 1

FENDER 10IN POLY RIGHT 1 HOLE69258

11 69259 FENDER 10IN POLY LEFT 1 HOLE 1

FENDER 10IN POLY LEFT 1 HOLE69259

12 69461 SWINGTONGUE ASSY 65IN DISC SR 1

SWINGTONGUE ASSY 65IN DISC SR69461

13 0110059 HH 3/8-16 X 3 3/4 CS GR5 4

HH 3/8-16 X 3 3/4 CS GR50110059

14 0110114 HH 1/2-13 X 4 CS GR5 1

HH 1/2-13 X 4 CS GR50110114

15 0110120 HH 1/2-13 X 5 CS GR5 1

HH 1/2-13 X 5 CS GR50110120

16 0110170 HH 9/16-18 X 3 1/4 CS GR5 4

HH 9/16-18 X 3 1/4 CS GR50110170

17 0140040 HH 3/8-16 X 1 CS GR5 12

HH 3/8-16 X 1 CS GR50140040

18 0140094 HH 1/2-13 X 1 1/2 CS GR5 1

HH 1/2-13 X 1 1/2 CS GR50140094

19 0210130 CARR 3/8-16 X 3 3/4 GR5 2

CARR 3/8-16 X 3 3/4 GR50210130

20 0210218 CARR 1/2-13 X 4 GR5 3

CARR 1/2-13 X 4 GR50210218

21 0310170 SUB 1/2 X 2 5/16 X 6 1/2 4

SUB 1/2-13 X 2 5/16 X 6 1/20310170

22 0810925 SCREW SELFDRILL HWH #10-16 X 3/4 2

SCREW #10-16 X 3/4 SELF DRILL HWH0810925

23 1310163 WASHER 1.377X.39X.105 8

WASHER 1.377 OD X .390 ID X .1051310163

24 1340030 LOCKWASHER 3/8 S/T MED ULTRASEAL 2

LOCKWASHER 3/8 S/T MED ULTRASEALED1340030

25 1340095 WASHER USS FLAT 3/8 2

WASHER USS FLAT 3/81340095

26 1340100 WASHER USS FLAT 1/2 2

WASHER USS FLAT 1/21340100

27 1410109 HEX NUT 3/8-16 2

HEX NUT 3/8-161410109

28 1410229 HEX LUGNUT 1/2-20 13/16 OD Z&U 10

HEX LUGNUT 1/2-20 13/16 OD Z&U1410229

29 1440101 HEX LOCKNUT FLANGE 3/8-16 W/T&T 16

HEX LOCKNUT FLANGE 3/8-161440101

30 1440102 HEX LOCKNUT FLANGE 1/2-13 W/T&T 13

HEX LOCKNUT FLANGE 1/2-131440102

31 1440259 HEX LOCKNUT 9/16-18 GRA 4

HEX LOCKNUT 9/16-18 GRA1440259

32 2210301 CHAIN SAFETY 8/0 MACH X25LK W/LA 2

CHAIN SAFETY 8/0 MACH X25LK W/LATCH2210301

33 3510022 GROMMET 7/16IN MOLDED 1

GROMMET 7/16IN BLACK WITH SPLIT3510022

34 3510030 GROMMET 7/8IN MOLDED 6

GROMMET 7/8IN MOLDED3510030

35 3510158 PLASTIC DRIVE RIVOT 8

RIVET PLASTIC DRIVE3510158

36 3510253 LIGHT BEZEL - AMBER 4

LIGHT BEZEL AMBER3510253

37 3510263 RUBBER CUP WASHER 8

RUBBER CUP WASHER3510263

38 3510368 TAILLIGHT STEP PAD TREAD TAPE 2

TAILLIGHT STEP PAD TREAD TAPE3510368

39 3510542 MOLDED REAR CROSSMEMBER PAD 2

FORMED MOLDED REAR CROSSMEMER PAD3510542

40 3510597 GROMMET 13/16IN WITH SPLIT 9/16ID 5

GROMMET 13/16IN WITH SPLIT 9/16ID3510597

41 4510564 HOSE BRAKELINE MALE-MALE 200IN 1

HOSE BRAKELINE MALE-MALE 200IN4510564_F

42 4610048 SPRING 5 LEAF HOOK 2

SPRING 5 LEAF HOOK4610048

43 5110127 REFLECTOR ANDERSON AMBER 2

REFLECTOR ANDERSON AMBER ADHESIVE5110127

44 5110348 BO LICENSE PLATE BRACKET 1

B O LICENSE PLATE BRACKET5110348

- 5110565 HARNESS FRAME 214" FULL GROUND RT 1

HARNESS FRAME 214" FULL GROUND RT5110565

- 5110566 HARNESS FRAME 214" FULL GROUND LT 1

HARNESS FRAME 214" FULL GROUND LT5110566

45 5110572 MARINE YELLOW CLEARANCE LIGHT 4

LIGHT MARINE YELLOW FENDER5110572

46 5110573 TAILLIGHT RIGHT PETERSON FG 1

TAILLIGHT RIGHT PETERSON FG5110573

47 5110574 TAILLIGHT LEFT PETERSON FG 1

TAILLIGHT LEFT PETERSON FG5110574

48 5110575 LIGHT CLUSTER THREE FG 1

LIGHT CLUSTER THREE FG5110575

Your SeaRay trailer is designed, assembled and pre-adjust-

ed to t your boat. If properly maintained it will give your boat

maximum support and many years of care free service.

Follow these instructions before using your trailer:

Read your ShoreLand’r Owner’s Guide and all safety decals on the trailer.

Wash and wax your trailer regularly. Always rinse your trailer

after each use, especially when boating in salt or brackish water.

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 3 REV D 02/04/2008

The law requires that the white ground wire on both the trailer wire harness and the vehicle harness be properly grounded.

Re-check all fasteners for tightness before towing.

Check the tire pressure before towing.

Contact your authorized ShoreLand’r dealer if you experience a problem with your trailer.

For further information or assistance, contact ShoreLand’r at 1-800-859-3028 or visit www.shorelandr.com.

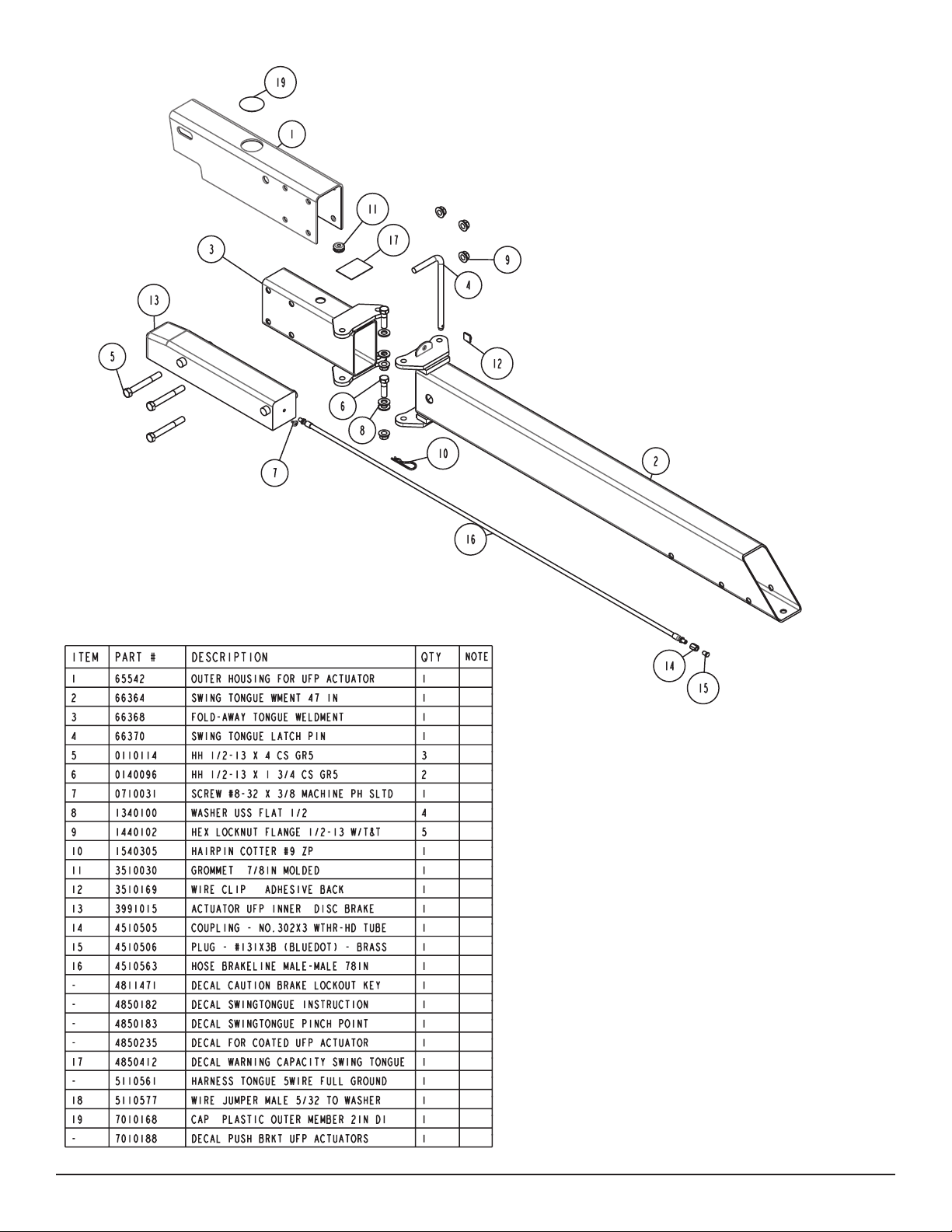

ITEM PART # DESCRIPTION QTY

NOTE

1 65542 OUTER HOUSING FOR UFP ACTUATOR 1

OUTER HOUSING FOR UFP ACTUATOR 5IN65542

2 66364 SWING TONGUE WMENT 47 IN 1

SWINGTONGUE WMENT 47 IN66364

3 66368 FOLD-AWAY TONGUE WELDMENT 1

FOLD AWAY TONGUE WMENT66368

4 66370 SWING TONGUE LATCH PIN 1

SWINGTONGUE LATCH PIN66370

5 0110114 HH 1/2-13 X 4 CS GR5 3

HH 1/2-13 X 4 CS GR50110114

6 0140096 HH 1/2-13 X 1 3/4 CS GR5 2

HH 1/2-13 X 1 3/4 CS GR5 A3250140096

7 0710031 SCREW #8-32 X 3/8 MACHINE PH SLTD 1

SCREW #8-32 X 3/8 MACHINE PH SLTD0710031

8 1340100 WASHER USS FLAT 1/2 4

WASHER USS FLAT 1/21340100

9 1440102 HEX LOCKNUT FLANGE 1/2-13 W/T&T 5

HEX LOCKNUT FLANGE 1/2-131440102

10 1540305 HAIRPIN COTTER #9 ZP 1

HAIRPIN COTTER #9 ZP1540305

11 3510030 GROMMET 7/8IN MOLDED 1

GROMMET 7/8IN MOLDED3510030

12 3510169 WIRE CLIP ADHESIVE BACK 1

WIRE CLIP W/ADHESIVE BACK3510169

13 3991015 ACTUATOR UFP INNER DISC BRAKE 1

****ACT INNER DRUM BRAKE USE39910143991015

14 4510505 COUPLING - NO.302X3 WTHR-HD TUBE 1

COUPLING - NO.302X3 WTHR-HD TUBE4510505

15 4510506 PLUG - #131X3B (BLUEDOT) - BRASS 1

PLUG - #131X3B (BLUDOT)-BRASS4510506

16 4510563 HOSE BRAKELINE MALE-MALE 78IN 1

HOSE BRAKELINE MALE-MALE 78IN4510563_FLAT

- 4811471 DECAL CAUTION BRAKE LOCKOUT KEY 1

DECAL CAUTION BRAKE LOCKOUT KEY4811471

- 4850182 DECAL SWINGTONGUE INSTRUCTION 1

DECAL SWINGTONGUE INSTRUCTION4850182

- 4850183 DECAL SWINGTONGUE PINCH POINT 1

DECAL SWINGTONGUE PINCH POINT4850183

- 4850235 DECAL FOR COATED UFP ACTUATOR 1

DECAL FOR COATED UFP ACTUATOR4850235

17 4850412 DECAL WARNING CAPACITY SWING TONGUE 1

DECAL WARNING CAPACITY SWING TONGUE4850412

- 5110561 HARNESS TONGUE 5WIRE FULL GROUND 1

HARNESS TONGUE 5WIRE FULL GROUND5110561

18 5110577 WIRE JUMPER MALE 5/32 TO WASHER 1

5110577

19 7010168 CAP PLASTIC OUTER MEMBER 2IN DI 1

7010168

- 7010188 DECAL PUSH BRKT UFP ACTUATORS 1

7010188

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 4 REV D 02/04/2008

ITEM PART # DESCRIPTION QTY

NOTE

1 60340 JACK INSIDE SPACER ZYU 1

JACK INSIDE SPACER ZYU60340

2 60341 JACK RETAINER PLATE ZYU 1

JACK RETAINER PLATE ZYU60341

3 60816 WINCH POST SPACER 1

BUSHING WINCH POST ZYU60816

4 60931 WINCH POST 9IN 1

WINCH POST 9IN60931

5 65659 PROFILE 2000 WINCH ASSY W/1802 PARTS 1

WINCH ASSY W/1802 PARTS65659

6 0110118 HH 1/2-13 X 4 1/2 CS GR5 2

HH 1/2-13 X 4 1/2 CS GR50110118

7 0210204 CARR 1/2-13 X 1 1/4 GR5 2

CARR 1/2-13 X 1 1/4 GR50210204

8 1440102 HEX LOCKNUT FLANGE 1/2-13 W/T&T 4

HEX LOCKNUT FLANGE 1/2-131440102

9 3110237 WINCH HANDLE DL1802 1

WINCH HANDLE DL18023110237

10 3310050 800 LB SWIVEL JACK 1

JACK 800 LB SWIVEL3310050

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 5 REV D 02/04/2008

ITEM PART # DESCRIPTION QTY

NOTE

1 65657 WINCH HOLDER CASE 1

PROFILE WINCH CASE WMENT65657

2 68671 NYLON WINCH CASE BUSHING-3/4OD X 4.25 1

NYLON BUSHING 3/4 OD X 4 1/4 IN68671

3 68683 CUP WASHER - WINCHES 2

CUPWASHER ALUMINUM68683

4 0110064 HH 3/8-16 X 5 CS GR5 2

HH 3/8-16 X 5 CS GR50110064

5 0110125 HH 1/2-13 X 5 1/2 CS GR5 1

HH 1/2-13 X 5 1/2 CS GR50110125

6 204009 SHAFT BUSHING DL1400/2500 2

SHAFT BUSHING DL1400 2500204009

7 204360 SPACER WASHER DL1602 1

SPACER WASHER DL1602204360

8 204808 REEL SPACER DL1700 1

REEL SPACER DL1700204808

9 204809 HANDLE HUT DL1602 1

HANDLE NUT DL1602204809

10 205014 LOCK NUT DL1400/1700/1802/2500 1

HEX LOCK NUT DL1400 1700 1802 2500205014

11 205116 E-RING DL1602/1700/2500 1

E RING DL1602 1700 2500205116

12 205139 SPACER WASHER 1

SPACER WASHER DL1700 1802 2500205139

13 205269 RATCHET PAWL BOLT 1/4-20 X 5 1

RATCHET PAWL BOLT 1/4-20 X 5205269

14 205270 LOCKNUT 3/8-16 JAM STYLE FOR WINCH 1

HEX LOCKNUT 3/8-16 JAMB STYLE205270

15 206281 EXTENSION SPRING - BLUE 1

EXTENSION SPRING - BLUE206281

- 206282 WARRANTY TAG DL1800/1802 WINCH 1

WARRANTY TAG DL1800/1802 WINCH206282

16 0210102 CARR 3/8-16 X 1 GR5 1

CARR 3/8-16 X 1 GR50210102

17 304731 DRIVE SHAFT UPPER DL1802 1

DRIVE SHAFT UPPER DL1802A304731

18 404868 REVERSABLE RATCHET PAWL 1

REVERSABLE RATCHET PAWL LEVER404868

19 404872 RACHET SPACER DL1700/2500 1

RATCHET SPACER DL1700/2500404872

20 404878 RATCHET SLEEVE DL1700/2500 1

RATCHET SLEEVE DL1700/2500404878

21 1340095 WASHER USS FLAT 3/8 1

WASHER USS FLAT 3/81340095

22 1440101 HEX LOCKNUT FLANGE 3/8-16 W/T&T 2

HEX LOCKNUT FLANGE 3/8-161440101

23 1440102 HEX LOCKNUT FLANGE 1/2-13 W/T&T 1

HEX LOCKNUT FLANGE 1/2-131440102

24 2210145 CHAIN 1/4(7MM)X 10 LINKS 1

CHAIN 1/4 (7MM) X 10 LINKS2210145

25 3110348 WINCH REEL W/STRAP DL1800/1802 1

WINCH REEL WITH STRAP 1800/18023110348

26 3510586 END CAP PROFILE 2000 TAN 2

END CAP PROFILE 2000 TAN3510586

27 3510587 ROLLER 4" BOW YATES TAN #450 1

ROLLER 4" BOW YATES TAN #4503510587

28 3520011 PLUG 3/8IN WHITE PLASTIC 4

PLUG 3/8 IN WHITE PLASTIC3520011

29 3520019 PLUG 1IN WHITE PLASTIC 2

PLUG 1 IN WHITE PLASTIC3520019

- 4811349 DECAL PROFILE 2000 2

4811349

- 4811358 DECAL CLEAR W/BLACK LETTERS PROF 1

4811358

30 4811451 DECAL NMMA CERTIFIED TRAILER 1

4811451

- 4850383 DECAL CAPACITY DL1802A 1

4850383

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 6 REV D 02/04/2008

ITEM PART # DESCRIPTION QTY

NOTE

1 66154 AXLE WMENT (74 WIDE) 1

AXLE WMENT 74WIDE66154

2 68673 2" PLASTIC CHANNEL BRACKET 1

CUSHION BRKT 12 IN FOR 2 IN TUBE68673

3 0210130 CARR 3/8-16 X 3 3/4 GR5 1

CARR 3/8-16 X 3 3/4 GR50210130

4 0610042 SOCKET HEAD SCREW 7/16-20X1-1/4 4

SCREW 7/16-20X1 1/4 SKT CAP GR8 ZYU0610042

5 1310035 LOCKWASHER 7/16 S/T MED 4

LOCKWASHER 7/16 S/T1310035

6 1340206 WASHER 1.5 OD X .765 ID X .186/.206 2

WASHER 1&1/2X.765IDX.182 .2061340206

7 1440101 HEX LOCKNUT FLANGE 3/8-16 W/T&T 1

HEX LOCKNUT FLANGE 3/8-161440101

8 1440349 HEX NUT SLOTTED PLAIN 2

HEX NUT SLOTTED PLAIN 3/4-161440349

9 1540038 COTTER KEY 1/8 X 1 1/2 ULTRASEAL 2

COTTER KEY 1/8 X 1 1/2 ULTRASEALED1540038

10 3510132 AXLE PAD 12IN BLK 1

AXLE PAD 12IN BLK3510132

11 3510597 GROMMET 13/16IN WITH SPLIT 9/16ID 2

GROMMET 13/16IN WITH SPLIT 9/16ID3510597

12 4410089 SPINDLE SLEEVE 1 3/8-1 1/16 2

SPINDLE SLEEVE 1 3/8-1 1/164410089

13 4410130 SEAL 1 3/8IN 2

SEAL 2 1/8ID4410130

14 4410246 SL BEARING PROTECTOR BRA 2

BEARING PROTECTOR BRA 5 LUG4410246

15 4410247 BEARING BUDDY - STAINLESS STEEL 2

BEARING PROTECTOR SS 1.9804410247

16 4410289 CALIPER ASSY 9.75 LEFT 1

CALIPER, 9.75 IN, ASSY,LEFT4410289

17 4410290 CALIPER ASSY 9.75 RIGHT 1

CALIPER, 9.75 IN, ASSY, RIGHT4410290

18 4410291 HUB/VENTED ROTOR, C.B., 13 2

HUB/VENTED ROTOR, C.B. ASSY.13IN4410291

19 4440160 ROLLER BEARING 1 1/16IN 2

ROLLER BEARING 1 1/16IN4440160

20 4440170 ROLLER BEARING 1 3/8IN 2

ROLLER BEARING 1 1/16IN4440170

21 4510506 PLUG - #131X3B (BLUEDOT) - BRASS 1

PLUG - #131X3B (BLUDOT)-BRASS4510506

22 4510566 HOSE BRAKELINE MALE-MALE 94IN 1

HOSE BRAKELINE MALE-MALE 94INX4510566

Tire Size and Carrying Capacity Chart

Tire Size ............................ST215/75R 14-C

GVWR ...............................3740 lb.

Carrying Capacity ............ .3100 lb.

Axle ...................................Disc Brake

Refer to the tire side wall for correct tire pressure.

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 7 REV D 02/04/2008

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003241 Page 8 REV D 02/04/2008

ShoreLand'r SRV31B User Manual V.2

Specifications and Main Features

Frequently Asked Questions

User Manual
