SR-PWV1824 & SR-GPWV1824
Parts Manual
SR-PWV1824 SeaRay 2X4 - 2400 lbs.
Trailer - Pearl White
1 62340 Literature Bag - Trailers
1 62117 Bulk Parts Bags
1 6623208 Frame Bundle SR-V1824 PW
Tire Size &
Carrying Capacity Chart
Tire Load Carrying
Size Range Capacity
ST185/80R13C C 1480 lbs. p/tire
Refer to tire side wall for correct tire pressure.
SR-GPWV1824 SeaRay 2X4 - 2400 lbs.
Trailer - Galvanized
1 62340 Literature Bag - Trailers
1 62117 Bulk Parts Bags
1 6623200 Frame Bundle SR-V1824 Galv.
T ongue W eight Adjustment
Approximate Tongue Weight for Best Towing.
Tongue weight too high, move the axle assembly forward.
Tongue weight too low, move the axle assembly backward. Tongue weight should be 5% to 7% of the total
gross weight of the boat and trailer combined.
Material List for the SR-V1824
NOTE: ShoreLand’r offers their product line in either galvanized or painted finish. When ordering parts it is important that you specify the
finish or color you have on your product. The five digit number along with a two digit space _ _, notes the parts which can be purchased
with various finishes. When ordering these items use the five digit prefix and include the following two digit suffix for proper finish.
Suffix Finish / Color
00 or G Galvanized
03 or BK Black
08 or PW Pearl White
REF# PART# DESCRIPTION ......................................... QTY
1 6034010 JACK INSIDE SPACER ZYU ................... 1
2 6034110 JACK RETAINER PLATE ZYU ................. 1
3 60403 2-7/8" BUNK BRACKET ........................... 2
4 60816 WINCH POST SPACER ........................... 1
5 60929-- WINCH HOLDER CASE .......................... 1
6 60931-- WINCH POST 9IN .................................. 1
7 6107503 END CAP - BLACK PROFILE 2000 ......... 2
8 61294 3-7/8" BUNK BRACKET ........................... 2
9 61845-- FENDER 9IN POLY.................................. 2
10 62246-- FOLD-AWAY FRONT WMENT(3X4X18) . 1
1 1 6225510 SWING TONGUE LATCH PIN................. 1
12 62317-- SWINGTONGUE WMENT 47" REAR ..... 1
13 63333-- TONGUE STAND WMENT ...................... 1
14 66157-- BUNK ASSY W/BRKTS 9 FT ................... 2
15 66233-- FRAME WMENT SR-V1824..................... 1
16 0110037 HH 3/8-16 X 1 1/4 CS GR5 ...................... 2
17 0110059 HH 3/8-16 X 3 3/4 CS GR5 ...................... 4
18 0110064 HH 3/8-16 X 5 CS GR5 ............................ 1
19 0110096 HH 1/2-20 X 1-1/2 ..................................... 1
20 0110114 HH 1/2-13 X 4 CS GR5 ............................ 2
21 0110118 HH 1/2-13 X 4 1/2 CS GR5 ...................... 2
22 0110125 HH 1/2-13 X 5 1/2 CS GR5 ...................... 1
23 0110170 HH 9/16-18 X 3 1/4 CS GR5 .................... 2
24 0140040 HH 3/8-16 X 1 CS GR5 ............................ 4
25 0140090 HH 1/2-13 X 1 CS GR5 ............................ 2
26 0140096 HH 1/2-13 X 1 3/4 CS GR5 ...................... 2
27 0210058 CARR 5/16-18 X 1 GR5 ........................... 8
28 0210102 CARR 3/8-16 X 1 GR5 ............................. 1
29 0210130 CARR 3/8-16 X 3 3/4 GR5 ....................... 2
30 0210204 CARR 1/2-13 X 1 1/4 GR5 ....................... 2
31 0210218 CARR 1/2-13 X 4 GR5 ............................. 3
32 0310095 SUB 3/8-16 X 3 7/16 X 4 7/8 .................... 1
33 0810126 SCREW SELFTAP TYPE B 1/4X1/2 ........ 4
34 0810925 SCREW SELFDRILL HWH #10-16 X 3/4 2
35 0810930 SCREW SEL F TAP #10-12X1 1/4 TYPE A 8
36 0810945 SCREW SELFDRILL 1/4-14X3/4 ............ 1
37 1310025 LOCKWASHER 5/16 S/T MED ................ 8
38 1310170 WASHER#10 USS FLAT .......................... 2
39 1340030 LOCKWASHER 3/8 S/T MED .................. 2
40 1340095 WASHER USS FLAT 3/8.......................... 7
41 1340100 WASHER USS FLAT 1/2.......................... 5
42 1410069 HEX NUT FINISH 5/16-18 ....................... 8
43 1410109 HEX NUT FINISH 3/8-16 ......................... 2
44 1410209 HEX LOCKNUT 1/2-20............................. 1
45 1440101 FLANGE LOCKNUT SMALL 3/8-16......... 14
REF# PART# DESCRIPTION ......................................... QTY
46 1440102 FLANGE LOCKNUT SMALL 1/2-13......... 14
47 1440259 HEX LOCKNUT 9/16-18 GRA.................. 2
48 1540305 HITCH PIN CLIP #9 ................................. 1
49 2210145 CHAIN 1/4(7MM)X 10 LINKS ................... 1
50 2210155 CHAIN 3/16X20 LINK CHAIN .................. 2
51 3100010 COUPLER #980 P2 ASSEMBLED........... 1
52 3110237 WINCH HANDLE DL1802 ....................... 1
53 3310050 800 LB SWIVEL JACK.............................. 1
54 3510022 GROMMET 7/16IN MOLDED ................. 1
55 3510030 GROMMET 7/8IN MOLDED ................... 10
56 3510065 4" BOW ROLLER - BLACK ...................... 1
57 3510122 LIGHT BEZEL - WHITE............................ 6
58 3510158 PLASTIC DRIVE RIVOT .......................... 12
59 3510542 MOLDED REAR CROSSMEMBER PAD . 2
60 5110013 DRY LAUNCH LIGHT ASSY (LEFT) ....... 1
61 5110014 DRY LAUNCH LIGHT ASSY (RIGHT)..... 1
62 5110045 3 LIGHT CLUSTER 1994 LEXAN .......... 1
63 5110112 MARINE YELLOW CLEARANCE LIGHT 4
64 5110113 MARINE RED CLEARANCE LIGHT ....... 2
65 5110127 REFLECTOR ANDERSON AMBER ........ 2
66 5110348 BO LICENSE PLATE BRACKET ............. 1
- 5110354 HARNESS FRAME 2X4 LEFT 17FT 2IN . 1
- 5110355 HARNESS FRAME 2X4 RIGHT 17FT 2IN 1
- 5110365 WIRE 2X5 TANDEM FENDER RIGHT .... 2
- 5110455 DO-RAY DOUBLE GROUND WIRE ........ 1
67 LH308 CUP WASHER ......................................... 2
68 S-3374 NYLN WINCHCASE BUSH-3/4ODX4.25 1
69 S-3390 STEP PAD RIGHT 2 1/2 X 7 ................. 1
70 S-3391 STEP PAD LEFT 2 1/2 X 7.................... 1
71 S-3510 TONGUE COVER PLATE ........................ 1
72 S-3179G 2X6 BUNK BRKT SPUN GALV. ............... 4
73 S-3207G SPRING BRKT BUSHING PLATED ZYU 2
DECALS:
- 4850360 DECAL NMMA CERTIFIED TRAILER ..... 1
- 4850182 DECAL SWINGTONGUE INSTRUCT ..... 1
- 4850183 DECAL SWINGTONGUE PINCH PT ...... 1
- 4811358 DECAL CLR W/BLK LETTER - PROFILE 1
- 4811349 DECAL PROFILE 2000 ............................ 2
- 4810709 DECAL TRAILER CAUT/WARN .............. 1
ASSEMBLIES AND/OR OPTIONS:
- 64102-- AXLE ASSEMBLY FOR 2X4X74W
- 66157 BUNK ASSY 9’ W/BRKTS
- 66235-- SWING TONGUE ASSY
- 66236-- WINCH ASSY
- SS1009 65” SWING TONGUE
Assembly Instructions - SR-V1831
Swing Tongue:
Install the swing tongue assembly into the tongue channel of the
trailer frame. Thread the tongue harness through the tongue plate
cover. Secure the tongue plate cover (Ref.#64) and the swing
tongue assembly with a 1/2” X 1-1/2” hex bolt, 1/2” flat washer and
1/2” flange lock nut. Tighten, but do not over tighten. Match tongue
harness wires with the correct frame harness wires, plug-in. Wiring
is complete.
Safety Chain:
Mount the safety chains to the under side of the swing tongue on
the safety chain mounting bracket using a 1/2” X 1-1/2” hex bolt.
Secure the safety chains to the mounting bracket using a 1/2” flat
washer and a 1/2” flange lock nut per safety chain.
continue to page 4
Material List for the
SR-V1824 Chasis
continue from page 2

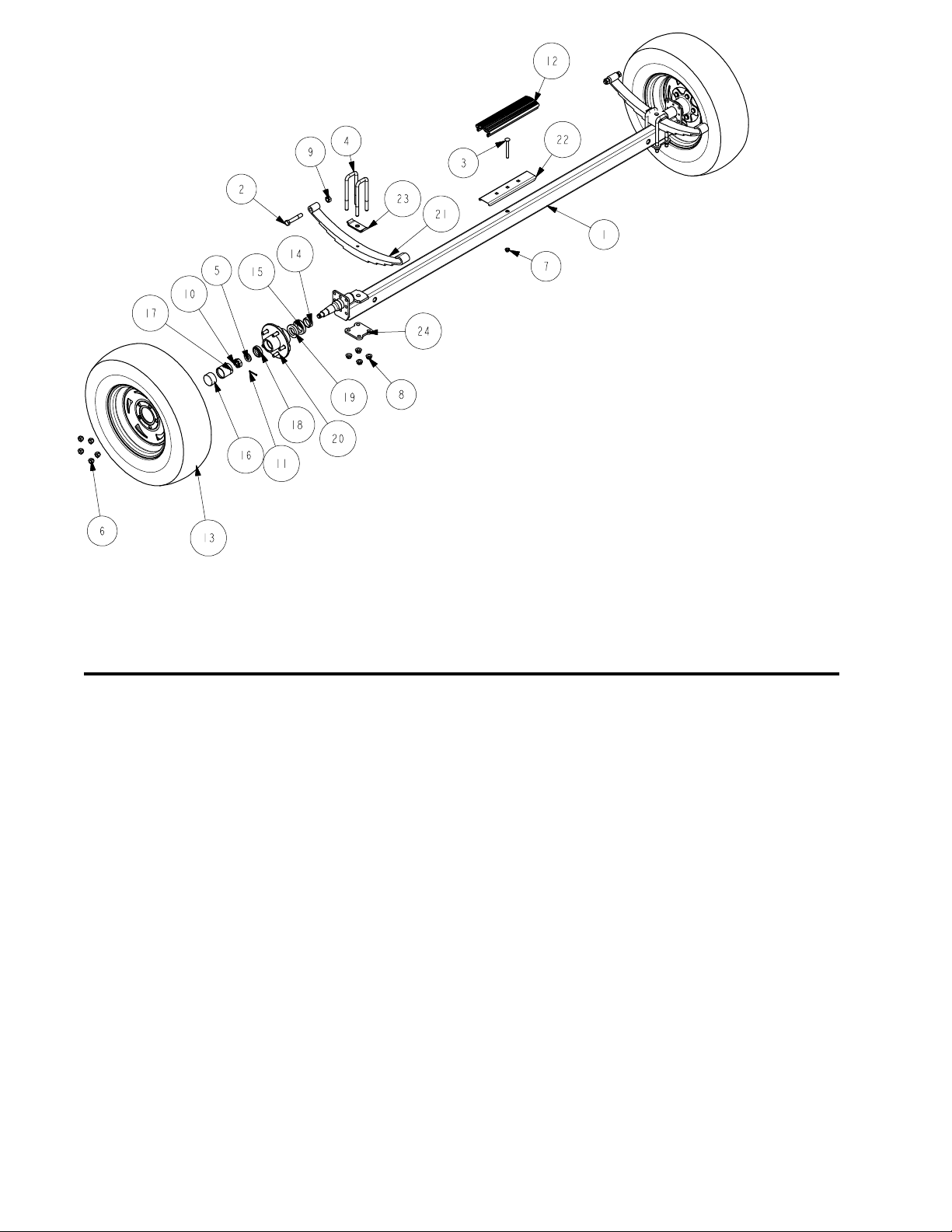

REF# PART# DESCRIPTION .......................................... QTY
1 66154-- AXLE WMENT (74 WIDE) ......................... 1
2 0110170 HH 9/16-18 X 3 1/4 CS GR5 ..................... 2
3 0210130 CARR 3/8-16 X 3 3/4 GR5 ........................ 1
4 0310170 SUB 1/2" X 2-5/16"X6-1/2.......................... 4
5 1340206 WASHER 1.5 OD X .765 ID X .186/.206 .. 2
6 1410229 HEX LUGN UT 1 /2- 20 13 /16 OD Z&U ....... 10
7 1440101 FLANGE LOCKNUT SMALL 3/8-16 .......... 1
8 1440102 FLANGE LOCKNUT SMALL 1/2-13 .......... 8
9 1440259 HEX LOCKNUT 9/16-18 GRA................... 2
10 1440349 HEX NUT SLOTTED PLAIN ..................... 2
1 1 1540038 COTTER KEY 1/8 X 1 1/2 ......................... 2
12 3510132 AXLE PAD 12IN BLK ................................ 1
13 4300218 ST185/80R13C TIRE/MSIL VER DIR RIM...... 2
14 4410089 SPINDLE SLEEVE 1 1/4-3/4IN BRG ....... 2
15 4410130 SEAL 1 3/8IN ............................................ 2
16 4410246 SL BEARING PROTECTOR BRA ............ 2
17 4410247 BEARING BUDDY - STAINLESS STEEL. 2
18 4440160 ROLLER BEARING 1 1/16IN .................. 2
19 4440170 ROLLER BEARING 1 3/8IN .................... 2
20 4470400 HUB 1 3/8 X 1 1/16 CAST ....................... 2
21 4610072 SPRING 5 LEAF HOOK ........................... 2
22 S-3387 2" PLASTIC CHANNEL BRACKET .......... 1
23 S-3409G SPRING CLAMP 1/4X1 1/2X4 ZYU ....... 2
24 S-3449G SPRING AND AXLE U-BOLT PLATE........ 2
Axle:
Place one of the spring bracket bushings (Ref.#73) into the rear of
the spring shackle and secure with a 9/16” X 3-1/4” hex bolt
(Ref.#23) and a 9/16” lock nut (Ref.#47). Repeat on the other side.
Position the axle under the frame, then hook the spring loop
around the bushing just installed. Raise the axle assembly up so
the front of the springs line up with the front spring bracket hole.
Insert the other two (2) 9/16” X 3-1/4” and 9/16” lock nuts. Tighten
all nuts and bolts but do not over tighten. Allow the spring room
enough to move.
Mount the tires and rims using 80-90 ft. lbs. torque on lug nuts
using a proper tightening procedure.
Bunk:
Mount and secure the 9’ bunk assemblies onto the 3-7/8” bunk
brackets (Ref.#8) using 3/8” X 1” hex bolts. Tighten with 3/8” flange
lock nuts. Be sure that the bunks are positioned so that the bunk
bracket attached to the bunk and the bracket attached to the frame
are mounted together so that you have metal to metal stops to
keep the bunks from pivoting too far. Tighten as far as possible but
still allow the bunk to fully pivot side to side.
Winch:
Mount the Profile 2000 winch assembly with jack on the tongue a
desired location that best fits your watercraft using three (3) 1/2” X
4” carriage bolts and 1/2” flange lock nuts. Install the winch handle
on the Profile 2000 winch shaft.
Assembly should be complete except for tightening some of
the bolts. These bolts were left loose to aid in adjusting the
trailer to the boat only. All bolts and nuts must be tightened
before towing.
NOTE: The law requires that the white ground wire on both
the tongue wire harness and vehicle harness be properly
grounded to respective trailer and vehicle frames.
Trailer Adjustments
Before adjusting the winch post check to see that the transom of
the boat is flush with rear of the bunks.
Place the boat onto the trailer so that it is resting on the bunks. The
transom must be flush with bunks at the rear of the trailer. Once
the boat is positioned as described above, make the following
adjustments.
Winch Post:
Slide the winch post into position. Note that the winch holder
(upper portion) must be positioned just above the bow eye. Run
the winch strap over the upper nylon bushing in the winch case and
secure to bow eye. Tighten all bolts on the winch post. Slip the
bow eye safety chain into the bow eye. Adjustment is complete.
Check the tongue weight.
Made in the USA Midwest Industries, Inc. Ida Grove, IA 51445 Tele: 712/364-3365 0002746
