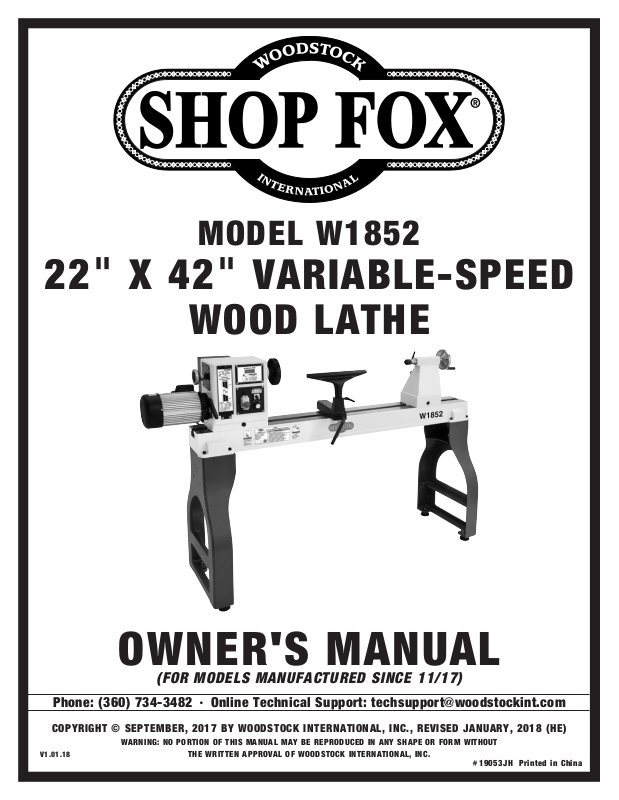

Shop fox W1852 User Manual

MODEL W1852

22" X 42" VARIABLE-SPEED

WOOD LATHE

OWNER'S MANUAL

(FOR MODELS MANUFACTURED SINCE 11/17)

Phone: (360) 734-3482 • Online Technical Support: techsupport@woodstockint.com

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

V1.01.18

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#19053JH Printed in China

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Contents

INTRODUCTION .....................................2

Contact Info ....................................... 2

Manual Accuracy .................................. 2

Machine Specifications .......................... 3

Identification ..................................... 5

Controls & Components ......................... 6

SAFETY ............................................... 7

Standard Machinery Safety Instructions ...... 7

Additional Safety for Wood Lathes ............9

Glossary of Terms .............................. 10

ELECTRICAL ....................................... 11

Circuit Requirements .......................... 11

Grounding Requirements ...................... 12

Extension Cords ................................ 12

SETUP .............................................. 13

Unpacking ....................................... 13

Items Needed for Setup ....................... 13

Inventory ........................................ 14

Hardware Recognition Chart ................. 15

Cleaning Machine ............................... 16

Machine Placement ............................ 17

Anchoring to Floor ............................. 18

Assembly ......................................... 19

Test Run .......................................... 21

ACCESSORIES ...................................... 38

MAINTENANCE .................................... 40

General .......................................... 40

Cleaning & Protecting ......................... 40

Lubrication ...................................... 40

Tailstock ......................................... 40

SERVICE ............................................ 41

General .......................................... 41

Aligning Pulleys ................................. 41

Changing/Tensioning Belt ..................... 42

Troubleshooting ................................. 43

Electrical Safety Instructions ................. 45

Electrical Components ........................ 46

Wiring Diagram ................................. 47

PARTS .............................................. 48

Main .............................................. 48

Labels & Cosmetics ............................ 50

WARRANTY ........................................ 53

SAFETYINTRODUCTION

SET UPELECTRICAL MAINTENANCE

OPERATIONS

OPERATIONS....................................... 22

General .......................................... 22

Workpiece Inspection .......................... 23

Selecting Turning Tools ........................ 24

Adjusting Headstock ........................... 25

Adjusting Tailstock ............................. 25

Adjusting Tool Rest ............................. 26

Installing/Removing Headstock Center ..... 27

Installing/Removing Tailstock Center ....... 28

Installing Faceplate ............................ 29

Changing Speed Ranges ....................... 30

Using Indexing Feature ........................ 32

Spindle Turning ................................. 33

Faceplate Turning .............................. 35

Outboard Turning ............................... 37

Sanding/Finishing .............................. 37

SERVICE PARTS

USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!

Model W1852 (For Machines Mfd. Since 11/17)

INTRODUCTION

Woodstock Technical Support

This machine has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-support@shopfox. biz. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.

If you need the latest edition of this manual, you can download it from http://www.shopfox.biz. If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Email: manuals@woodstockint.com

-2-

Model W1852 (For Machines Mfd. Since 11/17)

MODEL W1852

22" X 42" VARIABLESPEED WOOD LATHE

Product Dimensions

Weight.......................................................................................................... 496 lbs.

Width (side‐to‐side) x Depth (front‐to‐back) x Height........................................ 81 x 23 x 51 in.

Footprint (Length x Width)......................................................................... 65‐1/2 x 20 in.

Shipping Dimensions

Type.......................................................................................................... Wood Box

Content........................................................................................................ Machine

Weight.......................................................................................................... 584 lbs.

Length x Width x Height........................................................................... 69 x 24 x 25 in.

Must Ship Upright.................................................................................................. Yes

INTRODUCTION

Electrical

Power Requirement.................................................................... 220V, Single‐Phase, 60 Hz

Full‐Load Current Rating......................................................................................... 16A

Minimum Circuit Size............................................................................................. 20A

Connection Type......................................................................................... Cord & Plug

Power Cord Included.............................................................................................. Yes

Power Cord Length............................................................................................... 6 ft.

Power Cord Gauge............................................................................................ 12 AWG

Plug Included....................................................................................................... Yes

Included Plug Type........................................................................................ NEMA 6‐20

Switch Type....................................................... ON/OFF Push Button Switch w/Safety Cover

Inverter (VFD) Type..................................................................................... Delta VFD‐M

Inverter (VFD) Size............................................................................................... 3 HP

Motors

Main

Horsepower................................................................................................. 3 HP

Phase.................................................................................................... 3‐Phase

Amps........................................................................................................... 8A

Speed.................................................................................................. 1725 RPM

Type............................................................................................ TEFC Induction

Power Transfer ..................................................................................... Belt Drive

Bearings................................................................. Sealed & Permanently Lubricated

-3-

INTRODUCTION

Model W1852 (For Machines Mfd. Since 11/17)

Main Specifications

Operation Information

Swing Over Bed........................................................................................... 22 in.

Swing Over Tool Rest Base.............................................................................. 18 in.

Distance Between Centers.............................................................................. 42 in.

Max. Distance Tool Rest to Spindle Center............................................................ 8 in.

No of Spindle Speeds................................................................................. Variable

Spindle Speed Range......................................................................... 100 – 3200 RPM

Floor to Center Height.......................................................................... 47‐13/16 in.

Spindle Information

Spindle Taper.............................................................................................. MT#2

Spindle Thread Size............................................................................ 1‐1/4" x 8 TPI

Spindle Thread Direction......................................................................... Right Hand

Spindle Bore........................................................................................... 0.393 in.

Type of Included Spindle Center........................................................................ Spur

Indexed Spindle Increments.......................................................................... 10 deg.

No of Indexes................................................................................................. 36

Tool Rest Information

Tool Rest Width.......................................................................................... 14 in.

Tool Rest Post Diameter.................................................................................. 1 in.

Tool Rest Post Length............................................................................... 2‐1/4 in.

Tool Rest Base Height..................................................................................... 2 in.

Tailstock Information

Tailstock Taper........................................................................................... MT#2

Type of Included Tailstock Center...................................................................... Live

Construction

Bed................................................................................ Precision‐Ground Cast Iron

Frame.................................................................................................. Cast Iron

Stand................................................................................................... Cast Iron

Base.................................................................................................... Cast Iron

Headstock............................................................................................. Cast Iron

Tailstock............................................................................................... Cast Iron

Paint Type/Finish...................................................................................... Enamel

Other Related Information

Bed Width................................................................................................. 10 in.

Faceplate Size............................................................................................. 6 in.

Other

Country of Origin ............................................................................................... China

Warranty ....................................................................................................... 2 Years

Approximate Assembly & Setup Time ...................................................................... 1 Hour

Serial Number Location .................................................................................... ID Label

ISO 9001 Factory .................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................... No

-4-

Model W1852 (For Machines Mfd. Since 11/17)

Become familiar with the names and locations of the controls and features shown below to better

Identification

INTRODUCTION

Belt Access

Cover

Motor

Belt Tension Lock Handle

Belt Tension

Lever

Spindle RPM

Readout

ON/OFF

Switch

Spindle

Direction Switch

Faceplate

Speed

Control Knob

Quill Lock Lever

Handwheel

Tool Rest

Tailstock

Quill

Bed

Tool Rest

Lock Handle

Tool Rest

Base

Lock Lever

Spindle

Indexing Holes

For Your Own Safety Read Instruction Manual Before Operating Lathe

a) Wear eye protection. b) Do not wear gloves, necktie, or loose clothing. c) Tighten all locks before operating. d) Rotate workpiece by hand before applying power. e) Rough out workpiece before installing on faceplate. f) Do not mount split workpiece or one containing knot. g) Use lowest speed when starting new workpiece.

-5-

Controls & Components

Refer to Figures 1–3 and the following descriptions to

INTRODUCTION

become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this machine.

A. Spindle RPM Readout: Indicates spindle speed in

rotations per minute (RPM).

B. Spindle Direction Switch: Toggles spindle direction

between clockwise and counterclockwise.

C. Speed Control Knob: Adjusts spindle speed from

low to high within range governed by pulley belt position.

Model W1852 (For Machines Mfd. Since 11/17)

To reduce your risk of serious injury or damage to the machine, read this entire manual BEFORE using machine.

D. ON/OFF Switch w/Emergency Stop Button: Turns

lathe ON and OFF.

E. Belt Tension Lock Handle: Locks belt tension lever

in place.

F. Belt Tension Lever: Increases and decreases amount

of tension on belt.

G. Tailstock Lock Lever: Secures tailstock in position

along bed.

H. Tailstock Handwheel: Moves quill toward or away

from spindle.

I. Quill Lock Handle: Secures quill in position.

J. Quill: Holds centers or tooling. Can be moved toward

and away from spindle.

K. Tool Rest: Provides stable platform for cutting tools.

L. Tool Rest Lock Handle: Secures tool rest in position.

Figure 1. Headstock controls.

Figure 2. Tailstock controls.

M. Tool Rest Base Lock Lever: Secures tool rest base in

position.

-6-

Figure 3. Tool rest controls.

Model W1852 (For Machines Mfd. Since 11/17)

SAFETY

OWNER’S MANUAL.

TRAINED OPERATORS ONLY.

DANGEROUS ENVIRONMENTS.

MENTAL ALERTNESS REQUIRED.

electrical components or improperly grounded

manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by

SAFETY

For Your Own Safety,

Read Manual Before Operating Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This

themselves do not eliminate danger and are not a substitute for proper accident prevention measures—this responsibility is ultimately up to the operator!

NOTICE

Standard Machinery Safety Instructions

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury.

This symbol is used to alert the user to useful information about proper operation of the equipment or a situation that may cause damage to the machinery.

SAFETY

Read and understand this

owner’s manual BEFORE using machine.

have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

Untrained operators

Do not use

Full mental

ELECTRICAL EQUIPMENT INJURY RISKS. You can

be shocked, burned, or killed by touching live

machinery. To reduce this risk, only allow an electrician or qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. Always disconnect

machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This eliminates the risk of injury from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved

safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are not approved safety glasses.

-7-

WEARING PROPER APPAREL. Do not wear

clothing, apparel, or jewelry that can become

HAZARDOUS

HEARING PROTECTION.

REMOVE ADJUSTING TOOLS.

INTENDED USAGE.

AWKWARD POSITIONS.

CHILDREN & BYSTANDERS.

GUARDS & COVERS.

FORCING MACHINERY. Do not force machine. It

will do the job safer and better at the rate for

loss of control. Before starting, verify machine

malfunction, leading to serious personal injury

from heated surfaces, high traffic areas, harsh

entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to avoid accidental slips, which could cause loss of workpiece control.

DUST. Dust created while using

SAFETY

machinery may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material, and always wear a NIOSH-approved respirator to reduce your risk.

Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

Only use machine for its intended purpose—never make modifications without prior approval from Woodstock International. Modifying machine or using it differently than intended will void the warranty and may result in malfunction or mechanical failure that leads to serious personal injury or death!

Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

Model W1852 (For Machines Mfd. Since 11/17)

which it was designed.

NEVER STAND ON MACHINE. Serious injury may

occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during

operation greatly increases risk of injury or

is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase risk of serious injury.

UNATTENDED OPERATION. To reduce the risk

of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance

instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could

or death.

CHECK DAMAGED PARTS. Regularly inspect

machine for any condition that may affect safe operation. Immediately repair or replace damaged or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnecting

cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside, resulting in a short. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away

chemicals, and wet/damp locations.

accidental contact with moving parts or flying debris—make sure they are properly installed, undamaged, and working correctly.

Guards and covers reduce

EXPERIENCING DIFFICULTIES. If at any time

you experience difficulties performing the intended operation, stop using the machine!

-8-

Contact Technical Support at (360) 734-3482.

Model W1852 (For Machines Mfd. Since 11/17)

INTEGRITY OF STOCK.

WORKPIECE PREPARATION.

SECURING LOCKS.

SECURING WORKPIECE.

TOOL SUPPORT.

TOOL KICKBACK

ADJUSTMENT TOOLS

SAFE CLEARANCES

shield and safety glasses when operating lathe.

Do not wear gloves, necktie or

loose clothing. Keep keep long hair away from

Use low speeds when roughing or when turning

Use correct tool. Take light cuts, use

stop on its own. Never put hands or

, disconnected from power,

MAIN INJURY HAZARDS: Death or crushing injury from getting entangled in rotating spindle or

Additional Safety for Wood Lathes

workpiece; death, blindness, or broken bones from being struck by a workpiece that breaks apart or comes loose during rotation, turning tool kickback, or flying wood chips. To minimize your risk of these hazards, always heed the following warning information:

Verify each workpiece is free of knots, splits, nails, or foreign material to ensure it can safely rotate on spindle without breaking apart or causing turning tool kickback.

Before mounting, cut off waste portions with a bandsaw or other tool to ensure workpiece has no large edges to catch turning tool, and it will rotate without dangerous wobbling.

Verify tool rest, headstock,

and tailstock are secure before turning lathe ON.

An improperly secured workpiece can fly off spindle with deadly force. Use proven setup techniques and always verify workpiece is well-secured before starting lathe. Only use high-quality fasteners with nontapered heads for faceplate attachment.

An improperly supported tool

may be grabbed or ejected. Adjust tool rest approximately

⁄8” above workpiece center line to provide

proper support for turning tool. Firmly hold turning tool with both hands against tool rest.

ejected from workpiece with great force, striking operator or bystanders. Commonly caused by poor workpiece selection/ preparation, improper tool usage, or improper machine setup or tool rest adjustment.

wrenches, and adjustment tools before turning lathe ON. A tool left on the lathe can become a deadly projectile when spindle is started.

workpiece has adequate clearance by handrotating it through its entire range of motion.

⁄4” away from workpiece and

. Occurs when turning tool is

. Remove all chuck keys,

. Before starting spindle, verify

EYE/FACE PROTECTION. Always wear a face

PROPER APPAREL.

rotating spindle.

SPEED RATES. Select correct spindle speed for

workpiece size, type, shape, and condition.

large, long, or non-concentric workpieces. Allow spindle to reach full speed before turning.

NEW SETUPS. Test each new setup by starting

spindle rotation at the lowest speed and standing to the side of the lathe until workpiece reaches full speed and you can verify safe rotation.

ROUGHING.

low speeds, and firmly support tool with both hands.

SHARP TOOLS. Only use sharp turning tools—

they cut with less resistance than dull tools. Dull turning tools can catch or grab and pull your hands into the rotating workpiece.

STOPPING SPINDLE. Always allow spindle to

completely another object on spinning workpiece.

ADJUSTMENTS/MAINTENANCE. Make sure wood

lathe is turned OFF and all moving parts are completely stopped before doing adjustments or maintenance.

MEASURING WORKPIECE. Only measure

workpiece after it has stopped. Trying to measure a spinning workpiece increases entanglement risk.

SANDING/POLISHING. To reduce entanglement risk, remove tool rest before sanding. Never completely wrap sandpaper around workpiece.

SAFETY

-9-

Model W1852 (For Machines Mfd. Since 11/17)

Glossary of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this wood lathe and woodworking in general. Become familiar with these terms for assembling, adjusting or operating this machine.

Bed: The long, rail-like metal base to which the tailstock, tool base, and headstock are attached.

SAFETY

Chuck: A mechanical device that attaches to the spindle and holds the workpiece.

Faceplate: The metal disc that threads onto the headstock spindle.

Faceplate Turning: Turning situation in which the grain of the turning stock is at right angles to the lathe bed axis.

Backing Block: A sacrificial piece of wood glued to the base of the workpiece and screwed to the faceplate. Often used to prevent mounting marks from appearing on the completed workpiece.

Headstock: The cast metal box to which the motor is attached and contains the spindle, bearings, belts, and electrical components for operating the lathe.

Index Head: The mechanism that allows the headstock spindle to be locked at specific intervals for layout or other auxiliary tasks.

Roughing Out: Taking stock from square billet to round blank.

Spindle: This term has two meanings. First, it refers to the threaded shaft in the headstock to which the faceplate is attached. Second, it refers to any work that is spindle-turned.

Spindle-Turning: Work performed where the grain and length of the workpiece are parallel to the axis of the bed.

Swing: The capacity of the lathe, measured by doubling the distance from the bed to the spindle cent er.

Tailstock: The metal component at the opposite end of the bed from the headstock containing a quill and live or dead centers. It maintains pressure on the spindle-turned workpiece.

Tool Base: The movable metal fixture attached to the bed upon which the tool rest is fixed.

Tool Rest: The adjustable metal arm upon which the tool rests during a turning operation.

Offset Turning: A turning situation where the center of the workpiece is offset at various stages of the work to produce different shapes.

Outboard Turning: Turning of workpiece with the headstock situated at the far end of the lathe so the work done is not over the bed of the lathe.

Way: One of the metal rails that make up the bed of the lathe.

-10-

Model W1852 (For Machines Mfd. Since 11/17)

This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an adequate power supply circuit is available. If a correct circuit is not available, a qualified electrician MUST install one before you can connect the machine to power.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the fullload current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

or machine damage. To reduce this risk,

a dedicated circuit—

where only one machine will be running

multiple machines will be running at the

ELECTRICAL

Circuit Requirements

The machine must be properly set up before it is safe to operate. DO NOT connect this machine to the power source until instructed to do so later in this manual.

ELECTRICAL

Full-Load Current Rating

Full-Load Current Rating at 220V ................ 16 Amps

Circuit Requirements

Circuit Type ........... 208V/220V/240V, 60 Hz, 1-Phase

Circuit Size ............................................ 20 Amps

Plug/Receptacle ................................... NEMA 6-20

Incorrectly wiring or grounding this machine can cause electrocution, fire,

only an electrician or qualified service personnel should do any required electrical work on this machine.

NOTICE

The circuit requirements listed in this manual apply to

at a time. If this machine will be connected to a shared circuit where

same time, consult with an electrician to ensure that the circuit is properly sized for safe operation.

-11-

Grounding Requirements

This machine MUST be grounded. In the event of certain types of a path of least resistance for electric current order

Improper connection of the equipment-grounding

will increase insulation grounding cord or plug is necessary, do not connect the equipmentgrounding

Check with a qualified electrician or service personnel if or if properly grounded. plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

This machine is equipped with a power cord that has an equipment-grounding The plug

receptacle ( accordance with local codes and ordinances.

We do not recommend using an extension cord with

Any extension cord used with this machine must contain a

plug and receptacle, and

meet the following requirements:

the available receptacle or the machine

malfunctions or breakdowns, grounding provides

to travel—in

to reduce the risk of electric shock.

wire

the risk of electric shock. The wire with green

(with/without yellow stripes) is the equipment-

wire. If repair or replacement of the power

Model W1852 (For Machines Mfd. Since 11/17)

The machine must be properly set up before it is safe to operate. DO NOT connect this machine to the power source until instructed to do so later in this manual.

wire to a live (current carrying) terminal.

you do not understand these grounding requirements,

ELECTRICAL

you are in doubt about whether the tool is

If you ever notice that a cord or

For 220V Connection

wire and NE M A 6-20 grounding plug.

must only be inserted into a matching

see Figure) that is properly installed and grounded in

Extension Cords

this machine. Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases with longer extension cords and smaller gauge sizes (higher gauge numbers indicate smaller sizes).

ground wire, match the required

Minimum Gauge Size at 220V ...................... 12 AWG

Maximum Length (Shorter is Better) ................50 ft.

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

6-20 PLUG

Grounding Prong

Figure 4. NEMA 6-20 plug & receptacle.

No adapter should be used with the required plug. If the plug does not fit

must be reconnected to a different type of circuit, the reconnection must be made by an electrician or qualified service personnel and it must comply with all local codes and ordinances.

-12-

Model W1852 (For Machines Mfd. Since 11/17)

This machine has been carefully packaged for safe transportation. If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately.

The following items are needed, but not included, to set up your machine.

Immediately discard all plastic bags and packing materials to eliminate

This machine presents serious injury hazards to untrained users. Read

to become familiar with

tions before starting the

SETUP

Unpacking

Items Needed for Setup

Description Qty

• Precision Level at Least 12" Long .......................1

• Tape Measure ...............................................1

• Safety Glasses (for each person) ........................1

• Solvent/Cleaner ...........................................1

• Shop Rags ....................................... As Needed

• Additional People ..........................................2

• 4" x 8" x 12" Wood Block..................................1

• Anchoring Hardware .......................... As Needed

• Quality Metal Protectant Lubricant......... As Needed

• Gloves ........................................... As Needed

through this entire manual

the controls and opera-

machine!

Wear safety glasses during entire setup process!

SETUP

USE helpers or power lifting equipment to lift this machine. Otherwise, serious personal injury may occur.

SUFFOCATION HAZARD!

choking/suffocation hazards for children and animals.

-13-

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

Note:

check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

If you cannot find an item on this list, carefully

Inventory (Figures 5–7) Qty A. Lathe Assembly

—Headstock (mounted) ...................................1

—Tool Rest Base (mounted) ..............................1

—Tailstock (mounted) .....................................1

—Faceplate 6" (installed) .................................1

B. Stand Legs ..................................................2

C. Live Center MT#2 ..........................................1

D. Spur Center MT#2 .........................................1

E. Indexing Pin ................................................1

F. Tool Rest w/ 1 in. Post ...................................1

G. Hex Wrenches 3, 4, 6, 8mm .........................1 Ea

SETUP

H. Machine Feet ...............................................4

I. Knockout Tool ..............................................1

J. Hardware (see Hardware Recognition Chart)

—Cap Screws M10-1.5 x 35 ...............................8

—Lock Washers 10mm .....................................8

—Hex Nuts M8-1.25 ........................................4

Model W1852 (For Machines Mfd. Since 11/17)

Figure 5. Lathe assembly.

Figure 6. Stand legs.

-14-

Figure 7. Loose inventory components.

Model W1852 (For Machines Mfd. Since 11/17)

Hardware Recognition Chart

USE THIS CHART TO IDENTIFY HARDWARE DURING THE INVENTORY/ASSEMBLY PROCESS.

⁄4"

⁄8"

⁄2"

⁄8"

⁄16" INCH APART

LINES ARE

⁄16"

⁄4"

⁄8"

⁄4"

⁄2" ⁄4"

⁄4"

⁄2"

⁄4"

#10

⁄4"

⁄16"

⁄8"

⁄16"

⁄2"

8mm

⁄16"

WASHERS ARE MEASURED BY THE INSIDE DIAMETER

#10

⁄8"

4mm

10mm

⁄8"

⁄16"

5mm

12mm

⁄2"

6mm

⁄4"

SETUP

5mm 10mm 15mm

20mm

25mm 30mm 35mm

MEASURE BOLT DIAMETER BY PLACING INSIDE CIRCLE

40mm 45mm

50mm 55mm

LINES ARE 1MM APART

60mm 65mm 70mm 75mm

4mm

5mm

6mm

8mm

10mm

12mm

16mm

Cap Screw

Hex Bolt

External Retaining Ring

Key

Carriage Bolt

Flat Head Screw

Internal Retaining Ring

Flat Washer

Flange Bolt

Tap Screw

E-Clip

Lock Washer

Button Head Screw

Set Screw

Lock Nut

Hex Nut

Phillips Head Screw

Wing Nut

Hex Wrench

-15-

+ 39 hidden pages
