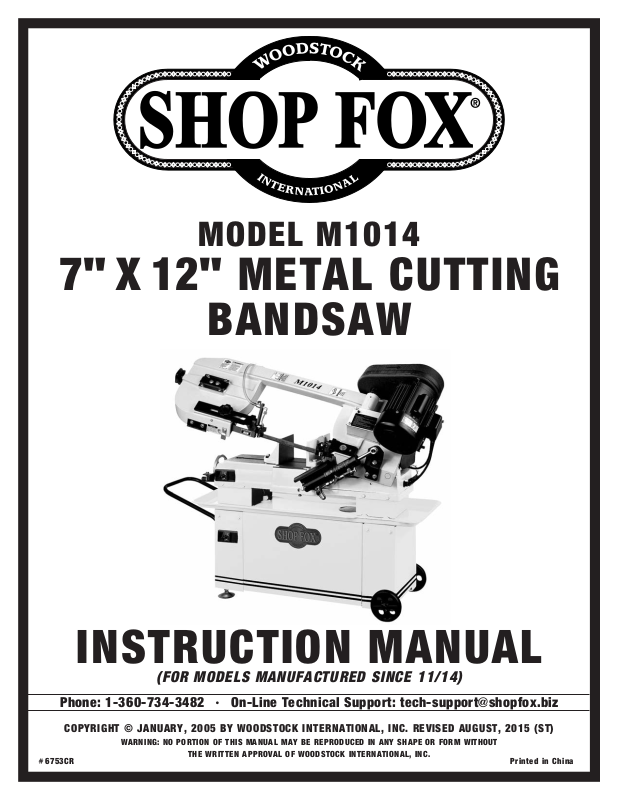

MODEL M1014

7" X 12" METAL CUTTING

BANDSAW

INSTRUCTION MANUAL

(FOR MODELS MANUFACTURED SINCE 11/14)

Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

#6753CR

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Printed in China

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Contents

INTRODUCTION .....................................2

Woodstock Technical Support .................. 2

Specifications ..................................... 2

Controls and Features ........................... 3

SAFETY ............................................... 4

Standard Machinery Safety Instructions ...... 4

Additional Safety for Metal Bandsaws ........ 6

Avoiding Potential Injuries ...................... 7

ELECTRICAL .........................................8

Circuit Requirements ............................8

Grounding Requirements ........................ 9

Extension Cords .................................. 9

SET UP .............................................. 10

Unpacking ....................................... 10

Items Needed for Set Up ...................... 10

Inventory ........................................ 11

Machine Placement ............................ 12

Cleaning Machine ............................... 12

Handle, Wheels, and Feet .................... 13

Motor Installation .............................. 14

Cutting Fluid System ........................... 15

Cast Iron Stop ................................... 15

Pulley Cover ..................................... 16

Vertical Cutting Table ......................... 17

Shipping Strap and ON/OFF Switch ......... 17

OPERATIONS....................................... 23

General .......................................... 23

Operation ........................................ 23

Blade Selection ................................. 25

Blade Changes .................................. 26

Cutting Fluid .................................... 27

Feed Rate ....................................... 28

MAINTENANCE .................................... 29

General .......................................... 29

Cleaning ......................................... 29

Lubrication ...................................... 30

SERVICE ............................................ 31

General .......................................... 31

Cutting Fluid System ........................... 31

Blade Tracking .................................. 32

Wiring Diagram (110V) ........................ 34

Wiring Diagram (220V) ........................ 35

Troubleshooting ................................. 36

Parts List ......................................... 39

Parts List ......................................... 41

Parts List ......................................... 43

Parts List ......................................... 45

Notes ............................................. 46

WARRANTY ........................................ 49

SAFETYINTRODUCTION

SET UPELECTRICAL MAINTENANCE

OPERATIONS

ADJUSTMENTS .................................... 19

Belt Tension ..................................... 19

Changing Cutting Speed ....................... 20

Blade Tension ................................... 21

Blade Guides .................................... 22

SERVICE PARTS

M1014 7" x 12" Metal Cutting Bandsaw

INTRODUCTION

Woodstock Technical Support

This machine has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-support@shopfox. biz. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.

If you need the latest edition of this manual, you can download it from http://www.shopfox.biz. If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Email: manuals@woodstockint.com

Specifications

Bandsaw Motor Size .....................

Motor Speed .......................................................................................

Power Transfer ................................................. V-Belt Drive and Worm-Gear Reduction

Maximum Circular Capacity ..................................................................... 5" at 45°

Maximum Rectangular Capacity .................................................. 4-3⁄4" x 4-1⁄2" at 45°

Maximum Rectangular Capacity .......................................................... 7" x 12" at 90°

Maximum Circular Capacity ..................................................................... 7 " at 90°

Coolant Capacity .................................................................................. 2-1⁄ 2 g al.

Coolant Pump Motor ................. 1/8 HP, 110V/220V (Prewired 110V), 0.6A/0.3A, Single-Phase

Footprint ............................................................................................. 13" x 38"

Overall Dimensions ................................................................ 48"L x 16"W x 37-5⁄8"H

Blade Speeds ........................................................................ 90, 135, 195, 255 FPM

Blade Size ..........................................................................................93" x 3⁄4"

Bearings ........................................................... Permanently-Lubricated Ball Bearings

Power Control .......................................................................Toggle ON/OFF Switch

Net Weight ...................................................................................... 275 lbs.

1 HP, 110V/220V (Prewired 110V), 12A/6A, Single-Phase

1,7 25 RPM

-2-

M1014 7" x 12" Metal Cutting Bandsaw

Controls and Features

INTRODUCTION

Bandsaw controls and features.

A. Blade Tension Knob—Allows you to quickly

tension or de-tentsion the blade.

B. Blade Guide Knob—Allows you to move and

lock the blade guide in place.

C. Cutting Fluid Flow Valve—Allows you to

adjust the cutting fluid flow rate.

D. Gear Box—Allows the motor to achieve a

mechanical advantage when cutting.

E. Blade Guide/Chip Brush—Guides stop blade

twist and brush removes chips from blade.

F. Pulley Cover—Covers the pulleys for safety.

Open cover to make blade speed changes.

G. Heavy Duty Motor—Dual voltage (prewired

110V), 1 HP motor drives the bandsaw wheels

for smooth cutting.

H. Circuit Breaker—Protects the bandsaw motor

and pump electrical system from overload.

I. Drain and Chip Pan—Collects chips and

cutting fluid, and directs fluid to the reservoir.

J. Hydraulic Cylinder Feed Rate Dial—Allows

you to adjust the bandsaw feed rate accurately.

K. Feed ON/OFF Valve—Toggles the headstock

feed ON and OFF for operation or Service.

L. Cutting Fluid Pump ON/OFF Switch—Toggles

power ON and OFF to the pump motor.

M. Bandsaw ON/OFF Switch—Toggles power ON

and OFF to the bandsaw motor.

N. Handle—Allows you to tilt the bandsaw and

use the wheels to move the machine.

O. Vise Clamp Wheel—Allows you to quickly

close and clamp the vise on the workpiece.

P. Blade Tension Gauge—Allows you to visually

locate the correct blade tension.

-3-

M1014 7" x 12" Metal Cutting Bandsaw

SAFETY

OWNER’S

EYE PROTECTION.

HAZARDOUS

WEARING PROPER APPAREL.

of workpiece control.

disconnect machine from power supply before

is in OFF position before reconnecting to avoid

manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by

SAFETY

For Your Own Safety,

Read Manual Before Operating Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This

SAFETY

themselves do not eliminate danger and are not a substitute for proper accident prevention mea sures—this responsibility is ultimately up to the operator!

NOTICE

Standard Machinery Safety Instructions

MANUAL. Read and understand this

owner’s manual BEFORE using machine. Untrained users can be seriously hurt.

Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are not approved safety glasses.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury.

This symbol is used to alert the user to useful information about proper operation of the equipment, and/or a situation that may cause damage to the machinery.

HEARING PROTECTION. Always wear hearing

protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

MENTAL ALERTNESS. Be mentally alert when

running machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

DUST. Dust created while using

machinery may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with workpiece materials, and always wear a NIOSH-approved respirator to reduce your risk.

clothing, apparel, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to avoid accidental slips which could cause a loss

Do not wear

DISCONNECTING POWER SUPPLY. Always

servicing, adjusting, or changing cutting tools (bits, blades, cutters, etc.). Make sure switch

an unexpected or unintentional start.

DANGEROUS ENVIRONMENTS. Do not use

machinery in wet or rainy locations, cluttered

-4-

areas, around flammables, or in poorly-lit areas. Keep work area clean, dry, and welllighted to minimize risk of injury.

M1014 7" x 12" Metal Cutting Bandsaw

APPROVED OPERATION. Untrained operators

ONLY USE AS INTENDED

USE RECOMMENDED ACCESSORIES

CHILDREN & BYSTANDERS.

REMOV

SECURING WORKPIECE.

FEED DIRECTION.

GUARDS & COVERS.

NEVER STAND ON MACHINE.

STABLE MACHINE. Unexpected movement during

will do the job safer and better at the rate for

positions that make workpiece control difficult

can be seriously hurt by machinery. Only allow trained or properly supervised people to use machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

. Only use machine for

its intended purpose. Never modify or alter machine for a purpose not intended by the manufacturer or serious injury may result!

. Consult

this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

Keep children and bystanders a safe distance away from work area. Stop using machine if children or bystanders become a distraction.

E ADJUSTING TOOLS. Never leave

adjustment tools, chuck keys, wrenches, etc. in or on machine—especially near moving parts. Verify removal before starting!

When required, use clamps or vises to secure workpiece. A secured workpiece protects hands and frees both of them to operate the machine.

operations greatly increases the risk of injury and loss of control. Verify machines are stable/secure and mobile bases (if used) are locked before starting.

FORCING MACHINERY. Do not force machine. It

which it was designed.

AWKWARD POSITIONS. Keep proper footing and

balance at all times when operating machine. Do not overreach! Avoid awkward hand

or increase the risk of accidental injury.

UNATTENDED OPERATION. Never leave machine

running while unattended. Turn machine off and ensure all moving parts completely stop before walking away.

MAINTAIN WITH CARE. Follow all maintenance

instructions and lubrication schedules to keep machine in good working condition. An improperly maintained machine may increase the risk of serious injury.

CHECK DAMAGED PARTS. Regularly inspect

machine for damaged parts, loose bolts, mis-adjusted or mis-aligned parts, binding, or any other conditions that may affect safe operation. Always repair or replace damaged parts, wires, cords, or plugs before operating machine.

SAFETY

Unless otherwise noted, feed work against the rotation of blades or cutters. Feeding in the same direction of rotation may pull your hand into the cut.

protect you from accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly before using machine.

accidental contact with cutting tool may occur if machine is tipped. Machine may be damaged.

Guards and covers can

Serious injury or

MAINTAIN POWER CORDS. When disconnecting

cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle the cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet or damp locations.

EXPERIENCING DIFFICULTIES. If at any time you

are experiencing difficulties performing the intended operation, stop using the machine! Contact our Technical Support for help at (360) 734-3482.

-5-

M1014 7" x 12" Metal Cutting Bandsaw

Additional Safety for Metal Bandsaws

READ and understand this entire instruction manual before using this machine.

SAFETY

1. SAFETY GUARDS. DO NOT operate bandsaw without wheel covers, pulley covers, or blade guards in

place.

2. SERVICE PREPARATION. Turn OFF and unplug machine before blade replacement, machine adjust-

ments, and maintenance are done. Allow all moving parts to come to a complete stop before doing any of the above.

3. SAFETY TOOLS. Use push sticks or other safety devises whenever possible, especially when the

bandsaw is set up for vertical cutting.

4. KEEPING HANDS CLEAR. Never reach under table, in the blade path, or around the blade guides

while blade is in motion.

Serious personal injury may occur if safety and operational information is not understood and followed.

USE this and other machinery with caution and respect. Always consider safety first, as it applies to your individual working conditions. No list of safety guidelines can be complete—every shop environment is different. Failure to follow guidelines could result in serious personal injury, damage to equipment or poor work results.

5. FURTHER INFORMATION. If at any time you are experiencing difficulties performing the intended

operation, stop using the machine! Then contact our technical support department or ask a qualified expert how the operation should be performed.

6. SHOP SAFETY. Habits—good and bad—are hard to break. Develop good habits in your shop and safety

will become second-nature to you.

7. WORKPIECE REMOVAL. Never back the workpiece from the blade when the bandsaw is set up for

vertical cutting and while the bandsaw blade is in motion. Turn OFF machine and wait for blade to come to a complete stop before backing workpiece out.

8. MANUAL INSPECTIONS. Unplug the machine and manually test blade tracking and tension before

starting the machine. Blades that are loose or not tracking correctly can come off and cause serious personal injury.

9. SUPPORTING LONG WORKPIECES. Long workpieces should be well supported at both ends with

extension tables when cuts are made. Otherwise, after a cut is made, the cut piece may fall to the floor and the stock may tilt out of the vise and break the blade.

10. SAFELY USING CUTTING FLUIDS. Make sure you know what type of metal and cutting fluid you will

be exposed to and how to avoid contamination. Be aware that certain metal shavings and cutting fluids may cause an allergic reaction in people and animals, especially when cutting fumes can be inhaled.

-6-

M1014 7" x 12" Metal Cutting Bandsaw

Avoiding Potential Injuries

SAFETY

Figure 1. Never attempt to freehand cut.

Figure 2. Never start the saw with the blade

resting on the workpiece.

Figure 4. Always use the table for freehand

cutting and keep fingers clear of blade.

Figure 5. Always start the saw with the blade

clear of the workpiece.

Figure 3. Never hold the workpiece by hand.

Figure 6. Always use the vise to hold workpiece.

-7-

M1014 7" x 12" Metal Cutting Bandsaw

This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an adequate power supply circuit is available. If a correct circuit is not available, a qualified electrician MUST install one before you can connect the machine to power.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the fullload current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a 110V power supply circuit that has a verified ground and meets the following requirements:

This machine can be converted to operate on a 220V power supply (details about voltage conversion can be found later in this manual). The 220V power supply circuit must have a verified ground and meet the requirements that follow:

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

or machine damage. To reduce this risk,

where only one machine will be running

ELECTRICAL

Circuit Requirements

The machine must be properly set up before it is safe to operate. DO NOT connect this machine to the power source until instructed to do later in this manual.

ELECTRICAL

Full-Load Current Rating

Full-Load Current Rating at 110V ................12.6 Amps

Full-Load Current Rating at 220V ................. 6.3 Amps

Circuit Requirements for 110V (Prewired)

Circuit Type ............... 110V/12 0V, 60 Hz, Single-Phase

Circuit Size ............................................. 20 Amps

Plug/Receptacle .................................... NEMA 5-20

Circuit Requirements for 220V

Circuit Type ...............220V/240V, 60 Hz, Single-Phase

Circuit Size ............................................. 15 Amps

Plug/Receptacle .................................... NEMA 6-15

Incorrectly wiring or grounding this machine can cause electrocution, fire,

only an electrician or qualified service personnel should do any required electrical work on this machine.

NOTICE

The circuit requirements listed in this manual apply to a dedicated circuit—

at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

-8-

M1014 7" x 12" Metal Cutting Bandsaw

This machine MUST be grounded. In the event of certain types of a path of least resistance for electric current order

Improper connection of the equipment-grounding

will increase insulation grounding cord or plug is necessary, do not connect the equipmentgrounding

Check with a qualified electrician or service personnel if or if properly grounded. plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

This machine is equipped with a power cord that has an equipment-grounding The plug

receptacle ( accordance with local codes and ordinances.

A NEMA 6-15 plug has a grounding prong that must be attached to the equipment-grounding wire inside the included power cord. into a matching installed and grounded in accordance with all local codes and ordinances.

We do not recommend using an extension cord with

Any extension cord used with this machine must contain a

plug and receptacle, and

meet the following requirements:

electrician install the proper receptacle

Grounding Requirements

malfunctions or breakdowns, grounding provides

to travel—in

to reduce the risk of electric shock.

wire

the risk of electric shock. The wire with green

(with/without yellow stripes) is the equipment-

wire. If repair or replacement of the power

wire to a live (current carrying) terminal.

you do not understand these grounding requirements,

you are in doubt about whether the tool is

If you ever notice that a cord or

For 110V Connection (Prewired)

wire and NE M A 5-15 grounding plug.

must only be inserted into a matching

see Figure) that is properly installed and grounded in

The machine must be properly set up before it is safe to operate. DO NOT connect this machine to the power source until instructed to do later in this manual.

110V

Hot

Neutral

Grounding Prong

Figure 7. NEMA 5-20 plug & receptacle.

220V

Current Carrying Prongs

GROUNDED

5-20 RECEPTACLE

5-20 PLUG

GROUNDED

6-15 RECEPTACLE

ELECTRICAL

For 220V Connection (Must be Rewired)

The plug must only be inserted

receptacle (see Figure) that is properly

this machine. Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases with longer extension cords and smaller gauge sizes (higher gauge numbers indicate smaller sizes).

ground wire

Minimum Gauge Size at 220V ...................... 14 AWG

Maximum Length (Shorter is Better) ................50 ft.

Extension Cords

, match the required

6-15 PLUG

Grounding Prong

Figure 8. NEMA 6-15 plug & receptacle.

DO NOT modify the provided plug or use an adapter if the plug will not fit the receptacle. Instead, have an

on a power supply circuit that meets the requirements for this machine.

-9-

SET UP

Unpacking

This machine has been carefully packaged for safe transportation. If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately.

Items Needed for Set Up

M1014 7" x 12" Metal Cutting Bandsaw

The following items are needed, but not included, to set up your machine:

• An Assistant.

• Phillips Screwdriver #2.

• Standard Screwdriver #2.

• Hex Wrench 6mm.

• Open-End Wrench 6mm, 12mm, 14mm, 19mm.

• Open-End Wrench 3/8", 7/16", 1/2."

SET UP

READ and understand this entire instruction manual before using this machine. Serious personal injury may occur if safety and operational information is not understood and followed. DO NOT risk your safety by not reading!

KEEP the power cord UNPLUGGED during assembly or adjustment tasks! Otherwise, serious personal injury to you or others may occur!

-10-

SEEK assistance when lifting the machine from the box it was shipped in. The SHOP FOX heavy machine.

Model M1014 is a

M1014 7" x 12" Metal Cutting Bandsaw

Inventory

The following is a description of the main components shipped with the

SHOP FOX

Model M1014. Lay the

components out to inventory them.

Box Contents (Figure 9) Qty.

A. Pulley Cover ................................................2

B. Vertical Work Table .......................................1

C. Table Bracket ..............................................1

D. Handle .......................................................1

E. Wheels ......................................................2

F. Collar ........................................................1

G. Axle ..........................................................1

H. Work Stop Rod .............................................1

I. Work Stop ...................................................1

J. Leveling Feet with Hex Nuts .............................2

K. Chip Screen .................................................1

L. Bolt Bag................................................ .....1

—Flat Washers —Hex Nuts

⁄8" (Leveling Feet) .....................2

⁄8"-16 (Leveling Feet) ......................2

—Cotter Pins 3 x 25mm (Wheels) .......................2

—Hex Bolts —Flat Head Screw —Hex Nut —Phillips Head Screws —Hex Bolts —Hex Nuts —Flat Washers

⁄16"-18 x 11⁄2" (Handle) ...................4

⁄4" x 20 (Table) ...............................1

⁄16"-18 x 1" (Motor) .........................4

⁄16"-18 (Motor) ...............................2

⁄4"-20 x 1⁄2" (Table) ................1

⁄4"-20 x 5⁄8" (Pulley Cover) ..2

⁄16" (Motor) ..............................2

M. Motor (Not Shown) ........................................1

N. V-Belt 3V270 (Not Shown) ................................1

O. Hose Clamp

⁄8" (Not Shown) ............................1

If any parts appear to be missing, examine the packaging carefully to be sure those parts are not among the packing materials. If any parts are missing, find the part number in the back of this manual and contact Woodstock International, Inc. at 360-7343482 or at tech-support@shopfox.biz

SUFFOCATION HAZARD! Immediately discard all plastic bags and packing materials to eliminate choking/suffocation hazards for children and animals.

SET UP

Figure 9. Inventory.

-11-

M1014 7" x 12" Metal Cutting Bandsaw

Machine Placement

• Floor Load: This machine distributes a

heavy load in a small footprint. Some residential floors may require additional bracing to support both machine and operator.

• Working Clearances: Consider existing and

anticipated needs, size of material to be processed through the machine, and space for auxiliary stands, work tables or other machinery when establishing a location for your Machine Type.

• Lighting: Lighting should be bright enough

to eliminate shadow and prevent eye strain.

• Electrical: Electrical circuits must be

dedicated or large enough to handle amperage requirements. Outlets must be located near each machine, so power or extension cords are clear of high-traffic

SET UP

areas. Follow local electrical codes for proper installation of new lighting, outlets, or circuits.

Cleaning Machine

The table and other unpainted parts of your bandsaw are coated with a waxy grease that protects them from corrosion during shipment. Clean this grease off with a solvent cleaner or citrus-based degreaser. DO NOT use chlorinebased solvents such as brake parts cleaner or acetone—if you happen to splash some onto a painted surface, you will ruin the finish.

NEVER use gasoline or other petroleum-based solvents to clean with. Most have low flash points, which make them extremely flammable. A risk of explosion and burning exists if these products are used. Serious personal injury may occur if this warning is ignored!

USE helpers or power lifting equipment to lift this Machine Name. Otherwise, serious personal injury may occur.

MAKE your shop “child safe.” Ensure that your workplace is inaccessible to children by closing and locking all entrances when you are away. NEVER allow untrained visitors in your shop when assembling, adjusting or operating equipment.

ALWAYS work in wellventilated areas far from possible ignition sources when using solvents to clean machinery. Many solvents are toxic when inhaled or ingested. Use care when disposing of waste rags and towels to be sure they DO NOT create fire or environmental hazards.

-12-

M1014 7" x 12" Metal Cutting Bandsaw

Handle, Wheels, and Feet

GET assistance when lifting this machine. Otherwise, you can severely injure yourself!

To install the handle, wheels, and feet, do these steps:

1. With the help of an assistant, support the bandsaw

on wooden blocks approximately 4" from the ground so you have room to install the handle, wheels, and feet.

2. Align the handle mounting holes with the bandsaw

holes, and install the 5/16"-18 x 1-1/4" hex bolts,

washers, and nuts (see Figure 10).

3. Insert the axle into the cabinet, and slide the wheels

onto the axles.

4. Slide the two 5/8" flat washers onto the axles, and install the two cotter pins (see Figure 11).

5. Thread one 3/8"-18 hex nut and install one 3/8" washer onto each threaded foot shaft (see Figure 12).

6. Thread the foot shafts into the underside of the bandsaw cabinet (see Figure 12).

7. With the help of an assistant, remove the bandsaw from the blocks.

Hex

Bolt and

Washer

Figure 10. Installed handle.

SET UP

Figure 11. Installed wheel.

8. Turn the feet until the bandsaw is level, and tighten

the hex nut to lock the feet in place.

-13-

Flat

Washer

Here

Hex Nut

Here

Figure 12. Installed feet.

Motor Installation

The M1014 motor is heavy. We recommend having a second person available to assist with the installation of this m otor.

1. Remove motor from cabinet after installing filter screen (refer to Step 1 of Cutting Fluid System section on Page 31).

2. Slide motor mount plate into motor mount bracket (see Figure 13).

3. Thread (2) nuts into side of motor mount plate, then thread (2)

⁄16"-18 x 1" hex bolts with (2) 5⁄16" flat washers into

motor mount bracket (see Figure 14).

4. Install V-belt onto pulleys, then use a straightedge

to check pulley alignment. If pulleys are not aligned, loosen motor pulley set screw (see Figure 13), adjust pulley, then re-tighten set screw.

⁄16"-18 x 1" hex bolts with (2) 5⁄16"-18 hex

M1014 7" x 12" Metal Cutting Bandsaw

Pulley Set

Screw

Motor Mount

Plate

Motor Mount

Bracket

Figure 13. Motor installed on motor mount

bracket.

x 2

5. Move coolant tank into cabinet.

SET UP

6. Slide included hose clamp over end of coolant hose, insert hose onto coolant tank fitting, then tighten hose clamp (see Figure 15).

7. Follow instructions for mounting pulley cover (Page

16) and adjusting V-belt tension (Page 19).

x 2

Figure 14. Motor mounting fasteners

installed.

Coolant

Hose

Fitting

Hose

Clamp

-14-

Figure 15. Coolant hose installed.

+ 36 hidden pages
