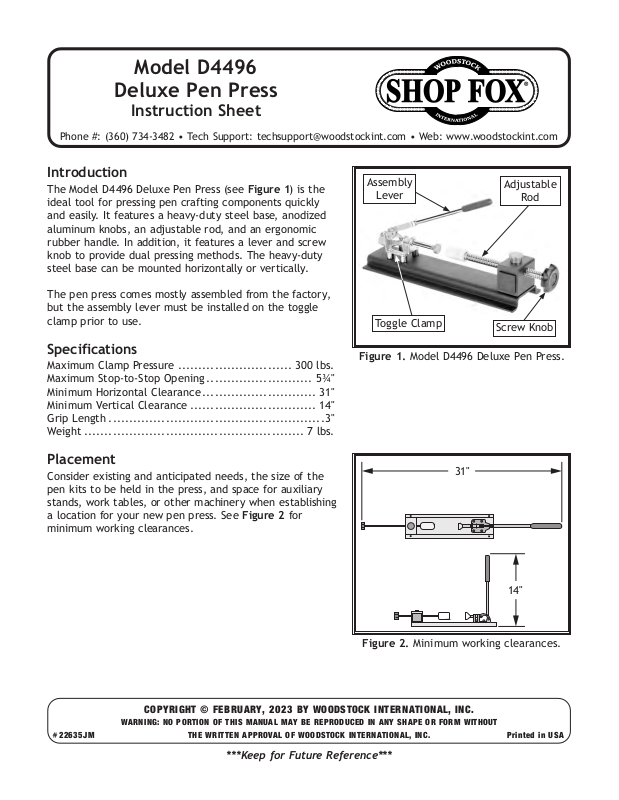

Shop Fox D4496 User guide

Model D4496
Deluxe Pen Press
Instruction Sheet
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com

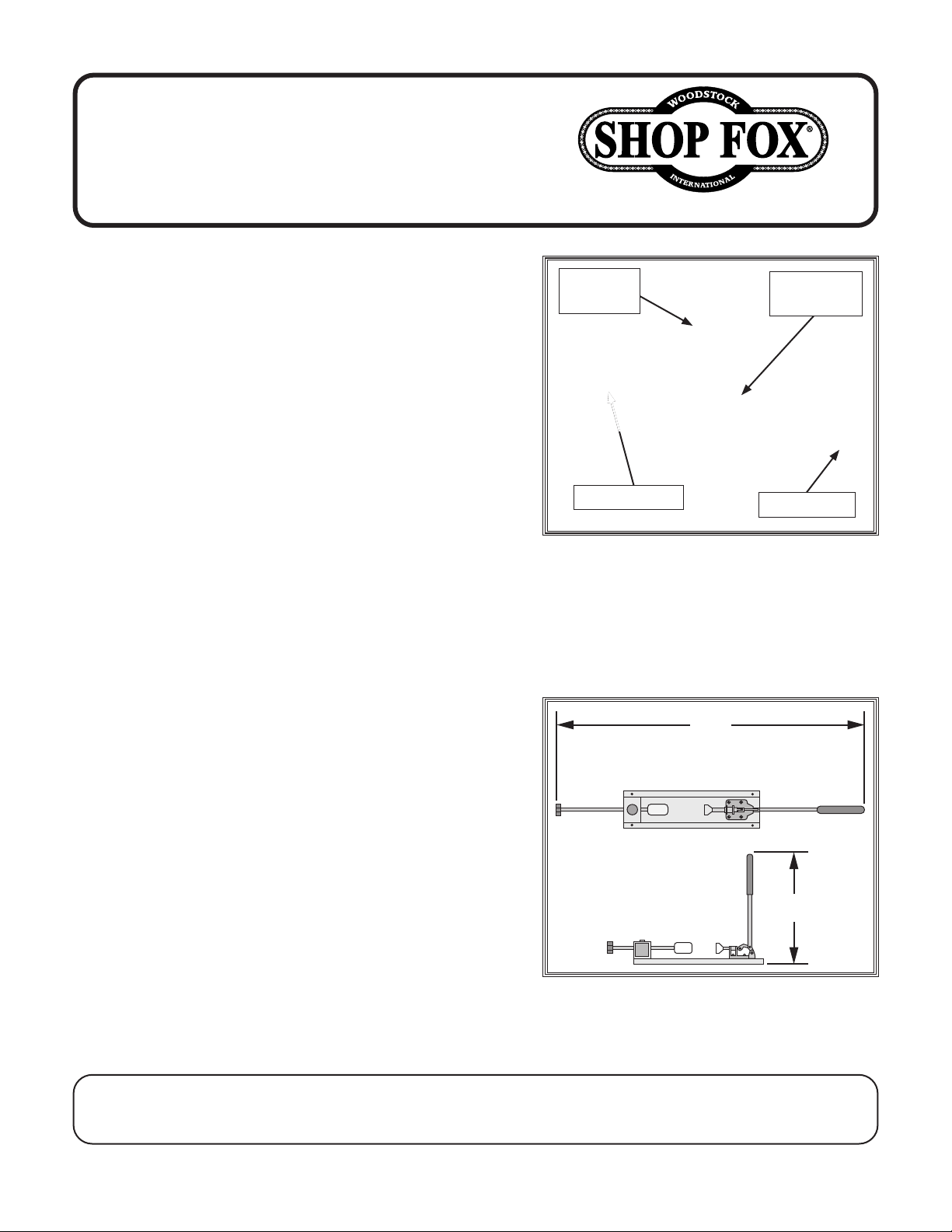

Introduction
The pen press comes mostly assembled from the factory, but the assembly lever must be installed on the toggle clamp prior to use.
Specifications
Maximum Clamp Pressure ............................ 300 lbs.
Maximum Stop-to-Stop Opening Minimum Horizontal Clearance Minimum Vertical Clearance Grip Length Weight
.....................................................3"
...................................................... 7 lbs.
.......................... 5¾"
............................ 31"
............................... 14"
Placement
Consider existing and anticipated needs, the size of the pen kits to be held in the press, and space for auxiliary stands, work tables, or other machinery when establishing a location for your new pen press. See Figure 2 for minimum working clearances.
Assembly
Lever
Toggle Clamp
Figure 1. Model D4496 Deluxe Pen Press.
31"
Adjustable
Rod
Screw Knob
Figure 2. Minimum working clearances.
COPYRIGHT © FEBRUARY, 2023 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
***Keep for Future Reference***
14"
Printed in USA#22635JM
Mounting
The pen press can be mounted horizontally or vertically. If you intend to use the press for portable applications, mount it to a heavy metal or wood base (at least 1" thick) that is wide enough to prevent tipping or rocking during use, then clamp it to a workbench or table. If space is limited, secure the base of the pen press to a flat surface with a C-clamp.
Recommended Mounting Hardware Qty
Hex Bolts or Lag Screws .......................................4
Flat Washers Lock Washers Hex Nuts
To mount pen press, do these steps:
1. Place pen press in location to be mounted and mark
hole locations (see Figure 3).
......................................... As Needed
........................................ As Needed
.............................................. As Needed
D4496 Pen Press Instructions
Mounting Hole
(1 of 4)
Figure 3. Hole locations on pen press
base.
2. Drill four holes at marked locations.
3. Place press in desired location and verify all four
corners of press base sit flat on mounting surface, and that drilled holes align with mounting holes.
Attach press using one of the methods outlined
4.
below:
— "Through Mount" (see Figure 4). Holes are drilled
through workbench and hex bolts, washers, and hex nuts are used to secure press.
— "Direct Mount" (see Figure 5). Pen press base is
secured directly to workbench with lag screws and flat washers.
5. Verify stability of mounted press to make sure it
does not tilt or shift during operation.
Bolt
Flat Washer
Machine Base
Workbench
Flat Washer
Lock Washer
Hex Nut
Figure 4. Example of through-mount
setup.
Lag Screw
Flat Washer
-2-
Machine Base
Workbench
Figure 5. Example of direct-mount setup.
D4496 Pen Press Instructions
DO NOT use pen press as a crushing tool, and never press a container with compressed or explosive contents. Flying shrapnel can strike nearby operators or bystanders with great force, causing serious injuries or death.
Operations
1. Verify pen press is securely mounted and stable.
Move assembly lever to horizontal position to open
2.
toggle clamp (see Figure 6).
Press and hold quick-release button, then move
3.
adjustable rod all the way back.
Press tip assembly of pen kit against center of rear
4.
stop and hold in place.
Rotate screw knob clockwise until pen kit just
5.
touches front stop (see Figure 7).
Screw
Knob
Adjustable
Rod
Figure 6. Pen press components.
Quick-
Release
Button
Front
Stop
Rear Stop
Assembly
Lever
Toggle Clamp
6. Rotate screw knob 1/4 turn clockwise to secure pen kit (see Figure 8). Rear stop is plastic and spring loaded to ensure pen tip is not damaged.
Verify pen kit parts are aligned and centered on
7.
front and rear stops (see Figure 8).
Hold pen kit steady and carefully apply slow,
8.
even pressure on pen kit using assembly lever (see Figure 8).
CAUTION: DO NOT force assembly lever if pen
kit parts do not press together. Verify pen kit components are aligned, reposition pen kit between front and rear stops, and repeat Step 8.
Return assembly lever to horizontal position and
9.
remove pen kit from press.
Figure 7. Pen placed between stops.
Figure 8. Holding pen steady during
assembly operation.
-3-
