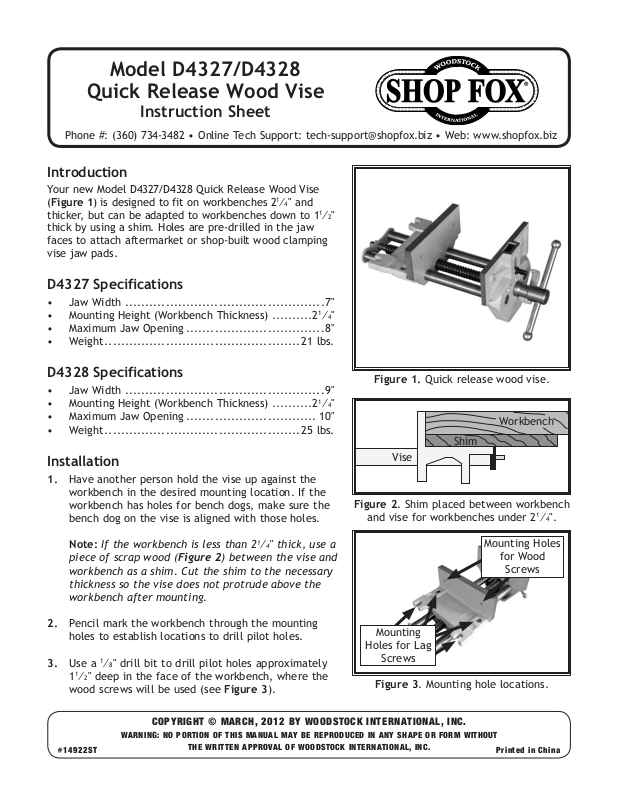

Model D4327/D4328
Quick Release Wood Vise
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
Your new Model D4327/D4328 Quick Release Wood Vise
(Figure 1) is designed to fit on workbenches 2
thicker, but can be adapted to workbenches down to 1
thick by using a shim. Holes are pre-drilled in the jaw
faces to attach aftermarket or shop-built wood clamping
vise jaw pads.
D4327 Specifications
• Jaw Width .................................................7"
• Mounting Height (Workbench Thickness) ..........2
• Maximum Jaw Opening ..................................8"
• Weight ................................................21 lbs.
1
⁄4" and
1
⁄2"
1
⁄4"
D4328 Specifications
• Jaw Width .................................................9"
• Mounting Height (Workbench Thickness) ..........2
• Maximum Jaw Opening ................................ 10"
• Weight ................................................25 lbs.
1
⁄4"
Installation
1. Have another person hold the vise up against the
workbench in the desired mounting location. If the
workbench has holes for bench dogs, make sure the
bench dog on the vise is aligned with those holes.
1
Note: If the workbench is less than 2
piece of scrap wood (Figure 2) between the vise and
workbench as a shim. Cut the shim to the necessary
thickness so the vise does not protrude above the
workbench after mounting.
2. Pencil mark the workbench through the mounting
holes to establish locations to drill pilot holes.
1
3. Use a
1
⁄8" drill bit to drill pilot holes approximately
1
⁄2" deep in the face of the workbench, where the
wood screws will be used (see Figure 3).
⁄4" thick, use a
Figure 1. Quick release wood vise.
Workbench
Shim
Vise
Figure 2. Shim placed between workbench
1
and vise for workbenches under 2
⁄4".
Mounting Holes
for Wood
Screws
Mounting
Holes for Lag
Screws
Figure 3. Mounting hole locations.
COPYRIGHT © MARCH, 2012 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in China#14922ST
D4327/D4328 - For Models Manufactured Since 3/12
4. Use a 1⁄4" drill bit to drill pilot holes approximately
1" deep in the underside of the workbench, where
the lag screws will be used.
Workbench
Wood Screw
5. Attach the vise to the workbench with two #10 x 2"
wood screws through the face of the vise jaw, as
shown in Figure 4.
6. Secure the vise to the underside of the workbench
with four
ers as shown in Figure 4.
Note: If you're using a shim, make sure the lag
screws pass completely through the shim and secure
at least halfway into the workbench thickness, as
shown in Figure 5.
5
⁄16" x 13⁄4" lag screws and 5⁄16" flat wash-
Operation
Rotating the handle (Figure 6) clockwise moves the slid-
ing jaw toward the fixed jaw; rotating handle counterclockwise moves the sliding jaw away from the fixed jaw.
Moving the quick release lever (Figure 6) towards the vise
handle disengages the leadscrew so the sliding jaw can be
freely moved by pushing or pulling it.
Tightening/loosening the finger bolt (Figure 6) allows for
adjustment the height of the bench dog.
Vise
Flat
Washer
Lag Screw
Figure 4. Attaching vise to workbench.
Workbench
Wood Screw
Vise
Flat
Washer
Lag Screw
Figure 5. Attaching vise to workbench
with shim between vise and workbench.
Finger
Bolt
Shim
Wood
Screw
This vise is not a toy. DO NOT use as a crushing tool.
Never clamp containers with compressed or explosive
contents. Using incorrectly may cause serious injury.
Accessories
Ask your Shop Fox dealer for the wood-faced magnetic
jaw pads shown in Figure 7.
Maintenance
The painted parts of the vise can be cleaned with a damp
rag. If wood pitch has built up on the components, clean
this with a pitch dissolver or blade and bit cleaner.
Lubricate the leadscrew with dry lubrication, such as silicone or graphite, that will not cause sawdust to stick to
the threads.
If material becomes built up on the threads, clean thoroughly with a pitch dissolver.
Handle
Quick
Release
Lever
Figure 6. Operation controls of vise.
Figure 7. Shop Fox wood-faced magnetic
jaw pads (Models D3127-D3133).
-2-
D4327/D4328 - For Models Manufactured Since 3/12
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 XD4327001 FLAT COIL SPRING 4 X 3 12 XPS08M PHLP HD SCR M5-.8 X 12
2 XD4327002 SLOTTED NUT M12-1.75 13 XD4327013 FINGER BOLT M8-1.25 X 20
3 XD4327003 FIXED HOUSING 180 X 160 X 30 14 XD4327014 LOCK DOG 50 X 25 X 10
4 XD4327004 SLIDING HOUSING 110 X 110 X 180 15 XD4327015 QUICK RELEASE LEVER
5 XD4327005 GUIDE ROD 22 X 320 16 XPW06M FLAT WASHER 12MM
6 XD4327006 LEADSCREW 33 X 400 17 XD4327017 COTTER PIN 3 X 40
7 XD4327007 TORSION BAR 26 X 285 X 2 18 XD4327018 WAVY WASHER 12MM
8 XD4327008 GUIDE ROD SUPPORT 19 XPB04M HEX BOLT M6-1 X 10
9 XD4327009 HANDLE BAR W/KNOB 20 XPLW03M LOCK WASHER 6MM
10 XD4327010 REMOVABLE HANDLE KNOB 21 XD4327021 QUICK RELEASE HALF NUT
11 XD4327011 RETAINER FORK 22 XD4327022 HALF NUT HOUSING BRACKET
Parts breakdown provided for reference only. Not all parts shown are available for purchase.
D4327 Parts
17
3
16
18
4
14
13
5
6
9
8
7
10
11
15
21
19
22
20
-3-
1
2
12
D4327/D4328 - For Models Manufactured Since 3/12
Parts breakdown provided for reference only. Not all parts shown are available for purchase.
D4328 Parts
17
3
16
18
4
14
13
5
6
9
8
7
10
11
15
21
19
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 XD4327001 FLAT COIL SPRING 4 X 3 12 XPS08M PHLP HD SCR M5-.8 X 12
2 XD4327002 SLOTTED NUT M12-1.75 13 XD4327013 FINGER BOLT M8-1.25 X 20
3 XD4328003 FIXED HOUSING 230 X 160 X 30 14 XD4327014 LOCK DOG 50 X 25 X 10
4 XD4328004 SLIDING HOUSING 230 X 110 X 110 15 XD4327015 QUICK RELEASE LEVER
5 XD4328005 GUIDE ROD 22 X 380 16 XPW06M FLAT WASHER 12MM
6 XD4328006 LEADSCREW 33 X 460 17 XD4327017 COTTER PIN 3 X 40
7 XD4328007 TORSION BAR 26 X 335 X 2 18 XD4327018 WAVY WASHER 12MM
8 XD4328008 GUIDE ROD SUPPORT 19 XPB04M HEX BOLT M6-1 X 10
9 XD4328009 HANDLE BAR W/KNOB 20 XPLW03M LOCK WASHER 6MM
10 XD4327010 REMOVABLE HANDLE KNOB 21 XD4327021 QUICK RELEASE HALF NUT
11 XD4327011 RETAINER FORK 22 XD4327022 HALF NUT HOUSING BRACKET
22
20
1
2
12
-4-
