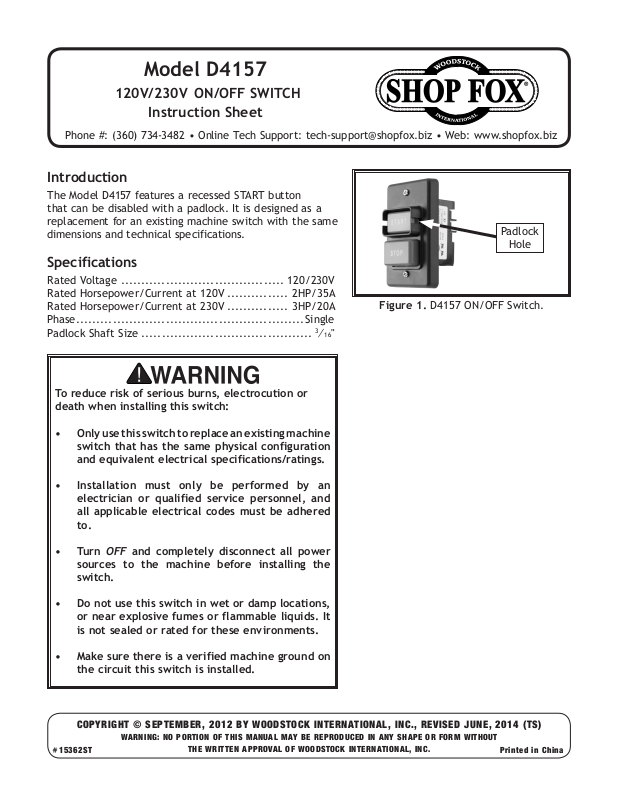

Shop fox D4157 User Manual

Model D4157

120V/230V ON/OFF SWITCH

Instruction Sheet

Phone #: [phone] • Online Tech Support: [e-mail] • Web: www.shopfox.biz

Introduction

The Model D4157 features a recessed START button
that can be disabled with a padlock. It is designed as a
replacement for an existing machine switch with the same
dimensions and technical specifications.

Specifications

Rated Voltage ........................................ 120/230V

Rated Horsepower/Current at 120V ............... 2HP/35A

Rated Horsepower/Current at 230V ............... 3HP/20A

Phase ........................................................Single

Padlock Shaft Size ..........................................

3

⁄16"

Figure 1. D4157 ON/OFF Switch.

Padlock

Hole

To reduce risk of serious burns, electrocution or
death when installing this switch:

• Only use this switch to replace an existing machine
switch that has the same physical configuration
and equivalent electrical specifications/ratings.

• Installation must only be performed by an
electrician or qualified service personnel, and
all applicable electrical codes must be adhered
to.

• Turn OFF and completely disconnect all power
sources to the machine before installing the
switch.

• Do not use this switch in wet or damp locations,
or near explosive fumes or flammable liquids. It
is not sealed or rated for these environments.

• Make sure there is a verified machine ground on
the circuit this switch is installed.

COPYRIGHT © SEPTEMBER, 2012 BY WOODSTOCK INTERNATIONAL, INC., REVISED JUNE, 2014 (TS)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Printed in China#15362ST

Installation

NOTICE

to the disabling function of the switch.
With any padlock used to lock the
switch, test the switch after installation

When installing the D4157 switch, use the wiring diagram
in Figure 2 to ensure proper wire connections.

Model D4157 Instructions

Machine

Verified
Ground*

This switch is intended to be connected to stranded
wire with insulated crimp-type ring wire terminals.

All crimps must be "pull-checked" to ensure that
wires are securely crimped and will not fall out
with moderate tension or when exposed to normal
machine vibration.

*The machine MUST be connected to a verified ground.
In the event of certain malfunctions or breakdowns,
grounding reduces the risk of electric shock by providing a
path of least resistance for electric current.

Disabling & Locking Switch

The ON/OFF switch can be disabled and locked
by inserting a padlock through the ON button, as
shown. Locking the switch in this manner can prevent
unauthorized operation of the machine, which is
especially important if the machine is not stored inside an
access-restricted building.

Hot
Out

Load

KEDU

HY56

Line

Hot

In

Power Source

Out

120V Neutral

or 230V Hot

Rear View

of Switch

In

120V Neutral

or 230V Hot

Figure 2. D4157 wiring diagram.

Padlock

Shaft

IMPORTANT: Locking the switch with a padlock
only restricts its function. It is not a substitute for
disconnecting power from the machine when adjusting or
servicing.

Children and untrained people can be seriously injured
by this machine. This risk increases with unsupervised
operation. To help prevent unsupervised operation,
disable and lock the switch before leaving machine
unattended! Place key in a well-hidden or secure
location.

Figure 3. Switch disabled by a padlock.

The padlock shaft diameter is important

to ensure that it is properly disabled.

Shaft Diameter

Figure 4. Minimum lock shaft

requirements.

-2-
