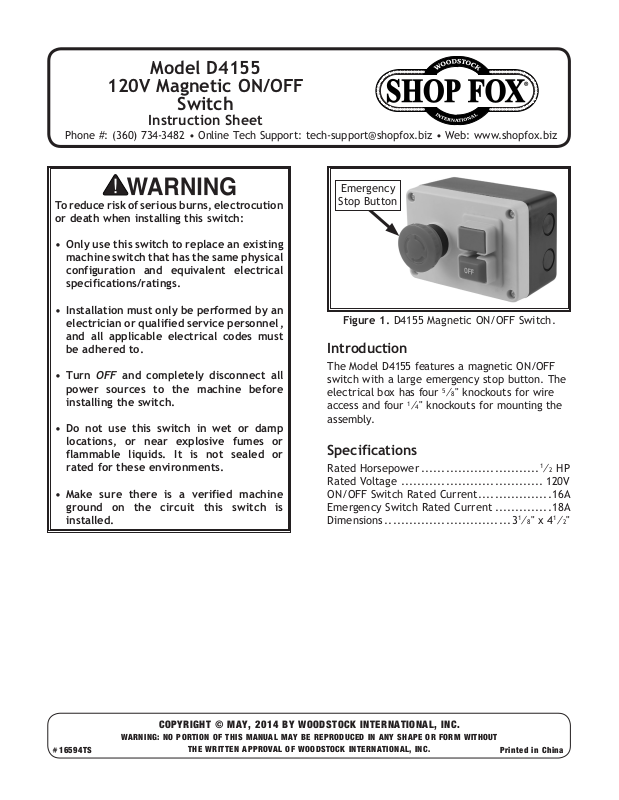

Shop fox D4155 User Manual

Model D4155

#16594TS

120V Magnetic ON/OFF

Switch

Instruction Sheet

Phone #: [phone] • Online Tech Support: [e-mail] • Web: www.shopfox.biz

Emergency

To reduce risk of serious burns, electrocution
or death when installing this switch:

• Only use this switch to replace an existing
machine switch that has the same physical
configuration and equivalent electrical
specifications/ratings.

• Installation must only be performed by an
electrician or qualified service personnel,
and all applicable electrical codes must
be adhered to.

• Turn OFF and completely disconnect all
power sources to the machine before
installing the switch.

• Do not use this switch in wet or damp
locations, or near explosive fumes or
flammable liquids. It is not sealed or
rated for these environments.

• Make sure there is a verified machine
ground on the circuit this switch is
installed.

Stop Button

Figure 1. D4155 Magnetic ON/OFF Switch.

Introduction

The Model D4155 features a magnetic ON/OFF
switch with a large emergency stop button. The
electrical box has four
access and four
assembly.

1

⁄4" knockouts for mounting the

5

⁄8" knockouts for wire

Specifications

Rated Horsepower .............................1⁄2 HP

Rated Voltage ................................... 120V

ON/OFF Switch Rated Current ..................16A

Emergency Switch Rated Current ..............18A

Dimensions ............................... 3

1

⁄8" x 4 1⁄2"

COPYRIGHT © MAY, 2014 BY WOODSTOCK INTERNATIONAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Printed in China

D4155 Magnetic ON/OFF Switch

Installation

When installing the D4155 switch, use the wiring
diagram in Figure 2 to ensure proper wire
connections.

This switch is intended to be connected to
stranded wire with insulated crimp-type
wire terminals.

The emergency stop button requires ring
wire terminals.

The ON/OFF switch requires female quick­disconnect wire terminals.

All crimps must be "pull-checked" to ensure
that wires are securely crimped and will
not fall out with moderate tension or when
exposed to normal machine vibration.

Rear View of Switch

Power Source

Hot In

Emergency

Stop

Button

ON/OFF

Switch

KEDU

Hot Out

Neutral In

1

KEDU HY57B

3

KJD17B

Neutral Out

2

4

24

23

14

13

Verified
Ground*

Machine

Figure 2. D4155 wiring diagram.

*The machine MUST be connected to a verified
ground. In the event of certain malfunctions
or breakdowns, grounding reduces the risk
of electric shock by providing a path of least
resistance for electric current.

To reset the emergency stop button for
operation, twist it clockwise until it pops
out.
