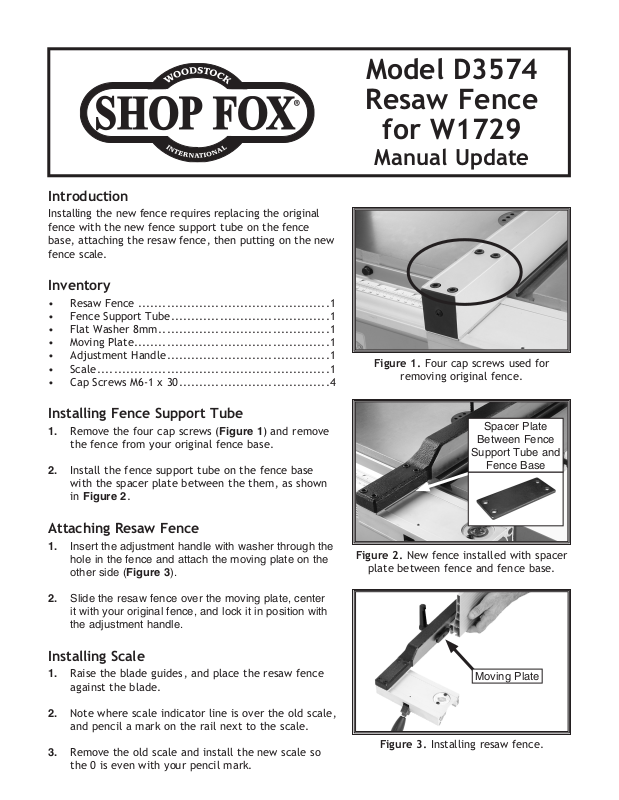

Shop Fox D3574 User guide

Introduction

Installing the new fence requires replacing the original
fence with the new fence support tube on the fence
base, attaching the resaw fence, then putting on the new

fence scale.

Inventory

• Resaw Fence ...............................................1

• Fence Support Tube .......................................

• Flat Washer 8mm ..........................................

• Moving Plate ................................................

• Adjustment Handle ........................................

• Scale .........................................................

• Cap Screws M6-1 x 30 .....................................

1
1
1
1
1
4

Model D3574
Resaw Fence

for W1729

Manual Update

Figure 1. Four cap screws used for

removing original fence.

Installing Fence Support Tube

1. Remove the four cap screws (Figure 1) and remove
the fence from your original fence base.

2. Install the fence support tube on the fence base
with the spacer plate between the them, as shown
in Figure 2.

Attaching Resaw Fence

1. Insert the adjustment handle with washer through the
hole in the fence and attach the moving plate on the
other side (Figure 3

2. Slide the resaw fence over the moving plate, center
it with your original fence, and lock it in position with
the adjustment handle.

).

Installing Scale

1. Raise the blade guides, and place the resaw fence
against the blade.

Spacer Plate

Between Fence

Support Tube and

Fence Base

Figure 2. New fence installed with spacer

plate between fence and fence base.

Moving Plate

2. Note where scale indicator line is over the old scale,
and pencil a mark on the rail next to the scale.

3. Remove the old scale and install the new scale so
the 0 is even with your pencil mark.

Figure 3. Installing resaw fence.























REF PART�# DESCRIPTION QTY

1 XD3574001 RESAW�FENCE��(AL)�640mm 1
2 XD3574002 MOVING�PLATE� 1
3 XPW01M FLAT�WASHER�8MM 1
4 XD3574004 ADJUSTMENT�KNOB�M8�X�44 1
5 XD3575007 FENCE�SUPPORT�TUBE�640MM 1
6 XPN01M HEX�NUT�M6-1 1
7 XD3575010 ADJUST�SCREW 1
8 XPSB07M CAP�SCREW�M6-1�X�30 4
9 XD3575021 SCALE 1
10 XD3574010 END

�COVER�148�X�22�X�1 2

11 XPHTEK3M TAP

�SCREW�M3.5�X�8 4

D3574 Parts Breakdown & List

D3574 Resaw Fence
