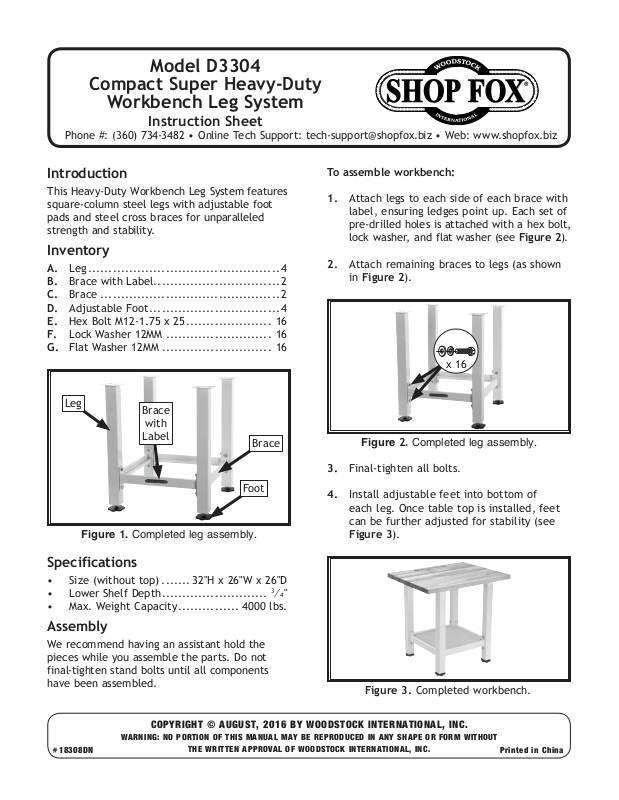

Shop fox D3304 User Manual
Model D3304
#18308DN
Compact Super Heavy-Duty
Workbench Leg System
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
This Heavy-Duty Workbench Leg System features
square-column steel legs with adjustable foot
pads and steel cross braces for unparalleled
strength and stability.
Inventory
A. Leg ............................................... 4
B. Brace with Label............................... 2
C. Brace ............................................ 2
D. Adjustable Foot ................................ 4
E. Hex Bolt M12-1.75 x 25 ..................... 16
F. Lock Washer 12MM .......................... 16
G. Flat Washer 12MM ........................... 16
Leg
Brace
with
Label
Brace
To assemble workbench:
1. Attach legs to each side of each brace with
label, ensuring ledges point up. Each set of
pre-drilled holes is attached with a hex bolt,
lock washer, and flat washer (see Figure 2).
2. Attach remaining braces to legs (as shown
in Figure 2).
x 16
Figure 2. Completed leg assembly.
Foot
Figure 1. Completed leg assembly.
Specifications
• Size (without top) ....... 32"H x 26"W x 26"D
• Lower Shelf Depth ..........................
• Max. Weight Capacity ............... 4000 lbs.
3
⁄4"
Assembly
We recommend having an assistant hold the
pieces while you assemble the parts. Do not
final-tighten stand bolts until all components
have been assembled.
COPYRIGHT © AUGUST, 2016 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
3. Final-tighten all bolts.
4. Install adjustable feet into bottom of
each leg. Once table top is installed, feet
can be further adjusted for stability (see
Figure 3).
Figure 3. Completed workbench.
Printed in China
D3304 Heavy-Duty Workbench Leg System Instructions
PARTS
1
5
6
7
2
8
2
4
3
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 XD3304001 LEG 5 XD3304005 HEX BOLT M12-1.75 X 25
2 XD3304002 BRACE W/ SHOP FOX LOGO 6 XD3304006 LOCK WASHER 12MM
3 XD3304003 BRACE 7 XD3304007 FLAT WASHER 12MM
4 XD3304004 ADJUSTABLE RUBBER FOOT 8 XD3304008 SHOP FOX LOGO
3
-2-
