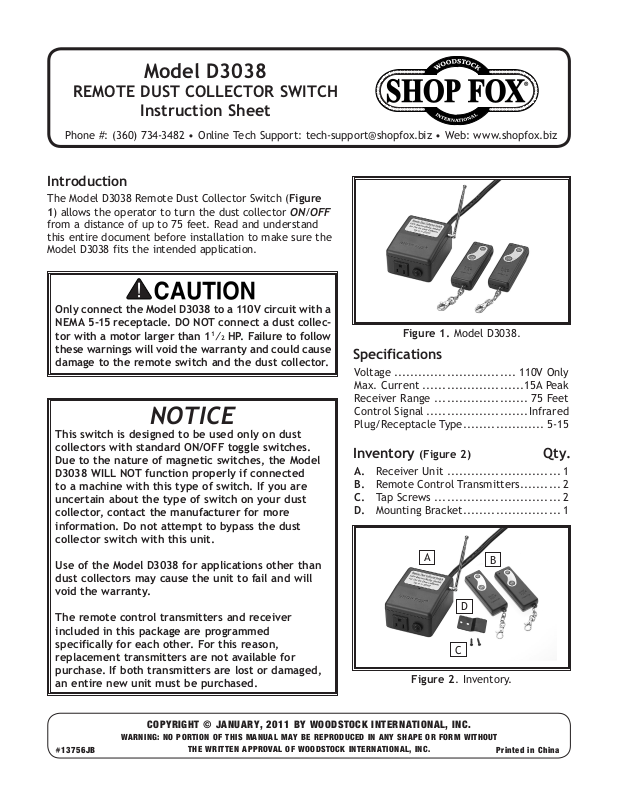

Model D3038

REMOTE DUST COLLECTOR SWITCH

Instruction Sheet

Phone #: [phone] • Online Tech Support: [e-mail] • Web: www.shopfox.biz

Introduction

The Model D3038 Remote Dust Collector Switch (Figure

1) allows the operator to turn the dust collector ON/OFF

from a distance of up to 75 feet. Read and understand
this entire document before installation to make sure the
Model D3038 fits the intended application.

Only connect the Model D3038 to a 110V circuit with a
NEMA 5-15 receptacle. DO NOT connect a dust collec­tor with a motor larger than 1
these warnings will void the warranty and could cause
damage to the remote switch and the dust collector.

NOTICE

This switch is designed to be used only on dust
collectors with standard ON/OFF toggle switches.
Due to the nature of magnetic switches, the Model
D3038 WILL NOT function properly if connected
to a machine with this type of switch. If you are
uncertain about the type of switch on your dust
collector, contact the manufacturer for more
information. Do not attempt to bypass the dust
collector switch with this unit.

1

⁄2 HP. Failure to follow

Figure 1. Model D3038.

Specifications

Voltage .............................. 110V Only

Max. Current .........................15A Peak

Receiver Range ....................... 75 Feet

Control Signal .........................Infrared

Plug/Receptacle Type .................... 5-15

Inventory (Figure 2) Qty.

A. Receiver Unit ............................ 1

B. Remote Control Transmitters .......... 2

C. Tap Screws ............................... 2

D. Mounting Bracket ........................ 1

Use of the Model D3038 for applications other than
dust collectors may cause the unit to fail and will
void the warranty.

The remote control transmitters and receiver
included in this package are programmed
specifically for each other. For this reason,
replacement transmitters are not available for
purchase. If both transmitters are lost or damaged,
an entire new unit must be purchased.

COPYRIGHT © JANUARY, 2011 BY WOODSTOCK INTERNATIONAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

A

C

Figure 2. Inventory.

B

D

Printed in China#13756JB

Grounding Prong

Neutral Hot

5-15 PLUG

GROUNDED

5-15 RECEPTACLE

110V

DO NOT modify the provided plug or
use an adapter if the plug will not fit
your receptacle. This is an indication
that your power supply circuit does
NOT meet the requirements for the
machine; have an electrician install
the correct power supply circuit. If
the machine must be reconnected for
use on a different type of electric
circuit, the reconnection should be
made by a qualified electrician or
service personnel; after reconnection,
the machine must comply with all local
codes and ordinances.

Wall

Mounting

Bracket

Side

View

Screws

Reciever

Unit

Installation

1. Identify a mounting location for the receiver unit

that allows the power cord to reach an appropriate
outlet and the dust collector power to be plugged
into the receiver outlet.

Note: You may choose to attach the receiver unit

directly to your dust collector. If so, mount it to a
portion of the frame that will not compromise the
function or strength of the dust collector.

2. Attach the mounting bracket in the chosen location
using the included screws, as shown in Figure 3. If
you are mounting the bracket to the dust collector
frame, you may have to use alternative mounting
hardware.

3. Hook the receiver unit onto the mounting bracket.

D3038 Remote Dust Collector Switch

4. Plug the receiver power cord into a 5-15 receptacle,
then plug the dust collector cord into the receiver
unit.

Only connect the Model D3038 to a 110V circuit with a
NEMA 5-15 receptacle. DO NOT connect a dust collec­tor with a motor larger than 1
these warnings will void the warranty and could cause
damage to the remote switch and the dust collector.

5. If the batteries are not installed in the remote

control transmitters, install them as described on

Page 3.

1

⁄2 HP. Failure to follow

-2-

Figure 3. Mounting.

Figure 4. NEMA 5-15 plug & receptacle.
