Page 1
UM-72F0B-001
SHIMANO Total Electric Power System
User's manual
E8000 Series
Original instructions
Page 2
Page 3
CONTENTS
English
IMPORTANT NOTICE
Important safety information
To ensure safety
NOTICE
.......................................................................................................4
Booklet Structure
Features of SHIMANO STEPS
Riding the bicycle

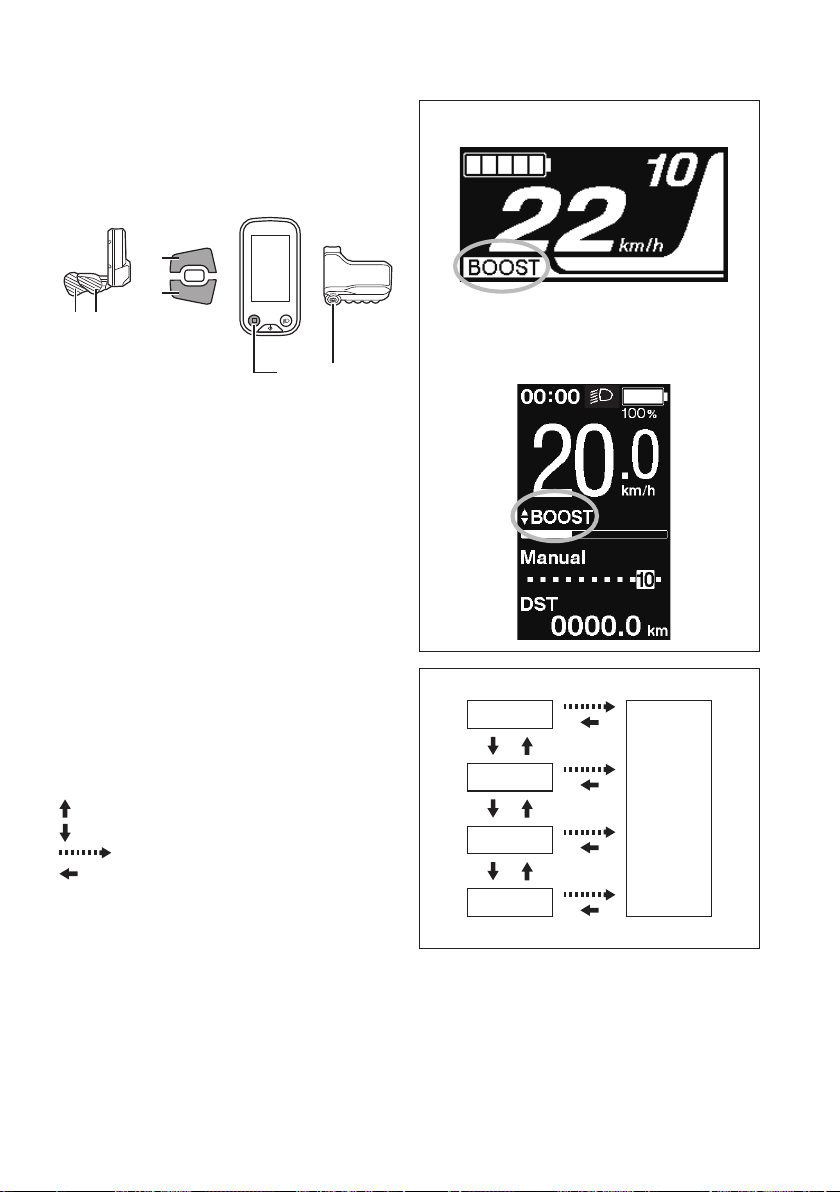

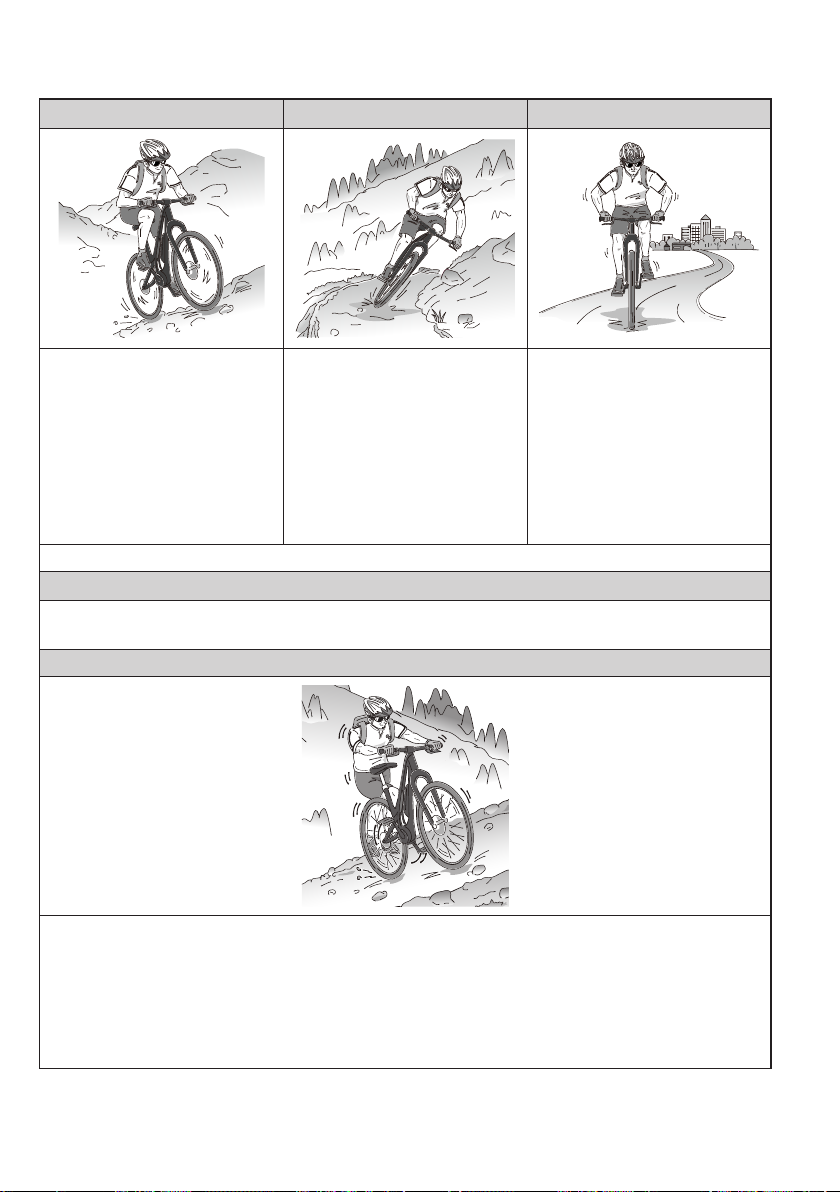

Assist mode

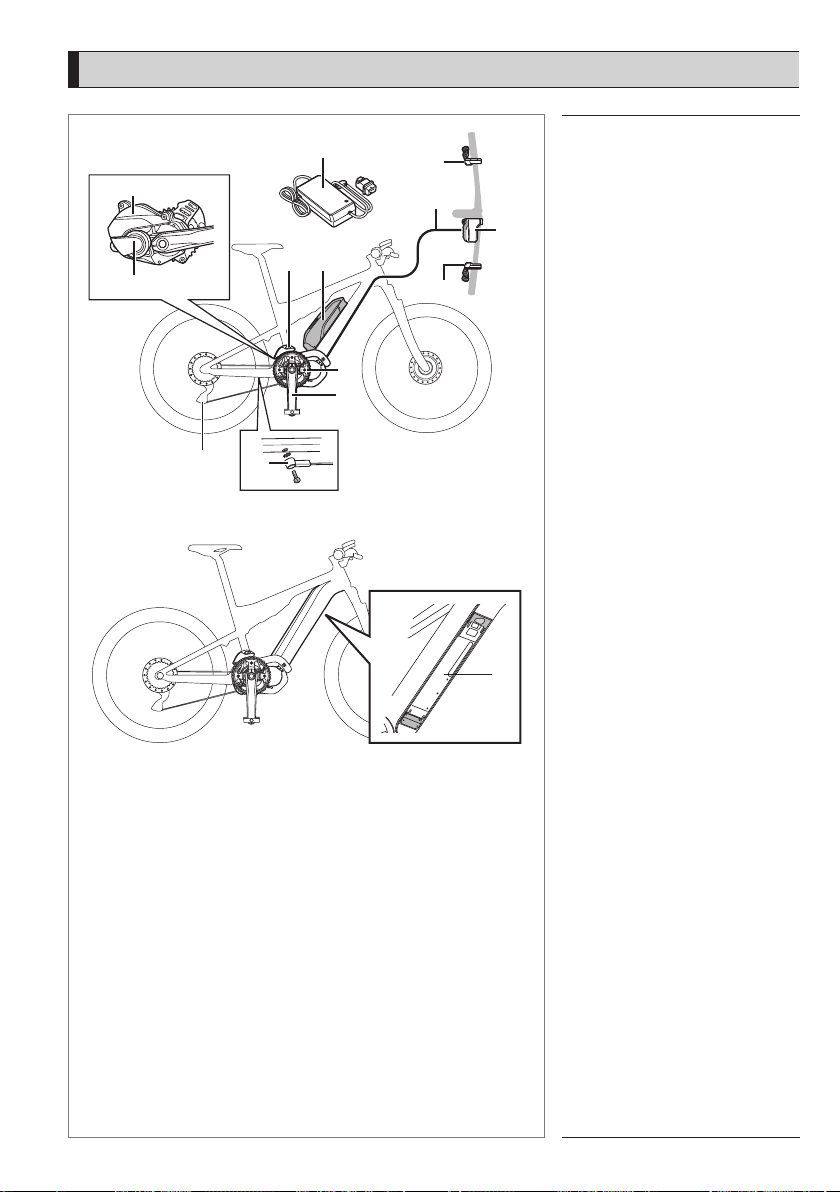

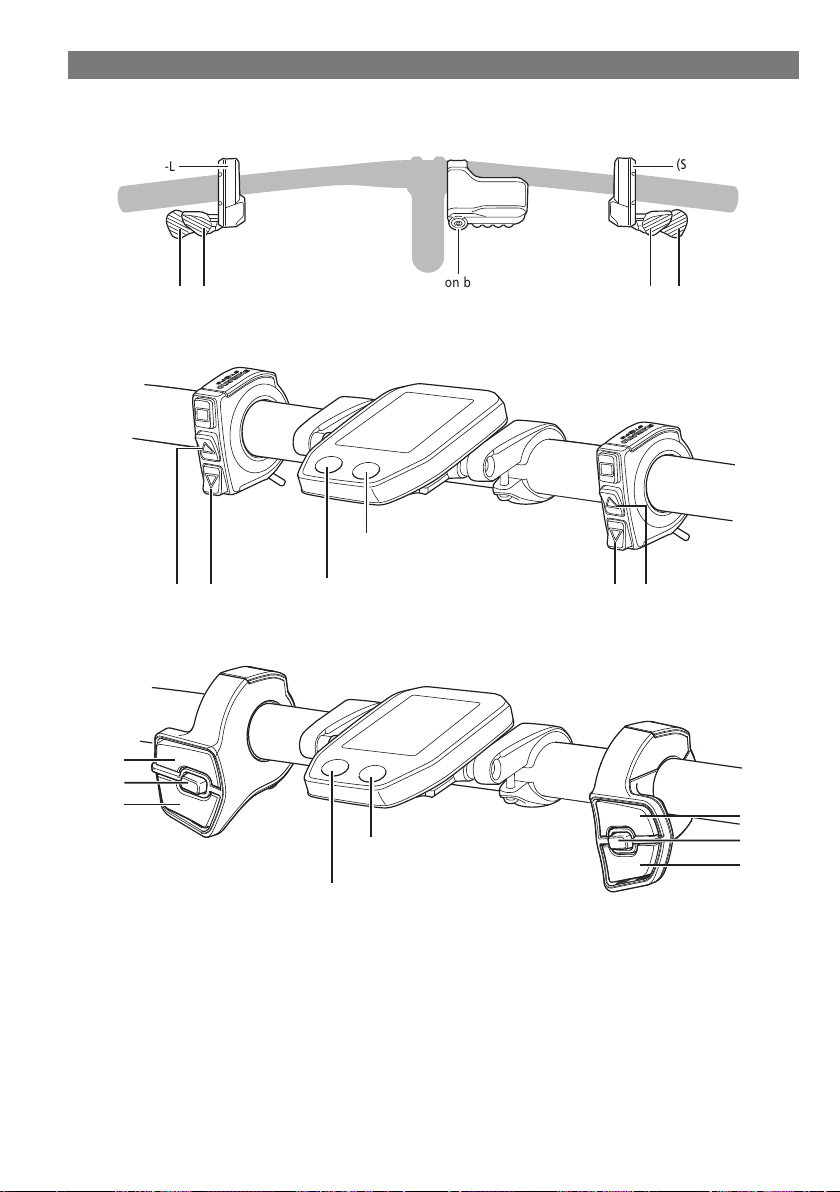

Names of parts
Specifications
Preparation

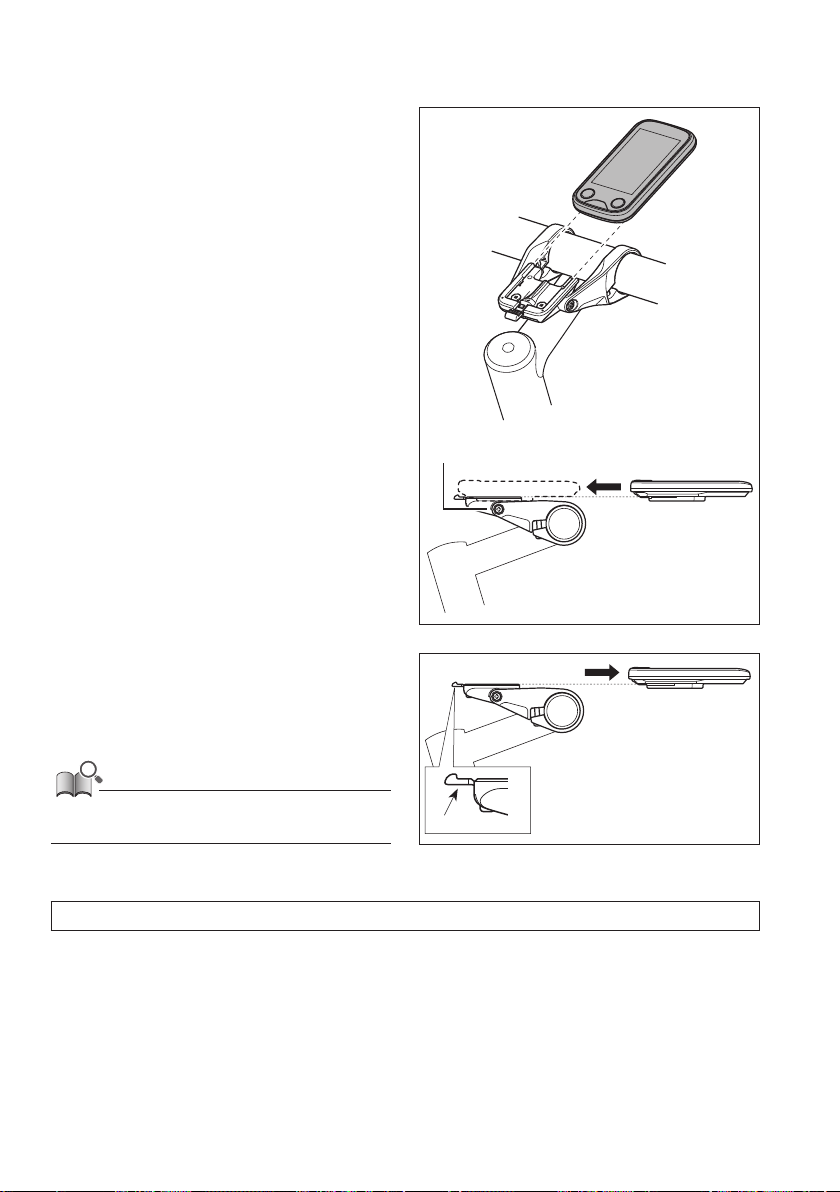

Installing and removing the cycle computer

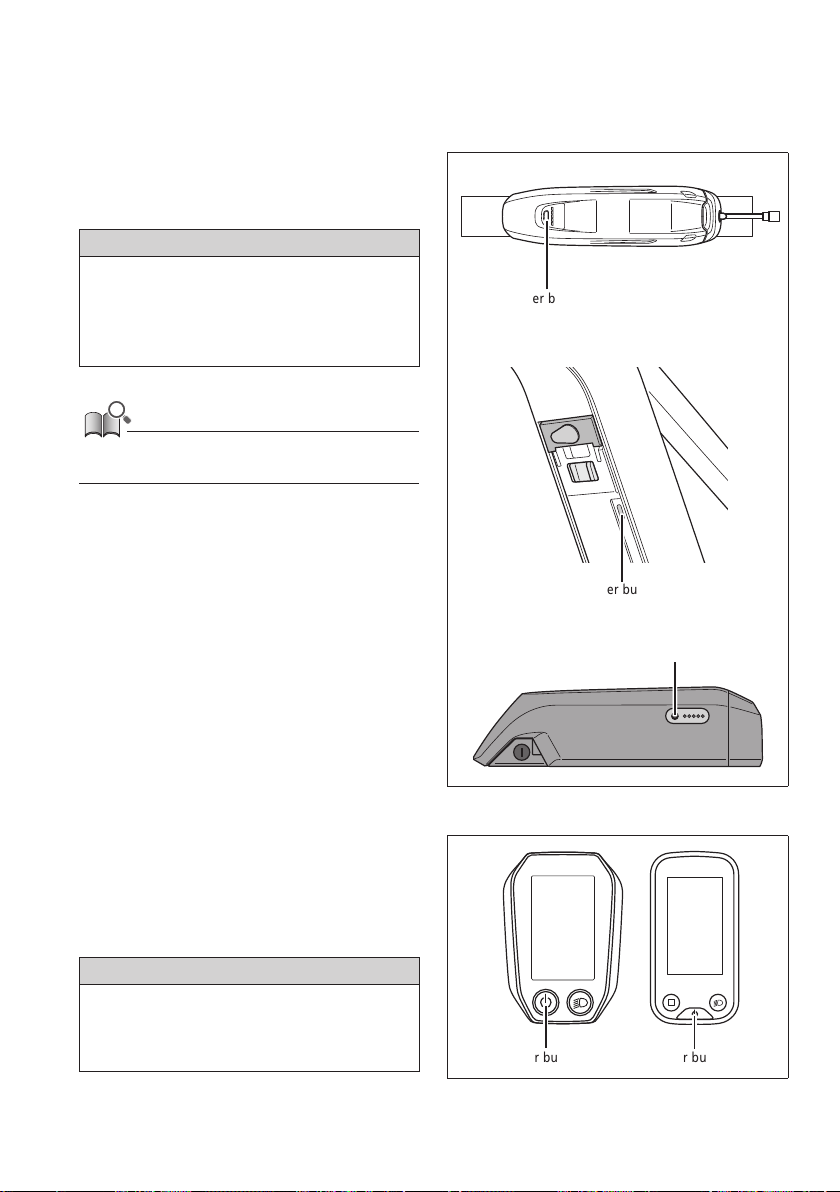

Turning the power ON / OFF

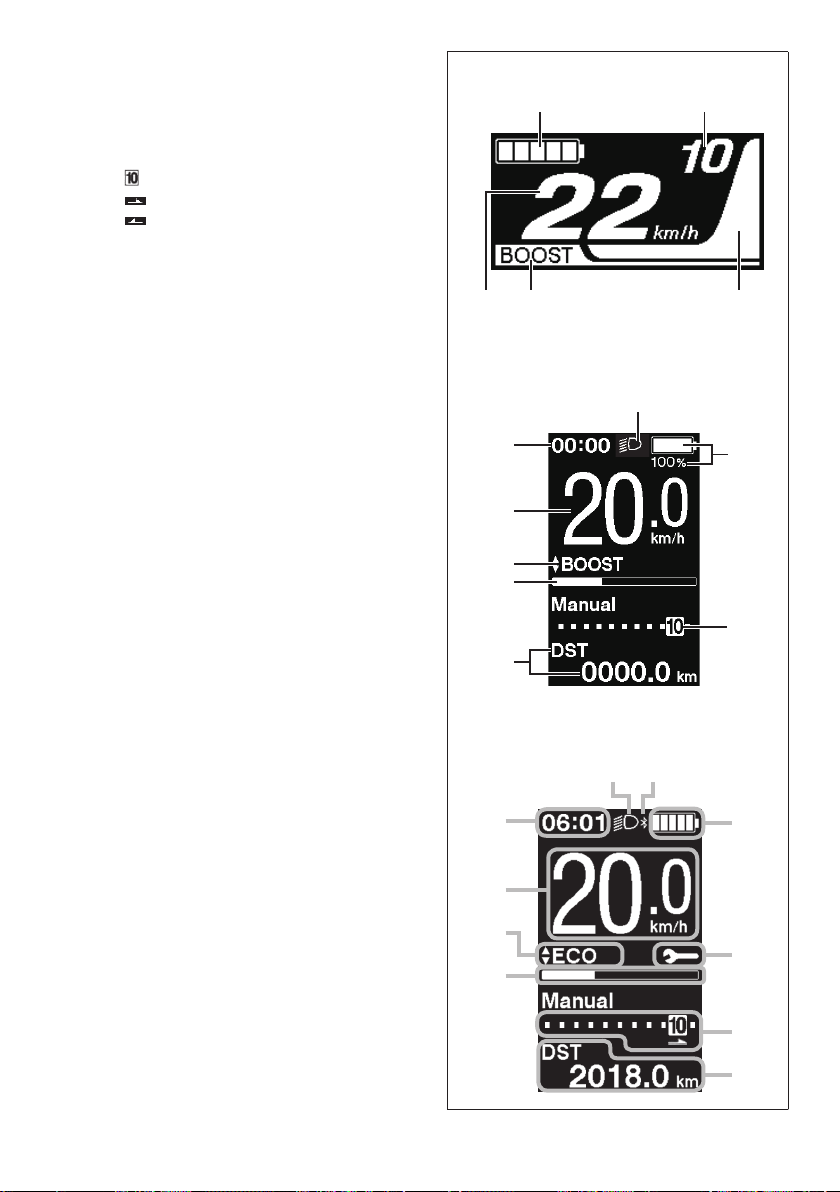

Basic screen display
Changing assist mode

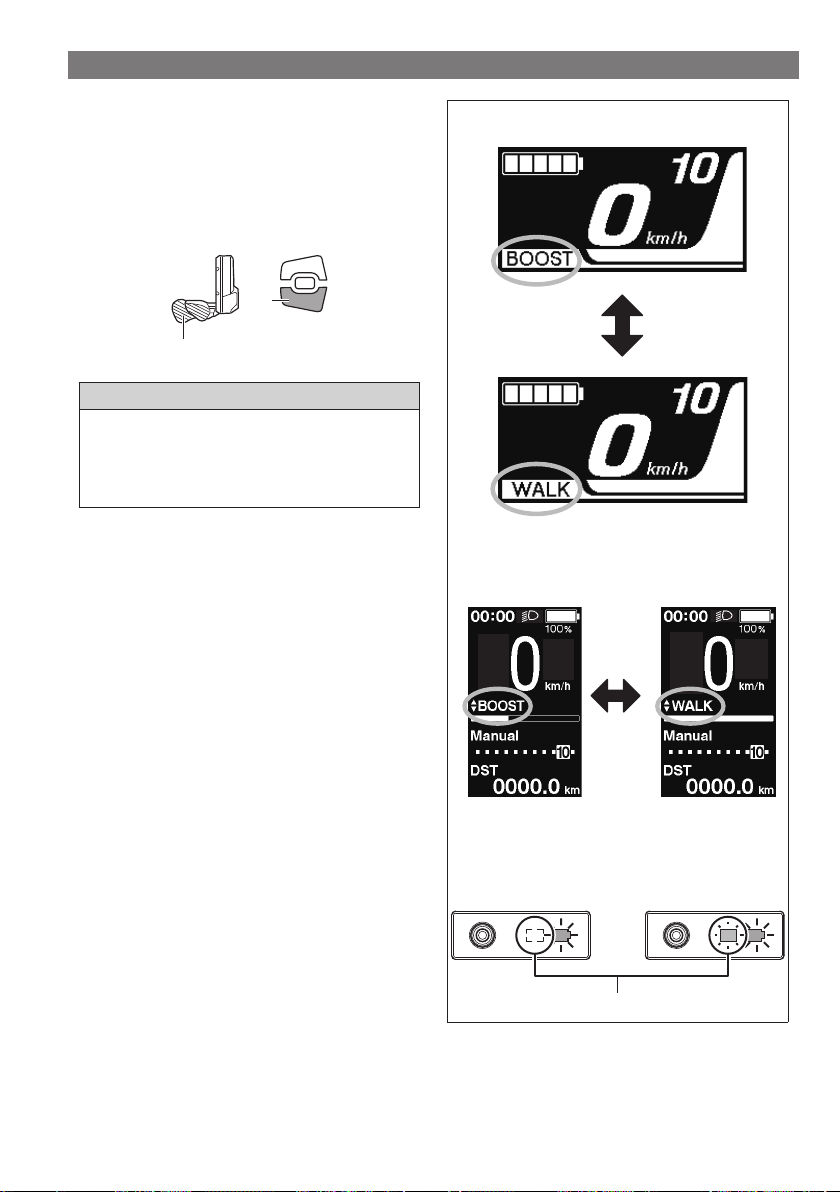

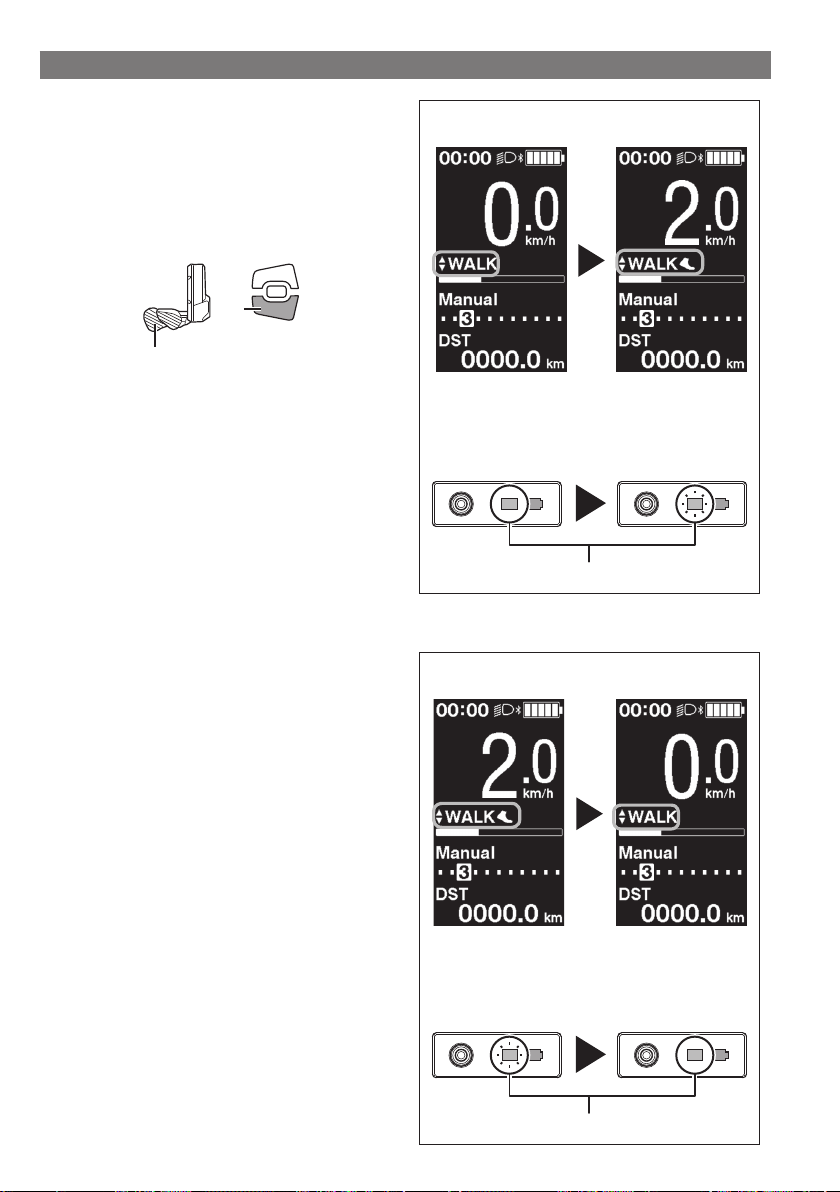

Switching to [WALK] mode (walk assist mode)

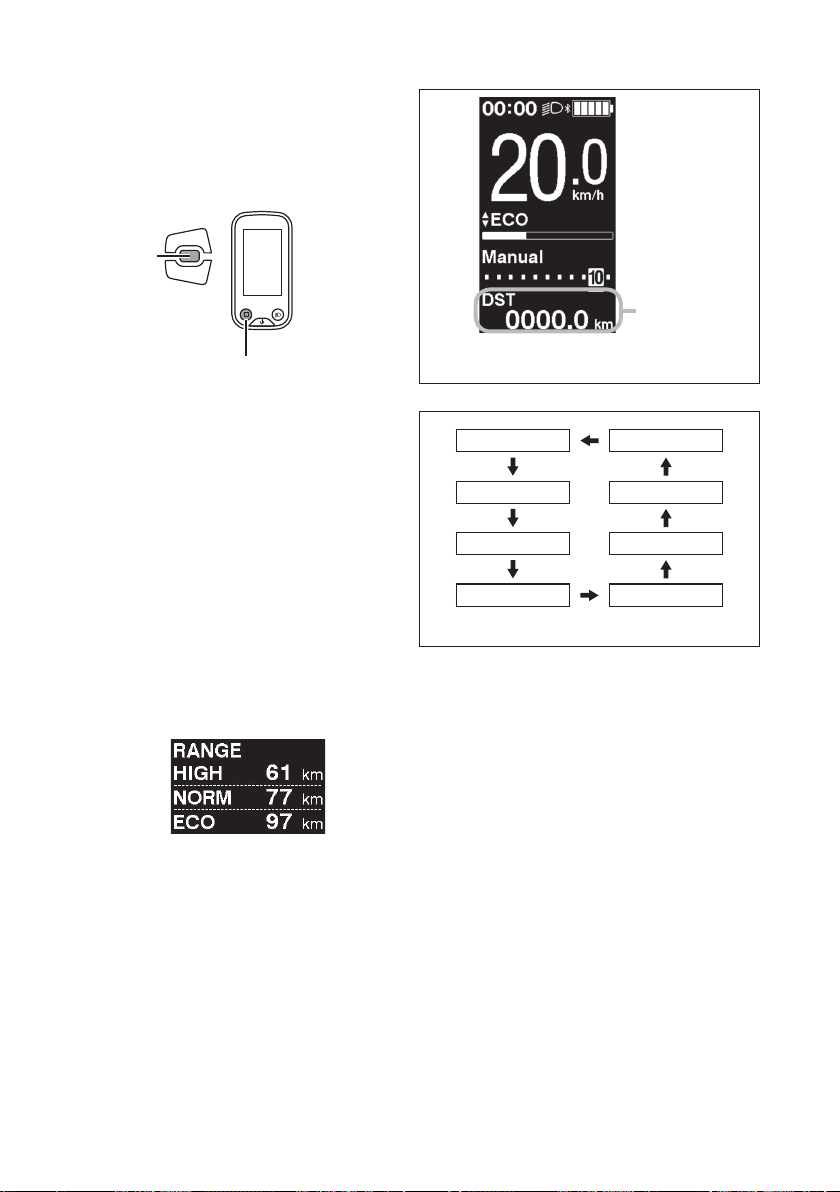

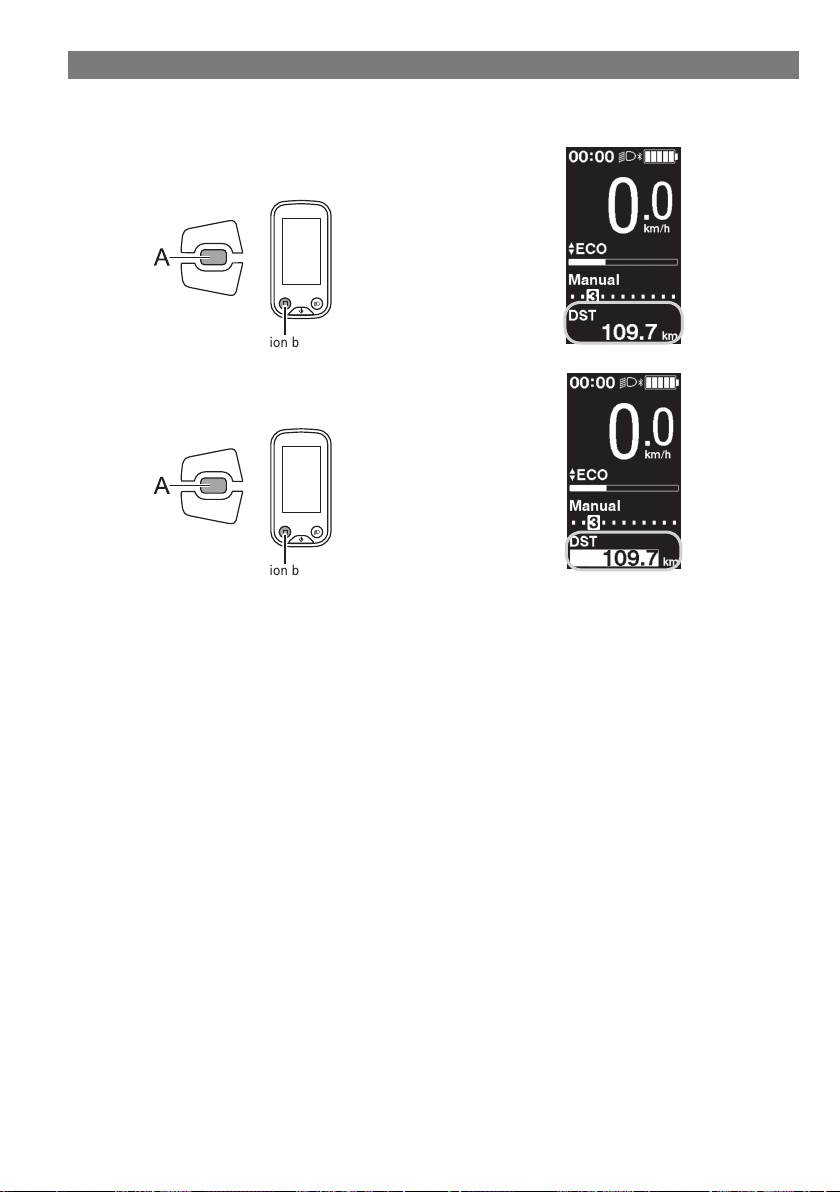

Switching the travel data display (SC-E8000/SC-E6010)

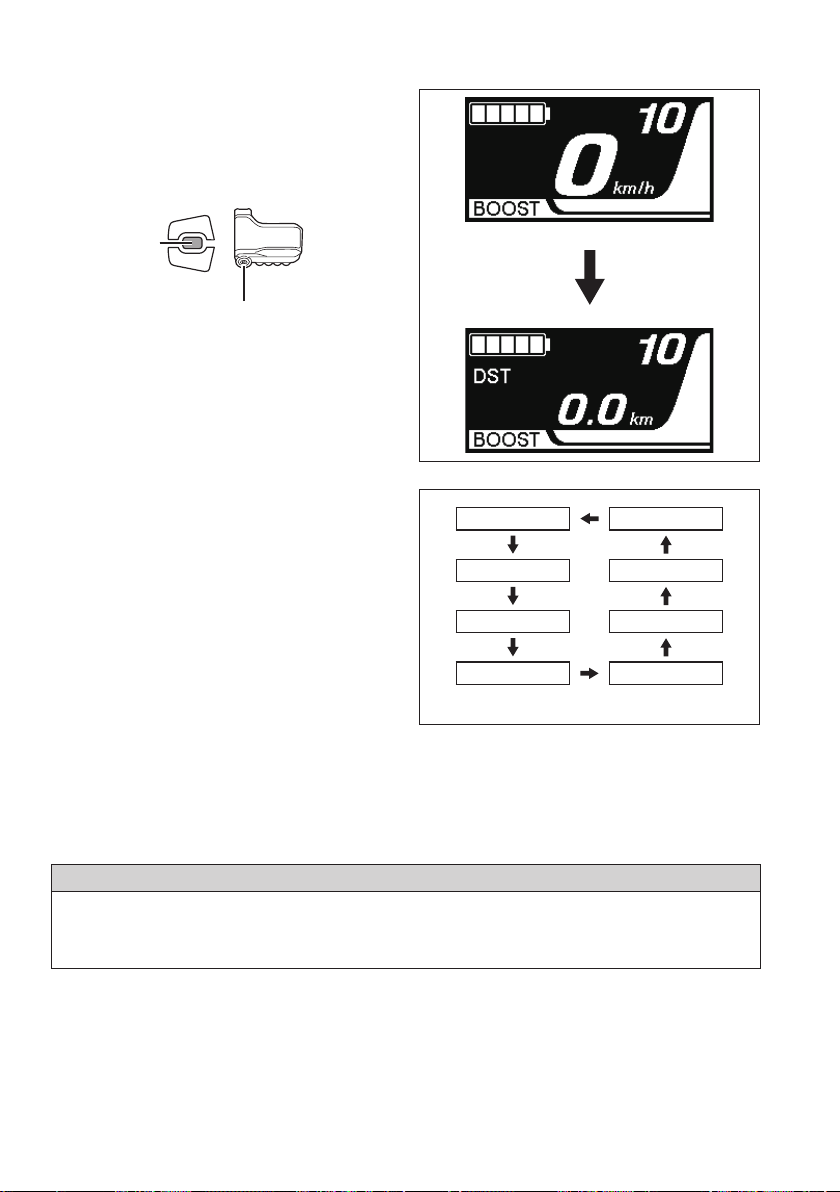

Switching the travel data display (SC-E6100)

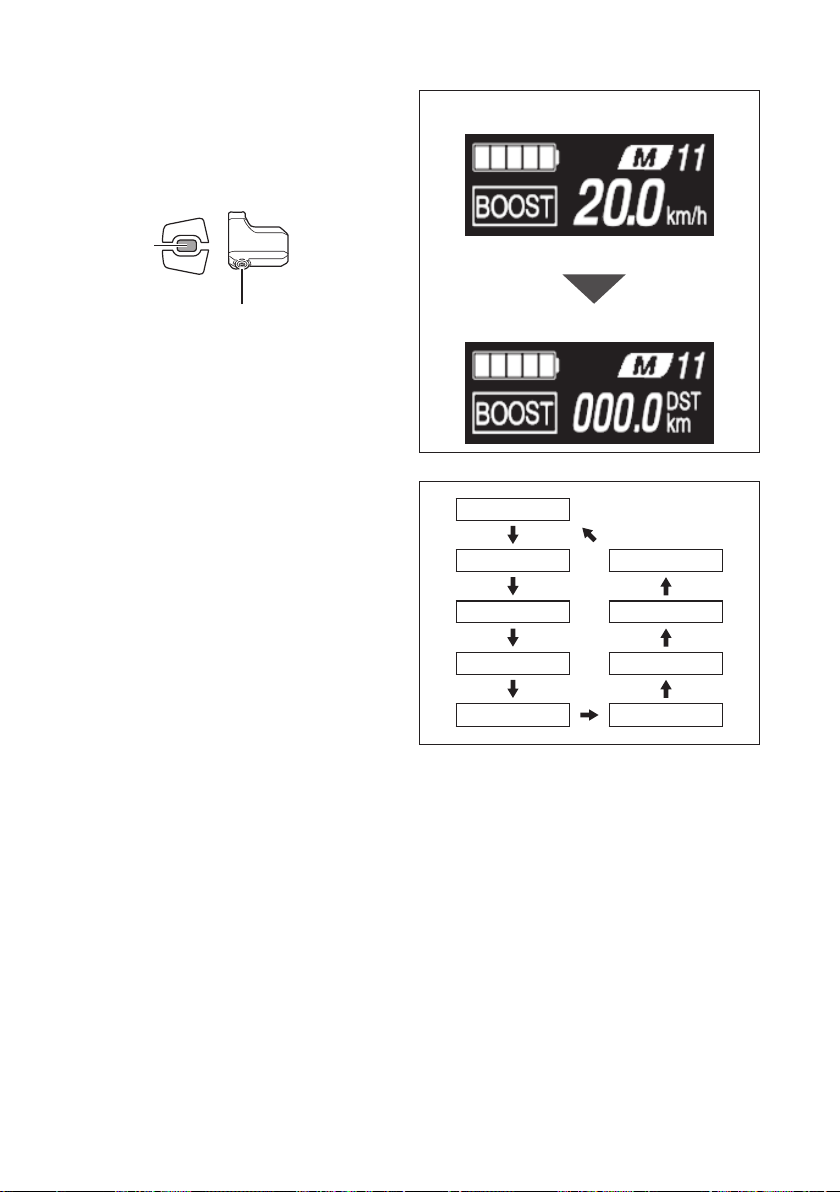

Switching the travel data display (SC-E7000)

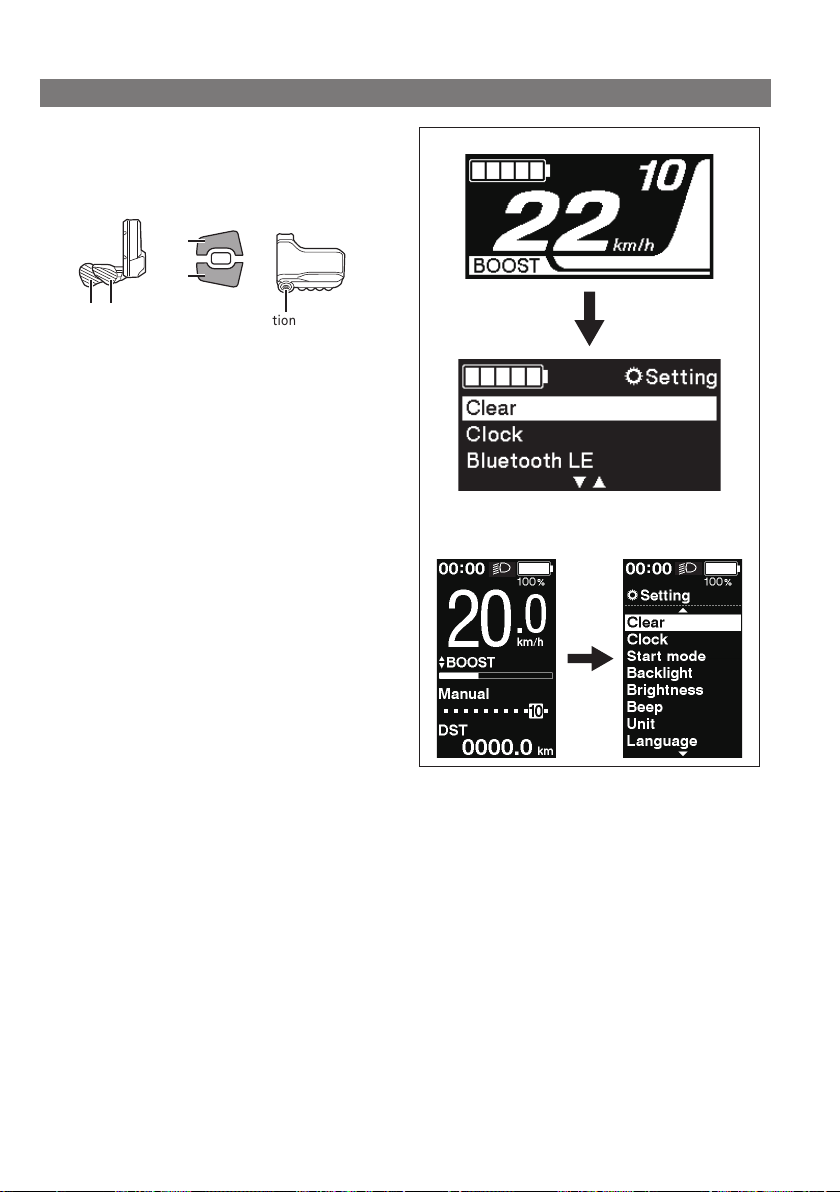

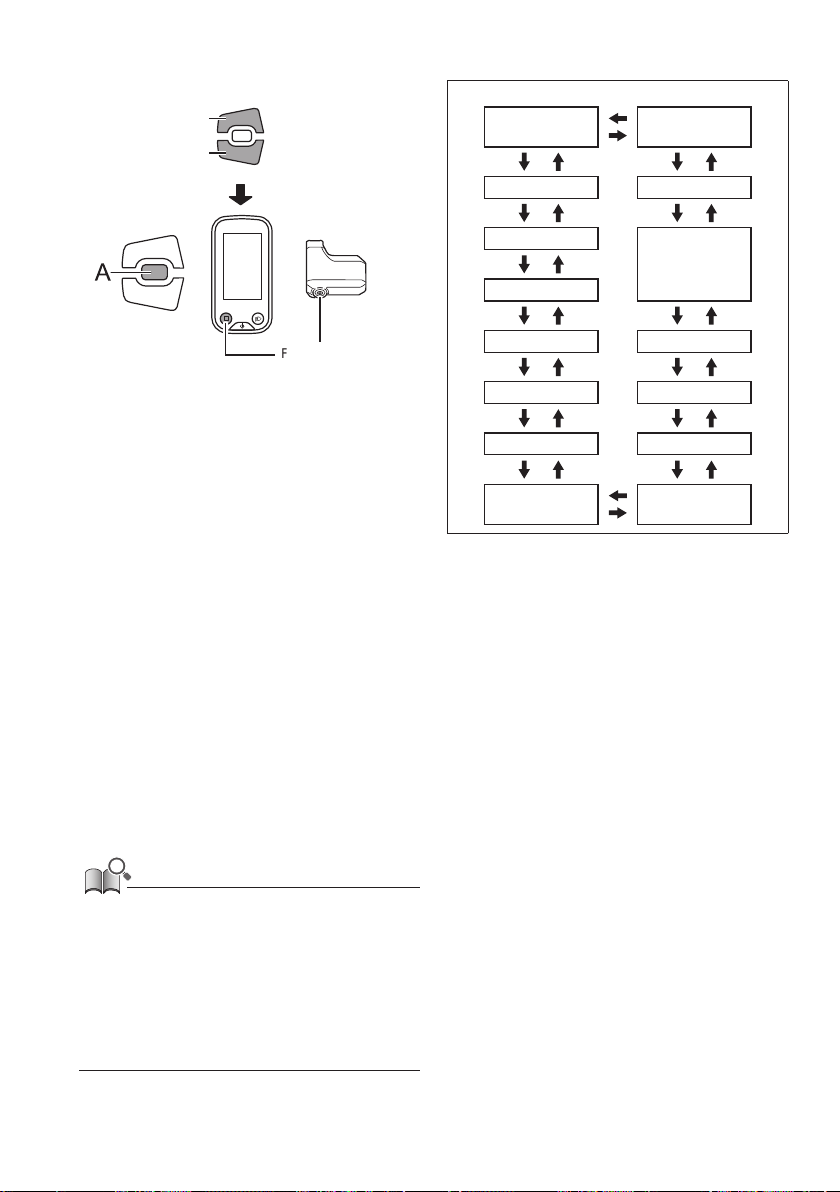

About the setting menus
...............................................................................................10
......................................................................................2
.........................................................................2
...........................................................................................2
.........................................................................................6
..........................................................................7
................................................................................................................7
........................................................................................................................8
.............................................................................................9
.............................................................................................10
...........................................................................14
................................................................................................15
............................................................................................................16
.........................................................................................................20
........................................................................22
..........................................................................28
..........................................................................30
.....................................................................................................32
.............................................................26
Settings (EW-EN100)

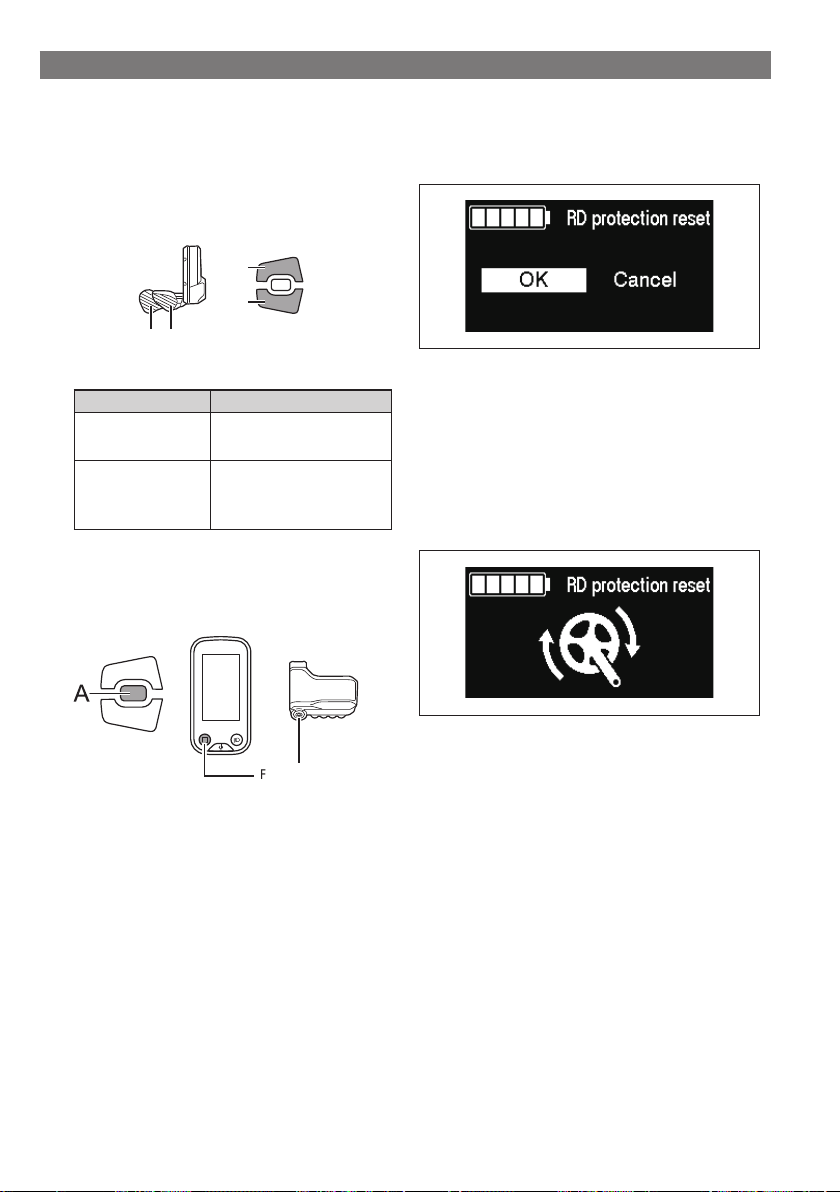

RD protection reset

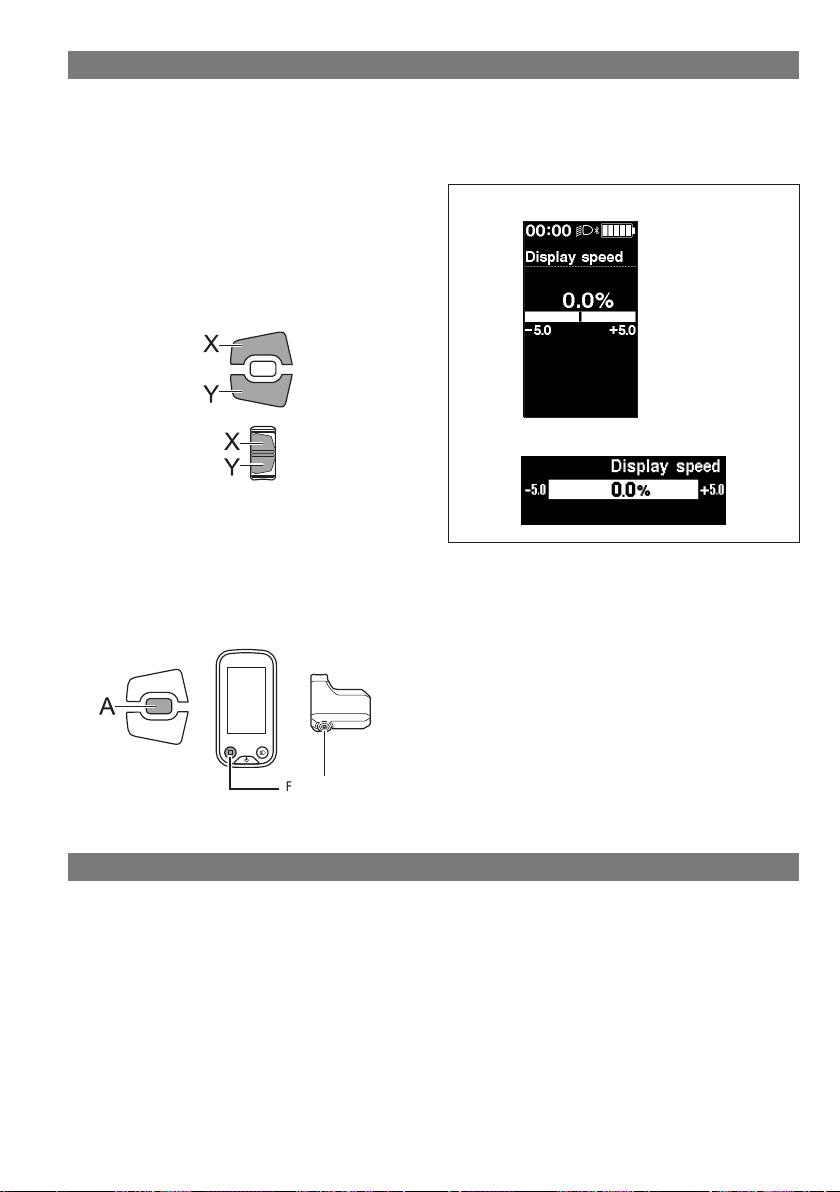

Adjust
..............................................................................................................................54
Drive unit setting data backup function (SC-E8000/SC-E6010)

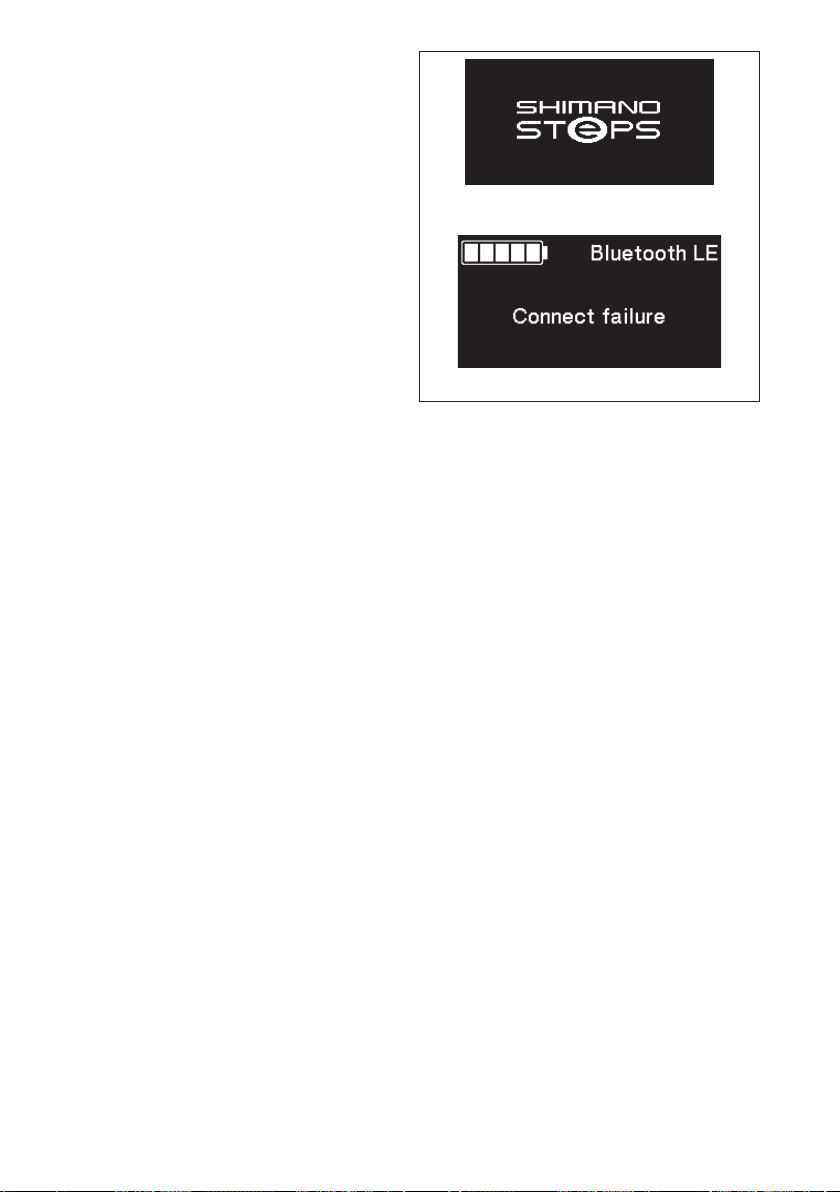

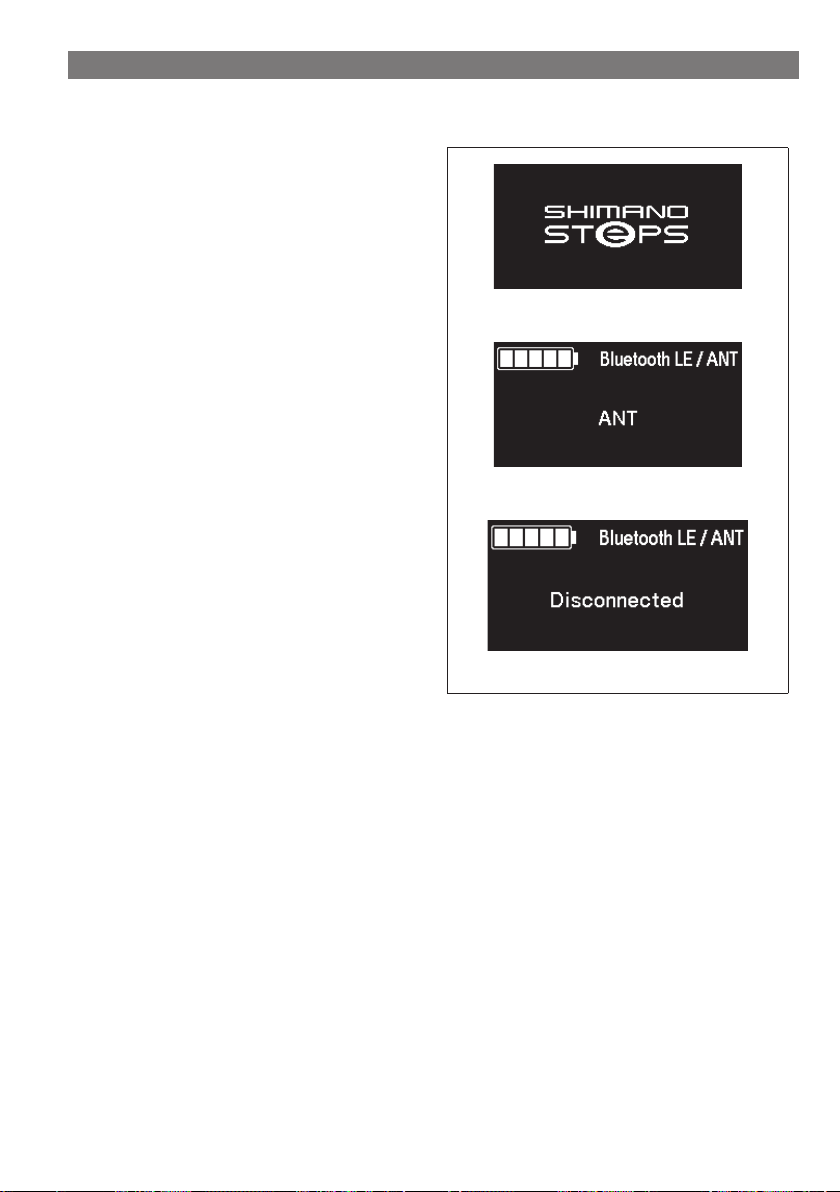

Connection and communication with devices
About wireless functions
Troubleshooting

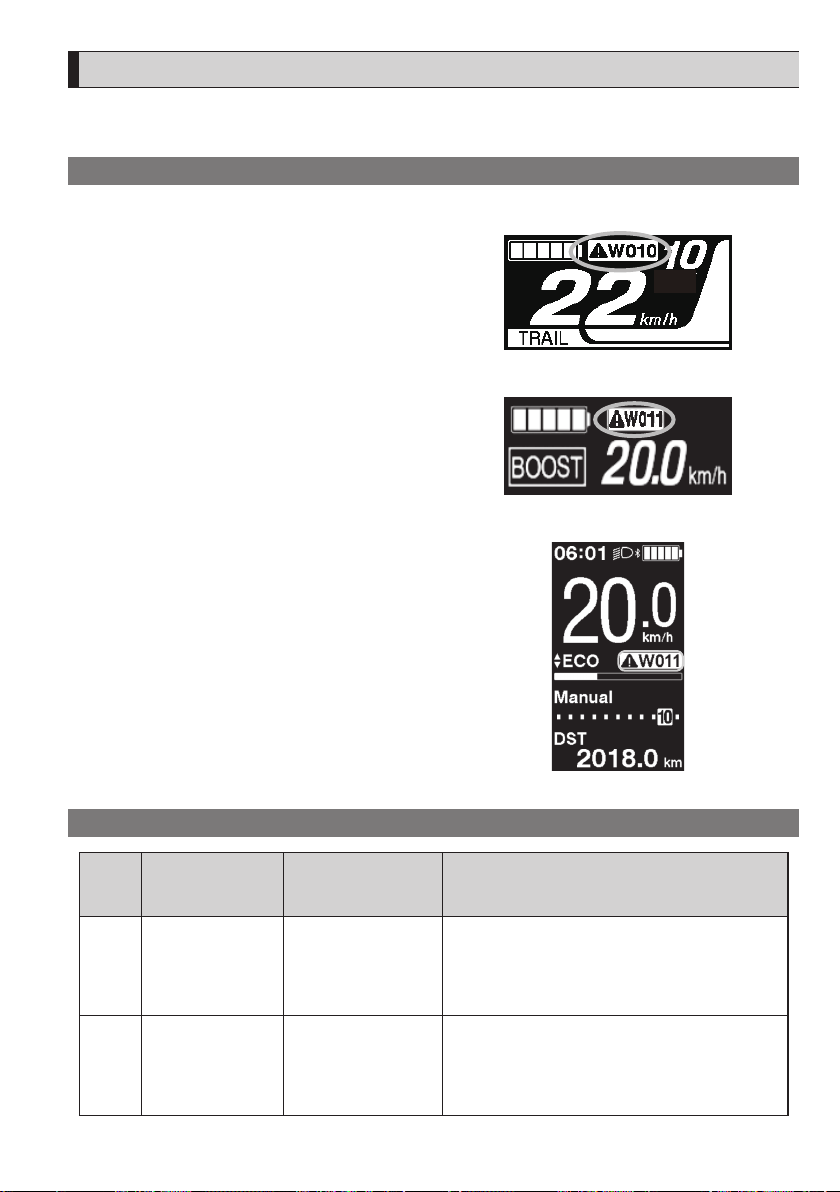

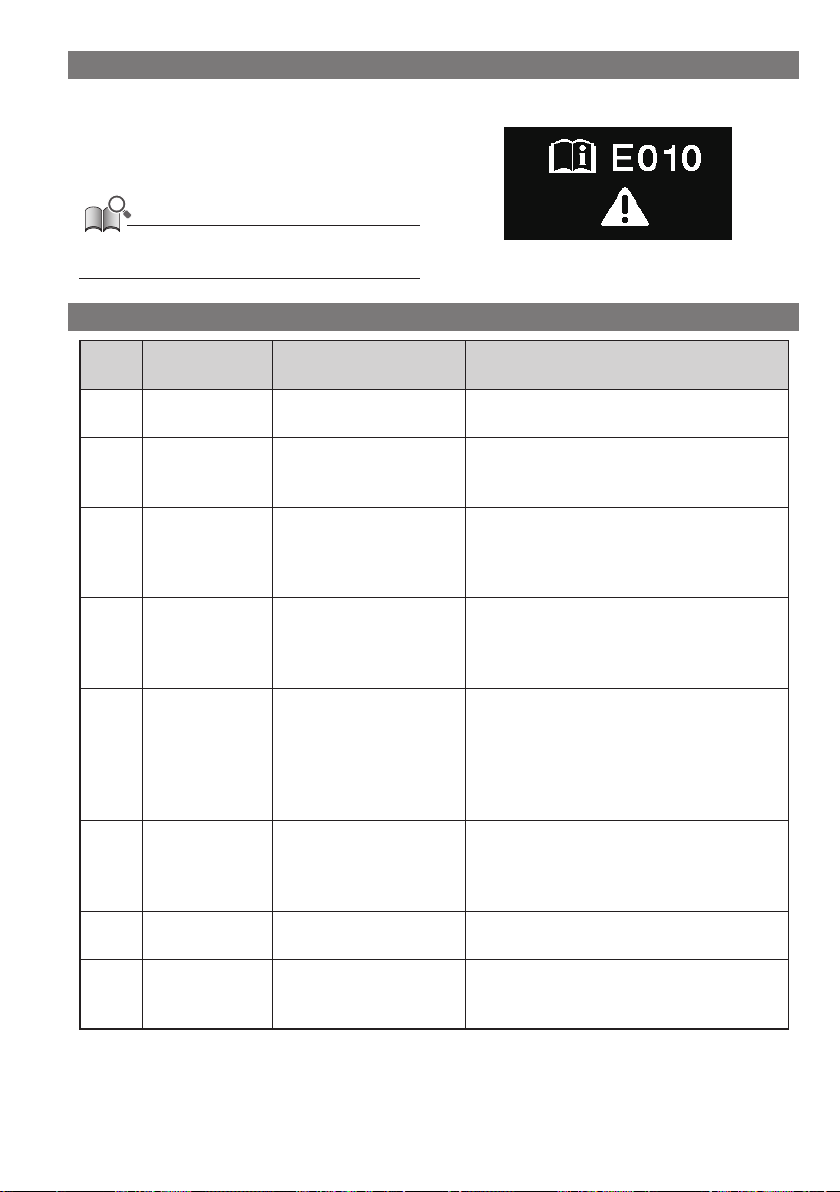

Error messages on the cycle computer
Troubleshooting
...................................................................................54
............................................................................................................54
............................ 55
.................................................. 55
.....................................................................................................56
......................................................................................... 57
...................................................................................57
................................................................................................................61
1
Page 4
IMPORTANT NOTICE
WARNING
•
Contact the place of purchase or a distributor for
information on installation, adjustment, and replacement
of the products which are not found in the user's manual.
A dealer's manual for professional and experienced bicycle
mechanics is available on our website (https://si.shimano.
com).
•
Use the product according to local laws and regulations.
•
The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any use
of such marks by SHIMANO INC. is under license. Other
trademarks and trade names are those of their respective
owners.
For safety, be sure to read this "user's
manual" thoroughly before use, follow it
for correct use, and store it so that it can
be referenced at any time.
Important safety information
For SC-E8000/SC-E7000
This product contains non-replaceable
battery.
•
Remove and immediately recycle or dispose of used
batteries according to local regulations and keep away
from children. Do NOT dispose of batteries in household
trash or incinerate.
•
Even used batteries may cause severe injury or death.
•
Call a local poison control center for treatment
information.
•
The compatible battery type:MS920T FL27E
•
The nominal battery voltage:3 V
•
Non-rechargeable batteries are not to be recharged.
•
Do not force discharge, recharge, disassemble, heat
above 85°C or incinerate. Doing so may result in injury
due to venting, leakage or explosion resulting in
chemical burns.
WARNING
•
Do not disassemble or modify the product. This may
cause the product to not operate correctly, and you may
suddenly fall and be seriously injured.
To ensure safety
•
Be sure to observe the following in order to avoid burns
or other injury from fluid leakages, overheating, fire or
explosions.
• INGESTION HAZARD:
This product contains
a button cell or coin
battery.
• DE ATH or serious injury
can occur if ingested.
• A swallowed button cell
or coin battery can cause
Internal Chemical Burns
in as little as 2 hours.
• KEEP new and used
batteries OUT OF REACH
of CHILDREN
• Seek immediate medical
attention if a battery
is suspected to be
swallowed or inserted
inside any part of the
body.
DANGER
Handling the battery
•
Do not deform, modify, disassemble or apply solder directly to
the battery. Doing so may cause leakage, overheating,
bursting, or ignition of the battery.
•
Do not leave the battery near sources of heat such as
heaters. Doing so may cause bursting or ignition of the
battery.
•
Do not heat the battery or throw it into a fire. Doing so may
cause bursting or ignition of the battery.
•
Do not subject the battery to strong shocks or throw it. If
this is not observed, overheating, bursting, or fire may
occur.
•
Do not place the battery into fresh water or sea water, and
do not allow the battery terminals to get wet. Doing so may
cause overheating, bursting, or ignition of the battery.
•
Use the SHIMANO specified charger and observe the
specified charging conditions when charging the specified
battery. Not doing so may cause overheating, bursting, or
ignition of the battery.
2
Page 5
WARNING
To ensure safe riding
•
Do not give too much of your attention to the
cycle computer display while riding, otherwise
accidents may result.
•
Check that the wheels are securely installed to
the bicycle before commencing riding. If the
wheels are not securely installed, the bicycle may
fall over and cause serious injury.
•
If riding a power-assisted bicycle, make sure that
you are fully familiar with the starting-off
characteristics of the bicycle before riding it on
roads with several vehicle lanes and pedestrian
footpaths. If the bicycle starts off suddenly,
accidents may result.
•
Check that the bicycle lights illuminate before
riding at night.
Using the product safely
•
Be sure to remove the battery and charging cable before
wiring or attaching parts to the bicycle. Otherwise, an
electric shock may result.
•
When charging the battery while it is installed on the
bicycle, do not move the bicycle. The power plug for the
battery charger may come loose and not be fully inserted
into the electrical outlet, resulting in risk of fire.
•
Do not touch the drive unit when it has been
continuously used for a long period of time. The surface
of the drive unit becomes hot and could cause burns.
•
Periodically clean the chain using an appropriate chain
cleaner. The frequency of maintenance will vary
depending on the riding conditions.
•
Do not use alkaline or acidic cleaning agents for
removing rust under any circumstances. If such cleaning
agents are used, they may damage the chain and serious
injury may result.
•
When installing this product, be sure to follow the
instructions given in the user's manual. Furthermore, it is
recommended that you use only genuine SHIMANO parts
at these times. If bolts and nuts are left loosened or the
product is damaged, the bicycle may suddenly fall over
and serious injury may result.
Handling the battery
•
If any liquid leaking from the battery gets into your eyes,
immediately wash the affected area thoroughly with
clean water such as tap water without rubbing your eyes,
and seek medical advice immediately. If this is not done,
the battery liquid may damage your eyes.
•
Do not recharge the battery in places with high humidity
or outdoors. Doing so may result in electric shock.
•
Do not insert or remove the plug while it is wet. If this is
not observed, electric shocks may result. If there is water
leaking out of the plug, dry it thoroughly before
inserting it.
•
If the battery does not become fully charged even 2
hours after the designated charging time, immediately
unplug the battery from the outlet and contact the place
of purchase. Doing otherwise may cause it to overheat,
burst, or ignite. Refer to the battery charger user's
manual for the designated charging time of the battery.
•
Do not use the battery if it has any noticeable scratches
or other external damage. Doing so may cause bursting,
overheating or problems with operation.
•
The operating temperature ranges for the battery are
given below. Do not use the battery in temperatures
outside these ranges. If the battery is used or stored in
temperatures outside these ranges, fire, injury or
problems with operation may occur.
1. During discharge: -10°C - 50°C
2. During charging: 0°C - 40°C
CAUTION
To ensure safe riding
•
Observe the instructions in the user's manual for the
bicycle, in order to ride safely.
Using the product safely
•
Never attempt to modify the system yourself. It may cause
problems with system operation.
•
Periodically check the battery charger and adapter,
particularly the cord, plug, and case, for any damage. If
the charger or adapter is broken, do not use it until it has
been repaired.
•
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
3
Page 6
•
Do not allow children to play near the product.
Handling the battery
•
Do not leave the battery in a place exposed to direct
sunlight, inside a vehicle on a hot day, or other hot
places. This may result in battery leakage.
•
If any leaked fluid gets on your skin or clothes, wash it
off immediately with clean water. The leaked fluid may
damage your skin.
•
Store the battery in a safe place out of the reach of
infants and pets.
NOTICE
Using the product safely
•
If any malfunctions or other problems occur, contact the
place of purchase.
•
Be sure to install caps to any connectors which are not
being used.
•
For installation and adjustment of the product, consult a
dealer.
•
The Product is designed to be fully waterproof to
withstand wet weather riding conditions. However, do
not deliberately place them into water.
•
Do not clean the bicycle in a high-pressure wash. If water
gets into any of the components, operating problems or
rusting may result.
•
Do not turn the bicycle upside down. The cycle computer
or the shifting switch may get damaged.
•
Handle the product carefully, and avoid subjecting it to
any strong shocks.
•
Although the bicycle still functions as a normal bicycle even
when the battery is removed, the light does not turn on if
it is connected to the electric power system. Be aware that
using the bicycle under these conditions will be considered
non-observance of the road traffic laws in Germany.
•
When charging the battery while it is mounted on the
bicycle, be careful of the following:
-
When charging, make sure there is no water on the
charging port or the charger plug.
-
Ensure that the battery is locked into the battery
mount before charging.
-
Do not remove the battery from the battery mount
while charging.
-
Do not ride with the charger mounted.
-
Close the charging port cap when not charging.
-
Stabilize the bicycle to ensure that it does not
collapse during charging.
Handling the battery
•
When you carry a power-assisted bicycle in a car, remove
the battery from the bicycle and place the bicycle on a
stable surface in the car.
•
Before connecting the battery, make sure that there is no
buildup of water or dirt in the connector where the
battery will be connected.
•
The use of a genuine SHIMANO battery is recommended.
If using a battery from another manufacturer, make sure
to carefully read the owner's manual for the battery
before use.
About used batteries
Disposal information for countries outside
the European Union
This symbol is only valid within the
European Union. Follow local regulations
when disposing of used batteries. If you
are not sure, consult the place of purchase
or a bicycle dealer.
Connection and communication with PC
A PC linkage device can be used to connect a PC to the
bicycle (system or components), and E-TUBE PROJECT can be
used to carry out tasks such as customizing single
components or the whole system and updating firmware.
•
PC linkage device: SM-PCE1/SM-PCE02
•
E-TUBE PROJECT: PC application
•
Firmware: software inside each component
Connection and communication with
smartphone or tablet
It is possible to customize single components or the system,
and update firmware, using E-TUBE PROJECT for
smartphones/tablets after connecting the bicycle (system or
components) to a smartphone or tablet via Bluetooth LE.
•
E-TUBE PROJECT: app for smartphones/tablets
•
Firmware: software inside each component
Care and maintennce
•
The number found on the battery mount key is necessary
when purchasing spare keys. Keep it in a safe place.
There is a space to enter the key number on the back
cover of this user's manual. Enter the key number for
safekeeping and later reference.
•
Contact the place of purchase for updates of the product
4
Page 7
software. The most up-to-date information is available
on the SHIMANO website. For details, refer to the
"Connection and communication with devices." section.
•
Do not use thinner or other solvents to clean any of the
products. As such substances may damage the surfaces.
•
You should periodically wash the chainrings in a neutral
detergent. In addition, cleaning the chain with neutral
detergent and lubricating it can be an effective way of
extending the useful life of the chainrings and the chain.
•
Use a damp cloth, with the water well wrung out, when
cleaning the battery and plastic cover.
•
For any questions regarding handling and maintenance,
contact the place of purchase.
•
Products are not guaranteed against natural wear and
deterioration from normal use and aging.
•
For maximum performance we highly recommend
SHIMANO lubricants and maintenance products.
Assist
•
If the settings are not correct, for instance if the chain
tension is too tight, the proper assist force may not be
obtained. If this happens, contact the place of purchase.
Label
•
Some of the important information contained in this
user's manual is also indicated on the battery charger
label.
Inspection prior to each ride
Check the following before riding the bicycle.
•
Is the drivetrain shifting smoothly?
•
Is there looseness or damage on the component parts?
•
Is the component mounted securely to the frame/
handlebar/stem?
•
Is there abnormal noise during riding?
•
Is the battery sufficiently charged?
If you notice any potential problem, please contact the
place of purchase or a bicycle dealer.
Please avoid wearing clothes that can get caught in the
chain or wheel because it can lead to an accident.
FCC compliance information
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
NOTICE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-
Reorient or relocate the receiving antenna.
-
Increase the separation between the equipment
and receiver.
-
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
-
Consult the dealer or an experienced radio/TV
technician for help.
5
Page 8
Booklet Structure
SHIMANO STEPS user's manuals are split among several booklets, as described below.
•
SHIMANO STEPS user's manual (this document)
This is the basic user's manual for SHIMANO STEPS. It contains the following content.
-
SHIMANO STEPS quick guide
-
How to read the cycle computer and configure settings
-
How to operate assist bicycles that use flat handlebars, such as city, trekking, or MTB type bicycles
-
How to handle errors displayed on the cycle computer and perform other troubleshooting tasks
•
SHIMANO STEPS user's manual for drop handlebar bicycles (separate booklet)
This booklet describes how to operate assist bicycles that use a drop handlebar and are controlled using a dual control
lever. This should be read along with the SHIMANO STEPS user's manual.
•
SHIMANO STEPS special battery and parts user's manual
It contains the following content.
-
How to charge and handle the SHIMANO STEPS special battery
-
How to attach and remove the SHIMANO STEPS special battery to the bicycle
-
How to use the satellite power button and satellite charging port
-
How to read the battery LEDs when charging or during an error, and how to handle errors
Be sure to read these user's manuals thoroughly before use, and follow it for correct use. Store the user's manuals so that
they can be referenced at any time.
The latest user's manuals are available on our website (https://si.shimano.com).
6
Page 9
Features of SHIMANO STEPS
•
Hi-End MTB assistance components.
•
Powerful propulsion and silent drive unit.
•
Smooth and natural power assistance and riding experience.
•
Support optimal suspension design afforded by compact drive unit construction. Shorter chain stay frame gives rider easier
handling.
•
Assist power stopped simultaneously with the stop of the rider's pedaling. Quickly re-start assistance upon pedaling again.
Power assist system cooperates and harmonizes with human output.
•
Superior control performance facilitates comfortable riding on mountain trails.
•
Efficient pedaling even when power assist cuts off.
•
Easy to operate assist switch system designed in accordance with ergonomic principles.
•
Cycle computer that is compact without loss in visual clarity provides detailed traveling data by color recognition.
•
Q-Factor comparable to mountain bikes reduces burden on the legs from the MTB rider's experiences.
•
Optional chain device supports for rough riding conditions available.
•
Large-capacity battery allows you to enjoy long rides.
•
Intelligent [WALK] assist with SEIS RD provides powerful assistance when walking the bicycle across uneven terrain such as
rocky areas.
*
The Walk assist mode function may not be able to be used in certain regions.

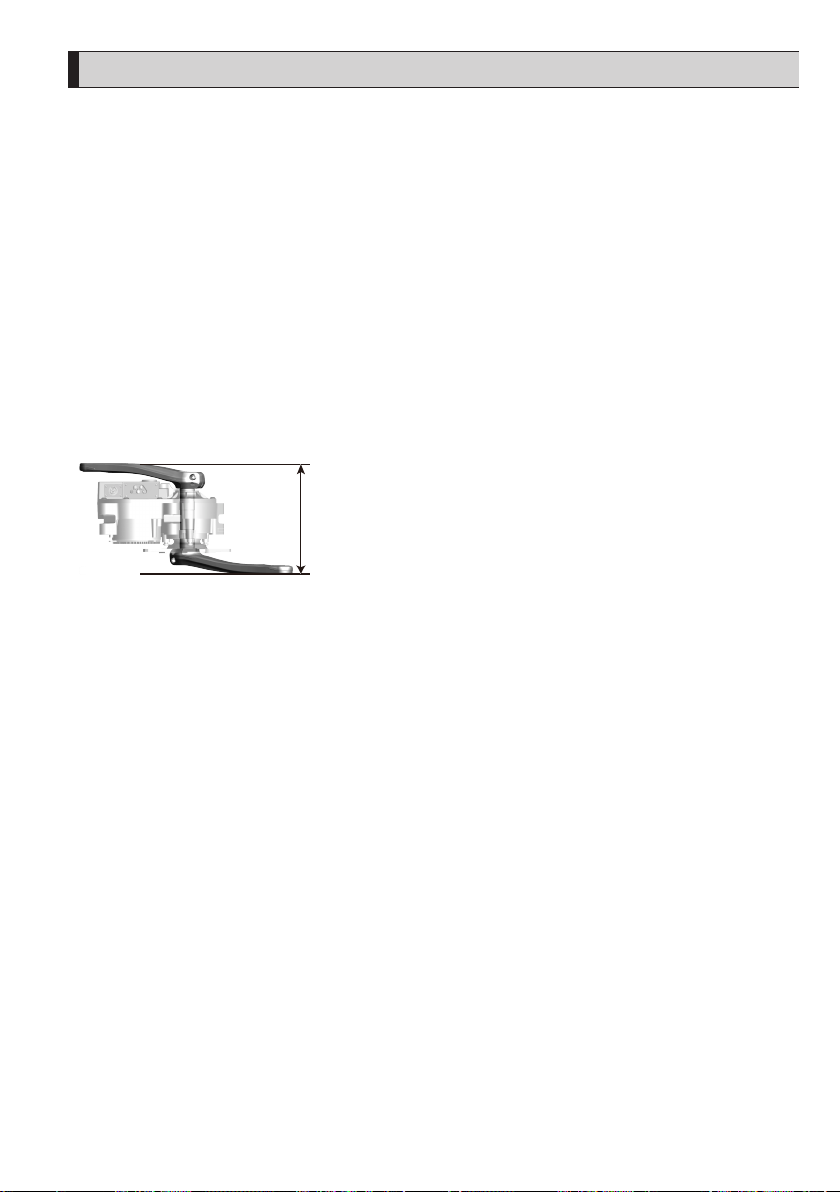

Q factor
Riding the bicycle
1.
Turn on the power.
•
Do not place your feet on the pedals when turning the power on. A system error may result.
•
Power cannot be turned on while charging.
2.
Select your preferred assist mode.
3.
Assistance will start when the pedals start turning.
4.
Change the assist mode in accordance with the riding conditions.
5.
Turn the power off when parking the bicycle.
•
Do not place your feet on the pedals when turning the power off. A system error may result.
7
Page 10
Assist mode
You can select an assist mode for each particular application.
[BOOST] [TRAIL] [ECO]
Use when powerful assistance is
required, such as when riding up steep
uphill slopes. This mode is designed
for use on steep inclines and
precipitous mountains. When riding
on level public roads with traffic
lights, the assistance provided may be
excessive, in which case, switch to
[ECO] mode.
When the battery level is running low, the level of assistance is lowered to increase the traveling range.
This mode does not provide power assistance when the power is turned on. Since there is no power consumption
associated with the power assistance, it is useful for reducing battery consumption when the battery is running low.
This mode is particularly useful when walking the bicycle, taking the bicycle out up an incline or when it is bearing a
heavy load. It is also useful when walking the bicycle across uneven terrain such as rocky areas.
The intelligent walk assist function activates when an electric shifting system such as XTR, DEORE XT SEIS is connected.
System individually supplies assist power to detect gear position.
"Intelligent walk assist" support rider more torque output in steep climb condition in lower side gears.
"Quick walk assist" function works quickly by holding down SW from any mode.
*
The Walk assist mode function may not be able to be used in certain regions.
Use when an intermediate level of
assistance is needed, such as when you
want to enjoy riding comfortably on a
gentle slope or level ground.
OFF]
[
[WALK]
Use when you want to enjoy long
distance riding on level ground. When
pedaling is not very strong, the
amount of assistance is reduced and
energy consumption is lessened.
8
Page 11

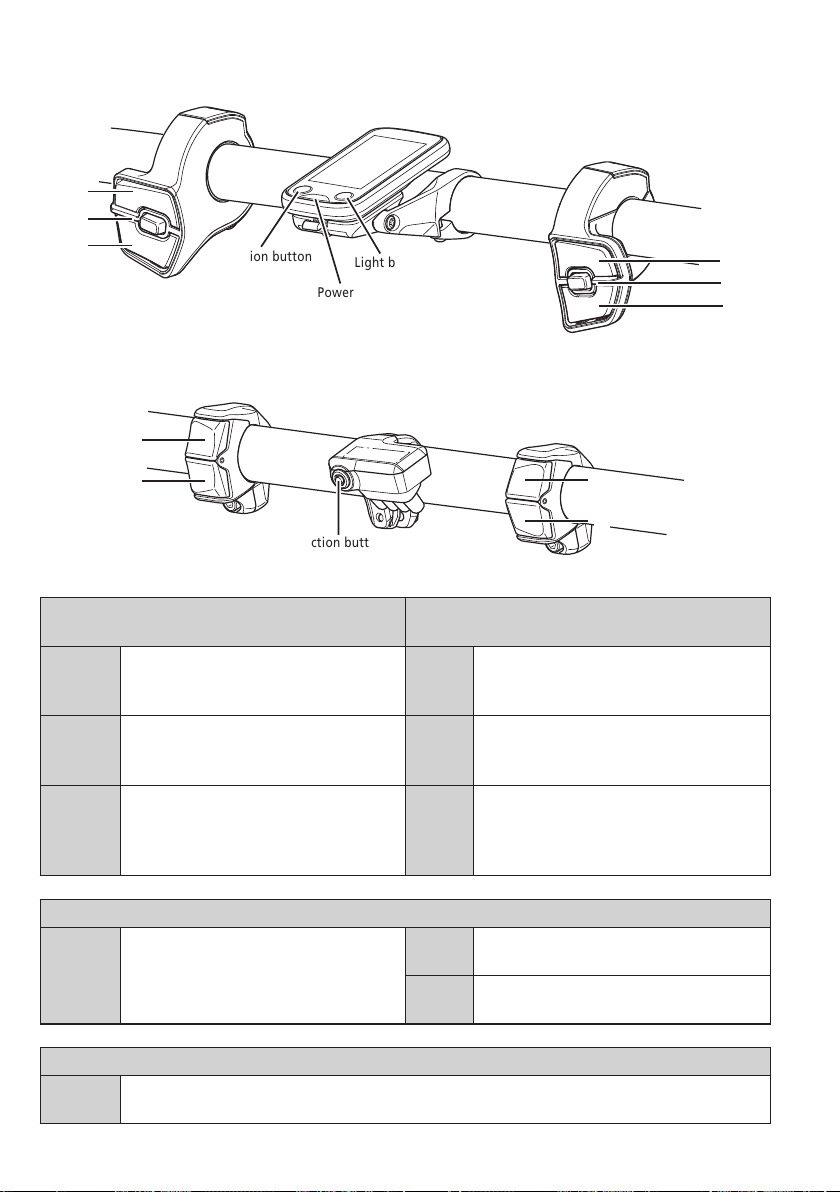

Names of parts
(H)
(F)
(N)
(G)
(D)
(J)
(I)
(C)
(E)
(B)
(L)
(M)
(K)
(A)
(A)
Cycle computer/Junction [A]:
SC-E8000
SC-E6010
SC-E6100
SC-E7000
EW-EN100
(B)
Assist switch:
SW-E8000-L
SW-E6000
SW-E6010
SW-E7000
(C)
Front chainring:
SM-CRE80
SM-CRE80-B
SM-CRE80-12-B
(D)
Chain device:
SM-CDE80
(E)
Crank arm:
FC-E8000
FC-E8050
FC-M8050
(F)
Drive unit:
DU-E8000
(G)
Speed sensor:
SM-DUE10
(H)
Drive unit cover:
SM-DUE80-A/SM-DUE80-B
(I)
Battery (external type)/
Battery mount (external type):
BT-E8010
BM-E8010
BT-E6010
BM-E6010
(J)
Battery charger:
EC-E6000
(K)
Battery (built-in type)/
Battery mount (built-in type):
BT-E8020
BM-E8020
(L)

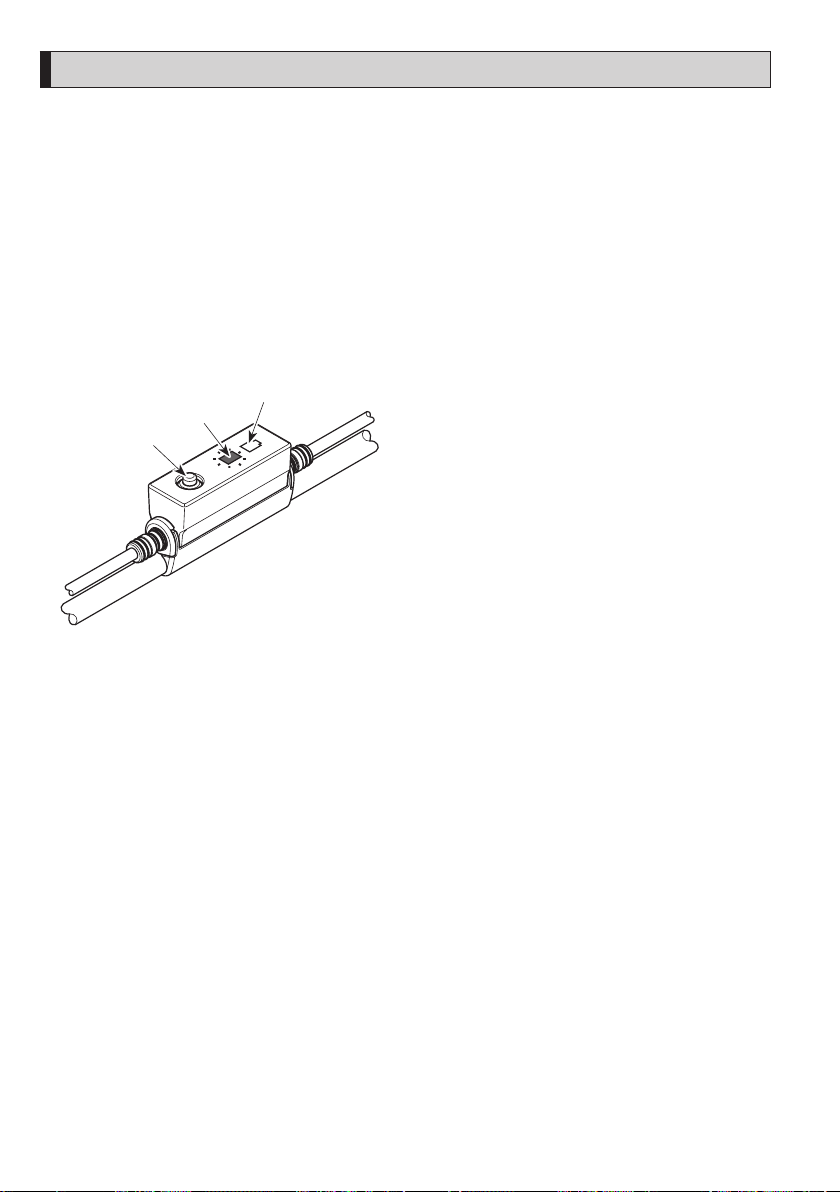

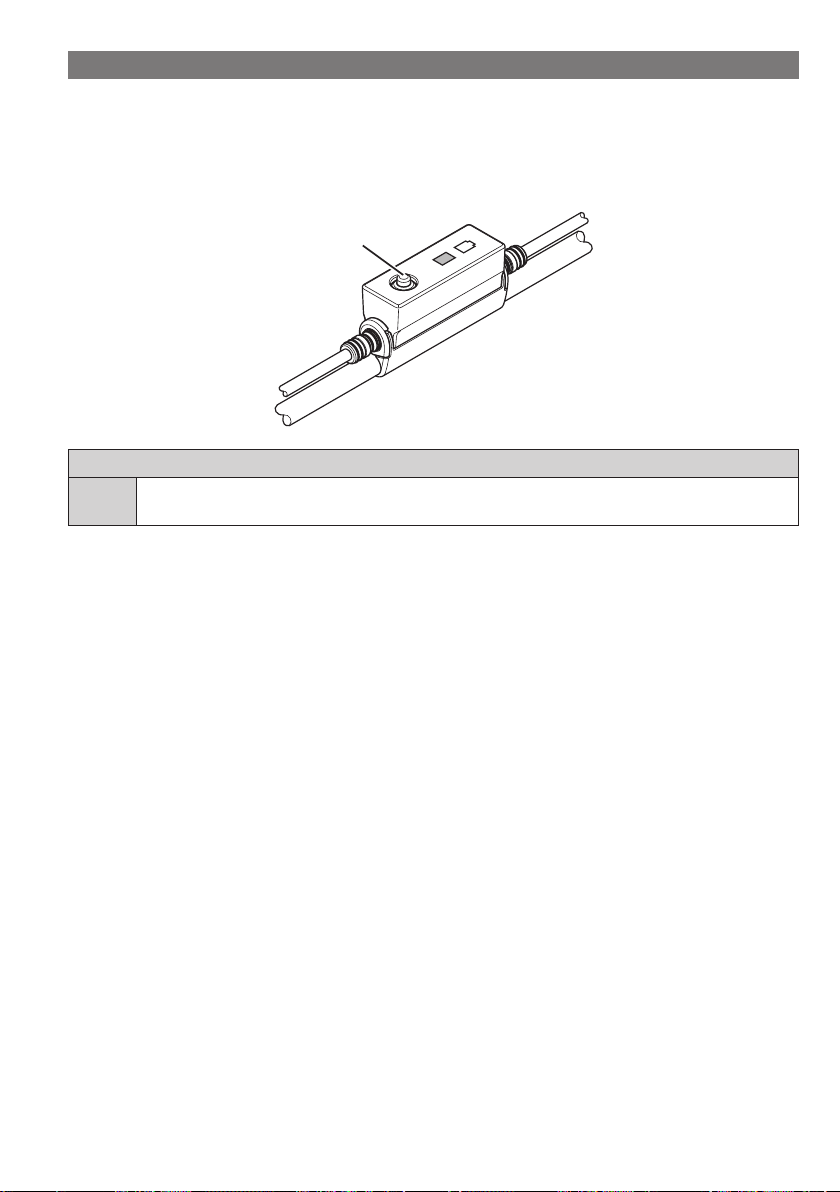

E-TUBE(EW-SD50)
When using electronic gear shifting
(M)
Shifting switch:
SW-M9050-R
SW-M8050-R
SW-E6010
SW-E7000
(N)
Rear derailleur (DI2):
RD-M9050
RD-M8050
9
Page 12
Specifications
Operating temperature
range: During discharge
Operating temperature
range: During charging
Storage temperature -20 – 70˚C Rated voltage 36 V DC
Storage temperature
(Battery)
Charging voltage 100 – 240 V AC Motor type Brush-less DC
Charging time
*
The maximum speed up to which power assistance is provided is set by the manufacturer and is conditional on where the
bicycle is to be used.
-10 – 50˚C Battery type Lithium ion battery
Please read the SHIMANO
0 – 40˚C Nominal capacity
-20 – 60˚C Drive unit type Midship
Please read the SHIMANO
STEPS special battery and
parts user's manual.
Rated drive unit power 250 W
STEPS special battery and
parts user's manual.
Preparation
You cannot use the battery immediately after shipment.
The battery can be used after charging it with the designated charger.
Be sure to charge it before use. The battery can be used when the LED on it lights up.
Please read the SHIMANO STEPS special battery and parts user's manual for how to charge and handle the battery.
10
Page 13
Cycle computer and switch units
X
Y
A
A
SC-E8000/SW-E8000-L/SW-M8050-R
Left switch
SW-E8000-L
XY X Y
SC-E6010/SW-E6000
X Y XY
SC-E6010/SW-E6010
Power button
(SW-M9050-R)
Right switch
SW-M8050-R
(SW-M9050-R)
Function button
Light button
X
Light button
Y
Power button
11
Page 14
SC-E6100/SW-E6010
Left switch
X
A
Y
SC-E7000/SW-E7000
X
Function button
Light button
Power button
Right switch
X
A
Y
Assist-X
Assist-Y
Assist-A
Function
button
(SC-E6100)
Function
button
Y
Function button
Left switch
(default: for assistance)
At riding: increase assistance.
At setting: move the setting menu cursor,
adjust settings,etc.
At riding: decrease assistance.
At setting: move the setting menu cursor,
adjust settings,etc.
At riding: change the travel data display on
the cycle computer.
At setting: switch between the screens,
confirm settings.
Cycle computer (SC-E6010/SC-E6100)
At riding:
change the travel data display on
the cycle computer.
At setting: switch between the screens,
confirm settings.
Cycle computer (SC-E8000/SC-E7000)
At riding: change the travel data display on the cycle computer.
At setting: switch between the screens, confirm settings.
Shift-X At riding: shift up.
Shift-Y At riding: shift down.
Shift-A Not used.
Light
button
Power
button
Turn the lights ON/OFF.
Turn the power ON/OFF.
X
Y
Right switch
(default: for electronic shifting)
12
Page 15

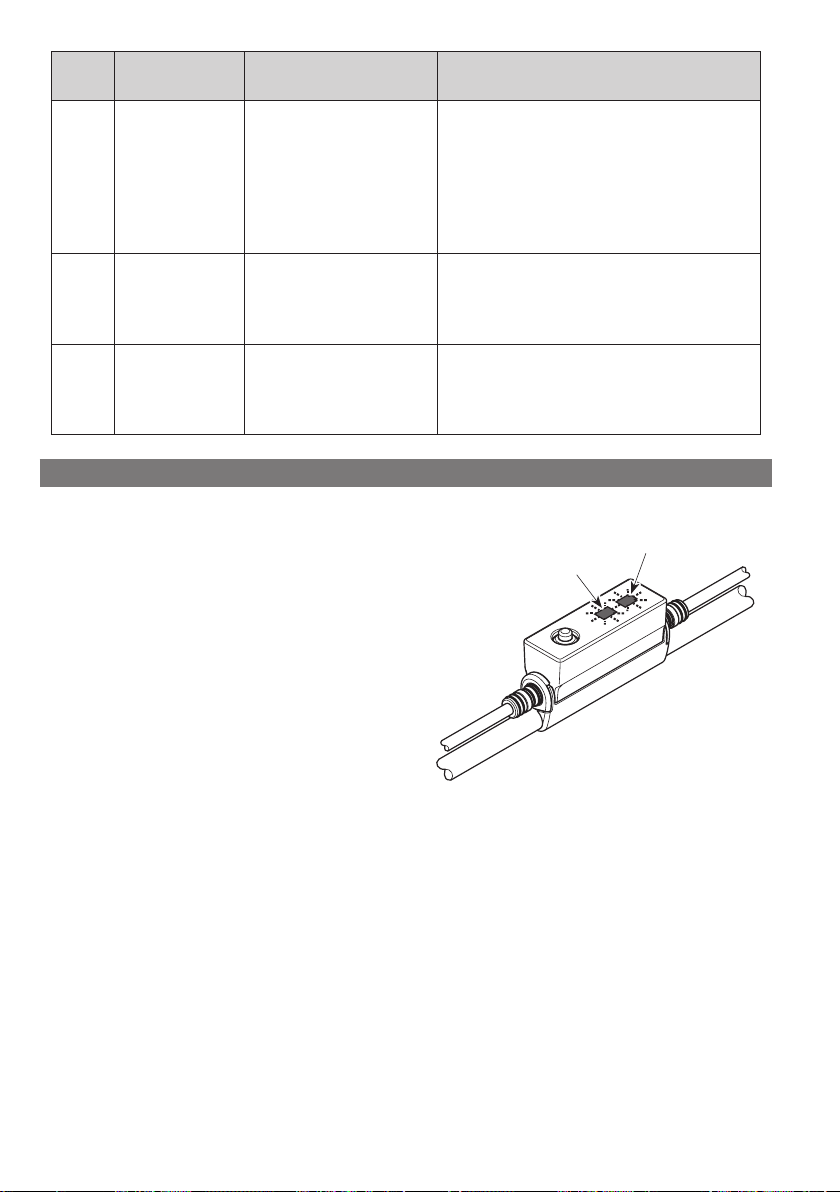

Junction [A] (EW-EN100)
EW-EN100 is used instead of cycle computer.
It is attached to the brake outer casing or brake hose and located near the handle bar.
•
The button does not recommend operating this unit while riding the bicycle. Please select your preferred assist mode
before riding.
•
For other functions assigned to the button, see "Settings (EW-EN100)."
Button
Junction [A]
Button
Press: change the assist mode each time you press it.
Press and hold (about 2 seconds): turn the light ON/OFF
13
Page 16
Installing and removing the cycle computer
SC-E6010/SC-E6100
Slide the cycle computer onto the bracket as shown in the
illustration to install it.
Insert the cycle computer securely until it clicks into place.
Bracket
To remove the cycle computer, slide it while pushing the
bracket lever downward.
If the cycle computer is not correctly in place, the assist
function will not operate normally.
For details on installing SC-E8000/SC-E7000, consult the place of purchase or a bicycle dealer.
Lever
14
Page 17
Turning the power ON / OFF
Automatic power off function
If the bicycle has not moved for over 10 minutes, the power will automatically turn off.
Turning the power ON and OFF via the battery
BT-E8010/BT-E8020/BT-E6010
Press the power button on the battery. The LED lamps will
light up indicating remaining battery capacity.
BT-E8010
NOTICE
• When turning on the power, check that the battery is firmly
attached to the holder.
• Power cannot be turned on while charging.
• Do not place your foot on the pedals when turning on.
A system error may result.
BT-E8010/BT-E8020 can be forced to power off by holding
down the power button for 6 seconds.
Power button
BT-E8020
Power button
Turning the power ON and OFF via the cycle computer
SC-E6010
•
Hold down the power button on the cycle computer for
2 seconds.
SC-E6100
•
Press the power button on the cycle computer.
NOTICE
If built-in battery of cycle computer isn't charged sufficiently,
the power will not turn on.
The built-in battery of the cycle computer is charged only
when the cycle computer screen is on.
15
BT-E6010
Power button
Power button
Power button
Page 18

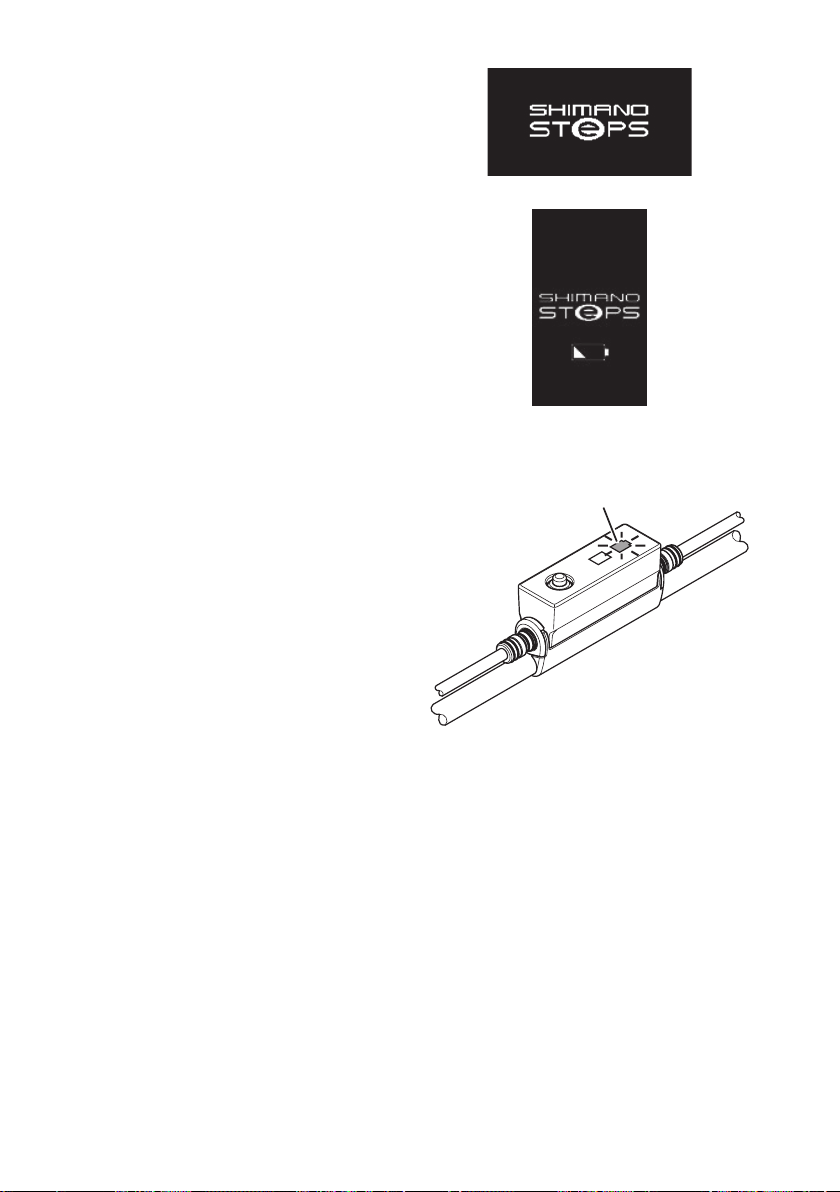

SHIMANO STEPS logo screen
This screen is displayed during system start up and
shutdown.
For SC-E6100, the screen shown on the right is displayed
when the battery level is low.
EW-EN100
The LED2 turns ON.
LED2
Basic screen display
Displays the status of the power assisted bicycle, traveling data.
The cycle computer screen is shown as follows in this owner's manual.
•
The SC-E8000 screen is used when explaining SC-E8000, SC-E6010, SC-E6100, and SC-E7000, except in cases where the cycle
computer display is significantly different.
•
The SC-E8000 screen is used when explaining SC-E8000 and SC-E7000, except in cases where the cycle computer display is
significantly different.
•
The SC-E6100 screen is used when explaining SC-E6010 and SC-E6100, except in cases where the cycle computer display is
significantly different.
16
Page 19
(A)
(A)
Battery level indicator
Displays the current battery level.
(B)
Gear position (Only displays when electronic gear
shifting is in use)
Displays the currently set gear position.
Current gear position(SC-E6010/SC-E6100)

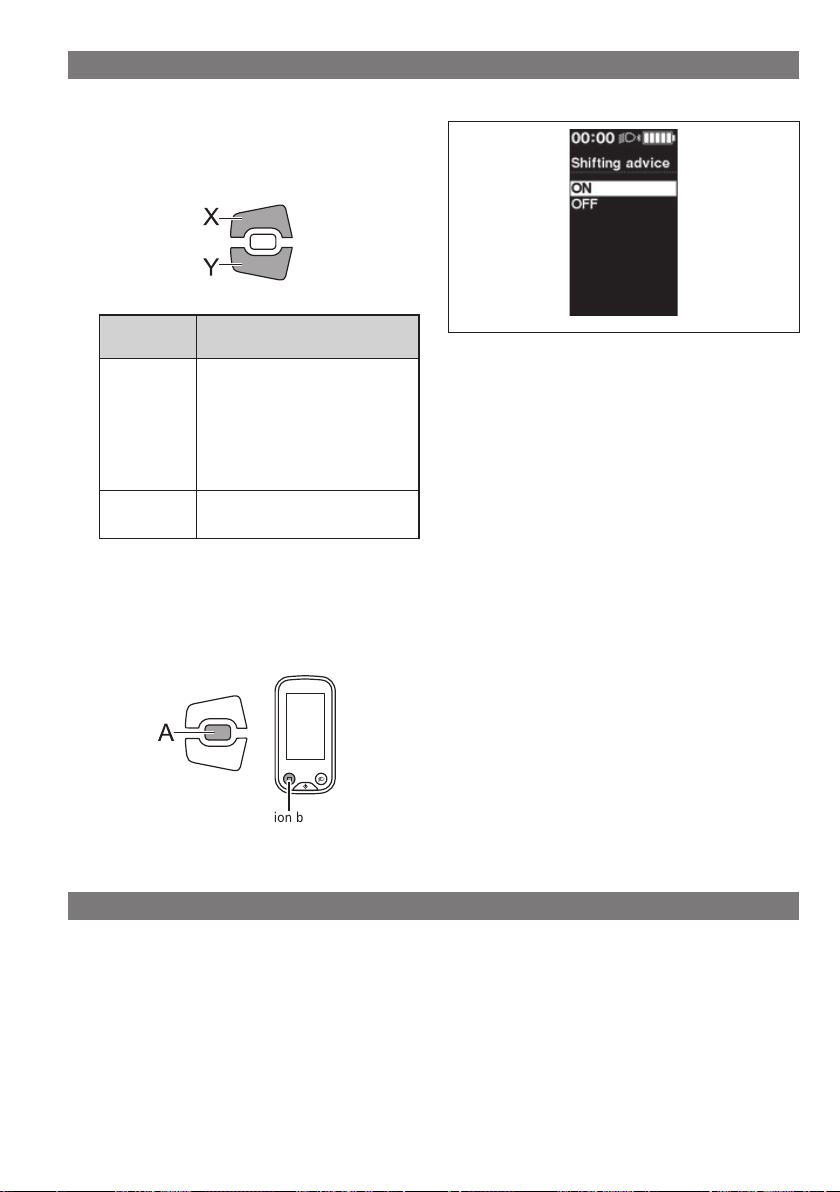

Shifting advice*1(SC-E6100)
This notifies you of the recommended timing
at which to shift based on the bicycle riding
conditions.
(C)
Assist gauge
Displays assistance level.
(D)
Current assist mode
(E)
Current speed*2
Displays the current speed.
The display can be switched between km/h and
mph.
(F)
Current time
Shows the current time.
(G)
Light icon
Indicates that the light connected to the drive
unit is lit.
(H)
Traveling data display
Displays the current traveling data.
(I)
Maintenance alert
Indicates that maintenance is required. Contact
your place of purchase or a bicycle dealer if this
icon is displayed.
(J)
Bluetooth® LE icon
Displayed when connected over Bluetooth LE.
SC-E8000
(A) (B)
(C)(D)(E)
SC-E6010
(G)
(F)
(E)
(D)
(C)
(B)
(H)
SC-E6100
*1 Electronic gear shifting only.
*2 For SE-E7000, the traveling data displayed in this
location can be changed.
17
(F)
(E)
(D)
(C)
(G) (K)
(A)
(J)
(B)
(H)
Page 20

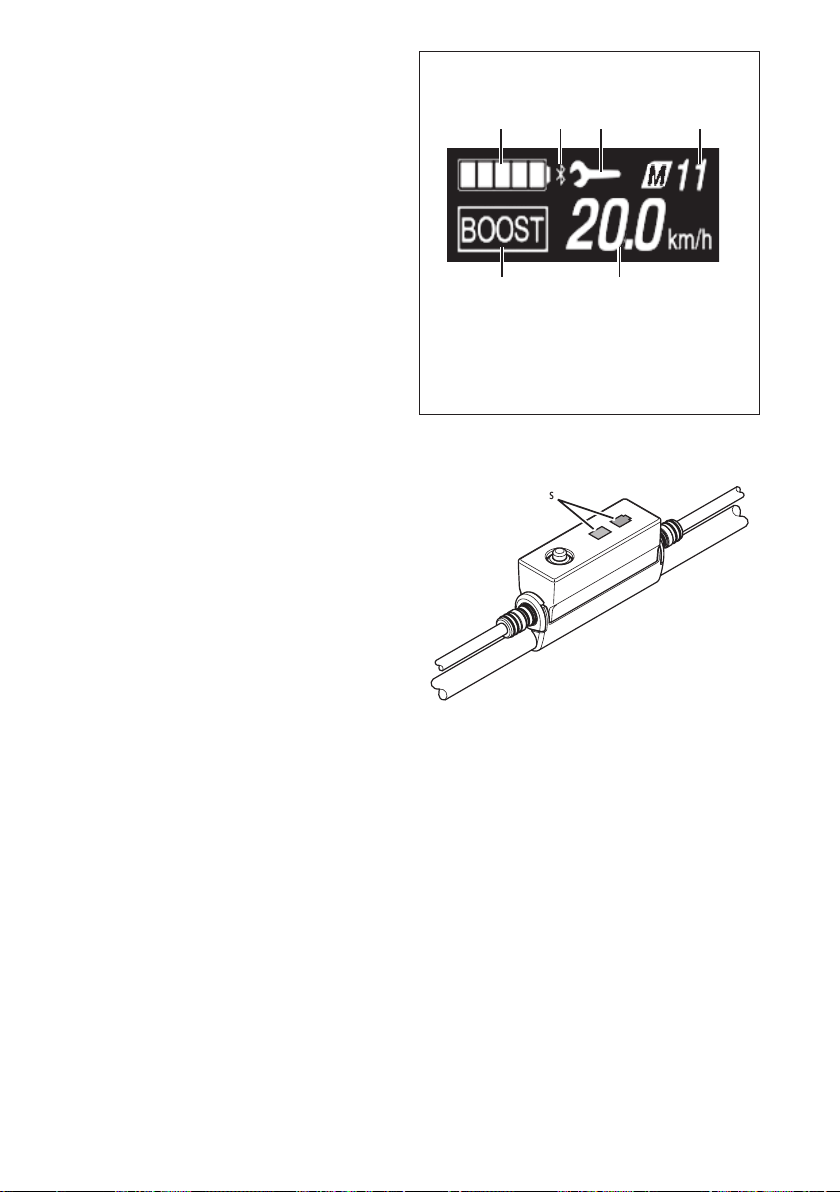

SC-E7000
(A) (B)(J)(K)
EW-EN100
LED lamps indicate the following status.
•
Current battery level
•
Current assist mode
For details, see "Battery level indicator" and "Changing
the assist mode".
(D)
LED lamps
(E)/(H)
18
Page 21

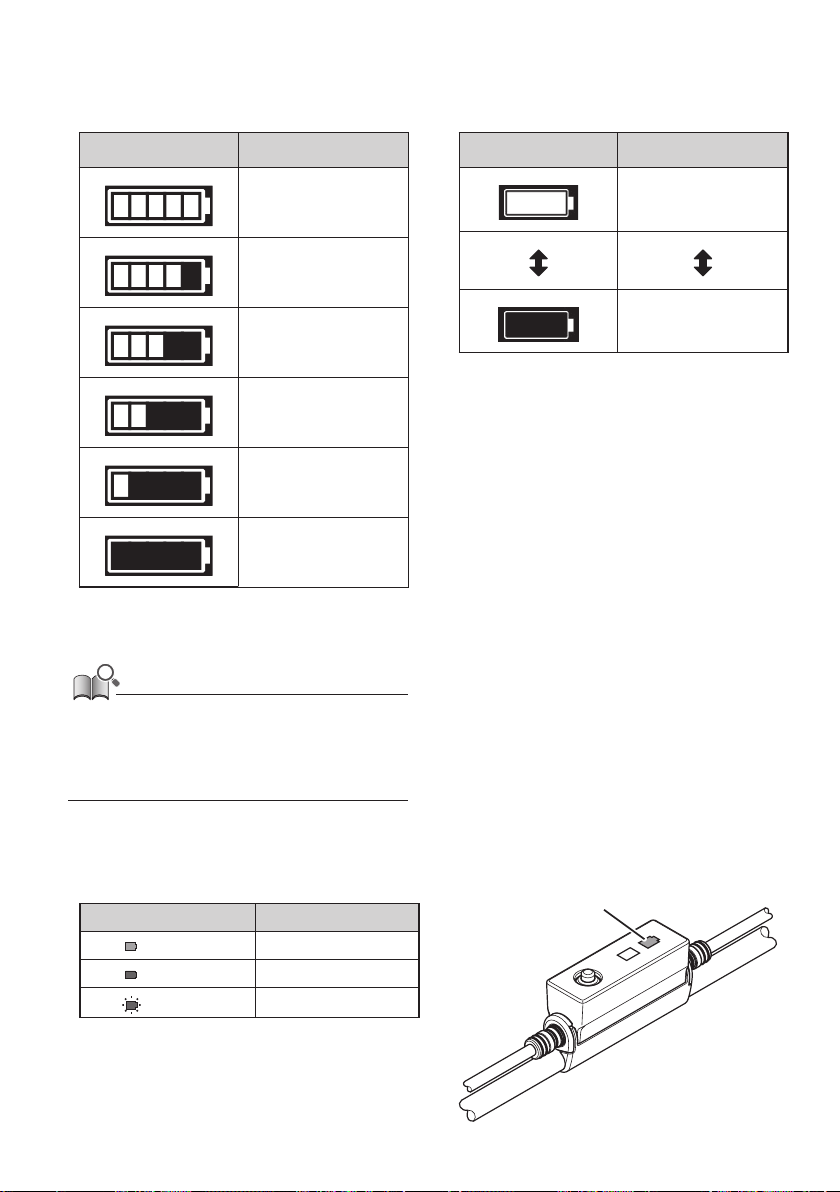

Battery level indicator
You can check the battery level on the cycle computer while riding.
SC-E8000/SC-E6100/SC-E7000
SC-E6010
Display Battery level
100 - 81%
80 - 61%
60 - 41%
40 - 21%
20 - 1%
0%
*
For SC-E8000/SC-E7000, the battery level indicator will
flash when the battery level is low.
The cycle computer and battery use zero to indicate a battery
level where the entire system (including the lights which
remain on after the assist function stops) ceases to function.
Therefore, assist may stop before 0% is indicated, depending
on the settings.
Display Battery level
100%
0%
EW-EN100
While power is turned on, the LED2 indicates the battery level.
LED2 indication Battery level
(Lit in green)
(Lit in red)
(blink in red)
100 - 21%
20% or less
Only a few left
19
LED2
Page 22
Changing assist mode
Press Assist-X or Assist-Y to switch assist modes.
If no assist switch is connected when using SC-E6100 or
SC-E7000, you can also hold down the function button to
switch to assist mode.
Assist
X
Y
XY
Function button
[BOOST]: Assist boost
[TRAIL]: Assist trail
[ECO]: Assist eco
[OFF]: Assist off
[WALK]: Walk assist
: Short press Assist-X
: Short press Assist-Y
: Long press Assist-Y
: Short press Assist-X (This operation is for canceling
[WALK] mode)
*
The Walk assist mode function may not be able to be
used in certain regions.
SC-E8000
SC-E6010
[BOOST]
[TRAIL]
[WALK]
[ECO]
[OFF]
20
Page 23

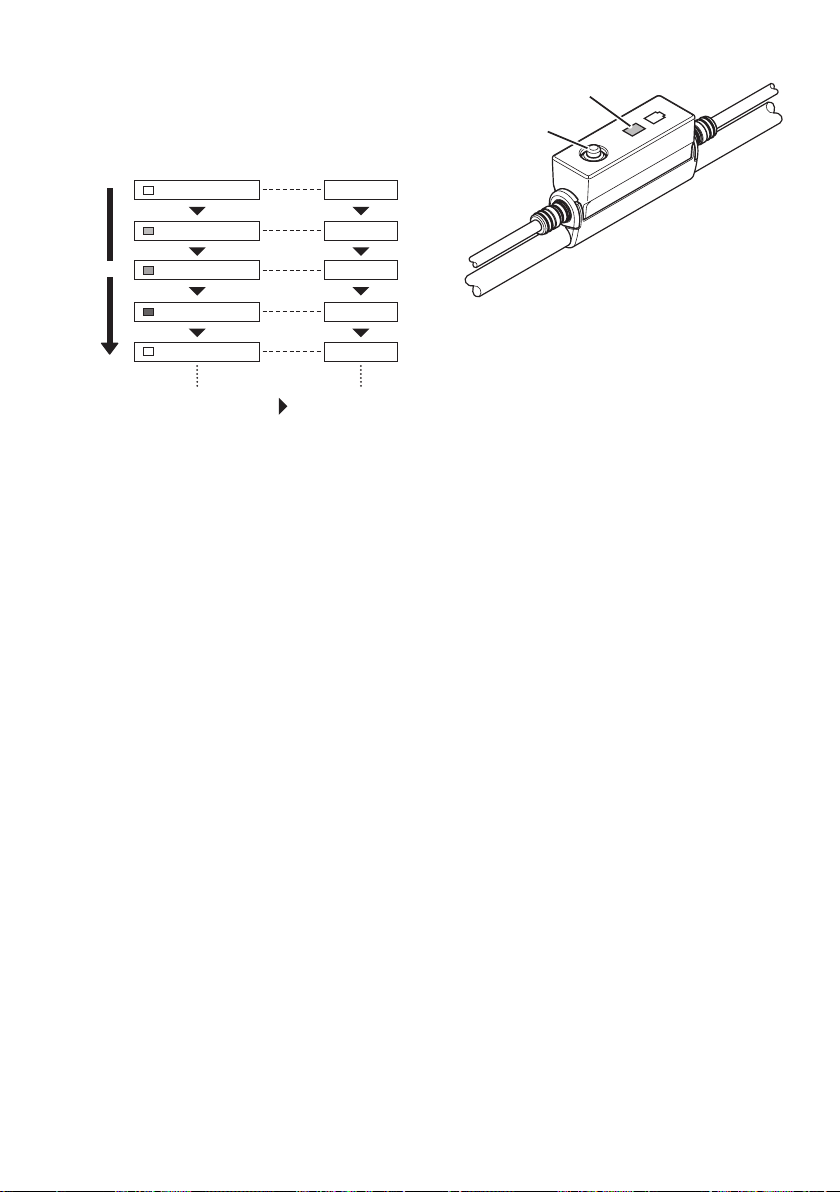

EW-EN100
1.
Press button.
Assist mode is changed each time you press it.
The LED1 indicates current assist mode.
LED1 indications Assist mode
OFF
[OFF]
LED1
Button
Button
Lit in light blue
Lit in green
Lit in yellow
OFF
[ECO]
[TRAIL]
[BOOST]
[OFF]
Press button
21
Page 24
Switching to [WALK] mode (walk assist mode)
• If Assist-Y is not pressed for one minute or more, the mode active before [WALK] mode was set, is re-activated.
• If the bicycle is not moved after [WALK] mode is activated, walk assist is automatically inactivated. To re-activate [WALK] mode, momentarily
release Assist-Y and then hold down Assist-Y.
• The walk assist function can operate at a maximum of 6 km/h.
• The assistance level and speed vary with the gear position.
• The intelligent walk assist function activates when an electric shifting system such as XTR, DEORE XT SEIS is connected.
System individually supplies assist power to detect gear position.
"Intelligent walk assist" support rider more torque output in steep climb condition in lower side gears.
"Quick walk assist" function works quickly by holding down SW from any mode.
22
Page 25
Switching to walk assist mode
*
The Walk assist mode function may not be able to be
used in certain regions.
1.
With your feet off the pedals and current speed at [0
km/h], hold down Assist-Y until [WALK] displays.
•
EW-EN100: LED1 lights up blue.
Assist
Y
Y
NOTICE
A warning tone will sound while switching is in
progress if it is not possible to switch to [WALK] mode
because the current speed is not [0 km/h] or there is
pressure on the pedals etc.
SC-E8000
SC-E6010
23
EW-EN100
Assist OFF
Walk assist mode
enabled
LED1
Page 26
Walk assist mode operation
1.
Continue to press Assist-Y while in walk assist mode.
•
Walk assist will function only while Assist-Y is
pressed.
•
If a switch unit is connected to EW-EN100, the LED1
will flash blue when walk assist starts.
Assist
Y
Y
SC-E6100
EW-EN100
2.
Carefully push the bicycle together with walk assist.
3.
Removing your finger from Assist-Y will stop walk
assist.
Walk assist
mode enabled
SC-E6100
EW-EN100
Walk assist
running
Walk assist
started
LED1
Walk assist
mode enabled
24
LED1
Page 27

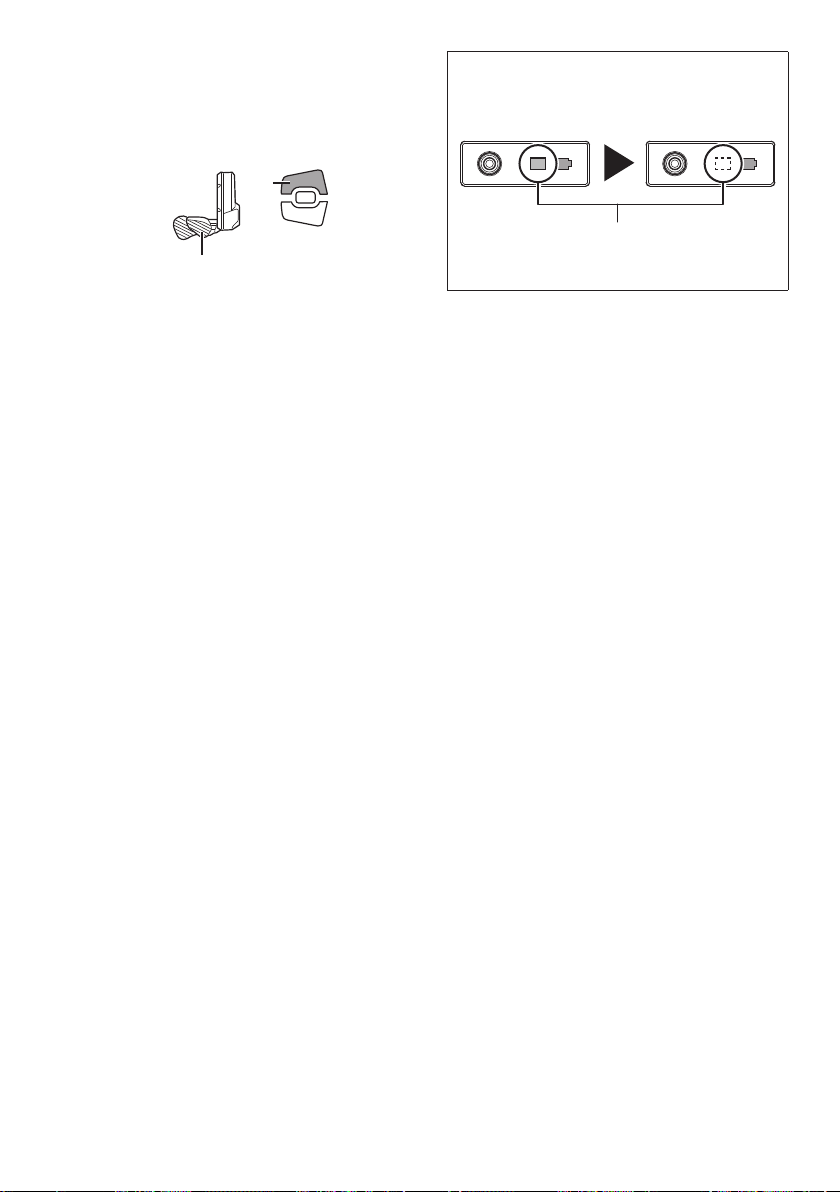

4.
X
Press Assist-X to exit walk assist mode.
•
When [WALK] mode is canceled, the mode active
before [WALK] mode was set, is re-activated.
Assist
X
EW-EN100
Walk assist
mode enabled
Assist OFF
LED1
25
Page 28

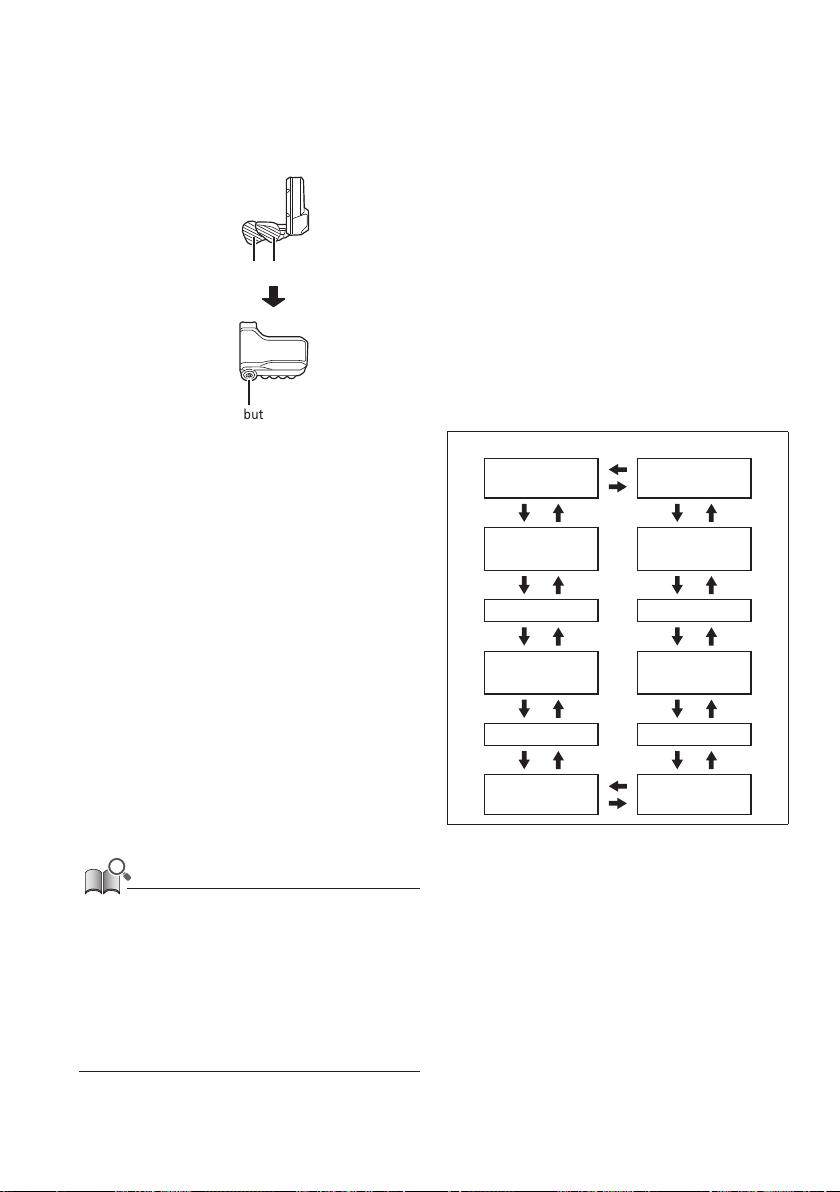

Switching the travel data display (SC-E8000/SC-E6010)
*
The Walk assist mode function may not be able to be
used in certain regions.
The type of travel data displayed changes each time you
press Assist-A or the cycle computer's function button.
Assist
A
Function button
(A)
Traveling distance
(B)
Cumulative distance
(C)
Traveling range *1, 2
(D)
Traveling time *3
(E)
Average speed *3
(F)
Maximum speed *3
(G)
Number of crank rotations *3
(H)
Current time *3
(A) [DST] [CLOCK] (H)
(B) [ODO] [CADENCE] (G)
(C) [RANGE] [MAX] (F)
(D) [TIME] [AVG] (E)
*1 When [RANGE] is displayed, the battery level is not displayed. The traveling range should be used as a reference only.
*2 When walk assistance is functioning, the on screen display [RANGE] changes to [RANGE ---].
*3 Optional item: You can configure the display settings in E-TUBE PROJECT. For details, refer to the "Connection and
communication with devices." section.
*4 Displayed constantly on SC-E6010.
NOTICE
When traveling data is displayed, the screen returns to speed display after 60 seconds.
When speed data is displayed, pressing Assist-A or the function button changes the traveling data displayed starting
with [DST].
26
Page 29
Clearing the traveling distance (SC-E8000/SC-E6010)
You can clear the traveling distance in the main screen.
1.
Change the traveling data display to [DST] and press
Assist-A for 2 seconds.
2.
Release the finger when the [DST] indication starts
blinking.
In this state, pressing Assist-A again clears the
traveling distance.
• The [DST] indicator light stops blinking and the screen takes
you back to the basic screen after leaving it alone for 5
seconds.
• When the traveling distance is cleared, [TIME] (traveling
time), [AVG] (average speed), and [MAX] (maximum speed)
are also cleared.
27
Page 30

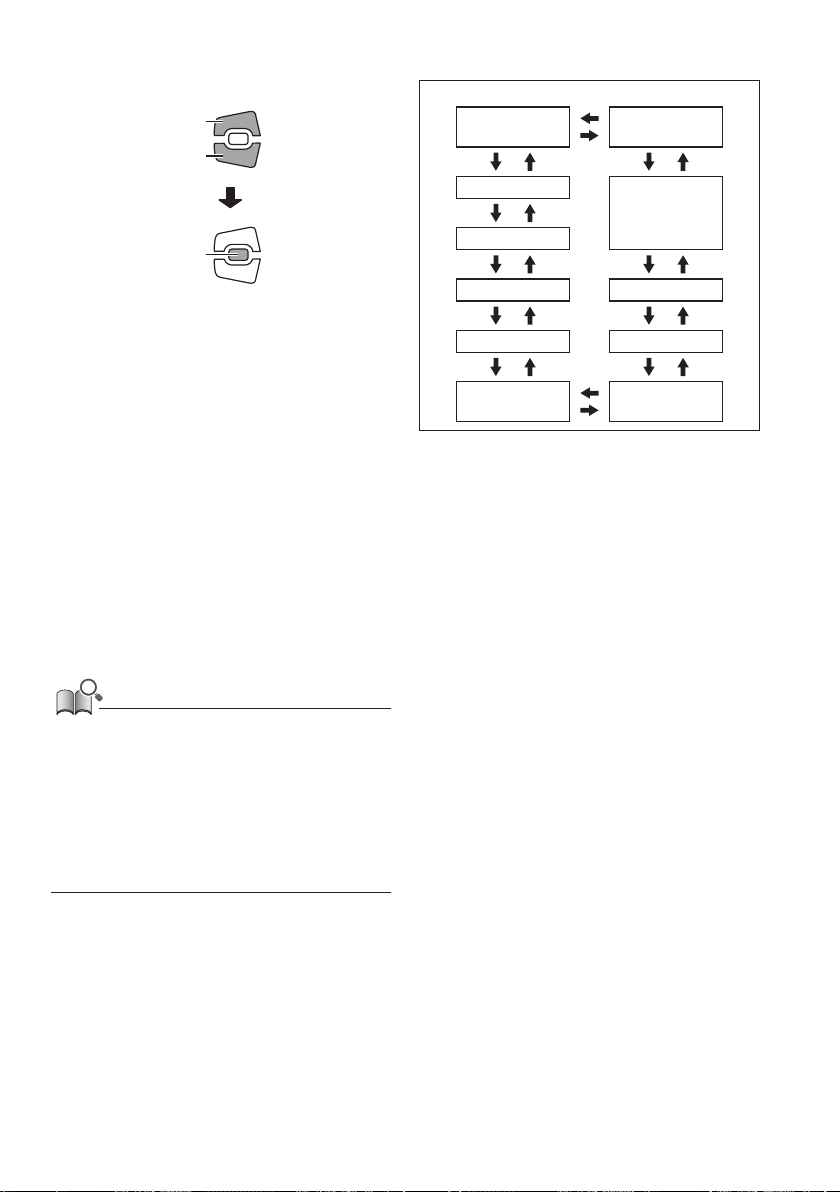

Switching the travel data display (SC-E6100)
*
The Walk assist mode function may not be able to be
used in certain regions.
The type of travel data displayed changes each time you
press Assist-A or the cycle computer's function button.
Assist
A
Function button
(A)
Traveling distance
(B)
Cumulative distance
(C)
Traveling range *1
(D)
Traveling range for each assist mode *1*2*3
(E)
Traveling time *3
(F)
Average speed *3
(G)
Maximum speed *3
(H)
Your crank rotation speed *3 *4
(A) [DST] [CADENCE] (H)
(B) [ODO] [MAX] (G)
(C) [RANGE] [AVG] (F)
(D) [RANGE] [TIME] (E)
Travel data
display
*1 The battery level is not displayed while displaying the traveling range. The traveling range should be used as a
reference only.
*2 This data is displayed as follows. Gear shifting mode and gear position are not displayed.
*3 Optional item: You can configure the display settings in E-TUBE PROJECT. For details, refer to the "Connection and
communication with devices."
*4 Cadence is only displayed when pedaling is assisted while using electronic gear shifting.
28
Page 31
Clearing the traveling distance (SC-E6100)
You can clear the traveling distance in the main screen. When the traveling distance is cleared, [TIME] (Traveling time), [AVG]
(average speed), [MAX] (maximum speed) are also cleared.
1.
Press Assist-A or function button to change the travel
data display to [DST].
Assist
Function button
2.
Press and hold down Assist-A or the function button
until the value below the [DST] display blinks.
Assist
Function button
3.
Press Assist-A or the function button again.
•
Travel data is cleared.
•
The [DST] value stops blinking and the screen takes
resets to the basic screen after being left alone for 5
seconds.
29
Page 32
Switching the travel data display (SC-E7000)
*
The Walk assist mode function may not be able to be
used in certain regions.
The type of travel data displayed changes each time you
press Assist-A or the cycle computer's function button.
Assist
< Current speed display >
A
Function button
(A)
Current speed
(B)
Traveling distance
(C)
Cumulative distance
(D)
Traveling range *1
(E)
Traveling time *2
(F)
Average speed *2
(G)
Maximum speed *2
(H)
Number of crank rotations *2*3
(I)
Current time *2
(A) Current speed
(B) [DST] [CLK] (I)
(C) [ODO] [CAD] (H)
(D) [RNG] [MAX] (G)
(E) [TME]
[AVG] (F)
*1 The traveling range should be used as a reference only.
*2 Optional item: You can configure the display settings in E-TUBE PROJECT.
*3 Cadence is only displayed when pedaling is assisted while using electronic gear shifting.
30
Page 33
Clearing the traveling distance (SC-E7000)
You can clear the traveling distance in the main screen. When the traveling distance is cleared, [TME] (Traveling time), [AVG]
(average speed), and [MAX] (maximum speed) are also cleared.
1.
Press Assist-A or the function button to switch the
traveling data display to [DST].
2.
Continue to hold Assist-A or the function button
until the number displayed for [DST] flashes.
3.
Press Assist-A or the function button again.
•
The traveling data is cleared.
•
If nothing is done for five seconds after the
number for [DST] begins flashing, it will stop
flashing and the screen will return to the basic
screen.
31
Page 34
About the setting menus
Accessing the setting menu
1.
Hold down the function button or Assist-X and
Assist-Y when the bicycle is not moving to display the
menu list screen.
Assist
X
Y
SC-E8000
XY
Function button
SC-E6010
32
Page 35
2.
Press Assist-X or Assist-Y to select the various menus.
Press the function button to display the setting screen
for the selected menu.
SW-E8000-L/SC-E8000
Assist
XY
Function button
(A)
Clear settings
(B)
Clock setting
(C)
Bluetooth LE pairing
(D)
Bluetooth LE/ANT connection status
(E)
Turning the light on/off
(F)
Display backlight brightness setting
(G)
Turning the beep noise on/off
(H)
Switching between km and miles
(I)
Language setting
(J)
Adjusting the electronic gear shifting unit
(K)
Activating RD Protection Reset*
(L)
Return to the main screen
SC-E8000
(A) [Clear] [Exit] (L)
(B) [Clock]
(C) [Bluetooth LE] [Adjust] (J)
[Bluetooth LE/
(D)
(E) [Light] [Unit] (H)
ANT]
[RD protection
reset]
[Language] (I)
(K)
*
In order to protect the system when the bicycle falls
and is subjected to a strong impact, the RD
Protection function will activate and momentarily
severe the connection between the motor and the
link, impairing the proper function of the rear
derailleur. Executing RD Protection Reset restores
the connection between the motor and the link, as
well as the function of the rear derailleur.
(F) [Brightness] [Beep] (G)
33
Page 36
SC-E6010
X
A
Assist
Y
(A)
Clear settings
(B)
Clock setting
(C)
Turning the display backlight on/off
(D)
Display backlight brightness setting
(E)
Turning the beep noise on/off
(F)
Switching between km and miles
(G)
Language setting
(H)
Changing the font color
(I)
Adjusting the electronic gear shifting unit
(J)
Activating RD Protection Reset*
(K)
Return to the main screen
[Start mode] and [Auto] are displayed on the menu list
screen; however, they are not available for use.
SC-E6010
(A) [Clear] [Exit] (K)
(B) [Clock]
(C) [Backlight]
(D) [Brightness] [Adjust] (I)
(E) [Beep] [Font color] (H)
(F) [Unit] [Language] (G)
[RD protection
reset]
(J)
*
In order to protect the system when the bicycle falls
and is subjected to a strong impact, the RD
Protection function will activate and momentarily
severe the connection between the motor and the
link, impairing the proper function of the rear
derailleur. Executing RD Protection Reset restores
the connection between the motor and the link, as
well as the function of the rear derailleur.
34
Page 37
SC-E6100/SC-E7000
X
Y
Assist
Assist
Function button
(A)
Clear settings
(B)
Clock setting
(C)
Turning the display backlight on/off (SC-E6100)
(D)
Display backlight brightness setting (SC-E6100)
(E)
Turning the light on/off (SC-E7000)
(F)
Turning the beep noise on/off
(G)
Switching between km and miles
(H)
Language setting
(I)
Changing the font color
(J)
Adjusting the electronic gear shifting unit
(K)
Adjusting the timing at which gear shifting advice
is displayed (SC-E6100)
(L)
Adjusting the gear shifting timing (SC-E6100)
(M)
Activating RD Protection Reset*
(N)
Adjusts the displayed speed to match another
device.
(O)
Return to the main screen
SC-E6100/SC-E7000
(A) [Clear] [Exit] (O)
(B) [Clock] [Display speed] (N)

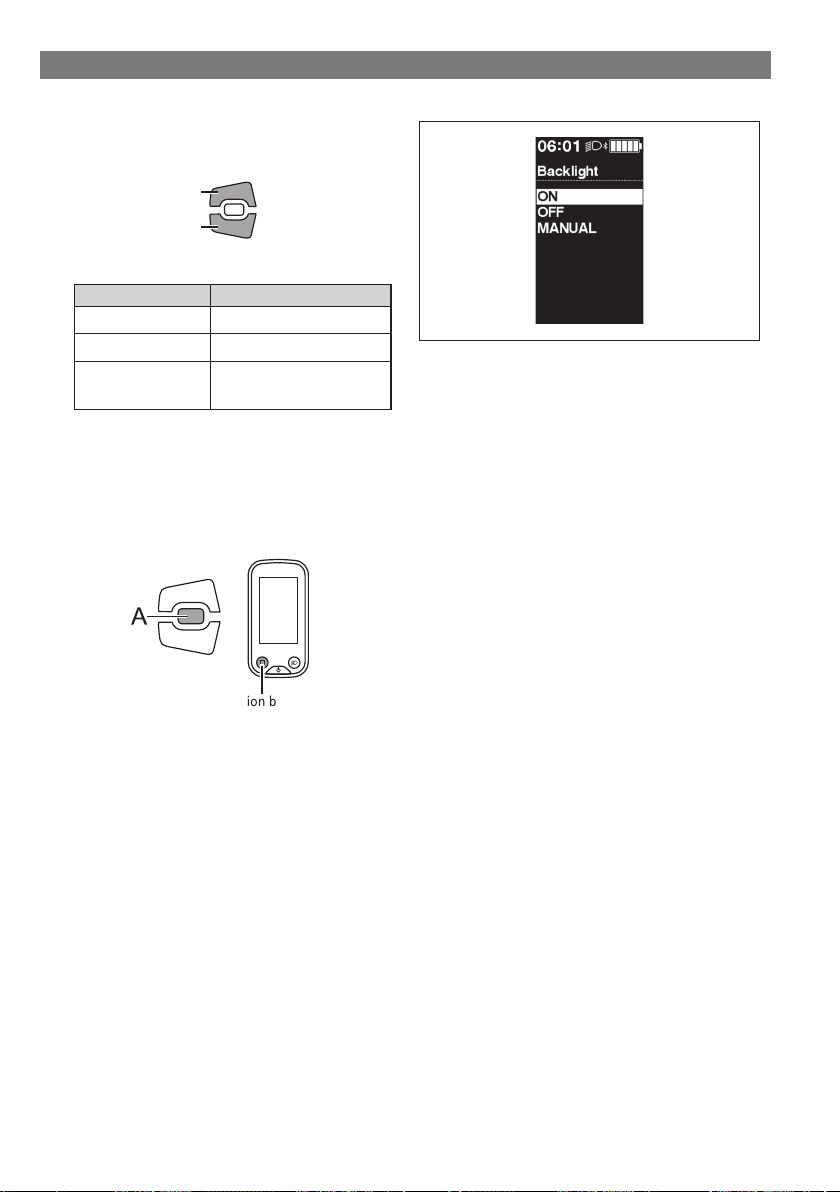

(C) [Backlight]

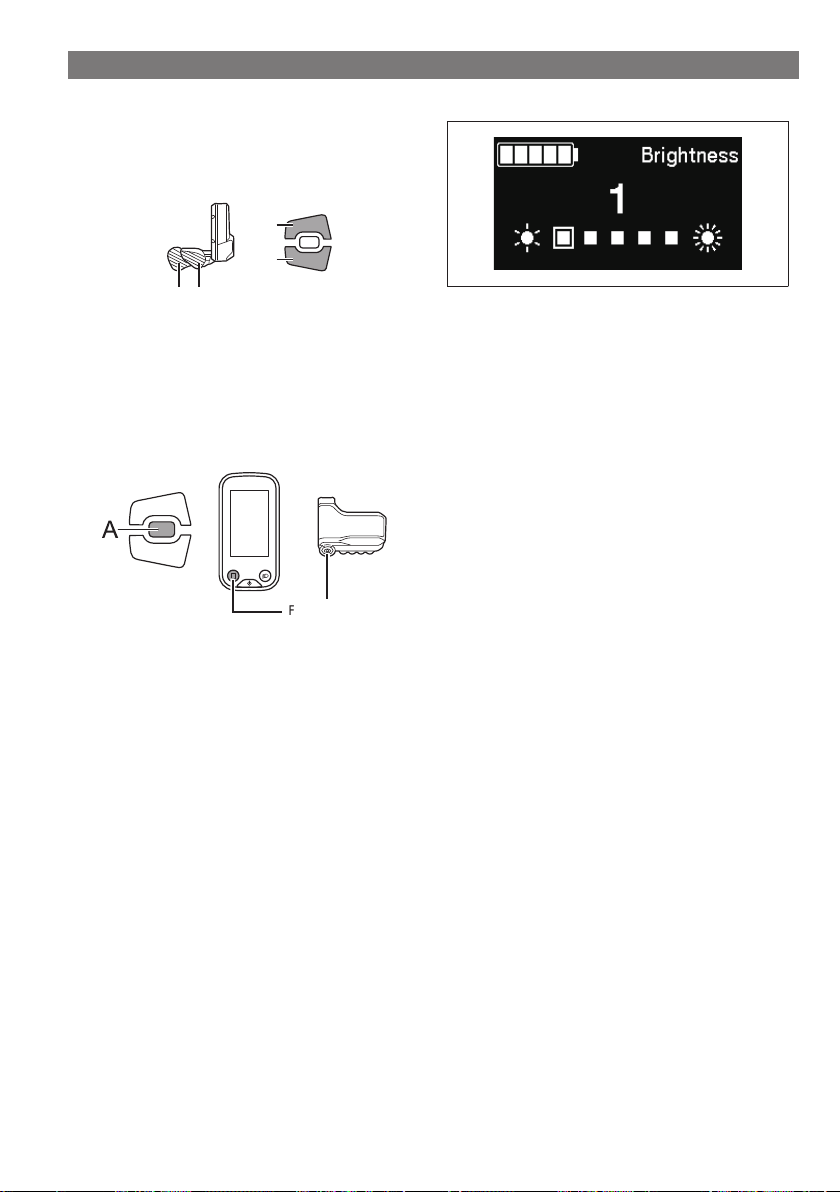

(D) [Brightness]
(E) [Light] [Shifting advice] (L)

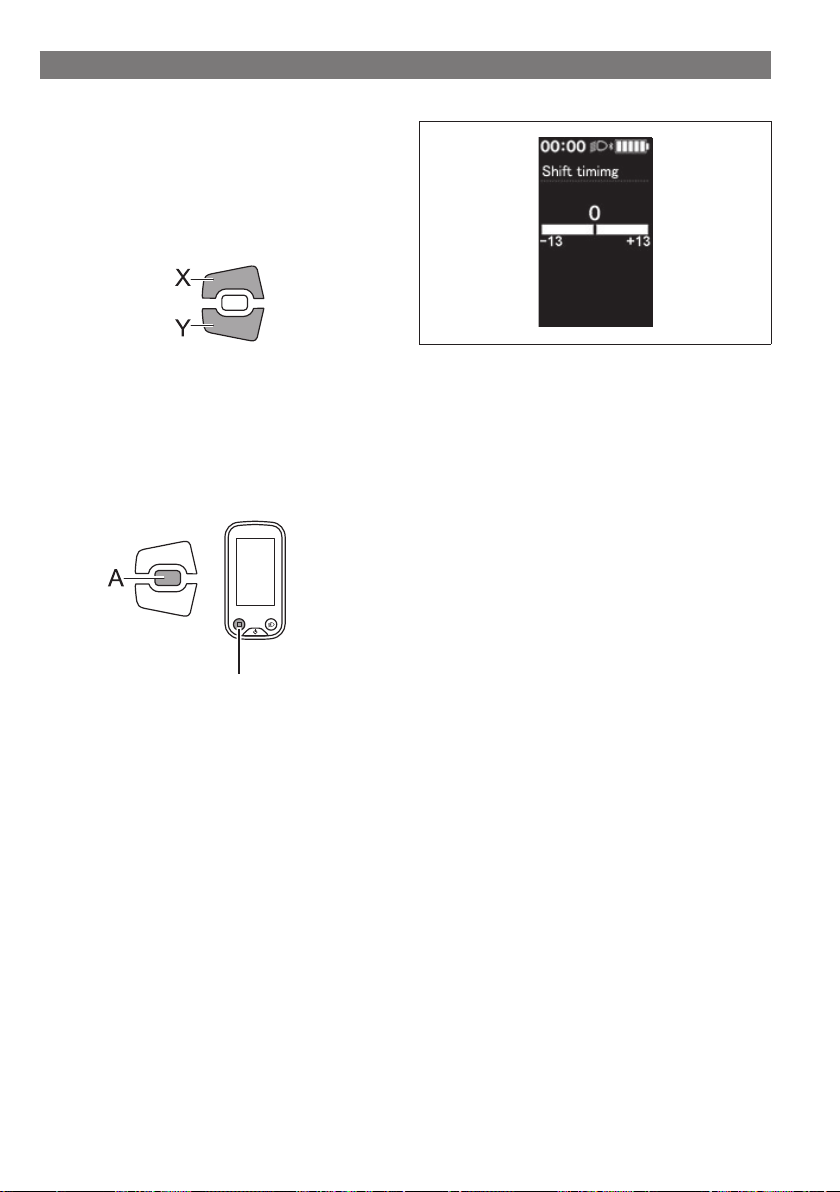

(F) [Beep] [Shift timing] (K)
(G) [Unit] [Adjust] (J)

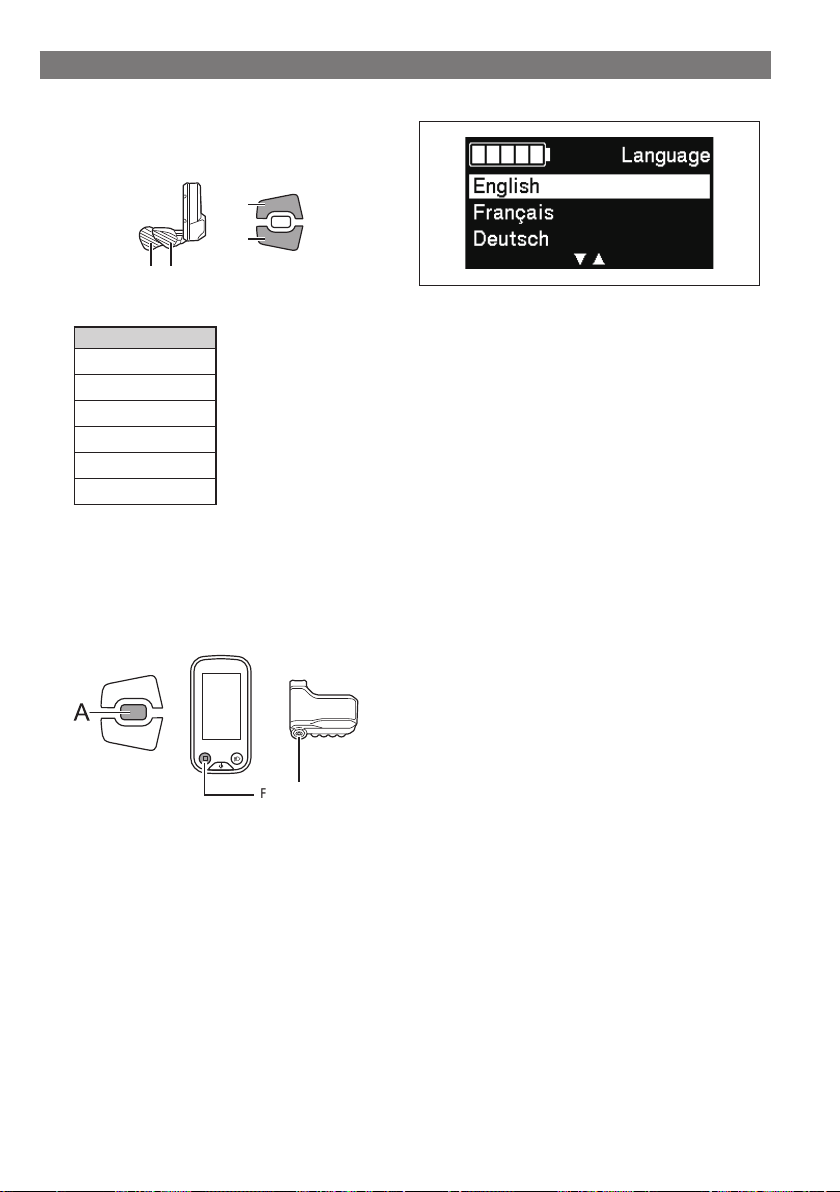

(H) [Language] [Font color] (I)
[RD protection
reset]
(M)
*
In order to protect the system when the bicycle falls
and is subjected to a strong impact, the RD
Protection function will activate and momentarily
severe the connection between the motor and the
link, impairing the proper function of the rear
derailleur. Executing RD Protection Reset restores
the connection between the motor and the link, as
well as the function of the rear derailleur.
35
Page 38

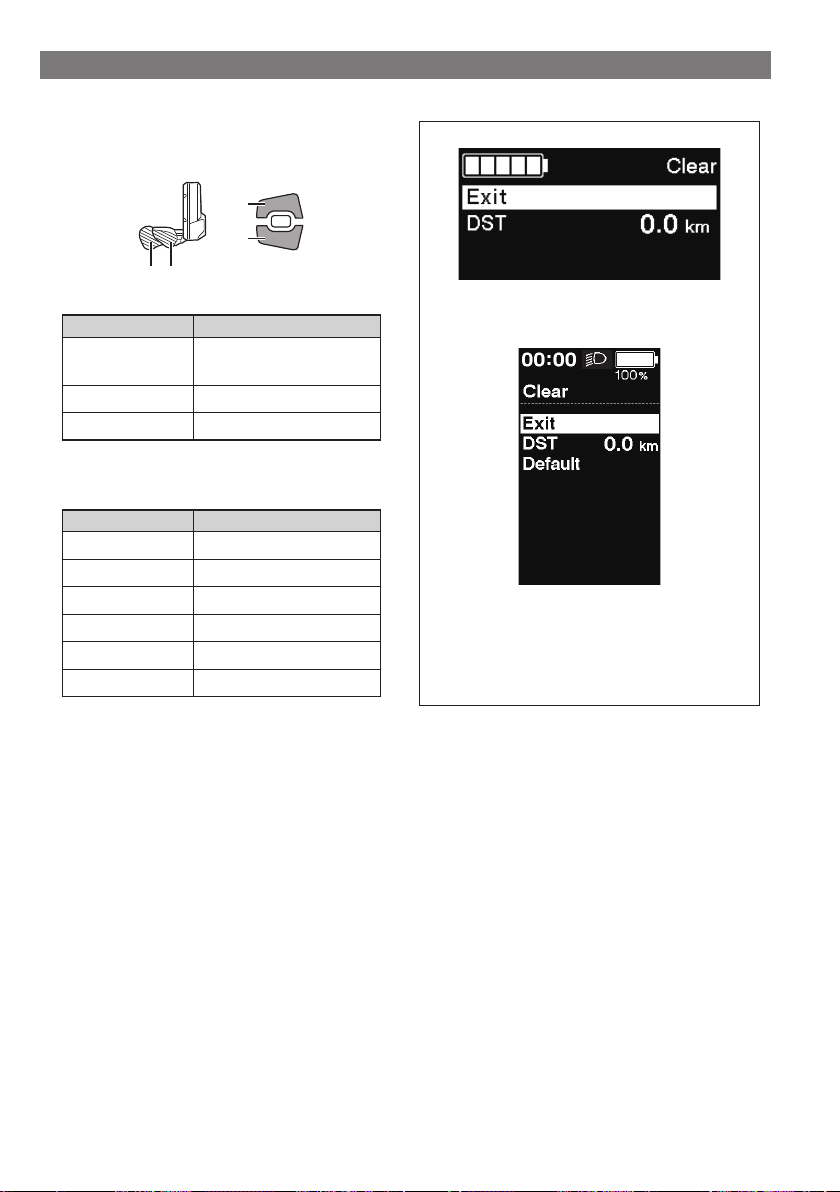

[Clear] Setting reset
Reset the traveling distance to default.
1.
Press Assist-X or Assist-Y to select [DST].
Assist
X
Y
XY
SC-E8000
Configurable items Details
[Exit]
[DST] Reset the traveling distance
[Default]*1 Reset the display settings
Return to the menu list
screen
*1 SC-E6010/SC-E6100 only
When the display settings are reset, the following will
be reset to their default settings.
Configurable items Default value
[Backlight] ON
[Beep] ON
[Unit] km
[Language] English
[Brightness] 3
[Font color] White
SC-E6010
36
Page 39

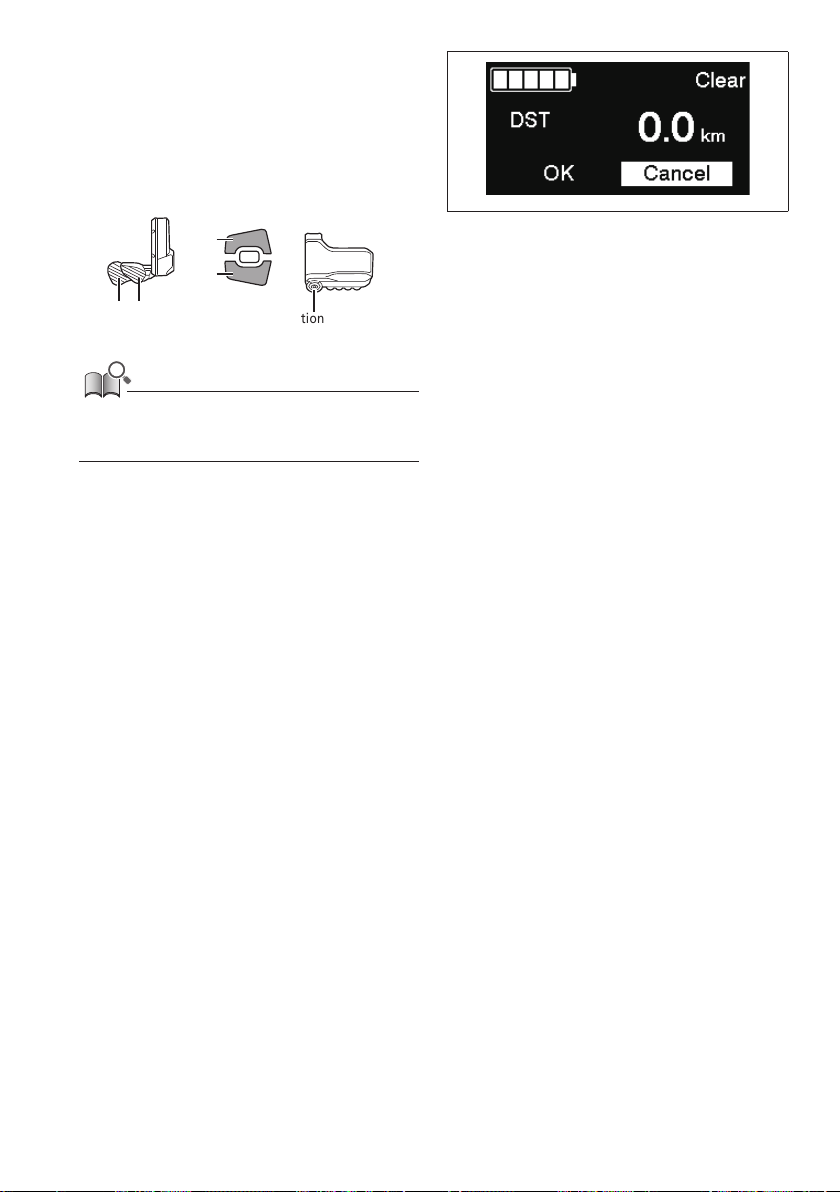

2.
To reset traveling distance, select [OK] using Assist-X
or Assist-Y and press the function button to confirm.
After resetting, the screen will automatically return to
the menu list screen.
•
A reset confirmation screen is not displayed on
SC-E6010/SC-E7000/SC-E6100.
Assist
X
Y
XY
When the traveling distance is cleared, [TIME]/[TME] (Traveling
time), [AVG] (average speed), and [MAX] (maximum speed) are
also cleared.
Function button
37
Page 40

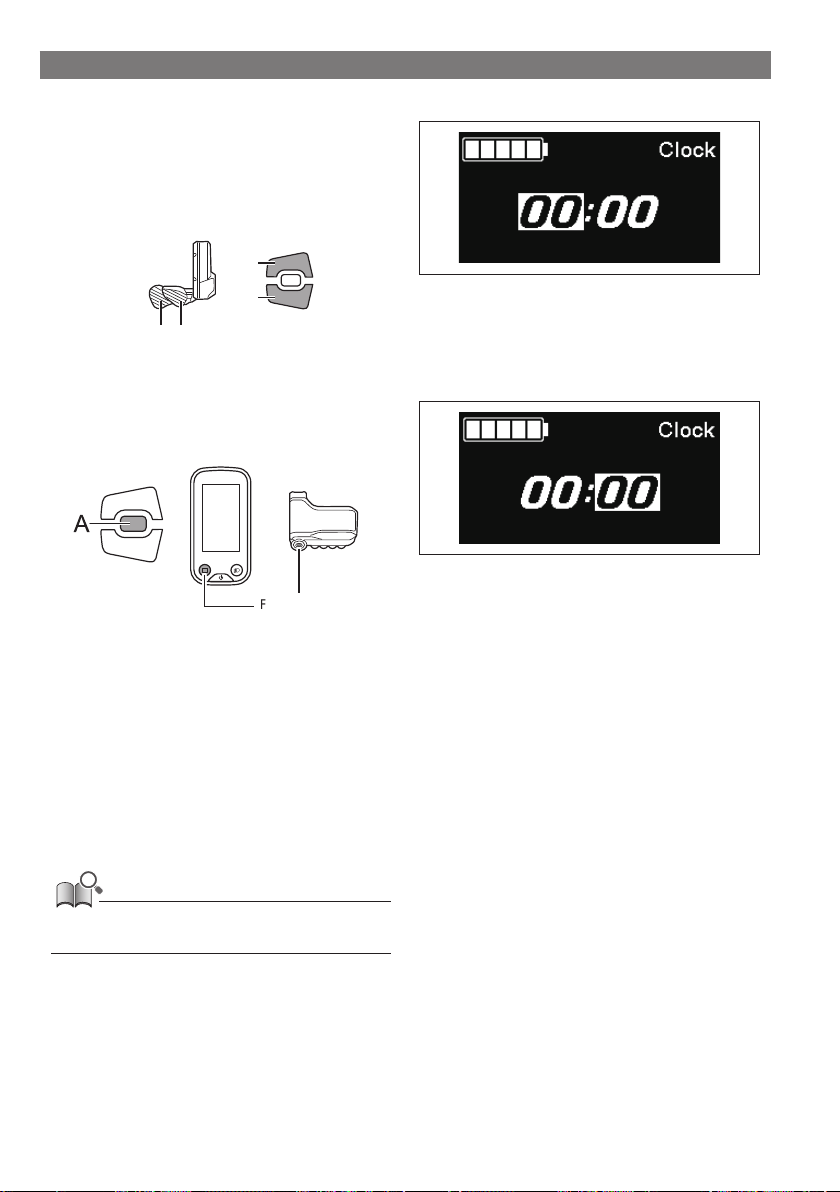

[Clock] Time setting
Configure the clock setting.
1.
Press Assist-X or Assist-Y to adjust the time.
•
Press Assist-X to increase the numbers.
•
Press Assist-Y to decrease the numbers.
Assist
X
Y
XY
2.
Pressing Assist-A or function button enables the set
value and moves you to the minutes setting.
Assist
Function button
3.
Press Assist-X or Assist-Y to set the minutes.
4.
Press Assist-A or the function button to confirm the
setting.
•
After confirmation, the screen will automatically
return to the menu list screen.
You can change the numbers quickly by holding down Assist-X
or Assist-Y.
38
Page 41

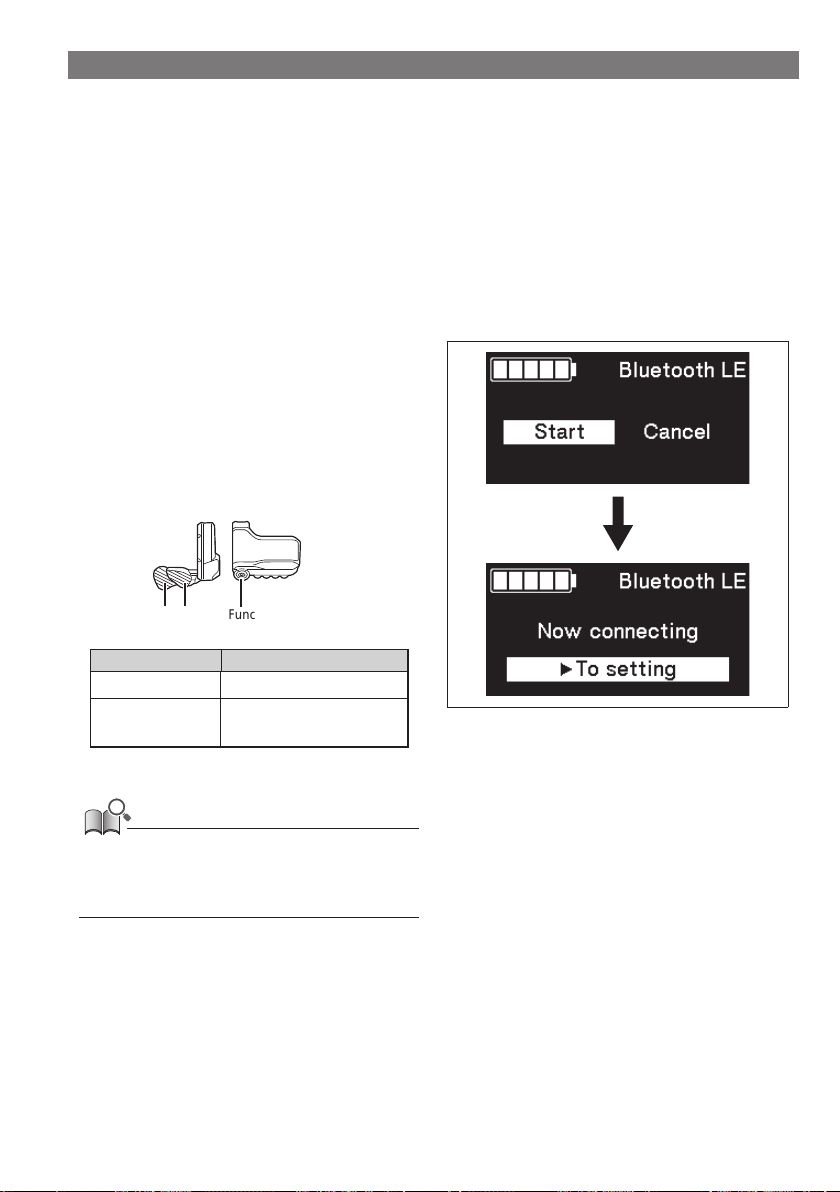

[Bluetooth LE] (SC-E8000)
E-TUBE PROJECT for smartphones/tablets may be used if a Bluetooth LE connection is established with a smartphone/
tablet.
1.
Before setting up a connection, turn on Bluetooth LE
on the smartphone/tablet.
2.
Open E-TUBE PROJECT and set it to listen for
Bluetooth LE signals.
3.
Press Assist-X or Assist-Y to select [Start].
To start Bluetooth LE pairing, press A or the function
button to confirm.
•
If you press A or the function button during
Bluetooth LE pairing, the transmission will be
interrupted, then the screen will return to the menu
list screen.
Assist
XY
Function button
Configurable items Details
[Start] Starts Bluetooth LE pairing
[Cancel]
Generally, Bluetooth LE transmission will begin automatically
when the cycle computer is turned on, however, pairing can be
started by selecting [Start] from the [Bluetooth LE] menu when
connectivity is poor.
To not perform pairing,
select [Cancel]
39
Page 42
4.
When connection is successful, SHIMANO STEPS logo
is displayed on screen. If connection is not successful,
a message indicating this is displayed.
•
After successful connection or a connection failure,
press one of Assist-X/Assist-Y/function button or the
screen will automatically return to the menu list
screen after awhile.
5.
When connection is successful, the unit name will
display in E-TUBE PROJECT.
6.
Select the unit name displayed on screen.
•
To disconnect, cancel the Bluetooth LE connection
from the smartphone/tablet. (The cycle computer
will exit connection mode and return to regular
operation mode.)
Connection successful
Connect failure
Connection failed
40
Page 43
[Bluetooth LE/ANT] (SC-E8000)
Current status of wireless connections can be displayed on screen.
For details on ANT connection, refer to "ANT connection" in the section "About wireless functions".
Select [Bluetooth LE/ANT] from the menu list screen
and confirm to display current wireless connection
status.
When connected via Bluetooth LE
When an ANT signal is being emitted
When neither Bluetooth LE nor ANT is connected
41
Page 44

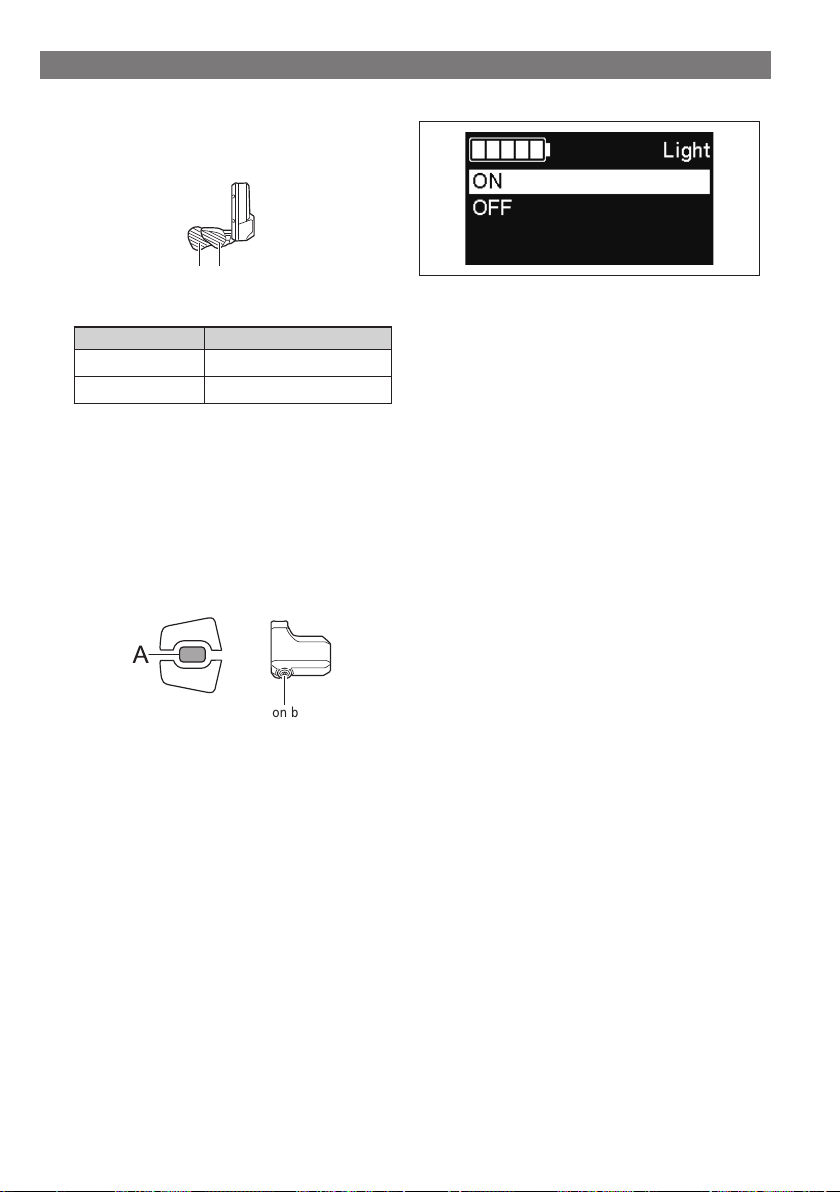

[Light] Light ON/OFF (SC-E8000/SC-E7000)
Turns the light connected to the drive unit ON/OFF.
1.
Press Assist-X or Assist-Y to select the required setting.
Assist
XY
Configurable items Details
[ON] Keep light always on
[OFF] Keep light always off
2.
Press Assist-A or the function button to finalize the
setting.
•
After confirmation, the screen will automatically
return to the menu list screen.
If using SW-E6010, this can also be operated with
Assist-A.
Assist
Function button
42
Page 45

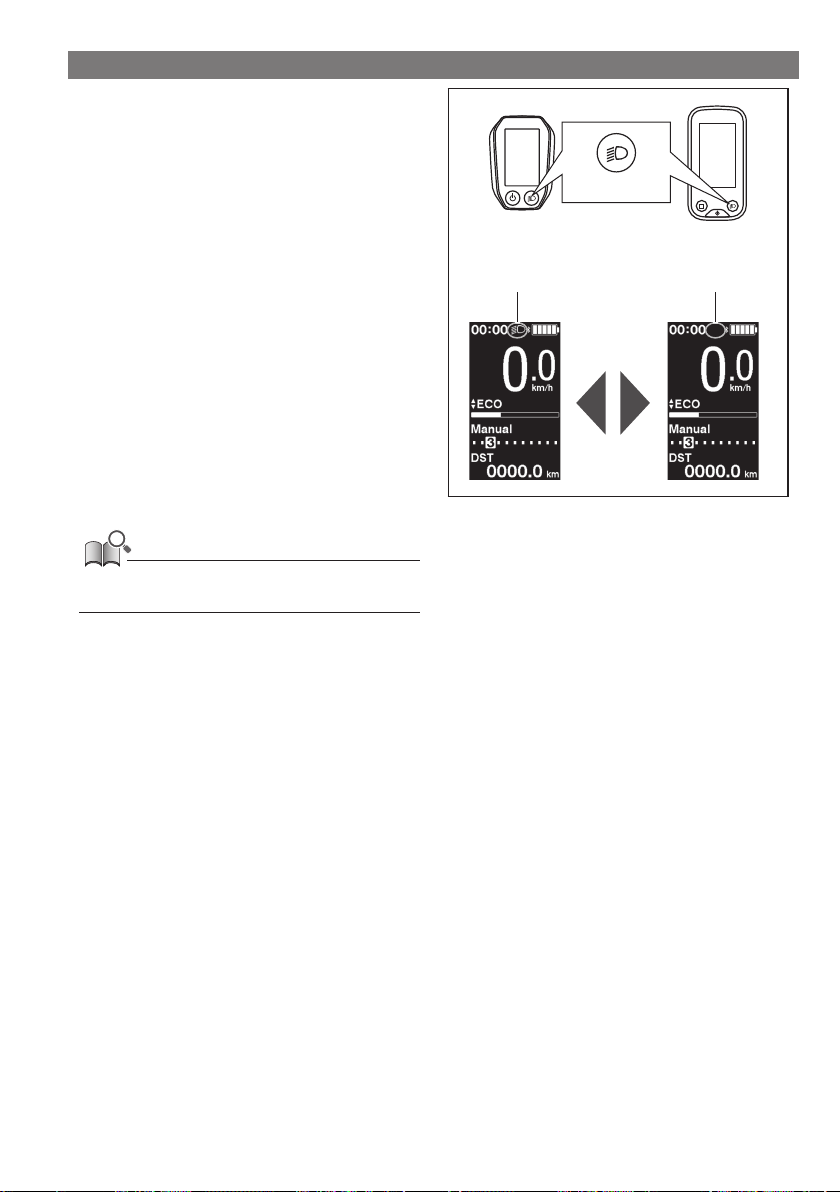

[Light] Light ON/OFF (SC-E6010/SC-E6100)
The light can be turned on by pressing the light
button on the cycle computer when the light is
connected. An icon indicating that the light is on
appears on the screen. Push the button again to turn
the light off. Once the light is turned off, the icon on
the screen disappears.
*
When the battery powered light is not connected and
[Backlight] is set to [MANUAL], pressing the light
button turns the cycle computer’s backlight on and
off.
*
When using SC-E8000/SC-E7000, the light can be
operated from the setting menu.
The light turns off when the power is turned OFF. The light will
not turn on when the power is OFF.
When the light is
turned on
Light button
When the light is
turned off
43
Page 46
[Backlight] backlight setting (SC-E6010/SC-E6100)
X
Y
Configure the display backlight setting.
1.
Press Assist-X or Assist-Y to select the required setting.
Assist
Configurable items Details
[ON] Keep light always on
[OFF] Keep light always off
[MANUAL]
2.
Press Assist-A or the function button to confirm the
setting.
•
After confirmation, the screen will automatically
return to the menu list screen.
Turns the light connected
to the drive unit ON/OFF.
Assist
Function button
44
Page 47
[Brightness] backlight brightness setting (SC-E8000/SC-E6010/SC-E6100)
The brightness of the backlight can be adjusted as needed.
1.
Press Assist-X or Assist-Y to adjust the brightness.
•
The brightness can be adjusted in 5 levels.
Assist
X
Y
XY
2.
Press Assist-A or the function button to confirm the
adjusted value.
•
After confirmation, the screen will automatically
return to the menu list screen.
Assist
Function button
45
Page 48

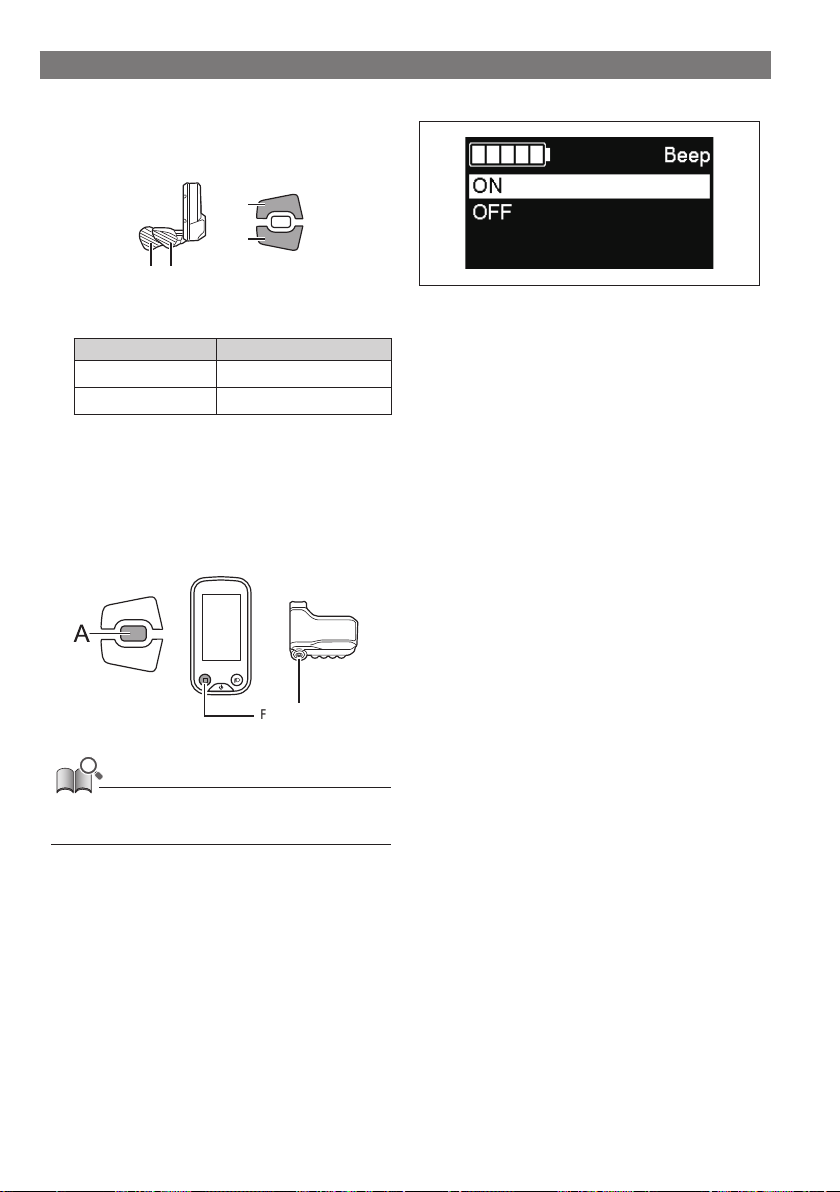

[Beep] Beep setting
The beep noise can be turned on/off.
1.
Press Assist-X or Assist-Y to select the required setting.
Assist
X
Y
XY
Configurable items Details
[ON] Enable beeps
[OFF] Disable beeps
2.
Press Assist-A or the function button to confirm the
setting.
•
After confirmation, the screen will automatically
return to the menu list screen.
Assist
Function button
Even when [Beep] is set to [OFF], a beep will sound
when there is a misoperation, system error, etc.
46
Page 49

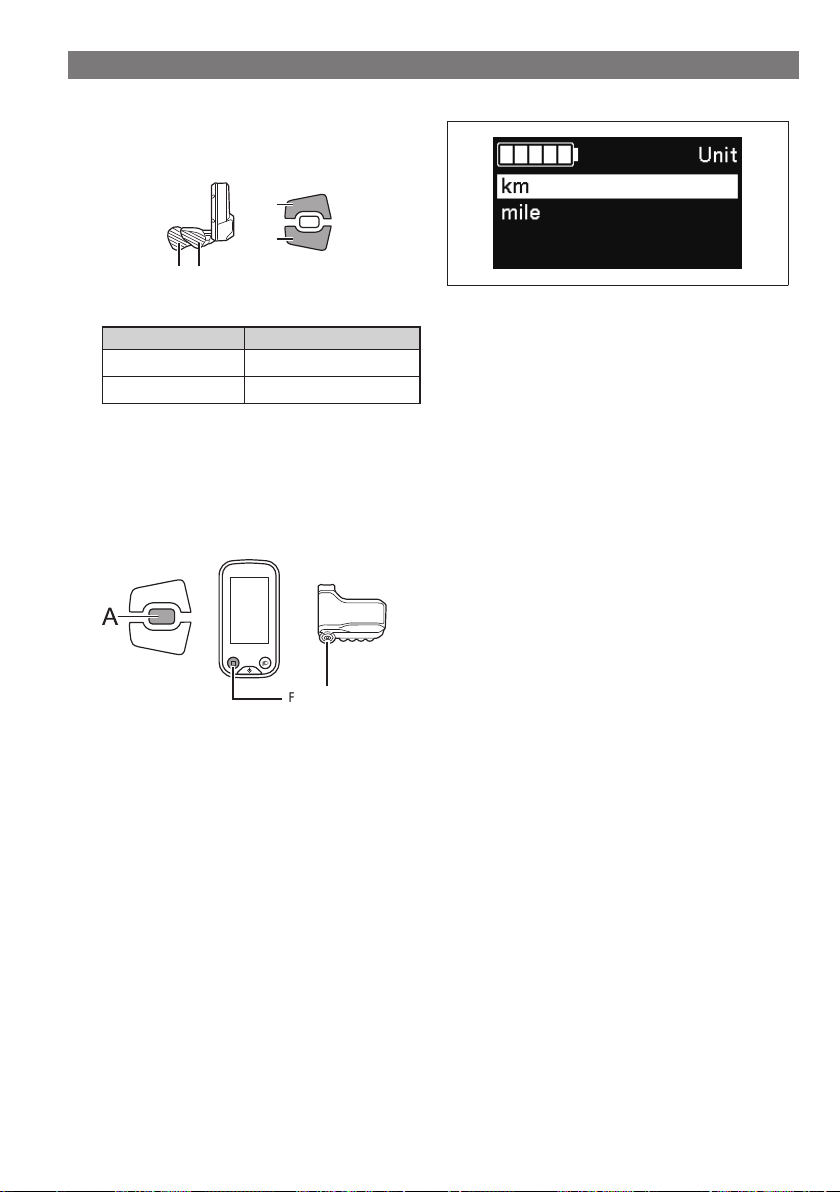

[Unit] Km/mile switch
Distance units (km/miles) can be switched.
1.
Press Assist-X or Assist-Y to select the required setting.
Assist
X
Y
XY
Configurable items Details
[km] Displayed in km
[mile] Displayed in miles
2.
Press Assist-A or the function button to confirm the
setting.
•
After confirmation, the screen will automatically
return to the menu list screen.
Assist
Function button
47
Page 50
[Language] Language setting
Configure the language setting.
1.
Press Assist-X or Assist-Y to select the required setting.
Assist
X
Y
XY
Language
English
French
German
Dutch
Italian
Spanish
2.
Press Assist-A or the function button to confirm the
setting.
•
After confirmation, the screen will automatically
return to the menu list screen.
Assist
Function button
48
Page 51

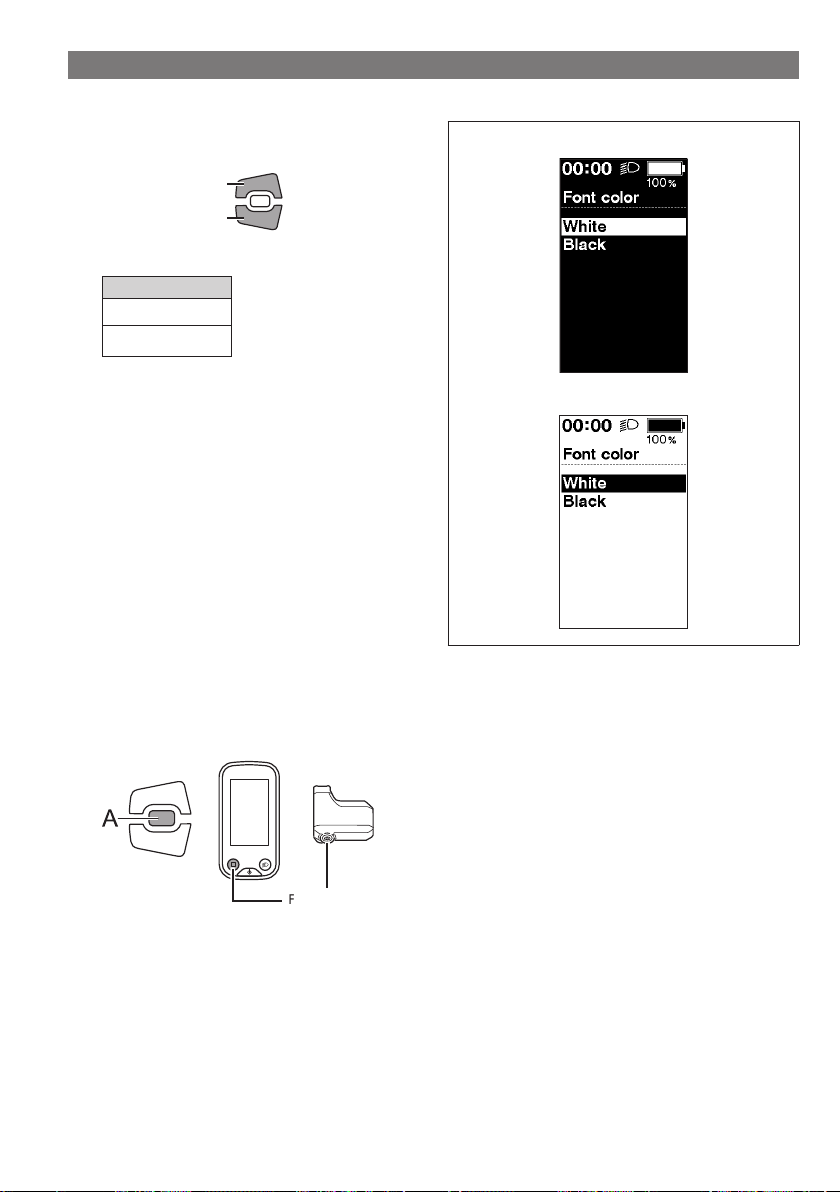

[Font color] Font color settings (SC-E6010/SC-E6100/SC-E7000)
X
Y
The font color can be changed.
1.
Press Assist-X or Assist-Y to select the required setting.
Assist
Configurable items
[White]
[Black]
[White]
[Black]
2.
Press Assist-A or the function button to confirm the
setting.
•
After confirmation, the screen will automatically
return to the menu list screen.
Assist
Function button
49
Page 52
[Shift timing] Display timing setting (SC-E6100)
Set the timing at which gear shifting advice is displayed.
1.
Press Assist-X or Assist-Y to adjust the values.
•
Pressing Assist-X to increase the value adjusts shift
timing to make pedaling easier.
•
Pressing Assist-Y to decrease the value adjusts shift
timing to make pedaling harder.
Assist
2.
Press Assist-A or the function button to confirm the
setting.
*
The screen will automatically return to the setting
menu screen.
Assist
Function button
50
Page 53
[Shifting advice] shifting advice setting (SC-E6100)
Sets whether to display the recommended gear shifting timing on the cycle computer during manual gear shifting.
1.
Press Assist-X or Assist-Y to move the cursor to the
item you want to configure.
Assist
Configurable
items
Enables the gear shifting advice
function, which displays an icon to
[ON]
[OFF]
2.
Press A or the function button to confirm the setting.
*
The screen will automatically return to the setting
menu screen.
notify the user of the
recommended timing for gear
shifting during manual gear
shifting.
Disable the shifting advice
function
Assist
Details
Function button
[Adjust] Gear shifting adjustment with the electronic gear shifting unit
You can adjust gear shifting only when using an electronic gear shifting unit.
If you need to adjust the derailleur, contact the place of purchase.
51
Page 54
[RD protection reset] Reset RD protection
In order to protect the system when the bicycle falls and is subjected to a strong impact, the RD Protection function will
activate and momentarily severe the connection between the motor and the link, impairing the proper function of the
rear derailleur. Executing RD Protection Reset restores the connection between the motor and the link, as well as the
function of the rear derailleur.
1.
Press Assist-X or Assist-Y to select [OK].
Assist
X
Y
XY
Configurable items Details
[OK]
[Cancel]
2.
Press Assist-A or the function button to confirm [OK],
recover the connection between the motor and the
link by rotating the crank.
Assist
RD Protection Reset will
operate
To not execute RD
Protection Reset, select
[Cancel]
Function button
52
Page 55
[Display speed] Adjusting the display speed (SC-E6100/SC-E7000)
Adjusts the displayed speed when there is a difference between the speed displayed on the cycle computer and other
devices.
If the display on the cycle computer is adjusted, the actual speed may be higher than the displayed speed. Keep this in
mind if riding in an area with a speed limit.
1.
Press Assist-X or Assist-Y to adjust the number.
•
Press Assist-X to increase the number. The number
displayed for the speed increases.
•
Press Assist-Y to decrease the number. The number
displayed for the speed decreases.
Assist
2.
Press Assist-A or the function button to confirm the
setting.
*
The screen will automatically return to the setting
menu screen.
< SC-E6100 >
< SC-E7000 >
Assist
Function button
[Exit] Close setting menu screen
Closes the menu list screen and returns to the basic screen.
1.
Press Assist-X or Assist-Y to select [Exit] on the menu list screen.
2.
Press Assist-A to confirm. After confirmation, the screen will return to the basic screen.
53
Page 56
Settings (EW-EN100)
The setting function cannot be used while riding the bicycle.
RD protection reset
In order to protect the system from falls etc., if the bicycle is subjected to a strong impact, the “RD Protection function” is
enabled. The connection between the motor and the link will be momentarily severed so that the rear derailleur can no
longer operate. Executing “RD Protection Reset” restores the connection between the motor and the link, as well as the
function of the rear derailleur.
1.
Hold the button down (for roughly eight seconds)
until LED1 flashes red.
Once LED1 is flashing, release the button. When only
LED1 is flashing red, the system is in the RD protection
reset mode.
LED2
LED1
Button
2.
Rotate the crankarm.
Connection of motor and the link is restored.
Adjust
You can adjust gear shifting only when using an electronic gear shifting unit.
If you need to adjust the derailleur, contact the place of purchase.
54
Page 57
Drive unit setting data backup function (SC-E8000/SC-E6010)
The data saved to the drive unit is usually backed up automatically. However, performing the following operations will cause
a message to appear asking whether or not to update the backup data.
•
Reinstalling the cycle computer on a bicycle with different settings.
•
Changing the drive unit settings via E-TUBE PROJECT.
Connection and communication with devices
The system can be configured and firmware can be updated when the bicycle is connected to a device.
You need E-TUBE PROJECT to configure SHIMANO STEPS and update firmware.
Download E-TUBE PROJECT from the support website (https://e-tubeproject.shimano.com).
For information on how to install E-TUBE PROJECT, check the support website.
NOTICE
Connecting to devices is not possible while charging.
• SM-PCE1/SM-PCE02 is needed to connect SHIMANO STEPS to a PC. SMJC40/SM-JC41 will be needed in the following situations.
-
There are no free E-TUBE ports on the cycle computer (for example, if using electronic gear shifting)
-
If connecting the switch unit by itself to the PC
• Firmware is subject to change without notice.
If necessary, contact the place of purchase.
55
Page 58
About wireless functions
Functions
ANT connection (SC-E8000/SC-E7000/SC-E6100/EW-EN100)
The wireless unit can send all information displayed on the basic screen of the cycle computer to an external device.
The latest functions can be checked by updating the software via E-TUBE PROJECT. For details, consult the place of purchase.
Bluetooth® LE connection (SC-E8000/SC-E7000/SC-E6100/EW-EN100)
The wireless unit can send all information displayed on the basic screen of the cycle computer to an external device.
E-TUBE PROJECT for smartphones/tablets may be used if a Bluetooth LE connection is established with a smartphone/
tablet. SC-E7000, SC-E6100, and EW-EN100 are compatible with E-TUBE RIDE, which can be used to check traveling data on
a smartphone connected over Bluetooth LE.
How to make connections
ANT connection (SC-E8000/SC-E7000/SC-E6100/EW-EN100)
When the main power is turned ON for SHIMANO STEPS, communication can be received at any time. Switch the external
device to connection mode and then connect it. For SC-E8000, you can check [Bluetooth LE/ANT] to confirm whether the
connection was successful.
Bluetooth® LE connection (SC-E8000)
Generally, Bluetooth LE transmission will begin automatically when the cycle computer is turned on, however, pairing can
be started by [Bluetooth LE] menu when connectivity is poor.
Bluetooth® LE connection (SC-E7000/SC-E6100/EW-EN100)
Communication can only be received under the following conditions. Switch the external device to connection mode in
advance.
•
Within 15 seconds of the main power for SHIMANO STEPS turning ON.
•
Within 15 seconds of operating any button other than the SHIMANO STEPS power switch.
2.4 GHz digital wireless system (SC-E8000)
2.4 GHz-frequency digital wireless technology, which is the same technology used for wireless LAN.
However, on very rare occasions, objects and places may generate strong electromagnetic, waves and interference, which
may result in incorrect measurement.
•
Television, PC, radios, motors/engines, or in car and trains.
•
Railroad crossings and near railway tracks, around television transmitting stations and radar bases.
•
Other wireless computers or digitally controlled light.
56
Page 59
Troubleshooting
Error messages on the cycle computer
Warnings
If the situation is resolved, this indication will disappear.
If the situation does not improve, consult a distributor.
SC-E8000
SC-E7000
SC-E6100
List of warnings
Code
W010
W011
Display
preconditions
Temperature of the
drive unit is higher
than it is during
times of normal
operation.
The traveling speed
cannot be detected.
Operational restrictions
while warning is
displayed
Power assistance may
be lower than usual.
The maximum speed up to
which power assistance is
provided may be lower than
usual.
Remedy
Stop using the assist function until the temperature of
the drive unit drops.
Contact your place of purchase or a local bicycle dealer
for assistance, since there is a chance of the following:
• The speed sensor is installed in the wrong position.
• The magnet included with the disc brake rotor has
come off.
57
Page 60
Code
W013
W020
W032
Display
preconditions
Initialization of
torque sensor was
not completed
successfully.
If the temperature
exceeds the
guaranteed
operating range, the
battery output is
turned off.
An electronic
derailleur may have
been installed in
place of a
mechanical
derailleur.
Operational restrictions
while warning is
displayed
Power assistance may
be lower than usual.
No system functions will
start.
Power assistance
provided in [WALK]
mode may be lower
than usual.
*
The Walk assist mode
function may not be
able to be used in
certain regions.
Remedy
With your foot off the pedal, press the battery power
button and turn on the power again.
If it has exceeded the temperature in which discharge is
possible, leave the battery in a cool place away from
direct sunlight until the internal temperature of the
battery decreases sufficiently. If it is below the
temperature in which discharge is possible, leave the
battery indoors, etc. until its internal temperature is at
a suitable temperature.
Reinstall the derailleur for which the system is
configured to support.
58
Page 61
Errors
If an error message is displayed on the entire screen,
follow one of the procedures below to reset the display.
•
Press the power button of the battery.
•
Remove the battery from the holder.
If the situation does not improve even after turning the power
back ON, consult with a distributor.
List of errors
Code
A system error was
E010
detected.
An anomaly was
detected in the drive
E013
unit’s firmware.
The speed sensor
may have been
E014
installed in the
wrong position.
A communication
error between the
E020
battery and drive
unit was detected.
Battery connected
to drive unit
conforms with
E021
system standards
but is not
supported.
Battery connected
to drive unit does
E022
not conform with
system standards.
Electrical failure
E023
inside the battery
Communication
E024
error with the
bicycle system
Display
preconditions
Operational restriction when
an error is being displayed
Power assistance is not
provided during riding.
Power assistance is not
provided during riding.
Power assistance is not
provided during riding.
Power assistance is not
provided during riding.
Power assistance is not
provided during riding.
No system functions will start.
No system functions will start.
No system functions will start.
Remedy
Press the power button of the battery to turn it on
again.
Contact the place of purchase or bicycle dealer.
If the situation does not improve even after turning
the power back ON, consult with a distributor.
Contact the place of purchase or bicycle dealer.
Check that the cable between the drive unit and
battery is properly connected.
Press the power button of the battery to turn it on
again.
Press the power button of the battery to turn it on
again.
Use the battery power button to turn the power
OFF, and then turn the power back ON.
Make sure that the cable is not loose or improperly
connected.
59
Page 62
Code
E025
E033
E043
Display
preconditions
This is displayed
when a genuine
drive unit is not
connected.
This is displayed if
any of the cables
are disconnected.
The current
firmware doesn’t
support system
operation.
Part of the cycle
computer’s
firmware may be
damaged.
Operational restriction when
an error is being displayed
No system functions will start.
Power assistance is not
provided during riding.
Power assistance is not
provided during riding.
Remedy
Connect a genuine battery and drive unit.
Check the condition of the cables.
Connect to E-TUBE PROJECT and update firmware
for all unit.
Contact the place of purchase or bicycle dealer.
Error indications (EW-EN100)
When an error occurs, the two LEDs on EW-EN100 will quickly flash red at the same time.
If this occurs, follow one of the procedures below to reset
the indication.
•
Press the battery power switch to turn the power OFF.
•
Remove the battery from the mount.
If the situation does not improve even after turning the
power back ON, consult with a distributor.
LED2
LED1
60
Page 63
Troubleshooting
Assist function
Symptom Cause / Possibility Remedy
Assistance is not being
provided.
Assist traveling distance is
too short.
Is the battery sufficiently charged?
Are you riding on long slopes in summer
weather or riding for a long time carrying a
heavy load?
The battery may be overheating.
The drive unit, cycle computer or assist
switch may be connected incorrectly or
there may be a problem with one or more
of them.
Is the speed too high?
Are you pedaling?
Is the assist mode set to [OFF]?
Is the system power ON?
The traveling distance may become shorter
depending on road conditions, the gear
position and total light usage time.
The battery characteristics will drop during
winter weather.
The battery is a consumable part. Repeated
recharging and long periods of use will
cause the battery to deteriorate (lose its
performance).
Is the battery fully charged?
Check the battery charge. If the battery is
nearly spent, recharge it.
T
urn off the power, wait for a while and
then check once more.
Contact the place of purchase.
Check the cycle computer display.
Assistance is not provided at speeds set by
the manufacturer or more.
The bicycle is not a motorbike, so you need
to operate the pedals.
Set assist mode to a mode other than [OFF].
If you still do not feel that assistance is
being given, contact the place of purchase.
If you have performed the steps below and
still do not feel the assistance, contact the
place of purchase.
Use the power switch on the cycle computer
or the battery power button to turn the
power back on.
Check the battery charge. If the battery is
nearly spent, recharge it.
This is not a sign of a problem.
If the distance that can be traveled on a
single charge is very short, replace the
battery with a new one.
If the distance that can be traveled when
the battery is fully charged has decreased,
the battery may have degraded. Replace
the battery with a new one.
61
Page 64
Symptom Cause / Possibility Remedy
Pedaling is stiff.
Are the tires inflated to a sufficient pressure?
Is the assist mode set to [OFF]?
The battery may be running low.
Did you turn on the power with your foot
placed on the pedal?
Use a pump to add air.
Set the assist mode to [BOOST]. If you still
do not feel that assistance is being given,
contact the place of purchase.
After charging the battery well, check the
level of assistance again. If you still do not
feel that assistance is being given, contact
the place of purchase.
Turn on the power again without putting
pressure on the pedal. If you still do not
feel that assistance is being given, contact
the place of purchase.
62
Page 65
Battery
Symptom Cause / Possibility Remedy
The battery quickly loses its
charge.
The battery cannot be
recharged.
The battery may be at the end of its service
life.
Is the power plug of the charger securely
inserted into the electrical outlet?
Is the charging plug of the charger securely
inserted into the battery?
Is the charging adapter securely connected
to the charging plug, or to the battery
charging port?
Is the connecting terminal for the battery
charger, charging adapter, or battery dirty?
Replace the battery with a new one.
Disconnect and then reconnect the power
plug of the charger, and then repeat the
recharging operation.
If the battery still cannot be recharged,
contact the place of purchase.
Disconnect and then reconnect the
charging plug of the charger, and then
repeat the recharging operation.
If the battery still cannot be recharged,
contact the place of purchase.
Securely connect the charging adapter to
the charging plug or to the battery
charging port, and charge again. If the
battery still does not charge, contact the
place of purchase.
Wipe the connection terminals with a dry
cloth to clean them, and then repeat the
recharging operation.
If the battery still cannot be recharged,
contact the place of purchase.
The battery does not start
recharging when the
charger is connected.
The battery and charger are
becoming hot.
The charger is warm.
The LED on the charger
does not illuminate.
The battery cannot be
removed.
The battery may be at the end of its service
life.
The temperature of the battery or charger
may have exceeded the operating
temperature range.
If the charger is being used continuously to
charge batteries, it may become warm.
Is the charging plug of the charger securely
inserted into the battery?
Is the battery fully charged?
63
Replace the battery with a new one.
Stop recharging, wait for a while and then
recharge again. If the battery is too hot to
touch, it may indicate a problem with the
battery. Contact the place of purchase.
Wait a while before using the charger
again.
Check the connection for any foreign
objects before reinserting the charging
plug. If there is no change, contact the
place of purchase.
If the battery is fully charged, the LED on
the battery charger turns off, but this is not
a malfunction. Disconnect and then
reconnect the power plug of the charger,
and then repeat the recharging operation.
If the LED on the charger still does not
illuminate, contact the place of purchase.
Contact the place of purchase.
Page 66
Symptom Cause / Possibility Remedy
The battery cannot be
inserted.
Fluid is coming out from the
battery.
An abnormal odor can be
detected.
Smoke is coming out from
the battery.
Lights
Symptom Cause / Possibility Remedy
The front light or the tail
light does not illuminate
even when the switch is
pressed.
Cycle computer
Symptom Cause / Possibility Remedy
The cycle computer is not
displayed when you push
the battery power button.
SC-E6010/SC-E6100
The system does not start
up when you press or press
and hold the cycle computer
power button for 2 seconds.
The gear position is not
displayed.
The E-TUBE PROJECT settings may be
wrong.
The amount of battery charge may be
insufficient.
Is the power turned on?
Is the battery charging?
SC-E6010/SC-E6100
Is the cycle computer correctly installed to
the bracket?
Is the electric wire connector correctly
installed?
A component that the system cannot
identify may be connected.
Did you use the cycle computer in, or
expose it to, low temperatures for an
extended period?
Is the cycle computer correctly installed to
the bracket?
The gear position is only displayed when
using the electronic gear shifting unit.
Contact the place of purchase.
Contact the place of purchase.
Stop using the battery immediately and
contact the place of purchase.
Stop using the battery immediately and
contact the place of purchase.
Contact the place of purchase.
Recharge the battery, and then turn the
power on once more.
Hold down the power button to turn on
the power.
The power cannot be turned on while the
battery is mounted on the bicycle and
being charged. Stop charging.
Install the cycle computer correctly while
referring to "Installing and removing the
cycle computer".
Check to see if the connector of the electric
wire connecting the motor unit to drive
unit is not disconnected. If you are not
sure, contact the place of purchase.
Contact the place of purchase.
The cycle computer may become unable to turn
on if used in, or exposed to, low temperatures
for an extended period. Turn it on by pressing
the power button on the battery. If it still does
not turn on, contact the place of purchase.
Install the cycle computer correctly while
referring to "Installing and removing the
cycle computer".
Check if the electric wire connector is
disconnected. If you are not sure, contact
the place of purchase.
64
Page 67
Symptom Cause / Possibility Remedy
Can the beep be turned off.
SC-E6010/SC-E6100
Can the backlight be turned
off.
The setting menu cannot be
launched while riding the
bicycle.
Other
Symptom Cause / Possibility Remedy
When pressing the switch,
two beeps sound, and the
switch cannot be operated.
Three beeps sound. An error or warning is occurring.
When using an electronic
gear shifting, I feel that the
level of assistance weakens
when the gears shift.
Sound occurs after gear
shifting.
A noise can be heard from
the rear wheel during
normal riding.
When you stop the bicycle,
the gear does not shift to
the position preset in the
start mode.
The product is designed so that if it detects
that the bicycle is being ridden, the setting
menu cannot be launched. This is not a sign
of an abnormality.
Operation of the switch being pressed has
been disabled.
This occurs because the level of assistance is
being adjusted to the optimum level by
computer.
Gear shifting adjustment may not have
been carried out correctly.
You may have been pressing the pedals too
strongly.
Change the setting.
Refer to "[Beep] Beep setting".
Change the setting.
Refer to "[Backlight] backlight setting
(SC-E6010/SC-E6100)".
Stop the bicycle and then make the
settings.
It is not a sign of a malfunction.
This occurs when a warning or error is
displayed on the cycle computer. Refer to
the section "Error messages on the cycle
computer" and follow the instructions
provided for the appropriate code.
It is not a sign of a malfunction.
Contact the place of purchase.
For mechanical gear shifting
Adjust the cable tension. For details, refer
to the owner's manual for the derailleur.
For electronic gear shifting
Contact the place of purchase.
If you press the pedals lightly, the gear
shifts more easily.
65
Page 68
*
Key number
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222
Roebuck Way, Knowlhill, Milton Keynes, Buckinghamshire, MK5 8HL, United Kingdom
3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan
Key number
The number that is on the key is required should you need to purchase spare keys.
Enter the key number in the box below and keep in a safe place.
Please note: specifications are subject to change for improvement without notice. (English)
