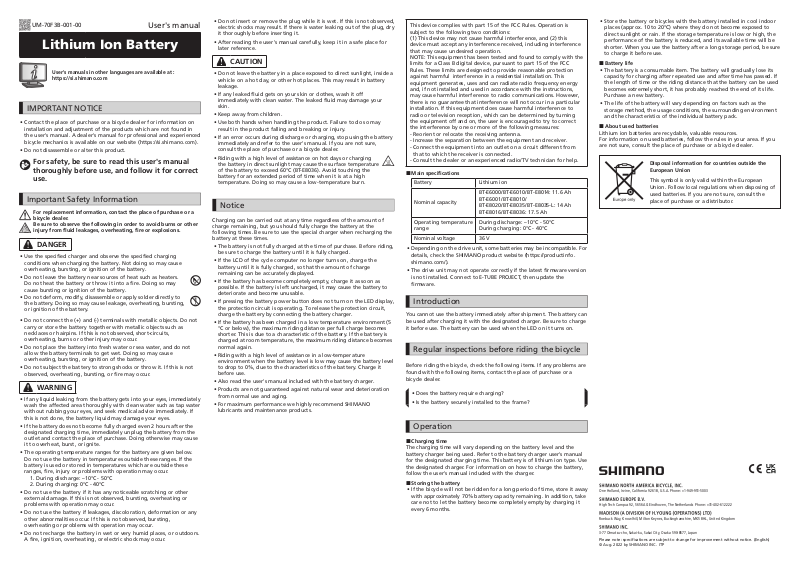

UM-70F3B-001-00
User's manual
Lithium Ion Battery
User's manuals in other languages are available at :
https://si.shimano.com
IMPORTANT NOTICE
•Contact the place of purchase or a bicycle dealer for information on
installation and adjustment of the products which are not found in
the user's manual. A dealer's manual for professional and experienced
bicycle mechanics is available on our website (https://si.shimano.com).
•Do not disassemble or alter this product.
For safety, be sure to read this user's manual
thoroughly before use, and follow it for correct
use.
Important Safety Information
For replacement information, contact the place of purchase or a
bicycle dealer.
Be sure to observe the following in order to avoid burns or other
injury from fluid leakages, overheating, fire or explosions.
DANGER
•Use the specified charger and observe the specified charging
conditions when charging the battery. Not doing so may cause
overheating, bursting, or ignition of the battery.
•Do not leave the battery near sources of heat such as heaters.
Do not heat the battery or throw it into a fire. Doing so may
cause bursting or ignition of the battery.
•Do not deform, modify, disassemble or apply solder directly to
the battery. Doing so may cause leakage, overheating, bursting,
or ignition of the battery.
•Do not connect the (+) and (-) terminals with metallic objects. Do not
carry or store the battery together with metallic objects such as
necklaces or hairpins. If this is not observed, short-circuits,
overheating, burns or other injury may occur.
•Do not place the battery into fresh water or sea water, and do not
allow the battery terminals to get wet. Doing so may cause
overheating, bursting, or ignition of the battery.
•Do not subject the battery to strong shocks or throw it. If this is not
observed, overheating, bursting, or fire may occur.
WARNING
•If any liquid leaking from the battery gets into your eyes, immediately
wash the affected area thoroughly with clean water such as tap water
without rubbing your eyes, and seek medical advice immediately. If
this is not done, the battery liquid may damage your eyes.
•If the battery does not become fully charged even 2 hours after the
designated charging time, immediately unplug the battery from the
outlet and contact the place of purchase. Doing otherwise may cause
it to overheat, burst, or ignite.
•The operating temperature ranges for the battery are given below.
Do not use the battery in temperatures outside these ranges. If the
battery is used or stored in temperatures which are outside these
ranges, fire, injury or problems with operation may occur.
1. During discharge: –10°C - 50°C
2. During charging: 0°C - 40°C
•Do not use the battery if it has any noticeable scratching or other
external damage. If this is not observed, bursting, overheating or
problems with operation may occur.
•Do not use the battery if leakages, discoloration, deformation or any
other abnormalities occur. If this is not observed, bursting,
overheating or problems with operation may occur.
•Do not recharge the battery in wet or very humid places, or outdoors.
A fire, ignition, overheating, or electric shock may occur.
•Do not insert or remove the plug while it is wet. If this is not observed,
electric shocks may result. If there is water leaking out of the plug, dry
it thoroughly before inserting it.
•After reading the user's manual carefully, keep it in a safe place for
later reference.
CAUTION
•Do not leave the battery in a place exposed to direct sunlight, inside a
vehicle on a hot day, or other hot places. This may result in battery
leakage.
•If any leaked fluid gets on your skin or clothes, wash it off
immediately with clean water. The leaked fluid may damage your
skin.
•Keep away from children.
•Use both hands when handling the product. Failure to do so may
result in the product falling and breaking or injury.
•If an error occurs during discharge or charging, stop using the battery
immediately and refer to the user's manual. If you are not sure,
consult the place of purchase or a bicycle dealer.
•Riding with a high level of assistance on hot days or charging
the battery in direct sunlight may cause the surface temperature
of the battery to exceed 60°C (BT-E8036). Avoid touching the
battery for an extended period of time when it is at a high
temperature. Doing so may cause a low-temperature burn.
Notice
Charging can be carried out at any time regardless of the amount of
charge remaining, but you should fully charge the battery at the
following times. Be sure to use the special charger when recharging the
battery at these times.
•The battery is not fully charged at the time of purchase. Before riding,
be sure to charge the battery until it is fully charged.
•If the LCD of the cycle computer no longer turns on, charge the
battery until it is fully charged, so that the amount of charge
remaining can be accurately displayed.
•If the battery has become completely empty, charge it as soon as
possible. If the battery is left uncharged, it may cause the battery to
deteriorate and become unusable.
•If pressing the battery power button does not turn on the LED display,
the protection circuit is operating. To release the protection circuit,
charge the battery by connecting the battery charger.
•If the battery has been charged in a low temperature environment (5
°C or below), the maximum riding distance per full charge becomes
shorter. This is due to a characteristic of the battery. If the battery is
charged at room temperature, the maximum riding distance becomes
normal again.
•Riding with a high level of assistance in a low-temperature
environment when the battery level is low may cause the battery level
to drop to 0%, due to the characteristics of the battery. Charge it
before use.
•Also read the user's manual included with the battery charger.
•Products are not guaranteed against natural wear and deterioration
from normal use and aging.
•For maximum performance we highly recommend SHIMANO
lubricants and maintenance products.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Main specifications
Battery Lithium ion
BT-E6000/BT-E6010/BT-E8014: 11.6 Ah
Nominal capacity
Operating temperature
range
Nominal voltage 36 V
•Depending on the drive unit, some batteries may be incompatible. For
details, check the SHIMANO product website (https://productinfo.
shimano.com/).
•The drive unit may not operate correctly if the latest firmware version
is not installed. Connect to E-TUBE PROJECT, then update the
firmware.
BT-E6001/BT-E8010/
BT-E8020/BT-E8035/BT-E8035-L: 14 Ah
BT-E8016/BT-E8036: 17.5 Ah
During discharge: –10°C - 50°C
During charging: 0°C - 40°C
Introduction
You cannot use the battery immediately after shipment. The battery can
be used after charging it with the designated charger. Be sure to charge
it before use. The battery can be used when the LED on it turns on.
Regular inspections before riding the bicycle
Before riding the bicycle, check the following items. If any problems are
found with the following items, contact the place of purchase or a
bicycle dealer.
•Does the battery require charging?
•Is the battery securely installed to the frame?
Operation
Charging time
The charging time will vary depending on the battery level and the
battery charger being used. Refer to the battery charger user's manual
for the designated charging time. This battery is of lithium ion type. Use
the designated charger. For information on how to charge the battery,
follow the user's manual included with the charger.
Storing the battery
•If the bicycle will not be ridden for a long period of time, store it away
with approximately 70% battery capacity remaining. In addition, take
care not to let the battery become completely empty by charging it
every 6 months.
•Store the battery or bicycles with the battery installed in cool indoor
places (approx. 10 to 20°C) where they do not become exposed to
direct sunlight or rain. If the storage temperature is low or high, the
performance of the battery is reduced, and its available time will be
shorter. When you use the battery after a long storage period, be sure
to charge it before use.
Battery life
•The battery is a consumable item. The battery will gradually lose its
capacity for charging after repeated use and after time has passed. If
the length of time or the riding distance that the battery can be used
becomes extremely short, it has probably reached the end of its life.
Purchase a new battery.
•The life of the battery will vary depending on factors such as the
storage method, the usage conditions, the surrounding environment
and the characteristics of the individual battery pack.
About used batteries
Lithium ion batteries are recyclable, valuable resources.
For information on used batteries, follow the rules in your area. If you
are not sure, consult the place of purchase or a bicycle dealer.
Disposal information for countries outside the
European Union
This symbol is only valid within the European
Union. Follow local regulations when disposing of
used batteries. If you are not sure, consult the
place of purchase or a distributor.
Please note: specifications are subject to change for improvement without notice. (English)
© Aug. 2022 by SHIMANO INC. ITP
