PROJECTOR

Introduction

MODEL

XV-Z30000

OPERATION MANUAL

Easy Start

Setup

Connections

Operation

Basic

Features

Useful

Appendix

IMPORTANT

• For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Number located on the bottom of the projector and retain this information.

• Before recycling the packag ing, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page

The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Swedish, Portuguese and Chinese. Carefully read through the operation instructions before operating the projector.

Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Spanisch, Schwedisch, Portugiesisch und Chinesisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.

Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, espagnol, suédois, portugais et chinois. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur.

El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, español, sueco, portugués y chino. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.

Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, spanska, svenska, portugisiska och kinesiska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk.

Model No.:

Serial No.:

12.

O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Espanhol, Sueco, Português e Chinês. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.

Authorized representative responsible for the European Union Community Market

SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg

E.U. ONLY

Before using the projector, please read this operation manual carefully.

Introduction

WARNING:

High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

To reduce the risk of ﬁ re or electric shock, do not

ENGLISH

expose this product to rain or mois ture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

DO NOT REMOVE COVER.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning ﬂ ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufﬁ cient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING:

FCC Regulations state that any unauthorized changes or modiﬁ cations to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equip ment.

U.S.A . ONLY

PRODUCT DISPOSAL

This product utilizes lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronics Industries Alliance: www.eiae.org, the lamp recycling organization www.lamprecycle.org, or Sharp at 1-800-BE-SHARP.

This product contains a CR Coin Lithium Battery which contains Perchlorate Material – special handling may apply, California residents, See www.dtsc.ca.gov/hazardouswaste/perchlorate/

U.S.A . ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

U.S.A . ONLY

Declaration of conformity

SHARP PROJECTOR, MODEL XV-Z30000 This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163 TEL: 1-800-BE-SHARP (1-800-237-4277)

Caution Concerning Lamp Replacement

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp

■

failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can of ten result in the bulb cracking.

■

When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■

Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation.

■

Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In

case of exposure to the gas, consult a doctor as soon as possible.

Caution

•

Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burns or injury.

•

Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.

•

Do not touch the glass surface of the lamp unit or the inside of the projector.

•

Do not loosen other screws except for the lamp unit cover and lamp unit.

•

Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

■

Carefully change the lamp by following the instructions described on pages * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector

Dealer or Service Center.

* If the new lamp does not light af ter replacement, take your projector to the nearest Sharp Authorized

Projector Dealer or Service Center for repair.

78 to 80.

How to Read this Operation Manual

The speciﬁ cations are slightly different, depending on the model. However, you can connect

■

and operate all models in the same manner.

In this operation manual, the illustration and the screen display are simpliﬁ ed for explanation, and

• may differ slightly from the actual display.

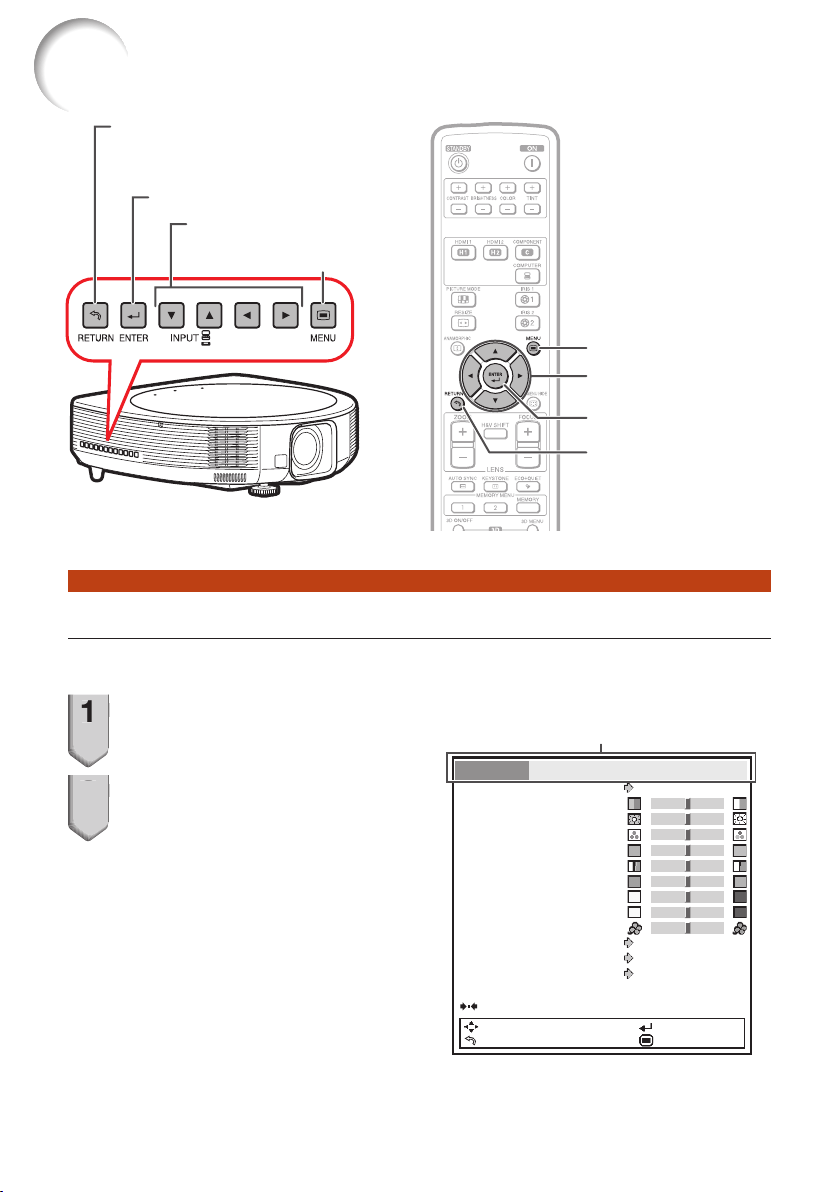

Using the Menu Screen

RETURN button

Press RETURN to return to the

• previous screen when the menu is displayed.

ENTER button

Adjustment buttons (P/R/O/Q)

MENU button

Adjustment buttons (P/R/O/Q)

ENTER button

RETURN button

Press RETURN to return

• to the previous sc reen when the menu is displayed.

Buttons used in this operation

Introduction

Menu Selections (Ad justments)

Example: Adjusting “Bright”.

This operatio n can also be perform ed by using the buttons on the pro jector.•

Press MENU.

The “Picture” me nu screen for the selected

• input mode is di splayed.

Press Q or O and selec t

“Picture ” to adjust.

Example: “Picture” screen menu Menu item


SIG SCR PRJ Net.

Picture Mode Standard

Contrast Bright Color Tint Sharp Red Gain Green Gain Blue Gain CLR Temp IRIS1 (Manual) IRIS2 (Auto) Eco+Quiet Advanced Reset

SEL./ADJ. RETURN

.........Indicates safeguards for using the projector.

Info

Indicates additional information for setting up and operating the

.......

Note

projector.

For Future Reference

Maintenance

P. 75

Troubleshooting

PP. 83 to 85

0 0 0 0 0 0 0 0 0

High Brightness On Off

ENTER END

Button used in this step

On-screen display

Index

P. 89

Contents

Preparing

Introduction

How to Read this Operation Manual ......3

Contents .................................................4

IMPORTANT SAFEGUARDS ..................6

How to Access the PDF Operation

Manuals..............................................11

Accessories ..........................................12

Part Names and Functions ...................13

Side View ............................................... 13

Top View ................................................ 13

Front View .............................................. 13

Rear View (Terminals) .............................. 14

Inserting the Batteries ............................. 16

Usable Range ......................................... 17

Easy Start

Easy Start .............................................18

Setup and Projection .............................. 18

Setup

Setting Up the Projector .......................20

Video Setup............................................ 20

Setting Up the Projector ......................... 20

Standard Setup (Front Projection) ........... 20

Screen Size and Projection Distance ...... 21

Projection (PRJ) Mode ............................ 22

Ceiling-Mount Setup ............................... 22

Connections

Connecting the Projector to

Other Equipment ................................23

Connecting to Video Equipment ..........24

Connecting to a Computer ...................25

Controlling the Projector by

a Computer ........................................26

Connecting the Power Cord .................27

Using

Basic Operation

Turning the Projector On/Off ................28

Turning the Projector On ......................... 28

Turning the Power Off (Putting the

Projector into Standby Mode) .............. 28

Image Projection ..................................29

Shifting the Lens ..................................... 29

Using the Adjustment Feet...................... 30

Adjusting the Focus ................................ 30

Adjusting the Projected Image Size ......... 30

Correcting Trapezoidal Distortion ............ 31

Switching the Input Mode ....................... 35

Resize Mode .......................................... 36

Useful Features

Operating with the Remote Control......37

Adjusting the Image ................................ 37

Selecting the Picture Mode ..................... 37

Switching the Iris Setting ........................ 38

Auto Sync (Auto Sync Adjustment) ......... 38

Hiding the Menu Temporarily

(Menu Hide) ......................................... 38

Switching the Eco+Quiet Mode .............. 38

Menu Items ...........................................39

Using the Menu Screen ........................42

Menu Selections (Adjustments) ............... 42

Picture Adjustment (“Picture” Menu) ....44

Selecting the Picture Mode ..................... 44

Adjusting the Image ................................ 45

Switching the Iris Setting ........................ 45

Eco+Quiet .............................................. 45

Using the Advanced ............................... 45

Correcting Gradation of Video

(Gamma Correction) ............................ 45

Custom Gamma ..................................... 46

Adjusting the Colors ............................... 46

Adjusting the Bright Boost ...................... 48

Selecting the Film Mode ......................... 48

Setting Color Enhancement .................... 48

Setting Detail Enhancement .................... 48

Reducing Image Noise (DNR) ................. 48

Mosquito Noise Reduction (MNR) ........... 48

Resetting All Adjustment Items ............... 48

Computer Image Adjustment

(“SIG-ADJ” Menu) ..............................49

Adjusting the Computer Image ............... 49

Setting the Resolution ............................ 49

Auto Sync (Auto Sync Adjustment) ......... 49

Signal Type Setting ................................. 50

Setting the Video Setup .......................... 50

Adjusting the Dynamic Range ................. 50

Signal Info .............................................. 50

Adjusting the Projected Image

(“SCR-ADJ” Menu) .............................51

Setting the Resize Mode ......................... 51

Adjusting the Image Position .................. 51

Trigger .................................................... 51

Anamorphic ............................................ 51

Adjusting the Overscan ........................... 52

Black Mask ............................................ 52

CBNR..................................................... 52

Setting On-screen Display ...................... 52

Setting the Brightness of the Menu

Screen ................................................. 52

Selecting the Background Image ............ 52

Selecting the Menu Screen Position ....... 53

Reversing/Inverting Projected Images ..... 53

Selecting the On-screen Display

Language ............................................ 53

Introduction

Adjusting the Projector Function

(“PRJ-ADJ” Menu) .............................54

Setting Auto Power Off Mode ................. 54

Setting No Operation Off Mode .............. 54

Setting the Power Save Mode

(Economy Mode) ................................. 54

Setting One Touch Play, System

Standby and Input Name ..................... 55

Turning LED Off ...................................... 56

Setting the Demo Mode ......................... 56

Fan Mode Setting ................................... 56

Memory Menu ........................................ 56

Returning to the Default Settings ............ 57

Lamp Timer (Life) .................................... 57

Setting Up the Projector Network

Environment (“Network” Menu)..........58

Setting a Password ................................ 58

DHCP Client Setting ............................... 59

TCP/IP Setting ........................................ 59

Returning to Default Settings (Network) .. 59

Restart Network Function ....................... 59

Conﬁ rming the Projector Information ....... 60

Enjoying 3D Image Viewing ..................61

Precautions on using the 3D Glasses ..... 61

Precautions on installing the IR emitter ... 61

Precautions on viewing 3D images ......... 62

Supplied Accessories for

the 3D Glasses .................................... 64

Part Names ............................................ 64

Before Using the 3D Glasses .................. 65

Replacing the Button Cell Battery ........... 65

Attaching the Nose Pad .......................... 66

Attaching the 3D Glasses Band .............. 66

Using the 3D Glasses ............................. 66

Connecting the IR Emitter to

the Projector ........................................ 67

Viewing 3D Images ................................. 68

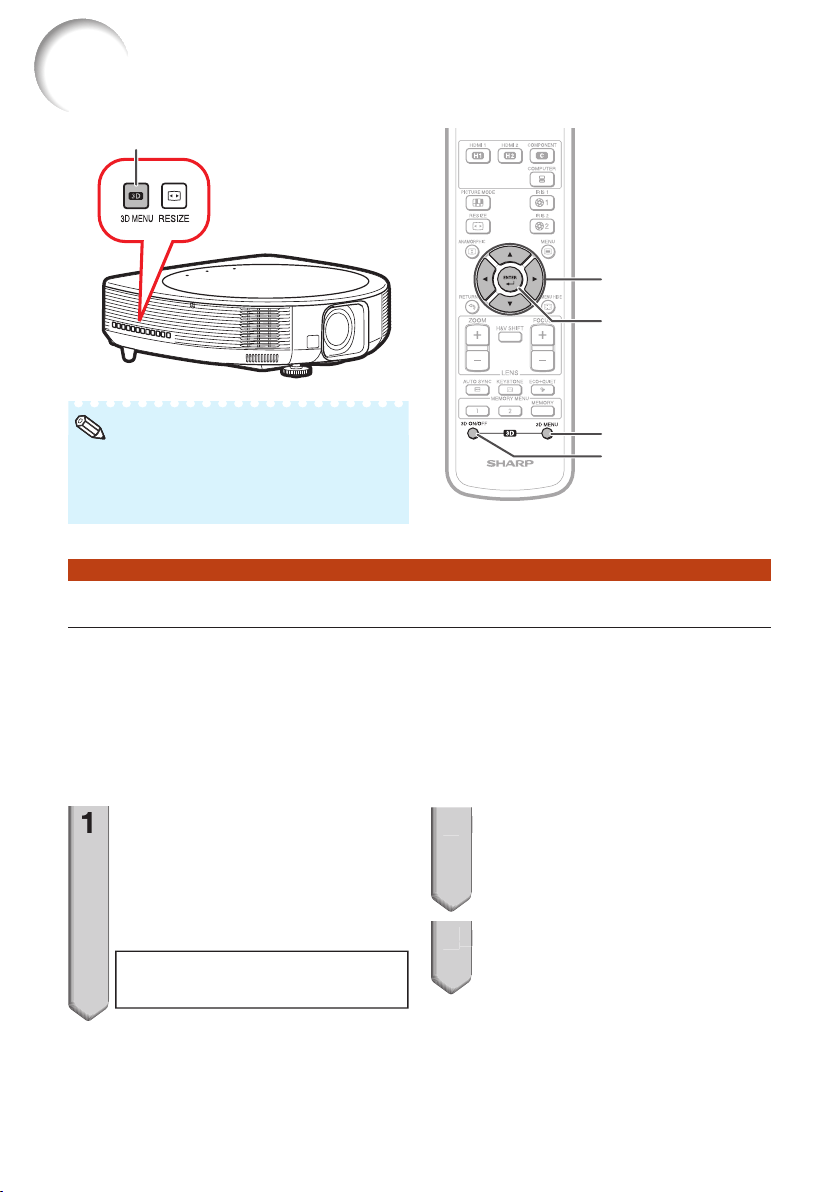

3D Settings (“3D MENU”) ....................... 70

Setting the 3D Format Menu ................... 71

Speciﬁ cations – 3D Glasses ................... 73

Speciﬁ cations – IR Emitter ...................... 74

Dimensions ............................................ 74

Effective Distance ................................... 74

Reference

Appendix

Maintenance .........................................75

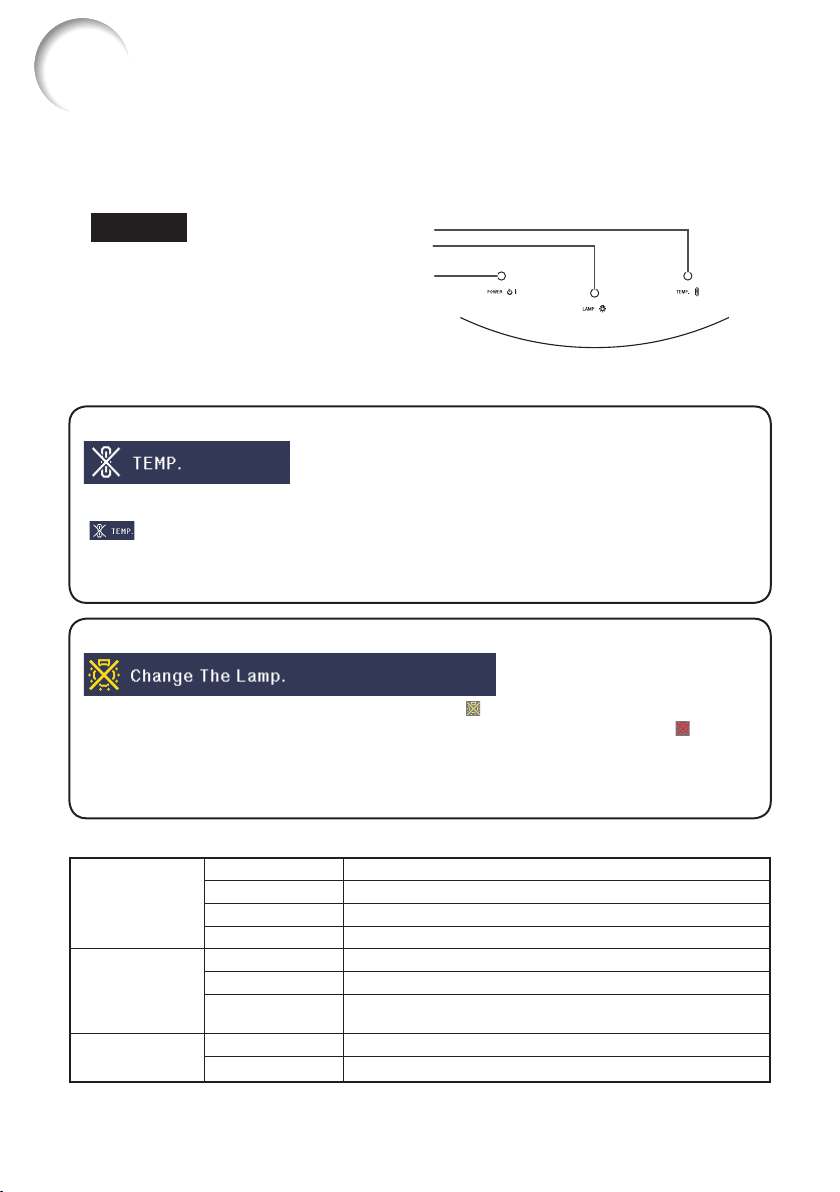

Maintenance Indicators ........................76

Regarding the Lamp .............................78

Lamp...................................................... 78

Caution Concerning the Lamp ................ 78

Replacing the Lamp ............................... 78

Removing and Installing the

Lamp Unit ............................................ 79

Resetting the Lamp Timer ...................... 80

Compatibility Chart ..............................81

Troubleshooting ....................................83

For SHARP Assistance .........................86

Speciﬁ cations .......................................87

Dimensions ...........................................88

Index .....................................................89

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this

product and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injur y to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recom mended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The open ings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This prod uct should not be placed in a built-in installation such as a book case or rack unless proper ventilation is provided or the manufacturer's instruc tions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to ﬁ t into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug. a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug

with a grounding terminal.

This plug will only ﬁ t into a grounding

type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will pre vent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁ re or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁ re or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dan ger ous voltage or other hazards. Refer all servicing to qualiﬁ ed service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualiﬁ ed service personnel under the following conditions: a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects

have fallen into the product.

c. If the product has been exposed to rain

or water.

d. If the product does not operate normally

by following the operating instructions. Adjust only those con trols that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁ ed technician to restore the product to normal operation.

e. If the product has been dropped or

damaged in any way.

f. When the product exhibits a distinct

change in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the ser vice technician has used replace ment parts speciﬁ ed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁ re, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the ser vice technician to per form safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampliﬁ ers) that produce heat.

Introduction

•

DLP® and the DLP logo are registered trademarks of Texas Instruments.

•

Microsoft

and Windows® are registered trademarks of Microsoft Corporation in the

United States and/or other countries.

•

PC/AT is a registered trademark of International Business Machines Corporation in the United States.

•

Adobe

Reader® is a trademark of Adobe Systems Incorporated.

Macintosh

is a registered trademark of Apple Computer, Inc. in the United States and/or

other countries.

•

HDMI, the HDMI logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

•

All other company or product names are trademarks or registered trademarks of their respective companies. Some IC chips in this product include conﬁ dential and/or trade secret property belonging

• to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Observe the following safeguards when setting up your projector.

Caution concerning the lamp unit

■

Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Projector Dealer or Service Center for replacement. See “Regarding the Lamp” on page

78.

Caution concerning the setup of the projector

For minimal servicing and to maintain high

■

image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center.

Rest your eyes occasionally.

■

Continuously watching the screen for long hours will cause eye strain. Take regular breaks to rest your eyes.

Do not set up the projector in places exposed to direct sunlight or bright light.

■

Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difﬁ cult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

Caution regarding placing of the projector

■

Place the projector on a level site within the adjustment range (9 degrees) of the adjustment foot.

■

After the projector is purchased, a faint smell from the vent may appear when the power is ﬁ rst turned on. This is normal and is not a malfunction. It will disappear after the projector is used for a while.

When using the projector in highaltitude areas such as mountains (at altitudes of approximately 1,500 meters (4,900 feet) or more)

When you use the projector in high-altitude

■

areas with thin air, set “Fan Mode” to “High”. Neglecting this can affect the longevity of the optical system. Use the projector at altitudes of 2,300

■

meters (7,500 feet) or less.

Warning about placing the projector in a high position

When placing the projector in a high

■

position, make cer tain it is carefully secure to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■

Protect the lens so as not to hit or damage the surface of the lens.

Avoid locations with extremes of temperature.

■

The operating temperature of the projector is from 41°F to 95°F (+5°C to +35°C).

■

The storage temperature of the projector is from –4°F to 140°F (–20°C to +60°C).

Do not block the exhaust and intake vents.

■

Allow at least 11 13/16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■

Ensure that the intake vent and the exhaust vent are not obstructed.

■

If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into Standby mode to prevent overheat damage. This does not indicate a malfunction. (See pages 76 and 77.) Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

Caution regarding usage of the projector

If you are not to use the projector for a long

■

time or before moving the projector, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it. Do not carry the projector by holding the

■

lens. When storing the projector, ensure you

■

attach the lens cover to the projector. Do not expose the projector to direct

■

sunlight or place next to heat sources. Doing so may affect the cabinet color or cause deformation of the plastic cover.

Other connected equipment

When connecting a computer or other

■

audio-visual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected. Please read the operation manuals of the

■

projector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

The power supply voltage and the shape of

■

the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, make sure you use an appropriate power cord for the country you are in.

Temperature monitor function

■

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, the temperature warning indicator will blink. And if the temperature keeps on rising, “ ” will illuminate in the lower left corner of the picture with the temperature warning indicator blinking. If this state continues, the lamp will turn off, the cooling fan will run and then the projector will enter Standby mode. Refer to “Maintenance Indicators” on pages 76 and 77 for details.

Info

The cooling fan regulates the internal

• temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

Introduction

Observe the following safeguards when using the 3D Glasses.

Prevention of accidental ingestion

■

Keep the batteries and band accessory out of the reach of small children. Small children can accidentally swallow these parts. –

If a child accidentally swallows any of these

parts, seek immediate medical attention.

Do not disassemble

Do not disassemble or modify the 3D Glasses.

■

Caution for lithium battery

Batteries must not be exposed to excessive

■

heat such as direct sunlight or ﬁ re. Replace only with the same or equivalent

■

type of battery. The battery may explode if improperly replaced. Take care not to reverse the battery poles

■

(+ and –) when loading the battery. Follow the correct procedure when loading the battery. (See page 65.) Loading the batter y incorrectly may damage the battery or cause it to leak battery ﬂ uid, which could result in a ﬁ re, injury or damage.

Handling the 3D Glasses

Do not drop, exert pressure on, or step on

■

the 3D Glasses. Doing so may damage the glass section, which may result in injury. Be careful not to trap your ﬁ nger in the

■

hinge section of the 3D Glasses. Doing so may result in injury. – Pay special attention when children are

using this product.

Using the 3D Glasses

Parents/guardians should monitor

■

children’s viewing habits to avoid their prolonged use without rest periods. Use only the 3D Glasses recommended for

■

this product. Use the 3D Glasses only for the speciﬁ ed

■

purpose. Do not move around while wearing the 3D

■

Glasses. The surrounding area appears dark, which may result in falling or other accidents that may cause injury.

Caring for the 3D Glasses

Use only the cloth provided with the 3D Glasses

■

to clean the lenses. Remove dust and soil from the cloth. Any dust or other soiling on the cloth may result in scratches on the product. Do not use solvents such as benzene or thinners as doing so may cause the coating to peel off. When cleaning the 3D Glasses, take care

■

not to allow water or other ﬂ uids to come into contact with the glasses. Always store the 3D Glasses in the case

■

provided when not in use. When storing the 3D Glasses, avoid very

■

humid or hot locations.

Viewing 3D images

If you experience dizziness, nausea, or

■

other discomfort while viewing 3D images, discontinue use and rest your eyes. Do not use the 3D Glasses if they are

■

cracked or broken.

How to Access the PDF Operation Manuals

Introduction

PDF operation manuals in several languages are included in the CD-ROM. To utilize these manuals, you need to install Adobe (Windows

Please download Adobe

or Macintosh®).

Reader® from the Internet (http://www.adobe.com).

Reader® on your computer

Accessing the PDF Manuals

For Windows®:

 Insert the CD-ROM in the CD-ROM drive.  Double click the “My Computer” icon.  Double click the “CD-ROM” drive.  When you want to view the operation

manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the projector manuals.

When you want to view the SETUP MANUAL

1) Double click the “SETUP” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the SETUP MANUAL.

Note

If the desired pdf ﬁ le cannot be opened by double clicking the mouse, star t Adobe® Reader® ﬁ r s t ,

• then specify the desired ﬁ le using the “File”, “Open” menu.

For Macintosh®:

 Insert the CD-ROM in the CD-ROM drive.  Double click the “CD-ROM” icon.  When you want to view the operation

manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the projector manuals.

When you want to view the SETUP MANUAL

1) Double click the “SETUP” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the SETUP MANUAL.

SETUP MANUAL

Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.

Connecting Pin Assignments ·······················································2 RS-232C Speciﬁ cations and Commands ····································· 4 Setting up the Projector Network Environment ····························8 Resetting the Lamp Timer of the Projector via LAN···················· 13 Troubleshooting ·········································································· 15

Accessories

Supplied accessories

Two R-6 batteries

(“AA” size, UM/SUM-3,

HP-7 or similar)

Remote control

IR emitter

Power cord*

*1 See pages 64 to 66 for details of the 3D Glasses and their accessories. *2 Which power cords are supplied along with your projector depends on the region. Use the power

cord that corresponds to the wall outlet in your country.

Operation manuals (this manual <TINS-F383WJZZ> and CD-ROM <UDSKAA138WJZZ>)•

Note

Codes in “< >” are Replacement parts codes.•

(1)

For U.S. and

Canada, etc.

(6' (1.8 m))

(2)

For Europe, except U.K.

(6' (1.8 m))

Two pairs of 3D Glasses*

IR emitter cable

(3)

For Australia, New

Zealand and Oceania

(6' (1.8 m))

Optional accessories

■ Lamp unit

■ Ceiling-mount adaptor

■ Ceiling-mount bracket

■ Ceiling-mount unit

■ Ceiling-mount extension tube

■ 3 RCA to mini D-sub 15 pin cable (10' (3.0 m))

■ 3D Glasses

Note

Some of the optional accessories may not be available depending on the region. Please check with

• your nearest Sharp Authorized Projector Dealer or Service Center.

AN-K30LP AN-60KT AN-XGCM55 (for U.S.A. only) AN-TK201 <for AN-60KT> AN-TK202 <for AN-60KT> AN-EP101B <for AN-XGCM55> (for U.S.A. only) AN-C3CP2 AN-3DG10-S

Part Names and Functions

Numbers in Z refer to the main pages in this operation manual where the topic is explained.

1 2 3 4 65 7 8 9 10 11 12 13



14 16 1715

Introduction

Side View

1 STANDBY/ON button

For turning the power on and putting the

projector into Standby mode.

2 LENS button

For toggling the menu screens for adjustments of the lens (LENS SHIFT, FOCUS, ZOOM, etc.).

3 RETURN button

For returning to the previous menu screen

during menu operations.

4 ENTER button

For setting items selected or adjusted on the menu.

5 INPUT buttons (R/P)

For switching input mode.

6 Adjustment buttons (P/R/O/Q)

For selecting menu items.

7 MENU button

For displaying adjustment and setting screens.

8 KEYSTONE button

For entering the Keystone Correction

mode.

9 3D MENU button

For displaying the 3D MENU screen.

10 RESIZE button

For switching the picture size (NORMAL,

16:9, etc.).

Top V i e w

11 Power indicator 12 Lamp indicator 13 Temperature warning indicator

Front View

14 Exhaust vent 15 Adjustment foot 16 Remote control sensor 17 Lens cover

69, 70

Part Names and Functions (Continued)

134

6 7

Rear View (Terminals)

1 COMPUTER/COMPONENT input

terminal

Terminal for computer RGB and component signals.

2 Component (YP

23, 25

B(CB)PR(CR

)) terminals

Terminals for connecting video equipment with component output terminal.

3 HDMI terminals

Terminals for HDMI input.

4 LAN terminal

Terminal for controlling the projector using a computer via network.

5 TRIGGER terminal

When the projector is turned on, a control signal (DC 12V) is output from this terminal. This can be connected to a retractable projection screen or anamorphic lens that supports the trigger function.

6 RS-232C terminal

Terminal for controlling the projector using

a computer.

23, 24

98 10 11 12 13

7 3D SYNCHRO terminal

Terminal for connecting the IR emitter.

8 Exhaust vent

9 Rear adjustment foot

10 Intake vent

11 Kensington Security Standard

connector

12 Remote control sensor

13 AC socket

Connect the supplied power cord.

Using the Kensington Lock

•

This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Numbers in Z refer to the main pages in this operation manual where the topic is explained.

2 3

5 6

7 8 9

10 11

16 17 18

19 20

21 13 14

1 ON button

For turning the power on.

2 STANDBY button

For putting the projector into the Standby mode.

3 CONTRAST, BRIGHTNESS, COLOR and

TINT buttons

For adjusting the contrast, brightness, color and tint.

4 HDMI 1/2, COMPONENT and COMPUTER

buttons

For switching to the respective input modes.

5 PICTURE MODE button

For displaying the Picture Mode list.

6 RESIZE button

For switching the picture size (NORMAL, 16:9,

etc.).

7 ANAMORPHIC button

For switching the Anamorphic lens.

8 Adjustment buttons (P/R/O/Q)

For selecting and adjusting menu items.

9 RETURN button

For returning to the previous menu screen

during menu operations.

10 ZOOM buttons

For adjusting the projected image size.

11 H&V SHIFT button

For shifting the lens horizontally and vertically.

12 AUTO SYNC button

For automatically adjusting images when

connected to a computer.

13 MEMORY 1/2 buttons

For displaying each “Load Memory” screen of

“Memory Menu”.

MEMORY button

For displaying the Memory Menu screen.

14 3D ON/OFF button

For switching between 2D and 3D modes.

15 IRIS 1/2 buttons

For adjusting the quantity of the projected

light and the contrast of the image.

16 MENU button

For displaying adjustment and setting

screens.

17 ENTER button

For setting items selected or adjusted on the

menu.

18 MENU HIDE button

For temporarily hiding menu screen.

19 FOCUS buttons

For adjusting the focus.

20 KEYSTONE button

For entering the Keystone Correction mode.

21 ECO+QUIET button

For lowering the noise of the cooling fan and extending the lamp life.

22 3D MENU button

For displaying the 3D MENU screen.

68, 69

69, 70

Introduction

Part Names and Functions (Continued)

Inserting the Batteries

Pull down the tab on the cover and remove the

cover towards the direction of the arrow.

Insert the batteries.

Insert the batteries making sure the polarities correctly match

•

the m and n marks inside the batter y compartment.

Insert the upper tab of the cover into the opening,

and lower the cover until it clicks in place.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below

Caution

Danger of explosion if battery is incorrectly replaced.

• Replace only with alkaline or manganese batteries.

Insert the batteries making sure the polarities correctly match the m and n marks inside the battery

• compartment. Batteries of dif ferent types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries.

•

This may shorten the life of new batteries or may cause old batteries to leak.

Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.

•

Battery ﬂ uid from leaked batteries is harmful to skin, therefore ensure you wipe them ﬁ rst and then remove them using a cloth.

The batteries included with this projector may run down in a shor t period, depending on how they are kept.

• Be sure to replace them as soon as possible with new batteries. Remove the batteries from the remote control if you will not be using the remote control for a long time.

• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

•

Introduction

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

•

Another remote control sensor is located on the rear of the projector. (See pages

13 and 14.)

•

The signal from the remote control can be reﬂ ected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control

Ensure that you do not drop it or expose it to

• moisture or high temperature. The remote control may malfunction under a

• ﬂ uorescent lamp. In this case, move the projector away from the ﬂ uorescent lamp.

30°

Remote control

Remote control sensor

33n (10 m)

Remote control signal

Remote control signal transmitters

transmitters

Easy Start

This section shows the basic operation (projector connecting with video equipment). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and video equipment is explained using one example.

3, 8 STANDBY/ON button

6 ENTER button

6 R/P buttons, 7 INPUT buttons

6 O/Q buttons

6 KEYSTONE

button

8 STANDBY button

3 ON button 7 HDMI 1/2,

COMPONENT and COMPUTER buttons

4, 6 Adjustment

buttons (P/R/O/Q)

6 ENTER button

4 H&V SHIFT button

5 FOCUS buttons

5 ZOOM buttons 6 KEYSTONE button

P. 20

1. Place the projector facing a wall or a screen

2. Connect the projector to the video equipment and plug the power cord into the AC socket of the projector

3. Turn the projector on

Press STANDBY/ON on the projector or ON on the remote control.

BPP. 23 to 27

BP. 2 8

4. Adjust the angle

Adjust the projector angle:

• Shift the lens horizontally and ver tically.

1 Press H&V SHIFT on the remote control. 2 Press P, R, O or Q on the remote control.

• Adjust the projector angle by rotating the adjustment feet.

BPP. 29, 30

5. Adjust the focus and the zoom

1 Press FOCUS +/– on the remote control to adjust the focus. 2 Press ZOOM +/– on the remote control to adjust the zoom.

BP. 3 0

6. Correcting the image distortion due to the projection angle

Press KEYSTONE on the projector or on the remote control.

Press ENTER on the projector or on the remote control.

Press

P, R, O or Q

Press ENTER to set the position.

Repeat the same procedure with the positions for the upper right, lower right and lower

left of the image.

• When the position of the lower left is set, the correction is made and the display disappears.

to move the position for the upper left of the image.

BP. 31

7. Select the Input mode

On the projector: Press INPUT R/P to display the INPUT list. Use INPUT R/P to select the input mode.

INPUT list

INPUT

HDMI1

HDMI2

COMPUTER

COMPONENT

On the remote control: Press HDMI 1/2, COMPONENT or COMPUTER to

select the input mode.

On-screen display (HDMI1)

HDMI1

YPbPr 1080P

BP. 3 5

Easy Start

8. Turn the power off

Press STANDBY/ON on the projector or STANDBY on the remote control, and then press the button again while the conﬁ rmation message is displayed to put the projector into Standby mode.

On the

projector

On the remote

control

On-screen display

BP. 2 8

Setting Up the Projector

Video Setup

If using this projector outside the U.S.A., please change setting to “0 IRE” in Video Setup. (See page 50.)

Setting Up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector's feet ﬂ at and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See pages

Standard Setup (Front Projection)

Place the projector at the required distance from the screen according to the desired picture

■

size. (See page 21.)

Indication of the Projection Image Size and Projection Distance

Example: When using a wide screen (16:9)

Picture Size

500" (1270 cm)

200" (508 cm)

100" (254 cm)

80" (203 cm)

40" (102 cm)

31 to 34.)

70"×39" (177 cm × 100 cm)

35"

×20"

(89 cm × 50 cm)

87"×49" (221 cm

174"×98" (443 cm

125 cm)

436 (1107 cm

249 cm)

×245

623 cm )

Projection Distance

4'2" - 8'4"

(1.3 m - 2.5 m)

8'3" - 16'8"

(2.5 m - 5.1 m)

20'9"

10'4" -

20'8" - 4

(3.1 m - 6.3 m)

(6.3 m - 12.7 m)

1'7"

51'7"

(15.7 m

- 31.7 m

- 103'11"

)

Screen Size and Projection Distance

When using a wide screen (16:9): In case of displaying the 16:9 picture on the whole of the 16:9 screen

Picture (Screen) size Projection distance [L]

] Width Height Minimum [L1] Maximum [L2] Lower[H1] Upper[H2]

Diag. [

(1270 cm)

500" 400" 300" (762 cm) 664 cm (261") 374 cm (147") 9.4 m (31' 0") 19.0 m (62' 4") -374 cm (-147 250" (635 cm) 553 cm (218") 311 cm (123") 7.9 m (25' 10") 15.8 m (52' 0") -311 cm (-122 200" (508 cm) 443 cm (174") 249 cm (98") 6.3 m (20' 8") 12.7 m (41' 7") -249 cm (-98 150" (381 cm) 332 cm (131") 187 cm (74") 4.7 m (15' 6") 9.5 m (31' 2") -187 cm (-73 120" (305 cm) 266 cm (105") 149 cm (59") 3.8 m (12' 5") 7.6 m (24' 11") -149 cm (-58 100" (254 cm) 221 cm (87") 125 cm (49") 3.1 m (10' 4") 6.3 m (20' 9") -125 cm (-49

80" (203 cm) 177 cm (70") 100 cm (39") 2.5 m (8' 3") 5.1 m (16' 8") -100 cm (-39 60" (152 cm) 133 cm (52") 75 cm (29") 1.9 m (6' 2") 3.8 m (12' 6") -75 cm (-29 40" (102 cm) 89 cm (35") 50 cm (20") 1.3 m (4' 2") 2.5 m (8' 4") -50 cm (-19

x : Picture size (diag.) (in/cm): 40" – 500" L1 : Minimum projection distance (m/ft) L2 : Maximum projection distance (m/ft) H1 : H2 : W :

1107 cm (436") 623 cm (245") 15.7 m (51' 7") 31.7 m

(1016 cm)

886 cm (349") 498 cm (196") 12.6 m (41' 4") 25.3 m (83' 2") -498 cm (-196 7/64") 0 cm (0") ±168 cm (±66 15/64")

Lower distance from the lens center to the bottom of the image (cm/in) Upper distance from the lens center to the bottom of the image (cm/in) Distance from the lens center to the center of the image cm/in)

(103' 11")

When using a normal screen (4:3): In case of displaying the 4:3 picture on the whole of the 4:3 screen.

Picture (Screen) size Projection distance [L]

] Width Height Minimum [L1] Maximum [L2] Lower[H1] Upper[H2]

Diag. [

(1016 cm)

400" 300" (762 cm) 610 cm (240") 457 cm (180") 11.6 m (37' 11") 23.3 m (76' 4") -457 cm (-180") 0 cm (0") ±154 cm (±60 250" (635 cm) 508 cm (200") 381 cm (150") 9.6 m (31' 7") 19.4 m (63' 7") -381 cm (-150") 0 cm (0") ±129 cm (±50 200" (508 cm) 406 cm (160") 305 cm (120") 7.7 m (25' 3") 15.5 m (50' 11") -305 cm (-120") 0 cm (0") ±103 cm (±40 150" (381 cm) 305 cm (120") 229 cm (90") 5.8 m (18' 11") 11.6 m (38' 2") -229 cm (-90") 0 cm (0") ±77 cm (±30 120" (305 cm) 244 cm (96") 183 cm (72") 4.6 m (15' 2") 9.3 m (30' 6") -183 cm (-72") 0 cm (0") ±62 cm (±24 100" (254 cm) 203 cm (80") 152 cm (60") 3.9 m (12' 8") 7.8 m (25' 5") -152 cm (-60") 0 cm (0") ±51 cm (±20

80" (203 cm) 163 cm (64") 122 cm (48") 3.1 m (10' 1") 6.2 m (20' 4") -122 cm (-48") 0 cm (0") ±41 cm (±16 70" (178 cm) 142 cm (56") 107 cm (42") 2.7 m (8' 10") 5.4 m (17' 10") -107 cm (-42") 0 cm (0") ±36 cm (±14 60" (152 cm) 122 cm (48") 91 cm (36") 2.3 m (7' 7") 4.7 m (15' 3") -91 cm (-36") 0 cm (0") ±31 cm (±12 40" (102 cm) 81 cm (32") 61 cm (24") 1.5 m (5' 1") 3.1 m (10' 2") -61 cm (-24") 0 cm (0") ±21 cm (±8

x : Picture size (diag.) (in/cm): 40" – 400" L1 : Minimum projection distance (m/ft) L2 : Maximum projection distance (m/ft) H1 :

Lower distance from the lens center to the bottom of the image (cm/in)

H2 :

Upper distance from the lens center to the bottom of the image (cm/in)

W :

Distance from the lens center to the center of the image cm/in)

813 cm (320") 610 cm (240") 15.4 m (50' 6") 31.0 m (101' 9") -610 cm (-240") 0 cm (0") ±206 cm (±81 1/16")

When using a normal screen (4:3): In case of setting the 16:9 picture to the full horizontal width of the 4:3 screen

Picture (Screen) size Projection distance [L]

] Width Height Minimum [L1] Maximum [L2] Lower[H1] Upper[H2]

Diag. [

(1270 cm)

500" 400" 300" (762 cm) 610 cm (240") 457 cm (180") 8.7 m (28' 5") 17.5 m (57' 3") -343 cm (-135") 0 cm (0") ±116 cm (±45 250" (635 cm) 508 cm (200") 381 cm (150") 7.2 m (23' 8") 14.5 m (47' 9") -286 cm (-112 200" (508 cm) 406 cm (160") 305 cm (120") 5.8 m (18' 11") 11.6 m (38' 2") -229 cm (-90") 0 cm (0") ±77 cm (±30 150" (381 cm) 305 cm (120") 229 cm (90") 4.3 m (14' 3") 8.7 m (28' 8") -171 cm (-67 120" (305 cm) 244 cm (96") 183 cm (72") 3.5 m (11' 4") 7.0 m (22' 11") -137 cm (-54") 0 cm (0") ±46 cm (±18 100" (254 cm) 203 cm (80") 152 cm (60") 2.9 m (9' 6") 5.8 m (19' 1") -114 cm (-45") 0 cm (0") ±39 cm (±15

80" (203 cm) 163 cm (64") 122 cm (48") 2.3 m (7' 7") 4.7 m (15' 3") -91 cm (-36") 0 cm (0") ±31 cm (±12 70" (178 cm) 142 cm (56") 107 cm (42") 2.0 m (6' 8") 4.1 m (13' 4") -80 cm (-31 60" (152 cm) 122 cm (48") 91 cm (36") 1.7 m (5' 8") 3.5 m (11' 5") -69 cm (-27") 0 cm (0") ±23 cm (±9 40" (102 cm) 81 cm (32") 61 cm (24") 1.2 m (3' 9") 2.3 m (7' 8") -46 cm (-18") 0 cm (0") ±15 cm (±6

x : Picture size (diag.) (in/cm): 40" – 500" L1 : Minimum projection distance (m/ft) L2 : Maximum projection distance (m/ft) H1 : H2 : W :

1016 cm (400") 762 cm (300") 14.4 m (47' 5") 29.1 m (95' 5") -572 cm (-225") 0 cm (0") ±193 cm (±76")

(1016 cm)

813 cm (320") 610 cm (240") 11.6 m (37' 11") 23.3 m (76' 4") -457 cm (-180") 0 cm (0") ±154 cm (±60 51/64")

Distance from the lens center

to the bottom of the image [H]

-623 cm (-245 9/64") 0 cm (0") ±210 cm (±82 51/64")

/64") 0 cm (0") ±126 cm (±49 43/64")

/16") 0 cm (0") ±105 cm (±41 13/32")

/16") 0 cm (0") ±84 cm (±33 1/8")

/64") 0 cm (0") ±63 cm (±24 27/32")

/64") 0 cm (0") ±50 cm (±19 7/8")

/32") 0 cm (0") ±42 cm (±16 9/16")

/32") 0 cm (0") ±34 cm (±13 1/4")

/64") 0 cm (0") ±25 cm (±9 15/16")

The formula for picture size and projection distance

[m/cm] L1 (m) = 0.03147 x

L2 (m) = 0.06337 x H1 (cm) = -1.2453 x H2 (cm) = 0 x W (cm) = 0.42062 x

The formula for picture size and projection distance

[m/cm] L1 (m) = 0.03851 x

L2 (m) = 0.07755 x H1 (cm) = -1.52404 x H2 (cm) = 0 x W (cm) = 0.51477 x

The formula for picture size and projection distance

[m/cm] L1 (m) = 0.02889 x

L2 (m) = 0.05817 x H1 (cm) = -1.14303 x H2 (cm) = 0 x W (cm) = 0.38608 x

/64") 0 cm (0") ±17 cm (±6 5/8")

Distance from the lens center

to the bottom of the image [H]

Distance from the lens center

to the bottom of the image [H]

/2") 0 cm (0") ±97 cm (±38")

/2") 0 cm (0") ±58 cm (±22 51/64")

/2") 0 cm (0") ±27 cm (±10 41/64")

Distance from the lens center to the

center of the image[W]

[Feet/inches] L1 (ft) = 0.03147 x / 0.3048

L2 (ft) = 0.06337 x / 0.3048 H1 (in) = -1.2453 x / 2.54 H2 (in) = 0 x / 2.54 W (in) = 0.42062 x / 2.54

Distance from the lens center to the

center of the image[W]

/64")

/32")

/16")

/64")

/32")

/16")

/32")

/64")

[Feet/inches] L1 (ft) = 0.03851 x / 0.3048

L2 (ft) = 0.07755 x / 0.3048 H1 (in) = -1.52404 x / 2.54 H2 (in) = 0 x / 2.54 W (in) = 0.51477 x / 2.54

Distance from the lens center to the

center of the image[W]

/32")

/64")

/32")

/8")

/64")

[Feet/inches] L1 (ft) = 0.02889 x / 0.3048

L2 (ft) = 0.05817 x / 0.3048 H1 (in) = -1.14303 x / 2.54 H2 (in) = 0 x / 2.54 W (in) = 0.38608 x / 2.54

Setup

Note

•

When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates that the bottom of the image is below the lens center. Allow a margin of error in the value in the diagrams above.

•

Setting Up the Projector (Continued)

Projection (PRJ) Mode

The projector can use any of the 4 projection modes shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the PRJ mode in “SCRADJ” menu. See page 53.)

■

Table mounted, front projection

[Menu item ➞ “Front”]

Table mounted, rear projection

■

(with a translucent screen)

[Menu item ➞ “Rear”]

a

Ceiling-Mount Setup

It is recommended that you use the optional Sharp ceiling-mount adaptor and unit for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold separately).

Ceiling mounted, front projection

■

[Menu item ➞ “Ceiling + Front”]

■

Ceiling mounted, rear projection (with a translucent screen)

[Menu item ➞ “Ceiling + Rear”]

Connecting the Projector to Other Equipment

Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off the equipment to be connected. After making all connections, turn on the projector and then the other pieces of equipment. When connecting a computer, ensure that it is the last equipment to be turned on after all the connections are made.

For more details of connection and cables, refer to the operation manual of the connecting equipment.

• You may need other cables or connectors not listed below.

•

Terminals on the Projector

Equipment

Video equipment

Camera/Video game

Computer

Terminal on

connected equipment

HDMI output

terminal

Component

video output

terminal

Component

video

output terminal

RGB output

terminal

Cable

HDMI cable (commercially available) HDMI 1, 2

3 RCA to mini D-sub 15 pin cable COMPUTER/

Component cable (commercially available) Component

Cables for a camera or a video game/3 RCA to mini D-sub 15 pin cable

RCA adaptor plug (commercially available)

RGB cable (supplied) COMPUTER/

HDMI cable (commercially available) HDMI 1, 2

Terminal o n the

projector

COMPONENT

(YP

B(CB)PR(CR

COMPUTER/ COMPONENT

COMPONENT

Connections

))

HDMI output

terminal

Connecting to Video Equipment

Before connecting, be sure to unplug the power cord of the projector from the AC outlet and turn off the devices to be connected. After making all connections, turn on the projector and then the other devices.

Connecting Equipment with HDMI Output Terminal to the HDMI Terminal on the Projector

For video connection, use a cable that conforms to HDMI standards. Using cables that do not conform to HDMI standards may result in a malfunction.

HDMI-compatible device

To HDMI output terminal

To HDMI1 or 2 terminal

HDMI cable (type A) (commercially available)

Note

•

Depending on speciﬁ cations of equipment or the DVIÙHDMI digital cable, the signal transmission may not work property. (The HDMI speciﬁ cation does not support all connections to equipment that has digital output terminal using a DVIÙHDMI digital cable.)

•

HDMI (High-Deﬁ nition Multimedia Interface) is a digital AV interface that can deliver a high-deﬁ nition video signal, multi-channel audio signal, and bi-directional control signal all in just one cable. Because it is compatible with the HDCP (High-bandwidth Digital Content Protection) system, the

• digital video signal does not degrade when transmitted, and a high-quality image with a simple connection can be enjoyed.

Connecting to a Computer

Ensure that the computer is the last device to be turned on after all the connections are made.

Connecting to a computer using the RGB cable

Computer

To R G B outp u t te r m i n al

To COMPUTER/COMPONENT terminal

RGB cable (commercially available)

Note

•

See page 81 “Compatibility Chart” for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.

•

A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.

Depending on the computer you a re using, an image may not be projected unless the

• computer's external output port is switched on (e.g. Press “Fn” and “F5” keys simultaneously when using a SHARP notebook computer). Refer to the speciﬁ c instructions in

your computer's operation manual to enable your computer's external output port.

Connections

Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to a computer with an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector. Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for “RS-232C Speciﬁ cations and Commands”.

When connecting to a computer using an RS-232C serial control cable

To RS-232C terminal

Computer

To RS-232C terminal

RS-232C serial control cable (cross type, commercially available)

Note

•

The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details. Refer to pages 2 to 7 of the “SETUP MANUAL” contained on the supplied CD-ROM for “Connecting

• Pin Assignments” and “RS-232C Speciﬁ cations and Commands”.

Info

•

Do not connect the RS-232C cable to a por t other than the RS-232C terminal on the computer. This may damage your computer or projector. Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on.

• This may damage your computer.

When connecting to the LAN terminal using a LAN cable

LINK LED (green) Illuminates when linked.

TX/RX LED (yellow) Illuminates when transmitting/receiving data.

* To ensure safety, do not connect the LAN terminal

with any cables that may cause excessive voltage such as a telephone line.

To L AN te r m i nal

Hub

Computer

LAN cable (Category 5 type, commercially available)

Note

•

When connecting to a hub, use a straight-through Category 5 (CAT.5) type cable (commercially available). When connecting to a computer, use a cross-over Category 5 (CAT.5) type cable (commercially

• available).

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector. Then plug into AC outlet.

AC socket

Power cord (supplied)

To A C out l et

Connections

Turning the Projector On/Off

Info

English is the factor y default language. If you

Turning the Projector On

Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages

Press STANDBY/ON on the projector or ON on the remote control.

The power indicator illuminates green.

• After the lamp indicator illuminates, the projector

• is ready to start operation.

Note

•

About the Lamp Indicator

The lamp indicator illuminates to indicate the status of the lamp.

Green: The lamp is on. Blinking in green: The lamp is warming up. Red: The lamp is shut down

abnormally or the lamp should be

•

replaced.

When switching on the projector, a slight ﬂ ickering of the image may be experienced within the ﬁ rst minute af ter the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilising the lamp output characteristics. It should not be regarded as faulty operation. If the projector is put into Standby mode and immediately turned on again, the lamp may take some time to start projection.

23 to 27.)

• want to change the on-screen display to another language, change the language according to the procedure on page

53.

STANDBY/ON button

Power indicator

Lamp indicator

STANDBY button

ON button

Turning the Power Off (Putting the Projector into Standby Mode)

Press STANDBY/ON on the projector or STANDBY on the remote control, then press that button again while the conﬁ rmation message is displayed, to put the projector into Standby mode.

The projector cannot be turned on while cooling.

•

On-screen display (conﬁ rmation message)

Info

Direct Power O ff function:

•

You can unplug the power cord from the AC outlet even if the cooling fan is still running.

Image Projection

Shifting the Lens

In addition to the zoom function and adjustment of projection angle using the adjustment feet, you can adjust the position of the projection using the lens shift function. This is a useful function in cases such as when the screen cannot be moved.

When moving upward or downward When moving in the left and right direction

Adjustable range

The adjustable range is shown below.

• Horizontal range: ±20% Vertical range: ±50% The adjustable range has limitations even within the range shown above. The image can be adjusted as shown on the

• diagram. Allow a margin of error in the value.

•

Press H&V SHIFT on the remote

control.

Pressing ENTER on the projector or on

• the remote control displays the test pattern. Checking the test pattern is useful for more accurate adjustment.

ROn-screen display

Adjustable range

Position of the image when the image is centered, both vertically and horizontally, in lens shift

0.5V

Adjustable range

ENTER button

Adjustment buttons (P/R/O/Q)

RETURN button

H&V SHIFT button

Operation

Basic

END LENS SHIFT TESTPATTERN LENS CENTER

Press P, R, O or Q on the

projector or the remote control

LENS SHIFT

to adjust the image position.

Note

•

When RETURN is pressed, the lens shift reset screen is displayed. Lens shift can be reset to factory default with this screen.

0.5V

1H 0.2H0.2H

V : Height of the image H : Width of the image

Image Projection (Continued)

Using the Adjustment Feet

•

When the position of the projected image cannot be adjusted with the lens shif t function, use the adjustment feet to adjust the projected angle. The height of the projector can be adjusted using

• the adjustment feet when the screen is located higher than the projector, the screen is inclined or when the installation site is slightly inclined. Install the projector so that it is as perpendicular

• to the screen as possible.

Rotate the adjustment feet to adjust the projected angle.

•

The projector is adjustable up to approximately 9 degrees (front) and approximately ±2 degrees (rear) from the standard position.

Adjusting the Focus

Down

Warning!

Do not hold the lens and lens cover when

• projector angle is adjusted. Use caution not to pinch your ﬁ nger in the

• space between the adjustment foot and the projector when the projector angle is lowered.

Adjustment feet

Down

Press FOCUS +/– on the remote control to adjust the focus.

ROn-screen display

FOCUS

TESTPATTERN

Info

•

It is recommended that the focus be adjusted after the projector has warmed up for at least 30 minutes.

Adjusting the Projected Image Size

Press ZOOM +/– on the remote control to adjust the projected image size.

ROn-screen display

ZOOM

TESTPATTERN

ZOOM buttons

FOCUS buttons

Note

•

After you have pressed FOCUS or ZOOM on the remote control, you can display the test pattern by pressing ENTER. The test pattern is useful for making more accurate adjustments.

•

For ﬁ ne adjustments, when H&V SHIFT, FOCUS or ZOOM is pressed, the projected image moves a small amount in the desired direction for approximately one second. Hold down the buttons to move the projected image quickly.

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

There are three types of the Keystone Correction.

1) “GEOMETRIC ADJUSTMENT” for correcting an image designating the corner of the projected image

2) “H&V KEYSTONE” for designating the correction of the horizontal and

vertical axes

3) “SPHERE” for correcting the distortion of an image projected on a spherical

or cylindrical screen

Selecting the Type of the Correction

Press KEYSTONE.

The KEYSTOME MODE list appears.

•

KEYSTONE MODE

GEOMETRIC ADJUSTMENT

H&V KEYSTONE

SPHERE

SEL. ENTER

Press P/R to select the desired

Keystone mode, and then press ENTER.

The menu guide appears.

•

Press P/R/O/Q to adjust the

Keystone Correction.

END

RETURN button

ENTER button

Adjustment buttons (P/R/O/Q)

RETURN button

KEYSTONE button

Adjustment buttons (P/R/O/Q)

KEYSTONE button

Operation

Basic

Image Projection (Continued)

GEOMETRIC ADJUSTMENT

ROn-screen display

Press KEYSTONE.

•

The KEYSTONE MODE list appears. (See page

31.)

Press P/R to select

“GEOMETRIC ADJUSTMENT”, and then press ENTER.

Press P, R, O or Q to move the

position for the upper left of the image.

Press ENTER to set the position.

Repeat the same procedure with

the positions for the upper right, lower right and lower left of the image.

•

At this time, pressing RETURN on the projector or on the remote control returns to the previous screen.

When the position of the lower left is

• set, t he correction is made and the display disappears.

ROn-screen display

H&V KEYSTONE

NEXT RESET

GEOMETRIC ADJUSTMENT

Geometric Adjustment

Upper Left Upper Right Lower Right

ADJUST

Lower Left

H&V KEYSTONE

Press KEYSTONE.

The KEYSTONE MODE list appears. (See

• page

31.)

Press P/R to select “H&V

KEYSTONE”, and then press ENTER.

Press P or R to parallelize the

left and right sides of the projected image.

ROn-screen display

H&V KEYSTONE H:0 V:0

END

EXIT TEST PTRN RESET

Vertical Keystone Correction (Adjustment with

ADJUST

' / "

)

Press O or Q to parallelize the

upper and lower sides of the projected image.

Press KEYSTONE to set the

position.

Horizontal Keystone Correction (Adjustment with

\ / |

)

Operation

Basic

Image Projection (Continued)

SPHERE

ROn-screen display

Press KEYSTONE.

The KEYSTONE MODE list appears. (See

• page

31.)

Press P/R to select “SPHERE”,

and then press ENTER.

ROn-screen display

SPHERE 0

END

TESTPATTERN RESET

ADJUST

Press P/R/O/Q to adjust the

sphere correction.

Press KEYSTONE to set the

position.

Concave Distortion Correction (Adjustment with P/Q)

Convex Distortion Correction (Adjustment with R/

Switching the Input Mode

Select the appropriate input mode for the connected equipment.

Press HDMI 1/2, COMPONENT or COMPUTER on the remote control to

select the input mode.

When you select the input mode with

■

INPUT R/P on the projector:

When R/P is pressed, t he INPUT list

• appears. While the INPUT list is displayed, follow the procedure below to switch the input mode.

INPUT list

INPUT

HDMI1

HDMI2

COMPUTER

COMPONENT

–Press R/P to select the desired input

mode and then press ENTER.

If ENTER is not pressed, the projector

• switches to the selected input mode in a few seconds.

Note

•

When you switch the input mode, the image as shown below will be displayed in the upper right corner of the screen. (You can conﬁ rm the selected input mode and information on the input signal.)

HDMI1

YPbPr 1080P

•

When is displayed, “3D” is set to “On”.

•

is displayed, it means that a 3D image

signal that can be automatically detected is being input.

HDMI 1/2, COMPONENT and COMPUTER buttons

Operation

Basic

Image Projection (Continued)

Resize Mode

This function allows you to modify or customize the Resize mode to enhance the input image. Depending on the input signal, you can choose a desired image.

Press RESIZE on the remote control or on the projector.

See page 51 for setting on menu screen.

•

RESIZE

RESIZE button

button

RESIZE Output screen image

NORMAL The image is displayed with the original aspect ratio.

16:9 An image compressed from a 16:9 aspect ratio to a 4:3 aspect ratio is restored to a

CINEMA ZOOM

ZOOM 14:9 An image with a 14:9 aspect ratio and letterboxing is enlarged while maintaining the

SMART ZOOM An image with a 4:3 aspect ratio is slightly enlarged.

NATIVE The image is displayed according to the original input signal.

16:9 aspect ratio and displayed at full-screen.

A CinemaScope image or an image with a 16:9 aspect ratio is displayed at full-screen.

original aspect ratio.

About Copyrights

When using the Resize function to select an image size with a different aspect ratio to a TV

• program or video image, the image will look different from its original appearance. Keep this in mind while choosing an image size. The use of the Resize, Keystone Correction, Overscan or Anamorphic function to compress

• or stretch the image for commercial purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for copyright holders. Please use caution.

Operating with the Remote Control

Selecting the Picture Mode

CONTRAST, BRIGHTNESS, COLOR and TINT buttons

IRIS 1/2 buttons

PICTURE MODE button

MENU HIDE button

AUTO SYNC button

ECO+QUIET button

Adjusting the Image

You can adjust the contrast, brightness, color and tint.

Press image adjustment buttons.

Button CONTRAST BRIGHTNESS COLOR

TINT

+ button - button For more contrast. For less contrast. For more brightness. For more color

intensity. For making skin

tones greenish.

For less brightness. For less color

intensity. For making skin

tones purplish.

You can select the appropriate Picture mode for the projected image, such as movie or video game.

Press PICTURE MODE to

display the Picture Mode list.

Press P/R to select the

appropriate picture mode, and then press ENTER.

Picture Mode list

Picture Mode

Standard

Movie1

Movie2

Monochrome

Anime

Sports

Stage

Dynamic

User1

User2

Game

Note

•

You can also select a picture mode when projecting images in 3D mode. See page

•

44 for details on the Picture mode.

Features

Useful

Operating with the Remote Control (Continued)

Switching the Iris Setting

This function controls the quantity of the projected light and the contrast of the image.

Press IRIS 1 or 2.

Each time the button is pressed while the display

• is on, the mode changes in the following order:

IRIS 1 

■

For details, see page 45.•

High Brightness High Contrast

IRIS 2

Note

Auto Sync (Auto Sync Adjustment)

Auto Sync function works when detecting input signal after the projector turns on.

Press AUTO SYNC to manually adjust with Auto Sync function.

Note

•

When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page

49.)

Hiding the Menu Temporarily (Menu Hide)

When the menu screen is displayed, you can temporarily hide the menu screen by pressing and holding MENU HIDE on the remote control. This is useful when, for example, checking the video adjustment information.

Switching the Eco+Quiet Mode

Press ECO+QUIET to switch the Eco+Quiet mode between on and off.

When the Eco+Quiet Mode is set to “On”, the

• sound of the cooling fan will turn down, the power consumption will decrease, and the lamp life will extend.

Note

Refer to “Eco+Quiet” on page 45 for details.•

Menu Items

The following shows the items that can be set in the projector.

“Picture” menu

Main menu Sub menu


Picture Mode

Page 44 Page 44

Contrast

Bright

Color

Tint

Sharp

Red Gain

Green Gain

Blue Gain

CLR Temp

Page 45

IRIS1(Manual)

Page 45

IRIS2(Auto) [On/Off]

Page 45

Eco+Quiet [On/Off]

Page 45

Advanced

Page 45

Reset

Page 48

+30-30

+2-2

in 2D mode Standard

Movie1, 2 Monochrome Anime Sports Stage Dynamic User1, 2 Game

in 3D mode Standard(3D)

Movie1, 2(3D) Monochrome(3D) Anime(3D) Sports(3D) Stage(3D) Dynamic(3D) User1, 2(3D) Game(3D)

High Brightness High Contrast

Gamma

+2-2

Page 45

Custom Gamma [On/Off]

Page 46

C.M.S.1 Select Color

C.M.S.2 Hue

Page 46

Bright Boost [On/Off]

Page 48

Film Mode Auto

Page 48

Color Enhance

+50

Page 48

Detail Enhance

+30-30

Page 48

DNR Off

Page 48

MNR

Page 48

Saturation

Valu e

Effect

C.M.S.1 (or C.M.S.2) [On/Off]

Reset

Return

Off

Level1 Level2 Level3

Features

Useful

Menu Items

(Continued)

“Signal adjustment (SIG-ADJ)” menu

Main menu Sub menu

SIG-ADJ

Page 49

Clock

Phase

H-Pos

V-Pos

Reset

+150-150

+30-30

+150-150

+60-60

Page 49

Resolution

Page 49

Auto Sync [On/Off]

Page 49

Signal Type

Page 50

Video Setup 0IRE

Page 50

Dynamic Range Auto

Page 50

Signal Info

Auto RGB YPbPr

7.5IRE

Standard Enhanced

Page 50

“Screen adjustment (SCR-ADJ)” menu

Main menu Sub menu

SCR-ADJ

Page 51

Resize

Page 51

V-Image Shift

-30 +30

Normal 16:9 CinemaZoom Zoom14:9 SmartZoom Native

Page 51

Trigger Off

Page 51

Anamorphic Off

Page 51

Overscan [On/Off]

Screen Anamorphic

2.35:1 16:9

Page 52

Black Mask

0 +5

Page 52

CBNR [On/Off]

Page 52

OSD Display [On/Off]

Page 52

OSD Brightness Standard

Page 52

Background

Page 52

Menu Position Center

Page 53

PRJ Mode

Page 53

Language

Page 53

Level1 Level2

Logo Blue None

UpperRight LowerRight UpperLeft LowerLeft

Front Ceiling + Front Rear Ceiling + Rear

English Deutsch Español Nederlands Français Italiano Svenska Português

polski Magyar Türkçe

“Projector adjustment (PRJ-ADJ)” menu

Main menu Sub menu

PRJ-ADJ

Page 54

Auto Power Off [On/Off]

Page 54

No Operation off

Page 54

Economy Mode [On/Off]

Off 1Hour 2Hours 4Hours 6Hours

Page 54

One Touch Play [On/Off]

System Standby [On/Off]

Input Name

Page 55

LED [On/Off]

Page 56

Demo Mode [On/Off]

Page 56

Fan Mode

Page 56

Memory Menu

Normal High

Page 56

All Reset

Page 57

Lamp Timer (Life)

Page 57

Load Memory

Page 56

Save Memory

Memory1

Memory2

Page 56

Memory Name

Page 56

Clear Memory

Page 57

Memory Lock [On/Off]

Page 57

Return

“Network” menu

Main menu

Network

Page 58

Password [Enable/Disable]

Page 58

DHCP Client [On/Off]

Page 59

TCP/IP

Page 59

Reset Network Setting

Page 59

Restart Network

Page 59

IP Address

Page 60

MAC Address

Page 60

Projector

Page 60

“3D MENU”

Main menu

3D MENU

Page 70

3D [On/Off]

Page 70

3D Format

Page 70

3D Depth Adjust

Page 70

3D Auto Change

Page 70

Viewing Time Info

Page 70

Invert

Page 70

+15–15

Sub menu

IP Address Subnet Mask Gateway

Sub menu

Auto Side By Side Top And Bottom

Yes No

Features

Useful

Using the Menu Screen

RETURN button

Press RETURN to return to the

• previous screen when the menu is displayed.

ENTER button

Adjustment buttons (P/R/O/Q)

MENU button

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

This operation can also be performed by using the buttons on the projector.•

MENU button

Adjustment buttons (P/R/O/Q)

ENTER button

RETURN button

•

Press RETURN to return to the previous screen when the menu is displayed.

Press MENU.

The “Picture” menu screen for the selected

• input mode is displayed.

Press Q or O and select

“Picture” to adjust.

Example: “Picture” screen menu Menu item


Picture Mode Standard

Contrast Bright Color Tint Sharp Red Gain Green Gain Blue Gain CLR Temp IRIS1 (Manual) IRIS2 (Auto) Eco+Quiet Advanced Reset

SEL./ADJ. RETURN

SIG SCR PRJ Net.

0 0 0 0 0 0 0 0 0

High Brightness On Off

ENTER END

Press P or R and select “Bright”

to adjust.

•

The selected item is highlighted.

To adjust the projected image while watching it

Press ENTER.

The selected item (e.g. “Bright”) is

• displayed by itself at the bottom of the screen. When pressing P or R, the following item

• (“Color” after “Bright”) will be displayed.

Note

Press ENTER again to return to the

• previous screen.


Picture Mode Standard

Contrast

Bright

Color Tint Sharp Red Gain Green Gain Blue Gain CLR Temp IRIS1 (Manual) IRIS2 (Auto) Eco+Quiet Advanced Reset

SEL./ADJ. RETURN

SIG SCR PRJ Net.

0 0 0 0 0 0 0

High Brightness On Off

ENTER END

Items to be adjusted

Pict. Clock Phase H-Pos V-Pos Reset

SIG-ADJ

SCR 0

0 0 0

Press ENTER.

The item displayed by itself

Bright

PRJ Net.

Press O or Q to adjust the item

selected.

The adjustment is stored.

•

Press MENU.

The menu screen will disappear.

•


Picture Mode Standard

Contrast

Bright

Color Tint Sharp Red Gain Green Gain Blue Gain CLR Temp IRIS1 (Manual) IRIS2 (Auto) Eco+Quiet Advanced Reset

SEL./ADJ. RETURN

SIG SCR PRJ Net.

0 0 0 0 0 0 0

High Brightness On Off

ENTER END

Features

Useful

IRIS2 (Auto) Eco+Quiet Advanced

Custom Gamma C.M.S.1 On

Off Off Auto

C.M.S.2 Bright Boost Film Mode

Detail Enhance

Reset

SEL./ADJ. RETURN

ENTER END

Off

Color Enhance

Picture Adjustment (“Picture” Menu)

Menu operation n Page 42


Picture Mode Standard

Contrast Bright Color Tint Sharp Red Gain Green Gain Blue Gain CLR Temp IRIS1 (Manual) IRIS2 (Auto) Eco+Quiet Advanced Reset

SEL./ADJ. RETURN

Selecting the Picture Mode



SIG SCR PRJ Net.

0 0 0 0 0 0 0 0 0

High Brightness On Off

ENTER END

Gamma

DNR MNR

Off Off

This function allows you to select the picture mode that best suits the room brightness and the type of image being projected.

Selectable items Description

Standard For standard image. Movie1 For viewing movies with a lot of bright scenes. Movie2 For viewing movies with a lot of dark scenes. Monochrome For viewing black-and-white movies. Anime For viewing anime or animated movies. Sports For viewing sports and other images with fast-moving subjects. Stage For viewing live performances. Dynamic A vivid image is obtained. User1, 2 For customizing the picture mode settings as desired. Game Use this when the audio and image are not synched or when you want to create a

sharper image.

You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are

• retained in memory.

Note

•

You can also select a picture mode when projecting images in 3D mode.

•

You can also press PICTURE MODE on the remote control to select the picture mode. (See page 37.)

•

The default settings are subject to change without notice.

Menu operation n Page 42

Adjusting the Image

Adjustment

items

Contrast For less contrast. For more contrast. Bright For less brightness. Color For less color

Tint For making skin

Sharp For less sharpness. Red Gain For making images

Green Gain For making images

Blue Gain For making images

CLR Temp

Note

You can also use CONTRAST,

• BRIGHTNESS, COLOR or TINT on the remote cntorol to adjust each item. (See page

Switching the Iris Setting



? button _ button

For more brightness.

intensity.

tones purplish.

less reddish.

less greenish.

less bluish. For making images

slightly more reddish (slightly warmer colors).

For more color intensity.

For making skin tones greenish.

For more sharpness. For making images

more reddish. For making images

more greenish. For making images

more bluish. For making images

slightly more bluish (slightly cooler colors).

37.)

This function controls the quantity of the projected light and the contrast of the image.

■

IRIS1 (Manual)

Selectable

items

High Brightness

High Contrast

IRIS2 (Auto)

■

This mode gives priority to brightness over contrast.

This mode gives priority to contrast over brightness.

Description

This automatically selects the optimal contrast to match the image.

Selectable

items

On This mode gives priority to contrast

Off This mode gives priority to brightness

with the use of auto adjustment.

without the use of auto adjustment.

Description

Eco+Quiet

Selectable

items

On Approx. 70%

Off 100%

Note

When “Eco+Quiet” is set to “On”, the power

• consumption will decrease and the lamp life will extend. (Projection brightness decreases approximately 30%.)

•

You can also use ECO+QUIET on the remote control to switch the Eco+Quiet mode. (See page

Brightness and Power consumption

38.)

Using the Advanced

“Advanced” allows you to make even ﬁ ner adjustments to the image so that it appears just the way you want it to. To display the Advanced menu, select “Advanced” and press ENTER.

Note

•

When the “Advanced” settings are displayed, select “Advanced” again and press ENTER to return to the “Picture” menu.

Correcting Gradation of





Video (Gamma Correction)

When the darker areas of the image become difﬁ cult to see because of the image or the projection environment, you can correct the gamma setting to make the image brighter and easier to see.

Selectable

items

Provides a brighter gradation.

0 Standard setting

–1

Provides a darker gradation.

–2

Description

Features

Useful

Note

You can also use IRIS 1/2 on the remote

• control to change the Iris. (See page

38.)

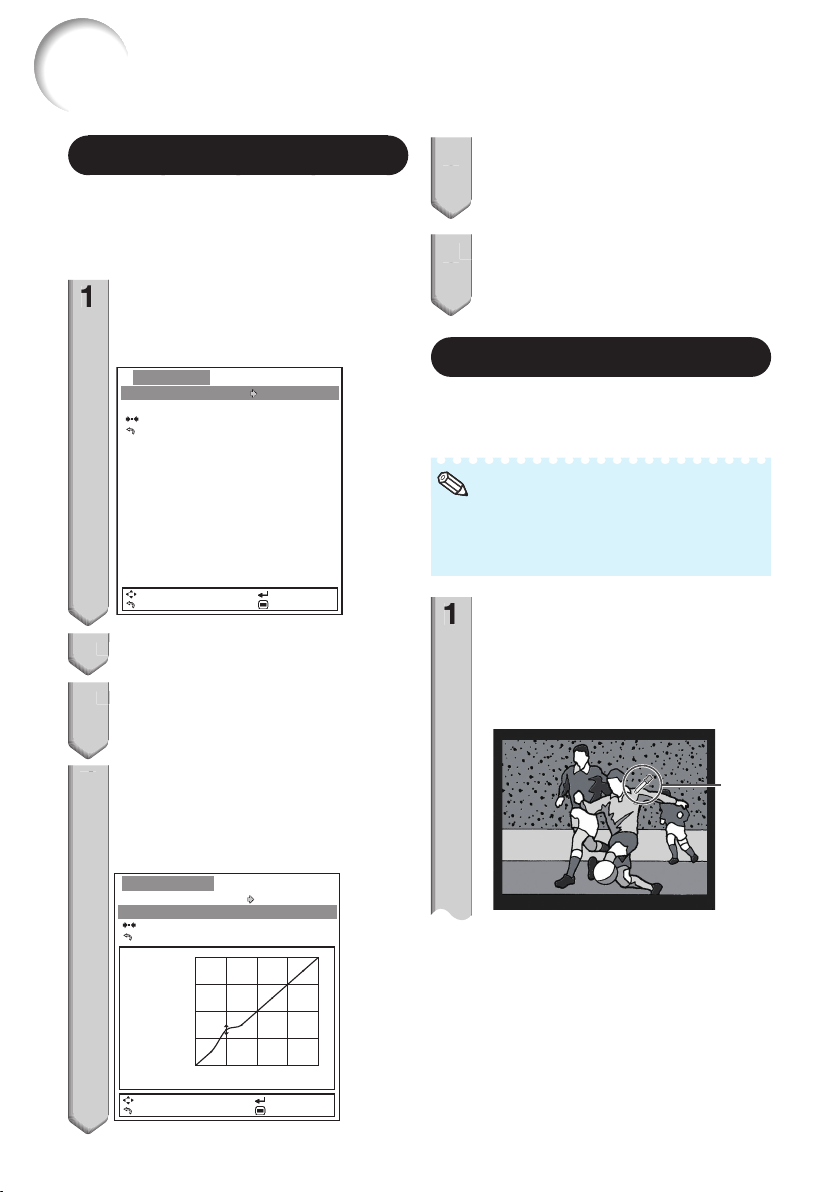

Picture Adjustment (“Picture” Menu) (Continued)

Menu operation n Page 42

Custom Gamma

The Custom Gamma function can be used when “Picture Mode” is set to “User1” or “User2”. You can adjust the gamma curve and save your custom setting. Adjust it to suit the picture brightness.

Press

P/R

to select “Custom Gamma” on the gamma adjustment screen, and then

press

Custom Gamma

Custom Gamma Edit

Reset Return

SEL./ADJ. RETURN

Press P/R to select “On”.

Press R to select “Custom

Gamma Edit”, and then press

Off

ENTER END

ENTER.

Press ENTER to display the

conﬁ rmation screen. Use

P/R to

select “Save” and press ENTER.

To complete the Custom Gamma

adjustment, select “Return” and press ENTER.

Adjusting the Colors



You can select the color of the projected image to correct and then adjust it to the desired color by setting “Hue”, “Saturation”, “Value”, and “Effect”.

Note

Before performing this adjustment, prepare

• the image to be adjusted. You can perform this adjustment easier in the

• still image than in the moving image.

Select “C.M.S.1” or “C.M.S.2”

(C.M.S.: Color Management System) in the “Advanced” menu, and press Q.

If there is no data for the stored corrected

• color, the color selection screen and the picker is displayed. (Go to step 2.)

Adjust the curve to adjust the

image brightness.

Press O/Q to adjust the white level. Select

• from 10 levels, from 5% to 80%. Press P/R to adjust the optical output

• value. Select a value from 0 to 100.

Custom Gamma

Custom Gamma Edit

Reset Return

Output:

XX%

Input: XX%

SEL./ADJ. RETURN

ENTER END

Picker

If there is data for the stored corrected

• color, the C.M.S. color adjustment screen is displayed. (Go to step 3.)

C.M.S.1

Select Color

Hue Saturation

0 0

Value

Effect C.M.S.1 On

Reset Return

SEL./ADJ.

ENTER

RETURN

END

Use the picker and select the

color of the projected image to correct. The picker can be operated by adjustment buttons (P/R/O/Q) on the remote control.

By continuing to press the adjustment

• buttons (P/R/O/Q), the picker moves rapidly.

After selecting the color of the projected image to correct, press ENTER. The C.M.S. color adjustment screen is displayed. (Go to step 3.)

Set or adjust each item in the

C.M.S. color adjustment screen.

C.M.S.1

Select Color

Hue Saturation

0 0

Value

Effect C.M.S.1 On

Reset Return

Picker

Menu operation n Page 42

C.M.S. color adjustment screen:

Selectable

items

Select Color

Starts over the selection of the color to be corrected.

Description

Hue Sets the hue of the main colors.

Saturation Sets the saturation of the main

colors.

Value Sets the value of the main colors.

Effect

C.M.S.1 (or C.M.S.2)

Speciﬁ es the range of color correction.

Checks the appearance of the projected image after above correction.

Reset Sets “Hue”, “Saturation”,

“Value”, and “Effect” to their default values.

Return Completes the correction

and closes the C.M.S. color adjustment screen.

To specify the range of color correction, select “Effect” and press

O or Q.

O button Speciﬁ es smaller range. Q button Speciﬁ es larger range.

*2 To check the appearance of the

projected image, select “C.M.S.1” (or “C.M.S.2”) and set to “On” or “Off”.

On The appearance of the projected

Off The appearance of the projected

To complete the C.M.S. color

adjustment, select “Return” and

image after above color adjustment reﬂ ected can be checked.

image in former color adjustment can be checked.

press ENTER.

Note

The C.M.S. color adjustment can be made to

• one color each in “C.M.S.1” and “C.M.S.2”.

Features

Useful

SEL./ADJ. RETURN

ENTER END

Picture Adjustment (“Picture” Menu) (Continued)

Menu operation n Page 42

Adjusting the Bright Boost

Bright Boost uses Texas Instruments’ Bright Boost technology. The image becomes brighter while the color reproduction is kept at a high level.

Selectable

items

Off

This function provides high-quality playback of images originally projected at 24 fps, such as movies on DVDs.

Selectable

items

Auto Films are detected automatically.

Off Films are not detected.

⑅

This function makes the projected images clearer and crisper.

? button _ button

This function enhances the details in images and, thereby, creates a greater sense of depth.

? button _ button

The Bright Boost function is activated.

The Bright Boost function is not activated.

Selecting the Film Mode

Setting Color Enhancement

Provides less color enhancement.

Provides more color enhancement.

Setting Detail Enhancement

Provides less detail enhancement.

Provides more detail enhancement.

Description

Note

•

Set “DNR” to “O ff” in the following cases:

- When the image is blurry.

- When the contours and colors of moving

images drag.

- When TV broadcasts with weak signals are

projected.

This function is available for the following

• signals.

- 480I/48 0P

- 576

/576P

Mosquito Noise Reduction (MNR)

The so-called Mosquito Noise (ﬂ ickering) can be reduced.

Selectable

items

Off MNR does not function.

Level 1

Level 2

Level 3

Set “MNR” to “O ff” in the following cases:

•

- When the image is blurry.

- When the contours and colors of moving

images drag.

- When TV broadcasts with weak signals are

projected.

This function is available for the following

• signals.

- 480I/48 0P

- 576

Sets the MNR level for viewing a clearer picture.

Note

/576P

Description

Reducing Image Noise (DNR)

Video digital noise reduction (DNR) provides high quality images with minimal dot crawl and cross color noise.

Selectable

items

Off The DNR function is not activated.

Level 1

Level 2

Level 3

Sets the DNR level for viewing a clearer picture.

Description

Resetting All Adjustment Items

To reset all adjustment items to the default settings, select “Reset” and press ENTER.

Computer Image Adjustment (“SIG-ADJ” Menu)

Menu operation n Page 42

SCR 0 0 0 0

Auto 0IRE Auto

ENTER END

Description

PRJ Net.

Setting the Resolution



Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in “Resolution” in the “SIGADJ” menu may need to be selected to match the computer display mode.

Note

Avoid displaying computer patterns which repeat

• every other line (horizontal stripes). (Flickering may occur, making the image hard to see.) Information on the currently selected input

• signal can be conﬁ rmed in item

Auto Sync (Auto Sync Adjustment)



Selectable

items

On Auto Sync adjustment will occur when

Off Auto Sync adjustment is not

the projector is turned on or when the input signals are switched, when connected to a computer.

automatically performed.

7 on page 50.

Description

Note

Auto Sync adjustment is also performed by

• pressing AUTO SYNC on the remote control. When setting “Auto Sync” to “Off”, and if

• AUTO SYNC is pressed, Auto Sync will be executed in “On” mode. If the button is pressed again within one minute, Auto Sync will be executed in “On” mode. The Auto Sync adjustment may take some

• time to complete, depending on the image of the computer connected to the projector. When the optimum image cannot be achieved

• with Auto Sync adjustment, use manual adjustments.

Pict.

SIG-ADJ

Clock Phase H-Pos V-Pos Reset Resolution Auto Sync On Signal Type Video Setup

Dynamic Range

Signal Info : 1080P

H : XX.X kHz/ V : XX.X Hz

SEL./ADJ. RETURN

* Displayed when the input mode is HDMI input.

Adjusting the Computer Image



Use the SIG-ADJ function in case of irregularities such as vertical stripes or ﬂ ickering in portions of the screen.

Selectable

items

Clock Adjusts vertical noise.

Phase Adjusts horizontal noise (similar to

H-Pos Centers the on-screen image by

V-Pos Centers the on-screen image by

tracking on your VCR).

moving it to the left or right.

moving it up or down.

Note

You can automatically adjust the computer

• image by setting “Auto Sync” in the “SIG-ADJ” menu to “On”, or pressing AUTO SYNC on the remote control. Depending on the type of input signal, the

• adjustment range for each setting may vary or the adjustment may not be available at all. To reset all adjustment items, select “Reset”

• and press ENTER

Features

Useful

Computer Image Adjustment (“SIG-ADJ” Menu) (Continued)

Signal Type Setting



When using an input mode of HDMI1, HDMI2, or COMPUTER, set the signal type to the corresponding input signal type (RGB or YPbPr).

Selectable

items

Auto Automatically selects the appropriate

RGB Set when RGB signals are received.

YPbPr Set when YPbPr signals are received.

input signal between RGB and YPbPr.

Setting the Video Setup

Description

Menu operation n Page

Selectable

items

0 IRE Sets the black level to 0 IRE.

7.5 IRE Sets the black level to 7.5 IRE.

Note

This function is available for the following

• signal.

- 480

Adjusting the Dynamic Range

An optimum picture may not be displayed if an HDMI-capable device’s output signal type and the projector’s input signal type do not match. If this should occur, switch “Dynamic Range”.

Selectable

items

Auto In most circumstances, “Auto” should

Standard When the black levels of the image

Enhanced

Input signal information is displayed.

be selected.

show banding or appear faded, select the item that results in the best picture quality.

Signal Info

Description

Adjusting the Projected Image (“SCR-ADJ” Menu)

Menu operation n Page 42

SIG

SCR-ADJ

PRJ Net.

Off Off On

Off On Standard Logo Upper Left Front English

ENTER END

_ button? button

36.)

Trigge r



This function allows you to set whether to output a control signal (12V DC) that is output from the trigger terminal to a triggersupported screen or anamorphic lens.

Selectable

items

Screen A control signal (12V) is output to a

Anamorphic A control signal (12V) is output when

Off The Trigger function is not activated. (A

trigger-supported screen while linked with the power of the main unit. The screen extends and retracts automatically when the power of the projector is turned on and off.

the Anamorphic function is set to "2.35:1" or "16:9".

control signal (12V) is not output.)

Anamorphic



Description

This function adjusts the vertical and horizontal directions of the image when projected using an anamorphic lens.

Selectable

items

2.35:1 Stretches a 2.35:1 image in the vertical direction of the panel resolution.

16:9 Select this when viewing images other

than 2.35:1 while using an anamorphic lens.This compresses a 16:9 image in the horizontal direction while leaving the height of the panel resolution unchanged.

Off The input image is projected as is.

(Black bands are displayed on the top, bottom, left and right.)

Description

Note

RESIZE does not function when “Anamorphic”

•

is set to “2.35:1” or “16:9”.

Pict. Resize Normal V-Image Shift Trigger Anamorphic

Overscan Black Mask CBNR OSD Display OSD Brightness Background Menu Position PRJ Mode Language

SEL./ADJ. RETURN

Setting the Resize Mode

Note

•

For details of the Resize mode, see page 36.

•

You can also press RESIZE on the remote control to set the resize mode. (See page

Adjusting the Image Position

You can move the projected image vertically.

? button _ button

Downward Upward

Note

•

The adjustable range of the image shif t may vary depending on:

- the Resize mode

- the Picture mode

- the input signal resolution

- the input 3D signal type

Features

Useful

Adjusting the Projected Image (“SCR-ADJ” Menu) (Continue)

Menu operation n Page 42

Adjusting the Overscan



This function allows you to adjust the Overscan area (display area).

Selectable

items

Off The whole input area is displayed.

You can adjust the Overscan area for the

• following input signals and the RESIZE function. Input signal:

- 480I/48 0P

- 540P

- 576I/576P

- 720P

- 1035

- 1080I/1080P RESIZE function:

- NORMAL

- 16:9

- CINEMA ZOOM

- ZOOM 14:9

• If the display area ratio is set too large, noise

may appear at the screen edges. If this happens, set the display area ratio to a smaller value.

• Also read “About Copyrights” on page 36.

This function allows you to apply a black mask around the outside of the image to hide ﬂ icker on the edges. Select a level from 0 (%) to 5 (%).

The input area is displayed without screen edges.

Note

Black Mask



Description

CBNR

This function reduces the color break noise.

Selectable

items

On The CBNR function is activated.

Off The CBNR function is not activated.

Note

When “3D” is set to “On”, the CBNR function is

• disabled. When “CBNR” is set to “On”, the brightness is

• reduced.

Setting On-screen Display

Selectable

items

On All on-screen displays are displayed.

Off INPUT/AUTO SYNC/RESIZE/



CONTRAST/BRIGHTNESS/COLOR/ TINT/ECO+QUIET/3D ON/OFF (3D/2D mode change) message are not displayed.



Setting the Brightness of

Description

the Menu Screen

Sets the brightness of the menu screen.

Selectable

items

Standard Standard brightness

Level 1 Darker than the “Standard” brightness

Level 2 Darker than the “Level 1” brightness

Description

Selecting the Background Image

Selectable

items

Logo SHARP logo screen

Blue Blue screen

None — (Black screen)

Description



Selecting the Menu Screen

Position

Select “Menu Position” in the “SCR-ADJ” menu and the desired position for the menu screen.

Selectable

items

Center Displayed on the center of the image.

Upper Right Displayed on the upper right of the

Lower Right Displayed on the lower right of the

Upper Left Displayed on the upper left of the

Lower Left Displayed on the lower left of the

image.



Reversing/Inverting

Description

Projected Images

This function allows the projector to be used in a wider range of projection styles by allowing the image to be inverted to suit the projection environment (location).

Selectable

items

Front Normal image (Projected from the front

Ceiling + Front

Rear Reversed image (Projected from the

Ceiling + Rear

See page 22 for details of Projection (PRJ) Mode.

of the screen)

Inverted image (Projected from the front of the screen with an inverted projector)

rear of the screen or with a mirror)

Reversed and inverted image (Projected with a mirror)



Selecting the On-screen

Description

Display Language

The projector can switch the on-screen display language among 17 languages.

Menu operation n Page 42

Features

Useful

djusting the Projector Function (“PRJ-ADJ” Menu)

Menu operation n Page 42

SIG

SCR

min ( )

PRJ-ADJ

Off Off Off Off

Off Off Normal

ENTER END

Net.



Setting No Operation Off



Mode

This function automatically switches the projector to Standby mode if there is no operation.

Selectable

items

Off The No Operation Off function will be

1 Hour Select the length of time the projec-

2 Hours

4 Hours

6 Hours

disabled.

tor will take to automatically enter to Standby mode.

Description

Pict. Auto Power Off On No Operatin Off Economy Mode One Touch Play System Standby Input Name LED Demo Mode Fan Mode Memory Menu

All Reset

Lamp Timer (Life)

hX XX XX%

SEL./ADJ. RETURN

Setting Auto Power Off Mode



This function automatically switches the projector to Standby mode if no signals are received for a set period.

Selectable

items

On When no input signal is detected for

more than 15 minutes, the projector will automatically enter Standby mode.

Off The Auto Power Off function will be

disabled.

Description

Note

•

When the Auto Power Off function is set to “On”, 5 minutes before the projector enters Standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

Note

•

When a time is set for the No Operation Off function and no operation has been performed, 5 minutes before the projector enters Standby mode, "Enter STANDBY mode in X min." will appear on the screen to indicate the remaining minutes.



Setting the Power Save



Mode (Economy Mode)

Economy Mode

■

Selectable

items

On This enables the Economy mode.

Off You can use the linked functions.

RS-232C can be used to control the projector in Standby mode.

Note

•

Set this function to “Of f” when you want to use RS-232C to control the projector from a computer. One Touch Play is set to “Off” when the

• Economy mode is set to “On”.

Description



Input name

H D M I 1

HDMI1

Reset

Return

Setting One Touch Play,



System Standby and Input Name

When a Sharp product equipped with Consumer Electronics Control (HDMI CEC) is connected to the projector with an HDMI cable, you can use the linked function with HDMI CEC (“One Touch Play” and “System Standby”).

Note

•

The CEC function may not work with some CEC devices. (When the projector is connected to a non-Sharp product, the CEC function may not work.)

Setting the One-Touch Playback Function

■

(One Touch Play)

One Touch Play turns on the projector and selects the input automatically when you turn on or begin playback on connected HDMIcompliant Sharp Video Products.

Selectable

items

On This enables One Touch Play.

Off This disables One Touch Play.

Note

When enabling One Touch Play, be sure to

• enable the CEC setting on the HDMIcompliant Sharp Video Products connected to the projector. The Economy mode is set to “Off” when One

• Touch Play is set to “On”. In the following cases, One Touch Play is not

• enabled.

- When playback is paused

When the cooling fan is running (See page 76.)

- When the lamp is warming up (See page

Setting the System Standby Function

■

(System Standby)

When you turn off the projector, the HDMIcompliant video equipment connected to the projector enters Standby mode.

Selectable

items

On This enables System Standby.

Off This disables System Standby.

Description

76.)

Menu operation n Page 42

Note

When enabling System Standby, be sure to

• enable the CEC setting on the HDMIcompliant Sharp Video Products connected to the projector.

Setting the Input Terminal Names (Input

■

Name)

Set the name of the input terminal (up to 14 alphanumerical characters).

Press P/R to select “Input

Name” and then press ENTER.

Pict.

? or _ button Ŧ or Ŷ button

ENTER button

Press P/R to select “Return” and

then press ENTER to return to

SCR

SIG

PRJ-ADJ Net.

Selects a character column.

Selects a character.

Sets the input terminal name.

the previous screen.

To return to the previous setting, select

• “Reset” and then press ENTER.

Note

•

When connecting the projector to a Sharp Video Product with an HDMI cable using an input mode of HDMI1 or HDMI2 and the linked function with HDMI CEC (“One Touch Play” or “System Standby”) works normally, the name of the connected Sharp Video Product is automatically captured.

•

When the input terminal name has been changed by a user, the changed name is displayed.

•

To return to the default name, select “Reset” and press ENTER.

Features

Useful

djusting the Projector Function (“PRJ-ADJ” Menu)

(Continued)

Menu operation n Page

Turning LED Off

LEDs (indicators) on the projector can be turned off when they are disturbing the projection.

Selectable

items

On LEDs are turned on.

Off LEDs are turned off while the projector

When Auto Power Off function is set to “Off”,

• “LED” is set to “On” automatically. Be sure to set Auto Power Off function to “On” to use LED Off function. (See page



Set the Demo Mode to “On” or “Off”.

Selectable

items

On This enables Demo Mode.

Off This disables Demo Mode.



This function changes the fan rotation speed.

Selectable

items

Normal Suitable for normal environments.

High Select this when using the projector at

• When “Fan Mode” is set to “High”, the fan rotation speeds up, and the fan noise becomes louder.

is in operation. (LEDs turn on while the projector is in the Standby mode, warming up or indicating problems.)

Note

Setting the Demo Mode

Fan Mode Setting

altitudes of approximately 4,900 feet (1,500 meters) or more.

Description

54.)

Description

Memory Menu

You can store the settings of the projector's lens shift (ZOOM, FOCUS) and others (such as INPUT, PICTURE MODE, RESIZE, PRJ Mode, V-Image Shift, KEYSTONE and Anamorphic), or activate the stored settings. The Memory Menu screen can also be displayed by pressing MEMORY on the remote control.

aLoad Memory

To activate the desired settings, select the item where the settings are stored.

Note

•

Pressing any button while the projector is in the process of activating the “Load Memory” function will display messages: – “STOP”: stops the activation of the “Load

Memory” function.

– “CONTINUE”: allows the projector to the

already set position.

– “Return to the initial position.”: let the

projector go back to the initial position.

•

The conﬁ rmation screen of “Load Memory” will also be displayed by pressing MEMORY

1/2 on the remote control. Press MEMORY 1/2 again to perform the “Load Memory”

function. The memory has a margin of error of

• approximately ±2%. Use the remote control to make ﬁ ne adjustments.

aSave Memory

Select an item where you want to store the setting.

Note

•

When you select an item where some setting has been stored, the stored setting will be overwritten and erased.

aMemory Name

Select the item name you want to change. Use

O/Q to choose the characters to change, and P/R to select the characters to enter.

aClear Memory

Select the item where the settings you want to erase are stored. In this case, the memory name you have changed returns to the default setting.

Note

Selecting “All Clear” erases all the stored

• settings.

aMemory Lock

Menu operation n Page 42

Selectable

items

On Protects the stored memories.

Off Does not protect the stored

memories.



Returning to the Default



Description

Settings

Use “All Reset” to initialize all the adjustments you have made to the default settings.

Note

The following items cannot be initialized.

•

“SIG-ADJ” menu — Resolution

•

“SCR-ADJ” menu — Language

•

“PRJ-ADJ” menu — Lamp Timer (Life)

Lamp Timer (Life)



You can conﬁ rm the cumulative lamp usage time and the remaining lamp life (percentage).

Lamp usage condition Remaining lamp life

“Life” 100% 5%

Operated exclusively with “Eco+Quiet” set to “On”

Operated exclusively with “Eco+Quiet” set to “Off”

Approx. 3,000 hours

Approx. 2,000 hours

Approx. 150 hours

Approx. 100 hours

Features

Useful

Note

•

It is recommended that the lamp be changed when the remaining lamp life becomes 5%. The lamp life may var y depending on the

• usage condition.

Setting Up the Projector Network Environment (“Network” Menu)

Pict. SIG SCR PRJ Network

Password



DHCP Client

 

TCP/IP

Reset Network Setting

 

Restart Network

IP Address XXX.XXX.XXX.XXX MAC Address XX:XX:XX:XX:XX:XX



Projector XX-XXXX

SEL./ADJ. RETURN

Setting a Password

If you do not want others to change the setting for the “Network” menu, set a password.

a

Setting a Password

Select “Password”, then press Q.

The screen for entering the password

• appears.

Setting the Password

Old Password

New Password

Reconﬁrm

Press P or R to set the ﬁ rst digit

in “New Password”, then press Q.

Enter the remaining 3 digits, then

press ENTER.

To return to the previous digit, press O.

•

Enter the same password in

“Reconﬁ rm”, then press ENTER.

The status for “Password” changes to

• “Enable”.

Disable Off

ENTER END

––––

–

–––

––––

Network

Changing the Password

Select “Password”, then press Q.

•

The screen for entering the password appears.

Enter the password in “Old

Password” using P, R, Q and O, then press ENTER.

Enter the password in “New

Password” using P, R, Q and O, then press ENTER.

Enter the same password again

in “Reconﬁ rm” using P, R, Q and O, then press ENTER.

Note

•

If you do not need the password protection for the “Network” menu settings anymore, press ENTER without entering new password in steps 3 and 4.

•

To cancel the password settings, press

RETURN.

If you forget the password

If you forget the password, perform the following procedure to delete it, then set a new password.

On the projector, press

Note

You cannot use the buttons on the

• remote control to delete the password.

Menu operation n Page 42

Note

•

Once the password is set, you must enter the password to change the “Network” menu settings.

DHCP Client Setting

Connect the LAN cable before turning the projector on. If not, the DHCP Client function does not work.

Selectable items Description

On Obtains conﬁ guration

Off Sets the TCP/IP manually.

Select “On” for “DHCP Client”. “Obtaining IP Address...” appears, then the menu screen appears. Conﬁ rm the parameters of IP Address, Subnet Mask and Gateway on the TCP/IP screen. If the DHCP server is not available, “Could not obtain IP Address.” appears. In this case, set the TCP/IP manually. (See the item 3.)

TCP/IP Setting

Set the TCP/IP manually.

Select “Off” for “DHCP Client”,

then press ENTER.

Select “TCP/IP”, then press

ENTER.

Enter “IP Address” using P, R, Q

and O, then press ENTER.

Setting the TCP/IP

IP Address

Subnet Mask Gateway

parameters for TCP/IP network automatically.

Network

92 .

68 .

50 .

55 .2

000 .

55 .2

000 .

55 .2

000 .

000

Menu operation n Page

Selectable items Description

IP Address Factory default setting:

Subnet Mask Factory default setting:

Gateway Factory default setting: 000. 000.

Note

•

Conﬁ rm the existing network’s segment (IP address group) to avoid setting an IP address that duplicates the IP addresses of other network equipment or computers. If “192.168.150.002” is not used in a network with an IP address of “192.168.150.XXX”, you don’t have to change the projector IP address.

•

For details about each setting, consult your network administrator.

Returning to Default

192.168.150. 002 Enter an IP address appropriate for the network.

255.255.255.00 0 Set the subnet mask to the same as that of the computer and equipment on the network.

000. 000 * When not in use, set to “000.

000. 000. 000”.

Settings (Network)

This function allows you to initialize the Network settings you have made in the projector.

Note

•

If the values for IP Address, Subnet Mask or Gateway of the projector have been returned to the default settings, the computer cannot be connected to the projector depending on the computer’s network settings.

Features

Useful

Enter “Subnet Mask” using P, R,

Q and O, then press ENTER.

Enter “Gateway” using P, R, Q

and O, then press ENTER.

Restart Network Function

Restarts the network function. Perform this function when the projector cannot be controlled via the network.

Setting Up the Projector Network Environment (“Network” Menu) (Continued)

Conﬁ rming the

Projector Information

You can conﬁ rm the following items.

Menu operation n Page 42

Selectable

items

IP Address The IP address of the projector is

MAC Address The MAC address of the projector is

Projector The projector name is displayed.

Note

•

For information on how to change the projector name, see “SETUP MANUAL” contained in the supplied CD-ROM.

displayed.

Description

Enjoying 3D Image Viewing

CAUTION: Before viewing 3D images, please read this section carefully.

You can use special 3D Glasses to watch 3D-supported images on this projector.

■

You can enjoy 3D images by viewing the video images through the 3D Glasses supplied with the projector or through optional 3D glasses sold separately.

■

To produce 3D images, liquid crystal shutters in the 3D Glasses alternately open and close imperceptibly fast to exactly match alternating left and right video images displayed by the projector.

■

Not all consumers can experience and enjoy 3D images. Some people suffer from stereo blindness which prevents them from perceiving the intended depth of 3D entertainment. Also, some people who watch 3D programming may experience initial feelings of motion sickness as they adjust to the picture. Others may experience headaches, eye fatigue or continued motion sickness. Like a roller coaster, the experience is not for everyone.

Precautions on using the 3D Glasses

The 3D Glasses are precision equipment.

■

Handle them with care. Improper use of the 3D Glasses or failure

■

to follow these instructions can result in eye strain. If you experience dizziness, nausea, or

■

other discomfort while viewing 3D images, immediately discontinue use of the 3D Glasses. Using the binocular disparity 3D system of this projector with incompatible 3D broadcasts or software can make images appear with a cross talk blur or create overlapping images. If you are nearsighted or farsighted or have

■

astigmatism or a different level of eyesight between the left and right eyes, you should take the necessary steps, such as wearing eyeglasses, to correct your eyesight before viewing 3D images. The 3D Glasses can be worn over eyeglasses. The 3D Glasses are only recommended for

■

people ages 5 and older. When children are viewing 3D images, be

■

sure a parent or guardian is present. Monitor children viewing 3D images, and if

they show signs of discomfort, immediately discontinue use of the 3D Glasses.

■

People with a known history of photosensitivity and people with heart problems or poor health should not use the 3D Glasses. This can worsen existing health conditions.

■

Do not use the 3D Glasses for other purposes (such as general eyeglasses, sunglasses, or protective goggles).

■

Do not use the 3D function or 3D Glasses while walking or moving around. This may result in injuries due to running into objects, tripping, and/or falling.

■

When using the 3D Glasses, take care not to accidentally strike the screen or other people. Viewing 3D images may cause you to misjudge the distance to the screen and accidentally strike the screen, resulting in possible injury.

Precautions on installing the IR emitter

Make sure that the bolts and screws are

■

securely fastened. Otherwise, the unit may fall, resulting in injury or accident. Do not drop, disassemble, or modify the

■

product, as this may result in damage or malfunction. Do not install the IR emitter with it directly

■

facing the projector, as this may prevent the remote control of the projector from functioning properly. The IR emitter may interfere with other

■

infrared communication equipment. When installing the IR emitter to a wall or

■

ceiling, use screws that suit the material and strength of the wall or ceiling. Otherwise, it may damage the material of the wall or ceiling. When using a screw, provide a hole in the

■

sponge at the bottom of the stand in advance. Request your authorized dealer or

■

installation service provider to install the IR emitter securely while taking the necessary safety measures. SHARP will not be liable for any accident or

■

damage due to improper installation, insufﬁ cient mounting strength, misuse, or natural disasters.

Features

Useful

Enjoying 3D Image Viewing (Continued)

Precautions on viewing 3D images

■

When viewing 3D images continuously, be sure to take a break periodically to prevent eye strain.

■

Take regular breaks, at least 5 to 15 minutes after ever y 30 to 60 minutes of 3D viewing. * Based on the guidelines issued by the 3D

Consor tium revised December 10, 2008.

■

View 3D images at the appropriate distance from the screen. The recommended distance is three times the effective height of the picture. Examples of recommended distances 100-inch 16:9 picture: Approx. 12.3 ft (3.8 m) Viewing should not be done closer than the recommended distance. Refer to page 21 for details on the diagonal size and height of the picture. Maintain an appropriate distance from the

■

screen. Viewing from too close a distance can strain your eyes. If you experience eye strain, immediately discontinue viewing. If you experience any of the following symptoms during viewing: – nausea – queasiness/dizziness – headache – blurry vision or double vision that lasts

longer than few seconds Do not engage in any potentially hazardous activity (for example, driving a vehicle) until your symptoms have completely gone away. If symptoms persist, discontinue use and do not resume 3D viewing without discussing your symptoms with a physician. Be careful of your surroundings when

■

viewing 3D images. When you view 3D images, objects may appear at a distance closer or farther than the actual screen. This may cause you to misjudge the distance to the screen and possibly result in injury if you accidentally hit the screen or surrounding objects.

As you get more comfortable viewing 3D images:

Operate the “3D Depth Adjust” function to

■

adjust the 3D effect. (See page 70.) Adjust the projected image to the most

■

comfortable viewing size by zooming. (Projecting images on the smallest or largest screen size possible may eliminate the 3D effect and strain your eyes.) Use the Invert function to properly set the

■

video for your left and right eyes. (For details on using “Invert”, see page 70.) A picture simultaneously projected from

■

more than two projectors may not appear 3D.

Info

The projected image may become dark when

• using the 3D projection function (with “3D” set to “On”). When “3D” is set to “On”, the following functions

• may not work fully or may not be available at all. – GEOMETRIC ADJUSTMENT/H&V KEYSTONE/

SPHERE – V-Image Shift – CBNR If the power of your left and right eyes greatly

• differs and you primarily use one eye for viewing the images, the images will not appear in 3D. In addition, images may be difﬁ cult to view in 3D or images may not be able to be viewed in 3D depending on the individual or the content being displayed. The 3D effect varies with the individual.

WARNING

The following people should limit stereoscopic 3D viewing:

■

– Children under 6 years of age (to protect the eye growth process) – People with a history of photosensitivity – People with heart disease – People in poor health – People who are sleep deprived – People who are physically tired – People under the inﬂuence of drugs or alcohol

Epilepsy

■

A small percentage of the population may experience epileptic seizures when viewing certain types of images that contain ﬂ ashing patterns of light.

IF YOU OR ANY MEMBER OF YOUR FAMILY HAS A HISTORY OF EPILEPSY

The following people should consult a physician before viewing stereoscopic 3D images. – Anyone with a history of epilepsy, or who has a family member with a history of

epilepsy – Children under 6 years of age – Anyone who has ever experienced epileptic seizures or sensory disturbances triggered

by ﬂ ashing light effects

SOME LIGHT PATTERNS MAY INDUCE SEIZURES IN PERSONS WITH NO PRIOR HISTORY OF EPILEPSY

Discontinue use if you experience any of the following symptoms while viewing stereoscopic 3D images. – Involuntary movements, eye or muscle twitching – Muscle cramps – Nausea, dizziness, or queasiness – Convulsions – Disorientation, confusion, or loss of awareness of your surroundings

Features

Useful

Enjoying 3D Image Viewing (Continued)

Supplied Accessories for the 3D Glasses

Make sure the following accessories are provided with the 3D Glasses. Two sets of 3D Glasses are provided.

3D Glasses (×2)

Pages 65, 66, 68 and 69

Glasses case

(×2)

* Use the 3D Glasses band and nose pad as needed.

Note

Please contact your local authority for the correct method of disposal of this product and/or packaging.

•

3D Glasses band * (×2)

Page

Cleaning cloth

(×2)

Nose pad * (Large ×2, small ×2)

Page 66

Precision screwdriver

(Phillips ×2, slotted ×2)

Page 65

Part Names

1 Power button

• Press for at least 2 seconds to turn on and off the 3D Glasses.

• When the 3D Glasses are turned on, pressing this button switches between 2D and 3D modes. (See page

66.)

1 2

2 LED light

• Blinks 3 times when the power is turned on.

• Blinks 2 times when 2D mode is selected.

• Blinks 3 times when 3D mode is selected.

• Blinks 6 times when the battery power is low. Lights for 2 seconds when the power is turned off.

•

3 Service terminal

This terminal is for ser vice use only.

Please do not connect any other device to this terminal.

4 Infrared receiver

Receives an infrared signal sent from the IR

emitter. The 3D Glasses turn off automatically after 3 minutes if no signal is received.

5 Nose pad mount

The dedicated nose pad can be mounted here.

6 3D Glasses band mount

The dedicated 3D Glasses band can be

mounted here.

Note

Do not soil or apply stickers or other obstacles to the infrared receiver. Doing so may block signals from

• the IR emitter and prevent the 3D Glasses from working correctly. Interference from other infrared communications equipment may prevent you from viewing 3D images correctly.

•

Before Using the 3D Glasses

345

Before using the 3D Glasses for the ﬁ rst time, remove the insulating sheet attached to them.

Remove the button cell battery.

Place the tip of the slotted precision

screwdriver into the opening between the button cell and the socket.

Lift up the button cell while taking care

not to get the screwdriver caught on the metal latch.

Replacing the Button Cell Battery

The battery has an expected service life of approximately 75 hours.

When the battery power is low, the LED light

• blinks six times af ter the power is turned on. When replacing the button cell, use only the

• designated battery type (Maxell branded CR2032 lithium button battery).

Loosen the screw used to secure

the batter y cover, and then remove the battery cover.

When the battery comes loose

from the socket, pick it out with your ﬁ ngers.

Hook a new button cell to the metal

latch and insert it into the socket.

Take care not to reverse the battery polarity

• (+ and -) when inserting the button cell.

Close the battery cover.

Insert the screw to secure the

battery cover.

Features

Useful

Note

Used batteries should be disposed of in

• accordance with local laws and regulations.

Enjoying 3D Image Viewing (Continued)

Attaching the Nose Pad

Attach either of the supplied nose pads as needed (such as when the glasses do not ﬁ t properly). The glasses come with a large and small nose pad.

Attaching the

nose pad

Removing

the nose pad

Attaching the 3D Glasses Band

Attach the supplied 3D Glasses band strap as needed (such as when the glasses do not ﬁ t properly). Insert the ends of the 3D Glasses into the 3D Glasses band until they are secure.

Pull the cord stopper on the strap to adjust the

• strap length.

Using the 3D Glasses

Turning On/Off the Power

Turn on the power of the 3D Glasses.

•

Press the power button for at least 2 seconds.

•

The LED light blinks 3 times.

Turn off the power on the 3D Glasses.

•

Press the power button for at least 2 seconds.

•

The LED light lights for 2 seconds.

Note

When the battery power is low, the LED light

• blinks 6 times after the power is turned on.

Switching to 3D and 2D Mode

When viewing 3D images, you can press the power button to switch between 2D and 3D modes. This is useful when several people are viewing the same 3D images with some people wanting to watch in 3D and some people wanting to watch in 2D.

Viewing 2D images

•

When you press the power button twice while viewing 3D images, the LED light blinks 2 times and the 3D images switch to 2D images.

Viewing 3D images

•

When you press the power button twice while viewing 2D images, the LED light blinks 3 times and the 2D images switch to 3D images.

Connecting the IR Emitter to the Projector

Install the IR emitter unit to the

stand.

Insert the IR emitter cable to the

unit.

Connect the IR emitter and the

projector.

To 3D SYNCHRO terminal

Loosen

Fasten

IR emitter cable

Position the IR emitter.

3D images are intended to be viewed while

• facing the screen from the front. Position the IR emitter so that the 3D

• Glasses can easily receive the infrared signals while viewing the screen from the front. Do not install in a location where objects

• may obstruct the infrared signals between the IR emitter and 3D Glasses. Adjust the angle of the IR emitter to suit

• your viewing location.

Note

When you connect the IR emitter, make sure the power is turned off.

• The supplied IR emitter is exclusively designed for this projector. Do not connect it to other equipment.

•

Features

Useful

Enjoying 3D Image Viewing (Continued)

3D MENU button

Adjustment buttons (P/R/O/Q)

ENTER button

Note

•

The screen may temporarily become black when the projector is trying to detect a 3D image signal and when switching from 3D to 2D mode.

Viewing 3D Images

Receiving a 3D Image Signal That Can Be Detected Automatically

The image signal may contain a 3D identiﬁ cation signal. You can enable the projector to automatically detect the 3D image type by selecting “3D MENU” > “3D Auto Change”. (See page

When “3D Auto Change” is set to “Yes”

The 3D image type is detected

• automatically and the appropriate 3D image is displayed.

When “3D Auto Change” is set to “No”

The following message is displayed. Press

• 3D ON/OFF.

Press the 3D ON/OFF button on the remote control.

(Need to wear the 3D glasses to watch 3D picture)

3D picture is detected.

70.)

3D MENU button 3D ON/OFF button

Turn on the 3D Glasses and place

them over your eyes.

Press the power button for at least 2

• seconds. The LED light blinks 3 times.

•

You can now view 3D images.

Receiving a 3D Image Signal That

Cannot Be Detected Automatically

Press 3D MENU.

The 3D MENU screen is displayed.

•

Press P/R to select “3D”.

Press O/Q to select “On” or “Off”.

To view in 3D mode: Select “On”, and then

• go to step 4. Refer to “Setting the 3D Format Menu” on

• page

71 for supported 3D signals and

formats. If you select “Off”, the video source will be

• displayed with no conversion.

Press P/R to select “3D Format”,

and then press ENTER.

Press P/R to select a supported

format from the list, and then press ENTER.

Auto

Side By Side

Top And Bottom

Ending 3D Image Viewing

Press 3D ON/OFF during the 3D

mode.

Take off the 3D Glasses and turn

off the power.

Press the power button for at least 2

• seconds. The LED light lights for 2 seconds.

•

Note

If the input signal switches to 2D, 2D images

• are displayed automatically. 3D mode is canceled automatically in the

• following cases:

- When the signal is no longer received

- When the signal type changes

- When input selection is changed

- When the power is turned off

If you select the same system as that of

• the input signal, 3D images are displayed.

Turn on the 3D Glasses and place

them over your eyes.

Press the power button for at least 2

• seconds. The LED light blinks 3 times.

•

You can now view 3D images.

Features

Useful

Enjoying 3D Image Viewing (Continued)

3D Depth Adjust

3D Settings (“3D MENU”)

3D 3D Format 3D Depth Adjust 3D Auto Change Viewing Time Info Invert

3D MENU

On Auto 0

Yes

You can switch between 2D and 3D mode.

Selectable

items

On Projects 3D images.

Off

Projects 2D images instead of 3D images.

Note

When “3D Auto Change” is set to “Yes” and a

• 3D signal is detected, “3D” switches to “On”. When a 3D identiﬁ cation signal is not detected:

•

- If you selected “On”, select the format with

“3D Format”.

- If you select “Off”, the video source will be

displayed with no conversion.

Description

You can adjust the stereoscopic effect of 3D image.

? button _ button

For less stereoscopic effect.

For greater stereoscopic effect.

Note

•

Use this function to get more comfortable 3D images.

•

When you use this function, the 3D image will look different from its original 3D appearance. Keep this in mind while using this function.

•

The use of this function for commercial purposes/public displays in a café, hotel, etc., may be an infringement of copyright protected by law for copyright holders. Please use caution.

3D Auto Change

This setting can be used to switch to 3D mode automatically when a 3D identiﬁ cation signal is detected.

Selectable

items

Yes When a 3D signal is detected, 3D

mode is selected automatically.

No Auto change is not performed.

Description

3D Format

You can set the 3D format manually for when a 3D signal that cannot be detected automatically is received.

Selectable

items

Auto

Side By Side Select the same format type of the

Top And Bottom

When a 3D identiﬁ cation signal is detected, the format is selected automatically.

received 3D signal.

Description

Note

Refer to “Setting the 3D Format Menu” on

• page

71 for supported signals and 3D formats.

Viewing Time Info

This displays the elapsed time of 3D image viewing.

Selectable

items

Yes Displays the elapsed viewing time on

the screen every hour.

No Does not display the elapsed viewing

time.

Description

Invert

Pressing ENTER switches between the image for the left eye and the image for the right eye, so that you can make the settings for more natural viewing.

Setting the 3D Format Menu

Select the appropriate 3D format for viewing while referring to the table below.

When “3D” is ON

Input signal

Frame

Packing

with 3D identiﬁ cation signal

with 3D identiﬁ cation

Side By Side

Top And

Bottom

*1 “3D Format” is set to “Auto” automatically. *2 The frame rate is changed.

signal

without 3D idetiﬁ cation signal

with 3D identiﬁ cation signal

without 3D idetiﬁ cation signal

720P 50Hz 720P 60Hz 1080I 50Hz 1080I 60Hz 1080P 24Hz 1080P 50Hz 1080P 60Hz 720P 50Hz 720P 60Hz 1080I 50Hz 1080I 60Hz 1080P 24Hz 1080P 50Hz 1080P 60Hz 720P 50Hz 720P 60Hz 1080I 50Hz 1080I 60Hz 1080P 24Hz 1080P 50Hz 1080P 60Hz 720P 50Hz 720P 60Hz 1080I 50Hz 1080I 60Hz 1080P 24Hz 1080P 50Hz 1080P 60Hz 720P 50Hz 720P 60Hz 1080I 50Hz 1080I 60Hz 1080P 24Hz 1080P 50Hz 1080P 60Hz

Support

✔

When “3D”

is OFF

Displays image for left eye (2D mode)

Displays raw input signal

Displays image for left eye (2D mode)

Displays raw input signal

Auto Side By Side

Displays correct 3D image (3D mode)

Displays raw input signal

Displays correct 3D image (3D mode)

Displays raw input signal

3D Format

Displays correct 3D image

(3D mode)

Garbled display (Incorrect

setting)

Top And

Bottom

–*1 –*1

Garbled display (Incorrect setting)

–*1 –*1

Displays correct 3D image (3D mode)

Features

Useful

Enjoying 3D Image Viewing (Continued)

Note

These 3D Glasses can only be used with Sharp 3D-compatible LCD T Vs or projectors that use infrared

• control technology.

3D Glasses lenses

Do not apply pressure to the lenses of the 3D Glasses. Also, do not drop or bend the 3D Glasses.

• Do not scratch the surface of the lenses of the 3D Glasses with a pointed instrument or other object.

• Doing so may damage the 3D Glasses and reduce the quality of the 3D image. Use only the cloth provided with the 3D Glasses to clean the lenses.

•

3D Glasses infrared receiver

Do not allow the infrared receiver to become dirty, and do not attach stickers to or other wise cover the

• infrared receiver. Doing so may prevent the receiver from operating normally. If the 3D Glasses are affected by other infrared data communication equipment, the 3D images may not

• be displayed correctly.

Caution during viewing

Do not use devices that emit strong electromagnetic waves (such as cellular phones or wireless

• transceivers) near the 3D Glasses. Doing so may cause the 3D Glasses to malfunction. The 3D Glasses cannot operate fully at extreme high or low temperatures. Please use them within the

• speciﬁ ed usage temperature range. If the 3D Glasses are used in a room with ﬂ uorescent lighting (60 Hz), the light within the room may

• appear to ﬂ icker. In this case, either darken or turn off the ﬂ uorescent lights when using the 3D Glasses. Wear the 3D Glasses correctly. 3D images will not be correctly visible if the 3D Glasses are worn upside

• down or back-to-front. Other displays (such as computer screens, digital clocks, and calculators) may appear dark and difﬁ cult

• to view while wearing the 3D Glasses. Do not wear the 3D Glasses when watching anything other than 3D images. If you lie on your side while watching the screen with 3D Glasses, the picture may look dark or may not

• be visible. Be sure to stay within the viewing angle and optimum viewing distance when watching 3D images.

• Otherwise, you may not be able to enjoy the full 3D effect. The 3D Glasses may not work properly if there is any other 3D product or electronic devices turned on

• near the glasses or projector. If this occurs, turn off the other 3D product or electronic devices or keep the devices as far away as possible from the 3D Glasses. Stop using this product in any of the following situations:

• –When images consistently appear doubled while you are wearing the 3D Glasses – When you have difﬁ culty perceiving the 3D effect If the 3D Glasses are faulty or damaged, stop using them immediately. Continued use of the 3D

• Glasses may cause eye fatigue, headaches and illness. If you have any abnormal skin reaction, stop using the 3D Glasses. In very rare instances, such

• reactions may be due to an allergic reaction to the coating or materials used. If your nose or temples become red or you experience any pain or itchiness, stop using the 3D Glasses.

• Pressure caused by long periods of use may lead to such reactions and may result in skin irritation.

Speciﬁ cations – 3D Glasses

Model

Lens type Liquid crystal shutter

Power supply 3 V DC Battery Lithium button battery (CR2032 × 1) Battery life Approx. 75 hours of continuous use Dimension

(W x H x D) Weight 0.2 lbs./65.0 g (including the lithium button battery)

Operating temperature

Bottom

AN-3DG10

/16 × 1 7/8 × 6 45/64 inch

6 (172.7 × 47.5 × 170.0 mm)

50°F to 104°F (10°C to 40°C) (The 3D Glasses cannot operate fully at extreme high or low temperatures. Please use them within the speciﬁ ed usage temperature range.)

The product serial number is displayed on the 3D Glasses as indicated in the illustration on the left. The ﬁ rst four digits represent the product color and the date of manufacture.

Exam ple: S ilver colored glasses manufactured on August 11, 2010

S/N : S 0 8 B

Manufacture number

Color

S: Silver R: Red A: Blue

Year of manufacture

0: 2010 1: 2011 2: 2012

Month of manufacture

1: 1 2: 2 3: 3

Day of manufacture

1: 1

A : 10

2: 2

B : 11

3: 3

H : 17

8 : 8

J : 18

9 : 9 A : 10 B : 11

N : 22 P : 23

C: 12

W: 30 X : 31

*“I”, “O”, “Y”, and “Z” are not used.

These symbols displayed on the product and the individual carton package of the product are symbols about the environment in Japan, China and the EU.

Features

Useful

For Japan only:

For China only:

For the EU only:

Enjoying 3D Image Viewing (Continued)

Speciﬁ cations – IR Emitter

Dimension [W × H × D]

Weight (approx.) 0.4 lbs. (170 g)

53/32 × 2 21/64 × 5 23/32 inch (129 × 59 × 137 mm)

Dimensions

(25)

(59)

319/32 (91)

53/32 (129) 5 3/32 (129)

Effective Distance

The 3D Glasses can receive infrared signals sent from the IR emitter within the range indicated in the diagram.

Operating range (Distance from the IR emitter):

Approx. 32.8 ft (10.0 m)

10 m

Be sure to stay within the operating range when

• watching 3D images. Otherwise, the 3D Glasses may not work properly and you may not be able to enjoy the 3D images. The operating range in the table above is when the

• IR emitter is placed in front of the 3D Glasses. The operating range may vary depending on the position of the IR emitter and your viewing position. (The operating range decreases when you view the screen at an angle.)

10 m

90°

/64 (112)

20º (±10º)

30º (±15º)

15°

Maintenance

Cleaning the projector

Ensure that you have unplugged the power

■

cord before cleaning the projector. The cabinet as well as the operation panel is

■

made of plastic. Avoid using benzene or thinner, as these can damage the ﬁ nish on the cabinet. Do not use volatile agents such as

■

insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or ﬁ nish of the projector. Wipe off dirt gently with a soft ﬂ annel cloth.

■

Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the cabinet or cause cracking. Wiping with a hard cloth or using strong

■

force may scratch the cabinet surface. When the dirt is hard to remove, soak a cloth

■

in a mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Mild detergent

Cleaning the lens or lens cover

■

Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens or lens cover. Do not use any liquid type cleaning agents, as they may wear off the coating ﬁ lm on the surface of the lens or lens cover.

■

As the surface of the lens or lens cover can easily get damaged, be careful not to scrape or hit the lens or lens cover.

Cleaning the exhaust and intake vents

Use a vacuum cleaner to clean dust from the

■

exhaust vent and the intake vent.

Mild detergent diluted

with water

Thinner

Wax

Info

•

If you want to clean the air vents during projector operation, ensure you press

STANDBY/ON on the projector or STANDBY on the remote control and put the

projector into Standby mode. Af ter the cooling fan has stopped, clean the vents.

Appendix

Maintenance Indicators

The warning lights (power indicator, lamp indicator and temperature warning indicator) on the

■

projector indicate problems inside the projector. If a problem occurs, either the temperature warning indicator or the lamp indicator will

■

illuminate red, and the projector will enter Standby mode. After the projector has entered Standby mode, follow the procedures given below.

Top V i e w

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, the temperature warning indicator will blink. And if the temperature keeps on rising, “ ” will illuminate in the lower left corner of the picture with the temperature warning indicator blinking. If this state continues, the lamp will turn off, the cooling fan will run and then the projector will enter Standby mode. When you ﬁ nd the temperature warning indicator blinking, be sure to perform the measures described on page 77.

About the lamp indicator

Temperature warning indicator

Lamp indicator

Power indicator

When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp.” will

■

be displayed on the screen. When the percentage becomes 0%, it will change to (red), the lamp will automatically turn off and then the projector will automatically enter Standby mode. At this time, the lamp indicator will illuminate in red.

If you tr y to turn on the projector a fourth time without replacing the lamp, the

■

projector will not turn on.

Indicators on the Projector

Power indicator Red on Normal (Standby)

Green on Normal (Power on) Red blinks Abnormal (See page Green blinks Normal (Cooling)

Lamp indicator Green on Normal

Green blinks The lamp is warming up.

Temp eratu re warning indicator

Red on The lamp is shut down abnormally or requires to be

Off Normal Red on/Red blinks The internal temperature is abnormally high. (See page

changed. (See page 77.)

77.)

Maintenance indicator

Temperature

warning

indicator

Lamp

indicator

Power

indicator

Green on

when the

Green on/

(Cooling)

Normal Abnormal

Off Red blinks

(Green

blinks

lamp is

warming

up.)

Red on

Green blinks

(On)/

Red on

(Standby)

Red on The lamp does

Red on

(Standby)

Red blinks The power

Problem Cause Possible Solution

The internal temperature is abnormally high.

not illuminate.

Time to change the lamp.

The lamp does not illuminate.

indicator blinks in red when the projector is on.

•

Temperatures around the projector are high. Blocked air intake

•

Cooling fan

• breakdown Internal circuit failure

• Clogged air intake

•

The lamp is shut

• Disconnect the power cord down abnormally.

Remaining lamp life

• Carefully replace the lamp. becomes 5% or less.

Burnt-out lamp

• Lamp circuit failure

•

The lamp unit cover

• If the power indicator blinks is open.

•

Use the projector in an area with a temperature of lower than 95°F (+35ºC). Relocate the projector to

• an area with proper ventilation. (See page

•

Take the projector to your nearest Sharp Authorized Projector Dealer or Service Center (see page repair.

• from the AC outlet, and then connect it again.

• (See page Take the projector to your

• nearest Sharp Authorized Projector Dealer or Service Center (see page repair. Please exercise care when

• replacing the lamp. Securely install the cover.

•

• in red even when the lamp unit cover are securely installed, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page advice.

78.)

8.)

86) for

Info

•

If the temperature warning indicator illuminates, and the projector enters Standby mode, follow the possible solutions above and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

•

If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

•

The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

Appendix

Regarding the Lamp

Lamp

It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes

■

5% or less, or when you notice a signiﬁ cant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. (See page

■

Purchase a replacement lamp of type AN-K30LP from your place of purchase, nearest Sharp Authorized Projector Dealer or Ser vice Center.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information www.lamprecycle.org or 1-800-BE-SHARP

Caution Concerning the Lamp

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure

■

can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is impor tant to note that failure can often result in the bulb cracking. When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended

■

that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally. Should the lamp break, there is also a possibility that glass particles may spread inside of the projector.

■

In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation. Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the

■

lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

57.)

U.S.A ONLY

Replacing the Lamp

Caution

Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause

• burns or injury. Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully

• cool before removing the lamp unit.

Carefully change the lamp by following the instructions described in this section.

■

* If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector

Dealer or Service Center.

* If the new lamp does not light af ter replacement, take your projector to the nearest Sharp Authorized Projector

Dealer or Service Center for repair.

Removing and Installing the

Lamp Unit

Warning!

•

Do not remove the lamp unit from the projector right af ter use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

Info

•

Do not touch the glass surface of the lamp unit or the inside of the projector.

•

To avoid injury to yourself and damage to the lamp, make sure you carefully follow the steps below. Do not loosen other screws except for the

• lamp unit cover and lamp unit.

Press STANDBY/ON on the

projector or STANDBY on the remote control to put the projector into Standby mode.

Disconnect the power cord.

•

Unplug the power cord from the AC socket. Leave the lamp until it has fully cooled

• down (about 1 hour).

Optional

accessory

STANDBY/ON

STANDBY/ON button

button

AC socket

Lamp unit

Lamp unit AN-K30LP

AN-K30LP

Remove the lamp unit cover.

•

Loosen the user service screw (1) that secures the lamp unit cover. Remove the lamp unit cover (2).

User service screw

User service screw (for lamp unit cover)

(for lamp unit cover)

Appendix

Regarding the Lamp (Continued)

Remove the lamp unit.

•

Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

Handle

Insert the new lamp unit.

•

Press the lamp unit ﬁ rmly into the lamp unit compartment. Fasten the securing screw.

Replace the lamp unit cover.

•

Align the tab on the lamp unit cover (1) and close it (2). Be careful not to get the strap caught in the cover. Then tighten the user service screw (3) to secure the lamp unit cover.

Info

•

If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Handle

Securing screws

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

•

Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

Connect the power cord.

•

Plug the power cord into the AC socket of the projector.

Reset the lamp timer.

•

While simultaneously holding down MENU, ENTER and press STANDBY/ON on the projector and keep all four buttons pressed down until the lamp indicator starts blinking green. “LAMP 0000H” is displayed, indicating

• that the lamp timer is reset.

R on the projector,

AC socketAC socket

STANDBY/ON button

ENTER button

R button

MENU button

Compatibility Chart

Computer

x Multiple signal support Horizontal Frequency: 15–110 kHz, Vertical Frequency: 43–85 Hz, Pixel Clock: 12–170 MHz x Compatible with sync on green and composite sync signals (TTL level)

PC/MAC Mode Resolution

640 × 400

VGA

SVGA 800 × 6 00

MAC 13" VGA 640 × 480 34.9 67 MAC 16" SVGA 832 × 6 24 49.7 75 MAC 19" XGA 1024 × 768 60.2 75 MAC 21" SXGA 1152 × 870 68.7 75

XGA 1024 × 768

WXGA

WXGA+ 1440 × 900 55.9 60

SXGA

SXGA+ 1400 × 1050

WSXGA+

720 × 400

640 × 480

1280 × 720 4 5.0 60 1280 × 768 47.8 60

1280 × 800 49.7 60

1360 × 768 47.7 60 1366 × 768 47.8 60

1152 × 864

1280 × 960 60.0 60

1280 × 1024 64.0 60

1600 × 900 55.9 6 0

1680 × 1050 65.3 60

1920 × 1080

Freque ncy [kHz]

Horizontal

27.0 60

31.5 70

37.9 85

27.0 60

31.5 70

37.9 85

26.2 50

31.5 60

34.7 70

37.9 72

37.5 75

43.3 85

31.3 50

35.2 56

37.9 60

46.6 70

48.1 72

46.9 75

53.7 85

40.3 50

48.4 60

56.5 70

60.0 75

68.7 85

55.0 60

66.2 70

67.5 75

64.0 60

65.3 60

66.8 60

67.5 60

*1 When a 1920 × 1080 analog signal is input, the image is compresse d before it is displayed on the screen. *2 Full image display when “Resolution” is set to “1920 × 1080”

Vert ical

Freque ncy[Hz]

Analog

Support

✔ ✔ ✔ ✔ ✔✔ ✔ ✔ ✔✔ ✔ ✔✔ ✔✔ ✔ ✔ ✔✔ ✔✔ ✔ ✔✔ ✔✔ ✔ ✔ ✔✔ ✔✔ ✔✔ ✔ ✔✔ ✔ ✔ ✔ ✔ ✔ ✔✔ ✔ ✔✔ ✔✔ ✔✔ ✔✔ ✔✔ ✔✔ ✔ ✔

✔✔

✔ ✔ ✔ ✔

Digital

Support

Display

Upscale

Down sampled

Intelligent

Compression

Upscale

Note

This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD)

• mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in “CRT only” mode. Details on how to change display modes can be found in your notebook computer’s operation manual. When “Screen resolution” of the computer is different from the resolution displayed on the projected

• image, follow the procedures shown below. – Refer to “Resolution” on the “SIG-ADJ” menu and select the same resolution as the resolution in

“Screen resolution” of the computer.

– Depending on the computer you are using, the output signal may not be faithful to the “Screen

resolution” adjustment. Check the settings of the computer's signal output. If the settings cannot be changed, it is recommended that the resolution be set to “1920 × 1080” or “1280 × 720”.

Appendix

Compatibility Chart (Continued)

DTV

480

Horizontal

Freque ncy (kHz)

15.7 6 0

Signal

480P 31.5 60 540P 33.8 60

576I

15.6 5 0 576P 31.3 50 720P 37.5 50 720P 4 5.0 6 0

Format Si gnal

Frame

Packing

Side By

Side

Top And

Bottom

720P 75.0 50 720P 90.0 60

1080P 54.0 24

720P 37.5 50 720P 45.0 60

1080I

1080I 1080P 56.3 50 1080P 67.5 60

720P 37.5 50

720P 45.0 60 1080P 27.0 24 1080P 56.3 50 1080P 67.5 60

Vert ical

Freque ncy (Hz)

Horizontal

Freque ncy (kHz)

28.1 50

33.8 60

Analog

Digital

Support

✔

✔✔

✔

✔✔

Vert ical

Freque ncy (Hz)

Signal

1080I

1080I 1080P 1080P 1080P 1080P 1080P

Analog

Support

Horizontal

Freque ncy (kHz)

28.1 50

33.8 60

27.0 24

28.1 25

33.8 30

56.3 50

67.5 60

Digital

Support

✔

Vert ical

Freque ncy (Hz)

Analog

Support

Digital

Support

✔✔

✔

Troubleshooting

Problem Check Page

x Projector power cord is not plugged into the wall outlet. 27

x Power to the external connected devices is off. –

x The selected input mode is wrong.

x Cables are incorrectly connected to the projector. 23-27

x Remote control battery has run out. 16

x External output has not been set when connecting notebook com-

No picture or projector

does not start

Color is faded or poor.

Picture is blurred;

noise appears.

An unusual sound is

occasionally heard

from the cabinet.

Maintenance

indicator on the

projector illuminates.

Picture is green when

receiving YPbPr

signals and the video

equipment is connected

to the Component

(YPB(CB)PR(CR))

or COMPUTER/

COMPONENT terminal

on the projector.

Picture is pink when re-

ceiving RGB signals and

the video equipment is

connected to the Com-

ponent (YPB(CB)PR(CR))

or COMPUTER/

COMPONENT terminal

on the projector.

puter.

x The lamp unit cover is not installed correctly.

x The selected “Signal Type” is wrong. 50

x “Bright” is set to minimum position. 45

x Image adjustments are incorrectly set.

(COMPONENT, COMPUTER/COMPONENT or HDMI1, 2 input)

x Input signal type is incorrectly set. 50

x Adjust the focus.

x The projection distance exceeds the focus range. 21

(Computer input)

x Perform “SIG-ADJ” Adjustments (“Clock” and “Phase” Adjustment) x Noise may appear depending on the computer.

x The “DNR” (Digital Noise Reduction) or “MNR” (Mosquito Noise Re-

duction) setting is not correct.

x There is fog on the lens. If the projector is carried from a cold room into

a warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Please set up the projector at least one hour before it is to be used. If condensation should form, remove the power cord from the wall outlet and wait for it to clear.

x If the picture is normal, the sound is due to cabinet shrinkage

caused by a room temperature changes. This will not affect operation or performance.

x See “Maintenance Indicators”.

x Change the input signal type setting. 50

–

79, 80

–

Appendix

Troubleshooting (Continued)

Problem Check Page

The black levels of the

image show banding

or appear faded when

HDMI1 or 2 is selected.

Picture is too bright and

whitish.

The lens shift function

does not work.

The cooling fan becomes noisy.

The lamp does not light

up even after the

projector turns on.

The lamp suddenly turns

off during projection.

The image sometimes

ﬂ ickers.

The lamp needs much

time to turn on.

Picture is dark.

One Touch Play is not

enabled.

System Standby is not

enabled.

The remote control

cannot be used.

x Make adjustments that result in the best picture quality in the “Dy-

namic Range” setting.

x Image adjustments are incorrectly set. 45

x The lens cover is not attached correctly. 13

x When temperature inside the projector increases, the cooling fan

runs faster.

x The lamp indicator is illuminating in red. Replace the lamp.

x Cables are incorrectly connected to the projector or the connected

equipment works improperly.

x If this happens frequently, replace the lamp.

x The lamp will eventually need to be changed.

While the remaining lamp life draws to a close, replace the lamp.

x Non-Sharp Video Products are connected. One Touch Play function may not work when the projector is con-

nected to non-Sharp Video Products.

x An HDMI cable is not used for connection between the projector

and the Sharp Video Products.

One Touch Play function is enabled when the projector is con-

nected to the Sharp Video Products with an HDMI cable.

x One Touch Play function of the projector is not set to “On”. 55

x CEC settings of connected Sharp Video Products or other CEC

devices are incorrect.

x One Touch Play is set to “Off” and disabled when the Economy

mode is set to “On”.

x Non-Sharp Video Products are connected. System Standby function may not work when the projector is con-

nected to non-Sharp Video Products.

x An HDMI cable is not used for connection between the projector

and the Sharp Video Products.

System Standby function is enabled when the projector is con-

nected to the Sharp Video Products with an HDMI cable.

x System Standby function of the projector is not set to “On”. 55

x CEC settings of connected Sharp Video Products or other CEC

devices are incorrect.

x Operate the remote control while pointing it at the projector’s re-

mote control sensor.

x The remote control may be too far away from the projector. x If direct sunlight or a strong ﬂ uorescent light is shining on the

projector’s remote control sensor, place the projector where it will not be affected by strong light.

x The batteries may be depleted or inserted incorrectly. Make sure

the batteries are inserted correctly or insert new ones.

–

28, 76, 79

23-27

–

54, 55

–

17 17

Problem Check Page

3D images are not

displayed.

3D Images ﬂicker when

watching in a room.

Ghosting (a double image) occurs without the image appearing in 3D.

The projected image is dark.

The 3D Glasses turn off

automatically.

Pressing the power but-

ton on the 3D Glasses

does not cause the LED

light to light.

This unit is equipped wi th a microprocessor. Its per formance could be adversely af fected by incorrect ope ration or interference. If this should happen, unplug the unit and plug it in again after more than 5 minutes.

x Switch to 3D mode.

x Is “3D Auto Change” set to “No”? Press 3D ON/OFF to switch to

3D mode.

x If “3D Auto Change” is set to “Yes” but no 3D images are dis-

played, check the display format of the content being viewed. Some 3D image signals may not be recognized as 3D images automatically. Press 3D MENU to select the appropriate display format for the 3D image.

x The IR emitter is not correctly connected to the projector. 67

x Make sure that the IR emitter is located within the proper operating

range.

x The 3D Glasses are not turned on. 66

x The 3D Glasses are set to 2D mode. 66

x The 3D Glasses operate by receiving the infrared signal from the IR

emitter. Do not place anything between the IR emitter and the infrared receiver on the 3D Glasses.

x Images may appear to ﬂicker when ﬂuorescent light or ambient

light enters your vision.

-Turn off the lights.

-Block any ambient light.

x Use “Invert” to change the setting.

x A signal that does not support 3D is being received. Check whether

a signal that supports 3D is being received.

If the projector is connected to a computer for 3D image playback, check that a stereoscopically-enabled application is being used.

- Use the applicable software

- Conﬁgure your 3D application at the correct 3D format, resolution and refresh rate. To support 3D, your 3D application must be conﬁgured to run at the correct settings for this projector.

x If there is strong ambient light, block the light. High intensity light-

ing can interfere with communication between the 3D Glasses and the screen, resulting in some ﬂicker.

x A picture simultaneously projected from more than two projectors

may not appear 3D. Use only one projector at a time.

x When a 3D image is projected, the screen may appear darker than

normal.

x Is there an obstacle between the 3D Glasses and the IR emitter,

or is something covering the infrared receiver on the 3D Glasses? The 3D Glasses turn off automatically after 3 minutes if no signal is received. Do not place anything between the IR emitter and the infrared receiver on the 3D Glasses.

x The battery in the 3D Glasses is exhausted. If the LED light does

not light after pressing the power button for more than one second, the battery is exhausted. Replace the battery.

68-70

70, 71

–

Appendix

For SHARP Assistance

If you encounter any problems during setup or operation of this projector, ﬁ rst refer to the “Troubleshooting” section on pages manual does not answer your question, please contact the SHARP Service departments listed below.

83 to 85. If this operation

U.S.A. Sharp Electronics Corporation

1-888-GO-SHARP (1-888-467-4277)

http://www.sharpusa.com

Canada Sharp Electronics of Canada Ltd.

http://www.sharp.ca

Mexico Sharp Electronics Corporation

(525) 716-9000 http://www.sharp.com.mx

Latin America Sharp Electronics Corp. Latin

(305) 264-2277 www.servicio@sharpsec.com http://www.sharpla.com

Germany Sharp Electronics (Europe) GMBH

01805-234675 http://www.sharp.de

U.K. Sharp Electronics (U.K.) Ltd.

08705 274277

Italy Sharp Electronics (Italy) S.P.A.

(39) 02-89595-1 http://www.sharp.it

France Sharp Electronics France

01 49 90 35 40 hotlineced@sef.sharp-eu.com http://www.sharp.fr

Spain Sharp Electronica Espana, S.A.

93 5819700 sharplcd@sees.sharp-eu.com http://www.sharp.es

Switzerland Sharp Electronics (Schweiz) AG

0041 1 846 63 11 cattaneo@sez.sharp-eu.com http://www.sharp.ch

Sweden Sharp Electronics ( Nordic ) AB

(46) 8 6343600 vision.support@sen.sharp-eu.com http://www.sharp.se

Austria Sharp Electronics (Europe) GMBH

0043 1 727 19 123 pogats@sea.sharp-eu.com http://www.sharp.at

lcdsupport@sharpsec.com

(905) 568-7140

Mexico Branch

American Group

http://www.sharp.co.uk/customersupport

Branch Ofﬁ ce Austria

Benelux SHARP Electronics Benelux BV

0900-SHARPCE (0900-7427723)

9900-0159 Belgium http://www.sharp.nl http://www.sharp.be http://www.sharp.lu

Australia Sharp Corporation of Australia Pty.

1300-135-022 http://www.sharp.net.au

New Zealand Sharp Corporation of New Zealand

Phone: (09) 573-0111 Fax: (09) 573-0112 http://www.sharp.net.nz

Singapore Sharp-Roxy Sales (S) Pte. Ltd.

65-226-6556 ckng@srs.global.sharp.co.jp http://www.sharp.com.sg

Hong Kong Sharp-Roxy (HK) Ltd.

(852) 2410-2623 dcmktg@srh.global.sharp.co.jp http://www.sharp.com.hk

Taiwan Sharp Corporation (Taiwan)

0800-025111 http://www.sharp-scot.com.tw

Malaysia Sharp-Roxy Sales & Service Co.

(60) 3-5125678

U.A.E. Sharp Middle East Fze

971-4-81-5311 helpdesk@smef.global.sharp.co.jp

Thailand Sharp Thebnakorn Co. Ltd.

02-236-0170 svc@stcl.global.sharp.co.jp http://www.sharp-th.com

Korea Sharp Electronics Incorporated of

lcd@sharp-korea.co.kr http://www.sharpkorea.co.kr

India Sharp Business Systems (India)

(91) 11- 6431313 service@sharp-oa.com

Nederland

Ltd.

Korea

(82) 2-3660-2002

Limited

Speciﬁ cations

Model XV-Z30000 Display devices 0.65" DLP Resolution 1080P (1920 × 1080) Lens F number F 2.5 – 3.7

Input terminals HDMI ×2

Output terminals

Control and communication terminals

Projection lamp 250 W Rated voltage AC 100 – 240 V Rated frequency 50/60 Hz Input current 3.5 A Power consumption

(Eco + Quiet)

Power consumption (Economy Mode)

Operation temperature 41ºF to 95ºF (+5ºC to +35ºC) Cabinet Plastic Dimensions (main body only) [W × H × D] 15

Weight (approx.) 16.1 lbs. (7.3 kg)

Zoom Power, ×2.0 (f = 21.2 – 42.0 mm) Focus Power

Computer/Component (mini D-sub 15 pin)

Component (3RCA) ×1 (Y, P TRIGGER ×1 (Power jack DC 12V output) 3D SYNCHRO ×1 LAN (RJ-45) ×1 RS-232C (mini DIN 9 pin) ×1

Off AC 100 V 348 W

AC 240 V 328 W

On AC 100 V 242 W

AC 240 V 232 W

Off AC 100 V 8.1 W

AC 240 V 8.8 W

On AC 100 V 0.3 W

AC 240 V 0.7 W

×1

(405 × 114.5 × 406.5 mm)

Chip ×1

), PR(CR))

B(CB

/64" × 4 33/64" × 16"

As a part of policy of continuous improvement, SHARP reserves the right to make design and speciﬁ cation changes for product improvement without prior notice. The performance speciﬁ cation ﬁ gures indicated are nominal values of production units. There may be some deviations from these values in individual units.

This SHARP projector uses a DLP® chip. This very sophisticated panel contains 2,073,600 pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

Appendix

Dimensions

Units: inches (mm)

1561/64 (405)

16 (406.5)

/16 (338)

/64

/2 (89)

/64 (160.5)

(60.5)

(74)

(38)

763/64 (202.5)

29/64

(54)

M4 M4

15/8

(41.25)

33/4 (95)

M4 M4

731/64 (190)

1163/64 (304)

ø68

261/64

(75)

/64

/64 (114.5)

(10)

/4 (95)

/16 (134.5)

/64 (190)4

/32 (110)

Index

16:9···················································································36 3D Auto Change ······························································· 70 3D Depth Adjust ·······························································70 3D Format ·········································································70 3D Glasses ·································································64-66 3D MENU ·········································································70 3D MENU button ························································69, 70 3D ON/OFF button ·····················································68, 69 3D SYNCHRO terminal·····················································67

Accessories ······································································12 AC socket ·········································································27 Adjustment buttons ························································· 42 Adjustment foot ································································30 Advanced ·········································································45 All Reset ···········································································57 Anamorphic ······································································51 ANAMORPHIC button ······················································15 Auto Power Off ·································································54 Auto Sync ········································································· 49 AUTO SYNC button··························································38

Background ······································································52 Batteries ···········································································16 Black Mask ·······································································52 Bright ················································································45 Bright Boost ·····································································48 BRIGHTNESS button ·······················································37

CBNR ···············································································52 CINEMA ZOOM ································································ 36 Clock ················································································49 CLR Temp (Color Temperature) ········································45 C.M.S. ··············································································46 Color ·················································································45 COLOR button ··································································37 Color Enhance ··································································48 COMPONENT button ·······················································35 Component (YP COMPUTER button ·························································· 35 COMPUTER/COMPONENT terminal ·························23, 25 Contrast ············································································45 CONTRAST button ···························································37 Custom Gamma ·······························································46

Detail Enhance ·································································48 DHCP Client ·····································································59 DNR ··················································································48 Dynamic Range ································································50

Economy Mode ································································54 ECO+QUIET button ··························································38 ENTER button ···································································42 Exhaust vent ·························································13, 14, 75

Fan Mode ·········································································56 Film Mode ·········································································48 FOCUS buttons ································································ 30

Gamma ·············································································45 GEOMETRIC ADJUSTMENT ············································32

H&V KEYSTONE ·······························································33 H&V SHIFT button ····························································29 HDMI1, 2 buttons ·····························································35 HDMI1, 2 terminals ·····················································23, 24 H-Pos ···············································································49

INPUT modes ···································································35 Input Name ·······································································55 Intake vent ··································································14, 75 Invert·················································································70 IP address ········································································60 IR emitter ·········································································· 67 IRIS1, 2 ·············································································45 IRIS1, 2 buttons ································································38

Kensington Security Standard connector ························14 KEYSTONE button ···························································31 Keystone Correction ·························································31

))terminals ······························23

B(CB)PR(CR

Lamp indicator ·································································76 Lamp Timer (Life) ······························································57 Language (on-screen display language) ··························53 LAN terminal ·····································································27 LED ···················································································56 LENS button ····································································· 13

MAC address ····································································60 MEMORY 1, 2 buttons ·····················································56 MEMORY button ······························································56 Memory Menu ··································································56 MENU button ····································································42 MENU HIDE button ··························································38 Menu Position···································································53 MNR ·················································································48

NATIVE ··············································································36 Network ············································································58 No Operation Off ······························································54

ON button ·········································································28 One Touch Play ································································55 Optional accessories ························································12 OSD Brightness ································································52 OSD Display ·····································································52 Overscan ··········································································52

Password ··········································································58 PDF···················································································11 Phase················································································49 Picture ··············································································44 Picture Mode ···································································· 44 PICTURE MODE button ···················································37 Power cord ································································· 12, 27 Power indicator ··························································28, 76 PRJ-ADJ ···········································································54 PRJ mode ···································································22, 53

Remote control ·································································15 Remote control sensors ···················································17 Replacing the lamp···························································78 Reset Network Setting ·····················································59 RESIZE button ··································································36 Restart Network ·······························································59 RETURN button ································································42 RS-232C terminal ·····························································26

SCR-ADJ ··········································································51 Screen Size and Projection Distance ·······························21 Sharp ················································································45 SIG-ADJ ···········································································49 Signal Info ·········································································50 Signal Type ·······································································50 SMART ZOOM ·································································36 SPHERE ···········································································34 STANDBY button ······························································28 STANDBY/ON button ·······················································28 System Standby ·······························································55

TCP/IP ··············································································59 Temperature warning indicator ·········································76 Tint····················································································45 TINT button ······································································37 Trigger ···············································································51 TRRIGER teminal ······························································14

Video Seup ·······································································50 Viewing Time Info ·····························································70 V-Image Shift ····································································51 V-Pos ················································································49

ZOOM 14:9 ·······································································36 ZOOM buttons ·································································30

Appendix

Sharp XV-Z30000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
