Sharp XP-A824u-w, XP-A104u-b, XP-A104u-w User guide

Projector

A104U-W/A104U-B
A824U-W/A824U-B

User’s Manual

Model No.
XP-A104U-W/XP-A104U-B/XP-A824U-W/XP-A824U-B

Table of Contents

Introduction ............................................................................................................................................... ii

Important Information ....................................................................................................................... iii

1. Check the product overview, supplied items and part names .................................... 1

1-1. Introduction to the Projector ............................................................................................................ 1

1-2. What’s in the Box? ................................................................................................................................. 4

1-3. Part Names of the Projector .............................................................................................................. 5

1-4. Part Names of the Remote Control .............................................................................................. 11

2. Projecting an Image (Basic Operation) ................................................................................. 18

2-1. Flow of Projecting an Image .......................................................................................................... 18

2-2. Connecting Your Computer/Connecting the Power Cord .................................................. 19

2-3. Turning on the Projector ................................................................................................................. 22

2-4. Selecting a Source ............................................................................................................................. 25

2-5. Adjusting the Picture Size and Position ..................................................................................... 27

2-6. Adjusting a picture and sound ...................................................................................................... 35

2-7. Turning off the Projector ................................................................................................................. 36

2-8. After Use ................................................................................................................................................ 37

3. Appendix .............................................................................................................................................. 38

3-1. Specifications ...................................................................................................................................... 38

3-2. Troubleshooting ................................................................................................................................. 41

3-3. Mounting a lens (sold separately) ................................................................................................ 47

i

Introduction

Thank you for purchasing the projector.
This projector can be connected to computers, video devices, etc. to project images sharply onto
a screen.
Please read this manual carefully before using your projector.
Read this manual if you have any doubts about operation or if you believe the projector may be faulty.

The Installation Manual provides detailed instructions on installation, adjustments, maintenance,
etc., is posted on our website.
[US] https://business.sharpusa.com/product-downloads
[EU] https://www.sharpnecdisplays.eu
[Global] https://www.sharp-nec-displays.com/dl/en/pj_manual/lineup.html

NOTES

(1) The contents of this manual may not be reprinted in part or whole without permission.

(2) The contents of this manual are subject to change without notice.

(3) Great care has been taken in the preparation of this manual; however, should you notice any

questionable points, errors or omissions, please contact us.

(4) The image shown in this manual is indicative only. If there is inconsistency between the image

and the actual product, the actual product shall govern.

(5) Notwithstanding article (3) and (4), we will not be responsible for any claims on loss of profit or

other matters deemed to result from using this device.

This manual is commonly provided to all regions so they may contain descriptions that are

(6)

pertinent for other countries.

ii

Important Information

Supplier’s Declaration of Conformity

SHARP PROJECTOR, XP-A104U-W/XP-A104U-B/XP-A824U-W/XP-A824U-B
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

Responsible Party: SHARP ELECTRONICS CORPORATION
100 Paragon Drive, Montvale, NJ 07645
TEL: 1-888-GO-SHARP / 1-888-467-4277 www.sharpusa.com

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not ex­pressly approved by the manufacturer could void the user’s authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.

U.S.A. ONLY

Cable information

Use shielded cables to prevent interference with radio or television reception.

Notice Concerning Electromagnetic Interference (EMI) (For other regions)

WARNING:

Operation of this equipment in a residential environment could cause radio interference.

iii

Important Information

(For Customers in U.K.)

IMPORTANT

• The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW: “Earth”
BLUE: “Neutral”
BROWN: “Live”

• As the colours of the wires in the mains lead of this apparatus may not correspond with the
coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the
plug which is marked by the letter E or by the safety earth symbol
green-and-yellow.

• The wire which is coloured BLUE must be connected to the terminal which is marked with the
letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with
the letter L or coloured red.

• Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified
electrician.

“WARNING: THIS APPARATUS MUST BE EARTHED.”

or coloured green or

iv

Important Information

Information on the Disposal of this Equipment and its Batteries

IF YOU WISH TO DISPOSE OF THIS EQUIPMENT OR ITS BATTERIES, DO NOT USE THE ORDINARY
WASTE BIN, AND DO NOT PUT THEM INTO A FIREPLACE!
Used electrical and electronic equipment and batteries should always be collected and treated
SEPARATELY in accordance with local law.
Separate collection promotes an environment-friendly treatment, recycling of materials, and
minimizing final disposal of waste. IMPROPER DISPOSAL can be harmful to human health and
the environment due to certain substances! Take USED EQUIPMENT to a local, usually municipal,
collection facility, where available.
Remove USED BATTERIES from equipment, and take them to a battery collection facility; usually
a place where new batteries are sold.
If in doubt about disposal, contact your local authorities or dealer and ask for the correct method
of disposal.
ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES; FOR INSTANCE
NORWAY AND SWITZERLAND: Your participation in separate collection is requested by law.
The symbol shown above appears on electrical and electronic equipment and batteries (or the
packaging) to remind users of this. If ‘Hg’ or ‘Pb’ appears below the symbol, this means that the
battery contains traces of mercury (Hg) or lead (Pb), respectively.
Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for used equip­ment and batteries.
Batteries are collected at points of sale. Return is free of charge.
If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer
who will inform you about take-back. You might be charged for the costs arising from take-back.
Small equipment (and small quantities) might be taken back by your local collection facility.
For Spain: Please contact the established collection system or your local authority for take-back
of your used products.

(for Germany only)

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.

Information of the AUDIO OUT mini jack

The AUDIO OUT mini jack does not support earphone/headphone terminal.

v

Important Information

About the symbols

To ensure safe and proper use of the product, this manual uses a number of symbols to prevent
injury to you and others as well as damage to property.
The symbols and their meanings are described below. Be sure to understand them thoroughly
before reading this manual.

WARNING

CAUTION

Failing to heed this symbol and handling the product erroneously
could result in accidents leading to death or major injury.

Failing to heed this symbol and handling the product erroneously
could result in personal injury or damage to surrounding property.

Examples of symbols

This symbol indicates you should be careful of electric shocks.

This symbol indicates you should be careful of high temperatures.

This symbol indicates something that must be prohibited.

This symbol indicates something that must not be got wet.

This symbol indicates you should not touch with wet hands.

This symbol indicates something that must not be disassembled.

This symbol indicates things you must do.

This symbol indicates that the power cord should be unplugged from the power outlet.

vi

Safety Cautions

Projected light

Projected light and the pictogram/label indicated on the cabinet

• Do not look into the projector’s lens.
Strong light that could damage your vision is projected when the projec-

PROHIBITED

• Do not look at the projected light using optical devices (magnifying glasses,

• Check that there is no one looking at the lens within the projection range

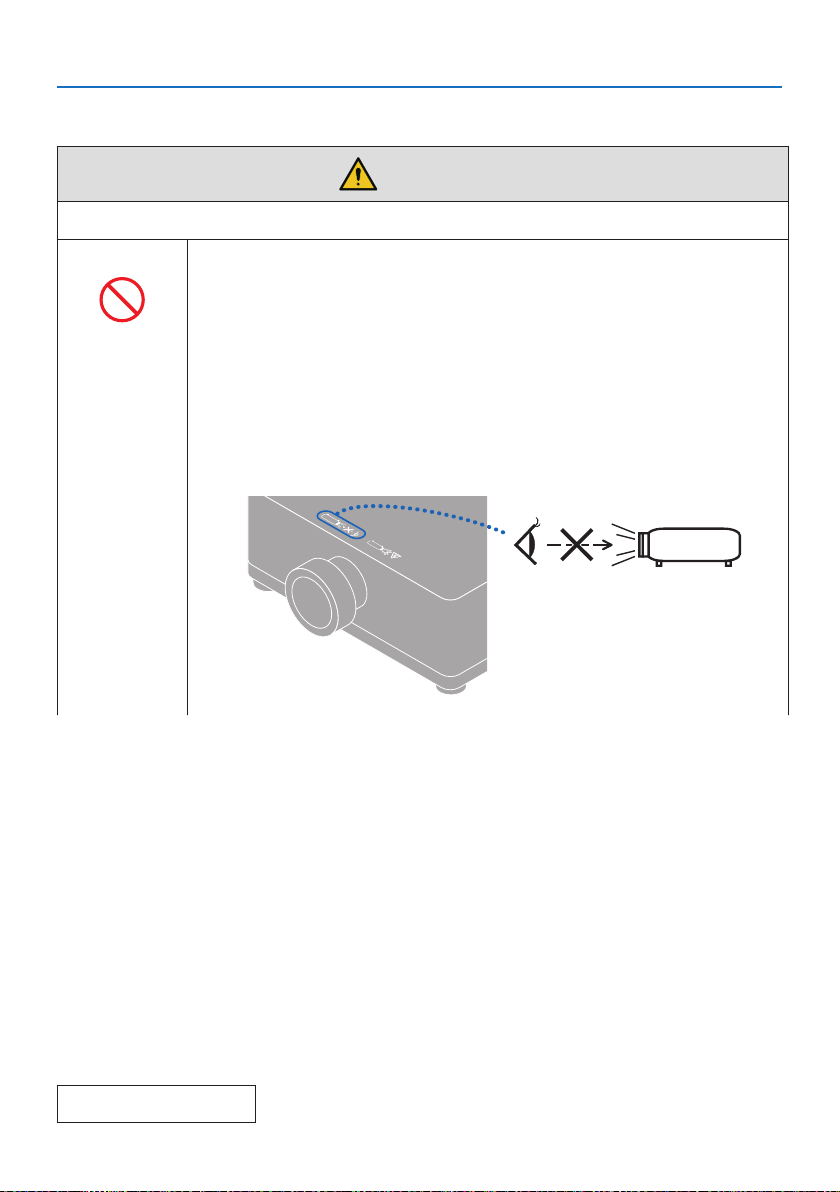

• The below pictogram, that is indicated near the lens on the cabinet, describes

Important Information

WARNING

tor is operating. Laser energy exposure near aperture may cause burns. Be
especially careful when children are around.

reflectors, etc.). Doing so could result in vision impairment.

before turning on the projector.

looking into the projector is prohibited.

Continue to next page

vii

WARNING

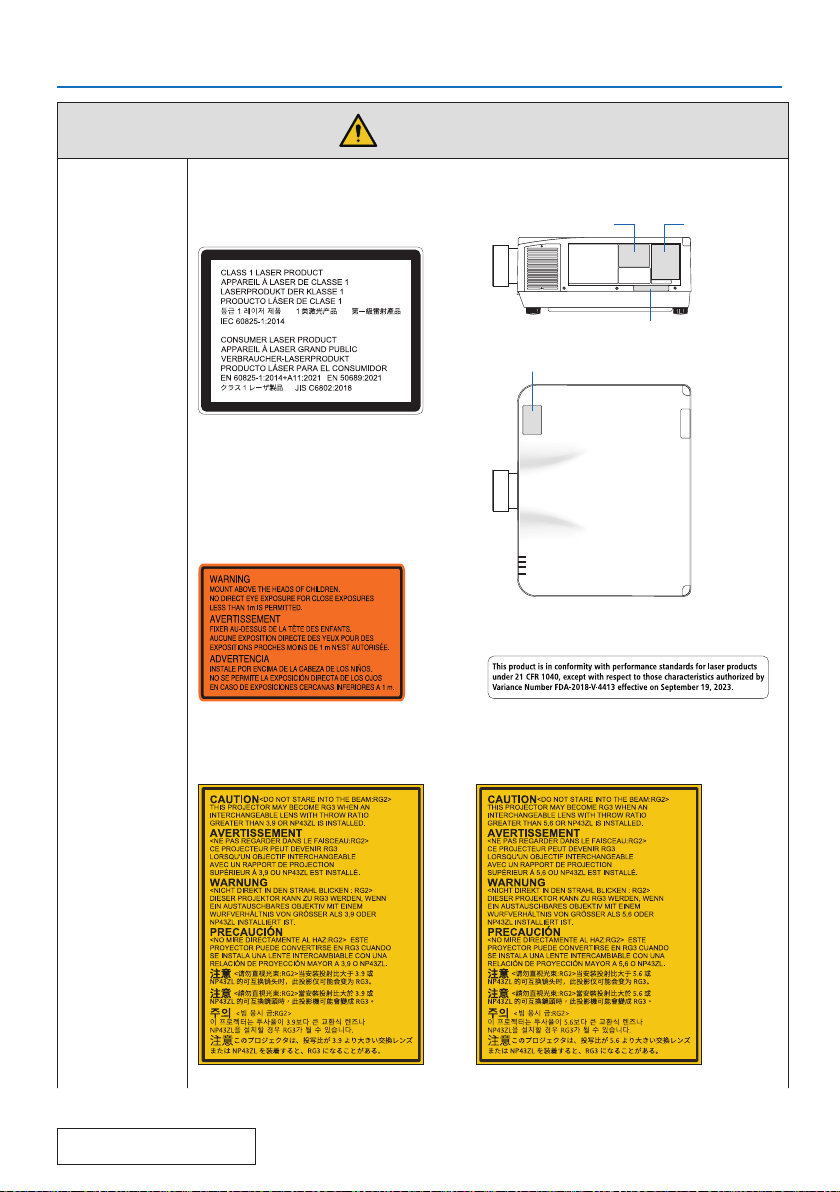

• The following labels are stuck on the projector.

Label 1
Laser explanatory label

Label 2

This product complies with
EN 50689:2021 except using the
lenses of XP-43ZL and NP43ZL.

Label 2
FDA additional warning label

Label 3
FDA certification label

Important Information

Label 1 Label 4

Label 3

Label 4
Lens replacement caution label

A104U-W/A104U-B

Continue to next page

A824U-W/A824U-B

viii

Power supply

REQUIRED

MUST BE

EARTHED

Important Information

WARNING

• This projector is classified as either IEC/EN 62471-5:2015 risk group 2 or risk
group 3 depending on the lens unit.

When classified as risk group 3, this projector is intended for professional use

and must be installed by professional installer to ensure safety.

See page xix for risk groups.

See page xviii for Laser Safety Caution.

•

Use a suitable voltage power supply.

• This projector is designed to be used with a 100–240 VAC, 50/60 Hz power
supply. Before using the projector, check that the power supply to which the
projector is to be connected meets these requirements.

• Use a power outlet as the projector’s power supply. Do not connect the
projector directly to electrical light wiring. Doing so is dangerous.

Connecting the power cord to earth

• This equipment is designed to be used in the condition of the power cord
connected to earth. If the power cord is not connected to the earth, it may
cause electric shock. Please make sure the power cord is connected to the
wall outlet directly and earthed properly.

Do not use a 2-pin plug converter adapter.

• Be sure to connect the projector and the computer (signal source) to the
same earth point. If the projector and the computer (signal source) will be
connected to different earth points, fluctuations in the earth potential may
cause fire or smoke.

Handling the power cord

• Please use the power cord supplied with this projector. If the supplied power
cord does not satisfy requirements of your country’s safety standard, and

REQUIRED

PROHIBITED

Continue to next page

voltage and current for your region, make sure to use the power cord that
conforms to and satisfies them.

• The power cord included with this projector is exclusively for use with this
projector. For safety, do not use it with other devices.

• The power cord you use must be approved by and
comply with the safety standards of your country.
Please refer to the page 39 about the power cord
specification.

For selecting an appropriate power cord, please check

rated voltage for your region by yourself.

ix

HAZARDOUS

VOLTAGE

DO NOT TOUCH

WITH WET

HANDS

Installation

PROHIBITED

DO NOT WET

UNPLUG THE

POWER CORD

Important Information

WARNING

• Handle the power cord with care. Damaging the cord could lead to fire or
electric shock.

- Do not place heavy objects on the cord.

- Do not place the cord under the projector.

- Do not cover the cord with a rug, etc.

- Do not scratch or modify the cord.

- Do not bend, twist or pull the cord with excessive force.

- Do not apply heat to the cord.

Should the cord be damaged (exposed core wires, broken wires, etc.), ask

your dealer to replace it.

• Do not touch the power plug should you hear thunder. Doing so could result
in electric shock.

Do not connect or disconnect the power cord with wet hands. Doing so could

•
result in electric shock.

Do not use in places such as those described below.

• Do not use in places such as those described below. Doing so could lead to
fire or electric shock.

- Shaky tables, inclined surfaces or other unstable places.

- Poorly ventilated spaces.

- Near a radiator, other heat sources, or in direct sunshine.

- Continual vibration areas.

- Humid, dusty, steamy, or oily areas.

- An environment where there are corrosive gases (sulfur dioxide, hydrogen

sulfide, nitrogen dioxide, chlorine, ammonia, ozone, etc.).

- Outdoors.

- High-temperature environment where humidity changes rapidly and

condensation is likely to occur.

• Do not use in places such as those described below where the projector could
get wet. Doing so could lead to fire or electric shock.

- Do not use in the rain or snow, on a seashore or waterfront, etc.

- Do not use in a bathroom or shower room.

Do not install under equipment that discharges water, such as air condition-

-

ers.

- Do not place vases or potted plants on the projector.

- Do not place cups, cosmetics or medicines on the projector.

Should water, etc. get inside the projector, first turn off the projector’s power,

then unplug the power cord from the power outlet and contact your dealer.

x

CAUTION

REQUIRED

PROHIBITED

On use

Important Information

WARNING

Installing suspended from the ceiling

• Consult your dealer for installing the projector on the ceiling. Special skills
are required for ceiling installation.

DO NOT perform installation work by people other than installers. Doing so

may result in the projector falling and causing injury.

• We are not liable for any accident or/and damage resulting from improper
installation or handling, misuse, modification, or natural disasters.

• When installed suspended from the ceiling, etc. do not hang from the projec­tor. The projector could drop and cause injury.

• When installing suspended from the ceiling, use a power outlet that is within
reach so the power cord can be easily plugged and unplugged.

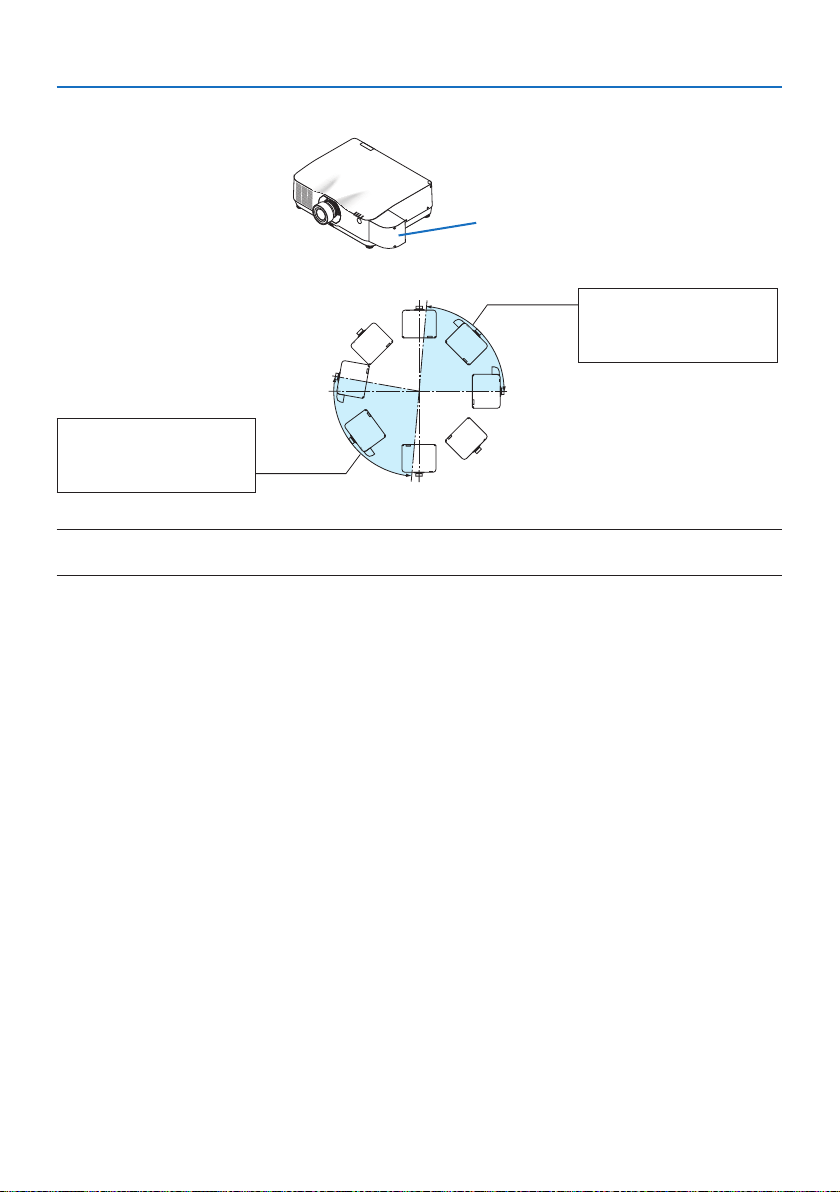

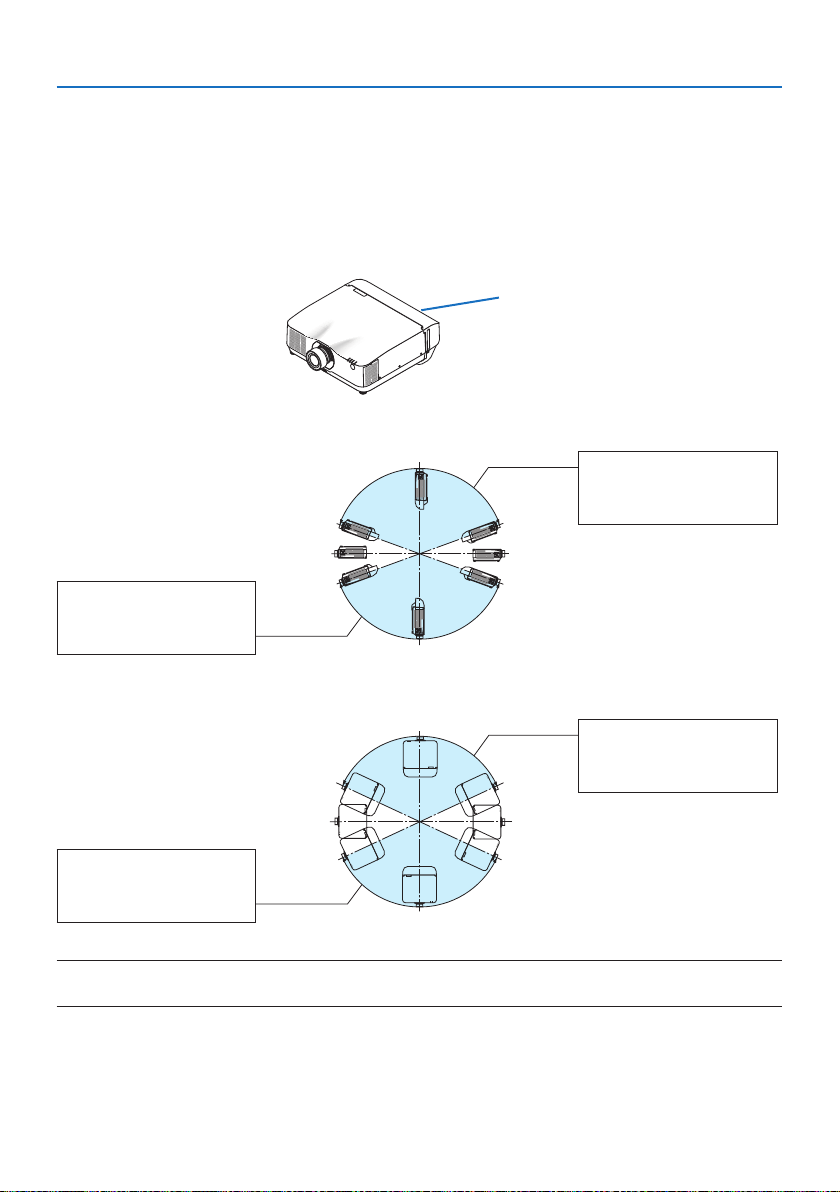

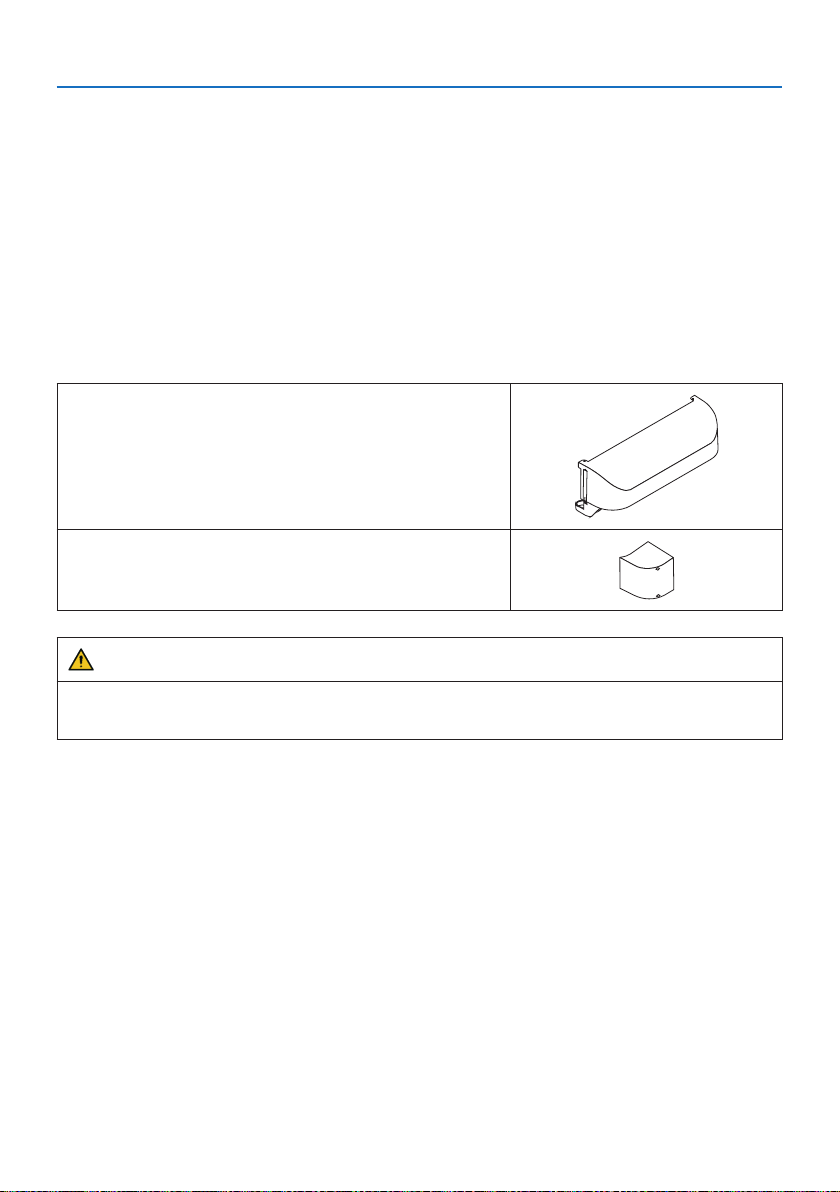

Attach the separately sold option cover for tilted installation

• For tilted installation of the projector, depending on the angle, be sure to at­tach the separately sold option cover for safety. (→ page xxvii) Using without
the option cover violates safety regulations. Also, powering the projector on
without the option cover installed could result in a fire.

• Do not put bundled cables in the option cover. Doing so may damage the
power cord, resulting in a fire.

PROHIBITED

UNPLUG THE

POWER CORD

UNPLUG THE

POWER CORD

Do not place objects inside the projector.

• Do not insert or drop metal or combustible objects or other foreign materials
into the projector from the vents. Doing so could lead to fire or electric shock.
Be particularly careful if there are children in the home. Should a foreign object
get inside the projector, first turn off the projector’s power, then unplug the
power cord from the power outlet and contact your dealer.

Unplug the power cord if the projector malfunctions.

• Should the projector emit smoke or strange odors or sounds, or if the projec­tor has been dropped or the cabinet broken, turn off the projector’s power,
then unplug the power cord from the power outlet. Otherwise it may cause
not only fire or electric shock but also serious damage to your eyesight or
burns. Contact your dealer for repairs.

Never try to repair the projector on your own. Doing so is dangerous.

xi

DO NOT

DISASSEMBLE

PROHIBITED

CAUTION
FOR HIGH

TEMPERATURE

PROHIBITED

Important Information

WARNING

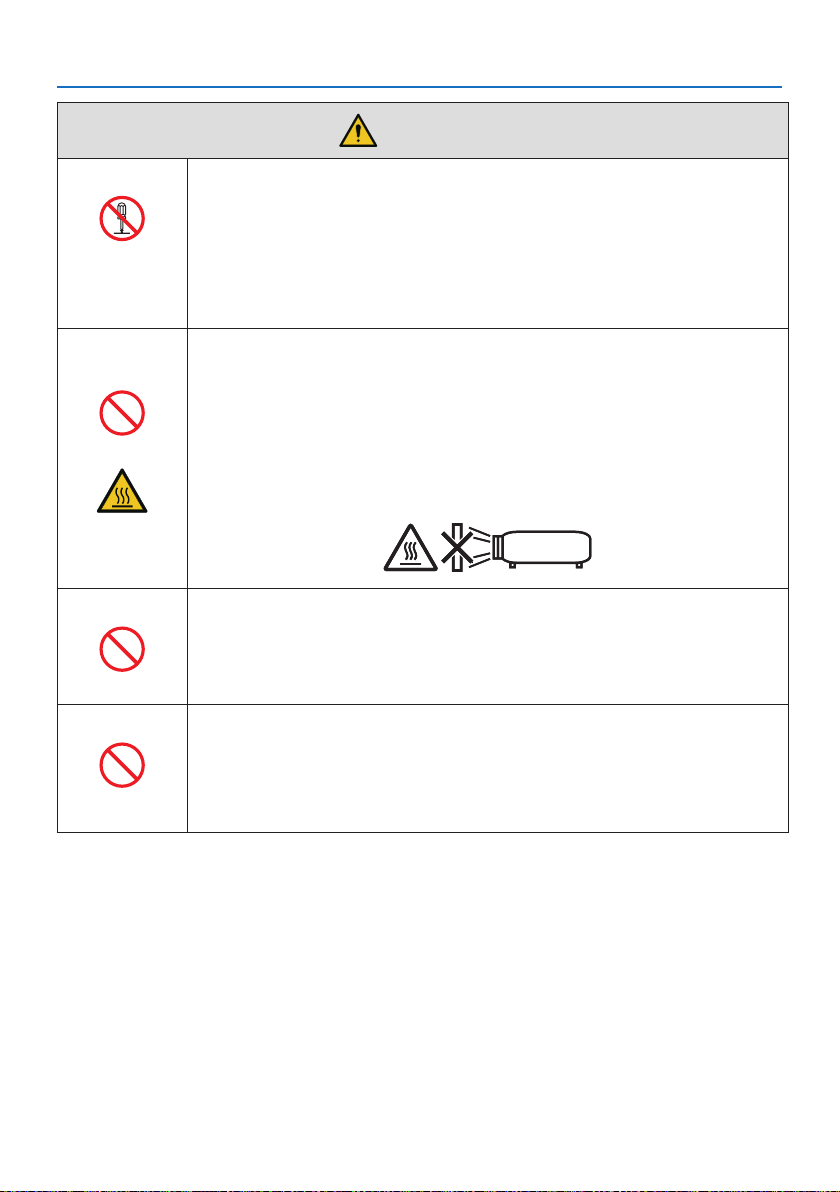

Do not disassemble the projector.

• Do not remove or open the projector’s cabinet.

Also, do not modify the projector. There are high voltage areas in the projec-

tor. It may cause fire, electric shock, or laser light leakage, resulting in serious
damage to your eyesight or burns.

Have qualified service personnel perform inspection, adjustments and repairs

of the interior.

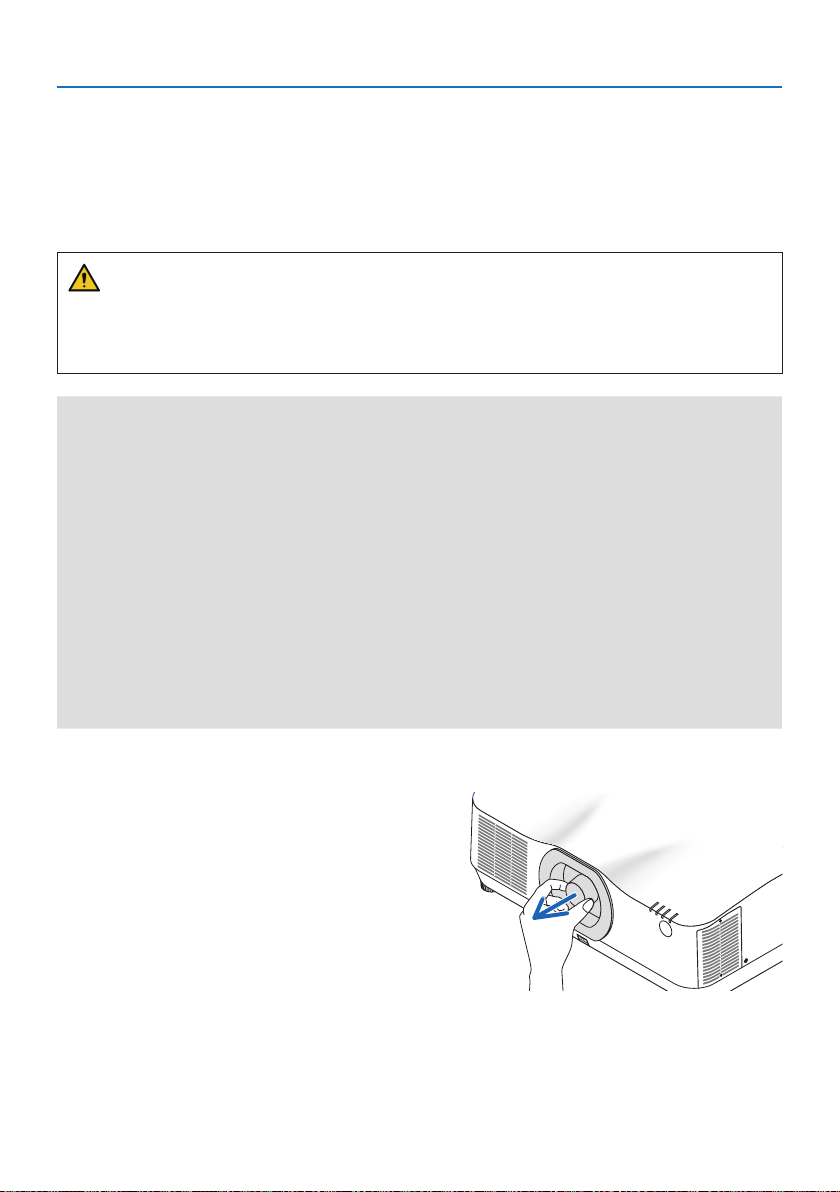

Do not place objects in front of the lens while the projector is
operating.

•

Do not leave the lens cap on the lens while the projector is operating. The
lens cap could get hot and be warped.

Do not place objects in front of the lens that obstruct the light while the

•
projector is operating. The object could get hot and be broken or catch fire.

• The below pictogram indicated on the cabinet means the precaution for
avoiding to place objects in front of the projector lens.

When cleaning the projector

• Do not use flammable gas sprays to remove dust from the lens, cabinet, etc.
Doing so could lead to fire.

PROHIBITED

Do not use in high security locations.

• Usage of the product must not be accompanied by fatal risks or dangers that,
could lead directly to death, personal injury, severe physical damage or other
loss, including nuclear reaction control in nuclear facility, medical life support
system, and missile launch control in a weapon system.

xii

Power cord

REQUIRED

REQUIRED

UNPLUG THE

POWER CORD

Important Information

CAUTION

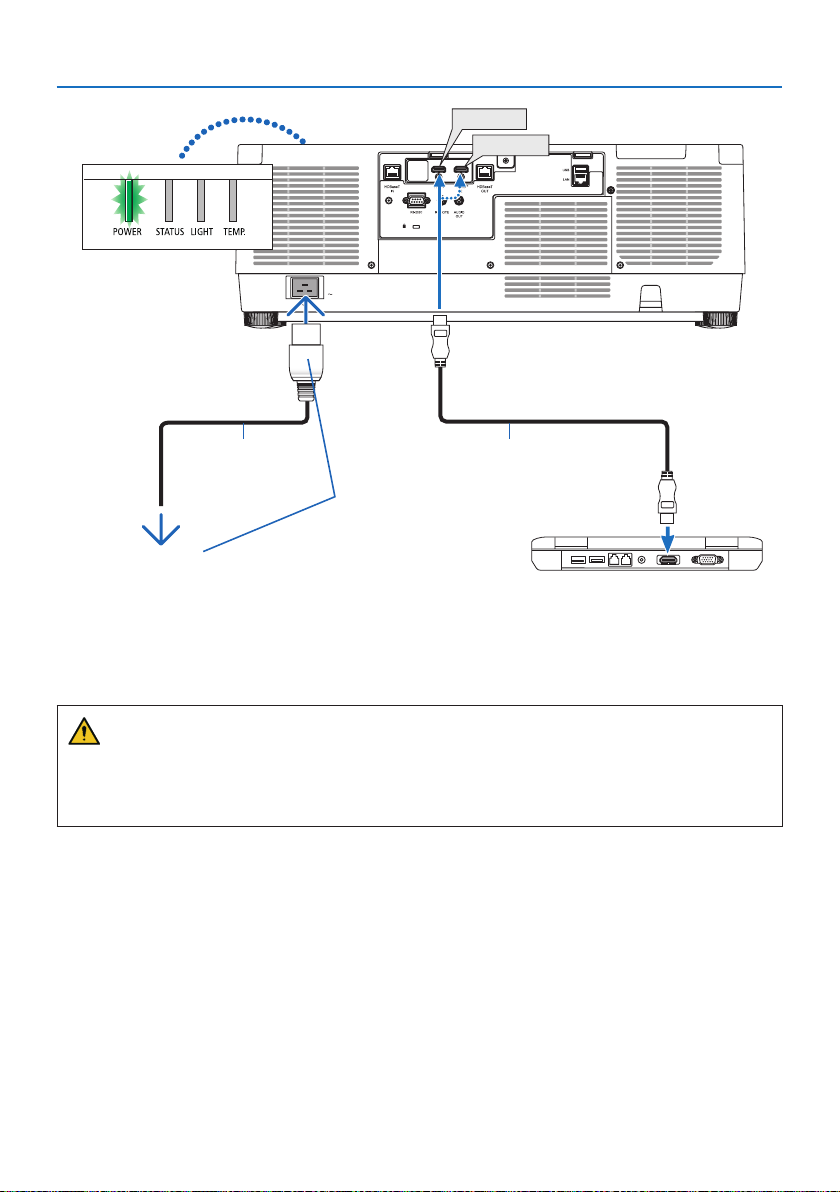

Handling the power cord

• The projector should be installed close to an easily accessible power outlet.

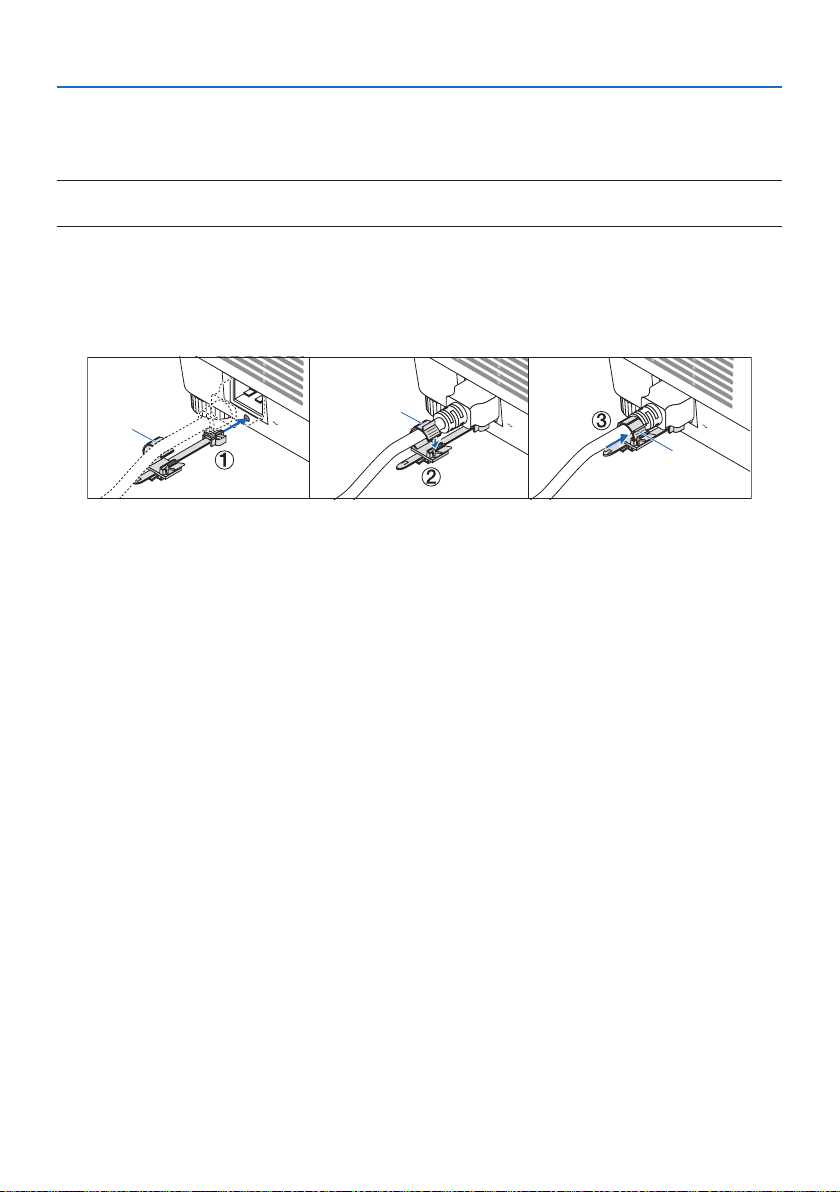

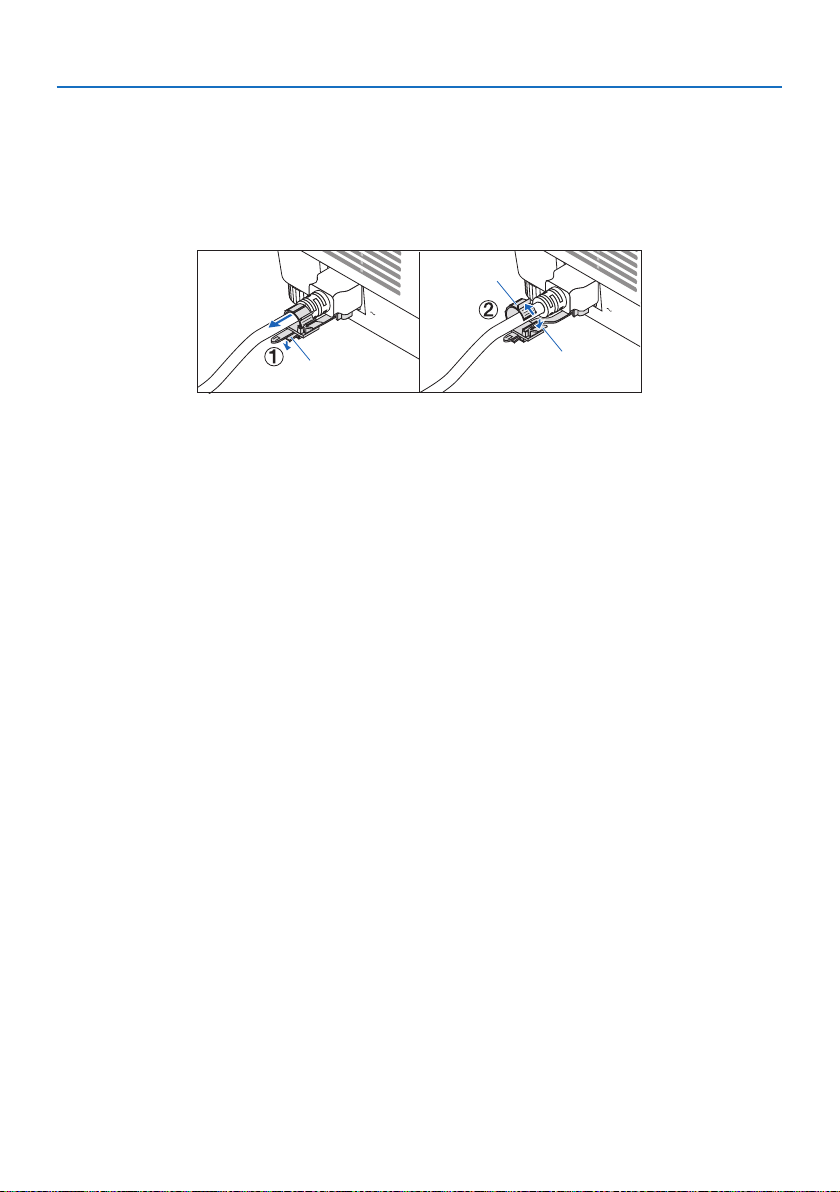

• When connecting the power cord to the projector’s AC IN terminal, make sure
the connector is fully and firmly inserted. Be sure to fix the power cord using
the power cord stopper. Loose connection of the power cord could lead to
fire or electric shock.

Handling the power cord by following below to avoid fire or
electric shock

• When disconnecting the power cord, pull the power cord out by holding onto
its plug.

• Unplug the power cord from the power outlet before cleaning the product
or when not planning to use the product for an extended time.

• When the power cord or plug is heat or damaged, unplug the power cord
from the power outlet, and contact your dealer.

Periodically clean dust and other debris from the power plug

• Failure to do so could result in fire or electric shock.

REQUIRED

REQUIRED

PROHIBITED

Disconnect power cords and other cables before moving the
projector

• Before moving the product, make sure the product power is off, then unplug
the power cord from the power outlet and check that all cables connecting
the product to other devices are disconnected.

Do not use the power cord with a power tap

• Adding an extension cord may lead to fire as a result of overheating.

xiii

Installation

REQUIRED

On use

PROHIBITED

REQUIRED

Important Information

CAUTION

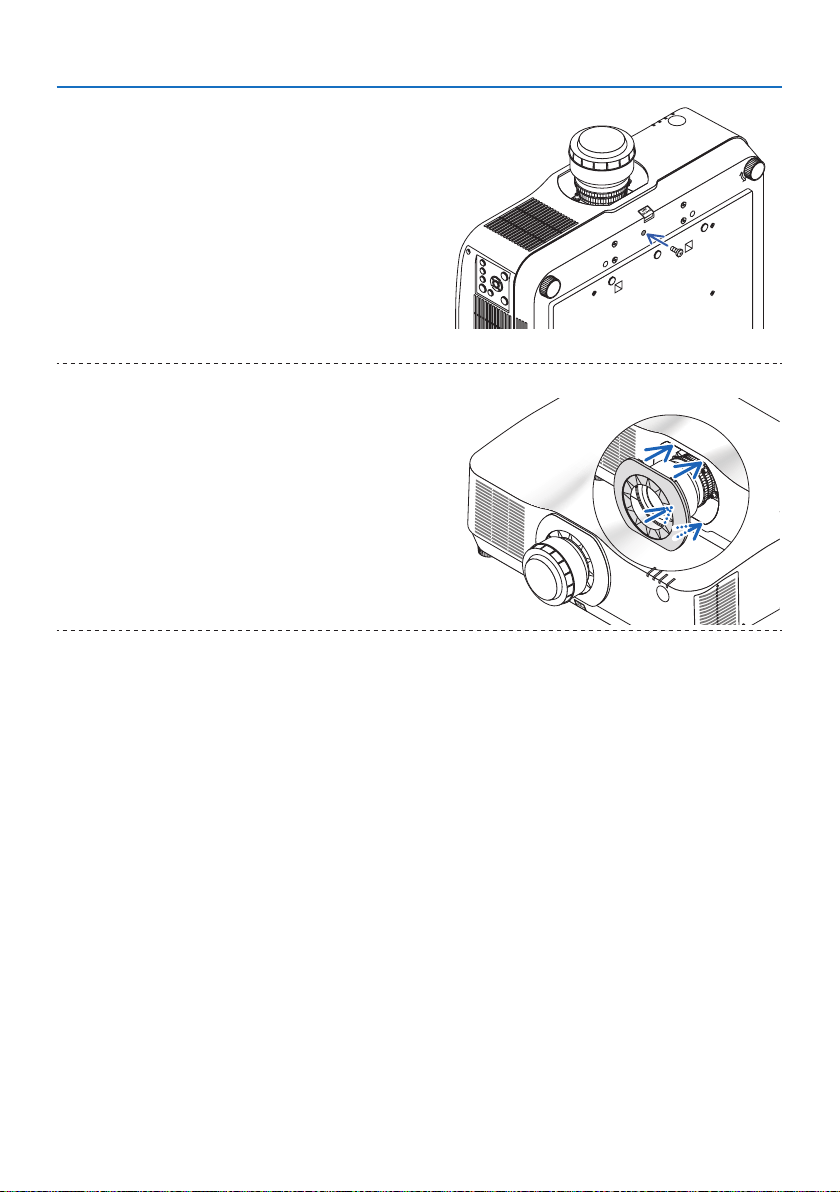

Securing the lens unit with the fall prevention wire

• If the projector is going to be suspended from a ceiling or another high place,
secure the lens unit using the fall prevention wire (sold separately). If the lens
unit is not secured, it may fall down if it comes lose.

Do not use on networks subject to overvoltage.

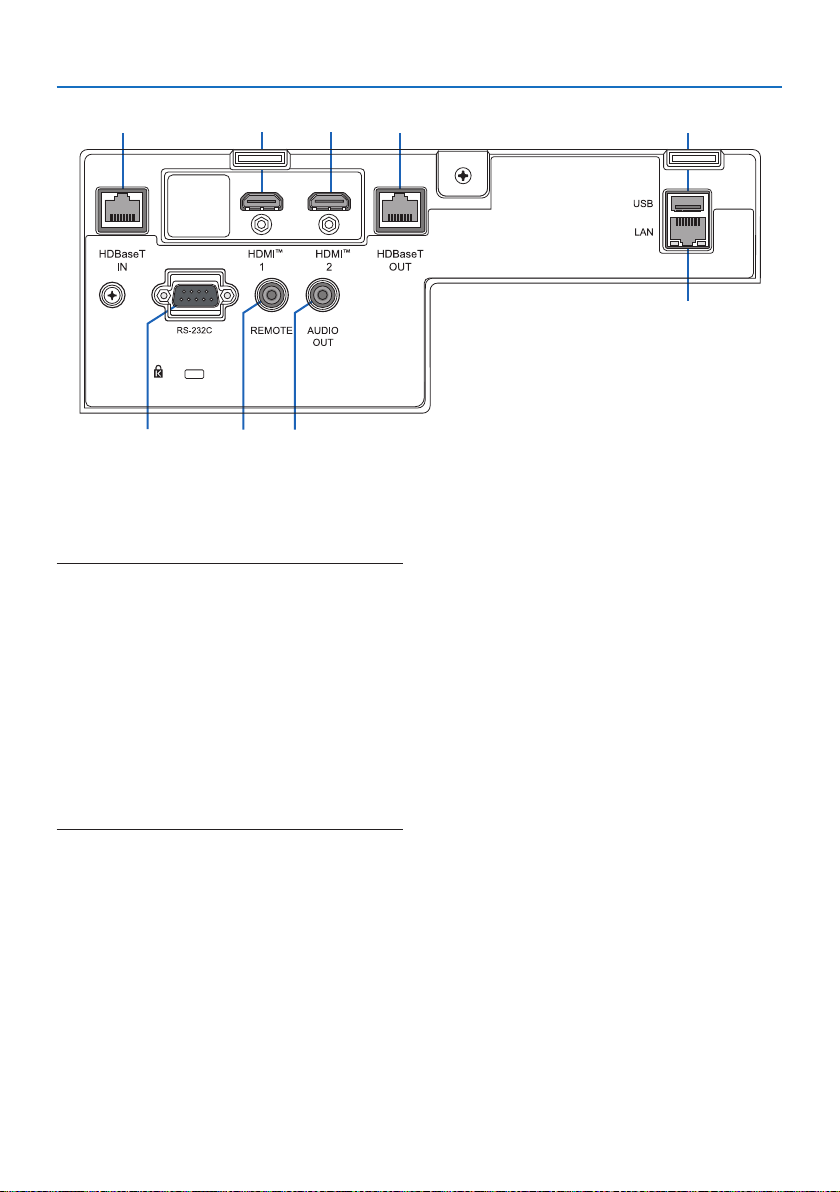

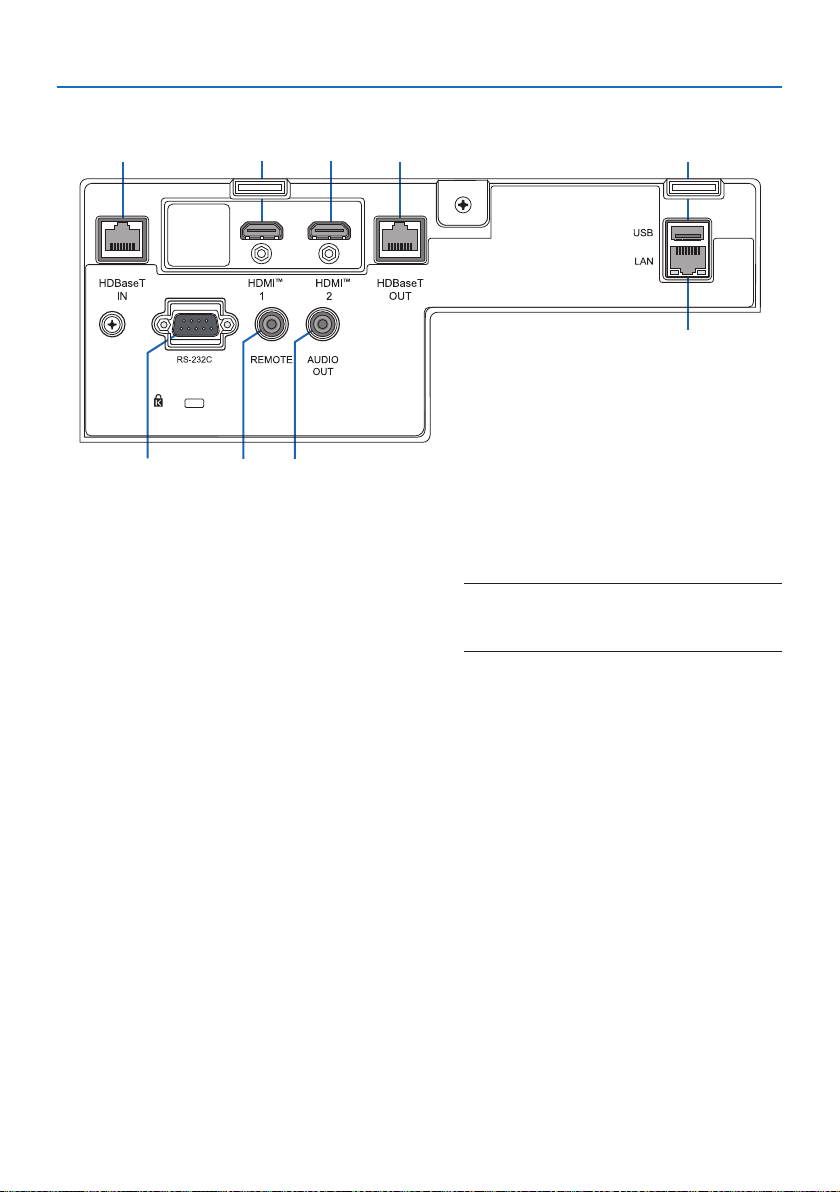

• Connect the projector’s HDBaseT port and LAN port to a network for which
there is no risk of overvoltage being applied.

Overvoltage applied to the HDBaseT or LAN port could result in electric shock.

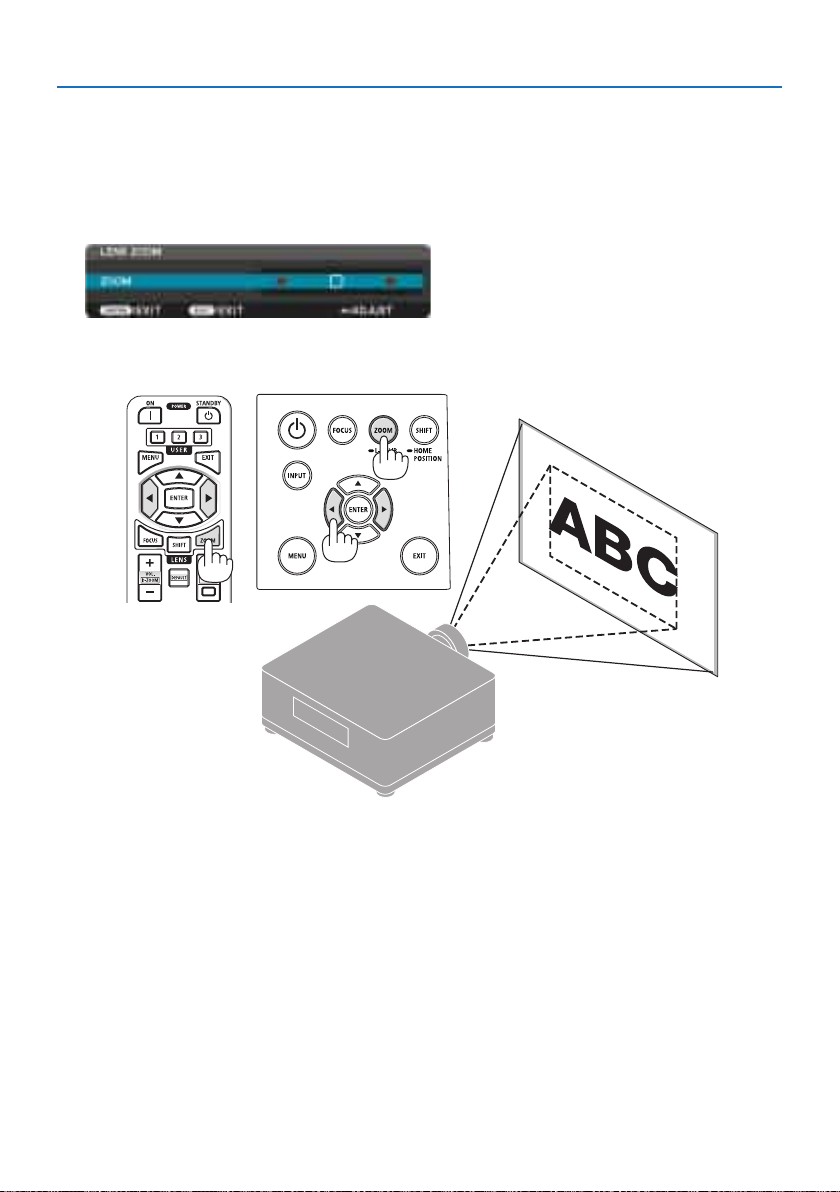

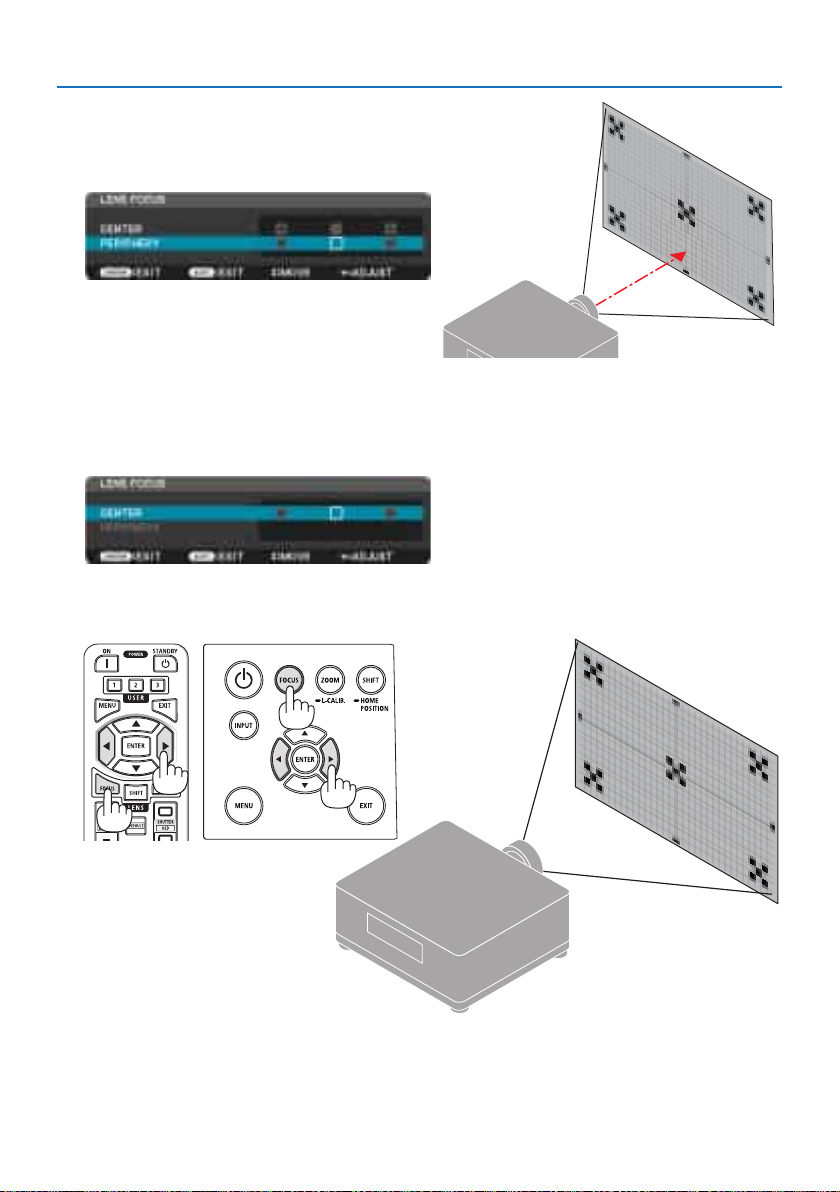

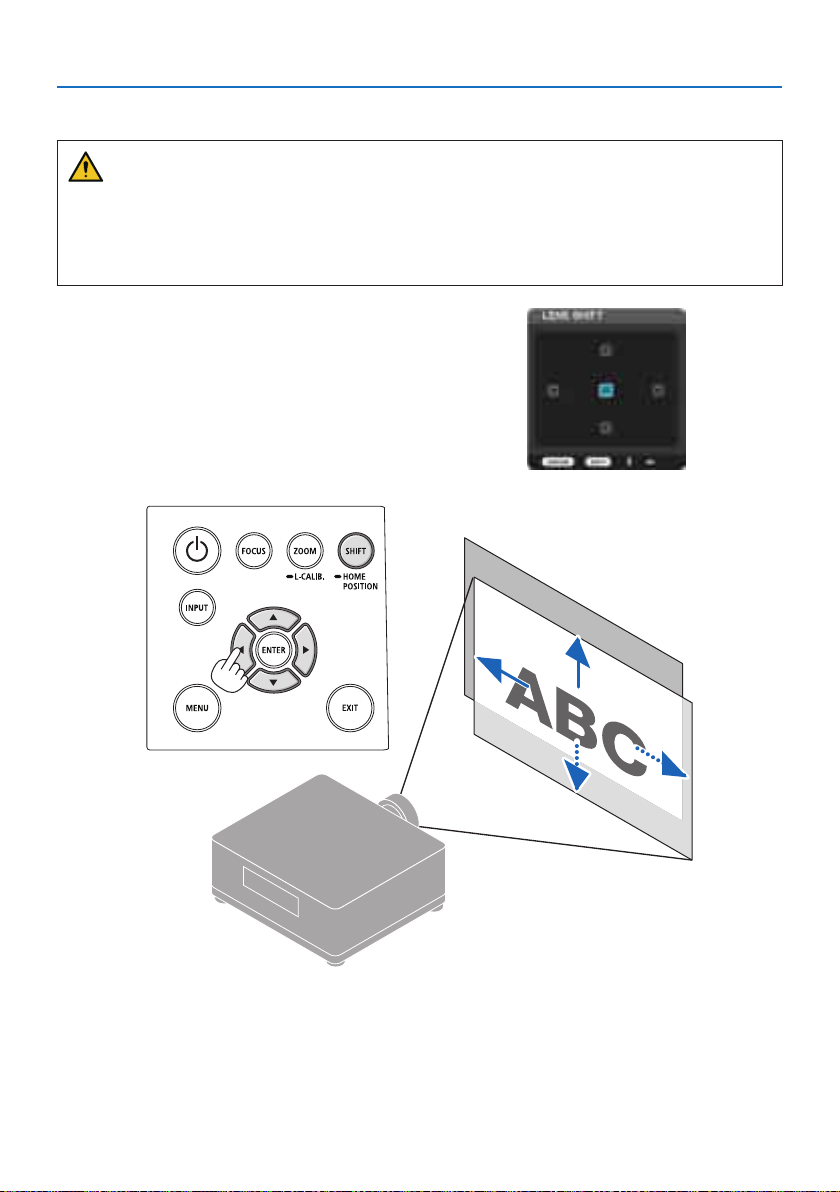

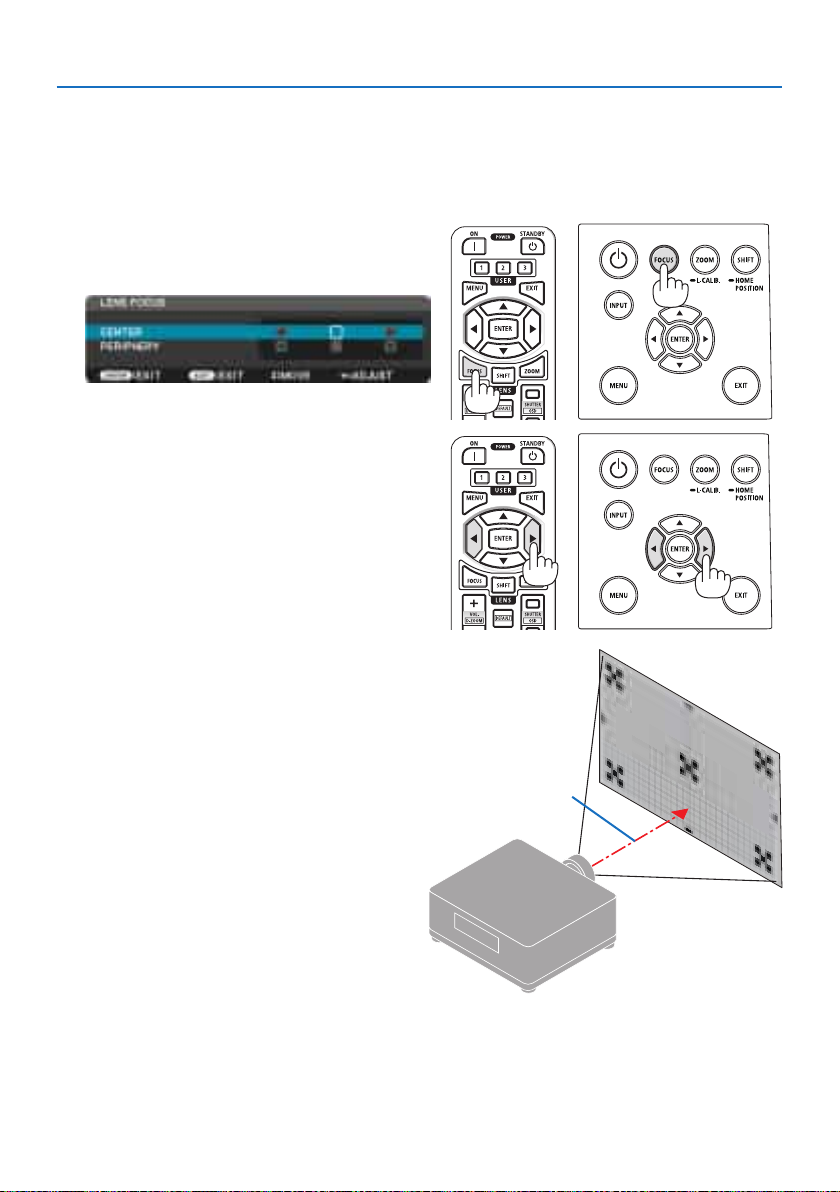

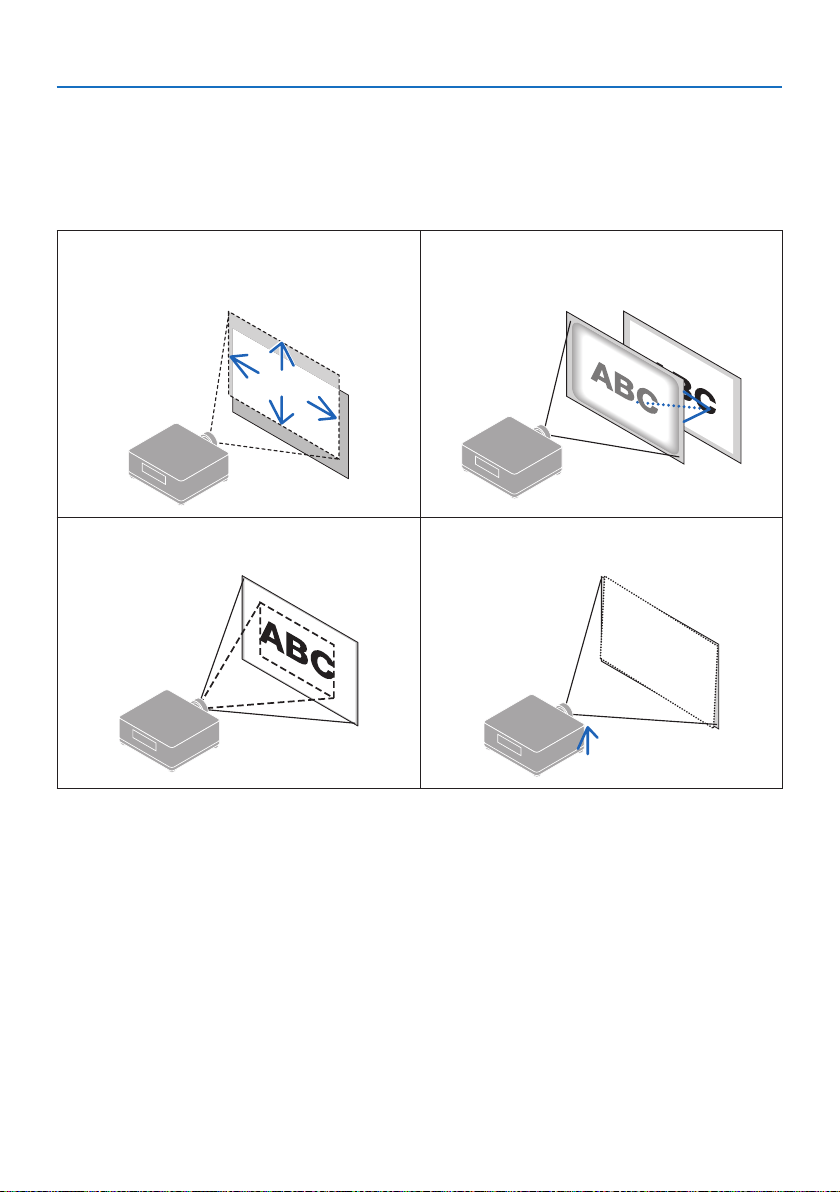

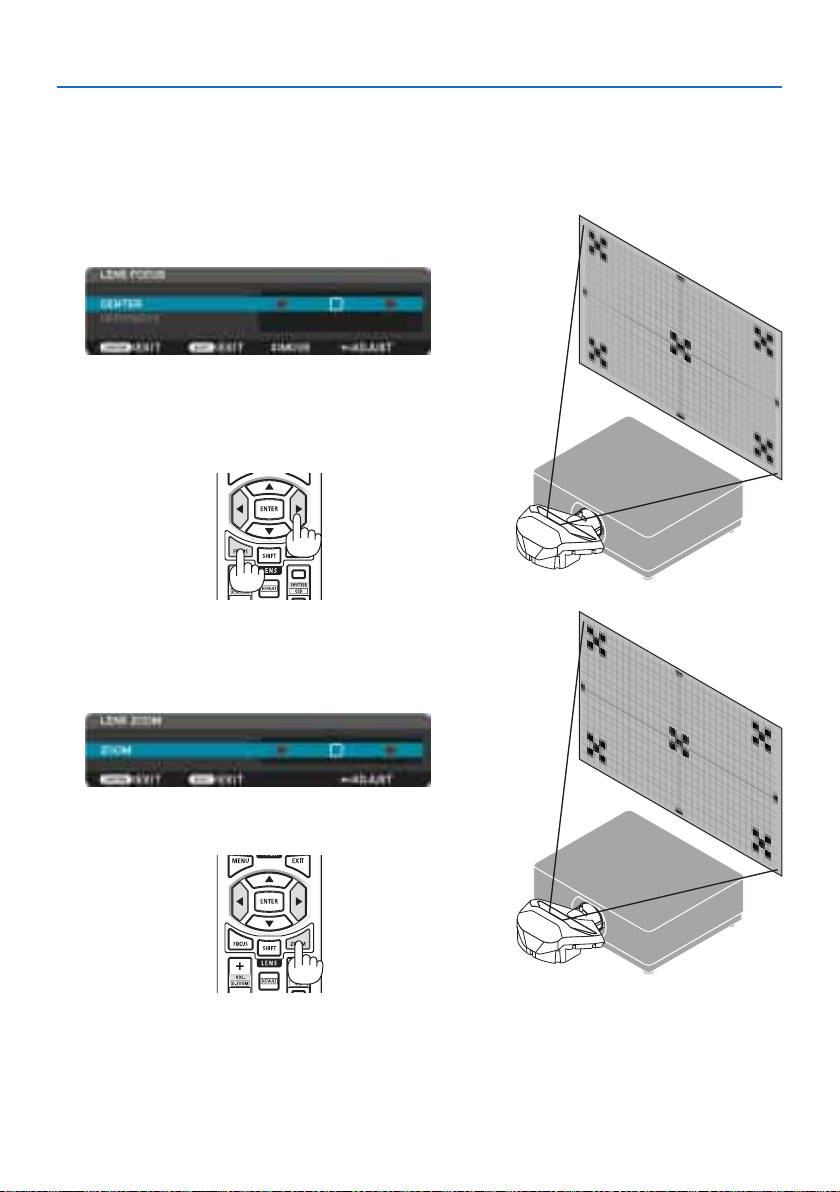

Lens shift, focus and zoom operations

• When shifting the lens or adjusting the focus or zoom, do so from either
behind or the side of the projector. If adjustments are performed from the
front, your eyes could be exposed to strong light and get injured.

• Keep your hands away from the lens area when performing the lens shift op­eration. If not, your fingers could get caught in the gap between the cabinet
and the lens.

xiv

PROHIBITED

Important Information

CAUTION

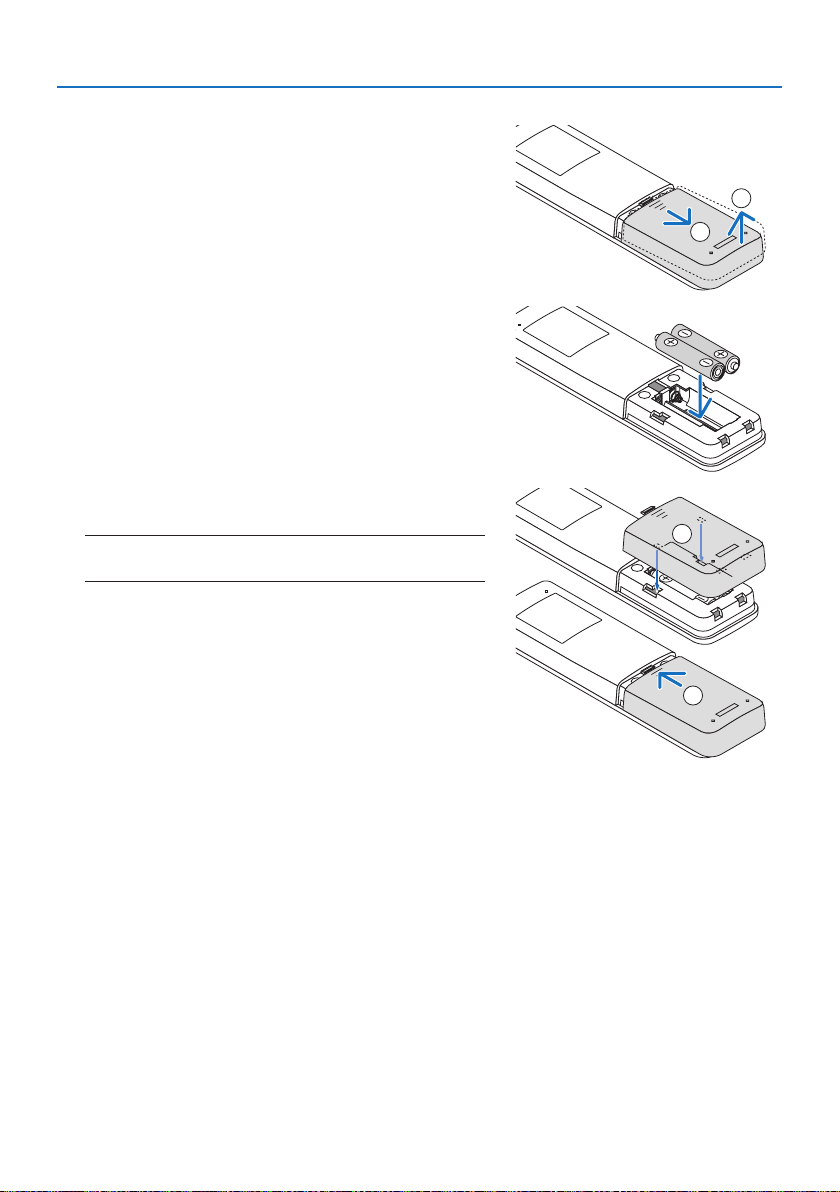

Handling batteries

Incorrect usage of batteries can result in leaks or bursting.

• Use the specified batteries only.

• Insert batteries matching the (+) and (–) signs on each battery to the (+) and
(–) signs of the battery compartment.

• Do not mix battery brands.

• Do not combine new and old batteries. This can shorten battery life or cause
liquid leakage of batteries.

• Remove dead batteries immediately to prevent battery acid from leaking into
the battery compartment.

If leaked battery fluid gets on your skin or clothing, rinse immediately and

thoroughly. If it gets into your eye, bathe your eye well rather than rubbing
and seek medical treatment immediately. Leaked battery fluid that gets into
your eye or your clothing may cause a skin irritation or damage your eye.

• If you will not use the remote control for a long time, remove the batteries.

• Leaving a battery in an extremely high temperature surrounding environ­ment, or a battery subject to extremely low air pressure, that can result in an
explosion or the leakage of flammable liquid or gas.

• Properly dispose of depleted batteries. Disposal of a battery into water, fire,
or a hot oven, or mechanically crushing, cutting, or modifying a battery can
result in an explosion.

• Do not short-circuit the batteries.

• Do not charge the batteries. The batteries provided are not rechargeable.

• Contact your dealer or local authorities when disposing of batteries.

PROHIBITED

CAUTION

FOR HIGH

TEMPERATURE

About the vents

• Do not obstruct the projector’s vents. Also, do not place such soft objects as
paper or cloths underneath the projector. Doing so could lead to fire.

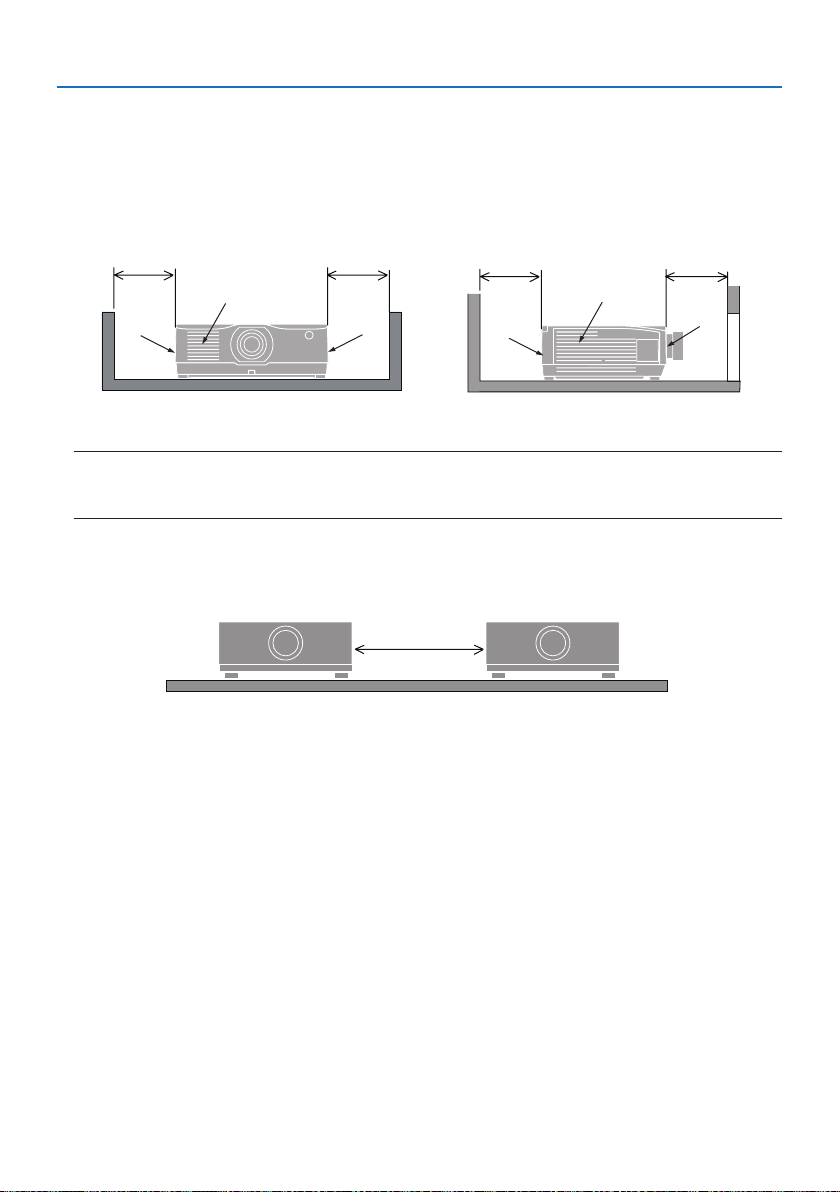

Leave sufficient space between the place where the projector is installed and

its surroundings. (→ page xxx)

• Do not touch the exhaust vent area while projecting or immediately after
projecting images. The exhaust vent area may be hot at this time and touch­ing it could cause burns.

xv

PROHIBITED

REQUIRED

PROHIBITED

Important Information

CAUTION

Moving the projector

• When carrying the projector, remove the lens unit and carry it with at least
two people. Attempting to move the projector alone could result in back pain
or other injuries.

• When carrying the projector with the lens unit removed, do not touch the
mounting area of the lens with your hands. Also, do not put your hand into
the recess of the connection terminal. The projector could be damaged or
fall down, resulting in injuries.

• When moving the projector with the option cover attached, do not hold it by
the option cover. The option cover could come lose and the main unit could
fall down, causing injuries.

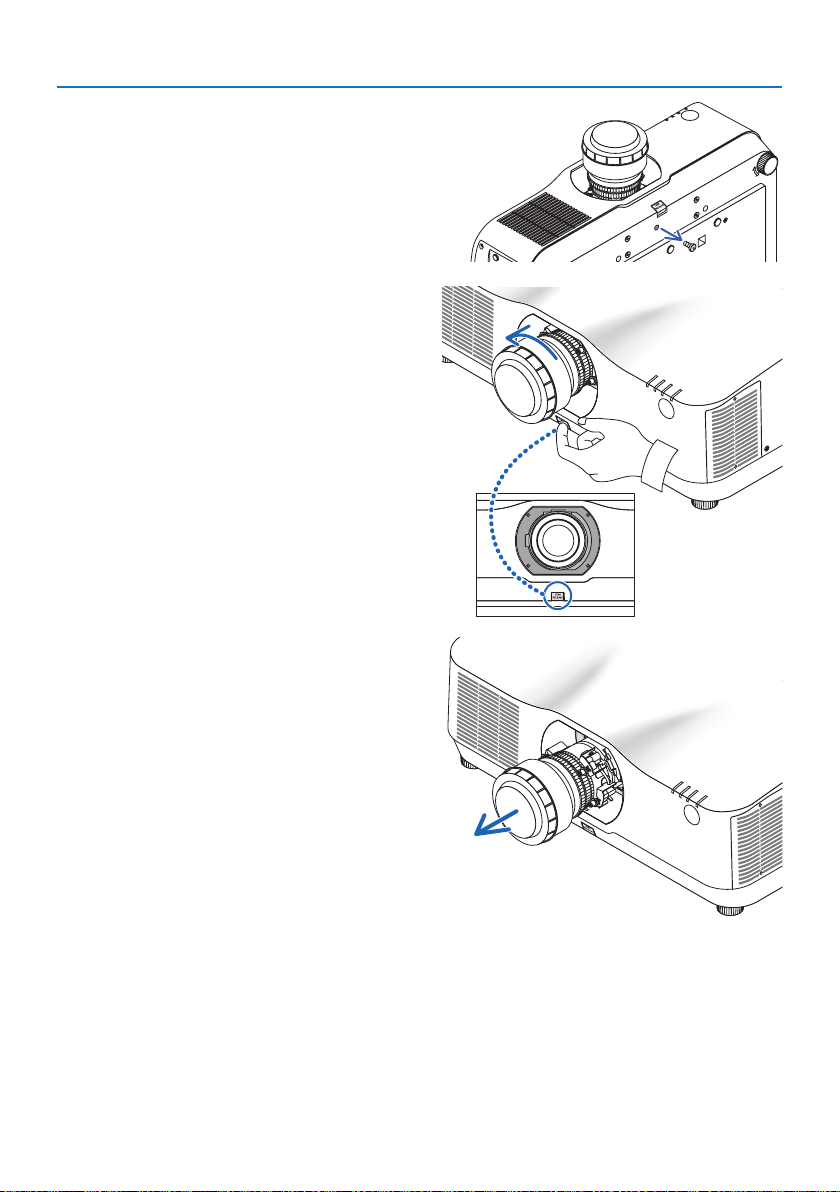

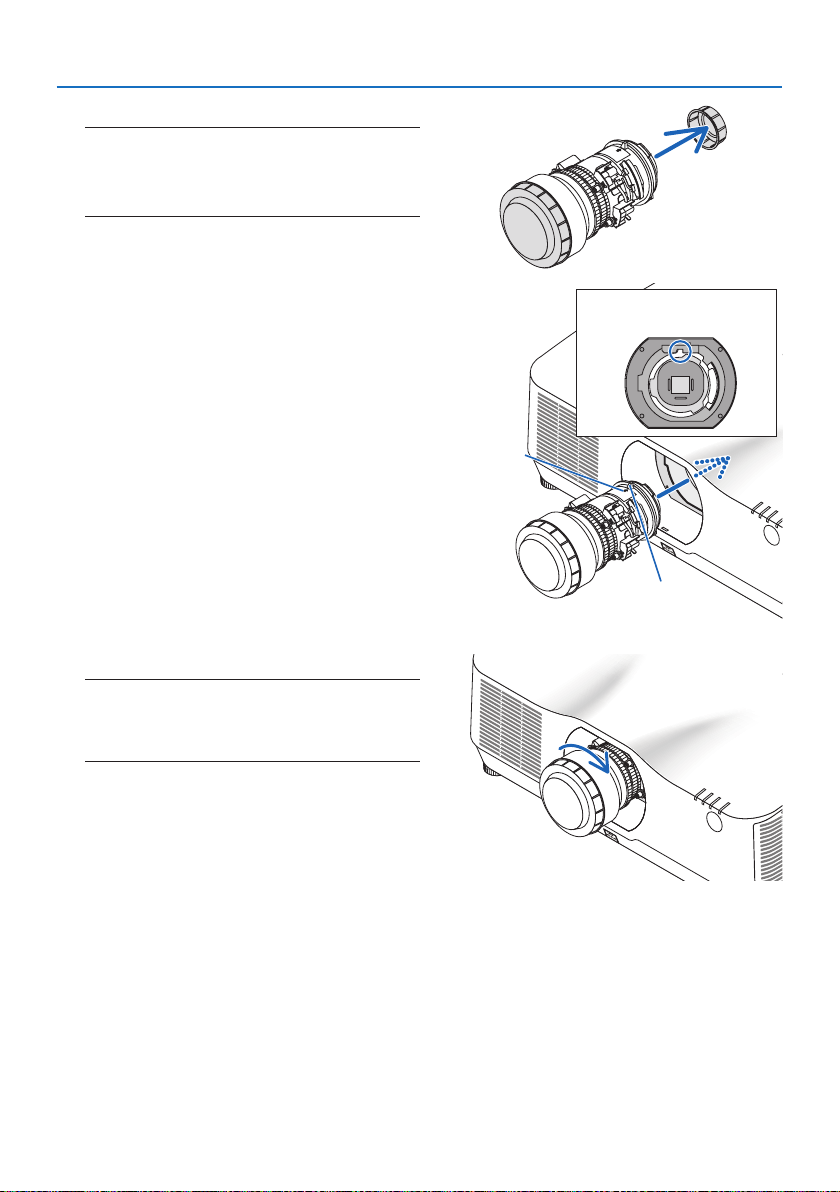

Attaching/detaching the lens

• Turn off the projector and disconnect the power cord before attaching or
detaching the lens unit. Failure to do so could result in visual impairment or
burns.

• Do not attach or detach the lens unit with the projector installed in a high
location.

The lens unit could fall and cause damage or injury.

Do not push or climb on the product. Do not grab or hang onto
the product. Do not rub or tap the product with hard objects.

The product may fall, causing damage to the product or personal injury.

REQUIRED

PROHIBITED

REQUIRED

About option cover (separately sold)

• Be sure to tighten the screws after attaching the option cover. Failure to do so
may cause the option cover to come off and fall, resulting in injury or damage
to the option cover.

• Do not hold the option cover while moving the projector or do not apply
excessive force to the option cover. Doing so may damage the option cover,
resulting in injury.

Avoid locations with extreme temperatures and humidity

• Failure to do so could lead to fire or electric shock or damage to the projector.
The usage environment for this projector is as follows:

- The operating temperature: 0°C to 40°C / 32°F to 104°F / humidity: 20 to

80% (without condensation)

-

The storage temperature: -10°C to 50°C / 14°F to 122°F / humidity: 20 to

80% (without condensation)

xvi

Inspections and Cleaning

Inspecting the projector and cleaning the inside

• Consult with your dealer about once per year for cleaning of the inside of the
projector. Dust could accumulate inside of the projector if it is not cleaned

REQUIRED

for extended periods of time, leading to fires or malfunction.

Important Information

CAUTION

xvii

Important Information

Laser Safety Caution

WARNING

CLASS 1 LASER PRODUCT [IEC 60825-1:2014]
CLASS 1 CONSUMER LASER PRODUCT OF EN 60825-1:2014+A11:2021 (For EU and UK)

• The laser module is equipped in this product. Use of controls or adjustments of procedures
other than those specified herein may result in hazardous radiation exposure.

Laser energy exposure near aperture may cause burns.

• This product is classified as Class 1 of IEC60825-1:2014.

• For EU and UK
This product complies with EN 60825-1:2014+A11:2021.
This product also complies with EN 50689:2021 except using the lenses of XP-43ZL and NP43ZL.

• Obey the laws and regulations of your country in relation to the installation and management of
the device.

For USA

Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as
defined in IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
However, when using the XP-43ZL and NP43ZL lenses, the following applies.
This product is in conformity with performance standards for laser products under 21 CFR 1040,
except with respect to those characteristics authorized by Variance Number FDA-2018-V-4413
effective on September 19, 2023.

WARNING

• Do not allow to look into the projector beam at any distance from the projector. An adult
should supervise the children to prevent exposure risks.

• Check that there is no one looking at the lens, when using the remote control for starting the
projector.

• Do not look at the projected light using optical devices(binoculars, telescopes, magnifying
glasses, reflectors, etc).

• [ WARNING: MOUNT ABOVE THE HEADS OF CHILDREN. ]

The use of a ceiling mount is recommended with this product to place it above the eyes of

children.

• Outline of laser emitted from the built-in light module:

- Wave length: 455 nm

- Maximum power: 257 W (A104U-W/A104U-B), 229 W (A824U-W/A824U-B)

Light Module

• A light module containing multiple laser diodes is equipped in the product as the light source.

• These laser diodes are sealed in the light module. No maintenance or service is required for the
performance of the light module.

• End user is not allowed to replace the light module.

• Contact qualified distributor for light module replacement and further information.

xviii

Important Information

Risk groups

This projector is classified as either IEC/EN 62471-5:2015 risk group 2 or risk group 3 depending
on the lens unit.

Risk group 2 (RG2)

WARNING

As with any bright light source, do not stare into the beam, RG2 IEC/EN 62471-5:2015.

Risk group 3 (RG3)

WARNING

RG3 PRODUCT OF IEC/EN 62471-5:2015

• When classified as RG3, this projector is for professional use and must be installed in location
where safety is assured. For this reason, be sure to consult your dealer as installation must be
performed by a professional installer. Never try to install the projector by yourself. This may
result in visual impairment etc.

• No direct exposure to the beam shall be permitted, RG3 IEC/EN 62471-5:2015.

• Do not look into the projector’s lens. Serious damage to your eyes could result.

• Operators shall control access to the beam within the hazard distance or install the product
at the height that will prevent exposures of spectators’ eyes within the hazard distance.

• When turning on the power, operate from the side or rear of the projector (outside the hazard
zone). Also, when turning on the power, make sure no one within the projection range is look­ing at the lens.

xix

Important Information

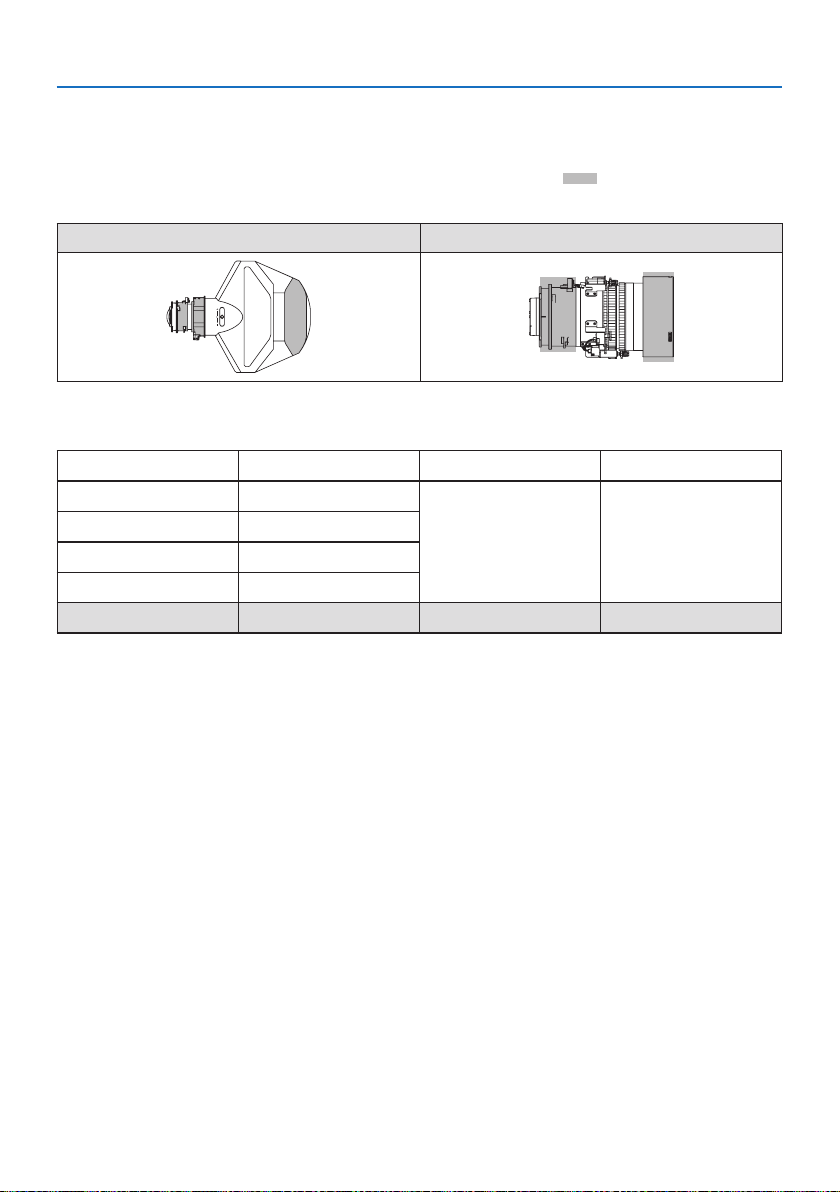

• Check before installing the projector

① Lens model name or throw ratio

The lens unit model or throw ratio is listed at one of the locations in in the images below.

Diagram of XP-44ML/NP44ML Diagram of non-XP-44ML/non-NP44ML models

② Combining lens units and risk groups

Lens model name Throw ratio A104U-W/A104U-B A824U-W/A824U-B

XP-40ZL/NP40ZL 0.79 - 1.11

XP-41ZL/NP41ZL 1.30 - 3.02

XP-50ZL/NP50ZL 0.60 - 0.75

XP-44ML/NP44ML 0.32

XP-43ZL/NP43ZL 2.99 - 5.93 RG3 RG3

RG2 RG2

xx

Important Information

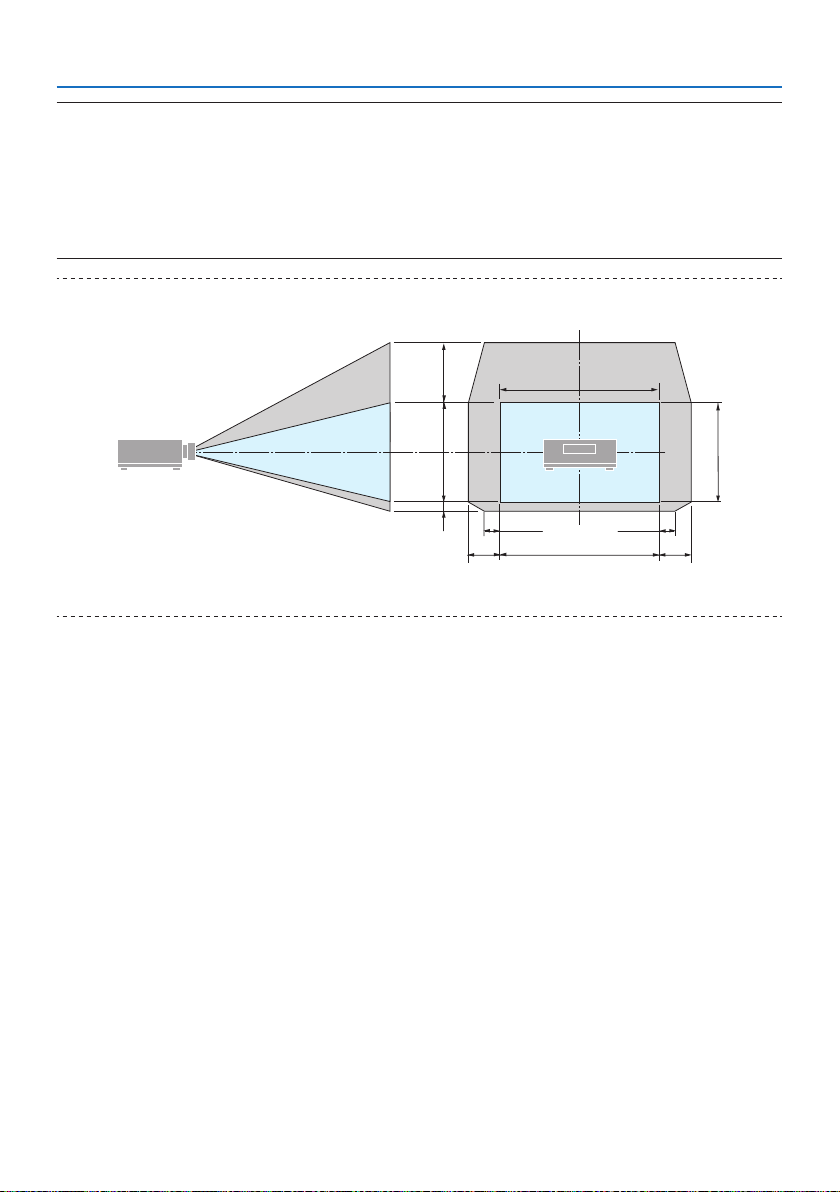

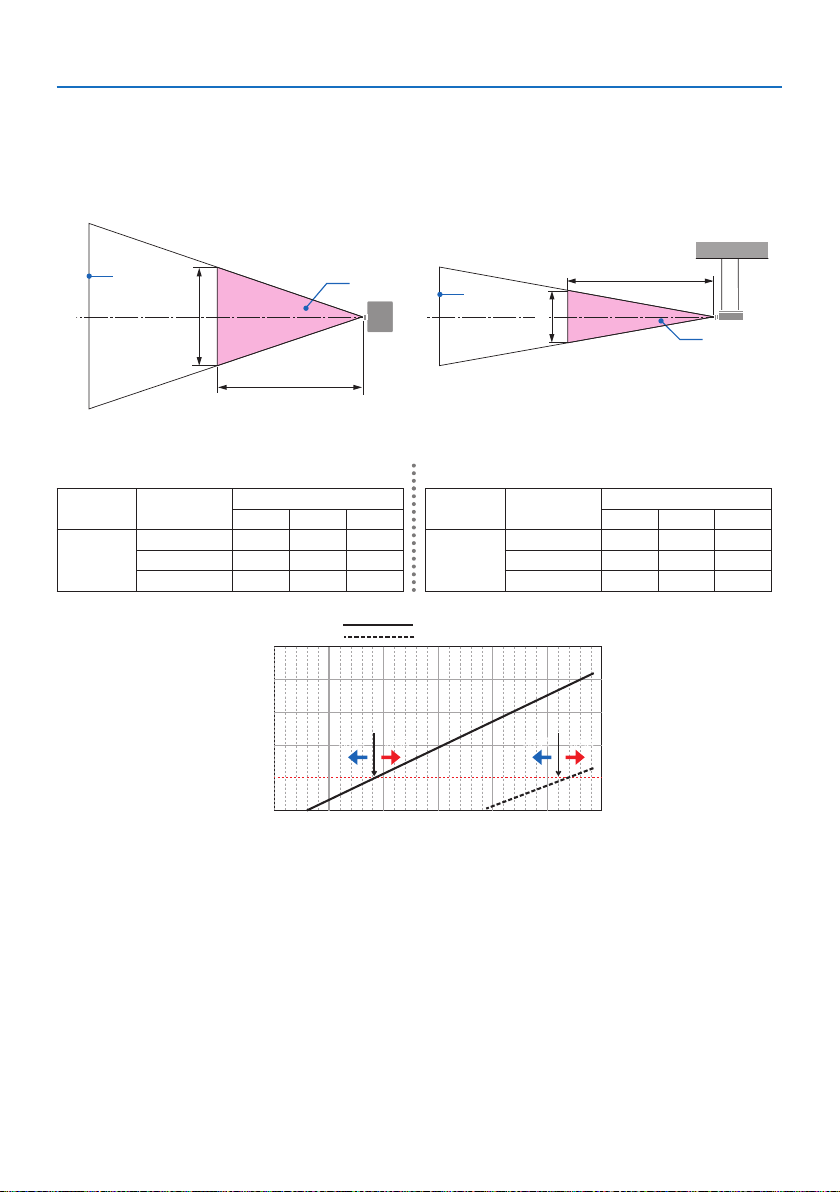

• Hazard zone

The below figure describes the radiation zone (hazard zone) of light emitted by the projector that
is classified as Risk Group 3 (RG3) of IEC/EN 62471-5:2015.

Overhead view Side view

a

H

HD

b

a

V

a: Screen / b: Hazard zone

A104U-W/A104U-B A824U-W/A824U-B

Lens Throw ratio

XP-43ZL/

NP43ZL

2.99 (Wide) - - -

3.90 (Middle) 1.00 0.31 0.19

5.93 (Tele) 1.32 0.19 0.12

Hazard zone (m)

HD H V

1.4

1.3

1.2

HD [m]

1.1

1.0

0.9

3.0 3.5 4.0 4.5 5.0 5.5 6.0

RG2

3.9

RG3RG3RG2

Lens Throw ratio

XP-43ZL/

NP43ZL

A104U-W/A104U-B
A824U-W/A824U-B

Throw ratio

2.99 (Wide) - - -

5.60 (Middle) 1.00 0.25 0.17

5.93 (Tele) 1.32 0.23 1.15

RG2

5.6

HD

b

Hazard zone (m)

HD H V

RG3RG3RG2

Calculation of the throw ratio

Throw ratio = L: Throw distance (m) / W: Screen width (m)
For throw distances and screen widths, refer to "Lens types and throw distance" in the installation
manual.

xxi

Important Information

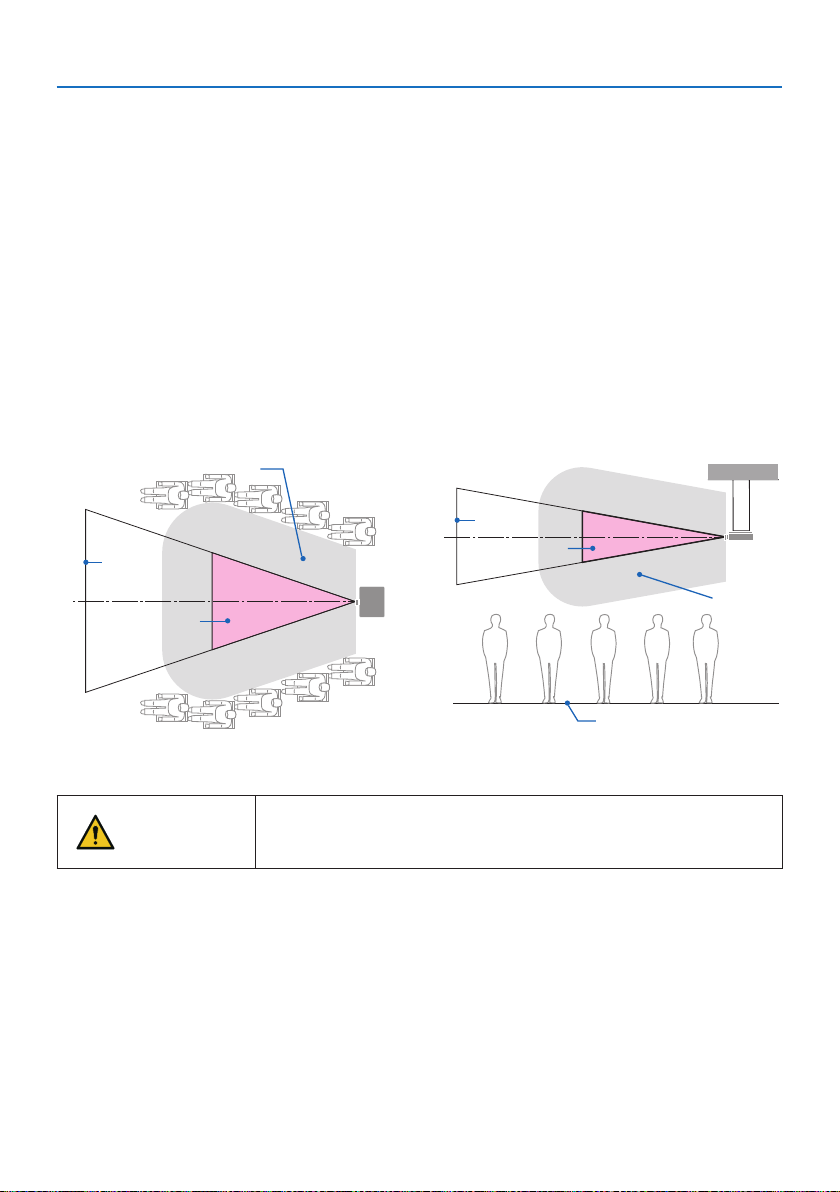

• About the precautionary zone

By providing a precautionary zone or physical barriers, it must prevent human eyes from entering
the hazard zone.
When the manager of the projector (operator) cannot prevent spectators from entering the hazard
zone such as in public facilities, it is required to secure a space of 1 m or more from the hazard zone
as “the precautionary zone” for the safety of the spectators. When installing the projector overhead,
it is required that the distance between the floor and the hazard zone be at least 3 m in the vertical
direction.
In the United States, provide a horizontal distance of 2.5 meters from the hazard zone.
When install the projector overhead, provide a vertical distance of 3 meters from the floor to the
hazard zone.

• Installation example considering the precautionary zone

① Floor or desktop installation example

c

a

b

a: Screen / b: Hazard zone / c: Precautionary zone / d: floor

If it is expected that spectators will intrude into the hazard zone when

CAUTION

installed on the ceiling, it is necessary to prevent spectators from
entering that area.

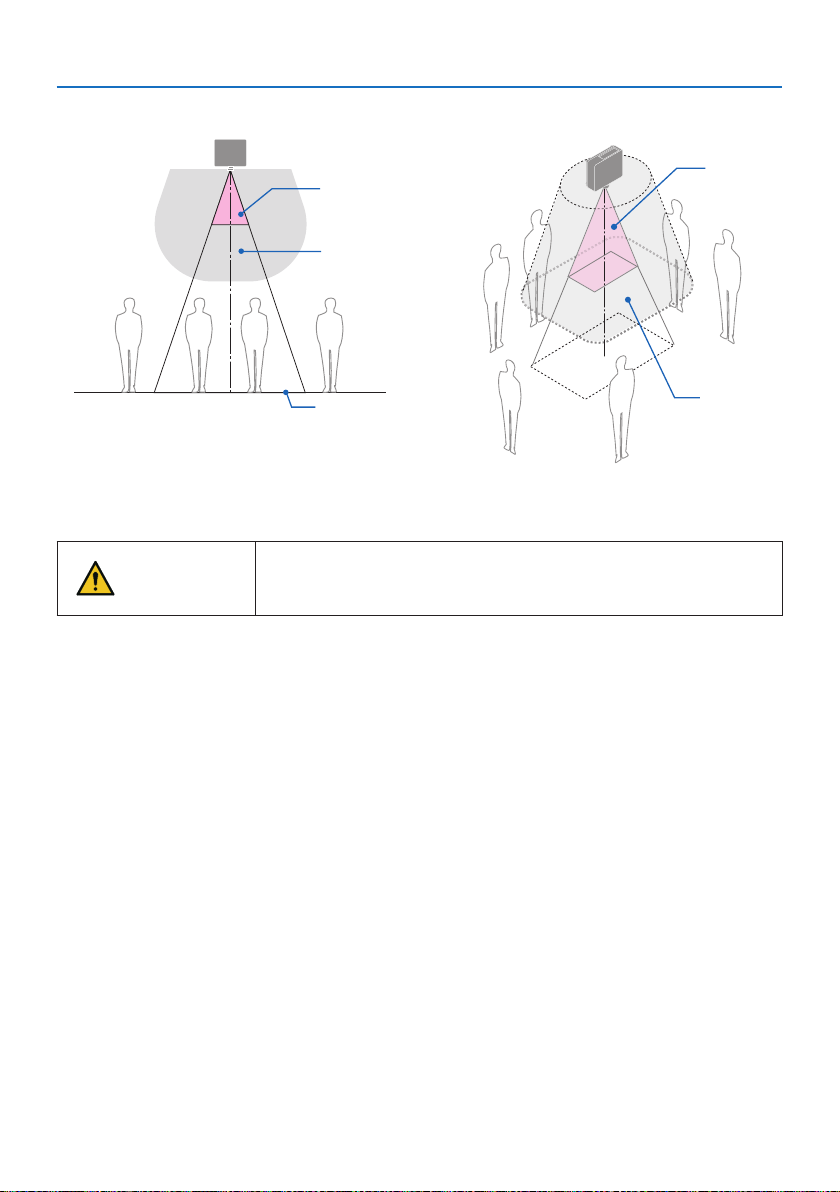

② Ceiling installation example

a

b

c

d

xxii

③ Example of downward projection installed on the ceiling

Important Information

b

b

c

d

d

a: Screen / b: Hazard zone / c: Precautionary zone / d: floor

If the precautionary zone between the floor and the hazard zone can-

CAUTION

* If using lens shift, please consider the shift of projected image according to the volume of lens shift. Instal-

lation example considering the precautionary zone

not be secured, it is necessary to prevent spectators from entering the
area around the screen as shown in the figure on the right.

c

xxiii

Important Information

CAUTION

Please follow all safety precautions.

Installing the projector

• When planning the layout of the projector, make sure to follow the safety measures listed in
the installation manual.

• In order to avoid danger, either install the device within easy reach of a wall outlet or provide
a device like a breaker to disconnect power to the projector in emergency.

• Take safety measures to prevent human eyes from entering the hazard zone.

• Select an appropriate lens for the installation location and secure the safety zone set for each
lens.

Ensure that appropriate safety measures have been taken when operating the projector,

adjusting the light, etc.

• Check whether the appropriate safety zone for the installed lens has been adequately secured.

Periodically check the zone and maintain a record of verifications.

The installer or dealer must instruct the manager (operator) of the projector of the fol­lowing:

• Educate the manager of the projector (operator) about safety before operating the projector.

Instruct the manager of the projector (operator) to perform inspections (Including safety

•
checks on light emitted by the projector) before powering the projector on.

•

Instruct the manager of the projector (operator) to be able to control the projector whenever

the projector is powered on in case of an emergency.

• Instruct the manager of the projector (operator) to keep the installation manual, user’s manual
and inspection records in an easy-to-reach place.

• Instruct them to determine whether the projector conforms to the standards of each country
and region.

xxiv

Important Information

Notes on installation and maintenance

Do not install or store in such places as those described below
(For RG3: To the dealer and the installer)

• Locations that amplify vibrations and impacts
If installed in places where the vibrations from power sources and the like are conveyed, or in

vehicles or on vessels, etc. the projector could be affected by vibrations or shocks that may dam­age internal parts and lead to malfunction.

• Close to high voltage power lines and power sources
It could disrupt the unit.

• Places where strong magnetic fields are generated
Doing so could lead to malfunction.

• Outdoors and places with humid or dust
Places exposed to oil smoke or steam
Places where corrosive gases are generated
Attached substances such as oil, chemicals and moisture may cause deformation or cracks of the

cabinet, corrosion of the metal parts, or malfunction.

Precautions when installing on the ceiling (To the dealer and the installer)

When installing the projector, please see the Installation Manual provided on our web site.

1. To prevent the projector from falling, install it on the ceiling in a way with sufficient strength to
withstand the combined weight of the projector and the ceiling mount unit for an extended
period of time.

2. When installing the projector on the ceiling, be sure to do so correctly in accordance with the
installation manual for the Ceiling Mount Unit. Be sure to use the fixed metal fittings and to tighten
the screws securely.

3. To prevent the projector from falling, use fall prevention wires.

• Use commercially available metal fittings to join the robust part of a building or construction

and the security bar of the projector with the fall prevention wires.

• Use commercially available metal fittings and fall prevention wires that have sufficient strength

to withstand the combined weight of the projector and the ceiling mount unit.

• Slightly slack off the fall prevention wires so as not to put a load on the projector.

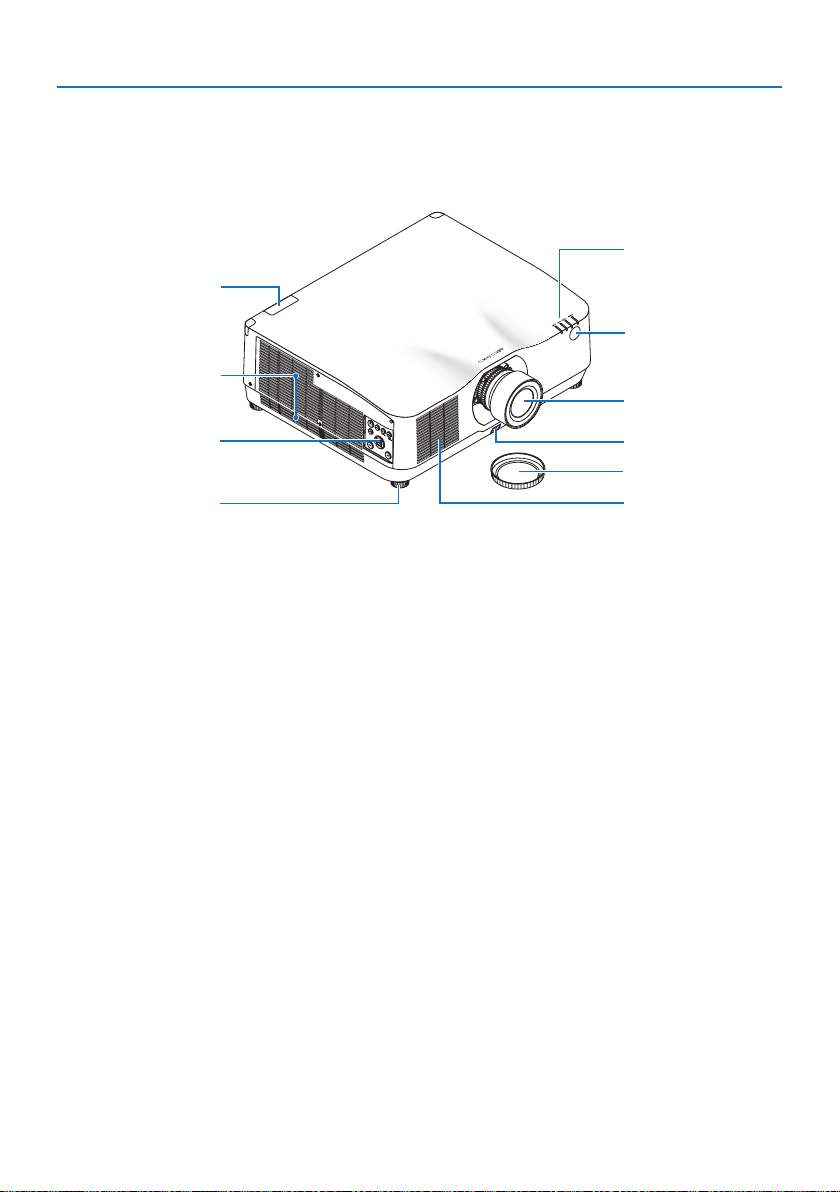

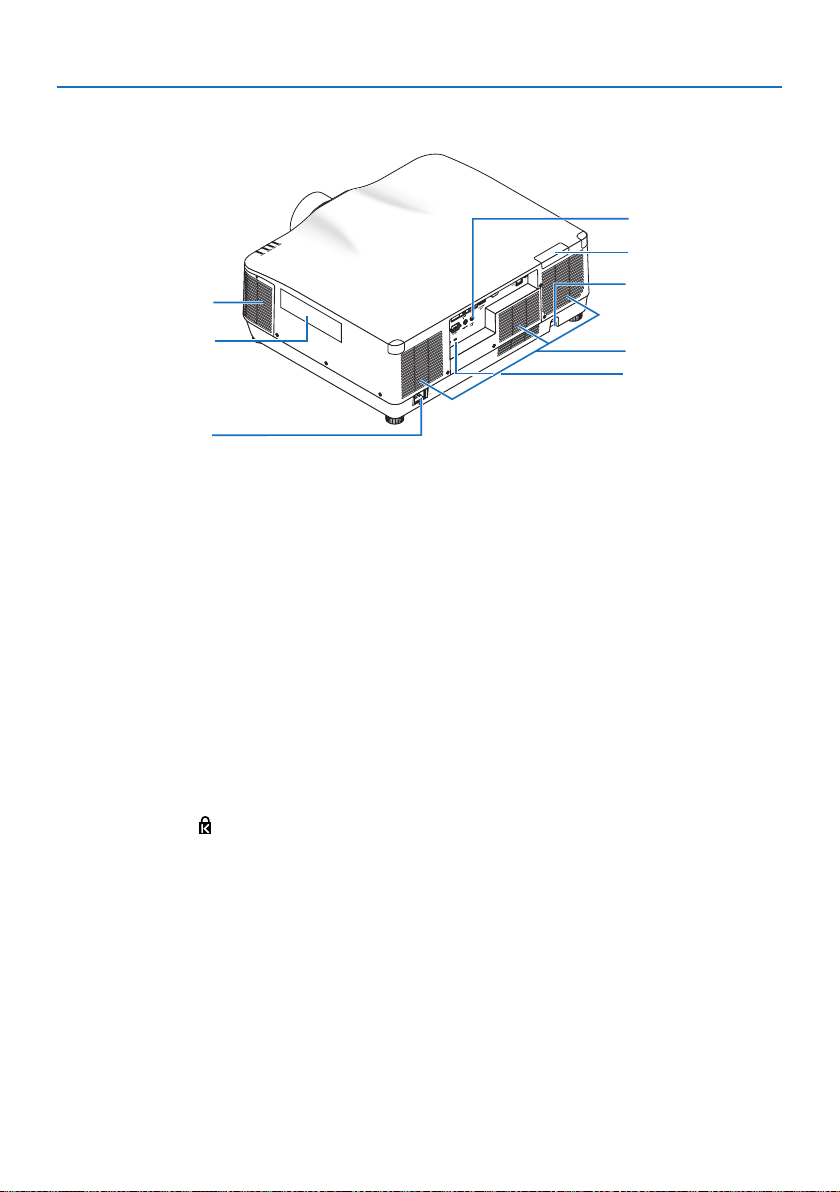

• Refer to the “Part Names of the Projector” for the location of the security bar. (→ page 6)

Securing personal information

Personally identifiable information, such as IP addresses, may be saved on the projector.
Before transferring or disposing of the projector, clear this data by performing [INITIALIZE PROJEC­TOR] on the on-screen menu.

xxv

Important Information

Cautions for ensuring the projector’s performance

• If intense light like laser beams enters from the lens, it could lead to malfunction.

• Consult your dealer before using in places where much cigarette smoke or dust is present.

• When the same still image is projected for a long period of time with a computer, etc. the pattern
of the image may remain on the screen after the projection is stopped, but it will disappear after
a while. This happens due to the properties of liquid crystal panels, and is not a malfunction. We
recommend using a screensaver on the computer side.

• When the projector is used at high altitudes (places where the atmospheric pressure is low), it
may be necessary to replace the optical parts sooner than usual.

• About moving the projector

- Detach the lens unit once, and be sure to attach the lens cap so as not to scratch the lens. Also,

attach a dust protective cap to the projector.

- Do not subject the projector to vibrations or strong shocks.

The projector could be damaged otherwise.

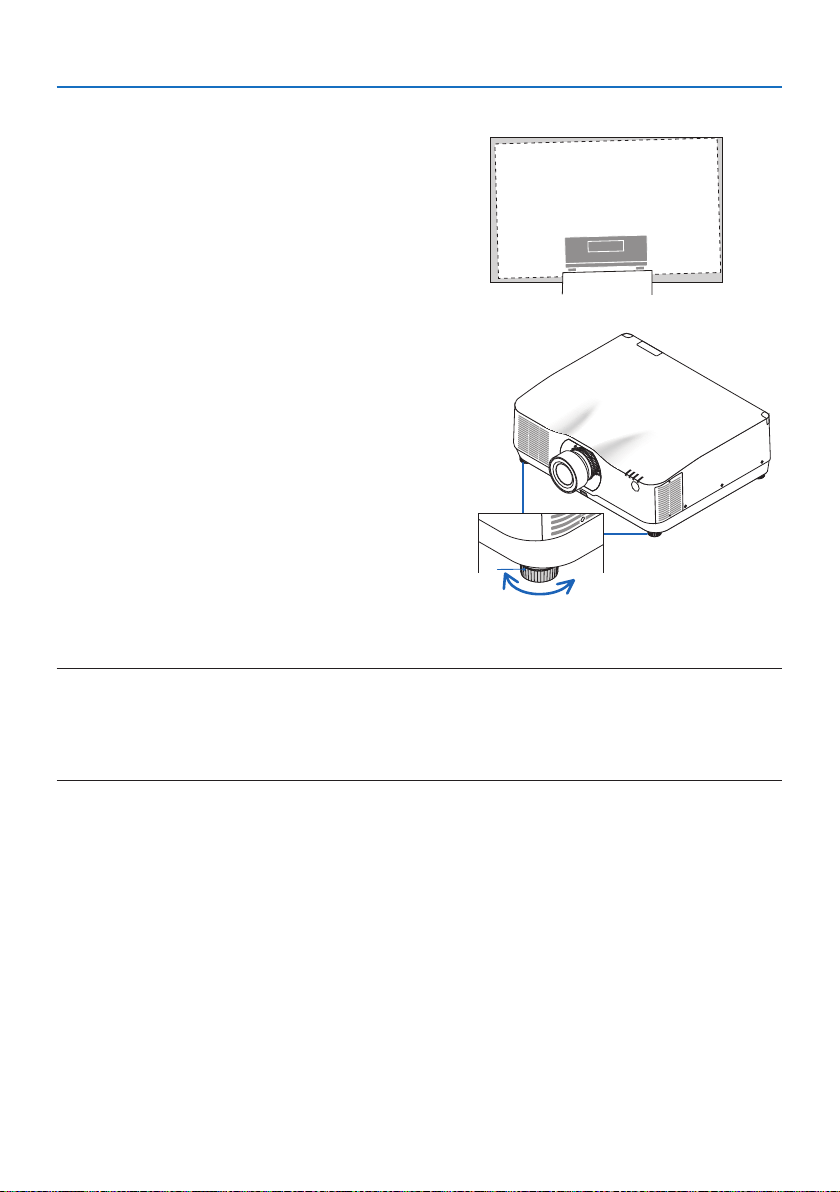

• Do not use the tilt feet for purposes other than adjusting the projector’s tilt.

Improper handling, such as carrying the projector by the tilt feet or using it leaned against a wall,

could lead to malfunction.

• The projector does not support stack installation. Do not stack projectors directly on top of each
other. Failure to do so may cause damage or failure.

• Do not touch the surface of the projection lens with bare hands.

Fingerprints or dirt on the surface of the projection lens will be enlarged and projected on the

screen. Do not touch the surface of the projection lens.

• Do not unplug the power cord from the projector or the power outlet while projecting. Doing so
could cause deterioration of the projector’s AC IN terminal or power plug contact. To interrupt
the AC power supply while images are being projected, use a breaker, etc.

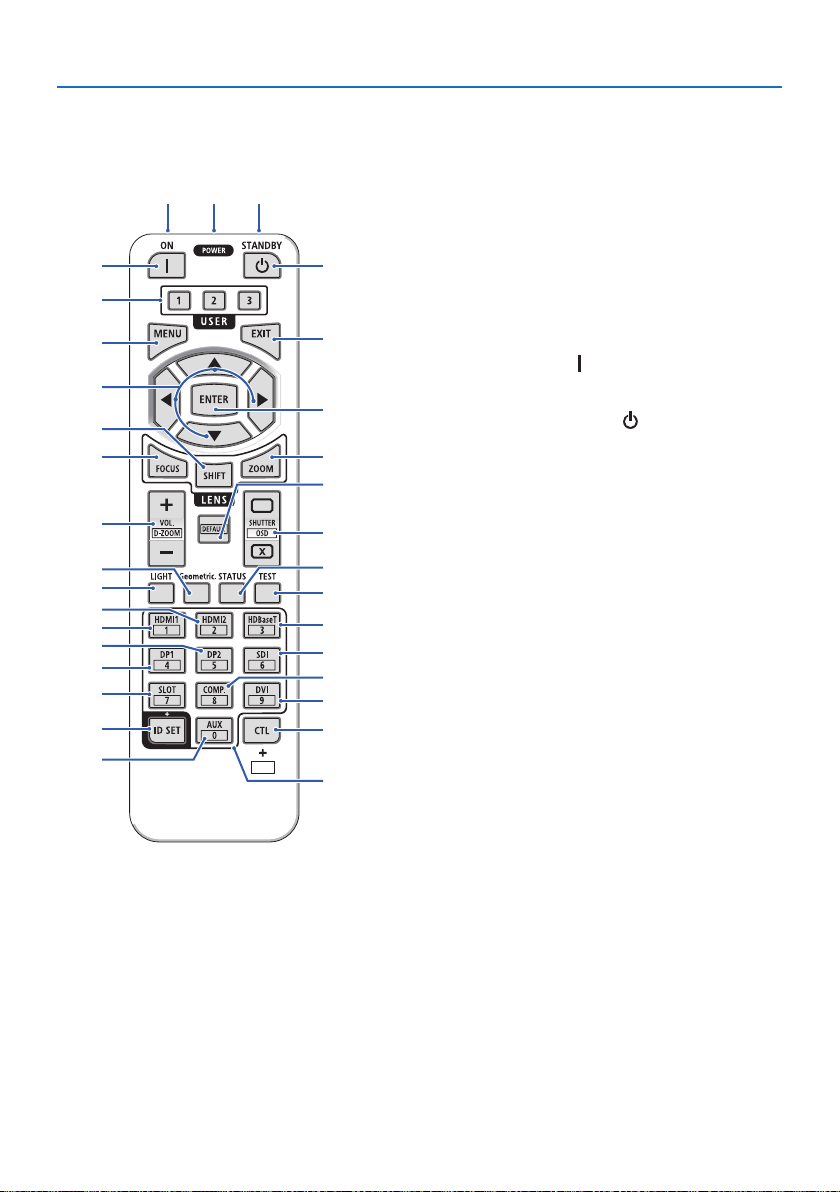

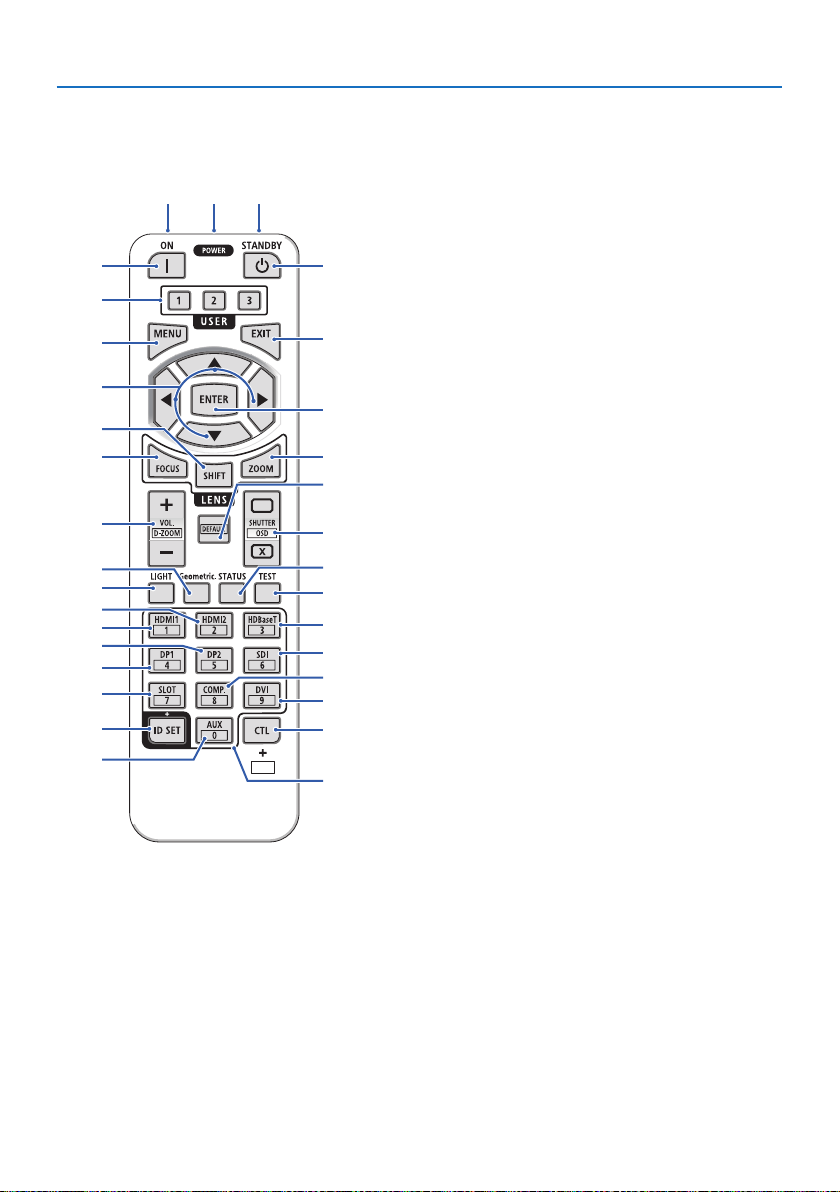

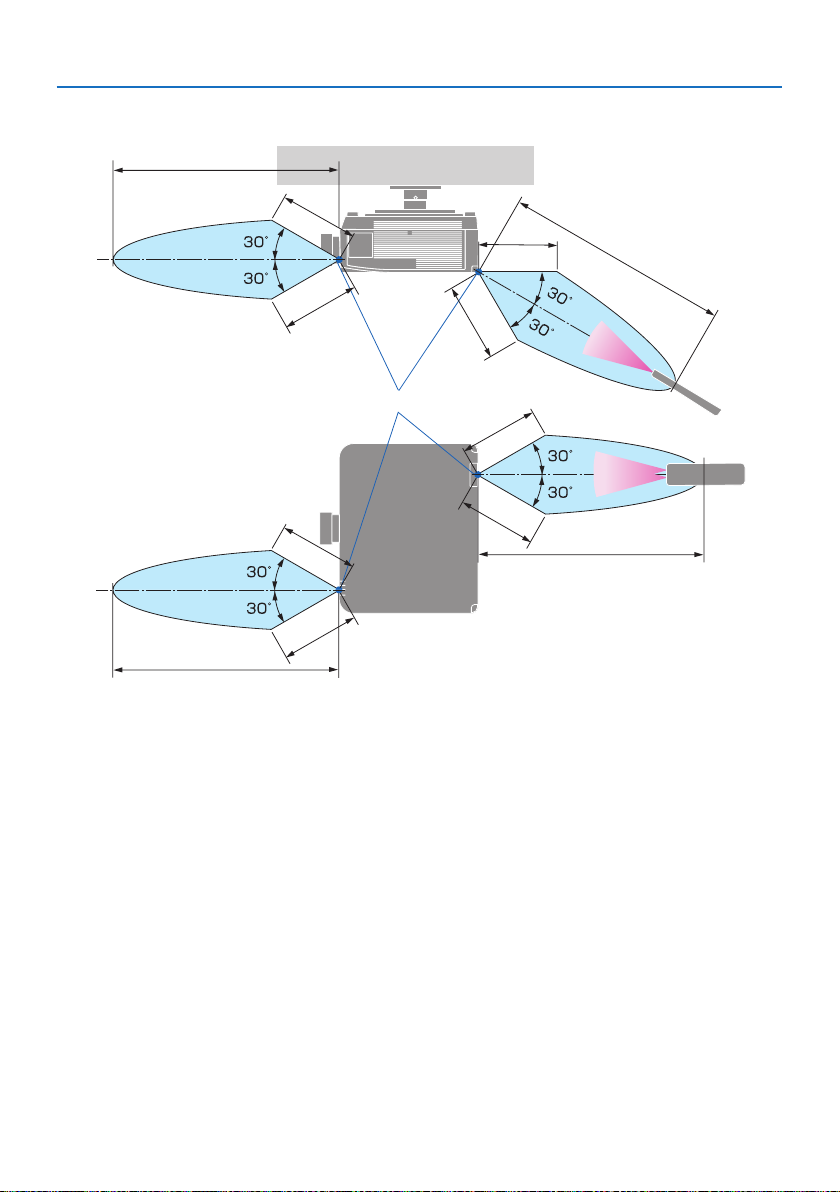

• About handling of the remote control

- The remote control will not work if the projector’s remote signal sensor or the remote control’s

signal transmitter is exposed to strong light or if there are obstacles between them that obstruct
the signals.

- Operate the remote control from within 20 meters from the projector, pointing it at the projec-

tor’s remote signal sensor.

- Do not drop the remote control or handle it improperly.

- Do not let water or other liquids get on the remote control. Should the remote control get wet,

wipe it off immediately.

- Avoid using in hot and humid places as far as possible.

• Take measures to prevent external light from shining on the screen.

Make sure only the light from the projector shines on the screen. The less external light on the

screen, the higher the contrast and the more beautiful the images.

• About screens

Images will not be clear if there is dirt, scratches, discoloration, etc. on your screen. Handle the

screen with care, protecting it from volatile substances, scratches and dirt.

Concerning to all maintenance operations, refer to Installation Manual and follow all instructions

•
properly.

xxvi

Important Information

Precautions when installing the projector at an angle

(For RG3: To the dealer and the installer)

This projector can be installed universally in every angle. When installing the projector at the angles
shown below, the separately sold cable cover is required to be attached to the projector.
For tilted installation of the projector, use a metal fitting with sufficient strength to prevent it from
falling.

Model name of cable cover

XP-13CV-W for A104U-W/A824U-W
XP-13CV-B for A104U-B/A824U-B

Two covers are packaged with the cable cover XP-13CV-W and XP-13CV-B.

Option cover A: for attaching to the connection terminal
area

Option cover B: for attaching to the exhaust vent

WARNING

• Using without the option cover violates safety regulations. Also, powering the projector on
without the option cover installed could result in a fire.

xxvii

Important Information

The drawings below show the installation angle required to attach the option cover A and B re­spectively.

• Both option cover A and B may need to be attached depending on the installation position of
the projector.

• Whether the option cover needs to be attached in the current installation position can be checked
on the [INFO.] screen of the on-screen menu.

Installation angles required to attach the option cover A

Option cover A

In the direction of back and forth

90°

20°–150°
Option cover A must be
attached

180° 0°

200°–330°
Option cover A must be
attached

In the direction of left and right

270°

90°

20°–160°
Option cover A must be
attached

180° 0°

200°–340°
Option cover A must be
attached

270°

NOTE:

The drawings show the image of installation angle as a reference. They are slightly different from the actual one.

•

xxviii

Important Information

Installation angles required to attach the option cover B

Option cover B

90°

0°–85°
Option cover B must be
attached

180° 0°

170°–265°
Option cover B must be
attached

NOTE:

• The drawings show the image of installation angle as a reference. They are slightly different from the actual one.

270°

xxix

Important Information

Clearance for Installing the Projector (For RG3: To the dealer and the installer)

• When installing the projector, keep sufficient space around it, as described below. If not, the hot
exhaust emitted from the projector may be taken back in.

Also, make sure no wind from an air-conditioner hits the projector.
The projector’s heat control system may detect an abnormality (temperature error) and automati-

cally shut off the power.

d

a

bb

a: Intake vent / b: Exhaust vent / c: 20 cm/8" or greater / d: 30 cm/12" or greater

NOTE:

• In the above figure, it is assumed that there is sufficient space above the projector.

• If the option cover is installed, leave a space of 20 cm/8" between the projector and the option cover.

• When using multiple projectors together for multi-screen projection, provide sufficient space
around the projectors for air intake and exhaust. When the intake and exhaust vents are obstructed,
the temperature inside the projector will rise and this may result in a malfunction.

c

c

d

b

a

a

About Copyright of original projected pictures:

Please note that using this projector for the purpose of commercial gain or the attraction of public
attention in a venue such as a coffee shop or hotel and employing compression or expansion of the
screen image with the following functions may raise concern about the infringement of copyrights
which are protected by copyright law.
[ASPECT RATIO], [KEYSTONE], Magnifying feature and other similar features.

[AUTO POWER OFF] Function

The factory default setting for [AUTO POWER OFF] is 15 minutes. If no input signal is received and no
operation is performed on the projector during 15 minutes, the projector is automatically powered
off for saving the power consumption. In order to control the projector by an external device, set
the [AUTO POWER OFF] to [OFF].

xxx

Important Information

REGISTER YOUR PROJECTOR! (for residents in the United States and Mexico)

Please take time to register your new projector. This will activate your limited parts and labor war­ranty and InstaCare service program.
Visit our website at https://www.sharpnecdisplays.us/product-registration and submit your com-
pleted form online.
Upon receipt, we will send a confirmation letter with all the details you will need to take advantage
of fast, reliable warranty and service programs from the industry leader, Sharp Imaging and Infor­mation Company of America.

Registration Information and Software License

• ProAssist, and Virtual Remote are trademarks or registered trademarks of Sharp NEC Display
Solutions, Ltd. in Japan, in the United State and other countries.

• The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI
Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

• HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America
and other countries and areas.

• Blu-ray is a trademark of Blu-ray Disc Association.

• CRESTRON and CRESTRON ROOMVIEW are trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and other countries.

• Extron and XTP are registered trademarks of RGB Systems, Inc. in the United States.

• Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.

• Other product and company names mentioned in this user’s manual may be the trademarks or
registered trademarks of their respective holders.

• Virtual Remote Tool uses WinI2C/DDC library, © Nicomsoft Ltd.

xxxi

1. Check the product overview, supplied items and part names

1-1. Introduction to the Projector

This section introduces you to your new projector and describes the features and controls.

• Liquid crystal type high brightness/high resolution projector

This projector has a display resolution of 1920 dots × 1200 lines (WUXGA) and an aspect ratio

of 16:10.

Model Brightness

A104U-W/A104U-B 10000 lm (Center 10500 lm)

A824U-W/A824U-B 8200 lm (Center 8600 lm)

• A long-life laser diode is equipped in the light module

The laser light source has a long service life, so replacement, adjustment, and other maintenance

should not be necessary for an extended period of time.

• A proprietary sealed structure that achieves highly dust-proof performance

Due to its excellent dust-proof performance, the projector is not equipped with a filter. Filter

replacement is therefore unnecessary.

• Wide range of optional lenses selectable according to the place of installation

This projector supports 5 types of optional lenses, providing a selection of lenses adapted to a

variety of places of installation and projection methods.

Note that no lens is mounted upon shipment from the factory. Please purchase optional lenses

separately.

• 360 degree free projection

The projector is equipped with a “tilt-free” function for 360° projection vertically and a “roll-free”

function for 360° projection horizontally.

Note, however, that the separately sold cable cover is required to be attached to the projector depending

on the installation angle of the projector.

• High quality pictures using Cinema Quality Picture technology

The projector displays extremely high quality pictures by combining the technology used to

develop digital cinema projectors with the image processing technologies we have amassed
over our countless years of developing projectors.

• Multi-screen projection using multiple projectors

This projetor equips the HDBaseT IN and HDBaseT OUT ports. Using a LAN cable, control signals

can be transmitted in addition to the audio/visual signals (up to four devices can be connected).

The edge blending function creates smooth borders when using multiple units to project a

single image.

1

1. Check the product overview, supplied items and part names

• Simultaneous display of 2 images (PIP/PICTURE BY PICTURE)

Two images can be projected simultaneously with a single projector.

There are two types of layouts for the two images: [PIP] in which a sub-picture is displayed on

the main picture, and [PICTURE BY PICTURE] in which the main and sub pictures are displayed
next to each other.

• Seamless switch function for smoother screen changes when switching the signal

When the input connector is switched, the image displayed before switching is held so that that

the new image can be switched to without a break due to absence of a signal.

• Supports wired LAN

Equips the LAN and HDBaseT ports. Utilizing a wired LAN connected with these ports, it enables

to control the projector by a computer.

• Convenient software applications

Compatible with our software applications (NaViSet Administrator 2, ProAssist, Virtual Remote

Tool, etc.). The projector can be controlled from a computer connected via a wired LAN.

• NaViSet Administrator 2

You can monitor the status of the projector and control a variety of functions.

• ProAssist

Necessary adjustments can be made smoothly for multi-screen projection.

• Virtual Remote Tool

A virtual remote control is displayed on the computer screen to perform simple controls

such as turning the projector on/off, switching signals, etc.

Please visit our website for downloading each software.

URL: https://www.sharp-nec-displays.com/dl/en/index.html

• CRESTRON ROOMVIEW and Extron XTP compatibility

The projector supports CRESTRON ROOMVIEW and Extron XTP, allowing multiple devices con-

nected in the network to be managed and controlled from a computer. Moreover, it enables to
output and control image via an Extron XTP transmitter connected with the projector.

• Energy-saving design with a standby power consumption of 0.20 W (100-130 V AC) / 0.26

W (200-240 V AC)

Selecting [ON] for [POWER-SAVING] from the menu can put the projector in power-saving mode.

When network is enabled: 0.7 W (100-130 V AC)/0.8 W (200-240 V AC)

When the network is disabled: 0.20 W (100-130 V AC)/0.26 W (200-240 V AC)

2

1. Check the product overview, supplied items and part names

• [LIGHT MODE] and “Carbon Meter” display

Three [LIGHT MODE] options can be selected according to the purpose of use. [LIGHT ADJUST]

can also be used to reduce output power and control energy consumption. The energy-saving
effect from that time will be factored into the amount of reduced CO
in the confirmation message when turning the power off as well as the [INFO.] area in the on­screen menu (CARBON METER)

emissions and displayed

2

3

1. Check the product overview, supplied items and part names

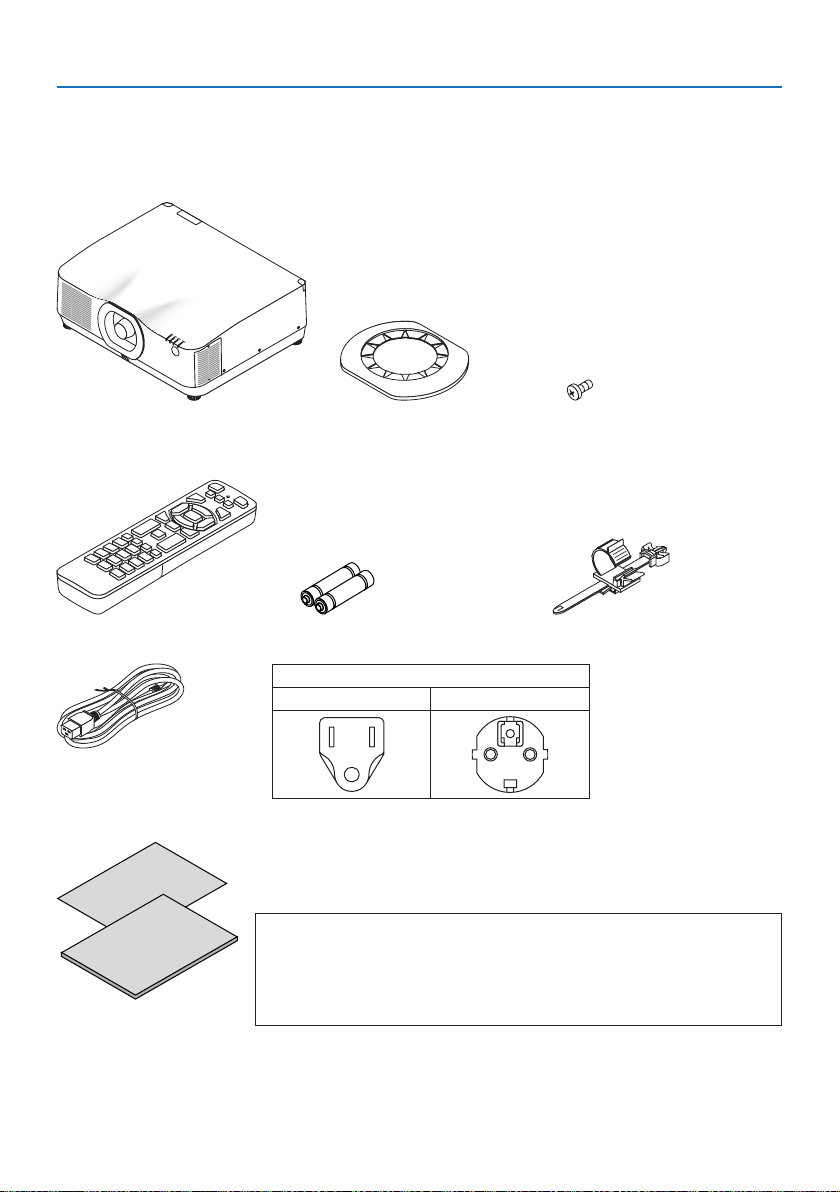

1-2. What’s in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your projector.

Projector

Dust cap for lens

* The projector is shipped without a lens.

Remote control

Power cord

See page ix.

AAA alkaline batteries (×2)

For North America For Europe/Asia

• Important Infomation

• Safety Cautions (For Europe)

• Quick Setup Guide

• Security Sticker

(Use this sticker when security password is set on.)

For USA only

Limited warranty

For customers in Europe

You will find our current valid Guarantee Policy on our website:

https://www.sharpnecdisplays.eu

Lens mask Lens theft prevention screw

Power cord stopper

Plug type

4

1. Check the product overview, supplied items and part names

1-3. Part Names of the Projector

Front

The lens is sold separately. The description below is for when the XP-41ZL lens is mounted.

5

6

6

1

7

2

3

1. Exhaust vent

Heated air is exhausted from here.

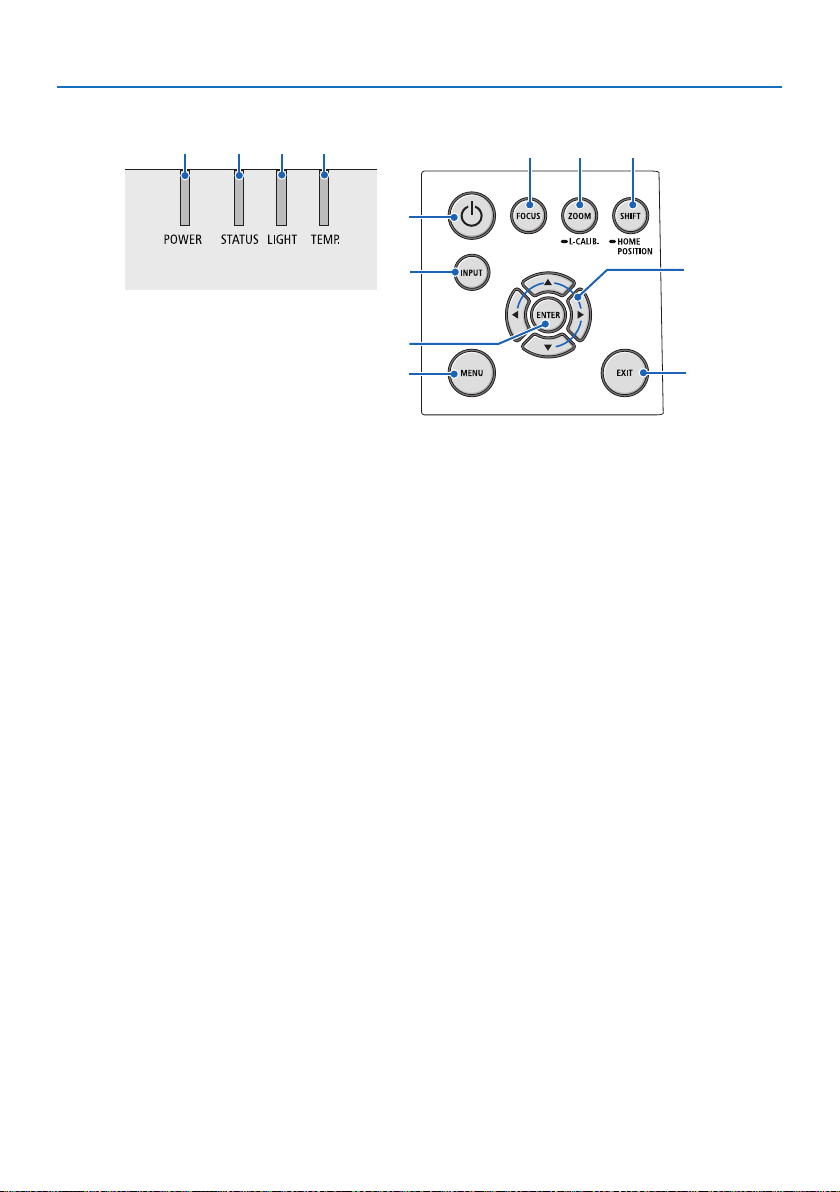

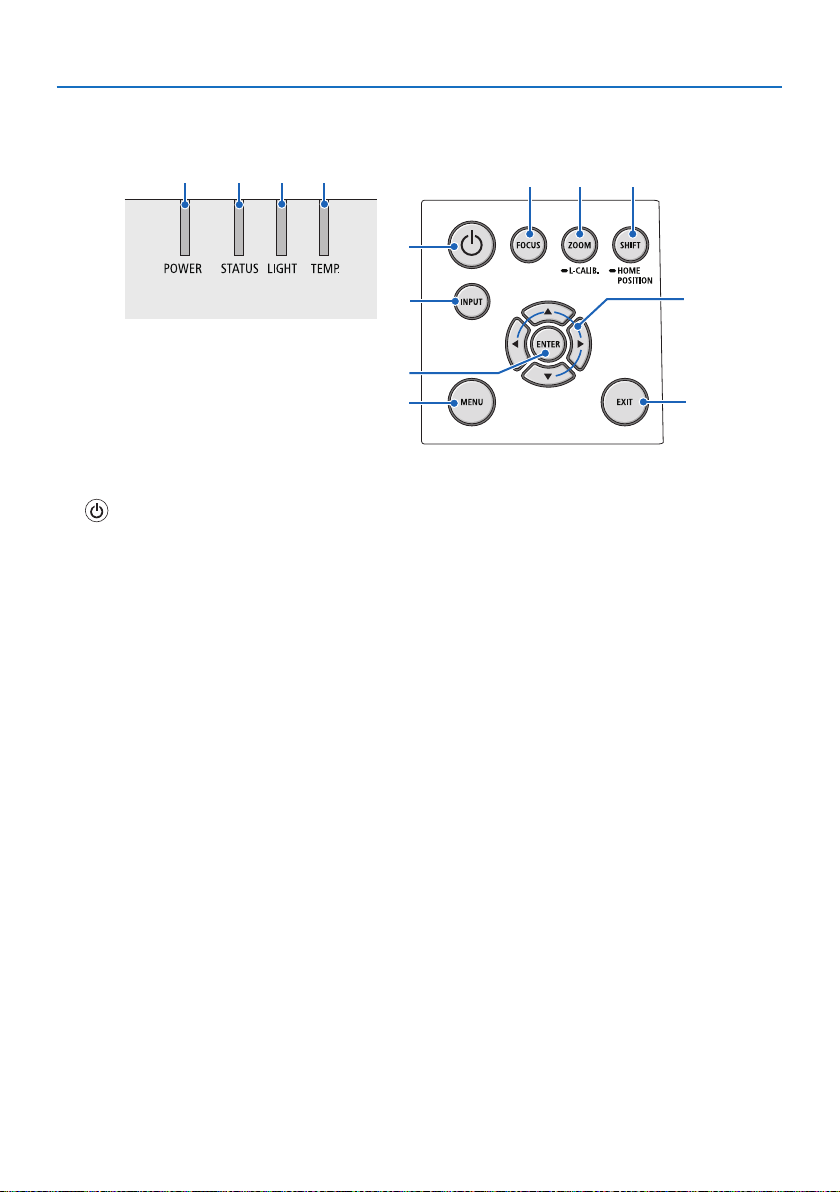

2. Controls

The projector’s power can be turned ON/

OFF, and the signal for the projected image
can be switched here.

3. Adjustable Tilt Foot

Rotate the tilt feet to adjust the left/right

orientation.

4. Intake vent

Takes in outside air to cool the unit.

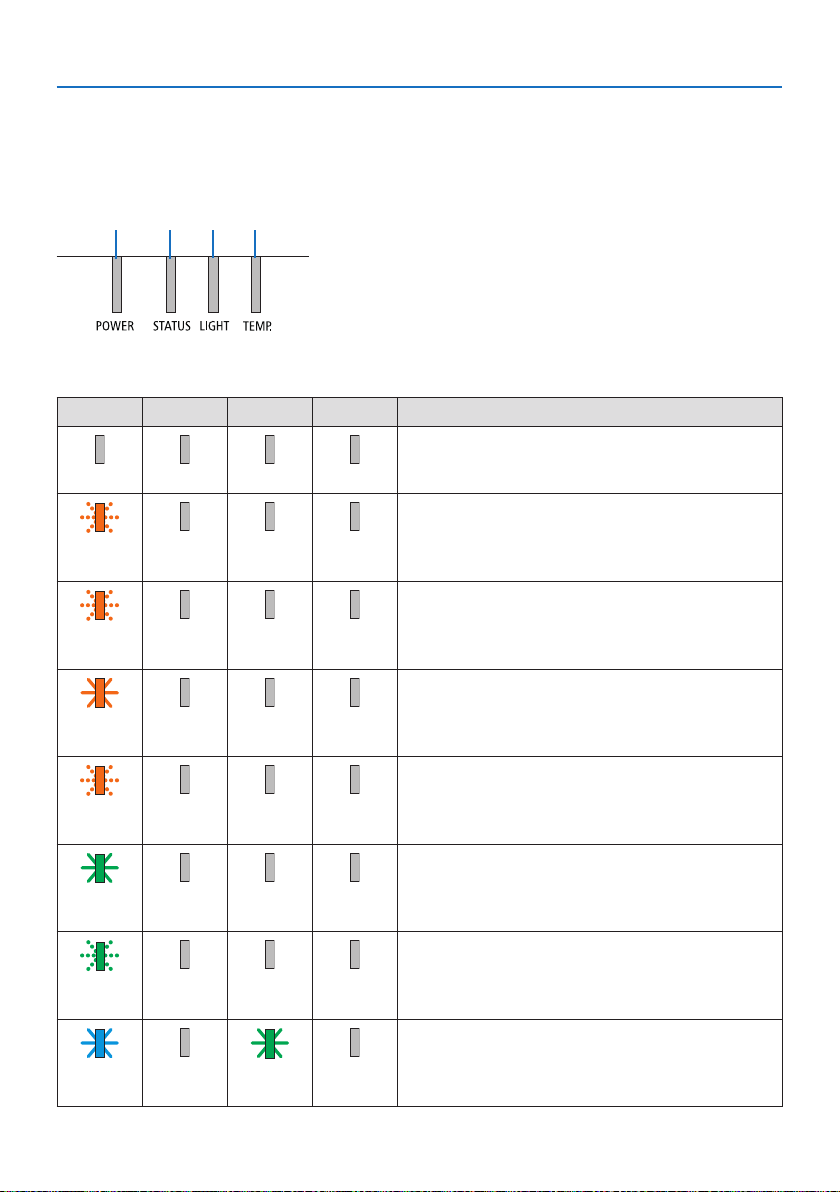

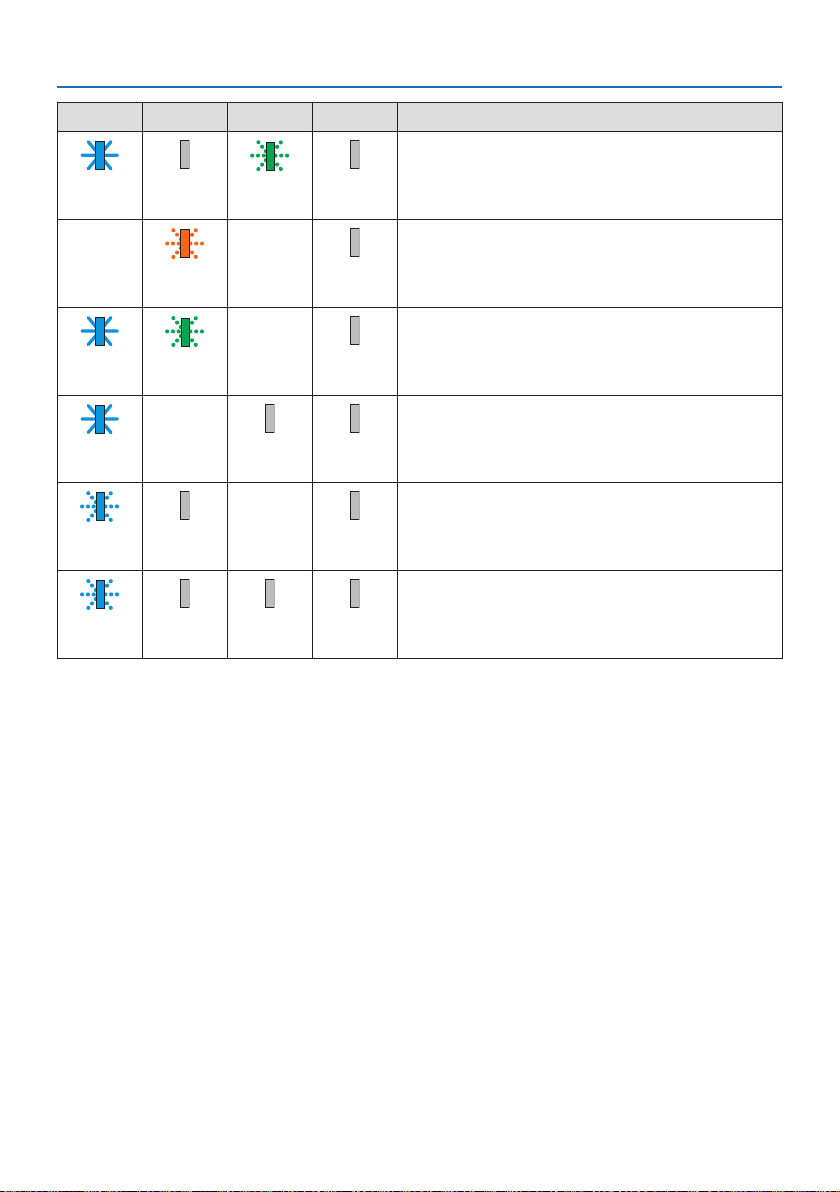

5. Indicator Section

The indicator light turns on or blinks to

relay the status of the projector (Power ON/
Standby/etc.)

6. Remote Sensor

This part receives signals from the remote

control. There are two locations on the front
and back of the projector.

9
8
4

7.

Lens

Images are projected from here. (Lens unit

sold separately.)

8. Lens Cap

(The optional lens is shipped with the lens

cap.)

9. Lens Release Button

Use this to remove the lens unit.

5

Rear

1. Check the product overview, supplied items and part names

6
4
3

1

8

7

1. Exhaust vent

Heated air is exhausted from here.

2. Intake vent

Takes in outside air to cool the unit.

3. Security Bar

Attach an anti-theft device. The security bar

accepts security wires or chains up to 0.18
inch/4.6 mm in diameter.

4. Remote Sensor

This part receives signals from the remote

control. There are two locations on the front
and back of the projector.

5. Security Slot (

This is used when attaching an anti-theft

cable.

)*

2
5

6. Terminals

Connect the cables for the various audio

and video signals.

7. AC IN Terminal

Connect the supplied power cord’s three-

pin plug here, and plug the other end into
an active wall outlet.

8. Label

* Security and theft protection lock compatible with Kensington security cables/equipment. For products,

visit Kensington’s website.

6

Controls/Indicators

1. Check the product overview, supplied items and part names

2 3 4 5

1

6

9
7

1. (POWER) Button

Switches between projector’s power on and

standby.

When turning off the power (standby),

pressing the button once will bring up a
confirmation message on the screen, so
press the button one more time.

2. POWER Indicator

Indicates the projector’s power state. The

indicator lights up in blue when the power is
on. Depending on the state of power, it will
light up or blink in either green or orange

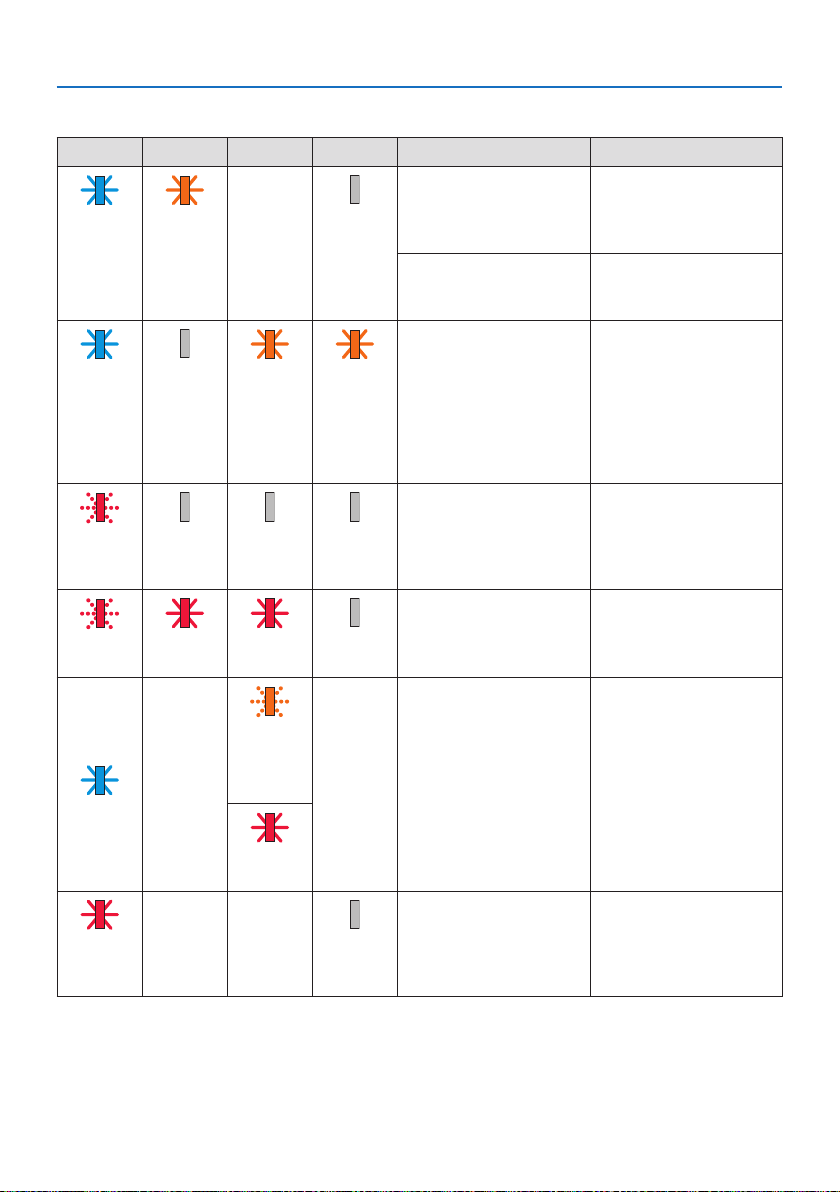

when power is off. Refer to the “Indicator
Message” section for details.

(→ page 41)

3. STATUS Indicator

This lights up or blinks when an operation

button is pressed while the unit is in key
lock mode, while the lens is calibrating, etc.
Refer to the “Indicator Message” section for
details.

(→ page 41)

4. LIGHT Indicator

Indicates the state of the light source.

11 12

13

8

10

5.

TEMP. Indicator

Indicates high temperatures around the

projector.

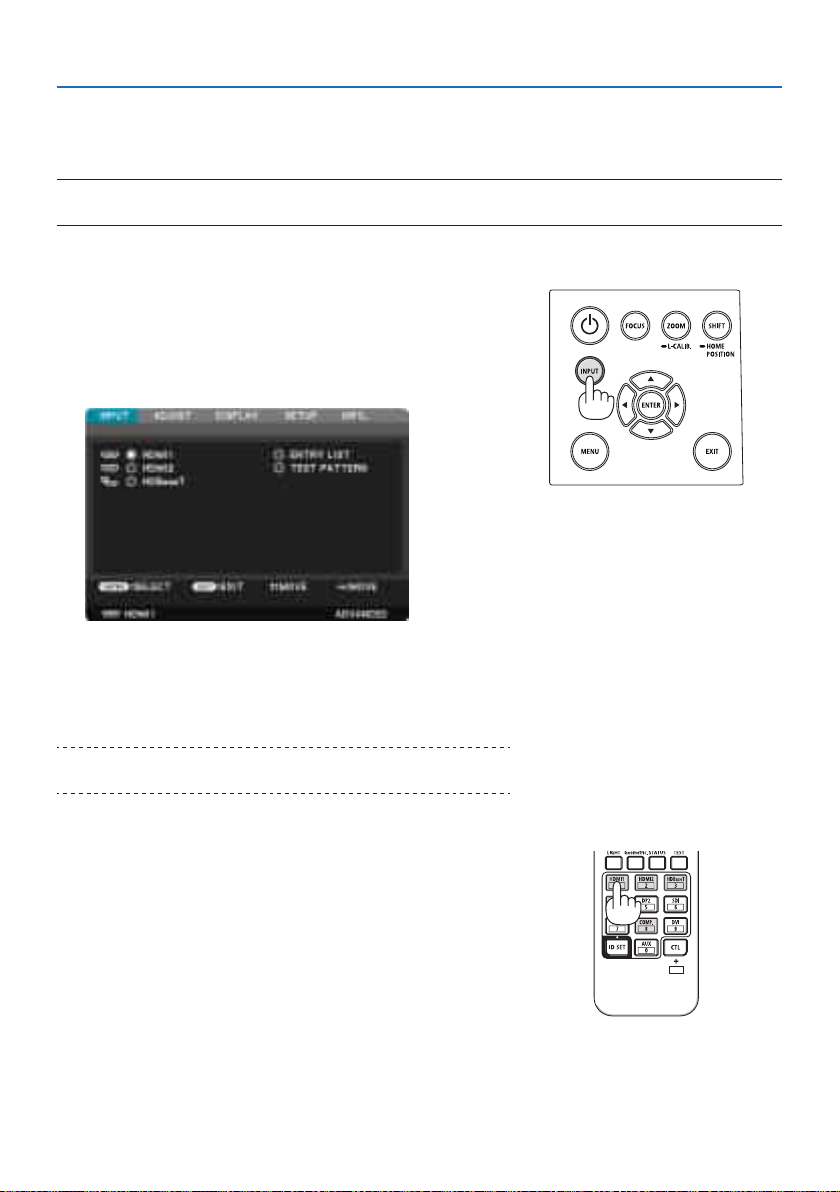

6. INPUT Button

Selects the input signal. Pressing it quickly

will display the input selection screen. Press­ing it for one second or longer will begin
a series of automatic checks in the order
of HDMI1 → HDMI2 → HDBaseT, and if an
input signal is detected then that signal will
be projected.

7. MENU Button

Displays the on-screen menu for various

settings and adjustments.

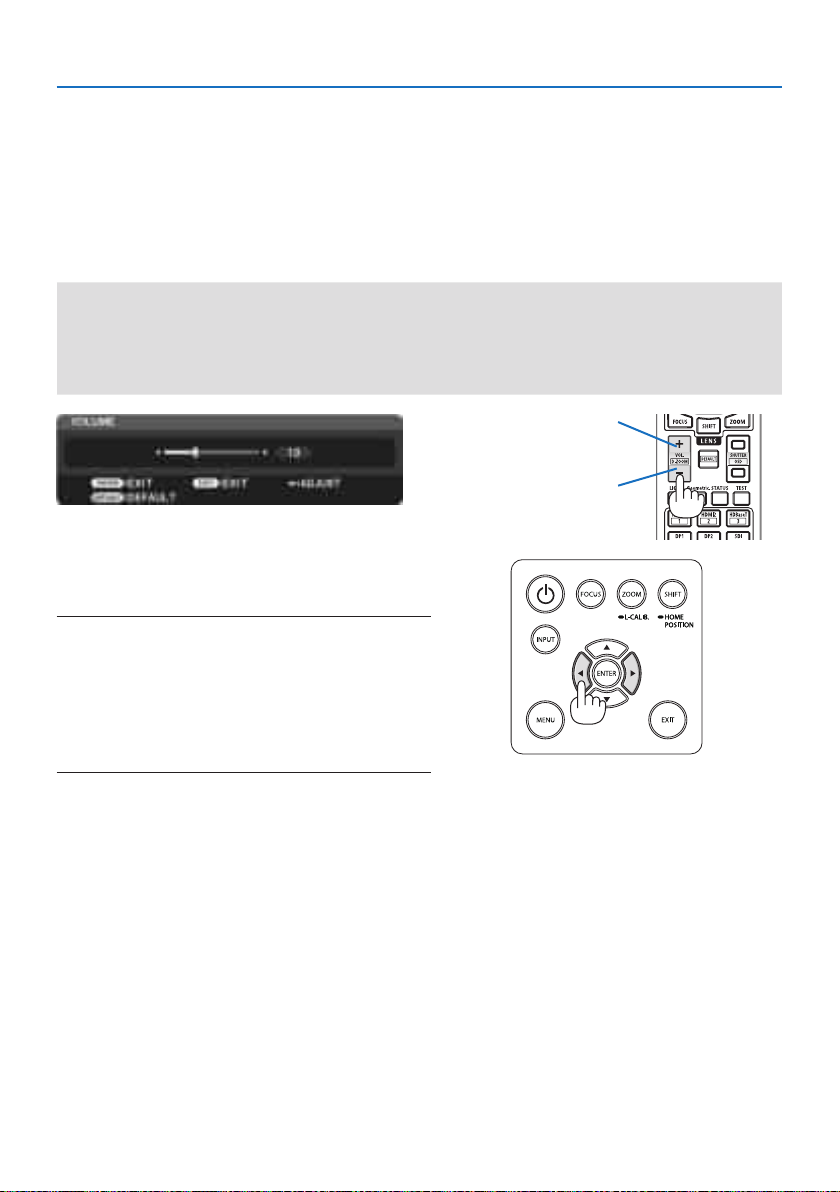

8. ▲▼◀▶ / Volume Buttons ◀▶

• When the on-screen menu is displayed,

use the ▼▲◀▶ buttons to select the item
that you wish to set or adjust.

• Changes the pattern when the test pat­tern is displayed.

When the on-screen menu is not dis-

•
played, use the ◀ / ▶ buttons to adjust
the sound output from the projector.

7

1. Check the product overview, supplied items and part names

2 3 4 5

1

6

9
7

9. ENTER Button

Moves to the next menu when the on-

screen menu is displayed. Confirms the
item when the confirmation message is
displayed.

10. EXIT Button

Returns to the menu on the previous

level when the on-screen menu is displayed.
Closes the menu when a cursor appears in
the main menu. Cancels the operation when
the confirmation message is displayed.

11. FOCUS Button

Open the focus adjustment screen and focus

the projected image.

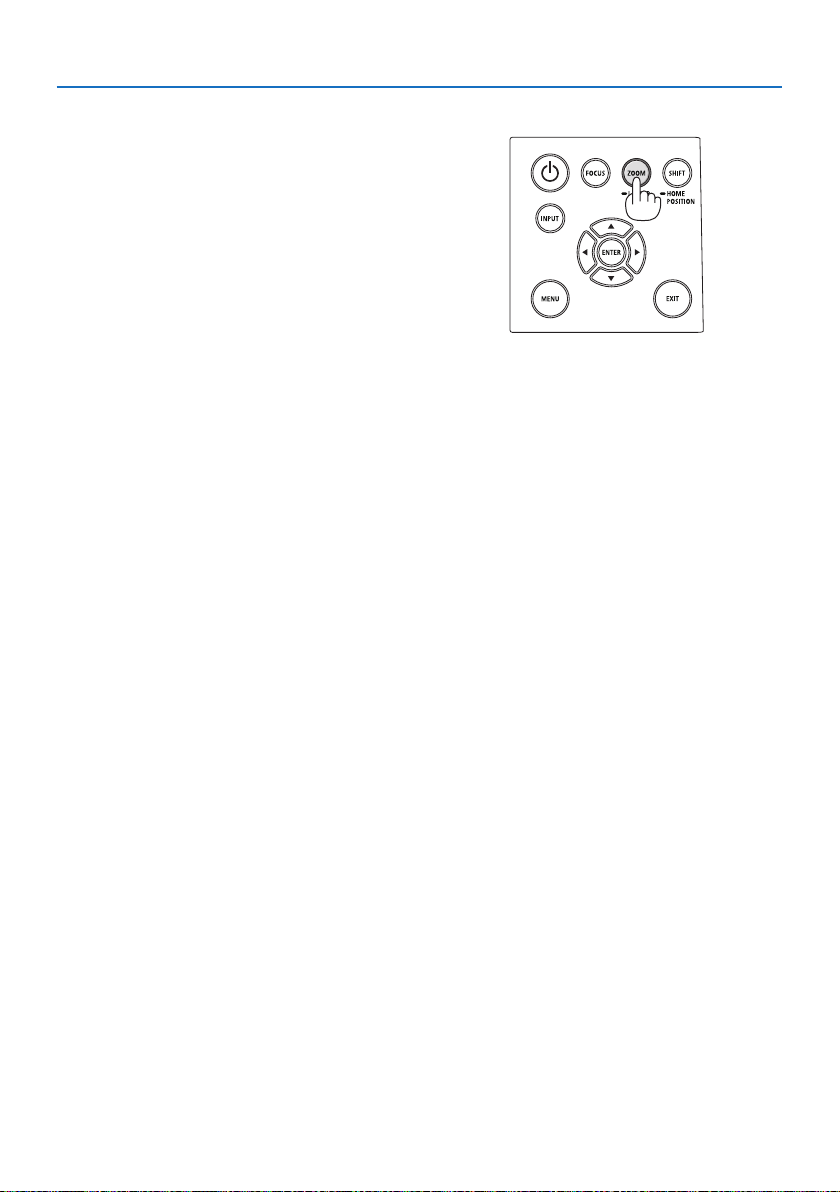

12. ZOOM/L-CALIB. Button

• Short press to open the zoom adjust­ment screen. Finely adjust the size of the
projected image.

• Long press (two seconds or longer) to cor­rect the adjustment range of the attached
lens unit (calibration).

SHIFT/HOME POSITION Button

13.

• Short press to display the lens shift screen.
Adjust them using the ▼▲◀▶ buttons.

• Long press (2 seconds or longer) to return
the lens shift adjustment to its initial posi­tion.

11 12

13

8

10

8

Terminal Panel Features

1. Check the product overview, supplied items and part names

3 6

241

589

1. HDMI 1 Terminal (Type A)

Connects to the output terminals of a com-

puter, blu-ray player, etc.

2. HDMI 2 Terminal (Type A)

Connects to the output terminals of a com-

puter, blu-ray player, etc.

3.

HDBaseT IN Port (RJ-45)

Connects to a commercially available HD-

BaseT compatible transmission devices.

Also used when connecting multiple projec-

tors in daisy chaining.

4.

HDBaseT OUT Port (RJ-45)

Outputs incoming signals from the HDMI 1

terminal, HDMI 2 terminal, and HDBaseT IN
Port.

5. AUDIO OUT Mini Jack (Stereo Mini)

Outputs the audio signal corresponding to

the image projected from the projector. The
output volume can be adjusted using the
◀ / ▶ buttons.

7

6. USB Port (Type A)

Connect a commercially available USB

mouse and use it to navigate the menu.

NOTE:

Not guarantee the performance of all USB mouse avail-

•
able on the market.

7. LAN Port (RJ-45)

Connects the unit to a wired LAN.

8. RS-232C Port (D-Sub 9 Pin)

Use this port to connect a PC or control

system. This enables you to control the pro­jector using serial communication protocol.

The reverse type cable (null modem cable)

(not supplied) should be used for RS-232C
control.

9

1. Check the product overview, supplied items and part names

3 6

241

589

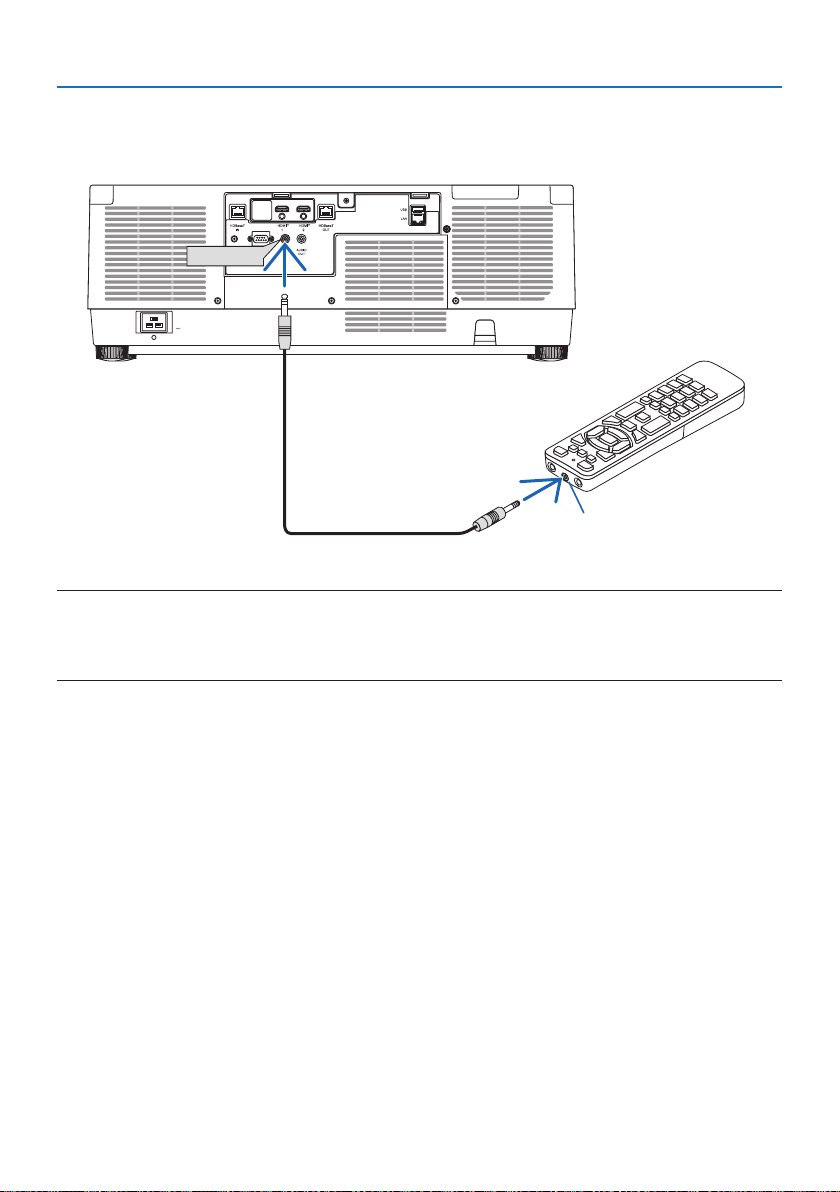

9. REMOTE Terminal (Stereo Mini)

Use this terminal for wired remote control

of the projector.

NOTE:

• When a remote control cable is connected to the REMOTE
terminal, infrared remote control operations cannot be
performed.

• When [HDBaseT] is selected in the [REMOTE SENSOR] and the
projector is connected to a commercially-available transmis­sion device that supports HDBaseT, remote control operations
in infra-red cannot be carried out if transmission of remote
control signals has been set up in the transmission device.
However, remote control using infrared rays can be carried
out when the power supply of the transmission device is
switched off.

7

10

1. Check the product overview, supplied items and part names

1-4. Part Names of the Remote Control

11
10

13

17
16
21
20
24
23

26

30
29

112

3
5

6

8

1. Infrared Transmitter

Remote control signals are sent via infrared signal.

Point the remote control at the remote control

4

7

9

12
14

15

18
19

22
25

27
28

32

31

receiver on the projector.

2. Remote Jack

Connect a commercially available remote cable

here for wired operation.

3. POWER ON Button (

Turns power ON when in sleep or standby mode.

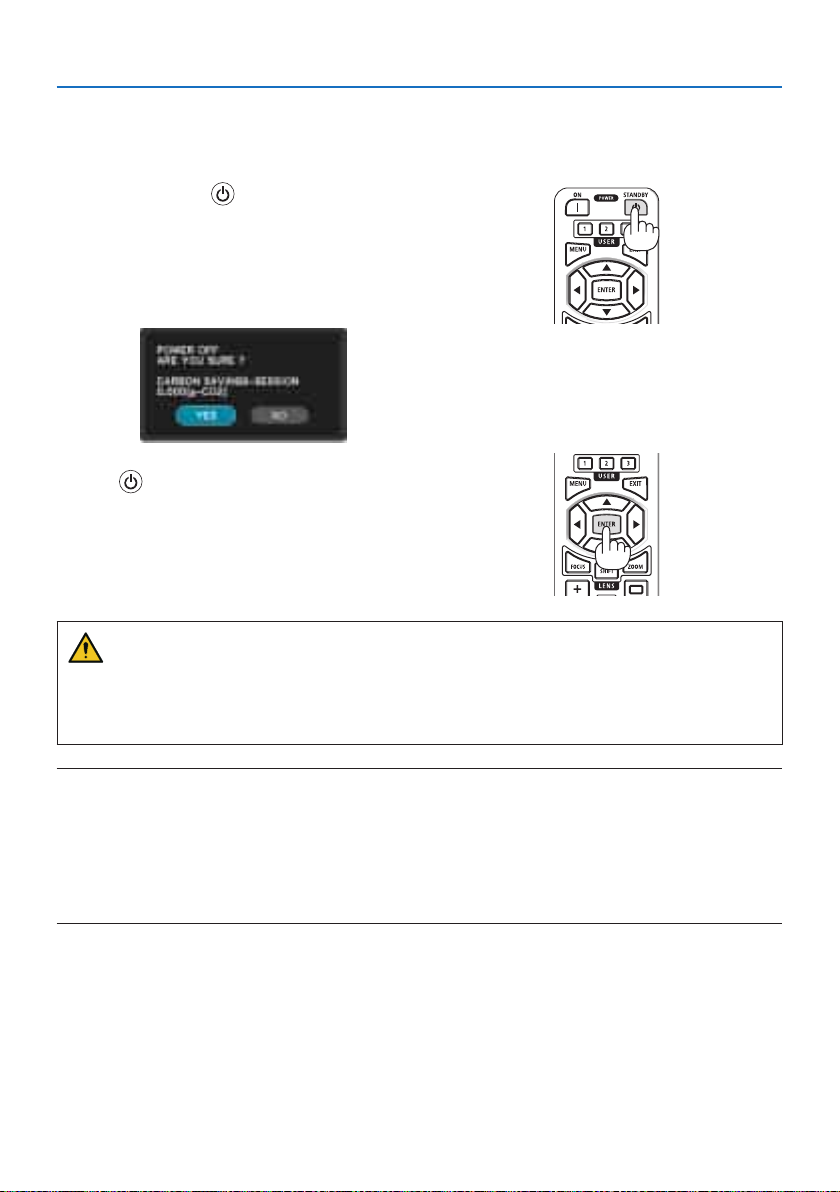

4. POWER STANDBY Button (

Pressing the button once will display the shutdown

confirmation message. Press the POWER STANDBY
(or ENTER) button once more to power down the
projector.

5. USER 1/2/3 Button

The following 14 functions can be selected and set.

When the character input screen is displayed, use

this to switch the character keyboard, insert a
space, and erase characters.

6. MENU Button

Displays the on-screen menu for various settings

and adjustments.

7. EXIT Button

Returns to the menu on the previous level when

the on-screen menu is displayed. Closes the menu
when a cursor appears in the main menu. Cancels
the operation when the confirmation message is
displayed.

8. ▲▼◀▶ Button

• When the on-screen menu is displayed, use the

▼▲◀▶ buttons to select the item that you wish
to set or adjust.

Changes the pattern when the test pattern is

•
displayed.

)

)

11

1. Check the product overview, supplied items and part names

11
10

13

17
16
21
20
24
23

26

30
29

112

3
5

6

8

9. ENTER Button

Moves to the next menu when the on-screen menu

is displayed. Confirms the item when the confirma-

4

7

9

12
14

15

18
19

22
25

27
28

32

31

tion message is displayed.

10. FOCUS Button

Opens the focus adjustment screen. Adjust the

focus (of the lens) with the ◀ / ▶ buttons.

11. SHIFT Button

The lens shift adjustment screen will be displayed.

Use the ▼▲◀▶ buttons to adjust the lens position.

12. ZOOM Button

Opens the zoom adjustment screen. Adjust zoom

with the ◀ / ▶ buttons.

13. VOL./D-ZOOM (+)(−) Button

Adjusts the volume level of the audio output termi-

nals. Simultaneously pressing the CTL button will
expand or shrink the image (return to the original
state).

14. DEFAULT Button

Simultaneously pressing the CTL button when the

on-screen menu is displayed will reset the adjust­ment values.

This only works for the items with DEFAULT dis-

played in the Operation Guide.

15. SHUTTER/OSD OPEN (

Press the CLOSE button to turn off the light source

and temporarily stop projection. Press the OPEN
button to resume. Simultaneously press the CTL
and CLOSE buttons to close the on-screen display
(On-Screen Mute). Simultaneously press the CTL
and OPEN buttons to go back.

16. LIGHT Button

Displays the light mode screen.

NOTE:

• The settings in [ADJUST] → [PICTURE] → [MODE] change the
screen displayed.

)/CLOSE ( ) Button

12

1. Check the product overview, supplied items and part names

11
10

13

17
16
21
20
24
23

26

30
29

112

3
5

6

8

17. Geometric. Button

Displays [GEOMETRIC CORRECTION] from the

on-screen menu. Use it to adjust distortions in

4

7

9

12
14

15

18
19

22
25

27
28

32

31

projected images.

18. STATUS Button

Displays [USAGE TIME] of [INFO.] from the on-

screen menu.

19. TEST Button

Projects a test pattern.

20. HDMI1 Button

Selects the HDMI 1put.

21. HDMI2 Button

Selects the HDMI 2put.

22. HDBaseT Button

Selects the HDBaseT input.

23. DP1 Button

(Not available on this series of projectors.)

24. DP2 Button

(Not available on this series of projectors.)

25. SDI Button

(Not available on this series of projectors.)

26. SLOT Button

(Not available on this series of projectors.)

27. COMP. Button

(Not available on this series of projectors.)

28. DVI Button

(Not available on this series of projectors.)

29. AUX Button

(Not available on this series of projectors. For future

expansion)

13

1. Check the product overview, supplied items and part names

11
10

13

17
16
21
20
24
23

26

30
29

112

3
5

6

8

30. ID SET Button

Used to set the control ID when performing indi-

vidual operations on multiple projectors using the

4

7

9

12
14

15

18
19

remote control. Also used to toggle the character
keyboard when the character input screen is dis­played.

31. Numeric Keypad Button

Used to input the control ID when performing

individual operations on multiple projectors using
the remote control (set the control ID). Pressing
the 0 button while holding down the ID SET but­ton will remove any control ID settings. Used to
enter alphanumeric characters directly when the
character input screen is displayed.

32. CTL Button

This is a multipurpose button for combined use

with other buttons.

22
25

27
28

32

31

14

1. Check the product overview, supplied items and part names

Battery Installation

1. Press the catch and remove the battery cover.

2. Install AAA alkaline batteries. Ensure that you have
the batteries’ polarity (+/−) aligned correctly.

3. Slip the cover back over the batteries until it snaps
into place.

NOTE:

•

Do not mix different types of batteries or new and old batteries.

When replacing the batteries, purchase 2 of the

•

same type of AAA alkaline batteries.

2

1

1

2

Remote Control Precautions

• Handle the remote control carefully.

• If the remote control gets wet, wipe it dry immediately.

• Avoid excessive heat and humidity.

• Do not short, heat, or take apart batteries.

• Do not throw batteries into fire.

• If you will not be using the remote control for a long time, remove the batteries.

• Ensure that you have the batteries’ polarity (+/−) aligned correctly.

• Do not use new and old batteries together, or use different types of batteries together.

•

Dispose of used batteries according to your local regulations.

• Please note that if multiple projectors are installed nearby, other projectors may unintentionally

light up when you turn on the power using the remote control.

15

1. Check the product overview, supplied items and part names

Operating Range for Wireless Remote Control

b

a

a

a

b

a

c

a

d

a

a

b

a

b

a: 7 m/276" / b: 20 m/787" / c: Remote sensor on projector cabinet / d: Remote control

• The projector will not respond if there are objects between the remote control and the sensor,

or if strong light falls on the sensor. Weak batteries will also prevent the remote control from
properly operating the projector.

16

1. Check the product overview, supplied items and part names

Using the Remote Control in Wired Operation

Connect one end of the remote cable to the REMOTE terminal and the other end to the remote
jack on the remote control.

REMOTE

a

a: Remote jack

NOTE:

• When a remote cable is inserted into the REMOTE terminal, the remote control does not work for infrared wireless communication.

• Power will not be supplied to the remote control by the projector via the REMOTE jack. Battery is needed when the remote control
is used in wired operation.

17

2. Projecting an Image (Basic Operation)

This section describes how to turn on the projector and to project a picture onto the screen.

2-1. Flow of Projecting an Image

Step 1

• Connecting your computer / Connecting the power cord (→ page 19)

Step 2

• Turning on the projector (→ page 22)

Step 3

• Selecting a source (→ page 25)

Step 4

• Adjusting the picture size and position (→ page 27)

Step 5

• Adjusting a picture and sound (→ page 35)

Step 6

• Making a presentation

Step 7

• Turning off the projector (→ page 36)

Step 8

• After use (→ page 37)

18

2. Projecting an Image (Basic Operation)

2-2. Connecting Your Computer/Connecting the Power Cord

1. Connect your computer to the projector.

This section will show you a basic connection to a computer.

Connect a commercially available HDMI cable between the computer's HDMI output connector
and the projector's HDMI 1 or HDMI 2 connector.

2. Connect the supplied power cord to the projector.

First connect the supplied power cord’s three-pin plug to the AC IN terminal of the projector,
and then connect another plug of the supplied power cord directly in the wall outlet. Do not
use any plug converter.

CAUTION:

• This equipment is designed to be used in the condition of the power cord connected to
earth. If the power cord is not connected to the earth, it may cause electric shock. Please
make sure the power cord is connected to the wall outlet directly and earthed properly.

Do not use a 2-core plug converter adapter.

• Be sure to connect the projector and the computer (signal source) to the same earth point.

If the projector and the computer (signal source) will be connected to different earth

points, fluctuations in the earth potential may cause fire or smoke.

• To prevent the power cord from coming loose, make sure that all the prongs of the power
cord plug are fully inserted into the AC IN terminal of the projector before using the power
cord stopper. A loose contact of the power cord may cause a fire or electric shock.

Upon connecting the power cable, the POWER indicator of the projector will light.

19

2. Projecting an Image (Basic Operation)

HDMI 1

HDMI 2

a

Make sure that the prongs
are fully inserted into both
the AC IN and the wall

To wall outlet

a: Power cord (supplied) / b: HDMI cable (not supplied)

• Use a Premium High Speed HDMI Cable.

outlet.

b

CAUTION:

Parts of the projector may become temporarily heated if the projector is turned off with the
POWER button or if the AC power supply is disconnected during normal projector operation.
Use caution when picking up the projector.

20

2. Projecting an Image (Basic Operation)

Using the power cord stopper

To prevent the power cord from accidently removing from the AC IN of the projector, use the power
cord stopper.

NOTE:

• If you pull on the power supply cord while the connector is fixed, the main unit may fall down and be damaged

① With the clamper facing the power supply cord, align the tip of the power supply cord stopper

with the hole below the AC IN terminal and push it in.

② Pass the power supply cord through the clamper and press the clamper to fix it.

③ Slide the clamper until the base of the power plug.

a

a

a

a: Clamper

21

2. Projecting an Image (Basic Operation)

2-3. Turning on the Projector

WARNING

The projector produces a strong light. When turning on the power, operate from the side or rear
of the projector (outside the hazard zone). Also, when turning on the power, make sure no one
within the projection range is looking at the lens.

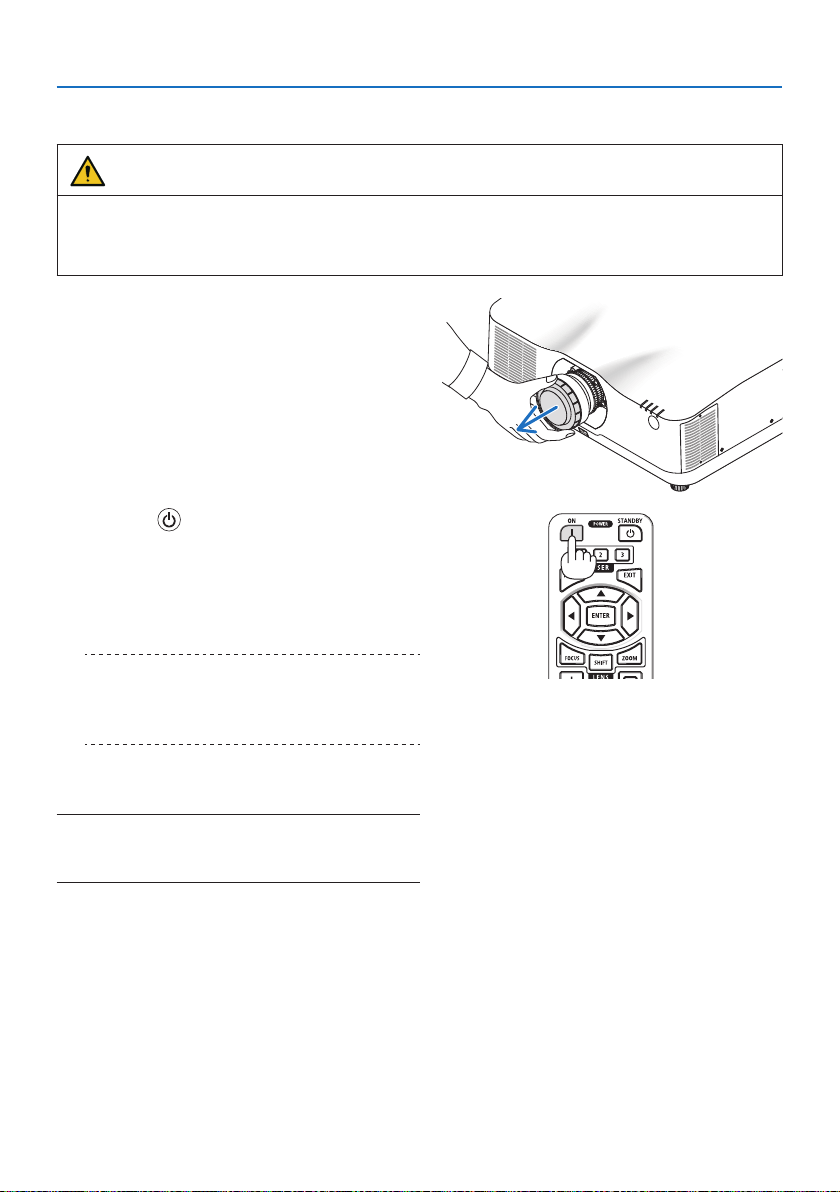

1. Remove the lens cap.

2. Press the (POWER) button on the projec­tor cabinet or the POWER ON button on the
remote control.

The POWER indicator lit in green will start
to blink in blue. After that, the image will be
projected onto the screen.

TIP:

• When the message “PROJECTOR IS LOCKED! ENTER YOUR
PASSWORD.” is displayed, it means that the [START-UP
LOCK] feature is turned on.

After you turn on your projector, ensure that
the computer or video source is turned on.

NOTE:

• A blue screen (blue background) is displayed when no signal is
being input (by factory default menu settings).

22

Performing Lens Calibration

After mounting the separately available lens unit or
replacing a lens unit, perform [LENS CALIBRATION]
by holding to press ZOOM/L-CALIB. button on the
cabinet over two seconds.
Calibration corrects the adjustable zoom, shift, and
focus range. If calibration is not performed, you may
not be able to get the best focus and zoom even if
you adjust the focus and zoom for the lens.

2. Projecting an Image (Basic Operation)

23

2. Projecting an Image (Basic Operation)

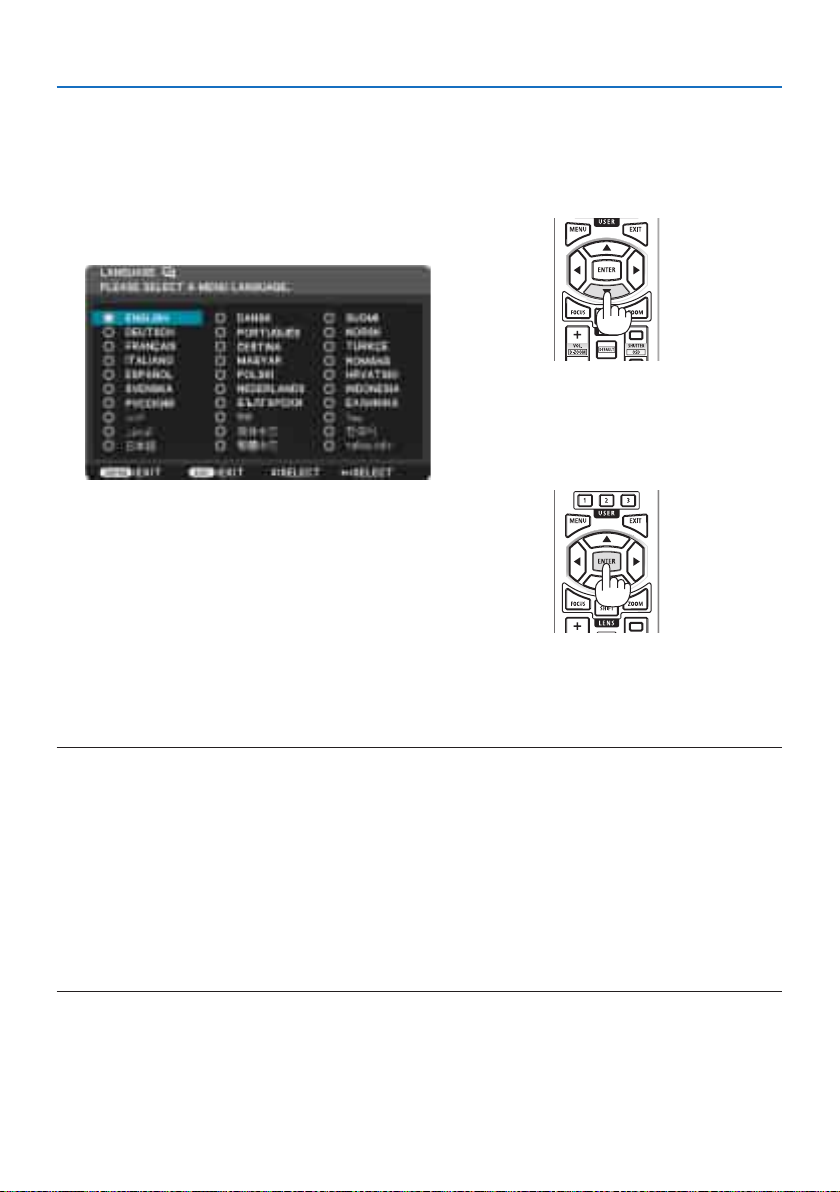

Note on Startup screen

When you first turn on the projector, you will get the Startup menu. This menu gives you the op­portunity to select one of the 30 menu languages.

To select a menu language, follow these steps:

1. Use the ▲, ▼, ◀ or ▶ button to select one of

the 30 languages from the menu.

2. Press the ENTER button to execute the selec­tion.

After this has been done, you can proceed to
the menu operation.

If you want, you can select the menu language
later.

• After the language is set, the ADMIN PASS-

WORD setting screen appears.

Make this setting as necessary. (→ Installa-

tion Manual)

NOTE:

• If the message, [PLEASE SET "DATE AND TIME".] is shown, please set the current date and time.
In the case this message is not shown, the [DATE AND TIME SETTINGS] is recommended to complete.

• Keep the lens cap off the lens while the projector’s power is on.
If the lens cap is on, it could be warped due to high temperature.

• If the STATUS indicator lights orange with the power button pressed, the projector will not be turned on since the [CONTROL PANEL
LOCK] has been [ON]. Cancel the lock by turning it off.

• While the POWER indicator is blinking blue in short cycles, the power cannot be turned off by using the power button.

• If the projector is kept in sleep mode or other similar state, the temperature of the internal components could rise even when the
projector is being used within its normal operating temperate. If the power is turned on in that state, the cooling fan will turn on
and the image will be projected after a short while.

24

2. Projecting an Image (Basic Operation)

2-4. Selecting a Source

Selecting the computer or video source

NOTE:

• Turn on the computer or video source equipment connected to the projector.

Detecting the Signal Automatically

Press the INPUT button for 1 second or longer. The projector
will search for the available input source and display it. The
input source will change as follows:
HDMI1 → HDMI2 → HDBaseT → HDMI1 → …

• Press it briefly to display the [INPUT] screen.

• Press the ▼/▲ buttons to match the target input terminal

and then press the ENTER button to switch the input. To
delete the menu display in the [INPUT] screen, press the
MENU or EXIT button.

TIP:

• If no input signal is present, the input will be skipped.

Using the Remote Control

Press any one of the HDMI1, HDMI2, or HDBaseT button.

25

2. Projecting an Image (Basic Operation)

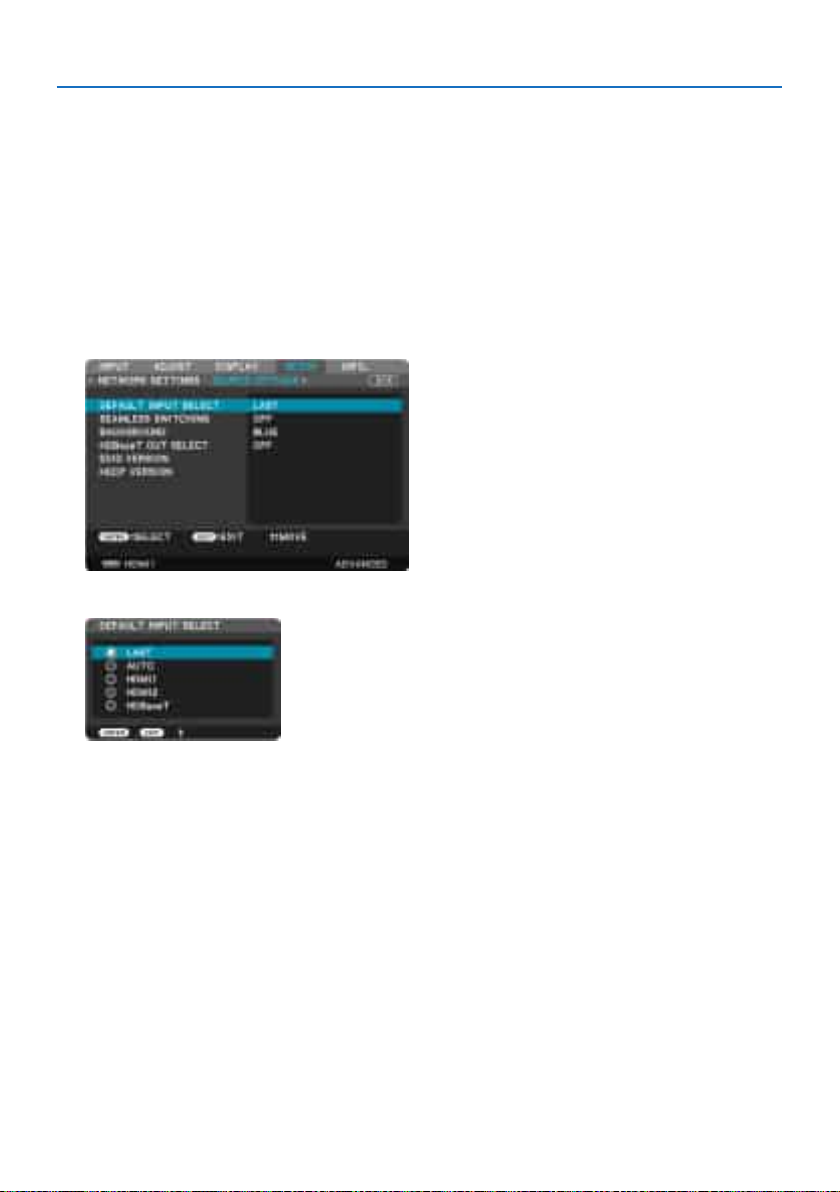

Selecting Default Source

You can set a source as the default source so that it will be displayed each time the projector is
turned on.

1. Press the MENU button.

The menu will be displayed.

2. Press the ▶ button to select [SETUP] and press the ▼ button or the ENTER button to select

[MENU(1)].

3. Press the ▶ button to select [SOURCE OPTIONS] and press the ▼ button or the ENTER

button.

4. Select [DEFAULT INPUT SELECT] and press the ENTER button.

The [DEFAULT INPUT SELECT] screen will be displayed.

5. Select a source as the default source, and press the ENTER button.

6. Press the EXIT button a few times to close the menu.

7. Restart the projector.

The source you selected in step 5 will be projected.

26

2. Projecting an Image (Basic Operation)

2-5. Adjusting the Picture Size and Position

Use the lens shift, the adjustable tilt foot, the zoom and the focus to adjust the picture size and
position.
Repeat these adjustments until you obtain the optimal projection conditions.
In this chapter drawings and cables are omitted for clarity.

Adjusting the projected image’s vertical and
horizontal position
“Lens shift” (→ page 28)

Finely adjusting the size of an image
“Zoom” (→ page 33)

Adjusting the focus
“Focus” (→ page 30)

Adjusting the projected image’s inclination
“Tilt foot” (→ page 34)

27

2. Projecting an Image (Basic Operation)

Adjusting the vertical position of a projected image (Lens shift)

CAUTION

• Perform the adjustment from behind or from the side of the projector. If adjustments are
performed from the front, your eyes could be exposed to strong light and get injured.

• Keep hands away from the lens mounting portion while performing a lens shift. Failure to do
so could result in fingers being pinched by the moving lens.

1. Press either SHIFT/HOME POSITION button
on the cabinet or SHIFT button on the remote
control.

The [LENS SHIFT] screen will be displayed.

2. Press the ▼▲◀▶ buttons to move the projected image.

To set back the lens to the home position

Press and hold the SHIFT/HOME POSITION button over 2 seconds. The lens mounted on the projec­tor goes back to the home position. (roughly to the center position)

28

2. Projecting an Image (Basic Operation)

NOTE:

• If the lens is shifted to the maximum in the diagonal direction, the screen peripheral area will be dark or shaded.

• Fix the XP-50ZL/NP50ZL to the projector using the supplied support kit. Loosen the bolts of the support kit, you can adjust the lens
shift.

• Fix the XP-44ML/NP44ML to the projector using the separately sold support kit (XP-02LK/NP02LK). Lens shift is not available for
the XP-44ML/NP44ML.

TIP:

• The figure below shows the lens shift adjustment range (projection method: Desktop/Front) of the XP-41ZL lens unit.

50 %V

100 %V

H

V

10 %V

Description of symbols: V indicates vertical (height of the projected image), H indicates horizontal (width of the projected image).

10 %H 10 %H

100 %H

20 %H 20 %H

29

2. Projecting an Image (Basic Operation)

Focus

• Recommend to perform the focus adjustment after leaving the projector under the state the TEST
PATTERN has been projected for over 30 minutes.

Applicable lens: XP-40ZL/XP-41ZL/NP40ZL/NP41ZL

1. Press the FOCUS button.

The [LENS FOCUS] control screen will be dis­played on.

Press ◀▶ buttons to adjust focus.

2. When the cursor is on the [CENTER] on on-

screen menu, press either ◀ or ▶ button to
align focus around the optical axis.

* The picture shows and example when the

lens shift is moved upward. Adjust the lens
until the bottom edge of the projection
screen is in focus.

Optical axis

30

2. Projecting an Image (Basic Operation)

3. Press ▼ button to select the [PERIPHERY] on

the on-screen menu, and then press either
◀ or ▶ button to align the focus of screen
peripheral area.

4. Repeat steps 2 and 3 until the entire projec-

tion screen is in focus.

Applicable lens: XP-43ZL/XP-50ZL/NP43ZL/NP50ZL

1. Press the FOCUS button.

The [LENS FOCUS] control screen will be displayed on.

Press ◀▶ buttons to adjust focus.

* [PERIPHERY] LENS FOCUS is not available for this lens unit.

31

2. Projecting an Image (Basic Operation)

Applicable lens: XP-44ML/NP44ML

• The XP-44ML/NP44ML must be fixed to the projector using the separately sold support kit (XP­02LK/NP02LK).

The support kit is not shown on this illustration.

1. Press the FOCUS button.

The [LENS FOCUS] control screen will be displayed on.

Press ◀▶ buttons to adjust focus of screen center.

* Does not work for [PERIPHERY] on the [LENS FO-

CUS] screen. Use the [LENS ZOOM] control screen
to adjust the focus of the peripheral area.

2. Press the ZOOM/L-CALIB. button on the cabinet.

The [LENS ZOOM] control screen will be displayed on.

* In another way, press the ZOOM button on the

remote control.

Press ◀▶ buttons to align the focus of screen periph­eral area.

32

2. Projecting an Image (Basic Operation)

Zoom

Applicable lens: XP-40ZL/XP-41ZL/XP-43ZL/XP-50ZL/

NP40ZL/NP41ZL/NP43ZL/NP50ZL

1. Press ZOOM/L-CALIB. button.

The [ZOOM] adjustment screen will be displayed on.

* In another way, press the ZOOM button on the remote control.

Press ◀▶ buttons to adjust zoom.

X

33

Adjusting the Tilt Foot

1. Turn the left and right tilt foot to adjust.

The tilt foot lengthen and shorten when turned.

Turn one of the tilt foot to adjust the image so
that it is level.

• The tilt foot can be lengthened by a maxi­mum of 10 mm/0.4".

• The tilt foot can be used to tilt the projector
by a maximum of 1.4°.

2. Projecting an Image (Basic Operation)

a

bc

a: Tilt foot / b: Up / c: Down

NOTE:

• Do not lengthen the tilt foot any more than 10 mm/0.4". Doing so will make the projector unstable.

• Do not use the tilt foot for any purpose other than adjusting inclination of the projector installation angle.
Handling the tilt foot improperly, such as carrying the projector by grasping the tilt foot or hooking it onto a wall using the tilt foot,

could damage the projector.

34

2. Projecting an Image (Basic Operation)

2-6. Adjusting a picture and sound

Adjusting the picture

Display [ADJUST] in the on-screen menu and adjust the picture. Refer to the Installation Manual
for details.

Turning Up or Down Volume

Sound level from the AUDIO OUT terminal can be adjusted.

Important:

•

Do not turn up the volume to the maximum level on the external speaker system connected to the AUDIO OUT of the projector.
Doing so may produce an unexpected, loud sound at the time of turning on or off the projector, causing damage to your hearing.
When adjusting the volume on the external speaker system, set volume level of the speaker system to less than half its rating and
adjust the volume on the projector to get appropriate sound level.

Increase volume

When no menus appear, the ◀ and ▶ buttons on
the projector cabinet work as a volume control.

• On the remote control, press the VOL./D-ZOOM
(+) or (−)button.

NOTE:

• The volume cannot be adjusted using the ◀ or ▶ button in the

following cases.

• When the on-screen menu is displayed

• When the screen is enlarged by pressing the VOL./D-ZOOM (+)
(−) buttons while holding down the CTL button on the remote
control

Decrease volume

X

35

2-7. Turning off the Projector

To turn off the projector:

1. First, press the (POWER) button on the
projector cabinet or the STANDBY button on
the remote control.

The [POWER OFF / ARE YOU SURE ? / CARBON
SAVINGS-SESSION 0.000[g-CO2]] message will
appear.

2. Secondly, press the ENTER button or press
the

(POWER) or the STANDBY button

again.

The light source will be turned off and the power
supply will be cut.

2. Projecting an Image (Basic Operation)

CAUTION

• Parts of the projector may become temporarily heated if the projector is turned off with the
POWER button or if the AC power supply is disconnected during normal projector operation.
Use caution when picking up the projector.

NOTE:

• While the POWER indicator is blinking blue in short cycles, the power cannot be turned off.

• Do not unplug the power cord from the projector or from the power outlet while an image is being projected. Doing so could
deteriorate the projector’s AC IN terminal or the power plug’s contact. To turn off the AC power while an image is being projected,
use the breaker, etc.

• Do not disconnect the AC power supply to the projector within 10 seconds of making adjustment or setting changes and closing
the menu. Doing so can cause loss of adjustments and settings.

36

2. Projecting an Image (Basic Operation)

2-8. After Use

1. Unplug the power cord from the wall outlet.

2. Unplug the power cord from the projector.

① Pull to an appropriate position while pushing down the knob of the power cord stopper.

② Press down the knob on the clamper to open the clamper and take out the power cord.

a

b

a: Clamper / b: Knob (power cord stopper) / c: Knob (clamper)

3. Disconnect any other cables.

4. Mount the lens cap on the lens.

5. Before moving the projector, screw in the tilt foot if they have been lengthened.

c

37

3. Appendix

3-1. Specifications

Model name A104U-W/A104U-B A824U-W/A824U-B

Method Three primary color liquid crystal shutter projection method
Specifications of main parts

Liquid crystal
panel

Projection lenses Refer to the specifications of option lens (→ 40 page)

Light source Laser diode with Phosphor
Optical device Optical isolation by dichroic mirror, combining by dichroic

Light output

(*2)

Screen size (throw distance) 50"–500" (Throw distance depends on the lens)
Color reproducibility 10-bit color processing (approx. 1.07 billion colors)
Scanning frequency Horizontal 15 kHz, 24 to 153 kHz

Input/output connectors

HDMI IN 1/2 Video input Type A × 2

HDBaseT IN Video input RJ-45 x1,

HDBaseT OUT

AUDIO OUT Stereo mini jack × 1 (Common to all signals)
USB USB type A × 1, 5.0 V/1.4 A power supply

Control Terminals LAN RJ-45 × 1, 10BASE-T/100BASE-TX,

Built-in Speaker Not applicable
Usage environment

Power supply 100-240 V AC, 50/60 Hz
Power consumption 810 W (100-130 V AC)

Size 0.76" × 3 (aspect ratio: 16:10)
Pixels

(*1)

2,304,000 (1920 dots × 1200 lines)

Zoom Motorized
Focus Motorized
Lens shifting Motorized

prism
10000 lm

(*3)

10500 lm (Center)

Vertical 24, 25, 30, 48 Hz, 50 to 85 Hz, 100, 120 Hz

Deep Color, LipSync, HDCP

Audio input Sampling frequency: 32/44.1/48 kHz

Sampling bits: 16/20/24 bit

Deep Color, LipSync, HDCP

Audio input Sampling frequency: 32/44.1/48 kHz

Sampling bits: 16/20/24 bit
Control 100BASE-TX, Art-Net, PJLink class2
Video output RJ-45 x1,

Deep Color, LipSync, HDCP
Audio output Sampling frequency: 32/44.1/48 kHz

Sampling bits: 16/20/24 bit
Control 100BASE-TX, Art-Net, PJLink class2

Art-Net, PJLink class2
RS-232C D-Sub 9-pin × 1
REMOTE Stereo mini jack × 1

(*5)

Operating temperature: 32 to 104°F (0 to 40°C)

Operating humidity: 20 to 80% (with no condensation)

Storage temperature: 14 to 122°F (−10 to 50°C)

Storage humidity: 20 to 80% (with no condensation)

Operating altitude: 0 to 3650 m/12000 feet

785 W (200-240 V AC)

(*3)

8200 lm
8600 lm (Center)

(*4)

, 4K

(*4)

, 4K

(*4)

, 4K

630 W (100-130 V AC)
615 W (200-240 V AC)

38

3. Appendix

Model name A104U-W/A104U-B A824U-W/A824U-B

Power consumption
(Standby state)

Rated input current 10.5 A (100-130 V AC) -

Power cord specification 15 A or higher
External dimensions 23.6" (width) × 8.2" (height) × 19.3" (depth)/

Weight 53.8 lbs/24.4 kg

*1 Effective pixels are more than 99.99%.

*2 This is the brightness when lens unit XP-41ZL (sold separately) is attached and [REF. LIGHT MODE] is set to

[NORMAL], [REF. LIGHT ADJUST] is set to [100], and [PRESET ] is set to [HIGH-BRIGHT]. Using [LIGHT ADJUST]
will reduce brightness. If any other mode is selected as the [PRESET] mode, the light output value may drop
slightly.

*3 Compliance with ISO21118-2020

*4 If you are unable to view material via the HDMI input, this does not necessarily mean the projector is not

functioning properly. With the implementation of HDCP, there may be cases in which certain content is
protected with HDCP and might not be displayed due to the decision/intention of the HDCP community
(Digital Content Protection, LLC).

Video: HDR, Deep Color, 8/10/12-bit, Lip Sync.

Audio: LPCM; up to 2 ch, sample rate 32/44.1/48 KHz, sample bit; 16/20/24-bit

HDMI: Supports HDCP 2.2/1.4

HDBaseT: Supports HDCP 2.2/1.4

*5 The projector’s protection functions will activate depending on the temperature of the operating environ-

ment.

• For additional information visit:

US: https://business.sharpusa.com/

Europe: https://www.sharpnecdisplays.eu

Global: https://www.sharp-nec-displays.com/global/

For information on our optional accessories, visit our website or see our brochure.

The specifications are subject to change without notice.

Network enabled 0.7 W (100-130 V AC)/0.8 W (200-240 V AC)
Network disabled 0.20 W (100-130 V AC)/0.26 W (200-240 V AC)

4.6 A (200-240 V AC)

599 (width) × 208 (height) × 490 (depth) mm

(not including protruding parts)

23.6" (width) × 8.5" (height) × 19.3" (depth)/

599 (width) × 216 (height) × 490 (depth) mm

(including protruding parts)

(not including lens)

8.6 A (100-130 V AC) -

3.8 A (200-240 V AC)

53.1 lbs/24.1 kg
(not including lens)

39

Option lens (sold separately)

3. Appendix

Lens model name

XP lenses NP lenses

Specifications

XP-40ZL NP40ZL Throw ratio 0.79–1.11 : 1, F2.0–2.5, f=13.3–18.6 mm

XP-41ZL NP41ZL Throw ratio 1.30–3.02 : 1, F1.7–2.0, f=21.8–49.8 mm

XP-43ZL NP43ZL Throw ratio 2.99–5.93 : 1, F2.2–2.6, f=49.7–99.8 mm

XP-50ZL NP50ZL Throw ratio 0.60–0.75 : 1, F1.9–2.1, f=10.2–12.8 mm

XP-44ML NP44ML Throw ratio 0.32 : 1, F2.0, f=6.27 mm

Function

Lens
model name

Motorized

lens shift

Motorized

zoom

Motorized Manual

CENTER

XP-40ZL/NP40ZL Yes Ye s Yes Yes No No Yes
XP-41ZL/NP41ZL Yes Ye s Yes Yes No No Yes
XP-43ZL/NP43ZL Yes Ye s Yes No No No Yes
XP-50ZL/NP50ZL Yes Ye s Yes No No Ye s Yes

XP-44ML/NP44ML No No Yes Yes

PERIPHERY

(*3)

Focus

CENTER

No No Yes

PERIPHERY

LENS CALI-

BRATION

(*2)

(*2)

(*2)

(*1)

(*1)

Home

position

Yes Yes
Yes Yes
Yes Yes
Yes No
Yes No

REF. LENS
MEMORY

LENS

MEMORY

(*2)

(*2)

(*2)

*1 Lens shift only
*2 Except [PERIPHERY] focus
*3 Adjust on the [LENS ZOOM] control screen

NOTE:

• The above throw ratio is for projecting on 100" screen.

• Even if an NP model lens unit is installed, the XP model will be displayed in the on-screen menu [INFO.] - [OTHERS] - [LENS ID].

• Fix the XP-50ZL/NP50ZL to the projector using the supplied support kit. Loosen the bolts of the support kit, you can adjust the lens
shift.

• Fix the XP-44ML/NP44ML to the projector using the separately sold support kit (XP-02LK/NP02LK).

40

3. Appendix

3-2. Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the projector.

Feature of each indicator

a b c d

Indicator Message (Status message)

POWER STATUS LIGHT TEMP. Projector status

Off Off Off Off

Orange

(Blink*

Orange

(Blink*

Orange
(Light)

Orange

(Blink*

1

)

2

)

3

)

Off Off Off

Off Off Off

Off Off Off

Off Off Off

a. POWER indicator

b. STATUS indicator

c. LIGHT indicator

d. TEMP. indicator

Power is off

In the state of Standby ([POWER-SAVING] is [ON] and
the network is ready.

In the state of Standby ([POWER-SAVING] is [ON] and
the network is unavailable.

In the state of Standby ([POWER-SAVING] is [ON] and
the network is available)

[ON] time as the [PROGRAM TIMER] is activated. (In the
state of Standby)

In the state of Sleep

Green

(Light)

Green

(Blink*

Blue

(Light)

Off Off Off

[ON] time as the [PROGRAM TIMER] is activated. (In the
state of Sleep)

3

)

Off Off Off

Off Green

(Light)

Off

Powered state ([REF. LIGHT MODE] is [NORMAL])

41

POWER STATUS LIGHT TEMP. Projector status

Powered state ([REF. LIGHT MODE] is [SILENT ] or [LONG
LIFE])

Blue

(Light)

Off Green

(Blink*

3

)

Off

[LENS CALIBRATION] implement request.

3. Appendix

Status varies O range

(Blink*

Status varies Off

4

)

Performing the lens calibration

Blue

(Light)

Green

(Blink*

Status varies Off

4

)

Shutter function is activating

Blue

Status varies Off Off

(Light)

[OFF TIMER] is activated, [OFF] time as the [PROGRAM
TIMER] is activated (Powered state)

Blue

(Blink*

3

)

Off Status varies Off

Preparing for powering [ON]

Blue

(Blink*

5

)

Off Off Off

*1 Repetition to light on for 1.5 seconds / off for 1.5 seconds

*2 Repetition to light on for 1.5 seconds / off for 7.5 seconds

*3 Repetition to light on for 2.5 seconds / off for 0.5 seconds

*4 Repetition to light on for 0.5 seconds / off for 0.5 seconds / on for 0.5 seconds / off for 2.5 seconds

*5 Repetition to light on for 0.5 seconds / off for 0.5 seconds

42

Indicator Message (Error message)

POWER STATUS LIGHT TEMP. Projector status Procedure

Blue

(Light)

Blue

(Light)

Red

(Blink*

Red

(Blink*

Blue

(Light)

Red

(Light)

Orange

Status varies Off

(Light)

Off Orange

(Light)

5

)

5

)

Off Off Off

Red

(Light)

Red

(Light)

Orange

(Blink*3)

or

(Blink*5)

Status varies

Red

(Light)

Status varies Status varies Off

A button has been
pressed while the [CON­TROL PANEL LOCK] is
activated.

ID numbers for the
projector and the remote
control do not match.

Temperature problem Ambient temteprature

Orange
(Light)

Temperature problem Ambient temperature

Lens mounting error Lens is not mounted

Off

Error requiring service
support

Status varies

Error requiring service
support

The [CONTROL PANEL
LOCK] is activated. The
setting must be canceled
to operate the projector.

Check the [CONTROL ID].

is high. The projector's
protection functions will
activate depending on
the temperature of the
operating environment.
Lower the room tempera­ture.

is out of the operation
temperature. Check if any
obstruction stays near the
exhaust vent.

properly. Mount it.

Although the projector
can still be used, we rec­ommend that you contact
your dealer or service
personnel and request an
inspection.

Contact your dealer or
service personnel. Make
sure to check and inform
indicator status for asking
to repair.

3. Appendix

*3 Repetition to light on for 2.5 seconds / off for 0.5 seconds

*5 Repetition to light on for 0.5 seconds / off for 0.5 seconds

43

3. Appendix

When the thermal protector is activated:

When inside temperature of the projector becomes too high or low, the POWER indicator start to
red blink in a short cycle. After this happened, the thermal protector will activate and the projector
may be turned off.
In this case, please take the below measures:

• Pull out the power plug from the wall inlet.

• Place the projector in cool place if it has been placed in high ambient temperature.

• Clean the exhaust vent if dust has accumulated on.

• Leave the projector for about one hour until inside temperature gets lower.

44

3. Appendix

Common Problems & Solutions

Problem Check These Items

Does not turn on or shut
down

Will turn off •

No picture • Check if the appropriate input is selected. If there is still no picture, press the INPUT button or one of

Picture suddenly becomes
dark

Color tone or hue is unusual • Check if an appropriate color is selected in [WALL COLOR]. If so, select an appropriate option.

Image isn’t square to the
screen

Picture is blurred •

Check that the power cord is plugged in and that the power button on the projector cabinet or the

•
remote control is on.

•

Check to see if the projector has temperature error, If projector inside temperature is too hot or cool,
it disabled to turn on the projector as the protection. Wait for a moment and try turn on the projector
again.

In case it’s hard to think the trouble is not caused on the above mentioned conditions, unplug the

•
power cord from the outlet. Then wait 5 minutes before plugging it in again.

Ensure that the [OFF TIMER], [AUTO POWER OFF] or [PROGRAM TIMER] is off.

the input buttons again.

Ensure your cables are connected properly.

•

•

Use menus to adjust the brightness and contrast.

Is the [POWER ON SHUTTER] in the on-screen menu set to [CLOSE]?

•

•

Check that the SHUTTER CLOSE button is not pressed.

• Reset the settings or adjustments to factory preset levels using the [RESET] in the Menu.

Enter your registered keyword if the [START-UP LOCK] function is enabled.

•

•

If the HDMI input signal cannot be displayed, try the following.
Reinstall your driver for the graphics card built in your computer, or use the updated driver.

For reinstalling or updating your driver, refer to the user guide accompanied with your computer or

graphics card, or contact the support center for your computer manufacturer.

Install the updated driver or OS on your own responsibility.
We are not liable for any trouble and failure caused by this installation.

The signal may not be supported depending on the HDBaseT transmission device. In addition, RS-232C

•
interface may not be supported.

• If the projector is kept in sleep mode or other similar state, the temperature of the internal compo­nents could rise even when the projector is being used within its normal operating temperate. If the
power is ON when that occurs, the cooling fan will turn on and it will take a little bit of time before
the image is projected. Please wait for a while.

•

A hot room may trigger the projector's protection functions, which can result in a temporary reduction

in luminance (brightness). Reduce the temperature in the room.

Adjust [HUE] in [PICTURE].

•

• Reposition the projector to improve its angle to the screen.

• Perform [GEOMETRIC CORRECTION] when the trapezoid is distorted.

Adjust the focus.

Reposition the projector to improve its angle to the screen.

•

• Ensure that the distance between the projector and screen is within the adjustment range of the
lens.

•

Has the lens been shifted by an amount exceeding the guaranteed range?

• Condensation may form on the lens if the projector is cold, brought into a warm place and is then
turned on. Should this happen, let the projector stand until there is no condensation on the lens.

45

Problem Check These Items

Image is scrolling vertically,
horizontally or both

Remote control does not
work

On-screen menu is not
displayed

Indicator is lit or blinking • See the Indicator Message.

•

Check the computer’s resolution and frequency. Make sure that the resolution you are trying to display

is supported by the projector.

• Adjust the computer image manually with the Horizontal/Vertical in the [IMAGE OPTIONS].

• Aim the remote control's infrared transmitter towards the projector's remote control receiver.

• Install new batteries.

• Make sure there are no obstacles between you and the projector.

• Stand within 20 m/787 inch of the projector.

• If a [CONTROL ID] has been set, check whether the ID number for the remote control matches the ID
number for the projector.

• Check whether On-screen mute is active.

On-screen mute can be turned off using one of the following ways:

- Press the OSD OPEN button while holding down the CTL button on the remote control.

- Holding down the MENU button on the projector cabinet for at least 10 seconds.

For more information contact your dealer.

3. Appendix

46

3. Appendix

3-3. Mounting a lens (sold separately)

Five separate bayonet style lenses can be used with this projector. The descriptions here are for the
XP-41ZL lens. Mount other lenses in the same manner.
After installing or replacing the lens unit, press the ZOOM/L-CALIB. button on the projector to carry
out [LENS CALIBRATION]. By carrying out [LENS CALIBRATION], the adjustment range of the lens
shift is calibrated.

WARNING:

(1) Turn off the power and wait for the cooling fan to stop, (2) disconnect the power cord and
wait for the unit to cool before mounting or removing the lens. Failure to do so can result in eye
injury, electric shock, or burn injuries.

Important:

• The projector and lenses are made of precision parts. Do not subject them to shock or excessive forces.

• Remove the separately sold lens when moving the projector. If not, the lens could be subject to shock while the projector is being
moved, damaging the lens and the lens shift mechanism.

• When dismounting the lens from the projector, return the lens position to the home position before turning off the power. Failure
to do so may prevent the lens from being mounted or dismounted because of narrow space between the projector and the lens.

• Never touch the lens surface while the projector is operating.

• Be very careful not to let dirt, grease, etc., on the lens surface and not to scratch the lens surface.

• Perform these operations on a flat surface over a piece of cloth, etc., to prevent the lens from getting scratched.

• When leaving the lens off the projector for long periods of time, mount the dust cap on the projector to prevent dust or dirt from
getting inside.

• Always use the included support kit to secure the projector and lens unit after affixing the XP-50ZL/NP50ZL. Please refer to the
XP-50ZL/NP50ZL Installation Manual for details.

• Always use the support kit (XP-02LK/NP02LK, sold separately) to secure the projector and lens unit after affixing the XP-44ML/
NP44ML. Please refer to the support kit’s Instruction Manual for details.

Mounting

1. Remove the dust cap from the projector.

47

2. Remove the lens cap on the back of the lens.

NOTE:

• Make sure to remove the lens cap at the unit back side. If
the lens unit with the lens cap remaining on is installed
on the projector, it may cause of malfunction.

3. Align the protrusion on the lens with the
guiding notch on the projector lens hole
and insert the lens.

• The arrow mark in the label attached to

the lens shows the position of protrusion.

Insert the lens slowly all the way in.

4. Turn the lens clockwise.

NOTE:

• Do not press the lens release button at the bottom of the lens
mounting section when attaching the lens unit. You will not be
able to fix the lens unit in the correct position.

3. Appendix

a

c

b

a: Guiding notch / b: Protrusion / c: Arrow

Turn until a click is heard.

The lens is now fastened onto the projector.

48

5. Mount the lens theft prevention screw.

Fasten the lens theft prevention screw in­cluded with the projector to the bottom
of the projector so that the lens cannot be
removed easily.

TIP:

• Attach the enclosed lens mask if you want to hide the gap
between the projector and lens.

The lens mask cannot be attached when using the XP-44ML/

NP44ML lens unit.

3. Appendix

Removing

Preparations:

1. Turn on the projector and display an image.

2. Press and hold the SHIFT/HOME POSITION button over 2 seconds. The lens position will be
moved to the home position.

3. Turn off the projector, and then unplug the power cord.

4. Mount the lens cap on the lens.

5. Wait until the projector cabinet is cool enough to handle.

6. Remove the lens mask if one is fitted.

49

1. Remove the lens theft prevention screw.

2. While pressing the lens release button at
the bottom of lens mounting section on the
projector’s front panel fully in, turn the lens
counterclockwise.

The lens comes off.

3. Slowly pull the lens off the projector.

• After removing the lens, mount the lens

caps (front and back) included with the
lens before storing the lens.

• If no lens is going to be mounted on the

projector, mount the dust cap included
with the projector.

3. Appendix

50

Ver.1 7/25
