CHAPTER 1. GENERAL DESCRIPTION

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials, cabinet, terminal board, adjustment and compartment covers or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

Plug the AC line cord directly into a 120 volt AC outlet.

* Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as conduit or electrical ground connected to earth ground.

Use a VTVM or VOM with 1000 ohm per volt, or higher, sensitivity to measure the AC voltage drop across the resistor (See diagram).

* Connect the resistor connection to all exposed metal

parts having a return path to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor.

All check must be repeated with the AC line cord plug connection reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp. AC.) Or more is excessive and indicates a potential shock hazard which must be corrected before returning the audio product to the owner.

[2] Important Service Notes (for U.S.A only)

BEFORE RETURNING THE AUDIO PRODUCT

[1] Important Service Safety Precaution

CAUTION : “These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so”.

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

TO EXPOSED METAL PARTS

CONNECT TO KNOWN EARTH GROUND

TEST PROBE

0.15 µ F

1.5k ohms 10W

VTVM

AC SCALE

XL-HF201P

1 – 1

1 – 3

XL-HF201P

[3] Specifications

General

Amplifier

Tuner

USB (MP3 / WMA)

CD player

Power source

Power consumption

40 W

Dimensions

Weight

Output power

Output terminals

Input terminals

Type Single disc multi-play compact disc

player

Signal readout

Non-contact, 3-beam semiconductor laser pickup

D/A converter

Multi bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

USB host interface Complies with USB 1.1 (Full

Speed)/2.0 Mass Storage Class. Support Bulk only and CBI protocol.

Support file

MPEG 1 Layer 3 WMA (Non DRM)

Bitrate support

MP3 (32 ~ 320 kbps) WMA (64 ~ 160 kbps)

Other

Maximum total number of MP3/WMA files is 65025. Maximum total number of

folders is 999 INCLUSIVE of root directory.

The ID3TAG information supported are TITLE, ARTIST and ALBUM only. Supports ID3TAG version 1 and version 2.

File system support

Support USB devices with Microsoft Windows/DOS/FAT 12/FAT 16/ FAT 32. 2 kbyte block length for sector.

Frequency range

FM: 87.5 - 108.0 MHz AM: 530 - 1,710 kHz

Preset 40 (FM and AM station)

Speaker

AC 120 ~ 60 Hz

5.7 lbs. (2.6 kg)

Type

2-way type speaker system 1” (2.5 cm) Dome-Tweeter 4-3/4” (12 cm) Woofer

Maximum input power

100 W

Rated input power

50 W

Impedance

4 ohms

Dimensions

Width: 5 - 13/16” (148 mm) Height: 10-5/16” (262 mm) Depth: 8” (203.5 mm)

Weight

5.4 lbs. (2.5 kg)/each

Width: 8 - 1/2” (215 mm) Height: 3 - 4/5” (96 mm) Depth: 13 - 1/5” (335 mm)

RMS: Total 100 watt (50 W per channel

into 4 ohms at 1 kHz, 10% T.H.D.)

FTC: 30 watt minimum RMS per channel

into 4 ohms from 20 Hz to 20 kHz,

10% T.H.D.

Speakers: 4 ohms 20Hz - 20kHz

Subwoofer Pre-out (audio signal): 200 mV/10 k ohms at 70 Hz Video output: 1 Vp-p

Headphones: 16 ohms (recommended: 32 ohms)

Audio In (audio signal): 500 mV/47 k ohms Line in (Analog input): 500 mV/47 k ohms

1 – 4

1 – 2

[4] Names Of Parts

2 3

8 10 11 12 13 14 15

1 4 5 6 7 8

2 3

10 11

XL-HF201P

Front panel

1. Remote sensor

2. Timer indicator

3.Disc Tray

4. Docking Station for iPod or iPhone

5. Volume Control

6. On/Stand-by Button

7. FUNCTION Button

8.USB Terminal

252423212220191615 1817

9. Audio In Socket

10. Headphone Socket

11. Tuner Preset Down, CD/USB Track Down, iPod/iPhone Skip Down

12. Tuner Preset Up, CD/USB Track Up, iPod/iPhone Skip Up

13.Disc/USB Stop Button

14. Disc/USB/iPod/iPhone Play or Pause Button

15. Disc Tray Open/Close Button

Display

1. USB Indicator

2. iPod Indicators

3.CD Indicator

4. MP3 Indicator

5. WMA Indicator

6.RDM (Random) Indicator

7. MEM (Memory) Indicator

8.Repeat Indicator

9. Play/Pause Indicator

10. Tuning FM/AM Indicator

11. FM Stereo Mode Indicator

12. Stereo Station Indicator

13. Muting Indicator

14. X-bass Indicator

15. Title Indicator

16. Artist Indicator

17. Folder Indicator

18. Album Indicator

19. File Indicator

20. Track Indicator

21. Daily Timer Indicator

22. Once Timer Indicator

23. Disc Indicator

24. Total Indicator

25. Sleep Indicator

1 – 5

1 – 3

Speaker system

1. Dome-Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Terminal

XL-HF201P

Remote control

1. Remote Control Transmitter

2. On/Stand-by Button

3. Numeric Buttons

4. Bass/Treble Button

5. X-Bass Button

6. Tuning Down, Skip Down, Fast Reverse, Time Down Button

7. Tuner Preset Up Button, iPod Cursor Up

8. Volume Down Button

9. Folder Button

10. Tuner Preset Down Button, iPod Cursor Down

11. CD Button

12. USB Button

13. iPod Button

14. iPod Display (TV OUT) Button

15. Disc/USB Display Button

16. Open/Close Button

17. Memory Button

18. Clear Button

19. Clock/Timer Button

20. Sleep Button

21. Repeat Button

22. Mute Button

23. Random Button

24. Tuning Up, Skip Up, Fast Forward, Time Up Button

25. Volume Up Button

26. Enter Button

27. Demo/Dimmer Button

28. Audio/Line (INPUT) Button

29. Tuner (BAND) Button

30. iPod Play/Pause Button

31. iPod Menu Button

32. CD/USB Play/Pause Button

33. CD/USB Stop Button

17 18 19

20 21 22 23 24

10 11

1 – 6

1 – 4

CHAPTER 2. ADJUSTMENTS

1:SYSTEM PROTECT 2 : AMP Over Temperature Warning Protect 3 : AMP Shut Down Protect 4 : FAULT

OFF

FLASHING

No.1

1 Frame

(Repeat)

OFF OFF

( 3Sec )

No.2

No.3 No.4

No.1

No.2

( 3Sec )

OFF

FLASHING

OFF

( 3Sec ) ( 3Sec )

( 3Sec )

XL-HF201P

[1] CD Section

• Adjustment Since this CD system incorporates the following automatic adjustment functions, readjustment is not needed when replacing the pickup. Therefore, different PWBs and pickups can be combined freely.

Each time a disc is changed, these adjustments are performed automatically. Therefore, playback of each disc can be performed under optimum conditions.

Items adjusted automatically

1) Offset adjustment (The offset voltage between the head amplifier output and the VREF reference voltage is compensated inside the IC)

* Focus offset adjustment

* Tracking offset adjustment

2) Tracking balance adjustment

3) Gain adjustment (The gain is compensated inside the IC so that the loop gain at the gain crossover frequency will be 0 dB.)

* Focus gain adjustment

* Tracking gain adjustment

[2] Test Mode

[Test Mode Input Method]

1. During power stand-by condition, press [1] -> [2] -> [4] -> [5] buttons at remote control sequently.

2. MCU will start up with software version display as below.

" H201Hyymmdd "

yyyy : year (Ex, 11)

" H201#zzRR " mm : month (Ex, July -> 07)

dd : day (Ex, 01)

03: after TEST BOARD start 05: after 0ji AUTO start (0.5 ROM)

" mmddRxxxx " RR : version (00 ~ 99)

ZZ : stage development

# : area setting

Rxxxx : Servo F/W version

H : Europe U : USA

07: after 0ji DR MTG (1st ROM) 08: after Off Tool (Main Line start) 09: after PP production approval MTG 10: after MP production approval MTG

3. Press [EJECT] button at the main unit to enter the KEY Test Mode.

4. The display will change as below for each main unit button is pressed.

[OPEN / CLOSE] : All displays light up with Dimmer Off [PRESET DOWN] : Display "KEY 1-2" at lower line display [PRESET UP] : Display "KEY 1-3

" at lower line display [STOP] : Display "KEY 1-5" at lower line display [PLAY / PAUSE] : Display "KEY 1-1" at lower line display [FUNCTION] : Display "KEY 1-2" at lower line display

5. [Existing Test Mode]

5.1. While in Version display or in Test Mode Function press ON / STAND-BY button (remote control / unit).

5.2. All display light up in Dimmer Off (2sec) => Dimmer 1 (2sec) => Dimmer 2 (2sec) => finally display "Clear All" and execute reset, before goto sta

ndby (demo).

[3] Standard Specification Of Stereo System Error Message Display Contents SYSTEM PROTECT detection and AMP PROTECT detection display

In case AMP Shut Down, SYSTEM PROTECT, FAULT PROTECT or AMP Over-Temp Warning Protect has occurred, the unit will automatically enter to stand-by mode ON/Standby LED willl be flashing as below:-

Example: In case of speaker abnormal

2 – 1

XL-HF201P

Figure 2

Figure 3

STEP REMOVAL PROCEDURE FIGURE

1 Top Cabinet

with iPod PWB

1. Screw..................(A1) X 8

2. Socket ................(A2) X 1

1 2

2Rear Panel

1. Screw..................(B1) X 7

2. Screw..................(B2) X 1

3 Main PWB

1. Screw..................(C1) X 2

2. Socket ................(C2) X 6

3. Flat Cable ...........(C3) X 2

4 Front Panel

Assy

1. Screw..................(D1) X 2

2. Screw..................(D2) X 2

3. Socket ................(D3) X 1

4. Hook ...................(D4) X 2

5 SMPS PWB

1. Screw..................(E1) X 3

2. Socket ................(E2) X 1

6 CD Mechanism

Assy

1. Screw..................(F1) X 4

7 CD Mechanism

Unit

1. Screw................. (G1) X 4

8Display PWB

1. Knob ...................(H1) X 1

2. Nut......................(H2) X 1

3. Washer ...............(H3) X 1

4. Screw..................(H4) X 3

9 Key/Jack PWB

1. Screw..................(J1) X 4

10 USB PWB

1. Screw..................(K1) X 1

11 iPod PWB

1. Copper Sheet ....(L1) X 1

2. iPod Cover......... (L2) X 1

3. Screw................. (L3) X 2

Hook

(D4)x1

PULL

(C1)x2 M3x8mm

Front Panel Assy

(A2)x1

Hook

(D4)x1

PULL

(D1)x1

M3x8mm

(D2)x2

M3x8mm

Main PWB

(C2)x1

Main PWB

(C2)x1

(C3)x1

(C2)x1

(C3)x1

(D1)x1

M3x8mm

(C2)x2

(D3)x1

SMPS PWB

(E2)x1

SMPS PWB

(E1)x3

M3x8mm

CD Mechanism Assy

(F1)x4

Special Screw

(G1)x4 Special Screw

CD Mechanism Assy

CD Mechanism Unit

Figure 4

Figure 1

Rear Panel

(A1)x2

M3x8mm

Front Panel Assy

Top Cabinet

with iPod PWB

(A1)x2

M3x8mm

(B1)x7

M3x8mm

(A1)x4

M3x8mm

(B2)x1

M3x6mm

CD-ES700/CD-ES77CD-ES700/CD-ES77Service ManualCD-ES700/CD-ES77MarketE

CHAPTER 3. MECHANICAL DESCRIPTION

[1] Disassembly

Caution On Disassembly

Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:

1. Take compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange the leads where they were before disassembling.

3 – 1

XL-HF201P

Figure 5

Figure 7

Figure 8

Figure 9

CAUTION:

TO REMOVE SPEAKER UNIT, PRESS THESE LOCKING TABS TO RELEASE SPEAKER WIRES.

SPEAKER UNIT

LOCKING

TAB

LOCKING TAB

SPEAKER

WIRE

STEP REMOVAL PROCEDURE FIGURE

1 Woofer

1. Net Frame Ass'y .......(A1) X 1

2. Screw........................(A2) X 4

3. Screw........................(A3) X 4

4. Woofer Ring..............(A4) X 1

7 7 8 8

Dome-Tweeter

1. Screw........................(B1) X 4

2. Tweeter Ring ............(B2) X 1

2. Screw........................(B3) X 4

8 8 9

(H1)x1

(H2)x1

(H3)x1

Display PWB

Front Panel Assy

(H4)x3

M2.6x8mm

Key/Jack PWB

(J1)x4

M2.6x8mm

(K1)x1

M2.6x8mm

USB PWB

Figure 6

(A1)x1

Net Frame Ass’y

Front Board Ass’y

Speaker Box

(A2)x4

Special Screw

Front Board Ass’y

Tweeter

(B1)x4 M3.5x14mm

Woofer

(B3)x4 M3.5x14mm

Front Board

Tweeter

(A4)x1 Woofer Ring

(B2)x1 Tweeter Ring

(A3)x4 M3.5x14mm

(L3)x2 M3x8mm

(L1)x1 Copper Sheet

(L2)x1 iPod Cover

iPod PWB

Top Cabinet

3 – 2

XL-HF201P

HOW TO USE

CAUTION

Cleaning fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the brush on the CD cleaner disc which has the mark next to it. Place the CD cleaner disc onto the CD disctray with the brush side down, then press the play button. Yo u will hearmusic for about20secondsand the CD player will automatically stop. If it still play continuously, press the stop button.

The CD lens cle

aner should be effective for 30-50 operations, however if the

brushesbecome worn outearlier then please replace the cleaner disc.

If the CD cleaner brushesbecome very wet then wipe off any excess fluid with asoft cloth. Do not drink the cleaner fluid or allow it contact with the eyes. In the event of this happening then drink and / or rinse with cleanwater and seek medical advice. The CD cleaner discmust not be used on carCDplayers or on computer CD-ROM drive

CHAPTER 4. FLOWCHART

[1] Troubleshooting

1. When the CD does not function

The CD section may not operate when the objective lens of the optical pickup is dirty. Clean the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check the following items.

Remove the cabinet and follow the troubleshooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

2. When a CD cannot be played

2.1. Pressing the CD operation key is accepted, but playback does not occur.

1) Focus-HF system check

2) Tracking system check

3) Spin system check

4) PPL system check

4 – 1

(1) Focus-RF system check.

Although a CD is inserted and the cover is closed, "NO DISC" is displayed.

Press the Tray1 CD Eject Button without inserting a disc, and try starting the playback operation.

XL-HF201P

IC1

102

101

FDO

TDO

Figure 1

1. Does the pickup move to the PICKUP-IN Switch (NSW1)

Sled motor (NM2).

position?

Yes

2. Does the focus (lens) move up and down?

No Check the focus peripheral circuit.

(Waveform drawing Figure 1)

Yes

oN t?il resal eht sI .3

Check the laser diode driver Q5 peripheral circuit.

Yes

4. Is the turntable rotating? No Spindle motor (NM1).

When a disc is loaded, start playback operation.

1. Is focus servo activated? (Waveform drawing Figure 2)

No Pins 98, 99, 101,102,106 ~113 on IC1

Check the laser diode driver Q5 peripheral circuit.

Yes

2. Is the RF waveform normal?

No If the level is not normal.

(Waveform drawing Figure 3)

IC1

102

IC1

FDO

Figure 2

RFOUT

IC1

118

Figure 3

4 – 2

XL-HF201P

(2) Tracking system check

Check the TE waveform at pin 16 on IC1.

If the waveform shown in Figure 4 appears and soon after NO DISC appears?

Yes

"Initialization" is possible, but play is not possible?

Yes

"Initialization" is not possible. Data cannot be read. Check the VCO-PLL (Pin125 ~128 on

The tracking servo is not activated. Check the peripheral circuits at pins 98, 99, 101, 102 on IC1, and FFC1.

A normal jump operation cannot be completed or the beginning of the track cannot be found. Check the

around pin 101 on IC1.

IC1) system.

(3) Spin system check.

Press the OPEN/CLOSE switch without inserting a disc, and then try starting the play operation.

1. The turntable rotates a little? (Waveform drawing Figure 5)

Yes

IC1

RFOUT

118

The spin driver circuit is OK.

Check around pin 98 on IC1, pins 1 and 2 on CNP2.2. The turntable doesn't rotate.

Figure 4

4 – 3

FDO

IC1

102

IC1

SPDO

Figure 5

(4) PLL system check.

XL-HF201P

When a disc is loaded, start play operation.

The RF waveform is normal, but the TOC data cannot be read.

Check the PLL waveform. (Figure 6)

Check around pins 125~ 128 on IC1.

IC1

126

127

IC1

102

IC1

PLLF

PLLFO

FDO

Figure 6

4 – 4

XL-HF201P

CHAPTER 5. MAJOR PART DRAWING

[1] Function Table Of IC

IC1 RH-IXA311AW00 : System Microcomputer ( 1/4 )

Pin No.

1 H/P-SW Input CMOS Input /

P3_3 / SSI

2 TUN_SDA / DAP_SDA Input / Output CMOS Input /

P3_4 / SDA / SCS

3 MODE Input Input CONNECT THIS PIN TO VCC VIA A RESISTOR

MODE

4 XCIN Input CMOS Input /

P4_3 / XCIN

5 XCOUT Output CMOS Input /

P4_4 / XCOUT

6 RESET Input Input RESET INPUT. ACTIVE "L"

RESET

7 XOUT Output Input 8MHz CERAMIC OSCILLATOR (MAIN CLOCK)

P4_7 / XOUT

8 VSS -- -- GROUND

VSS / AVSS

9 XIN Input Input 8MHz CERAMIC OSCILLATOR (MAIN CLOCK)

P4_6 / XIN

10 VCC -- -- 3.3V SUPPLY

VCC / AVCC

11 DAP_RST Output CMOS Input /

P5_4 / TRCIOD

12 DAP_PWDN Output CMOS Input /

P5_3 / TRCIOC

13 DAP_MUTE Output CMOS Input /

P5_2 / TRCIOB

14 +12V_EN Output CMOS Input /

P5_1 / TRCIOA / TRCTRG

15 DSEL_OE Output CMOS Input /

P5_0 / TRCCLK

16 FL_CS Output CMOS Input /

P2_7 / TRDIOD1

17 FL_RESET Output CMOS Input /

P2_6 / TRDIOC1

18 iPod_DET Input CMOS Input /

P2_5 / TRDIOB1

19 FAULT Input CMOS Input /

P2_4 / TRDIOA1

20 I_SW Output CMOS Input /

P2_3 / TRDIOD0

21 U_SW Output CMOS Input /

P2_2 / TRDIOC0

22 FW_UPD_STA Input CMOS Input /

P2_1 / TRDIOB0

23 DSEL_S Output CMOS Input /

P2_0 / TRDIOA0 / TRDCLK

24 RX_IN Input CMOS Input /

P1_7 / TRAIO / INT1

25 FL_SCK Output CMOS Input /

P1_6 / CLK0

26 FW_UPD_PRO Input CMOS Input /

P1_5 / RXD0 / (TRAIO) / (INT1)

27 FL_SDATA Output CMOS Input /

P1_4 / TXD0

NAME

Input/

Output

Typ e De scrip tio n

HEADPHONE IN DETECTION SWITCH

Output

H : IN , L : OUT

TUNER/DAP DATA I2C BUS LINE

32.768kHz CRYSTAL (SUB CLOCK)

CONNECT TO WRITER RESET LINE DURING FLASH

DAP RESET CONTROL H : NORMAL , L : RESET

DAP POWER DOWN CONTROL H : NORMAL , L : POWER DOWN

DAP MUTE CONTROL H : OFF , L : ON

12V SUPPLY CONTROL

D+/D- BUS SELECTOR OUTPUT ENABLE H : DISCONNECT , L : CONNECT

FL DRIVER CHIP SELECT OUTPUT

FL DRIVER RESET

iPod IN DETECTION L : IN , H : OUT

CURRENT LIMITTER IC ERROR DETECT

VBUS CONTROL SWITCH FOR IPOD CHARGING H: iPod , L : OTHER

VBUS CONTROL SWITCH FOR USB CHARGING H: USB , L : OTHER

FIRMWARE UPDATE STATUS

D+/D- BUS SELECTOR CONTROL H : iPod , L : USB

REMOCON SENSOR INPUT

FL DRIVER CLOCK OUTPUT

FIRMWARE UPDATE PROGRESS

FL DRIVER DATA OUTPUT

5 – 1

IC1 RH-IXA311AW00 : System Microcomputer ( 2/4 )

Pin No.

28 TRAY_MOT- Output CMOS Input /

P8_6

29 TRAY_MOT+ Output CMOS Input /

P8_5 / TRFO12

30 TRAY_IN Input CMOS Input /

P8_4 / TRFO11

31 TRAY_OUT Input CMOS Input /

P8_3 / TRFO10 / TRFI

32 A_MUTE Output CMOS Input /

P8_2 / TRFO02

33 NC Output CMOS Input /

P8_1 / TRFO01

34 USB_IN Input CMOS Input /

P8_0 / TRFO00

35 CD_MREQ Output CMOS Input /

P6_0 / TREO

36 SYS_STOP Input CMOS Input /

P4_5 / INT0

37 CD_SREQ Input CMOS Input /

P6_6 / INT2 / TXD1

38 NC Output CMOS Input /

P6_7 / INT3 / RXD1

39 CD_SCLK Output CMOS Input /

P6_5 / (CLK1) / CLK2

40 CD_SO Input CMOS Input /

P6_4 / RXD2

41 CD_SI Output CMOS Input /

P6_3 / TXD2

42 CD_RST Output CMOS Input /

P3_1 / TRBO

43 AMP_OTW Input CMOS Input /

P3_0 / TRAO

44 AMP_SD Input CMOS Input /

P3_6 / (INT1)

45 IN_SO Output CMOS Input /

P3_2 / (INT2)

46 IN_S1 Output CMOS Input /

P1_3 / Kl3 / AN11

47 TUN_RST Output CMOS Input /

P1_2 / Kl2 / AN10

48 S/W_MUTE Output (A / D) CMOS Input /

P1_1 / Kl1 / AN9

49 iPod_EN Output (A / D) CMOS Input /

P1_0 / Kl0 / AN8

50 JOG_1/2 Input (A / D) CMOS Input /

P0_0 / AN7

51 KEY_1 Input (A / D) CMOS Input /

P0_1 / AN6

52 KEY_2 Input (A / D) CMOS Input /

P0_2 / AN5

53 CURRENT_LIMIT Output (A / D) CMOS Input /

P0_3 / AN4

54 USB_EN Output (A / D) CMOS Input /

P0_4 / AN3

55 TIMER_LED Output CMOS Input /

P6_2

56 AC-RELAY Output CMOS Input /

P6_1

NAME

Input/

Output

Type Description

Output

XL-HF201P

TRAY MOTOR - CONTROL

TRAY MOTOR + CONTROL

TRAY CLOSE SWITCH DETECTION

TRAY OPEN SWITCH DETECTION

AMP MUTE CONTROL

Fix "L"

USB DETECTION H : DETACH , L : ATTACH

DATA TRANSMISSION REQUEST TO CD DSP

POWER FAILURE DETECTION

DATA TRANSMISSION REQUEST TO CD DSP

Fix "L"

DATA TRANSMISSION/RECEPTION SYNCHRONOUS CLOCK TO CD DSP

DATA OUTPUT FROM CD DSP

DATA INPUT TO CD DSP

CD DSP RESET

AMPLIFIER OVERTEMPERATURE WARNING DETECTION H : NORMAL , L : ABNORMAL

AMPLIFIER SHUTDOWN DETECTION H : NORMAL , L : ABNORMAL

INPUT SELECTOR CONTROL 0

INPUT SELECTOR CONTROL 1

TUNER RESET

SUBWOOFER MUTE CONTROL

CURRENT LIMITTER IC SELECTOR H:IPOD L:OTHERS

JOG SIGNAL A/D INPUT

POWER KEY DETECTION

KEY2 LINE A/D DETECTION

CURRENT LIMITTER IC SET

CURRENT LIMITTER IC SELECTOR H:USB L:OTHERS

TIMER LED CONTROL H : ON , L : OFF

MAIN TRANS ON/OFF CONTROL H : POWER ON/DEMO , L : POWER OFF/ECO

5 – 2

XL-HF201P

IC1 RH-IXA311AW00 : System Microcomputer ( 3/4 )

Pin No.

57 LEVEL_DET Input (A / D) CMOS Input /

P0_5 / AN2 / CLK1

58 AREA Input (A / D) CMOS Input /

P0_6 / AN1 / DA0

59 VSS -- -- GROUND

VSS / AVSS

60 SYS_PROTECT Input (A / D) CMOS Input /

P0_7 / AN0 / DA1

61 VREF -- -- A/D CONVERTER REFERENCE VOLTAGE SUPPLY

VREF

62 VCC -- -- 3.3V SUPPLY

VCC / AVCC

63 H/P-MUTE Output CMOS Input /

P3_7 / SSO

64 TUN_SCL/DAP_SCL Output CMOS Input /

P3_5 / SCL / SSCK

NAME

Input/

Output

Typ e De scrip tio n

ANALOG AUDIO LEVEL INPUT A/D DETECTION

Output

DESTINATION SETTING A/D INPUT

SUPPLY ABNORMAL A/D DETECTION

HEADPHONE MUTE CONTROL L : ON , H : OFF

TUNER/DAP CLOCK I2C BUS LINE

5 – 3

IC1 RH-IXA311AW00 : System Microcomputer ( IXA311AW ) ( 4/4 )

TUN_SCL / DAP_SCL

H/P MUTE

VCC

VREF

SYS_PROTECT

VSS

AREA

LEVEL_DETECT

AC_RELAY

TIMER_LED

USB_EN

CURRENT_LIMIT

KEY2

KEY1

JOG_1/2

iPod_EN

P3_5 / SCL /

SSCK

P3_7 / SSO

VCC / AVCC

VREF

P0_7 / AN0 /

DA1

VSS / AVSS

P0_6 / AN1 /

DA0

P0_5 / AN2 /

CLK1

P6_1

P6_2

P0_4 / AN3

P0_3 / AN4

P0_2 / AN5

P0_1 / AN6

P0_0 / AN7

P1_0 / K10 /

AN8

H/P-SW

P3.3/SSI P1_1/KI1/AN9

S/W_MUTE

TUN_SDA / DAP_SDA

P3_4/SDA/SCS P1_2/KI2/AN10

TUN-RST

MODE

MODE P1_3/KI3/AN11

IN_SI

XCIN

P4_3 / XCIN P3_2 / (INT2)

IN_SO

XCOUT

P4_4 / XCOUT P3_6 / (INT1)

AMP_SD

RESET

RESET P3_0 / TRA0

AMP_OTW

XOUT

XOUT / P4_7 P3_1 / TRB0

CD_RST

VSS

VSS / AVSS P6_3 / TXD2

CD_SI

XIN

P4_6 / XIN P6_4 / RXD2

CD_SO

VCC

VCC / AVCC

P6_5 / (CLK1) /

(CLK2)

CD_SCLK

DAP_RST

P5_4 / TRCIOD P6_7 / INT3 / RXD1

DAP_PWDN

P5_3 / TRCIOC P6_6 / INT2 / TXD1

CD_SREQ

DAP_MUTE

P5_2 / TRCIOB P4_5 / INT0

SYS_STOP

+12V_EN

P5_1 / TRCIOA /

P6_0 / TREO

CD_MREQ

DSEL_OE

P5_0 / TRCCLK P8_0 / TRFO00

USB_IN

FL_CS

P2_7 / TRDIOD1 P8_1 / TRFO01

P2_6/TRDIOC1

P2_5/TRDIOB1

P2_4/TRDIOA1

P2_3/TRDIOD0

P2_2/TRDIOC0

P2_1/TRDIOB0

P2_0TRDIOA0 /

TRDCLK

P1_7/TRAIO /

INT1

P1_6/CLK0

P1_5/RXD0 /

(TRAIO ) /(INT1)

P1_4/TXD0

P8_6

P8_5 / TRFO12

P8_4 / TRFO11

P8_3 / TRFO10

/ TRF1

P8_2 / TRFO02

FL_RESET

iPod_DET

FAULT

I_SW

U_SW

FW_UPD_STA

DSEL_S

RX_IN

FL-SCK

FW_UPD_PRO

FL_SDATA

TRAY_MOT-

TRAY_MOT+

TRAY_IN

TRAY_OUT

A_MUTE

Figure 5-1 Block Diagram of IC

IXA311AW

TRCTRG

XL-HF201P

5 – 4

XL-HF201P

[2] FL Display

FL700 VVKNA16SM21-1

GRID ASSIGNMENT

15G

16G

12G 11G 10G

14G

13G

ANODE CONNECTION

16G 15G 14G 13G 12G 11G 10G 9G 8G

P1 P2 P3 P4 P5 P6 P7 P8

P9 P10 P11 P12 P13 P14 P15

P16 P17 P18 P19

P20 P21 P22 P23 P24 P25 P26 P27 P28 P29

P30 P31 P32 P33 P34 P35

P36

1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

2 1

2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1

3 1

3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1

4 1

5 1

1 2

2 2

3 2

4 2

5 2

1 3

2 3

3 3

4 3

5 3

1 4

2 4

3 4

4 4

5 4

1 5

2 5

3 5

4 5

5 5

1 6

2 6

3 6

4 6

5 6

5 6 5 6 5 6 5 6 5 6 5 6 5 6 5 6 5 6 5 6

1 7

2 7

3 7

4 7

5 7

Dp Dp Dp Dp Dp Dp Dp Dp Dp

5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6

1 7 2 7 3 7 4 7 5 7

4 1 5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6

1 7 2 7 3 7 4 7 5 7

Dp Dp

9G 8G 7G 6G 5G 4G 3G 2G 1G

1-1

1-2 2-2 3-2 4-2 5-2

1-3 2-3 3-3 4-3 5-3

1-4 2-4 3-4 4-4 5-4

1-5 2-5 3-5 4-5 5-5

1-6 2-6 3-6 4-6 5-6

1-7 2-7 3-7 4-7 5-7

4 1

5 1

1 2

2 2

3 2

4 2

5 2

1 3

2 3

3 3

4 3

5 3

1 4

2 4

3 4

4 4

5 4

1 5

2 5

3 5

4 5

5 5

1 6

2 6

3 6

4 6

1 7

2 7

3 7

4 7

5 7

Dp Dp Dp Dp

2-1 3-1 4-1 5-1

7G 6G 5G 4G 3G2G1G

4 1

4 1 5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6

1 7 2 7 3 7 4 7 5 7

4 1 5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6

1 7 2 7 3 7 4 7 5 7

5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6

1 7 2 7 3 7 4 7 5 7

4 1 5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6

1 7 2 7 3 7 4 7 5 7

col

4 1

5 1

1 2

2 2

3 2

4 2

5 2

1 3

2 3

3 3

4 3

5 3

1 4

2 4

3 4

4 4

5 4

1 5

2 5

3 5

4 5

5 5

1 6

2 6

3 6

4 6

4 6 5 6

1 7

2 7

3 7

4 7

5 7

col col

4 1 5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6 5 6 1 7 2 7 3 7 4 7 5 7

col

4 1 5 1 1 2 2 2 3 2 4 2 5 2 1 3 2 3 3 3 4 3 5 3 1 4 2 4 3 4 4 4 5 4 1 5 2 5 3 5 4 5 5 5 1 6 2 6 3 6 4 6 5 6 1 7 2 7 3 7 4 7 5 7

OUTER DIMENSIONS

PIN CONNECTION

PIN NO.

CONNECTION

Note

1) Fn : Filament Pin

2) NP : No pin

3) Pn : Anode pin

4) NG : Grid pin

5) NC : No connected pin

F2 NP F2 NP 16GNP 15G P35P33P34P32P31P30 P29 P28 P27 P26 P25 P24 NC P23 P21P22 P20 P19 P18

33 32 31 3029

P12 P11 P10 P9 P8

PATTERN AREA

59 58 57 566566 64 63 62 61 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

P7 P6 P5 P4 P3 P2 P1 P36 NC 14G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G

5 – 5

40 39 38 37 36 35 34

P17 NC NCP16 P15 P14 P13

7654 3 21

3G82G 1G NPNP F1 NP F1

CHAPTER 6. CIRCUIT DESCRIPTION

RFOUT

FDO

SPDO

FDO

PLLF

PLLFO

FDO

118

IC1

TDO

RFOUT

Figure 5 Figure 6

118

IC1

102

IC1

102

101

IC1

102

IC1

127

102

IC1

126

IC1

Figure 3 Figure 4

Figure 1 Figure 2

[1] Waveform Of Servo Circuit

XL-HF201P

6 – 1

XL-HF201P

Main PWB

1 1.73 33 1.68 65 33.70m 97 25.70m 2 24.00m 34 1.73 66 33.80m 98 1.73 3 1.73 35 34.90m 67 33.90m 99 1.73 4 3.43 36 34.70m 68 3.44 100 1.36 5 1.73 37 34.70m 69 3.44 101 1.73 6 24.00m 38 34.70m 70 33.80m 102 1.73 7 24.10m 39 3.08 71 3.44 103 1.73 8 24.10m 40 3.34 72 8.50m 104 1.72

9 1.62 41 3.44 73 33.80m 105 1.73 10 1.66 42 30.50m 74 3.44 106 1.73 11 3.43 43 1.22 75 3.44 107 1.73 12 3.43 44 3.42 76 3.44 108 1.74 13 1.22 45 3.42 77 1.23 109 1.74 14 3.43 46 1.17 78 30.00m 110 1.74 15 1.22 47 3.44 79 1.24 111 1.74 16 23.80m 48 1.06 80 1.23 112 18.70m 17 68.40m 49 1.08 81 1.21 113 3.43 18 25.00m 50 1.39 82 3.42 114 18.20m 19 32.30m 51 1.16 83 3.38 115 3.43 20 3.43 52 7.20m 84 3.01 116 1.71 21 34.90m 53 1.87 85 3.05 117 1.75 22 24.90m 54 1.63 86 9.10m 118 1.71 23 1.63 55 1.18 87 9.00m 119 1.82 24 1.65 56 1.58 88 9.00m 120 1.17 25 3.43 57 1.23 89 NC 121 1.22 26 25.7m 58 3.44 90 NC 122 1.19 27 1.43 59 3.44 91 NC 123 1.73 28 36.20m 60 3.44 92 NC 124 1.73 29 35.80m 61 3.41 93 NC 125 1.05 30 33.10m 62 31.20m 94 3.38 126 1.11 31 33.10m 63 31.20m 95 1.20 127 1.11 32 1.22 64 3.10 96 3.41 128 1.10

1 NC 11 21.70m 1 37.00m 1 44.30m

2 4.34 12 3.44 2 4.85 2 44.90m

3 NC 13 3.44 3 4.85 3 0.77

4 3.44 14 32.70m 4 1.21 4 1.05

5 3.44 15 NC 5 3.10 5 36.40m

6 NC 16 NC 6 1.42 6 24.50m

7 NC 17 NC 7 1.54 7 41.50m

8 NC 18 NC 8 3.62 8 40.80m

9 NC 19 NC 9 1.70 9 27.40m 10 NC 20 NC 10 1.41 10 3.44

IC1

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

VOLTAGE

(V)

IC4 IC6IC3

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

[2] Voltage

6 – 2

IC301

VOLTAGE

1 1.83 17 1.87 33 1.84 49 36.20m 2 101.00m 18 49.30m 34 35.30m 50 36.40m 3 0.80 19 0.77 35 34.70m 51 60.50m 4 0.91 20 0.91 36 3.18 52 59.70m 5 87.10m 21 36.10m 37 3.20 53 33.80m 6 87.10m 22 36.00m 38 34.90m 54 3.23 7 1.91 23 36.00m 39 33.40m 55 NC 8 81.80m 24 3.21 40 33.40m 56 NC

9 3.25 25 3.12 41 33.30m 57 NC 10 1.29 26 1.72 42 33.40m 58 NC 11 3.11 27 1.67 43 34.30m 59 3.68 12 3.20 28 36.10m 44 NC 60 3.64 13 3.10 29 36.10m 45 NC 61 3.65 14 51.00m 30 35.30m 46 NC 62 3.66 15 3.17 31 1.25 47 NC 63 1.46 16 40.00m 32 47.00m 48 1.86 64 79.50m

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

XL-HF201P

IC801

PINNOVOLTAGE

(V)

IC803

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

IC570

VOLTAGE

(V)

52.19m05.529

.241m04.6141

VOLTAGE

(V)

m00.6301m05.5201

IC550

VOLTAGE

1 18.20m 1 10.96 1 2.47 1 2.75

2 0.52 2 153.50m 2 18.40m 2 15.20

3 18.20m 3 144.90m 3 4.91 3 18.00m

4 2.39 4 18.70m 4 3.28 4 11.59

5 16.20m 5 4.42 5 36.00m 5 1.27

6 18.40m 6 10.02 6 1.44

7 18.40m 7 1.39 7 1.72

8 18.40m 8 11.58 8 1.67

15 18.40m 16 11.57

1 11.56 12 3.24 23 11.56 34 10.83

2 2.45 13 1.18 24 10.83 35 22.99

3 11.70m 14 1.18 25 11.60m 36 317.80m

4 38.00m 15 1.18 26 22.99 37 11.70m

5 38.20m 16 40.50m 27 22.99 38 11.70m

6 38.40m 17 40.60m 28 317.60m 39 317.80m

7 38.90m 18 40.50m 29 11.80m 40 22.99

8 40.30m 19 11.80m 30 11.80m 41 22.99

9 1.18 20 11.90m 31 317.60m 42 11.70m 10 11.90m 21 11.57 32 22.90 43 10.83 11 18.80m 22 11.56 33 10.84 44 11.56

(V)

VOLTAGE

(V)

IC580

PINNOVOLTAGE

VOLTAGE

(V)

IC900

22.511m00.631170.111 m03.312m00.6321m04.8121

19.4364.231m04.8131

6 – 3

XL-HF201P

IC600

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V) 1 3.20 17 3.08 33 25.00m 49 3.09 2 3.20 18 3.17 34 3.43 50 3.22 3 3.11 19 50.30m 35 3.03 51 3.19 4 1.38 20 7.30m 36 3.21 52 3.19 5 0.79 21 7.30m 37 3.02 53 39.60m 6 3.05 22 11.50m 38 - 54 42.80m 7 1.65 23 7.10m 39 3.08 55 3.10 8 2.80m 24 3.53 40 3.41 56 3.00 9 1.51 25 2.54 41 3.07 57 27.80m

10 3.08 26 9.20m 42 3.09 58 21.70m 11 3.08 27 1.79 43 3.21 59 20.40m 12 3.08 28 7.80m 44 3.20 60 3.20 13 5.50m 29 7.60m 45 2.90 61 3.21 14 3.07 30 291.90m 46 2.90 62 3.10 15 4.60m 31 3.18 47 3.09 63 3.10 16 1.44 32 162.00m 48 2.99 64 2.90

IC12

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V) 1 1.73 8 0.28m 15 2.56 22 26.00m 2 4.23 9 4.92 16 2.57 23 1.73 3 3.00 10 26.00m 17 2.56 24 4.90 4 1.73 11 2.54 18 2.55 25 4.91 5 1.25 12 3.81 19 4.92 26 1.73 6 0.28m 13 2.57 20 1.64 27 1.73 7 0.28m 14 2.54 21 2.92 28 4.94

Display PWB

IC700

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V)

PINNOVOLTAGE

(V) 1 26.53 17 19.63 33 21.36 49 19.64 2 26.53 18 19.64 34 16.17 50 19.65 3 26.54 19 19.64 35 17.89 51 19.64 4 26.54 20 21.34 36 21.35 52 17.89 5 3.08 21 14.44 37 16.16 53 26.55 6 1.44 22 24.80 38 26.52 54 26.55 7 2.54 23 28.25 39 23.03 55 26.55 8 1.88 24 24.80 40 26.52 56 26.55 9 NC 25 16.18 41 17.89 57 26.55

10 NC 26 14.44 42 16.14 58 26.55 11 3.22 27 26.53 43 24.78 59 26.55 12 2.31 28 23.07 44 28.25 60 26.55 13 1.88 29 24.81 45 28.25 61 26.55 14 11.90m 30 14.41 46 17.88 62 26.55 15 26.54 31 14.42 47 17.90 63 26.55 16 21.54 32 19.62 48 19.64 64 26.55

6 – 4

-MEMO-

XL-HF201P

6 – 5

XL-HF201P

CHAPTER 7. DIAGRAM

[1] Block Diagram

Figure 7-1: BLOCK DIAGRAM

7 – 1

-MEMO-

XL-HF201P

7 – 2

XL-HF201P

-MEMO-

– 1

7 – 3

XL-HF201P

•Resistor: To differentiate the units of resistors, such symbol as K and M are used: the symbol K means 1000 ohm and the symbol M means 1000 kohm and the resistor without any symbol is ohm-type resistor. Besides, the one with “Fusible” is a fuse type.

• Capacitor: To indicate the unit of capacitor, a symbol P is used: this symbol P means pico-farad and the unit of the capacitor without such a symbol is microfarad. As to electrolytic capacitor, the expression "capacitance/withstand voltage is used". (CH), (TH), (RH), (UJ): Temperature compensation (ML): Mylar type (P.P.): Polypropylene

REF. NO

VR700 VOLUME MAX -- MIN

DESCRIPTION POSITION

type

• Schematic diagram and Wiring Side of P.W.Board for this model are subject to change for improvement without prior notice.

• The indicated voltage in each section is the one measured by Digital Multimeter between such a section and the chassis with no signal given.

1. In the tuner section, indicates AM indicates FM stereo

2. In the CD section, the CD is stopped.

• Parts marked with “ ( ) are important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

SW700 ON/STAND-BY ON -- OFF

SW701 FUNCTION ON -- OFF

SW702 PLAY/PAUSE ON -- OFF

SW703 REWIND ON -- OFF

SW704 FAST FORWARD ON -- OFF

SW705 STOP ON -- OFF

SW706 CD EJECT

ON -- OFF

“

KRA102S KRC107S KRC104S KTA1504GR KTC3875GR KRA107S KTC2875B KRC102S

(3)

(1)

(2)

TOP

VIEW

TOP VIEW

KTA1274Y KTC3199 KTC3203Y KTA1271Y

VIEW

FRONT

ECB

(S)(G)(D)

VIEW

FRONT

VIEW

FRONT

VIEW

FRONT

BCE

(1)(2)(3)

1N4004 DRL204F MA111

TOP VIEW

HSS4148

FRONT VIEW

304VT2H

TDA8920C

KIA7805A KIA7809A KTB772Y

10XB60F

AC AC -+

CHAPTER 8. CIRCUIT SCHEMATICS AND PARTS LAYOUT

[1] Notes On Schematic Diagram

[2] Types Of Transistor And LED

8 – 1

XL-HF201P

[3] Schematic Diagram

MAIN PWB-A1

A042AW

JP502 0

TOP ENTRY

YP12AW CNP601

JP501

0.1u

C549

2.2K

R544

10K

R548

C536

Q520

1000P

CM201GA

2875B

1000P

2.2K

2875B

C537

R543

Q521

10K

R547

R549

C538

22K

2.2/50

C553

0.1u

Q522

KRA102S

C569

0.1u

KRC104S

Q632

JP903

C944

0.1u

R992

000

JP902

JP901

C943 0.1u

0.1u

C552

CHASIS GND LUG 902

47p

AUDIO SIGNAL

0.1

C945

2 3 456

8 9101112

Figure 8-1: MAIN SCHEMATIC DIAGRAM

8 – 2

XL-HF201P

MAIN PWB-A1

CD Section

TO iPod

TERMINAL

ROM

UNIT

CD PICK-UP

USB IN

TERMINAL

C40 33pF

C39 33p

C91 (47p)

(MCLKO)

2 3 456

Figure 8-2: MAIN (CD) SCHEMATIC DIAGRAM

8 9101112

8 – 3

XL-HF201P

DISPLAY PWB-A2

D700

DA1010

D701

LUG 700 NB709AWPZ

C704

FROM SMPS PWBFROM MAIN PWB

2 3 456

Figure 8-3: DISPLAY SCHEMATIC DIAGRAM

8 9101112

8 – 4

XL-HF201P

iPod PWB-A4

USB PWB-A5

TO MAIN PWB-A1

LUG401 NB708AWPZ

FB403

KEY/JACK PWB-A3

DEVICE ONLY

FROM EXTERNAL iPod

OPEN /

STOP FF REW

PLAY /

PAUSE

TO DISPLAY PWB-A2

AUDIO INHEADPHONE IN

0.1

B708

0.1

LN-0061

FB404

FB405

LN-0061

C429

TO MAIN PWB-A1

HP_SEL

2 3 456

Figure 8-4: iPod, USB AND JACK SCHEMATIC DIAGRAM

8 9101112

8 – 5

XL-HF201P

[4] Chart Of Connecting Wires

Bi400

SPEAKER TERMINAL

L-CH (+/-)

R-CH (+/-)

SUBWOOFER (BK) PRE-OUT

LINE IN (RD & WH) VIDEO OUT (YL)

ANTENNA IN

MICOM REFLASH

(Main Section)

FOR

MAiN PWB-A1

SC600

Bi901

BL WH

TU301

WHBLBL

4321

12345

JK902

JK501

CNP600

CNS901 CNS801

BKWHBKWHBKWHBK

Bi801

23456789

123456789

CNP501

4567

123

1234567891011

MAIN PWB-A1

CNP700

CNS5

CNP5

CNP601

FFC601

PKWHBK

1234

12345

CNP7

CNP1

CNP4

1234567

13 11

10 12

123456

CNP2

1 23

BK WH

PK YL

USB PWB-A5

BK WH BL GR BKBK PK WH

1234567

CNS201

FFC1

123456

WH BL WH BL WH

CNS2

CNS4

GY WH GY WH RD

12345

LUG401

JK400

TO CD PICK-UP UNIT

TO CD MOTOR PWB

TRAY PWB

(MOTOR)

DEDLEIHS

FROM

EXTERNAL USB

DEVICE ONLY

TO CHASSIS

WH PK BK GR BL WH BK

DISPLAY PWB-A2

KEY / JACK PWB-A3

8 7654321

Bi201

FROM

EXTERNAL iPod

DEVICE ONLY

CNP201

iPod PWB-A4

FL DISPLAY

Bi421

FL700

SMPS

CNP902

LUG700

Bi700

54321

Bi701

JK421 JK420

LUG402

CNP700

1234567891011

FROM

MAIN PWB-A1

CNP601

AUDIO INPHONES

76 854321

PKBKWH

Bi420

TO CHASSIS

FFC601

TO CHASSIS

RDRDWH

PKBKWH

6754321

COLOR TABLE

SMPS PWB-B

FROM

DISPLAY PWB-A2

Bi700

CNS700

1234

CNP902

4321

CNP801

AC POWER SUPPLY CORD

CNP901

123456789

AC 120~60Hz

23456

(This PWB is not serviceable item)

CNP801

8 9101112

Figure 8-5: WIRING CONNECTION

WHBLWHITE

RD RED BK BLACK

BLUE BR BROWN GR GREEN PK PINK GY GRAY

YL YELLOW

8 – 6

[5] Wiring Side Of PWB

XL-HF201P

MAIN PWB-A1

12345

7 8 910

12345

123456 7

WIRE A

1234

12345

1234

123456

123456789101112131415

TOP VIEW

567

BOTTOM VIEW

Lead-free solder indication

Lead-free solder is used in the MAIN PWB. Refer to "Precautions for handling lead-free solder" for instructions and precautions.

2 3 456

8 9101112

Figure 8-6: WIRING SIDE OF MAIN PWB

8 – 7

XL-HF201P

DISPLAY PWB-A2

1234567891011

1122345

TOP VIEW

BOTTOM VIEW

Lead-free solder indication

Lead-free solder is used in the DISPLAY PWB. Refer to "Precautions for handling lead-free solder" for instructions

and precautions.

2 3 456

Figure 8-7: WIRING SIDE OF DISPLAY PWB

8 9101112

8 – 8

XL-HF201P

KEY / JACK PWB-A3

12345678

TOP VIEW

BOTTOM VIEW

Lead-free solder indication

Lead-free solder is used in the KEY / JACK PWB. Refer to "Precautions for handling lead-free solder" for instructions

and precautions.

2 3 456

Figure 8-8: WIRING SIDE OF KEY / JACK PWB

8 9101112

8 – 9

XL-HF201P

iPod PWB-A4

87654321

BOTTOM VIEWTOP VIEW

Lead-free solder indication

Lead-free solder is used in the iPod PWB. Refer to "Precautions for handling lead-free solder" for instructions

and precautions.

USB PWB-A5

12345

TOP VIEW BOTTOM VIEW

Lead-free solder indication

Lead-free solder is used in the USB PWB. Refer to "Precautions for handling lead-free solder" for instructions and precautions.

2 3 456

Figure 8-9: WIRING SIDE OF iPod and USB PWB

8 9101112

8 – 10

-MEMO-

XL-HF201P

8 – 11

XL-HF201P

-MEMO-

– 1

8 – 12

PARTS GUIDE

CONTENTS

[1] INTEGRATED CIRCUITS

[2] TRANSISTORS

[3] DIODES

[4] COILS

[5] CRYSTALS / VIBRATORS

[6] CAPACITORS

[7] RESISTORS

[8] OTHER CIRCUITRY PARTS

[9] CABINET PARTS /

CD MECHANISM PARTS

[10] SPEAKER BOX PARTS

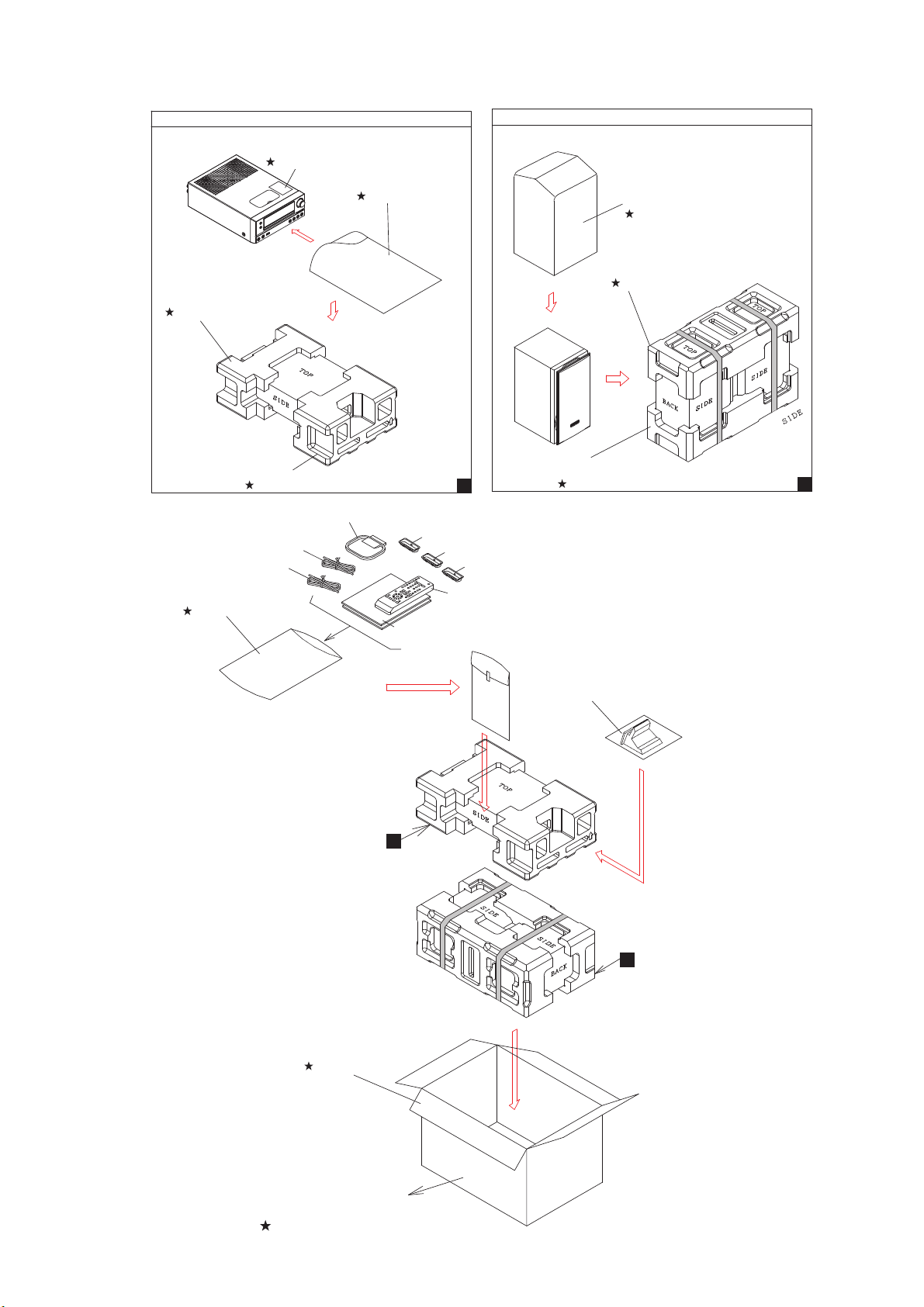

[11] ACCESSORIES / PACKING PARTS

[12] P.W.B. ASSEMBLY

[13] OTHER SERVICE PARTS

Explanation of PWB Assembly parts code category

S Category -- Repair ( Component parts of PWB can be replace and repair, PWB no supply )

X Category -- Replacement ( PWB can not be repair. Component parts no supply )

S.X Category -- Repair and Replacement ( PWB can repair and replace )

KG Category -- Revolve repair by Business Center ( Return to Business Center and repair by manufacturer. Component parts no supply )

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK ........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (withoutleadwire)

VC • • MN ............... Cylindrical type (withoutleadwire)

VC • • TV ................ Square type (withoutleadwire)

VC • • TQ ............... Square type (withoutlead wire)

VC • • CY ............... Square type (withoutleadwire)

VC • • CZ ............... Square type (withoutlead wire)

VC•••••••••J..The13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors,erroris ±20%.

Resi stors

VRD ....................... Carbon-film type

VRS ........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (withoutleadwire)

VR • • MN ............... Cylindrical type (withoutlead wire)

VR • • TV ................ Square type (withoutlead wire)

VR • • TQ ............... Square type (withoutleadwire)

VR • • CY ............... Square type (withoutleadwire)

VR • • CZ ............... Square type (withoutleadwire)

VR•••••••••J..The13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts,theresistorsare ±5% carbon-film type.

HI FI COMPONENT SYSTEM

XL-HF201P

MODEL

XL-HF201P(BK) Hi Fi Component System consisting of XL-HF201P(BK) (main unit) and CP-HF200 (speaker system).

XL-HF201P(BK

)

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

XL-HF201P

NO. PARTS CODE

PRICE

RANK

[1] INTEGRATED CIRCUITS

IC1 RH-IXA312AW00 BA CD DSP, MN66F27946, 64 Pin IC3 VHI341S2162-1 Apple Authentication IC IC4 VHITPS2561D-1 AH CRT Limiter Power Switch IC6 VHITS3USB++-1 AG USB Switch

IC12 VHISA5888TR-1 AG CD Driver, SA5888, 28 Pin IC301 VHITAS5504A-1 AR Digital Audio PWM IC530 VHIUTC4580E-1 AC Dual Operational Amplifier IC550 VHICD4052BM-1 AE Analog Multi / Demultiplexer IC530 VHIPCM1808P-1 AH Single Ended Analog IC580 VHIUTC4580E-1 AC Dual Operational Amplifier IC600 RH-IXA311AW00 AV System Microcomputer,iXA311AW IC601 VHIPST8227U-1 AC Reset IC, 2.7V IC700 VHIM66005AHP1 AS FL Driver IC801 VHIBA00BWFP-1 AG Voltage Regulator IC803 VHIKIA7805AP1 AC Voltage Regulator IC804 VHI3464A33N-1 AC Voltage Regulator, 3.3V IC900 VHiTAS5342L-1 AR Digital Amplifier

[2] TRANSISTORS

Q1 VS2SK3018//-1 AC N Channel SK3018 Q2 VSKTA1271Y/-1 AC Silicon,PNP,KTA1271 Y

Q5 VSKTA1504GR-1 AB Silicon,PNP,KTA1504 GR Q520 VSKTC2875B/-1 AC Silicon,NPN,KTC2875 B Q521 VSKTC2875B/-1 AC Silicon,NPN,KTC2875 B Q522 VSKRA102S//-1 AB Digital,PNP,KRA102 S Q550 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR Q551 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR Q630 VSKRC104S//-1 AC Digital,NPN,KRC104 S Q631 VSKRC104S//-1 AC Digital,NPN,KRC104 S Q632 VSKRC104S//-1 AC Digital,NPN,KRC104 S Q801 VSKRC104S//-1 AC Digital,NPN,KRC104 S Q930 VSKRA102S//-1 AB Digital,PNP,KRA102 S Q931 VSKTC2875B/-1 AC Silicon,NPN,KTC2875 B

[3] DIODES

D201 VHDDA1010++-1 AB Silicon,DA1010 D202 VHDDA1010++-1 AB Silicon,DA1010 D203 VHDDA1010++-1 AB Silicon,DA1010 D204 VHDDA1010++-1 AB Silicon,DA1010 D300 VHDDA1010++-1 AB Silicon,DA1010 D301 VHDDA1010++-1 AB Silicon,DA1010 D400 VHDDA1010++-1 AB Silicon,DA1010 D401 VHDDA1010++-1 AB Silicon,DA1010 D402 VHDDA1010++-1 AB Silicon,DA1010 D420 VHDDA1010++-1 AB Silicon,DA1010 D421 VHDDA1010++-1 AB Silicon,DA1010 D422 VHDDA1010++-1 AB Silicon,DA1010 D423 VHDDA1010++-1 AB Silicon,DA1010 D500 VHDDA1010++-1 AB Silicon,DA1010 D501 VHDDA1010++-1 AB Silicon,DA1010 D502 VHDDA1010++-1 AB Silicon,DA1010 D503 VHDDA1010++-1 AB Silicon,DA1010 D580 VHDDA1010++-1 AB Silicon,DA1010 D581 VHDDA1010++-1 AB Silicon,DA1010 D601 VHDDA1010++-1 AB Silicon,DA1010 D602 VHDDA1010++-1 AB Silicon,DA1010 D603 VHDDA1010++-1 AB Silicon,DA1010 D604 VHDDA1010++-1 AB Silicon,DA1010 D630 VHDDA1010++-1 AB Silicon,DA1010 D700 VHDDA1010++-1 AB Silicon,DA1010 D701 VHDDA1010++-1 AB Silicon,DA1010 D801 VHDDA1010++-1 AB Silicon,DA1010 D802 VHDDA1010++-1 AB Silicon,DA1010 D803 VHDDA1010++-1 AB Silicon,DA1010 D805 VHDDA1010++-1 AB Silicon,DA1010 D807 VHDDA1010++-1 AB Silicon,DA1010 D808 VHDDA1010++-1 AB Silicon,DA1010

LED701 VHPSLR343VC3F AC LED,Red

ZD800 RH-EXA718WJQZ AB Zener ZD801 RH-EXA701WJQZ AB Zener,6.8V ZD802 RH-EXA723WJQZ AB Zener,18V ZD803 RH-EXA701WJQZ AB Zener,6.8V ZD804 RH-EXA701WJQZ AB Zener,6.8V ZD806 RH-EXA680WJQZ AB Zener, 2.4V

[4] COILS

FB300 RFILN5044NCPZ AB Ferrite Bead FB400 RBLN-0061TAZZ AB Chip Ferrite Core FB402 RBLN-0061TAZZ AB Chip Ferrite Core FB404 RBLN-0061TAZZ AB Chip Ferrite Core FB405 RBLN-0061TAZZ AB Chip Ferrite Core FB502 RBLN-0077TAZZ AB Chip Ferrite Core FB550 RBLN-0077TAZZ AB Chip Ferrite Core FB570 RBLN-0077TAZZ AB Chip Ferrite Core FB571 RBLN-0077TAZZ AB Chip Ferrite Core FB801 RBLN-0077TAZZ AB Chip Ferrite Core FB802 RBLN-0077TAZZ AB Chip Ferrite Core

NEW

MARK

PA RT

RANK

DESCRIPTION

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PA RT RANK

[4] COILS

L1 VPBNN100K0000 AC Coil, 10µH L901 RCILZ0055AWZZ AH Coil L902 RCILZ0055AWZZ AH Coil L903 RCILZA089AWZZ Coil, 10µH L904 RCILZA089AWZZ Coil, 10µH L905 RCILZA089AWZZ Coil, 10µH L906 RCILZA089AWZZ Coil, 10µH

RF1 RCORFA026AWZZ AG Core

R91 RFILNA023AFZZ AB Chip Ferrite Core R121 RFILNA023AFZZ AB Chip Ferrite Core R307 RBLN-0061TAZZ AB Chip Ferrite Core R323 RBLN-0081TAZZ AB Chip Ferrite Core R350 RBLN-A012AWZZ AB Chip Ferrite Core R428 RBLN-0061TAZZ AB Chip Ferrite Core R429 RBLN-0061TAZZ AB Chip Ferrite Core

[5] CRYSTALS / VIBRATORS

X1 RCRSP0020AWZZ AG Crystal, 16.93 MHz

X2 RCRSPA033AWZZ AD Crystal, 12.00 MHz X301 RCRSPA030AWZZ AD Crystal, 13.50 MHz X601 RCRSPA014AWZZ AE Crystal, 32.768 KHz

[6] CAPACITORS

C1 VCKYCY1HB123K AB 0.012 µF,50V

C2 VCKYCZ1HB152K AA 1500 pF,50V

C3 VCKYCZ1EF104Z AA 0.1 µF,25V

C4 VCKYCY1EF104Z AA 0.1 µF,25V

C5 VCKYCZ1EF104Z AA 0.1 µF,25V

C12 VCKYCY1CB154K AB 0.15 µF,16V C13 VCKYCY1CF334Z AA 0.33 µF,16V C14 VCEAZA1AW107M AB 100 µF,10V,Electrolytic C15 VCKYCY1EF104Z AA 0.1 µF,25V C16 VCKYCZ1CB223K AB 0.022 µF,16V C17 VCKYCZ1HB332K AA 3300 pF,50V C18 VCKYCY1CF334Z AA 0.33 µF,16V C19 VCKYTV1EB475K AB 4.7 µF,25V C20 VCKYCZ1AB104K AB 0.1 µF,10V C21 VCKYCZ1HB681K AB 680 pF,50V C22 VCKYCZ1CB223K AB 0.022 µF,16V C23 VCKYCZ1AB104K AB 0.1 µF,10V C24 VCKYCZ1HB102K AB 1000 pF,50V C25 VCKYCY1CB823K AB 0.082 µF,16V C26 VCKYCY1CF334Z AA 0.33 µF,16V C27 VCKYCZ1HB102K AB 1000 pF,50V C28 VCEAZA1CW476M AB 47 µF,16V,Electrolytic C29 VCEAZA1CW476M AB 47 µF,16V,Electrolytic C30 VCKYCZ1AB104K AB 0.1 µF,10V C31 VCEAZA1AW107M AB 100 µF,10V,Electrolytic C32 VCKYCZ1AB104K AB 0.1 µF,10V C33 VCEAZA1CW476M AB 47 µF,16V,Electrolytic C34 VCKYCY1EF104Z AA 0.1 µF,25V C35 VCKYCY1EF104Z AA 0.1 µF,25V C36 VCKYCY1EF104Z AA 0.1 µF,25V C39 VCCCCZ1HH330J AB 33 pF,50V C40 VCCCCZ1HH330J AB 33 pF,50V C41 VCEAZA1CW226M AC 22 µF,16V,Electrolytic C42 VCCCCZ1HH120J AA 12 pF,50V C43 VCCCCZ1HH120J AA 12 pF,50V C44 VCKYCY1EF104Z AA 0.1 µF,25V C45 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C46 VCKYCZ1AB104K AB 0.1 µF,10V C47 VCKYCY1EF104Z AA 0.1 µF,25V C48 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C49 VCKYCZ1AB104K AB 0.1 µF,10V C50 VCKYCY1EF104Z AA 0.1 µF,25V C52 VCKYCY1EF104Z AA 0.1 µF,25V C53 VCCCCZ1HH330J AB 33 pF,50V C54 VCCCCZ1HH330J AB 33 pF,50V C55 VCKYCZ1AB104K AB 0.1 µF,10V C56 VCKYCZ1AB105K AA 1 µF,10V C57 VCKYCZ1AB104K AB 0.1 µF,10V C62 VCCCCZ1HH330J AB 33 pF,50V C63 VCCCCZ1HH330J AB 33 pF,50V C64 VCKYCY1EF104Z AA C65 VCKYCY1EF104Z AA 0.1 µF,25V C66 VCKYCZ1AB104K AB 0.1 µF,10V C67 VCKYCZ1AB105K AA 1 µF,10V C68 VCKYCY1EF104Z AA 0.1 µF,25V C69 VCKYCY1EF104Z AA 0.1 µF,25V C70 VCKYCZ1AB104K AB 0.1 µF,10V C71 VCKYCZ1AB104K AB 0.1 µF,10V C72 VCKYCZ1AB104K AB 0.1 µF,10V C73 VCCCCZ1HH330J AB 33 pF,50V C74 VCKYCZ1AB104K AB 0.1 µF,10V C75 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C76 VCKYCZ1AB104K AB 0.1 µF,10V C77 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C78 VCKYCY1EF104Z AA 0.1 µF,25V

0.1 µF,25V

XL-HF201P

DESCRIPTION

XL-HF201P

NO. PARTS CODE

PRICE

RANK

[6] CAPACITORS

C79 VCKYCZ1AB104K AB 0.1 µF,10V C80 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C81 VCKYCY1EF104Z AA 0.1 µF,25V C82 VCCCCY1HH330J AA 33 pF(CH),50V C83 VCCCCY1HH330J AA 33 pF(CH),50V C84 VCCCCY1HH330J AA 33 pF(CH),50V C85 VCKYCZ1AB104K AB 0.1 µF,10V C86 VCKYCZ1AB104K AB 0.1 µF,10V C87 VCCCCZ1HH100D AA 10 pF(CH),50V C88 VCCCCZ1HH100D AA 10 pF(CH),50V C89 VCCCCZ1HH330J AB 33 pF,50V C91 VCCCCZ1HH470J AB 47 pF(CH),50V C97 VCCCCZ1HH330J AB 33 pF,50V C98 VCCCCZ1HH151J AB 150 pF(CH),50V

C99 VCKYCZ1AB104K AB 0.1 µF,10V C100 VCCCCZ1HH151J AB 150 pF(CH),50V C101 VCKYCZ1EB472K AB 4700 pF,25V C102 VCKYCZ1HB222K AB 2200 pF,50V C103 VCKYCZ1AB104K AB 0.1 µF,10V C104 VCKYCZ1AB104K AB 0.1 µF,10V C105 VCEAZA1AW477M AC 470 µF,10V,Electrolytic C170 VCKYCY1EF104Z AA 0.1 µF,25V C201 VCKYCY1EF104Z AA 0.1 µF,25V C202 VCKYCY1EF104Z AA 0.1 µF,25V C203 VCKYCY1EF104Z AA 0.1 µF,25V C300 VCCCCY1HH181J AA 180 pF(CH),50V C301 VCCCCY1HH181J AA 180 pF(CH),50V C302 VCKYCZ1HB103K AA 0.01 µF,50V C303 VCKYCY1HB221K AA 220 pF,50V C304 VCKYCY1HB221K AA 220 pF,50V C305 VCKYCZ1HB103K AA 0.01 µF,50V C306 VCKYCY1EF104Z AA 0.1 µF,25V C307 VCKYCZ1AB104K AB 0.1 µF,10V C308 VCCCCY1HH102J AA 1000 pF(CH),50V C309 VCKYCZ1AB104K AB 0.1 µF,10V C310 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C312 VCKYCZ1AB104K AB 0.1 µF,10V C314 VCKYCZ1AB104K AB 0.1 µF,10V C315 VCKYCZ1AB104K AB 0.1 µF,10V C317 VCCCCZ1HH300J AB 30 pF(CH),50V C318 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C320 VCKYCZ1AB104K AB 0.1 µF,10V C321 VCKYCZ1AB104K AB 0.1 µF,10V C322 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C323 VCCCCY1HH300J AA 30 pF(CH),50V C324 VCKYCZ1AB104K AB 0.1 µF,10V C325 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C326 VCKYCZ1AB104K AB 0.1 µF,10V C327 VCKYCZ1AB104K AB 0.1 µF,10V C337 VCCCCZ1HH471J AA 470 pF,50V C338 VCCCCZ1HH471J AA C339 VCCCCZ1HH471J AA 470 pF,50V C340 VCCCCZ1HH471J AA 470 pF,50V C341 VCKYCY1AB224K AB 0.22 µF,10V C342 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C343 VCCCCZ1HH471J AA 470 pF,50V C344 VCCCCZ1HH471J AA 470 pF,50V C345 VCCCCY1HH471J AA 470 pF(CH),50V C346 VCCCCY1HH471J AA 470 pF(CH),50V C400 VCCCCY1HH470J AA 47 pF(CH),50V C401 VCCCCY1HH471J AA 470 pF(CH),50V C402 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C403 VCKYCY1CB223K AA 0.022 µF,16V C404 VCKYCY1HB103K AA 0.01 µF,50V C405 VCCCCY1HH470J AA 47 pF(CH),50V C406 VCCCCY1HH470J AA 47 pF(CH),50V C420 VCKYCY1HB561K AA 560 pF,50V C421 VCKYCY1HB561K AA 560 pF,50V C422 VCCCCY1HH471J AA 470 pF(CH),50V C423 VCCCCY1HH471J AA 470 pF(CH),50V C424 VCKYCY1EF104Z AA 0.1 µF,25V C425 VCKYCY1EF104Z AA 0.1 µF,25V C426 VCKYCY1EF104Z AA 0.1 µF,25V C427 VCKYCY1EF104Z AA 0.1 µF,25V C428 VCCCCY1HH222J AB 2200 pF(CH),50V C429 VCKYCY1EF104Z AA 0.1 µF,25V C500 VCKYCY1HB122K AA 1200 pF,50V C501 VCKYCY1HB473K AB 0.047 µF,50V C502 VCKYCY1HB122K AA 1200 pF,50V C503 VCCCCY1HH181J AA 180 pF(CH),50V C504 VCCCCY1HH181J AA 180 pF(CH),50V C505 VCKYCY1EF104Z AA 0.1 µF,25V C530 VCCCCZ1HH221J AB 220 pF,50V C531 VCKYCY1EF104Z AA 0.1 µF,25V C532 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C533 VCEAZA1CW227M AC 220 µF,16V,Electrolytic C534 VCEAZA0JW227M AC 220 µF,6.3V,Electrolytic C535 VCEAZA0JW227M AC 220 µF,6.3V,Electrolytic C536 VCKYCZ1HB102K AB 1000 pF,50V

NEW

MARK

PA RT

RANK

470 pF,50V

DESCRIPTION

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PA RT RANK

[6] CAPACITORS

C537 VCKYCZ1HB102K AB 1000 pF,50V C538 VCEAZA1HW225M AB 2.2 µF,50V,Electrolytic C539 VCKYCY1EF104Z AA 0.1 µF,25V C540 VCCCCZ1HH221J AB 220 pF,50V C541 VCCCCZ1HH221J AB 220 pF,50V C542 VCEAZA1HW105M AB 1 µF,50V,Electrolytic C543 VCCCCZ1HH221J AB 220 pF,50V C544 VCEAZA1HW105M AB 1 µF,50V,Electrolytic C545 VCEAZA1HW105M AB 1 µF,50V,Electrolytic C546 VCEAZA1HW105M AB 1 µF,50V,Electrolytic C547 VCEAZA1HW105M AB 1 µF,50V,Electrolytic C548 VCEAZA1HW105M AB 1 µF,50V,Electrolytic C549 VCKYCY1EF104Z AA 0.1 µF,25V C550 VCKYCY1EF104Z AA 0.1 µF,25V C551 VCEAZA1CW107M AC 100 µF,50V,Electrolytic C552 VCKYCY1EF104Z AA 0.1 µF,25V C553 VCKYCY1EF104Z AA 0.1 µF,25V C554 VCKYCY1EF104Z AA 0.1 µF,25V C569 VCKYCZ1EF104Z AA 0.1 µF,25V C570 VCKYCZ1EF104Z AA 0.1 µF,25V C571 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C572 VCKYCZ1EF104Z AA 0.1 µF,25V C573 VCEAZA1CW336M AB 33 µF,16V,Electrolytic C574 VCKYCZ1EF104Z AA 0.1 µF,25V C575 VCEAZA1CW107M AC 100 µF,50V,Electrolytic C576 VCKYTV1EB475K AB 4.7 µF,25V C577 VCKYTV1EB475K AB 4.7 µF,25V C578 VCCCCZ1HH221J AB 220 pF,50V C579 VCCCCZ1HH221J AB 220 pF,50V C580 VCKYCZ1AB224K AA 0.22 µF,10V C581 VCCCCZ1HH101J AB 100 pF,50V C582 VCKYCZ1AB224K AA 0.22 µF,10V C583 VCKYCZ1AB105K AA 1 µF,10V C584 VCKYCZ1AB105K AA 1 µF,10V C585 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C603 VCKYCZ1EF104Z AA 0.1 µF,25V C604 VCCCCZ1HH180J AA 18 pF,50V C605 VCCCCZ1HH180J AA 18 pF,50V C609 VCKYCY1EF104Z AA 0.1 µF,25V C611 VCKYCZ1HB103K AA 0.01 µF,50V C612 VCKYCZ1HB103K AA 0.01 µF,50V C613 VCEAZA0JW108M AC 1000 µF,6.3V,Electrolytic C614 VCEAZA1HW475M AB 4.7 µF,50V,Electrolytic C615 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C616 VCCCCZ1HH101J AB 100 pF,50V C619 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C620 VCKYCZ1AB104K AB 0.1 µF,10V C621 VCKYCZ1AB104K AB 0.1 µF,10V C622 VCEAZA1AW107M AB 100 µF,10V,Electrolytic C649 VCCCCZ1HH101J AB 100 pF,50V C675 VCEAZA1HW106M AB C677 VCCCCZ1HH101J AB 100 pF,50V C680 VCEAZA1HW106M AB 10 µF,50V,Electrolytic C700 VCKYCY1HB223K AA 0.022 µF,50V C701 RC-EZD105AF1H AB 1 µF,50V,Electrolytic C702 RC-EZD105AF1H AB 1 µF,50V,Electrolytic C703 VCKYCY1HB223K AA 0.022 µF,50V C704 VCKYCY1EB105K AB 1 µF,25V C705 VCKYCY1HB103K AA 0.01 µF,50V C706 VCKYCY1HB102K AA 1000 pF,50V C707 VCKYCY1HB102K AA 1000 pF,50V C708 VCCCCY1HH271J AA 270 pF(CH),50V C710 RC-EZD226AF1H AC 22 µF,50V,Electrolytic C711 VCKYCY1EF104Z AA 0.1 µF,25V C712 VCCCCY1HH820J AA 82 pF(CH),50V C718 VCKYCY1HB102K AA 1000 pF,50V C719 VCKYCY1HB102K AA 1000 pF,50V C720 VCCCCY1HH151J AA 150 pF(CH),50V C721 VCKYCY1HB223K AA 0.022 µF,50V C722 RC-EZD476AF1C AC 47 µF,16V,Electrolytic C723 VCCCCY1HH222J AB 2200 pF(CH),50V C724 RC-EZD474AF1H AB 0.47 µF,50V,Electrolytic C725 VCCCCY1HH271J AA 270 pF(CH),50V C801 VCEAZA1EW108M AE 1000 µF,25V,Electrolytic C802 VCEAZA1EW476M AB 47 µF,25V,Electrolytic C803 VCKYCY1EF104Z AA 0.1 µF,25V C804 VCEAZA1CW476M AB 47 µF,16V,Electrolytic C814 VCKYCY1AB105K AB 1 µF,10V C815 VCKYCY1AB105K AB 1 µF,10V C818 VCEAZA1CW107M AC 100 µF,50V,Electrolytic C819 VCKYCY1EF104Z AA 0.1 µF,25V C820 VCEAZA1AW107M AB 100 µF,10V,Electrolytic C821 VCKYCY1EF104Z AA 0.1 µF,25V C822 VCEAZA1CW226M AC 22 µF,16V,Electrolytic C823 VCKYCY1EF104Z AA 0.1 µF,25V C900 VCKYCZ1EF104Z AA 0.1 µF,25V C901 VCKYCZ1EF104Z AA 0.1 µF,25V C902 VCKYCZ1EF104Z AA 0.1 µF,25V C903 VCKYCZ1EF104Z AA 0.1 µF,25V

10 µF,50V,Electrolytic

XL-HF201P

DESCRIPTION

XL-HF201P

NO. PARTS CODE

PRICE

RANK

[6] CAPACITORS

C904 VCKYCZ1EF104Z AA 0.1 µF,25V C905 VCKYCY1HB333K AB 0.033 µF,50V C906 VCKYCY1HB333K AB 0.033 µF,50V C907 VCKYCY1HB333K AB 0.033 µF,50V C908 VCKYCZ1EF104Z AA 0.1 µF,25V C909 VCKYCZ1EF104Z AA 0.1 µF,25V C910 VCKYCY1HB333K AB 0.033 µF,50V C911 VCKYCZ1EF104Z AA 0.1 µF,25V C912 VCKYTV1HB104K AB 0.1 µF,50V C913 VCKYCY1HB102K AA 1000 pF,50V C914 VCKYTV1HB104K AB 0.1 µF,50V C915 VCKYCY1HB102K AA 1000 pF,50V C916 VCKYCY1HB103K AA 0.01 µF,50V C917 VCKYCY1HB103K AA 0.01 µF,50V C920 VCFYFA1HA474J AC 0.47 µF,50V,Thin film C921 VCFYFA1HA474J AC 0.47 µF,50V,Thin film C922 VCKYTV1HB104K AB 0.1 µF,50V C923 VCKYTV1HB104K AB 0.1 µF,50V C924 VCKYCY1HB102K AA 1000 pF,50V C925 VCKYCY1HB103K AA 0.01 µF,50V C926 VCKYCY1HB102K AA 1000 pF,50V C927 VCKYCY1HB103K AA 0.01 µF,50V C930 VCKYCY1EF104Z AA 0.1 µF,25V C931 VCKYCY1HB103K AA 0.01 µF,50V C937 VCCCCY1HH101J AA 100 pF(CH),50V C938 VCCCCY1HH101J AA 100 pF(CH),50V C939 VCCCCY1HH101J AA 100 pF(CH),50V C940 VCCCCY1HH101J AA 100 pF(CH),50V C941 VCCCCY1HH102J AA 1000 pF(CH),50V C942 VCCCCY1HH102J AA 1000 pF(CH),50V C943 VCKYCY1EF104Z AA 0.1 µF,25V C944 VCKYCY1EF104Z AA 0.1 µF,25V C945 VCKYCY1EF104Z AA 0.1 µF,25V C981 VCEAZA1HW684M AB 0.68 µF,50V,Electrolytic C983 VCKYCY1HB473K AB 0.047 µF,50V C984 VCKYCZ1EF104Z AA 0.1 µF,25V C985 VCKYCZ1EF104Z AA 0.1 µF,25V C986 VCEAZA1JW107M AC 100 µF,63V,Electrolytic C987 VCKYCY1EF104Z AA 0.1 µF,25V C988 VCKYCY1HB103K AA 0.01 µF,50V C989 VCKYCY1EF104Z AA 0.1 µF,25V

[7] RESISTORS

C510 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W C512 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W C513 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W C514 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W C982 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm

FB403 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm FB500 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm

FB501 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm GND801 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm GND802 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm GND804 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm GND805 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm GND806 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm

JP201 VRS-TW2EE000J AB 0 ohms,Jumper,1/4W

JP501 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm

JP502 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm

JP901 VRS-TQ2EF000J AA 0 ohms,Jumper

JP902 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm

JP903 VRS-TV2AB000J AA 0 ohms,Jumper,1.25x2mm

L2 VRS-TV2AB000J AA 0 ohms,Jumper,1.25x2mm

L3 VRS-TV2AB000J AA 0 ohms,Jumper,1.25x2mm L201 VRS-TV2AB000J AA 0 ohms,Jumper,1.25x2mm L420 VRS-TV2AB000J AA 0 ohms,Jumper,1.25x2mm L702 VRS-TV2AB000J AA 0 ohms,Jumper,1.25x2mm L703 VRS-TQ2EF000J AA 0 ohms,Jumper

R27 VRS-CZ1JB102J AB 1 kohms,1/16W R28 VRS-CZ1JB823J AB 82 kohms,1/16W R29 VRS-CZ1JB821J AA 820 ohms,1/16W R30 VRS-CZ1JB272J AB 2.7 kohms,1/16W R31 VRS-CZ1JB473J AA 47 kohms,1/16W R32 VRS-CZ1JF4R7J AA 4.7 ohms,1/16W R33 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R34 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R35 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R38 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm R43 VRS-CZ1JB105J AB 1 Mohms,1/16W R44 VRS-CZ1JB470J AB 47 ohms,1/16W R45 VRS-CZ1JB103J AA 10 kohms,1/16W R46 VRS-CZ1JB103J AA 10 kohms,1/16W R47 VRS-CZ1JF680J AA 68 ohms,1/16W R49 VRS-CZ1JB300F AA 30 ohms,1/16W R50 VRS-CZ1JB300F AA 30 ohms,1/16W R51 VRS-CZ1JB153J AA 15 kohms,1/16W R52 VRS-CZ1JB153J AA 15 kohms,1/16W R58 VRS-CZ1JB101J AB 100 ohms,1/16W

NEW

MARK

PA RT

RANK

DESCRIPTION

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PA RT RANK

[7] RESISTORS

R59 VRS-CZ1JB101J AB 100 ohms,1/16W R60 VRS-CZ1JB330J AA 33 ohms,1/16W R61 VRS-CZ1JB330J AA 33 ohms,1/16W R62 VRS-CZ1JB330J AA 33 ohms,1/16W R63 VRS-CZ1JB101J AB 100 ohms,1/16W R64 VRS-CZ1JB101J AB 100 ohms,1/16W R65 VRS-CZ1JB103J AA 10 kohms,1/16W R66 VRS-CY1JB330J AA 33 ohms,1/16W R67 VRS-CY1JB330J AA 33 ohms,1/16W R68 VRS-CY1JB222J AA 2.2 kohms,1/16W R69 VRS-CY1JB222J AA 2.2 kohms,1/16W R70 VRS-CZ1JB103J AA 10 kohms,1/16W R71 VRS-CZ1JB101J AB 100 ohms,1/16W R72 VRS-CZ1JB101J AB 100 ohms,1/16W R73 VRS-CZ1JB101J AB 100 ohms,1/16W R74 VRS-CZ1JB101J AB 100 ohms,1/16W R75 VRS-CZ1JB101J AB 100 ohms,1/16W R76 VRS-CZ1JB101J AB 100 ohms,1/16W R77 VRS-CZ1JB101J AB 100 ohms,1/16W R79 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm R80 VRS-CZ1JB330J AA 33 ohms,1/16W R81 VRS-CZ1JB103J AA 10 kohms,1/16W R82 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R86 VRS-CZ1JB101J AB 100 ohms,1/16W R87 VRS-CZ1JB101J AB 100 ohms,1/16W R88 VRS-CZ1JB101J AB 100 ohms,1/16W R89 VRS-CZ1JB101J AB 100 ohms,1/16W R97 VRS-CZ1JB101J AB 100 ohms,1/16W R98 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W

R99 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R100 VRS-CZ1JB473F AA 47 kohms,1/16W R101 VRS-CZ1JB823J AB 82 kohms,1/16W R102 VRS-CZ1JF563J AA 56 kohms,1/16W R103 VRS-CZ1JB152J AB 1.5 kohms,1/16W R104 VRS-CZ1JB152J AB 1.5 kohms,1/16W R105 VRS-CZ1JB153J AA 15 kohms,1/16W R106 VRS-CZ1JB272J AB 2.7 kohms,1/16W R107 VRS-CZ1JB473J AA 47 kohms,1/16W R108 VRS-CZ1JB103J AA 10 kohms,1/16W R109 VRS-CZ1JB123J AB 12 kohms,1/16W R110 VRS-CZ1JB472J AB 4.7 kohms,1/16W R111 VRS-CZ1JF392J AA 3.9 kohms,1/16W R112 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R113 VRS-CZ1JF183J AA 18 kohms,1/16W R115 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R116 VRS-CZ1JB103J AA 10 kohms,1/16W R120 VRS-CZ1JF183J AA 18 kohms,1/16W R201 VRS-CY1JB473J AA 47 kohms,1/16W R300 VRS-CY1JB103J AA 10 kohms,1/16W R301 VRS-CZ1JF201J AA 200 ohms,1/16W R302 VRS-CY1JB103J AA R303 VRS-CY1JB103J AA 10 kohms,1/16W R304 VRS-CZ1JF1R0J AA 1 ohms,1/16W R305 VRS-CZ1JF201J AA 200 ohms,1/16W R306 VRS-CZ1JF4R7J AA 4.7 ohms,1/16W R309 VRS-CY1JB1R0J AA 1 ohms,1/16W R310 VRS-CY1JB103J AA 10 kohms,1/16W R311 VRS-CZ1JB105J AB 1 Mohms,1/16W R312 VRS-CZ1JB470J AB 47 ohms,1/16W R313 VRS-CZ1JB470J AB 47 ohms,1/16W R314 VRS-CZ1JB470J AB 47 ohms,1/16W R315 VRS-CZ1JB470J AB 47 ohms,1/16W R316 VRS-CZ1JB470J AB 47 ohms,1/16W R317 VRS-CZ1JB102J AB 1 kohms,1/16W R318 VRS-CZ1JB102J AB 1 kohms,1/16W R319 VRS-CY1JB102J AA 1 kohms,1/16W R320 VRS-CY1JB102J AA 1 kohms,1/16W R321 VRS-CZ1JB470J AB 47 ohms,1/16W R322 VRS-CZ1JB470J AB 47 ohms,1/16W R324 VRS-CZ1JB470J AB 47 ohms,1/16W R325 VRS-CZ1JB470J AB 47 ohms,1/16W R326 VRS-CZ1JB470J AB 47 ohms,1/16W R327 VRS-CZ1JB470J AB 47 ohms,1/16W R328 VRS-CZ1JB470J AB 47 ohms,1/16W R330 VRS-CZ1JB822J AA 8.2 kohms,1/16W R331 VRS-CZ1JB470J AB 47 ohms,1/16W R332 VRS-CZ1JB822J AA 8.2 kohms,1/16W R333 VRS-CZ1JB822J AA 8.2 kohms,1/16W R334 VRS-CZ1JB822J AA 8.2 kohms,1/16W R335 VRS-CZ1JB123J AB 12 kohms,1/16W R336 VRS-CZ1JB123J AB 12 kohms,1/16W R337 VRS-CZ1JB123J AB 12 kohms,1/16W R338 VRS-CZ1JB123J AB 12 kohms,1/16W R343 VRS-CZ1JB472J AB 4.7 kohms,1/16W R344 VRS-CZ1JB472J AB 4.7 kohms,1/16W R345 VRS-CZ1JB472J AB 4.7 kohms,1/16W R346 VRS-CZ1JB472J AB 4.7 kohms,1/16W R347 VRS-CZ1JB472J AB 4.7 kohms,1/16W R348 VRS-CZ1JB472J AB 4.7 kohms,1/16W

10 kohms,1/16W

XL-HF201P

DESCRIPTION

XL-HF201P

NO. PARTS CODE

PRICE

RANK

[7] RESISTORS

R349 VRS-CY1JB3R3J AA 3.3 ohms,1/16W R420 VRS-CY1JB473J AA 47 kohms,1/16W R421 VRS-CY1JB473J AA 47 kohms,1/16W R422 VRS-CY1JB102J AA 1 kohms,1/16W R423 VRS-CY1JB102J AA 1 kohms,1/16W R424 VRS-CY1JB391J AA 390 ohms,1/16W R425 VRS-CY1JB391J AA 390 ohms,1/16W R426 VRS-TQ2EF180J AA 18 ohms,1/8W R427 VRS-TQ2EF180J AA 18 ohms,1/8W R430 VRS-CY1JB182J AA 1.8 kohms,1/16W R431 VRS-CY1JB222J AA 2.2 kohms,1/16W R432 VRS-CY1JB332J AA 3.3 kohms,1/16W R433 VRS-CY1JB562J AA 5.6 kohms,1/16W R500 VRS-CY1JB103J AA 10 kohms,1/16W R501 VRS-CY1JB103J AA 10 kohms,1/16W R502 VRS-CY1JB123J AA 12 kohms,1/16W R503 VRS-CY1JB123J AA 12 kohms,1/16W R530 VRS-CZ1JB103J AA 10 kohms,1/16W R532 VRS-CZ1JB822J AA 8.2 kohms,1/16W R533 VRS-CZ1JB822J AA 8.2 kohms,1/16W R534 VRS-CZ1JB822J AA 8.2 kohms,1/16W R535 VRS-CZ1JF3R3J AA 3.3 ohms,1/16W R536 VRS-CZ1JB103J AA 10 kohms,1/16W R537 VRS-CZ1JB822J AA 8.2 kohms,1/16W R543 VRS-CZ1JB222J AB 2.2 kohms,1/16W R544 VRS-CZ1JB222J AB 2.2 kohms,1/16W R545 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R546 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R547 VRS-CZ1JB103J AA 10 kohms,1/16W R548 VRS-CZ1JB103J AA 10 kohms,1/16W R549 VRS-CZ1JB223J AB 22 kohms,1/16W R550 VRS-CZ1JB103J AA 10 kohms,1/16W R570 VRS-CZ1JB103J AA 10 kohms,1/16W R571 VRS-CZ1JB103J AA 10 kohms,1/16W R572 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R576 VRS-CZ1JB103J AA 10 kohms,1/16W R577 VRS-CZ1JB103J AA 10 kohms,1/16W R578 VRS-CZ1JB104J AA 100 kohms,1/16W R579 VRS-CZ1JB104J AA 100 kohms,1/16W R580 VRS-CZ1JB823J AB 82 kohms,1/16W R581 VRS-CZ1JB823J AB 82 kohms,1/16W R582 VRS-CZ1JF563J AA 56 kohms,1/16W R583 VRS-CZ1JB272J AB 2.7 kohms,1/16W R584 VRS-CZ1JB224J AA 220 kohms,1/16W R585 VRS-CZ1JB562J AB 5.6 kohms,1/16W R585 VRS-CZ1JB562J AB 5.6 kohms,1/16W R587 VRS-CZ1JB103J AA 10 kohms,1/16W R588 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R589 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R590 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R591 VRS-CY1JB331J AA R600 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R601 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R602 VRS-CZ1JB330J AA 33 ohms,1/16W R603 VRS-CZ1JB102J AB 1 kohms,1/16W R611 VRS-CZ1JB102J AB 1 kohms,1/16W R612 VRS-CZ1JB102J AB 1 kohms,1/16W R613 VRS-CZ1JB102J AB 1 kohms,1/16W R614 VRS-CZ1JB102J AB 1 kohms,1/16W R615 VRS-CZ1JB102J AB 1 kohms,1/16W R616 VRS-CZ1JB102J AB 1 kohms,1/16W R617 VRS-CZ1JB102J AB 1 kohms,1/16W R618 VRS-CZ1JB102J AB 1 kohms,1/16W R619 VRS-CZ1JB102J AB 1 kohms,1/16W R620 VRS-CZ1JB102J AB 1 kohms,1/16W R621 VRS-CZ1JB102J AB 1 kohms,1/16W R622 VRS-CZ1JB102J AB 1 kohms,1/16W R623 VRS-CZ1JB102J AB 1 kohms,1/16W R624 VRS-CZ1JB102J AB 1 kohms,1/16W R625 VRS-CZ1JB102J AB 1 kohms,1/16W R626 VRS-CZ1JB102J AB 1 kohms,1/16W R627 VRS-CZ1JB102J AB 1 kohms,1/16W R628 VRS-CZ1JB102J AB 1 kohms,1/16W R629 VRS-CZ1JB102J AB 1 kohms,1/16W R630 VRS-CZ1JB102J AB 1 kohms,1/16W R631 VRS-CZ1JB102J AB 1 kohms,1/16W R632 VRS-CZ1JB102J AB 1 kohms,1/16W R633 VRS-CZ1JB102J AB 1 kohms,1/16W R634 VRS-CY1JB102J AA 1 kohms,1/16W R635 VRS-CY1JB102J AA 1 kohms,1/16W R636 VRS-CZ1JB102J AB 1 kohms,1/16W R639 VRS-CZ1JB102J AB 1 kohms,1/16W R640 VRS-CZ1JB102J AB 1 kohms,1/16W R641 VRS-CZ1JB102J AB 1 kohms,1/16W R642 VRS-CZ1JB102J AB 1 kohms,1/16W R643 VRS-CZ1JB102J AB 1 kohms,1/16W R644 VRS-CZ1JB102J AB 1 kohms,1/16W R645 VRS-CZ1JB102J AB 1 kohms,1/16W R646 VRS-CZ1JB102J AB 1 kohms,1/16W

NEW

MARK

PA RT

RANK

330 ohms,1/16W

DESCRIPTION

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PA RT RANK

[7] RESISTORS

R647 VRS-CZ1JB102J AB 1 kohms,1/16W R648 VRS-CZ1JB102J AB 1 kohms,1/16W R649 VRS-CZ1JB102J AB 1 kohms,1/16W R650 VRS-CZ1JB102J AB 1 kohms,1/16W R651 VRS-CZ1JB102J AB 1 kohms,1/16W R652 VRS-CZ1JB102J AB 1 kohms,1/16W R653 VRS-CZ1JB102J AB 1 kohms,1/16W R654 VRS-CZ1JB102J AB 1 kohms,1/16W R655 VRS-CZ1JB102J AB 1 kohms,1/16W R656 VRS-CZ1JB102J AB 1 kohms,1/16W R657 VRS-CZ1JB102J AB 1 kohms,1/16W R658 VRS-CZ1JB102J AB 1 kohms,1/16W R659 VRS-CZ1JB103J AA 10 kohms,1/16W R660 VRS-CZ1JB102J AB 1 kohms,1/16W R663 VRS-CZ1JB102J AB 1 kohms,1/16W R664 VRS-CZ1JB330J AA 33 ohms,1/16W R666 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R670 VRS-CZ1JB103J AA 10 kohms,1/16W R672 VRS-CZ1JB103J AA 10 kohms,1/16W R675 VRS-CY1JB562J AA 5.6 kohms,1/16W R676 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R678 VRS-CZ1JB562J AB 5.6 kohms,1/16W R680 VRS-CZ1JB562J AB 5.6 kohms,1/16W R700 VRS-TW2HF000J AB 0 ohms,Jumper,1/2W R702 VRS-CY1JB101J AA 100 ohms,1/16W R703 VRS-CY1JB561J AA 560 ohms,1/16W R704 VRS-CY1JB151J AA 150 ohms,1/16W R705 VRS-CY1JB102J AA 1 kohms,1/16W R706 VRS-CY1JB102J AA 1 kohms,1/16W R707 VRS-CY1JB102J AA 1 kohms,1/16W R708 VRS-CY1JB102J AA 1 kohms,1/16W R709 VRS-TW2HF000J AB 0 ohms,Jumper,1/2W R712 VRS-CY1JB223J AA 22 kohms,1/16W R715 VRS-CY1JB272J AA 2.7 kohms,1/16W R716 VRS-CY1JB472J AA 4.7 kohms,1/16W R719 VRS-CY1JB182J AA 1.8 kohms,1/16W R724 VRS-CY1JB472J AA 4.7 kohms,1/16W R807 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm R808 VRS-CZ1JB474F AA 470 kohms,1/16W R809 VRS-CY1JB563F AA 56 kohms,1/16W R810 VRS-VV3DA200J AB 20 ohms,2W R815 VRS-VV3DA200J AB 20 ohms,2W R822 VRS-CY1JB472J AA 4.7 kohms,1/16W R901 VRS-CZ1JB470J AB 47 ohms,1/16W R902 VRS-CZ1JB470J AB 47 ohms,1/16W R905 VRS-CZ1JB273J AA 27 kohms,1/16W R908 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W R909 VRS-CZ1JB100J AA 10 ohms,1/16W R911 VRS-CZ1JB100J AA 10 ohms,1/16W R912 VRS-CZ1JB100J AA 10 ohms,1/16W R913 VRS-CZ1JB100J AA R914 VRS-CY1JB3R3J AA 3.3 ohms,1/16W R917 VRS-CY1JB3R3J AA 3.3 ohms,1/16W R922 VRS-CY1JB3R3J AA 3.3 ohms,1/16W R923 VRS-CY1JB3R3J AA 3.3 ohms,1/16W R928 VRS-CY1JB332J AA 3.3 kohms,1/16W R983 VRD-RT2HD681J AA 680 ohms,1/2W R985 VRD-RT2HD153J AB 15 kohms,1/2W R986 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm R987 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm R990 VRS-CY1JB102J AA 1 kohms,1/16W R991 VRS-CY1JB330J AA 33 ohms,1/16W R992 VRS-CY1JB000J AA 0 ohms,Jumper,0.8x1.55mm RA18 VRS-CZ1JB101J AB 100 ohms,1/16W RA19 VRS-CZ1JB101J AB 100 ohms,1/16W

RA601 VRS-CZ1JB103J AA 10 kohms,1/16W RA603 VRS-CZ1JB103J AA 10 kohms,1/16W RA604 VRS-CZ1JB103J AA 10 kohms,1/16W RA607 VRS-CZ1JB103J AA 10 kohms,1/16W RA608 VRS-CZ1JB103J AA 10 kohms,1/16W RA613 VRS-CZ1JB103J AA 10 kohms,1/16W RA614 VRS-CZ1JB103J AA 10 kohms,1/16W RA615 VRS-CZ1JB103J AA 10 kohms,1/16W RA617 VRS-CZ1JB103J AA 10 kohms,1/16W RB601 VRS-CZ1JB104J AA 100 kohms,1/16W RB602 VRS-CZ1JB000J AB 0 ohms,Jumper,1/16W RU601 VRS-CZ1JB103J AA 10 kohms,1/16W RU602 VRS-CZ1JB103J AA 10 kohms,1/16W RU606 VRS-CZ1JB103J AA 10 kohms,1/16W RU607 VRS-CZ1JB103J AA 10 kohms,1/16W RU618 VRS-CZ1JB103J AA 10 kohms,1/16W RU619 VRS-CZ1JB103J AA 10 kohms,1/16W

10 ohms,1/16W

[8] OTHER CIRCUITRY PARTS

BI201 QCNWNB667AWPZ AM Connector Ass'y,8 / 7 Pin [with CNS602] BI400 QCNWNB663AWPZ AH Connector Ass'y,5 / 4 Pin [with CNS400] BI420 QCNWNB664AWPZ AK Connector Ass'y,7 / 6 Pin [with CNS420] BI700 QCNWNB662AWPZ AF Connector Ass'y,5 / 4 Pin [with CNS700]

XL-HF201P

DESCRIPTION

XL-HF201P

NO. PARTS CODE

PRICE

RANK

[8] OTHER CIRCUITRY PARTS

BI701 QCNWNB665AWPZ AF Connector Ass'y,2 Pin [with BI421] BI801 QCNWNB660AWPZ AK Connector Ass'y,10 / 9 Pin [with CNS801] BI901 QCNWNB661AWPZ AG Connector Ass'y,5 / 4 Pin [with CNS901]

CNP1 QCNCWYH16AWZZ AD Connector,16 Pin CNP2 QCNCM202FAWZZ AB Connector,6 Pin CNP4 QCNCM201EAWZZ AB Connector,5 Pin CNP5 QCNCM202DAWZZ AB Connector,4 Pin

CNP7 QCNCM202GAWZZ AB Connector,7 Pin CNP201 QCNCWA046AW30 AQ Connector,30 Pin CNP501 QCNCM201GAWZZ AB Connector,6 Pin CNP600 QCNCWYH04AWZZ AB Connector,4 Pin CNP601 QCNCWYP12AWZZ AD Connector,12 Pin CNP700 QCNCWYH12AWZZ AD Connector,12 Pin

CNS2 QCNWNB671AWPZ AG Connector Ass'y,6 Pin

CNS4 QCNWNB666AWPZ AF Connector Ass'y,5 Pin

FFC1 QCNWNB672AWPZ AE Flat Cable, 16 Pin FFC601 QCNWNB668AWPZ AE Flat Cable, 12 Pin

FL700 VVKNA16SM21-1 AQ FL Display JK400 QSOCZA030AWZZ AF Jack, USB JK420 QJAKMA036AWZZ AG Jack, Audio In JK421 QJAKMA036AWZZ AG Jack, Headphone In JK501 QSOCJA051AWZZ AF Jack, Video

JK902 QSOCJA044AWZZ AC Jack, Subwoofer Pre-Out LUG401 QCNWNB708AWPZ AE Lug Wire, 85mm LUG700 QCNWNB709AWPZ AD Lug Wire, 85mm

SC600 QTANAA038AWZZ AL Terminal, Speaker

SW401 92LSWICHT1663T AC

SW402 92LSWICHT1663T AC Switch,Key Type [ Tuner Preset Up, CD/USBTrack Up, iPod/iPhone Skip Up ]

SW403 92LSWICHT1663T AC Switch,Key Type [ Disc / USB STOP ]

SW404 92LSWICHT1663T AC Switch,Key Type [ Disc / USB / iPod / iPhone PLAY/PAUSE ]

SW405 92LSWICHT1663T AC Switch,Key Type [ TRAY OPEN / CLOSE ]

SW700 92LSWICHT1663T AC Switch,Key Type [ POWER ON/STAND-BY ]

SW701 92LSWICHT1663T AC Switch,Key Type [ FUNCTION ] TUN301 RTUNSA042AWZZ AX Tuner Pack

VR700 QSW-ZA012AWZZ AF Switch,Jog Type [ VOLUME ] WIRE A QCNWNB710AWPZ AD Single Wire, 130mm

NEW

MARK

PA RT

RANK

Switch,Key Type [ Tuner Preset Down, CD/USBTrack Down, iPod/iPhone Skip Down ]

DESCRIPTION

[9] CABINET PARTS / CD MECHANISM PARTS

2 3 456

223 x 2

610 x 4

610

204

611 x 2

216

217

220

208

606

604 x 2

221

229

610 x 2

610

202

604 x 2

601 x 4

603 x 3

610 x 7

209

218

225

209

226

224

IC803

602

607

205

210

609

228

231

212

213

232

211

219

604

230

301

605 x 4

608 x 4

206 x 4

222 x 4

609 x 2

603 x 4

302

214

201

609

603

203

234

233

207

302-1

302 - 2x4

201 - 2

201 - 1

201 - 3

302 - 3x4

302 - 4x4

215

227

PWB-A4

PWB-A1

PWB SPACER

PWB-A2

PWB-A3

PWB-A5

PWB-B

XL-HF201P

NO. PARTS CODE

PRICE

RANK

[9] CABINET PARTS / CD MECHANISM PARTS

201 CCABA8240AW01 BC Front Panel Ass'y 201-1 HPNLCA223AW02 AZ Front Panel with Decoration Panel 201-2 JKNBZA327AWSA AH Button, Power 201-3 JKNBZA328AWSF Button, Operation

202 GCAB-A107AW02 AX Top Cabinet Ass'y

203 GCOVAA312AWSA AG Disc Tray Cover

204 GDORFA035AWSB AL Door, iPod

205 GiTARA845AWSA Rear Panel [ For U.S.A. , Canada ]

205 GiTARA975AWSA Rear Panel [ For Mexico ]

206 GLEGPA025AWSA AD Leg

207 JKNBKA072AWSA AN Knob, Volume

208 LANGQA011AWZZ AB Spring Plate

209 LANGT0042AWFW AC Bracket, PWB

210 LANGTA026AWFW AB Bracket, PWB

211 LBND-1011AWZZ AA Nylon Band

212 LBSHC0005AWZZ AD Bush, AC Power Supply Cord

213 LCHSMA114AWFW AR Chassis, Main

214 LHLDZA237AWZZ AD Holder, FL Display

215 LHLDZA248AWZZ AH Holder, CD Mechanism

216 LHLDZA249AWSB AH Holder, iPod

217 LHLDZA261AWZZ AD Spacer, iPod

218 LHLDZA269AWZZ AC Holder, PWB

219 LHLDZA270AWZZ AC Holder, PWB

220 LX-WZA026AWZZ AB Door Washer

221 PCOVQA017AWZZ AD Cover, iPod Door

222 PCUSGA163AWZZ AC Cushion, Leg

223 PCUSGA172AWSB AB Cushion, iPod Door

224 PRDARA111AWFW AD Heat Sink, B

225 PRDARA229AWFW AL Heat Sink, A

226 PRDARA233AWFW AE Heat Sink, C

227 PSHEZA275AWZZ AF Sheet, Safety Cover

228 PSHEZA276AWZZ AC Sheet, Safety Cover

229 PSHEZA278AWZZ AH Sheet, Copper

! 231 QACCDA002AWZZ AN AC Power Supply Cord

230 PSHEZA280AWZZ AC Sheet, Safety Cover

232 TSPC-B689AWZZ Label, Specification [ For U.S.A. , Canada ]

232 TSPC-B694AWZZ Label, Specification [ For Mexico ]

233 ------------- - Nut (Not Replacement Item )

234 ------------- - Washer (Not Replacement Item )

301 KMECZA032AWZZ AX CD Mechanism Unit

302 KMECZA025AW01 AT Loader Ass'y 302-1 ------------- - CD Loader (Not Replacement Item) 302-2 ------------- - Cushion (Not Replacement Item) 302-3 ------------- - Spring (Not Replacement Item) 302-4 ------------- - Screw, Special (Not Replacement Item)

601 LX-BZA043AWF7 AA Screw, Special

602 LX-JZ0036AWF7 AC Screw, Special

603 XEBY726P08000 AA Screw, M2.6 X8mm

604 XEBY730P08000 AA Screw, M3 X8mm

605 XEBY730P10000 AA Screw, M3 X10mm

606 XEPY717P05000 AB

607 XHPY830P06000 AB Screw, M3 X6mm

608 XJBY730P06000 AA Screw, M3 X6mm

609 XJBY730P08000 AA Screw, M3 X8mm

610 XJBY830P08000 AB Screw, M3 X8mm

611 XJSY830P08000 AB Screw, M3 X8mm

NOTE: FOR CD MECHANISM PARTS, ITEM NO. ARE 3XX

NEW

MARK

PA RT

RANK

Screw, Special

DESCRIPTION

[10] SPEAKER BOX PARTS

XL-HF201P

903

913 x 4

SP3 x 4

914 x 4

913 x 4

901

905

SP1, 2

902

904

912 x 4

906 x 4

909 x 2

908 x 2

911

DOME-TWEETER

SP3 (L-CH) SP4 (R-CH)

RED

C1, 2 Capacitor

WOOFER

SP1 (L-CH)

SP1 (R-CH)

RED

TERMINAL

910

DOME-TWEETER

SP3 (L-CH)

SP4 (R-CH)

WOOFER SP1 (L-CH) SP1 (R-CH)

907 x 4

C1, 2 Capacitor

4.7µF 100V

TERMINAL

2 3 456

XL-HF201P

NO. PARTS CODE

PRICE

RANK

[10] SPEAKER BOX PARTS

901 CWAKPA055AW01 AX Net Frame Ass'y 902 GBOXSA296AW01 Wooden Box Ass'y 903 GiTASA279AWSA Front Board 904 HDECQA552AWSA AQ Ring, Woofer 905 HDECQA553AWSA AQ Ring, Tweeter 906 LHLDZ8002AWSB AF Holder, Catching 907 PCUSGA020AWZZ AB Cushion, Leg 908 PCUSSA057AWZZ AE Cushion, Top/Bottom 909 PCUSSA058AWZZ AE Cushion, Side 910 QCNWNB444AWPZ AR Lead Wire Ass'y 911 TSPC-B627AWZZ Label, Specification 912 LX-PZA002AWZZ AG Screw, Special 913 XEMY835P14000 AC Screw, M3.5 x 14mm

914 XMTY735P14000 AC Screw, M3.5 x 14mm SP1,2 RSP-ZA334AWZZ AZ Woofer SP3,4 RSP-ZA335AWZZ AY Dome-Tweeter

[11] ACCESSORIES / PACKING PARTS

1 92LFANT1535A AF FM Antenna 2 GCOVAA238AWSA AD Adaptor, i-Phone (marking 12) 3 GCOVAA239AWSA AD Adaptor, i-Phone 3G (marking 15) 4 GCOVAA294AWSA AD Adaptor, i-Phone 4G (marking 19) 5 GiTAUA014AW01 AR Stand for iPad 6 QANTLA006AWZZ AM Loop Antenna 7 QCNWHA041AWPZ AR Speaker Cord 8 RRMCGA264AWSA Remote Control 9 TiNSZB282AWZZ Operation Manual [ For U.S.A. , Mexico ] 9 TiNSKA072AWZZ Operation Manual [ For Canada ]

[12] P.W.B. ASSEMBLY

NO. PARTS CODE

PWB-A 92LPWB8250MANS - S Category Main (A1) / Display (A2) / Key/Jack (A3) / iPod (A4) / USB (A5) PWB-B RUiTZA042AW01 X Category SMPS

PRICE

RANK

[13] OTHER SERVICE PARTS

UDSKA0004AFZZ AZ CD Optical Pickup Lens Cleaner Disc

NEW

MARK

NEW

MARK

PA RT

RANK

PART RANK

REMARK

(interchangeable)

DESCRIPTION

: Not Replacement Item

PACKING METHOD (FOR U.S.A ONLY)

UNIT

Front Speaker (L/R)

FM Antenna

Speaker Cord

AM Loop Antenna

Remote Control

Adaptor, iPod 4G

Adaptor, iPod 3G

Stand for iPad

Adaptor, iPod

Operation Manual

Label, POP TLABZB423AWZZ

Packing Add., Front Speaker, Bottom SPAKAA256AWZZ

Packing Add., Front Speaker, Top SPAKAA256AWZZ

Packing Add., Unit, Rear SPAKAA412AWZZ

Packing Add., Unit, Front SPAKAA328AWZZ

Polyethylene Bag, Accessories SSAKAA011AWZZ

Polyethylene Bag, Unit SSAKHA173AWZZ

Front of Packing Case

Packing Case SPAKCA905AWZZ

Polyethylene Bag, Speaker SSAKHA087AWZZ

[11] ACCESSORIES / PACKING PARTS

XL-HF201P

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

SHARP CORPORATION

S&O Electronics (Malaysia) Sdn. Bhd. Sungai Petani, Kedah,

Malaysia

Printed in Malaysia

A1204-1MX RR M

Sharp XL-HF201P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
