Sharp VODAPHONE 705SH Introduction Manual

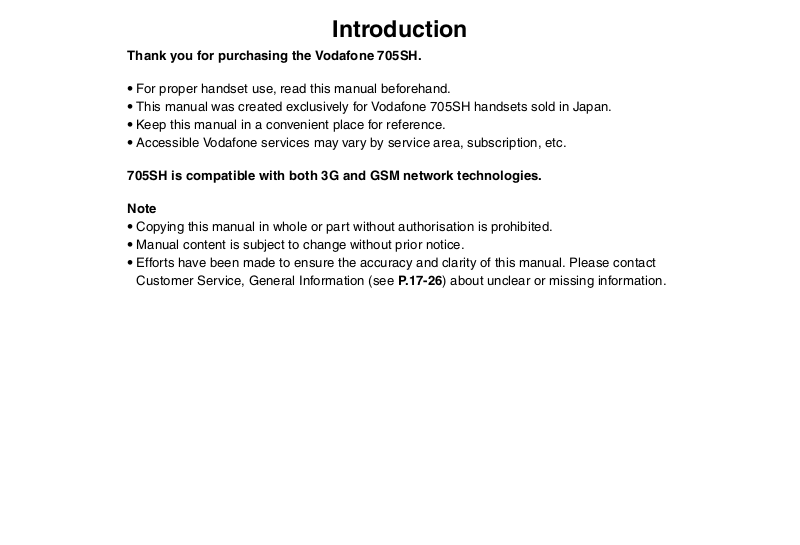

Introduction

Thank you for purchasing the Vodafone 705SH.

^ For proper handset use, read this manual beforehand.
^ This manual was created exclusively for Vodafone 705SH handsets sold in Japan.
^ Keep this manual in a convenient place for reference.
^ Accessible Vodafone services may vary by service area, subscription, etc.

705SH is compatible with both 3G and GSM network technologies.

Note

^ Copying this manual in whole or part without authorisation is prohibited.
^ Manual content is subject to change without prior notice.
^ Efforts have been made to ensure the accuracy and clarity of this manual. Please contact

Customer Service, General Information (see P. 1 7- 2 6 ) about unclear or missing information.

Symbols

Multi Selector

Use Multi Selector to select menu items, move cursor and
scroll, etc.

In this manual, Multi Selector
operations are indicated as
shown to the right.

^ Basic Multi Selector Operations

B E: Press C or D
B F: Press B or A
B G: Press C, D, B or A

Note H ^ In this manual, most operations are described with handset open (see P.1-11) in Standby.

^ Sample screen shots, etc. are provided for reference only. Actual handset windows, menus, etc. may differ in appearance.

B

C

b

A

D

Side Keys

Use Side Keys to activate/cancel Manner mode, adjust
volume, etc.
In this manual, Side Keys are indicated as shown below.
"Manner" is not inscribed on the actual Manner/View Key.

Volume/Zoom Key

L

M

Manner/View Key

r

i

Abbreviated Steps

Handset operations starting from Main Menu are abbreviated as follows:

Press b

Main Menu

Select the menu item
and press b

Perform the operation
such as opening a window

H Menu Item A Selection A Operation A Options (N) A Menu (F)

Select the folder or file
and press b

Press the corresponding
key in parentheses

Use F to open
the menu

In this Vodafone 705SH Instruction Manual, Vodafone 705SH is abbreviated as 705SH.

ii

Accessories

CLithium-ion Battery (Type 1)

CAC Charger (SHCAA1) CUtility Software (CD-ROM)

★*

(SHBAL1)

*Utility Software updates/upgrades may become available on the Vodafone Website (http://www.vodafone.jp) without prior notification.

Please check for the newest version of Utility Software and download as required.

★

Complimentary sample not available for purchase

Supplied Utility Software is designed exclusively for 705SH/905SH.

Note H

^ For accessory-related information, please contact Vodafone Customer Centre, General Information (see P. 17 - 2 6).

Tip H

^ 705SH is compatible with microSD! Memory Card; microSD! Memory Card is not included in this package. Purchase

microSD! Memory Card to use Memory Card-related handset functions.

^ In this manual, microSD! Memory Card is referred to as "Memory Card".

iii

Symbols ............................................................................................i

Accessories....................................................................................iii

Contents ......................................................................................... iv

Safety Precautions .......................................................................xvi

General Notes.............................................................................xxvi

Contents

Specific Absorption Rate (SAR) .............................................xxxiii

Getting Started

1

Function & Feature Preview ....................................................... 1-2

USIM Card .................................................................................... 1-4

C General Information & Precautions ...................................... 1-4

C Inserting & Removing USIM Card ........................................ 1-5

C USIM PINs............................................................................ 1-6

Handset Parts & Functions ........................................................ 1-7

C Handset................................................................................ 1-7

C Display Indicators ................................................................. 1-9

C Handset Positions............................................................... 1-11

Battery & Charger ..................................................................... 1-11

C Getting Started ................................................................... 1-11

C Installing & Removing Battery ............................................ 1-16

C AC Charger ........................................................................ 1-17

C Desktop Holder................................................................... 1-18

C In-Car Charger ................................................................... 1-19

Handset Power On/Off .............................................................. 1-20

C My Details........................................................................... 1-21

C Keypad Lock....................................................................... 1-21

C Large Font Mode ................................................................ 1-22

Contents

Handset Menus.......................................................................... 1-23

C Main Menu.......................................................................... 1-23

C User Shortcuts ................................................................... 1-24

C Multi Job ............................................................................. 1-26

Security Codes .......................................................................... 1-27

C Handset Code .................................................................... 1-27

C Centre Access Code .......................................................... 1-27

C Network Password.............................................................. 1-27

2

Initiating a Call ............................................................................ 2-2

C Emergency Calls .................................................................. 2-3

C Redial ................................................................................... 2-4

C Placing an International Call ................................................ 2-5

Incoming Call .............................................................................. 2-6

C Calling from Received Calls ................................................. 2-8

Answer Phone ............................................................................. 2-9

C Activating & Cancelling......................................................... 2-9

C Playing Messages .............................................................. 2-10

Engaged Call Operations ......................................................... 2-11

C Earpiece Volume ................................................................ 2-11

C Voice Output ....................................................................... 2-11

C Voice Memo........................................................................ 2-12

C Other Engaged Call Operations......................................... 2-12

0 Assign ............................................................................. 1-24

0 Move ............................................................................... 1-24

0 Set to Default .................................................................. 1-24

Basic Handset Operations

0 Loudspeaker ................................................................... 2-11

0 Mute................................................................................ 2-11

0 Hold ................................................................................ 2-11

0 Play................................................................................. 2-12

iv

Call Log ...................................................................................... 2-13

0 Delete ............................................................................. 2-13

0 Delete All ........................................................................ 2-13

C Using Call Log.................................................................... 2-13

0 Call ................................................................................. 2-13

0 Create Message ............................................................. 2-13

Call Timers/Data Counter ......................................................... 2-14

C Call Timers ......................................................................... 2-14

0 Clear Timers ................................................................... 2-14

C Data Counter ...................................................................... 2-14

0 Clear Counter ................................................................. 2-14

Call Costs .................................................................................. 2-15

0 Clear Costs ..................................................................... 2-15

0 Cost Units ....................................................................... 2-15

C Limit Call Costs .................................................................. 2-15

0 Max Cost ........................................................................ 2-15

Outside Japan (International Roaming) .................................. 2-16

C Switching Network Services............................................... 2-16

C Calling from Outside Japan ................................................ 2-17

Manner Mode ............................................................................. 2-18

C Minding Mobile Manners.................................................... 2-18

C Activating & Cancelling....................................................... 2-19

C Activating/Cancelling Offline Mode..................................... 2-20

Text E ntr y

3

Character Selection .................................................................... 3-2

C Entry Modes ......................................................................... 3-2

C Key Assignments.................................................................. 3-3

Entering Characters .................................................................... 3-5

C Kanji, Hiragana & Katakana ................................................. 3-5

C Entering Alphanumerics ....................................................... 3-7

C Symbols, Pictographs & Emoticons ..................................... 3-7

C Mail & Web Extensions ........................................................ 3-8

C Character Code .................................................................... 3-8

C Pager Code .......................................................................... 3-8

Conversion Methods (Japanese Only).................................... 3-10

C Phonetic Conversion .......................................................... 3-10

C One-Hiragana Conversion.................................................. 3-10

C Hiragana to Katakana/Alphanumerics Conversion............. 3-10

C Quick Conversion (for Hiragana)........................................ 3-11

C Conversion Settings ........................................................... 3-12

0 Optional Predictive Functions......................................... 3-12

0 Set Low Priority .............................................................. 3-12

0 Reset Learning ............................................................... 3-12

Editing Characters .................................................................... 3-12

C Deleting & Replacing.......................................................... 3-12

C Copy/Cut & Paste............................................................... 3-12

C Deleting Text On and After Cursor ..................................... 3-13

Additional Functions ................................................................ 3-13

C Copying from Phone Book ................................................. 3-13

C Using Text Templates ......................................................... 3-14

C Changing Font Size............................................................ 3-14

Contents

v

Phone Book

4

Overview ...................................................................................... 4-2

Saving to Phone Book ................................................................ 4-3

C Phone Book Entry Items ...................................................... 4-3

C New Phone Book Entries ..................................................... 4-4

C Saving from Call Log ............................................................ 4-8

Contents

C Phone Book Memory Status ................................................ 4-8

Using Phone Book ...................................................................... 4-8

C Dialling from Phone Book..................................................... 4-8

Editing Phone Book Entries ..................................................... 4-10

C Correction/Change ............................................................. 4-10

C Copying Phone Book Entries ............................................. 4-10

C Deleting Phone Book Entries ............................................. 4-11

Category Settings ..................................................................... 4-11

C Changing Category Name.................................................. 4-11

C Customising Handset Responses ...................................... 4-12

Contact Groups ......................................................................... 4-12

C Creating Contact Groups.................................................... 4-12

C Saving Group Members ..................................................... 4-12

C Editing Contact Groups...................................................... 4-13

C Editing Group Members ..................................................... 4-13

Speed Dial List .......................................................................... 4-14

C Saving Phone Numbers ..................................................... 4-14

C Speed Dial.......................................................................... 4-14

0 Delete ............................................................................. 4-14

0 Clear All .......................................................................... 4-14

Vodafone Address Book (VAB) ................................................ 4-15

C VAB Sync Commands & Features...................................... 4-15

C Service Usage Outline ....................................................... 4-16

C Saving User ID & Password ............................................... 4-17

C Backup & Restore .............................................................. 4-17

C Synchronising Phone Book................................................ 4-18

C Opening Log....................................................................... 4-18

My Details .................................................................................. 4-18

C Opening My Details............................................................ 4-18

0 Edit/Add Details .............................................................. 4-18

0 Delete ............................................................................. 4-18

Video Call

5

Getting Started ............................................................................ 5-2

Initiating a Video Call .................................................................. 5-3

Answering a Video Call .............................................................. 5-3

Engaged Video Call Operations................................................. 5-4

0 Camera Picture................................................................. 5-4

0 Earpiece Volume .............................................................. 5-4

0 Mute.................................................................................. 5-4

0 Switch Images .................................................................. 5-4

0 Loudspeaker ..................................................................... 5-4

0 Open Phone Book ............................................................ 5-5

0 Transfer Audio................................................................... 5-5

0 Hold .................................................................................. 5-5

0 Mirror Image ..................................................................... 5-5

0 Exposure .......................................................................... 5-5

0 Help .................................................................................. 5-5

Video Call Settings ..................................................................... 5-5

0 Camera Picture................................................................. 5-5

0 Loudspeaker ..................................................................... 5-6

0 Incoming Picture ............................................................... 5-6

0 Outgoing Picture ............................................................... 5-6

0 Backlight ........................................................................... 5-6

0 Mute Microphone .............................................................. 5-6

0 Hold Guidance Pict ........................................................... 5-6

vi

Camera

6

Getting Started ............................................................................ 6-2

C Mobile Camera Basics ......................................................... 6-2

C Camera Display Indicators ................................................... 6-3

C Key Assignments.................................................................. 6-4

Still Images .................................................................................. 6-5

C Photo Camera Mode ............................................................ 6-5

C Capturing Still Images .......................................................... 6-5

C Still Image Functions ............................................................ 6-6

Video ............................................................................................ 6-7

C Video Camera Mode ............................................................ 6-7

C Recording Video................................................................... 6-8

C Video Recording Operations................................................ 6-9

Opening Images & Playing Video ............................................ 6-10

C Opening Still Images.......................................................... 6-10

C Playing Video ..................................................................... 6-10

0 SD Video ........................................................................ 6-10

Special Shooting Modes .......................................................... 6-10

C Self-timer ............................................................................ 6-10

C Continuous Shoot (Photo Camera) .................................... 6-11

C Adding Frames (Photo Camera)......................................... 6-13

C Camera Effects (Photo Camera) ........................................ 6-13

Sending Images ........................................................................ 6-14

C Still Images......................................................................... 6-14

C Video Clips ......................................................................... 6-14

Camera Settings........................................................................ 6-15

C Shooting Options................................................................ 6-15

0 Hide Indicators/Normal Finder........................................ 6-15

0 Shutter Sound................................................................. 6-15

0 Display Size .................................................................... 6-15

C Image Settings ................................................................... 6-15

0 Exposure ........................................................................ 6-15

0 Picture Size..................................................................... 6-16

0 Picture/Video Quality...................................................... 6-16

0 Scene ............................................................................. 6-16

0 Microphone..................................................................... 6-16

0 Record Time/Size ........................................................... 6-17

0 Video Encode ................................................................. 6-17

C Additional Settings.............................................................. 6-17

0 Internal Camera/External Camera.................................. 6-17

0 Save to............................................................................ 6-18

0 Auto Save ....................................................................... 6-18

Media Player

7

Media Player Basics.................................................................... 7-2

C Downloading Music/Video .................................................... 7-2

C Saving Music Files from PCs ............................................... 7-3

Playing Music .............................................................................. 7-4

C Playback............................................................................... 7-5

C Playback Setting................................................................... 7-6

0 Playback Pattern............................................................... 7-6

Playing Video............................................................................... 7-6

C Playback............................................................................... 7-7

C Playback Settings................................................................. 7-8

0 Playback Pattern............................................................... 7-8

0 Backlight ........................................................................... 7-8

0 Display Size ...................................................................... 7-8

0 Title/Artist.......................................................................... 7-8

Contents

vii

Editing Video ............................................................................... 7-9

C Clipping Portions between Two Points ................................. 7-9

C Cropping Video Clips.......................................................... 7-10

C Adding Subtitles ................................................................. 7-10

0 Duration .......................................................................... 7-11

0 Display Position .............................................................. 7-11

Contents

0 Font Size......................................................................... 7-11

0 Scrolling.......................................................................... 7-12

0 Background Colour ......................................................... 7-12

0 Font Colour ..................................................................... 7-12

0 Highlight.......................................................................... 7-13

0 Blink................................................................................ 7-13

0 Reset .............................................................................. 7-13

Managing Video & Music Files................................................. 7-13

C Adding New Playlist............................................................ 7-14

C Adding Files to Playlists ..................................................... 7-14

C Deleting Files in SD VIDEO & SD AUDIO.......................... 7-15

Managing Files (Data Folder)

8

Data Folder .................................................................................. 8-2

C Window Description.............................................................. 8-2

C Major Icons........................................................................... 8-3

C Display Settings.................................................................... 8-3

Opening Files .............................................................................. 8-4

C CCF Files ............................................................................. 8-6

C SVG Files ............................................................................. 8-7

C MMS Mail Attachments ........................................................ 8-7

Managing Files & Folders........................................................... 8-8

C Adding Folders ..................................................................... 8-8

C Changing File/Folder Name ................................................. 8-8

C Deleting Files & Folders ....................................................... 8-9

C Copying/Moving Files ........................................................... 8-9

Using Files ................................................................................. 8-10

C Wallpaper ........................................................................... 8-10

C Saving to Phone Book........................................................ 8-10

C Ringvideo & Ringtone......................................................... 8-10

Editing Still Images ................................................................... 8-11

C Changing Image Size ......................................................... 8-11

C Visual Effects (Retouch) ..................................................... 8-12

C Adding Text & Stamps ........................................................ 8-12

C Face Arrange...................................................................... 8-13

C Additional Picture Effects ................................................... 8-14

0 Add Frame ...................................................................... 8-14

0 Rotate ............................................................................. 8-14

0 Reformat file ................................................................... 8-14

C Panorama Images .............................................................. 8-15

C Split Screen ........................................................................ 8-16

Text Templates .......................................................................... 8-16

C New Entry........................................................................... 8-16

C Opening Templates ............................................................ 8-17

C Editing Templates ............................................................... 8-17

C Deleting Templates............................................................. 8-17

Memory Card ............................................................................. 8-17

C Precautions ........................................................................ 8-18

C Inserting & Removing Memor y Card .................................. 8-18

C Format Card ....................................................................... 8-20

C Backup & Restore .............................................................. 8-20

C Additional Function............................................................. 8-22

0 Memory Status ............................................................... 8-22

0 SD Local Contents.......................................................... 8-22

viii

Digital Print Order Format (DPOF)........................................... 8-23

C Selecting Images & Prints .................................................. 8-23

C Print Settings ...................................................................... 8-23

0 For All Pictures ............................................................... 8-23

0 Add Date......................................................................... 8-23

0 Index Print....................................................................... 8-24

0 Check Settings................................................................ 8-24

0 Reset Settings ................................................................ 8-24

Additional Settings

9

Mode Settings ............................................................................. 9-2

C Activating a Mode................................................................. 9-2

0 Mode Settings................................................................... 9-2

C Customising Modes.............................................................. 9-2

0 Personalise....................................................................... 9-2

0 Any Key Answer................................................................ 9-2

0 Answer Phone .................................................................. 9-2

C Reset.................................................................................... 9-2

0 Set to Default .................................................................... 9-2

Display ......................................................................................... 9-3

C Display Settings.................................................................... 9-3

0 Wallpaper.......................................................................... 9-3

0 System Graphics .............................................................. 9-3

0 Font Settings..................................................................... 9-4

0 Clock/Calendar ................................................................. 9-4

0 Show Indicators ................................................................ 9-5

0 Show Operator Name ....................................................... 9-5

0 Greeting Message ............................................................ 9-5

C Language Setting................................................................. 9-5

0 Language.......................................................................... 9-5

C Custom Screens................................................................... 9-5

0 Delete ............................................................................... 9-7

0 Web Access...................................................................... 9-7

C Light Settings........................................................................ 9-8

0 Backlight ........................................................................... 9-8

0 Display Saving .................................................................. 9-8

C External Display Settings ..................................................... 9-8

0 Switch On/Off ................................................................... 9-8

0 Backlight ........................................................................... 9-8

0 LCD Contrast .................................................................... 9-8

0 Display Date & Time ......................................................... 9-9

0 Caller Display.................................................................... 9-9

Sounds & Alerts .......................................................................... 9-9

C Customising Handset Responses ........................................ 9-9

0 Volume.............................................................................. 9-9

0 Ringtone/videos.............................................................. 9-10

0 Vibration.......................................................................... 9-10

0 Event Light...................................................................... 9-11

0 Status Light..................................................................... 9-11

C Customising System Sounds ............................................. 9-11

0 Keypad Tones ................................................................. 9-11

0 Warning Tone & Power On/Off Sound ............................ 9-11

C Additional Sound Settings.................................................. 9-12

0 Ringer Output ................................................................. 9-12

0 Earpiece Volume ............................................................ 9-12

Date & Time ............................................................................... 9-12

0 Set Date/Time................................................................. 9-12

0 Set Time Zone/Daylight Saving ...................................... 9-13

0 Date/Time Format........................................................... 9-13

0 Calendar Format............................................................. 9-13

0 Wake-up Alarm ............................................................... 9-13

Contents

ix

User Dictionary ......................................................................... 9-14

C Entries (Japanese Only) ..................................................... 9-14

0 New Entry ....................................................................... 9-14

0 Edit/Delete ...................................................................... 9-14

C 705SH Download Dictionary (Japanese Only)................... 9-14

0 Acquire Dictionary .......................................................... 9-14

Contents

0 Cancel ............................................................................ 9-14

0 Info.................................................................................. 9-14

Handset Security....................................................................... 9-15

C Face Recognition................................................................ 9-15

0 Conductor Setting ........................................................... 9-18

0 Security Level ................................................................. 9-18

C PIN ..................................................................................... 9-18

0 PIN Entry ........................................................................ 9-18

0 Change PIN .................................................................... 9-19

C Handset Locks.................................................................... 9-19

0 Handset Lock.................................................................. 9-19

0 Function Lock ................................................................. 9-19

0 Phone Book Lock............................................................ 9-20

C Secret Mode ....................................................................... 9-20

0 Show Secret Data........................................................... 9-20

C Changing Handset Code .................................................... 9-20

0 Chng Handset Code ....................................................... 9-20

Reset .......................................................................................... 9-21

0 Reset Settings ................................................................ 9-21

0 Reset All ......................................................................... 9-21

Call Settings .............................................................................. 9-21

C International Call ................................................................ 9-21

0 Int'l Prefix ........................................................................ 9-21

0 Country Codes................................................................ 9-22

0 Auto Add Code ............................................................... 9-22

C Additional Settings.............................................................. 9-22

0 Minute Minder................................................................. 9-22

0 Display Call Cost ............................................................ 9-22

0 Call Time Counter........................................................... 9-22

x

10

Bluetooth#.................................................................................. 10-2

Infrared....................................................................................... 10-9

Mass Storage........................................................................... 10-14

Network Settings..................................................................... 10-14

Internet Settings...................................................................... 10-15

Location Info............................................................................ 10-16

Connectivity

C Getting Started ................................................................... 10-2

C Transferring Files via Bluetooth#......................................... 10-4

C Connecting Handsfree Devices.......................................... 10-8

C Bluetooth# Settings............................................................. 10-8

0 Device Name .................................................................. 10-8

0 Bluetooth Timeout .......................................................... 10-8

0 Handsfree Setting ........................................................... 10-9

0 OPP Authentication ........................................................ 10-9

0 Device Details................................................................. 10-9

C Getting Started ................................................................... 10-9

C Transferring Files via Infrared ........................................... 10-10

0 Select Network ............................................................. 10-14

0 Set Preferred ................................................................ 10-14

0 Add, Edit & Delete ........................................................ 10-15

0 Network Info.................................................................. 10-15

0 Retrieve NW Info........................................................... 10-15

0 Clear DNS Cache ......................................................... 10-15

0 White List ...................................................................... 10-15

0 URL Setting .................................................................. 10-16

0 Datum On/Off ............................................................... 10-16

11

Calendar..................................................................................... 11-2

Tasks .......................................................................................... 11-7

Tool s

C Opening Calendar.............................................................. 11-2

0 Default View.................................................................... 11-2

0 Set Holiday ..................................................................... 11-2

0 Quick Entry ..................................................................... 11-2

C Saving Entries .................................................................... 11-3

0 Assign Tone .................................................................... 11-4

0 Assign Video................................................................... 11-4

0 Duration .......................................................................... 11-5

0 Repeat ............................................................................ 11-5

0 Secret ............................................................................. 11-5

C Opening Entries ................................................................. 11-5

C Searching Entries by Subject ............................................. 11-5

C Editing Entries .................................................................... 11-6

C Deleting Entries .................................................................. 11-6

0 This Appointment/All This Day........................................ 11-6

0 All This Week/ Up to Last Week ..................................... 11-6

0 All This Month/Up to Last Month .................................... 11-6

0 All This 2Months ............................................................. 11-6

0 All Appointments............................................................. 11-7

C Saving Entries .................................................................... 11-7

0 Assign Tone .................................................................... 11-8

0 Assign Video................................................................... 11-8

0 Duration .......................................................................... 11-9

0 Secret ............................................................................. 11-9

C Opening Entries ................................................................. 11-9

C Searching Entries by Subject ............................................. 11-9

C Editing Entries .................................................................... 11-9

C Deleting Entries ................................................................ 11-10

0 This Task....................................................................... 11-10

0 All Tasks/ All Comp. Tasks ............................................ 11-10

Alarm ........................................................................................ 11-10

C Setting Alarm.................................................................... 11-10

0 Assign Tone .................................................................. 11-12

0 Assign Video................................................................. 11-12

0 Snooze.......................................................................... 11-12

0 Alarm Volume ............................................................... 11-12

0 Vibration........................................................................ 11-12

0 Duration ........................................................................ 11-12

C Cancelling & Reactivating Alarm...................................... 11-13

0 Switch Off ..................................................................... 11-13

0 Switch On ..................................................................... 11-13

C Deleting Alarm.................................................................. 11-13

0 Reset Alarm .................................................................. 11-13

0 Clear All ........................................................................ 11-13

Auto Power On ........................................................................ 11-13

World Clock ............................................................................. 11-14

C Setting Time Zone & Daylight Saving............................... 11-14

C Opening World Clock ....................................................... 11-14

Calculator ................................................................................ 11-15

Voice Recorder........................................................................ 11-16

C Preparation....................................................................... 11-16

C Recording......................................................................... 11-16

C Playback........................................................................... 11-17

C Recording Setting............................................................. 11-17

0 Save Recording To ....................................................... 11-17

Barcode.................................................................................... 11-18

0 Scanning during Text Entry........................................... 11-20

0 Open Barcode .............................................................. 11-21

0 Scanned Results .......................................................... 11-21

Create QR Codes .................................................................... 11-21

0 Phone Book .................................................................. 11-21

0 Text Input ...................................................................... 11-21

0 Data Folder ................................................................... 11-22

Contents

xi

Text Scanner............................................................................ 11-22

0 Scanning during Text Entry........................................... 11-24

Stopwatch ................................................................................ 11-24

Countdown Timer.................................................................... 11-24

Expenses Memo ...................................................................... 11-25

0 Add New Expense ........................................................ 11-25

Contents

0 Totals ............................................................................ 11-25

0 Edit Category ................................................................ 11-25

Electronic Books..................................................................... 11-26

C Reading Content .............................................................. 11-26

C Using E-Book Images....................................................... 11-29

0 Embedded Information ................................................. 11-29

C Using a Dictionary............................................................ 11-29

0 Look Up Word............................................................... 11-29

Phone Help .............................................................................. 11-29

12

Optional Services Overview..................................................... 12-2

Call Forwarding ......................................................................... 12-2

Voicemail.................................................................................... 12-4

Call Waiting................................................................................ 12-5

Optional Services

0 Call Forwarding............................................................... 12-2

0 Cancel All ....................................................................... 12-3

0 Status ............................................................................. 12-3

0 Voicemail ........................................................................ 12-4

0 Cancel All ....................................................................... 12-4

0 Call Voicemail ................................................................. 12-4

0 Status ............................................................................. 12-5

C Missed Call Notification ...................................................... 12-5

0 Activate/Cancel............................................................... 12-5

0 Call Waiting On/Off ......................................................... 12-5

0 Incoming Calls ................................................................ 12-5

0 Status ............................................................................. 12-6

Conference Call......................................................................... 12-6

0 Dial New Number............................................................ 12-6

0 Swap Calls...................................................................... 12-6

0 Conference Call .............................................................. 12-6

Call Barring................................................................................ 12-7

C Restricting Outgoing Calls.................................................. 12-8

0 Set/Cancel Restriction .................................................... 12-8

0 Status ............................................................................. 12-8

C Restricting Incoming Calls.................................................. 12-8

0 Set/Cancel Restriction .................................................... 12-8

0 Status ............................................................................. 12-8

C Rejecting a Call .................................................................. 12-9

0 Set Reject Number ......................................................... 12-9

0 Switch On/Off ................................................................. 12-9

C Rejecting Calls without Caller ID ........................................ 12-9

0 Withheld Call .................................................................. 12-9

C Changing Network Password ............................................. 12-9

0 Change NW Password.................................................... 12-9

Caller ID ................................................................................... 12-10

0 Show My Number ......................................................... 12-10

0 Status ........................................................................... 12-10

xii

13

Basics ........................................................................................ 13-2

Sending Text Messages............................................................ 13-6

Incoming Text Messages........................................................ 13-13

Using Messages ...................................................................... 13-16

Messaging

C Messaging Folders ............................................................. 13-2

C Window Description............................................................ 13-3

C Views.................................................................................. 13-4

C Customising Handset Address ........................................... 13-5

C Basics................................................................................. 13-6

C Creating & Sending a Message.......................................... 13-7

C SMS/MMS Send Options ................................................. 13-12

0 Delivery Report............................................................. 13-12

0 Expiry Time................................................................... 13-12

0 Priority .......................................................................... 13-12

C Using Drafts...................................................................... 13-12

C Using Templates............................................................... 13-13

C Opening New Messages .................................................. 13-13

C Retrieving Complete MMS Messages .............................. 13-14

C Retrieving Mail List ........................................................... 13-15

0 Get................................................................................ 13-15

0 Remote Forward ........................................................... 13-15

0 Delete ........................................................................... 13-15

0 Message Details ........................................................... 13-15

C Checking Messages......................................................... 13-16

0 Display Effect................................................................ 13-17

0 Background Colour/Display Speed ............................... 13-17

C Replying to Messages ...................................................... 13-18

C Forwarding Messages ...................................................... 13-18

C Linked Info........................................................................ 13-19

C Protecting Messages ........................................................ 13-20

C Deleting Messages........................................................... 13-20

C Saving Attachments to Data Folder.................................. 13-21

C My Folders........................................................................ 13-22

Additional Functions .............................................................. 13-24

C Speed Mail List................................................................. 13-24

C Speed Mail ....................................................................... 13-24

C Auto Resend..................................................................... 13-25

C General Settings............................................................... 13-25

0 Home Download ........................................................... 13-25

0 Roam. Download .......................................................... 13-25

0 Delivery Report ............................................................. 13-25

0 Anti Spam Measures .................................................... 13-25

0 Signature ...................................................................... 13-26

0 Auto Delete ................................................................... 13-26

0 Message Notice ............................................................ 13-26

0 Scroll Unit ..................................................................... 13-26

0 Message Type............................................................... 13-26

C SMS Settings.................................................................... 13-27

0 Expiry Time................................................................... 13-27

0 Message Centre ........................................................... 13-27

C MMS Settings ................................................................... 13-27

0 Expiry Time................................................................... 13-27

0 Picture Appearance...................................................... 13-27

0 Auto Play File................................................................ 13-28

0 SMIL Settings ............................................................... 13-28

0 Slide Auto Play.............................................................. 13-28

0 Send File Settings ........................................................ 13-28

0 Creation Mode .............................................................. 13-28

Contents

xiii

14

Getting Started .......................................................................... 14-2

Using Web.................................................................................. 14-3

Basic Operations ...................................................................... 14-5

Contents

Advanced Features ................................................................... 14-7

Streaming ................................................................................ 14-10

Additional Functions .............................................................. 14-12

Web

C Opening Vodafone Web Menu ........................................... 14-3

C Entering URLs Directly ....................................................... 14-5

C Bookmarks & Saved Pages................................................ 14-7

0 Edit ................................................................................. 14-8

0 Bookmarks Folder........................................................... 14-8

0 Rename .......................................................................... 14-9

0 Move ............................................................................... 14-9

0 Delete ............................................................................. 14-9

C Saving to Data Folder......................................................... 14-9

C Using Linked Info.............................................................. 14-10

0 Streaming from Media Player ....................................... 14-11

C Sub Menu Settings ........................................................... 14-12

0 Change View ................................................................ 14-12

0 Copy Text ...................................................................... 14-12

0 Reload .......................................................................... 14-12

0 Enter URL ..................................................................... 14-12

0 Home ............................................................................ 14-12

0 Access History .............................................................. 14-12

0 Send ............................................................................. 14-12

0 Properties ..................................................................... 14-12

0 Delete Browser Data..................................................... 14-12

0 Search .......................................................................... 14-12

0 Current Cert. ................................................................. 14-13

0 Uploading Files ............................................................. 14-13

C Basic Settings................................................................... 14-13

0 Font Size....................................................................... 14-13

0 Scroll Unit ..................................................................... 14-13

0 Char-code ..................................................................... 14-13

0 Send Referrer ............................................................... 14-13

0 Cookies......................................................................... 14-13

0 Downloads .................................................................... 14-13

0 Manufacture Number .................................................... 14-14

0 Location ........................................................................ 14-14

0 Download to.................................................................. 14-14

C Security ............................................................................ 14-14

0 Secure Prompt.............................................................. 14-14

0 Root Certificates/Current Cert. ..................................... 14-14

0 Authentication ............................................................... 14-14

15

Getting Started .......................................................................... 15-2

Using V-applications................................................................. 15-4

Managing V-applications .......................................................... 15-5

V-applications

C V-appli Library .................................................................... 15-2

C V-applications on Memory Card ......................................... 15-2

C Downloading V-applications ............................................... 15-3

C Starting V-applications ....................................................... 15-4

C Exit, Pause & Resume ....................................................... 15-4

C Opening V-application Properties....................................... 15-5

C Moving V-applications to Memory Card.............................. 15-5

C Deleting V-applications....................................................... 15-5

C Screensaver ....................................................................... 15-6

C Setting Permissions............................................................ 15-7

xiv

C V-application Operational Settings ..................................... 15-7

0 Application Volume ......................................................... 15-7

0 Backlight ......................................................................... 15-7

0 Blink................................................................................ 15-7

0 Vibration.......................................................................... 15-8

0 Calls & Alarms ................................................................ 15-8

C Reset.................................................................................. 15-8

0 Set to Default .................................................................. 15-8

0 Memory All Clear ............................................................ 15-8

16

Vodafone live! CAST (Japanese Only) .................................... 16-2

Near chat (Japanese Only) ....................................................... 16-4

ComicSurfing (Japanese Only)................................................ 16-6

17

Function List ............................................................................. 17-2

Troubleshooting ........................................................................ 17-4

Software Update........................................................................ 17-9

Character Code List ................................................................ 17-10

Pictograph List ........................................................................ 17-16

Specifications.......................................................................... 17-17

Memory List ............................................................................. 17-18

Index......................................................................................... 17-19

Warranty & After-Sales Services ........................................... 17-25

Customer Service ................................................................... 17-26

Entertainment

C Basics................................................................................. 16-2

C Service Registration & Content Subscription ..................... 16-2

C Opening Received Information........................................... 16-2

C Using Information ............................................................... 16-3

C Basics................................................................................. 16-4

C Using Near chat.................................................................. 16-4

0 Latest Information ........................................................... 16-5

Appendix

Contents

xv

Safety Precautions

^ Read safety precautions before using handset.
^ Observe precautions to avoid injury to self or others, or damage to property.
^ Vodafone is not liable for any damages resulting from use of this product.

Before Using Handset

CSymbols

Make sure you thoroughly understand these symbols before reading on.
Symbols and their meanings are described below:

xvi

!
!
!

CSymbols

DANGER

WARNING

CAUTION

Great risk of death or serious injury from improper use

Risk of death or serious injury from improper use

Risk of injury or damage to property from improper use

$(%+* #) !

Prohibited Actions Compulsory Actions Attention Required

!DANGER

Handset, Battery & Charger

Use specified battery, Charger and Desktop Holder
only (see P.iii).

Using non-specified equipment may cause malfunctions,
electric shock or fire due to battery leakage, overheating or
bursting.

Do not short-circuit Charger terminals.

Keep metal objects away from Charger terminals. Keep
handset away from necklaces, hairpins, etc.
Battery may leak, overheat, burst or ignite causing injury.
Use a case to carry battery.

#

$

Battery

Prevent injury from battery leakage, breakage or
fire.
Do not:

^ Heat or dispose of battery in fire
^ Open/modify/disassemble battery
^ Damage or solder battery
^ Use a damaged or deformed battery
^ Use a non-specified charger (see P.iii)
^ Force battery into handset
^ Charge battery near fire or sources of heat, or expose it

to extreme heat

^ Use battery for other equipment

If battery fluid contacts eyes, do not rub them.
Rinse with clean water and consult a doctor
immediately.

Eyes may be severely damaged.

$

#

xvii

Handset, Battery & Charger

!WARNING

Do not insert foreign objects into the handset,
Charger or Desktop Holder.

Do not insert metal or flammable objects into handset,
Charger or Desktop Holder; may cause fire or electric
shock. Keep out of children's reach.

Keep handset out of rain or extreme humidity.

Fire or electric shock may result.

Keep handset away from liquid-filled containers.

Keep the handset, Charger and Desktop Holder away from
chemicals or liquids; fire or electric shock may result.

Keep battery, handset, Charger or Desktop Holder
away from microwave ovens.

Battery, handset, Charger or Desktop Holder may leak,
burst, overheat or ignite, leading to accidents or injury.

Do not disassemble or modify handset or related
hardware.

^ Do not open handset, Charger or Desktop Holder; may

cause electric shock or injury. Contact Vodafone
Customer Centre, Customer Assistance for repairs.

^ Do not modify handset, Charger or Desktop Holder; fire

or electric shock may result.

xviii

$

%
$

$

(

If water or foreign matter is inside handset:

Discontinue handset use to prevent fire/electric shock. Turn
off handset, remove battery and unplug Charger, then
contact Vodafone Customer Centre, Customer Assistance.

Avoid sources of fire.

Prevent fire or explosion. Do not use handset in the
presence of gas or fine particles (coal, dust, metal, etc.).

Do not subject handset to strong shocks or
impacts.

Strong shocks or impacts to handset, Charger or Desktop
Holder may cause malfunction or injury.
Should handset be damaged, remove battery then contact
Vodafone Customer Centre, Customer Assistance.
Discontinue handset use; fire or electric shock may occur.

If an abnormality occurs:

If a handset emits an unusual sound, smoke or odour,
discontinue use; may cause fire or electric shock. Turn off
handset, remove battery and unplug Charger; contact
Vodafone Customer Centre, Customer Assistance.

)

$

$

)

Handset

!WARNING

Take measures to prevent accidents.

^ For safety, never use handset while driving. Pull over

beforehand. Mobile phone use while driving is prohibited
by the revised Road Traffic Law (effective 1 November

2004).

^ Do not use Headphones while driving or riding a bicycle.

Accidents may result.

^ Moderate volume outside, especially at level/road

crossings to avoid accidents.

Do not swing handset by handstrap.

$$

May result in injury or breakage.

Turn handset power off before boarding aircraft.

Using wireless devices aboard aircraft may cause
electronic malfunctions or endanger aircraft operation.

Adjust vibration and ringtone settings:

Users with a heart condition/pacemaker/defibrillator should
adjust handset settings accordingly.

During thunderstorms, turn power off; find cover.

There is a risk of lightning strike or electric shock.

#

#

#

xix

Charger

!WARNING

Use only the specified voltage.

Non-specified voltages may cause fire or electric shock.

^ AC Charger: AC 100V-240V Input

B Vodafone is not liable for problems caused by charging

battery abroad.

^ In-Car Charger: DC 12V-24V Input

Do not use commercially available transformers.

Use of AC Charger with commercially available
transformers may cause fire, electric shock or damage.

Do not use In-Car Charger if vehicle has a positive
earth.

Fire may result. Use In-Car Charger only inside vehicles
with a negative earth.

Charger care

^ Do not touch blades with wet hands. Electric shock may

occur.

^ Do not use multiple cords in one outlet; may cause

excess heat/fire.

^ Do not bend, twist, pull or set objects on cord. Exposed

wire may cause fire or electric shock.

xx

$

$

$

+
$

Do not short-circuit Charger terminals.

May cause overheating, fire or electric shock. Keep metal
away from terminals.

Do not use Desktop Holder inside vehicles.

Extreme temperature or vibration may cause fire or
damage handset, etc.

Take measures to prevent accidents.

Secure In-Car Charger to avoid injury or accidents.

Damaged AC Charger/In-Car Charger cord:

May cause fire or electric shock; discontinue use and
purchase a new Charger.

During thunderstorms:

Unplug Charger to avoid damage, fire or electric shock.

Charger/Desktop Holder use and children:

May cause electric shock/injury; keep out of reach.

$

$

#
#

)
#

Battery

!WARNING

^ If battery does not charge properly, stop charging. Battery

may overheat, burst or ignite.

^ If there is leakage or abnormal odour, avoid fire sources.

Battery may catch fire or burst.

##

If there is abnormal odour, excessive heat, discolouration or
distortion, remove battery from handset.
It may leak, overheat or explode.

Handset Use & Electronic Medical Equipment

This section is based on "Guidelines on the Use of Radio Communications Equipment such as Cellular Telephones and
Safeguards for Electronic Medical Equipment" (Electromagnetic Compatibility Conference, April 1997) and "Report of
Investigation of the Effects of Radio Waves on Medical Equipment, etc." (Association of Radio Industries and Businesses,
March 2001).

Persons with implanted pacemaker/defibrillator
should keep handset more than 22 cm away.

Radio waves can interfere with implanted pacemakers or
defibrillators causing such devices to malfunction.

Turn handset off in crowds or trains where persons
with implanted pacemaker/defibrillator may be near.

Radio waves can interfere with implanted pacemakers or
defibrillators causing such devices to malfunction.

#

#

Observe these rules inside medical facilities:

^ Do not enter an operating room or an Intensive or

Coronary Care Unit while carrying a mobile handset.

^ Keep handset off in hospitals.
^ Keep handset off in hospital lobbies. Electronic

equipment may be near.

^ Obey rules regarding mobile phone use in medical

facilities.

Consult manufacturer for radio wave effects on
electronic medical equipment.

#

#

xxi

!CAUTION

Handset, Battery & Charger

Handset care

^ Place handset on stable surfaces to avoid malfunction or

injury.

^ Keep handset away from oily smoke or steam. Fire or

accidents may result.

^ Cold air from air conditioners may condense, resulting in

leakage or burnout.

^ Keep handset away from direct sunlight (inside vehicles,

etc.) or heat sources. Distortion, discolouration or fire
may occur. Battery shape may be affected.

^ Keep handset out of extremely cold places to avoid

malfunction or accidents.

^ Keep handset away from fire sources to avoid malfunction

or accidents.

Usage environment

^ Excessive dust may prevent heat release and cause

burnout or fire.

^ Avoid using handset on the beach. Sand may cause

malfunction or accidents.

^ Keep handset away from credit cards, telephone cards,

etc. to avoid data loss.

!

!

Handset

Handset temperature

Handset may become hot while in use. Avoid prolonged
contact with skin especially at high temperature. May cause
burn injuries.

Avoid leaving handset in extreme heat (inside
vehicles, etc.).

Handset may become hot to the touch, leading to burn
injuries.

Earpiece/Speaker

Earpiece is also the Speaker. Always maintain some
distance from Earpiece/Speaker while ringtones, music or
other handset sounds play. Excessive volume may affect
hearing.

Volume settings

Moderate handset volume; excessive volume may damage
ears or hearing.

Inside vehicles

Handset use may cause electronic equipment to
malfunction.

!

$

!

!

!

xxii

Handset

!CAUTION

If you experience any skin irritation associated with handset use, discontinue handset use and consult a doctor.

See handset materials below. Some materials may cause skin irritation, rashes, or itchiness depending on your physical condition.

Parts Materials & Finishing

Housing (External Display side), hinge cover

Housing (Display/Keypad/battery side), battery cover ABS resin/Acrylic UV curing painting (sealer: acrylic painting)

Display window, External Display window, lens cover Acrylic resin

Logo badge Acrylic UV curing resin/Aluminium (base)

Portrait/Macro Selector ABS resin

Small Light cover PC resin

Cover (stop pads), screw cover (above Keypad) Urethane resin

Multi Selector (centre) Stainless steel (chrome plating on nickel plating)

Multi Selector (Cursor Keys)

Start Key, Power On/Off Key, Mail Key, Vodafone Web Key, Shortcuts
& A/a Key, Clear/Back Key, Multimedia/Text Key, Keypad

Side Keys PC resin/Acrylic UV curing painting (sealer: urethane painting)

Key border Urethane resin

Headphone Connector cover, External Device Connector cover Urethane-based resin

Battery PC resin

Charger Terminal Stainless steel/Au plating (sealer: nickel, copper)

Screw (Display/Keypad/battery side) SWCH12A/Ni plating

microSD pin Phosphor bronze/Gold plating (sealer: nickel plating)

microSD cover Stainless steel, LCP (with glass)

USIM pin Copper alloy/Gold plating (sealer: nickel plating)

ABS resin/Acrylic UV curing painting [sealer: acrylic UV curing
painting, discontinuous deposition (for black)]

Stainless steel (chrome plating on nickel plating)/Acrylic UV curing
painting

Stainless steel (chrome plating on nickel plating)/Acrylic UV curing
painting (inscription groove: urethane)

#

xxiii

Charger

!CAUTION

Charger & In-Car Charger

^ Grasp plug (not cord) to disconnect Charger. May cause

fire/electric shock.

^ Keep cord away from heaters. Exposed wire may cause

fire or electric shock.

^ Stop use if plug is hot or improperly connected. May

cause fire/electric shock.

^ Keep In-Car Charger socket clean. May overheat and

cause injury.

Do not touch Desktop Holder while in use.

May cause burn injuries.

Use only the specified fuse.

1 A fuse for In-Car Charger.
Or may cause breakage/fire.

xxiv

$

#

$
$

Always charge battery in a well-ventilated area.

Avoid covering/wrapping Charger and Desktop Holder; may
cause damage/fire.

Do not use In-Car Charger when engine is off.

To avoid weakening the car battery, always start engine
before charging the handset using In-Car Charger.

During periods of disuse

Always unplug AC Charger or In-Car Charger after use.

Handset maintenance

Always disconnect AC Charger or In-Car Charger when
cleaning handset, to prevent shock/injury.

Installing In-Car Charger

Properly position the cable for safe driving to avoid injury or
accidents.

$

$

)
)

!

Battery

!CAUTION

Do not throw or abuse battery. Battery may overheat, burst
or ignite.

Do not leave battery in direct sunlight or inside a closed
vehicle; may reduce battery performance or overheat.
An overheated battery may cause fire.

Do not expose battery to liquids. Performance may
deteriorate.

If battery fluid contacts skin or clothes, rinse with clean
water immediately.

Do not dispose of an exhausted battery with ordinary
refuse; always tape over battery terminals before disposal.
Take exhausted battery to a Vodafone shop, or follow the
local disposal regulations.

Keep battery out of children's reach.

$
$

*
#
$

#

^ Charge battery in ambient temperatures between 5]C

and 35]C; outside this range, battery may leak/overheat
and performance may deteriorate.

^ If your child is using handset, explain all instructions and

supervise usage.

^ If there is abnormal odour or excessive heat, stop using

battery and call Vodafone Customer Centre, Customer
Assistance.

^ Charge battery at least once every six months; an

uncharged battery may become unusable.

!

xxv

General Notes

General Use

^ Vodafone is not liable for any damages resulting from

accidental loss/alteration of handset or Memory Card data.
Keep a copy of Phone Book entries, etc. in a separate place.

^ Handset transmissions may be disrupted inside buildings,

tunnels or underground, or when moving into/out of such
places.

^ Use handset without disturbing others.
^ Handsets are radios as stipulated by the Radio Law. Under the

Radio Law, handsets must be submitted for inspection upon
request.

Inside Vehicles

^ Never use handset while driving.
^ Do not park illegally to use handset.

Aboard Aircraft

Never use handset aboard aircraft (keep power off).
Handset use may impair aircraft operation.

Electromagnetic Waves

For body worn operation, this phone has been tested and meets RF exposure guidelines when used with an accessory that
contains no metal and that positions the handset a minimum of 15 mm from the body. Use of other accessories may not
ensure compliance with RF exposure guidelines.

^ Handset use near landlines, TVs or radios may cause

interference.

^ Beware of eavesdropping.

Because this service is completely digital, the possibility of
signal interception is greatly reduced. However, some
transmissions may be overheard.

Eavesdropping

Deliberate/accidental interception of communications
constitutes eavesdropping.

^ Handset use may affect a vehicle's electronic equipment.

xxvi

FCC Notice

^ This device complies with par t 15 of the FCC Rules. Operation

is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.

^ Changes or modifications not expressly approved by the

manufacturer responsible for compliance could void the user's
authority to operate the equipment.

FCC RF Exposure Information

Your handset is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the
Federal Communications Commission of the U.S.
Government.
The guidelines are based on standards that were developed
by independent scientific organisations through periodic and
thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The exposure standard for wireless handsets employs a unit
of measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6 W/kg. The tests
are performed in positions and locations (e.g. at the ear and
worn on the body) as required by the FCC for each model.
The highest SAR value for this model handset when tested
for use at the ear is 0.280 W/kg and when worn on the body,
as described in this user guide, is 0.741 W/kg.

Body-worn Operation; This device was tested for typical
body-worn operations with the back of the handset kept

1.5 cm from the body. To maintain compliance with FCC RF
exposure requirements, use accessories that maintain a

1.5 cm separation distance between the user's body and the
back of the handset. The use of beltclips, holsters and
similar accessories should not contain metallic components
in its assembly.
The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure
requirements, and should be avoided.
The FCC has granted an Equipment Authorisation for this
model handset with all reported SAR levels evaluated as in
compliance with the FCC RF emission guidelines. SAR
information on this model handset is on file with the FCC
and can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID
APYHRO00048.
Additional information on Specific Absorption Rates (SAR)
can be found on the Cellular Telecommunications & Internet
Association (CTIA) Website at http://www.phonefacts.net.

xxvii

European RF Exposure Information

Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio
waves recommended by international guidelines. These
guidelines were developed by the independent scientific
organization ICNIRP and include safety margins designed
to assure the protection of all persons, regardless of age
and health.
The guidelines use a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit for mobile
devices is 2 W/kg and the highest SAR value for this device
when tested at the ear was 0.512 W/kg*. As mobile devices
offer a range of functions, they can be used in other
positions, such as on the body as described in this user
guide**. In this case, the highest tested SAR value is 1.089
W/kg.
As SAR is measured utilizing the device's highest
transmitting power the actual SAR of this device while
operating is typically below that indicated above. This is due
to automatic changes to the power level of the device to
ensure it only uses the minimum level required to reach the
Network.

The World Health Organization has stated that present
scientific information does not indicate the need for any
special precautions for the use of mobile devices. They note
that if you want to reduce your exposure then you can do so
by limiting the length of calls or using a hands-free device to
keep the mobile phone away from the head and body.

* The tests are carried out in accordance with international

guidelines for testing.

**Please see General Notes (Electromagnetic Waves) on

P.xxvi for important notes regarding body worn operation.

Declaration of Conformity

Hereby, Sharp Telecommunications of Europe Ltd, declares
that this Vodafone 705SH is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
A copy of the original declaration of conformity can be
found at the following Internet address:
http://www.sharp.co.jp/k-tai/

xxviii

Handset Care

^ If handset is left with no battery or an exhausted one, data

may be altered/lost. Vodafone is not liable for any resulting
damages.

^ Use handset within temperatures of 5]C to 35]C and humidity

35% to 85%. Avoid extreme temperatures/direct sunlight.

^ Exposing lens to direct sunlight may damage colour filter and

affect image colour.

^ Do not drop or subject handset to shocks.
^ Clean handset with dry, soft cloth. Using alcohol, thinner, etc.

may damage it.

^ Do not expose handset to rain, snow or high humidity.
^ Never disassemble or modify handset.
^ Avoid scratching handset Display.
^ When closing handset, keep straps, etc. outside to avoid

damaging the Display.

^ When using Headphones, moderate volume to avoid sound

bleed.

^ Handset is not water-proof. Avoid exposure to liquids and

high humidity.

B Keep handset away from precipitation.
B Cold air from air conditioning, etc. may condense causing

corrosion.

B Avoid dropping handset in damp places (toilet, bathroom,

etc.).

B On the beach, keep handset away from water and direct

sunlight.

B Perspiration may seep inside handset causing malfunction.

^ Avoid heavy objects or excessive pressure. May cause

malfunction or injury.

B Do not sit down with handset in a back pocket.
B Do not place heavy objects on handset in a bag.

^ Connect only the specified products to Headphone Connector.

Non-specified devices may malfunction or cause damage.

^ Always turn off handset before removing battery. If battery is

removed while saving data or sending mail, data may be lost,
changed or destroyed.

xxix

Copyrights

Copyright laws protect sounds, images, computer programs, databases, other materials and copyright holders. Duplicated
material is limited to private use only. Use of materials beyond this limit or without permission of copyright holders may
constitute copyright infringement, and be subject to criminal punishment. Comply with copyright laws when using images
captured with handset camera.

Video recording and playback are based on MPEG-4.
This product is licensed under the MPEG-4 Visual Patent Portfolio
License for the personal and non-commercial use of a consumer to
(i) encode video in compliance with the MPEG-4 Video Standard
("MPEG-4 Video") and/or (ii) decode MPEG-4 Video that was
encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a licensed video
provider. No licence is granted or implied for any other use.
Additional information may be obtained from MPEG LA.
See http://www.mpegla.com.
This product is licensed under the MPEG-4 Systems Patent
Portfolio License for encoding in compliance with the MPEG-4
Systems Standard, except that an additional licence and payment
of royalties are necessary for encoding in connection with (i) data
stored or replicated in physical media which is paid for on a title by
title basis and/or (ii) data which is paid for on a title by title basis
and is transmitted to an end user for permanent storage and/or
use. Such additional licence may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com for additional details.

This product is equipped with
JBlend
performance of Java
Powered by JBlend! Copyright
1997-2006 Aplix Corporation.
All rights reserved.
JBlend and JBlend-related brands
are trademarks or registered trademarks of Aplix Corporation in
Japan and other countries.
Java and Java-related brands are trademarks or registered
trademarks of Sun Microsystems, Inc. in the United States and
other countries.

705SH employs RSA# BSAFE! software
developed by RSA Security Inc.
RSA is a registered trademark of RSA Security Inc.
BSAFE is a registered trademark of RSA Security
Inc. in the United States and/or other countries.

!

designed to accelerate the

!

Application.

microSD! is a trademark of the SD Card
Association.

xxx

Licensed by QUALCOMM Incorporated under one or more of the
following United States Patents and/or their counterparts in other
nations:
4,901,307 5,490,165 5,056,109 5,504,773 5,101,501
5,506,865 5,109,390 5,511,073 5,228,054 5,535,239
5,267,261 5,544,196 5,267,262 5,568,483 5,337,338
5,600,754 5,414,796 5,657,420 5,416,797 5,659,569
5,710,784 5,778,338

This product employs NetFront Browser (Internet browser) and
NetFront SMIL Player (SMIL player) developed by ACCESS Co.,
Ltd.
Copyright$ 2004-2006 ACCESS Co., Ltd.
ACCESS and NetFront are trademarks or registered trademarks of
ACCESS Co., Ltd in Japan or other countries.
This product includes a module developed by Independent JPEG
Group.

Bluetooth is a registered trademark of the Bluetooth SIG, Inc.

The Bluetooth word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by SHARP is under license.
Other trademarks and trade names are those of their respective
owners.

The frequency band used for the Bluetooth# function of 705SH is
shared with other industrial, scientific or medical equipment
(microwave ovens, etc.), and used at premises radio stations,
amateur radio stations, etc. (hereinafter "other radio stations").

1 Before using the Bluetooth# function, visually check that there

are no other radio stations sharing the same frequency band
nearby.

2 Should interference occur between 705SH and other radio

stations, move to other place or stop the Bluetooth# function
(stop the transmission) immediately.

3 For additional information and support, contact us at the

following number.

Vodafone Customer Centre, General Information

From a Vodafone handset, call toll free at 157 for General
Information.
From landlines, see P.17-26 "Customer Service".

^ This radio equipment operates in the 2.4 GHz band using the

FH-SS modulation, and its maximum communication distance is
ten metres.

xxxi

This product employs Macromedia# Flash# Lite!
technology developed by Adobe Systems
Incorporated.
Copyright$ 1995-2006 Adobe Systems
Incorporated. All rights reserved.
Macromedia, Flash, Macromedia Flash and
Macromedia Flash Lite are either registered
trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.

MPEG Layer-3 audio coding technology licensed from Fraunhofer
IIS and Thomson.

QR Code is a registered trademark of DENSO WAVE INCORPORATED.

Powered by Mascot Capsule#/Micro3D Edition!
Mascot Capsule is a registered trademark of HI Corporation
$2002-2006 HI Corporation. All rights reserved.

Chaku-Uta and Chaku-Uta Full are registered trademarks of Sony
Music Entertainment (Japan) Inc.

ComicSurfing is a trademark or registered trademark of CELSYS,
Inc.

Vodafone, Vodafone live!, the speech mark symbol and My
Vodafone are trademarks or registered trademarks of Vodafone
Group Plc.

SLIMIA, Video Call, V-application, Custom Screen, Sky Mail, Movie
Sha-mail, Sha-mail, 3D Pictogram, Input Memory, Near chat and
Multi Job are trademarks or registered trademarks of Vodafone K.K.

CP 8 PAT E N T

Other company and product names mentioned herein are
trademarks or registered trademarks of their respective owners.

The software contained in 705SH is copyrighted material;
copyright, moral right and other related rights are protected by
copyright laws. Do not copy, modify, alter, disassemble, decompile
or reverse-engineer the software, and do not separate it from
hardware in whole or part.

xxxii

Specific Absorption Rate (SAR)

705SH meets the government's requirements for
exposure to radio waves.

These requirements are based on scientific basis to assure that radio
waves emitted from mobile phones and other handheld wireless devices
do not affect human health. They require that the Specific Absorption
Rate (SAR), which is the unit of measurement for the amount of
radiofrequency absorbed by the body, shall not exceed 2 W/k
This limit includes a substantial safety margin designed to assure the
safety of all persons, regardless of age or health, and meets the
international standard set by International Commission on Non-Ionizing
Radiation Protection (ICNIRP) in cooperation with World Health
Organization (WHO).
The highest SAR value for 705SH is 0.44 W/kg. Tests for SAR are
conducted with handset transmitting at its highest certified power level,
and follow the testing methods set by the government. While there may
be differences between the SAR levels for various handsets, they all
meet the governmental requirements for safe exposure. The actual
SAR level of the handset while operating can be well below the highest
value. This is because the handset is designed to operate at multiple
power levels so as to use only the power required to reach the Network.
Additional information on SAR can be obtained on the following Websites:
Ministry of Internal Affairs and Communications (Protection
from Radio Wave Environment)
http://www.tele.soumu.go.jp/e/ele/index.htm
Association of Radio Industries and Businesses (ARIB)
http://www.arib-emf.org/index02.html (Japanese only)

-------------------------------------------------------------------------------

*

Requirements are stipulated in Radio Law (Ordinance Regulating
Radio Equipment, Article 14-2).

g*.

xxxiii

Getting Started

1-1

1

Function & Feature Preview

Getting Started

Memory Card is required for items with grey background.

1-2

microSD! Memory Card

Save files to Memory Card to
expand handset memory or
backup your handset files.

P. 8- 1 7

Near chat

Exchange instant messages
with compatible Bluetooth#
devices within ten metres.

P. 16 - 4

Manner Mode

Press a single key to mute
ringer and activate Answer
Phone automatically.

P. 2- 1 8

Vodafone Address Book (VAB)

Backup Phone Book via
Server; synchronise Phone
Book/VAB to reflect changes.

P. 4- 1 5

Face Recognition

Save up to five facial images to
use along with passwords, etc.
to restrict handset access.

P. 9- 1 5

USIM Card

For use only with USIM Card­compatible Vodafone handsets;
contains vital user information.

P. 1- 4

Kanji Conversion

Entering Japanese text with
Predictive or Previous Usage
reduces required keystrokes.

P. 3- 6

Video Call

Place or receive video calls:
send live video or previously
saved still image during calls.

P. 5- 2

Vodafone live! CAST

Subscribe to Japanese mobile
periodicals delivered overnight
to your handset automatically.

P.16-2

International Roaming

Make/receive calls, exchange
mail or access Vodafone live!
services even outside Japan.

P. 2- 1 6

Phone Book

Save up to 750 entries; add up
to three phone numbers/three
mail addresses to each.

P. 4- 2

Camera

Capture still/video images shot
with the 2 megapixel handset
camera; send images via MMS.

P. 6- 2

Media Player

Play downloaded music and
video images as well as
captured video images.

P. 7 -2

Data Folder

Access handset image and
sound files from here; files are
organised by file type.

P. 8- 2

Display

Change Wallpaper, System
Graphics, Fonts, et cetera to
customise handset interface.

P. 9 -3

Custom Screen

Load uni-themed Wallpaper,
Indicators, ringtones, and
more, all at the same time.

P. 9- 5

1

Getting Started

Display Language

Change Phone Settings to make
handset user interface appear in
either English or Japanese.

P. 9 -5

Voice Recorder

Save voice memos on handset
or Memory Card; send via MMS
or use as ringtone.

P. 1 1- 1 6

Call Forwarding

Automatically divert all or all
unanswered incoming calls to
another preset phone number.

P. 1 2- 2

Conference Call

Switch between open lines or
connect multiple lines at once
for wireless teleconferencing.

P. 1 2- 6

Bluetooth# & Infrared

Wirelessly exchange handset
files with compatible devices.
Use Bluetooth# headsets, etc.

P.10-2, P.10-9

Barcodes & Text Scanner

Scan UPC/QR Codes and text
or create QR Codes from
Phone Book entries, etc.

P.11-18, P. 1 1 -2 1 , P. 11 - 2 2

Optional Services

Voicemail

Redirect all or unanswered calls
to Voicemail; access messages
from 705SH/touchtone landline.

P.12-4

Call Barring

Restrict all incoming/outgoing
calls or apply restrictions by
type of call/current location.

P.12-7

Mass Storage

Use a PC to directly access
Memory Card content while
card is inserted into handset.

P. 1 0- 1 4

Electronic Books

Purchase and then download
E-Books/E-Book dictionaries to
read on handset.

P. 1 1- 2 6

Missed Call Notification

Receive records of calls missed
while handset is off/out-of-range
and Voicemail is active.

P. 1 2- 5

Caller ID

Set 705SH to show/hide your
phone number for all outgoing
calls or enter show/hide prefix.

P. 1 2- 1 0

Calendar & Tasks

Add events by date with time
parameters; set Reminder, add
stamps and set other options.

P.11-2, P.11-7

Call Waiting

Reduce missed calls! Answer
incoming calls even while the
handset is already engaged.

P.12-5

1-3

1

USIM Card

Getting Started

General Information & Precautions

Universal Subscriber Identity Module (USIM) Card is an IC
card containing customer and authentication information,
including the handset number, and limited storage for
Phone Book entries and SMS messages. USIM Card must
be inserted to use this handset.

^ Save contacts on USIM Card Phone Book (see P. 4- 3 ).
^ Inser t into compatible Vodafone handsets to access files.
^ Do not apply excessive force to insert/remove USIM Card.
^ Do not inser t USIM Card into any other IC card device.

Vodafone is not liable for resulting damages.

^ Keep the USIM Card IC chip

clean.

^ Use a dry, soft cloth to clean the

USIM Card.

^ Do not attach labels to USIM

Card. Malfunction may result.

Note H

Some downloaded files may be inaccessible after repairs,
USIM Card replacement or handset upgrade/replacement.

USIM Card

IC Chip

CIf Handset is Dropped or Subjected to Shocks

705SH may not recognise USIM Card; REFRESH appears
and handset returns to Standby. This is not a malfunction.
If Insert USIM Card appears or 705SH does not restart,
clean and properly reinsert USIM Card then restart 705SH.

Important

^ USIM Card is the property of Vodafone.
^ USIM Card will be reissued for a fee if lost or damaged.
^ Return USIM Card to Vodafone upon subscription

termination.

^ Returned USIM Cards are recycled.
^ USIM Card specifications may change without prior notice.
^ Backup USIM Card files. Vodafone is not liable for lost files.
^ If your USIM Card or handset (with USIM Card inserted) is

lost or stolen, suspend your service immediately. For details,
contact Vodafone Customer Centre, General Information
(see P. 17 - 2 6).

1-4

Inserting & Removing USIM Card

^ Follow the steps below after removing battery (see P.1-16).
^ Do not force USIM Card into or out of handset; damage may result.
^ Avoid touching USIM Card IC chip; doing so may hinder performance (see P. 1 -4 ).

Inserting

Slide in USIM Card with

1

IC chip facing down

Insert battery (Steps 3 -

2

4 "Inserting" on P.1-16)

Notch

Removing

Take care not to lose removed USIM Card.

Gently slide out USIM

1

Card as shown

Insert battery (Steps 3 -

2

4 "Inserting" on P.1-16)

1

Getting Started

e

f

1-5

1

USIM PINs

Getting Started

There are two Security Codes for USIM Card: PIN1 and
PIN2.

PIN1

A 4-digit to 8-digit Security Code to prevent unauthorised
use of Vodafone handset.

^ PIN 1 is 9999 by default; change as needed (see P.9-19

"Change PIN").

^ Activate PIN Entry (see P.9-18) to require PIN1 entry each

time handset (USIM Card inserted) is turned on.

PIN2

Required to clear Call Costs or set Max Cost (see P. 2 - 15 ).
PIN 2 is 9999 by default; change as needed (see P.9-19
"Change PIN").

PIN Lock & PUK Code

PIN1 Lock or PIN2 Lock is activated if PIN1 or PIN2 is
incorrectly entered three times consecutively. Cancel PIN

P.9-18

Lock (see

) by entering the Personal Unblocking Key
(PUK Code). For information on PUK Code, contact Vodafone
Customer Centre, General Information (see

Note H ^ If PUK Code is incorrectly entered ten times

consecutively, USIM Card is locked and handset is
disabled. Write down PUK Code.

^ For USIM Card unlocking procedures, call Vodafone

Customer Centre, General Information (see P.17-26).

^ Emergency calls (110, etc.) are not possible when PIN

Entry (see P. 9- 1 8 ) is active. For more, see P.2 - 3
"Emergency Calls".

P.17-26

).

1-6

Handset Parts & Functions

Handset

8

1

9
A

2
3

4

5

6
7

1 Display
2 Mail Key

Open Messaging menu or execute Soft Key functions (see
P.1-23).

3 Start Key

Initiate/answer calls. Open records of All Calls.

4 Shortcuts & A/a Key

Open Shortcuts menu. In text entry windows, toggle upper/
lower case roman letters or standard/small hiragana/
katakana.

B
C

D

E
F

K

G

H
I

J

5 Clear/Back Key

Delete entries, escape/return to previous window.

6 Keypad
7 U Key

In text entry windows, toggle Symbol/Pictograph Lists.

8 Earpiece/Speaker

L

M

N
O

P

Q

R

S

1

Getting Started

1-7

9 Internal Camera

1

Getting Started

Use during Video Call.

A Multi Selector & Keypad Lock Key

Select menu items, move cursor, scroll, etc. In Standby,
press b for 1+ seconds to activate/cancel Keypad Lock.

B Vodafone Web Key

Open Vodafone Web Main Menu or execute Soft Key
functions (see P.1-23).

C Power On/Off Key

Press and hold to turn handset power on/off.

D Multimedia/Text Key

Start Media Player or toggle between character entry modes.
In Standby, press for 1+ seconds to activate/cancel Large
Font Mode.

E # Key

In text entry windows, enter comma, full stop, line break,
space, etc.

F Microphone
G External Device Connector

Connect Charger here.

H Volume/Zoom Key

Adjust Earpiece Volume or zoom mobile camera.

I Manner/View Key

Press for 1+ seconds to activate/cancel Manner mode.
Toggle Message List, Calendar or Data Folder file list views.

J Charger Terminal
K Strap Eyelet

Attach straps as shown. (Avoid attaching metallic straps.)

L Headphone Connector

Connect optional Headphones, etc.

M Small Light
N Infrared Port

Use for infrared data transmissions.

O External Display
P External Camera (lens cover)
Q Por tr ait (p)/Macro (o) Selector
R Battery Cover
S Internal Antenna Location

Handset transmits/receives signals via Internal Antenna for
calls and Vodafone live! services.

Note H Internal Antenna

^ 705SH has no external antenna. Handset transmits and

receives signals via Internal Antenna.

^ Do not cover or place stickers, etc. over the area

containing Internal Antenna.

^ Voice quality varies with handset usage/location.
^ For better reception in Standby, close handset (see

P.1-11).

Descriptions (P. 1- 7 - 1-8) are illustrative of general

Tip H

handset usage.

1-8

Display Indicators

Display

Ncq GKcNWs J
j Hmeh4kl4g

1 Network Service/Signal Strength

N: Within 3G range, a: Within GSM range
(N: Strong, O: Moderate, P: Low, Q: Weak)
E: Out-of-Range

2 Voice/Video Call, Offline Mode (see P.2-20)

SSL (see P.14-3), Packet Transmission (see P.14-2)

M: Incoming Voice Call, c: Voice Call in Progress
Y: Video Call in Progress, U: Offline Mode, X: SSL

7: Packet Transmission Ready
8: Packet Transmission in Progress

3 Mail (see P.13-3)

q: Unread Mail, w: Unread Delivery Report
q (red): Memory Low

Y: Receiving Mail, K: Sending Mail

2 3 4 65 78 9 A

1

Ncq GKcNWs J
j

Hmeh4kl4g

CBD G H J KIE F

4 Auto Delivery Info, CAST Info (see P.16-2)

Software Update (see P.17-9)

G: Auto Delivery Info, 8: CAST Info
O: Software Update, P: Software Update Result

5 V-application (see P.15-4), Music Player (see P.7-4)

K: Active V-application, K (grey): Paused V-application

I: Music Player Active

6 Memory Card Status

c: Inserted, S: In Use, Q: Formatting
s: Unusable/Poor Connection

7 Call Forwarding/Voicemail (see P.12-2)

Multi Job (see P.1-26)

N: Call Forwarding or Voicemail Active

Appears when

Q: Multiple Functions (Multi Job) Active

8 External Transmission

W: USB Transmission Ready

g: USB Transmission in Progress
I: Infrared Connection in Progress

V: Infrared Transmission in Progress

2: Bluetooth# Transmission Ready

Appears in grey when Visibility is set to Hide My Phone.

B: Bluetooth# Transmission in Progress
C: Bluetooth# Talk in Progress

9 Mode (see P.9-2), Loudspeaker Microphone Mute

(see P.2-11)

s: Meeting, r: Activity, b: Car, V: Headset, k: Manner

C: Loudspeaker Active, w Microphone Muted
c: Loudspeaker Active & Microphone Muted

Always

(forwarding condition) is set for Voice Calls.

1

Getting Started

1-9

A Battery Strength (see P.1-15)

1

Getting Started

Indicator may appear vertically (e.g. @).

B Answer Phone (see P.2-9)

j: Answer Phone Active
r: Answer Phone Active & Message Recorded
s: Answer Phone Cancelled & Message Recorded

C New Voicemail (see P.12-4)
D Message Delivery Failure (see P.13-9)
E Alarm Set (see P.11-10)
F Schedule (see P.11-3)

h: Reminder Set, i: Reminder Unset

G Copyright Information

4: Content Key Received

When Content Key memory is low, x (below 10 %) or
6 (below 5 %) appears.

H Secret Mode Active (see P.9-20)
I Function Lock (see P.9-19)

Keypad Lock (see P.1-21)

l: Function Lock Active, b: Keypad Lock Active

J Infrared Transmission Ready
K Ringtone (see P.9-10), Vibration (see P.9-10)

g: Silent, G: Increasing Volume, F: Vibration Active

R: Silent & Vibration Active

External Display

See major External Display indicators below.

1 2

3

1 Battery Strength
2 Time
3 Signal Strength
4 Date

4

Clock View

C With 705SH closed, press r to toggle Clock view (large,

standard or World Clock).

^ Display Date & Time setting (see P. 9- 9 ) is not affected.
^ View is fixed while music plays, during infrared transfers,

etc.

CAdditional Indicators

Indicator and number of calls/messages, etc. appear for
missed calls, new mail/information, etc.

Missed Calls i New Messages z
Answer Phone Message h New Delivery Report O
Missed Call Notification s Message Delivery Failure s
New Voicemail u Content Key l
Alarm R Bluetooth# Notification S
Schedule Reminder V CAST Info s
Task Reminder U CAST Reception Failure m

Up to two indicators appear at the same time. Press L or
M to view more.

1-10

Handset Positions

CHandset Closed

Handset is closed. Keep handset in this
position when not in use.

CHandset Open

Handset is open. Place or answer calls,
enter text, etc.

Battery & Charger

Getting Started

Charge battery before first use/after period of disuse.

Battery Life

^ Do not use/store battery at extreme temperatures; this may

shorten batter y life.
Ideally, use/store between 5]C - 35]C.

^ Use specified Charger only; others may damage handset/

battery or overheat or ignite battery.

^ Replace battery if operating time shortens noticeably.

1

Getting Started

1-11

1

Getting Started

Charging Precautions

^ Do not use Charger for other purposes.
^ Contact with metal may short, overheat or burst battery.
^ Small Light illuminates red while charging. (It may take longer

for the light to illuminate when handset is off.)

^ Charging takes approximately 140 minutes (with handset off).

B Charging time may vary by ambient temperature.
^ 705SH and Charger may warm during charging.
^ Separate Charger from TV/radio if interference occurs.

^ Clean device charging terminals with a dry cotton swab.
^ Avo id:

B Extreme temperatures
B Humidity, dust and vibration
B Direct sunlight

^ Charge battery at least once every six months; an uncharged

battery may become unusable.

^ Use a case when carrying battery separately.

Tip H ^ Battery must be inside handset to charge it.

^ While charging battery with handset on, J flashes

until battery is fully charged.

^ Battery will charge regardless of handset position.

1-12

Estimated Hours of Use (fully charged battery)

Continuous Talk Time

Continuous Standby Time

Continuous Operating Time

Continuous Playback Time

Continuous Video Call Time

Values calculated with Backlight Brightness set to Level 2.

^ Continuous Talk Time is an average measured with a new,

fully charged battery, with stable signals. Continuous Talk

Time may be less than half this value if handset is out-of-range

or signal is weak.
^ Continuous Standby Time is an average measured with a new,

fully charged battery, with handset closed without calls or

operations, in Standby with stable signals. Standby Time may

be less than half this value if handset is out-of-range or signal

is weak. Standby Time may vary by environment (battery

status, temperature, etc.).
^ Continuous Operating Time is the length of time handset keys

can be pressed continuously without calls.
^ Continuous Playback Time is measured while music plays

using Headphones, Offline Mode cancelled, and handset

closed.
^ The above values (Battery Time) are nominal values,

measured under stable signal conditions.

2 hours 20 minutes in 3G
3 hours 50 minutes in GSM

310 hours in 3G
300 hours in GSM

5 hours

8.5 hours

80 minutes
(with Internal Camera in use)
70 minutes
(with External Camera in use)

Battery Time

Using handset in poor conditions may shorten Battery Time:

^ Poor Usage Conditions

B Extreme temperatures (use within a range of 5]C to 35]C)
B Impaired handset, battery or Charger terminals
B Signal is weak/handset is out-of-range

^ Power Consuming Operations

B Activating/using V-applications
B Repeated mobile camera use or barcode scanning
B Playing video images
B Continuous Keypad use (keeping backlights on for long

periods)

B Using Music Player/Voice Recorder
B Frequent Bluetooth# transmissions
B Frequent infrared transfers
B Frequent opening/closing of handset

^ Power Consuming Settings

B Increasing Backlight Time Out/Display Saving time
B Setting Backlight to illuminate brighter
B Activating Bluetooth# in Standby

1

Getting Started

1-13

1

Getting Started

Extend Battery Time

Select shorter Display Saving/Backlight time (see P.9-8)
to extend Battery Time.

When Battery Runs Out

A message appears and short beeps sound.
Press g to stop short beeps. (Short beeps do not sound in
Manner mode.)

CDuring Voice Call

A double beep sounds every five seconds. After 20 seconds,
the call ends and handset shuts down.

CDuring Video Call

A message appears and call ends with a double beep, then
short beeps sound. Handset shuts down after 20 seconds.

Battery Disposal

Do not dispose of an exhausted battery with ordinary
refuse; always tape over battery terminals before disposal.
Take exhausted battery to a Vodafone shop, or follow the
local disposal regulations.

Battery Strength

Strength Levels (see P.1-15)

External Display

When battery runs out, Battery low. Please connect to
charger! appears and short beeps sound. Handset shuts
down after 20 seconds.

1-14

CIndicator

Battery Strength indicator varies as shown.
Charge or replace when level is low.

Battery low. Please connect to charger! appears.
Charge or replace battery immediately.

Minimum Operating
Voltage

Level 3 Level 2 Level 1 Level 0

Battery Voltage

Approx. 70% Approx. 20%

Remaining Strength (at 25]C)

Approx. 10%

M/CL/BK/AJ/@

Hours of Use

CBattery Strength & Environment

At low temperatures, battery is consumed faster.
At high temperatures, battery lasts longer.

Note H ^ Battery Strength indicator is for reference only.

^ At Level 1, some functions including Video Camera,

Music Player and Voice Recorder do not operate (see

P. 6- 7 , P. 7- 4 , P.1 1 - 16 ).

Small Light & Battery Strength Indicator

CHandset Power On

Small Light Indicator (J/@) Conditions

Off Flashes

Flashes red Flashes

Illuminates red Flashes Charging

Off On Charging completed/Standby

Ambient temperature is
outside the range of 5]C to
35]C

Battery life has ended, or
battery defect

CHandset Power Off

Small Light Indicator (J/@) Conditions

Flashes red Off

Illuminates red Off Charging

Off Off Charging completed

Battery life has ended, or
battery defect

1

Getting Started

1-15

1

e

e

Installing & Removing Battery

Getting Started

Inserting

Press down and slide cover as

1

shown

Lift and remove cover as

2

shown

Insert battery

3

^ With printed side up, fit tabs into

battery cavity slots.

Close cover

4

^ Position and slide the cover as shown

until it stops.

This product requires a lithium-ion battery. Lithium-ion batteries are a recyclable resource.

Tip H

^ To recycle a used lithium-ion battery, take it to any shop displaying the symbol shown to the right.
^ To avoid fire or electric shock, do not:

B Short-circuit battery B Disassemble battery

Battery Cover

f

Removing

^ Turn handset power off before removing battery.
^ Do not remove battery immediately after saving files, sending

messages, etc.

Press down and slide cover as

1

shown

Lift and remove cover as

2

shown

Remove battery

3

^ Take hold of Battery Tab here and lift

as shown.

Battery Cover

f

1-16

AC Charger

1

Getting Started

2

AC 100V Outlet

Blades

AC Charger

Charger Connector

3

Use specified Charger only.

Rotate Terminal Cover as shown above to

1

connect Charger

^ Insert connector until it clicks.
^ Use slot to gently pull Terminal

Cover down and out as shown.

Plug Charger into AC outlet

2

^ Charging starts and Small Light

illuminates red (see P. 1- 1 5). Charging
takes approximately 140 minutes.

^ Charging is complete when Small Light goes out.
^ Extend Charger blades. (Fold back

when not in use.)

Slot

Ter minal Cover

Arrows Up

Release Tabs

Small Light

External Device
Connector

1

After Charging

3

Unplug Charger from AC outlet, then 705SH

^ Squeeze release tabs to remove connector.
^ Replace Terminal Cover to protect External Device Connector.

Note H ^ Do not pull, bend or twist AC Charger cord.

^ AC Charger is compatible with household currents

between AC 100V and 240V.

^ Vodafone is not liable for problems resulting from

charging battery abroad.

1-17

1

Desktop Holder

Getting Started

Desktop Holder may be purchased separately.

AC 100V Outlet

2

Blades

Release Tabs

AC
Charger

4

Insert cord
into the groove.

Arrows Down

1

Charger
Connector

Small Light

3

2

1

Ta bs

Connection Ter minal

1-18

Use specified Charger only.

Insert Charger connector into Desktop Holder

1

until it clicks

^ Connection Terminal is on the back of Desktop Holder.

Plug Charger into AC outlet

2

^ Extend Charger blades. (Fold back

when not in use.)

Gently insert handset into Desktop Holder

3

^ Fit tabs into slots as shown in 1 and push handset as

indicated in 2 until it clicks into place (resting flat).

^ Charging starts and Small Light illuminates red (see P. 1- 1 5).

Charging takes approximately 140 minutes.

^ Charging is complete when Small Light goes out.

After Charging

4

Unplug Charger from outlet and remove handset

^ To remove connector, squeeze release tabs.

In-Car Charger

In-Car Charger may be purchased separately.

1

Getting Started

4

2

In-Car Charger

Plug

Cigarette Lighter
Socket

3

Rotate Terminal Cover as shown to connect

1

Charger

^ Insert connector until it clicks.

Plug Charger into cigarette lighter socket

2

Start car engine

3

^ Charging starts and Small Light illuminates red (see P. 1- 1 5 ).

Charging takes approximately 140 minutes.

^ Charging is complete when Small Light goes out.

Tip H ^ For more information, see In-Car Charger manual.

^ Use optional In-Car Holder to secure handset.

Ter minal Cover

Arrows Up

Release Tabs

Charger

Connector

Small Light

External Device
Connector

1

After Charging

4

Unplug Charger from cigarette lighter socket,
then 705SH

^ Squeeze release tabs to remove connector.
^ Replace Terminal Cover to protect External Device Connector.

^ Use In-Car Charger only when vehicle has a negative

Note H

earth.

^ Disconnect Charger before leaving vehicle to prevent

charging with engine off.

^ Do not use In-Car Charger with Desktop Holder.
^ Avoid charging battery inside extremely hot vehicles.
^ Never use handset while driving.

1-19

1

Handset Power On/Off

Getting Started

1

Standby

Open handset

1

Press and hold g

2

After Power On Graphic, handset enters
Standby.

My Details Setup & Network Information

C When handset is turned on for the first time, setup confirmation appears after Power On Graphic.

Press N i A Enter last name A Press b A Enter first name A Press b

C Handset initiates Network information retrieval when N, M or b is pressed for the first time;

2
3

press N i.
^ Retrieve Network information to use Vodafone live! services. (Clock is set automatically after

retrieval.)

^ To update Network information manually, see P. 10 - 1 5 "Retrieve NW Info".
^ Unless otherwise noted, operations in this manual are described with Clock set.

Return to Standby

C Press g to return to Standby from function windows, menus, etc.

^ When a confirmation appears, press N i. Handset returns to Standby.

Note H

^ USIM Card data is read after turning power on. Signal strength indicator may take some time

to appear. It may take longer when turning power on for the first time.

^ Insert USIM Card appears when USIM Card is not inserted (see P. 1- 4 ).

Display turns off after a period of inactivity.

Tip H

Turning O f f

3

Press g for 2+ seconds

After Power Off Graphic, handset shuts down.

1-20

1

1

My Details

Press b0

1

Handset phone number appears.

^ To add, edit or delete My Details, see P.4-18.

Press g to exit

2

2

Keypad Lock

Use Keypad Lock to lock handset keys and prevent accidental operation/function activation.

Activating Cancelling

Press b for 1+ seconds

1

b appears and Keypad Lock is set.

Note H Emergency calls (110, etc.) are possible even when Keypad Lock is active. For more, see P.2 - 3

"Emergency Calls".

When Keypad Lock is Active

Tip H

^ Incoming calls temporarily cancel Keypad Lock. To answer a call, press f. [Activate Any Key

Answer (see P. 9- 2 ) to answer calls with other keys (see P. 2 -6 ).] Keypad lock reactivates after
the call.

^ Handset power does not turn off even if g is pressed for 2+ seconds.

Press b for 1+ seconds

1

b disappears.

1

Getting Started

1-21

1

Getting Started

Large Font Mode

In Standby, press j for

1

1+ seconds

Font size is set as follows.

Menu Large

Messaging Huge

Editor Huge

Browser Huge

2

1

Tip H Large Font Mode is cancelled if font size is changed for all the items.

2

To cancel, press j for
1+ seconds in Standby

Font Size settings, except those changed in
Large Font Mode, return to previous state.

1-22

Handset Menus

1

2

Main Menu

Main Menu

Access functions/operations from Main Menu.

Press b

1

Main Menu opens.

Use G to select an item and press

2

Sub Menu opens (see P. 17 - 2 - 17-3).

Soft Keys

C Soft Key functions appear at the bottom of

Display.

Press N to select or
execute the assigned
function or operation.

Press b to select or
execute the assigned
function or operation.

Press M to select or
execute the assigned
function or operation.

b

CMain Menu Items

Entertainment

Vodafone live! Access the Mobile Internet

Media Player Play/download music/video

Messaging Open/create messages, etc.

Camera

Data Folder

Tools Use Calendar, Alarms, etc.

V-appli Use/download V-applications

Call Log

Connectivity

Phone Book

Settings

Launch Vodafone live! CAST,
Near chat or ComicSurfing

Capture still images or record
video

Open files saved on handset/
Memory Card

Check Dialled Numbers,
Received Calls, Call Costs, etc.

Use Bluetooth#/Infrared,
activate Mass Storage, etc.

Search contacts, add entries, etc.

Customise handset interface,
sounds, etc.

1

Getting Started

1-23

1

Getting Started

1

User Shortcuts

Using Shortcuts

Create shortcuts to functions and folders.
Default Shortcuts:

B Main Menu, Enter Number, Received, Create New, Calculator, Alarms,

Custom Screens, Near chat, Sounds & Aler ts, Display, Bluetooth#, V-appli,
World Clock and Expenses Memo.

2

Press k

1

Shortcuts menu opens.

Select a function and press b

2

Editing Shortcuts

Edit items except Main Menu and Enter Number.

Assign Change default shortcuts

Press k A Select an item A Press N x A Select Assign A Press b A

Select new item A Press N U

Move Change the order of items

Press k A Select an item A Press N x A Select Move A Press b A Select
target location with E A Press b

Set to Default Restore default shortcuts

Press k A Press N x A Select Set to Default A Press b A Press N i

1-24

Quick Operations

In Standby, enter numbers to access functions. Accessible functions vary by entered digits. To
activate functions, press corresponding Soft Key.

Function
Speed Dial (see P.4-14) !
Calculator (see P.11-15) !!!!!!#
Expenses Memo (see P.11-25) !!!!!##
Speed Mail (see P.13-24) !
Calendar (see P.11-2) ###!
Set Alarm (see P.11-10) ###!

Place International Calls5 (see P.2-5)

1

Except for 0 and 1.

2

Press N A after entering a number. Save entries to Speed Mail List (see P.13-24) beforehand.

3

Enter four digits for month and day and press C to view entries up to 12 months forward of current date.

4

Enter four digits for time (24-hour format) to set Alarm.

5

Call to Japan appears when outside Japan.

Digits

1 2 3 4 5 - 6 7 - 12 13 - 32

1

######

2

######

####!!!

3

###

4

###

CExample: Enter 1111 to use Calculator

Press 1111

1

Press j

2

1

Getting Started

1

2

1-25

1

Getting Started

1

Multi Job

Open a function window while another is active.

In a function window, press k

1

Shortcuts menu opens.

^ Some shortcuts are disabled.
^ Multi Job cannot be activated from some

windows/under some conditions (e.g. when
a V-application is active).

2

^ In text/phone number entry windows,

press k for 1+ seconds.

3

Handling Incoming Calls

C Press b to answer a call. End the call to return.

Select a function and press b

2

Menu/window opens (Q appears).

Press g to exit

3

The other window appears (Q disappears).

C When a confirmation appears,

press N i.

1-26

Security Codes

Handset Code, Centre Access Code and Network Password are needed for handset use.

1

Getting Started

Handset Code

9999 or the 4-digit number selected at initial subscription;
required to use/change some handset functions.

^U appears when Handset Code is entered.
^ If Handset code is incorrect! appears, try again.
^ Change Handset Code as needed (see P.9-20).

Centre Access Code

The 4-digit number in the contract; required to access Voice­mail via landlines or subscribe to fee-based information.
Do not attempt to change Centre Access Code. Contact
Vodafone Customer Centre, General Information (see

P.17-26) for details.

Note H ^ Write down Handset Code, Centre Access Code and Network Password. If lost, contact Vodafone Customer Centre, General

Information (see P. 1 7 - 2 6).

^ Do not reveal Handset Code, Centre Access Code and Network Password. Vodafone is not liable for misuse or damages.

Network Password

The 4-digit number selected at initial subscription; required
to restrict handset services (see P. 1 2 -7 ).

^ If Network Password is incorrectly entered three times

consecutively, Call Barring settings are locked. To resolve,
Network Password and Centre Access Code must be
changed. For details, contact Vodafone Customer Centre,
General Information (see P.1 7 - 2 6).

^ Change Network Password as needed (see P. 12 - 9).

1-27

Basic Handset Operations

2-1

Initiating a Call

2

See P. 2- 5 to initiate international calls from Japan, P.2-17 for Voice Calls from outside Japan and P.5 - 3 for Video Calls.

Basic Handset Operations

2-2

1

2

3
4

Confirm handset is on

1

^ Check signal strength (see P.1 - 9 1).
^ Handset will not transmit when E, U, b or

l appears (see P.17-4 - 17-6).

Enter a phone number

2

^ Include dialling code for all numbers.

C To send/block Caller ID, enter a phone

number and press N x A Select
Show My ID or Hide My ID A Press b

Confirm the number and press f

3

Correcting Numbers

^ Use F to move cursor and press i to

delete the digit above the cursor. Move
cursor and press i for 1+ seconds to
delete the digits above and after the cursor.

^ Before moving cursor, press i for

1+ seconds to delete the entire number and
return to Standby.

^ If you misdial, press g to hang up and try

again.

Busy Numbers

^ Press g to end the call and try again later.

Press g to end call

4

^ Alternatively, close handset.

Calling Numbers Not Saved in Phone Book

^ Would you like to save this number to

your Phone Book? appears after calls.

B To save , p r e s s N i A Perform Step

4 in "Saving from Call Log" on P.4 - 8

B Press M c to end without saving.

^ To hide this confirmation, see P.4 - 4

"Confirmation for Unsaved Numbers".

Earpiece/Speaker

/

C Earpiece is also the Speaker. Always

maintain some distance from
Earpiece/Speaker while ringtones,
music or other handset sounds play.

Excessive volume may affect

hearing.

!

C When 705SH is open, ringtone and

other volume levels automatically
lower as follows:
^ Level 2 (or up to Level 2 for

Increasing Volume)

^ Level 1 or lower in the following cases:

B During calls, while calling/sending
B During and within three seconds after Answer Phone

message/Voice Memo playback

B Within three seconds after calls

^ When handset is closed, tones sound at set volume level.

Earpiece
Speaker

Note H ^ Do not cover handset microphone (see P.1 - 7 F) while

talking on the phone.

^

Avoid covering area over Internal Antenna (see

^ Voice quality is affected depending on how and where

handset is used.

^ Check Call Timers (see P. 2- 1 4) and Call Costs (see

Tip H

P.2-15).

^ For operations during a call, see P. 2- 1 1 - 2-12.

P. 1 -7 S

Emergency Calls

Emergency calls (110, 119, 118, etc.) are possible even
while some handset restrictions are active.

Active Restriction Emergency Calls

Keypad Lock (see P.1-21) Possible

Max Cost (see P.2-15) Possible

Offline Mode (see P.2-20) Not Possible

PIN Entry (see P.9-18) Not Possible

Function Lock (see P.9-19) Possible

Handset Lock (see P.9-19) Possible

Outgoing Calls (see P.12-8) Possible

Note H

Emergency calls may not be possible when outside Japan
as handset operations are affected by wireless network/
radio signals available in the country or handset settings.

2

).

Basic Handset Operations

2-3

2

Basic Handset Operations

1
3

Redial

Place calls from Dialled Numbers. Up to 30 recently dialled numbers are saved.

Press B (F)

1

Select a record and press b

2

Press f

3

705SH dials the number.

CIndicators

q Dialled Voice Call O Dialled Video Call

2

Dialled numbers appear with date and time.

^ Name appears if saved in Phone Book.
^ Press D or C to see more.
^ Use F to open Received Calls or All Calls.

Tip H ^ When the same number is dialled more than once, only the last record appears. (Records for

Voice Calls and Video Calls appear separately.)

^ Records remain even after handset power is turned off.
^ When there are 30 records, oldest records are replaced by new ones. To delete records

manually, see P.2-13.

2-4

2
5

1

Placing an International Call

^ See P.2-17 to initiate Voice Calls from outside Japan.
^ When calling Vodafone handsets, country code is not required.
^ Service requires an additional contract. For details, contact Vodafone Customer Centre, General

Information (see P.1 7 -2 6 ).

3
4

Enter a phone number

1

^ Include dialling code for landline numbers.

Quick Operations

Enter a phone number A Press k A
Select a country A Press b A Skip ahead
to Step 5

Direct Entry

Press 0 for 1+ seconds (+ appears) A
Enter a country code A Enter a phone
number including the dialling code A Skip
ahead to Step 5

B Omit the first 0 of the dialling code except

when calling Italy (country code: 39) or
Russia (country code: 7).

Tip H ^ In Standby, press 0 for 1+ seconds to enter + (a substitute symbol for international prefix).

To change the default international prefix (0046010), see P.9 - 21 "Int'l Prefix".

^ To save frequently used country codes, see P.9 - 2 2 "Country Codes". For more information,

contact Vodafone Customer Centre, General Information (see P.17-26).

Press N x

2

Select Int'l Call and press b

3

Country names appear.

Select a country and press b

4

C To call unlisted countries, select Enter

Code A Press b A Enter country code

A Press b

Press f

5

2

Basic Handset Operations

2-5

Incoming Call

2

Basic Handset Operations

1
2

When a call arrives, open handset

1

3

^ Number appears when Caller ID is sent.
^ Name appears if saved in Phone Book.

C To reject an incoming call, press g while

handset is ringing/vibrating.
B Standby returns; record appears in

Received Calls.

C Answering a Video Call: see P. 5- 3

Tip H ^ When Caller ID is not sent, Withheld appears instead of the phone number.

^ Up to 30 received call records are saved (see P.2-13).
^ Use Quick Recorder (see P.2 - 1 0) to record caller messages on handset when Answer Phone

is inactive.

^

Change ringtone volumes/patterns, vibration patterns and Small Light status (see

^ To instantly mute ringtone for that call, press i (handset open) or press r for 1+ seconds

(handset closed).

Press f

2

When Any Key Answer (see P. 9 -2 ) is Active

^ Press any of the following keys to answer

calls:

0 - 9, q, p, G, k, j

Press g to end call

3

^ Alternatively, close handset.

Calls from Numbers Not Saved in Phone Book

^ Would you like to save this number to

your Phone Book? appears after calls.

B To save , p r e s s N i A Perform Step

4 in "Saving from Call Log" on P.4 - 8

B Press M c to end without saving.

^ To hide this confirmation, see P.4 - 4

"Confirmation for Unsaved Numbers".

P. 9 -9

-

9-11

).

2-6

Note H Earpiece is also the Speaker. Beware of direct sound

output when ringtones or other handset sounds play.
When 705SH is open, volume level is lowered
automatically (see P. 2 - 3 "Earpiece/Speaker").

Redirecting a Call

CCall Forwarding: see P.12-2

Press M

h

to direct incoming call to a specified number.

CVoicemail: see P.12-4

Unanswered calls are forwarded to Voicemail Centre.
Activate Missed Call Notification (see P.12-5) for records of
calls missed while 705SH is off/out-of-range.

CAnswer Phone: see P.2-9

Record caller messages on handset.
Use Quick Recorder (see P.2-10) to record caller messages
on handset when Answer Phone is inactive.

Information

C Information window opens for Missed

Calls or Answer Phone messages.
^ Select Call and press b to see

details (see P. 2- 1 3).

^ Select Voice Message and

press b to play recorded
messages (see P. 2- 1 0 ).

C Information window opens for other

items as well. Select an item and
press b to open the corresponding
window.

Answering Calls with Headphones

C Press Call Button for 1+ seconds to answer a call.

^ To end the call, press Call Button for 1+ seconds until a

beep sounds.

2

Basic Handset Operations

2-7

2

Basic Handset Operations

1
3

Calling from Received Calls

Up to 30 received calls are saved. When Caller ID is sent, numbers appear. Place calls
directly to those numbers.

Press A (C)

1

2

Received numbers appear with date and time.

^ Name appears if saved in Phone Book.
^ Press D or C to see more.
^ Use F to open Dialled Numbers or All Calls.

Tip H ^ Names in Secret Mode entries appear only in Secret Mode.

^ Records remain even after handset power is turned off.
^ When there are 30 records, oldest records are replaced by new ones. To delete records

manually, see P.2 - 1 3 .

Select a record and press b

2

Press f

3

705SH dials the number.

CIndicators

Answered Voice

r

Call

s Missed Voice Call R

Rejected Voice

N

Call

Missed Call

E

Notification

Answer Phone

9

Answered

Q

S

@

Answered Video
Call

Missed Video
Call

Rejected Video
Call

Forwarded to
Voicemail Centre

2-8

Answer Phone

Record caller messages on handset.

^ Answer Phone cannot be used when handset is off, out-of-range or in Offline Mode. Use Voicemail to record caller messages when

Answer Phone is not available (see P.12-4).

^ Record up to 90 seconds or 20 messages between Answer Phone and Voice Memo (see P.2-12).
^ Answer Phone is inactive by default.

Activating & Cancelling

2

Basic Handset Operations

1
2

Main MenuH To o ls A Answer Phone A Settings

Select Switch On/Off and press b

1

C To sample outgoing message, select

Guidance Message A Press b

B Press i to stop.

Tip H

Alternatively, press i for 1+ seconds in
Standby to activate/cancel Answer Phone.

Note H ^ When less than 12 seconds remain or 20 messages are recorded, Answer Phone is disabled.

Delete messages to activate Answer Phone.

^ Answer Phone is not available for incoming Video Calls.
^ In Manner mode, Manner settings take priority over (see P.9 - 2 "Mode Settings").

When Answer Phone is Active

C For incoming calls, outgoing message plays and recording starts.

^ Recording continues even if handset is closed.
^ To answer calls, press f during recording (no message will be recorded).
^ When recording ends, r appears.

C If recording capacity becomes full after the recording, Answer Phone is cancelled and s appears.

Activating

2

1 Choose On and press b

^ Press g to return to Standby

(j appears). (r appears when
messages are recorded.)

Cancelling

1 Choose Off and press b

2-9

Playing Messages

2

Basic Handset Operations

Main Menu

1

Note H

Tip H

C Follow these steps to activate or mute Earpiece for outgoing

H To ol s A Answer Phone

Select Play Ans. Phone and press b

Number of recordings appears and playback starts from the
most recent message. After all messages have played, playback
ends automatically.

C Press i to stop playback.
C To skip a message, press b J or A.
C To play the previous message, press B twice during

playback.

C To delete a message, press N . during playback A

Press N i

When messages play via Loudspeaker incoming call
ringtone sounds at Level 1 or lower regardless of setting.
Message playback stops for incoming calls. Press f to
answer a call.

Alternatively, press i in Standby to play messages.

message/caller message recordings.

Press b A Select Too ls A Press b A Select
Answer Phone A Press b A Select Settings A
Press b A Select Vol um e A Press b A Select
Link to Profile or Silent A Press b

^ For Link to Profile, current Earpiece Volume applies.

Earpiece Volume

Answer Time

C Adjust ring time between 0 and 59 seconds (Answer Phone

waits to answer calls).

Press b A Select Too ls A Press b A Select
Answer Phone A Press b A Select Settings A

Press b A Select Answer Time A Press b A
Enter time (00 - 59) A Press b

B To start recording immediately after a call arrives, enter

00 for time A Press b

^ Answer Time is 09 seconds by default.

C When Answer Phone and Voicemail or Call Forwarding are

both active, the function with the shortest ring time takes
priority.

Example:
Ring time for Answer Phone: 9 seconds
Ring time for Voicemail or Call Forwarding: 10 seconds

In this example, Answer Phone responds first. (Priority may
change depending on signal conditions.)
^ If Answer Phone is full or handset is in Offline Mode or

out-of-range, incoming calls are handled by Voicemail or
Call Forwarding.

Quick Recorder

C Use Quick Recorder to record caller messages on handset

when Answer Phone is inactive. When a call arrives, follow
these steps. Outgoing message plays and caller's message
is recorded.

Press N x A Select Record Message A
Press b

2-10

Engaged Call Operations

Earpiece Volume

Adjust Earpiece Volume (5 levels).

^

Volume level remains as set even after handset power is turned off unless set while using Loudspeaker.

^ To adjust Earpiece Volume in Standby, see P.9-12.
^ Earpiece Volume is Level 3 by default.

During a call, press L or M

1

Voice Output

1

Loudspeaker Use Loudspeaker for handsfree conversations

2

During a call, press b.

C To cancel, press b.

^ Activating Loudspeaker lowers Earpiece Volume to Level 2 or softer to protect hearing.

Mute

During a call, press M N.

C To cancel, press M M.

Hold Hold tone sounds and each other's voice is not heard

During a call, press N x A Select Hold A Press b

C To cancel, press N x A Select Retrieve A Press b

B Alternatively, press f.

C

Use Touch Tones to send alphanumeric messages to pagers or operate a home answerphone remotely.
^ Use 0 - 9, U and # to send Touch Tones.

Mute your handset microphone
Other party's voice can be heard

Press L (up) or M (down) to

2

adjust volume

CSubscription to Call Waiting (see P.12-5) or Conference Call (see P. 1 2- 6 ) is required.

Tou c h Tone s

2

Basic Handset Operations

2-11

2

Basic Handset Operations

1

Voice Memo

Record up to 90 seconds between Voice Memo and Answer Phone (see P. 2- 9 ).

2
3

During a call, press N x

1

Select Record and press b

2

Recording starts.

Play Play Voice Memos

Main Menu

H To ol s A Answer Phone

Select Play Ans. Phone A Press b

C

For details, see

P.2-10

"Playing Messages".

Press b to stop

3

^

Alternatively, end call to stop. (Recordings
remain even after handset power is turned off.)

Note H When messages play via Loudspeaker

incoming call ringtone sounds at Level
1 or lower regardless of setting.

Other Engaged Call Operations

2-12

Open Phone
Book Entry

Save Phone
Book Entry

Open Message

Create
Message

Dial New
Number

Enable/Disable
DTMF

Tip H

Open Phone Book entries or check My Details

Press N

x A

Select

Phone Book List A

Save the other party's number to Phone Book
Press N x A Select Phone Book List A Press b A Press N x A Select

Add New Entry A Press b A Perform from Step 2 on P. 4 - 4

Check received/sent/draft messages

Press N

x A

Create a new message
Press N x A Select Messaging A Press b A Select Create Message A

Press b A Perform from Step 3 on P.13-7

Call another number

Press N

x A

Select whether to send Touch Tones during a call
Press N x A Select Disable DTMF or Enable DTMF A Press b

To switch sound output between handset and handsfree devices during a call, see

Select

Messaging A

Select

Dial New Number A

Press b A Select an entry (or My Details) A Press

Press b A Select an item A Press

Press b A Enter a phone number A Press

P.10-8

"Sound Output".

b

b

f

Call Log

1

Open the following records:

All Calls All dialled/received calls
Dialled Numbers All dialled calls
Received Calls All received calls

Press f

1

All Calls opens.

C Press A to open others.

Tip H Press f to open All Calls during a call.

2

Delete Delete records one at a time

Press f A Select a record A Press N

Delete All Delete all records

Press f A Open All Calls, Dialled Numbers or Received Calls A Press N x A
Select Delete All A Press b A Press N i

Tip H To save phone numbers to Phone Book, see P. 4 - 8 "Saving from Call Log".

x A

Select a record and press b

2

Record details appear.

Select Delete A Press b A Press N

Using Call Log

Call Place calls

Press f A Select a record A Press N

C To edit numbers before dialling, select a record and press N x A Select Edit Before Call A

Press b A Edit number A Press f (Long Press for Video Calls)

Create

Message

Press f A Select a record A Press N x A Select Create Message A Press b

A Press D A Perform from Step 5 on P.13-8

Create messages

x A

Select Call or Video Call A Press

i

b

2

Basic Handset Operations

2-13

Call Timers/Data Counter

2

Basic Handset Operations

1
2

Call Timers

Check estimated time of the most recent call (Last Call Time) and all calls made since Clear
Timers was last applied (All Calls Time).

^ Times for Dialled Calls and Received Calls appear separately.
^ To show elapsed Call Time during a call, see P.9-22 "Call Time Counter".

Main Menu

Select Received Calls or Dialled

1

Calls and press b

Tip H ^ Last Call Time and All Calls Time remain even after handset power is turned off.

Clear Timers Reset Call Timers

H Call Log A Call Timers

Press b to return to Call Timers menu

2

^ Press g to return to Standby.

^ Ring time for incoming or outgoing calls is not counted. On hold time is counted.

2-14

Main Menu

Select Clear Timers A Press b A Enter Handset Code A Press b A Press N

H Call Log A Call Timers

i

Data Counter

Check estimated volume of the most recent or all packet transmissions (sent, received and
total). Charges do not appear.

Main Menu

1

Clear Counter Reset Data Counter

Main Menu

Select Clear Counter A Press b A Press N i

H Call Log A Data Counter

Select Last Data or All Data and press

H Call Log A Data Counter

b

Press b to return to Data Counter menu

2

^ Press g to return to Standby.

Call Costs

Check estimated call charge of the most recent call or all calls.
To show Call Cost automatically after each call, see P.9-22 "Display Call Cost".

Main Menu

1

Tip H ^ Call Costs remain even after handset power is turned off.

Clear Costs Reset Call Costs

H Call Log A Call Costs

Select Last Call or All Calls and
press b

^ Sum of charges appears for Conference Call (Optional Service).

Press b to return to Call Costs menu

2

^ Press g to return to Standby.

2

Basic Handset Operations

1
2

Main Menu

Select Clear Costs A Press b A Enter PIN2 A Press b A Press N i

Cost Units Set currency and conversion rate (per yen) to show converted amount in Call Costs

Main Menu

Select Set Units A Press b A Enter PIN2 A Press b A Enter currency A Press b A
Enter conversion rate A Press b A Press

H Call Log A Call Costs

H Call Log A Call Costs A Cost Units

C To check current cost unit, select Read Units A Press b

b

KYEN 1

Limit Call Costs

Max Cost

Main Menu

Select Max Cost A Press b A Select Set Limit A Press b A Enter PIN2 A Press b

A

Enter the amount A Press

C To check the set limit, select Max Cost A Press b A Select Read Limit A Press b
C To check the remaining amount, select Residual Credit A Press b

Emergency calls (110, etc.) are possible even when the limit is reached. For more, see

Note H

Set a limit of total call charges
When the limit is reached, outgoing calls are blocked

H Call Log A Call Costs

b

P. 2 -3

"Emergency Calls".

2-15

Outside Japan (International Roaming)

2

Basic Handset Operations

1

Switching Network Services

3G Use in Japan or in 3G service areas abroad

GSM Use in GSM service areas outside Japan

Auto 3G and GSM switch automatically by location (Network status)

^ Outside Japan, set to Auto whenever possible.
^ 3G is set by default.

Main Menu

1

H Settings A Network Settings (F) A Select Service

Select 3G, GSM or Auto and press

Selected service is activated.

b

2-16

Note H ^ For information on international roaming (service areas, charges, available functions,

restrictions, etc.), contact Vodafone Customer Centre, General Information (see P. 17 - 2 6).

^ A separate contract is required for international roaming.

2
5

1

Calling from Outside Japan

Enter a phone number

1

^ Include dialling code for landline numbers.
^ When calling landlines or mobile phones

within the county, skip ahead to Step 5.

Quick Operations

Enter a phone number A Press k A Skip
ahead to Step 5

3
4

Direct Entry

Press 0 for 1+ seconds (+ appears) A
Enter a country code A Enter a phone
number including the dialling code A Skip
ahead to Step 5

B Omit the first 0 of the dialling code except

when calling Italy (country code: 39) or
Russia (country code: 7).

Press N x

2

Select Int'l Call and press b

3

Country names appear.

C To call Japan, select Call to Japan A

Press b A Skip ahead to Step 5

Note H In some areas, other parties may not be able to hear you and vice versa after returning to calls

on hold (see P.2-11).

Adding Country Codes

Tip H

To save frequently used country codes, see P. 9- 2 2 "Country Codes". For more information,
contact Vodafone Customer Centre, General Information (see P. 17 - 26 ).

Select a country and press b

4

^ + and country code are inserted before the

phone number. The first 0 is omitted except
when calling Italy (39) or Russia (7). (+
indicates an outgoing international call.)

C To call unlisted countries, select Enter

Code A Press b A Enter country code

A Press b

Calling Vodafone Handsets

^ Always select

for direct entry).

Press f

5

日本

(JPN) (or press 81

2

Basic Handset Operations

2-17

Manner Mode

2

Basic Handset Operations

Minding Mobile Manners

Please use your handset responsibly. Use these basic tips as a guide. Inappropriate handset use can be both dangerous
and bothersome. Please take care not to disturb others when using your handset. Adjust handset use according to your
surroundings.

^ Turn it off in theatres, museums and other places where silence is the norm.
^ Refrain from using it in restaurants, hotel lobbies, lifts, etc.
^ Observe signs and instructions regarding handset use aboard trains, etc.
^ Refrain from use that interrupts the flow of pedestrian or vehicle traffic.

Manner-Related Features

CManner Mode: see P.2-19

Press Manner Key to automatically mute all ringtones and
activate Vibration mode for incoming calls, mail, etc.

CVibration Mode: see P.9-10

Activate Vibration mode to use handset vibration to alert you
to incoming calls, mail, etc. in public places.

CVolume Settings: see P.9-9

Decrease or mute ringtone volume for incoming calls, mail,
etc. as well as tones for Web or V-applications when
carrying handset in public places.

COffline Mode: see P.2-20

Use Offline Mode to temporarily suspend all handset
transmissions. In Offline Mode, incoming/outgoing calls and
Vodafone live! transmissions are blocked.

CAnswer Phone: see P.2-9

Use Answer Phone to handle incoming calls when it is
inappropriate or unsafe to answer.

2-18

Activating & Cancelling

Activate/cancel Manner mode in Standby, while browsing the Mobile Internet or while using
Media Player or V-applications.

Activating Cancelling

Press r for 1+ seconds

1

k appears and Manner mode is set.

^ j (Answer Phone), F (Vibration), g

(Silent) and G (Increasing Volume) appear
as set in Manner settings (see P. 9- 2 "Mode

1

Settings").

When Manner Mode is Active

C Keypad Tones, Power On/Off and error tones are muted. Beeps for Swap Calls (see P.1 2 - 6) are

heard.

^ Even in Manner mode, ringtone can be heard through Headphones. Volume is fixed to Level 1.
C Shutter click and Self-timer tone sound even in Manner mode.
C Settings for Manner mode (see P. 9- 2 "Mode Settings") are applied to Answer Phone, ringtones,

Vibration, etc.

Tip H

^ When Answer Phone is recording messages, the other party's voice is heard through

Earpiece.

^ To change Manner settings, see P. 9- 2 "Mode Settings".

Press r for 1+ seconds

1

k disappears and Manner mode is cancelled.

2

Basic Handset Operations

2-19

2

Basic Handset Operations

Activating/Cancelling Offline Mode

Use Offline Mode to temporarily suspend all handset transmissions.

^ In Offline Mode, incoming/outgoing calls and Vodafone live! transmissions are blocked.
^ Offline Mode is Off by default.

Activating

Cancelling

2-20

1

Main Menu

1

Tip H ^ When Offline Mode is set while a V-application (see P.15-2) is paused, confirmation appears.

H Settings A Network Settings

(F) A Offline Mode

Choose On and press b

U appears and Offline Mode is set.

Press N i to enter Offline Mode. (Network connection is disabled until Offline Mode is
cancelled.)

^ Emergency calls (110, etc.) are not possible in Offline Mode. For more, see P. 2 - 3 .

Main Menu

1

H Settings A Network Settings

(F) A Offline Mode

Choose Off and press b

U disappears and Offline Mode is cancelled.

Text Entry

3-1

Character Selection

Use Kana and Pager (see P. 3- 8 ) to enter alphanumerics,

3

Symbols, hiragana, kanji, katakana and Pictographs.

Text Entry

Unless otherwise noted, text entry operations are described
for use in text entry windows using Kana Mode.

Entry Modes

Press j to toggle between character entry modes as
follows:

I%J%B%A%D%E%G%I

Available Modes

A Kanji (hiragana)
D Double-byte katakana

Current Entry Mode

^ Alternatively, use F to toggle between entry modes after

pressing j once.

^ F and H appear in upper/lower case mode (see right).

3-2

E Single-byte katakana

Double-byte alphanumerics

F

(upper/lower case)

Double-byte alphanumerics

G

(lower case)

Single-byte alphanumerics

H

(upper/lower case)

Single-byte alphanumerics

I

(lower case)

J Single-byte number
B Character Code

Upper & Lower Case

C In double or single-byte alphanumerics mode, press k to

toggle between upper/lower case and lower case modes. In
Pager Mode (see P.3 - 8), while selecting double or single­byte entry mode, press k to toggle upper and lower case.

k

Double-byte Alphanumerics

(Upper/Lower Case)

^ Handset Character Codes correspond to 6,355 kanji.

Tip H

^ Some characters are not available for mail addresses,

etc.

Double-byte Alphanumerics

(Lower Case)

Key Assignments

Multiple characters are assigned to each key. Press a key to toggle between character options for that key.

Example: In katakana entry, press 1 three times for

When entering characters, press f to toggle options in reverse. (Not available for single-byte numbers or Character Codes.)

い

Example: Enter

Key

1

2
3
4
5
6
7
8
9
0

q

p 、。X (Line Break) ？！ ) (Space)

1

Press 0 for 1+ seconds to enter + (available for phone number entry).

2

- is available only in single-byte katakana entry.

3

Double or single-byte according to the entry mode.

4

U,M

Kanji (Hiragana)

Pictograph List,

(Pause), ? and - are for phone number entry.

, then press f to return to あ.

[Double-byte]

あいうえお
ぁぃぅぇぉ

かきくけこ カキクケコ

さしすせそ サシスセソ

たちつてとっ タチツテトッ

なにぬねの ナニヌネノ

はひふへほ ハヒフヘホ

まみむめも マミムメモ

やゆよゃゅょ ヤユヨャュョ

らりるれろ ラリルレロ

わをんー ワヲンー

゛゜ Log List,

Symbol List

Katakana

[Double & Single-byte]

アイウエオ
ァィゥェォ

2

゛゜-

Log List,

Pictograph List,

Symbol List

3

ウ

.

Alphanumerics

[Double & Single-byte]

Numbers [Single-byte] Character Codes

@./_-1 1 1

ABCabc2 2 2

DEFdef3 3 3

GHIghi4 4 4

JKLjkl5 5 5

MNOmno6 6 6

PQRSpqrs7 7 7

TUVtuv8 8 8

WXYZwxyz9 9 9

UM

(Pause) ? -4

Symbol List

1

#

00 +

Log List,

Pictograph List,

Symbol List

Log List, Pictograph List,

3

,.X(Line Break) ?!

)

(Space)

0

─────

─────

3

Text Entry

3-3

CKey Assignments (Continued)

Kanji (Hiragana)

[Double-byte]

5

6

3

Text Entry

Key

C Conversion (Up)
D Conversion (Down)
B Cursor Left
A Cursor Right

j Change Entry Mode

k Toggle Case (for some characters)

i

Delete One Character,

Press

Cancel Conversion

i

Long

Press

f Recover up to 64 deleted characters
b OK

N Phonetic Conversion

Hiragana to Katakana/

M

Alphanumerics

Conversion

5

Cursor moves up except during conversion.

6

Cursor moves down except during conversion.

7

Press f once for each character to recover immediately after deleting. (Not available after deleting text with i (Long Press).)

Katakana

[Double & Single-byte]

Alphanumerics

[Double & Single-byte]

Numbers

[Single-byte]

Cursor Up

Cursor Down X (Line Break)

Toggle Case + Toggle

Mode (upper/lower and

───── ─────

lower case)

Delete One Character

Delete before or after cursor

7

───── ─────

───── ─────

Character Codes

Delete Code/

One Character

3-4

Entering Characters

Kanji, Hiragana & Katakana

Following the example below, enter 鈴木 to learn how to
enter characters in kanji (hiragana) entry mode.

Press 3 three times

1

Word suggestions change as hiragana
are entered.

Press 3 for 1+ seconds

2

^ When the next character is on the

same key, press the key for 1+
seconds. Cursor moves to the right
and the first character assigned to that
key is entered.

Press 3 twice and press q

3

Press 2 twice

4

^ To enter unconverted hiragana, skip

ahead to Step 6.

Press D (convert) and use E

5

to select a word

^ The most recent selection appears first

in the list.

C

To see other suggestions, press N
or

M J

C To exit the list, press i.
C To change segment, see P. 3 -6

"Segmenting Phrases".

Press b

6

C Switch to double or single-byte katakana mode to enter

katakana. Alternatively, enter hiragana and then select
katakana from the word suggestion list.

C To convert hiragana to katakana/alphanumerics only, see

P. 3- 1 0 "Hiragana to Katakana/Alphanumerics Conversion".

.

Katakana Entry

z

3

Text Entry

3-5

Predictive & Previous Usage

C Use these functions to convert hiragana to kanji more quickly.

3

Text Entry

Predictive

Previous Usage

^ Both functions are active by default (see P.3 - 1 2 "Optional

Predictive Functions").

^ To lower priority of particular types of words (names of

people, places, etc.) in the word suggestion list, see P.3-12
"Set Low Priority".

C Save frequently used words/phrases to select from the word

suggestion list (see P.9-14).

Word suggestions change as up to
five hiragana are entered

Suggests words/characters likely to
follow entry based on previous entries

User Dictionary

CSegmenting Phrases

If the word is not listed, press i after Step 5 on P. 3 - 5 to
exit. Use F to segment hiragana to convert separately.

Example: Segment

B DEb DEb

みち みち 三ち 三智

みち

into み and ち.

CSelecting Multiple Converted Words

Press k

Example: To enter

にしやま だ い す け 

西山大輔

D k

西山大輔

西山大輔

Small Kana (

っ,ッ

, etc.)

Enter small hiragana あ, い, う, え, お, つ, や, ゆ and よ as
well as small katakana.

Enter a character and press

1

k

つ

k

っ

Adding ゛or

Enter a character and press

1

^ In kanji (hiragana)/double-byte

katakana entry, press the key once to
add

゛

た

(Ta) row characters, and press twice
to remove. For
press once to add
and three times to remove.

Tip H In Single-byte Katakana Entry

^ Press q once to add single-byte ゛or twice for ゜.
^ Press i to remove ゛or ゜.

゜

q

to か (Ka) row, さ (Sa) row and

は

(Ha) row characters,

゛

, twice to add

゜

は

q

ば

q

ぱ

q

は

Space

Press A

1

Alternatively, in kanji (hiragana), katakana
or alphanumeric entry, press
for space.

p

six times

Ueda

A

Ueda

3-6

Line Break

Insert line breaks in text, Text Templates, etc.

Press D at the end of text

1

^ To inser t line breaks in text, press p until

X appears. In kanji (hiragana) entry mode,
then press b.

Contact me at

D

Contact me at

Entering Alphanumerics

Enter alphanumerics in double or single-byte alphanumerics
mode. Alternatively, enter numbers in single-byte number mode.

3

a ad

^ When the next character is on the same key (example:

entering a then b), press A first to move cursor.
B Alternatively, press the character key for 1+ seconds (see

Step 2 on P. 3- 5 ).

^ In double or single-byte alphanumerics mode, press k to

toggle between upper/lower and lower case modes.

^ To convert hiragana to katakana/alphanumerics only, see

P.3-10 "Hiragana to Katakana/Alphanumerics Conversion".

Symbols, Pictographs & Emoticons

Symbols & Pictographs

Pictographs do not appear in e-mail or on incompatible Vodafone handsets.

Press q to open Log List (Log List is available

1

in some entry modes; see P.3-3)

Recently used Symbols/Pictographs appear.

^

―

appears by default or when Log List is deleted.

Use G to select one and press

2

^ Repeat Step 2 to enter more.

C To see more lists, press M; toggles as

follows: Symbol List(s) % Log List.

C

To see Pictograph, press N; toggles as

X

follows: Pictograph Lists
B Alternatively, press D repeatedly to

scroll through Symbols or
Pictographs.

Press a key (1 - 9) to exit list and enter the

3

assigned character

^ Alternatively, press i to exit list.

Tip H ^ Double-byte Symbols appear only in double-byte entry

mode. (All Pictographs are double-byte.)

^ Single-byte Symbols do not appear in Log List.
^ Alternatively, enter

Some Symbols can be selected.

^ For available Pictographs, see P.17-16.
^

Enter a descriptive word such as

D

(convert). Corresponding Pictographs can be selected.

C In a text entry window, press N x A Select Input/

Conversion A Press b A Select Clear Symbols A

Press b A Press N i

B

To retur n to the text entry window, press i A Press

%

きごう

Deleting Log List

b

Log List.

and press D (convert).

はーと

or はな and press

i

3

Text Entry

3-7

3

Text Entry

Emoticons

Press N x

1

Select Emoticons and press b

2

^ Enter two digits (01 - 50) to jump to the emoticon assigned to

the number.

Select an emoticon and press b

3

Tip H ^ For other emoticons, enter かお and press D (convert).

Alternatively, enter a descriptive word such as

うーん

and press D (convert). Corresponding

emoticons can be selected.

^ Immediately after inserting a descriptive word such as

嬉しい

or

悲しい

appear in the word suggestion list. To disable this
function, see P.3 - 1 2 "Optional Predictive Functions"
(Pre-used Emoticon).

, corresponding emoticons may

わーい

or

Character Code

In Character Code entry mode, enter four digits

1

(see P.17-10)

Pager Code

Press N x

1

Select Input/Conversion and press b

2

Select Input Method and press b

3

Select Pager Code and press b

4

Pager Code _ _ appears at the bottom.

C To switch to Kana Mode, select Kana A Press b

Enter two digits (see P.3-9)

5

^ Pager Mode is active until switched to Kana Mode.

3-8

Mail & Web Extensions

Press N x

1

Select Quick Address List and

2

press b

Select an extension and press

3

^ Mail addresses and URLs are

single-byte.

b

Character Entry Modes

C For text entry in Pager Mode, press j to toggle between

entry modes as follows:

Single-byte lower case (N) % Character Code (B)
% Double-byte lower case (L)

C While selecting double or single-byte entry mode, press k

to toggle between upper and lower case modes.

^ Hiragana to Katakana/Alphanumerics Conversion is

Tip H

disabled in Pager Mode.

^ To e n t e r ﾞor ﾟ, see Pager Code List on P. 3- 9 .

CPager Code List

^ Blanks indicate no entry.
^ Grey background indicates upper and lower case available. Press k to switch immediately after character entry.

Double-byte upper case Single-byte upper case

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0

あ い う え お Ａ Ｂ Ｃ Ｄ Ｅ

1

かきくけこ

2

さしすせそ

3

たち

4

なにぬねの

5

はひふへほ

6

まみむめもV＆

7

や（ ゆ）よ

8

らりるれろ１２３４５

9

First digit (Press first)

わをん゛゜６７８９０

0

Second digit (Press next) Second digit (Press next)

ｱ ｲ ｳ ｴ ｵ A B C D E

1

Ｆ Ｇ Ｈ Ｉ Ｊ
Ｋ Ｌ Ｍ Ｎ Ｏ

つてとＰ Ｑ Ｒ Ｓ Ｔ

Ｕ Ｖ Ｗ Ｘ Ｙ
Ｚ？！−／

Z

Space

＃

U

Y

*1

*2

First digit (Press first)

ｶｷｸｹｺ

2

ｻｼｽｾｿ

3

ﾀﾁ

4

ﾅﾆﾇﾈﾉ

5

ﾊﾋﾌﾍﾎ

6

ﾏﾐﾑﾒﾓ

7

ﾔ(ﾕ)ﾖ

8

ﾗﾘﾙﾚﾛ12345

9

ﾜｦﾝ゛゜67890

0

ﾂﾃﾄP Q R S T

F G H I J
K L M N O

U V W X Y

Z?! - /

V
U

Double-byte lower case Single-byte lower case

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0

ぁ ぃ ぅ ぇ ぉ ａ ｂ ｃ ｄ ｅ

1
2
3
4
5
6
7

ゃ ゅ ょ

8
9 9

First digit (Press first)

*1

Press 70 to insert line breaks (in mail message text, Text Templates, etc.).

*2

Press 80 to toggle between upper and lower case modes.

0

Second digit (Press next) Second digit (Press next)

ｆ ｇ ｈ ｉ ｊ
ｋ ｌ ｍ ｎ ｏ

っ ｐ ｑ ｒ ｓ ｔ

ｕ ｖ ｗ ｘ ｙ
ｚ

、。

ｧ ｨ ｩ ｪ ｫ

1
2
3
4

ｯ

5

*1

*2

6
7

ｬ ｭ ｮ

8

First digit (Press first)

0

,.

a b c d e

f g h i j

k l m n o
p q r s t
u v w x y

z

^ Y and Z are double-byte.

3

Text Entry

&

Space

#

*1

Z

*2

Y

*1

*2

3-9

Conversion Methods (Japanese Only)

Phonetic Conversion

3

Text Entry

Enter alternate readings to search for kanji.

Enter reading in hiragana

1

Press N _

2

Select a kanji and press b

3

One-Hiragana Conversion

Enter the first hiragana to access previously selected words.

Example: To enter

Up to 20 word selections are saved per hiragana. When
memory is full, the oldest entry is deleted to make room for
a new entry.

鈴木

DE b

鈴木す 鈴木

Hiragana to Katakana/Alphanumerics Conversion

Enter katakana and alphanumerics in kanji (hiragana) entry
mode.

Enter hiragana and press M S

1

^ To enter AM, press 26 then M S.

Use E to select a word and press b

2

^ Hiragana to Roman Letter Conversion (hiragana with ゛or ゜

is converted to the same characters/Symbols):

あ＠い．う／え＿お

かＡきＢくＣけ

さＤしＥすＦせ

たＧちＨつＩて

なＪにＫぬＬね

はＭひＮふＯへ

まＰみＱむＲめＳも

やＴゆＵよＶ

らＷりＸるＹれＺろ

わ，を．ん

^ Hiragana to Number Conversion (hiragana with ゛or ゜is

converted to the same numbers):

Bあ (A) row...1Bか
Bた (Ta) row...4Bな
Bま (Ma) row...7Bや
B

わをんー

(Long Sound)...0

Space

(Ka) row...2Bさ
(Na) row...5Bは
(Ya) row...8Bら

Space

Space

Space

Space

Space

────

ー(Long Sound)

(Sa) row...3
(Ha) row...6
(Ra) row...9

Space

こ

Space

そ

Space

と

Space

の

Space

ほ

Space

Space

Space

Space

3-10

Quick Conversion (for Hiragana)

Quick Conversion helps reduce keystrokes needed to enter
frequently used words.
A list of word suggestions appears based on the key
pressed.

Example: To enter

Normal Conversion

Quick Conversion

Enter hiragana and press C

1

Cursor turns green.
^ While cursor is green, use F to segment entered hiragana

and then convert one segment at a time.

C To cancel Quick Conversion, press i A Press D for

normal conversion

Use E to select a word and press b

2

Note H

Use Quick Conversion in kanji (hiragana) mode only.

The most recent selection (mostly nouns) appears first.

Tip H

微妙

び

66q (
888888 (
111 (

6q (
C (convert)

) 77 (み)

う

) D (convert)

ば

) 7 (ま) 8 (や) 1 (あ)

ょ

)

One Hiragana Predictive Entry

Enter hiragana and initiate Quick Conversion. Words
starting with a hiragana in the same row (

あ

) appear. Word suggestions vary by time of day.

Example: When

5:00 - 10:59 11:00 - 16:59 17:00 - 22:59 23:00 - 4:59

朝一番
朝帰り
行ってきます

いってらっしゃい

…

^ Words in the list are preset by time blocks.
^ If Clock is unset, only words for 11:00 - 16:59 are available.

あ

is entered

あちぃ〜
後でね

いただきま〜す♪

移動中

…

遊ぼう
明日
急いで行くよ
今どこ？

…

あ い う え お

アウチ！！
ありがとう

いえーい！！！

行こうね

…

One Hiragana Word Call

Enter the first hiragana of entries you used Quick
Conversion for. The most recent selection appears first.

Example: You entered

あたあさわ

and selected

お父さん

last time.

C

お父さんあ

for

3

Text Entry

3-11

Conversion Settings

Optional Predictive

3

Text Entry

Functions

Press N

A

Select Predictive, Previous Usage or

Pre-usedEmoticon

or Off

Set

Low Priority

Press N

A

Select Set Low Priority A Press b A Select an item

A

Press b A Press M

^ To select multiple items, select and press b for each item

before pressing M K.

Reset Learning

Press N

A

Select Reset Learning A Press b A Press N

^ Words saved in User Dictionary remain.

Activate or cancel Predictive, Previous Usage
or Pre-used Emoticon

x A

A

Press

x A

x A

Select Input/Conversion A Press b

A

Press b A Choose On (activate)

b

Select types of words to lower their priorities in
the word suggestion list

Select Input/Conversion A Press b

K

Clear log of words selected in kanji conversion,
Predictive, etc.

Select Input/Conversion A Press b

KOn (all)

i

Editing Characters

Deleting & Replacing

Use G to select a character

1

and press i

^ The highlighted character is deleted.
^ Place cursor at the end of text and

press i for 1+ seconds to delete all
text. When cursor is located amidst a
block of text, characters on and after
cursor are deleted.

Enter another character

2

Copy/Cut & Paste

When Options appears, copy or cut and paste text into the
same window or another.

Press N x

1

Select Copy or Cut and press b

2

Use G to select the first

3

character of text and press b

Start point is set.

C

To change the start point, press M

Select the end point and press

4

s

Mikako

i

Mikko

Mikiko

.

b

Cut

3-12

Open text paste target window

5

Press N x

6

Select Paste and press b

7

Deleting Text On and After Cursor

Select the first character of text

1

Press N x

2

Select Delete Posterior and press b

3

Additional Functions

Copying from Phone Book

Insert Phone Book entry items into text entry windows.
Select from phone numbers, mail addresses, Category,
postal address, homepage, Note, and Birthday.

Press N x

1

^ Move cursor to target location beforehand.

Select Advanced and press b

2

Select Phone Book and press b

3

Open a Phone Book entry or

4

My Details

Use E to select an item and

5

press b

Item is inserted following a comma and
the entry name.

3

Text Entry

3-13

Using Text Templates

Insert text saved in Text Templates (see P.8-16) into text
entry windows.

3

Text Entry

Press N x

1

Select Text Te mpl ate s and press b

2

Select Call Templates and press b

3

Select text and press b

4

Text is inserted.

Saving to Text Templates

C Follow these steps to save text in text entry windows to Text

Te mp l a t es .

Press N x A Select Text Templates A Press
b A Select Save Templates A Press b A Select
the first character of text A Press b A Select the
end point A Press b

^ Enter up to 256 characters.

Changing Font Size

Press N x

1

Select Advanced and press b

2

Select Font Size and press b

3

Select a size and press b

4

Tip H Setting applies to Editor Font Size in Display Font

Settings (see P. 9 -4 ).

3-14

Phone Book

4-1

Overview

Save frequently used phone numbers and mail addresses to Phone Book.

^ Entry names appear for calls from numbers saved in Phone Book.
^ Set ringtone/ringvideo by caller/sender, sort entries into Categories, etc. See P.4 - 3 for more about Phone Book entry items.

4

Phone Book

CDialling from Phone Book

CWhen a Call Arrives

f

CSending SMS/MMS messages from Phone Book

b

Tip H Use Phone Book Lock (see P.9-20) to protect entries from

accidental alteration and to restrict access to Phone Book
information.

4-2

A call arrives

Service Dial

C Dial service dial numbers saved on compatible USIM Cards

to use services.

Press b A Select Phone Book A Press b A Select
Service Dial No. A Press b A Select service A

Press

b

^ For details, contact the service providers.

Back-up Important Information

Note H

When battery is exhausted/removed for long periods,
Phone Book entries may be lost; handset damage may
also affect handset information recovery. Vodafone is not
liable for damages from lost/altered data.

Saving to Phone Book

Phone Book Entry Items

Save up to 750 entries in 705SH Phone Book; USIM Card Phone Book entry limit varies according to card specifications.

Item Description

Last Name:

First Name:

Enter up to 32 characters. (Select Name:
when saving to USIM Card.)

Reading: Enter up to 64 characters

Add Phone Number:

Enter up to three numbers on handset/two
on USIM Card (32 digits each)

Enter up to three addresses on handset/one

Add Email Address:

on USIM Card (128 single-byte
alphanumerics each)

Sort entries into 16 Categories (11 on some

Category:

USIM Cards). Category names can be
changed. Set ringtone/ringvideo and
Vibration by Category (handset only).

Enter postal code (20 characters), country

Address:

1

name (32 characters), state/province
(64 characters), city name (64 characters)
and street name/number (64 characters)

1

Not supported on USIM Card.

2

Image may not appear while a V-application is active, etc.

Homepage:

Note:

Birthday:

Picture:

Tone/Video for Voice Call:

Tone/Video for Video Call:

Tone/Video for New Message:

Vibration for Incoming Call:

Vibration for New Message:

Secret:

Item Description

1

1

1

1

1

Save URLs. Enter up to 1,024 bytes.

Add personal details. Enter up to
256 characters.

Enter birth date

Set an image to appear for
incoming calls/mail

1

1

Set ringtone/ringvideo or Vibration

1

by caller/sender

1

1

Restrict access to Phone Book
entries by saving them as Secret
Mode entries

2

4

Phone Book

Note H ^ Depending on the USIM Card in use, some items may not be supported, and character entry limits or number of Categories may

be lower. Also, the number of phone numbers or mail addresses per entry may be lower.

^ Name does not appear in recipient/sender field of e-mail to/from addresses saved only in USIM Card Phone Book.

4-3

New Phone Book Entries

Enter a name, reading, phone number and mail address.
For other items, see P. 4- 5 - 4-7.
Storage media is set to handset (Phone) by default.

4

Phone Book

Main Menu

1

2
3
4
5

6
7

8
9

H Phone Book

Select Add New Entry and
press

b

Phone Book Details appears.

C If storage media confirmation

appears, select To Pho ne or To U SIM

A Press b

Select Last Name: and press
Enter last name and press b
Select First Name: and press b
Enter first name and press b

Characters entered for names (reading for kanji) appear.

^ To correct reading, see P. 4 -7 .

Select Add Phone Number: and press b
Enter a phone number and press b

^ Include dialling code for landline numbers.

Select an icon and press b

^ To save additional phone numbers, repeat Steps 6 - 8.

Select Add Email Address: and press b

b

Phone Book

Details

Enter a mail address and press b

10

Select an icon and press b

11

^ To save additional mail addresses, repeat Steps 9 - 11.

Press M q

12

Note H To save an entry, enter at least one of the following: a)

last name; b) first name; c) phone number; or d) mail
address.

Incoming Calls while Creating Entry

C Contents are temporarily saved.

Storage Media

C

Follow these steps to set default storage media for new entries.

Press b A Select Phone Book A Press b A
Select Settings A Press b A Select Save New
Entry A Press b A Select Phone, USIM Memory
or Ask Each Time A Press b

^ Phone is set by default.
^

For

Ask Each Time

Confirmation for Unsaved Numbers

C Follow these steps to show/hide confirmation for saving to

Phone Book after calls with unsaved numbers.

Press b A Select Phone Book A Press b A
Select Settings A Press b A Select New Number

Prompt A Press b A Select Incoming Call or
Outgoing Call A Press b A Choose On or Off A

Press b

^ Both are On by default.

, select storage media for each new entry.

4-4

Personal Ringtone/Ringvideo

Select ringtones or ringvideos for incoming calls/mail from
numbers/addresses saved in Phone Book.

^ Select from preset patterns or use the following melody or

video files in Data Folder.
B Files in Ring Songs·Tones or Music folder (file name:

55 characters or less including extension)

B Files in Videos folder (file name: 55 characters or less

including extension)

^ Save files to Data Folder (Videos) before assigning video.
^ Follow these steps after opening Phone Book Details (see

P. 4 -4 ). When finished, Phone Book Details returns. Complete
other fields.

Select Tone/Video for Voice Call:, Tone/Video for

1

Video Call: or Tone/Video for New Message: and

press

b

Ringtone

2

1 Select Assign Tone and press b

C To cancel assigned tone, select Remove Tone/Video

A Press b A Press N i

2 Select Preset Sounds, Ring Songs·Tones or

Music and press b

Ringvideo

1 Select Assign Video and press b

C To cancel assigned video, select Remove Tone/Video

A Press b A Press N i

Select a file and press b

3

C For Preset Sounds, select a tone A Press b

Setting Ring Time for Incoming Mail

C After Step 3, select Tone/Video for New Message: A

Press b A Select Duration A Press b A Enter time A
Press b

Note H

^ When source file in Data Folder is deleted, renamed or

moved to another folder/Memory Card, tone/video set
in Sounds & Alerts (see P.9-10 "Ringtone/videos")
applies. (This also applies if source file is copyrighted
and the licence expires.)

^ To apply settings to Secret Mode entries, first activate

Secret Mode.

4

Phone Book

4-5
