Sharp LC-32G2X, LC-37G2X, TU-32GAX, TU-37GAX User Manual

32oDISPLAY AVC SYSTEM

LC-32G2X/ TU-32GAX

37oDISPLAY AVC SYSTEM

LC-37G2X/ TU-37GAX

LCD COLOUR TELEVISION

OPERATION MANUAL

LC-32G2X

LC-37G2X

TU-32GAX

LCD COLOUR TELEVISION

OPERATION MANUAL

Contents

Contents …………………………………………………… 1
Dear SHARP customer …………………………………… 3
Important Safety Precautions ………………………… 3
Supplied accessories …………………………………… 5
Preparation ………………………………………………… 7

Attaching speakers …………………………………… 7
Where to place the System…………………………… 8
Setting the System …………………………………… 9
Setting the AVC System with the stand …………… 11
Removing speakers …………………………………… 12
Removing the stand …………………………………… 13
Setting the Display on the wall ……………………… 13
Inserting the batteries ………………………………… 14
Using the remote control unit ………………………… 14

Cautions regarding remote control unit ……… 14

Basic connection ……………………………………… 15

Connecting to an antenna ……………………… 15
Connecting to the power outlet ………………… 15

Part names ………………………………………………… 16

Display ………………………………………………… 16
AVC System …………………………………………… 17
Remote control unit …………………………………… 18

Watching TV ……………………………………………… 19

Turning on the power ………………………………… 19
Turning off the power ………………………………… 19
Simple button operations for changing channels … 20
Using Flashback (A) on the remote control unit … 20
Simple button operation for changing

volume/sound …………………………………… 22

Basic adjustment settings ……………………………… 23

Menu operation buttons ……………………………… 23
On-Screen Display …………………………………… 23
TV/AV input mode menu items ……………………… 24
PC input mode menu items ………………………… 24
Auto installation ……………………………………… 25
Programme setup……………………………………… 25

Auto search ……………………………………… 25
Manual setting for each channel ……………… 26

Search tuning………………………………… 26
Fine tuning …………………………………… 26
Colour system ……………………………… 27
Sound system (Broadcasting system) …… 27
Labelling channels ………………………… 27
Skipping channels ………………………… 28
Setting the child lock ……………………… 28

Password setting for child lock (for TV input
mode) See page 60.

Setting the booster ………………………… 28
Sort ………………………………………………… 29
Erase Programme ………………………………… 29

TU-37GAX

Language setting for on-screen display …………… 30
OPC setting …………………………………………… 30
Picture adjustments …………………………………… 31

C.M.S. (Colour Management System) ………… 32
Colour temperature ……………………………… 32
Black ……………………………………………… 32
3D-Y/C …………………………………………… 33
Monochrome ……………………………………… 33
Film mode ………………………………………… 33
I/P setting ………………………………………… 33

Audio adjustment ……………………………………… 34

Dolby Virtual ……………………………………… 34

Power control ………………………………………… 35

Power control for AV source …………………… 35
Power control for PC source …………………… 35

Using memory card ……………………………………… 36

Important notes on using memory cards …………… 36
Card Setup mode menu items ……………………… 38
Recording a still image ……………………………… 39
Displaying a still image ……………………………… 40
Setting Slide Show …………………………………… 40
Displaying slide show ………………………………… 40
My Programme ………………………………………… 41
Audio Select …………………………………………… 41
Protecting/unprotecting still image files …………… 41
Deleting a still image file ……………………………… 42
Deleting all still image files …………………………… 42
Recording a motion picture ………………………… 43
Displaying a motion picture ………………………… 43
Rec. Mode ……………………………………………… 43
Pre-recording ………………………………………… 44
Repeat ………………………………………………… 44
Protecting/unprotecting motion picture files ……… 44
Deleting a motion picture file ………………………… 45
Deleting all motion picture files ……………………… 45
Format ………………………………………………… 45

1

Contents

Using external equipment ……………………………… 46

Displaying an external equipment image ………… 46
Displaying a DVD image (Example) ………………… 46
Connecting an HDTV tuner ………………………… 47
Connecting a VCR …………………………………… 47
Connecting a DVD player …………………………… 48
Connecting a game console or camcorder ………… 48
Connecting a PC ……………………………………… 49
Speaker Setup ………………………………………… 50

Connecting external speakers ………………… 50
Selecting speakers ……………………………… 50

Useful adjustment settings ……………………………… 51

Useful features …………………………………………… 62

Appendix ………………………………………………… 66

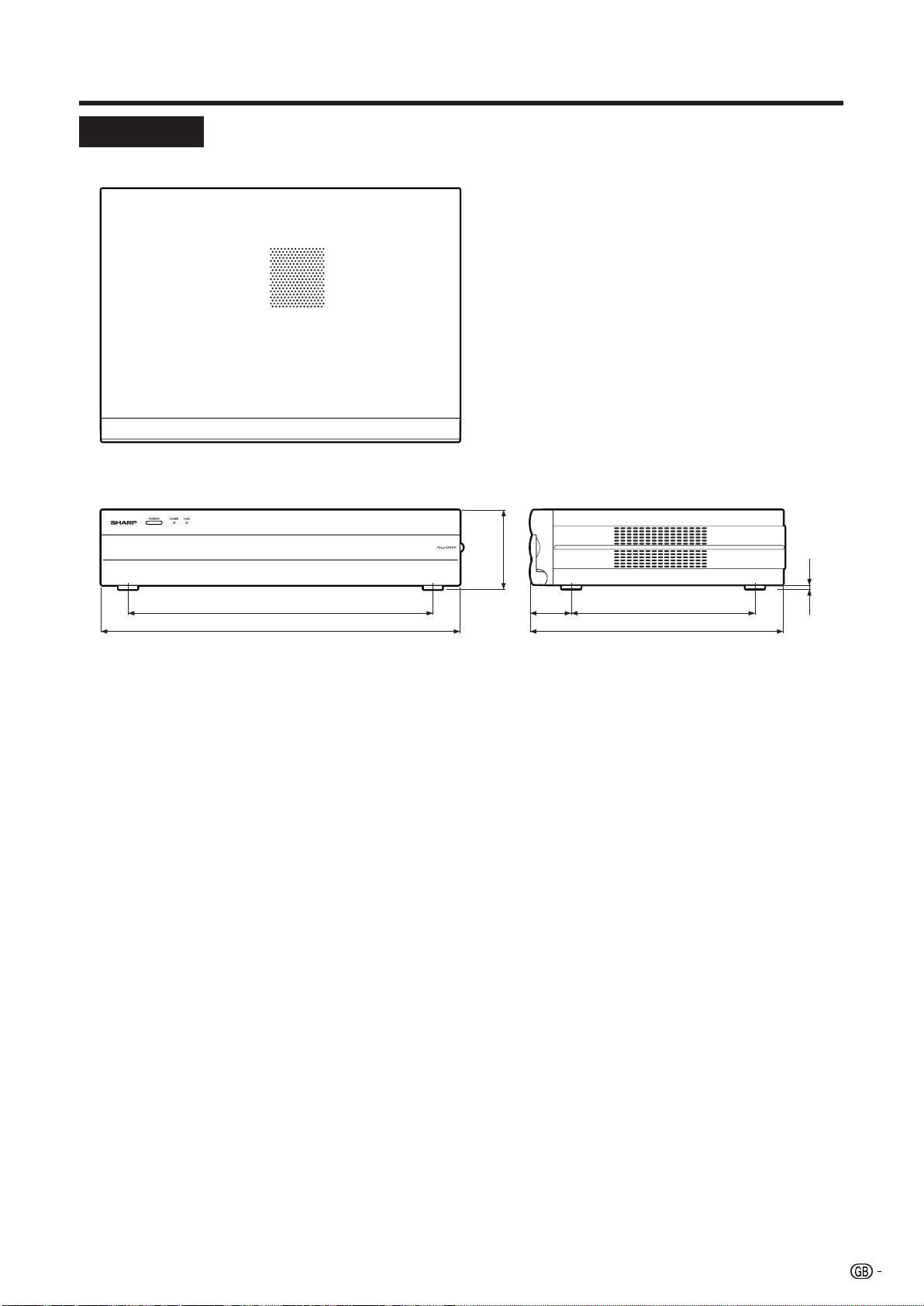

Dimensional drawings …………………………………… 71

External Audio Bypass ………………………… 50

Image position (for TV/AV input mode) ……………… 51
Audio Only ……………………………………………… 51
Auto Sync. adjustment (PC input mode only) ……… 51
Fine Sync. adjustment (PC input mode only) ……… 52
Input Select …………………………………………… 52
Input Label …………………………………………… 53
Colour system setting (for TV/AV input mode) …… 53
AV mode selection …………………………………… 54
Wide screen signalling (WSS)

(for TV/AV input mode) …………………………… 54

Picture aspect ratio (for TV/AV input mode) ……… 54
WIDE mode (for TV/AV input mode) ………………… 55
WIDE mode (for PC input mode) …………………… 56
Input signal (PC input mode only) …………………… 57
DNR (Digital Noise Reduction) ……………………… 57
Quick Shoot …………………………………………… 57
Rotate …………………………………………………… 58
Audio out ……………………………………………… 59
Sleep timer …………………………………………… 59
Password setting for child lock

(for TV input mode) ……………………………… 60

Centre Channel Input ………………………………… 61

Dual screen functions ………………………………… 62
Teletext language setting …………………………… 63
Teletext function ……………………………………… 64

Troubleshooting ……………………………………… 66
PC compatibility chart ………………………………… 67
RS-232C port specifications ………………………… 68
Specifications ………………………………………… 70
Optional accessories ………………………………… 70

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks
of Dolby Laboratories.

Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered
trademarks of BBE Sound, Inc.

2

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble­free operation of your product, please read the Important Safety Precautions carefully before using this product.

Important Safety Precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property
damage if improperly handled. This product has been engineered and manufactured with the highest
priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential
danger, please observe the following instructions when installing, operating and cleaning the product. To
ensure your safety and prolong the service life of your LCD colour TV product, please read the following
precautions carefully before using the product.

1. Read instructions—All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for
future reference.

3. Observe warnings—All warnings on the product and in the instructions must be observed closely.

4. Follow instructions—All operating instructions must be followed.

5. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments
can result in accidents.

6. Power source—This product must operate on a power source specified on the specification label. If you are
not sure of the type of power supply used in your home, consult your dealer or local power company.

7. AC cord protection—The AC cords must be routed properly to prevent people from stepping on them or
objects from resting on them. Check the cords at the plugs and product.

8. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

9. Entering of objects and liquids—Never insert an object into the product through vents or openings. High
voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For
the same reason, do not spill water or liquid on the product.

10. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage
and other dangerous conditions. Request a qualified service person to perform servicing.

11. Repair—If any of the following conditions occurs, unplug the AC cord from the AC outlet, and request a
qualified service person to perform repairs.

a. When the AC cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment
of controls not described in the instructions can cause damage, which often requires extensive adjustment

work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates

that the product needs servicing.

12. Replacement parts—In case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and performance as
the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

13. Safety checks—Upon completion of service or repair work, request the service technician to perform safety
checks to ensure that the product is in proper operating condition.

14. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product
according to the method recommended by the manufacturer.

3

Important Safety Precautions

• Cleaning—Unplug the AC cord
from the AC outlet before cleaning
the product. Use a damp cloth to
clean the product. Do not use
liquid cleaners or aerosol
cleaners.

• Water and moisture—Do not use
the product near water, such as
bathtub, washbasin, kitchen sink,
laundry tub, swimming pool and in
a wet basement.

• Do not place vases or any other
water-filled containers on this
product.
The water may spill onto the
product causing fire or electric
shock.

• Stand—Do not place the product
on an unstable cart, stand, tripod
or table. Doing so can cause the
product to fall, resulting in serious
personal injuries as well as
damage to the product. Use only
a cart, stand, tripod, bracket or
table recommended by the
manufacturer or sold with the
product. When mounting the
product on a wall, be sure to
follow the manufacturer’s
instructions. Use only the
mounting hardware recommended
by the manufacturer.

• When relocating the product
placed on a cart, it must be
moved with utmost care. Sudden
stops, excessive force and
uneven floor surface can cause
the product to fall from the cart.

• Ventilation—The vents and other
openings in the cabinet are
designed for ventilation. Do not
cover or block these vents and
openings since insufficient
ventilation can cause overheating
and/or shorten the life of the
product. Do not place the product
on a bed, sofa, rug or other similar
surface, since they can block
ventilation openings. This product
is not designed for built-in
installation; do not place the
product in an enclosed place
such as a bookcase or rack,
unless proper ventilation is
provided or the manufacturer’s
instructions are followed.

• The LCD panel used in this
product is made of glass.
Therefore, it can break when the
product is dropped or impact
applied. If the LCD panel is
broken be careful not to be injured
by broken glass.

• Heat sources—Keep the product

away from heat sources such as
radiators, heaters, stoves and
other heat-generating products
(including amplifiers).

• To prevent fire, never place any

type of candle or naked flames on
the top or near the TV set.

• To prevent fire or shock hazard,

do not place the AC power cord
under the TV set or other heavy
items.

The LCD panel is a very high technology product
with 3,147,264 thin film transistors, giving you fine
picture details.
Due to the very large number of pixels,
occasionally a few non-active pixels may appear
on the screen as a fixed point of blue, green or
red.
This is within product specifications and does not
constitute a fault.

Precautions when
transporting the Display

When transporting the Display,
never carry it by holding onto the
speakers. Be sure to always
carry the Display by two people
holding it with two hands—one
hand on each side of the display.

4

Supplied accessories

Make sure the following accessories are provided with the product.

AVC System: TU-32GAX/TU-37GAX

Remote control unit (g1)

Page 14

Stand unit (for AVC System) (g1)

“AAA” size battery (g2)

Page 14

AC cord (g1)

Page 9

System cable (g1)

Page 9

Antenna cable (g1)

Page 15

Stand (g1)
Stand cushion (g4)
Stand spacer (g4)
Stand screw (g2)

Page 11

5

Supplied accessories

Make sure the following accessories are provided with the product.

Display: LC-32G2X

AC cord (g1)

• Speakers are attached when shipping LC-32G2X.

Display: LC-37G2X

AC cord (g1) Bracket unit (g1)

Cable clamp (g1)

Page 10Page 9

Cable clamp (g1)

Operation manual

Page 9

Left speaker

Page 7

Operation manual

Speaker unit (g1)

Page 10

Right speaker

Page 7

Page 7

Screwdriver (g1)

Page 7

6

Preparation

Attaching speakers

LC-37G2X

1

Peel off the tape holding the ends of the cables,
and move cables towards behind the display.

2

5

Fasten the speaker cable with the holder.

• Connect the ends of the cables to the speaker
terminals as shown in the illustration.

6

Hook the W hole of the speaker to the screw of the
Display.

3

Turn the speaker to the front of the Display
(direction of the arrow) and fit it to the screw hole.

4

Fix the speaker terminal cover.

7

Align the nub of the bracket into the groove and
fasten it.

8

Fasten the screws.

NOTE

• Perform the same steps for right speaker.

• To remove the speakers, perform the steps in reverse order.

Fasten the bracket with the screw.

7

Preparation

Where to place the System

“System” means the Display and AVC System. First select the location where to place the System.

1

2

Selecting the location of the System

• Select a place with no direct sunlight and good ventilation.

• The Display and the AVC System are connected by the system cable.
(See page 9 for details.)

If you want to keep a longer distance
between the
Display and AVC System, please purchase
the optional system cable AN-07SC2 (about
7 meters). (See page 70.)

System cable

Display

Setting the System in place

Handling the Display

CAUTION

• When using the TV with the supplied stand attached, do not
remove the speaker. Doing so may disturb the balance
leading to product damage or personal injury.

• Do not remove the stand and speaker from the Display unless
using an optional bracket to mount it.

• Keep enough space above and behind the Display.

• The TV weighs about 22 kg (LC-32G2X) and 24 kg (LC-37G2X).
Move it with two or more people.

• When you move the Display, hold the portion of the Display, not
the speaker.

Handling the AVC System

CAUTION

• Do not put a VCR or other device on the AVC System.

• Keep enough space above and on the sides of the AVC System.

• Do not block the ventilation openings on the top and left side, and
the exhaust fan on the right side.

• Do not spread a thick cloth beneath the AVC System, or cover it
with one, as this can cause overheating and result in malfunction.

AVC System

CAUTION

Adjust the screen with both
hands. Put one hand on the
Display and tilt the screen
while steadying the stand
with your other hand.

You can adjust the screen
vertically up to 2 degrees
forward or 6 degrees back­ward, or rotate 10 degrees
horizontally.

10 cm

or more

Keep enough space

5 cm or more

8

5 cm or more
on both sides

There is an exhaust fan
on the right side.

Preparation

Setting the System

After putting the Display and the AVC System in place, connect the system cables and AC cords. Use the
cable clamps for bundling the cables.

1

2

Removing the terminal cover

Display (rear view)

Press the two hooks
toward the centre of the
Display and remove the
cover toward you.

Press down the two
upper hooks to remove
the cover toward you.

Connecting the system cable and the AC cord to the Display

(WHITE)
Connect the plug into the
terminal and secure it by
tightening the thumb screws.

3

(BLACK)

AC cord

System cable

(GREY)
Connect the plug firmly
until the hooks on both
sides click.

Connecting the system cable and the AC cord to the AVC System

* Check the alignment of the

terminals before inserting.

(BLACK)

AVC System (rear view)

System cable

(WHITE)

(GREY)

AC cord

CAUTION

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE

AC CORD CONNECTED.

9

Preparation

4

Attaching the clamp and bundling the cables with the clamp

Cable clamp

Insert the cable
clamp in the hole
on the Display as
shown.

Display (rear view)

10

5

Closing the terminal cover

Cables come
out from the
small opening.

Preparation

Setting the AVC System with the stand

How to install the AVC System vertically using the stand unit.

• Use the supplied stand unit for installing the AVC System vertically in an upright position.

Stick each spacer to the
stand as shown.

1

Peel each spacer away from the paper
and attach to the four bulging areas
on the stand.

Bulge

Stand
spacer

Bulge

Attach the stand using the
stand screws as shown.

4

Stand screw

Attach each cushion to
the stand as shown.

2

Peel each cushion
away from the
paper and attach
to the four areas
at the bottom.

Attaching point

Stand cushion

Attaching point

The AVC System installed
vertically with the stand.

Fit the stand to the AVC
System.

3

Insert the stand into the
AVC System, making
sure that the bulges of
the stand align with the
holes on the AVC
System.

Hole

Bulge

NOTE

• When mounting the AVC System vertically, always use the supplied stand. Be careful not to block vent holes when
standing up directly on the floor or a flat surface as this can result in equipment failure.

Bottom view

The name plate is attached on the bottom
of the AVC System. Confirm it if necessary.

11

Preparation

Removing speakers

LC-32G2X

1

Unfasten the screw used to secure the speaker
bracket.

2

4

Take off the speaker cable cover.

5

Take off the speaker terminal cover. Unfasten the screws.

3

Disconnect the cable from the speaker.

CAUTION

• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.

NOTE

• Perform the same steps for right speaker.

• To attach the speakers, perform the steps in reverse order.

12

Preparation

Removing the stand

Before detaching (or attaching) stand, unplug the AC cord from the AC input and the system cable from the
Display.

CAUTION

• Do not remove the stand from the Display unless using an optional wall mount bracket to mount it.

Before attaching/detaching stand

• Before performing work make sure to turn off the System.

• Before performing work spread cushioning over the base area to lay the Display on. This will prevent it from
being damaged.

1

Unfasten the four screws used to secure the
stand in place.

2

Detach the stand from the Display.
(Hold the stand so it will not drop from the edge of
the base area.)

CAUTION

• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.

NOTE

• To attach the stand, perform the above steps in reverse order.

Setting the Display on the wall

CAUTION

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service
personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper
mounting or mounting that results in accident or injury.

Using an optional bracket to mount the Display

• You can ask a qualified service personnel about using an optional AN-37AG2 bracket to mount the Display
to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-37AG2 wall mount bracket. 32/37 inch dual purpose
brackets. (See the bracket instructions for details.)

Vertical mounting Angular mounting

About setting the Display angle
LC-37G2X

•

You can set the Display on the wall
up to 5 degrees forward when the
speakers are attached and up to 20
degrees forward when the
speakers are not attached. Do not
set the angle outside those ranges.

LC-32G2X

•

You can set the Display on the wall
up to 15 degrees forward when the
speakers are attached and up to 20
degrees forward when the
speakers are not attached. Do not
set the angle outside those ranges.

13

Preparation

Inserting the batteries

Before using the System for the first time, insert two “AAA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover. 2 Insert two supplied “AAA” size

batteries.

• Place batteries with their terminals
corresponding to the (e) and (f)
indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Place the batteries with their terminals corresponding to the (e) and (f) indications.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause
chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you
find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

3 Close the battery cover.

Using the remote control unit

Use the remote control unit by pointing it towards the remote sensor window.
Objects between the remote control unit and sensor window may prevent proper
operation.

Cautions regarding remote control unit

• Do not expose the remote control unit to shock.
In addition, do not expose the remote control unit to liquids, and do not place
in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight.
The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote sensor window of
the Display is under direct sunlight or strong lighting. In such case, change
the angle of the lighting or Display, or operate the remote control unit closer to
the remote sensor window.

14

Preparation

Simple operations for watching a TV programme

Basic connection

Connecting to an antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for coaxial cable.

Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)

Antenna cable

Connecting to the power outlet

Before connecting the AC cords, make sure to connect the system cable first.

Display (rear view)

NOTE

• Always turn off the main power of Display when connecting the AC cords.

• Disconnect the AC cords from the AC outlet, Display and AVC System if the System will not be used for a long period of
time.

AVC System (rear view)

15

Part names

Display

VOLUME buttons

(VOL l/k )

CHANNEL buttons

(CHs/r)

TV/VIDEO

button

POWER button

MAIN POWER
button

16

Remote control sensor

OPC sensor*

POWER indicator

*OPC: Optical Picture Control

(See page 30.)

Part names

AVC System

Front view

POWER button

Headphone
(When connecting headphones, the sound from the speakers is muted.)

POWER indicator

CARD indicator

RESET*

SYSTEM RESET**

INPUT 4 terminal (VIDEO)

INPUT 4 terminal (AUDIO L/R)

INPUT 4 terminal

(S-VIDEO)

How to open the door.

PC CARD slot

* Press RESET if the system cannot return to its original state after performing various operations.

This will reset the System as shown below.

• AV MODE resets to USER.

• TV channel resets to channel 1.

• Dual screen resets to normal.

• Audio setting initialises.

• Dolby Virtual resets to Off.

• Image position is initialised.

• Still image mode deactivates.

• Teletext mode resets to normal.

• Speaker setting resets to SPEAKER-A.

• Audio Out setting resets to Fixed.

• Centre Channel Input setting resets to Off.

• Audio Only setting resets to Off.

** Press SYSTEM RESET if the system does not operate after starting up.

NOTE

• Pressing RESET will not work if the System is in standby mode (indicator lights red).

• Pressing RESET will not delete channel preset and password. See page 60 for resetting the password when you know it.
See page 74 for initialising to the factory preset values when you forget your password.

Rear view

Input 5 terminal
(AUDIO L/R)

ANTENNA INPUT
terminal

AV OUTPUT
terminal
(VIDEO)

INPUT 1
COMPONENT
video terminals
(Y, P

B, PR)

INPUT 1 terminal
(VIDEO)

INPUT 1 terminals (AUDIO L/R)
INPUT 2 terminal (S-VIDEO)
INPUT 2 terminals (AUDIO L/R)

CENTRE
CHANNEL
INPUT
terminal

INPUT 5
terminal
(DVI-I)

COMPONENT video
terminals (Y, P

INPUT 3 terminal (VIDEO)

EXTERNAL
SPEAKER terminals

INPUT 3

RS-232C
terminal

B, PR)

AV OUTPUT terminals
(AUDIO L/R)

DISPLAY OUTPUT 3 terminal

DISPLAY OUTPUT 1 terminal

DISPLAY
OUTPUT 2
terminal
AC INPUT
terminal

DC OUTPUT

terminal

(Terminal for expanded

functionality in the near future.)

INPUT 3 terminals (AUDIO L/R)

INPUT 2 terminal (VIDEO)

17

Part names

Remote control unit

12

15

3
4
5

6

7

8

9

10
11

12
13

14 26

NOTE

• When using the remote control unit, point it at the Display.

16
17
18

19

20
21

22

23

24

25

27

1 POWER (STANDBY/ON)

To switch the power on and off. (See page 19.)

2 OPC

To switch the Optical Picture Control on and off. (See page 30.)

3 P&P

Set the dual picture mode. Press P&P again to return to normal view.
(See page 62.)

SELECT

To select either screen to be active in Dual screen mode.

4 FREEZE

TV/External input mode: Change the still image mode.
TELETEXT mode: Freeze a multi-page on screen while other pages
are automatically updated. Press FREEZE again to return to the
normal image. (See pages 62 and 64.)

5WIDE

TV/External input mode: Change the wide image mode. (See pages
55 and 56.)

TELETEXT mode: Set the area of magnification. (full/upper half/lower
half) (See page 64.)

6 CARD

Switch to the card mode.
Card mode: Press to turn the Card Control Panel on and off. (See
page 38.)

EREC/REC STOP

Still image: Press to capture a still image to a card after freezing the
image from TV or external equipment. (See page 39.)
Motion picture: Press to start/stop recording a motion picture to a card
from TV or external equipment. (See page 43.)

70 – 9

TV/External input mode: Set the channel.
TELETEXT mode: Set the page.

8 A (Flashback)

Press to return to the previous image in normal viewing mode. (See
page 20.)

9 [ (SUBTITLE for TELETEXT)

TV/External input mode: To turn the subtitles on and off. (See page

65.)

10 k (Reveal hidden for TELETEXT)

TELETEXT mode: Display hidden characters. (See page 64.)

11 MPX

Select the sound multiplex mode. (See page 21.)

12 VOLl/VOLk

Set the volume. (See page 22.)

13 e (MUTE)

Mute the sound. (See page 22.)

14 EXIT

Turn off the On Screen Display.

15 SLEEP

Set the Sleep timer. (See page 59.)

16 DISPLAY

Display the programme information.

17 AV MODE

Select a video setting: AV MODE (STANDARD, MOVIE, GAME, USER,
DYNAMIC), PC MODE (STANDARD, USER) (See page 54.)

18 3D–Y/C

To switch the 3D Y/C function on and off. (See page 33.)

19 o (Digit for channel select)

Change the digits of the selected TV channel. (See page 20.)

20 m (TELETEXT)

Select the TELETEXT mode. (all TV image, all TEXT image, TV/TEXT
image) (See pages 64 and 65.)

21 l (TOP Overview for TELETEXT)

TELETEXT mode: Display an index page for CEEFAX/FLOF
information. TOP Overview for TOP programme. (See page 65.)

22 CHr/CHs

TV input mode: Select the channel.
TELETEXT mode: Select the page. (See page 64.)

23 TV/VIDEO (INPUT SOURCE)

Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4,
INPUT 5, CARD) (See pages 46, 52 and 62.)

24 MENU

Display the menu screen.

25 a/b/c/d (Cursor)

Select a desired item on the setting screen.

ENTER

Execute a command.

26 RETURN

MENU mode: Return to the previous menu screen.

27 Colour (RED/GREEN/YELLOW/BLUE)

TELETEXT mode: Select a page. (See page 64.)

18

Watching TV

Display

POWER button

MAIN POWER button

POWER indicator

AVC System

POWER button

POWER indicator

Turning on the power

Make sure that the system cable is connected before turning
on the power.

1

2

Press MAIN POWER on the Display.

• POWER indicator (Green): The System is on. (After a
few seconds, programme information appears with
sound.)

• POWER indicator (Red): The System is in standby. (Go
to step 2.)

Use any of the methods below to power on. Powering
on changes the LED from red to green.

• Press the POWER button on the Display.

• Press POWER on the AVC System.

• Press POWER on the remote control.

POWER indicator

Off

Red

Green

Power off

The System is in standby mode.

The System is on.

Turning off the power

Press POWER on the remote control unit.

• The System enters standby mode and the image on the screen
disappears.

• Both POWER indicators change from green to red.

Press MAIN POWER on the Display.

• The POWER indicator on the Display gradually turns off.

• When the System is turned off by MAIN POWER , you cannot turn
on the power by pressing POWER.

NOTE

• If you are not going to use this System for a long period of time, be sure to
remove the AC cords from the power outlet.

• Weak electric power is still consumed even when both MAIN POWER and

POWER are turned off.

NOTE

• Check if the system cable is connected properly when display indicator flashes red.

19

Watching TV

Simple button operations for
changing channels

You can change channels in several ways.

Using CHr/son the remote control unit

• Press CHr to increase channel number.

• Press CHs

NOTE

• CHs/r on the Display operates the same as CHs/
ron the remote control unit.

to decrease channel number.

CHs/r

Channel display

Channel display changes approximately after 3
seconds as shown below.

SAT.1

12

PAL

B/G

(Example)

SAT.1

12

MONO

Using Flashback (A) on the remote
control unit

Using 0 – 9 on the remote control unit

Select the channels directly by pressing buttons 0 to

9.

a

To select a 1-digit channel (e.g. channel 2):

• Press 2. If “2” is indicated and the picture does not
change, press o to switch over to the 1-digit select
mode and press 2 again.

To select a 2-digit channel (e.g. channel 12):

• Press o to set the 2-digit select mode. Press 1,
followed by 2.

NOTE

• Complete this procedure within 3 seconds, otherwise the
selection will not be made on the 2-digit channel mode.

Press A to switch the currently tuned channel to the
previously tuned channel.
Press A again to switch back to the currently tuned
channel.

Press A to toggle between the currently selected input
source and the previously selected one.

Press A to return to the previous page in TELETEXT
mode.

When viewing Teletext information

View a page directly which is 3-digit page number from
100 to 899 by pressing buttons 0 to 9.

20

Watching TV

Using MPX on the remote control unit

In the NICAM TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between
NICAM STEREO and MONO.

Stereo mode

BBC2

99

NICAM

STEREO

BBC2

99

MONO

When receiving a bilingual signal

Each time you press MPX, the mode switches among
NICAM CH A, NICAM CH B, NICAM CH AB and
MONO.

Bilingual mode

BBC2

99

NICAM

CH A

BBC2

99

NICAM

CH B

BBC2

99

NICAM

CH AB

BBC2

99

In the TV mode of A2 TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between
STEREO and MONO.

Stereo mode

BBC2

99

STEREO

BBC2

99

MONO

When receiving a bilingual signal

Each time you press MPX, the mode switches among
CH A, CH B and CH AB.

Bilingual mode

BBC2

99

CH A

BBC2

99

CH B

BBC2

99

CH AB

When receiving a monaural signal
When you press MPX, “MONO” displays.

Monaural mode

BBC2

99

MONO

NOTE

• When no signal is input, the sound mode will display
“MONO”.

• “BBC2” and “99” are tentative network name and channel.

MONO

When receiving a monaural signal

Each time you press MPX, the mode switches between
NICAM MONO and MONO.

Monaural mode

BBC2

99

NICAM

MONO

BBC2

99

MONO

21

Watching TV

Simple button operation for changing
volume/sound

Changing the volume

You can change the volume on the Display or on the
remote control unit.

ll

l/

ll

kk

k

kk

kk

k.

kk

ll

l.

ll

VOL

• To increase the volume, press VOL

• To decrease the volume, press VOL

Using e on the remote control unit

e mutes the current sound output.

1

Press e.

•“e” has been displayed on the screen for 30

minutes, and the sound is silenced.

Mute

20

NOTE

• “TV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4”, “INPUT5”
and “CARD” modes can each store volume adjustment
values separately.

When “Audio Out” is set to “Variable”, the indicator on
the screen changes as shown below.

20

Audio status

Output device

Speaker

AV OUTPUT

Variable sound

Constant as

specified

Audio out

VariableFixed

Mute

Variable sound

NOTE

• Within 30 minutes of pressing e, mute can be cancelled

by using the methods below.

• Pressing VOL

• Mute will be cancelled after 30 minutes have elapsed.

However, the System will not suddenly output a loud
sound as the volume level is set to 0 automatically.

2

ff

ee

f/VOL

e or e can also cancel the mute.

ff

ee

Within 30 minutes, Press e again to cancel
the mute.

• Before 30 minutes, the volume level returns to
the previous setting.

• After 30 minutes, increase the volume level by
pressing

VOLe.

NOTE

• See page 59 for details on the audio out function.

22

Basic adjustment settings

Menu operation buttons

Use the following buttons on the remote control to
operate the menu.

On-Screen Display

Example

...

[

MENU

Audio Only

DNR

Input Select

Audio Out

Quick Shoot

Colour System

Centre Channel Input

Option

Option

Quick Shoot

1 Item displayed in yellow

• This indicates the item currently selected.

• Press ENTER to go to the adjustment screen
for this item.

2 Item in brackets

• This indicates the current setting for the item.

3 Item displayed in white

• This indicates an item can be selected.

[Off]

[VIDEO]

[On]

[AUTO]

[On]

]

1

2

3

4

MENU: Press to open or close the menu

screen.

a/b/c/d: Press to select a desired item on the

screen or adjust a selected item.

ENTER: Press to go to the next step or

complete the setting.

RETURN: Press to return to the previous step.

CARD: Press to open or close the Card mode

screen.

4 Item displayed in grey

• This indicates the item cannot be selected.
*There are various reasons why items cannot

be selected, but the main reasons are as
follows:

1. Nothing is connected to the selected
input terminal.

2. The function is not compatible with the
current input signal.

NOTE

• Menu options differ in the selected input modes, but the
operating procedures are the same.

• The screens in the operation manual are for explanation
purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.

23

Basic adjustment settings

TV/AV input mode menu items

List of TV/AV menu items to help you with operations


OPC ................................................ Page 30

Backlight ........................................ Page 31

Contrast ......................................... Page 31

Brightness ..................................... Page 31

Colour ............................................ Page 31

Tint ................................................. Page 31

Sharpness ...................................... Page 31

Advanced

C.M.S. ................................... Page 32

Colour Temp ........................ Page 32

Black .................................... Page 32

3D-Y/C .................................. Page 33

Monochrome ....................... Page 33

Film Mode ............................ Page 33

I/P Setting ............................ Page 33

Audio

PC input mode menu items

List of PC menu items to help you with operations


OPC ................................................ Page 30

Backlight ........................................ Page 31

Contrast ......................................... Page 31

Brightness ..................................... Page 31

Red ................................................. Page 31

Green .............................................. Page 31

Blue ................................................ Page 31

Advanced

C.M.S. ................................... Page 32

Audio

Treble .............................................. Page 34

Bass ............................................... Page 34

Balance .......................................... Page 34

Dolby Virtual .................................. Page 34

Power Control

No Signal Off ................................. Page 35

No Operation Off ........................... Page 35

Setup

Auto Installation ............................ Page 25

Programme Setup .................. Pages 25-29

Child Lock ...................................... Page 60

Input Label ..................................... Page 53

Speaker Setup ............................... Page 50

Position .......................................... Page 51

WSS ................................................ Page 54

4:3 Mode ........................................ Page 54

Rotate ............................................. Page 58

Language ....................................... Page 30

Text language ................................ Page 63

Treble .............................................. Page 34

Bass ............................................... Page 34

Balance .......................................... Page 34

Dolby Virtual .................................. Page 34

Power Control

Power Management ...................... Page 35

Setup

Input Label ..................................... Page 53

Speaker Setup ............................... Page 50

Input Signal ................................... Page 57

Auto Sync. ..................................... Page 51

Fine Sync. ...................................... Page 52

Rotate ............................................. Page 58

Language ....................................... Page 30

24

Option

Audio Only ..................................... Page 51

DNR ................................................ Page 57

Input Select.................................... Page 52

Audio Out ....................................... Page 59

Quick Shoot ................................... Page 57

Colour System............................... Page 53

Centre Channel Input ................... Page 61

Option

Audio Only ..................................... Page 51

Input Select.................................... Page 52

Audio Out ....................................... Page 59

Quick Shoot ................................... Page 57

Centre Channel Input ................... Page 61

Basic adjustment settings

Auto installation

You can run auto installation again, even after setting
up the preset channels.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Auto Installation”, and
then press ENTER.

...

[

Setup

MENU

Setup Option

Auto Installation

Programme Setup

Child Lock

Speaker Setup

Position

WSS

4:3 Mode

Rotate

Language

Auto Installation

[Panorama]

[Normal]

[English]

[West Europe]Text Language

]

[On]

If you already set the password, enter it here.

• See page 60 for setting password.

––––

Programme setup

You can run the auto installation procedure again at
any time, by accessing the Setup menu, then
Programme Setup. Channels can be tuned
automatically or manually.

Auto search

You can also automatically search and download TV
channels by performing the procedure below. This is
the same function as programme auto search in auto
installation.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”,
and then press ENTER.
If you already set the password, enter it here.

• See page 60 for setting password.

...

[

Setup

MENU

Setup Option

Auto Installation

Programme Setup

Child Lock

Speaker Setup

Position

WSS

4:3 Mode

Rotate

Language

Programme Setup

[Panorama]

[Normal]

[English]

[West Europe]Text Language

]

[On]

Press a/b to select “Auto Search”, and then
press ENTER.

5

Press c/d to select “Yes”, and then press

ENTER.

6

Press a/b to select the desired language
listed on the screen, and then press ENTER.
After this setting, auto search starts with the
following order.

1 Programme auto search
2 Auto labelling
3 Auto sorting

You do not need to do anything during the
auto search.

NOTE

• Do not turn off the System while the message “Auto
Installation completed” is displayed, for the System is
saving the data found while the message is displayed.

5

Press c/d to select “Yes”, and then press
ENTER.

• Auto search starts with the following order.

1 Programme auto search
2 Auto labelling
3 Auto sorting

NOTE

• Do not turn off the System while the message “Programme
set-up completed” is displayed, for the System is saving
the data found while the message is displayed.

25

Basic adjustment settings

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

[179.25]

Search

[AUTO]

[B/G]

[Off]

[SAT.1]

[Off]

Booster [Off]

179.25 MHz

MENU

[

Setup

...

Programme Setup

...

Manual Adjust

]

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

[179.25]

Search

[AUTO]

[B/G]

[Off]

[SAT.1]

[Off]

Booster [Off]

179.25 MHz

NEXT

STORE

CANCEL

Manual setting for each channel

You can set some channel items manually. They are
Search, Fine (TV frequency), Colour sys., Sound sys.,
Label (Network name), Skip, Lock (Child Lock) and
Booster.

1

2

3

4

5

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”,
and then press ENTER.
If you already set the password, enter it here.

• See page 60 for setting password.

Press a/b to select “Manual Adjust”, and
then press ENTER.

Press c/d to select “Yes”, and then press
ENTER.

Programme Setup “Manual Adjust” menu

Manual setting for each channel (continued)

Search tuning

1

2

3

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Search”, and then
press ENTER.

Press a/b to select item and press ENTER.

• NEXT: Search the next channel.

• STORE: Memorise the current display channel.

• CANCEL: Returns to the previous screen. (The
search result is not stored.)

01 SAT.1 02 PR07 03 KABEL

Next

You can select one of the following settings.

1 Search (See page 26.)
2 Fine (See page 26.)
3 Colour system (See page 27.)
4 Sound system (See page 27.)
5 Label (See page 27.)
6 Skip (See page 28.)
7 Lock (See page 28.)
8 Booster (See page 28.)

Fine tuning

1

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

• The selected channel information displays.

2

Press a/b to select “Fine”, and then press

ENTER.

3

Press c/d to adjust the frequency, and then
press ENTER.

• Adjust while checking the background picture

• Instead of the above, you can also set by

a

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s ENTER.

as a reference.

directly entering the frequency number of the
channel with 0 – 9.

26

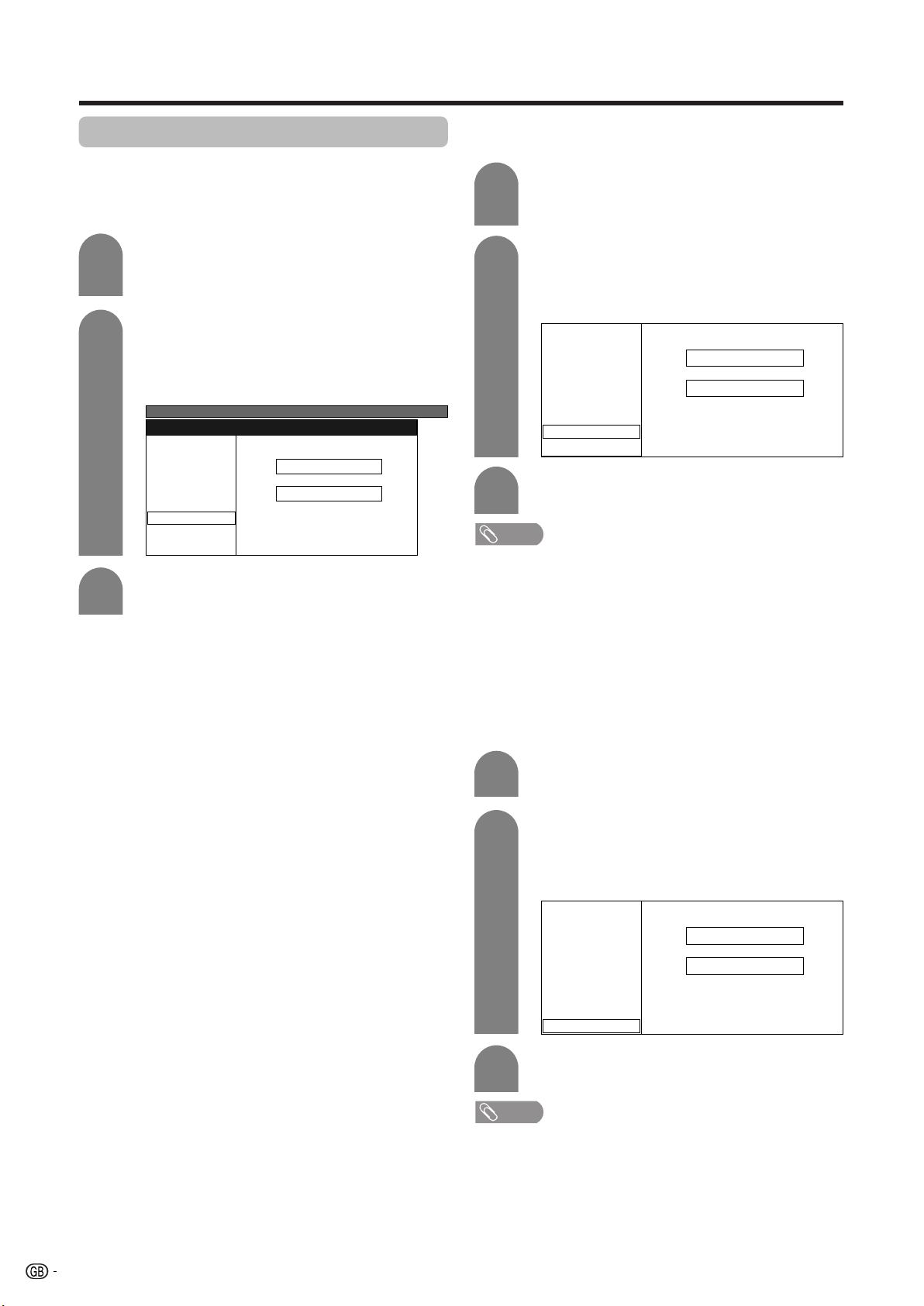

Basic adjustment settings

Manual setting for each channel (continued)

Colour system

1

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

• The selected channel information displays.

2

Press a/b to select “Colour sys.”, and then
press ENTER.

• Receivable colour systems are listed.

Colour system menu

...

[

Setup

Programme Setup

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

[Off]

3

MENU

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Booster [Off]

Press a/b to select the optimum colour
system, and then press ENTER.

Sound system (Broadcasting system)

1

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

• The selected channel information displays.

...

Manual Adjust

]

AUTO

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

Labelling channels

When a TV channel sends its Network Name, the auto
installation detects the information and assigns a name
to it. However, you can change individual channel
names.

1

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

• The selected channel information displays.

2

Press a/b to select “Label”, and then press
ENTER.

• Alphabets and numbers are listed.

Labelling menu

Search

3

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Booster [Off]

Press a/b/c/d to select each character

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

[Off]

A

B

C

D

E

F

G

H

I

K

L

M

N

O

P

Q

R

S

U

V

W

X

Y

Z

+

– _

.

0123456789

J

T

CLEAR

BACK

END

of the new name for the channel, and then
press ENTER.

4

Repeat the above until the name is fully spelt
out.

• The name can be 5 characters or less.

2

Press a/b to select “Sound sys.”, and then
press ENTER.

• Receivable sound systems (Broadcasting
systems) are listed.

Sound system menu

Search

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

[Off]

B/G

D/K

I

M

3

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Booster [Off]

Press a/b to select the optimum sound
system, and then press ENTER.

NOTE

• Check the colour system (see above) if the sound output
is not right.

27

Basic adjustment settings

Manual setting for each channel (continued)

Skipping channels

Channels with “Skip” set to “On” are passed over when
using CHr/s even if selected while watching the
image from the TV.

1

2

3

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Skip”, and then press
ENTER.

• Skip menu displays.

Skip menu

...

[

Setup

MENU

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Booster [Off]

Programme Setup

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

[Off]

...

Manual Adjust

]

Off

On

Press a/b to set “Skip” to “On”, and then
press ENTER.

Setting the child lock

You can block the viewing of any channel.

1

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

• The selected channel information displays.

2

Press a/b to select “Lock”, and then press
ENTER.

• Child lock menu displays.

Lock menu

Search

3

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Booster [Off]

Press a/b to set “Lock” to “On”, and then
press ENTER.

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

[Off]

Off

On

NOTE

• See page 60 for setting password.

• When “Lock” is set to “On” for a channel, “Child lock has
been activated.” displays , and the image and sound of
the channel is blocked.

• When pressing ENTER while “Child lock has been
activated.” displays, password input menu will display.
Inputting the correct password lifts the child lock
temporarily until the power is turned off.

Setting the booster

Picture quality may improve in regions with weak signal
strength using this function.

1

Press a/b/c/d to select the channel you
want to edit, and then press ENTER.

2

Press a/b to select “Booster”, and then
press ENTER.

• Booster menu displays.

Booster Menu

Search

3

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Booster [Off]

Press a/b to set “Booster” to “On”, and then

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

[Off]

Off

On

press ENTER.

NOTE

• If signal strength is strong enough for the selected
channel, the effect is negligible and may produce
instability. In such case, select “Off”.

28

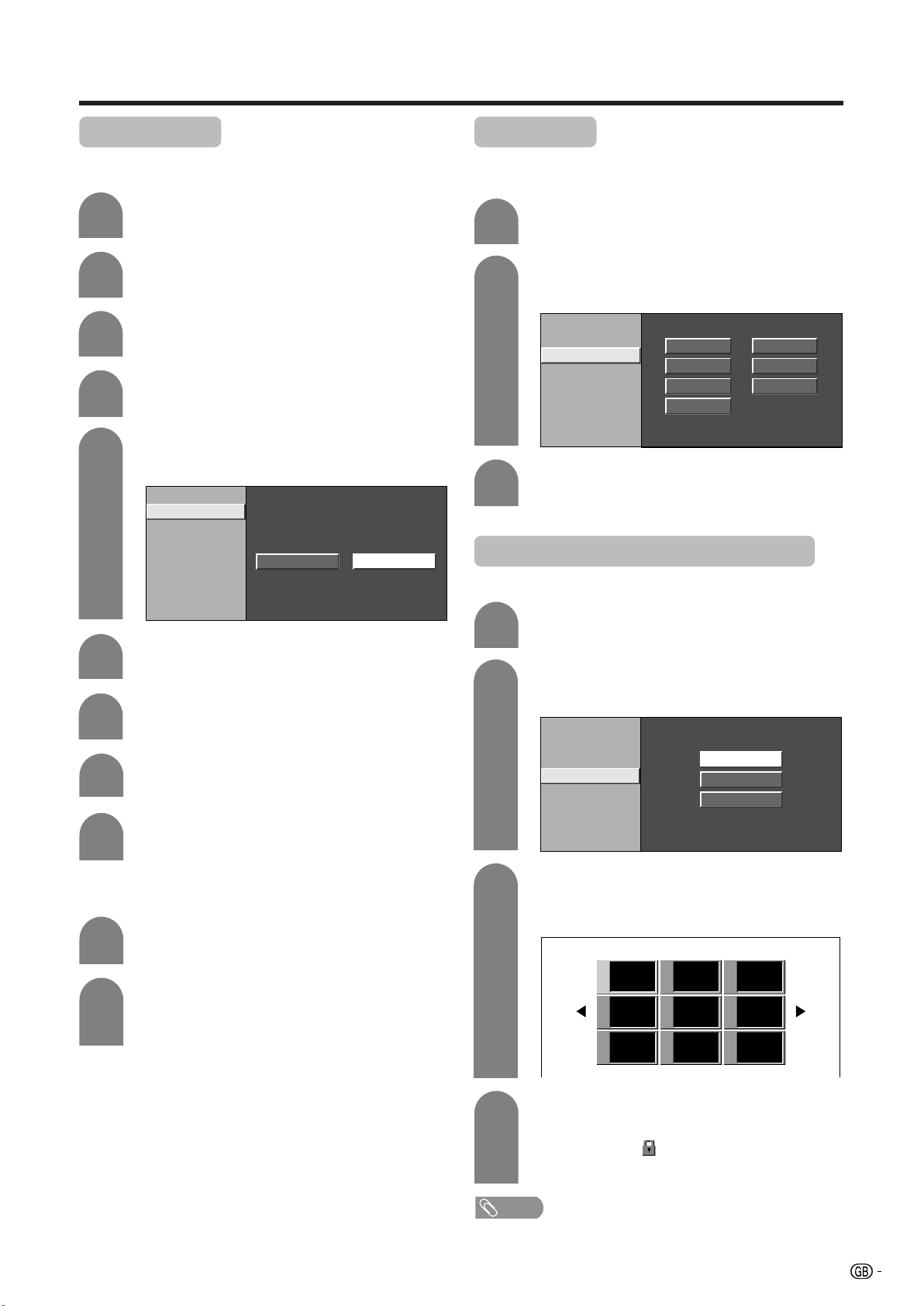

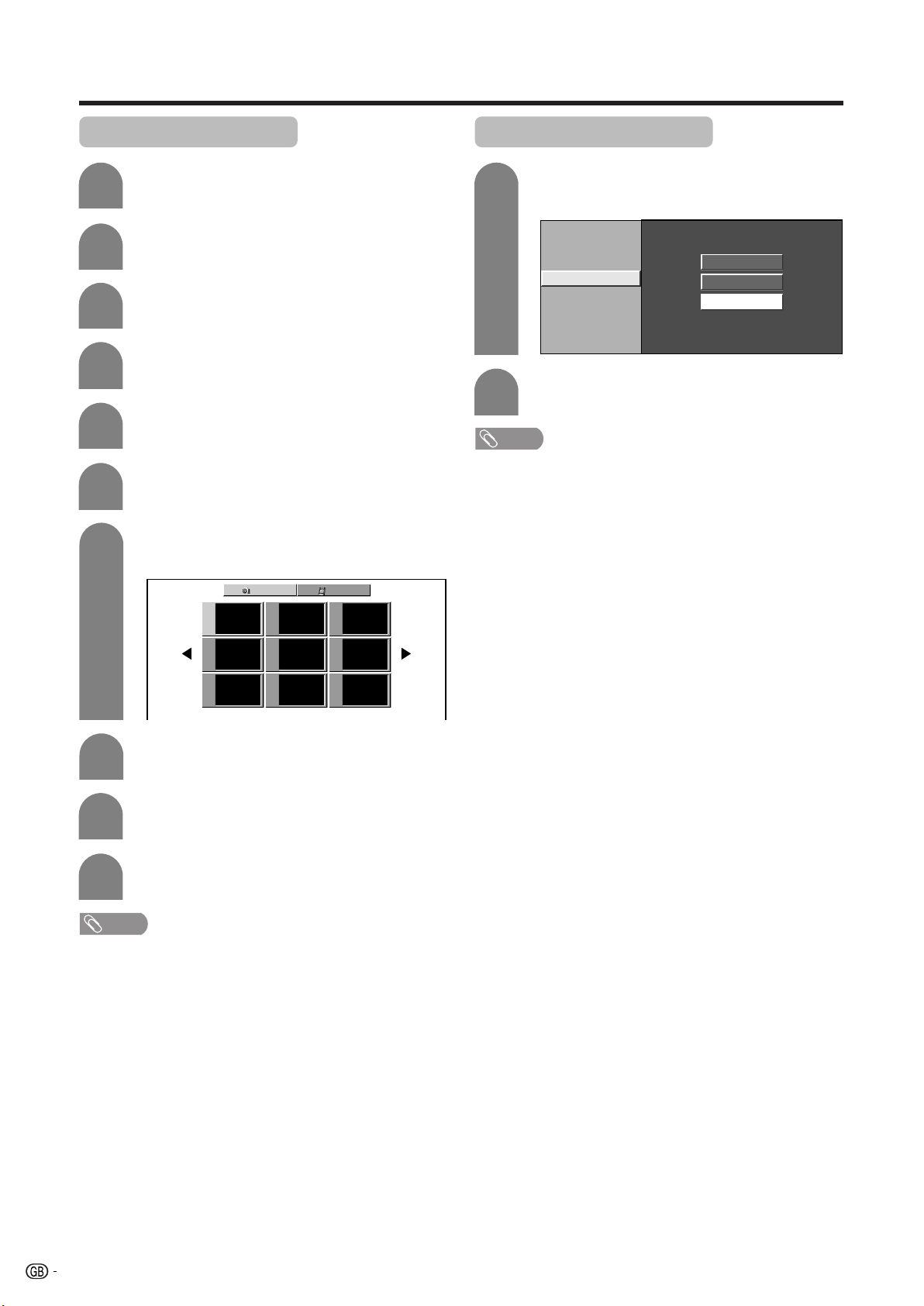

Basic adjustment settings

Sort

Channel positions can be sorted freely.

1

2

3

4

5

6

7

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”,
and then press ENTER.
If you already set the password, enter it here.

• See page 60 for setting password.

Press a/b to select “Sort”, and then press
ENTER.

Press c/d to select “Yes”, and then press
ENTER.

Press a/b/c/d to select the channel you
want to move, and then press ENTER.

Move it to the desired position by pressing

a/b/c/d, and then press ENTER.

Erase Programme

The individual programme can be erased.

1

2

3

4

5

6

Repeat steps 1 to 3 in Sort.

Press a/b to select “Erase Programme”,
and then press ENTER.

Press c/d to select “Yes”, and then press
ENTER.

Press a/b/c/d to select the channel you
want to erase, and then press ENTER.

• A message screen pops up.

Press c/d to select “Yes”, and then
press ENTER to erase the selected
programme. All the subsequent
programmes move up.

Repeat the step 5 until all desired channels
are erased.

Erase programme menus

8

Repeat the steps 6 and 7 until all desired
channels are sorted.

Sort menus

01 SAT.1

0106SAT.1 KABEL

02 03 04 05

Next

01 SAT.1 02 KABEL

01 SAT.1 KABEL02

Next

01 KABEL

01 KABEL SAT.102

01 SAT.1

SAT.1

01

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

01 SAT.1 03 KABELPro702

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

01 SAT.1 02 KABEL

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

Pro702 KABEL03 04 05

Next

02 Pro7

04 05

Next

02 KABEL

03 04 05

Next

Next

29

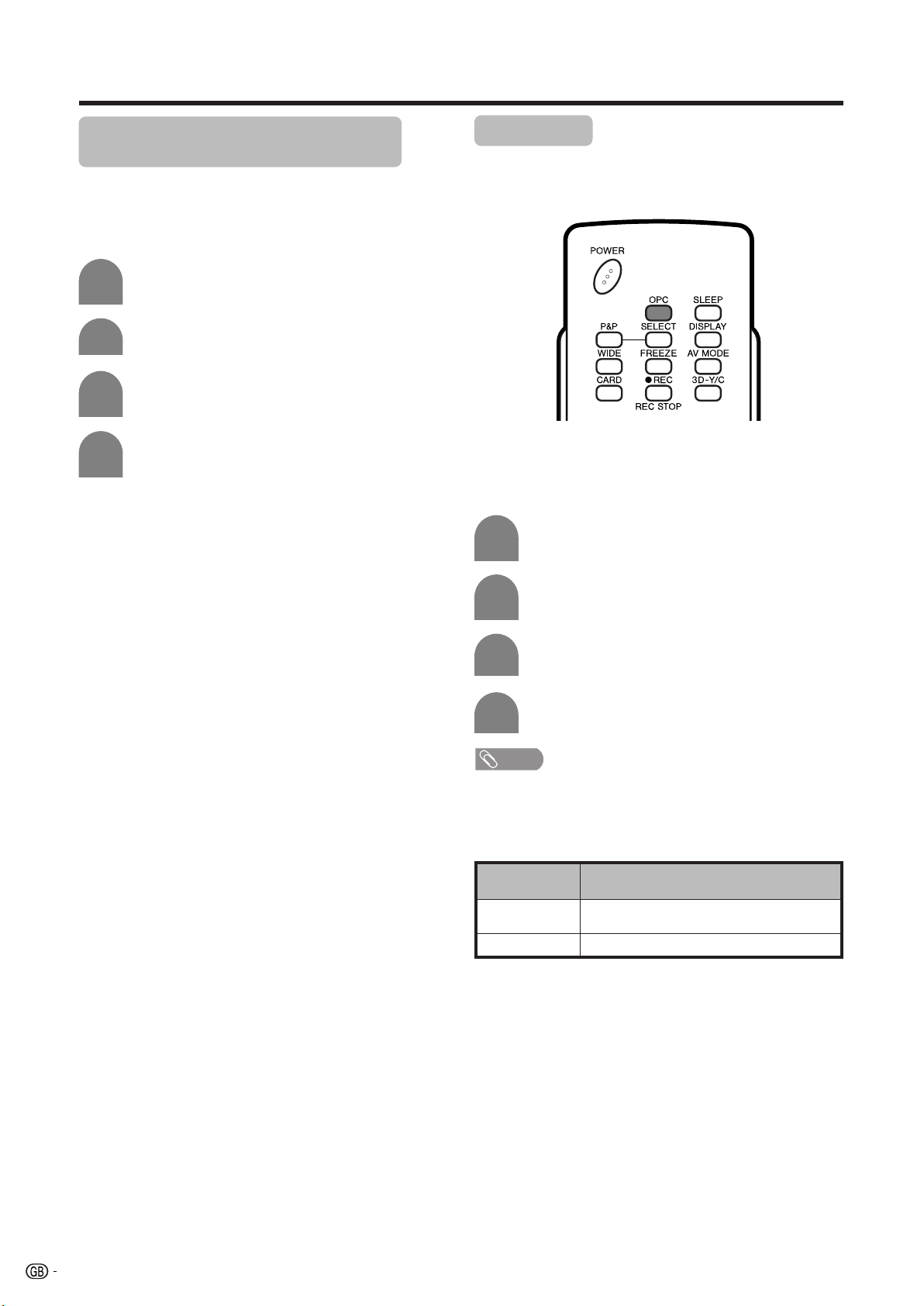

Basic adjustment settings

Language setting for on-screen
display

You can also select a language from setup menu.
Select from among 3 languages: English, Chinese and
Arabic.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Language”, and then
press ENTER.

Press a/b to select the desired language
listed on the screen, and then press ENTER.

OPC setting

Automatically adjusts the brightness of the screen.

Using OPC on the remote control unit

Press OPC to switch the Optical Picture Control on
and off.

Using OPC on the menu screen

1

Press MENU and the MENU screen displays.

2

3

4

• When set to “On”, the System senses the surrounding light
and automatically adjusts the backlight brightness. Make
sure no object obstructs the OPC sensor, which could
affect its ability to sense surrounding light.

Selected item

Off

On

Press c/d to select “Picture”.

Press a/b to select “OPC”.

Press c/d to select “On”.

NOTE

Description

The brightness is fixed at the value set in
“Backlight” (see page 31).

Automatically adjusts

30

Basic adjustment settings

Picture adjustments

Adjust the picture to your preference with the following
picture settings.

[

]

MENU


Picture Audio

1

2

3

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select a specific adjustment
item.

4

Press c/d to adjust the item to your desired
position.

NOTE

• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press

ENTER.

Adjustments items for PC sourceAdjustments items for AV source

[

]

MENU


Picture Audio

USER [TV]

OPC

Backlight [+8] –8

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

Selected item

Backlight

Contrast

Brightness

Colour

[+30]

0

[0]

–30

[0]

–30

[0]

–30

[0]

–10

cbutton

The screen dims

For less contrast

For less brightness

For less colour
intensity

Off On

+8

+40

+30

+30

+30

+10

dbutton

The screen brightens

For more contrast

For more brightness

For more colour
intensity

USER [PC]

OPC

Backlight [+8] –8

Contrast

Brightness

Red

Green

Blue

Advanced

Reset

Selected item

Backlight

Contrast

Brightness

Red

[+30]

[0]0–30

[0]

–30

[0]

–30

[0]

–30

cbutton

The screen dims

For less contrast

For less brightness

For weaker red

Off On

+8

+40

+30

+30

+30

+30

dbutton

The screen brightens

For more contrast

For more brightness

For stronger red

Tint

Sharpness

Skin tones become
purplish

For less sharpness

Skin tones become
greenish

For more sharpness

NOTE

• Select “Advanced” and then press ENTER to set “C.M.S­Hue”, “C.M.S-Saturation”, “C.M.S-Value”, “Colour Temp”,
“Black”, “3D-Y/C”, “Monochrome”, “Film Mode” or “I/P
Setting”. See pages 32 and 33.

Green

Blue

For weaker green

For weaker blue

For stronger green

For stronger blue

NOTE

• Select “Advanced” and then press ENTER to set “C.M.S­Hue”, “C.M.S-Saturation” and “C.M.S-Value”.

31

Basic adjustment settings

C.M.S. (Colour Management System)

Colour tone is managed using the six-colour
adjustment setting.

1

2

3

4

5

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then
press ENTER.

Press a/b to select “C.M.S.-Hue”, and then
press ENTER.

Press a/b to select a specific adjustment
item.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Changing reds

closer to

magenta or yellow.

Reset

R

Y

G

C

B

M

–30

[ 0]

[ 0]

–30

[ 0]

–30

[ 0]

–30

[ 0] –30

[ 0] –30

+30

+30

+30

+30

+30

+30

Colour temperature

Adjusts the colour temperature to give the best white
image.

1

Repeat steps 1 to 3 in C.M.S. (Colour
Management System).

2

Press a/b to select “Colour Temp”, and then
press ENTER.

3

Press a/b to select the desired level, and
then press ENTER.

Selected item

High
Mid-High
Mid
Mid-Low
Low

Description

White with bluish tone

White with reddish tone

Black

For easier viewing, change the viewing depth by
selecting a level for automatically adjusting the dark
portion of an image.

1

Repeat steps 1 to 3 in C.M.S. (Colour
Management System).

• You can select “C.M.S-Saturation” or “C.M.S­Value” here instead of selecting “C.M.S-Hue”.

6

Press c/d to adjust the item to your desired
position.

NOTE

• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press

ENTER.

Selected item

C.M.S-Hue

C.M.S­Saturation

C.M.S-Value

This is a standard to adjust the colour
either more reddish or more bluish in tone.

Increases or decreases the saturation of a
selected colour

A higher value makes the image brighter.
A lower value makes the image darker.

Description

2

Press a/b to select “Black”, and then press

ENTER.

3

Press c/d to select “On”, and then press
ENTER.

C. M. S. – Hue

C. M. S. – Saturation

C. M. S. – Value

Colour Temp

Black

3D - Y/C

Monochrome

Film Mode

I/P Setting

Selected item

Off
On

On Off

Description

No adjustment

For high detail in black portions

32

Basic adjustment settings

3D-Y/C

Provides high quality images with minimal dot crawl
and cross colour noise.

1

2

3

4

5

Selected item

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then
press ENTER.

Press a/b to select “3D-Y/C”, and then
press ENTER.

C. M. S. – Hue

C. M. S. – Saturation

C. M. S. – Value

Colour Temp

Black

3D Y/C

Monochrome

Film Mode

I/P Setting

Standard

Fast

Slow

Press a/b to select the desired level, and
then press ENTER.

Description

Monochrome

For viewing a video in monochrome.

1

2

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “Monochrome”, and
then press ENTER.

3

Press c/d to select “On”, and then press

ENTER.

Film mode

Automatically detects a film-based source (originally
encoded at 24/25 frames/second, depending on the
vertical frequency), analyses it then recreates each
still film frame for high-definition picture quality.

1

2

3

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “Film Mode”, and then
press ENTER.

• Some items may be greyed out. They are not
selectable.

Press c/d to select “On”, and then press

ENTER.

Standard
Fast
Slow

NOTE

• “3D-Y/C” is not selectable depending on the input signal
type.

Normal adjustment

For movie image

For still image

Activating 3D-Y/C on the remote control unit

Press 3D-Y/C to switch the 3D-Y/C function on and
off.

NOTE

• “3D-Y/C” is set to “On” when the System is turned back
on.

• 3D-Y/C may not operate depending on the input signal
type.

I/P setting

Adjusting the image and input signal can give you a
more beautiful picture.

1

2

3

• The I/P Setting is set to Progressive when Film Mode is “On”.

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “I/P Setting”, and then
press ENTER.

• Some items may be greyed out. They are not
selectable.

Press c/d to select “Interlace” or
“Progressive”, and then press ENTER.

NOTE

33

Basic adjustment settings

Audio adjustment

You can adjust the sound quality to your preference
with the following settings.

1

2

3

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

[

]

MENU

Audio

Audio Power Control

USER [TV]

Treble

Bass

Balance

Dolby Virtual

Reset

[0] –15

[0]

–15

[0]

L

Press a/b to select a specific adjustment
item.

+15

+15

R

[Off]

Dolby Virtual

You can also produce Dolby Virtual effects from the
“Audio” setting.

1

2

3

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

Press a/b to select “Dolby Virtual”, and
then press ENTER.

...

[

Audio

MENU

Audio Power Control

Dolby Virtual

]

USER [TV]

Treble

Bass

Balance

Dolby Virtual

Reset

[0] –15

[0]

–15

[0]

L

+15

+15

R

[Off]

4

Press c/d to adjust the item to your desired
position.

Selected item

Treble

Bass

Balance

NOTE

• For resetting all adjustment items to factory preset values,
press a/b to select “Reset”, press ENTER, press c/d
to select “Yes”, and then press ENTER.

• Audio menu items are greyed out when Audio output is
variable or when headphones are in use.

• Balance is greyed out when Dolby Virtual is set to “On”.

cbutton

For weaker treble

For weaker bass

Decrease audio from
the right speaker

dbutton

For stronger treble

For stronger bass

Decrease audio from
the left speaker

4

Press c/d to select “On”, and then press

ENTER.

NOTE

• Audio menu items are greyed out when Audio output is
variable or when headphones are in use.

• External Audio Bypass is greyed out when Dolby Virtual
is set to “On”.

• Balance is greyed out when Dolby Virtual is set to “On”.

• For some discs, setup may be required on your DVD. In
this case, please refer to the operation manual of your
DVD player.

• You may not get the Dolby Virtual Surround effect if you
adjust “Treble” or “Bass” setting.

34

Basic adjustment settings

Power control

Power control setting allows you to save energy.

Power control for AV source

No Signal off

When set to “Enable”, the power will automatically shut
down if no signal inputs for 15 minutes.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Power control”.

• Power control menu displays.

Press a/b to select “No Signal Off”, and
then press ENTER.

Press c/d to select “Enable”, and then
press ENTER

• Five minutes before the power shuts down,
remaining time displays every minute.

Power control for PC source

Power control setting allows you to save energy.

Power management

When set, the power will automatically shut down.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Power control”.

• Power control menu displays.

Press a/b to select “Power Management”,
and then press ENTER.

Press a/b to select “Mode1” or “Mode2”,
and then press ENTER.

Off

Mode1

Mode2

NOTE

• “Disable” is factory preset value.

• When a TV programme finishes, and the AVC System
receives signal input, this function may not operate.

No Operation off

When set to “Enable”, the power will automatically shut
down if there is no operation for 3 hours.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Power control”.

• Power control menu displays.

Press a/b to select “No Operation Off”, and
then press ENTER.

Press c/d to select “Enable”, and then
press ENTER.

• Five minutes before the power shuts down,
remaining time displays every minute.

Selected item

Off

Mode1

Mode2

Description

• No power management

• Factory preset value.

• If no signal inputs for 8 minutes, the power
shuts down.

• Even if you start using the PC and the signal
inputs again, the System stays off.

• The System turns on again by pressing
POWER. (See page 19.)

• If no signal inputs for 8 seconds, the power
shuts down.

• When you start using the PC and the signal
inputs again, the System turns on.

• The System turns on again by pressing

POWER. (See page 19.)

NOTE

• “Disable” is factory preset value.

35

Using memory card

Important notes on using memory cards

• Sharp cannot be held responsible for misuse of the LCD TV set, any troubles during use, or other problems, or any
damages arising out of the use of the LCD TV set, except for those cases for which Sharp is liable by law.

• If you or other people misuse the LCD TV set, or the LCD TV set is affected by static electricity or electrical noise, the
recorded data may be in danger of being changed or lost.

• If you are making an important recording, run a test in advance to ensure that the recording would be performed correctly
in terms of picture or sound quality.

• Sharp cannot be held responsible nor make any compensations even if pictures or sound cannot be recorded correctly
because of any troubles when using the LCD TV set.

Copyright

Note:
Copyright may exist in material you wish to record.
Copying such material without permission of the relevant licensees or owners of the copyright is prohibited by
law.
Sharp is not in a position to authorize the recording of copyright works and nothing in this operation manual
should be read or implied as giving that authority.

Duplicating images and music by copying and/or editing from videocassettes and/or TV programmes that are
subject to copyrights is only permitted when the edited or copied versions are used for personal pleasure. With
the exception of cases when the user personally is the owner of the copyrights of the object in question or when
specific and written permission has been obtained from the owner(s) of the object in question, the user is not
permitted to make copies and/or duplications and/or edited versions as this constitutes a violation of the copy­right laws, possible exposing the user to demands for compensation for damages. Therefore, be sure to strictly
observe the existing copyright laws.
In addition when using image data that includes third parties, since the use of such images without prior permis­sion may constitute an intrusion on the privacy of third parties, be sure to refrain from such usage.

The recording formats

Still picture

Motion picture

* Motion picture files and still image files recorded, stored or edited with other devices may not play back correctly.

Recording/Playback file format

Size of a captured still picture

Recording file format

Size of a recorded motion
picture/number of frames

Playback file format

JPEG (DCF compliant)
640g480 dots

SP/LP... ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant)

EP........ ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

SP ... Size: 320g240 dots, Frame: approx. 25 frames/sec (50 Hz)
LP ... Size: 320g240 dots, Frame: approx. 25 frames/sec (50 Hz)
EP ... Size: 320g240 dots, Frame: approx. 12.5 frames/sec (50 Hz)

ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant)
ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

Approximate number of recordable pictures/time

Still pictures

Picture size

Recordable Pictures

* Recordable numbers may vary depending on the receiving condition of the LCD TV set and/or content of images.

640g480

Approx. 300 pictures

32MB

Memory card

128MB

Approx. 1000 pictures

Motion pictures

Memory card capacity

256MB

Approx. 1h

5GB

Approx. 4h

Approx. 10h

Approx. 25h

Recordable time

Picture size

320g240
320g240
320g240

Recording mode

SP

LP

EP

Approx. 10 min.

Approx. 30 min.

• Recordable time may vary depending on receiving condition of the LCD TV set or content of images.

• The maximum amount of data you can record on a memory card is 1,000 pictures in total including still and motion
pictures.

• Files in excess of 4GB and files exceeding 12 hours of recording time cannot be recorded and/or played back.

36

Using memory card

You can use memory cards (commercially available)
for recording and playing back pictures.

• Please use an appropriate PC card adapter
(commercially available) for each memory card.

• Following memory cards are available. (Note that
names for memory cards vary depending on
manufacturers.)

Memory card name

SD Memory Card

mini SD™ Card

CompactFlash

MultiMediaCard

SmartMedia

Memory Stick

Memory Stick PRO

Microdrive

xD Picture Card

PC Card Hard Disk

Storage capacity

512 MB or less

32 MB or less

2 GB or less

128 MB or less

128 MB or less

128 MB or less

1 GB or less

2 GB or less

128 MB or less

5 GB or less

* Each memory card name is a trademark.
* The capacity of memory card is approximate. The

capacity varies depending on the manufacturer.

• To read picture files recorded with digital cameras,
use the PC card adapter recommended by the
corresponding manufacturer. (The names for PC
card adapters vary depending on manufacturers.)

• For directions for use of digital cameras or PC card
adapters, please refer to the operation manual
provided for each product.

• Depending on the card or adapter used, normal
operation may not be possible.

You can playback DCF compliant JPEG pictures
captured with other devices in the card playback
mode.

• DCF (Design rule for Camera File system) is a
standard of the Japan Electronics and Information
Technology Industries Association (JEITA). This
standard specifies the image file format used for
images shot with a digital camera.

• Some motion pictures recorded with other devices
may not be played back correctly.

Commercially available memory cards

SD Memory

Card

mini SD™ Card

MultiMediaCard

CompactFlash

SmartMedia

• Please use an appropriate PC card adapter
(commercially available) for each memory card.

Preparing a memory card

Insert a memory card (commercially available) into a PC
card adapter (commercially available).

Example:
Inserting the SD memory card into a PC card adapter.

PC card adapter

Memory Stick
Memory Stick

PRO

PC Card

Hard Disk

xD Picture Card

Microdrive

Notes on using memory cards and PC card adapter

Please note the following when using memory cards and PC card adapters to avoid corruption of data or
malfunction of the LCD TV set.

• If you use memory cards other than those shown above, recording or playing back pictures are not
guaranteed.

• Some PC card adapters have restrictions of memory card capacity. Refer to the relevant operation manual
for such restrictions.

• Some pictures which have been created, modified, or copied on your PC may not be played back.

• Please be sure to turn off the LCD TV set when you insert or remove a PC card adapter.

• Do not bend, drop or apply a shock to memory cards or PC card adapters.

• Keep memory cards or PC card adapters away from heat, water or direct sunlight.

• Do not dismantle or modify memory cards or PC card adapters.

• Refer to the appropriate operation manuals for details on using or keeping memory cards or PC card
adapters.

• Do not turn the LCD TV set off while a memory card is in operation (e.g. playing back, recording or
displaying a slideshow).

• The recorded data may be erased or changed due to incorrect operation, the influence of static electricity
and electrical noise, therefore be sure to back-up the data regularly.

• Be sure to back-up important files using other media such as a PC.

37

Using memory card

Card Setup mode menu items

Press the CARD button first to access following items.

Still Setup Slide Show Setup

Interval

1-10/15/20/25/30/
45/60 s.

15/30/60 Min.

Card

Video Setup

Format

Slide show operation panel Motion picture operation panel

CARD - STILL

SLIDE SHOW

1 Rotate the image

2 Pause

3 Go to previous image

4 Start slide show

5 Stop slide show

6 Go to next image

My Programme

Audio Select

Edit

Rec. Mode

Pre-recording

Repeat

Edit

Yes/No

1

2

0001/0045 ORDER:NORMAL REPEAT:OFF

PREV.

NEXT

345 6

Order

Normal/Random/
My Programme

Repeat

On/Off

Setup/Erase

Off/TV/INPUT1-INPUT5

Protect/Delete File/ Delete All

SP/LP/EP

On/Off

Off/File/All

Protect/Delete File/Delete All

12345

CARD - VIDEO

PLAY

MODE : SP

00:15:25

PLAY

0001/0045 REPEAT:OFF

6 7 8 9 10 11 12 13

1 Action

2 Go back to the beginning

of the file

3 Pause

4 Repeat playback setting

5 Go to the beginning of the

next file

6 Recording mode

7 Counter

8 Current action

9 Reverse

10 Playback

11 Stop

12 Fast forward

13 Slow playback

Precautions when playing back PC image data on the LCD TV

Recording formats of image data:

When recording image data on the LCD TV, the recording formats are as follows.

• When recording motion pictures: The SD_VIDEO folder is created and the data is stored in. When playing the card,

• When recording still pictures: The DCIM folder is created and the data is stored in. When playing the card, the

When playing the card, record PC data in a recording format the LCD TV can recognise.

1. When copying motion pictures from a PC to a card recorded with the LCD TV, only play these pictures after placing
them in the SD_VIDEO folder.

2. When copying still pictures from a PC to a card recorded with the LCD TV, only play these pictures after placing
them in the DCIM folder.

3. When using a new card for copying motion pictures, first format the card and create an SD_VIDEO folder before
placing the data in the folder for playback.

4. When using a new card for copying still pictures, first format the card and create a DCIM folder before placing the
data in the folder for playback.

When creating, revising, or copying images using your PC, the edited images may not playback correctly.

38

the SD_VIDEO recording format is recognised.

DCIM recording format is recognised.

Using memory card

Inserting a PC card adapter

• Press in the EJECT button if it is popped out.

• Insert a memory card to a PC card adapter
beforehand. (See page 37.)

• Insert the PC adapter card slowly.

CARD indicator

PC CARD slot

• CARD indicator lights up green when the card is
inserted.

NOTE

• When “Card is not inserted” is displayed, eject the PC
card adapter, and then insert the PC card adapter slowly
all the way to the end.

• When over a thousand files are in a card, it takes several
minutes to load. (approx. 5 minutes.)

• Even if the green light is on, you can not record on a card
right after you inserted it.

• Make sure the CARD indicator lights green when you take
out a card. Never take out a card when the CARD indicator
lights red. This may damage the card.

Ejecting the card

• Make sure the card indicator lights up green.

Recording a still image

You can record a still image on the card.

1

Press FREEZE.

Cooking Time

Cooking Time

Onion

Tomato

Potato

Still

x 1

x 1

x 1

1

2

3

Press EJECT button.

• EJECT button is popped up.

EJECT button

Press EJECT button again.

• PC card adapter itself pops up.

Take out the PC card adapter.

2

3

Press E REC.

Cooking Time

Still image was captured on a card.

• “Still image was captured on a card.” displays.

• Recording may fail depending on the input
signal type or card memory status.

Press ENTER to update
the still image.

Cooking Time

NOTE

Broadcasting types or input signals not available for
recording:

1 COMPONENT input
2 Copy guarded signal
3 DVI-I input

Onion

Tomato

Potato

Still

x 1

x 1

x 1

Still

39

Using memory card

Selecting Still mode

1

2

Press CARD and the card mode screen
displays.

Press c/d to select “Still”, and then press
ENTER.

• When in CARD mode, press 0-9 or TV/VIDEO
to switch either TV or AV input mode.

Displaying a still image

1

2

3

Press CARD and the card mode screen
displays.

Press c/d to select “Still” and then press
ENTER.

Press a/b/c/d to select a file you want to
display, and then press ENTER.

File 1 File 2 File 3

Still Video

Setting Slide Show

You can adjust the interval, order and repeat settings.

1

2

3

4

5

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Still Setup”, and then
press ENTER.

Press a/b to select “Slide Show Setup” and
then press ENTER.

Slide Show Setup

My Programme

Audio Select

Edit

Interval

Order

Repeat

5 Sec.

Normal

On

Off

File 4 File 5 File 6

File 7 File 8 File 9

• To display the files that are in the previous or
next page, select c/d on the index screen and
press ENTER.

• When viewing a still image, by pressing WIDE
the image size changes. Normal – Full.
This function does not work when displaying
the index screen.

6

Press a/b/c/d to select the desired slide
show setting, and then press ENTER.

Selected item

Interval

Order

Repeat

Set the frame interval for a slideshow.

Set the frame order for a slideshow. See
My Programme for details.

If set to “On”, the slideshow will play again
after showing the last frame.

Displaying slide show

1

2

Repeat steps 1 to 3 in Displaying a still
image.

• The operation panel displays.

CARD - STILL

SLIDE SHOW STOP

Press a/b/c/d to select d, and then press
ENTER.

• Slide show starts.

• Operate slide show with the operation panel
appears on the screen.

• To turn off the operation panel, press CARD
on the remote control.

• Press F to pause the slideshow, and press H
to return to the index screen.

Description

0001/0045 ORDER:NORMAL

PREV.

REPEAT:OFF

NEXT

40

NOTE

• See page 38 for operation panel function.

• You cannot rotate the image during slide show. Stop slide
show to rotate the image.

Using memory card

My Programme

You can select up to thirty-two pictures and specify
the order for displaying in slide show.

1

2

3

4

5

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Still Setup”, and then
press ENTER

Press a/b to select “My Programme”, and
then press ENTER.

Slide Show Setup

My Programme

Audio Select

Edit

Setup Erase

Audio Select

You can enjoy the audio from TV or other external
equipment during the still image playback.

1

2

Repeat steps 1 to 4 in My Programme.

Press a/b to select “Audio Select”, and then
press ENTER.

Slide Show Setup

3

My Programme

Audio Select

Edit

Press a/b/c/d to select the desired sound

Off

Input1

Input3

Input5

TV

Input2

Input4

output, and then press ENTER.

Protecting/unprotecting still image files

You can protect any file you do not want to delete.

6

Press c/d to select “Setup”, and then press

ENTER.

7

Press a/b/c/d to select the files, and then
press ENTER.

8

Repeats the operation in step 7. (You can
select up to 32 files.)

9

After selecting all the files you want, press

RETURN to return to MENU.

To cancel My Programme setting

1

2

Select “Erase” at step 6 in My Programme
and then press ENTER.

Press c/d to select “Yes”, and then press
ENTER.

• All the registered numbers are cleared.

2

3

1

Repeat steps 1 to 4 in My Programme.

Press a/b to select “Edit”, and then press
ENTER.

Slide Show Setup

My Programme

Audio Select

Edit

Protect

Delete File

Delete All

Press a/b to select “Protect”, and then
press ENTER.

• The list of still image files displays.

File 1 File 2 File 3

File 4 File 5 File 6

File 7 File 8 File 9

4

Press a/b/c/d to select the file you want
to protect, and then press ENTER.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

ENTER to unprotect it.

NOTE

• You cannot delete a protected file on the card.

41

Using memory card

Deleting a still image file

1

2

3

4

5

6

7

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Still Setup”, and then
press ENTER.

Press a/b to select “Edit”, and then press
ENTER.

Press a/b to select “Delete File”, and then
press ENTER.

Press a/b/c/d to select the file you want
to delete, and then press ENTER.

Still Video

Deleting all still image files

1

2

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting

a file. The card may malfunction.

Select “Delete All” instead of “Delete File” in
step 6 in Deleting a still image file.

Slide Show Setup

My Programme

Audio Select

Edit

Press c/d to select “Yes”, and then press

ENTER.

NOTE

Protect

Delete File

Delete All

File 1 File 2 File 3

File 4 File 5 File 6

File 7 File 8 File 9

8

9

10

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting
a file. The card may malfunction.

Press c/d to select “Yes”, and then press
ENTER.

Repeat the operations in steps 7 and 8
above.

After deleting the images you no longer need,
press RETURN to return to MENU.

NOTE

42

Using memory card

Recording a motion picture

Use this setting to record images you are currently
watching.
Record with the settings made in “Rec. Mode” and
“Pre-recording”.

1

2

Broadcasting types or input signals not available for
recording:

1 COMPONENT input
2 Copy guarded signal
3 DVI-I input

Press E REC to start recording.

• CARD indicator lights up red.

• Recording information displays in the lower
right corner of the screen.

Press E REC to stop recording.

NOTE

To display the remaining record time.

Press DISPLAY while not recording.

• Remaining record time displays in the lower right corner
of the screen.

NOTE

• Do not press MAIN POWER on the display while
recording. Recording cannot finish properly and may
damage the file.

• Recording stops if you press POWER on the remote
control while recording.

• When card has no capacity for recording, “Card is full”
displays and stops recording.

• You cannot change the channel or switch the input source
while recording.

Displaying a motion picture

1

2

3

4

Press CARD and the card mode screen
displays.

Press c/d to select “Video”, and then press
ENTER.

Press a/b/c/d to select the file you want
to play, and then press ENTER.

• Video playback starts.

CARD - VIDEO

PLAY

MODE : SP

00:15:25

PLAY

0001/0045 REPEAT:OFF

Press CARD again to display the operation
panel.

• See page 38 for the operation panel
information.

• When viewing a motion picture, by pressing
WIDE the picture size changes.
Small – Medium – Large.

Rec. Mode

Use this setting for recording images you are currently
watching. You can select the recording mode (picture
quality) for a motion picture.

1

2

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Selecting Video mode

1

2

Press CARD and the card mode screen
displays.

Press c/d to select “Video”, and then press
ENTER.

• When in CARD mode, press 0-9 or TV/VIDEO
to switch either TV or AV input mode.

3

4

5

6

Press c/d to select “Card”.

Press a/b to select “Video Setup” and then
press ENTER.

Press a/b to select “Rec. Mode”, and then
press ENTER

Rec. Mode

Pre-recording

Repeat

Edit

SP

LP

EP

Press a/b to select the desired mode, and
then press ENTER.

43

Using memory card

Pre-recording

You can record the picture slightly before the point
where you pressed the record button, enabling you to
record just the scene you wanted.

1

2

3

4

5

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Video Setup” and then
press ENTER.

Press a/b to select “Pre-recording”, and
then press ENTER.

Rec. Mode

Pre-recording

Repeat

Edit

On Off

Protecting/unprotecting motion picture files

You can protect any file you do not want to delete.

1

2

3

4

Repeat steps 1 to 4 in Pre-recording.

Press a/b to select “Edit”, and then press
ENTER.

Rec. Mode

Pre-recording

Repeat

Edit

Protect

Delete File

Delete All

Press a/b to select “Protect”, and then
press ENTER.

Press a/b/c/d to select the file you want
to protect, and then press ENTER.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

ENTER to unprotect it.

6

Press c/d to select “On”, and then press

ENTER.

Repeat

You can specify one file or all files to replay repeatedly.

1

2

3

Repeat steps 1 to 4 in Pre-recording.

Press a/b to select “Repeat”, and then
press ENTER.

Rec. Mode

Pre-recording

Repeat

Edit

Off

File

All

Press a/b to select desired setting, and
then press ENTER.

5

6

Repeat the operation in step 4.

After setting the files you want to protect,
press RETURN to return to MENU.

Selected item

Off

File

All

44

Description

No playback or repeat.

Plays back and repeats one file.

Plays back all movie files on the card then
repeats.

Using memory card

Deleting a motion picture file

1

2

3

4

5

6

7

8

9

10

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting
a file. The card may malfunction.

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Video Setup”, and then
press ENTER.

...

[

Card

MENU

Card

Still Setup

Video Setup

Format

Press a/b to select “Edit”, and then press
ENTER.

Press a/b to select “Delete File”, and then
press ENTER.

Rec. Mode

Pre-recording

Repeat

Edit

Press a/b/c/d to select the file you want
to delete, and then press ENTER.

Press c/d to select “Yes”, and then press
ENTER.

Repeat the operations in steps 7 and 8
above.

After deleting the images you no longer need,
press RETURN to return to MENU.

NOTE

Video Setup

]

Protect

Delete File

Delete All

Deleting all motion picture files

1

2

3

4

5

6

7

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting
a file. The card may malfunction.

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Video Setup”, and then
press ENTER.

Press a/b to select “Edit”, and then press
ENTER.

Press a/b to select “Delete All”, and then
press ENTER.

Rec. Mode

Pre-recording

Repeat

Edit

Press c/d to select “Yes”, and then press

ENTER.

NOTE

Protect

Delete File

Delete All

Format

1

2

3

4

Press CARD and the card mode screen
displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Format” and then
press ENTER.

5

• Formatting a card deletes all files including the ones which
set to protect.

Press c/d to select “Yes”, and then press

ENTER.

NOTE

45

Using external equipment

You can connect many types of external equipment to your System, like an HDTV tuner VCR, DVD player, PC,
game console and camcorder. To view external source images, select the input source from TV/VIDEO on the
remote control unit or TV/VIDEO on the Display.

Displaying an external equipment image

Explanation here is for the setting when connecting
DVD to INPUT2 terminal.

CAUTION

• To protect all equipment, always turn off the AVC System
before connecting to an HDTV tuner, VCR, DVD player,
PC, game console, camcorder or other external
equipment.

NOTE

• See pages 47 to 49 for external equipment connection.

• Please refer to the relevant operation manual (DVD player,
PC, etc.) carefully before making connections.

• Each time TV/VIDEO is pressed, the input source toggles.

• If the image does not come in clearly, you may need to
change the input signal type setting on the “Input Select”
menu.

• Refer to your external equipment operation manual for
the signal type.

Displaying a DVD image (Example)

1

To watch a DVD image, select “INPUT3” from
“INPUT SOURCE” menu using TV/VIDEO on
the remote control unit or TV/VIDEO on the
Display.

INPUT SOURCE

TV

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5

CARD

2

Select the desired signal type on “Input
Select” in the “Option” menu. (See page 52.)

For INPUT3 signal

...

MENU

[

Option

Input Select

]

AUTO

COMPONENT

Video

The setting is stored and can be selected on the
“INPUT SOURCE” menu.

46

Using external equipment

Connecting an HDTV tuner

You can use the INPUT 1 terminal when connecting an HDTV tuner and other audiovisual equipment.

To watch an image from this input terminal, you
need to select the input source (see page 46)
and the input signal type (see page 52).

AVC System (rear view)

AV cable
(commercially available)

Component cable (commercially available)

HDTV tuner

Connecting a VCR

You can use the INPUT 2 terminal when connecting a VCR and other audiovisual equipment.

To watch an image from this input terminal, you
need to select the input source (see page 46)
and the input signal type (see page 52).

AVC System (rear view)

S-video cable
(commercially available)

AV cable (commercially available)

VCR

47

Using external equipment

Connecting a DVD player

You can use the INPUT 3 terminal when connecting to a DVD player and other audiovisual equipment.

To watch an image from this input terminal, you
need to select the input source (see page 46)
and the input signal type (see page 52).

AVC System (rear view)

AV cable
(commercially available)

Component cable (commercially available)

DVD player

Connecting a game console or camcorder

A game console, camcorder and some other audiovisual equipment are conveniently connected using the
INPUT 4 terminals.

NOTE

• The S-video terminal has priority over the video terminals.

• You can also connect the game console to INPUT 1, 2 or 3 terminals to enjoy clearer picture.

To watch an image from this input terminal, you
need to select the input source (see page 46)
and the input signal type (see page 52).

AVC System (front view)

Composite video cable
(commercially available)

S-video cable
(commercially available)

Game console/Camcorder

48

Using external equipment

Connecting a PC

Use the INPUT5 terminals to connect a PC.

NOTE

• The PC input terminals are DDC1/2B-compatible.

• Refer to page 67 for a list of PC signals compatible with the System.

AVC System (rear view)

DVI cable
(commercially available)

ø 3.5 mm stereo minijack cable
(commercially available)

To watch the image from
this input terminal, you
need to select input source
(see page 46) and input
signal type (see page 52).

PC

RGB/DVI conversion cable
(commercially available)

ø 3.5 mm stereo minijack cable
(commercially available)

PC

NOTE

• Macintosh adaptor may be required for use for some Macintosh computers.

• When connecting to a PC, the correct input signal type is automatically detected.
(See page 57.) If the PC image does not come in clearly, you may need to set the
Auto Sync. adjustment in the “Setup” menu. (See page 51.)

49

Using external equipment

Speaker Setup

Connecting external speakers

Rear view

How to connect the

speaker cable

Push down the tab.

11

1

11

Insert the end of the

22

2

22

cable.

Selecting speakers

You can output audio using the supplied speakers or
other external speakers.

1

2

3

4

5

Selected item

SPEAKER-A

SPEAKER-B

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Speaker Setup”, and
then press ENTER.

Press a/b to select “Speaker”, and then
press ENTER.

Press c/d to select “SPEAKER-A” or
“SPEAKER-B”, and then press ENTER.

Description

Speaker connected to the Display.

Speaker connected to the AVC System.

External Audio Bypass

External Audio Bypass automatically optimises the
audio quality to suit internal (supplied) speakers.

1

Repeat steps 1 to 3 in Selecting speakers
above.

Lift the tab back

33

3

33

up.

When using external speakers

• Change the speaker setting to “SPEAKER-B”.

Make sure to connect the speaker terminal and cable
polarity (L, +) properly

• The speaker terminal has plus (L) and minus (+) polarity.

• Plus is red and minus is black.

• The cables are also divided into plus and minus.

• When connecting the left/right speakers, be sure to
connect the plus/minus terminals with the correct cables.

NOTE

• Unplug the AC cord from the AC outlet before installing
the speakers.

CAUTION

• Make sure external speakers have 4 ohm and 10 watt
specifications.

• Connect the plus/minus terminals with the correct cables.
Incorrect connection may cause a short.

2

3

Selected item

No

Yes

• External Audio Bypass is greyed out when Dolby Virtual
is set to “On”.

• When using external speakers (SPEAKER-B), make sure
to set “External Audio Bypass” to “Yes”.

• When Dolby Virtual is on, External Audio Bypass
automatically sets to “Yes”.

Press a /b to select “External Audio
Bypass”, and then press ENTER.

Press c/d to select “Yes” or “No”, and then
press ENTER.

Description

Sets the optimum audio for the internal
(supplied) speakers.

When you are using your own speakers,
output the original sound.

NOTE

50

Useful adjustment settings

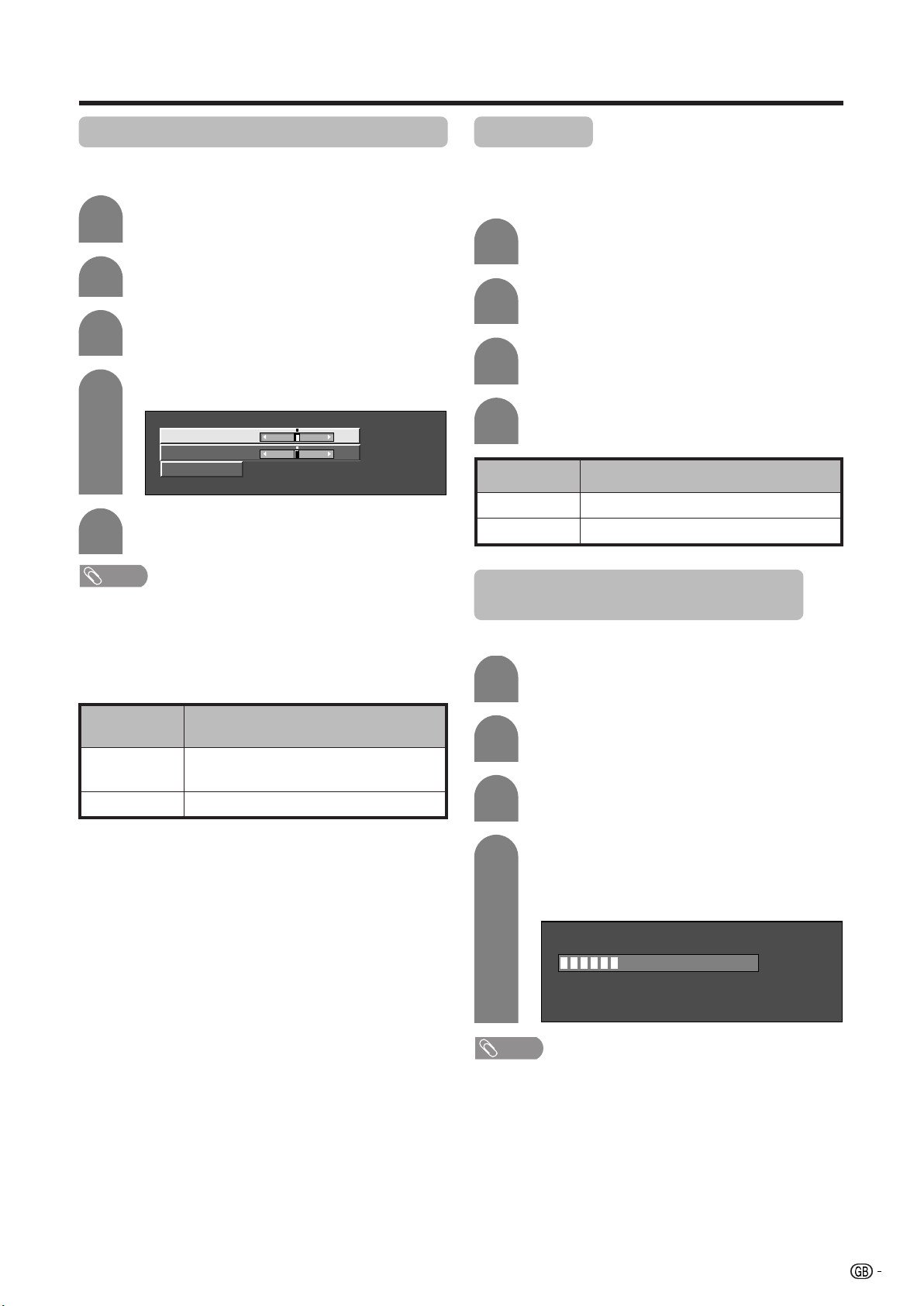

Image position (for TV/AV input mode)

For adjusting a picture’s horizontal and vertical
position.

1

2

3

4

5

• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press
ENTER.

• Adjustments are stored separately according to input

source.

• This function is available for AV input mode and TV tuner
mode.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Position”, and then
press ENTER.

Press a/b to select “H-Pos.” or “V-Pos.”.

H-Pos. [0] –10 +10

V-Pos. [0] –20

Reset

Press c/d to adjust the item to your desired
position.

NOTE

+20

Audio Only

When listening to music from a music programme, you
can set the Liquid Crystal display off and enjoy audio
only.

1

2

3

4

Selected item

On

Off

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Only”, and then
press ENTER.

Press c/d to select “On”, and then press

ENTER.

Description

Audio is output without screen image.

Both screen images and audio are output.

Auto Sync. adjustment (PC input
mode only)

For automatically adjusting the PC image.

1

Press MENU and the MENU screen displays.

Selected item

H-Pos.

V-Pos.

Description

Centres the image by moving it to the left or
right.

Centres the image by moving it up or down.

2

3

4

• When Auto Sync. is successful, “Auto Sync completed
successfully” displays. If not, Auto Sync. failed.

• Auto Sync. may fail even if “Auto Sync completed
successfully” displays.

• Auto Sync. is likely to succeed when an input PC image
has wide vertical stripes (ex. pattern with high contrast
stripes, or cross-hatched).
It may fail when an input PC image is solid (low contrast).

• Be sure to connect the PC to the AVC System and switch
it on before starting Auto Sync.

Press c/d to select “Setup”.

• Setup menu displays.

Press a/b to select “Auto Sync.”, and then
press ENTER.

Press c/d to select “Yes”, and then press
ENTER.

• Auto Sync. starts and “Adjusting the image”
displays.

30%

NOTE

51

Useful adjustment settings

Fine Sync. adjustment (PC input
mode only)

Ordinarily you can easily adjust the picture as
necessary to change image position using Auto Sync.
In some cases, however, manual adjustment is needed
to optimise the image.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Fine Sync.”, and then
press ENTER.

Press a/b to select the specific
adjustment item.

H-Pos. [90] – +

V-Pos.

Clock

Phase

Reset

[39]

[90]

[20]

–

–

–

+

+

+

Input Select

Selecting input source

Can use for selecting the input source.

1

2

Selecting input signal type

For setting the signal type of external equipment.

1

2

Press TV/VIDEO on the remote control unit
or TV/VIDEO on the Display.

Press TV/VIDEO on the remote control unit
or TV/VIDEO on the Display to select the
input source.

• An image from the selected source
automatically displays.

• You can also select the input source by
pressing a/b.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

5

Press c/d to adjust the item to your
desired position.

NOTE

• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press

ENTER.

Selected item

H-Pos.

V-Pos.

Clock

Phase

Centres the image by moving it to the left or
right.

Centres the image by moving it to the up or
down.

Adjusts when the image flickers with
vertical stripes.

Adjusts when characters have low contrast
or when the image flickers.

Description

3

Press a/b to select “Input Select”, and then
press ENTER.

4

Press a/b/c/d to select a signal type you
want to set, and then press ENTER.

• If the selected signal type is incorrect, an image
does not display or no colour image displays.

Input type

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

NOTE

• If no (colour) image displays, try to change the other
signal type.

• Check the operation manual of the external equipment
for the signal type.

Selectable item

AUTO, COMPONENT, VIDEO

AUTO, S-VIDEO, VIDEO

AUTO, COMPONENT, VIDEO

AUTO, S-VIDEO, VIDEO

PC digital, PC analogue,
AV digital, AV analogue

52

Useful adjustment settings

Input Label

You can assign each input source a label you like.

1

2

3

4

5

Press TV/VIDEO to select the input source
whose label you would like to change.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Label”, and then
press ENTER.

Press a/b/c/d to select each character
of the new name for the channel, and then
press ENTER.

Colour system setting (for TV/AV
input mode)

You can change the colour system to one that is

compatible with the image on the screen.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Colour System”, and
then press ENTER.

Press a/b to select a compatible video
signal system of your equipment, and then
press ENTER.

• Some items may be greyed out. They are not
selectable.

AUTO

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

DVD

6

A

B

C

D

E

F

G

H

K

L

M

N

O

P

Q

R

U

V

W

X

Y

Z

+

– _

0123456789

Repeat the above until the name is fully spelt

CLEAR

I

J

BACK

S

T

.

END

out, and then press ENTER.

• The name can be 6 characters or less.

INPUT SOURCE

TV

INPUT1

INPUT2

DVD

INPUT4

INPUT5INPUT5

CARD

(Example)

NOTE

• You cannot change labels if the INPUT SOURCE is TV or
CARD.

NOTE

• Factory preset value is “AUTO”.

• If “AUTO” is selected, colour system for each channel is
automatically set. If an image does not display clearly,
select another colour system (e.g. PAL, NTSC 4.43).

• This function is available for AV input mode and TV tuner
mode.

53

Useful adjustment settings

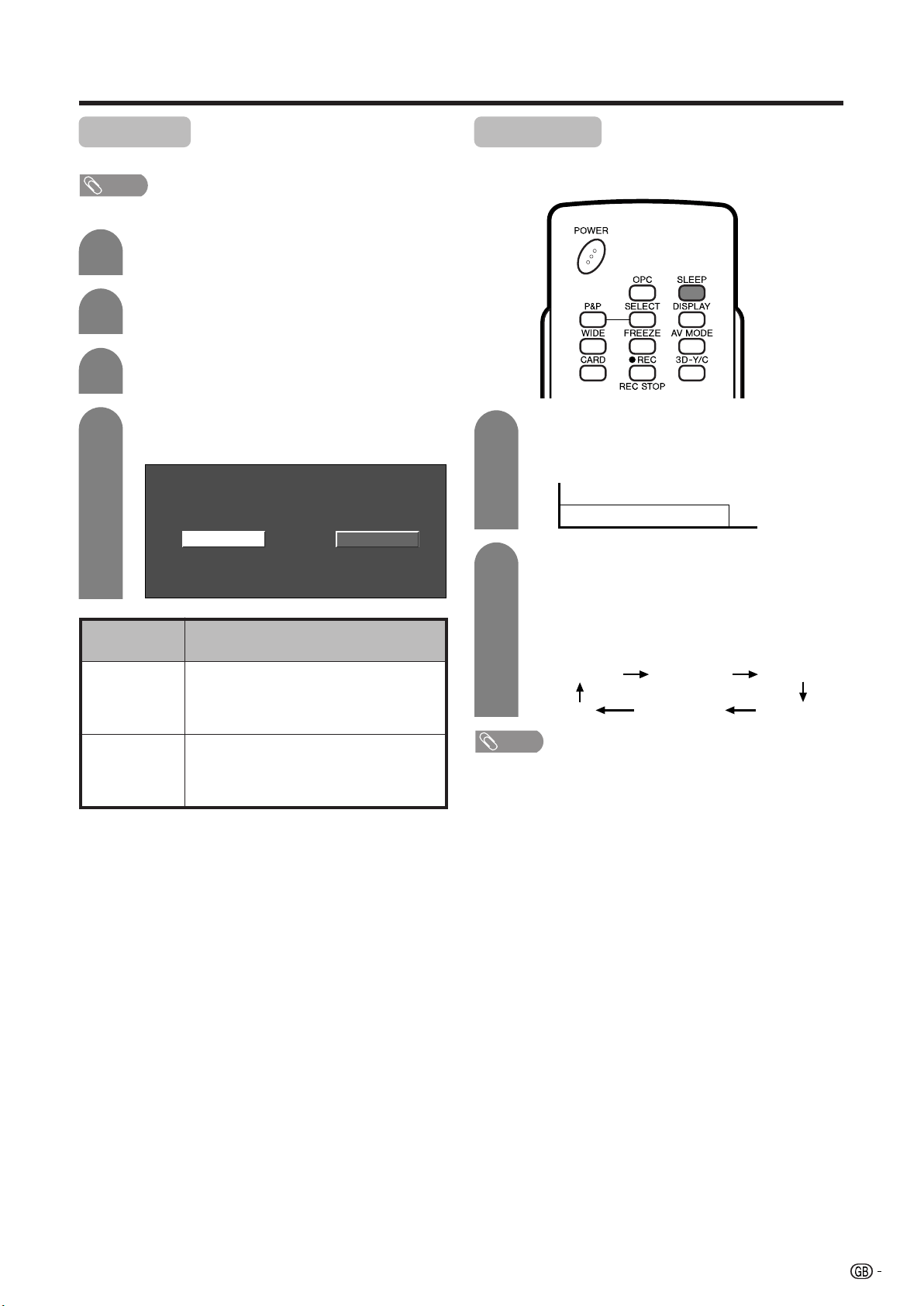

AV mode selection

AV mode gives you five viewing options to choose from
to best match the system environment, which can vary
due to factors like room-brightness, type of programme
watched or the type of image input from external
equipment.

1

2

Press AV MODE.

• Present AV mode displays.

Press AV MODE again before the mode
displayed on the screen disappears.

• The mode changes as shown below.

AV input mode

Wide screen signalling (WSS) (for
TV/AV input mode)

WSS allows a television to switch automatically among
the different screen formats.

1

2

3

4

• Try to set WIDE mode if an image does not switch to the
correct screen format. When the broadcast signal contains
no WSS information, the function will not work even if
enabled.

• This function is available for AV input mode and TV tuner
mode.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “WSS”, and then press
ENTER.

Press c/d to select “On” or “Off”, and then
press ENTER.

NOTE

AV MODE: STANDARD

AV MODE: DYNAMIC

AV MODE: STANDARD

Selected item

STANDARD

MOVIE

GAME

USER

AV MODE: MOVIE

AV MODE: GAME

AV MODE: USER

PC input mode

AV MODE: USER

Description

For a highly defined image in a normally
bright room

For a movie

Lowers image brightness for easier viewing.

Allows the user to customise settings as
desired. You can set the mode for each
input source.

Picture aspect ratio (for TV/AV input
mode)

The WSS signal has 4:3 auto-switching that allows you
to select between Normal and Panorama.

1

2

3

4

4:3 mode “Normal”

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “4:3 Mode”, and then
press ENTER.

Press c /d to select “Normal” or
“Panorama”, and then press ENTER.

WSS signal 4:3 screen

4:3 mode “Panorama”

DYNAMIC

NOTE

• You can select a different AV MODE item for each input
mode. (For example, select STANDARD for TV input and
DYNAMIC for VIDEO input.)

54

For a clear-cut image emphasising high
contrast for sports viewing

Selected item

Normal

Panorama

Description

Normal range keeping 4:3 or 16:9 aspect
ratio

Wide image without side bars

Useful adjustment settings

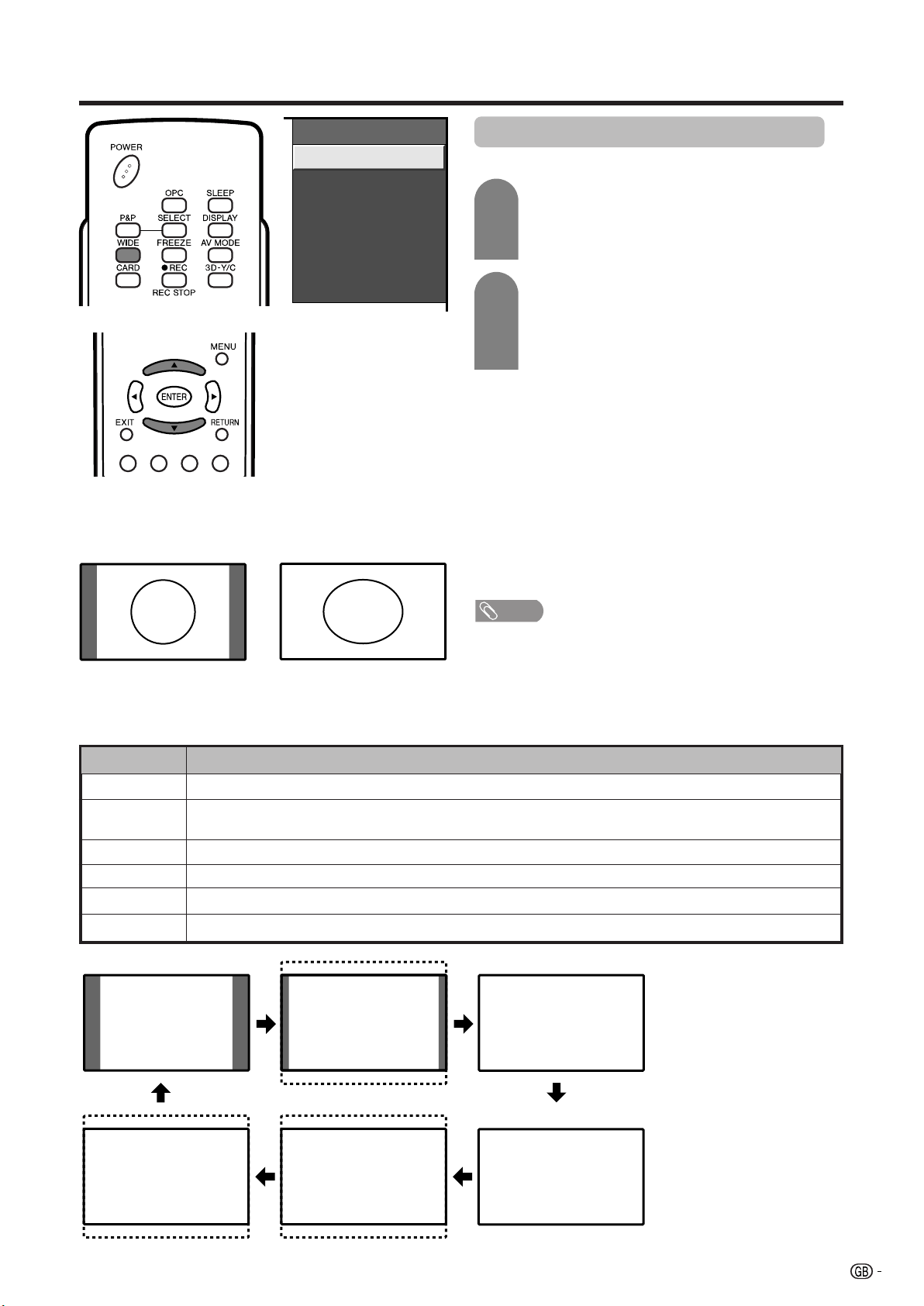

WIDE MODE

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

WIDE mode (for TV/AV input mode)

Manual Selection

1

Press WIDE.

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable
for the type of video signal currently received.

2

Auto Selection

If you set “WSS” and “4:3 Mode” in the Setup menu on
page 54, the optimum WIDE mode is automatically
chosen for every broadcast containing the WSS
information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup menu
to “On”. (See page 54.)

“4:3 Mode” menu

To set the type of the wide screen, select “Normal” or
“Panorama” in the 4:3 Mode menu. (See page 54.)

Press WIDE or a/b while the WIDE MODE
menu displays on the screen.

• As you toggle down the options, each is
immediately reflected on the Display. No need
to press ENTER.

4:3 Mode set to “Normal” 4:3 Mode set to “Panorama”

Selected item

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

For 4:3 “standard” pictures. A side bar appears on each side.

For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on
the top and bottom with some programmes.

In this mode the picture is progressively stretched toward each side of the screen.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Normal Zoom 14:9

NOTE

• If the broadcast signal contains no WSS information, Auto
Selection will not function even when the WSS option is
enabled.

• This function is available for AV input mode and TV tuner
mode.

Description

Panorama

FullCinema 16:9Cinema 14:9

55

Useful adjustment settings

a

Screen size images.

Input Signal

a

Input signal

(640m480)

WIDE MODE

Normal

Cinema

Full

Dot by Dot

Input signal
(1024m768)

WIDE MODE

Cinema

Full

Dot by Dot

Normal Dot by DotFullCinema

WIDE mode (for PC input mode)

You can select the screen size.

NOTE

• Connect the PC before making adjustments. (See page

49.)

• Selectable screen size may vary with input signal type.

1

2

Press WIDE.

• The WIDE MODE menu displays.

Press WIDE or a/b to select a desired item
on the menu.

640g480 Keeps the original

Input Signal

1024g768

aspect ratio in a full
screen display.

Normal Dot by DotFullCinema

Keeps the original
aspect ratio in a full
screen display. The
top and bottom of
the image is slightly
cropped.

Keeps the original
aspect ratio in a full
screen display. The
top and bottom of
the image is slightly
cropped.

An image fully fills
the screen.

An image fully fills
the screen.

Detects the
resolution of the
signal and displays
an image with the
same number of
pixels on the screen.

Detects the
resolution of the
signal and displays
an image with the
same number of
pixels on the screen.

56

Useful adjustment settings

Input signal (PC input mode only)

• Some input signals may have to be registered manually
to display properly.

• The pairs of input signals (resolutions) in the list below
are not distinguishable when received. In such case, you
have to set the correct signal manually. After setting once,
it will display when the same signal (resolution) is input
again.

640g400

640g480

1024g768

NOTE

• You can only select the “Input Signal” on the Setup menu
when receiving one of the 6 input signals listed above.

1

2

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

• Setup menu displays.

720g400

848g480

1280g768

DNR (Digital Noise Reduction)

Produces a clearer video image.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “DNR”, and then press
ENTER.

• Some items may be greyed out. They are not
selectable.

Press a/b to select the desired level, and
then press ENTER.

Off

High

Low

3

4

Press a/b to select “Input Signal” and then
press ENTER.

Press a/b to select the desired input signal
on the display.

640 x 480

848 x 480

(Example)

Quick Shoot

Improves LCD response when viewing fast-moving
images. The effect is greater at low room temperatures
(at or below 15˚C/59˚F).

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Quick Shoot”, and then
press ENTER.

Press c/d to select “On”, and then press
ENTER.

OffOn

NOTE

• Quick Shoot may cause image noise. If this occurs turn
the function “Off”.

57

Useful adjustment settings

Rotate

You can set the orientation of the picture.

1

2

3

4

[Normal]: normal image. [Mirror]: mirror image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Rotate”, and then press
ENTER.

Press a/b to select the desired mode, and
then press ENTER.

Normal

Mirror

Upside Down

Rotate

ABC

[Upside Down]: upside

down image.

ABC

ABC

[Rotate]: rotated image.

ABC

58

Useful adjustment settings

Audio out

Allows you to select what controls the audio output.

NOTE

• This setting is available only in TV input mode.

1

2

3

4

Selected item

Fixed

Variable

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Out”, and then
press ENTER.

Press c/d to select “Fixed” or “Variable”,
and then press ENTER.

VariableFixed

Description

• Sound via speakers is adjusted with VO Ll/
k on the remote control unit or the Display.

• Sound via the AV OUTPUT terminal is not
adjustable and constantly outputs.

• Sound via the AV OUTPUT terminal is
adjusted with VOLl/k on the remote
control unit or the Display.

• Sound via speakers is muted.

Sleep timer

Allows you to set a time when the TV automatically
switches to standby.

1

2

• Select “Off” by pressing SLEEP to cancel the sleep timer.

Press SLEEP.

• Remaining time displays when sleep timer has
been set.

Sleep Timer: Remain 2 hr. 00 min.

Each time you press SLEEP, the remaining
time switches as shown below.

• When the time has been set, countdown
automatically starts.

• Five minutes before the preset of time expires,
the remaining time displays each minute.

0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min.

Off

NOTE

2 hr. 30 min. 2 hr. 00 min.

59

Useful adjustment settings

Password setting for child lock
(for TV input mode)

Allows you to use a password to protect certain settings
from being accidentally changed.

Setting a password (Changing a password)

Register a 4-digit password number to use the Child
Lock function.

1

2

3

4

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then
press ENTER.

If you already set the password, enter it here.

7

Enter the same 4-digit number as in step 6
to confirm.

• “The new password is registered.” displays.

NOTE

• To view a locked channel (Lock setting in Programme
Setup “Manual Adjust” is set to “On”), you must enter a
password. (See page 28.) When you select a locked
channel, a password prompt message pops up. Press

ENTER to display the password input window.

Resetting the password

Allows you to reset your password.

1

2

3

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then
press ENTER.

4

If you already set the password, enter it here.

––––

5

6

––––

Press a/b to select “Change password”,
and then press ENTER.

Change password

Reset

New Password

Reconfirm

–––

–

––––

Enter the 4-digit number as a password using
0 – 9.

Change password

Reset

New Password

Reconfirm

–––

–

––––

5

Press a/b to select “Reset”, and then press

ENTER.

6

Press c/d to select “Yes”, and then press
ENTER.

Change password

Reset

Yes No

NOTE

• As a precautionary measure, make a note of your
password and keep it in a familiar place. If you lose or
forget your password, initialise the System to return
all settings except for the TV channel settings to factory
preset values. (See page 74.)

• This function is available for TV input mode.

60

Useful adjustment settings

Centre Channel Input

You can use the speaker as the centre speaker when using a 5.1ch surround system.

Speaker

1

2

3

4

AV amplifier

* Connect to external audio equipment

that supports a 5.1ch surround system.
Refer to your external equipment
operation manual for details.

DVD player, etc.

Press MENU and the MENU screen displays.

Press c/d to select “Option”, and then press
ENTER.

Press a/b to select “Centre Channel Input”,
and then press ENTER.

Press c/d to select “On” , and then press
ENTER.

• Only the sound from the Centre Channel Input
terminal is output from the speaker.

OffOn

61

Useful features

Dual screen functions

Allows you to display two pictures on the screen at
one time.

Dual screen

You can display two pictures except when inputting
from a INPUT 5 terminal and card.

1

Press P&P.

• Dual screen displays and a selected input
source image displays.

z

Picture and still image

You can freeze a motion picture on the display.

z

2

3

4

• This function does not work under the following input
conditions:

1INPUT 5 mode,
2CARD mode,
3Two pictures from the same source (e.g. INPUT 1 and

4Two pictures with different vertical frequency (e.g. PAL

5HDTV signal source (480P/1080i/720P) is input on the

• When this function is not available, “No dual screen display
available.” will display.

Press SELECT to set either screen to be
active.

•“z” displays on the active screen, which has

sound output.

Press TV/VIDEO to select another input
source on the active screen.

• A selected image displays.

Press P&P to exit dual screen.

NOTE

INPUT 1),

and PAL-60),

right side screen display.

1

2

3

• This function does not work in INPUT 5 and CARD mode.

• When this function is not available, “No still image display
available.” will display.

• Frozen image can be recorded on a PC card (see page

39).

• The still image automatically goes out after 30 minutes.

Press FREEZE.

• A moving image displays on the left screen and
a still image displays on the right screen. The
still image is one frame captured from a moving
image at the moment you press FREEZE.

FREEZE

Update the still image by pressing ENTER.

• Each time you press ENTER, the image on the
right screen updates.

Press FREEZE to exit still image.

NOTE

62

Teletext language setting

If Teletext information does not display correctly,
perform the setting procedure below.
Select from among 4 kinds of language tables: West
Europe, East Europe, Greek/Turkish, Cyrillic.
Each table is compatible with the Teletext languages
listed below.

1

2

3

4

Press MENU and the TV MENU screen
displays.

Press c/d to select “Setup”.

Press a/b to select “Text Language”, and
then press ENTER.

Press a/b to select the receivable teletext
broadcasting language in your country.

...

[

Setup

MENU

• West Europe - English, French, Scandinavian,
Czech, German, Spanish, Italian

• East Europe - Polish, French, Scandinavian,
Czech, German, Slovenian/Croatian, Italian,
Rumanian

• Greek/Turkish - English, French, Scandinavian,
Turkish, German, Spanish, Italian, Greek

• Cyrillic - English, Russian, Estonian, Czech,
German, Spanish, Ukrainian, Lettish

Text Language

]

West Europe

East Europe

Greek/Turkish

Cyrillic

NOTE

• Teletext can display only when it is sent by a network. Not
used to convert between languages.

63

Useful features

Teletext function

What is Teletext?

Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
Your System receives Teletext signals broadcast by a
TV network, and decodes them into graphical format
for viewing. News, weather and sports information,
stock exchange prices and programme previews are
among the many services available.

TELETEXT

Teletext mode

Teletext is turned on/off with m on the remote control
unit. You can operate your System in Teletext mode
directly by inputting commands with the remote control
unit.

TELETEXT

When viewing the Teletext information

• Press r to increase the page number.

• Press s to decrease the page number.

Button functions

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in
the coloured brackets at the bottom of the screen by
pressing the corresponding Colour (RED/GREEN/

YELLOW/BLUE) on the remote control unit.

TELETEXT

Turning on and off Teletext

1

2

3

64

Select a TV channel or external input source
providing the Teletext programme.

Press m to display the Teletext.

Press m again to display the Teletext on the
right screen and normal image on the left
screen.

• Each time you press m, the screen switches

as shown upper right.

• If you select a programme with no Teletext
signal, “No Teletext available.” displays.

• The same message displays during dual
screen or other modes if no Teletext signal is
available.

GREEN

RED

0 – 9:
Directly select any page from 100 to 899 by using 0 – 9.

WIDE:

Each time you press WIDE, the TELETEXT image
switches as shown below.

Full

Upper half

Lower half

k:
To reveal hidden information such as an answer to a
quiz, press k.

• Press k again to hide the information.

FREEZE:

To stop updating Teletext pages automatically, press
FREEZE.

• Press FREEZE again to release the hold mode.

YELLOW BLUE

Useful features

Displaying Subtitle

You can display several subtitles as they are
transmitted.

1

2

• Subtitle will not be displayed when the service does not
contain the subtitle information.

Press [ to display the subtitle.

• Subtitle is updated by the information sent by
the broadcasting station.

• To stop updating Subtitle automatically, press
FREEZE.

Press [ to exit the subtitle screen.

NOTE

Time display

You can display the time information included in the
Teletext broadcast.

1

Select a TV channel providing Teletext
information.
(The time information is automatically
captured.)

2

Press DISPLAY. The channel display will
appear on the Display.

3

Press DISPLAY again within the three-
second interval the channel display is on the
screen.
Time information will display on the lower left
of the screen for about three seconds.

4

Even when you change the TV channel, you
can display the time information with steps
2 – 3 above.

NOTE

• The time display cannot be stored once the power is
turned off. When you turn on the power, perform steps 1 –
4 again.

• If acquired successfully the time information will appear
in the upper-right corner of the screen by pressing MENU.

Displaying TOP Overview

When receiving TOP Teletext, you can read a TOP text
overview.

1

2

3

Press m to display Teletext.

Press l to display the TOP Overview as
shown below.

TOP Overview screen

INDEX

BLOCK PAGES

TV PROGRAMS
COLOR BAR
WEATHER
NEWS
MOVIE
LOCAL

SPORTS

BLOCK 1
BLOCK 2
BLOCK 3

GROUP PAGES

FOOT BALL
BASKETBALL

TENNIS

SKI
JUDO
SWIM
GROUP 1
GROUP 2
GROUP 3
GROUP 4

Select the desired block or group by using
a/b/c/d.

4

5

Press ENTER to display the selected block
or group pages.

Press l to exit the TOP Overview screen.

65

Appendix

Troubleshooting

Problem Possible Solution

• No power.

• Unit cannot be operated.

• Remote control unit does not
operate.

• Picture is cut off.

• Strange colour, light colour, or
dark, or colour misalignment.

• Make sure the Display and the AVC System are connected correctly. (See page

9.)

• Check if you pressed POWER on the remote control unit. (See page 19.)
If the indicator on the Display lights up red, press POWER on the display.

• Is the AC cord disconnected? (See page 15.)

• Has the main power been turned on? (See page 19.)

• External influences such as lightning, static electricity, etc., may cause improper
operation. In this case, operate the unit after first turning the power off the Display
and the AVC System, or unplugging the AC cord and re-plugging it in after 1 or
2 minutes.

• Are batteries inserted with polarity (e, f) aligned? (See page 14.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated to remote control sensor?

• Is the image position correct? (See page 51.)

• Are screen mode adjustments such as picture size made correctly? (See pages
54 to 57.)

• Adjust the picture tone. (See pages 31 to 33 and 57.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 27 and 53.)

• Check the input signal setting. (See page 52.)

• Power is suddenly turned off.

• No picture.

• No sound.

• The unit’s internal temperature has increased.
Remove any objects blocking vent or clean.

• Check the power control setting. (See page 35.)

• Is sleep timer set? (See page 59.)

• Is connection to other components correct? (See pages 47 to 49.)

• Has input signal setup been done correctly after connection? (See page 52.)

• Is the correct input selected? (See page 52.)

• Is a non-compatible signal being input? (See page 67.)

• Is picture adjustment correct? (See pages 31 to 33.)

• Is the antenna connected properly? (See page 15.)

• Is “On” selected in “Audio Only”? (See page 51.)

• Is the volume too low? (See page 22.)

• Is “Variable” selected in “Audio Out”? (See page 59.)

• Is the speaker connected properly?

• Is correct speaker output (“SPEAKER-A” or “SPEAKER-B”) selected in “Speaker”?
(See page 50.)

• Is “On” selected in “Centre Channel Input”? (See page 61.)

• Make sure that headphones are not connected. (See page 17.)

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear
slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight
or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: –20°C to +60°C (–4°F to +140°F).

66

Appendix

PC compatibility chart

PC/MAC Resolution Horizontal Frequency Vertical Frequency VESA Standard

PC

MAC13"
MAC16"
MAC19"

640 x 400

720 x 400

VGA

640 x 480

WVGA 848 x 480

SVGA

800 x 600

1024 x 768XGA

WXGA

SXGA

VGA

SVGA

XGA

1280 x 720

1280 x 768
*1366 x 768
1280 x 1024

640 x 480
832 x 624

1024 x 768

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

37.5 kHz

43.3 kHz

31.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

53.7 kHz

48.4 kHz

56.5 kHz

60.0 kHz

68.7 kHz

45.0 kHz

48.1 kHz

48.4 kHz

64.0 kHz

34.9 kHz

49.7 kHz

60.2 kHz

*1366 x 768 (resolution) only applies to Analogue signal (not compatible with Digital signal).

60 Hz
85 Hz
60 Hz
85 Hz
60 Hz
72 Hz
75 Hz
85 Hz
60 Hz
56 Hz
60 Hz
72 Hz
75 Hz
85 Hz
60 Hz
70 Hz
75 Hz
85 Hz
60 Hz
60 Hz
60 Hz
60 Hz
67 Hz
75 Hz
75 Hz

O

O
O
O
O
O

O
O
O
O
O
O
O
O
O

O

Apple and Macintosh are registered trademarks
of Apple Computer, Inc.
DDC is a registered trademark of Video Electronics
Standards Association.
Power Management is a registered trademark of
Sun Microsystems, Inc.
VGA and XGA are registered trademarks of
International Business Machines Co., Inc.

67

Appendix

RS-232C port specifications

PC Control of the System

• When a program is set, the display can be controlled from the PC using the RS-232C terminal.
The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and
settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-sub RS-232C for the

connections.

NOTE

• This operation system should be used by a person who is accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC to match the display’s communications conditions. The
display's communications settings are as follows:

Baud rate:
Data length:
Parity bit:

Stop bit:

Flow control:

Communication procedure

Send the control commands from the PC via the RS-232C connector.
The Display operates according to the received command and sends a response message to the PC.
Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending
the next command.

9,600 bps

8 bits
None
1 bit
None

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Parameter

Input the parameter values, aligning left, and fill with space (s) for the remainder. (Be sure that four values are input for
the parameter.)
When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.)

Command 4-digits: Command. The text of four characters.
Parameter 4-digits: Parameter 0 – 9, space, ?

Return codeCommand 4-digits Parameter 4-digits

0

0009

– 30

100

0055

When “?” is input for some commands, the present setting value responds.

?

????

68

Appendix

Response code format

Normal response

OK

Problem response (communication error or incorrect command)

ERR

Commands

Return code (0DH)

Return code (0DH)

CONTROL ITEM COMMAND PARAMETER

0

R

W

O

POWER SETTING

INPUT SELECTION A

CHANNEL

INPUT SELECTION B

AV MODE
SELECTION

VOLUME

P

_

D

G

T

I

_

D

V

T

I

D

V

A

I

I

D

C

C

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

A

A

A

A

A

A

V

*

D

R

C

_

H

C

C

*

P

U

H

_

W

D

H

_

1

P

N

0

1

P

N

1

1

P

N

2

2

P

N

0

2

P

N

1

2

P

N

2

3

P

N

0

3

P

N

1

3

P

N

2

4

P

N

0

4

P

N

1

4

P

N

2

5

P

N

0

5

P

N

1

5

P

N

2

5

P

N

3

D

M

V

0

D

M

V

1

D

M

V

2

D

M

V

3

D

M

V

4

D

M

V

5

M

L

O

*

POWER OFF (STANDBY)

_

_

_

INPUT SWITCHING (TOGGLE)

_

_

_

TV (CHANNEL FIXED)

_

_

_

INPUT1 – 5 (1 – 5)

_

_

_

CARD

_

_

_

TV DIRECT CHANNEL (1 – 99)

_

_

*

CHANNEL UP

_

_

_

CHANNEL DOWN

_

_

_

INPUT1 (AUTO)

_

_

_

INPUT1 (COMPONENT)

_

_

_

INPUT1 (VIDEO)

_

_

_

INPUT2 (AUTO)

_

_

_

INPUT2 (S-VIDEO)

_

_

_

INPUT2 (VIDEO)

_

_

_

INPUT3 (AUTO)

_

_

_

INPUT3 (COMPONENT)

_

_

_

INPUT3 (VIDEO)

_

_

_

INPUT4 (AUTO)

_

_

_

INPUT4 (S-VIDEO)

_

_

_

INPUT4 (VIDEO)

_

_

_

PC DIGITAL

_

_

_

PC ANALOGUE

_

_

_

AV DIGITAL

_

_

_

AV ANALOGUE

_

_

_

TOGGLE

_

_

_

STANDARD

_

_

_

MOVIE

_

_

_

GAME

_

_

_

USER

_

_

_

DYNAMIC

_

_

_

VOLUME (0 – 60)

_

_

*

CONTROL

CONTENTS

CONTROL ITEM COMMAND PARAMETER

POSITION

WIDE MODE

MUTE

DOLBY VIRTUAL

DUAL SCREEN

AUDIO CHANGE

SLEEP TIMER

TEXT

S

O

P

H

H

V

V

C

P

W

W

W

W

W

W

W

W

W

W

W

M

M

M

A

A

A

T

T

A

O

O

O

O

O

O

T

T

D

*

S

O

P

*

S

O

P

*

S

O

P

*

K

C

L

*

E

S

H

*

E

D

I

0

E

D

I

1

E

D

I

2

E

D

I

3

E

D

I

4

E

D

I

5

E

D

I

6

E

D

I

7

E

D

I

8

E

D

I

9

E

D

I

1

E

T

U

0

E

T

U

1

E

T

U

2

V

D

C

0

V

D

C

1

V

D

C

2

N

I

W

0

N

I

W

1

A

H

C

_

M

T

F

0

M

T

F

1

M

T

F

2

M

T

F

3

M

T

F

4

M

T

F

5

T

X

E

0

T

X

E

1

G

P

C

*

H-POSITION (AV) (ⳮ10 – Ⳮ10)

_

*

*

H-POSITION (PC) (0 – 180)

_

*

*

V-POSITION (AV) (ⳮ20 – Ⳮ20)

_

*

*

V-POSITION (PC) (0 – 100)

_

*

*

CLOCK (0 – 180)

_

*

*

PHASE (0 – 40)

_

*

*

TOGGLE (AV)

_

_

_

NORMAL (AV)

_

_

_

ZOOM 14:9 (AV)

_

_

_

PANORAMA (AV)

_

_

_

FULL (AV)

_

_

_

CINEMA 16:9 (AV)

_

_

_

CINEMA 14:9 (AV)

_

_

_

NORMAL (PC)

_

_

_

CINEMA (PC)

_

_

_

FULL (PC)

_

_

_

DOT BY DOT (PC)

_

0

_

TOGGLE

_

_

_

MUTE

_

_

_

MUTE OFF

_

_

_

TOGGLE

_

_

_

ON

_

_

_

OFF

_

_

_

DUAL SCREEN OFF

_

_

_

DUAL SCREEN ON

_

_

_

TOGGLE

_

_

_

OFF

_

_

_

SLEEP TIMER 30 MIN

_

_

_

SLEEP TIMER 1 HOUR

_

_

_

SLEEP TIMER 1 HOUR 30 MIN

_

_

_

SLEEP TIMER 2 HOUR

_

_

_

SLEEP TIMER 2 HOUR 30 MIN

_

_

_

TEXT OFF

_

_

_

TEXT ON (TOGGLE)

_

_

_

DIRECT PAGE JUMP (100 – 899)

_

*

*

CONTROL

CONTENTS

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

69

Appendix

Specifications

Item

32o LCD COLOUR TV, Model:LC-32G2X (Display)
TU-32GAX (AVC System)

LCD panel

Number of dots 3,147,264 dots (1366 g 768 g 3 dots)

Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV
Function

Brightness 450 cd/m

Backlight life 60,000 hours (at Backlight Standard position)

Viewing angles H : 170° V : 170°

Audio amplifier 10W g 2

Speakers Ø 8 cm 2pcs, Ø 2.5 cm 2pcs

Terminals

OSD language English/Chinese/Arabic

Power Requirement AC 220–240 V, 50 Hz

Power
Consumption

Weight 6.6 kg (w/o stand), 6.8 kg (with stand)

Accessories

TV-Standard (CCIR)

Receiving
Channel

TV-Tuning System Auto Preset 99 ch, Auto Label, Auto Sort

STEREO/BILINGUAL NICAM/A2

AVC
System

AVC System

Display

AVC System

Display

VHF/UHF 44.25-863.25 MHz

CATV Hyper-band, S1–S41ch

Rear

ANTENNA IN
INPUT 1

INPUT 2

INPUT 3 AV in, COMPONENT VIDEO in

INPUT 5 Ø 3.5 mm jack (Audio input), DVI-I (DVI-I input)

AV OUTPUT RCA pin (AV output [Audio: Variable/Fixed])

DC OUTPUT DC9V 7W MAX

SPEAKER-B External speaker output terminal (L and R)

CENTRE
CHANNEL
INPUT

RS-232C D-sub 9pin male connector

Front

INPUT 4 AV in, S-VIDEO in

Headphones

PC Card slot

32o Advanced Super View & BLACK TFT LCD

PAL: B/G, D/K, I, PAL-60 SECAM: B/G, D/K, K/K1 NTSC: M

2

UHF/VHF 75 q Din type

AV in, COMPONENT VIDEO in

AV in, S-VIDEO in

RCA pin

Ø 3.5mm jack (Audio output)

PC Card Type II (PC Card Adapter)

36 W (0.6 W Standby)

117 W (0.3 W Standby) (Method IEC60107)

13 kg (Display only), 17.5 kg (with Display and
speakers), 22 kg (with Display, speakers and stand)

Operation manual, Remote control unit (g1), System
cable (g1), AC cord (g2), “AAA” size battery (g2),
AVC system stand unit (g1), Cable clamp (g1),
Antenna cable (g1)

37o LCD COLOUR TV, Model:LC-37G2X (Display)
TU-37GAX (AVC System)

37o Advanced Super View & BLACK TFT LCD

157 W (0.3 W Standby) (Method IEC60107)

14.5 kg (Display only), 19.5 kg (with Display and
speakers), 24 kg (with Display, speakers and stand)

Operation manual, Remote control unit (g1), System
cable (g1), AC cord (g2), “AAA” size battery (g2),
AVC system stand unit (g1), Cable clamp (g1),
Antenna cable (g1), Speaker unit (g1), Bracket unit
(g1), Screwdriver (g1)

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for
product improvement without prior notice. The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.

Optional accessories

The listed optional accessories are available for the LCD colour
TV. Please purchase them at your nearest shop.

• Additional optional accessories may be available in near future. When purchasing,
please read the newest catalogue for compatibility and check the availability.

No.

1 AN-37AG2

2 AN-07SC2

Part name Part number

Wall mount bracket

System cable
(7 meters)

70

Dimensional drawings

Display

LC-32G2X

700.4

671

980

795

Unit: mm

307

70.5

89.4

480

566

200

395.1

328

307

110

200

71

Dimensional drawings

Display

LC-37G2X

822.6

671

1102

917

Unit: mm

307635

70.5

89.4

548

200

463.8

362

307

115

200

72

Dimensional drawings

AVC System

Unit: mm

95

365

430

5

22049

303

73

HOW TO SET THE FACTORY PRESETS

Turn off the Display by pressing MAIN POWER.
Press and hold down RESET on the AVC System and press MAIN POWER on the Display to turn on the
System.
All setting items (except TV channel) return to the factory presetting.

NOTE

• Running the factory presetting operation also clears the password.

You can run the Auto Installation again by using the following steps.

1 Turn on the power of the Display and the AVC System.
2 Press MENU. (Make sure the menu screen displays.)
3 Press c/d to select “Setup”.
4 Press a/b to select “Auto Installation”, and then press ENTER.
5 Press c/d to select “Ye s”, and then press ENTER.

The password is .

NOTE

• As a precautionary measure, make a note of your password above, scissor it from this manual, and keep it in a familiar
place.

74

FOR LOCATION ENQUIRIES WITHIN

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT
