Sharp T19D1-H - LL - 19"" LCD Monitor, T19D1-B - LL - 19"" LCD Monitor Operation Manual

LCD Monitor
LCD Farbmonitor
Moniteur LCD
Monitor LCD
Monitor LCD

LL-T19D1

OPERATION MANUAL
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
MANUALE D'USO
MANUAL DE FUNCIONAMIENTO

Table of Contents/Inhaltsverzeichnis/Table des matières/Indice/Índice

Notice for Users in Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Notice for Users in the UK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice for Users in Australia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice for Users in the USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TCO'99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Notice for Users in Europe

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended
by 93/68/EEC.

Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit
Änderung 93/68/EWG.

Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées
par la directive 93/68/CEE.

Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG, gewijzigd door 93/68/
EEG.

Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillæg nr. 93/68/EEC.

Quest' apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/EEC, come emendata
dalla direttiva 93/68/EEC.

Η εγκατασταση ανταποκρινεται στιζ απαιτησειζ των οδηγιων τηζ Ευρωπαïκηζ Ενωσηζ 89/336/ΕΟΚ κατ
73/23/ΕΟΚ, óπωζ οι κανονισµοι αυτοι συµπληρωθηκαν απó την οδηγια 93/68/ΕΟΚ.

Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão
corrigida pela directiva 93/68/CEE.

Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por
medio de la 93/68/CEE.

EnglishDeutschFrançaisItalianoEspañolEnglish

Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC så som komplette ras
av 93/68/EEC.

Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i endringen 93/68/EEC.

Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/
68/EEC.

CAUTION:

TO PREVENT ELECTRICAL SHOCK, DISCONNECT THE AC CORD BEFORE SERVICING.

CAUTION:

FOR A COMPLETE ELECTRICAL DISCONNECTION, PULL OUT THE MAIN PLUG.

VORSICHT:

UM DIE STROMZUFUHR VOLLSTÄNDIG ZU UNTERBRECHEN, DEN NETZSTECKER HERAUSZIEHEN
ENTFERNEN.

ATTENTION :

POUR UN ARRET TOTAL DE L'APPAREIL, DEBRANCHEZ LA PRISE DU COURANT SECTEUR.

VARNING:

FÖR TOTAL ELEKTRISK URKOPPLING, KOPPLA UR KONTAKTEN OCH.

PRECAUCION:

PARA UNA COMPLETA DESCONEXION ELECTRICA DESENCHUFE LA CLAVIJA DE LA RED.

PRECAUCION:

A FIN DE EVITAR DESCARGAS ELÉCTRICAS, DESCONECTE EL ENCHUFE DE LA RED ANTES DE
REALIZAR CUALQUIER OPERACIÓN DE SERVICIO.

ATTENZIONE:

PER EVITARE FOLGORAZIONI, SCOLLEGATE IL CAVO DI COLLEGAMENTO ALLA RETE IN
ALTERNATA PRIMA DI EFFETTUARE UN INTERVENTO DI SERVIZIO TECNICO.

ATTENZIONE:

PER UNO SCOLLEGAMENTO ELETTRICO COMPLETO, TIRATE FUORI LA SPINA PRINCIPALE.

3

Notice for Users in the UK

FOR CUSTOMERS IN U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW : Earth
BLUE : Neutral
BROWN : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured
markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug

which is marked by the letter E or by the safety earth

• The wire which is coloured BLUE must be connected to the terminal which is marked with the

letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the

letter L or coloured red.

Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified
electrician.

"WARNING: THIS APPARATUS MUST BE EARTHED."

or coloured green or green-and-yellow.

Notice for Users in Australia

Service Inquiries

Please contact your dealer for service if required or contact Sharp Corporation of Australia on
1 300 13 50 22 for referral to your nearest Sharp authorized Service Center.

4

Notice for Users in the USA

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment
not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the distance between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use nothing but the included cables and AC cord to insure compliance with FCC regulation for Class B
computing equipment.

EnglishDeutschFrançaisItalianoEspañolEnglish

Declaration of Conformity

SHARP LCD Color Monitor LL-T19D1-H/LL-T19D1-B

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Responsible Party : SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430
TEL :1-800-BE-SHARP

* As an ENERGY STAR Partner, SHARP has determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury.
Disposal of these materials may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the Electronics Industries
Alliance:www.eiae.org

5

Congratulations!

You have just purchased a TCO'99 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment
and also to the further development of environmentally
adapted electronics products.

Why do we have environmentally labelled
computers?

In many countries, environmental labelling has become
an established method for encouraging the adaptation of
goods and services to the environment. The main
problem, as far as computers and other electronics
equipment are concerned, is that environmentally
harmful substances are used both in the products and
during their manufacture. Since it is not so far possible to
satisfactorily recycle the majority of electronics
equipment, most of these potentially damaging
substances sooner or later enter nature.
There are also other characteristics of a computer, such
as energy consumption levels, that are important from
the viewpoints of both the work (internal) and natural
(external) environments. Since all methods of electricity
generation have a negative effect on the environment
(e.g. acidic and climate-influencing emissions, radioactive
waste), it is vital to save energy. Electronics equipment in
offices is often left running continuously and thereby
consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99
scheme which provides for international and
environmental labelling of personal computers. The
labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen (The
Swedish Society for Nature Conservation) and Statens
Energimyndighet (The Swedish National Energy
Administration).
Approval requirements cover a wide range of issues:
environment, ergonomics, usability, emission of electric
and magnetic fields, energy consumption and electrical
and fire safety.
The environmental demands impose restrictions on the
presence and use of heavy metals, brominated and
chlorinated flame retardants, CFCs (freons) and
chlorinated solvents, among other things. The product
must be prepared for recycling and the manufacturer is
obliged to have an environmental policy which must be
adhered to in each country where the company
implements its operational policy.
The energy requirements include a demand that the
computer and/or display, after a certain period of
inactivity, shall reduce its power consumption to a lower
level in one or more stages. The length of time to
reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electric and magnetic fields, physical and visual
ergonomics and good usability.
Below you will find a brief summary of the environmental
requirements met by this product. The complete
environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden
Fax: [phone]
Email (Internet): [e-mail]
Current information regarding TCO'99 approved and
labelled products may also be obtained via the Internet,
using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants
Flame retardants are present in printed circuit boards,
cables, wires, casings and housings. Their purpose is to
prevent, or at least to delay the spread of fire. Up to 30%
of the plastic in a computer casing can consist of flame
retardant substances. Most flame retardants contain
bromine or chloride, and those flame retardants are
chemically related to another group of environmental
toxins, PCBs. Both the flame retardants containing
bromine or chloride and the PCBs are suspected of
giving rise to severe health effects, including reproductive
damage in fish-eating birds and mammals, due to the
bio-accumulative* processes. Flame retardants have
been found in human blood and researchers fear that
disturbances in foetus development may occur.
The relevant TCO'99 demand requires that plastic
components weighing more than 25 grams must not
contain flame retardants with organically bound bromine
or chlorine. Flame retardants are allowed in the printed
circuit boards since no substitutes are available.

Cadmium**
Cadmium is present in rechargeable batteries and in the
colour-generating layers of certain computer displays.
Cadmium damages the nervous system and is toxic in
high doses. The relevant TCO'99 requirement states that
batteries, the colour-generating layers of display screens
and the electrical or electronics components must not
contain any cadmium.

Mercury**
Mercury is sometimes found in batteries, relays and
switches. It damages the nervous system and is toxic in
high doses. The relevant TCO'99 requirement states that
batteries may not contain any mercury. It also demands
that mercury is not present in any of the electrical or
electronics components associated with the labelled unit.
There is however one exception. Mercury is, for the time
being, permitted in the back light system of flat panel
monitors as there today is no commercially available
alternative. TCO aims on removing this exception when a
mercury free alternative is available.

CFCs (freons)
The relevant TCO'99 requirement states that neither
CFCs nor HCFCs may be used during the manufacture
and assembly of the product. CFCs (freons) are
sometimes used for washing printed circuit boards. CFCs
break down ozone and thereby damage the ozone layer
in the stratosphere, causing increased reception on earth
of ultraviolet light with e.g. increased risks of skin cancer
(malignant melanoma) as a consequence.

Lead**
Lead can be found in picture tubes, display screens,
solders and capacitors. Lead damages the nervous
system and in higher doses, causes lead poisoning. The
relevant TCO'99 requirement permits the inclusion of lead
since no replacement has yet been developed.

* Bio-accumulative is defined as substances which

accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which

are Bio-accumulative.

6

Table of Contents

Tips and safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Height adjustment, angle adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the monitor and turning the monitor on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting the monitor to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting the monitor to a power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing between input terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Turning the power off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting the screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Adjusting the backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

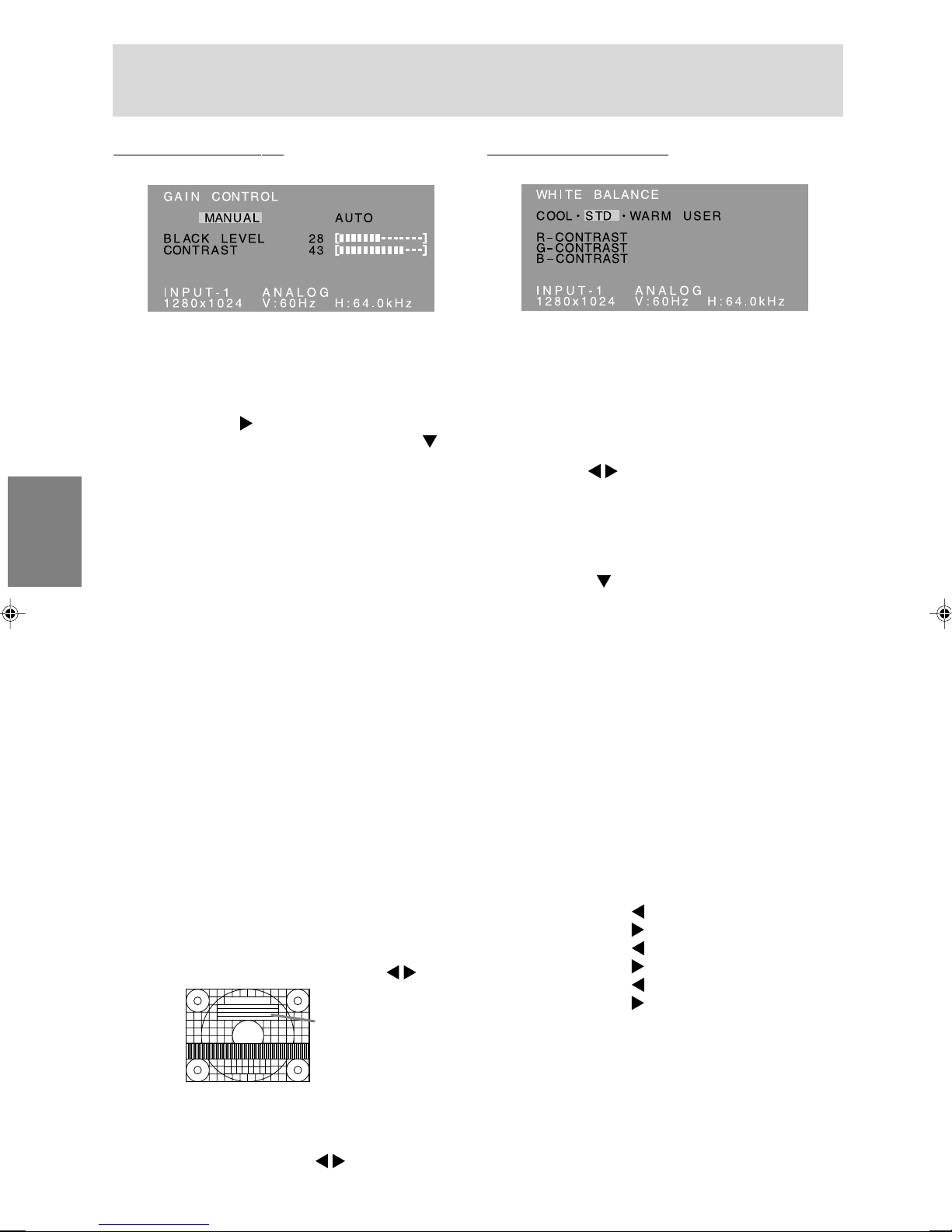

Adjusting the screen display (When using an analog signal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Automatic screen adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Manual screen adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

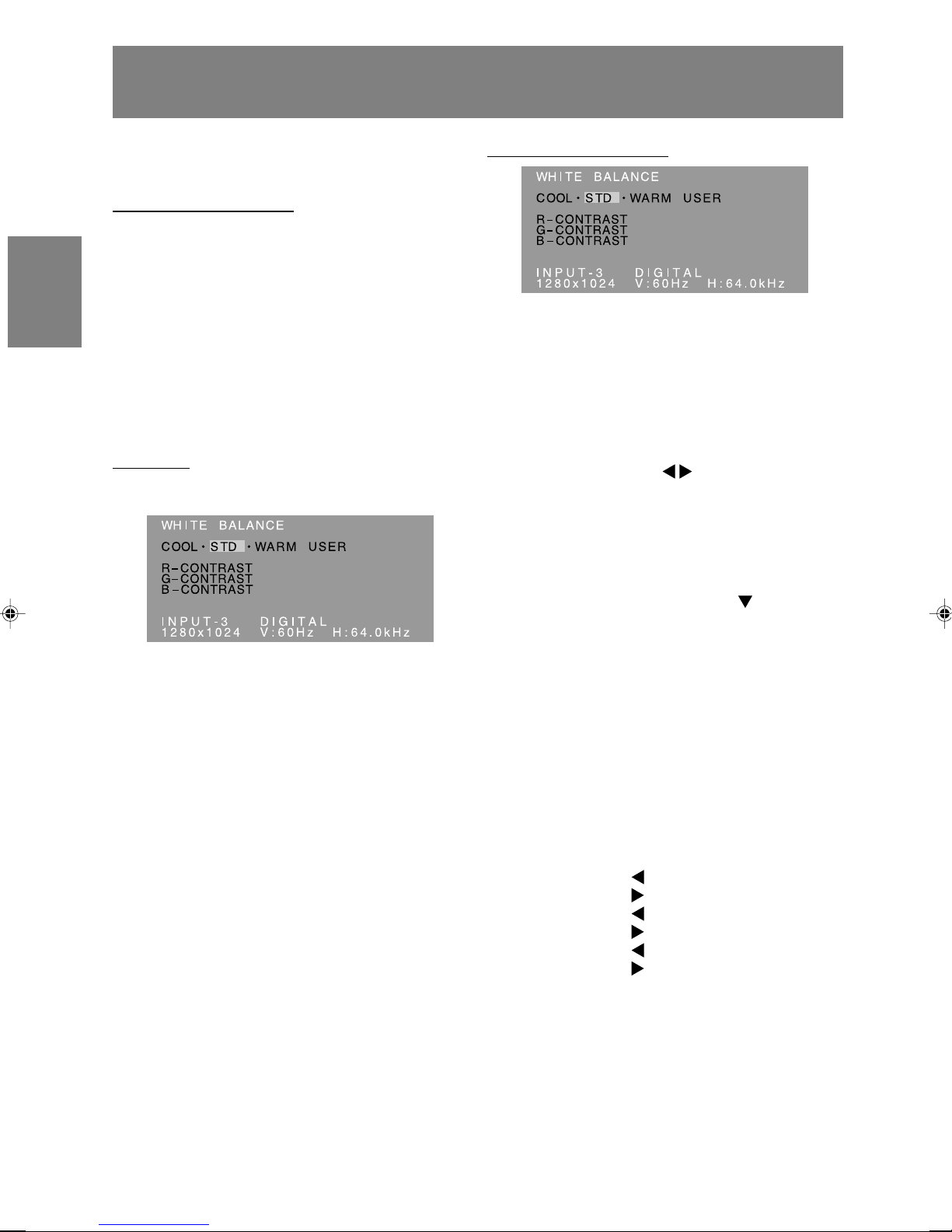

Adjusting the screen display (When using a digital signal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Monitor care and repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Monitor care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

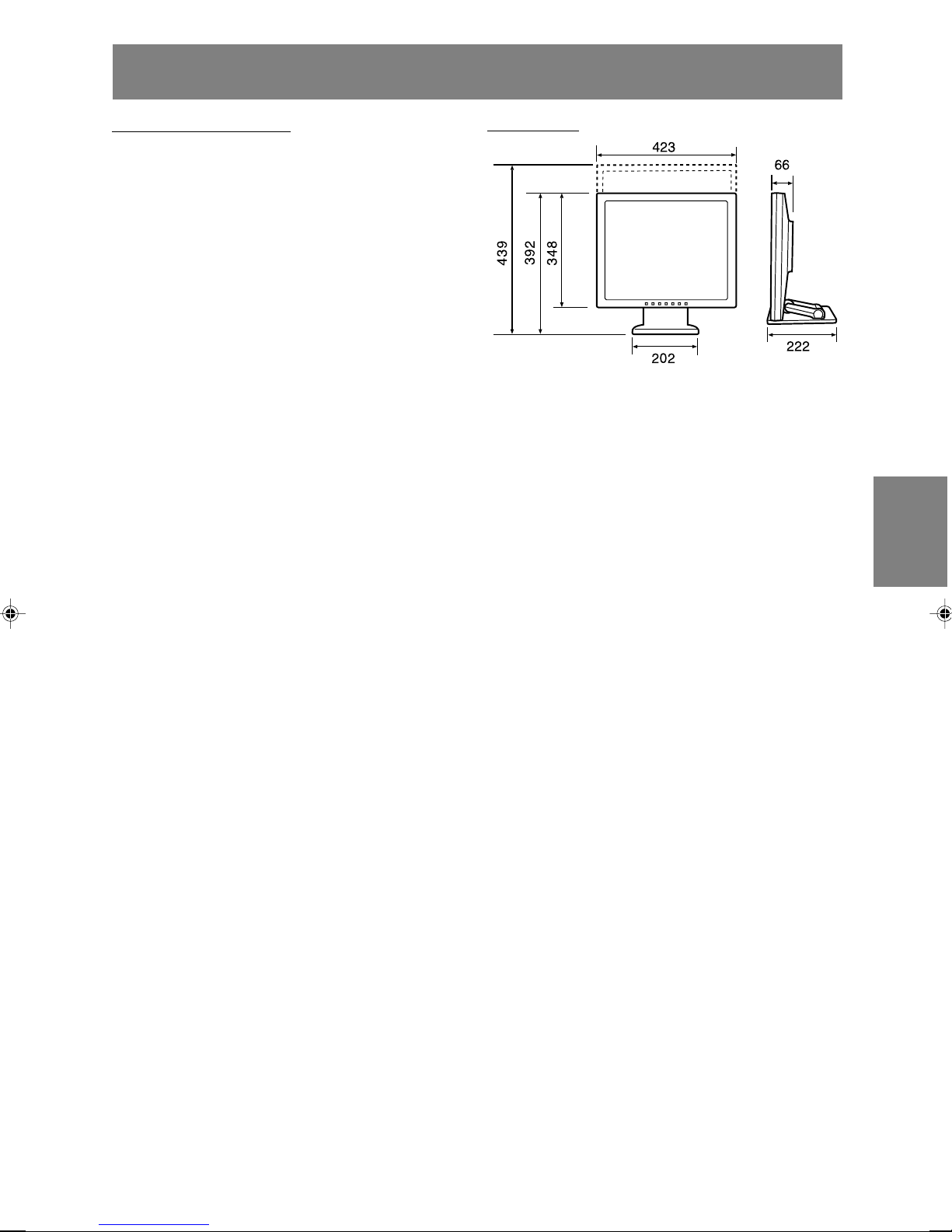

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Installing set-up information and the ICC profile (For Windows). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Information about the ColorSync profile (For MacOS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

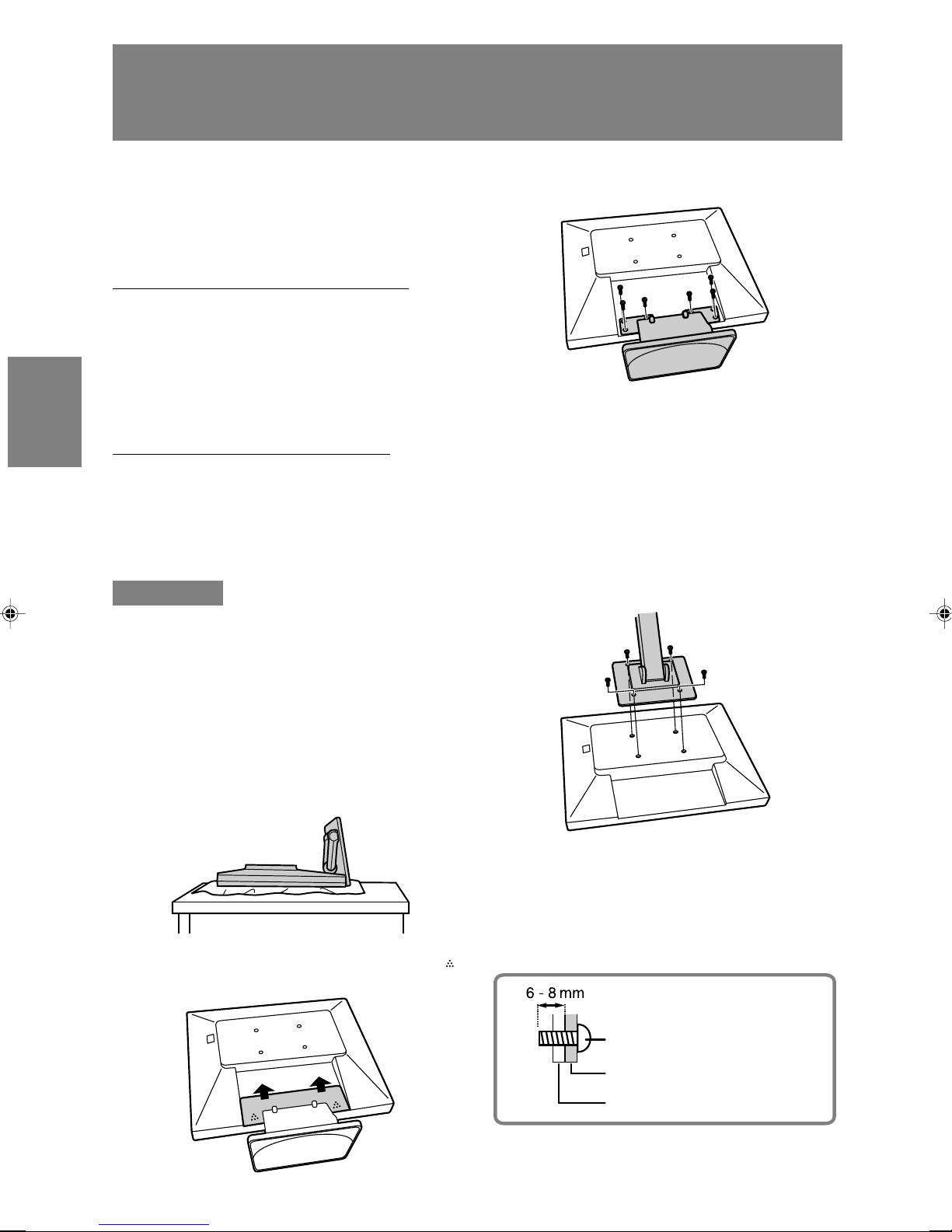

Instructions for attaching a VESA compliant arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

EnglishDeutschFrançaisItalianoEspañolEnglish

7

Tips and safety precautions

- The TFT color LCD panel used in this monitor is

made with the application of high precision
technology. However, there may be minute points
on the screen where pixels never light or are
permanently lit. Also, if the screen is viewed from
an acute angle there may be uneven colors or
brightness. Please note that these are not
malfunctions but common phenomena of LCDs
and will not affect the performance of the
monitor.

- Do not leave the screen displaying idly for long

periods of time, as this could cause afterimage to
remain.

- If the brightness is adjusted to the minimum

setting it may be difficult to see the screen.

- The quality of the computer signal may influence

the quality of the display. We recommend using a
computer able to emit high quality video signals.

- Never rub or tap the monitor with hard objects.

- Please understand that Sharp Corporation bears

no responsibility for errors made during use by
the customer or a third party, nor for any other
malfunctions or damage to this product arising
during use, except where indemnity liability is
recognized under law.

- This monitor and its accessories may be

upgraded without advance notice.

Location

- Do not use the monitor where ventilation is poor,

where there is a lot of dust, where humidity is high,
or where the monitor may come into contact with oil
or steam, as this could lead to fire.

- Ensure that the monitor does not come into

contact with water or other fluids. Ensure that no
objects such as paper clips or pins enter the
monitor as this could lead to fire or electric
shock.

- Do not place the monitor on top of unstable

objects or in unsafe places. Do not allow the
monitor to come into contact with strong shocks
or vibrations. Causing the monitor to fall or topple
over may damage it.

- Do not use in places where the monitor will be

subject to direct sunlight, near heating equipment
or anywhere else where there is likelihood of
high temperature, as this may lead to generation
of excessive heat and outbreak of fire.

The Power Cord

- Do not damage the power cord nor place heavy
objects on it, stretch it or overly bend it. Also, do
not add extension cords. Damage to the cord
may result in fire or electric shock.

- Use only the power cord supplied with the monitor.

- Insert the power plug directly into the AC outlet.
Adding an extension cord may lead to fire as a
result of overheating.

Monitor and accessory checklist

- Please check that the following items are
included in the package.

- LCD monitor (1)

- Analog signal cable (1)

(model name: 0NK3080420400)

- CD-ROM (1)

- Operation manual (1)

Notes:

- The digital signal cable (DVI-D24 pin – DVI-D24
pin) is to be purchased separately.
(model name: NL-C01E)

- Be sure to use cables that are less than 3 m in
length.

- You are advised to retain the carton in case the
monitor needs to be transported.

- Sharp Corporation holds authorship rights to the
Utility Disk program. Do not reproduce it without
permission.

- The shape of the supplied accessaries may not
be exactly same as shown in this booklet.

Manual Scope

- In this booklet, Microsoft Windows XP will be
referred to as "Windows XP", Microsoft Windows
Millennium as "Windows Me", Microsoft Windows
2000 as "Windows 2000", Microsoft Windows 98
as "Windows 98", Microsoft Windows 95 as
"Windows 95", and Microsoft Windows Version

3.1 as "Windows 3.1". When there is no need to
distinguish between programs, the term
"Windows" will be used.

- Microsoft and Windows are registered
trademarks of Microsoft Corporation.

- Macintosh is a registered trademark of Apple
Computer, Inc.

- All other brand and product names are
trademarks or registered trademarks of their
respective holders.

8

Product description

1. INPUT button ........................... To switch between the signal's input terminals.

2. MENU button............................ This button is used to pop-up, select and close the OSD (On Screen

Display) Menu.

3. / MODE button ..................... When the OSD Menu is displayed:

This button is used to select menu options.

When the OSD Menu is not displayed:

This button is used to set DISPLAY MODE.

buttons ............................. When the OSD Menu is displayed:

4.

5. Power button ............................ Pressing this button turns the power on.

6. Power LED ............................... This LED is lit green when in use and orange when in power-saving

7. Main power switch

8. Power terminal

9.

Analog RGB input terminal 1 and 2 ...

10. DVI-D input terminal ................ The computer's digital RGB output terminal can be connected here.

11. Security lock anchor ................ By connecting a security lock (commercially available) to the security

12. Ventilation openings ................ Note: Never block the ventilation openings as this may lead to

These buttons are used to select an option or adjust the value of the
selected option.

When the OSD Menu is not displayed:

These buttons are used to adjust backlight brightness.

Press the button again to turn the power off.

mode.

The analog signal cable is connected here.

The separately-sold cable (NL-C01E) is necessary for connection.
(p.8)
It can be connected to a computer with a DVI-compatible output
terminal (DVI-D24 pin or DVI-I29 pin) and which has SXGA output
ability. Depending on the computer to be connected, correct display
may or may not be possible.

lock anchor, the monitor is fixed so that it cannot be transported.
The security slot works in conjunction with Kensington Micro Saver
Security Systems.

overheating inside the monitor and result in malfunction.

EnglishDeutschFrançaisItalianoEspañolEnglish

9

Height adjustment, angle adjustment

CAUTION!

- Pressure from hands on the LCD panel could

cause damage.

- Do not attempt to move the monitor beyond its

movement range. Applying excessive force to
move the monitor may damage the product.

- Be careful not to allow your fingers to be

pinched.

Height adjustment

Lowest position

approx. 47 mm

approx. 20°

approx. 60°

Highest position

- When positioning the display higher, hold the

stand tight so that it does not move together with
the display.

Angle adjustment

approx. 20°

approx. 5°

approx. 45°

approx. 45°

10

Connecting the monitor and turning the monitor on and off

CAUTION!

- When connecting, ensure that both the monitor

and computer are switched off.

- Be careful not to overly bend the cable or add

extension cords as this could lead to a
malfunction.

Connecting the monitor to a computer

Analog connection

Connect the analog signal cable to the analog RGB
output terminal of the computer.

- For analog connection, use the analog signal

cable accessory or a commercially available one
(both ends should be mini D-sub15 pin).

Analog RGB input terminal
1 and 2
You can connect to either
side.

Digital connection

Connect the separately-sold digital signal cable
(NL-C01E) to the digital RGB output terminal of the
computer.

- The monitor has an input for connecting to a
computer with a DVI-compatible output connector
(DVI-D24 pin or DVI-I29 pin) and SXGA output
capability. (Depending on the type of computer to
be connected, the display may not work
correctly.)

DVI-D input terminal

Digital signal cable

- Paying attention to connector direction, firmly

insert the signal cable vertically into the
connector, and then tighten the screws at both
sides.

Digital RGB output
terminal

EnglishDeutschFrançaisItalianoEspañolEnglish

Analog signal cable

- Paying attention to connector direction, firmly
insert the signal cable vertically into the
connector, and then tighten the screws at both
sides.

If connecting to a D-sub15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal cable.

Macintosh conversion adapter

Note:

- If connecting to the Sun Ultra series, a
conversion adapter (commercially available) may
be required.

Analog RGB output
terminal

11

Connecting the monitor and turning the monitor on and off

Connecting the monitor to a power
source

Power terminal

AC outlet

Power cord

Turning the power on

1.Turn on the main power of the monitor.

Main power switch

- When switching the main power switch on and
off, always wait for an interval of at least 5
seconds. Rapid switching may result in
malfunction.

2.Press the monitor's POWER button.
The power LED will light up orange.

3.Turn on the computer.

Turn on the

Press power button.

computer power
supply.

ON

When a signal is input from the computer, the
power LED lights up green, and the screen is
displayed. (After power is turned on, it may take a
little time until the screen is displayed.)

- If the input terminal to which the computer is

connected has not been selected, the screen
will not be displayed. If necessary, perform
input terminal switching. (p.13)

Notes:

- When using an analog signal, perform an
automatic screen adjustment under the following
conditions (p.16):

- Using the monitor for the first time.

- After having changed the system settings

during use.

- Depending on the computer or OS, it may be
necessary to use the computer to install monitor
set-up information (p.26).

- When connecting to a notebook, if the notebook
computer's screen is set so that it is displaying at
the same time, the MS-DOS screen may not be
able to display properly. In this case, change the
settings so that only the monitor is displaying.

12

Connecting the monitor and turning the monitor on and off

Changing between input terminals

Use the INPUT button to switch between signal
input terminals.

Analog RGB input terminal 1

Analog RGB input
terminal 2

Note:

- When there is no input signal, [NO SIGNAL] is
displayed.

DVI-D input terminal

Turning the power off

1. Turn the computer off.

2.Press the monitor's POWER button.
The Power LED will disappear.

Turn the computer
off.

OFF

If the monitor will not be used for a long time, turn
off the main power switch of the monitor, and
remove the power plug from the outlet.

Press power button.

EnglishDeutschFrançaisItalianoEspañolEnglish

13

Adjusting the screen display

For analog signal

1.First perform an automatic adjustment. (p.16)

2.Perform manual adjustment where necessary.
(p.17)

For digital signal

The monitor can generally be used without
adjustment. If necessary perform manual
adjustment. (p.20)

Note:

- All adjustments will be saved even after turning
the power off.

Resetting all adjustment values

All adjustment values can be returned to their
original ex-factory values in one command.

1. Turn off the monitor power.

2. Press the MENU button and the / MODE
button simultaneously, and while doing this press
the power button (i.e. turn the power on).
Continue to press the buttons until [ALL RESET]
appears on the screen. Reset is complete when
the displayed message disappears.

Notes:

- While [ALL RESET] is displayed, the control
buttons are disabled.

- It is not possible to reset values when the
adjustment lock is in place. Remove the
adjustment lock before attempting to operate
control buttons.

Adjustment lock function

By disabling the control buttons (i.e. setting the
lock) any attempted changes to adjusted values will
be voided.

1. Turn off the monitor power.

2.While pressing the MENU button, press the
power button (i.e. turn the power on).
Continue to press the buttons until
[

ADJUSTMENT LOCKED

The lock is set when the message is displayed.

Note:

- When the lock is in place, all buttons other than
the power button are disabled.

Adjustment lock release

1. Turn off the monitor power.

2.While pressing the MENU button, press the
power button (i.e. turn the power on).
Continue to press the buttons until
[

ADJUSTMENT UNLOCKED
screen. The lock is released when the message
is displayed.

] appears on the screen.

] appears on the

Adjusting the backlight

1.Without the OSD Menu being displayed, press
the

or the button.

ADJUSTMENT menu reset

Settings of items in the ADJUSTMENT Menu
(CLOCK, PHASE, H-POS, V-POS) can be returned
to their original ex-factory values.

1. Turn on the monitor power.

2.Press the MENU button and the
simultaneously. When [RESET] appears on the
screen, the reset is complete.

Note:

- It is not possible to reset values when the
adjustment lock is in place. Remove the
adjustment lock before attempting to operate
control buttons.

button

2.Adjust by pressing the button (darker) or
button (lighter).

Note:

- On Screen display for adjustment disappears
several seconds after the last operation.

14

Adjusting the screen display

Setting display mode

Color tone or brightness can be changed with one
command.

STD

Displays image with the color tone results from
original scheme of liquid crystal panel.

OFFICE

Display brightness is lowered. The brightness is
set to a level that is easier on the eyes than with
other modes and saves power.

sRGB

sRGB is international standard of color
representation specified by IEC (International
Electrotechnical Commission).
Color conversion is made in taking account of
liquid crystal's characteristics and represents
color tone close to its original image.

EnglishDeutschFrançaisItalianoEspañolEnglish

VIVID

Displays an image with dynamic and VIVID
primary colors.

- If [DISPLAY MODE] is set to [OFFICE], [sRGB] or
[VIVID], [WHITE BALANCE] is set to [STD].

How to set

Press the / MODE button when the OSD Menu is
not displayed.
Each time the button is pressed the next menu item
appears. (STD → OFFICE →sRGB → VIVID →
STD)
On Screen display for adjustment disappears
several seconds after the last operation.

15

Adjusting the screen display (When using an analog signal)

Automatic screen adjustment

Options in the ADJUSTMENT Menu can be
adjusted automatically (CLOCK, PHASE, H-POS,
V-POS).

Note:

- When setting up this monitor for the first time or
after having changed an aspect of the current
system, perform an automatic screen adjustment
before use.

On Screen Display for the automatic
adjustment

First display an image that makes the entire screen
light.
If you are using Windows, you can use the
Adjustment Pattern on the accompanying CD­ROM.

Opening the Adjustment Pattern (for Windows)

This explanation is for Windows 95/98/2000/Me/XP,
and assumes that the CD-ROM drive is "D drive".

1.Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2.Open [My Computer] and select CD-ROM. If
using Windows 3.1, open [File Manager] and
choose "D drive".

3.Double click on [Adj_uty.exe] to run the
Adjustment Program. The Adjustment Pattern will
appear.

Adjustment Pattern

After completing the adjustments, press the
computer's [Esc] key to exit the Adjustment
Program.

Note:

- If your computer's display mode is set to 65K
colors, you may see the different color levels in
each color pattern or the gray scale may look
colored. (This is due to the specification of the
input signal and is not a malfunction.)

Adjusting the screen automatically

1.Press the MENU button.
The ADJUSTMENT Menu will be displayed.

2.Press the button.
The screen will become dark and [ADJUSTING]
will be displayed. After a few seconds the
ADJUSTMENT Menu will return. (The automatic
adjustment is now complete.)

3. Press the MENU button 4 times to make the On
Screen Display (OSD) Menu disappear.

Notes:

- In most cases automatic adjustment is sufficient.

- It may not be possible to achieve correct
adjustment with the first automatic adjustment. In
such a case, try repeating automatic adjustment
2 or 3 times.

- If necessary due to any of the following, manual
adjustments (p.17) can be performed after the
automatic adjustment.

- When further fine adjustment is needed.

- When the computer's video input signals are

Composite Sync or Sync On Green. (Automatic
adjustments may not be possible.)

- When [OUT OF ADJUST] is displayed. (When

the screen displays an entirely dark image, the
automatic screen adjustment may be disabled.
When making an automatic adjustment, be
sure to either use the Adjustment Pattern or try
displaying an image that makes the entire
screen very bright.)

- Automatic adjustment may not be achieved
correctly depending on what is displayed on the
screen - moving pictures or the MS-DOS prompt
etc.

16

Adjusting the screen display (When using an analog signal)

Manual screen adjustment

Adjustments can be made using On Screen
Display (OSD) Menu provided.

On Screen Display for adjustment

If you are using Windows, open the Adjustment
Pattern on the accompanying Utility Disk. (p.16)
If your system is not Windows, you can not use the
Adjustment Pattern. Therefore display an image
that makes the entire screen light and adjust it
through checking visually its actual tone.
This chapter provides the procedure how to adjust
the screen by using Adjustment Pattern (for
Windows).

How to adjust

1.Press the MENU button.
The ADJUSTMENT Menu will be displayed.

ADJUSTMENT Menu

MANUAL: Individual menu options are manually

adjusted.

AUTO: Every menu option is automatically

adjusted.

Notes:

- Press the

- To choose a menu option: / MODE button

- To go to the next menu: MENU button

CLOCK

The figure below demonstrates how to adjust so
that vertical flicker noise is not emitted.

buttons)

(

button to select [AUTO].

EnglishDeutschFrançaisItalianoEspañolEnglish

At this point relevant menu options can be
adjusted.
Each time the MENU button is pressed the next
menu is selected. (ADJUSTMENT → GAIN
CONTROL → WHITE BALANCE→ MODE
SELECT → OSD Menu disappears)

Note:

- The OSD Menu automatically disappears
approximately 30 seconds after the last
command.

Vertical flicker noise

PHASE

The figure below demonstrates how to adjust so
that horizontal flicker noise is not emitted.

buttons)

(

Note:

- Adjustments to [PHASE] should be made only
after [CLOCK] has been correctly set.

Horizontal flicker noise

H-POS (horizontal positioning) and V-POS
(vertical positioning)

To center the Adjustment Pattern within the
boundaries of the screen, adjust the left-right (H­POS) values and the up-down (V-POS) values.

buttons)

(

Screen frame

Adjustment

Pattern

17

Adjusting the screen display (When using an analog signal)

GAIN CONTROL Menu

MANUAL: Individual menu options are manually

adjusted.

AUTO: Every menu option is automatically

adjusted using the Auto Gain Control*
function.

Notes:

- Press the

- To choose a menu option: / MODE button

- To go to the next menu: MENU button

* Auto Gain Control function

- The Auto Gain Control adjusts contrast and black
level based on the brightest and darkest colors of
the image displayed. If you are not using the
Adjustment Pattern it is necessary to have black
area and white area of at least 5 mm x 5 mm on
the screen. Adjustment may not be possible
without those areas.

- If the signal coming from the computer is
composite sync or sync on green, automatic
adjustment cannot be performed. Please perform
manual adjustment instead.

- If [OUT OF ADJUST] is displayed, perform
manual adjustment.

- When using the Auto Gain Control function, set
[WHITE BALANCE] to other than [USER]. If
[USER] is set, the Auto Gain Control function
cannot be used.

button to select [AUTO].

WHITE BALANCE Menu

Notes:

- On settings other than [STD] not all gradations
can be displayed. To display all gradations, set to
[STD].

- If [DISPLAY MODE] is set to [OFFICE], [sRGB] or
[VIVID], no other setting than [STD] can be
selected.

- Use the
[·], [WARM] or [USER].

- Selecting [USER] will display the setting values
for [R-CONTRAST], [G-CONTRAST] and [B­CONTRAST], in order to make fine adjustments.

- Use the / MODE button to select
[R-CONTRAST], [G-CONTRAST] and
[B-CONTRAST].

- To go to the next menu: MENU button

COOL ....... Color tone bluer than standard

• ............. Color tone slightly bluer than standard

STD .......... Color tone standard setting

• ............. Color tone slightly redder than standard

WARM ...... Color tone redder than standard

USER

R-CONTRAST .....

G-CONTRAST ..... button for purple

B-CONTRAST ..... button for yellow

buttons to select [COOL], [·], [STD],

button for blue-green
button for red

button for green

button for blue

BLACK LEVEL

Total screen brightness can be adjusted while
watching the color pattern. (

CONTRAST

While watching the color pattern, adjustments can
be made so that all gradations appear.

buttons)

(

buttons)

Color pattern

18

Adjusting the screen display (When using an analog signal)

MODE SELECT Menu

Notes:

- Depending on the resolution of the input signal,
even if menu options can be selected, the display
may not change.

- To choose a menu option: / MODE button

- To complete adjustment: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD Menu can be moved to the
left and right. (

OSD V-POSITION (OSD vertical position)

The position of the OSD Menu can be moved up
and down. (

buttons)

buttons)

EnglishDeutschFrançaisItalianoEspañolEnglish

SCALING (Level of scaling)

The sharpness of the image can be adjusted.
(

buttons)

Note:

- When the display mode is set to less than
1280 x 1024 pixels, the display is enlarged to
cover the whole screen (i.e. the side ratio of the
display may change).

400 LINES (degree of resolution)

You can specify the horizontal resolution of a 400­line screen when using US text, etc. (

640: 640 x 400 dot mode
720: 720 x 400 dot mode (US text etc.)

Note:

- As the resolution input for other than 400 lines is
done automatically, there is no need to set it.

LANGUAGE

You can choose the language used in OSD Menu.

1.Press the
The Language Selection Menu will be displayed
on the screen.

2. Use the / MODE button to choose a language.

3.Press the MENU button.
Language Selection Menu will disappear.

button.

buttons)

19

Adjusting the screen display (When using a digital signal)

Adjustments can be made using On Screen
Display (OSD) Menu provided.

On Screen Display for adjustment

If you are using Windows, open the Adjustment
Pattern on the accompanying Utility Disk. (p.16)
If your system is not Windows, you can not use the
Adjustment Pattern. Therefore display an image
that makes the entire screen light and adjust it
through checking visually its actual tone.
This chapter provides the procedure how to adjust
the screen by using Adjustment Pattern (for
Windows).

How to adjust

1.Press the MENU button.
The WHITE BALANCE Menu will be displayed.

At this point relevant menu options can be
adjusted.
Each time the MENU button is pressed the next
menu is selected. (WHITE BALANCE → MODE
SELECT → OSD Menu disappears)

Note:

- The OSD Menu automatically disappears
approximately 30 seconds after the last
command.

WHITE BALANCE Menu

Notes:

- On settings other than [STD] not all gradations
can be displayed. To display all gradations, set to
[STD].

- If [DISPLAY MODE] is set to [OFFICE], [sRGB] or
[VIVID], no other setting than [STD] can be
selected.

- Use the
[·], [WARM] or [USER].

- Selecting [USER] will display the setting values
for [R-CONTRAST], [G-CONTRAST] and [B­CONTRAST], in order to make fine adjustments.

- Use the / MODE button to select
[R-CONTRAST], [G-CONTRAST] and
[B-CONTRAST].

- To go to the next menu: MENU button

COOL ....... Color tone bluer than standard

• ............. Color tone slightly bluer than standard

STD .......... Color tone standard setting

• ............. Color tone slightly redder than standard

WARM ...... Color tone redder than standard

USER

R-CONTRAST .....

G-CONTRAST ..... button for purple

B-CONTRAST ..... button for yellow

buttons to select [COOL], [·], [STD],

button for blue-green
button for red

button for green

button for blue

20

Adjusting the screen display (When using a digital signal)

MODE SELECT Menu

Notes:

- To choose a menu option: / MODE button

- To complete adjustment: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD Menu can be moved to the
left and right. (

OSD V-POSITION (OSD vertical position)

The position of the OSD Menu can be moved up
and down. (

SCALING (Level of scaling)

The sharpness of the image can be adjusted.
(

buttons)

Note:

- When the display mode is set to less than
1280 x 1024 pixels, the display is enlarged to
cover the whole screen (i.e. the side ratio of the
display may change).

buttons)

buttons)

EnglishDeutschFrançaisItalianoEspañolEnglish

LANGUAGE

You can choose the language used in OSD Menu.

1.Press the
The Language Selection Menu will be displayed
on the screen.

2. Use the / MODE button to choose a language.

3.Press the MENU button.
Language Selection Menu will disappear.

button.

21

Monitor care and repair

Monitor care

Always remove the plug from the AC outlet when
cleaning the monitor.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime
from the cabinet and control panel.
If they are very dirty, apply neutral detergent to a
dampened soft cloth, wring it out well and wipe
away grime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and
dust from the surface of the LCD panel. (A soft
cloth such as gauze or that used for lens cleaning
is suitable.)

CAUTION!

- Never use thinner, benzine, alcohol, glass
cleaner, etc, as this could lead to color change or
change in shape.

- Never scratch the monitor with anything hard or
apply strong pressure as this could leave marks
or result in malfunction.

Storage

If the monitor will not be used for a long period of
time, be sure to remove the power plug from the
AC outlet.

CAUTION!

- Do not leave the monitor in contact with rubber or
plastic items for long periods of time as this could
lead to color change or change in shape.

Troubleshooting

If you think the monitor may be faulty, please check
the following points before taking it to be repaired.
If afterwards it still does not work, please contact
the shop where you purchased the monitor or your
nearest Sharp authorized Service Center.

The monitor's florescent tubes have a limited life
span.

- If the screen darkens, persistently flickers or
does not light up, it may be necessary to
replace the florescent tube unit. Please inquire
at the shop where you purchased the monitor
or your nearest Sharp authorized Service
Center. (Never attempt this replacement on
your own.)

- In the initial period of use, due to the
characteristics of florescent tubes the screen
may flicker. (This is not a malfunction.) Should
this happen, check by first turning off the
power, then turning it on again.

No image appears on the monitor (Power LED is
not lit)

- Is the power cord connected properly? (p.12)
No image appears on the monitor (Power LED is lit)

- Is the computer connected properly? (p.11)

- Is the computer turned on?

- Is the signal's input terminal switched to the
correct one? (p.13)

- Does the computer's signal timing correspond to
monitor specifications? (p.24)

- Is the computer in power-saving mode?

The image appears distorted

- Does the computer's signal timing correspond to
monitor specifications? (p.24)

- If you are using the analog signal, perform
automatic screen adjustment. (p.16)

- If you can change the refresh rate on the
computer you are using, change the value to a
lower frequency. (P.24)

Control buttons do not work

- Is the adjustment lock on? (p.14)

22

Specifications

Product specifications

Model name

LL-T19D1-H (Frosty gray)/LL-T19D1-B (Black)

LCD display

48 cm measured diagonally TFT LCD module

Resolution (max.)

SXGA 1280 x 1024 pixels

Displayable colors (max.)

Approx.16.77 million colors (8 bit )

Brightness (max.)

300 cd/m

Dot pitch

0.294(H) x 0.294(V) mm

Contrast ratio

700:1

Angle of visibility

Left-right 170°; Up-down 170°
(contrast ratio

Screen display size

Horizontal 376.3 mm x Vertical 301.1 mm

Video signal

Analog: Analog RGB (0.7 Vp-p) [75Ω]
Digital: DVI standard based on 1.0

Sync signal

Separate Sync (TTL level: +/-), Sync on
Green, Composite Sync (TTL level: +/-)

Expansion compensation

Digital scaling (Enlarges VGA/SVGA/XGA etc. to
full screen size.)

Plug & Play

VESA DDC2B compatible

Power management

VESA: based on DPMS
DVI: based on DMPM

Input signal terminal

Analog:15 pin mini D-sub (3 rows) x 2
Digital: 24 pin DVI-D x 1

Screen tilt

Upward approx. 0 - 20°; downward approx. 0 - 5°

Screen swivel

Approx. 90° from left through right (Turn table type)

Power supply

AC100 - 240 V, 50/60 Hz

Temperature of operating environment

5 - 35°C

Power consumption

43 W maximum,

2.8 W when in power-saving mode

Dimensions

Approx. 423(W) x 222(D) x 392 - 439(H) mm

Weight

Approx. 6.9 kg (approx. 4.7 kg excluding stand)
(Excluding signal cable.)

2

>

10)

=

Dimensions (Units: mm)

EnglishDeutschFrançaisItalianoEspañolEnglish

- Analog signal cable: approx. 1.8 m

- Digital signal cable, NL-C01E (purchased

separately): approx. 2.0 m

23

Specifications

Relevant signal timings (analog)

Display mode

VESA

US text

Power
Macintosh
series

Sun Ultra
series

Hsync

Vsync

Dot
frequency

- Recommended resolution is 1280 x 1024.

- All are compliant only with non-interlaced.

- Frequencies for Power Macintosh and the Sun
Ultra series are reference values. To connect,
another adapter (commercially available) may be
required.

- If the monitor is receiving timing signals that are
not compatible, [OUT OF TIMING] will appear.
Follow your computer's instruction manual to set
the timing so that it is compatible with the
monitor.

- If the monitor is not receiving any signal (synch
signal), [NO SIGNAL] will appear.

Relevant signal timings (digital)

Display mode Hsync Vsync

VESA

US text

Dot
frequency

- Recommended resolution is 1280 x 1024.

- All are compliant only with non-interlaced.

- A computer with an output terminal conforming to
DVI (DVI-D24 pin or DVI-I29 pin) and with SXGA
output capability can be connected here.
(Depending on the type of computer to be
connected, the display may not work correctly.)

- If the monitor is receiving timing signals that are
not compatible, [OUT OF TIMING] will appear.
Follow your computer's instruction manual to set
the timing so that it is compatible with the
monitor.

- If the monitor is not receiving any signal (synch
signal), [NO SIGNAL] will appear.

24

Specifications

The analog RGB input connector pin

(Mini D-sub connector with 15 pins)

No. Function

1 Red video signal input
2 Green video signal input
3 Blue video signal input
4 GND
5 GND
6 For red video signal GND
7 For green video signal GND
8 For blue video signal GND

9 +5V
10 GND
11 N.C.
12 DDC data
13 For Hsync signal input
14 For Vsync signal input
15 DDC clock

Power management

The monitor is based on the VESA DPMS and the
DVI DMPM standards.
To activate the monitor's Power Management
function, both the video card and the computer
must conform to the VESA DPMS standard and the
DVI DMPM standard.

DPMS: Display Power Management Signaling

DPMS mode Screen

ON Display on 43 W Yes Yes

STANDBY No Yes

SUSPEND Display off 2.8 W Yes No
OFF No No

Power

consumption

H-sync V-sync

DMPM: Digital Monitor Power Management

DMPM mode Screen

ON Display on 43 W

OFF Display off 2.8 W

Power

consumption

EnglishDeutschFrançaisItalianoEspañolEnglish

The DVI-D input connector pin

(DVI-D connector with 24 pins)

No. Function No. Function

1 TMDS data 2- 13 N.C.
2 TMDS data 2+ 14 +5V
3 TMDS data 2/4 shield 15 GND
4 N.C. 16 Hot plug detection
5 N.C. 17 TMDS data 0­6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8 N.C. 20 N.C.

9 TMDS data 1- 21 N.C.
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock +
12 N.C. 24 TMDS clock -

DDC (Plug & Play)

This monitor supports the VESA DDC (Display
Data Channel) standard.
DDC is a signal standard for carrying out Plug &
Play functions on the monitor or PC. It transfers
information such as degree of resolution between
the monitor and PC. You can use this function if
your PC is DDC compliant and if it is set so that it
can detect the Plug & Play monitor.
There are many varieties of DDC due to the
differences between systems. This monitor works
with DDC2B.

25

Installing set-up information and the ICC profile (For Windows)

Depending on the computer or OS, it may be
necessary to use the computer to operate the
installation of monitor set-up information etc. If so,
follow the steps below to install the monitor set-up
information. (Depending on the type of computer or
OS, command names and methods may differ.
Please follow the computer's own operation manual
while reading this.)

About the ICC profile

An ICC (International Color Consortium) profile is a
file that describes the color characteristics of the
LCD monitor. By using an application that works
together with an ICC profile, a high color resolution
can be realized.

- Windows 98/2000/Me/XP all use the ICC profile.

- When installing Windows 98/2000/Me/XP set-up
information (described below), the ICC profile is
also installed. If you would like to install the ICC
profile only, please refer to Installing the ICC
profile on page 28.

- When using the ICC profile, set [DISPLAY
MODE] and [WHITE BALANCE] to [STD].

For Windows 95

Installing monitor set-up information into
Windows 95.
This explanation assumes that the CD-ROM drive
is "D drive".

1. Load the accessory CD-ROM into the CD-ROM

drive of the computer.

2. Click on the [Start] button. From [Settings],

choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced Properties], and

[Monitor], then [Change].

5. Click on [Have disk], confirm that [Copy

manufacturer's files from:] is [D:] then click
[OK].

6. Confirm that the monitor details are selected,

and click [OK].

7. Check that the monitor details are displayed,

then click [Apply].

8. Click [OK], and close the window.

For Windows 98

Installing monitor set-up information into
Windows 98, and setting the monitor's ICC profile
as a predetermined value.
This explanation assumes that the CD-ROM drive
is "D drive".

If the "Add new Hardware Wizard" has appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click [Next].

3. Check [Display a list of all the drivers in a
specific location, so you can select the driver
you want.], then click [Next].

4. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

5. Confirm that the monitor details are selected,
then click [Next], [Next], and [Finish]. If the "Add
New Hardware Wizard" appears, repeat the
installation commands beginning from 2 above.

If the "Add New Hardware Wizard" has not
appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug &
Play monitors] and click on [Change].

6. Click [Next].

7. Click on [Display a list of all the drivers in a
specific location, so you can select the driver
you want.], then click [Next].

8. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

9. Confirm that the monitor details are selected,
then click [Next], [Next], and [Finish].

10. Check that the monitor details are displayed,
then click [Apply].

11. Click [OK], and close the window.

26

Installing set-up information and the ICC profile (For Windows)

For Windows 2000

Installing monitor set-up information into
Windows 2000, and setting the monitor's ICC
profile as a predetermined value.
This explanation assumes that the CD-ROM drive
is "D drive".

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. Click on [Properties], [Driver] and [Update
Driver].

6. When [Upgrade Device Driver Wizard] appears,
click [Next].

7. Check [Display a list of the known drivers for
this device so that I can choose a specific
driver] and click [Next].

8. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

9. Select the monitor from the list displayed and
click [Next].

10. Click [Next], confirm that the monitor's name
appears on the screen, and click [Finish]. If
[The Digital Signature Not Found] appears, click
[Yes].

11. Click on [Close].

12. Click [OK], and close the window.

For Windows Me

Installing monitor set-up information into Windows
Me, and setting the monitor's ICC profile as a
predetermined value.
This explanation assumes that the CD-ROM drive
is "D drive".

If the "Add new Hardware Wizard" has appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Check [Specify the location of the driver
[Advanced]] and click [Next].

3. Check [Display a list of all the drivers in a
specific location, so you can select the driver
you want.], then click [Next].

4. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

5. Select the monitor details from the list, then
click [Next], [Next], and [Finish]. If the "Add new
Hardware Wizard" appears, repeat the
installation commands beginning from 2 above.

If the "Add New Hardware Wizard" has not
appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug &
Play monitors] and click on [Change].

6. Check [Specify the location of the driver
[Advanced]] and click [Next].

7. Check [Display a list of all the drivers in a
specific location, so you can select the driver
you want.] and click [Next].

8. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

9. Select the monitor details, then click [Next],
[Next], and [Finish].

10.Check that the monitor details are displayed,
then click [Apply].

11.Click [OK], and close the window.

EnglishDeutschFrançaisItalianoEspañolEnglish

27

Installing set-up information and the ICC profile (For Windows)

For Windows XP

Installing monitor set-up information into Windows
XP, and setting the monitor's ICC profile as a
predetermined value.
This explanation assumes that the CD-ROM drive
is "D drive".

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. Choose [Control
Panel].

3. Switch to Classic View.

4. Double click on [Display].

5. Click on [Settings], [Advanced] and [Monitor].

6. Click on [Properties], [Driver] and [Update
Driver].

7. When [Hardware Update Wizard] appears,
check [Install from a list or specific location
[Advanced]] and click [Next].

8. Check [Don't search. I will choose the driver to
install.] and click [Next].

9. Click on [Have Disk], confirm that [Copy
manufacturer's files from:] is [D:], and click
[OK].

10. Select the monitor from the list displayed and
click [Next].
If [has not passed Windows Logo testing...]
appears, click [Continue Anyway].

11. Confirm that the monitor's name appears on the
screen.

12. Click on [Finish].

13. Click on [Close].

14. Click [OK], and close the window.

Installing the ICC profile

Installing the monitor's ICC profile. (If the set-up
information has already been installed, so too has
the profile, and there is no need to install it.)
This explanation assumes that the CD-ROM drive
is "D drive".

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings] and [Advanced].

5. Click on [General] and from [Compatibility]
select [Apply the new display setting without
restarting], then click on [Color Management].

6. Click [Add], and select CD-ROM as the file
location.

7. Choose the color profile that you would like to
install, and click on [Add].

8. Choose the profile and click on [Set As Default].

9. Click [OK], and close the window.

- When using the ICC profile, set [DISPLAY

MODE] and [WHITE BALANCE] to [STD].

28

Information about the ColorSync profile (For MacOS)

About the ColorSync profile

ColorSync is the Apple Corporation's color
management system and is a function that enables
color resolution to be realized when used with a
compatible application. A ColorSync profile
describes the color characteristics of the LCD
monitor.

Notes:

- This monitor's ColorSync profile works with
MacOS 8.5 or above.

- When using the ColorSync profile, set [DISPLAY
MODE] and [WHITE BALANCE] to [STD].

Setting up the ColorSync profile

Notes:

- It is necessary to have PC Exchange or File
Exchange installed in your system.

- Depending on the type of computer or OS,
command names and methods may differ. Please
follow the computer's own operation manual
while reading this.

EnglishDeutschFrançaisItalianoEspañolEnglish

1.Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2.Copy the profile used by the application disk to
the ColorSync profile folder in the system folder.

3.Using the ColorSync on the control panel,
choose the profile to be used.

29

Instructions for attaching a VESA compliant arm

An arm or stand based on the VESA standard
(commercially available) can be attached to the
monitor.
Procurement of the arm or stand is at the
customer's discretion.

Arms or stands able to be used

Attachments must satisfy the following.

- Compatible with the VESA standard.

- Have a gap of 100 mm x 100 mm between the
screw holes on the section to be attached.

- Not be likely to fall off or break off after being
attached to the monitor.

How to attach the arm or stand

- Be careful not to overly bend the cable or add
extension cords as this could lead to malfunction.

- While following these instructions, please also
refer to the installation instructions in the
operation manual included with the arm or stand.

CAUTION!

- Be careful not to get your fingers pinched
between the display and stand nor to let the
stand drop. These could lead to injury.

5.Remove the six screws and then remove the
stand from the monitor.

Notes:

- The stand is specially made for use with this
monitor. Once having removed the stand, never
attempt to attach it to another device.

- Once having removed the screws, store them
together with the stand and if the stand is ever
re-attached be sure to use the original screws.
Using different screws could lead to a
malfunction.

6. Attach the arm to the monitor with the four
screws.

1. Remove the cables.

2. Spread out a soft cloth on a suitable horizontal
surface.

3. Being careful not to damage the monitor, gently
lay the monitor on it display-side down.

4. Remove the cover.

- While pressing the areas on the sides, push

it up.

Note:

- The screws used to attach the arm should be M4
screws with a length of 6 mm ~ 8 mm protruding
from the surface to be attached. Using different
screws could cause the monitor to fall off or to be
internally damaged.

Screw used to attach arm

Arm
Part of monitor to which arm is

attached

30
