OPERATION MANUAL

30" SINGLE CONVECTION WALL OVEN

MODEL : SWA3052DS

30" Single Convection Wall Oven: Model SWA3052DS

CUSTOMER ASSISTANCE ............................................ 2

US CONSUMER LIMITED WARRANTY ............................. 3

CANADA LIMITED WARRANTY ...................................... 4

OVEN SAFETY ......................................................... 5

WARNINGS FOR ELECTRIC INSTALLATION .......................... 5

IMPORTANT SAFETY INSTRUCTIONS .............................. 6

PARTS AND FEATURES ............................................. 8

CONTROL PANEL. .................................................... 9

OVEN MODE CONTROLS ...................................................... 9

DISPLAY ................................................................................ 9

START/CONTROL LOCKOUT .................................................. 9

STOP/CLEAR ........................................................................... 9

LIGHT ...................................................................................... 9

TIMER ..................................................................................... 9

COOK TIME ........................................................................... 9

START TIME ........................................................................ 10

SETTINGS ........................................................................... 10

SELF-CLEAN ........................................................................ 11

OVEN USE ............................................................ 12

IMPORTANT SAFETY INSTRUCTIONS

BEFORE USING THE OVEN .................................................. 12

GENERAL .............................................................................. 12

OVEN TEMPERATURE CONTROL ......................................... 13

OVEN MODES ..................................................................... 14

CONVECTION ...................................................................... 15

BAKE TIPS .......................................................................... 16

CONVECTION BAKE TIPS ..................................................... 17

CONVECTION ROAST TIPS ................................................... 18

CONVECTION BROIL TIPS .................................................... 19

DEHYDRATE TIPS ................................................................. 20

BROIL TIPS .......................................................................... 21

FOOD SERVICE TEMPERATURE GUIDELINES FROM FSIS .. 22

OVEN CARE ...........................................................22

GENERAL CLEANING ........................................................... 22

AUTOMATIC SELF-CLEANING .............................................. 23

OVEN DOOR REMOVAL ........................................................ 24

REPLACING AN OVEN LIGHT ................................................ 25

TROUBLESHOOTING ................................................26

BAKING AND ROASTING ...................................................... 26

OPERATION .........................................................................26

Carefully read the important information regarding installation, safety and maintenance.

Keep these instructions for future reference.

TINSKB261MRR1 E

CUSTOMER ASSISTANCE

IMPORTANT! Register within 10 days of purchase.

To aid in reporting this appliance, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference.

MODEL NUMBER SERIAL NUMBER

DATE OF PURCHASE / /

DEALER

SERVICER TELEPHONE

FOR US

TO PHONE: CALL 1-800-BE-SHARP (237-4277) for:

SERVICE (for your nearest Sharp Authorized Servicer)

PARTS (for your authorized parts distributor)

ADDITIONAL CUSTOMER INFORMATION

TO WRITE: Sharp Electronics Corporation

Customer Assistance Center

Sharp Plaza Blvd.

Memphis, Tennessee 38193

TO ACCESS INTERNET: www.sharpusa.com

Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code), e-mail address and description of the problem.

TELEPHONE

FOR CANADA

To obtain the name and address of the nearest Sharp Authorized Service Centre, please contact:

Sharp Electronics Of Canada Ltd.

335 Britannia Road East

Mississauga, Ontario

L4Z 1W9

(905) 568-7140

TO ACCESS INTERNET: www.sharp.ca

Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip or postal code), your daytime telephone number (including area code) and description of the problem.

US CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION (“Sharp”) warrants to the rst consumer purchaser (“Purchaserˮ) that this SHARP brand product (“Productˮ), when shipped in its original container and sold or distributed in the United States by Sharp or an authorized

Sharp dealer or reseller, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the Purchaser for parts or labor for the period(s) set forth below.

This limited warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal service or

handling, or which has been altered or modied in design or construction.

In order to enforce the rights under this limited warranty, the Purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to Purchasers by law. ALL

IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations

on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described above on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the Purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute

complete fulllment of all liabilities and responsibilities of Sharp to the Purchaser with respect to the Product, and shall constitute

full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incident or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO.

Your product model number & description

Warranty period for this product: One (1) year parts and labor including in-home service.

Additional item(s) excluded from warranty coverage (if any):

Where to obtain service: From a Sharp Authorized Servicer located in the United States. To nd the location of the

What to do to obtain service: In-home service is provided for one year from date of purchase. In-home service can be arranged

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP or visit www.sharpusa.com. SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.

Model # SWA3052DS, SWB3052DS or Home Use Wall Ovens.

(Be sure to have this information available when you need service for your Product.)

Product must be accessible to provide service.

Non-functional accessories, light bulb, service calls to your home to instruct how to use your wall oven appliance, replace or repair house fuses or to correct house wiring, improper commercial use, installation, or maintenance, damage to the product caused by delivery, accident,

modications, re, oods or acts of God.

nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-237-4277 (1-800-BE-SHARP).

by calling 1-800-BE-SHARP. Be sure to have Proof of Purchase available.

CANADA CONSUMER LIMITED WARRANTY

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (“Sharp”) warrants to the rst purchaser for this Sharp brand product (“Product”), when shipped

in its original container and sold or distributed in Canada by Sharp or by an authorized Sharp dealer, and Product was not sold “as

is” or “sales nal” that the Product will during the applicable warranty period, be free from defects in material and workmanship, and will within the applicable warranty period, either repair the defective Product or provide the rst purchaser a replacement of the

defective Product.

This warranty does not apply to any appearance items of the product nor to the additional excluded item(s) set forth below nor to any product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal

service or handling, which has been altered or modied in design or construction, or if the serial number or model number afxed to

Product has been removed, defaced, changed, altered or tampered with.

How to get service: Should this Sharp product fail to operate during the warranty period, warranty service is provided by an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service will be carried out to locations accessible by on-road service vehicle and within 50 km of an authorized Sharp service centre. The servicer may if necessary take the unit for repair at the servicer's facility. No other person (including any Sharp dealer or service centre) is authorized to extend, enlarge or transfer this warranty on behalf of Sharp.

The express warranties in this limited warranty are, except for consumer purchasers domiciled in Quebec, in lieu of and, except to the

extent prohibited by applicable law, Sharp disclaims all other warranties and conditions, express or implied, whether arising by law, statute, by course of dealing or usage of trade, including, without limitation, implied warranties or conditions of merchantability and/or

quality, tness for a particular use or purpose, and/or non-infringement. Limitations (not applicable to consumer purchasers domiciled in Quebec to the extent prohibited under Quebec law): (a) Sharp shall not be liable for any incidental, special, consequential, economic, exemplary or indirect damages of any kind or nature (including lost prots or damages for loss of time or loss of use or loss of data)

arising from or in any connection with the use or performance of a Product or a failure of a Product, even if Sharp is aware of or has

been advised of the possibility of such damages; (b) the remedies described in this limited warranty constitute complete fulllment

of all obligations and responsibilities of Sharp to the purchaser with respect to the Product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. Some provinces may not allow the exclusion or limitation of certain damages, or limits on the duration or voiding of implied warranties or conditions; in such provinces, the exclusions and

limits herein may not apply. This limited warranty is, except for consumer purchasers domiciled in Quebec, governed by the laws of the Province in Canada in which the purchaser has purchased the Product. For consumer purchasers domiciled in Quebec this limited warranty is governed by the laws of Quebec.

Your product model number & description

Warranty period for this product: One (1) year parts and labor including in-home service.

Additional item(s) excluded from warranty coverage (if any):

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:

SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.

Model # SWA3052DS, SWB3052DS or Home Use Wall Ovens.

(Be sure to have this information available when you need service for your Product.)

Product must be accessible to provide service.

modications, re, oods or acts of God.

SHARP ELECTRONICS OF CANADA LTD 335 Britannia Road East

Mississauga, Ontario L4Z 1W9 (905) 568-7140 Website: www.sharp.ca

THIS LIMITED WARRANTY IS VALID ONLY IN CANADA

OVEN SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow

the safety alert symbol and either the work "DANGER", "WARNING" or "CAUTION".

An imminently hazardous situation. You could be killed or seriously injured if you don't

DANGER

WARNING

immediately follow instructions.

A potentially hazardous situation which, if not avoided, could result in death or serious bo d i ly i nj u ry.

CAUTION

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

reproductive harm.

A potentially hazardous situation which, if not avoided, may result in moderate or minor inju r y.

WARNINGS FOR ELECTRIC INSTALLATION

WARNING

ELECTRICAL SHOCK HAZARD

Installation and service must be performed by a qualied installer or service agency.

The model is powered at 240V.

Always disconnect the power before servicing this unit.

This appliance must be properly grounded.

Failure to do so could result in death or serious injury.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING

WARNING

To reduce the risk of re, electrical shock, injury to persons, or damage when using the oven, follow basic precautions, including the following:

PROPER I NSTALL ATI ON :

1 This appliance must be properly installed and

electrically grounded by a qualied technician. Connect only to properly grounded outlet. See “Grounding

Instructions” found in the Installation Instructions.

2 This appliance should be serviced only by a qualied

service technician. Contact the nearest authorized service center for examination, repair or adjustment.

3 Do not repair or replace any part of the oven unless

specifically recommended. Refer service to an authorized servicer.

4 Do not operate this appliance if it is not working properly

or if it has been damaged, until an authorized servicer has examined it.

5 Install or locate this appliance only in accordance with

the Installation Instructions.

6 Use this oven only as intended by the manufacturer. If

you have any questions, contact the manufacturer.

7 Do not cover or block any openings on this appliance.

8 Use this appliance only for its int ended use as des c r ibed

in this manual. Do not use corrosive chemicals, vapors, or nonfood products in this appliance. This type of

oven is specically designed to heat or cook. It is not

designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the appliance.

TO REDUCE THE RISK OF FIRE IN THE OVEN CAVITY:

1 Do not store ammable materials in or near the oven.

2 Do not use water on a grease re. Smother re or use a

dry chemical or foam-type extinguisher.

3 It is highly recommended that a re extinguisher be

readily available and highly visible next to any cooking appliance.

4 Do not overcook food. Carefully attend oven if paper,

plastic or other combustible materials are placed inside the oven.

5 Do not use the cavity for storage purposes. Do not leave

paper products, cooking utensils or food in the cavity when not being used.

6 If materials inside the oven should ignite, keep oven

door closed. Turn oven off and disconnect the circuit at the circuit breaker box.

7 Be sure the blower fan runs whenever the oven is in

operation. If the fan does not operate, do not use the oven. Call an authorized service center.

8 Never use the oven to warm or heat a room.

PERSONAL SAFETY:

1 Do not allow children to use this appliance unless closely

supervised by an adult. Children and pets should not be left alone or unattended in the area where the appliance is in use. Never allow children to sit or stand on any part of the oven.

2 Do not store items of interest to children above the oven.

If children should climb onto the appliance to reach these items, they could be seriously injured.

3 For personal safety, wear proper clothing. Loose tting

or garments with hanging sleeves should never be worn while using this appliance.

4 Tie long hair so that it doesn’t hang loose.

5 Do not touch heating elements or interior surfaces of

oven.

6 The heating elements may be hot even though they are

dark in color. Interior surfaces of an oven become hot enough to cause burns.

7 During and after use, do not touch or let clothing or

other ammable materials contact the heating elements

or the interior surfaces of the oven until they have had

sufcient time to cool.

8 The trim on the top and sides of the oven door may

become hot enough to cause burns.

9 Use care when opening the door. Open the door slightly

to let hot air or steam escape before removing or replacing food.

10 Do not heat unopened food containers. Build-up of

pressure may cause the container to burst and cause inju ry.

11 Always place oven racks in desired location while oven

is cool. If a rack must be moved while oven is hot, do not let potholder contact the hot heating elements.

12 Use only dry potholders. Moist or damp potholders on

hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

6E 6

IMPORTANT SAFETY INSTRUCTIONS

SAFETY FOR THE SELF-CLEANING OVEN:

1 Before self-cleaning the oven, remove the broiler pan,

oven racks (only when not made of porcelain), other utensils and excess soft spillage.

2 Conrm that the door locks and will not open once

both selectors are in CLEAN position and the door lock icon appears. If the door does not lock, turn the cook

mode selector to OFF and do not run Self-Clean. Call

an authorized servicer.

3 Do not clean the door gasket. It is essential for a good

seal. Care should be taken not to rub, damage, move or remove the door gasket.

READ AND SAVE THESE INSTRUCTIONS

4 Do not use commercial oven cleaners or oven liner

protective coatings of any kind in or around any part of the oven.

5 Clean only oven parts listed in this manual.

6 Other surfaces of the appliance may become hot enough

to cause burns - among these surfaces are for example: oven vent openings and surfaces near these openings, oven doors, and windows of oven doors.

PART AND FEATURES

F E

B C

G D

A Oven Vent

B Broil Element

C Control Panel

D Halogen Light

E Convection Fan and Element

F Bottom Element (not visible)

G Model and Serial # Plate

H Door Gasket

I Temperature Probe

J Oven Rack Back (3 racks included)

K Oven Rack Front

L Broiler Pan Rack

M Broiler Pan

CONTROL PANEL

A B C D E

FGHIJK

A Oven Mode Controls

B Display

C Cook Time

D Start Time

E Start/Control Lock (hold 3 seconds)

F STOP/CLEAR

OVEN MODE CONTROLS: BAKE, BROIL, CONVEC, WARM/PROOF

Select from Bake, Broil, Convec and Warm/Proof oven modes.

NOTE: The Warm/Proof control toggles between the two oven modes.

DIS PLAY

When power is rst supplied to the oven or if a power failure

occurs, “12:00” will appear on the display.

See “Clock,” later in this section, for instructions to set the time-of-day. When the oven is not in use, the time-of-day appears in the display.

START

The Start control begins any oven function. If Start is not pressed within 2 minutes after pressing a keypad the function is canceled and the time-of- day is displayed.

CONTROL PANEL LOCKOUT

The control panel can be locked to avoid unintended use of the oven.

NOTES:

• The control cannot be locked if the oven is in use or if Cook

Time is operating.

• The current time-of-day will remain in the display when the

control is locked.

TO LOCK CONTROL PANEL:

• Press and hold START for 3 seconds or until symbol

appears in the display.

symbol will remain lit in the display.

G Settings

H Light

I Timer

J Convection Conversion

Mode Controls

K Self-Clean

TO UNLOCK CONTROL PANEL:

• Press and hold START for 3 seconds or until symbol disappears.

STOP/CLEAR

Press the STOP/CLEAR button to stop any function except Cook Time and Control Panel Lockout.

LIGHT

The oven lights turn On automatically when the oven door is opened, and turns Off automatically when the oven door is closed.

• Press the Light button to turn On/Off the oven lights when the oven door is closed.

TIMER

The Timer can be set in hours or minutes up to 12 hours.

TO SET THE TIMER:

1 Press TIMER.

2 Use the number keypad to enter the length of time in hours

and minutes.

3 Press TIMER to begin the countdown. If enabled, timer

tone(s) will sound at the end of countdown.

4 Press TIMER to cancel the Timer and return to the time-

of- day.

NOTE: Do not press STOP/CLEAR because the oven will tu r n off.

COOK TIME

The Cook Time feature allows the oven to be set to cook for a set length of time, and then turn off automatically.

CONTROL PANEL

IMPORTANT: You must select an Oven Mode befor e you can

set a Cook Time.

NOTES:

• Cook Time can be set in hours or minutes up to 12 hours.

• To change the cook time during cooking, press STOP/ CLEAR. Enter the new cook time and press START.

• At the end of the set cook time, the oven will turn off automatically, the alert tone will sound, and “Cooking Complete” will appear in the text area.

TO SET COOK TIME:

1 Select cooking mode.

2 Select temperature.

3 Press COOK TIME. Enter the desired cook time by pressing

the number keypad.

4 Press START. The oven will begin to preheat.

NOTES:

• The Cook Time format is HR:MIN, switching to MIN:SEC during the last minute.

• An alert tone will sound until Cook Time is canceled.

START TIME

This feature allows you to set the oven to turn on at a later time.

IMPORTANT: The clock must be set to the correct time-of-day.

1 Select an Oven Mode.

2 Select temperature.

3 Set Cook Time.

4 Press START TIME.

5 Enter the desired Start Time by pressing the number keypad.

“Press START” will appear the display. If Cook Time was not set, the control will prompt you to “Set Cook Time.”

1 Clock

2 Temp Unit

3 Sound

4 Sound Volume

5 12/24 hour

• Press SETTINGS to show Menu Options 1 - 6. Then, press

START to show Options 7 - 0.

CLOCK

The clock can be set to display time in a 12-hour or 24-hour format. The clock is factory preset for the 12-hour format.

TO SET THE CLOCK:

NOTE: Before setting the clock, make sure both the Oven and Timer are turned Off.

1 Press SETTINGS. The various Options will appear in the

dis p l a y.

2 Press 1 on the number keypad. “Clock” will appear in the

dis p l a y.

3 Press the number keypad to enter the time-of-day.

4 Press START to toggle between AM and PM.

5 Press SETTINGS to conrm; time-of-day is set.

TO CHANGE THE CLOCK TO 24-HOUR FORMAT:

1 Press SETTINGS. The various Options will appear in the

dis p l a y.

2 Press “5” on the number keypad. “12/24 HOUR” and “12”

will appear in the display.

3 Press “1” on the number keypad to change the 12/24 Hour

setting to 24-hour.

4 Press SETTINGS to conrm. The 12/24-Hour setting has

been changed.

6 Language

7 Sabbath

8 Brightness

9 Calibration

0 Demo Mode

WARNING

FOOD POISONING HAZARD

Do not let food sit in oven more than one hour before

or after cooking.

Doing so can result in food poisoning or sickness.

6 Place the food in the oven and close the oven door.

7 Press START. Start Time will begin counting down until it

reaches the set time-of-day.

NOTE: At the end of Cook Time, the oven will turn off automatically, an alert tone will sound and “Cooking Complete” will appear in the display.

SETTINGS

The Settings control allows you to access the menu for additional functions and features.

TONES

Tones are audible signals, indicating the following:

Number of tones: 1

• Valid press

• Function has been entered

• Oven is preheated

Number of tones: 2

• Invalid touch pad press

Number of tones: 3

• End of cycle

Number of tones: 4

• End of TIMER

TO TURN ON /OFF SOUND:

The oven sound is factory preset for On but can be changed to Off.

1 Press SETTINGS. The various Options will appear in the

dis p l a y.

10E

CONTROL PANEL

2 Press “3” on the number keypad. “SOUND” and “ON” will

appear in the display.

3 Press “1” on the number keypad. “ON/OFF” will appear in

the display.

4 Press “1” on the number keypad to turn the sound Off.

5 Press SETTINGS to conrm. The sound has now been

tu r ned off.

6 Press SETTINGS, and then follow the display prompts to

return the sound setting to On.

TO ADJUST SOUND VOLUME:

The oven sound is factory preset for High but can be changed to L o w.

1 Press SETTINGS. The various Options will appear in the

dis p l a y.

2 Press “4” on the number keypad. “SOUND VOLUME” and

“HIGH” will appear in the display.

3 Press “1” on the number keypad. HIGH/LOW” will appear

in the display.

4 Press “1” on the number keypad to turn the sound Low.

5 Press SETTINGS to conrm. The sound volume has now

been changed.

6 Press SETTINGS, and then follow the display prompts to

return the sound volume setting to High.

DEGREES FAHRENHEIT AND CELSIUS

The temperature is factory preset to display in degrees Fahrenheit, but can be changed to display in degrees Celsius.

To Change the Display from Degrees Fahrenheit to Degrees

Celsius:

1 Press SETTINGS. The various Options will appear in the

dis p l a y.

2 Press “2” on the number keypad. “TEMP UNIT” and

“FAHRENHEIT” will appear in the display.

3 Press “1” on the number keypad. “DEGREE F/C” will appear

in the display.

4 Press “1” on the number keypad to change the temperature

unit setting to degrees Celsius.

5 Press SETTINGS to conrm. The temperature unit has been

changed.

6 Press SETTINGS, and then follow the display prompts to

return to Fahrenheit.

NOTE: Sabbath mode cannot be set when the oven is On. The oven will not recognize the meat probe while in Sabbath mode.

2 Press SETTINGS, and Press START to go to the next page,

and then press “7”.

3 Press “1” to toggle between ON/OFF

4 Press SETTINGS again to enable Sabbath mode. The only

cooking function that works while the oven is set to Sabbath mode is Bake.

TO BAKE WHILE THE OVEN IS IN SABBATH MODE:

1 Turn on Sabbath mode from SETTINGS menu.

2 Enter the desired oven temperature by pressing the numbered

keypad.

3 After selecting a Temperature, you have the option to set

a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

4 Press START. Pressing Start activates Sabbath mode.

ONLY THE STOP/CLEAR CONTROL IS FUNCTIONAL.

• Press STOP/CLEAR twice to exit Sabbath mode, and resume normal oven operation. The display will return to the timeof- day.

NOTE: If there is a power failure while the oven is in Sabbath mode, the oven will exit Sabbath mode and resume in normal mode when power is restored.

LANGUAGE

The language default for the oven is English.

SELF-CLEAN

Operates the Automatic Self-cleaning feature. See “Oven Care” on page 22.

BRIGHTNESS

1 Press SETTINGS and Press START to go to the next page.

2 Press "8" on the number keypad. “BRIGHTNESS” and

“HIGH” will appear in the display.

3 Press 1 to toggle between HIGH/LOW.

4 Press SETTINGS to conrm.

CALIBRATION

See "Oven Temperature Control" on page 13.

SABBATH MODE

Sabbath mode is designed for those whose religious observances require disabling certain oven features. By enabling Sabbath Mode, the oven will conform to Star-K Jewish Sabbath requirements.

NOTE: The oven is factory preset with Sabbath Mode Off.

TO TURN ON /OFF SABBATH MODE:

1 Make sure the oven is turned Off, and the meat probe is not

plugged in.

DEMO MODE

1 Press SETTINGS and Press START to go to the next page.

2 Press “0” on the number keypad. “DEMO MODE” and “OFF"

will appear in the display.

3 Press “1” to toggle between ON/OFF.

4 Press SETTINGS to conrm.

NOTE: Oven does not heat in DEMO MODE. The display counts down quickly.

E11

OVEN USE

BEFORE USING THE OVEN

1 Select Bake cooking mode.

2 Set temperature to 500˚F.

3 Allow the oven to operate for 30 minutes with the door closed

and no food in the cavity.

NOTE: Any odor that may be detected during this initial use is due to the evaporation of substances used to protect the oven during storage.

4 Turn off the oven, and allow the oven to cool.

GENERAL

IMPORTANT: Do not place anything, including dishes, foil and oven trays, on the bottom of the oven when it is in operation to avoid damaging the enamel.

1 Place bakeware with food on one or both of the shelves

provided with the oven.

2 Press the Oven Mode control for the desired oven function.

3 Use the number keypad to enter the oven temperature.

4 Press STA RT.

PREHEATING THE OVEN

• Preheat the oven when using the Bake, Convection Bake and Convection Roast modes.

• Selecting a higher temperature does not shorten the preheat time.

• Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

• Preheating will help to sear roasts and seal in meat juices.

• Place oven racks in their proper position before preheating.

• During preheating, the selected cooking temperature is always displayed.

• A beep will conrm that the oven is preheated and the “PREHEAT” writing will turn off.

OPERATIONAL SUGGESTIONS

• Use the cooking charts, in this manual, as a guide.

• Do not set pans on the open oven door.

• Use the interior oven lights to view the food through the oven door window rather than opening the door frequently.

TEMPERATURE PROBE

WARNING

The temperature probe monitors the internal food temperature, which is frequently used as an indicator of doneness especially for meats and poultry, and turns off the oven when the internal food temperature reaches the programmed temperature.

The temperature probe will work with all oven modes except for the Warm/Proof, Sabbath and Self-Clean modes.

IMPORTANT: Always unplug and remove the temperature probe from the oven when removing the food.

TO USE THE TEMPERATURE PROBE:

1 Insert the probe into the food.

NOTE: For meats, the probe tip should be inserted into the

center of the thickest part of the meat. Make sure that the probe tip is not into the fat or touching bone.

2 Place the food into the oven. Keeping the temperature probe as

far away from a heat source as possible, plug the temperature probe into the oven outlet. Close the oven door.

3 Select the oven mode.

4 Enter the oven temperature by pressing the numbers on the

keypad.

5 Press START. The set oven temperature will appear on the

display throughout cooking.

6 Enter the desired internal food temperature by pressing the

numbers on the keypad, and then press START.

NOTES:

• The internal food temperature can be set between 110°F and 200°F (43°C and 93°C).

• When the set probe temperature is reached, the oven will tu r n off.

7 Press STOP/CLEAR when nished. Unplug the temperature

probe and remove food from the oven.

NOTE: The probe icon will remain lit in the display until the probe is unplugged.

UTENSILS

• Glass baking dishes absorb heat. Reduce oven temperature 25°F (15°C) when baking in glass.

• Use pans that produce the desired browning. The type of nish on the pan will help determine the amount of browning

that will occur.

- Shiny, smooth metal or light non-stick / anodized pans

reect heat, resulting in lighter, more delicate browning.

Cakes and cookies require this type of utensil.

- Dark, rough or dull pans will absorb heat resulting in a

browner, crisper crust. Use this type for pies.

• Do not cook with the empty broiler pan in the oven, as this could affect cooking performance. Store the broil pan outside of the oven.

BURN HAZARD

Use an oven mitt to remove temperature probe.

Do not touch broil element.

Failure to do so can result in burns.

HIGH ALTITUDE BAKING

When cooking at high altitude, cooking times may be extended.

12E

OVEN USE

OVEN RACKS

IMPORTANT: To avoid permanent damage to the porcelain

nish, place food or bakeware on an oven rack. Do not place

food or bakeware directly onto the oven door or oven bottom.

• The oven racks can be placed in any of the six height positions with the oven.

• Position racks before turning on the oven.

• Make sure the oven racks are level.

• Oven racks have a stop to keep them from being unintentionally withdrawn fully.

TO REMOVE OVEN RACKS:

• Pull rack out to the stop position, raise the front edge, and then lift out.

TO REPLACE OVEN RACKS:

• Place oven rack on the wire supports along the sides of the oven. Tilt the front edge up slightly, and slide rack to the rear until it clears the stop position. Lower the front and slide the rack into the oven.

COMPONENT COOLING FAN

Activates during any cooking or self-cleaning mode to cool inner components and outer door surfaces. This air is exhausted through the vent located above the oven door. It continues to

run until components have cooled sufciently. The cooling fan

operates at double speed (or RPM’s) in self-clean and whenever the internal components temperature becomes high.

OVEN DOOR

To avoid oven door glass breakage:

• Do not close the oven door if the racks are not fully inserted into the oven cavity or if bakeware extends past the front edge of an oven rack.

• Do not set objects on the glass surface of the oven door.

• Do not hit glass surfaces with bakeware or other objects.

• Do not wipe down glass surfaces until the oven has completely cooled.

OVEN VENTS

Blocking or covering the oven vents will cause poor air circulation, affecting cooking, cleaning and cooling results.

• Both the upper and lower oven vent(s) allow fresh air to enter the cooling system.

• The lower oven vent also allows hot air to be expelled from the cooling system.

maintain an accurate temperature. Your previous oven may

have had a mechanical thermostat that drifted gradually over time to a higher temperature. It is normal that you may need to adjust your favorite recipes when cooking in a new oven.

OVEN TEMPERATURE CONTROL

The oven provides accurate temperatures; however, it may cook faster or slower than your previous oven, so the temperature calibration can be adjusted. It can be adjusted in degrees

Fahrenheit or Celsius.

A minus sign means the oven will be cooler by the displayed amount. The absence of a minus sign means the oven will be warmer by the displayed amount.

Use the following chart as a guide:

ADJUSTMENT °F

(ADJUSTMENT °C)

COOKS FOOD

10°F (6°C) a little more

20°F (12°C) moderately more

30°F (17°C) much more

-10°F (-6°C) a little less

-20°F (-12°C) moderately less

-30°F (-17°C) much less

TO ADJUST OVEN TEMPERATURE CALIBRATION:

1 Press SETTINGS. The various Options will appear in the

dis p l a y.

2 Press number 9 on the keypad. “CALIBRATION” “PRESS

3 TO INCREASE/PRESS 6 TO DECREASE” will scroll across the display.

3 Press number 3 on the keypad to increase or number 6 to

decrease the temperature in 5°F (3°C) increments. The adjust ment can be se t betwe e n 30°F (18°C ) an d -30 °F (-18°C).

4 Press SETTINGS to save the adjustment, and then exit the

Temperature Calibration menu.

OVEN MODES

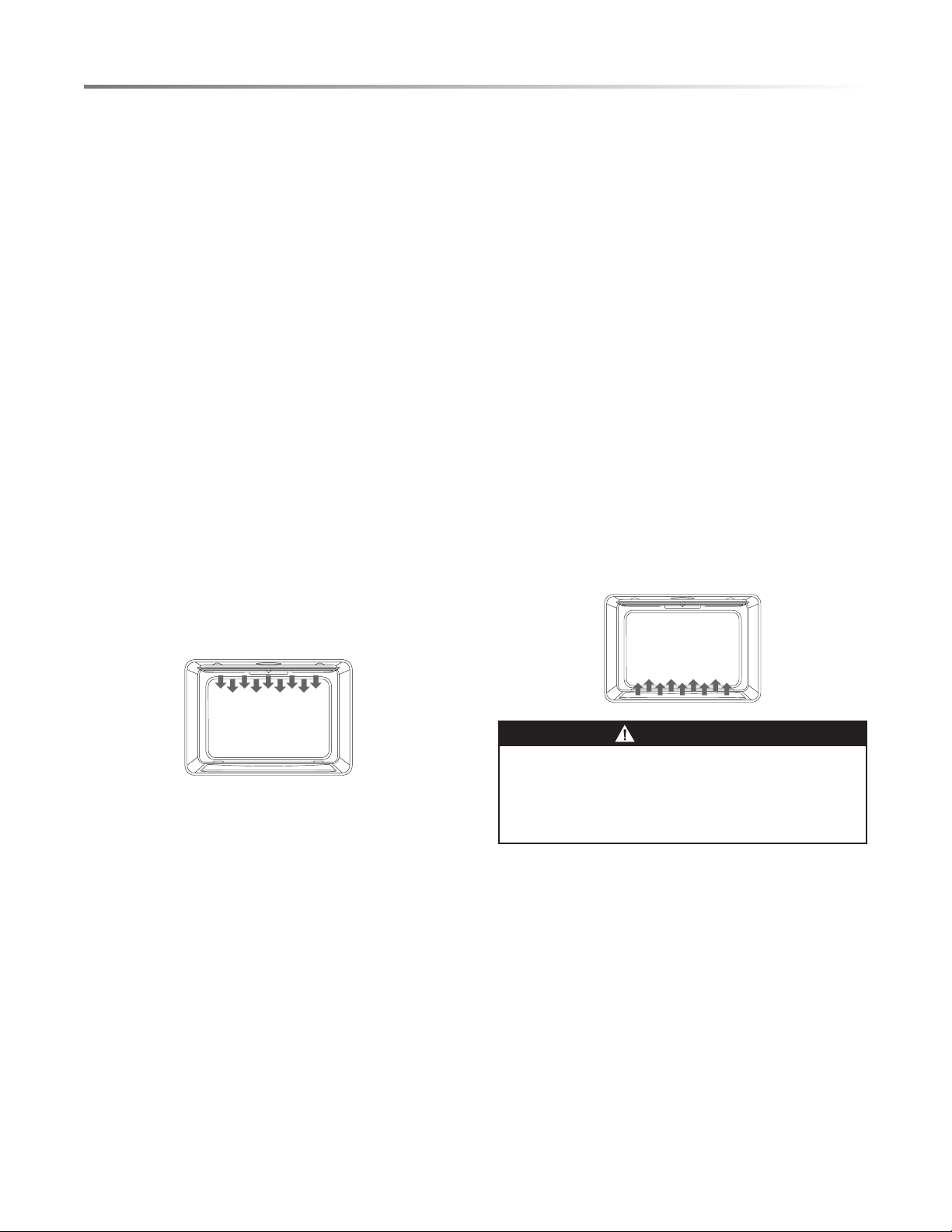

The illustrations show the heating elements and fans used for each oven mode.

OVEN CONDENSATION AND TEMPERATURE

• It is normal for a certain amount of moisture to evaporate from the food during any cooking process. The amount depends on the moisture content of the food.

• The moisture may condense on any surface cooler than the inside of the oven, such as the control panel.

• Your new oven has an electronic temperature sensor to help

NOTE: The lower element is concealed under the oven oor.

BAKE

Baking is cooking with heated air. Both upper and lower elements in the oven are used to heat the air but no fan is used to circulate the heat.

E13

OVEN USE

Follow the recipe or convenience food directions for baking

temperature, time and rack position. Baking time will vary with

the temperature of ingredients and the size, shape and nish of

the bakeware.

1 Press BAKE to select the bake mode. “BAKE” will appear

in the display and 350°F (177°C) will be displayed. “Set temp

or Press START” will appear in the display.

2 Press START, if you wish to cook at 350°F (177°C).

Enter the desired temperature by pressing the number keypad,

and then press START. The temperature can be set from 170°F (77°C) to 500°F (260°C).

NOTES:

• The temperature can be changed at any time during cooking. Press STOP/CLEAR to clear the settings. Select oven mode, then enter the desired temperature by pressing the number keypad, and then press START.

• After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

3 Press STOP/CLEAR when nished baking, and remove food

from the oven.

BROIL

Broiling uses direct radiant heat to cook food. The lower the temperature, the slower the cooking. Thicker cuts and unevenly

shaped pieces of meat, sh and poultry may cook better at lower

broiling temperatures.

2 Press BROIL for the desired mode. “BROIL” and “Set temp

or Press START” will appear in the display, and “550ºF”

(288ºC) will be displayed.

3 Press START, if you wish to broil at 550°F (288°C).

Enter the desired temperature by pressing the number keypad, and then press START. The temperature can be set from

450°F (232°C) to 550°F (288°C).

4 “BROIL” will appear in the display after Start is pressed.

NOTES:

• The broil temperature can be changed at any time during cooking. Press STOP/CLEAR to clear the settings. Select oven mode, then enter the desired temperature by pressing the number keypad, and then press START.

• After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

5 Press STOP/CLEAR when nished broiling, and remove

food from the oven.

WARM/ PROOF

The Warm mode keeps hot, cooked foods at serving temperature.

The Proof mode prepares dough for baking by activating the

yeast. Follow the recipe directions as a guide.

• For best results, use a broiler pan and rack. It is designed to

drain juices and help avoid spatter and smoke.

• For proper draining, do not cover the grid with foil. The

bottom of the pan may be lined with aluminum foil for easier cleani ng.

• Trim excess fat to reduce spattering. Slit the remaining fat on the edges to avoid curling.

• Select HI/550°F (288°C) broil for most broiling. Select

LO/450°F (232°C) broil for low-temperature broiling of

longer cooking foods such as poultry to avoid over browning.

• Pull out oven rack to stop position before turning or removing

food. Use tongs to turn food to avoid the loss of juices. Very thin cuts of sh, poultry or meat may not need to be turned.

TO BROIL:

1 Place the food on the rack in the broiler pan and place pan in

the oven. Close the oven door.

NOTE: Preheating is not necessary.

WARNING

FOOD POISONING HAZARD

Do not let food sit in oven more than one hour before

or after cooking.

Doing so can result in food poisoning or sickness.

IMPORTANT: Food must be at serving temperature before placing it in the warmed oven. Food may be held up to 1 hour;

however, breads and casseroles may become too dry if left in

the oven during the Warm function. For best results, cover food.

WARM

1 Press WARM/PROOF. “Warm” and “Set Temp or Press

START” and 140°F (60°C) will be displayed.

2 Press START, if you want to Warm food at 140°F (60°C).

Enter the desired temperature by pressing the number keypad,

and then press START. The temperature can be set from 140°F (60°C) to 210°F (99°C).

3 “WARM” will appear in the display, once Start is pressed.

14E

OVEN USE

NOTE: After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

4 Place food in the oven and close the door.

5 Press STOP/CLEAR when nished, and remove food from

the oven.

TO CANCEL WARM FEATURE:

• Press STOP/CLEAR. Remove food from oven.

PROOF

1 Before proong, place the dough in a lightly greased bowl

and cover loosely with wax paper, coated with shortening. Place on second rack from the bottom and close the oven door.

2 Press and hold WARM/PROOF for 3 seconds. “Proof”

and “Set Temp or Press START,” and 100°F (38°C) will be

displayed.

3 Press START, if you want to Proof dough at 100°F (38°C).

Enter the desired temperature by pressing the number keypad,

and then press START. The temperature can be set from 80°F (27°C) to 120°F (49°C).

4 “PROOF” will appear in the display, once Start is pressed.

NOTE: After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

5 Let the dough rise until nearly doubled in size, checking after

20-25 minutes. Proong time may vary depending on dough

type and quantity.

6 Press STOP/CLEAR when nished proong.

7 Before second proong, shape the dough, place it in baking

pan(s) and cover loosely with plastic wrap, coated with cook-

ing spray. Follow the same placement and control steps above.

Before baking, remove the plastic wrap.

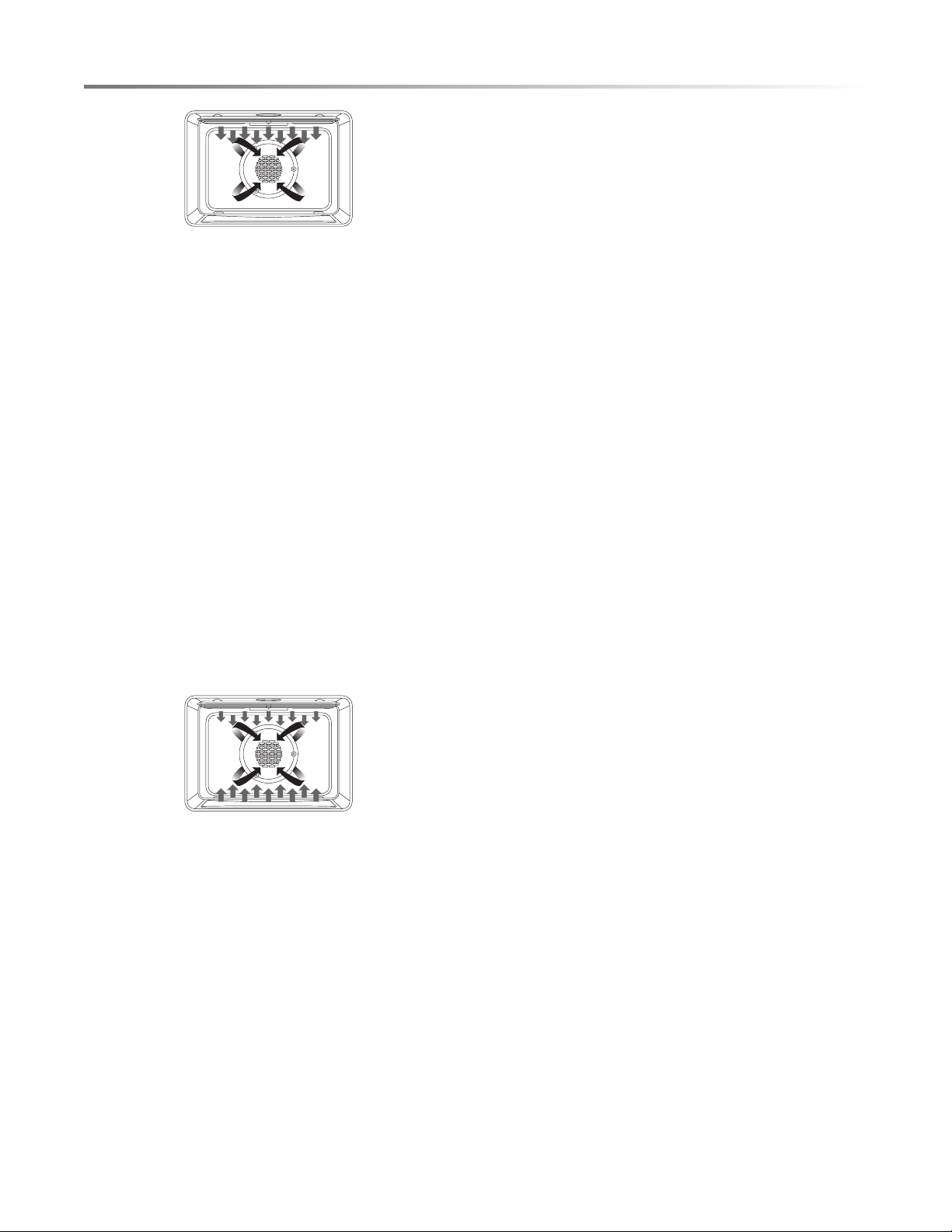

CONVECTION

During convection cooking, the fan provides hot air circulation throughout the oven. The movement of heated air around the food can help to speed up cooking by penetrating the cooler outer surfaces.

In Convection mode, the ring element, bake and broil elements, and the fan operate to heat the oven cavity. If the oven door is opened during convection cooking or preheating, the fan turns off immediately and the element(s) will turn off after 30 seconds. Once the door is closed, the element(s) will turn back on.

CONVECTION FAN

The convection fan operates during any convection mode. When the oven is operating in convection mode, the fan will turn off automatically when the door is opened. The convection fan always runs during the preheat time.

ADVANTAGES OF CONVECTION COOKING

• Saves time and energy.

• Even baking, browning and crisping are achieved.

• During roasting, juices and avors are sealed in while the

exterior is crisp.

• Yeast breads are lighter, more evenly textured, more golden

and cr ustier.

• Air-leavened foods such as cream puffs, soufflés and meringues are higher and lighter.

• Baking on multiple racks at the same time with even results is possible.

• Prepare whole meals at once with no avor transfer.

• Dehydrates herbs, fruits and vegetables.

• Requires no specialized bakeware.

• Convection broiling allows for extraordinary grilling with thicker cuts of food.

CONVECTION BAKE

Use Convection bake for single or multiple rack baking. When

convection baking, reduce your recipe baking temperature by

25°F (15°C).

TO SET CONVECTION BAKE:

1 Press CONVEC. “Convection” and “Press 1-3 To Choose”

will appear in the display.

2 Press number 1 on the keypad. “Convect Bake” and “Set

Temp or Press START ” an d 325°F (163°C) will be displayed.

3 Press START if you wish to convection bake at 325°F (163°C).

Enter the desired temperature by pressing the number keypad,

and then press START. The temperature can be set from 170°F (77°C) to 500°F (260°C).

NOTE: After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

4 The oven will begin preheating once Start is pressed. A tone

will sound when the oven is at the set temperature.

5 Place the food in the oven and close the oven door when

preheat is completed.

6 Press STOP/CLEAR when nished, and remove food from

the oven.

CONVECTION BROIL

When convection broiling, enter your normal broiling temperature. The oven door must be closed when using Convection Broil.

It is not necessary to preheat the oven for Convection Broil.

E15

OVEN USE

1 Place the food in the oven and close the oven door.

2 Press CONVEC. “Convection and “Press 1-3 To Choose”

will be displayed.

3 Press number 2 on the keypad. “Convect Broil” and “Set

Temp or Press Start” and 450°F (232°C) will be displayed.

4 Press START, if you wish to broil at 450°F (232°C).

Enter the desired temperature by pressing the number keypad,

and then press START. The temperature can be set from 170°F (77°C) to 550°F (288°C).

NOTE: After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

5 “Convect Broil” will be displayed, once Start is pressed.

6 Press STOP/CLEAR when nished, and remove food from

the oven.

CONVECTION ROAST

When Convection roasting, enter your normal roasting temperature. The roasting time should be 15-30% less than in conventional cooking. It is not necessary to preheat the oven for convection roast.

6 Press STOP/CLEAR when nished and remove food from

the oven.

CONVECTION CONVERSION

CONVECTION CONVERSION can be used to convert from

conventional cooking to convection cooking. This function will automatically convert the cooking temperature and cooking time to recommended cooking settings.

As a result, the cooking temperature is lower and the cooking time is shorter. Options that can be selected include Meats,

Baked Goods or All Others.

NOTES:

• When using Convection Conversion, enter the normal cooking temperature and time.

• The oven door must be closed before setting Convection Conversion.

MEATS (ONLY)

It is not necessary to preheat the oven for the Convection Conversion MEATS option. Preheating can cause overcooking. If preheat is required for the recipe, add 15 minutes to the Cook Time, and place food in the oven at the appropriate time.

1 Place food in the oven and close the oven door.

2 Press Meats from CONVECTION CONVERSION section

on keypad.

3 Enter your normal roasting temperature by pressing the

number keypad.

4 Enter your normal Cook Time. See “Cook Time,” and then

press START.

NOTE: Setting a Cook Time is required for Convection Conversion oven mode. See “Cook Time.”

1 Place the food in the oven and close the oven door.

2 Press CONVEC. “Convection” and “Press 1-3 To Choose”

will be displayed.

3 Press number 3 on the keypad. “Convect Roast,” “Set Temp

or Press START”, and 325°F (163°C) will be displayed.

4 Press START, if you wish to convection roast at 325°F

(163°C ).

Enter the desired temperature by pressing the number keypad,

and then press START. The temperature can be set from 170°F (77°C) to 500°F (260°C).

NOTE: After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”

5 “Convect Roast” will be displayed, once Start is pressed.

BAKED GOODS AND ALL OTHERS (ONLY)

1 Preheating will start. Once the oven is preheated to the set

temperature, the control will beep. Place the food in the oven and close the oven door.

2 At the end of the set cooking time, the oven will turn off

automatically. The alert tone will sound, and “Cooking Complete” will appear in the display.

3 Press STOP/CLEAR when nished and remove food from

the oven.

BAKE TIPS

• For best results, bake food on a single rack with at least 1"-1½" (2.5-3 cm) space between utensils and oven walls.

• Use one rack when selecting the bake mode.

• Check for doneness at the minimum time.

• Use metal bakeware (with or without a non stick nish), heatproof glass, glass-ceramic, pottery or other utensils suitable for the oven.

• When using heatproof glass, reduce temperature by 25°F (15°C) from recommended temperature.

• Use baking sheets with or without sides or jelly roll pans.

16E

OVEN USE

• Dark metal pans or nonstick coatings will cook faster with more browning. Insulated bakeware will slightly lengthen the cooking time for most foods.

• Do not use aluminum foil or disposable aluminum trays to

line any part of the oven. Foil is an excellent heat insulator

BAKE CHART

FOOD ITEM RACK POSITION TEMP. °F (°C) (PREHEATED OVEN) TIME (MIN.)

and heat will be trapped beneath it. This will alter the cooking

performance and can damage the nish of the oven.

• Avoid using the opened door as a shelf to place pans.

• See Troubleshooting for tips for Baking and Roasting problems.

Cake

• Cupcake 2 350 (177) 19-22

• Bundt Cake 1 350 (177) 40-45

• Angel Food 1 350 (177) 35-39

Pie

• 2 crust, fresh, 9" 2 375-400 (190-205) 45-50

• 2 crust, frozen fruit, 9" 2 375 (19 0) 68-78

• Sugar 2 350 -375 (177-190) 8-10

• Chocolate Chip 2 350 -375 (177-190) 8-13

• Brownies 2 350 (177) 29-36

Breads

• Yeast bread loaf, 9x5 2 375 (19 0) 18 -22

• Yeast rolls 2 375-400 (190-205) 12-15

• Biscuits 2 375-400 (190-205) 7-9

• Mufns 2 425 (220) 15-19

Pizza

• Frozen 2 400-450 (205-232) 23-26

• Fresh 2 475 (2 46) 15-18

CONVECTION BAKE TIPS

Reduce recipe baking temperatures by 25°F (15°C).

• For best results, foods should be cooked uncovered, in low-

sided pans to take advantage of the forced air circulation.

Use shiny aluminum pans for best results unless otherwise specied.

• Heatproof glass or ceramic can be used. Reduce temperature

by another 25°F (15°C) when using heatproof glass dishes for a total reduction of 50°F (30°C).

• Dark metal pans may be used. Note that food may brown faster when using dark metal bakeware.

• The number of racks used is determined by the height of the food to be cooked.

• Baked items, for the most part, cook extremely well in convection. Don’t try to convert recipes such as custards,

quiches, pumpkin pie , or cheesecakes, which do not benet from the convection-heating process. Use the regular Bake

mode for these foods.

• Multiple rack cooking for oven meals is done on rack positions 1, 2, 3 , 4 and 5. All six racks can be used for cookies, biscuits and appetizers.

- 2 Rack baking: Use positions 1 and 3.

- When baking four cake layers at the same time, stagger

pans so that one pan is not directly above another. For best

results, place cakes on front of upper rack and back of lower

rack (See graphic below). Allow 1" - 1 ½" (2.5 - 3 cm) air

space around pans.

• Converting your own recipe can be easy. Choose a recipe that will work well in convection.

• Reduce the temperature and cooking time if necessary. It may take some trial and error to achieve a perfect result. Keep track of your technique for the next time you want to prepare the recipe using convection.

• See Troubleshooting for tips for Baking and Roasting problems on page 26.

E17

OVEN USE

FOODS RECOMMENDED FOR CONVECTION BAKE MODE:

• Appetizers, Biscuits, Coffee Cakes

• Cookies (2 to 4 racks), Yeast Breads

• Cream Puffs, Popovers

CONVECTION BAKE CHART

Reduce standard recipe temperature by 25 ºF (15 °C) for Convection Bake. Temperatures have been reduced in this chart.

FOOD ITEM RACK POSITION

Cake

• Cupcake 2 325 (163) 2 0-22

• Bundt Cake 1 325 (163) 43-50

• Angel Food 1 325 (163) 43- 47

Pie

• 2 crust, fresh, 9" 2 350-4 0 0 (177-205) 40-52

• 2 crust, frozen fruit, 9" 2 350 (177) 68 -78

• Sugar 2 325-350 (163-177) 8-10

• Chocolate Chip 2 325-350 (163-177) 8-13

• Brownies 2 325 (163) 29-36

Breads

• Yeast bread loaf, 9x5 2 350 (177) 18-22

• Yeast rolls 2 350 -375 (177-190) 12-15

• Biscuits 2 375 (19 0) 8-10

• Mufns 2 400 (205) 17-21

Pizza

• Frozen 2 375-425 (190-220) 23-26

• Fresh 2 450 (232) 15-18

• Casseroles and One-Dish Entreés

• Oven Meals (rack positions 1, 2, 3)

• Air-Leavened Foods (Soufés, Meringue, Meringue-Topped

Desserts, Angel Food Cakes, Chiffon Cakes)

TEMP. °F (°C)

(PREHEATED OVEN)

TIME (MIN.)

CONVECTION ROAST TIPS

• Do not preheat for Convection Roast.

• Roast in a low-sided, uncovered pan.

• When roasting whole chicken or turkey, tuck wings behind back and loosely tie legs with kitchen string.

• Use the 2-piece broil pan for roasting uncovered.

WARNING

BURN HAZARD

Use an oven mitt to remove temperature probe.

Do not touch broil element.

Failure to do so can result in burns.

• Use the probe or a meat thermometer to determine the internal

doneness on “END” temperature (see cooking chart).

• Double-check the internal temperature of meat or poultry by inserting meat thermometer into another position.

• Large birds may also need to be covered with foil (and pan roasted) during a portion of the roasting time to prevent over-browning.

• The minimum safe temperature for stufng in poultry is

165ºF (74ºC).

• After removing the item from the oven, cover loosely with foil for 10 to 15 minutes before carving if necessary to increase

the nal foodstuff temperature by 5° to 10°F (3° to 6° C).

18E

CONVECTION ROAST CHART

OVEN USE

ME AT

WEIGHT

(LB)

OVEN TEMP.

˚F (˚C)

RACK

POSITION

TIME

(MIN. PER LB)

INTERNAL TEMP.

˚F (˚C)

Beef

• Rib Roast 4-6 325 (163) 2 16-20 18-22

• Rib Eye Roast, (boneless) 4-6 325 (163) 2 16 -20 18-22

• Rump, Eye, Tip,

Si rlo i n (boneless)

3-6 32 5 (163) 2 16-20

18-22

145 (63) medium rare 160 (71) medium

• Tenderloin Roast 2-3 400 (205) 2 15-20 145 (63) medium rare

Pork

• Loin Roast (boneless

5-8 35 0 (177) 2 16-20 160 (71) medium

or bone-in)

• Shoulder 3-6 350 (177) 2 20-25 160 (71) medium

Poultry

• Chicken whole 3-4 375 (19 0) 2 18-21 180 (82)

• Turkey, not stuffed 12-15 32 5 (163) 1 10 -14 180 (82)

• Turkey, not stuffed 16 -20 325 (163) 1 9 -11 180 (82)

• Turkey, not stuffed 21-25 32 5 (163) 1 6-10 180 (82)

• Turkey Breast 3-8 325 (163) 1 15-20 170 (77)

• Cornish Hen 1-1

/2 350 (177) 2 45-75 tot al 180 (82)

Lamb

• Half Leg 3-4 325 (163) 2 22-27 28-33

• Whole Leg 6-8 325 (163) 1 22-27 28-33

160 (71) medium 170 (77) well

CONVECTION BROIL TIPS

• Place rack in the required position needed before turning on the oven.

• Use Convection Broil mode with the oven door closed.

CONVECTION BROIL CHART

FOOD AND THICKNESS

RACK

POSITION

Beef

• Stea k (1

/2" or more)

- Medium rare 4 450 (232) 145 (63) 9-12 8-10

- Medium 4 450 (232) 16 0 ( 71) 11-13 10 -12

- Wel l 4 450 (232) 170 (77) 18-20 16-17

• Hamburgers (more than 1")

- Medium 4 550 (288) 16 0 ( 71) 8-11 5-7

- Wel l 4 550 (288) 170 ( 77) 11-13 8-10

BROIL SETTING

• Do not preheat oven.

• Use the 2-piece broil pan.

• Turn meats once halfway through the cooking time (see conve ction broil chart).

°F (°C)

INTERNAL

TEMP. °F (°C)

TIME SIDE 1

(MIN.)*

TIME SIDE 2

(MIN.)*

E19

OVEN USE

FOOD AND THICKNESS

RACK

POSITION

BROIL SETTING

°F (°C)

INTERNAL

TEMP. °F (°C)

TIME SIDE 1

(MIN.)*

TIME SIDE 2

(MIN.)*

Poultry

• Chicken Quarters 4 450 (232) 180 (82) 16 -18 10-13

• Chicken Halves 3 450 (232) 180 (82) 25-27 15-18

• Chicken Breasts 4 450 (232) 170 (77) 13-15 9-13

Pork

• Pork Chops (1

/4" or more) 4 450 (232) 16 0 ( 71) 12-14 11-13

• Sausage - fresh 4 450 (232) 16 0 (71) 4-6 3-5

* Broiling and convection broiling times are approximate and may vary slightly. Cooking times are indicative and also depend on the thickness and the starting temperature of the meat before cooking.

DEHYDRATE TIPS

The circulating heated air at a lower temperature slowly removes the moisture for food preservation.

• Oven temperature for dehydrating is between 120ºF (49ºC)

to 160ºF (71ºC).

• Multiple racks can be used simultaneously.

• Some foods require as much as 14-15 hours of time to fully dehydrate.

• Consult a food preservation book for specic times and the

handling of various foods.

• This mode is suitable for a variety of fruits, vegetables, herbs and meat strips.

• Drying screens can be purchased at specialty kitchen shops.

• By using paper towels, some food moisture can be absorbed before dehydrating begins (such as with sliced tomatoes or sliced peaches).

DEHYDRATE CHART

FOOD PREPARATION

APPROXIMATE

DRYING TIME

(HRS)

TEST FOR DONENESS

Fruit

• Apple Dipped in

• Bananas Dipped in

/4 cup lemon juice and 2 cups water, 1/4 slices 11-15 Slightly pliable

• Cherries Wash and towel dry. For fresh cherries, remove pits 10 -15 Pliable, leathery, chewy

• Oranges Peels and slices

/4 slices of orange; orange part of skin thinly peeled

from oranges

Peels: 2- 4

Slices: 12-16

Orange peel: dry and brittle Orange slices: skins are dry

and brittle, fruit is slightly moist

• Pineapple rings

• St rawberr ies Wash and towel dry. Sliced

Tow el d rie d Canned: 9-13

Fresh: 8-12

/2" thick, skin (outside)

12-17 Dr y, b rit tle

Soft and pliable

down on rack

Vegetable

• Peppers Wash and towel dry. Remove membrane of pepper,

coarsely chopped about 1" pieces

• Mushrooms Wash and towel dry. Cut of stem end. Cut into

• To m ato e s Wash and towel dry. Cut this slices,

/8" thick, dry well 16-2 3 Dry, brick red color

/8" slices 7-12 Tough and leathery, dry

16-20 Leathery with no moisture

inside

Herbs

• Oregano, sage parsley and

Rinse and dry with paper towel Dry at 120°F

(60°C) 3-5 hrs

Crisp and brittle

thyme, and fennel

• Basil Use basil leaves 3 to 4 inches from top. Spray with water,

shake off moisture and pat dry

Dry at 120°F

(60°C) 3-5 hrs

Crisp and brittle

20E

OVEN USE

BROIL TIPS

• Place rack in the required position needed before turning on the oven.

• Use Broil mode with the oven door closed.

BROIL CHART

FOOD AND THICKNESS

RACK

POSITION

BROIL SETTING

• Preheat oven for 5 minutes before use.

• Use the 2-piece broil pan.

• Turn meats once halfway through the cooking time (see conve ction broil chart).

INTERNAL

TEMP. °F (°C)

TIME SIDE 1

(MIN.)*

Beef

• Steak (

/4"-1")

- Medium rare 5 5 145 (63) 5-7 4-6

- Medium 5 5 160 (71) 6-8 5-7

- Wel l 5 5 170 ( 77) 8-10 7-9

• Hamburgers (

/4"-1")

- Medium 4 5 160 (71) 8-11 6-9

- Wel l 4 5 170 ( 77) 10-13 8 -10

Poultry

• Breast (bone-in) 4 4 170 (77) 10-12 8 -10

• Thigh (very well done) 4 3 180 (82) 2 8-30 13-15

Pork

• Pork Chops (1") 5 5 160 (71) 7-9 5-7

• Sausage - fresh 5 5 160 (71) 5 -7 3-5

• Ham Slice (

/2") 5 5 16 0 (71) 4-6 3-5

Seafood

• Fish Filets, 1" - buttered 4 4 Cook until opaque &

10-14 Do not turn

akes easily with fork

TIME SIDE 2

(MIN.)*

Lamb

• C h o p s (1")

- Medium rare 5 5 145 (63) 5-7 4-6

- Medium 5 5 160 (71) 6-8 4-6

- Wel l 5 5 170 ( 77) 7-9 5-7

Bread

• Garlic Bread, 1" slices 4 5 2-2,30

• Garlic Bread, 1" slices 3 5 4-6

* Broiling and convection broiling times are approximate and may vary slightly Cooking times are indicative and also depend on the thickness and the starting temperature of the meat before cooking .

E21

OVEN USE

FOOD SERVICE TEMPERATURE GUIDELINES FROM FSIS (USDA FOOD SAFETY & INSPECTION SERVICE)

140°F (60°C) Ham, precooked ( to Reheat)

145°F (63°C) Fresh beef, Veal, Lamb (medium rare)

Ground Meat & Meat mixtures (Beef, Pork, Veal Lamb)

Fresh beef, Veal, Lamb (medium)

160°F (71°C)

165°F (74°C)

Fresh Pork (medium)

Fresh Ham (raw)

Egg Dishes

Ground Meat & Meat mixtures (Turkey,

Chicken)

Stufng (cooked alone or in bird)

Leftovers & Casseroles

OVEN CARE

GENERAL CLEANING

IMPORTANT: Before Cleaning, make sure all controls are off and the oven is cool. Always follow the instructions printed on the label of the cleaning products.

Fresh beef, Veal, Lamb (well done)

170°F (77°C)

180°F (82°C)

NOTE: Eggs (alone, not used in a recipe) – cook until yolk &

white are rm.

Meat Thermometer

On models without a temperature probe, use a meat thermometer

to determine whether meat, poultry and sh are cooked to

the desired degree of doneness. The internal temperature, not appearance, should be used to determine doneness.

Poultry breast

Fresh Pork (well done)

Chicken and Turkey (Whole)

Poultry (thighs and wings)

Duck and Goose

USING THE CLEANING CHART

1 Locate the number of the part to be cleaned in the following

illustration.

2 Find the part name in the chart.

• Use the cleaning method in the left column if the oven is

black or white.

• Use the cleaning method in the right column if the oven

is stainless steel.

3 Match the letter with the cleaning method on following chart.

STAINLESS STEEL OVEN

PART CLEANING METHOD

1 Control Panel C-G

2 Door Cooling Vent E

3 Side Tr im D

4 Bot tom Trim D

5 Door Frame E

6 Door Handle G

7 Interior Door Window F

8 Door Front C & G

9 End Caps D

10 Interior Oven Door E

11 Oven Front Frame E

12 Oven Cavity E

13 Door Gasket B

14 Oven Cooling Vents D

22E

OVEN CARE

PART CLEANING METHOD

15 Oven Rack (3) A

16 Broiler Pan Rack E

17 Broiler Pan E

18 Temperature Probe A

OVEN FINISHES / CLEANING METHODS

The entire oven can be safely cleaned with a soapy sponge, rinsed and dried. If stubborn soil remains, follow the recommended cleaning methods below.

• Always use the mildest cleaner that will do the job.

• Rub metal nishes in the direction of the grain.

• Use clean, soft cloths, sponges or paper towels.

• Rinse thoroughly with a minimum of water so it does not drip into door slots.

• Dry to avoid water marks.

The cleaners listed below indicate types of products to use and

are not being endorsed. Use all products according to package

directions.

PART CLEANING METHOD

Wash with hot sudsy water. Rinse thoroughly and dry. Or, gently rub with Soft Scrub®, Bon-A mi®, Comet®, Ajax®, Brillo® or S.O.S.® pads as directed.

A Chrome

Plated

B Fiberglass

Knit

C Glass

D Painted

E Porcelain

Easy Off® or Dow® Oven Cleaners (cold oven formula) can be used, but may cause darkening and discoloration. Racks may be cleaned in the oven during the Self-Cleaning mode. However, chromed racks

will lose their shiny nish and permanently

change to a metallic gray.

DO NOT HAND CLEAN GASKET.

Spray Windex® or Glass Plus® onto a cloth

rst, then wipe to clean. Use Fantastik® or Formula 409® to remove

grease spatters.

Clean with hot sudsy water or apply Fantastik® or Formula 409® rst to a clean sponge or paper towel and wipe clean. Avoid using powdered cleansers and steel wool pads.

Immediately wipe up acidic spills like fruit juice, milk and tomatoes with a dry towel. Do not use a moistened sponge/towel on hot porcelain. When cool, clean with hot sudsy water or apply Bon-Ami® or Soft Scrub® to

a damp sponge. Rinse and dry. For stubborn

stains, gently use Brillo® or S.O.S.® pads. It is

normal for porcelain to craze (ne lines) with

age due to exposure from heat and food soil.

PART CLEANING METHOD

Clean with hot sudsy water and sponge or

F Reective

Glass

G Stainless

plastic scrubber. Rub stubborn stains with vinegar, Windex

NOT USE HARSH ABRASIVES.

Always wipe or rub with grain. Clean with a soapy sponge then rinse and dry. Or, wipe

with Fantastik® or Formula 409® sprayed

onto a paper towel. Protect and polish with Stainless Steel Magic® and a soft cloth. Remove water spots with a cloth dampened

with white vinegar. Use Zud®, Cameo®, Bar Keeper’s Friend® or RevereWare Stainless

Steel Cleaner®, to remove heat discoloration.

, ammonia or Bon-Ami® DO

AUTOMATIC SELF-CLEANING

WARNING

BURN HAZARD

Do not touch the oven during the Self-Cleaning cycle.

Keep children away from oven during Self-Cleaning cycle.

Failure to do so can result in burns.

This oven features a self-cleaning function that eliminates the need to manually scrub the oven interior. During self-cleaning, the oven uses very high temperatures, burning soil to a powdery ash.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well-ventilated room.

• Keep the kitchen well ventilated during the Self-Cleaning cycle to help get rid of heat, odors and smoke.

• It is common to see smoke and/or an occasional ame-up during the Self-Clean cycle, depending on the content and

amount of soil remaining in the oven. If a ame persists, turn

off the oven and allow it to cool before opening the door to wipe up the excessive food soil.

• Do not block the oven vent(s) during the Self-Cleaning cycle.

Air must be able to move freely. See “Oven Vents” on page 13.

• Do not clean, rub, damage or move the oven door gasket.

• The door latch is automatically activated after selecting the

Self-Clean cycle. “AUTO LOCK” will appear in the display.

This ensures that the oven door cannot be opened while the oven interior is at clean temperatures.

• The oven is preset for a 2.5 hour clean cycle; however, the time can be changed. Suggested clean times are 2 hours for light soil and between 3.0 hours and 3.5 hours for average to heavy soil.

• Clean mode stops automatically at the end of the set cleaning time.

E23

OVEN CARE

• When the oven heat drops to a safe temperature, the automatic door lock will release and the door can be opened.

• The oven light does not operate during Clean mode.

BEFORE SELF-CLEANING

1 Remove all utensils and bakeware.

2 Remove non-porcelain oven racks. If chromed racks are left

in the oven during the self-clean cycle, they will permanently

lose the shiny nish and change to a dull dark nish. See “Oven Finishes/Cleaning Methods” for proper care on

page 23.

3 Wipe up any soft soil spills and grease with paper towels.

Excess grease will cause ames and smoke inside the oven

during self-cleaning.

4 Be sure oven interior lights are turned off and the light bulbs

and lens covers are in place.

5 Some areas of the oven such as the oven door edge, oven door

window, oven front frame and up to 11/2" (2-3 cm) inside the frame do not get hot enough during the cleaning cycle for

soil to burn away and must be cleaned by hand. BEFORE

the cycle begins, clean oven interior using a soapy sponge or plastic scrubber and a solution of detergent and hot water. Rinse and dry all areas thoroughly.

NOTE: Do not rub the oven door gasket.

Hand clean frame area out side gasket

DO NOT hand clean gasket

Hand clean door area out side gasket

Hand clean 1”

(2 cm) from

rack guides to

front of oven

cavity

Hand clean

door window

After the door is locked, “SELF CLEAN” will scroll in the selected text area until the clean cycle is nished. When the

Self-clean Cycle Ends: “COMPLETE” appears in the display and the oven door unlocks.

NOTE: SELF CLEAN can be canceled by pressing STOP/

CLEAR. The oven door will remain locked if the oven cavity is above a safe temperature and will unlock when the oven cavity has cooled.

7 Once the oven has completely cooled, remove ash with a

damp cloth.

NOTE: To avoid breaking the glass, do not apply a cool, damp cloth to the inner door glass before it has cooled completely.

OVEN DOOR REMOVAL

For normal oven use, there is no need to remove the oven door.

However, should it become necessary to remove the door, follow the instructions in this section.

IMPORTANT:

• Make sure oven is cool and that power to the oven has been turned off before removing the door.

• The oven door is heavy and fragile, and the door front is glass. To avoid oven door glass breakage, use both hands, and grasp only the sides of the oven door to remove. Do not grasp the handle.

• Be sure both levers are securely in place before removing the door.

• Do not force door open or closed.

TO REMOVE THE OVEN DOOR:

1 Open the door completely.

2 Flip up the hinge latch on each side.

SELF-CLEAN CYCLE

A minimum 24-hour wait is recommended between cleaning cycles.

TO SELF-CLEAN:

1 Close the oven door.

2 Press SELF CLEAN. “REMOVE RACKS” will appear in

the selected oven text area of the display.

3 “2:00 3:00 3:30” will appear in the display.

4 Use the number keypad to select the clean level. Select 1-3.

5 If you want to delay the start of the self-cleaning cycle, press

START TIME, and then set a time, by pressing the number keypad.

6 Pre s s STA RT.

A - Hinge Bracket

3 Holding the door rmly, close the oven door completely.

4 Grasping both sides lift up on the oven door while pushing it

closed, and then pull it away from the door frame.

5 Place the door in a protected location.

24E

OVEN CARE

TO REPLACE THE OVEN DOOR:

1 Holding the door rmly, insert the upper arms of both hinges

into the slots. The recesses must hook on the lips.

A - Upper Arm

B - Recess

2 Open the oven door.

NOTE: You should hear a “click” sound when the door is

correctly in place.

3 Move the hinge latch on each side back into the locked

position.

4 Open and close the door to test that it operates freely. If it

does not, repeat the door removal and replacement process.

5 Close and open the door slowly to assure that it is correctly

and securely in place.

C D

C - Slots D - Lip

2 Using a Phillips-head screwdriver, remove the screw, and

then remove the cover.

A - Light Cover

3 Remove the burned out bulb from the socket.

REPLACING AN OVEN LIGHT

WARNING

ELECTRICAL SHOCK HAZARD

Make sure the oven and lights are cool and power to the

oven has been turned off before replacing the light bulb(s).

The lenses must be in place when using the oven. The

lenses serve to protect the light bulb from breaking.

The lenses are made of glass. Handle carefully

to avoid breakage.

Failure to do so could result in death, electric shock,

cuts or burns.

The oven light is a standard 25 watt (G9) appliance bulb.

IMPORTANT: Before replacing the bulb, make sure the oven is cool and the controls are turned off.

1 Disconnect power at the main power supply (fuse or breaker

box).

A B

A - Light Bulb B - Light Cover

NOTE: To avoid damage or decreasing the life of the new bulb,

do not touch bulb with bare ngers. Wear cotton gloves or use

a tissue when replacing the light bulb.

4 Replace the bulb, and then replace the bulb cover.

5 Reconnect power at the main power supply (fuse or breaker

box).

E25

TROUBLESHOOTING

First try the solutions suggested here to possibly avoid the cost

of a service call.

BAKING AND ROASTING

With either Bake or Convection Bake and Convection Roast poor results can occur for many reasons other than a malfunction of

BAKING PROBLEM CAUSE

Food browns unevenly

Food too brown on bottom

Food is dry or has shrunk excessively

Food is baking or roasting too slowly

the oven. Check the chart below for causes of the most common problems. Since the size, shape and material of baking utensils directly affect the baking results, the best solution may be to replace old baking utensils that have darkened and warped with age and use. Check the Baking Charts for the correct rack position and baking time.

• Oven not preheated

• Aluminum foil on oven rack or oven bottom

• Baking utensil too large for recipe

• Pans touching each other or oven walls

• Oven not preheated

• Using glass, dull or darkened metal pans

• Incorrect rack position

• Pans touching each other or oven walls

• Oven temperature too high

• Baking time too long

• Oven door opened frequently

• Pan size too large

• Oven temperature too low

• Oven not preheated

• Oven door opened frequently

• Tightly sealed with aluminum foil

• Pan size too small

Pie crusts do not brown on bottom or crust is soggy

Cakes pale, at and may not be done inside

Cakes high in middle with crack on top

Pie crust edges too brown

OPER ATI ON

PROBLEM POSSIBLE CAUSE SOLUTION

F03 or F04 Error appears in

the display window.

A problem with latch mechanism occurred.

• Baking time not long enough

• Using shiny steel pans

• Incorrect rack position

• Oven temperature is too low

• Oven temperature too low

• Incorrect baking time

• Cake tested too soon

• Oven door opened too often

• Pan size may be too large

• Oven temperature too high

• Baking time too long

• Pans touching each other or oven walls

• Incorrect rack position

• Pan size too small

• Oven temperature too high

• Edges of crust too thin

Turn off power at the main power supply (fuse or breaker box), wait a few seconds and turn it back on again. The oven should run a latch auto–test. If condition persists, note the code number and call an authorized service center.

26E

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Other F_ Error appears in the

display window.

The oven display does not illuminate.

Cooling fan continues to run after oven is turned off.

Oven door is locked and will not release, even after cooling.

Oven is not heating. No power going to

Oven is not cooking evenly Oven rack is not in

Oven light is not working properly.

The oven components have not cooled

sufciently.

the oven.

Oven Mode or Temperature not selected.

correct position.

Convection Bake Mode

Light bulb is loose or burned out.

Turn off power at the main power supply (fuse or breaker box), wait a few seconds and turn it back on again. If condition persists, note the code number and call an authorized service center.

Turn off power at the main power supply (fuse or breaker box). Turn breaker back on. If condition persists, call an authorized service center.

The fan turns off automatically when the electronic components have

cooled sufciently.

Turn the oven off at the circuit breaker and wait a few seconds. Turn breaker back on. The oven should reset itself and will be operable.

Turn on power at the main power supply (fuse or circuit breaker box). If

condition persists, call a qualied electrician.

Press cooking option on keypad to select the oven mode and temperature.

Refer to cook charts starting on page 17 for recommended rack position.

Always reduce recipe temperature by 25°F (15 °C) when baking with

Convection Bake mode.

Replace or reinsert the light bulb if loose or defective. Touching the bulb

with ngers may cause the bulb to burn out.

Oven light stays on. Oven door does not

close completely.

Cannot remove lens cover on light.

Oven will not Self- Clean properly.

Clock and timer are not working properly.

Excessive moisture Oven was not

Porcelain chips Oven racks removed

Lens cover is dirty. There may be a soil build-up around the lens cover. Wipe lens cover area

Oven was still warm when Cleaning mode was selected.

Oven is heavily soiled.

No power going to the oven.

Clock or Timer not set c o r re c t ly.

properly preheated.

and replaced inc o r re c tly.

Check for obstruction in oven door. Check to see if hinge is bent or door switch is broken.

with a clean dry towel prior to attempting to remove the lens cover.

Allow the oven to cool before running Self-Cleaning.

Always wipe out loose soils or heavy spillover before running Self-

Cleaning. See OVEN FINISHES/CLEAN METHODS on page 23

If oven is badly soiled, set oven for a 4-hour Self-Cleaning.

Turn on power at the main power supply persists, call an authorized service center.

See Timer on page 9 and Clock on page 10

When using bake mode, preheat the oven rst. Convection Bake and

Convection Roast will eliminate any moisture in oven (one of the advantages of convection).

When oven racks are removed and replaced, always tilt racks upward and do not force them to avoid chipping the porcelain.

SHARP ELECTRONICS CORPORATION • 100 Paragon Drive, Suite # 100 • Montvale, New Jersey 07645 • USA SHARP ELECTRONICS OF CANADA LTD • 335 Britannia Road East • Mississauga, Ontario • L4Z 1W9 • Canada
