Sharp SD-SH111 User Manual

Download

1-BIT DIGITAL RECEIVER WITH DVD

AMPLI TUNER NUMÉRIQUE 1-BIT AVEC DVD

SDSH111U_FRONT 02.11.20, 2:44 PM1

SD-SH111

OPERATION MANUAL

MODE D’EMPLOI

ENGLISH

Please refer to pages i to iv and E-1 to E-70.

FRANÇAIS

Se reporter aux pages iv et F-1 à F-70.

SPECIAL NOTES

(for Users in the U.S.A.)

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

0010

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

0010

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 82040 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the re-

ceiver is connected.

z Consult the dealer or an experienced radio/TV technician for help.

WARNING

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION:

THIS PRODUCT IS A CLASS 1 LASER PRODUCT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. AS THE LASER BEAM USED IN THIS PRODUCT IS HARMFUL TO THE EYES, DO NOT ATTEMPT TO DISASSEMBLE THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

FOR YOUR RECORDS

For your assistance in reporting this unit in case of loss or theft, please record below the model number and serial number which are located on the rear of the unit. Please retain this information.

Model number .................................................................................

Serial number .................................................................................

Date of purchase .................................................................................

Place of purchase .................................................................................

0112

0010

SD-SH111(U)_common.fm02/1/21

IMPORTANT SAFETY INSTRUCTIONS

Read Instructions - All the safety and operating instructions should

be read before the product is operated.

Retain Instructions - The safety and operating instructions should be

retained for future reference.

Heed Warnings - All warnings on the product and in the operating

instructions should be adhered to.

Follow Instructions - All operating and use instructions should be

followed.

Cleaning - Unplug this product from the wall outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Attachments - Do not use attachments not recommended by the prod-

uct manufacturer as they may cause hazards.

Water and Moisture - Do not use this product near water - for ex-

ample, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

Accessories - Do not place this product on an unstable cart, stand,

tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces

may cause the product and cart combination to overturn.

Ventilation - Slots and openings in the cabinet are provided for venti-

lation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

Power Sources - This product should be operated only from the type

of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization - This product may be equipped with a

polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Alternate Warnings - This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

Power-Cord Protection - Power-supply cords should be routed so

that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Protective Attachment Plug - The product is equipped with an at-

tachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.

(for Users in the U.S.A.)

0109

SD-SH111(U)_common.fm02/1/21

IMPOR TANT SAFETY INSTRUCTIONS

Outdoor Antenna Grounding - If an outside antenna or cable system

is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/ NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Example of antenna grounding as per National Electrical Code, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANT EN NA DISCHARGE UNIT

ELECTRIC SERVICE EQUIPMENT

NEC - NATIONAL ELECTRICAL CODE S2898A

Lightning - For added protection for this product during a lightning

(NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

Power Lines - An outside antenna system should not be located in the

vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Overloading - Do not overload wall outlets, extension cords, or integral

convenience receptacles as this can result in a risk of fire or electric shock.

Object and Liquid Entry - Never push objects of any kind into this

product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Servicing - Do not attempt to service this product yourself as opening

or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service - Unplug this product from the wall outlet

and refer servicing to qualified service personnel under the following conditions:

a)When the power-supply cord or plug is damaged, b)If liquid has been spilled, or objects have fallen into the product, c)If the product has been exposed to rain or water, d)If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,

e)If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this

indicates a need for service.

Replacement Parts - When replacement parts are required, be sure

the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check - Upon completion of any service or repairs to this prod-

uct, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

Wall or Ceiling Mounting - The product should be mounted to a wall

or ceiling only as recommended by the manufacturer.

Heat - The product should be situated away from heat sources such

as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

(for Users in the U.S.A.) (continued)

0109

iii

SD-SH111(U)_common.fm02/1/21

SPECIAL NOTES REMARQUES SPÉCIALES

Touch the m etal oute r case bef ore you to uch cont rol butt ons locat ed on the front panel.

Toucher à l’enveloppe métallique externe avant d’agir sur les touches de commande situées sur la façade.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No.5,451,942 and other world-wide patents issued and pending. "DTS" and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc. 1996 Digital Theater Systems, Inc. All rights reserved.

Fabriqué, sous licence de Digi tal The ate r System s , Inc. Les breve ts US Pat. No. 5,451,942 et autres internat ionaux délivrés et demandés. "DTS" et "DTS Digital Surround" sont des marques de commerce de Digital Theater Systems, Inc. 1996 Digital Theater Syste ms. Tous droit s réservés.

Manufactured unde r license fro m Dolby Labo ratories. "D olby", "Pro L ogic" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished w orks . 1992-199 7 Dol by Labora tori es. All rights re served.

Fabriqué sous licence de Dolby Laboratories. "Dolby", "Pro Logic" et le symbole double D sont des marques de commerce de Dolby Laboratories. Suvres confidentielles non publiées. 1992-1997 Dolby Laboratories. Tous droits réservés.

The letters in brackets contained in the model number indicate the color of the product only. Operation and specifications are unaffected.

Les lettres mises en parenthèses du numéro de m odèle ind iquent la couleur du produit concerné. Le fonctionnement et les c aractéristiq ues ne v arient pas selon la coul eur du modèle.

ENERGY STAR® Program Information

As an ENERGY STAR® Partner, SHARP has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

By using

ENERGY STAR® labeled products, you will save money on your electric bills and use less

energy. That makes good economic sense and it’s good for our environment.

ENERGY STAR® is a U.S. registered mark.

WHY PURCHASE Many Electrical/Electronic Products use energy both when

they are on and when they are off. Americans spend more than $3 billion a year on energy consumed by home electronic products when they are not in use. The new labeled models will reduce that energy “leakage” by up to 75 percent. Ultimately, this will mean more than $1 billion a year in energy savings for consumers. The energy savings will help reduce the burning of fossil fuels and the related carbon dioxide pollution that contributes to global warming. If every American family replaced their electronic equipment with reduce air pollution equivalent to eliminating more than two million cars.

ENERGY STAR® LABELED PRODUCTS?

ENERGY STAR®

ENERGY STAR® labeled models, it would

0112

SD-SH111(U)_common.fm02/1/21

SD-SH111

ENGLISH

Introduction

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.

Contents

General Information

 General Information

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Description of discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6

Controls and in dicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 12

 Preparation for Use

Speaker connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14

Antenna connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

TV connect io n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 17

Turning the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

System installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Changing t he initial set t i ng of DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 - 25

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

- Introduction / Contents -

 Basic Operation

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Listening to t he memorized station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Playing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 30

Page

 Advanced Disc Features

Basic operation

To locate the beginning of a chapter (track) (skip) . . . . . . . . . . . . . . . . . . . . . . 31

Fast forward/F ast re verse (search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Slow-motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Still picture/Frame advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

To start playback from the desired point (direct play) . . . . . . . . . . . . . . . . . 33, 34

To resume playback a ft e r s to pping (sequential play ba ck) . . . . . . . . . . . . . . . . 34

Useful features

To play in the desired order (programmed playback) . . . . . . . . . . . . . . . . . 35, 36

To play in random orde r (ra ndom play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

To play repeatedl y (repeat play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

To play the contents between the specified points repeatedly

(A-B repeat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

To select a title from the top men u of the dis c . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Various settings

To change the subtitle language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

To hide the subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

To change the audio language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

To change the angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

To brighten an image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

To improve the image quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

To zoom in on an image (zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

To change the display on TV scre e n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

To change the display on t he unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

DVD mode operati on indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

To change the setting on the playback control screen . . . . . . . . . . . . . . . . . . . 45

To set on the disc menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

E-1

02/11/20 SD-SH111(U)E1.fm

Page

 Advanced Features

Enjoy the surround sound (sound mode) . . . . . . . . . . . . . . . . . . . . . . . . . . 47 - 49

Speaker settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 - 52

Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 - 55

Connecting other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 - 59

Operating other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Changing the registration in the remote control . . . . . . . . . . . . . . . . . . . . .61, 62

 References

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 - 65

Maintenan c e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Error indicators and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 7

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Language c o de list for disc lan guage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

z Unauthorized copying, broadcast, public display, transmission, public performance

and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.

z This device is equipped with copy protection technology that causes substantial

degradation of images when the contents of a disc are copied to video tape.

z This device is protected by U. S. patents and other intellectual property rights, the

copyright for which belongs to Macrovision Corporation. The use of Macrovision's copy protection technology in the device is authorized by Macrovision and is intended for home use only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.

Types of playable discs

Types of unplayable discs

z DVDs without the region number "1"

or "ALL".

z DVD/Video CD with PAL system z CD-ROM z DVDs with SECAM system z SACD z DVD-ROM z Discs recorded in special formats, z DVD-RAM z DVD-Audio

(As for the details, see page 5.)

z CDG z Photo CD

etc.

Icons used in this operation manual

Some functions may not be available depending on discs. The following icons indicate the discs that can be used in the section.

... Indicates DVDs.

... Indicates video CDs.

SD-SH111

ENGLISH

- Contents -

General Information

... Indicates audio CDs.

z Some operations may not be performed depending on discs even if they are de-

scribed in this manual.

z During operation, " " may be displayed on the screen. This means that the oper-

ations described in this manual are prohibited by the disc.

SD-SH111(U)E1.fm02/11/20

E-2

SD-SH111

ENGLISH

Accessories

Please confirm that the following accessories are included.

General Information

Remote control 1 "AAA" size battery (UM-4, R03, HP-16 or

[RRMCG0336AWSA for SD-SH111(S) or

RRMCG0336AWSB for SD-SH111(BK)]

- Accessories -

AM loop antenna 1 FM antenna 1 Video cable 1

(QANTL0012AWZZ) (92LFANT1535A) (QCNWG0040AWZZ)

Note:

Only the above accessories are included.

similar) 2

AC power cord 1

(UBATU0111AFZZ) (QACCD0029AW00)

E-3

SD-SH111(U)E1.fm02/11/20

Precautions

 General

z Ple ase ensure that the equipment is positioned in a well-ventilated area and that

there is at least 4" (10 cm) of free space along the sides and back. There must also be a minimum of 6" (15 cm) of free space on the top of the unit.

6" (15 cm)

4" (10 cm) 4" (10 cm)

4" (10 cm)

z Use the unit on a firm, level surface free from vibration. z Keep the unit away from direct sunlight, strong magnetic fields, excessive dust,

humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generates electrical noise.

z Do not place anything on top of the unit. z Do not expose the unit to moisture, to temperatures higher than 140°F (60°C) or to

extremely low temperatures.

z If your system does not work proper ly, disconnect the AC power cord from the AC

outlet. Plug the AC power cord back in, and then turn on your system.

z In case of an electrica l storm, unplug the unit for safety. z Hold the AC power plug by the head when removing it from the AC outlet, as pull-

ing the cord can damage internal wires.

z Do n ot remove the outer cover, as this may result in electric shock. Refer

internal service to your local SHARP service facility.

z This unit should only be used within the range of 41°F - 95°F (5°C - 35°C).

Warning:

The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.

Caution:

z This unit is fitted with a cooling fan at the rear for im-

proved cooling. It begins to run automatically when the unit is turned on. Do not cover the opening in this section with any obstacles.

Cooling fan

z Dur ing use the unit will get warm, do not touch warm areas of the unit for pro-

longed periods to avoid damage to you or the unit.

z This product is equipped with special function which protects amplif ier circ uit from

damages. When it is activated, sound switch is turned off. In this case, set the unit to the stand-by mode and turn it on again.

 Volume control

The sound level at a given volume setting depends on speaker efficiency, location and various other factors. It is advisable to avoid exposure to high volume levels, which occurs while turning the unit on with the volume control setting up high, or while continually listening at high volumes.

 Care of DVD/CD discs

DVD/CD discs are fairly resistant t o damage, however mistracking can occur due to an accumulation of dirt on the disc surface. F ollow the guidelines below for maximum enjoyment from your DVD/CD collection and player. z Do not write on either side of the disc, par ticularly the non-label side from which

signals are read. Do not mark this surface.

z Keep your discs away from direct sunlight, heat, and excessive moisture. z Always hold the DVD/CDs by the edges. Fingerprints, dir t, or water on the DVD/

CDs can cause noise or mistracking. If a D VD/CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the center, along the radius.

YES Correct

SD-SH111

ENGLISH

- Precautions -

General Information

E-4

SD-SH111(U)E1.fm02/11/20

SD-SH111

ENGLISH

Description of discs

 Types of playable discs

The unit can play back discs bearing any of the following marks:

Disc type Disc contents Disc size

DVD Video Disc for NTSC system

Or DVD-R/DVD-RW recorded in video mode (*1)

Video CD for NTSC system Audio and video (movies) 5" (12 cm)

Audio CD Audio 5" (12 cm)

Or CDV (*2) Audio CD-R/CD-RW (*3) Audio 5" (12 cm)

Audio and video (movies) 5" (12 cm)

3" (8 cm)

 Discs that cannot be played

z DVDs without the region number "1" or

"ALL".

z DVD/Video CD with PAL system z CD-ROM z DVDs with SECAM system z SACD z DVD-ROM z Discs recorded in special formats, etc. z DVD-RAM z DVD-Audio

z This unit adopts the NTSC system. Discs that were made in foreign coun-

tries may not be played back. Chec k the recor ding system befo re pur chasing discs.

z The discs above cannot be played at all, or no sound is heard although images

appear on the screen or vice versa.

z Faulty playback may damage the speakers and can have an adverse effect on

your hearing when played at high volume settings.

z You cannot play illegally produced discs.

Notes:

z A disc that has scratches or fingerprints on it may not play properly. Refer to "Care

of DVD/CD discs (page 4)" and clean the disc.

z Do not play the discs of special shapes (heart or octagon shaped) as they can be

ejected from the machine while rotating and cause injury.

z CDG z Photo CD

 Title, chapter and track

DVDs are divided into "titles" and "chapters". If the disc has more than one movie on it, each movie is a separate "title". "Chapters" are subdivisions of titles.

General Information

E-5

- Description of discs -

Or CD-R/CD-RW recorded in MP3 format (*4)

(*1): The DVD-R/DVD-RW may not be played back due to properties and scratch-

es of the disc, dirty optical pickup lens, etc. (*2): Only the audio on the CDV can be played. (*3): The CD-R/CD-RW may not be played back properly depending on the record-

ing equipment or the disc. (*4): Only discs in MP3 format can be played (MPEG 1 Audio Layer 3, 44.1kHz or

48kHz). However, some of them may not be played depending on their con-

ditions or format.

Title 1 Title 2

Chapter 1

The video and audio CDs consist of "tracks". A "track" is each tune on an audio CD.

Track 1 Track 2 Track 3 Track 4 Track 5

Note:

Title, chapter, or track numbers may not be recorded on some discs.

Chapter 2 Chapter 3 Chapter 1 Chapter 2

SD-SH111(U)E1.fm02/11/20

 Icons used on DVD discs

Check the icons of the DVD case before playing your discs.

Display Description

Region number (playable area number) DVD discs are programed with region

Format recorded on the DVD To adopt the video format to the connect-

Recorded in 4:3.

You can enjoy wide images on a wide-screen TV, and letterbox size images on the 4:3 size TV.

You can enjoy wide images on a wide-screen TV, and sides-cut 4:3 images on the 4:3 size TV.

ALL

Type of subtitles recorded

Example: Recorded subtitle language 1: English A desired language can be selected with 2: Japanese

Number of camera angles

Number of audio track and audio recording system

Example: 1: Original <English> (DTS 5.1 Surround)

2: Japanese (Dolby Digital 5.1 Surround)

numbers indicating countries in which they can be played. This system can play discs with region number "1" or "ALL".

ed TVs ("wide-screen TV" or "4:3 size TV").

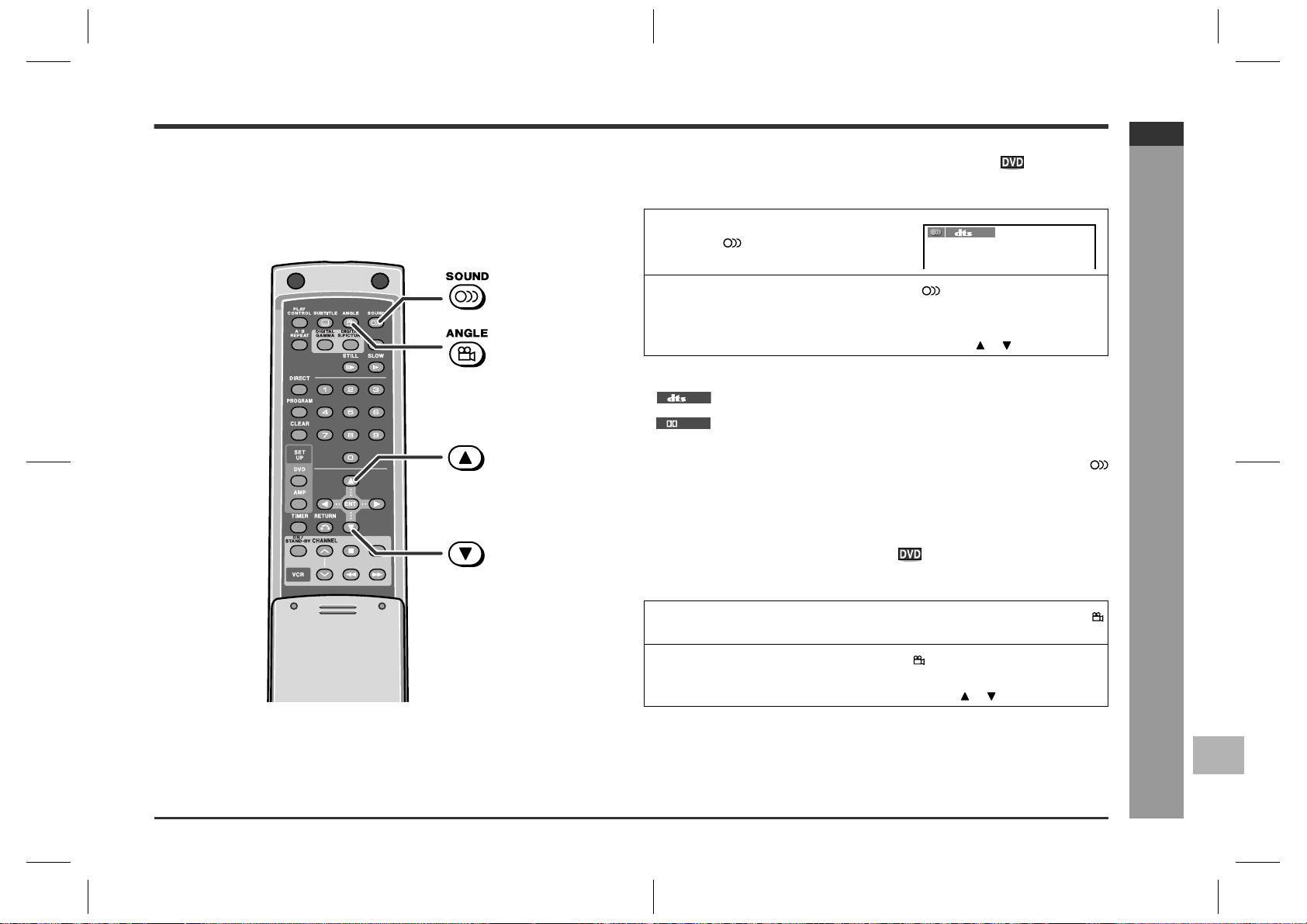

the SUBTITLE button. Number of angles recorded on the DVD

A desired angle can be selected with the ANGLE button.

The number of audio tracks and audio recording system are indicated.

z The audio recorded on the DVD can

be switched by using the SOUND button.

z Au dio and recording system vary de-

pending on the DVD. Check them in the DVD's manual.

SD-SH111

ENGLISH

The list below shows the countries covered by region number 1.

Common names Names of nations and areas

Canada Canada United States United States of America American Samoa *American Samoa Bermuda *Bermuda Johnston Island *Johnston Island Midway Islands *Midway Islands Puerto Rico *Puerto Rico St. Pierre and Miquelon *St. Pierre and Miquelon United States Virgin Islands *United States Virgin Islands Wake Island *Wake Island

* represents area name.

- Description of discs -

General Information

E-6

SD-SH111(U)E1.fm02/11/20

SD-SH111

ENGLISH

Controls and indicators

General Information

 Front panel

1.Disc Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

- Controls and indicators -

2.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.Disc Cover Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.Sound Mode Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48, 49

5.Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.Disc Play or Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 30

7.Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8.DVD Chapter Skip, VCD/CD Track Down or

Tuning Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 31

Reference page

2 3 654

10.Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

11.Timer Set Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

12.Function Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

13.Tuner Band, Digital Input Button . . . . . . . . . . . . . . . . . . . . . . . .27, 60

14.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

15.Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

7 8 9 10

11 12 13 14 15

Reference page

9.DVD Chapter Skip, VCD/CD Track Up or Tuning Up Button . . .27, 31

E-7

SD-SH111(U)E1.fm02/11/20

SD-SH111

ENGLISH

 Display

1.Timer Play Indicator

2.Sleep Indicator

3.Playback Control Indicator

(1) (2) (3)

(4)

(5) (6)

(7)

(8)4(9)

(12)

(10)

(11)

(13)

4.Audio Signal Indicators/Speaker Indicators

(1) Front Left Signal Indicator (8) Left Front Speaker Indicator (2) Center Signal Indicator (9) Center Speaker Indicator (3) Front Right Signal Indicator (10)Right Front Speaker Indicator (4) Low Frequency Effect Indicator (11)Subwoofer Indicator (5) Surround Left Signal Indicator (12)Left Surround Speaker Indicator (6) Surround Monaural Signal

Indicator

(7) Surround Right Signal Indicator

5.Program indicator

6.Disc Indicator

7.VCD/CD Random Play Indicator

8.FM Stereo Receiving Indicator

9.VCD/CD Track Name Indicator

10.DVD Title Indicator

11.VCD/CD Total Indicator

12.DVD Chapter Indicator

13.DVD Angle Indicator

14.FM Stereo Mode Indicator

15.VCD/CD Repeat or Disc A - B Repeat Indicator

(13)Right Surround Speaker Indicator

7 8

- Controls and indicators -

General Information

12 13 1510

E-8

SD-SH111(U)E1.fm02/11/20

SD-SH111

ENGLISH

General Information

Controls and indicators (continued)

1 2 3 4

 Rear panel

- Controls and indicators -

1.Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14

2.Center Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14

3.Subwoofer Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14

4.Surround Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14

5.AC Power Input Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Reference page

5 6

E-9

SD-SH111(U)E1.fm02/11/20

SD-SH111

ENGLISH

 Rear panel

Reference page

1.Video Output Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . .15, 16

2.Monitor Output Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.Audio Digital Output Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

4.Audio Digital Input Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

5.AV 1 (TV) Input Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

6.FM 75 Ohms Antenna Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

7.Antenna Ground Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

8.AM Loop Antenna Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

9.Mounting Holes for Wall Bracket (Optionally available) . . . . . . . . 68

10.Component Video Output Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . .16

11.Video and Audio Input Jacks (AV 2) . . . . . . . . . . . . . . . . . . . . . . . . 56

12.Video and Audio Input Jacks (AV 3) . . . . . . . . . . . . . . . . . . . . . . . . 57

13.Video and Audio Output Jacks (AV 2) . . . . . . . . . . . . . . . . . . . . . . . 56

14.Subwoofer Pre Output Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

131211

Reference page

- Controls and indicators -

General Information

E-10

SD-SH111(U)E1.fm02/11/20

SD-SH111

ENGLISH

General Information

Controls and indicators (continued)

[Front]

2 3 4 5 6 7 8

9 10 11

- Controls and indicators -

12 13 14

15 16 17

18 19

21 22 23 24 25 26 27 28

 Remote control

1.Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

2.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

3.VCD/CD Play Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.TV On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

5.TV Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . .60

6.TV Input Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

7.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

8.Function Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

9.Disc Fast Reverse, Tuner Preset Down Button . . . . . . . . . . . . . . .28, 31

10.DVD Chapter Skip, VCD/CD Track Down Button . . . . . . . . . . . . . . . . .31

11.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 46

12.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

13.Return Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

14.DVD Zoom Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

15.TV Display Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

16.Disc Cover Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

17.Sound Mode Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

18.Dynamic Sound Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

19.Main Unit Display Select Button . . . . . . . . . . . . . . . . . . . . . . . . .18, 43

20.TV Channel Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

21.Disc Play or Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29, 30

22.Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

23.Disc Fast Forward, Tuner Preset Up Button . . . . . . . . . . . . . . . . . .28, 31

24.DVD Chapter Skip, VCD/CD Track Up Button . . . . . . . . . . . . . . . . . . .31

25.Cursor Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 42, 46

26.Extra Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

27.DVD Top Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

28.DVD Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Buttons with " " mark in the illustration can be operated on the remote control

only.

Reference page

E-11

SD-SH111(U)E2.fm02/11/20

[Back]

1 2 3 4

5 6 7

11 12 13 14

15 16 17 18 19 20

22 23 24 25 26

 Remote control

1.DVD Subtitle Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

2.Playback Control Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

3.Disc A - B Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.DVD/VCD Digital Gamma Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

5.DVD/VCD Frame Advance Button . . . . . . . . . . . . . . . . . . . . . . . . . .32

6.Direct Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33, 34

7.Program Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 36

8.Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 36

9.DVD Initial Setting Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

10.Amplifier Initial Setting Button . . . . . . . . . . . . . . . . . . . . . . . . 50 - 52

11.Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 - 55

12.Return Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

13.VCR On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

14.VCR Channel Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

15.DVD Angle Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

16.DVD Sound Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

17.DVD/VCD Super Picture Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

18.Disc Play or Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 30

19.DVD/VCD Slow Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

20.Direct Number Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 36

21.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

22.Cursor Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21, 45

23.VCR Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

24.VCR Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

25.VCR Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

26.VCR Rewind Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

27.Sliding Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Buttons with " " mark in the illustration can be operated on the back of the remote

control. Other buttons can be operated on both sides of the remote control only.

Reference page

SD-SH111

ENGLISH

- Controls and indicators -

General Information

E-12

SD-SH111(U)E2.fm02/11/20

SD-SH111

ENGLISH

Speaker connection

Preparation for Use

Front speaker (right) (not supplied)

Speaker wire (not supplied)

Surround speaker

- Speaker connection -

(right) (not supplied)

Center speaker (not supplied)

Speaker wire (not supplied)

Front speaker (left) (not supplied)

Speaker wire (not supplied)

See page 59.

Surround speaker (left) (not supplied)

E-13

Speaker wire (not supplied)

Subwoofer (not supplied)

Speaker wire (not supplied)

SD-SH111(U)E2.fm02/11/20

 Speaker connection

Connect the speaker wire (not supplied) to SPEAKERS terminals.

Speaker wire

Caution:

z Connect the speaker wires to the speakers first, then to the unit. z Use a speaker system which has 50 W or more rated power input and 4

ohms impedance.

z If t he volume is turned up too high with the speakers of less than 4 ohms

impedance connected, the protection circuit of the amplifier activates. Nothing is heard temporarily.

z Do not m istake the right and the left channels. The right speaker is the one on the

right side when you face the unit.

z Do n ot short- circuit the speaker lead. If it happens wi th the power on, the

protection circuit is activated and the unit is set to the power stand-by mode. In this case, check that the speaker lead i s connected correctly before turning on the power again.

Antenna connection

Supplied FM antenna:

Connect the FM antenna wire to the FM 75 OHMS jack and position the FM antenna wire in the direction where the strongest signal can be received.

Supplied AM loop antenna:

Connect the AM loop antenna wire to the AM and GND terminals. Position the AM loop antenna for optimum reception. Place the AM loop antenna on a shelf, etc., or attach it to a stand or a wall with screws (not supplied).

Black

Notes:

z Placing the antenna on the unit or near the AC power cord may cause noise

pickup. Place the antenna away from the unit for better reception.

z When s tatic is still heard even after adjusting the position of the AM loop antenna,

try reversing the wire connections.

Installing the AM loop antenna:

< Assembling > < Attaching to the wall >

Wall Screws (not supplied)

Outdoor FM or AM antenna:

Use an outdoor FM or AM antenna if you require better reception. Consult your dealer.

Outdoor FM antenna

49 feet (15 m)

Outdoor AM antenna

25 feet (7.5 m )

White

AM loop antenna

SD-SH111

ENGLISH

Preparation for Use

- Speaker connection / Antenna connection -

Ground rod

Note:

When using an outdoor AM antenna, be sure to keep the wire of the AM loop antenna connected.

SD-SH111(U)E2.fm02/11/20

E-14

SD-SH111

ENGLISH

TV connection

This unit has two jacks to output images in addition to the MONITOR OUT (VIDEO) jack. To enjoy clearer DVD images, connect your TV to these jacks.

MONITOR OUT (S-VIDEO) jack: Transmits the image signal by dividing it into the

COMPONENT VIDEO OUT jack:

Connecting to TV with video cable:

luminance signal (Y) and the color signal (C) to realize clearer images than the video output jack.

Directly transmits the image information, which is composed of the luminance signal (Y) and the component signal (PB, PR) to ensure the fidelity of color compared with the S1 video output jack.

Video cable (supplied)

Caution:

Before connecting the TV, turn off all the equipment.

 Connecting to TV with video cable

Move the VIDEO OUT SELECTOR switch to S-VIDEO/VIDEO.

To video output jack

Video cable (supplied)

Preparation for Use

E-15

- TV connection -

Connecting to TV with S-video cable:

(See page 16.)

S-video cable (not supplied)

Connecting to TV with Component video cable:

(See page 16.)

Component video cable (not supplied)

To video input jack

Notes:

z Change the TV input in accordance with the connected jack. z Do not connect other equipment between the TV and this unit. If they are con-

nected via a VCR, pictures may be distorted.

SD-SH111(U)E2.fm02/11/20

SD-SH111

ENGLISH

 Connecting to TV with S-video cable

Move the VIDEO OUT SELECTOR switch to S-VIDEO/VIDEO.

To S-video output jack

S-video cable (not supplied)

To S-video input jack

Note:

When the video and S-video cables are both connected, the images from the S-video input jack appears on your TV.

 Connecting to TV with Component video

cable

Move the VIDEO OUT SELECTOR switch to COMPONENT.

To Component video output jacks

To Component video input jacks

Component video cable (not supplied)

Notes:

z If your TV has different indications for the component video inputs (Y, CB and CR

or Y, B-Y and P-Y), connect jacks with its matching color.

z Do not connect to a component video input jack designed for the high-vision sys-

tem, which is not DVD-compatible (the images may be distorted or not appear).

- TV connection -

Preparation for Use

E-16

SD-SH111(U)E2.fm02/11/20

SD-SH111

ENGLISH

TV connection (continued)

To listen to the TV sound via this unit:

Using the audio cable, you can listen to the TV sound with this unit. (The audio cable is not supplied. Purchase a commercially available cable.)

Turning the power on

After checking all the connections have been made correctly, connect the AC power cord to the AC power input jack, then plug the AC power cord of this unit into the AC outlet.

Preparation for Use

- TV connection / Turning the power on -

Red

To audio output jacks

To audio input jacks

White

Audio cable (not supplied )

White

AC outlet (AC 120 V, 60 Hz)

Notes:

z Never use a power cord other than the one supplied. Otherwise, a malfunction or

an accident may occur.

z Unplug the unit if it will not be used for a prolonged period of time.

 To turn the power on

Press the ON/STAND-BY button to turn the power on.

To set the unit to stand-by mode:

Press the ON/STAND-BY button again.

Power indicator

E-17

SD-SH111(U)E2.fm02/11/20

General control

SD-SH111

ENGLISH

 Volume control

Press the VOLUME button to increase the volume and the VOLUME button for decreasing.

[Front]

012 39 40

.....

 Bass control

When the X-BASS button is pressed, the current mode setting will be displayed. To change to a different mode, press the X-BASS button.

Bass frequencies are

emphasized.

This function is enabled only when the sound mode is set to "STEREO " or "VIRTUAL".(page 49.)

The sound is not modified.

 To change the display brightness (2 levels)

You can switch the display brightness by holding down the DISPLAY button on the remote control for 2 seconds or more.

Dimmed Brightened

- General control -

Preparation for Use

E-18

SD-SH111(U)E2.fm02/11/20

SD-SH111

ENGLISH

System installation

 Placing the speaker system

The best surround effect will be achieved by placing each speaker at the same distance from the listening position. It is recommended to arrange the speakers as shown below.

Center

Front

speaker (left)

Subwoofer

speaker

Front speaker (right)

Preparation for Use

E-19

Surround speaker (left)

Same distance

Surround speaker (right)

Center speaker

Same distance

- System installation -

Front speaker (left)

Notes:

z Place the TV halfway between the front speakers. z It is recommended that the center speaker be placed near the television. z Place the surround speakers at a position just above the height of your ears.

Front speaker (right)

SD-SH111(U)E2.fm02/11/20

Remote control

 Battery installation

1 Remove the battery cover. 2 Insert the batteries according to the direction indicated in the bat-

tery compartment.

When inserting or removing the batteries, push them toward the battery terminals.

3 Replace the cover.

Precautions for battery use:

z Replace all old batteries with new ones at the same time. z Do not mix old and new batteries. z Remove the batteries if the unit will not be used for long periods of time. This will

prevent potential damage due to battery leakage.

SD-SH111

ENGLISH

 Te st of the remote control

Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy your system.

Remote sensor

8" - 20' (0.2 m - 6 m)

Caution:

z Do not use rechargeable batteries (nickel-cadmium battery, etc.). z Inst alling the batteries incorrectly may cause the unit to malfunction.

Notes concerning use:

z Replace the batteries if the operating distance is reduced or if the operation

becomes erratic. Purchase 2 "AAA" size batteries (UM-4, R03, HP-16 or similar).

z Periodically clean the transmitter on the remote control and the sensor on the unit

with a soft cloth.

z Exposing the sensor on the unit to strong light may interfere with operation.

Change the lighting or the direction of the unit.

z Keep the remote control away from moisture, heat, shock, and vibrations.

 How to open the sliding cover

This remote control has buttons on its front and back. To use the buttons on the back, open the sliding cover.

Slide the cover until it clicks.

Notes:

z When operating the buttons on the back of the remote control, be careful not

to press the buttons on the front side. The unit may malfunction.

z Close the sliding cover on the back while using the buttons on the front side. z You can control the TV and VCR with this remote control (pages 61, 62).

SD-SH111(U)E2.fm02/11/20

- Remote control -

Preparation for Use

E-20

SD-SH111

ENGLISH

Changing the initial setting of DVD

Turn on the TV, and switch the input to the "VIDEO 1" or "VIDEO 2" etc. accordingly.

You can change the settings for TV mode, parental level, audio output, disc language, and OSD language. A new setting will be retained even if the unit is set to the stand-by mode. If you want to restore or change the setting, reset it.

[Back]

Press the ON/STAND-BY button to turn the power on.

The startup screen appears.

After pressing the DVD/CD button, press the SETUP DVD button.

Press the or button to select the menu and press the ENT button.

Press the , , or button to change the setting and press the ENT button.

Example: "OSD LANGUAGE SETUP" is selected

TV mode

Parental level

Audio output

Disc language

OSD language

OVDESETUT

4:3

MTV

DE :

CNTO:S

ENTER

LSD ANGUAGE ESTUPO

LANGUAGE: ENGL ISH

ENGL I SH

FRANÇA I DEUTSCH

ESPAÑOL

ITALIANO

ENTER

CNTS

SELECT ENTER

RETURN

SVENSKA NEDERLANDS

SELECT

ENTER

RETURN

Preparation for Use

E-21

Repeat the operation as instructed.

- Changing the initial setting of DVD -

(The number of repetition depends on the setting item.)

To change other settings, begin from step 3.

Press the SETUP DVD button.

The new setting is memorized.

Notes:

z You cannot display the setup screen while a disc is playing. z See page 25 for selecting another language for disc menus. z The previous screen appears by pressing the RETURN button while selecting

an item or setting.

SD-SH111(U)E3.fm02/11/20

Setting Default (factory setting) Parameters Description

TV mode TV MODE: TV MODE: , , The video format can be set to , or (see page 24

for details).

MTV ODE ESTUP

MTV

DE :

CNTO:S

4:3

CNTS

MTV ODE ESTUP

MTV ODE

4:3

16 : 9

SD-SH111

ENGLISH

NTSC: NTSC NTSC Used to specify the color system in accordance with the TV con-

nected when playing back an NTSC disc.

NTSC PAL NTSC:

Select this setting when an NTSC TV or an NTSC-compatible Multi-

MTV ODE ESTUP

MTV

DE :

CNTO:S

MTV ODE ESTUP

4:3

CNTS

MTV ODE

CNT :SCNTS

4:3

CNTS

System TV is connected to the unit.

NTSC PAL:

Select this setting when a PAL TV is connected to the unit. This setting converts the NTSC signal to a modified PAL signal.

LPACNTS

z When you play back the PAL discs, either setting of "NTSC

PAL" or "NTSC" can be used on a PAL TV or a Multi-System TV.

Parental level PASSWORD: ? ? ? ? Level 1 - 8, OFF Depending on DVDs, you can set a country code and parental level

that are defined for a particular country (see page 24 for details).

CODE Enter a 4-digit password.

If you forget your password, you can cancel the registered pass-

NARE TAL ESTUPP

LANGUAGE: ENGLI SH

PASSWORD:

FRAN‚ AI S

12345678OFF

DEUTSCH NEDERLANDS

ISAUCODE :

ESPA„ OL

????

VENSKAS

NARE TAL ESTUPP

LANGUAGE: ENGLI SH

SELEC VELTLE

FRAN‚ AI S

12345678OFF

DEUTSCH NEDERLANDS

ODE :

ESPA„ OL

VENSKAS

word by pressing the STILL button 4 times.

Audio setting DIGITAL: BITSTREAM BITSTREAM You can set the audio output according to the equipment connected

to the optical digital output jack.

D-PCM

BITSTREAM:

When the unit is connected to a processor or amplifier that supports

IUD O ESTUPA

LANGUAGE: ENGL

COMPRESS I ON : OF F

DIGITA L:

DEUTSCH

ITALIANO

ESPA„ OL

BITSTREAM

IUD O ESTUPA

LANGUAGE: ENGL

COMPRESS I ON : OF F

DIGITA L:

DEUTSCH

ITALIANO ESPA„ OL

BITSTREAM

D PCM

Dolby Digital (5.1ch).

D-PCM:

When the unit is connected to the 2-channel audio equipment or an MD recorder, the Dolby Digital does not function.

Preparation for Use

- Changing the initial setting of DVD -

E-22

SD-SH111(U)E3.fm02/11/20

SD-SH111

ENGLISH

Changing the initial setting of DVD (continued)

Setting Default (factory setting) Parameters Description

Disc language setting SUB TITLE: ENGLISH ENGLISH, FRENCH, GERMAN, ITAL-

IAN, SPANISH, JAPANESE, SWED-

AUDIO: ENGLISH Language code list (See page 69.)

ISH, DUTCH, OTHER ( )

MENU: ENGLISH If the language you select is not recorded on the disc, a language

LE :T

ESTUP

ENGL I SH

NEDERLANDS

ESTUPLISC ANGUAGED

SWED I SH

()

LSUB T I ENGL I SHLE :T

LENG IS J APANESEH

NFRE CH MGER AN DUTCH

LITA IA OTHERN NSPA I S

LISC ANGUAGED

LANGUAGE: ENGLI SH

SUB T I ENGL I SH

L AUDI O MENU :

ITALIANO

ESPA„ OL

OSD language setup LANGUAGE: ENGLISH ENGLISH, FRENCH, GERMAN, ITAL-

IAN, SPANISH, JAPANESE, SWEDISH, DUTCH

You can select a language for "subtitles", "audio" or "menu screens" if your DVD is recorded in multiple languages.

preset on the disc is played (displayed). Check the languages recorded on the disc before setting.

You can select the desired OSD (On Screen Display) language for initial setting or playback control screens.

Preparation for Use

E-23

LSD ANGUAGE ESTUPO

LANGUAGE: ENGL ISH

LSD ANGUAGE ESTUPO

LANGUAGE: ENGL ISH

ENGL I SH

FRANÇ AI

DEUTSCH

ITALIANO

ESPAÑOL

SVENSKA

NEDERLANDS

- Changing the initial setting of DVD -

SD-SH111(U)E3.fm02/11/20

SD-SH111

ENGLISH

 Video format

Indicator Setting

When playing a wide image (16:9) disc, the left and right sides of the image are cut (pan scan) to display a natural-looking 4:3 size image.

A wide image disc without pan scan

is played back in letterbox .

A 4:3 disc is played in 4:3. When playing a wide image (16:9) disc,

black bands are inserted at the top and bottom and you can enjoy full wide images (16:9) on a 4:3 size TV.

A 4:3 disc is played in 4:3. A wide image (16:9) is displayed when

playing a wide image (16:9) disc.

z When playing a 4:3 image disc, the image size depends on the

setting of the connected TV.

z If you play back a wide image (16:9) disc with this unit connected

to a 4:3 TV, the vertically shrunk image is displayed.

Note:

When playing the disc with a fixed video format, it will not change even if the TV screen size is changed.

 Parental setting

Certain discs come preset with countr y codes and parental level settings that are defined for particular countries. Discs equipped with the parental lock function are rated according to their content. The rated content allowed by a parental lock level and the way a DVD c an be controlled may vary from disc to disc. Some discs, for example, may let y ou edit out violent scenes and replace them with scenes more suitable for viewing by chil dren. You can also use the parental lock to disable playback of the DVD entirely. This system supports the following parental level settings.

Parental level: Defines the parental level, which controls the types of scenes that are

played back from a disc.

Code: Allows selection of a country code available on a disc.

Notes:

z You can use the parental lock function only with DVDs that are equipped with the

parental lock feature.

z The parent al level depends on countries. If you do not set the country code cor-

rectly, it fails to work correctly.

z When you cancel parental setting, D VD discs can be play ed bac k regardless of the

parental level.

z On some DVDs, the parental level setting is fixed and cannot be modified.

Country codes:

This system supports country codes for the following countries.

Country code list:

USA SWEDEN MALAYSIA CANADA HOLLAND INDONESIA JAPAN NORWAY TAIWAN GERMANY DENMARK PHILIPPINES FRANCE FINLAND AUSTRALIA UK BELGIUM RUSSIA ITALY HONG KONG CHINA SPAIN SINGAPORE SWISS THAILAND -

Passwords:

The parental level setting of this system can be protected by a password against unauthorized changes. Once you set a password, it must be input to perform the following operations.

z To change the parental lev el. z To temporarily change the parental level during playbac k.

Preparation for Use

- Changing the initial setting of DVD -

E-24

SD-SH111(U)E3.fm02/11/20

SD-SH111

ENGLISH

Changing the initial setting of DVD (continued)

 Disc language  Setting other disc languages

Indicator Setting

Subtitle A language for subtitle can be set.

The subtitle is displayed in a specified language.

Example: When you select HU (Hungarian)

After selecting "DISC LANGUAGE" on the initial setup sc reen (pa ge 21, steps 1 - 3), select "OTHER" and press the ENT button.

Preparation for Use

English French

Thank you

Audio A language for audio can be set.

You can specify a language for conversation and narration.

English French

Thank you

Disc menu A language for disc menus can be set.

- Changing the initial setting of DVD -

Menu screens are displayed in a specified language.

English French

Merci

SWED I SH

ENTER

ESTUPLISC ANGUAGED

(A)

SELECT

RETURN

LSUB T I ENGL I SHLE :T

LENG IS J APANESEH NFRE CH MGER AN DUTCH

LITA IA OTHERN NSPA I SH

Press the or button to select "H" for the first letter.

OTHER

(A)

ENTER

SELECT

RETURN

ENTER

Press the or button to move the cursor to the position next to the first letter.

OTHER

()

ENTER

SELECT

RETURN

ENTER

Press the or button to select "U" for the second letter.

OTHER

()

ENTER

SELECT

RETURN

ENTER

E-25

CAST

STAFF

ACTEURS

PERSONNEL

Press the ENT button.

Press the SETUP DVD button.

Language code list (See page 69.)

SD-SH111(U)E3.fm02/11/20

Setting the clock

By setting the unit on time, you can use it not only as a clock but also for timer playback.

[Back]

In this example, the clock is set for 9:30 AM.

Press the ON/STAND-BY button to turn the power on.

Press the TIMER button.

Within 10 seconds, press the or button to select "ADJUST", and then press the ENT button.

Press the or button to adjust the hour and then press the ENT button.

z Press the or button once to advance the time by 1 hour. Hold it down to

advance continuously.

z The 12-hour display will appear. z "AM" will change to "PM" automatically.

Press the or button to adjust the minutes and then p ress th e ENT b ut-

ton.

z Press the or button once to advance the time by 1 minute. Hold it down

to advance continuously.

z The hour will not advance even if minutes advance from "59" to "00". z The clock starts from "0" second. (Seconds are not displayed.)

To confirm the time display: [When the unit is in the stand-by mode]

Press the DISPLAY button on the remote control. The time display will appear for about 5 seconds.

[When the power is on]

Press the TIMER button. Within 10 seconds, press the or button to select "CLOCK". The time display will appear for about 10 seconds.

To readjust the clock:

Perform "Setting the clock" from the beginning.

z In step 2, "TIMER STANDBY" appears. If the clock is cleared, “SLEEP” appears. z In s tep 3, pres s the or button to select "CLOCK", and the press t he ENT but-

ton.

"AM 12:00" is 12 o'clock midnight. "PM 12:00" is 12 o'clock noon.

SD-SH111

ENGLISH

- Setting the clock -

Preparation for Use

Caution:

Unplugging the unit or power failure will clear the clock setting. Perform "Setting the clock" from the beginning.

SD-SH111(U)E3.fm02/11/20

E-26

SD-SH111

ENGLISH

Listening to the radio

[Front]

Press the TUNING ( or ) button to tune in to the desired station. Manual tuning:

Press the TUNING button as many times as required to tune in to the desired station.

Auto tuning:

When the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Notes:

z This can be operated by pressing the or button on the remote control. z When radio interference occurs, auto scan tuning may stop automatically at

that point.

z Auto scan tuning will skip weak signal stations. z To stop the auto tuning, press the TUNING button again.

To receive an FM stereo transmiss ion:

Press the BAND button to display the "STEREO" indicator. z "ST" will appear when an FM broadcast is in stereo.

FM stereo mode indicator

Basic Operation

E-27

- Listening to the radio -

Press the ON/STAND-BY button to turn the power on.

Press the FUNCTION button to display FM or AM, and then the BAND button repeatedly to select the desired frequency band (FM

STEREO, FM or AM).

When operating with the remote control, press the TUNER (BAND) button repeatedly to select the desired frequency band (FM STEREO, FM or AM).

FM stereo receiving indicator

z If the FM reception is weak, press the BAND button to extinguish the "STEREO"

indicator. The reception changes to monaural, and the sound becomes clearer.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

SD-SH111(U)E3.fm02/11/20

Listening to the memorized station

 Memorizing a station

(Remote control operation) You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)

Perform steps 1 - 3 in "Listening to the radio" on page 27.

Press the ENTER button to enter the preset tuning saving mode.

Within 5 seconds, press the TUNER PRESET ( or ) button to select the preset channel number.

Store the stations in memory, in order, starting with preset channel 1.

Within 5 seconds, press the ENTER button to store that station in memory.

 To recall a memorized station

(Remote control operation)

Press the TUNER PRESET ( or ) button to select the desired station.

 To erase all the contents of the preset

memory

(Remote control operation) 1 Press the TUNER (BAND) button.

2 Hold the CLEAR button down for 3 seconds

or more.

3 While "CLEAR" is displayed, press the EN-

TER button.

SD-SH111

ENGLISH

Preset channel Frequency and frequency band

If the "MEMORY" and preset number indicators go out before the station is memorized, repeat the operation from step 2.

Repeat steps 1 - 4 to set other stations, or to change a preset station.

When a new station is stored in memory, the station previously memorized will be erased.

Note:

The backup function protects the memorized stations for a few hours should there be a power failure or the AC power cord disconnection.

Basic Operation

- Listening to the memorized station -

E-28

SD-SH111(U)E3.fm02/11/20

SD-SH111

ENGLISH

Playing a disc

Turn on the TV, and switch the input to the "VIDEO 1" or "VIDEO 2" etc. accordingly.

[Front]

- Playing a disc -

Press the ON/STAND-BY button to turn the power on.

The startup screen appears.

Press the FUNCTION button to set the input to "DVD".

z Select "DVD" when playing a video or audio CD. z The same operation can be performed by pressing the DVD/CD button on

the remote control.

Press the OPEN/CLOSE button to open the disc compartment.

z The disc size is automatically detected by

Data side

the unit (5" (12 cm) or 3" (8 cm)). Place the disc in the proper position on the disc holder.

z Pla ce the disc with the label side facing to-

ward you.

z If you are playing a double-sided disc, place

it with the side you want to play facing inside the unit.

Basic Operation

E-29

Disc holder

Press the OPEN/CLOSE button to close the disc compartment.

If the disc you are using supports auto start, it starts playing automatically (even if you do not press the button), as soon as you close the disc compartment.

If you cannot start playback in step 4, press the button.

This can be operated by pressing the DVD/CD button on the remote control.

Note:

When the unit is turned on or the input source is switched to "DVD", no operation will be accepted for 5 seconds as the unit is proceeding the initial setting.

SD-SH111(U)E3.fm02/11/20

Caution:

z Close the disc compartment when it is not in use. Otherwise, dust may accumulate

inside and cause malfunction to the unit.

z The unit is slightly heated when used for a long time. It does not mean the unit is

damaged.

z B e careful not to jam your fingers in the disc compartment cover.

Notes:

z A safety feature automatically sets the unit to the power stand-by mode if you set

the volume lev el too high whil e playing certain types of discs. If this happens, lower the volume level and restart playback.

z S top positions may be recorded on some d iscs. When you play such a disc, play-

back stops there.

z Dur ing an operation, " " may appear indicating that the operation is disabled by

the disc.

[Front]

[Back]

 To interrupt playback

Press the DVD/CD button. To resume playback from the same point, press the DVD/CD button again.

 To stop playback

Press the DVD/CD button.

 To play a video CD with P. B. C. (playback

control)

Press the DVD/CD button.

The menu screen appears.

Select the desired menu number using the direct buttons (0 - 9).

Press the ENT button to start playback.

The operation may vary depending on the video CD. Refer to its manual for details.

To play without displaying the menu:

After pressing the DVD/CD button, press the button. The P. B. C. function will be canceled, and the normal playback will begin.

Display

SD-SH111

ENGLISH

- Playing a disc -

Basic Operation

E-30

SD-SH111(U)E3.fm02/11/20

SD-SH111

ENGLISH

Basic operation

You can skip the current chapter or track and play the next one, or search a desired chapter or track while checking the playback.

[Front]

 Fast forward/Fast reverse (search)

While a disc is playing, press the or button.

Example: When the button is pressed

- Basic operation -

 T o locate the beginning of a chapter (tr ack)

Advanced Disc Features

(skip)

While a disc is playing, press the or button.

z The button skips to the next chapter. z The button skips to the beginning of the current chapter. Press the but-

ton again to skip to the beginning of the previous chapter.

Note:

The skip feature is disabled on some discs. Some discs do not display the chapter (track).

15/ 13/

::01 23

z The scanning speed will change as follows at each press of the button.

1 (about 2)

z The disc is forwarded by the button and reversed by the button.

Press the DVD/CD button to return to the normal playback.

DDV

2 (about 8)

3 (about 32)

Notes:

z On some discs, the search function is disabled. z On a DVD, search does not operate between titles. z While searching on a D VD or video CD the sound is not heard and the subtitl es will

not appear. With an audio CD you will not hear the sound.

z On a video or audio CD, the search speed changes from 1 (about 2) to 2 (about

8). You cannot choose 3 (about 32).

z When search is performed during the DVD playback, pictures may not be for-

warded or reversed in the search speed specified in this manual, depending on the disc or the scene being played.

z The same operation can be performed by holding down the or button on

the main unit for 2 seconds or more.

E-31

SD-SH111(U)E4.fm02/11/20

You can slow down or pause the playback. While pausing, you can use the frame advance feature.

[Back]

 Slow-motion play

While a disc is playing, press the SLOW button.

Three speeds are available. Each time the button is pressed, the speed of slowmotion playback changes in the following sequence:

SD-SH111

ENGLISH

1 (about 1/2)

Press the button to return to the normal playback.

Note:

On some discs, the slow-motion playback functions are disabled.

2 (about 1/8)

3 (about 1/16)

 Still picture/Frame advance

While a disc is playing, press the button.

This freezes the image on the screen.

While pausing, press the STILL button.

The picture changes frame by frame each time the STILL

Press the button to return to the normal playback.

Note:

Still and frame advance features are disabled on some discs.

button is pressed.

- Basic operation -

Advanced Disc Features

E-32

SD-SH111(U)E4.fm02/11/20

SD-SH111

ENGLISH

Basic operation (continued)

You can select and play the desired title (track) or chapter.

[Back]

- Basic operation -

 To start playback from the desired point

(direct play)

To select and play the desired title (track):

While in the stop or playback mode, press the DIRECT button.

Within 10 seconds, enter the title (track) number using the direct

buttons (0 - 9), and then press the ENT button.

z If you enter the wrong number, press the CLEAR button and then reenter. z You can also select the title (track) number by pressing the or button.

Notes:

z The direct play function is not performed with discs on which no titles (tracks) are

recorded.

z Direct play feature is disabled on some discs. z Playback starts from the first chapter of the title. z Playback does not start if you specify a title (track) number that is not listed on the

disc.

Example: Display during playback

83/0

::30 08

Example: Display during playback

5/5

83/0

::30 08

Advanced Disc Features

E-33

SD-SH111(U)E4.fm02/11/20

To select and play the desired chapter:

SD-SH111

ENGLISH

You can resume playback from the point that the playback is stopped.

During playback, press the DIRECT button twice.

Within 10 seconds, enter th e chapter number using the direct buttons (0 - 9), and then press the

ENT button.

z If you enter the wrong number, press the CLEAR button and then reenter. z You can also select the chapter number by pressing the or button.

5/ 3/0

01: :30 08

10 3/0 01: :30 08

Notes:

z S ome DVDs may not display the chapter number. z Playback does not start if a chapter number higher than that on the disc is

selected.

To play by specifying time:

During playback, press the DIRECT button 3 times.

Within 10 seconds, specify the time with the direct buttons (0 - 9) and then press the ENT but-

ton.

z To specify 1 hour 23 minutes and 40 seconds, enter "012340". z If you enter the wrong number, press the CLEAR button and then reenter. z If the time is entered with the or buttons while setting the time, press the

or buttons to switch between hours, minutes, and seconds.

3/0

3/0 01: :23 40

Note:

Playback does not start if you specify the time exceeding the actual recording time.

[Front]

 To resu me playback after stopping

(sequential playback)

While the disc is playing, press the DVD/CD button.

The system stores the point you stopped.

To restart play, press the DVD/CD button.

Play resumes from the point you stopped.

To cancel this operation, press the DVD/CD button twice.

Notes:

z The sequent ial playback feature is disabled on some discs. z Depending on the disc, playback may resum e from slightly before the stopped

position.

z To start playback from the beginning, cancel this operation. z Opening the disc compartment will cancel the sequential playback operation.

- Basic operation -

Advanced Disc Features

E-34

SD-SH111(U)E4.fm02/11/20

SD-SH111

ENGLISH

Useful features

You can play back the desired titles (tracks) or chapters in the sequence you want. Maximum of 20 titles (tracks) or chapters can be programmed.

[Back]

- Useful features -

 To play in the desired order (programmed

playback)

To play in the desired title (track) order:

Example: To enter the 12th title on a DVD

While stopped, press the PROGRAM button.

The programming screen is displayed.

Use the or button to select the desired title (track) number, and then

press the ENT button.

z The cursor moves to the next position when programming is completed. z Repeat the procedure above if you want to enter other title numbers. You can

enter up to 20 titles in the sequence you want to play.

z If you enter the wrong number, press the CLEAR button and then reenter.

Press the button to start play.

z The unit stops after playing the tracks in the programmed order. z The program content will be stored in the memory.

To change the programmed contents:

Repeat the above procedures from step 1.

LIT E PROGRAMT

LANGUAGE:

-- -- -- --

T T T T T--------

T T T T

-- -- -- --

T T T T

LIT E PROGRAMT

T T T T

T--------

T T T T

-- -- -- --

T T T T

=T ITLE

-- -- --

Advanced Disc Features

E-35

SD-SH111(U)E4.fm02/11/20

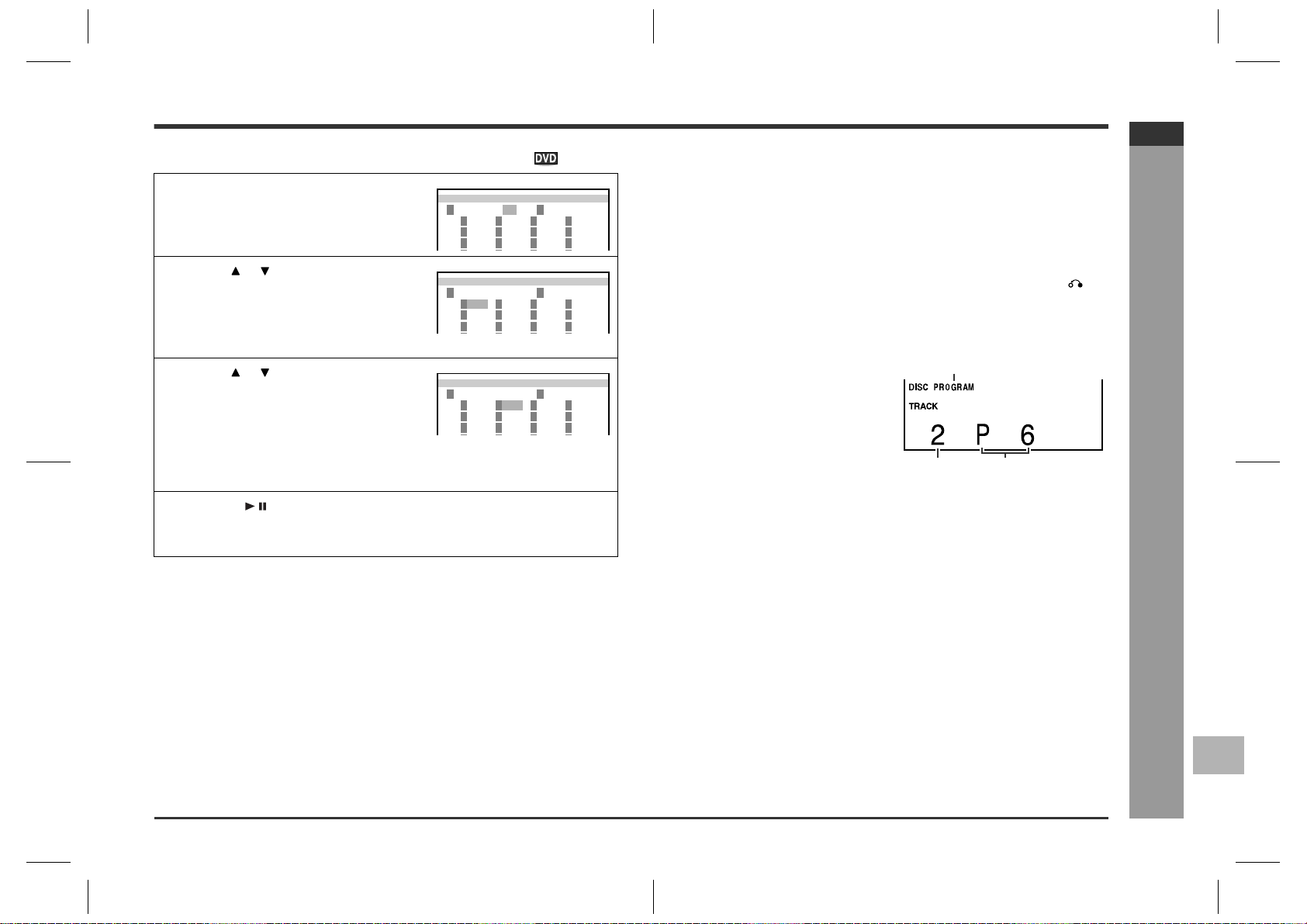

To play chapters in the desired sequence within a title:

While stopped, press the PROGRAM button twice.

The programming screen is displayed.

Use the or button to select the desired title number, and then press the

ENT button.

If you enter the wrong number, press the CLEAR button and then reenter.

Use the or button to select the desired chapter number, and then press

the ENT button.

z The cursor moves to the next position when programming is completed. z Repeat the procedure above if you want to enter other chapter numbers. You

can enter up to 20 chapters in the sequence you want to play.

Press the button to start play.

z The unit stops after playing the chapters in the programmed order. z The program content will be stored in the memory.

To change the programmed contents:

Repeat the above procedures from step 1.

PHA T PROER GRAMC

-- -- -- --

C--------

-- -- -- --

C C C C

PHA T PROER GRAMC

-------

C C C C

C--------

-- -- -- ---

C C C C

PHA T PROER GRAMC

01 -- -- --

C C C C C--------

-- -- -- --

C C C C

CLIT E:T=T

C C C C C C

CLI2TE:0T=T

C C C

CLI2TE:0T=T

C C C

SD-SH111

ENGLISH

Notes:

z You can also select the title (track) or chapter number by pressing the 0 - 9 but-

tons.

PHA TERC=

z Programming cannot be performed while paused or in the playback mode. z S equence programming does not work with a disc that does not include title o r

chapter information.

z Sequence programming does not work with a disc that disables programming. z The number you enter is not stored in memory if there is no corresponding title

(track) or chapter number on the disc.

PHA TERC=

z To exit the programming procedure halfway through, press the RETURN but-

ton.

z Once programmed, the contents will be memorized until they are changed or the

disc is removed. To perform programmed playback with the same disc, press the PROGRAM button and start playback.

z Y ou can refer to the display on the unit to

Program indicator

program a CD.

PHA TERC=

Track number Program number

- Useful features -

Advanced Disc Features

E-36

SD-SH111(U)E4.fm02/11/20

SD-SH111

ENGLISH

Useful features (continued)

You can play tracks in random order or play all the tracks repeatedly.

[Front]

 To play in random order (random play)

While the disc is stopped, press the PLAY MODE button r epeatedly to select "RANDOM" and press the DVD/CD button.

Random play will start.

- Useful features -

 To play repeatedly (repeat play)

While the disc is stopped, press the PLAY MODE button r epeatedly to select "REPEAT" and press the DVD/CD button.

Repeat play will start.

To cancel repeat play:

Press the PLAY MODE button repeatedly to select "NORMAL".

Caution:

After performing repeat play, be sure to press the DVD/CD button. Otherwise, the disc will play continuously.

Notes:

z You may not be able to use this function with some discs. z If you select "REPEAT" during playback, repeat play starts from that point.

Advanced Disc Features

To cancel random play:

Press the PLAY MODE button repeatedly to select "NORMAL".

Notes:

z You may not be able to use this function with some discs. z When all of the tracks have been played in random playback mode, playback will

stop automatically.

z If you select "RANDOM" during playback, random play starts from that point. z Random play is not allowed during programmed playback.

E-37

SD-SH111(U)E4.fm02/11/20

[Back]

[Front]

 T o pla y the contents between the specifi ed

points repeatedly (A-B repeat)

You can play the desired portion repeatedly by specifying it during playback.

While the disc is playing, press the A

- B REPEAT button.

This registers the start point (A).

Press the A - B REPEAT button again.

This starts A-B repeat from the start point (A) to the end point (B).

25/

83/

25/

83/

DDV

To cancel A - B repeat play:

Press the A - B REPEAT button.

Notes:

z A-B repeat play is disabled on some discs. z A-B repeat play is possible only within a title. z A-B repeat function does not operate on the portion with multiple angles. z A -B repeat play is not possible during the programmed playback.

 To select a title from the top menu of the

disc

On a DVD with multiple titles, you can select a title from the top menu.

While the disc is stopped, press the TOP MENU button to display its title

menu.

Example

21 Drama Action 43 SF Comedy

SD-SH111

ENGLISH

- Useful features -

Use the , , or button to select the title, and then press the ENTER button.

z The selected title is played. z Depending on the disc, a title can be selected by pressing the direct buttons

(0 - 9) on the back of the remote control.

Notes:

z The proc edure shown here provides only general steps. The actual procedure for

using the title menu depends on the disc you are using. See the disc jacket for details.

z If the disc you are using does not have a title menu, nothing appears on the

screen.

SD-SH111(U)E4.fm02/11/20

Advanced Disc Features

E-38

SD-SH111

ENGLISH

Various settings

You can change the subtitle language or hide the subtitle during playback. Setting the unit to the power stand-by mode or replacing the discs displays the language of the initial setting. To always display a chosen language, set it on the initial setting screen (page 21).

[Back]

- Various settings -

 To change the subtitle language

While a disc is playing, press the SUBTITLE button.

Within 10 seconds, press the SUBTITLE button repeatedly to select the desired subtitle lan-

guage.

You can perform the same operation by pressing the or button.

Notes:

z Some DVDs prohibit changing the subtitle language. z If no subtitles are recorded on the disc, "XX" is displayed. z It may take a little time to switch the subtitle language to the selected one.

NGL I SHE

ERMANG

 To hide the subtitle

While the subtitle is displayed, press the SUBTITLE button.

Within 10 seconds, press the SUBTITLE button repeatedly to select "OFF".

You can perform the same operation by pressing the or button.

Note:

Some DVDs prohibit hiding of subtitles.

OFF

Advanced Disc Features

E-39

SD-SH111(U)E4.fm02/11/20

During playback, you can change the audio language. Turning the power off or r eplacing the discs change the audio language to the one of the initi al setting. To listen to a selected audio language, set it on the initial setting screen (page 21).

[Back]

 To change the audio language

You can change the audio language if multiple audio languages or other audio systems are recorded on the disc.

While a disc is playing, press the SOUND button.

Within 10 seconds, press the SOUND button repeatedly to select the desired audio number.

z The audio language or audio system is changed to the selected one. z You can perform the same operation by pressing the or button.

Example:

z The audio language on some DVDs may not be changed. z The a udio language on some DVDs may not be changed even if the SOUND

button is pressed during playback. In that case, change the setting on the disc menu (see page 46).

z For audio language and audio system, refer to the manual of the disc.

1: Original <English> (DTS 5.1 Surround)

2: Japanese (Dolby Digital 5.1 Surround)

hc15

 To change the angle

You can change the angle of view when playing a DVD video disc that contains scenes recorded from multiple angles.

SD-SH111

ENGLISH

- Various settings -

When "ANGLE" is displaye d on the m ain u n it, p ress th e A NG LE button.

Within 10 seconds, press the ANGL E button repeatedly to select the desired angle number.

You can perform the same operation by pressing the or button.

Notes:

z So me DVDs prohibit changing the angle. z The angle number is not displayed if the disc on which angle not recorded is

entered. "XX" is displayed instead.

z Refer to the manual of the disc as the operation may vary depending on the disc.

SD-SH111(U)E4.fm02/11/20

Advanced Disc Features

E-40

SD-SH111

ENGLISH

Various settings (continued)

The image or its quality can be adjusted during playback.

[Back]

- Various settings -

Advanced Disc Features

 To brighten an image

During playback, press the DIGITAL GAMMA button repeatedly to select

"ON".

"ON" and "OFF" will be switched by each press of this button.

Within 10 seconds, press the or button to set the level.

To restore the original brightness , press the DIGITAL G AMMA but-

ton repeatedly to select "OFF".

Level Setting Level Setting

OFF Normal image ON Brighter ON Slightly brighter ON A lot brighter

 To improve the image quality

During playback, press the DIGITAL S.PICTURE button repeatedly to se-

lect "ON".

"ON" and "OFF" will be switched by each press of this button.

Within 10 seconds, press the or button to set the level.

DDV

E-41

To restore the original picture quality, select "OFF" by pressing the DIGITAL S.PICTURE button repeatedly.

Level Setting Level Setting

OFF Normal ON A lot clearer ON Slightly clearer ON Soft image quality ON Clearer

SD-SH111(U)E5.fm02/11/20

You can magnify images during DVD playback.

[Front]

 To zoom in on an image (zoom)

While a disc is playing, press the ZOOM button.

Each press of the ZOOM button cycles through the zoom settings as follows: ZOOM: 1 ( 1.2) ZOOM: 2 ( 1.5) ZOOM: 3 ( 2.0) Off (The indicator goes

out.). Note that all of the above zoom factors are approximate only.

To shift the view and display the desired part of a zoomed image, press the , , or button repeatedly.

ESPA„ OL

ENTER

ZOOM indicator

SELECT

ZOOM:1

RETURN

SD-SH111

ENGLISH

Press the button.

Press the ZOOM button.

Press the button.

To return to the normal image size, press the ZOOM button repeat-

Press the button.

edly to select "ZOOM OFF" (The indicator goes out.).

Shifting of the zoomed image is canceled by canceling the zoom operation.

Notes:

z An image may become distorted when zoomed. z Subtitles cannot be zoomed. z When the zoom indicator changes from whit e to red while shifting the image, you

cannot shift it any further.

z When the scene with multiple angles appears while shifting the image, the zoom

operation is canceled automatically.

z When the TV mode in the initial setting is set to , the zoom factor will not be

set to "ZOOM: 3" with a pan scan disc.

SD-SH111(U)E5.fm02/11/20

- Various settings -

Advanced Disc Features

E-42

SD-SH111

ENGLISH

Various settings (continued)

You can display or hide the operation indicators on the TV screen, or change the display on the unit.

[Front]

 To change the display on the unit

While the disc is playing, press the DISPLAY button. (The display is changed at each press of this button.)

DVD

Disc Indica to r

- Various settings -

 To change the display on TV screen

While the disc is playing, press the ON SCREEN button. (The display is changed at

Advanced Disc Features

each press of this button.) Example: DVD

Always displayed Not displayed Displayed for approx. 3

25/

83/

::23 40

DDV

25/

83/

::23 40

seconds

Title number (up to

99)

Chapter number (up to 999)

Elapsed time of chapter Elapsed time of title

Audio CD or video CD

PBC indicator

Track number (up to 99)

Elapsed time of track

Track number

Total elapsed time

Notes:

z "PBC" is displayed during the playback of a video CD with P. B. C. (playback con-

trol) and the track number does not appear.

z The title number, chapter (track) number, or elapsed time may not be displayed

with some discs.

DDV

E-43

SD-SH111(U)E5.fm02/11/20

SD-SH111

ENGLISH

 DVD mode operation indicators

The following are exam ples of display indicators that appear during DVD playback.

Operation TV screen On the unit

When the power is on without a disc

Disc data is being read

The word scrolls.

Type of disc

DDV

Stop

DDV

Play

DDV

Displayed for approx. 3 seconds

Operation TV screen On the unit

Pause

Slow

Fast Forward

Fast Reverse

When resume function can be used.

DDV

RESUME

Displayed for approx. 3 seconds

- Various settings -

Advanced Disc Features

E-44

SD-SH111(U)E5.fm02/11/20

SD-SH111

ENGLISH

Various settings (continued)

On the playback control screen, various settings can be changed at the same time.

[Back]

 To change the setting on the playback con-

trol screen

While a disc is playing, press the PLAY CONTROL button.

- Various settings -

Press the or button to select the item, and press the ENT button.

Example: DVD 1 Title number

Advanced Disc Features

2 Chapter number 3 Elapsed play time 4 Subtitle 5 Angle 6 Audio language 7Gamma 8 Super picture 9 BITRATE indicator (unchangeable)

Press the , , or button to change the setting and press the ENT button.

Example: Gamma is selected

N2CMP

hc15

00 10

BITRATE

ENTER

SELECT

Mbps

RETURN

Repeat the operation as instructed.

(The number of repetition depends on the setting item.)

To change other settings, begin from step 2.

Press the PLAY CONTROL button.

The setting is memorized and the playback screen reappears.

Notes:

z Some items may not be selected depending on the type of the disc. z If the RETURN button is pressed while selecting an item or setting, the previ-

ous screen appears.

To select items directly, use the following buttons. (Refer to pages 33 - 34 and 39 - 41 for details.)

Item Button Item Bu tton

Direct title skip

Direct chapter skip

1 2 3 4 5 6 7 8

01 1 1

ON ON

25/

83/

::30 08

NGL I SHE

00 10

BITRATE

SELECT

ENTER

DDV

Mbps

RETURN

Direct time skip

Subtitle Press the SUBTITLE

Press the DIRECT button once.

Press the DIRECT button twice.

Press the DIRECT button 3 times.

button.

Angle Press the ANGLE but-

ton.

Audio language

Press the SOUND button.

Gamma Press the DIGITAL

GAMMA button.

Super picture Press the DIGITAL

S.PICTURE button.

E-45

SD-SH111(U)E5.fm02/11/20

You can select the desired sub title or aud io language and sound system (Dolby Digital (5.1ch) or DTS sound) on your DVD if it has a disc menu.

[Front]

 To set on the disc menu

While the disc is stopped or played, press the MENU button to display

the disc menu.

12Audio

Press the , , or button to select the item to be changed, and press the ENTER button.

Press the , , or button to change the setting and press the ENTER button.

The playback display reappears by pressing the MENU button.

Note:

The procedure shown here provides only general steps. The actual procedure for using the disc menu depends on the disc you are using. S ee the disc jacket for details.

Example

Subtitle

SD-SH111

ENGLISH

- Various settings -

Advanced Disc Features

E-46

SD-SH111(U)E5.fm02/11/20

SD-SH111

ENGLISH

Enjoy the surround sound (sound mode)

Types of surround Source Contents Switchable sound

Dolby Digital

One of the digital audio systems for theatrical use. You can enjoy the stereophonic effect in the home theater system.

Stereo

mode

DTS (Digital Theater Systems)

Dolby Pro Logic II

Advanced Features

- Enjoy the surround sound (sound mode) -

Disc with this trademark The disc recorded in the Dolby Digital system is recognized

by this unit automatically when it is played back.

One of the digital audio systems for theatrical use. As the sound quality is emphasized, you can enjoy the realistic sound effect in the home theater system. The disc recorded in the DTS system is recognized by this unit automatically when it is played back.

Disc with this trademark Virtual

Stereo-recorded discs and video tapes When playing a stereo-recorded disc or video tape, it is rec-

ognized by the Dolby Pro Logic II function and the sound is changed to the 5.1ch digital surround sound automatically. More natural sound effect can be achieved.

If (*) is selected, the " " indicator goes out.

Virtual Standard

Dynamic sound

Stereo

Standard

Dynamic sound Stereo (*) Virtual (* ) Standard

Dynamic sound

E-47

SD-SH111(U)E5.fm02/11/20

Acoustic effect

Standard

The maximum of 5.1ch surround sound is reproduced to provide three-dimensional effect. This unit automatically emits the 5.1ch sound according to the recorded audio signal.

" " appears in the display of the unit.

Dynamic sound

You can enjoy the normal surround with various scenes.

MOVIE: The bass level is increased for powerful sound effect. MUSIC: You can enjoy lively sound by producing the articulate sound. NIGHT: Sof t but powerful sound is achieved even at low volumes.

Virtual

Although no sound is heard from the surround speakers, you can still enjoy the 2.1ch surround sound as if they exist.

It sounds as if speakers are also placed in .

" " appears in the display of the unit.

Stereo

You can enjoy the great acoustic effects of the front speakers and subwoofer.

The input signal is recognized automatically and the indicator lights up.

z This indicat or is lit when the 2ch signals are entered to extend them to the 5.1ch

surround sound.

z Even the 2ch sound recorded with Dolby Digital will be extended to the 5.1ch.

Caution:

Dolby Digital does not function if the audio output is set to "D-PCM" (page 22).

Notes:

z You can switch the audio while playing the disc of multiple types (Dolby Digital,

DTS, etc.) (page 40).

z When t he surround mode is set to normal, the sound of monaural signals is heard

only from the center speaker.

z When the surround mode is set to virtual, the same monaural sound is reproduced

in the both of the right and left channels.

z The surround indicat or is lit according to the input audio source. 1 Front Left Signal Indicator

2 Center Signal Indicator 3 Front Right Signal Indicator 4LFE indicator 5 Surround Left Signal Indicator 6 Surround Monaural Signal Indicator 7 Surround Right Signal Indicator

SD-SH111

ENGLISH

Advanced Features

- Enjoy the surround sound (sound mode) -

E-48

SD-SH111(U)E5.fm02/11/20

SD-SH111

ENGLISH

Enjoy the surround sound (sound mode) (continued)

 Sound mode

To enjoy in standard mode

While the disc is playing, press the STANDARD button.

" " appears in the display of the unit.

To enjoy in virtual mode

While the disc is playing, press the VIRTUAL button.

" " appears in the display of the unit.

To enjoy in stereo mode

While the disc is playing, press the STEREO button.

Advanced Features

Notes:

- Enjoy the surround sound (sound mode) -

z In the standard mode, you can change the dynamic sound to "MOVIE", "MUSIC",

or "NIGHT".

z Some discs are recorded at 96kHz of sampling frequency. When this type of disc

is played, the sound mode is changed to "STEREO" automatically. The sound mode cannot be changed during its playback.

Example: Dolby Digital 5.1ch

 To enjoy with dynamic sound

While the disc is playing, press the DYNAMIC SOUND button. Each press of this button changes the mode in the order of "MOVIE" "MUSIC"

"NIGHT".

MOVIE: The bass level is increased for powerful sound effect. MUSIC: You can enjoy lively sound by producing the articulate sound. NIGHT: Sof t but powerful sound is achieved even at low volumes.

Press the STANDARD button to restore the normal surround sound.

Note:

The sound mode is changed to "STANDARD" by pressing the DYNAMIC SOUND button while in the stereo or virtual mode.

[Front]

E-49

SD-SH111(U)E5.fm02/11/20

Speaker settings

[Back]

 Speaker size setting

You can change the sizes of the front speakers, center speaker, and surround speakers, or turn on or off the center speaker, surround speakers, or subwoofer. z The speaker settings are not displayed on the TV screen.

Press the SET UP AMP button.

Within 10 seconds, press the or button to select "SP SIZE", and press the ENT button.

Within 10 seconds, press the or button to select the desired speaker.

The indicators of selected speakers flash.

Within 10 seconds, press the or button to select their sizes.

z To set sizes of other speakers, repeat the operation from step 3. z You can complete the setting operation by pressing the RETURN button

twice.

Speaker type Speaker size

Front speaker (Left, Right) F-LARGE * Large diameter

F-SMALL Small diameter

Center speaker C-LARGE Large diameter

C-SMALL * Small diameter C-NO OFF

Surround speaker (Left, Right) S-LARGE Large diameter

S-SMALL * Small diameter S-NO OFF

Subwoofer SW-YES * ON

SW-NO OFF

(*) indicates the default setting.

Caution:

z To set the speaker size, set the sound mode to "STANDARD". In the stereo or vir-

tual mode, only the subwoofer can be set.

z F-S MALL and SW-NO cannot be combined. If the subwoofer is changed to SW-

NO while the front speakers are set to F-SMALL, they are changed to F-LARGE. When the front speakers are changed to F-SMALL while the subwoofer is set to SW-NO, it is changed to SW-YES.

SD-SH111

ENGLISH

- Speaker settings -

Advanced Features

E-50

SD-SH111(U)E5.fm02/11/20

SD-SH111

ENGLISH

Advanced Features

Speaker settings (continued)

[Back]

- Speaker settings -

 Speaker delay setting

When some of the speakers are at a different distance from the listening point, you can select the speaker delay to make it seem as though the speaker distances are the same.

Press the SET UP AMP button.

Within 10 seconds, press the or button to select "SP DELAY", and press the ENT button.

Within 30 seconds, press the or button to select the desired speaker.

Within 30 seconds, press the or button to select the distance and press the ENT button.

z You can change the distance in 1 feet (0.3 m) steps. z To set the distance of other speakers, repeat the operation from step 3. z You can complete the setting operation by pressing the RETURN button

twice.

Speaker type Adjustable range

FL Front speaker (Left) 1 - 29 ft CT Center speaker 1 - 29 ft FR Front speaker (Right) 1 - 29 ft SR Surround speaker (Right) 1 - 29 ft

SL Surround speaker (Left) 1 - 29 ft

SW Subwoofer 1 - 29 ft

Initial setting of the distance of all the speakers is 6 feet (2 m).

Measure the distance between each speaker and the listening position, and set the speaker delay.

10 feet (3.3 m)

12 feet (4 m)

10 feet (3.3 m)

12 feet (4 m)

10 feet (3.3 m)

In the above illustration, the front speakers, center speaker, and subwoofer are positioned at 10 feet (3.3 m), and the surround speakers are at 12 feet (4 m) from the listening position. This unit calculates the delay time automatically according to the distance you set, and provide the same effect as if they are placed at the same distance from the listening position.

E-51

SD-SH111(U)E6.fm02/11/20

SD-SH111

ENGLISH

 Speaker level setting

If sounds from the speakers are uneven, you can equalize them by adjusting the speaker levels.

Press the SET UP AMP button.

Within 10 seconds, press the or button to select "SP LEVEL", and press the ENT button.

Within 10 seconds, press the or button to select the desired speaker.

Within 10 seconds, press the or button to adjust the level.

z You can adjust the level at 1 dB intervals. z To adjust the levels of other speakers, repeat the operation from step 3. z You can complete the setting operation by pressing the RETURN button

twice.

Speaker type Adjustable range

FL Front speaker (Left) - 10 dB - + 10 dB CT Center speaker - 10 dB - + 10 dB FR Front speaker (Right) - 10 dB - + 10 dB SR Surround speaker (Right) - 10 dB - + 10 dB SL Surround speaker (Left) - 10 dB - + 10 dB

SW Subwoofer - 10 dB - + 10 dB

Note:

Adjust the level of the subwoofer if the sound from it is distorted.

 Test tone

You can check the sound output from the speakers. (If the speaker levels are not equalized, they can be adjusted, too.)

Press the SET UP AMP button.

Within 10 seconds, press the or button to select "TONE", and press the ENT button.

The test tone will be heard from each speaker, in order, at about 2-second intervals.

FL CT FR

SW SL SR

To finish checking, press the RETURN button twice.

If the levels are not equal:

While the test tone sounds, press the or to adjust the level. You can select a speaker by pressing the or button.

Note:

If NO (OFF) is selected for a speaker in the speaker size setting, no test tone will be heard from it.

 Changing crossover frequency

Press the SET UP AMP button.

Within 10 seconds, press the or button to select "X-FREQ", and press the ENT button.

Within 10 seconds, press t he or button to select frequency and press the ENT button.

- Speaker settings -

Advanced Features

80 Hz 100 Hz

150 Hz 120 Hz

You can complete the setting operation by pressing the RETURN button twice.

SD-SH111(U)E6.fm02/11/20

E-52

SD-SH111

ENGLISH

Advanced Features

Timer and sleep operation

The unit turns on and plays the desired source (DVD, video CD, CD, tuner) at the preset time.

[Back]

- Timer and sleep operation -

 Setting the timer

Before setting timer:

1 Set the unit on time (page 26).

If it is not on time, you cannot use the timer function.

2 Prepare for playback and set the TV to the desired channel.

Turn the power on and press the TIMER button.

Set the unit on time if "TIMER STANDBY" does not appear.

Within 10 seconds, press the or button to select "TIMER SET", and press the ENT but-

ton.

Press the or button to adjust the hour and then press the ENT button.

Press the or button to adjust the minutes and then press the ENT button.

The start time is set and the finish time (1 hour later) will be displayed automatically.

Set the time to finish as in steps 3 and 4 above.

Switch input with the or button, and then press the ENT button.

When you select the tuner, select a station by pressing the or button, and then press the ENT button.

Adjust the volume with the or button and press the ENT button.

Settings are displayed in order and the unit will enter the timer stand-by mode.

DVD/CD AV1 AV3-A

TUNER

AV3-D

AV2

E-53

SD-SH111(U)E6.fm02/11/20

To check the timer setting: Reusing the memorized timer setting:

1 While in the timer playback stand-by mode,

press the TIMER button.

2 Within 10 seconds, press the or button to select "TIMER CALL", and press

the ENT button. The unit returns to the timer playback stand-by mode after the setting contents

are displayed in order.

The timer setting will be memorized once it is entered. To reuse the same setting, perform the following operations.

1 Turn the power on and press the TIMER button. 2 Within 10 seconds, press the ENT button.

After the setting contents are displayed in order, the unit is set to the timer playback stand-by mode.

Changing the timer setting:

Turn the power on, and repeat the operation from step 1 in "Setting the timer" (page

53).

SD-SH111

ENGLISH

When the start time is reached:

Playback starts automatically and the volume increases gradually. The timer playback indicator flashes.

Timer playback indicator Timer setting indicator

When the finish time is reached:

The unit is set to the power stand-by mode automatically.

Canceling the timer playback:

Timer playback is canceled by turning the power on while in the timer playbac k standby mode. The same operation can be performed in the following procedure without turning the power on.

1 Press the TIMER button.

"TIMER CANCEL" will appear.

2 Within 10 seconds, press the ENT button.

Timer playback will be canceled (the contents of the setting will not be canceled).

Caution:

z The contents of the setting will be erased if the unit is unplugged or a power failure

occurs. In such cases, set the timer again.

z This unit cannot set the timer of other equipment. z When setting the timer playback using the digital tuner, TV, VCR, or the connected

equipment should be set to timer playback at the same time.

Note:

The timer operation is disabled with discs containing menus.

- Timer and sleep operation -

Advanced Features

E-54

SD-SH111(U)E6.fm02/11/20

SD-SH111

ENGLISH

Advanced Features

Timer and sleep operation (continued)

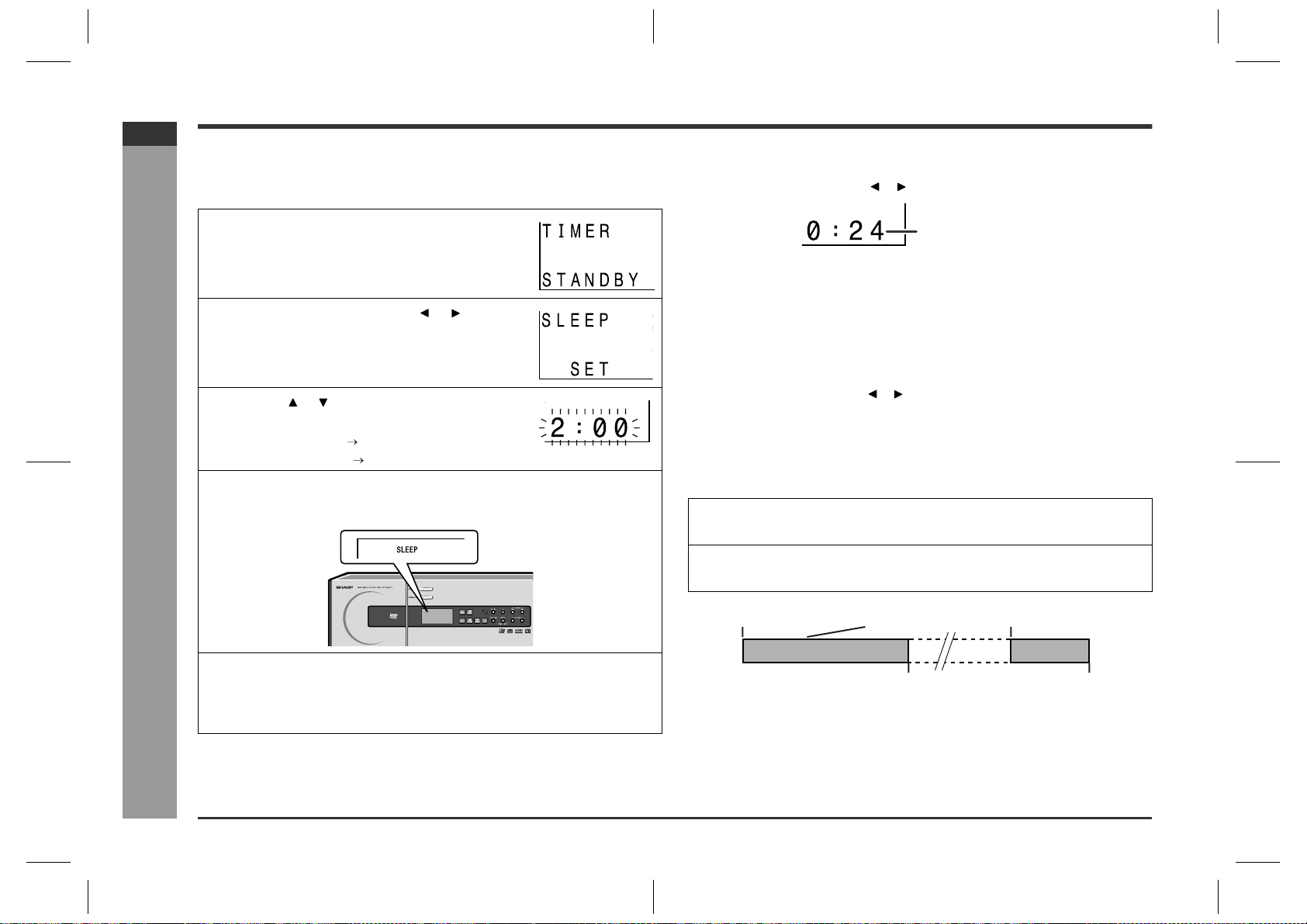

 Setting the sleep timer

You can set the unit to the power stand-by mode at the specified time.

While the disc is playing, pre ss the TIMER button.

Within 10 seconds, press the or button to select "SLEEP SET", and press the ENT but-

ton.

Press the or button to select set the time.

(Maximum: 2 hours - Minimum: 1 minute)

z 2 hours - 5 minutes 5-minute intervals z 5 minutes - 1 minute 1-minute intervals

Press the ENT button.

The sleep timer indicator lights up and playback begins.

- Timer and sleep operation -

To confirm the remaining sleep time:

1 While "SLEEP" is indicated, press the TIMER button. 2 Within 10 seconds, press the or button to select "SLEEP".

Remaining sleep time

z The remaining sleep time is displayed for about 10 seconds. z You can change the remaining sleep time while it is displayed by pressing the ENT

button (steps 3 - 4).

To cancel the sleep operation:

Sleep operation is canceled by turning the power on while "SLEEP" is indicated. The same operation can be performed in the following procedure without turning the power on.

1 Press the TIMER button. 2 Within 10 seconds, press the or button to select "SLEEP OFF", and press the

ENT button.

 To use timer and sleep operation together

You can fall asleep and wake up to the same CD.

Set the sleep timer (steps 1 - 4).

Sleep operation starts.

Set the timer playback.

(Setting the timer on page 53, steps 1 - 7)

Sleep timer setting Timer playback setting Timer playback start

E-55

Your system will enter the power stand-by mode automatically after the preset time has elapsed.

The volume will be turned down 1 minute before the sleep operation finishes. You cannot change the volume.

Caution:

This unit cannot set the sleep timer of other equipment. When setting the sleep timer using the digital tuner, TV, or VCR, the connected equipment should be set to sleep timer at the same time.

1 minute - 2 hours

automatically stop

Desired time1minute - 2hours

Finish timeSleep operation will

SD-SH111(U)E6.fm02/11/20

Connecting other equipment

 Connecting VCR

To connect to the VIDEO jack (AV 2) with video cable:

To connect to the S-VIDEO jack (AV 2) with S-video cable:

Audio cable (commercially available)

SD-SH111

ENGLISH

To video input jack

To video output jack

Video audio cable (commercially available)

To audio input jacks

To audio output jacks

To video input jack

To audio input jacks

VCR

Video audio cable (commercially available)

To video output jack

To audio output jacks

To S-video input jack

To S-video output jack

S-video cable (commercially available)

To audio input jacks

To audio output jacks

Audio cable (commercially available)

To audio input jacks

To S-video input jack

VCR

S-video cable (commercially available)

To audio output jacks

To S-video output jack

- Connecting other equipment -

Advanced Features

Notes:

z To record sound with VCR, set the sound mode to "STEREO". If it is set to "VIR-

TUAL", you will hear the virtual sound. If set to "STANDARD", the sound will not be recorded.

z Do not plug in or unplug the headphones while recording. The sound may skip.

SD-SH111(U)E6.fm02/11/20

E-56

SD-SH111

ENGLISH

Connecting other equipment (continued)

 Connecting digital tuner, etc.

The S-video cable offers you clearer images. You can hear the sound by connecting one of the audio cable or optical digital cable. If you are using the digital tuner with the optical output jack, you can enjoy better sound by connecting the tuner to the optical digital input jack of this unit.

To connect to the VIDEO jack (AV 3) with video cable:

To optical digital audio input jack

To connect to the S-VIDEO jack (AV 3) with S-video cable:

- Connecting other equipment -

Advanced Features

(commercially available)

Digital tuner, etc.

To S-video input jack

S-video cable

To S-video output jack

To optical digital audio input jack

Optical digital cable

(option: AD-M3DC)

To audio input jacks

Audio cable (commercially available)

To audio output jacks

To optical digital audio

output jack

Optical digital cable

(option: AD-M3DC)

To video input jack

Digital tuner, etc.

To video output jack

To audio input jacks

Video audio cable (commercially available)

To audio output jacks

To optical digital audio

output jack

Caution:

Turn off the other equipment before making this connection.

Notes:

z Change the audio between analog and digital with the AV 3 button. (page 60) z When connecting the cable to the S-video jack of this unit, connect the other end

of the cable to the S-video jack on the TV monitor. This unit cannot convert the Svideo signals into video signals or the other way.

z Insert the plugs fully to avoid fuzzy pictures or noise.

E-57

SD-SH111(U)E6.fm02/11/20

SD-SH111

ENGLISH

 Digitally connecting MD recorder or sur-

round processor, etc.

By connecting this unit to processors or amplifiers that support Dolby Digital/DTS surround, you can enjoy the sound via external equipment. An MD recorder can also be connected to this unit. (Refer to the operation manual of the equipment to be connected.)

To optical digital audio output jack

MD recorder

To optical digital audio input jack

Optical digital cable

(option: AD-M1DC)

Dolby Digital/DTS processor or amplifier

Optical digital jack cap

When using the optical digital jack, remove the cap first. After using the jack, replace the cap.

Caution:

Turn off the other equipment before making this connection.

Notes:

z Do not change the sound mode while recording. The sound may skip. z Do not plug in or unplug the headphones while recording. The sound may skip. z To record the Dolby Digital of a DV D, set the audio output to "D-PCM" (see page

22).

z If the PCM sound is recorded on the DVD, set the audio output to PCM (see page

40).

z DTS sound on a DVD cannot be recorded.

- Connecting other equipment -

Advanced Features

To optical digital audio

input jack

Optical digital cable

(option: AD-M3DC)

E-58

SD-SH111(U)E6.fm02/11/20

SD-SH111

ENGLISH

Connecting other equipment (continued)

 Using alternate subwoofer with a built-in

amplifier

The bass sound can be emphasized by connecting a commercially available subwoofer with a built-in amplifier.

- Connecting other equipment -

Advanced Features

Commercially available subwoofer with a built-in amplifier

 Headphones

z Before plugging in or unplugging the headphones, reduce the volume. z Be sure your headphones have a 1/8" (3.5 mm) diameter plug and are between 16

ohms and 50 ohms impedance. The recommended impedance is 32 ohms.

z Plugging in the headphones disconnects the speakers automatically. Adjust the

volume using the VOLUME buttons.

z You cannot use the surround feature with headphones.

To subwoofer output jack

Audio cable

(commercially available)

E-59

To subwoofer input jack

Notes:

z No sound is heard from the speaker in which an amplifier is not built in. z By changing the speaker settings, both speakers that are connected to the SUB-

WOOFER PRE OUT jack and SUBWOOFER terminals can be set simultaneously .

SD-SH111(U)E6.fm02/11/20

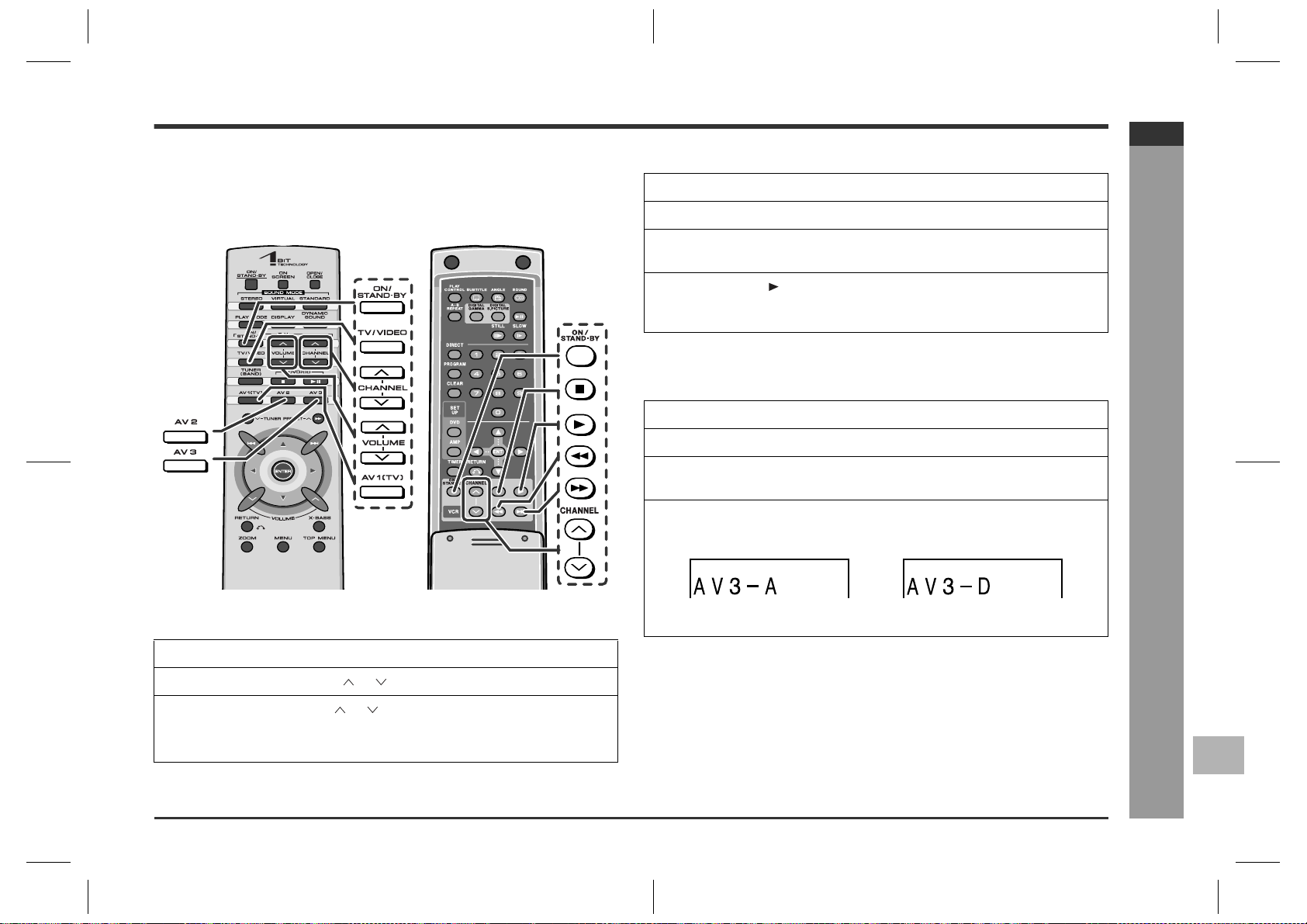

Operating other equipment

The connected TV and VCR can be operated with the remote control of this unit. The factory setting allows you to operate Sharp's TVs and VCRs with it. To operate those of other manufacturers, change the contents registered in the remote control.

[Front] [Back]

operation

VCR

operation

 Watching VCR

Turn on the power of this unit and press the AV 2 button.

Press the VCR ON/STAND-BY button.

Press the TV/VIDEO button, and set the TV to VIDEO 1, VIDEO 2, etc.

Press the VCR button to start playback.

Not only the playback but also stop, fast forward, fast rewind, and channel setting operations can be performed.

 Watching digital tuner, etc.

Turn on the power of this unit and press the AV 3 button.

Turn on the digital tuner, etc.

Press the TV/VIDEO button, and set the TV to VIDEO 1, VIDEO 2, etc.

Press the AV 3 button to switch between "AV3-A" and "AV3-D".

Analog connection Digital connection

SD-SH111

ENGLISH

 Watching TV

Press the TV ON/STAND-BY button to turn on the TV.

Press the TV CHANNEL ( or ) button to set the channel.

Press the TV VOLUME ( or ) button to control the TV volume. To enjoy the sound from the speakers of this unit:

Turn on the power of this unit and press the AV 1(TV) button.

The same operation can be performed by pressing the DIGITAL INPUT button on the main unit.

Caution:

Some Sharp TVs and VCRs cannot be operated with this remote control.

SD-SH111(U)E6.fm02/11/20

- Operating other equipment -

Advanced Features

E-60

SD-SH111

ENGLISH

Changing the registration in the remote control

Sharp's TVs and VCRs can be operated with the remo te control of this unit without registering the operation (except for some models). You can also operate TVs of other manufacturers by changing the registration in the remote control. z Operations of TVs and VCRs can be registered respectively.

[Front]

[Back]

VCR

Advanced Features

- Changing the registration in the remote control -

E-61

SD-SH111(U)E7.fm02/11/20

SD-SH111

ENGLISH

 Changing the TV registration

Use buttons on both sides of the remote control.

While holding down the TV ON/STAND-BY button, press the TV CHANNEL button.

Enter the manufacturer setting number (2 digits) with the direct buttons (0 - 9) and press the PROGRAM button.

The setting is registered and the TV can be operated with the remote control of this unit.

TV manufacturer Setting number TV manufacturer Setting number

SHARP 01(*), 02 EMERSON 37, 38, 39, 40 PANASONIC 03, 04, 05 FISHER 23 JVC 06, 07, 08 GE 41, 42 SONY 09 GOLDSTAR 43 MITSUBISHI 10, 11, 12, 13 MAGNAVOX 44, 45 HITACHI 14, 15, 16, 17 RCA 46, 47, 48, 49 TOSHIBA 18, 19 ZENITH 50, 51 PIONEER 20 PHILIPS 52, 53 SANYO 21, 22, 23, 24 THOMSON 54 FUJITSU 25 GRUNDIG 55 AIWA 26 FERGUSON 56, 57 FUNAI 27, 28, 29, 30, 31, 32ITT NOKIA 58, 59

SAMSUNG 33, 34, 35, 36 LOEWE 60, 61

(*): The default manufacturer number is 01 (SHARP).

 Changing the VCR registration

Use buttons on the back of the remote control.

While holding down the VIDEO ON/STAND-BY button, press the VIDEO CHANNEL button.

Enter the manufacturer setting number (2 digits) with the direct buttons (0 - 9) and press the PROGRAM button.

The setting is registered and the VCR can be operated with the remote control of this unit.

VCR manufacturer

SHARP 01(*), 02, 03 GOLDSTAR 50 PANASONIC 04, 05, 06, 07 MAGNAVOX 51, 52 JVC 08, 09, 10, 11, 12,

SONY 17, 18, 19, 20, 21 PHILIPS 52, 55, 56 MITSUBISHI 22, 23, 24, 25, 26, 27THOMSON 57, 58

HITACHI 28, 29, 30, 31 FERGUSON 60, 61 TOSHIBA 32, 33, 34 ITT NOKIA 62 SANYO 35, 36, 37, 69 LOEWE 63, 64 NEC 38, 39 DAEWOO 65 FUNAI 40 NEC 66, 67 SAMSUNG 41, 42, 43 PHILCO 52 EMERSON 44, 45, 46, 47, 48 QUASAR 52, 68 FISHER 37, 69 REALISTIC 01, 03, 06, 36, 37, GE 49

(*): The default manufacturer number is 01 (SHARP).

Notes:

z As for manufacturers with 2 or more setting numbers, select one of those numbers

with which you can operate the TV or VCR.

z Once you set a number, the number previously memorized will be canceled. z After replacing the batteries in the remote control, the registered number may

automatically be set to 01 (SHARP). If it occurs, register the desired number again.

z Registration cannot be executed depending on TVs or VCRs. Even if numbers can

be set, some buttons may not work.

z The number will not be set unless the registration is completed within 30 seconds.

In that case, try registration again.

Setting number

13, 14, 15, 16

VCR manufacturer

RCA 53 ZENITH 54

GRUNDIG 59

43, 51, 52, 69, 70

Setting number

Advanced Features

- Changing the registration in the remote control -

E-62

SD-SH111(U)E7.fm02/11/20

SD-SH111

ENGLISH

References

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service technician. If something is wrong with this product, check the following before calling your authorized SHARP dealer or service center.

 General

Symptom Possible cause Reference

No sound is heard. z Is the volume level set to "0"? P. 18

z Are the headphones connected? P. 59 z Are the speaker wires disconnect-

ed?

z Is the speaker size set to NO (OFF)? P. 50

The sounds from speakers are not well balanced.

Noise is heard during playback.

When a button is pressed, the unit does not respond.

Interference or noise occurs on the TV image.

- Troubleshooting chart -

Timer playback does not start.

The display on the unit is dark.

z Are the speaker cords connected to

the wrong channels?

z Is each speaker placed at the same

distance from the listener?

z A re speakers adjusted to the same

level?

z M ove the unit away from any com-

puters or mobile phones.

z S et this unit to the power stand-by

mode and then turn it back on. If the unit still malfunctions, reset it.

z Is the unit placed near TV with inter-

nal antenna? Use an outdoor antenna.

z Did you remov e the plug from the

wall jack, or did a power failure occur?

z Hold down the DISPLAY button on

the remote control for 2 seconds or more to select "DIMMER OFF".

page

P. 13

P. 14

P. 19

P. 52

P. 65

P. 14

P. 26

P. 18

Symptom Possible cause Reference

The power is not turned on. z Is the unit unplugged? P. 17

z The protection circuit may be acti-

vated. Unplug the unit and plug it in again.

The sound is not reproduced in the Dolby Digital 5.1 ch.

No images are displayed. z Is TV turned on? P. 60

The sound is not recorded with VCR.

z Is the "Audio setting" on the initial

setup screen set to "D-PCM"? Change it to "BITSTREAM".

z Is the input of TV switched? P. 60 z Is the VIDEO OUT SELECTOR

switched to the connected source?

z Is the sound mode set to "STE-

REO"?

page

P. 14

P. 22

P. 15

P. 56

 Tuner

Symptom Possible cause Reference

Radio makes unusual noise consecutively.

z Is the unit placed near the TV or

computer?

z Is the FM antenna or AM loop anten-

na placed properly? Move the AC power cord away from the antenna if located near.

page

P. 14

E-63

SD-SH111(U)E7.fm02/11/20

 DVD/CD play er  Remote control

SD-SH111

ENGLISH

Symptom Possible cause Reference

Even though a disc has been loaded, "NO DISC" or "NO PLAY" is displayed.

Playback sounds are skipped.

The track number, etc. are not displayed when a disc is loaded.

The control buttons do not function. Music or video playback is interrupted.

Pictures and sound are skipped.

The unit does not operate even if the power is on.

Image cannot be played back. (Sound is not heard.)

page

z Is the disc loaded upside down? z Is the disc very dirty?

z Does the disc satisfy the standards? z Is the unit located near excessive vi-

brations?

z Has condensation formed inside the

unit?

z Is the input not set to DVD? P. 21

z Is the disc very dirty? z Does the disc satisfy the standards? z Is the unit located near excessive vi-

brations?

z Has condensation formed inside the

unit?

z Is the disc very dirty? z Is the unit located near excessive vi-

brations?

z Has condensation formed inside the

unit?

z Is a disc other than DVD (region

number 1 or ALL), video CD or audio CD loaded?

z Are the video and audio cables con-

nected improperly?

z Is a disc other than DVD (region

number 1 or ALL), video CD or audio CD loaded?

z Is the disc very dirty? z Is the disc loaded upside down? z Clean the optical pickup if it is dirty. P. 65 z Is the TV input set to "VIDEO 1/VID-

EO 2" etc.?

z Is the unit turned on? P. 17

P. 64

P. 6

P. 15, 17

P. 5, 6

P. 60

Symptom Possible cause Reference

The remote control does not operate properly.

The unit cannot be turned on with the remote control.

z Is the battery polarity respected? P. 20 z Are the batteries dead? z Is the distance or angle incorrect? P. 20 z Are there any obstructions in front of

the unit?

z Is the remote control sensor ex-

posed to strong light (inverter fluorescent light, direct sunlight, etc.)?

z Is the remote control for another

equipment used simultaneously?

z Are buttons on the front and back

faces of the remote control pressed simultaneously?

z Is the AC power cord of the unit

plugged in?

z Are the batteries inserted? P. 20

page

P. 20

P. 17

 Condensation

Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (laser pickup, etc.) or on the transmitter on the remote control.

Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.

References

- Troubleshooting chart -

E-64

SD-SH111(U)E7.fm02/11/20

SD-SH111

ENGLISH

References

Troubleshooting chart (continued)

 If trouble occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

Clearing all the memory (reset)

1 Unplug the unit. 2 While holding down the ON/STAND-BY button, plug in the AC power cord.

At this time, the unit will not be turned on.

3 Press the ON/STAND-BY button again to turn the power on.

Caution:

This operation will erase all data stored in memory and restore various settings to the initial status (default).

 Before transporting the unit

1 Press the ON/STAND-BY button to turn the power on.

- Troubleshooting chart / Maintenance -

2 Open the disc compartment and remove the disc. 3 Close the disc compartment and enter the unit to stand-by mode. 4 After the power indicator goes off, unplug the unit.

Maintenance

 Cleaning the cabinet

Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.

z Do not use chemicals for cleaning (gas-

oline, paint thinner, etc.). It may damage the cabinet finish.

z Do not apply oil to the inside of the unit.

It may cause malfunctions.

 Cleaning the laser pickup lens

Do not touch the laser pickup lens. If fingerprints or dust accumulate on the pickup, clean it gently with a dry cotton swab.

Laser pickup lens

Notes:

z Close the disc compartment when it is not used. z Be careful not to damage the optical pickup or to touch it by hand.

E-65

SD-SH111(U)E7.fm02/11/20

Error indicators and warnings

When you load an unplayable disc or fail to perform operations properly , the following messages are displayed on the unit and the TV screen.

Display Meaning

z The disc is not loaded. z The disc is scratched or dirty and cannot be recog-

nized.

z The disc is loaded upside down. z The disc is scratched or dirty and cannot be played. z The disc does not satisfy the standards.

z The disc is scratched or dirty and data cannot be

read.

z The disc does not satisfy the standards. z The optical pickup cannot be located.

Set this unit to the stand-by mode and turn the power on again. (*)

z The unit considers the DVD mechanism is defective. z Place the unit away from noise source or plug the

AC power cord to another AC outlet. (*)

z The TV screen does not display correctly. z Place the unit away from noise source or plug the

AC power cord to another AC outlet. (*)

z The digital audio input jack is not connected proper-

ly.

z Unspecified signal is received and cannot be recog-

nized.

z The temperatu re is too high.

Set this unit to the stand-by mode and wait for a while.

z The speaker is not connected properly. z The amplifier is defective.

Set this unit to the stand-by mode and turn the power on again. (*)

z The amplifier is defective.

Set this unit to the stand-by mode and turn the power on again. (*)

Display Meaning

z The amplifier is defective. z Place the unit away from noise source or plug the

AC power cord to another AC outlet. (*)

z The cooling fan on the back of the main unit does not

run due to foreign objects caught in it. Set this unit to the stand-by mode and remove the

foreign objects around the fan.

(*): Should the same message appear even if the unit is unplugged and plugged in or

is set to the stand-by mode and on again, contact your local dealer where you purchased the unit.

TV screen Meaning

The disc cannot be played with this unit or the

15/

WRO NG D CIS T EYP 83/

::23 40

disc is loaded in an incorrect way.

The region number of the DVD is not "1" or

15/

REG NIO DCO E RER OR 83/

::23 40

"ALL".

A disc has not been loaded.

15/

NO DISC

83/

O1N

::23 40

hc15

BITRATE

ENTER

BITRATE

ENTER

00 10

NOT

00 10

SELECT

LAL OWED

ENTER

ACC SES

SELECT

NDE I ED

ENTER

Mbps

RETURN

Mbps

RETURN

z You are trying to perform an incorrect oper-

ation.

z The operation is prohibited. The disc does not support the operation de-

scribed in this operation manual.

SD-SH111

ENGLISH

References

- Error indicators and warnings -

E-66

SD-SH111(U)E7.fm02/11/20

SD-SH111

ENGLISH

References

Specifications

As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

 General

Power source AC 120 V, 60 Hz Power consumption 66 W Dimensions Width: 17-3/4" (450 mm)

Weight 10.8 lbs. (4.9 kg) Terminals F ront speakers, Center speaker, Sur round speaker s and

- Specifications -

 Amplifier

Height: 6" (152 mm) Depth: 6" (152 mm)

Subwoofer: 4 ohms minimum Headphones: 16 - 50 ohms (recommended: 32 ohms) Monitor output: S-video/video Subwoofer Pre Out: 10 kohms Digital output: Optical S-video output (AV 2): S-terminal Video output (AV 2): RCA type Audio output (AV 2): RCA type (L/R) Audio input [AV 1 (TV)]: RCA type S-video input (AV 2, 3): S-terminal Video input (AV 2, 3): RCA type Audio input (AV 2, 3): RCA type (L/R) Digital input (AV 3): Optical Component video output: RCA type

 DVD/CD player

Signal system NTSC Supported disc types DVD (Region number 1, ALL), audio CD, CD-R, CD-RW Video signal Horizontal resolution: 500 lines

S/N ratio: 60 dB

Audio signals Frequency characteristics:

Linear PCM DVD: 4 Hz to 22 kHz (48 kHz sampling)/

Linear PCM DVD: 4 Hz to 44 kHz (96 kHz sampling)

CD: 4 Hz to 20 kHz S/N ratio: 96 dB 1 kHz (CD) Dynamic range: 96 dB (Linear PCM DVD)

Dynamic range: 96 dB (CD)

Total harmonic distortion ratio: 0.006 % maximum

 Tuner

Frequency range FM: 87.5 - 108 MHz

AM: 530 - 1,720 kHz

E-67

Amplification system 128fs 1-bit switching (Remarks: fs = 44.1 kHz) Power output (FTC) 22 watts minimum RMS per channel into 4 ohms from 20

Hz to 20 kHz, 2 % total harmonic distortion

Rated power output Front: 25 W + 25 W, Center: 25 W,

Surround: 25 W + 25 W (4 ohms at 1 kHz) Subwoofer: 25 W (4 ohms at 100 Hz)

A/D noise shaping 7th-order (delta - sigma) modulation

SD-SH111(U)E7.fm02/11/20

Optional accessories

Use only the specified optional accessories to operate this product properly.

MAIN UNIT WALL BRACKET OPTICAL DIGITAL CABLE OPTICAL DIGITAL CABLE

Model: AD-AT10WA Model: AD-M1DC Model: AD-M3DC

The appearance of optional accessories may differ from the illustrations above.

SD-SH111

ENGLISH

References

- Optional accessories -

E-68

SD-SH111(U)E7.fm02/11/20

SD-SH111

ENGLISH

References

Language code list for disc language

Code Language name Code Language name

AA Afar FY Frisian AB Abkhazian GA Irish AF Afrikaans GD Scots Gaelic AM Ameharic GL Galician AR Arabic GN Guarani AS Assamese GU Gujarati AY Aymara HA Hausa AZ Azerbaijani HI Hindi BA Bashkir HR C roatian BE Byelorussian HU Hungarian BG Bulgarian HY Arm enian BH Bihari IA Interlingua BI Bislama IE Interlingue BN Bengali; IK Inupiaq

Bangla IN Indonesian BO Tibetan IS Icelandic BR Breton IT Italian CA Catalan IW Hebrew CO Corsican JA Japanese CS Czech JI Yiddish CY Welsh JW Javanese DA Danish KA Georgian DE German KK Kazakh DZ Bhutanese KL Greenlandic EL Greek KM Cambodian EN English KN Kannada EO Esperanto KO Korean

- Language code list for disc language -

ES Spanish KS Kashmiri ET Estonian KU Kurdish EU Basque KY Kirghiz FA Persian LA Latin FI Finnish LN Lingala FJ Fiji LO Laotian FO Faroese LT Lithuanian FR French LV Latvian, Lettish

Code Language name Code Language name

MG Malagasy SN Shona MI Maori SO Somali MK Macedonian SQ Albanian ML Malayalam SR Serbian MN Mongolian SS Siswat MO Moldavian ST Sesotho MR Marathi SU Sundanese MS Malay SV Swedish MT Maltese SW Swahili MY Burmese TA Tamil NA Nauruan TE Telugu NE Nepali TG Tajik NL Dutch TH Thai NO Norwegian TI Tigrinya OC Occitan TK Turkmen OM (Afan) Oromo TL Tagalog OR Oriya TN Setswana PA Panjabi TO Tonga PL Polish TR Turkish PS Pasht o, Pushto TS Tsonga PT Portuguese TT Tatar QU Quechua TW Twi RM Rhaeto-Romance UK Ukrainian RN Kirundi UR Urdu RO Romanian UZ Uzbek RU Russian VI Vietnamese RW Kinyarwanda VO Volapuk SA Sanskrit WO Wolof SD Sindhi XH Xhosa SG Sango YO Yoruba SH Serbo-Croatian Z H Chinese SI Singhalese ZU Zulu SK Slovak SL Slovenian SM Samoan

E-69

SD-SH111(U)E7.fm02/11/20

Glossary

When playing a wide image (16:9) disc, black bands are inserted at the top and bot tom to display images in 4:3 size. You can enjoy full wide images.

When playing a wide image (16:9) disc, the left and right sides of the image are cut (pan scan) to display natural-looking 4:3 size images.

Angle

You can enjoy a scene from various angles on DVDs with multiple angles.

SD-SH111

ENGLISH

Optical pickup

Laser device that reads the data from a disc.

Parental level

Some DVDs allows you to restrict undesirable scenes according to the age of view ers.

Playback control (PBC)

This is a playback system for video CDs which allows you to select information to be displayed during playback.

Chapter

A title is divided into chapters.

Disc menu

The menu recorded on a DVD, where you can select a subtitle language, audio language, sound system (Dolby Digital 5.1ch/DTS), etc.

Dolby Digital

One of the digital audio systems for theatrical use. You can enjoy the stereophonic effect in the home theater system.

Dolby Pro Logic II

When playing a stereo-recorded disc or video tape, the Dolby Pro Logic II function converts the sound to the 5.1ch digital sound automatically . More natural sound eff ect can be achieved.

DTS

One of the digital audio systems for theatrical use. As the sound quality is emphasized, you can enjoy the realistic sound effect in the home theater system.

GAMMA

Corrects gradations in dark areas of images to make them clearer.

Region number

A DVD bears a number of the region where the disc can be played.

SUPER PICTURE

This function sharpens the picture quality.

Title

A title is one movie on a DVD on which more than one movie are recorded.

Top menu

The menu recorded on a DVD, where you can select the title to be played.

Track

Each one of multiple tunes that are recorded on a CD.

Virtual

Although no sound is heard from the surround speakers, you can still enjoy the 2.1ch surround sound as if they exist.

Zoom

You can enlarge the size of the displayed image.

- Glossary -

References

E-70

SD-SH111(U)E7.fm02/11/20

VALID IN U.S.A. ONLY

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING

THE WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR USE ARE LIMITED T O THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section Your Product Model Number & Description:

Warranty Period for this Product: One (1) year parts and labor from the date of purchase. Additional Item(s) Excluded from Warranty Coverage (if any): Non-functional accessories, supplies, and consumable items. Where to Obtain Service: At a Sharp Authorized Servicer located in the United States.

What to do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized Servicer.

SD-SH111 1-Bit Digital Receiver with DVD

(Be sure to have this information available when you need service for your Product.)

T o find a location of the nearest Sharp Authorized Servicer , call Sharp toll free at 1-800-BE-SHARP.

Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.

TINSK0136AWZZ

SDSH111U_BACK 02.11.20, 2:43 PM1

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP.

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

9906

0005

PRINTED IN MALAYSIA IMPRIMÉ EN MALAISIE A0201.YT
