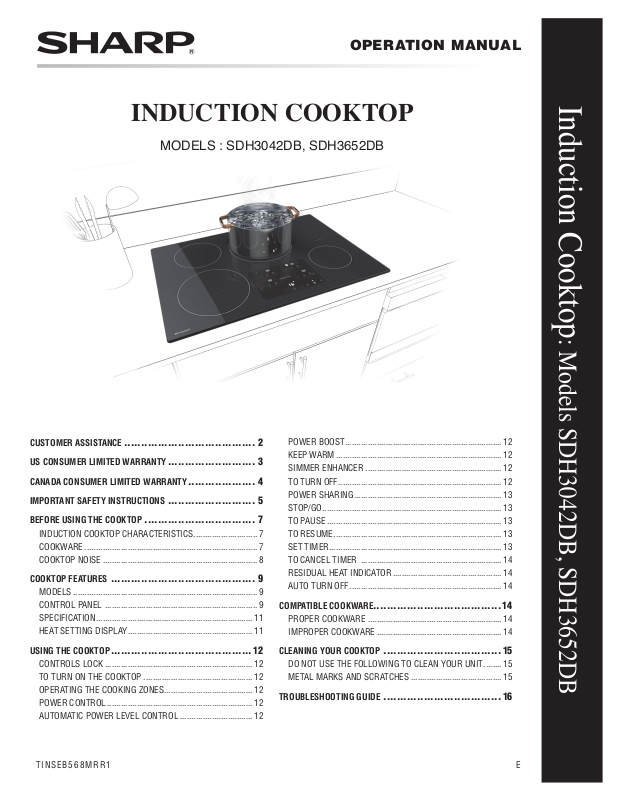

OPERATION MANUAL
INDUCTION COOKTOP
MODELS : SDH3042DB, SDH3652DB
Induction Cooktop: Models SDH3042DB, SDH3652DB
CUSTOMER ASSISTANCE ....................................... 2
US CONSUMER LIMITED WARRANTY .......................... 3
CANADA CONSUMER LIMITED WARRANTY .................... 4
IMPORTANT SAFETY INSTRUCTIONS .......................... 5
BEFORE USING THE COOKTOP ................................. 7
INDUCTION COOKTOP CHARACTERISTICS ............................ 7
COOKWARE ............................................................................ 7
COOKTOP NOISE .................................................................... 8
COOKTOP FEATURES
MODELS ................................................................................. 9
CONTROL PANEL ................................................................... 9
SPECIFICATION .....................................................................11
HEAT SETTING DISPLAY ....................................................... 11
USING THE COOKTOP
CONTROLS LOCK ................................................................. 12
TO TURN ON THE COOKTOP ................................................ 12
OPERATING THE COOKING ZONES.......................................12
POWER CONTROL ................................................................ 12
AUTOMATIC POWER LEVEL CONTROL ................................12
........................................... 9
.......................................... 12
POWER BOOST ..................................................................... 12
KEEP WARM ......................................................................... 12
SIMMER ENHANCER ............................................................ 12
TO TURN OFF ........................................................................ 12
POWER SHARING ................................................................. 13
STOP/GO ............................................................................... 13
TO PAUSE ............................................................................. 13
TO RESUME .......................................................................... 13
SET TIMER ............................................................................ 13
TO CANCEL TIMER .............................................................. 14
RESIDUAL HEAT INDICATOR ................................................ 14
AUTO TURN OFF ................................................................... 14
COMPATIBLE COOKWARE
PROPER COOKWARE ........................................................... 14
IMPROPER COOKWARE ....................................................... 14
CLEANING YOUR COOKTOP
DO NOT USE THE FOLLOWING TO CLEAN YOUR UNIT ........ 15
METAL MARKS AND SCRATCHES ........................................ 15
TROUBLESHOOTING GUIDE
...................................... 14
................................... 15
................................... 16
TINSEB568MRR1 E
CUSTOMER ASSISTANCE
IMPORTANT! Register within 10 days of purchase.
Register ONLINE at www.sharpusa.com/productregistration
To aid in reporting this appliance, please record below the model number and serial number located on the unit. We also suggest you
record all the information listed and retain for future reference.
MODEL NUMBER SERIAL NUMBER
DATE OF PURCHASE / /
DEALER
SERVICER TELEPHONE
FOR US
TO PHONE: CALL 1-800-BE-SHARP (237-4277) for:
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ADDITIONAL CUSTOMER INFOR MATION
TO WRITE: Sharp Electronics Corporation
Customer Assistance Center
Sharp Plaza Blvd.
Memphis, Tennessee 38193
TO ACCESS INTERNET: www.sharpusa.com
Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing
address (including zip code), your daytime telephone number (including area code), e-mail address and description of the problem.
TELEPHONE
FOR CANADA
To obtain the name and address of the nearest Sharp Authorized Service Centre, please contact:
Sharp Electronics Of Canada Ltd.
335 Britannia Road East
Mississauga, Ontario
L4Z 1W9
(905) 568-7140
TO ACCESS INTERNET: www.sharp.ca
Please provide the following information when you write or call: model number, serial number, date of purchase, your complete
mailing address (including zip or postal code), your daytime telephone number (including area code) and description of the problem.
2E
US CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION (“Sharp”) warrants to the rst consumer purchaser (“Purchaserˮ) that this SHARP brand
product (“Productˮ), when shipped in its original container and sold or distributed in the United States by Sharp or an authorized
Sharp dealer or reseller, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair
the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the Purchaser for
parts or labor for the period(s) set forth below.
This limited warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below
nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal service or
handling, or which has been altered or modied in design or construction.
In order to enforce the rights under this limited warranty, the Purchaser should follow the steps set forth below and provide proof of
purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to Purchasers by law. ALL
IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE
LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein,
or to extend the duration of any warranties beyond the time period described above on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive
remedy available to the Purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute
complete fulllment of all liabilities and responsibilities of Sharp to the Purchaser with respect to the Product, and shall constitute
full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable,
or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed
by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incident or consequential
economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion
may not apply to you.
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND
PUERTO RICO.
Your product model number &
description
Warranty period for this product: One (1) year parts and labor including in-home service.
Additional item(s) excluded from
warranty coverage (if any):
Where to obtain service: From a Sharp Authorized Servicer located in the United States. To nd the location of the
What to do to obtain service: In-home service is provided for one year from date of purchase. In-home service can be arranged
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP or visit www.sharpusa.com.
SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.
Model # SDH3042DB, SDH3652DB or Induction Cooktops.
(Be sure to have this information available when you need service for your Product.)
Product must be accessible to provide service.
Non-functional accessories, service calls to your home to instruct how to use your induction
cooktop appliance, replace or repair house fuses or to correct house wiring, improper commercial use, installation, or maintenance, damage to the product caused by delivery, accident,
modications, re, oods or acts of God.
nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-237-4277 (1-800-BE-SHARP).
by calling 1-800-BE-SHARP. Be sure to have Proof of Purchase available.
E3
CANADA CONSUMER LIMITED WARRANTY
Congratulations on your purchase!
Sharp Electronics of Canada Ltd. (“Sharp”) warrants to the rst purchaser for this Sharp brand product (“Product”), when shipped
in its original container and sold or distributed in Canada by Sharp or by an authorized Sharp dealer, and Product was not sold “as
is” or “sales nal” that the Product will during the applicable warranty period, be free from defects in material and workmanship,
and will within the applicable warranty period, either repair the defective Product or provide the rst purchaser a replacement of the
defective Product.
This warranty does not apply to any appearance items of the product nor to the additional excluded item(s) set forth below nor to any
product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal
service or handling, which has been altered or modied in design or construction, or if the serial number or model number afxed to
Product has been removed, defaced, changed, altered or tampered with.
How to get service: Should this Sharp product fail to operate during the warranty period, warranty service is provided by an Authorized
Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service will be carried out to locations accessible
by on-road service vehicle and within 50 km of an authorized Sharp service centre. The servicer may if necessary take the unit for
repair at the servicer's facility. No other person (including any Sharp dealer or service centre) is authorized to extend, enlarge or
transfer this warranty on behalf of Sharp.
The express warranties in this limited warranty are, except for consumer purchasers domiciled in Quebec, in lieu of and, except to the
extent prohibited by applicable law, Sharp disclaims all other warranties and conditions, express or implied, whether arising by law,
statute, by course of dealing or usage of trade, including, without limitation, implied warranties or conditions of merchantability and/or
quality, tness for a particular use or purpose, and/or non-infringement. Limitations (not applicable to consumer purchasers domiciled
in Quebec to the extent prohibited under Quebec law): (a) Sharp shall not be liable for any incidental, special, consequential, economic,
exemplary or indirect damages of any kind or nature (including lost prots or damages for loss of time or loss of use or loss of data)
arising from or in any connection with the use or performance of a Product or a failure of a Product, even if Sharp is aware of or has
been advised of the possibility of such damages; (b) the remedies described in this limited warranty constitute complete fulllment
of all obligations and responsibilities of Sharp to the purchaser with respect to the Product and shall constitute full satisfaction of all
claims, whether based on contract, negligence, strict liability or otherwise. Some provinces may not allow the exclusion or limitation
of certain damages, or limits on the duration or voiding of implied warranties or conditions; in such provinces, the exclusions and
limits herein may not apply. This limited warranty is, except for consumer purchasers domiciled in Quebec, governed by the laws of
the Province in Canada in which the purchaser has purchased the Product. For consumer purchasers domiciled in Quebec this limited
warranty is governed by the laws of Quebec.
Your product model number &
description
Warranty period for this product: One (1) year parts and labor including in-home service.
Additional item(s) excluded from
warranty coverage (if any):
To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:
SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.
Model # SDH3042DB, SDH3652DB or Induction Cooktops.
(Be sure to have this information available when you need service for your Product.)
Product must be accessible to provide service.
Non-functional accessories, service calls to your home to instruct how to use your induction
cooktop appliance, replace or repair house fuses or to correct house wiring, improper commercial use, installation, or maintenance, damage to the product caused by delivery, accident,
modications, re, oods or acts of God.
SHARP ELECTRONICS OF CANADA LTD 335 Britannia Road East
Mississauga, Ontario
L4Z 1W9
(905) 568-7140
Website: www.sharp.ca
THIS LIMITED WARRANTY IS VALID ONLY IN CANADA
4E
IMPORTANT SAFETY INSTRUCTIONS
IM P O RTANT
Keep these instructions handy for future use.
The appliance is manufactured in compliance with the relevant
safety standard.
WARNING Read all instructions carefully before installation
and operation.
WARNING Failure to follow these warnings could result in a
re or explosion that causes property damage, personal injury
or death. To reduce the risk of re, electric shock or injury, take
the following precautions:
Intended Use
1 This appliance is designed for built-in household use only.
2 Do not use outdoors.
3 Do not use the appliance to heat a room.
WARNING
1 Do not allow aluminum foil, paper or cloth to come in contact
COOKING SAFETY
with a cooking zone.
2 Avoid preparing food in aluminum foil or plastic containers
over the hot cooking zones.
3 Protective liners - Do not use aluminum foil to line cooking
zone, drip bowls or oven bottoms, except as suggested in the
manual. Improper use of these liners may result in a risk of
electric shock or re.
4 Do not allow pans to boil dry or empty. Never leave the
cooktop unattended when in use.
5 Always use the proper pot and pan size. (See Page 14)
6 The use of undersized cookware will expose a portion of the
hot cooking zone, which can result in ignition of clothing or
personal burns.
7 Always remove the covers on sealed or canned goods and
before heating to avoid explosion.
8 Close supervision is necessary when any appliance is used
by or near children.
9 Do not touch hot surfaces. Use dry pot holders to hold the
handles of pots and pans.
10 Use only dry potholders - moist or damp potholders on hot
surfaces may result in burns from steam. Do not let the
potholder touch hot cooking zone. Do not use a towel or
other bulky cloth. Nevertheless, we strongly recommend
that a person with physical or mental impairments not use
the appliance unless accompanied by a qualied person. The
same recommendation applies to children.
11 When the unit is on, do not touch outside the control panel
as the surface may contain residual heat. It is important to
be aware that the unit’s surface will remain hot for a short
period of time after use. Do not touch hot surfaces.
WARNING
CAUTION - Clean cooktop with Caution - If a wet sponge or
CLEANING SAFETY
cloth is used to wipe spills on a hot cooking area, be careful to
avoid steam burns. Some cleaners can produce steam or noxious
fumes if applied to a hot surface.
Do not use steam cleaners or high-pressure cleaners to clean the
cooktop, as this may result in electric shock.
CONDITION OF UNIT
WARNI NG Do not operate any appliance with a damaged cord
or after the appliance malfunctions or has been damaged in
any manner. Return appliance to the nearest authorized service
facility for examination, repair, or adjustment.
IMPORTANT Do not cook on broken cooktop. If cooktop
breaks, cleaning solutions and spillovers may penetrate the
broken cooktop and create a risk of electric shock.
IM P O RTANT
1 To reduce the risk of re, do not let any objects (glass, paper,
ENVIRONMENT OF UNIT
etc.) obstruct the inlet and outlet of your cooktop.
2 To reduce t he risk of elect ric shock, do not mount unit over a sink.
3 To reduce the risk of re, do not store anything directly on top
of the appliance surface when the appliance is in operation.
4 Always have a working smoke detector in or near the kitchen.
5 IM P O RTANT Do not leave lids other metal objects such
as knives, forks or spoons on the cooktop. If the cooktop is
turned on, these objects can heat up quickly and may cause
bur ns.
6 Do not place rough or uneven objects on the units as they may
damage the surface. If the cooktop is near a window, ensure
that curtains do not blow over or near the unit.
7 IM P O RTANT Do not use the cooktop as a work surface.
Certain substances such as salt, sugar, or sand can scratch
the glass ceramic surface.
8 Do not store hard or pointed objects over the cooktop as they
can damage the unit if they fall on top.
9 Do not put detergents or ammable materials in the equip-
ment installed under the cooktop.
10 Extreme caution must be used when moving an appliance
containing hot oil or other hot liquids.
11 While cooking, any overowed fat or oil on the cooktop may
ignite. There is a risk of burning and re; therefore, control
the cooking process at all times. The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries. Items with a magnetic eld such as: radios,
televisions, credit cards, cassette tapes etc., can affect the
unit. The marked electrical rating should be at least as great
as the electrical rating on the appliance.
12 To prevent accidents and achieve optimal ventilation, allow
for sufcient space around the cooking area.
13 Use proper cookware size - This appliance is equipped
with four or ve cooking zones of different sizes. Choose
cookware with a at bottom large enough to cover the unit
heating surface. The use of undersized cookware will expose
a portion of the heating surface where direct contact may be
made and cause serious injury. Compatible cookware will
improve efciency.
14 To reduce risk of burns, ignition of ammable materials,
and spillage due to unintentional contact with cookware, the
E5
IMPORTANT SAFETY INSTRUCTIONS
cookware handles should be turned inward and not extend
over adjacent heating surface.
15 Wear proper apparel - loose tting or hanging garments
should never be worn while using the appliance.
SERVICE AND REPAIR SAFETY
WARNING
ance unless specically recommended in the manual. All other
services should be referred to a qualied technician.
There are no user serviceable parts on this appliance. Only
an authorized service representative should attempt to service
your cooktop.
Do not repair or replace any part of the appli-
READ AND SAVE THESE INSTRUCTIONS
This product may not be treated as household waste. Instead it
should be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about
recycling of this product, please contact your local city ofce,
your household waste disposal service or the shop where you
purchased the product.
6E 6
BEFORE USING THE COOKTOP
INDUCTION COOKTOP
CHARACTERISTICS
Indu ct ion cook ing is a sa fe, adva nc e d, efc ient, an d ec onomical
cooking technology. It works by electromagnetic eld generat-
ing instant heat directly in the cookware bottom, rather than
indirectly through heating the glass surface.
CAUTION
turned ON and after they have been turned OFF. The glass
surface may be HOT from residual heat transferred from the
cookware and burns may occur.
MAGNETIC DETECTOR
The coil sensor automatically detects whether the pan is magnetic and eliminates accidental “Turn-On.”
PAN SIZE DETECTION
The pan recognition sensor automatically detects and adapts the
Cooking Zones to the pan sizes in use.
EFFICIENT
Induction cooking heats faster while using less energy. Induction
power levels are quick to boil the water.
The Cooking Zones may appear to be cool while
COOKWARE
USING COMPATIBLE COOKWARE
The magnetic Cooking Zone sensors located below the cooktop
surface require the use of cookware made with magnetic material in order to start the heating process on any of the Cooking
Zones.
When purchasing pans, optimally the cookware will have the
induction compatible symbol on the retail box. Check that the
bases of your pans are attracted by a magnet to nd out if they
are suit able.
SELECTING SURFACE COOKING COOKWARE
The cookware used with the Induction Cooktop should have at
bottoms that make good contact with the entire surface of the
Cooking Zone. Check for atness by rotating a ruler across the
bottom of the cookware. Be sure to follow all the recommenda-
tions for using cookware. Use cookware made with the correct
material type for Induction Cooking.
PROPER COOKWARE MATERIAL
• Magnetic stainless steel
• Cast iron
IMPROPER COOKWARE MATERIAL
• Non-magnetic stainless steel
• Bottom measuring less than
4.7 inches (12 cm)
• Pot with stands
ATTENTION:
• Use quality cookware with heavier bottoms for better heat
distribution allowing for more even cooking results.
• The pan size should match the amount of food being
prepared.
• Do not let pans boil dry. This may cause permanent damage
in the form of breakage, fusion, or marring that can affect
the ceramic cooktop. (This type of damage is not covered
by your warranty).
• Do not use dirty pans with grease buildup. Always use pans
that are easy to clean after cooking.
Even quality cookware can scratch the cooktop surface,
especially if cookware is slid over the ceramic cooktop sur-
face without being lifted up. Over time sliding ANY type of
cookware over the ceramic cooktop will likely alter the overall
appearance of the cooktop. Eventually the buildup of scratches
will make cleaning the surface difcult and degrade the overall
appearance of the cooktop.
• Enameled iron
• Nickel
• Heat resistant glass
• Ceramic container
• Copper
• Aluminum
It is recommended to always use heavier high quality stainless
steel cookware on your Induction Cooktop surface.
If the base of the cookware is only partially magnetic, only the
area that is magnetic will heat up. This may mean that heat will
not be distributed evenly. The non-magnetic area may not heat
up to a sufcient temperature for cooking.
CAUTION
• The Cooking Zones may appear to be cool while turned ON
and after they have been turned OFF. The glass surface may
be HOT from residual heat transferred from the cookware
and burns may occur.
• DO NOT SLIDE Cookware across the cooktop surface.
Doing so may permanently damage the appearance of the
ceramic cooktop.
• DO NOT TOUCH HOT COOKWARE or PANS directly
with hands. Always use oven mitts or pot holders to protect
hands from burns.
E7
BEFORE USING THE COOKTOP
COOKWARE RECOMMENDATIONS
Be sure to follow the following recommendations for using
cookware:
INCORRECT
• Cookware not centered on Cooking Zone surface.
• Curved or warped pan bottoms or sides.
• Pan does not meet the minimum size required for the Cooking
Zone used.
• Pan bottom rests on cooktop trim or does not rest completely
on the cooktop surface.
• Heavy handle tilts pan.
CORRECT
Cooking zone outer line
±1/2”
max
min
COOKWARE SIZE GUIDE
The thick outer line at each Cooking Zone is helpful to determine
the pan MINIMUM size as well as the pan MAXIMUM size.
After centering the cookware on the cooktop, make sure the
cookware does cover 1/2” inside of the thick outer line and does
not extend more than 1/2” beyond the thicker line on the Cooking
Zone. The pan must make FULL contact on the glass surface
without the bottom of the pan touching the metal cooktop trims.
NOTE: Pan bottom should not exceed 1/2” (13 mm) from outer
Cooking Zone (Induction).
If a pan made of the correct material is centered properly on any
of the active Cooking Zones but is TOO SMALL, the power level
will ash in the in the digital display and the pan will not heat.
• Cookware centered correctly on Cooking Zone surface.
• Flat pan bottom & straight sides.
• Pan size meets or exceeds the recommended minimum size
for the Cooking Zone.
• Pan rests completely on the cooktop surface.
• Pan is properly balanced.
NOTE: ANY one of the incorrect conditions listed may be
detected by the sensors located below the ceramic cooktop
surface. If the cookware does not meet any of these conditions,
one or more of the Cooking Zones will not heat indicated by a
ashing power level in the digital display for that affected zone.
Correct the problems before attempting to reactivate the cooktop.
USE THE CORRECT COOKWARE SIZE
The Cooking Zones available on the Induction Cooktop require
a MINIMUM pan size to be used at each location.
COOKTOP NOISE
The induction elds are generated by electronics equipment,
which produce heat at a high power level. A soft-sounding cooling fan runs when the unit is running multiple cooking zones.
Slight sounds may be produced by different types of cookware.
Some of the possible causes include:
• Clicking noise may be heard at low power settings. This is
due to the magnetic elds in use, which is considered normal
operation.
• The operational noises may be different with various cookware used on the cooktop.
• Heavier pans such as enameled cast iron produce less
noise than a lighter weight stainless steel pan; Light weight
cookware may also vibrate. Heavy weight quality cookware
is recommended.
• Cookware with irregular or warped bottoms can vibrate
audibly on the ceramic glass surface, though again typically
only at high power settings.
• A “cracking” noise may be heard if the cookware base is
made of layer of different material.
• A low “humming” noise occurs when cooking, which is
normal particularly at high power settings.
• Whistling can occur if both cooking zones are being used
at the same time at the high settings, and the cookware has
bases made of layer of different material.
• Loose-tting handles on cookware, typically when riveted
on, can vibrate slightly.
• High quality cookware of solid cast iron including enamelware will lower the noise.
8E
COOKTOP FEATURES
MODELS
This manual covers different models. The cooktop you have purchased may have some or all of the features listed.
SDH3042DB
(30" Model)
1
3 13
INDUCTION
2 4
COOLINGZONE
SDH3652DB
(36" Model)
1
INDUCTION
5 3
2 4
INDUCTION
INDUCTION
6 7 911 12 10
1 Left Rear cooking zone
2 Left Front cooking zone
3 Right Rear cooking zone
4 Right Front cooking zone
5 Center cooking zone
6 Left Rear cooking zone control area
7 Left Front cooking zone control area
6 87 912 1011
8 Center cooking zone control area
9 Right Front cooking zone control area
10 Right Rear cooking zone control area
11 Timer
12 Power
13 Cooling Zone
E9
COOKTOP FEATURES
CONTROL PANEL
Main Power
Power Control
6
5
10
2
1
11
4
1 Main Power On/Off
2 Main Power indicator light
3 Control Lock
4 Control Lock indicator light
5 Stop/Go
3
6 Stop/Go indicator light
7 Power Boost
8 Increase power
9 Decrease power
10 Heat level and Residual heat display
11 Power on/off
Timer
14
9
15
8
12 13
7
12 Minute timer button
16
13 Increase minute timer setting
14 Decrease minute timer setting
15 Minute timer display
16 Cooking zone indicator lights
10E
COOKTOP FEATURES
SPECIFICATION
SDH3042DB (30 INCH) SDH3652DB (36 INCH)
Product dimension (w x d x h) inch 30" x 21" x 2-5/32" 36" x 21" x 2-5/32"
Cut-out dimension (w x d) inch
Voltage (volts) / Amps 240V / 40A 240V / 50A
Frequency ( Hz) 60 60
Total power (Watts) 74 0 0 9600
Cooking Zones 4 5
Left Rear / Boost 1800W / 2600W 7.2" dia. 1800W / 2400W 7.2" dia.
Left Front / Boost 2200W / 3200W 9.2" dia. 1800W / 2400W 7.2" dia.
Right Rear / Boost 2400W / 3700W 10.2" dia. 1800W / 2600W 7.2" dia.
Right Front / Boost 1600W / 2000W 6.2" dia. 2200W / 3200W 9.2" dia.
Center / Boost N/A 2400W / 3700W 11.2" dia.
Simmer Enhancer Enabled Left Front & Right Rear Right Front & Center
Min.: 28-3/4" x 19-21/32"
Max.: 29-5/16" x 20-1/16"
Min.: 34-7/16" x 19-21/32"
Max.: 35-1/32" x 20-1/16"
HEAT SETTING DISPLAY
DIS P L AY DESCRIPTION
-
L
1-9
P
H
E
E0-E9
0
No power level for the zone
Keep Warm function
The power level
The power boost
A cooking zone is still hot to touch (residual heat)
Electronics fault error message of specic cooking zone
Error code
STOP/GO
E11
USING THE COOKTOP
CONTROL LOCK
• Control Lock is activated when the cooktop is off. Control
Lock prevents activation of any sensor key, except for the
Lock key pad, so you must deactivate the control lock rstly,
then touch the main POWER key pad to turn on the cooktop.
• Control Lock is activated during the cooktop use. Control
Lock prevents activation of any sensor key, except for the
ON/OFF, Power and Lock key pad.
TO LOCK
Touch and hold Lock key pad for 3 seconds, a “beep” will sound
and the indicator light above the Lock key pad will be lit up.
TO UNLOCK
Touch and hold Lock key pad for 3 seconds, a “beep” will
sound, the indicator light will turn OFF. The cooktop is in
Standby mode.
IM P O RTANT
Touch and hold for 3 seconds
TO TURN ON THE COOKTOP
While in Standby mode, touch the main
POWER key pad, a “beep” will sound and
the indicator light above the Power key pad
will be lit up, indicating that the induction
cooktop functions are ready to use. The unit
will automatically return to Standby mode
if no ON/OFF keys are touched within 30
seconds.
OPERATING THE COOKING ZONES
To turn on one or more cooking zones, place a compatible pot
or pan on the desired cooking zone. With the cooktop being ON
as mentioned above, touch the ON/OFF key pad of the desired
cooking zone, the Power display will show a “-”, indicating no
power level for the cooking zone has been set yet, then press
either the “+” key, “-” key or “
cooking level. The selected cooking zone will automatically turn
off if no power selection key is not pressed within 30 seconds.
Touch the Decrease power key (-) to
start at low level, the power display
will show 1.
Touch the Increase power key (+) to
start at high level, the power display
will show 9.
Touch the Power Boost key ( ) it will
show on the display as a “P”, boosting
the heating power to the highest level
for 10 minutes.
” (Power Boost) key to select a
1
9
P
POWER CONTROL
Touch Decrease power key (-) or Increase power key (+) to adjust
the desired power level.
NOTE: During cooking, the unit is equipped with safeguards
against parching. Heating will appear intermittent phenomenon
when cooking zone is used for frying, stir-frying, grilling and
other high temperature cooking formats.
AUTOMATIC POWER LEVEL CONTROL
The power level displayed may be different from the actual
power level at the power sharing and high temperature range.
To prevent the cooktop from overheating, the power level is
controlled automatically.
POWER BOOST
The Power Boost function is used to cook at maximum power
for a short period of time (maximum 10 minutes). The power is
reduced to level 9 at the end of the maximum boost time.
In the Boost status, touch “-” key or after 10 minutes the Power
Boost setting will switch off automatically, Power Boost indicator light will turn off, Power digital will switch from P to 9.
WARNING
WAT E R .
WARNING
Boost Mode or other high power settings.
Powe r Boost is on ly recommended for BOI LI NG
Do not leave a pot unattended while in Power
KEEP WARM
While in the Power level 1, touch “- ” key to enter into Keep
Warm mode, Power digital will switch from 1 to L.
SIMMER ENHANCER
Half Bridge Circuits are enabled on two cooking zones of each
model (see page 11) to provide consistent power outputs lower
than 1,000W when needed. By manipulating 400W and 600W
power outputs, this feature stabilizes power outputs below
1,000W (Power Level 4 and lower). The result is optimized
heating performance for simmer.
TO TURN OFF
1 Touch the ON/OFF key of the cooking zone being used, a
“beep” will sound and Power display will turn off, and the
corresponding cooking zone will turn off, indicating touched
cooking zone shut off.
12E
USING THE COOKTOP
2 Touch the main Power key pad to turn off the entire cooktop,
a “beep” will sound and all indicator lights will turn off,
indicating the cooktop enter into the Standby mode.
POWER SHARING
Four or ve cooking zones are divided into two separate cooking
sections, the right side and left side. In each cooking section, the
cooking zones share power of one induction inverter.
Power sharing is activated when multiple cooking zones
in the same area are turned on, and the controls adjust the
power automatically for “Power Sharing”. This power sharing is
administered by the unit's microprocessors, which will alternate
power in one area.
Power sharing tips: To maintain full setting heat for two items,
place one item on a cooking zone in one section (left side), and
the other item on a cooking zone in another section (right side).
SDH3042DB
COOLINGZONE
Any cooking timers/minutes set will stop when deactivating
"Stop and Go", the countdown will continue.
All of the buttons are inactive except for Stop/Go, Lock, ON/
OFF and POWER key.
If no keys are pressed within 10 minutes, all of the active cooking
zones are automatically switched off.
TO RESUME
Touch Stop/Go key again within 10 minutes, the indicator
light above Stop/Go button will go off, and the cooktop
continues with the settings that were set before the Stop/Go.
INDUCTION
3700W 3700W
SDH3652DB
INDUCTION
480 0W 480 0W
STOP/GO
Use the Stop/Go function to 'Pause' the cooktop for Max. 10
minutes while cooking; the unit will be automatically switched
off if Stop/Go is not pressed again within 10 minutes.
TO PAUSE
One or more cooking zones are active. Touch Stop/Go key
pad, a “beep” will sound, the indicator light above the Stop/
Go will be lit up and all opened Power digital display of the
cooktop will show ashing lights.
SET TIMER
The automatic timer settings range from 1 minute to 99 minutes.
(NOTE: There are no “seconds” and “hours” display, only
minutes.) The white dot next to the Timer Display will illuminate
indicating that the cooking zones are selected.
While cooking, touch the Minute Timer key pad until time light
of the desired cooking zone is ON. Minute Timer display reads
“00” and blinks. Touch “+” or “- ” key to set the desired time.
Once the Timer is set and no “+” or “- ” key are pressed for 5
seconds, the Minute Timer begins the countdown and the timer
display will stop blinking and will stay on in the display. Once
the Minute Timer reaches “00”, a “beep” will sound, indicating
that the time is nished, and the selected cooking zone will
automatically shut off.
If you want to set another cooking zone to switch-off automatically, touch Minute Timer key until the desired time symbol
indicator blinks, and repeat the same steps above.
If you want to check the remaining time for another cooking
zone, touch the Minute Timer until the Minute Timer symbol
indicator for the desired cooking zone blinks.
If more than one Timer is programmed, the shortest time remaining will appear in the Minute Timer display and the indicator
for that particular cooking zone will be blinking.
E13
USING THE COOKTOP
TO CANCEL TIMER
Touch the Minute Timer until the Minute
Timer symbol indicator for the desired
cooking zone blinks, then touch the “+”
or “- ” to set the timer to 00. The Minute
Timer display will blink for 5 seconds and
then turn off, indicating that the timer of
selected cooking zone has been cancelled.
RESIDUAL HEAT INDICATOR
After using any of the cooking zone, the cooking area will
remain hot. Even after turning off the entire unit, the surface of
the cooktop will remain hot for some time. The digital display
COMPATIBLE COOKWARE
PROPER COOKWARE
Flat-bottomed pots or pans with or made from the following:
• Magnetic stainless steel
• Cast iron
• Enameled iron
• Nickel
IMPROPER COOKWARE
Pots or pans with or made of the following CANNOT be used
on your cooktop:
• Non-magnetic stainless steel
• Bottom measuring less than
• 12 cm(4.7 inches)
• Pot with stands
• Heat resistant glass
• Ceramic container
• Copper
• Aluminum
• Check that the bases of your pans are attracted by a magnet
to nd out if they are suitable.
for the cooking zone will show an “H” to warn the user that the
surface is hot to touch (Hot surface indicator) after the cooking
zone switch off. You may turn the cooking zone back on even if
the “H” is displayed. Wait until the “H” is no longer displayed
to clean the unit.
WARNING
is off after cooking, some residual heat may
still remain on the surface of the cooktop.
Even when an "H" indicator
AUTO TURN OFF
After 2 hours of continuous operation, the cooking zone will
automatically turn off.
Optimally the cookware will have this induction
compatibility symbol on the retail box.
Check that the bases of your pans are
attracted by a magnet to nd out if they are
suitable.
NOTE: Some cookware can produce noises when used on
induction cooking zones. This is not a fault in the cooktop, and
its function will not be impaired in any way as a result.
14E
CLEANING YOUR COOKTOP
After each use, be sure the controls are turned to OFF and let
your cooktop COOL down completely, and then start cleaning
your cooktop. When it is cool to the touch, apply approximately
1 teaspoon (5 ml) of non-abrasive cleaner to the surface of the
ceramic glass with a lightly damp cloth. Use a second cloth to
remove any remaining cleaner residue. Wipe dry with a dry cloth.
DO NOT USE THE FOLLOWING TO
CLEAN YOUR UNIT
• Glass cleaners which contain ammonia or chlorine bleach
as these materials may stain the cooktop
• Caustic cleaners that may etch the surface
• Abrasive cleaners
• Metal scouring pads and scrub sponges
• Powdery cleaners containing chorine bleach
• Flammable cleaners such as lighter uid or WD-40
NOTE: Sugary products can damage the ceramic glass surface.
If dry sugar, sugar syrup, tomato products, or milk spills on the
surface DURING heating, clean the glass surface immediately.
METAL MARKS AND SCRATCHES
1 Be careful not to slide pots and pans across your cooktop.
It will leave metal markings on the cooktop surface. These
marks are removable using a ceramic glass cleaner with
cleaning pad for ceramic glass.
2 If pots with a thin overlay of aluminum or copper are allowed
to boil dry, the overlay may leave black discoloration on the
cooktop. This should be removed immediately before heating
again or the discoloration may be permanent.
NOTE: If the ceramic glass top of the cooktop is broken, turn
off the unit and the circuit breaker. The cooktop glass will have
to be replaced.
E15
TROUBLESHOOTING GUIDE
If you encounter the following problems while using your cooktop, check the guide below to see if you can correct the problem yourself
before calling for assistance or service:
PROBLEM POSSIBLE CAUSE SOLUTIONS
1. Power boost does not work Total power of the cooking section in
use has reached maximum rated power
of 3700W (SDH3042DB) or 4800W
(SDH3652DB).
2. The fans keep running for one
minute after the cooking zone has been
switched off
3. “E”appears in the Power display Electronics fault error message of
4. “E0”appears in the Timer display IGBT overheating Turn off unit to allow IGBT to cool.
5. “E1” appears in the Timer display No cookware found or improper place-
6. “E2” appears in the Timer display Supplied voltage to cooktop is too low This may be caused by reduced voltage
7. “E3” appears in the Timer display Supplied voltage to cooktop is too high This may be caused by increased voltage
The electronics are cooling down This is a normal occurrence
particular cooking zone
ment of cookware on the cooking zone
Place one item on a cooking zone in one
section, and the other item on a cooking
zone in another section. (See POWER
SHARING)
See E0, E1, E2, E3, E7, E8, E9, EE
Restart unit
Make sure that the cookware is
centered on the cooking zone, and that
it is also induction compatible. See
COMPATIBLE COOKWARE
being supplied to the house circuit. If
connections are correct and the supplied
voltage returns to normal, the code will
disappear
being supplied to the house circuit. If the
connections are correct and the supplied
voltage returns to normal, the code will
disappear
8. “E7” appears in the Timer display NTC1 Break off Turn the cooktop “OFF”, then turn
9. “E8” appears in the Timer display NTC1 Short circuit
10. “E9” appears in the Timer display NTC2 Break off
11. “EE” appears in the Timer display NTC2 Short circuit
12. Noise Noise like humming, crackling, clicking
and buzzing
SHARP ELECTRONICS CORPORATION • 100 Paragon Drive • Montvale, New Jersey 07645 • USA
SHARP ELECTRONICS OF CANADA LTD • 335 Britannia Road East • Mississauga, Ontario • L4Z 1W9 • Canada
circuit breaker “OFF” for about 30
seconds. Turn circuit breaker “ON”
and turn the cooktop “ON” using the
POW E R pa d.
This is a normal occurrence, see Operational Cooktop Noises
