SHARP SD2275 Electronics Parts Guide 005
SD2275

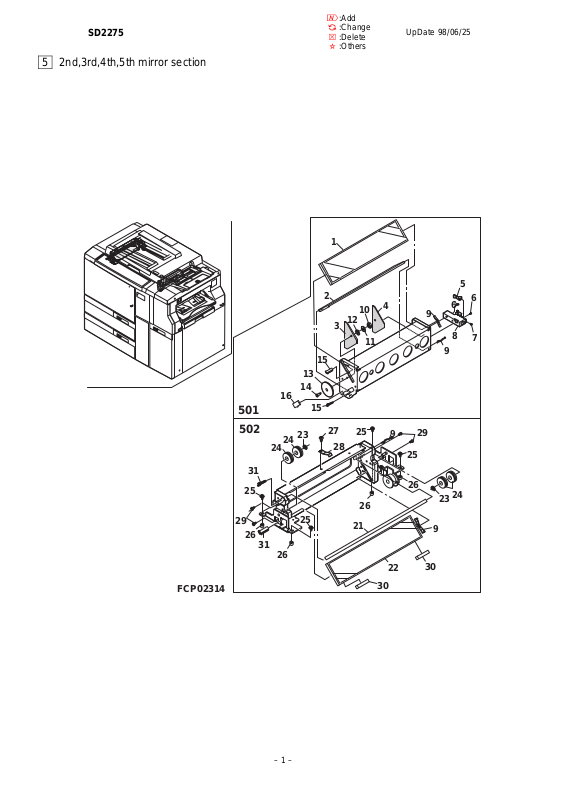

5 2nd,3rd,4th,5th mirror section
501
16
13
14
15
15
1
2
:Add
:Change
:Delete
:Others
12
3
10
11
UpDate 98/06/25
4
5
6
6
9
8
7
9
FCP02314
502
29
25
26
31
31
24
26
24
23
25
27
28
25
21
26
30
9
22
25
26
29
30
24
23
9
– 1 –
UpDate 98/06/25
5 2nd,3rd,4th,5th mirror section
COMPAT
NO. PARTS CODE
PMIR-0143FCZZ
1
PMIR-0144FCZ1
2
PSHEP3302FCZZ
3
PSHEP3303FCZZ
4
MSPRT0842FCZZ
5
XBPSD40P06000
6
XCPSD30P08000
7
LHLDZ0831FCZZ
8
LFIX-0254FCZZ
9
XNESD40-32000
10
XWHSD40-08000
11
LX-WZ0050FCZZ
12
PCLR-0309FCZZ
13
LX-BZ0397FCZZ
14
LFIX-0301FCZZ
15
PCUSF0279FCZZ
16
PMIR-0141FCZZ
21
PMIR-0142FCZZ
22
XRESP70-08000
23
NPLYZ0167FCZZ
24
LX-BZ0339FCZZ
25
CSLI-0057FC32
26
XBPSD40P06000
27
LPLTM4318FCZZ
28
LX-BZ0355FCZZ
29
PCUSG0326FCZZ
30
LFIX-0284FCZZ
31
501
502
CPLTM4321FC31
CPLTM4316FC31
PRICE
IBLE
RANK
AZ B 4th mirror
AX B 5th mirror
AC C 4th,5th mirror shield sheet F
AC C 4th,5th mirror shield sheet R
AC C Cassette guide spring
AA C Screw
AA C Screw
AF C 4th,5th mirror holder
AC C 4th mirror fixing plate F
AA C Nut
AA C Washer
AA C Washer
AC C Collar
AA C Screw
AB C Mirror fixing plate F
AB C 4th,5th mirror fixing cushion
AZ B 2nd mirror
BA B 3rd mirror
AA C E type ring
AF C Pulley
AA C Screw
AF E Slider unit
AA C Screw
AC C 2nd mirror control plate
AB C Screw
AB C 3rd mirror cushion
AC C 6th mirror fixing plate F
BK E 4th,5th mirror fixing plate unit
BM E 2nd,3rd mirror fixing plate unit
NEW
MARK
PART
RANK
×6)
(4
×8)
(3
φ5)
(
×6)
(4
(4
×6)
SD2275
DESCRIPTION TR NO. VALID
(7mm)
(4pcs/set)
