SERVICE MANUAL

S24M231R408JE

MICROWAVE OVENS

R-408JK R-408JW

MODELS

R-408JK R-408JW

R-408JW

In the interest of user-safety the oven should be restored to its original condition and only parts identical to those specified should be used.

WARNING TO SERVICE PERSONNEL: Microwave ovens contain circuitry capable of producing very high voltage and current, contact with following parts may result in a severe, possibly fatal, electrical shock. (High Voltage Capacitor, High Voltage Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..)

TABLE OF CONTENTS

Page PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO

AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY .................. INSIDE FRONT COVER

BEFORE SERVICING ..................................................................................................... INSIDE FRONT COVER

WARNING TO SERVICE PERSONNEL .............................................................................................................. 1

MICROWAVE MEASUREMENT PROCEDURE .................................................................................................. 2

FOREWORD AND WARNING ............................................................................................................................. 3

PRODUCT SPECIFICATIONS ............................................................................................................................. 4

GENERAL INFORMATION ................................................................................................................................. 4

OPERATION ........................................................................................................................................................ 6

TROUBLESHOOTING GUIDE ............................................................................................................................. 9

TEST PROCEDURE ...........................................................................................................................................10

TOUCH CONTROL PANEL ................................................................................................................................18

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE ..................................................................23

PICTORIAL DIAGRAM ........................................................................................................................................30

CPU UNIT CIRCUIT ............................................................................................................................................. 31

PRINTED WIRING BOARD ................................................................................................................................. 32

PARTS LIST ........................................................................................................................................................ 33

PACKING AND ACCESSORIES ......................................................................................................................... 37

SHARP ELECTRONCS CORPORATION

Service Headquarters: Sharp Plaza, Mahwah, New Jersey, 07430-2135

This document has been published to be used for after sales service only. The contents are subject to change without notice.

R-408JK R-408JW

PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not operate or allow the oven to be operated with the door open. (b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other

microwave source, and make repairs as necessary: (1) interlock operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse.

compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connections.

(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation

and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.

(e) A microwave leakage check to verify compliance with the Federal Performance Standard should be

performed on each oven prior to release to the owner.

BEFORE SERVICING

Before servicing an operative unit, perform a microwave emission check as per the Microwave Measurement Procedure outlined in this service manual. If microwave emissions level is in excess of the specified limit, contact SHARP ELECTRONICS CORPORATION immediately @1-800-237-4277.

If the unit operates with the door open, service person should 1) tell the user not to operate the oven and 2) contact SHARP ELECTRONICS CORPORATION and Food and Drug Administration's Center for Devices and Radiological Health immediately.

Service personnel should inform SHARP ELECTRONICS CORPORATION of any certified unit found with emissions in excess of 4mW/cm2. The owner of the unit should be instructed not to use the unit until the oven has been brought into compliance.

WARNING TO SERVICE PERSONNEL

Microwave ovens contain circuitry capable of producing very high voltage and current, contact with following parts fatal, electrical shock.

(Example) High Voltage Capacitor, High Voltage Power Trans-

former, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..

Read the Service Manual carefully and follow all instructions.

may result in a severe, possibly

Don't Touch ! Danger High Voltage

R-408JK R-408JW

Before Servicing

1. Disconnect the power supply cord , and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

WARNING:RISK OF ELECTRIC SHOCK.

DISCHARGE THE HIGH-VOLTAGE CAPACITOR BEFORE SERVICING.

The high-voltage capacitor remains charged about 60 seconds after the oven has been switched off. Wait for 60 seconds and then short-circuit the connection of the highvoltage capacitor (that is the connecting lead of the highvoltage rectifier) against the chassis with the use of an insulated screwdriver.

Whenever troubleshooting is performed the power supply must be disconnected. It may, in some cases, be necessary to connect the power supply after the outer case has been removed, in this event:

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the leads to the primary of the power transformer.

5. Ensure that the leads remain isolated from other components and oven chassis by using insulation tape.

6. After that procedure, reconnect the power supply cord.

When the testing is completed,

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Reconnect the leads to the primary of the power transformer.

5. Reinstall the outer case (cabinet).

6. Reconnect the power supply cord after the outer case is installed.

7. Run the oven and check all functions.

After repairing

1. Reconnect all leads removed from components during testing.

2. Reinstall the outer case (cabinet).

3. Reconnect the power supply cord after the outer case is installed.

4. Run the oven and check all functions.

Microwave ovens should not be operated empty. To test for the presence of microwave energy within a cavity, place a cup of cold water on the oven turntable, close the door and set the power to HIGH and set the microwave timer for two (2) minutes. When the two minutes has elapsed (timer at zero) carefully check that the water is now hot. If the water remains cold carry out Before Servicing procedure and re- examine the connections to the component being tested.

When all service work is completed and the oven is fully assembled, the microwave power output should be checked and a microwave leakage test should be carried out.

R-408JK R-408JW

MICROWAVE MEASUREMENT PROCEDURE

A. Requirements:

1) Microwave leakage limit (Power density limit): The power density of microwave radiation emitted by a microwave oven should not exceed 1mW/cm2 at any point 5cm or more from the external surface of the oven, measured prior to acquisition by a purchaser, and thereafter (through the useful life of the oven), 5 mW/cm2 at any point 5cm or more from the external surface of the oven.

2) Safety interlock switches: Primary interlock relay switch shall prevent microwave radiation emission in excess of the requirement as above mentioned. Secondary interlock relay and door sensing switch shall prevent microwave radiation emission in excess of 5 mW/cm2 at any point 5cm or more from the external surface of the oven.

B. Preparation for testing: Before beginning the actual measurement of leakage, proceed as follows:

1) Make sure that the actual instrument is operating normally as specified in its instruction booklet.

Important: Survey instruments that comply with the requirement for instrumentation as prescribed by the performance standard for microwave ovens, 21 CFR 1030.10(c)(3)(i), must be used for testing.

2) Place the oven tray in the oven cavity.

3) Place the load of 275±15 ml (9.8 oz) of tap water initially at 20±5

C (68OF) in the center of the oven cavity. The water container shall be a low form of 600 ml (20 oz) beaker with an inside diameter of approx. 8.5 cm (3-1/2 in.) and made of an electrically nonconductive material such as glass or plastic. The placing of this standard load in the oven is important not only to protect the oven, but also to insure that any leakage is measured accurately.

4) Set the cooking control on Full Power Cooking Mode.

5) Close the door and select a cook cycle of several minutes. If the water begins to boil before the survey is completed, replace it with 275 ml of cool water.

C. Leakage test:

Closed-door leakage test (microwave measurement):

1) Grasp the probe of the survey instrument and hold it perpendicular to the gap between the door and the body of the oven.

2) Move the probe slowly, not faster than 1 in./sec. (2.5 cm/sec.) along the gap, watching for the maximum indication on the meter.

3) Check for leakage at the door screen, sheet metal seams and other accessible positions where the continuity of the metal has been breached (eg., around the switches, indicator, and vents). While testing for leakage around the door, pull the door away from the front of the oven as far as is permitted by the closed latch assembly.

4) Measure carefully at the point of highest leakage and make sure that the highest leakage is no greater than 4mW/cm2, and that the primary interlock switch/secondary interlock relay does turn the oven OFF before any door movement.

NOTE: After servicing, record data on service invoice and microwave leakage report.

SERVICE MANUAL

R-408JK R-408JW

MICROWAVE OVEN

R-408JK/R-408JW

FOREWORD

This Manual has been prepared to provide Sharp Electronics Corp. Service Personnel with Operation and Service Information for the SHARP MICROWAVE OVENS R-408JK and R-408JW.

It is recommended that service personnel carefully study the entire text of this manual so that they will be qualified to render satisfactory customer service.

Check the interlock switches and the door seal carefully. Special attention should be given to avoid electrical shock and microwave radiation hazard.

WARNING

Never operate the oven until the following points are ensured: (A) The door is tightly closed. (B) The door brackets and hinges are not defective. (C) The door packing is not damaged. (D) The door is not deformed or warped. (E) There is no other visible damage with the oven.

PRODUCT DESCRIPTION

GENERAL INFORMATION

OPERATION

TROUBLESHOOTING GUIDE AND TEST PROCEDURE

TOUCH CONTROL PANEL

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE

Servicing and repair work must be carried out only by trained service personnel.

DANGER

Certain initial parts are intentionally not grounded and present a risk of electrical shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized; High Voltage Capacitor, Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness; If provided, Vent Hood, Fan assembly, Cooling Fan Motor.

All the parts marked “*” on parts list are used at voltages more than 250V.

Removal of the outer wrap gives access to voltage above 250V.

All the parts marked “∆” on parts list may cause undue microwave exposure, by themselves, or when they are damaged, loosened or removed.

WIRING DIAGRAM

PARTS LIST

SHARP ELECTRONICS CORPORATION

SHARP PLAZA, MAHWAH,

NEW JERSEY 07430-2135

R-408JK R-408JW

SPECIFICATION

ITEM DESCRIPTION

Power Requirements 120 Volts

14.3 Amperes, 1700 watts 60 Hertz Single phase, 3 wire grounded

Power Output 1200 watts (IEC TEST PROCEDURE)

Operating frequency of 2450MHz

Case Dimensions Width 21-21/32"

Height 12-3/8" Depth 18-7/16"

Cooking Cavity Dimensions Width 15-23/32"

Height 9-21/32"

1.6 Cubic Feet Depth 17-7/8"

Control Complement Touch Control System

Clock ( 1:00 - 12:59 ) Timer (0 - 99 min. 99 seconds)

Microwave Power for Variable Cooking

Repetition Rate;

P-HI .................................................. Full power throughout the cooking time

P-90 .................................................................... approx. 90% of Full Power

P-80 .................................................................... approx. 80% of Full Power

P-70 .................................................................... approx. 70% of Full Power

P-60 .................................................................... approx. 60% of Full Power

P-50 .................................................................... approx. 50% of Full Power

P-40 .................................................................... approx. 40% of Full Power

P-30 .................................................................... approx. 30% of Full Power

P-20 .................................................................... approx. 20% of Full Power

P-10 .................................................................... approx. 10% of Full Power

P-0 ...................................................... No power throughout the cooking time

START/MINUTE PLUS pad, Cook center pads, Defrost pads, Number selection pads, Power Level pad, Timer/Clock pad,Stop/Clear pad, Keep warm, Hot Water, Reheat, Popcorn, Night light and Short Cuts.

Oven Cavity Light Yes

Safety Standard UL Listed FCC Authorized

DHHS Rules, CFR, Title 21, Chapter 1, Subchapter J

GENERAL INFORMATION

GROUNDING INSTRUCTIONS

This oven is equipped with a three prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

Electrical Requirements The electrical requirements are a 120 volt 60 Hz, AC only, 15 or 20 amp. fused electrical supply. It is recommended that a separate circuit serving only this appliance be provided. When installing this appliance, observe all applicable codes and ordinances. A short power-supply cord is provided to reduce risks of becoming entangled in or tripping over a longer cord. Where a two-pronged wall-receptacle is encountered, it is the personal responsibility and obligation of the customer to contact

R-408JK R-408JW

a qualified electrician and have it replaced with a properly grounded three-pronged wall receptacle or have a grounding adapter properly grounded and polarized. If the extension cord must be used, it should be a 3-wire, 15 amp. or higher rated cord. Do not drape over a countertop or table where it can be pulled on by children or tripped over accidentally.

CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR RE-

MOVE THE ROUND GROUNDING PRONG FROM THIS PLUG.

OVEN DIAGRAM

1. One touch door open button. Push to open door.

2. Door latches. The oven will not operate unless the door is securely closed.

3. Removable turntable support.

4. Removable turntable. The turntable will rotate clockwise or counterclockwise.

5. Oven lamp. It will light when oven is operating or door is opened.

6. Oven door with see-through window.

7. Ventilation openings. (Rear)

8. Auto-Touch control panel.

9. Time display: Digital display, 99 minutes 99 seconds.

10. Wave guide cover.

11. Power supply cord

Grounded Receptacle Box

3-Pronged Plug

Grounding Pin

3-Pronged Receptacle

NOTE: The directed features are disabled after one minute when the oven is not in use. These features are automatically enabled when the door is opened and closed or the STOP/ CLEAR pad is pressed.

R-408JW

TOUCH CONTROL PANEL

R-408JK R-408JW

OPERATION

DESCRIPTION OF OPERATING SEQUENCE

The following is a description of component functions during oven operation.

OFF CONDITION

Closing the door activates the door sensing switch and primary interlock switch. (In this condition, the monitor switch contacts are opened.) When oven is plugged in, 120 volts A.C. is supplied to the control unit. (Figure O-1).

1. The display will show flashing "88:88". To set any program or set the clock, you must first touch the STOP/CLEAR pad. The display will clear, and " : " will appear.

COOKING CONDITION

Program desired cooking time by touching the NUMBER pads. Program the power level by touching the POWER LEVEL pad and then a Number pad. When the START pad is touched, the following operations occur:

1. The contacts of relays are closed and components connected to the relays are turned on as follows. (For details, refer to Figure O-2)

and is mechanically associated with the door so that it will function in the following sequence.

(1) When the door opens from the closed position, the

secondary interlock relay (RY2) and primary interlock switch open their contacts. And contacts of the relay (RY1) remains closed. Then the monitor switch contacts close.

(2) When the door is closed from the open position, the

monitor switch contacts open first. Then the contacts of the primary interlock switch and door sensing switch

close. And contacts of the relay (RY1) open. If the primary interlock switch and secondary interlock relay (RY2) fail with the contacts closed when the door is opened, the closing of the monitor switch contacts will form a short circuit through the C/T fuse, primary interlock switch, relay (RY1) and secondary interlock relay (RY2), causing the C/T fuse to blow.

POWER LEVEL P-0 TO P-90 COOKING

When Variable Cooking Power is programmed, the 120 volts A.C. is supplied to the power transformer intermittently through the contacts of relay (RY-2) which is operated by the control unit within a 32 second time base. Microwave power operation is as follows:

RELAY CONNECTED COMPONENTS

RY-1 oven lamp/turntable motor/fan motor

RY-2 power transformer

2. 120 volts A.C. is supplied to the primary winding of the power transformer and is converted to about 3.3 volts A.C. output on the filament winding, and approximately 2370 volts A.C. on the high voltage winding.

3. The filament winding voltage heats the magnetron filament and the H.V. winding voltage is sent to a voltage doubler circuit.

4. The microwave energy produced by the magnetron is channelled through the waveguide into the cavity feedbox, and then into the cavity where the food is placed to be cooked.

5. Upon completion of the cooking time, the power transformer, oven lamp, etc. are turned off, and the generation of microwave energy is stopped. The oven will revert to the OFF condition.

6. When the door is opened during a cook cycle, the monitor switch, door sensing switch, primary interlock switch, relay (RY1) and secondary interlock relay are activated with the following results. The circuits to the turntable motor, the cooling fan motor, and the high voltage components are de-energized, the oven lamp remains on, and the digital read-out displays the time still remaining in the cook cycle when the door was opened.

7. The monitor switch electrically monitors the operation of the primary interlock switch and secondary interlock relay

VARI-MODE ON TIME OFF TIME

Power 10(P-HI) 32 sec. 0 sec. (100% power)

Power 9(P-90) 30 sec. 2 sec. (approx. 90% power)

Power 8(P-80) 26 sec. 6 sec. (approx. 80% power)

Power 7(P-70) 24 sec. 8 sec. (approx. 70% power)

Power 6(P-60) 22 sec. 10 sec. (approx. 60% power)

Power 5(P-50) 18 sec. 14 sec. (approx. 50% power)

Power 4(P-40) 16 sec. 16 sec. (approx. 40% power)

Power 3(P-30) 12 sec. 20 sec. (approx. 30% power)

Power 2(P-20) 8 sec. 24 sec. (approx. 20% power)

Power 1(P-10) 6 sec. 26 sec. (approx. 10% power)

Power 0(P-0) 0 sec. 32 sec. (0% power)

Note: The ON/OFF time ratio does not correspond with the

percentage of microwave power, because approx. 2 seconds are needed for heating of the magnetron filament.

R-408JK R-408JW

SCHEMATIC

NOTE: CONDITION OF OVEN

1. Door Closed

2. CLOCK APPEARS ON DISPLAY

RED

N.O.

C/T FUSE

(RY 1)

OVE N LAMP RELAY

GRY

COM.

ORG ORG

N.O.

ORG

120VAC 60Hz

CAVITY TEMPERATURE FUS E

RED

GRN

GND

WHT

Note:* Indicates component

BRN

ORG

OVE N LAMP

WHT

COM.

WHT

GRY

(RY 2)

SECONDARY INTE RL OCK RE LAY

CONTR OL UNIT

N.O.

WHT

PRIMARY INTE RL OCK SWITCH

BRN

TTM

WHT

COM.

TURN TAB LE MOTOR

ORG

RED

ORG

WHT

DOOR SENSING SWITCH

HUMIDITY

SENSOR

FAN MOTOR

MONIT OR SWITCH

POWE R TRANSFORMER

RED

MAGN ET RON

HIGH VOLTAGE CAPACITOR

N.C.

COM.

WHT

HIGH VOLTAGE R ECT IFIE R

WHT

Figure O-1 Oven Schematic - Off Condition

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED

2. COOKING TIME PROGRAMMED

3. VARIABLE COOKING CONTROL "HIGH"

4. "START" PAD TOUCHED

RED

N.O.

C/T FUSE

(RY 1)

OVE N LAMP RELAY

GRY

COM.

ORG ORG

N.O.

ORG

WHT

BRN

WHT

GRY

ORG

OVE N LAMP

COM.

PRIMARY INTE RL OCK SWITCH

SECONDARY INTE RL OCK RE LAY

CONTR OL UNIT

120VAC 60Hz

CAVITY TEMPERATURE FUS E

RED

GRN

GND

WHT

Figure O-2 Oven Schematic - Cooking Condition

(RY 2)

N.O.

WHT

TTM

RED

COM.

DOOR SENSING SWITCH

HUMIDITY

SENSOR

ORG

BRN

TURN TAB LE MOTOR

WHT

MONIT OR SWITCH

FAN

MOTOR

WHT

RED

N.C.

COM.

WHT

RED

WHT

POWE R TRANSFORMER

HIGH VOLTAGE CAPACITOR

HIGH VOLTAGE R ECT IFIE R

MAGN ET RON

R-408JK R-408JW

DESCRIPTION AND FUNCTION OF COMPONENTS

DOOR OPEN MECHANISM

The door is opened by pushing the open button on the control panel, refer to the Figure D-1. When the open button is pushed, the open button pushes up the switch lever, and then the switch lever pushes up the latch head. The latch heads are moved upward and released from latch hook. Now the door will open.

Latch Heads

Door

Switch Lever

Door Sensing Switch

Monitor S witch

Primary Interlock Switch

Figure D-1. Door Open Mechanism

DOOR SENSING AND PRIMARY INTERLOCK SWITCHES

The primary interlock switch is mounted in the lower position of the latch hook and the door sensing switch in the secondary interlock system is mounted in the upper position of the latch hook. They are activated by the latch heads on the door. When the door is opened, the switches interrupt the power to all high voltage components. A cook cycle cannot take place until the door is firmly closed thereby activating both interlock switches. The secondary interlock system consists of the door sensing switch and secondary interlock relay located on the control circuit board.

MONITOR SWITCH

The monitor switch is activated (the contacts opened) by the latch head on the door while the door is closed. The switch is intended to render the oven inoperative, by means of blowing the C/T fuse, when the contacts of the secondary interlock relay (RY2) and primary interlock switch fail to open when the door is opened.

Functions:

1. When the door is opened, the monitor switch contact close (to the ON condition) due to their being normally closed. At this time the secondary interlock relay (RY2) and primary interlock switch are in the OFF condition (contacts open) due to their being normally open contact switches.

2. As the door goes to a closed position, the monitor switch contacts are first opened and then the door sensing switch and the primary interlock switch contacts close. (On opening the door, each of these switches operate inversely.)

3. If the door is opened, and the secondary interlock relay (RY2) and primary interlock switch contacts fail to open, the C/T fuse blows simultaneously with closing of the monitor switch contacts.

CAUTION: BEFORE REPLACING A BLOWN C/T FUSE

TEST THE DOOR SENSING SWITCH, SECONDARY INTERLOCK RELAY (RY2), RELAY (RY1), PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH FOR PROPER OPERATION. (REFER TO CHAPTER "TEST PROCEDURE").

NOTE: C/T FUSE AND MONITOR SWITCH ARE

REPLACED AS AN ASSEMBLY.

TURNTABLE MOTOR

The turntable motor rotates the turntable located on the bottom of the oven cavity, so that the foods on the turntable cook evenly during cooking. The turntable may turn in either direction.

COOLING FAN MOTOR

The cooling fan motor drives a blade which draws external cool air. This cool air is directed through the air vanes surrounding the magnetron and cools the magnetron. This air is channeled through the oven cavity to remove steam and vapors given off from the heating foods. It is then exhausted through the exhausting air vents at the oven cavity.

CAVITY TEMPERATURE FUSE

The cavity temperature fuse located on the top of the oven cavity, is designed to prevent damage to the oven by fire. If the food load is overcooked, by either error in cook time or defect in the control unit, the cavity temperature fuse will open. Under normal operation, the cavity temperature fuse remains closed. However, when abnormally high temperatures are reached within the oven cavity, the cavity temperature fuse will open at 302OF(150OC) causing the oven to shut down. NOTE: This is fuse. It does not reset.

C/T TEMPERATURE FUSE

The C/T fuse located near the magnetron is designed to prevent damage to the magnetron if an over heated condition develops in the tube due to cooling fan failure, obstructed air guide, dirty or blocked air intake, etc. Under normal operation, the C/T fuse remains closed. However, when abnormally high temperatures are reached within the magnetron, the C/T fuse will open at 302OF(150OC) causing the oven to shut down.

1. The C/T fuse blows when the contacts (COM-NO) of the secondary interlock relay (RY2) and primary interlock switch remain closed with the oven door open and when the monitor switch closes.

2. If the wire harness or electrical components are shortcircuited, this monitor fuse blows to prevent an electric shock or fire hazard.

NOTE: This is fuse. It does not reset.

TROUBLESHOOTING GUIDE

Never touch any part in the circuit with your hand or an uninsulated tool while the power supply is connected.

When troubleshooting the microwave oven, it is helpful to follow the Sequence of Operation in performing the checks. Many of the possible causes of trouble will require that a specific test be performed. These tests are given a procedure letter which will be found in the "Test Procedure "section.

IMPORTANT: If the oven becomes inoperative because of a blown C/T fuse, check the monitor switch, relay (RY1) secondary

interlock relay (RY2), door sensing switch and primary interlock switch before replacing the C/T fuse. If the C/T fuse is replaced, the monitor switch must also be replaced. Use part FFS-BA019/KIT as an assembly.

IMPORTANT: Whenever troubleshooting is performed with the power supply cord disconnected. It may in, some cases, be

necessary to connect the power supply cord after the outer case has been removed, in this event:

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the leads to the primary of the power transformer.

5. Ensure that the leads remain isolated from other components and oven chassis by using insulation tape.

6. After that procedure, reconnect the power supply cord.

When the testing is completed

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Reconnect the leads to the primary of the power transformer.

5. Reinstall the outer case (cabinet).

6. Reconnect the power supply cord after the outer case is installed.

7. Run the oven and check all functions.

R-408JK R-408JW

CK = Check / RE = Replace

CONDITION

OFF CONDITION

COOKING CONDITION

TEST PROCEDURE

AND

POSSIBLE CAUSE

DEFECTIVE PARTS

PROBLEM

Home fuse or circuit breaker blows when power cord is plugged into wall receptacle

C/T fuse blows when power cord is plugged into wall receptacle.

All letters and indicators do not appear in display when power cord is first plugged into wall outlet.

Display does not operate properly when STOP/CLEAR key is touched. (Buzzer should sound and ":" or time of day should appear in display.)

Oven lamp does not light when door is opened.

Oven lamp does not go out when door is closed.

Oven lamp lights but fan motor and turntable motor do not operate.

Oven does not go into cook cycle when START pad is touched

Oven seems to be operating but little or no heat is produced in oven load. (Food incompletely cooked or not cooked at all at end of cook cycle.)

Oven goes into a cook cycle but extremely uneven heating is produced in oven load (food).

Oven does not cook properly when programmed for Cooking Power P50 mode. (Operates properly on Cooking P-HI (HIGH) mode.)

Oven goes into COMPU DEFROST but food is not defrosted well.

RE RE

ABCD EEF FG H

SHORT IN POWER CORD

SHORT OR OPENED WIRING

MAGNETRON

POWER TRANSFORMER

H.V. RECTIFIER ASSEMBLY

RE RE CKICK CK CK

HIGH VOLTAGE CAPACITOR

CAVITY TEMPERATURE FUSE

C/T FUSE

SECONDARY INTERLOCK SYSTEM

PRIMARY INTERLOCK SWITCH

MONITOR SWITCH

C/T FUSE

OVEN LAMP OR SOCKET

COOLING FAN MOTOR

TURNTABLE MOTOR

TOUCH CONTROL PANEL

WRONG OPERATION

LOW VOLTAGE

JKLM

DIRTY OVEN CAVITY

KEY UNIT

RELAY (RY1)

COMPU DEFROST

FOIL PATTERN ON PWB.

PROCEDURE

LETTER

A MAGNETRON ASSEMBLY TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

TEST PROCEDURES

COMPONENT TEST

TEST PROCEDURES

R-408JK R-408JW

PROCEDURE

LETTER

COMPONENT TEST

4. To test for an open filament, isolate the magnetron from the high voltage circuit. A continuity check across the magnetron filament leads should indicate less than 1 ohm.

5. To test for a shorted magnetron, connect the ohmmeter leads between the magnetron filament leads and chassis ground. This test should indicate an infinite resistance. If there is little or no resistance the magnetron is grounded and must be replaced.

6. Reconnect all leads removed from components during testing.

7. Reinstall the outer case (cabinet).

8. Reconnect the power supply cord after the outer case is installed.

9. Run the oven and check all functions.

MICROWAVE OUTPUT POWER

The following test procedure should be carried out with the microwave oven in a fully assembled condition (outer case fitted).

HIGH VOLTAGES ARE PRESENT DURING THE COOK CYCLE, SO EXTREME CAUTION SHOULD BE OBSERVED.

Power output of the magnetron can be measured by performing a water temperature rise test. This test should only be used if above tests do not indicate a faulty magnetron and there is no defect in the following components or wiring: silicon rectifier, high voltage capacitor and power transformer. This test will require a 16 ounce (453cc) measuring cup and an accurate mercury thermometer or thermocouple type temperature tester. For accurate results, the following procedure must be followed carefully:

1. Fill the measuring cup with 16 oz. (453cc) of tap water and measure the temperature of the water with a thermometer or thermocouple temperature tester. Stir the thermometer or thermocouple through the water until the temperature stabilizes. Record the temperature of the water.

2. Place the cup of water in the oven. Operate oven at POWER 10(HIGH) selecting more than 60 seconds cook time. Allow the water to heat for 60 seconds, measuring with a stop watch, second hand of a watch or the digital read-out countdown.

3. Remove the cup from the oven and again measure the temperature, making sure to stir the thermometer or thermocouple through the water until the maximum temperature is recorded.

4. Subtract the cold water temperature from the hot water temperature. The normal result should be 33 to 62OF(18.6 to 34.5OC) rise in temperature. If the water temperatures are accurately measured and tested for the required time period the test results will indicate if the magnetron tube has low power output (low rise in water temperature) which would extend cooking time or high power output (high rise in water temperature) which would reduce cooking time. Because cooking time can be adjusted to compensate for power output, the magnetron tube assembly should be replaced only if the water temperature rise test indicates a power output well beyond the normal limits. The test is only accurate if the power supply line voltage is 120 volts and the oven cavity is clean.

B POWER TRANSFORMER TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the primary input terminals and measure the resistance of the transformer with an ohmmeter. Check for continuity of the coils with an ohmmeter. On the R x 1 scale, the resistance of the primary coil should be less than 1 ohm and the resistance of the high voltage coil should be approximately 90 ohms; the resistance of the filament coil should be less than 1 ohm.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

(HIGH VOLTAGES ARE PRESENT AT THE HIGH VOLTAGE TERMINAL, SO DO NOT ATTEMPT TO MEASURE THE FILAMENT AND HIGH VOLTAGE.)

R-408JK R-408JW

TEST PROCEDURES

PROCEDURE

LETTER

C HIGH VOLTAGE RECTIFIER TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Isolate the rectifier from the circuit. Using the highest ohm scale of the meter, read the resistance across the terminals and observe, reverse the leads to the rectifier terminals and observe meter reading. If a short is indicated in both directions, or if an infinite resistance is read in both directions, the rectifier is probably defective and should be replaced.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

NOTE: Be sure to use an ohmmeter that will supply a forward bias voltage of more than 6.3 volts.

D HIGH VOLTAGE CAPACITOR TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. If the capacitor is open, no high voltage will be available to the magnetron. Disconnect input leads and check for short or open between the terminals using an ohmmeter. Checking with a high ohm scale, if the high voltage capacitor is normal, the meter will indicate continuity for a short time and should indicate an open circuit once the capacitor is charged. If the above is not the case, check the capacitor with an ohmmeter to see if it is shorted between either of the terminals and case. If it is shorted, replace the capacitor.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

COMPONENT TEST

E CAVITY TEMPERATURE FUSE TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. A continuity check across the cavity temperature fuse terminals should indicate a closed circuit unless the temperature of the cavity temperature fuse reaches approximately 302OF(150OC). An open cavity temperature fuse indicates overheating of the oven, exchange the cavity temperature fuse and check inside of oven cavity and for improper setting of cooking time or operation of control unit. Check for restricted air flow through the vent holes of the oven cavity, especially the cooling fan and air guide.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

C/T FUSE TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. A continuity check across the C/T fuse terminals should indicate a closed circuit unless the temperature of the C/T fuse reaches approximately 302OF(150OC). An open C/T fuse indicates overheating of the magnetron. Check for restricted air flow to the magnetron, especially the cooling fan air guide.

CAUTION: IF THE TEMPERATURE FUSE INDICATES AN OPEN CIRCUIT AT ROOM

TEMPERATURE, REPLACE TEMPERATURE FUSE.

TEST PROCEDURES

R-408JK R-408JW

PROCEDURE

LETTER

5. If the C/T fuse is blown when the door is opened, check the secondary interlock relay, primary interlock switch and monitor switch according to the "TEST PROCEDURE" for those switches before replacing the blown monitor fuse.

CAUTION: BEFORE REPLACING A BLOWN C/T FUSE, TEST THE SECONDARY INTERLOCK

RELAY, PRIMARY INTERLOCK SWITCH, DOOR SENSING SWITCH AND MONITOR

SWITCH FOR PROPER OPERATION. If the C/T fuse is blown by improper switch operation, the C/T fuse and monitor switch must be replaced with "C/T fuse and monitor switch assembly" part number FFS-BA019/KIT, even if the monitor switch operates normally. The C/T fuse and monitor switch assembly is comprised of a 20 ampere fuse and switch.

6. Reconnect all leads removed from components during testing.

7. Reinstall the outer case (cabinet).

8. Reconnect the power supply cord after the outer case is installed.

9. Run the oven and check all functions.

F PRIMARY INTERLOCK SWITCH TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Isolate the switch and connect the ohmmeter to the common (COM.) and normally open (NO) terminal of the switch. The meter should indicate an open circuit with the door open and a closed circuit with the door closed. If improper operation is indicated, replace the primary interlock switch.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

COMPONENT TEST

SECONDARY INTERLOCK SYSTEM TEST

DOOR SENSING SWITCH

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

NOTE: If the door sensing switch contacts fail in the open position and the door is closed, the cooling fan,

turntable and oven light will be activated by RY1.

SECONDARY INTERLOCK RELAY (RY2)

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect two (2) wire leads from the male tab terminals of the Secondary Interlock Relay. Check the state of the relay contacts using a ohmmeter. The relay contacts should be open. If the relay contacts are closed, replace the circuit board entirely or the relay itself.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

R-408JK R-408JW

TEST PROCEDURES

PROCEDURE

LETTER

G MONITOR SWITCH TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Before performing this test, make sure that the primary interlock switch and the secondary interlock relay are operating properly, according to the above Switch Test Procedure. Disconnect the wire lead from the monitor switch (COM) terminal. Check the monitor switch operation by using the ohmmeter as follows. When the door is open, the meter should indicate a closed circuit. When the monitor switch actuator is pushed by a screw driver through the lower latch hole on the front plate of the oven cavity with the door opened (in this condition the plunger of the monitor switch is pushed in), the meter should indicate an open circuit. If improper operation is indicated, the switch may be defective. After testing the monitor switch, reconnect the wire lead to the monitor switch (COM) terminal and check the continuity of the monitor circuit.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

Red

COMPONENT TEST

White/ White

Screw Driver

Ohmmeter

Primary Interlock Switch

Monitor Switch

I TThe touch control panel consists of circuits including semiconductors such as LSI, ICs, etc.

Therefore, unlike conventional microwave ovens, proper maintenance cannot be performed with only a voltmeter and ohmmeter.

In this service manual, the touch control panel assembly is divided into two units, Control Unit and Key Unit, and also the Control Unit is divided into two units, LSI Unit and Power Unit, and troubleshooting by unit replacement is described according to the symptoms indicated.

Before testing,

1) Disconnect the power supply cord, and then remove outer case.

2) Open the door and block it open.

3) Discharge high voltage capacitor.

4) Disconnect the leads to the primary of the power transformer.

5) Ensure that these leads remain isolated from other components and oven chassis by using insulation tape.

1. Key Unit. NOTE ;

1) Re-install the outer case (cabinet).

2) Reconnect the power supply cord after the outer case is installed.

3) Run the oven and check all functions.

The following symptoms indicate a defective key unit. a) When touching the pads, a certain pad produces no signal at all. b) When touching a number pad, two figures or more are displayed. c) When touching the pads, sometimes a pad produces no signal.

TEST PROCEDURES

R-408JK R-408JW

PROCEDURE

LETTER

COMPONENT TEST

2. Control Unit The following symptoms indicate a defective control unit.

2-1 In connection with pads.

a) When touching the pads, a certain group of pads do not produce a signal. b) When touching the pads, no pads produce a signal.

2-2 In connection with indicators

a) At a certain digit, all or some segments do not light up. b) At a certain digit, brightness is low. c) Only one indicator does not light. d) The corresponding segments of all digits do not light up; or they continue to light up. e) Wrong figure appears. f) A certain group of indicators do not light up. g) The figure of all digits flicker.

2-3 Other possible problems caused by defective control unit.

a) Buzzer does not sound or continues to sound. b) Clock does not operate properly. c) Cooking is not possible.

3. If the Key unit or the Control unit is defective.

1) Disconnect the power supply cord, and then remove outer case.

2) Open the door and block it open.

3) Discharge high voltage capacitor.

4) Replace the Control unit assembly.

5) Reconnect all leads removed from components during testing.

6) Re-install the outer case (cabinet).

7) Reconnect the power supply cord after the outer case is installed.

8) Run the oven and check all functions.

4. When testing is completed,

1) Disconnect the power supply cord, and then remove outer case.

2) Open the door and block it open.

3) Discharge high voltage capacitor.

4) Reconnect all leads removed from components during testing.

5) Re-install the outer case (cabinet).

6) Reconnect the power supply cord after the outer case is installed.

7) Run the oven and check all functions.

J KEY UNIT TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Using an ohmmeter and referring to the key unit matrix indicated on the control unit circuit, check the

circuit between the pins of the key unit that correspond to the STOP/CLEAR pad. When the pad is pressed, the ohmmeter should indicate short circuit. When the pad is released, the ohmmeter should indicate open circuit. If incorrect readings are obtained, the key unit is faulty and must be replaced. About the other pads, the above method may be used.

5. Reconnect all leads removed from components during testing.

6. Re-install the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

R-408JK R-408JW

TEST PROCEDURES

PROCEDURE

LETTER

G8 G7 G6 G5 G4 G3 G2 G1

G10G11G12G13

MELT

SOFTEN

DEFROST

REHEAT

WARM

HOT

WATER TIMER

CLOCK

START

MINUTE PLUS

4 9

NIGHT

LIGHT

BAKED

POTATOES

FROZEN

VEGETABLES

KEEP

WARM

RICE

FROZEN

ENTREES

VEGETABLES

Key Unit

K RELAY TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the leads to the primary of the power transformer.

5. Ensure that these leads remain isolated from other components and oven chassis by using insulation tape.

6. After that procedure, re-connect the power supply cord.

7. Remove the outer case and check voltage between the normal open terminal of the relay RY1 and the normal open terminal of the relay RY2 on the control unit with an A.C. voltmeter. The meter should indicate 120 volts, if not check oven circuit. RY1 and RY2 Relay Test These relays are operated by D.C. voltage Check voltage at the relay coil with a D.C. voltmeter during the microwave cooking operation.

DC. voltage indicated ............... Defective relay.

DC. voltage not indicated ......... Check diode which is connected to the relay coil. If diode is good,

COMPONENT TEST

FRESH

GROUND

MEAT

POPCORN

POWER

LEVEL

STOP

CLEAR

control unit is defective.

Pin NO. G1

Pin NO. G13

Key unit ribbon cable

Key unit (Membrane Switch) front view

RELAY SYMBOL OPERATIONAL VOLTAGE CONNECTED COMPONENTS

RY1 Approx. 12.0V D.C. Oven lamp / Turntable motor / Cooling fan motor

RY2 Approx. 12.0V D.C. Power transformer

8. Disconnect the power supply cord, and then remove outer case.

9. Open the door and block it open.

10. Discharge high voltage capacitor.

11. Reconnect all leads removed from components during testing.

12. Re-install the outer case (cabinet).

13. Reconnect the power supply cord after the outer case is installed.

14. Run the oven and check all functions.

L COMPU DEFROST TEST

WARNING : The oven should be fully assembled before following procedure.

(1) Open the door. (2) Place one cup of water in the center of the turntable tray in the oven cavity (3) Touch the " Defrost " pad once. (4) Press "2", then press "5". (5) Touch the "START " pad. (6) The oven is in Defrost cooking condition. (7) The oven will operate as follows

MENU 1ST STAGE 2ND STAGE 3RD STAGE

STEAKS/CHOPS LEVEL TIME LEVEL TIME LEVEL TIME

0.5lb 60% 20sec. 40% 20sec. 30% 45sec.

(8) If improper operation is indicated, the control unit is probably defective and should be checked.

TEST PROCEDURES

R-408JK R-408JW

PROCEDURE

LETTER

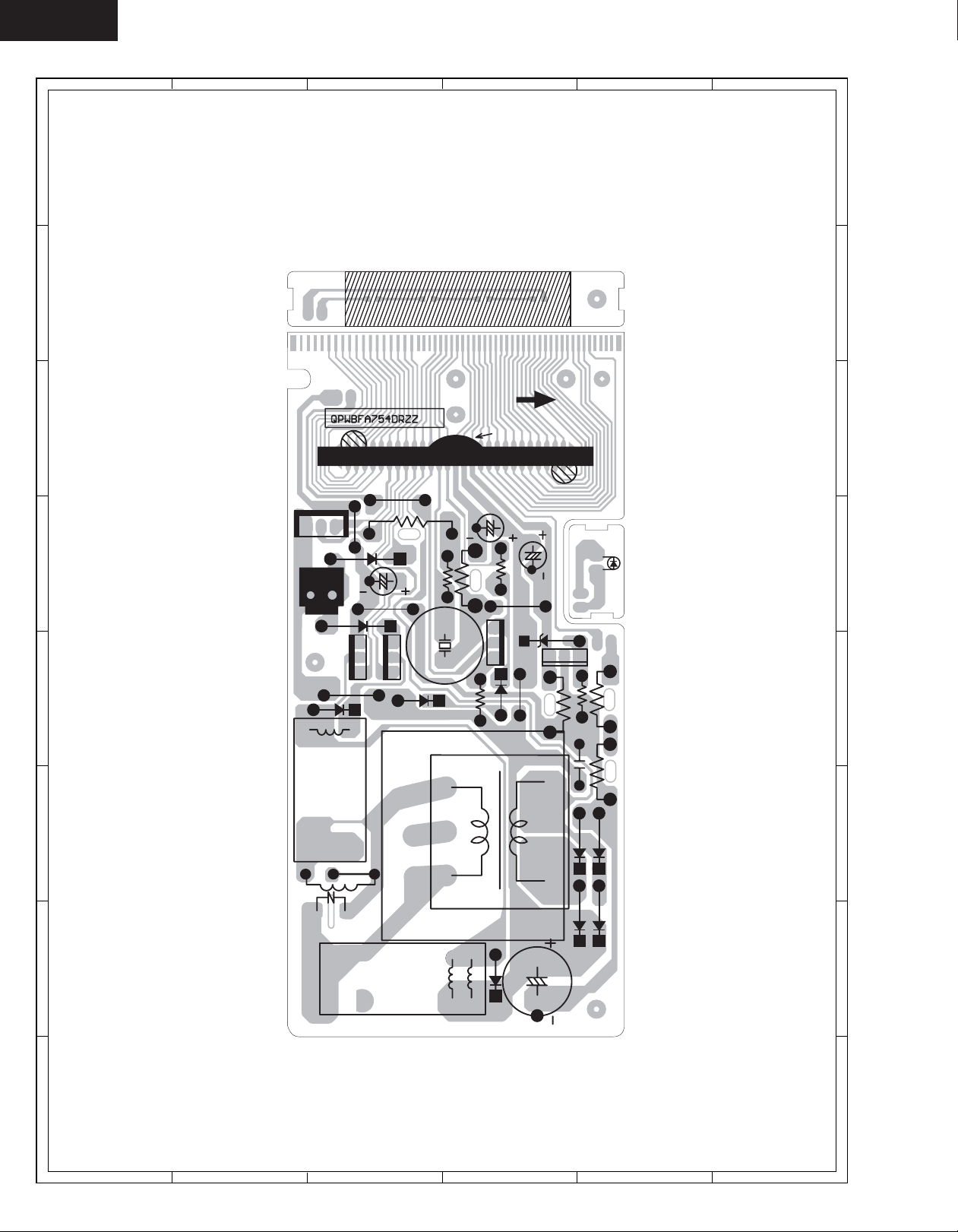

M FOIL PATTERN ON THE PRINTED WIRING BOARD TEST

COMPONENT TEST

To protect the electronic circuits, this model is provided with a fine foil pattern added to the primary on the PWB, this foil pattern acts as a fuse.

1. Foil pattern check and repairs.

1) Disconnect the power supply cord, and then remove outer case.

2) Open the door and block it open.

3) Discharge high voltage capacitor.

4) Follow the troubleshooting guide given below for repair.

STEPS OCCURRENCE CAUSE OR CORRECTION

1 Only pattern at "a" is broken. *Insert jumper wire J1 and solder.

2 Pattern at "a" and "b" are broken. *Insert the coil RCILF2003YAZZ between "c" and "d".

5) Make a visual inspection of the varistor.

RY2

Check for burned damage and examine the transformer with a tester for the presence of

layer short-circuit (check the primary coil resistance which is approximately 563ý ± 10%). If any abnormal condition is detected, replace the control unit assembly.

6) Reconnect all leads removed from components during testing.

7) Re-install the outer case (cabinet).

8) Reconnect the power supply cord after the

VRS1

outer case is installed.

9) Run the oven and check all functions.

2. Follow the troubleshooting guide given below, if indicator does not light up after above check and repairs are finished.

1) Disconnect the power supply cord, and then remove outer case.

2) Open the door and block it open.

3) Discharge high voltage capacitor.

4) Disconnect the leads to the primary of the power transformer.

5) Ensure that these leads remain isolated from other components and oven chassis by using

insulation tape.

6) After that procedure, re-connect the power supply cord.

7) Follow the troubleshooting guide given below for repair.

STEPS OCCURRENCE CAUSE OR CORRECTION

The rated AC voltage is not present between

1 the normal open terminal of the relay RY1 and Check supply voltage and oven power cord.

the normal open terminal of the relay RY2.

The rated AC voltage is present at primary side Low voltage transformer or secondary circuit defective.

of low voltage transformer. Check and replace control unit assembly.

8) Disconnect the power supply cord, and then remove outer case.

9) Open the door and block it open.

10) Discharge high voltage capacitor.

11) Reconnect all leads removed from components during testing.

12) Re-install the outer case (cabinet).

13) Reconnect the power supply cord after the outer case is installed.

14) Run the oven and check all functions.

(5) The oven will operate for the first 16 seconds, without generating microwave energy.

R-408JK R-408JW

TOUCH CONTROL PANEL ASSEMBLY

OUTLINE OF TOUCH CONTROL PANEL

The touch control section consists of the following units.

(1) Key Unit (2) Control Unit (The Control Unit consists of Power Unit and

LSI Unit).

The principal functions of these units and the signals communicated among them are explained below.

Key Unit

The key unit is composed of a matrix, signals generated in the LSI are sent to the key unit through P20-P27. When a key pad is touched, a signal is completed through the key unit and passed back to the LSI through P70, P71, P41, P45, P47 and AN3 to perform the function that was requested.

Control Unit

Control unit consists of LSI, reset circuit, indicator circuit, power source circuit, relay circuit, buzzer circuit, synchronizing signal circuit and back light circuit.

1) Reset Circuit

This circuit generates a signal which resets the LSI to the initial state when power is supplied.

2) Indicator Circuit

This circuit consists of 22 segments and 3 common electrodes using a Liquid Crystal Display.

3) Power Source Circuit

This circuit generates voltages necessary in the control unit from the AC line voltage. In addition, the synchronizing signal is available in order to compose a basic standard time in the clock circuit.

Symbol Voltage Application

VSS -5V LSI(IC1)

4) Relay Circuit

A circuit to drive the magnetron, fan motor, turntable motor and light the oven lamp.

5) Buzzer Circuit

The buzzer is responsive to signals from the LSI to emit audible sounds (key touch sound and completion sound).

6) Synchronizing Signal Circuit

The power source synchronizing signal is available in order to compose a basic standard time in the clock circuit. It accompanies a very small error because it works on commercial frequency.

7) Door Sensing Switch

A switch to “tell” the LSI if the door is open or closed.

8) Back Light Circuit

A circuit to drive the back light (Light emitting diodes LD1LD4).

9) Night Light Circuit

A circuit to drive the light emitting diode (LD10).

DESCRIPTION OF LSI

0.1 sec.

2.0 sec.

H : GND

L : -5V

H : GND

L : -5V

LSI

The I/O signal of the LSI is detailed in the following table.

Pin No. Signal I/O Description

R-408JK R-408JW

1-2

VL2-VL1

IN Power source voltage input terminal.

Standard voltage for LCD.

3-6 AN7-AN4 IN

Terminal to change cooking input according to the Model.

By using the A/D converter contained in the LSI, DC voltage in accordance with the Model in operation is applied to set up its cooking constant.

7 AN3 IN Signal coming from touch key.

When either G13 line on key matrix is touched, a corresponding signal out of P20 - P27 will be input into AN3. When no key is touched, the signal is held at “H” level.

8 AN2 IN

To input signal which communicates the door open/close information to LSI.

Door close "H" level signal (0V). Door Open "L" level (-5V).

9 AN1 IN Terminal not used.

10 AN0 IN Terminal not used.

11-13 P57-P55 OUT Terminal not used.

14 CNTR0 OUT

Signal to sound buzzer (2.0 kHz).

A: key touch sound.

B: Completion sound.

15 P53 OUT Terminal not used.

16 P52 OUT Oven lamp, fan motor and turntable motor driving signal

To turn on and off shut off relay (RY1). The

16.7 msec.

square waveform voltage is delivered to the RY1 driving circuit and RY2 control circuit.

During cooking

H : GND

L : -5V

17 P51 OUT Terminal not used.

18 P50 OUT Magnetron high-voltage circuit driving signal.

To turn on and off the cook relay (RY2). The signals holds “L” level during microwave cook-

Maximum output

ing and “H” level while not cooking. In other cooking modes (variable cooking) the signal turns to “H” level and “L” level in repetition

70% of maximum output

OFF

OFF OFF

according to the power level.

19 P47 IN Signal similar to AN3.

When either G13 line on key matrix is touched, a corresponding signal will be input into P46.

20 P46 OUT Night light circuit (Light emitting diode) driving signal.

21 P45 IN Signal similar to AN3.

When either G12 line on key matrix is touched, a corresponding signal will be input into P45.

22-23 P44-P43 OUT Terminal not used.

24 INT0 IN Signal synchronized with commercial power source frequency.

This is the basic timing for time processing of LSI.

16.7 msec.

24 sec.

8 sec.

H : GND

L : -5V

H : GND

L : -5V

H : GN

L : -5V

R-408JK R-408JW

Pin No. Signal I/O Description

25 P41 IN Signal similar to AN3.

When either G11 line on key matrix is touched, a corresponding signal will be input into P41.

26 P40 IN Connected to GND through the pull-down resistor.

27 RESET IN Auto clear terminal.

Signal is input to reset the LSI to the initial state when power is applied.

28 P71 IN Signal similar to AN3.

When either G10 line on key matrix is touched, a corresponding signal will be input into P71.

29 P70 IN Signal similar to ANI3.

When either G9 line on key matrix is touched, a corresponding signal will be input into P70.

30 XIN IN Internal clock oscillation frequency control input setting.

The internal clock frequency is set by inserting the ceramic filter oscillation circuit with respect to XOUT terminal.

31 XOUT OUT Internal clock oscillation output.

Output to control oscillation input to XIN.

32 VSS IN Power source voltage : -5.0V.

The power source voltage to the drive LSI is input to VSS terminal.

33 P27 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G8 line keys on key matrix is touched.

34 P26 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G7 line keys on key matrix is touched.

35 P25 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G6 line keys on key matrix is touched.

36 P24 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G5 line keys on key matrix is touched.

37 P23 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G4 line keys on key matrix is touched.

38 P22 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G3 line keys on key matrix is touched.

39 P21 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G2 line keys on key matrix is touched.

40 P20 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P70, P71, P41, P45, P47 and AN3 terminal while one of G1 line keys on key matrix is touched.

41 P17 OUT Back light signal. (Light emitting diodes) driving signal

42-46 P16-P12 OUT Terminal not used.

47-50

51-72

SEG25-SEG22

SEG21-SEG0

OUT Terminal not used.

OUT Segment data signal.

Pin No. Signal I/O Description

Connected to LCD.

The relation between signals are as follows:

LSI signal (Pin No.) LCD (Pin No.) LSI signal (Pin No.) LCD (Pin No.) SEG0 (72)

SEG1 (71) SEG2 (70) SEG3 (69) SEG4 (68) SEG5 (67) SEG6 (66) SEG7 (65) SEG8 (64) SEG9 (63) SEG10 (62)

................................

...............................

SEG 0 SEG11 (61) SEG 1 SEG12 (60) SEG 2 SEG13 (59) SEG 3 SEG14 (58) SEG 4 SEG15 (57) SEG 5 SEG16 (56) SEG 6 SEG17 (55) SEG 7 SEG18 (54) SEG 8 SEG19 (53) SEG 9 SEG20 (52)

SEG 10 SEG21 (51)

73 VCC IN Power source voltage : GND(0V).

74 VREF IN A/D converter power source voltage : GND(0V).

The power source voltage to drive the A/D converter. Connected to GND.

75 AVSS IN A/D converter power source voltage : -5.0V.

The power source voltage to drive the A/D converter.

76 COM3 OUT Terminal not used.

77 COM2 OUT Common data signal.

Connected to LCD signal COM1.

78 COM1 OUT Common data signal.

Connected to LCD signal COM2.

79 COM0 OUT Common data signal.

Connected to LCD signal COM3.

80 VL3 IN Power source voltage input terminal.

Standard voltage for LCD. Connected to GND.

...............................

SEG 11 SEG 12 SEG 13 SEG 14 SEG 15 SEG 16 SEG 17 SEG 18 SEG 19 SEG 20 SEG 21

R-408JK R-408JW

TOUCH CONTROL PANEL SERVICING

1. Precautions for Handling Electronic Components

This unit uses CMOS LSI in the integral part of the circuits. When handling these parts, the following precautions should be strictly followed. CMOS LSI have extremely high impedance at its input and output terminals. For this reason, it is easily influenced by the surrounding high voltage power source, static electricity charge in clothes, etc. and sometimes it is not fully protected by the built-in protection circuit. In order to protect CMOS LSI.

1) When storing and transporting, thoroughly wrap them in aluminium foil. Also wrap all PW boards containing them in aluminium foil.

2) When soldering, ground the technician as shown in the figure and use grounded soldering iron and work table.

approx. 1M ohm

2. Servicing of Touch Control Panel

We describe the procedures to permit servicing of the touch control panel of the microwave oven and the precautions you must take when doing so. To perform the servicing, power to the touch control panel is available either from the power line of the oven itself or from an external power source.

(1) Servicing the touch control panel with power supply

of the oven: CAUTION: THE HIGH VOLTAGE TRANSFORMER OF THE MICROWAVE OVEN IS STILL LIVE DURING SERVICING AND PRESENTS A HAZARD.

Therefore, before checking the performance of the touch control panel,

1) Disconnect the power supply cord, and then remove

outer case.

2) Open the door and block it open.

3) Discharge high voltage capacitor.

4) Disconnect the leads to the primary of the power

transformer.

5) Ensure that these leads remain isolated from other

components and oven chassis by using insulation tape.

6) After that procedure, re-connect the power supply

cord.

After checking the performance of the touch control panel,

1) Disconnect the power supply cord.

2) Open the door and block it open.

3) Re-connect the leads to the primary of the power

transformer.

4) Re-install the outer case (cabinet).

5) Re-connect the power supply cord after the outer case

is installed.

6) Run the oven and check all functions.

A. On some models, the power supply cord between the

touch control panel and the oven itself is so short that the two can’t be separated. For those models, check and repair all the controls (sensor-related ones included) of the touch control panel while keeping it connected to the oven.

B. On some models, the power supply cord between the

touch control panel and the oven proper is long enough that they may be separated from each other. For those models, it is possible to check and repair the controls of the touch control panel while keeping it apart from the oven proper; in this case you must short both ends of the door sensing switch (on PWB) of the touch control panel with a jumper, which activates an operational state that is equivalent to the oven door being closed. As for the sensor-related controls of the touch control panel, checking them is possible if dummy resistor(s) with resistance equal to that of the controls are used.

(2) Servicing the touch control panel with power supply

from an external power source:

Disconnect the touch control panel completely from the oven proper, and short both ends of the door sensing switch (on PWB) of the touch control panel, which activates an operational state that is equivalent to the oven door being closed. Connect an external power source to the power input terminal of the touch control panel, then it is possible to check and repair the controls of the touch control panel it is also possible to check the sensor-related controls of the touch control panel by using the dummy resistor(s).

3. Servicing Tools

Tools required to service the touch control panel assembly.

1) Soldering iron: 30W (It is recommended to use a soldering iron with a grounding terminal.)

2) Oscilloscope: Single beam, frequency range: DC-10MHz type or more advanced model.

3) Others: Hand tools

4. Other Precautions

1) Before turning on the power source of the control unit, remove the aluminium foil applied for preventing static electricity.

2) Connect the connectors of the key unit to the control unit being sure that the lead wires are not twisted.

3) After aluminium foil is removed, be careful that abnormal voltage due to static electricity etc. is not applied to the input or output terminals.

4) Attach connectors, electrolytic capacitors, etc. to PWB, making sure that all connections are tight.

5) Be sure to use specified components where high precision is required.

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE

WARNING AGAINST HIGH VOLTAGE:

Microwave ovens contain circuitry capable of producing very high voltage and current. Contact with the following parts may result in severe, possibly fatal, electric shock. (Example) High Voltage Capacitor, Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..

R-408JK R-408JW

WARNING:

1. Disconnect the power supply cord.

2. Make sure that a definite” click” can be heard when the microwave oven door is unlatched. (Hold the door in a closed position with one hand, then push the door open button with the other, this causes the latch leads to rise, it is then possible to hear a “click’ as the door switches operate.)

3. Visually check the door and cavity face plate for damage (dents, cracks, signs of arcing etc.).

Carry out any remedial work that is necessary before operating the oven. Do not operate the oven if any of the following conditions exist:

To Avoid possible exposure to microwave energy, please follow the instructions below

before operating the oven.

WARNING FOR WIRING

To prevent an electric shock, take the following precautions:

1. Before wiring:

1) Disconnect the power supply cord.

2) Open the door block it open.

3) Wait 60 seconds, then discharge the high voltage capacitor.

2. Don’t let the wire leads touch to the following parts:

1) High voltage parts: Magnetron, High voltage transformer, High voltage capacitor and High voltage rectifier assembly.

2) Hot parts: Oven lamp, Magnetron, High voltage transformer and Oven cavity.

1. Door does not close firmly.

2. Door hinge, support or latch hook is damaged.

3. The door gasket or seal is damaged.

4. The door is bent or warped.

5. There are defective parts in the door interlock system.

6. There are de fective parts in the microwave generating and transmission assembly.

7. There is visible damage to the oven.

Do not operate the oven:

1. Without the RF gasket (Magnetron).

2. If the wave guide or oven cavity are not intact.

3. If the door is not closed.

4. If the outer case (cabinet) is not fitted.

3) Sharp edge:

Bottom plate, Oven cavity, Waveguide flange, Chassis support and other metallic plate.

4) Movable parts (to prevent a fault):

Fan blade, Fan motor, Switch, Switch lever, Open button.

3. Do not catch the wire leads in the outer case cabinet.

4. Insert the positive lock connector until its pin is locked and make sure that the wire leads do not come off even if the wire leads are pulled.

5. To prevent an error function, connect the wire leads correctly, referring to the Pictorial Diagram.

Please refer to ‘OVEN PARTS, CABINET PARTS, CONTROL PANEL PARTS, DOOR PARTS’, when carrying out any of the following removal procedures:

OUTER CASE REMOVAL

To remove the outer case, proceed as follows.

1. Disconnect the power supply cord.

2. Open the oven door and block it open.

3. Remove the two (2) screws from the lower portion of the rear cabinet using a T20H Torx type or GTXH20-100 screw driver.

4. Remove the remaining two (2) screws from rear.

5. Slide the entire outer case back out about 1 inch (3 cm) to free it from retaining clips on the cavity face plate.

6. Lift entire outer case from the unit.

R-408JK R-408JW

CAUTION: 1. DISCONNECT OVEN FROM POWER SUP-

PLY BEFORE REMOVING OUTER CASE.

2. DISCHARGE THE HIGH VOLTAGE CAPACITOR BEFORE TOUCHING ANY OVEN COMPONENTS OR WIRING.

NOTE: When replacing the outer case, the 2 special

Torx screws must be reinstalled in the same locations.

POWER TRANSFORMER REMOVAL

1. Disconnect the power supply cord and then remove outer case.

2. Open the oven door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect wire leads (primary and high voltage) from power transformer and the filament leads from the magnetron and capacitor terminals.

5. Remove two (2) screws holding transformer to bottom plate.

6. Remove transformer from bottom plate.

Special screw

Screw Driver (Type: TORX T20 H or GTXH20-100)

Re-install

1. Rest transformer on the bottom plate with its primary terminals toward the oven face plate.

Secure transformer with four screws to bottom plate.

3. Re-connect wire leads (primary and high voltage) to power transformer and filament leads of transformer to magnetron and high voltage capacitor. Refer to "PICTORIAL DIAGRAM" on page 30.

4. Re-install outer case and check that oven is operating properly.

HIGH VOLTAGE RECTIFIER AND HIGH VOLTAGE CAPACITOR REMOVAL

1. Disconnect the power supply cord and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the high voltage wire A from the high voltage capacitor.

5. Disconnect the high voltage wire of high voltage rectifier assembly from the magnetron.

6. Disconnect the filament lead (short one) of the power transformer from the high voltage capacitor.

MAGNETRON REMOVAL

Removal

1. Disconnect the power supply cord and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect wire leads from magnetron.

5. Remove the two (2) screws holding the chassis support to the magnetron and the oven cavity front flange.

6. Slide the magnetron duct slightly so that the two (2) screws at left hand side of the magnetron appear.

7. Carefully remove the four (4) screws holding magnetron to waveguide flange.

8. Remove the magnetron with care so that the magnetron antenna is not hit by any metal object around the antenna.

9. Now, the magnetron is free.

7. Remove one (1) screw holding capacitor holder with the high voltage rectifier to the base plate.

8. Disconnect rectifier terminal from capacitor. High voltage rectifier assembly is now free.

9. Remove capacitor holder. Capacitor is now free.

CAUTION: WHEN REPLACING HIGH VOLTAGE RECTI-

FIER AND HIGH VOLTAGE CAPACITOR, GROUND SIDE TERMINAL OF THE HIGH VOLTAGE RECTIFIER MUST BE SECURED FIRMLY WITH A GROUNDING SCREW.

Re-install

1. Re-install the magnetron to waveguide flange with care to prevent damage to the magnetron antenna.

2. Secure the magnetron with the four (4) screws.

3. Hold the chassis support to the oven cavity front plate and the magnetron with the two (2) screws.

4. Reconnect the wire leads to the magnetron. Refer to "PICTORIAL DIAGRAM" on page 30.

5. Re-install outer case and check that the oven is operating properly.

CAUTION: WHEN REPLACING MAGNETRON, BE SURE

THE R.F. GASKET IS IN PLACE AND MOUNTING SCREWS ARE TIGHTENED SECURELY

OVEN LAMP AND LAMP SOCKET REMOVAL

Disconnect the power supply cord and remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Remove the oven lamp from the oven lamp socket.

5. Pull the wire leads from the oven lamp socket by pushing the terminal hole of the oven lamp socket with the small flat type screw driver.

6. Remove the oven lamp socket from the magnetron duct by turning the socket counterclockwise.

7. Remove the oven lamp from the socket by turning the oven lamp.

8. Now, the oven lamp and the oven lamp socket are free.

POSITIVE LOCK® CONNECTOR (NO-CASE TYPE) REMOVAL

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Push the lever of positive lock® connector.

5. Pull down on the positive lock® connector.

Terminal

Oven lamp socket

Figure C-1. Oven lamp socket

R-408JK R-408JW

CAUTION: WHEN CONNECTING THE POSITIVE LOCK

CONNECTORS TO THE TERMINALS, CONNECT THE POSITIVE LOCK® SO THAT THE LEVER FACES YOU.

Figure C-2. Positive lock® connector

CONTROL PANEL ASSEMBLY REMOVAL

1. Disconnect the power supply cord and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the wire leads from panel components.

5. Remove the one (1) screw holding the control panel assembly to the oven cavity front plate.

6. Slide the control panel assembly upward and remove it.

7. Now, individual components can be removed.

NOTE: 1. Before attaching a new key unit, wipe off remaining

adhesive on the control panel frame surfaces completely with a soft cloth soaked in alcohol.

2. When attaching the key unit to the control panel frame, adjust the upper edge and right edge of the key unit to the correct position of control panel frame.

3. Place the key unit firmly to the control panel frame by rubbing with soft cloth not to scratch.

GRAPHIC SHEET AND MEMBRANE SWITCH REPLACEMENT

Removal

1. Disconnect the power supply cord and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Remove the control panel assembly, referring to chapter of CONTROL PANEL ASSEMBLY REMOVAL.

Remove the three (3) screws holding the control unit to the control panel frame. And remove the control unit by releasing from tabs.

6. Remove the rubber connector from the long slit on the control panel frame.

7. Remove the night light cover (release tabs from back side).

8. Remove the graphic sheet from the control panel frame. (*See special note)

9. Remove away the membrane switch from the control panel frame. (*See special note)

R-408JK R-408JW

Installation

1. Remove remaining adhesive on the control panel frame surfaces with a soft cloth soaked in alcohol.

2. Make sure that the LCD sheet and the liquid crystal display is installed in position.

3. Remove the backing paper from the new membrane switch and ribbon cable.

4. Insert the ribbon cable of the membrane switch into the slit of the control panel frame.

5. Adjust the upper edge and right edge of the membrane switch to the small depression on the surface of the control panel frame.

6. Attach the membrane switch to the control panel frame by rubbing with a soft cloth not to scratch.

7. Remove the backing paper from the new graphic sheet.

8. Adjust the upper edge and right edge of the graphic sheet to the large depression on the surface of the control panel frame.

9. Attach the graphic sheet to the control panel frame by rubbing with a soft cloth not to scratch.

10. Attach the ribbon cable to the control panel frame rear side.

11. Place the edge of the membrane switch’s ribbon cable on the lower portion of the liquid crystal display.

12. Insert the rubber connector into the long slit on the control panel frame.

13. Reinstall the control unit to the control panel frame with the three (3) screws.

NOTE: Do not touch the contact surface of the ribbon cable (edge) and the rubber connector with a finger directly not to be oxidized. If display digits are missing or scrambled, remove control unit and make sure that there is not any trash or foreign substance on the contact surface of the rubber connector. Use an adhesive tape to clean the contact surface of the rubber connector. (* Heat gun will soften adhesive.)

Gr aphic sheet

Control panel frame

LCD sheet

Liquid cr ystal

Rib bon cable

display

Membrane switch

Rib bon cable of membrane switch

Contact surf ace

Contact surface

Slit

Figure C-XXX Graphic Sheet and Membrane Switch Replacement

TURNTABLE MOTOR REMOVAL

Liquid cr ystal display

Long slit

Rub ber connector

Control panel fr ame (Rear side)

1. Disconnect the power supply cord.

2. Remove turntable and turntable support from oven cavity.

3. Lay the oven on it's backside. Remove the turntable motor cover by snipping off the material in four corners.

4. Where the corners have been snipped off bend corner areas flat. No sharp edges must be evident after removal of the turntable motor cover.

5. Disconnect wire leads from turntable motor. (See "Positive lock connector removal")

6. Remove one (1) screw holding turntable motor to oven cavity.

7. Now the turntable motor is free.

8. After replacement, use the one (1) screw provided with the TTM Kit, to attach the turntable motor cover.

COOLING FAN MOTOR REMOVAL

REMOVAL

1. Disconnect the power supply cord and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the wire leads from the fan motor.

5. Remove the two (2) screws holding the fan motor to the oven cavity back plate.

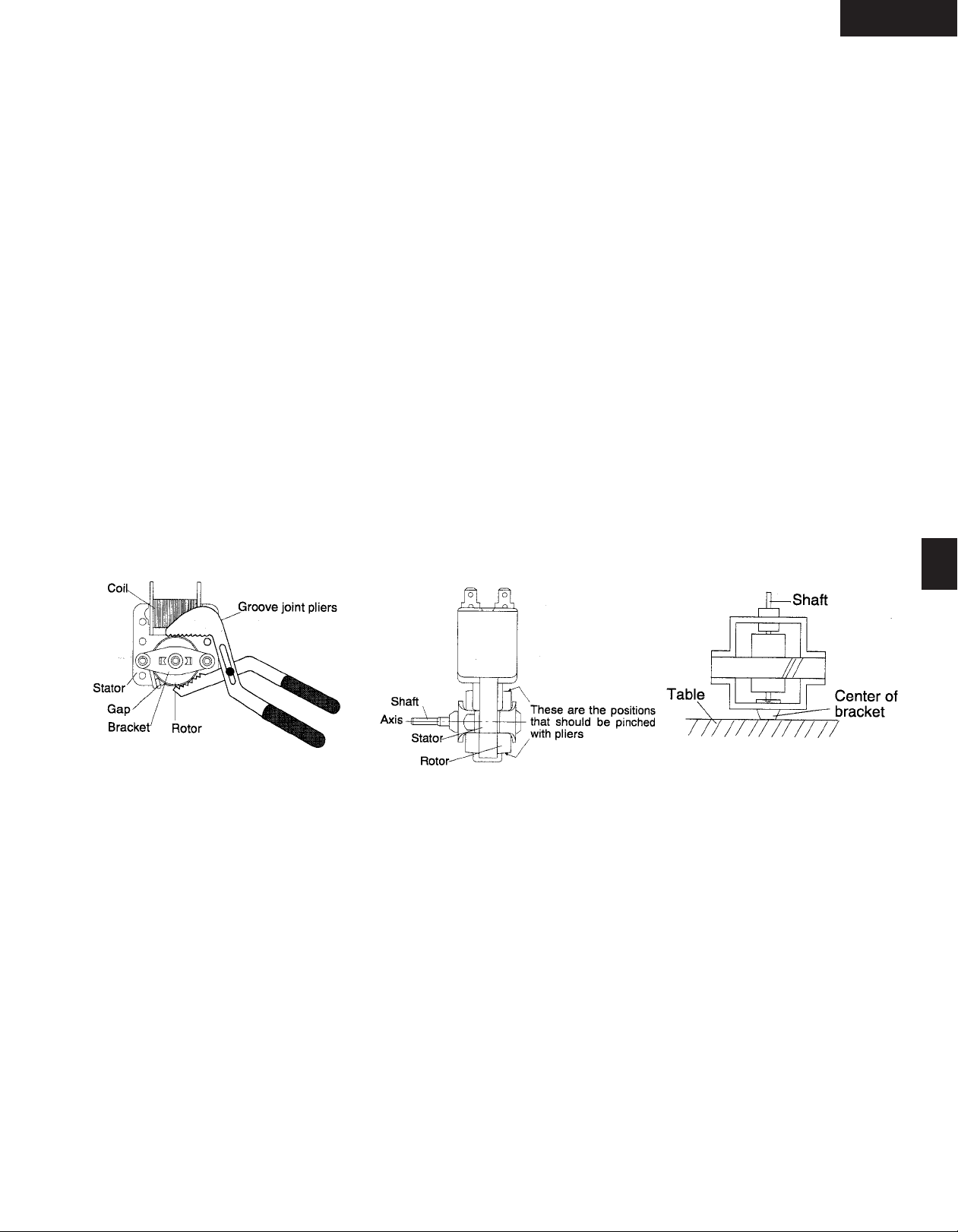

6. Remove the fan blade from the fan motor shaft according to the following procedure.

7. Hold the edge of the rotor of the fan motor by using a pair of groove joint pliers.

CAUTION: * Make sure that no metal pieces enter the gap between

the rotor and the stator of the fan motor because the rotor is easily shaven by pliers and metal pieces may be produced.

* Do not touch the pliers to the coil of the fan motor

because the coil may be cut or injured.

* Do not disfigure the bracket by touching with the

pliers.

8. Remove the fan blade from the shaft of the fan motor by pulling and rotating the fan blade with your hand.

9. Now, the fan blade and the fan motor will be free.

CAUTION: * Do not reuse the removed fan blade because the hole

(for shaft) may be larger than normal.

INSTALLATION

1. Install the fan blade to the fan motor shaft according to the following procedure.

2. Hold the center of the bracket which supports the shaft of the fan motor on the flat table.

3. Apply the screw lock tight into the hole (for shaft) of the fan blade.

4. Install the fan blade to the shaft of fan motor by pushing the fan blade with a small, light weight, ball peen hammer or rubber mallet.

CAUTION: * Do not hit the fan blade strongly when installed

because the bracket may be disfigured.

* Make sure that the fan blade rotates smooth after

installation.

* Make sure that the axis of the shaft is not slanted.

5. Install the fan motor to the oven cavity back plate with the two (2) screws.

6. Connect the wire leads to the fan motor, referring to the pictorial diagram.

R-408JK R-408JW

Rear View

Side View

DOOR SENSING SWITCH/PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH REMOVAL

Disconnect the power supply cord and remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect wire leads from the switches.

Remove two (2) screws holding latch hook to oven flange.

6. Remove latch hook assembly from oven flange.

7. Push outward on the two (2) retaining tabs holding switch in place.

8. Switch is now free. At this time switch lever will be free, do not lose it.

Re-install

1. Re-install each switch in its place. The primary interlock/ monitor switches are in the lower position and the door sensing switch is in the upper position.

2. Re-connect wire leads to each switch. Refer to pictorial diagram.

R-408JK R-408JW

3. Secure latch hook (with two (2) mounting screws) to oven flange.

4. Make sure that the monitor switch is operating properly

DOOR SENSING SWITCH/PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH ADJUSTMENT

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

If the door sensing switch, primary interlock switch and monitor switch do not operate properly due to a misadjustment, the following adjustment should be made.

4. Loosen the two (2) screws holding latch hook to the oven cavity front flange.

5. With door closed, adjust latch hook by moving it back and forth, and up and down. In and out play of the door allowed by the upper and lower position of the latch hook should be less than 0.5mm. The vertical position of the latch hook should be adjusted so that the door sensing switch and primary interlock switch are activated with the door closed. The horizontal position of the latch hook should be adjusted so that the plunger of the monitor switch is pressed with the door closed.

6. Secure the screws with washers firmly.

7. Check the operation of all switches. If each switch has not activated with the door closed, loosen screw and adjust the latch hook position.

After adjustment, check the following.

1. In and out play of door remains less than 0.5mm when in the latched position. First check upper position of latch hook, pushing and pulling upper portion of door toward the oven face. Then check lower portion of the latch

and check continuity of the monitor circuit. Refer to chapter

"Test Procedure" and Adjustment procedure.

hook, pushing and pulling upper portion of door toward the oven face. Both results (play in the door) should be less than 0.5mm.

2. The door sensing switch and primary interlock switch interrupt the circuit before the door can be opened.

3. Monitor switch contacts close when door is opened.

4. Re-install outer case and check for microwave leakage around door with an approved microwave survey meter. (Refer to Microwave Measurement Procedure.)

Latch Heads

Door

Switch Lever

Door Sensing Switch

Monitor S witch

Primary Interlock Switch

Figure C-3. Latch Switch Adjustments

DOOR REPLACEMENT

REMOVAL

1. Disconnect the power supply cord.

2. Push the open button and open the door slightly.

3. Insert a putty knife (thickness of about 0.5mm) into the gap between the choke cover and door frame as shown in Figure C-4 to free engaging parts.

4. Pry the choke cover by inserting a putty knife as shown Figure C-4.

5. Release choke cover from door panel.

6. Now choke cover is free.

7. Release two (2) pins of door panel from two (2) holes of upper and lower oven hinges by lifting up.

8. Now, door panel with door frame is free from oven cavity.

Choke Cover

Door Frame

Putty Knife

Figure C-4. Door Disassembly

9. Release the door panel from twelve (12) tabs of door frame.

10.Remove the door panel from the door frame.

11.Now, door panel with sealer film is free.

12.Tear sealer film from door panel.

13.Now, door panel is free.

14.Slide latch head upward and remove it from door frame with releasing latch spring from door frame and latch head.

15.Now, latch head and latch spring are free.

16.Remove door screen from door frame

17.Now, door frame is free.

RE-INSTALL

1. Re-install door screen to door frame.

2. Re-install the latch spring to the latch head. Re-install the latch spring to the door frame. Re-install latch head to door frame.

3. Re-install door panel to door frame by fitting twelve (12) tabs of door frame to twelve (12) holes of door panel.

4. Put sealer film on door panel. Refer to “Sealer Film” about how to handle new one.

5. Catch two (2) pins of door panel on two (2) hole of upper and lower oven hinges.

6. Re-install choke cover to door panel by pushing.

Note: After any service to the door;

(A) Make sure that door sensing switch and primary

interlock switch are operating properly. (Refer to chapter “Test Procedures”.).

(B) An approved microwave survey meter should be

used to assure compliance with proper microwave radiation emission limitation standards.

After any service, make sure of the following :

1. Door latch heads smoothly catch latch hook through latch holes and that latch head goes through center of latch hole.

2. Deviation of door alignment from horizontal line of cavity face plate is to be less than 1.0mm.

3. Door is positioned with its face pressed toward cavity face plate.

4. Check for microwave leakage around door with an approved microwave survey meter. (Refer to Microwave Measurement Procedure.)

Note: The door on a microwave oven is designed to act as

an electronic seal preventing the leakage of microwave energy from oven cavity during cook cycle. This function does not require that door be air-tight, moisture (condensation)-tight or light-tight. Therefore, occasional appearance of moisture, light or sensing of gentle warm air movement around oven door is not abnormal and do not of themselves indicate a leakage of microwave energy from oven cavity.

Note:

When carring out any repair to the door, do not bend or wrap the slit choke (tabs on the door panel assembly) to prevent microwave leakage.

SEALER FILM

Installation

1. Put the adhesive tape on the backing film of the sealer film as shown in Fig. C-6.

2. Tear the backing film by pulling the adhesive tape.

3. Put the pasted side of the sealer film on the door panel

Figure C-6. Sealer film

R-408JK R-408JW

or of

RED

E: T

ight.

kept t

The screw must always be

supply cord fixing screw.

been grounded by power

the power supply cord has

The grounding conduct

RED

CAVITY TEMP. FUSE

RED

WHT

RD 120V 60Hz

POWER SUPPLY

E: T

h wit

must

supply

erminal t

RY) wire

power

/G T H

WHT

k on the

connected to the

cord.

"N" mar

The neutral (W

WHT

KET

LAMP

SOC D

OVEN

RK MA

UE L B

E: OT

MOT AN

be t

e m r

i w G)

OR t (

o H

l ina

m ter

the to

ected

conn

oven

n the o

k ar

blue m

ht socket

g li

COMPONEN

AGE

OLT

HIGH V

AGE

VOLT

IGH H

MAGNETRON

ABL

N R U

MOT

E A

WIR

IGH H

APACITOR C

VOLTAGE

IER IF

T EC

R .V.

MER

OR SF AN

R T

POWER

ED R

BRN

PNK

N.O.

SWITCH

SENSING

cavity

ven O

GR 2

CN-B

PNK

CN-B

COM

(POWER UN

RY2

O L

RELA

N I

RY1

COM

.O. N

C. N.

ED R

USE F

WHT

OR T

SWITCH

MON

IMARY PR

K C O L

ER T

H C

SWIT

Figure S-1. Pictorial Diagram

R-408JK

R-408JW

Figure S-3. Control Unit Circuit

R-408JK R-408JW

DIP

CN-F

1 2 3

CN-B

D30

E C B

Q3 Q4

D31

E C B

R90

SP1

C10

CHIP SIDE

DZ1

E C B

WH-2

LED

WH-2

112

RY2

VRS1

D1C1D2

RY1

Figure S-5 . Printed Wiring Board of Power Unit

PARTS LIST

Note: The parts marked “

The parts marked “*” are used in voltage more than 250V. "§" MARK: PARTS DELIVERY SECTION.

REF. NO. PART NO. § DESCRIPTION Q'TY CODE

1- 1 RC-QZB018MRE0 M High voltage capacitor 1 AQ 1- 2 FH-DZB013MRY0 M High voltage rectifier assembly 1 AM 1- 3 RLMPTA087WRZZ M Oven lamp/socket 1 AE 1- 4 RMOTEA346WRE0 M Fan motor 1 AR 1- 5 FFS-BA019/KIT M 1- 6 QSW-MA085WRE0 M 1- 7 QFS-TA014WRE0 M Cavity temperature fuse 150 1- 8 RV-MZA323WRZZ M Magnetron 1 BC 1- 9 RMOTDA252/KIT M Turntable motor 1 AL

∆

1-10 RTRN-B075MRE0 M Power transformer 1 BA 1-11 FACCDB003MRE0 M Power supply cord 1 AM

2- 1 GDAI-B069MRP0 M Base plate 1 AP 2- 2 GLEGPB004MRF0 M Foot 4 AB 2- 3 GCABUB092MRP0 M Outer case cabinet [R-408JK] 1 AU 2- 3 GCABUB093MRP0 M Outer case cabinet [R-408JW] 1 AU

3- 1 CPWBFB097MRU0 M Control unit assy 1 BF 3- 2 HPNLFB010MRF0 M Control panel sub assembly [R-408JK] 1 AN 3- 2 HPNLFB011MRF0 M Control panel sub assembly [R-408JW] 1 AN 3- 3 FUNTKB404MRE0 M Key sheet assy[R-408JK] 1 AS 3- 3 FUNTKB405MRE0 M Key sheet assy[R-408JW] 1 AS 3- 4 JBTN-B173MRT0 M Open button 1 AM 3- 5 MSPRCA045WRE0 M Open button spring 1 AA 3- 6 XEPSD30P08XS0 M Screw; 3mm x 6mm 5 AB 3- 7 HDECQB051MRT0 M C/P J-Mold 1 AL 3- 8 PCOVPB112MRF0 M Night light cover 1 AD 3- 9 QCNC-A020WRZZ M Rubber connector 1 AC 3-10 HPNLCB179MRF0 M Key fixing mold 1 AL 3-11 PSHEPA900WREZ M LED sheet 1 AG 3-12 RLCDSA107DRZZ M LCD 1 AG 3-13 LANGQB060MRP0 M PWB support angle 1 AE

∆∆

∆” may cause undue microwave exposure.

∆∆

ELECTRIC PARTS

Monitor switch (V-16G-2C25), C/T fuse (20A 250V AC) & Inst. Primary interlock switch and door sensing switch (V-5230Q)

C 1AF

CABINET PARTS

CONTROL PANEL PARTS

R-408JK R-408JW

1AF 2AE

OVEN PARTS

4- 1 LBNDKB007MRP0 M H.V. Capacitor band 1 AB 4- 2 LANGTB058MRP0 M Chassis support 1 AD 4- 3 PHOK-B018MRF0 M Latch hook 1 AF 4- 4 MLEVPB016MRF0 M Switch lever 1 AD 4- 5 PDUC-B125MRF0A M Magnetron duct 1 AD 4- 6 NFANPB006MRE0 M Fan blade 1 AC 4- 7 PDUC-B088MRF0 M Fan duct 1 AC 4- 8 ------------- M Oven cavity (Not a replaceable part) 1 -4- 9 PCOVPB085MRP0 M Waveguide cover 1 AH 4-10 PPACGB014MRF0 M Turntable motor packing 1 AA 4-11 PCUSUB033MRP0 M Cushion 1 AD

DOOR PARTS

5 -1 FCOV-B160MRK0 M Door frame assembly [R-408JK] 1 AV 5 -1 FCOV-B161MRK0 M Door frame assembly [R-408JW] 1 AV 5 -2 LSTPPB021MRF0 M Latch head 1 AD 5 -3 MSPRTA046WRE0 M Latch spring 1 AD 5 -4 FDORFB074MRT0 M Door panel 1 AQ 5 -5 PSHEPB021MRE0 M Sealer film 1 AE 5- 6 GCOVHB046MRF0 M Choke cover 1 AG 5- 7 LSTPPB044MRF0 M Door stopper 1 AA 5- 8 HPNL-B112MRE0 M Door screen 1 AN 5- 9 HDECQB050MRT0 M J-mold 1 AX

R-408JK R-408JW

REF. NO. PART NO. § DESCRIPTION Q'TY CODE

MISCELLANEOUS

6- 1 FW-VZB217MRE0 M Main wire harnes 1 AT 6- 2 FROLPB025MRK0 M Turntable support 1 AN 6- 3 NTNT-A108WREZ M Turntable tray 1 AM 6- 4 TCAUAB050MRR0 M Monitor caution label 1 AA 6- 5 TCAUAB053MRR0 M DHHS/Screw caution label 1 AB 6- 6 TINSEB376MRK0 M Operation manual 1 AD 6- 7 QW-QZB016MRE0 M High voltage wire A 1 AC

SCREWS,NUTS AND WASHERS

7- 1 LX-BZA041WRE0 M Special screw 5 AA 7- 2 LX-CZ0052WRE0 M Special screw 2 AA 7- 3 XHTSD40P12RV0 M Screw : 4mm x 12mm 1 AA 7- 4 XOTSE40P12000 M Screw : 4mm x 12mm 9 AA 7- 5 XCBSD30P08000 M Screw : 3mm x 8mm 3 AA 7- 6 XHTSD40P08RV0 M Screw : 4mm x 8mm 3 AA 7- 7 LX-CZA070WRE0 M Special screw (Torx tamper proof screw) 2 AB

HOW TO ORDER REPLACEMENT PARTS

To have your order filled promptly and correctly, please furnish the following information.

1. MODEL NUMBER

2. REF. NO.

3. PART NO.

4. DESCRIPTION

Order Parts from the authorized SHARP parts Distributor for your area. Defective parts requiring return should be returned as indicated in the Service Policy.

R-408JK R-408JW

OVEN AND CABINET PARTS

7-4

7-7

2-3

4-7

7-7

7-5

1-7

6-5

1-4

4-6

1-11

7-3

7-6

4-8

7-6

1-5

4-2

7-4

4-9

6-4

1-8

7-4

7-2

6-3

4-10

1-9

6-2

7-5

2-1

1-10

7-4

7-2

4-3

7-1

4-4

1-6

1-5

7-1

1-3

4-5

4-1

1-1

1-2

7-4

2-2

7-4

2-2

7-4

4-11

2-2

R-408JK R-408JW

CONTROL PANEL PARTS

3-7

3-8

3-3

3-12

3-11

3-10

3-9

3-2

3-13

3-1

3-6

3-5

3-4

DOOR PARTS

5-7

5-4

5-8

5-9

5-6

5-5

5-2

MISCELLANEOUS

5-3

5-1

6-1

6-7

Actual wire harness may be different from illustration.

PACKING AND ACCESSORIES

DOOR PROTECTION SHEET

6-3 TURNTABLE TRAY

ON TOP

THE OVEN

TRAY HOLDER

TOP PAD ASSEMBLY

PLASTIC BAG

R-408JK R-408JW

6-6 OPERATION MANUAL

n-replaceable

6-2 TURNTABLE SUPPORT

PACKING CASE

tem

INTO THE OVEN CAVITY

BOTTOM PAD ASSEMBLY

R-408JK R-408JW

No part of this publication may be reproduced, stored in retrieval systems, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

2004 SHARP CORP. (4M2.00E) Printed in U.S.A

SHARP R408JK, R-408JW Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
