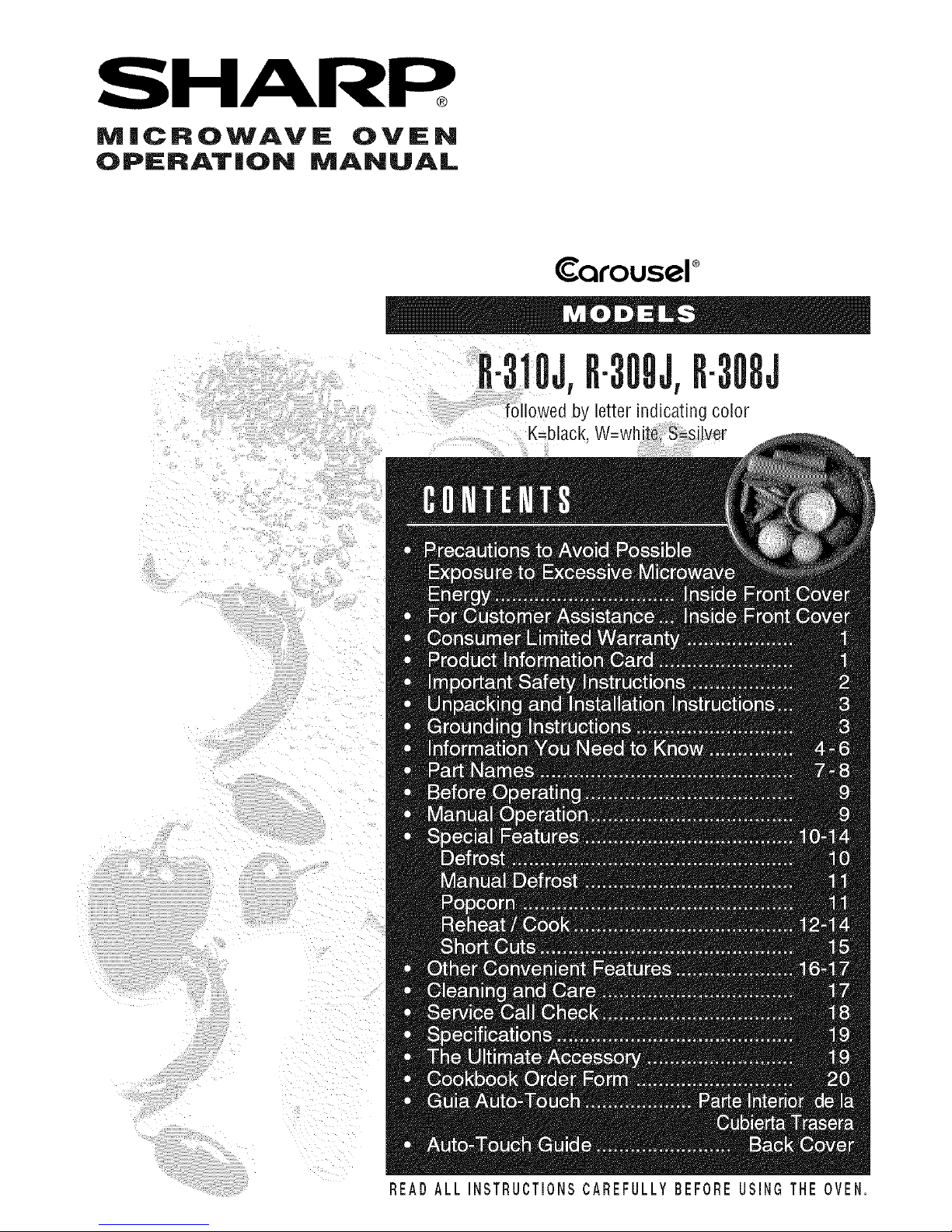

Sharp R-310J, R-309J, R-308J Operation Manual

SHARP

MICROWAVE OVEN
OPERATION MANUAL

Carousel °

lllJ, , 8J

followed by letter indBcatingcolor

K=black, W=wh te S=s Iver

READALL NSTRUCTIONSCAREFULLYBEFOREUSINGTHE OVEN.

To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial
number located on the unit. We also suggest you record all the information listed and retain for future reference.

Please provide the following information when you write or call: model number, serial number, date of
purchase, your complete mailing address (including zip code), your daytime telephone number (including

area code) and description of the problem.

MODELNUMBER SERiALNUMBER
DATEOFPURCflADE

DEALER TELEPHONE
SERVICER TELEPHOHE

TO PHONE:

DiAL 1-800= BE-SHARP ( 237-4277 ) for :

SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)

ADDiTiONAL CUSTOMER iNFORMATiON

DiAL 1-800=642-2122 for :

ACCESSORIES and SHARP CAROUSEL COOKBOOK

TO WRITE:

Sharp Electronics Corporation
Customer Assistance Center

1300 Naperville Drive
Romeoville, IL 60446-1091

TO ACCESS INTERNET: www.sharpusa.com

(a) Do not attempt to operate this oven with the door open since open-door operation can

result in harmful exposure to microwave energy, it is important not to defeat or tamper with
the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

(c) Do not operate the oven if it isdamaged, it is particularly important that the oven door close

properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

COHSUMERLIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the "Product"), when shipped in its original container, will be free from defective workmanship and

materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part
thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the

period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)

set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or

modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth

below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted

to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE

OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described

herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall

be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for
the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities

of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,
whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any

way responsible, for any damages or defects in the Product which were caused by repairs or attempted
repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way
responsible for any incidental or consequential economic or property damage. Some states do not allow the

exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

Your Product Model Number

& Description:
Warranty Period for this Product:

Additional Item(s) Excluded from
Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

R-310J, R-309J, R-308J, Home Use Carousel Microwave Oven. (Besure

to have this information available when you need service for your Product.)

One (1) year parts and labor. The warranty period continues for an
additional four (4) years, for a total of five (5) years, with respect to the

magnetron tube in the Product for parts only; labor and service are not
provided free of charge for this additional period.

Non-functional accessories, turntable and light bulb.

From a Sharp Authorized Servicer located In the United States. To find
the location of the nearest Sharp Authorized Servicer, call Sharp toll
free at 1-800-BE-SHARP (1-800-237-4277).

Ship prepaid or carry in your Product to a Sharp Authorized Servicer.

Be sure to have Proof of Purchase available. If you ship the Product,

be sure it is insured and packaged securely.

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL

1-800-BE-SHARP ORVISIT www.sharpusa.com.

Save the proof of purchase as itis needed should your oven ever require warranty service.

The product information card which is on the inside of the microwave oven carton should be completed within
ten days of purchase and returned. We will keep it on file and help you access the information in case of
loss, damage or theft. This will also enable us to contact you in the unlikely event that any adjustments or
modifications are ever required for your oven.

1

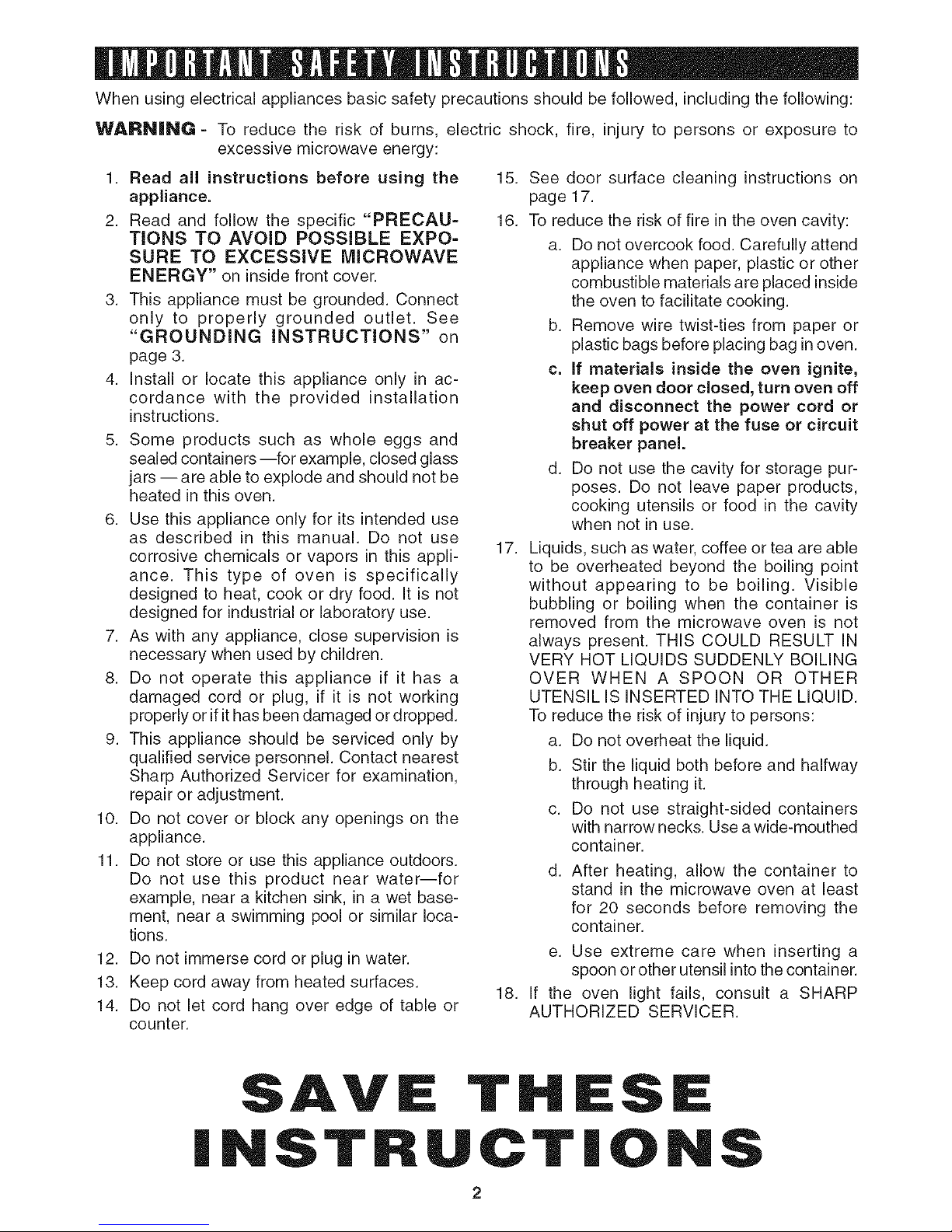

When using electrical appliances basic safety precautions should be followed, including the following:
WARNING- To reduce the risk of burns, electric shock, fire, injury to persons or exposure to

excessive microwave energy:

1. Read all instructions before using the

appliance.

2. Read and follow the specific "PRECAU=
TIONS TO AVOID POSSIBLE EXPO=

SURE TO EXCESSIVE MICROWAVE
ENERGY" on inside front cover.

3. This appliance must be grounded. Connect
only to properly grounded outlet. See

"GROUNDING iNSTRUCTiONS" on
page 3.

4. install or locate this appliance only in ac-
cordance with the provided installation

instructions.

5. Some products such as whole eggs and
sealed containers--for example, closed glass
jars --are able to explode and should not be

heated in this oven.

6. Use this appliance only for its intended use
as described in this manual. Do not use

corrosive chemicals or vapors in this appli-
ance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.

7. As with any appliance, close supervision is

necessary when used by children.

8. Do not operate this appliance if it has a
damaged cord or plug, if it is not working

properly or if it has been damaged or dropped.

9. This appliance should be serviced only by
qualified service personnel. Contact nearest

Sharp Authorized Servicer for examination,
repair or adjustment.

10. Do not cover or block any openings on the
appliance.

11. Do not store or use this appliance outdoors.
Do not use this product near water--for
example, near a kitchen sink, in a wet base-
ment, near a swimming pool or similar loca-

tions.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or
counter.

15. See door surface cleaning instructions on
page 17.

16. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend

appliance when paper, plastic or other
combustible materials are placed inside
the oven to facilitate cooking.

b. Remove wire twist-ties from paper or

plastic bags before placing bag in oven.

c. if materials inside the oven ignite,

keep oven door closed, turn oven off
and disconnect the power cord or
shut off power at the fuse or circuit

breaker panel.

d. Do not use the cavity for storage pur-

poses. Do not leave paper products,
cooking utensils or food in the cavity

when not in use.

t 7. Liquids, such as water, coffee or tea are able

to be overheated beyond the boiling point
without appearing to be boiling. Visible

bubbling or boiling when the container is
removed from the microwave oven is not

always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOiLiNG

OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED iNTO THE LIQUID.

To reduce the risk of injury to persons:

a. Do not overheat the liquid.
b. Stir the liquid both before and halfway

through heating it.

c. Do not use straight-sided containers

with narrow necks. Use a wide-mouthed
container.

d.

After heating, allow the container to
stand in the microwave oven at least

for 20 seconds before removing the
container.

e. Use extreme care when inserting a

spoon or other utensil into the container.

18. If the oven light fails, consult a SHARP
AUTHORIZED SERVICER.

S

'T

'T

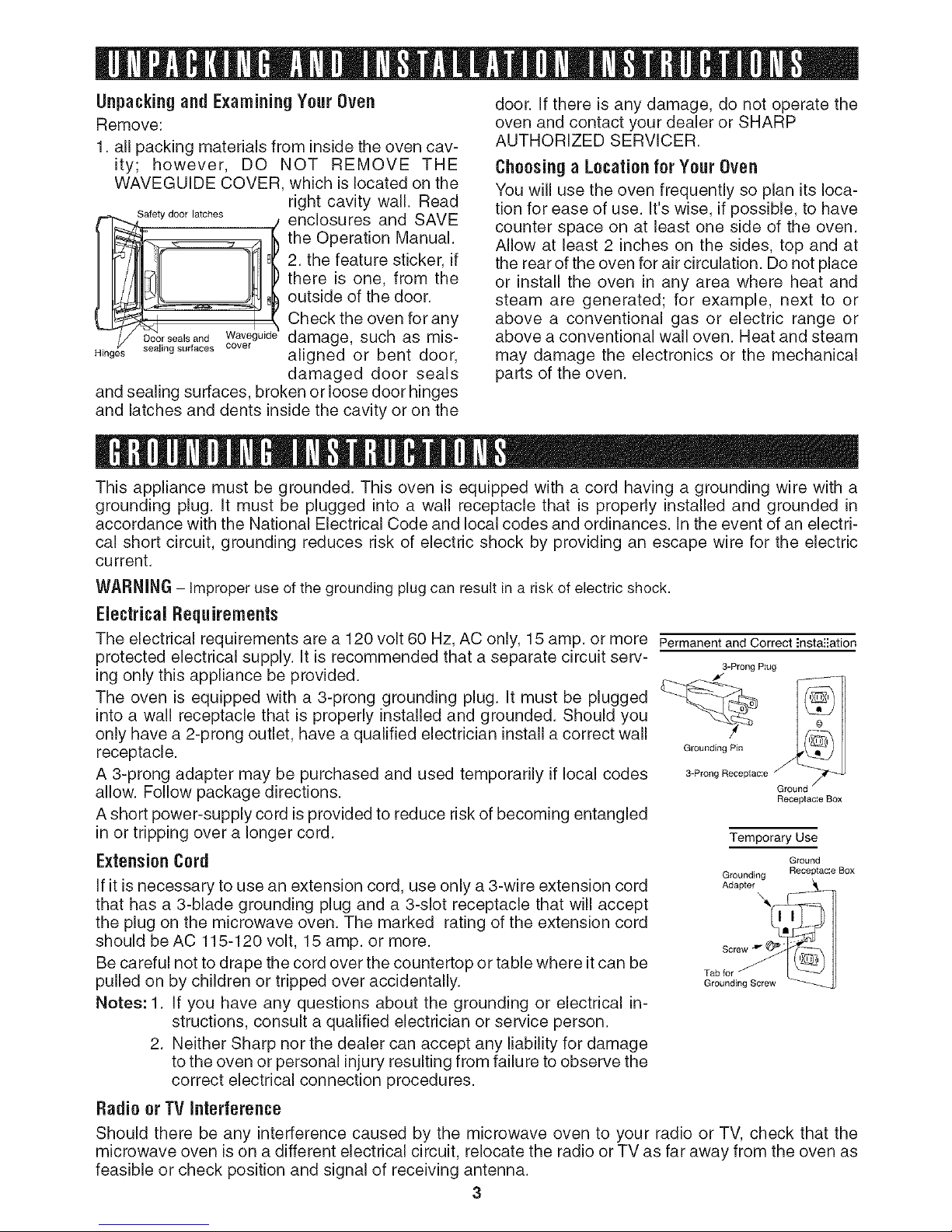

UnpackingandExaminingYourOven

Remove:

1. all packing materials from inside the oven cav-
ity; however, DO NOT REMOVE THE

WAVEGUIDE COVER, which is located on the

right cavity wall. Read

Safety door latches ) enclosures and SAVE

__e!B ! the Operation Manual.

2. the feature sticker, if
there is one, from the

outside of the door.

- Check the oven for any

y Door seals and Way i damage, such as mis-

Hinges sealingsurfacesoover aligned or bent door,

damaged door seals
and sealing surfaces, broken or loose door hinges
and latches and dents inside the cavity or on the

door. If there is any damage, do not operate the
oven and contact your dealer or SHARP

AUTHORIZED SERVICER.

Choosing a Location for Your Oven

You will use the oven frequently so plan its loca-
tion for ease of use. It's wise, if possible, to have

counter space on at least one side of the oven.
Allow at least 2 inches on the sides, top and at
the rear of the oven for air circulation. Do not place
or install the oven in any area where heat and
steam are generated; for example, next to or
above a conventional gas or electric range or

above a conventional wall oven. Heat and steam

may damage the electronics or the mechanical
parts of the oven.

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in

accordance with the National Electrical Code and local codes and ordinances. In the event of an electri-
cal short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric

current.
WARNING - Improper use ofthe grounding plug can result in a risk of electric shock.

Electrical Requirements

The ekctfical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more Permanent and Correct _nstaiiation
protected electrical supply. It is recommended that a separate circuit serv-

ing only this appliance be provided. _.._<_...____3Pr°°gP:og
The oven is equipped with a 3-prong grounding plug. It must be plugged _---_-'__ (,A_,!H

into a wall receptacle that is properly installed and grounded. Should you
only have a 2-prong outlet, have a qualified electrician installa correct wall

receptacle. Grounding Pin

A 3-prong adapter may be purchased and used temporarily if local codes 3-P_ongRecept....

allow. Follow package directions. G,oond/

Recept ac',e Box

A short power-supply cord is provided to reduce risk of becoming entangled

in or tripping over a longer cord.
Extension Cord

If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-blade grounding plug and a 3-slot receptacle that will accept
the plug on the microwave oven. The marked rating of the extension cord
should beAC 115-120 volt, 15 amp. or more.

Be careful not to drape the cord over the countertop or table where it can be
pulled on by children or tripped over accidentally.

Notes: 1. if you have any questions about the grounding or electrical in-

structions, consult a qualified electrician or service person.

2. Neither Sharp nor the dealer can accept any liability for damage
to the oven or personal injury resulting from failure to observe the
correct electrical connection procedures.

Temporary Use

Ground

Grounding Receptac;e Box

Adapter

Scr __-1

Tab,o,/ L_J ]1

Grounding Screw _._

Radio or TV interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the

microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as
feasible or check position and signal of receiving antenna.

ABOUT YOUR OVEN

This Operation Manual is valuable: read it carefully and
always save it for reference.

A good microwave cookbook is a valuable asset.

Check it for microwave cooking principles, techniques,
hints and recipes. See pages 19 and 20 for ordering

the Ultimate Accessory, the SHARP CAROUSEL MI-
CROWAVE COOKBOOK.

NEVER use the oven without the turntable and support
nor turn the turntable over so that a large dish could be

placed in the oven. The turntable will turn both clock-
wise and counterclockwise.

ALWAYS have food in the oven when it is on to absorb
the microwave energy.

When using the oven at power levels below 100%, you

ABOUTFOOD

may hear the magnetron cycling on and off. It is normal
for the exterior of the oven to be warm to the touch

when cooking or reheating.
Condensation is a normal part of microwave cooking.

Room humidity and the moisture in food will influence

the amount of moisture that condenses in the oven.
Generally, covered foods will not cause as much con-

densation as uncovered ones. Vents on the oven back
must not be blocked.

The oven is for food preparation only. It should not be
used to dry clothes or newspapers.

Your oven is rated 1100 watts (R-308J, R-309J) or

1200 watts (R-310J) by using the IEC Test
Procedure. In using recipes or package directions,

check food a minute or two before the minimum time
and add time accordingly.

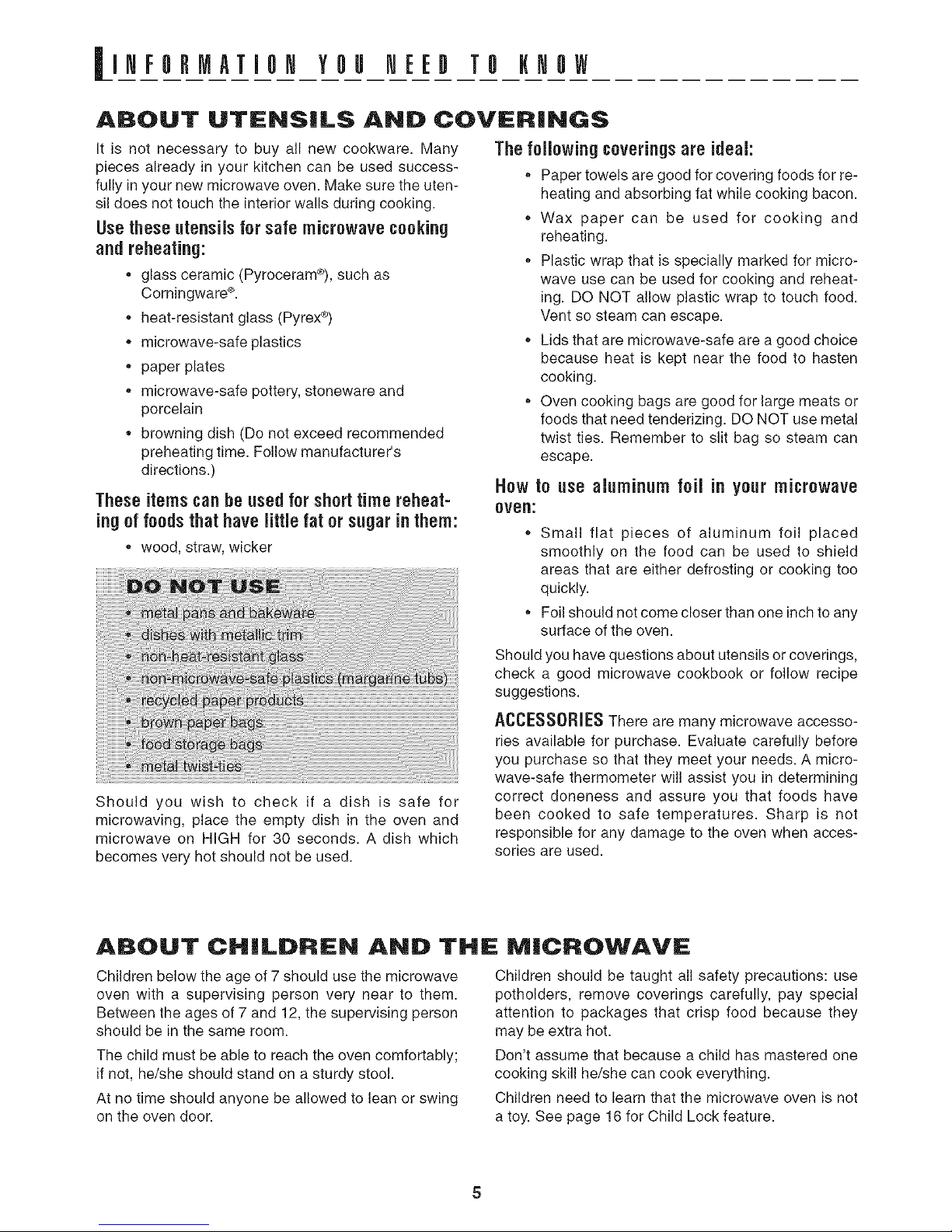

INFORMATION YOU NEED TO KNOW

ABOUT UTENSILS AND COVERINGS

It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used success-
fully in your new microwave oven. Make sure the uten-

sil does not touch the interior walls during cooking.

Usetheseutensils forsafe microwavecooking
and reheating:

" glass ceramic (Pyroceram®), such as

Corningware ®.

,, heat-resistant glass (Pyrex ®)
,, microwave-safe plastics
,, paper plates

,, microwave-safe pottery, stoneware and

porcelain

,, browning dish (Do not exceed recommended

preheating time. Follow manufacturer's
directions.)

These items can he used for short time reheat-
ing of foods thathave littlefat or sugarinthem:

, wood, straw, wicker

The following coverings are ideal:

* Paper towels are good for covering foods for re-

heating and absorbing fat while cooking bacon.

, Wax paper can be used for cooking and

reheating.

, Plastic wrap that is specially marked for micro-

wave use can be used for cooking and reheat-

ing. DO NOT allow plastic wrap to touch food.

Vent so steam can escape.

, Lids that are microwave-safe are a good choice

because heat is kept near the food to hasten

cooking.

, Oven cooking bags are good for large meats or

foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.

to use aluminum foil in your microwave

How

oven:

®

Small flat pieces of aluminum foil placed
smoothly on the food can be used to shield

areas that are either defrosting or cooking too
quickly.

Foil should not come closer than one inch to any

surface of the oven.

Should you have questions about utensils or coverings,
check a good microwave cookbook or follow recipe

suggestions.

Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven and

microwave on HIGH for 30 seconds. A dish which
becomes very hot should not be used.

ACCESSORIESThere are many microwave accesso-

ries available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A micro-
wavesafe thermometer will assist you in determining
correct doneness and assure you that foods have
been cooked to safe temperatures. Sharp is not

responsible for any damage to the oven when acces-
sories are used.

ABOUT CHILDREH AHIP THE MICROWAVE

Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person

should be in the same room.
The child must be able to reach the oven comfortably;

if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing

on the oven door.

Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special

attention to packages that crisp food because they
may be extra hot.

Don't assume that because a child has mastered one
cooking skill he/she can cook everything.

Children need to learn that the microwave oven is not
a toy. See page 16 for Child Lock feature.

INFORMATION YOU NEED TO KNOW

ABOUT MICROWAVE COOKING

,, Arrange food carefully. Place thickest areas towards

outside of dish.

,, Watch cooking time. Cook for the shortest amount

of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.

• Cover foods while cooking. Check recipe or cook-
book for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent

spattering and help foods to cook evenly.

• Shield with small flat pieces of aluminum foil any

thin areas of meat or poultry to prevent overcooking

before dense, thick areas are cooked thoroughly.

,, Stir foods from outside to center of dish once or twice

during cooking, if possible.

,, Turn foods over once during microwaving to

speed cooking of such foods as chicken and ham-

burgers. Large items like roasts must be turned over

at least once.

Rearrange foods such as meatballs halfway

through cooking both from top to bottom and from
the center of the dish to the outside.

Add standing time. Remove food from oven and
stir, if possible. Cover for standing time which allows

the food to finish cooking without overcooking.

Check for doneness. Look for signs indicating that

cooking temperatures have been reached.

Doneness signs include:

- Food steams throughout, not just at edge.

- Center bottom of dish is very hot to the touch.

- Poultry thigh joints move easily.

- Meat and poultry show no pinkness.

- Fish is opaque and flakes easily with a fork.

ABOUT SAFETY

,, Check foods to see that they are cooked to the

United States Department of Agriculture's
recommended temperatures.

160°F ... for fresh pork, ground meat.

boneless white poultry, fish,
seafood, egg dishes ana frozen

prepared food.

165°F ... for leftover, ready-to-reheat

refrigerated, and dell and carry-

out "fresh" food.

... white meat of poultry.

170°F
180°F

... dark meat of poultry.

To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. NEVER

leave the thermometer in the food during cooking,
unless it is approved for microwave oven use.

® ALWAYS use potholders to prevent burns when

handling utensils that are in contact with hot food.
Enough heat from the food can transfer through

utensils to cause skin burns.

® Avoid steam burns by directing steam away from

the face and hands. Slowly lift the farthest edge of

a dish's covering and carefully open popcorn and
oven cooking bags away from the face.

® Stay near the oven while it's in use and check

cooking progress frequently so that there is no
chance of overcooking food.

® NEVER use the cavity for storing cookbooks or

other items.

® Select, store and handle food carefully to preserve

its high quality and minimize the spread of

foodborne bacteria.

® Keep waveguide cover clean. Food residue can

cause arcing and/or fires.

® Use care when removing items from the oven so

that the utensil, your clothes or accessories do not
touch the safety door latches.

MICROWAVE OVEN PARTS

2 11

10 3

I Door opening button

Push to open door.

2 Oven door with see-through window
3 Safety door latches

The oven will not operate unless the
door is securely closed.

4 Door hinges
5 Door seals and sealing surfaces

6 Turntable motor shaft
7 Removable turntable support

Carefully place the turntable support in

the center of the oven floor.

8 Removable turntable

Place the turntable on the turntable
support securely. The turntable will

rotate clockwise or counterclockwise.
Only remove for cleaning.

9 Ventilation openings (Rear)

10 Oven light

It will light when oven is operating or
door is open.

11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel

13 Time display: 99 minutes, 99 seconds

DISPLAY

COOK DEF. START

QTY
LB
OZ

SIZE
CUPS

Indicators

The light next to each indicator will come on to provide information about the setting.
Words in the lower portion of the display will light to indicate what function is in process.

PART HAME$

9,16

9

15

12,13

POPCORN MINUTEPLUS

I 2 3

4 5 6

7 8 9

__ POWER 0 TUMER

LEVEL CLOCK

¢AR

--16

10

12,14

11

9,16

9

15

12,13

POPCORN MINUTEPLUS

2 Steaks/

Vegefabte_ Chops

3 Frozen

Vegetables 3 Boneless

Pou]fn/ 5 Beverage

4 Frozen 6 Rolls/Muf_ns

Entrees 4 Boneqn

5 Ground Poulf_y

Meat

6 Rice

Number next to the control panel illustration indicates page on
which there are a feature description and usage information.

Beforeoperatingyournewmicrowaveovenmake
sureyoureadandunderstandthisoperation
manualcompletely.

Beforetheovencan beused,followthese
procedures:

1.Plugintheoven.Closethedoor.Theovendisplay
willthenbeginflashing_.

2.TouchSTOP/CLEARpad.

willappear.

3.TouchTIMER/CLOCKpadtosetclock.

TO SET THE CLOCK

• Suppose you want to enter the correct time of day

12:30 (A.M. or P.M.).

CLOCK LI

ToUCh CLOCK pad. The colon (:)wil! {!ash,

Enter the correct time [ IC . _-I/J

[ /11

of day by touching the -_

numbers in sequence.

3 I T,MERI --'.-,n

C. Du

Touch CLOCK pad again_

This is a 12 hour clock. If you attempt to enter an
incorrect clock time, _ will appear in the display.

Touch STOP/CLEAR pad and re-enter the time.

• If the electrical power supply to your microwave
oven should be interrupted, the display will inter-
mittently show _ after the power is reinstated.
If this occurs during cooking, the program will be
erased. The time of day will also be erased. Simply
touch STOP/CLEAR pad and reset the clock for the
correct time of day.

STOP/CLEAR

Touch STOP/CLEAR pad to:

1. Erase if you make a mistake during programming.

2. Cancel timer.

3. Stop the oven temporarily during cooking.

4. Return the time of day to the display.

5. Cancel a program during cooking, touch twice.

TiME COOKING

Your oven can be programmed for 99 minutes 99 sec-
onds (99.99). Always enter the seconds after the min-

utes, even if they are both zeros.

• Suppose you want to cook for 5 minutes at 100%.

S, L7L7

Enter cooking time,

START will flash.

START n- n n ]

[ __ [ .,._t. LtLt

Touch START pad. ---_

TO SET POWER LEVEL

There are eleven preset power levels.
Using lower power levels tncreases the cooking t_me

which is recommended for foods such as cheese milk
and long slow cooking of meats Consult cookbook or

rectpes for specific recommendations.

twice 90%

3 times 80%
4 times 70% Med gh

5 times 60%

Medium

7 times 40%

Vled

9 times 20%
" 10% Low
11 times 0%

• Suppose you want to defrost for 5 minutes at 30%.

,-nn

Enter defrost time: _ _

START will flash.

2 PowER

LEVEL -_ I--t

Touch POWER LEVEL

pad 8 times or hold down
until the desired Power

level appears.

[ START 5. L?L?

Touch START pad,

4 When the defrost time is Complete, a long {one

will sound and _ will appear inthe display.

DEFROST

Use this feature to defrost ground meat, steaks, chopsand poulW automatically.

• Suppose you want to defrost a 2.0 Ibsteak.

ii i

., Touch DEFROST pad. [ ]

SeLectdesiredfoodby

touching number pad. _

(Ex. Touch [_ for steaks! k._

chops.)

Enter weight by touching _

J the number padsF2]and[_. _ _

(Ex. 2_0 Ibs steak)

4 " T°uch START pad START

The oven Wi!lstoP SOthat the food Can be checked.

5 After the 1st stage, open the door.

Tura steak over and shield any warm portions.

Close the door.
Touch START pad.

_,, After the 2nd stage, open the door. Shield any

b warm portions. Close the door.

Touch START pad.

7 After defr°st Cycle endsl Cover and !et stand as

indicated in chart below.

NOTE:

1, Ifyou attempt to enter more or less than the allowed

amount (0.5-3.0 Ibs),_ will appear in the dis-
play.

2. Defrost can be programmed with More or Less Time
Adjustment. Touch POWER LEVEL once or twice
before touching START. See page 16.

3. To defrost other foods or foods above or below the
weights allowed in the DEFROST CHART below, use

time and 30% power. See MANUAL DEFROST on
page 11.

DEFROST CHART

1. Ground Meat .5 - 2.0 Ibs Remove any thawed pieces after each stage.
Let stand, covered. 5 to 10 minutes.

2. Steaks/Chops .5- 3.0 Ibs After each stage of defrost cycle, rearrange and if there are warm
or thawed portions, shield with small flat pieces of aluminum foil.

Remove any meat that is nearly defrosted ....

Let stand, covered. 10 to 20 minutes.

3. Boneless Poultry .5- 1.5 Ibs Use boneless breast of chicken or turkey. After each stage, if there
are warm or thawed portions, rearrange or remove. Let stand.
covered for 10 to 20 minutes.

4. Bone-in Poultry .5 - 3.0 Ibs Arrange pieces with meatiest portions toward outside of glass dish
or microwave safe rack. After each stage, if there are warm or
thawed portions, rearrange or remove. Let stand, covered, for 10

to 20 minutes.

NO'rE: Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue

thawing. Do not defrost until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth

strips of aluminum foil to cover edges and thinner sections of the food.

10

|SPECIAL FEATURES

MANUAL DEFROST

POPCORN

If the food that you wish to defrost is not listed on the
DEFROST CHART or is above or below the limits in

the AMOUNT column on the DEFROST CHART, you
need to defrost manually.

You can defrost any frozen food, either raw or previ-
ously cooked, by using 30% power level. See page 9.

Estimate defrosting time and press POWER LEVEL pad
8 times when you select the power level.

For either raw or previously cooked frozen food the rule
of thumb is approximately 4 minutes per pound. For

example, defrost 4 minutes for 2-3 cups of casserole or
1 pound of frozen spaghetti sauce.

Always stop the oven periodically to remove or sepa-

rate the portions that are defrosted. If food is not de-
frosted at the end of the estimated defrosting time, pro-

gram the oven in 1 minute increments at 30% until to-
tally defrosted.

When using plastic containers from the freezer, defrost
only long enough to remove from the plastic in order to

place in a microwave-safe dish.

The popcorn settingautomatically provides the correctcook-

ing time for most brands of microwave popcorn. See the

chart below.

,, Suppose you want to pop a 3.5 oz bag of regular pop-

corn.

[ I T°uch POPCORN padpopcoo, once

The oven starts

automaticallyl

N03"l::

1.Popcorn can only be entered within 3 minutes after
cooking, opening and closing the door or touching the

STOP/CLEAR pad.

2. Popcorn can be programmed with More or Less Time
adjustment. See page 16.

POPCORN CHART

POPCORN 1 bag Try several brands to decide which is most acceptable for your

taste. Unfold bag and place in oven according to directions.

:3.5oz bag Touch POPCORN pad once for regular. I_.

(Regular)

2.85 - 3.5 oz bag Touch POPCORN pad twice within 2 seconds for regular light.
(Regular Light) F_.

1.2 - 1.6 oz Touch POPCORN pad three times within 3 seconds for mini.
_Mini'.,

1.5 o 1.75 oz Touch POPCORN pad three times within 3 seconds, then touch
(Snack) POWER LEVEL pad once within 2 seconds for snack.

11

|SPECIAL FEATURES

REHEAT / COOK

Reheat and Cook automatically compute the correct
warming or cooking time and microwave power level

for foods shown in the charts.
,, Suppose you want to reheat 2 cups of soup.

Touch REHEAT once. i I

I ,,E,EAT

Selectdesiredfoodby

L touching number pad.

(Ex: Touch [_ for soup.)

3 Repeat touching same

number pad to select [_

quantity. (Ex: Touch 12]two
more times for 2 cups.) X 2

NOTE:

1. To reheat or cook other food or foods above or be-
low the quantity allowed on the REHEAT CHART or

COOK CHART, cook manually.

2. Reheat and Cook can be programmed with More or
Less Time Adjustment. Touch POWER LEVEL once

or twice before touching START. See page 16.

COOK CHART

1. Baked Potatoes 1-4 meal. Pierce with fork in several places. Place on paper towel on
turntable. After cooking, remove from oven and let stand wrapped

in foil for 5 to 10 minutes.

2. Fresh Vegetables 1- 4 cups For beans, carrots, corn and peas. add 1tablespoon of water per
cup. For broccol Brussel sprouts, cabbage and cauliflower, cook

immediately after washing with no additional water.
If you like tender crisp vegetables, double measured quantity per

setting. For example, use 2 cups cauliflower and program for 1 cup
After cooking, remove from oven. stir. cover and let stand 3 to 5

minutes before serving

3. Frozen Vegetables 1 - 4 cups Add no water. Cover with lid or plastic wrap. After cooking, stir and

let stand, covered, for 3 minutes.

4. Frozen Entrees 6 - 17 oz. Use for frozen, convenience foods. Itwill give satisfactory results for

most brands. You may wish to try several and choose your favorite
Remove package from outer wrapping and follow package directions

for covering. After cooking, let stand covered for 1to 3 minutes.

6 - 8 oz. Touch COOK pad and number pad 4 twice for packages weighing

6-8 oz. _ will appear in the display.

9 - 11 oz. Touch COOK pad and number pad 4 three times for packages

weighing 9-11 oz. _ will appear in the display.

12 - 14 oz. Touch COOK pad and number pad 4 four times for packages

weighing 12-14 oz. _ will appear in the display.

15 - 17 oz. Touch COOK pad and qumber 3ad 4 five times for packages

weighing 15-17 oz. _ will appear in the display.

12

$PERIAL FEATURES

COOK CHART

5 Ground Meat .3 - 1.5 Ib Use this setting to cook ground beef or turkey as patties or in a

casserole to be added to other ingredients. Place patties on a
microwave-safe rack and cover with wax paper. Place ground
meat in a casserole and cover with wax pa3er or plastic wrap. You
can cook 0.3 lb. 0.5 lb. 0.7 lb. 1.0 lb. 1.3 Ib and 1.5 Ib ground meat
by touching number pad 5. When oven stops, turn patties over or

stir meat in casserole to break up large pieces. Re-cover and touch
START pad. After cooking, let stand, covered for 2 to 3 minutes.

6. Rice

.5 - 2.0 cups Place rice into a deep casserole and add double quantity of water.

Cover with lid or plastic wrap. You can cook 0.5 cup, 1 cup, 1.5
cups and 2 cups rice by touching number pad 6. After cooking, stir.
cover and let stand 3 to 5 minutes or until all liquid has been

absorbed.

Rice Water Size of casserole
.5 cup 1cup 1.5 quart

1 cup 2 cups 2 quart

1.5 cu 3s 3 cups 2.5 or 3 quart
2 cu 3s 4 cups 3 quart or larger

13

$PERIAL FEATURES

REHEAT CHART

1. Pasta Sauce 1 -4 ,,-ups Use for prepared or homemade sauce. Place in deep bowl or
casserole. Cover with lid or plastic wrae. At end. stir well and serve

with cooked pasta.

2. Soup 1- 4cups Place in bowl or casserole. Cover with lid or plastic wrap. At end
stir. re-cover and let stand 1 to 3 minutes.

3. Pizza 1 - 4 slices

Use to reheat refrigerated leftover pizza. 1 slice is approximately 1!8th

of a 12 inch ptzza or 1t12th of a 16 inch pizza. Place on paper towe

4. Dinner Plate

5. Beverage

1 plate Use to reheat precooked foods from the refrigerator. Place meaty

portions and bulky vegetables to outside of plate. Cut large items
like baked ootatoes in smaller pieces. Flatten foods such as
mashed potatoes and other dense foods. Cover with wax paper or
plastic wrap. ONE PLATE ONLY.

After cooking, check that food is very hot throughout and that the

bottom center of the plate is 'very hot. If not. continue heating using

time and power level. Allow to stand, covered. 1 to 2 minutes.

1 Regular Touch REHEAT pad and number pad 4 twice for a regular amount of

food: approxl mately 4 oz. sliced meat or poultry, 1/2cup potato Drrice

and 1/2 cup of vegetables or equivalent. _ will appear in the
display.

1 Large Touch REHEAT pad and number pad 4 three times for a larger

amount of food on a dinner ulate. _ will appear in the
display.

1Smal Touch REHEAT pad and number pad 4 four times for a smaller

amount of food on a dinner plate. _ will appear in the
display.

Casserole t - 2 cups Use to reheat refrigerated canned or homemade pasta with sauce

(Initial setting : 1.5 cups) orothercookedcasserole. For roomtemperaturepastaorcasserole

use Less option. For pasta without sauce double the quantity per

setting. For example, measure 2 cups of cooked noodles and

program for 1 cup. Cover with lid or plastic wrap.

After cooking, stir and let stand, covered. 2 to 3 minutes.

1.5cups Touch REHEAT pad and number pad 4 twice for 1.5 cups of
casserole. _ will appear inthe display.

2 cups Touch REHEAT pad and number pad 4 three times for 2 cups of

casserole. _ will appear in the display.

1cup Touch REHEAT pad and number pad 4 four times for 1 cup of

casserole. _will appear in the display.

.5- 2 cups This setting is good for restoring cooled beverage to a better

drinking temperature. Stir after heating. You can reheat 0.5 cup. 1

cup, 1.5 cups and 2 cups beverage by touching number pad 5.

6 Rolls/Muffins 1 - 6 pieces Use to warm rolls, muffins, biscuits, bagels etc. Large item should be

considered as2 regular size. Cover each roll/muffin with paper towel

For refrigerated rolls or muffins, it may be necessary to double the

entered amount to ensure the proper serving temperature. For

exam 31e,enter quantity of 2 for 1 refrigerated muffin.
For frozen rolls or muffins, use More Time Adjustment.

14

|SPECIAL FEATURES

SHORT CUTS

Short Cuts automatically compute the correct heating
time and microwave power level for melting, sofening
and warming foods shown in the chart.

,, Suppose you want to melt 1 square of chocolate.

Touch MELT once. [

1 ]

_,_ Select desired food by

•_- touching number pad. W
(Exi Touch FLY]for ch0colate:)

_ Repeat touching same
,_,,lJnumber pad t0 select W

quantity. (Ex: Touch [2] two

more times for 1 square.)X2

NOTE:
1, To melt, soften or warm other food or foods except

the quantity listed in the SHORT CUTS CHART, cook
manually.

2. Short Cuts can be programmed with More or Less
Time Adjustment. Touch POWER LEVEL once or

twice before touching START. See page 16.

SHORT CUTS CHART

MELT

1. Butter Use a Pyrex measuring cup. Cover with plastic wrap.
2 tbsp After touching MELT. touch 1 two times for 2 tbsp. _ .

1/2 cups After touching MELT. touch 1 three times for 1/2 cup. I_.

2. Chocolate

1cup chips

I square

Use a Pyrex measuring cup. Cover with plastic wrap.

After touching MELT, touch 2 two times for 1 cup chips. [_
After touching MELT. touch 2 three times for 1 square.

SOFTEN

1. Ice cream

2. Cream cheese

DO NOT COVER.

1 pint After touching SOFTEN. touch 1 two times for 1 oint. _ .

1/2 gallon After touching SOFTEN. touch 1three times for 1/2 gallon.

30Z

8 oz

Use a small plate. DO NOT COVER.
After touching SOFTEN. touch 2 two times for 3 oz. _ .
After touching SOFTEN. touch 2 three times for 8 oz. I_.

WARM

1. Syrup

2. Dessert topping

Use a Pyrex measuring cup. DO NOT COVER.

1/4 cu 3 After touching WARM. touch 1 two times for 1/4 cup. _.
1'2 cup After touching WARM. touch 1 three times for 1/2 cup. [_

Use a Pyrex measuring cup. DO NOT COVER.

1/4 cu 3 After touching WARM. touch 2 two times for 1/4 cup. ,'_ .
1/2 ct, 3 After touching WARM touch 2 three times for 1/2 cup.

15

MULTIPLE SEQUENCE

COOKING

Your oven can be programmed for up to 3 automatic
cooking sequences, switching from one power level

setting to another automatically.
Sometimes cooking directions tell you to start on one

power level and then change to a different power
level. Your oven can do this automatically.

- Suppose you want to COOKroast beef for 5 minutes at
100% and then continue to cook for 30 minutes at 50%

,,= First enter cooking time. [_ r_ r_
11 Then touch POWER

LEVEL pad once for POWER
100% power. LEVEL x 1

Then enter second

2 cooking time.

Touch POWER LEVEL
pad 6 times for 50%
power.

3 Touch START pad.

D@@@

[ lxLEVEL

START 1

NOTE:

1. If POWER LEVEL pad is touched once, _ will
be displayed.

2. If 100% is selected as the final sequence, it is not
necessary to touch POWER LEVEL pad.

3. Ifyou wish to know power level, simply touch POWER

LEVEL pad. As long as your finger istouching POWER
LEVEL pad, the power level will be displayed.

TIMER

• Suppose you want to time a 3-minute long distance
phone call.

''1 ] '

2 Touch'riMERPad. T,.ER J

C_K J

MINUTE PLUS

Minute Plus allows you to cook for a minute at 100%

by simply touching MINUTE PLUS pad. You can also
extend cooking time in multiples of 1 minute by repeat-
edly touching MINUTE PLUS pad during manual cook-

ing.

• Suppose you want to heat a cup of soup for one
minute at 100%.

''1 ] '

I Touch MINUTE PLUS MNUTE

pad, PLUS

NOT_::

1. To use Minute Plus, touch pad within 3minutes after
cooking, closing the door, touching STOP/CLEAR

pad.

2. Minute Plus cannot be used with Special Features.

MORE OR LESS TIME

AI)JUSTMENT

Should you discover that you like any of the DEFROST,
POPCORN, REHEAT, COOK or SHORT CUTS settings

slightly more done, touch POWER LEVEL pad once after
touching your choice ofpads or beforetouching START pad.

The display will show _.

Should you discover that you like any of the DEFROST,

POPCORN, REHEAT, COOK or SHORT CUTS settings
slightly less done, touch POWER LEVEL pad twice after
touching your choice of pads or before touching START pad.

The display will show _.

NOTE: For POPCORN, the POWER LEVEL pad

must be touched within 1 second of touch-
ing your choice of pads.

CHILD LOCK

The Child Lock prevents unwanted oven operation
such as by small children. The oven can be set so
that the control panel is deactivated or locked. To set,

touch TIMER/CLOCK, the number [] and then touch
the START pad and hold for three seconds. Should a

pad be touched, _ will appear in the display.
To cancel, touch TIMER/CLOCK, the number [] and

STOP/CLEAR pads.

16

|UTHER CUHVEHIEHT FEATURES

AUDIBLE SIGNAL
ELiMINATiON

If you wish to have the oven operate with no audible

signals, touch TIMER/CLOCK, the number [] and
then touch the STARTpad and hold forthree seconds.

Tocancel, touch TIMER/CLOCK, the number [] and
STOP/CLEAR pads.

DEMOHSTRATIOH MODE

To demonstrate,touchTIMER/CLOCK, the number []
and thentouch the STARTpadand holdfor 3 seconds.

will appear in the display. Cooking operations
and specific specialfeaturescan nowbe demonstrated
with nopower inthe oven.For example,touch MINUTE

PLUS pad and the displaywill show _ andcount

down quickly to _.
To cancel, touch TIMER/CLOCK, the number [] and

STOP/CLEAR pads. If easier, unplug the oven from
the electrical outlet and replug.

Disconnect the power cord before cleaning or leave the door I

]

open to inactivate the oven during cleaning.

1

Exterior

The outside surface ispainted. Clean the outside with mild soap
and water; wipe with a soft cloth. Do not use any type of house-

hold or abrasive cleaner.

DO0¥

Wipe the window on both sides with a soft damp cloth to remove
any spills or spatters. Metal parts will be easier to maintain if wiped

frequently with a soft damp cloth. Avoid the use of spray and other
harsh cleaners as they may stain, streak or dull the door surface.

Touch Contro| Pane|

Wipe the panel with a soft cloth dampened slightly with water
only. Dry with a soft cloth. Do not scrub or use any sort of chemi-
cal cleaners. Close door and touch STOP/CLEAR pad.

interior
Cleaning is easy because little heat is generated to the interior

surfaces; therefore, there is no baking and setting of spills or
spattering. To clean the interior surfaces, wipe with a soft damp

cloth. DO NOT USE ABRASIVE OR HARSH CLEANERS OR
SCOURING PADS. For heavier soil, use baking soda or a mild

soap; wipe dean with a soft damp cloth. NEVER SPRAY OVEN
CLEANERS DIRECTLY ONTO ANY PART OF THE OVEN.

Exterior

V_,lave_lu iclle Cover

Thewaveguide cover ismadefrom mica sorequiresspecialcare.Keep
thewaveguide coverclean toassure good ovenperformance. Carefully

wipe with a soft damp cloth any food spatters from the surface of the
cover immediatelyaftertheyoccur. Built-upsplashes may overheat and

causesmokeor possiblycatchfire. Donot removethewaveguidecover.

Odor Remora |

Occasionally, a cooking odor may remain in the oven. To re-
move, combine 1 cup water, grated peel and juice of 1 lemon

and several whole cloves in a 2-cup glass measuring cup. Boil
for several minutes using 100% power. Allow to set in oven until
cool. Wipe interior with a soft cloth.

Turntab|e / TurntabBe Support
Theturntable and turntable support can be removed for easy cleaning.
Washtheminmild,sudsy water;for stubborn stains useamildcleanser

and a non-abrasive scouringsponge.Theyare also dishwasher-proof.
Use upper rack ofdishwasher. The turntablemotor shaft is not sealed,

so excess water or spills should bewiped up immediately.

|.terior

Turntable Support

17

Please check the following before calling for service:

Place one cup of water in a glass measuring cup in the oven and close the door securely.

Operate the oven for one minute at HIGH 100%.

_& Does the oven light come on? YES NO

lib Does the cooling fan work? YES NO

(Put your hand over the rear ventilating openings.)

O Does the turntable rotate? YES NO

(It is normal for the turntable to turn in either direction.)

D Is the water in the oven warm? YES NO

If "NO" is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit
breaker, if they are functioning properly, CONTACT YOUR NEAREST SHARP AUTHORIZED SERVICER.

A microwave oven should never be serviced by a "do-it-yourself" repair person.
NOTE= 1. If time appearing in the display is counting down very rapidly, check DEMONSTRATION MODE on

page 17 and cancel.

2. (For R-308J/R-309J only) If the oven is set for more than 20 minutes at 80, 90 or 100 percent power
level, after the first 20 minutes, the power level will automatically adjust itself to 70 percent power to
avoid overcooking.

18

R-310J R-309J/R-308J
AC Line Voltage: Single phase 120V, 60Hz, AC only
AC PowerRequlred: I t680W 14.2amps. 1580W 13.5amps:

(for R-308JK-F, R,308JW,F and

• i R-308JS-F: 1530W t3.0 amps.)

Output Power:

Microwave 1200W 1100W

(IEC Test Procedure)
Frequency: I 2450 MHz

Outside Dimensions: 20_/2"(W)x 12_/4"(H)x 173/8"(D) 20_/2"(W)x 12_/4"(H)x 173/8"(D)
Cavity Dimensions**i . 143t4"(W) x 8 71s"(H) x 15_14'!(D) I 14!12"(W) x 8 _ts"(H)x 15!t4"(D)

Oven Capacity** 1.2 Cu. Ft. 1.0 Cu. Ft.
Cooking Uniformity: Turntable system; 125t8'! diameter

Weight: Approx• 33 Ib Approx• 32 Ib

The International Electrotechnical Commission's standardized method for measuring output wattage• This
test method is widely recognized•

_ Internal capacity is calculated by measuring maximum width, depth and height• Actual capacity for holding

food is less.

In compliance with standards set by:
FOC - Federal Communications Commission Authorized•

DHHS - Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,

Subchapter J.

- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.

Great recipes

Reliable microwave

reference guide

SHARP

CAROUSEL M|CROWAVE

COOKBOOK

-- Many color photos

TOORDER

Step=by-step

instructions

--Nutritional

information for

each recipe

Simply call this toll-free number : 1-800-642-2122

Please have your credit card ready.

If you prefer to order by mail, complete and return the
order form on page 20. Please include check or money
order (payable to Sharp Accessories & Supplies
Centerp for $6.00 plus $4.25 shipping & handling and
tax. if applicable, per book

-- Durable wipe=clean

soft cover with 128

81/2xll pages

-- Helpful tips and

SATISFACTIONGUARANTEED

You must be completely satisfied with the Sharp
Carousel Microwave Cookbook. If. within 14 days, you
are dissatisfied for any reason, simply return the book
and we'll gladly refund your $6.00 plus tax.

special techniques

(SOLAIVlENTE ESCRITO EN INGLES!)

19

Cutalongthisline.

Pleasesendme cookbooksat$10.25each $
Illinoissalestax,(ifapplicable)perbook$.44 no.ofbooks $

TOTAL ORDER AMOUNT $

[] I have enclosed a check made payable to Sharp Accessories & Supplies Center.
[] Please bill my [] VISA [] MASTERCARD [] AMERICAN EXPRESS

Acct. No. Expiration date /
Signature

(All credit card orders must be signed.)

Name
Address

City State
Daytime Phone No. (

Mailto: SHARP Accessories & Supplies Center

2130 Townline Road

Peoria, Illinois 61615-1560

Zip

Price is subject to change without notice.

2O

Para mayor informacion y precauciones de seguridad, consulte el Manual de Operaciones.

I D = •

Si en la pantalla aparece _ toque primero

STOP/CLEAR. i T,MER i

11 Toque el bot6n CLOCK. CLOCK
2 Ponga la hora correcta tocando

,asn0merosenarden/Ej:12:30tE]DD@

3 Toque nuevamente el bot6n [ TIMER i

CLOCK. | CLOCK |

Cocinando con energia alta
t Programe el tiempo para cocinar rT][_r_

tocando los botones de nQmeros.
(Ej: 1 min. 30 sag.) I START I

2 Toque START.

Cocinando can energiavariable j POWER j
t Despues del paso 1 anterior, toque LEVEL

el bot6n POWER LEVEL 6 veces, x 6
(Ej: 50%)

2 Toque START. j START j

t Toque el bot6n DEFROST. j DEFROSTI

2 Seleccione el nivel DEFROST

deseado.
(Ej: Toque el bot6n nt]mero [] para ZL_

filetes).

F'41F23

3 Toque los botones numero [] y [] WL.VJ

para 2.5 libras. J I4 Toque START. START

1. Ground Meat (Came picada)

2. steaks/Ch0ps (Filetes, chuletas) 0.5 a 3.0 libras

3. Boneless Poultry (Sin huesoaves) 0.5 a 1.5 libras

4. Bone-in Poultry (Con huesoayes) 0.5 a 3.0 libras

b m _

Toque el bot6n MINUTE PLUS para
un minuto a1100% de energla, o para j MINUTE I

a_adir un minuto cuando cocine en el I PLUS I

modo manual. ContinOe tocandolo
para alhadir mAs minutos.

21

t Toque el bot6n Popcorn una vez

| 1

para palomitas de maiz regular. J POPCORN J
2 veces - tamaho regular ligero

I l

3 veces - tamaho mini
3veces - (con el ajuste MORE) - tamaho refrigerio

Popcorn
(Palomitas de maiz)

3.5 onzas (regular)

2.85 - 3.5 onzas (regular ligero)

1.2 - 1.6 onzas (Mini)

1.5 - 1.75 onzas (ligero)

t Toque el bot6n REHEAT, COOK o I

PADOS RAPIDOS que desee, j REHEAT
(Ej:Pararecalentarlasopa,toqueREHEAT.)L

2 Seleccione el nivel REHEAT, COOK W

o PADOS R,_,PIDOS deseado.
(Ej: Toque [] para recalentar sopa.) [_ x 2

3 Toque el bot6n nt_mero [] dos

veces para 2 tazas, j

START

4 Toque el bot6n START.

J

I

I

1. PastaSauce(SaucedelasPasta)1 - 4 tazas

21 Soup (Sopa) ! _ 4 tazas

3. Pizza 1 o4 pedazas

4. DinnerPlate (Plato principal)! plato;regular,grandeo peque_l
Casserole (Caserola) 1.5 tazas, 2 tazas o 1 taz_

5. Beverage (Bebida) 0.5 _2 tazas

6. Rolls/Muffins (Pan) 1 - 6 pedazas

1. Baked Potatoes (Papasal homo) 1 o4 medjano

2: Fresh Vegetables

(Verduras frescas) 1 - 4 tazas

3. Frozen Vegetables
(Verdura congelada) 1 - 4 tazas

4. Frozen Entrees
(Plato fuerte Congelado) 6-17 onzas

5. Ground Meat (Came molida) 0.3 a 1.5 libras

6. Rice (Arroz) 0.5 - 2 tazas

MELT

1. Mantequilla 2 cucha radas / 1/2 taza

2. Chocolate ltaza de chis pas de

chocolate / 1 table ta

SOFTEN

1. Helado 1pint / media galon

2. Queso Crema 3 onzas / 8 onzas

WARM

1. Jarabe 1/4 taza/1/2 taza

2. Cubierta Del Postre 1/4 taza / 1/2 taza

For more complete information and safety precautions, refer to your Operation Manual,

o

If _ is in display, first touch STOP/CLEAR pad.

t Touch CLOCK pad. 1 T'MERICLOCK
2 Enter correct time of the day by

touching numbers in sequence. [-T][_][_r_
(Ex. 12:30)

1 T'MER I

3 Touch CLOCK pad again. CLOCK

High Power Cooking

cooking time by touching rT][_r_

t Enter

number pads. (Ex: 1 min. 30 sec.)

2TouohSTARTpad. 1 START I

Variahie Power Cooking 1 POWER I

t After Step 1 above, touch POWER LEVEL

LEVEL pad 6 times. (Ex: 50%) x 6

2TouohSTARTpad. 1 START I

I Touch POPCORN pad:

i-

once for a regular size | POPCORN |
twice - regular size light

l J

3 times - mini size
3 times/(with MORE setting)- snack size

Popcorn 3.5 oz. (Regular)

2.85 - 3.5 oz. (Regular Light)

1.2 - 1.6 oz. (Mini)

1.5 - 1.75 oz. (Snack)

" l I • • "

t T°uch REHEAT' COOK °r desired i }SHORT CUTS pad. REHEAT

(Ex: For reheating soup, touch
REHEAT.) F_

2 Select desired Reheat or Cook or

Short Cuts setting. L2J x 2
(Ex: Touch [] to reheat soup.)

3 Touch number [] pad twice for 2 cups. / START

4. Touch START pad.

[ J

It " !1

t Touch DEFROST pad. I DEFROST I

2 Select desired Defrost setting.

(Ex: Touch [] for steak). D

3 Touch number pad [] and [] for [_F_

2.5 Ibs.

4 Touch START pad.

1. Pasta Sauce 1 - 4 cups

2. Soup t : 4 cups

3. Pizza 1 - 4 slices

4i Dinner Plate plate; regi: Igl or Sm_

Casserole 1.5 cups, 2 cups or 1cup

5. Beverage .5- 2 cups

6. Rolls/Muffins 1 - 6 pieces

1. Ground Meat .5 to 2.0 Ibs

2. steakstCheps 15to 310ibs

3. Boneless Poultry .5 to 1.5 Ibs
41 Bone ,in Poultry :5 to 310 bs

1. Baked Potatoes 1 - 4 med.

2. Fresh Vegetables 1-4cups

3. Frozen Vegetables 1 - 4 cups
4! Frozen Entrees 6 - 170z

5. Ground Meat .3 - 1.5 Ib

6. Rice .5 - 2 cups

Touch MINUTE PLUS pad for one
minute at 100°/o power or to add a [ MINUTE I

minute during manual cooking. Con- [ PLUS I

tinue to touch for additional minutes.

CarouseP is a registered trademark of Sharp Corporation.

MELT

1. Butter 2 tbsp / 1/2 cup

2. Chocolate 1cup chips/1 square

SOFTEN

1. Ice Cream 1pint / 1/2 gal!on

2. Cream Cheese 3 oz. / 8 oz.

WARM

1. Syrup 1/4 cup / 1/2 cup

2. Dessert topping 1/4 cup / 1/2cup

SHARP

SHARP ELECTRONICS CORPORATION TINSEB036WRRZ-D52
Sharp Plaza, Mahwah, NJ 07430-2135 Printed in Thailand
