CONTENTS
CHAPTER-1: EXPLANATION OF PRODUCT
Technical specications 5
Conformity with the standards and test data 5
CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS
Recycling 6
Safety information 6
Recommendations 8
Items not suitable for dishwashing 8
CHAPTER-3: INSTALLING THE MACHINE
Positioning the machine 8
Water connections 9
Water inlet hose 9
Water outlet hose 9
Electrical connection 10
Fitting the machine undercounter 11
Prior to using the machine 13
CHAPTER-4: PREPARING THE MACHINE FOR USE
The importance of water decalcication 13
Filling with salt 13
Testing strip 13
Adjusting salt consumption 14
Detergent usage 14
Filling the detergent compartment 14
Combined detergent 15
Filling with rinse aid and making the setting 15
CHAPTER-5: LOADING YOUR DISHWASHER
Dish rack 16
Alternative basket loads 18
CHAPTER -6: PROGRAMME DESCRIPTIONS
Programme items 19
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME
Switching on the machine 23
Programme follow-up 23
Changing a programme 23
Changing a programme with resetting 24
Switching the machine off 24
CHAPTER-8: MAINTENANCE AND CLEANING
Filters 25
Spray arms 25
Hose lter 25
CHAPTER-9: FAILURE CODES AND WHAT TO DO İN CASE OF FAILURE 26
CHAPTER-10: PRACTICAL AND USEFUL INFORMATION 27
Dear Customer,our goal is to offer you, high quality products that exceed your expectations. Your appliance is
produced in modern facilities and is carefully tested for quality.Before using your appliance, carefully read this
guide which includes basic information for safe installation, maintenance and use. The operating instructions
apply to several models. Differences may therefore occur.
EN-3
CHAPTER -1: EXPLANATION OF PRODUCT
9
10
12
1
2
11
1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
3
4
5
6
7
8
7. Rating plate
8. Control Panel
9. Detergent and rinse-aid dispenser
10. Salt dispenser
11. Upper basket track latch
12. Upper Cutlery Basket
13
Turbo Drying Unit:
This system provides better drying
performance for your dishes.
EN-4
14
Ceiling Spray Arm:
It provides better washing for
the dishes at upper basket.
CHAPTER -1: TECHNICAL SPECIFICATIONS
Technical specifications
Capacity 14 place settings
Height 850 mm
Height (without worktop) 820 mm
Width 598 mm
Depth 598 mm
Net Weight 53 kg
Electricity input 220-240 V, 50 Hz
Total Power 2200 W
Heating Power 2000 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A
Conformity with the standards and Test data / EC Declaration of Conformity
All stages related to the machine are executed in accordance with the safety
rules provided in all relevant directives of the European Community. 2004/108/
EC, 2006/95/EC,IEC 436/DIN 44990, EN 50242
Important Note for User:For a softcopy of this user manual, please contact the
following address:
"dishwasher@standardtest.info”.In your e-mail, please provide the model
name and serial number (20 digits) which you can find on the appliance door.
EN-5
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS
Recycling
• The recyclable materials are used in certain components and packaging.
• Plastic parts are marked with international abbreviations: (>PE< , >PS< ,
>POM<, >PP<, )
• Cardboard parts have been produced from recycled paper which should be
disposed of into waste paper collection containers for recycling.
• Such materials are not suitable for garbage bins. They should be delivered to
recycling centres instead.
• Contact relevant centres in order to obtain information on methods and points
of disposal.
Safety Information
When you take delivery of your machine
• If you see any damage on your machine’s packaging, please notify your
retailer.
• Unwrap the packaging materials as indicated and dispose of them in
accordance with the rules.
The points to pay attention during machine installation
• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the
instructions.
• We recommend that the machine is installed by an authorised installer, and
should only be serviced by an approved technician.
• Only original spare parts should be used with the machine.
• Before installing, be sure that the machine is unplugged.
• Check whether the indoor electrical fuse system is connected according to
the regulations.
• All electrical connections must match values on the rating plate.
• Be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection.
The plug should be easily accessible after installation.
• After installation, run it unloaded for the first time.
In daily use
• This machine is for household use; do not use it for any other purpose.
Commercial usage of the dishwasher will void the guarantee.
• Do not use detergents and rinse aids that are not specifically designed for
dishwashers. Improper of such items may invalidate the warranty.
• Due to risk of explosion, do not put into the machine’s washing section any
chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing.
EN-6
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they are supervised or have been given instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.Cleaning and user
maintenance shall not be made by children without supervision.
• Do not put unsuitable and heavy items above the basket capacity into your
machine. SHARP will not be responsible for any damage on the inner parts.
• The door should not be opened whilst the machine is operating. A safety
device will ensure that the machine stops if opened.
• To avoid accidents, do not leave the door open.
• Place knives and other sharp-ended objects in the cutlery basket in bladedown
position.
• If the supply cord is damaged, it must be replaced by SHARP, or its service
agent.
• If EnergySave option is selected as “Yes”, the door will be opened at the end
of the program. Do not force the door closed to avoid harming the auto door
mechanism for 1 minute. The door must be open for 30 minutes to dry effectively(
in models with auto door opening system ).
Warning: Do not stand in front of the door after the auto-open signal sounds.
For your children’s safety
• After removing the machine’s packaging, make sure that the packaging
material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep children away from detergents and rinse aid.
• Keep children away from the machine while it is open because there may still
be residues of cleaning substances inside the machine.
• Be sure that your old machine does not pose any threat to your children.
Children are known to have become locked in old machines. To prevent such
a situation, break your machine’s door lock and tear off the electrical cables.
In case of malfunction
• Any repair performed by anyone other than authorized service personnel
will invalidate your warranty.
• Prior to any repair work on the machine, be sure that the machine is isolated
from the mains. Switch off the fuse or unplug the machine.Do not pull by the
cable when unplugging. Make sure to turn off the water tap.
EN-7
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS
Recommendations
• For energy and water saving, remove coarse residues on your dishes before
placing the dishes into the machine. Start your machine after having fully
loaded it.
• Use the pre-wash programme only when necessary.
• Place hollow items such as bowls, glasses and pots into the machine in such
a way that they will face down.
• You are not recommended to overload your machine or load it in a way other
than that which is indicated.
Items not suitable for dishwashing:
• Cigarette ash candle leftovers, polish, paint, chemical substances, ironalloy
materials.
• Forks, spoons and knives with wooden or bone, or ivory or nacre-coated
handles; glued items,items soiled with abrasive, acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated containers.
• Aluminium and silver objects (they may discolour, become dull).
• Certain delicate glass types, porcelain with ornamental printed patterns
as they fade even after the first wash; certain crystal items as they lose their
transparency over time, cutlery that is not heat-resistant, lead crystal
glasses, cutting boards, items manufactured with synthetic fibre.
• Absorbent items as sponges or kitchen rags are not suitable for dishwashing.
Warning:Take care to buy dishwasher-proof sets in your future purchases.
INSTALLING THE MACHINE
Positioning the machine
When determining the installation place, choose an accessible place for easy
loading and unloading of the dishes.
Do not put your machine in any location where there is the possibility of the
room temperature falling below 0°C.
Before positioning, take the machine out of its packaging by following the
warnings located on the package.
Position the machine close to a water tap or drain. You need to site your
machine, taking into consideration that its connections cannot be altered once
they are made.
Do not grip the machine by its door or panel in order to move it.
Take care to leave sufficient clearance from all sides of the machine for moving
it back and forth during cleaning.
Make sure that the water inlet and outlet hoses do not get squeezed while
positioning the machine. Also, make sure that the machine does not stand on
the electrical cable.
Adjust the machine’s adjustable feet so that it can stand level and balanced.
Proper positioning of the machine ensures problem-free opening and closing
of the door.
EN-8
CHAPTER -3: INSTALLING THE MACHINE
If the door of machine does not close properly, check if the machine is stable on
the floor if not, adjust the feet and ensure its stable position.
Water connection
Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend
that you fit a filter at the entrance of your property so as to avoid any damage
to your machine because of contamination (sand, clay, rust etc.) that might be
occasionally carried in through the mains water supply or the indoor plumbing,
and to prevent such complaints as yellowing and formation of deposits after
washing.
Water inlet hose
Do not use the water inlet hose of your old machine.
Use the new one supplied with your machine instead. If
you connect a new or long - unused water inlet hose
to your machine ,run water through it for a while before
making the connection. Connect the water inlet hose
directly to the water inlet tap. The pressure supplied by
the tap should be at a minimum of 0.03 Mpa and and at
a maximum of 1 Mpa.If the water pressure is above 1
Mpa,a pressure-relief valve should be fitted inbetween.
After making connections, the tap should be turned on fully and checked for
water tightness. For safety purposes, we recommend that you turn off the water
inlet tap when the machine is not going to be used for an extended period of
time.
NOTE: An Aquastop water etc. spout is used in some
models. With Aquastop, a potentially dangerous
tension exists.Do not cut the Aquastop water spout.
Do not let it get folded or twisted.
Water outlet hose
The water drain hose can be connected either directly
to the water drain hole or to the sink outlet spigot.
Using a special bent pipe (if available), the water can
be drained directly into the sink via hooking the bent
pipe over the edge of the sink. This connection should
be between 50 and 110 cm from the floor plane.
EN-9
CHAPTER -3: INSTALLING THE MACHINE
Warning: When a drain hose longer than 4 m is used, the dishes might
remain dirty. In that case, SHARP will not accept responsibility.
Electrical connection
The earthed plug of your machine should be connected to an earthed outlet
supplied by suitable voltage and current. If there is no earthing installation,
have a competent electrician to carry it out. In case of usage without earthing
installed, our company will not be responsible for any loss of usage that might
occur.
The indoor fuse current value should be 10-16 A.
Your machine is set according to 220-240 V. If the mains voltage in your
location is 110 V, connect a transformer of 110/220 V and 3000 W inbetween.
The machine should not be plugged in during positioning.
Always use the coated plug supplied with your machine.
Running in low voltage will cause a decline in washing quality.
The machine’s electrical cable should be replaced by an authorised service or
an authorised electrician only. Failure to do so may lead to accidents.
EN-10
CHAPTER -3: INSTALLING THE MACHINE
For safety purposes, we recommend that you disconnect the plug when the
machine is not going to be used for an extended period of time.
In order avoid electric shocks, do not unplug when your hands are wet.
When disconnecting your machine from the mains supply, always pull from the
plug. Never pull the cord itself.
Fitting the machine undercounter
If you wish to fit your machine undercounter, check whether you have sufficient
space under your countertop and whether the wiring-plumbing is suitable to
do so.1 If you decide that the space under the countertop is suitable for fitting
your machine, remove the worktop as shown in the illustration. 2
Warning:The surface which you place the machine under when removing its
worktop has to be stable to avoid balance problems.
To remove the worktop, remove the screws that hold the worktop which are
located at the rear of the machine; then push the front panel 1 cm from the
front side towards the rear and lift it.
EN-11
CHAPTER -3: INSTALLING THE MACHINE
Adjust the machine’s feet according to the slope of the floor.3 Fit your machine by
pushing it undercounter without letting the hoses get crushed or bent.4
H
Product
Without Insulation With Insulation
All Product For 2nd Basket For 3rd Basket
Height 820 mm 830 mm 835 mm
Warning: After removal of the worktop, the machine should be placed in such
a closed place of which dimensions are shown at fig.
EN-12
CHAPTER -4: PREPARING THE MACHINE FOR USE
Prior to using the machine for the rst time
• Check whether the electricity and supply water specications match the values indicated by the installation
instructions for the machine.
• Remove all packaging materials inside the machine.
• Set the water softener.
• Add 2 kg salt into the salt compartment and ll with water up to a level at which it will almost overow.
• Fill the rinse aid compartment.
PREPARING THE MACHINE FOR USE
The importance of water decalcication
For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime
residues will remain on the dishes and the interior. This will negatively affect your machine’s
washing, drying and shining performance. For this reason, a softener system is used on dishwashers. The
softener system has to be refreshed so that it operates with the same performance also during the next wash.
For this purpose, dishwasher salt is used.
Filling with salt
softener salt in the machine is sufcient, check the transparent section on the salt compartment cap. There is
sufcient salt if the transparent section is green. Salt has to be added if it is not green.
Testing strip
The washing effectiveness of your machine depends on the softness of the tap water. For this reason,
your machine is equipped with a system that reduces the hardness in mains water supply. The
washing effectiveness will increase when the system is correctly set. To nd out the water hardness
level of water in your area, contact your local water board or determine water hardness level by using
the test strip(if available).
Use softener salt specically produced for use in
dishwashers. To put softener salt, rst remove the
lower basket and then open the salt compartment
cap by turning it counter clockwise.1 2 At rst use
ll the compartment with 2kg salt and water3 at
overowing level If available, using the funnel
4provided will make lling easier. ret the cap and
close it After every 20th-30th wash, add salt into
your machine until it lls up (approx. 1.5 kg) Fill
the salt compartment with water at rst use only.
We recommend to use smallgrained or powder
softener salt. Do not put table salt into your
machine. Otherwise, the function of the softener the
compartment may decrease over time. When you
start the machine, the salt compartment gets lled
with water. Therefore, add the softener salt prior
to starting your machine. This way, overowing
salt gets immediately cleaned up through the
wash operation. If you will not wash any dishes
immediately after adding salt, then run a short
washing program with an empty machine in order
to avoid corrosion on your machine due to the salt
overow while lling the salt container. In order
to understand whether or not the amount of
Open
the
testing
strip
Run
water
through
your
tap for
1 min.
Keep
the
testing
strip in
water
for
1.sec.
Shake the
testing strip
after taking
it out of
water
Water
Make your machine’s water hardness setting
for 1
according to the result obtained through the testing
min.
strip.
Level 1
Level 2
Leve 3
Level 4
Level 5
Level 6
EN-13
No Lime
Very low
lime content
Low
lime content
Medium
lime content
Lime content
High
lime content
CHAPTER -4: PREPARING THE MACHINE FOR USE
Adjusting salt consumption
Water
hardness
level
1 0-5 0-9 0-6 L1 is seen on display.
2 6-11 10-20 7-14 L2 is seen on display.
3 12-17 21-30 15-21 L3 is seen on display.
4 18-22 31-40 22-28 L4 is seen on display.
5 23-31 41-55 29-39 L5 is seen on display.
6 32-50 56-90 40-63 L6 is seen on display.
Adjust the water hardness setting of your machine according to the level specied on the test strip.
NOTE: Hardness level is adjusted to level 3 as a factory setting.
German
hardness
level dH
French
hardness
level dF
British
hardness
level dE
Hardness Level Indicator
87654
9
33333333
1
2 3
Push the Programme selection button and hold down.(5)
In the meantime, turn on the machine by pushing ON/OFF button.(1)
Hold down the programme selection button until “SL” on the screen goes off.(5)
After “SL” goes off, release the programme button.
The machine will show the last water softening setting carried out.
You can make wate r hardness setting by pressing on “program
selection button (+)(5)” and “Delay button (-)(8)” buttons on the display.
After making water hardness setting, memorize the chosen setting by (1)
pushing ON/OFF button.
Detergent usage
Use a detergent specically designed for use in domestic dishwashers.
You can nd powder,gel, and tablet detergents in the market that have been designed for household dishwashers.
Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry
places out of reach of your children.
Do not ll detergent into the detergent compartment more than required; otherwise it may cause scratches on your
glasses as well as lead to a poorly dissolved detergent.
Should you need more information concerning the detergent you will use, contact detergent manufacturers
directly.
Filling the detergent compartment
Push the latch to open the detergent container as shown in the image. 1 Detergent pod has level lines inside.
It is possible to measure the right detergent amount using these lines. Detergent pod can take totally 40 cm3
detergent. Open the dishwasher detergent and pour into the larger compartment b 25 cm3 if your dishes are
heavily soiled or 15 cm3 if they are less soiled.2 If your dishes have been kept dirty for a very long time, if there are
dried food wastes on them, and if you have overly loaded the dishwasher, pour a 5cm3 detergent into the prewash
compartment and start your machine. You may have to add more detergent into your machine, depending on the
degree of soil and on the water hardness level in your area.
EN-14
CHAPTER -4: PREPARING THE MACHINE FOR USE
Combined detergents
Combined detergents may include various properties. Before using the detergent, read the instructions carefully.
Generally combined detergents produce sufcent results under certain conditions only.
Points to consider when using this type of products:
• Check the specications of the product whether it is combined or not.
• Check if the detergent used is appropriate for the hardness of mains water.
• Observe the instructions of products on packagings.
• Always put the tablets into the detergent compartment in the detergent dispenser.
• You need to contact the manufacturers and nd out about the suitable conditions of use.
• If you use appropriate products, they ensure savings in salt and/or rinse aid consumption.
• The scope of warranty for your machine does not cover any complaints caused by the use of these types of
detergents.
Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse
aid into your machine and adjust the water hardness setting and the rinse aid setting to the lowest position.
Solubility of the tablet detergents produced by different companies can vary depending on
the temperature and time. Therefore, it is not recommended to use such detergents in short
programs. It is more suitable to use powder detergents in such programs.
Warning: Should any problem, which you have not encountered before arise with the use of this type of
detergent, contact the detergent manufacturer directly.
When you stop using combined detergents
• Fill the salt and rinse aid compartments.
• Adjust the water hardness setting to the highest position and run an empty-wash.
• Adjust the water hardness level.
• Make the suitable rinse aid setting.
Filling with rinse aid and making the setting
Adequate amount of rinse aid prevents the accumulation of white water drops, lime stains, white lm stripshaped.
It also increases drying performance.
To add rinse aid, remove the rinse aid compartment cap by turning it.1 Fill the rinse aid compartment with rinse
to add rinse aid level indicator becomes dark;2 ret the cap and close it by turning it in a way that the nails,
remove the rinse aid compartment cap by turning it. Will correspond to one another. By checking the rinse aid
level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A
dark indicator b means that there is rinse aid in the compartment, while a light indicator a shows that you need
to ll the compartment with rinse aid.
The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the
position 3.
3
1
You need to increase the degree of the adjuster if water stains form on your dishes after a wash,
whereas you need to decrease the degree if a blue stain is left when wiped by hand. 3
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left
as a result of overowing will create extremely high amounts of foam and thus reduce the washing performance,
remove the excess amount of rinse aid by wiping it with a rag.
EN-15
CHAPTER-5: LOADING YOUR DISHWASHER
LOADING YOUR DISHWASHER
Place dishes properly into the machine.
There are two seperate baskets to load dishes into your machine.The lower basket is for round and deep items.
The upper basket is for thin and narrow items. You are recommended to use the cutlery grid in order to obtain
the best result.
To avoid any possible injuries, long-handle and sharp-pointed dishes with their sharp points facing down or
horizontally on the baskets.
Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms
from spinning.
1
2
Dish rack
You can place different sizes of glasses under these racks thanks
to the adjustable height feature. You can use racks in 2 different
heights.
Foldable racks
Foldable racks on the upper basket are designed in order to let
you place big items easier such as pots, pans, etc. If required,
each part can be folded separately, or all of them can be folded
and larger spaces can be obtained. To adjust the foldable racks,
either raising them upwards,or fold them down.
Top basket height adjustment while it is full
The basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the
height of your top basket upwards or downwards, without removing it from your machine when it is full, and create
large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position
in factory settings. In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it,
hold it from both sides again, and leave it. In loaded basket adjustment mechanism, make sure that both sides
are in the same position. (up or down)
1 2
Lower basket
Folding racks
In the lower basket of the machine, there are four folding racks that are designed to allow you to make it easier
to place big items such as pots, pans, etc. If required, each part can be folded separately, or all of them can be
folded and larger spaces can be obtained. To adjust them , raise them upwards, or fold down.
1
2
EN-16
CHAPTER-5: LOADING YOUR DISHWASHER
Upper Cutlery Basket
The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items
Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with
the basket after washing.
The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper basket, you can take out the left or right part of the upper cutlery basket in order to obtain more space.
Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket.
EN-17
CHAPTER-5: LOADING YOUR DISHWASHER
Alternative basket loads
Lower Basket
Top basket
Faulty loads
Important Note for Test Laboratories
For detailed information on performance tests, please contact following address:
“dishwasher@standardtest.info” . In your email, please provide the model name and serial
number (20 digits) which you can nd on the appliance door.
EN-18
CHAPTER -6: PROGRAMME DESCRIPTIONS
Programme items
Programme No
Programme
names and
temperatures
Type of food
waste
•
Level of
Contamination
Detergent
amount
3
B: 25 cm
3
15 cm
3
A: 5 cm
Jetwash 18’ 35°C Auto
Fresh less dirty,
coffee,
milk, tea
Delicate 30-50°C
Detects contamination level of
dishes and sets temperature and
amount of washing water and
washing period automatically
small small high high
**B A+B A+B A+B
/
35°C wash Detects contamination level of
dishes and sets temperature and
amount of washing water and
washing period automatically
Hot rinse 65°C Wash
End 45°C Wash
Auto Intense
50-70°C
Dual Wash 65°C
Saups,sauces
pasta, eggs, pilaf
patatoe and oven
dishes, fried foods
kept for long
40°C Wash
Hot rinse
Dry
End
Programme
duration
(min.)
Electricity
consumption
(kW hours)
Water
consumption
(liters)
18 79-87 107-171 106
0,57 0-87 1,58 1,43
7,7 10,6-17,7 12,3-24,6 15,4
If you choose half load option values change into ;
Programme
duration
(min.)
Electricity
consumption
(kW hours)
Water
consumption
(liters)
Warning: Short programs do not include a drying step.
The values declared above are the values obtained under laboratory conditions according to relevant
standards. These values can change depending on conditions of product’s use and environment (network
tension, water pressure, water input temperature and environment temperature).
18 62 - 75 82-151 88
0,57 0,82 1,30 1,33
7,7 8,5 - 14,7 9,3-21,6 11,1
EN-19
CHAPTER -6: PROGRAMME DESCRIPTIONS
Programme items
Programme No
Programme
names and
temperatures
Type of food
waste
Level of soil small medium medium medium
Detergent
amount
B: 25 cm
3
15 cm
3
A: 5 cm
Quick 30 min. 40°C Eco 50°C ***Super 50 min. 65°C Hygiene 70°C
Fresh coffee,
milk, tea, cold
meat, vegetables
Fresh coffee,
milk, tea, cold
meat, vegetables
Tarried soup,
sauce, pastry, egg,
rice, potato and
meals cooked in
oven, fried food
B A+B A+B A+B
3
/
Prewash Prewash 65°C wash Prewash
40°C Wash 50°C wash Intermediate rinse 65°C wash
Cold rinse Hot rinse Hot rinse Cold rinse
Hot rinse Dry End Hot rinse
Dry End Dry
Fresh coffee,
milk, tea,
cold meat,
vegetables
End End
Programme
duration
(min.)
Electricity
consumption
(kW hours)
Water
consumption
(liters)
30 203 50 116
0,74 0,66 129 1,38
10,9 9,0 10,7 14,4
If you choose half load option values change into ;
Programme
duration
(min.)
Electricity
consumption
(kW hours)
Water
consumption
(liters)
**Only powder detergent should be used in cycle of prewash programme.
*** You can wash your dishes through washing performance A by using cycle of Super 50min.
30 129 46 95
0,74 0,64 1,29 1,35
10,9 9,0 10,7 11,1
EN-20

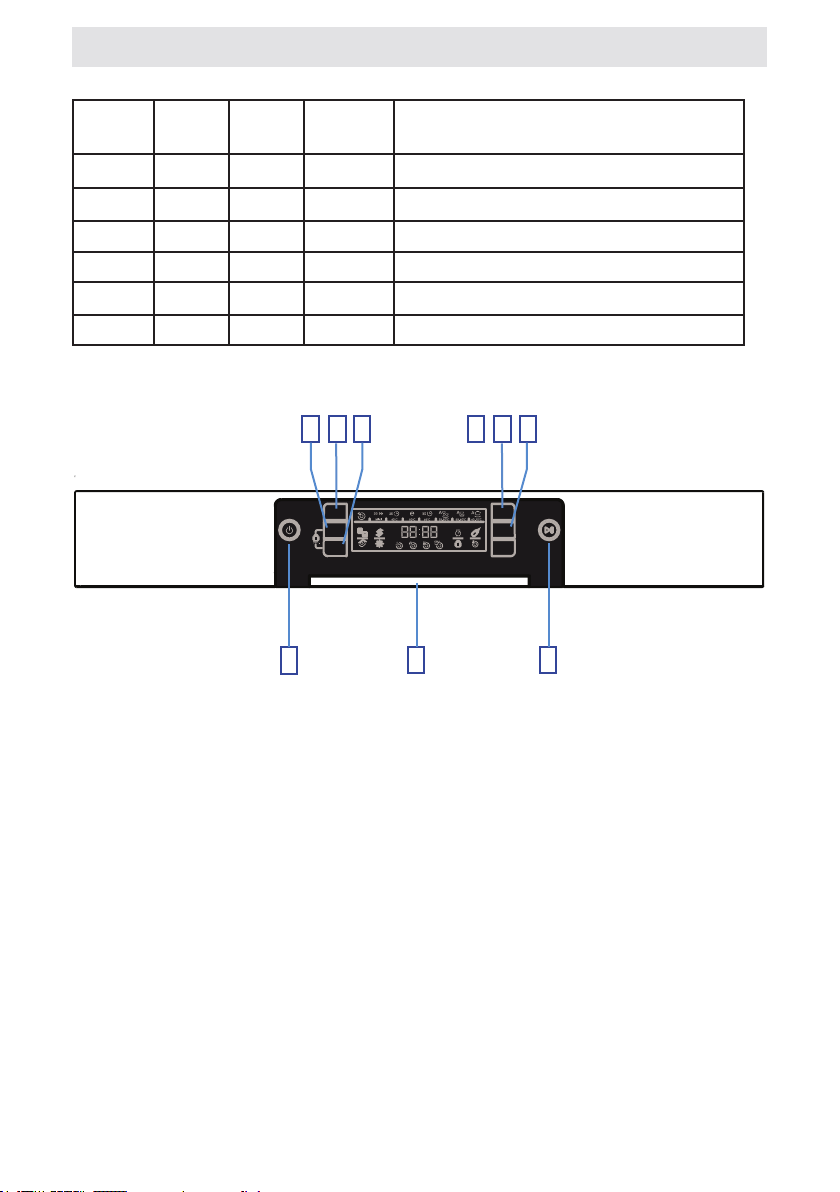

CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING
A PROGRAMME
87654
9
33333333
11
12
1- On/Off Button
2- Door Handle
3- Start/Standby button
4- Half Load Button
5- Program Button
6- Tablet Detergent Button
7- Extra Fast/Silent Button
8- Delay Button
9- Energy Save Button
10- Program Displays
11- Half Load Symbol
12- Tablet Detergent Symbol
13
14
1
2 3
10
15.c
15.d
16
17
18
19
20
15.b
15.a
15
13- Salt Level Warning Display
14- Rinse Aid Level Warning Display
15- Program Phases Follow-up Display a-Washing
Phase Symbol
b- Rinse Phase Symbol
c- Drying Phase Symbol
d- Completion Symbol
16- Remaining Time/Delay Time/Program
Time Display
17- Delay Symbol 1
18- Energy Save Symbol
19- Extra Fast Symbol
20- Extra Silent Symbol
EN-21
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A
PROGRAMME
Power On/Off Button (1)
When you press the on/off button, the machine is turned on and the display shows the last used program; in the
off position, the LEDs on the display are off.
Door Handle (2)
Please use the door handle to open-close the door of your machine.
Start/Standby Button (3)
When you press the start/standby button, the program selected with the program button 5 will start and the display
will show the washing image 15.a. You may follow the washing phases from the display. 15
Ecowash Button (Half load button) (4)
Using the Ecowash function, three sorts of washing up can be done those being lower basket, upper basket and
both baskets.
If you have only a few of dishes in your machine and if you have to wash them, you can also activate the
semi-lling function for some programs.
If you have dishes in both baskets, press the key ½ and select the position in which both lamps are highlighted.
If you have dishes only in the upper basket, press the key ½ and select the position in which the upper image is
illuminated. Thus, washing up shall be done only on the upper basket of your machine.
If you have dishes only in the lower basket, press the key ½ and select the position in which the lower image is
illuminated.
Thus, washing up shall be done only on the lower basket of your machine. In using this feature, make sure that
there are no dishes in the upper basket.
Program Button (5)
You may select the appropriate washing program from the display using the program button.(10)
Tablet Detergent Button (6)
Press the Tablet Detergent Button whenever you will use salt, rinse agent and combined detergents having extra
properties. If this button is active for the program you have selected, indicator no. 12 will be illuminated on the
display.
Extra Fast / Silent Button (7)
Extra Fast Function Washes the dishes with more pressure, thus shortens the time of the selected program and
provides economical water usage.
Extra Silent Function
Washes the dishes with less pressure, thus provides more sensitive and silent washing.
Delay Button (8)
Before the program starts, you may adjust the delay time by pressing the Delay button. When you press the delay
button, indicator no. 17 will be illuminated on the display.
Energy Save Button (9)
This option support opening the door at the end of the program .So drying efciency is increased .In addition the
option decreases temperature at the algorithm of programs to support energy is saving.
Salt Level Warning Display (13)
In order to understand whether the salt in your machine is sufcient or not, please check the salt level warning
display. If this display is illuminated, ll the salt section.
Rinse Aid Level Warning Display (14)
order to understand whether the rinse agent in your machine is sufcient or not, please check the rinse agent
level warning display. If this display is illuminated, ll the rinse agent section.
Remaining Time Display (16)
The Remaining Time Display shows the time of the programs and the remaining time while the program is in
operation. You may also adjust the delay time by pressing the delay button before the program starts.
Use of Child Lock
On order to activate the child lock, press both “tablet” and “half load” buttons at the same time for 3 seconds. In
the meantime, you will see “CL” for 2 seconds on the Remaining time display. In order to deactivate, press both
“tablet” and “half load” buttons at the same time for 3 seconds. “CL” will ash two times.
EN-22
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A
PROGRAMME
Starting the Machine
1. Press Power On/Off switch. 1
2. Select the appropriate program for your dishes using the Program Button. 5
3. If you prefer, you can select additional functions. 4 6 7 9
4. Start the programme by pressing the Start/Standby button. 3
Program Follow-up
You can follow the progress by the help of the program follow-up symbols on the display. 15
When the program you have selected starts, you can see the estimated remaining time
on the time indicator.
NOTE: The total time that programs take might differ in accordance with the room’s temperature,
temperature of the mains water and the amount of your dishes; therefore the program may take a
different amount of time than that initially stated.
As the washing proceeds, washing and drying symbols will be
illuminated respectively.
When the drying symbol is on, the
machine remains silent for about 45-50 minutes.
Do not open the door before the completion lamp is on. When the
program nishes, the completion symbol is illuminated.
EN-23
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A
PROGRAMME
Program Change
If you want to change the program while another one is proceeding;
Press on Start/Standby button. 3
• Select the new program using Program button. 5
• The newly selected program continues from where the previous one was left.
• Start the programme by pressing the Start/Standby button again. 3
Cancelling programme
If you want to cancel the program while another one is proceeding;
• Hold the Start/Standby button for 3 seconds. 3
• The display will count down from 3 to 1 and when the countdown is over, the remaining time will be displayed
as 1 minute.
The machine will dispose of all the water in this 1 minute; the time is reset and completion symbol is illuminated.
Switching off the Machine
• When the Completion symbol is illuminated, switch off your machine by pressing the On/Off button.
• Later, unplug your machine and turn off its faucet.
NOTE 1: A few minutes after the program nishes and the Completion lamp is illuminated, you may open the door
slightly and leave it ajar in order for the drying process to be faster.
NOTE 2: If the machine door is opened or a power failure occurs during washing, the machine will proceed from
where it stopped after the door is closed or power is restored.
EN-24
CHAPTER -8: MAINTENANCE AND CLEANING
Cleaning the machine regularly prolongs the machine’s service life.
Oil and limescale may accumulate in the machine’s washing section. In case of such accumulation;
-Fill the detergent compartment without loading any dishes into the machine, run the machine at high
temperature. If this does not work, use special cleansing materials.
Cleaning the seals in the machine door,
-Wipe the seals regularly by using a dampened cloth.
Cleaning machine,
Clean the lters and spray arms at least once a week.
Unplug your machine and turn off its tap before starting the cleaning.
Wipe with a ne cleaning material and a dampened cloth.
Filters
If any food wastes have remained on the coarse and ne lters, remove the lters and clean them thoroughly
under the water tap.
a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter
To remove and clean the lter combination, turn it counter clockwise and take it out by lifting upwards.1
Pull and remove the metal/plastic lter. 3 Then pull the coarse lter out of the micro lter.2 Rinse it with lots
of water under the tap. Ret the metal/plastic lter. Insert the coarse lter into the micro lter in a way that the
marks will correspond to one another. Attach micro lter into the metal/plastic lter and turn to the direction of
arrow and it is locked when the arrow on micro lter can be seen from across. 4
• Never use your dishwasher without a lter.
• Incorrect tting of the lter will reduce the washing effectiveness.
• Clean lters are very important in terms of the proper running of the machine.
Spray arms
Check the holes for the upper and lower spray arms. If there is any clogging, remove the spray arms and clean
them under water.
You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by
turning the nut to the left. Be sure that the nut is perfectly tightened when retting the upper spray arm.
Hose lter
Check the lter and the hose from time to time and clean them
to prevent yellowing and formation of deposits after washing. To
clean the lter, rst turn off your tap and then remove the hose.
After removing the lter from the hose, clean it under the tap.
Insert the cleaned lter back into its place inside the hose. Ret
the hose.
EN-25
CHAPTER -9: FAILURE CODES AND WHAT TO DO IN CASE OF
FAILURE
ERROR
CODE
If one of the program monitor lights is on and start/Pause light is on and off,
Your machine’s door is open, shut the door.
If the programme won’t start
• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet lter and the machine lters are not clogged.
If the lamps “Wash/Dry” and “End” keep ashing
• The water overow alarm is active
• Turn off your tap and contact the Sharp helpdesk.
If the control lamps won’t go out after a wash operation
Check if the Power On/Off button is released.
If detergent residues are left in the detergent compartment
Detergent has been added when the detergent compartment was wet.
If water is left inside the machine at the end of the programme
• The water drain hose is clogged or twisted.
• The lters are clogged.
• The programme is not nished yet.
If the machine stops during a wash operation
• Power failure.
• Water inlet failure.
• Program can be on standby mode.
If shaking and hitting noises are heard during a wash operation
• Dishes placed incorrectly.
• Spray arm hitting the dishes.
If there are partial food wastes left on the dishes
• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
• Small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly tted.
• Water drain pump clogged.
ERROR
DESCRIPTION
Inadequate water
F5
supply
Error of continuous
F3
water input
The waste water in the
F2
machine cannot be
discharged.
F8 Heater error • Contact service.
Alarm is active against
F1
water overow
FE Faulty electronic card • Contact service.
Overheating error
(temperature in the
F7
machine is
too high)
F9 Divisor position error • Contact service.
F6 Faulty heater sensor • Contact service.
CONTROL
• Make sure the water input tap is totally open and that there is no
water cut.
• Close the water input tap, separate the water input hose from the
tap and clean the lter at the connection end of the hose.
• Restart your machine, contact the service if the error resumes.
• Close the tap.
• Contact service.
• Water discharge hose is clogged.
• The lters of your machine might be clogged.
• Power off-on your machine and activate the program
cancellation command.
• If the error continues, contact the service.
• Power off your machine and close the tap.
• Contact service.
• Contact service.
EN-26
CHAPTER -10: PRACTICAL AND USEFUL INFORMATION
If there are whitish stains on the dishes
• insufcient detergent is being used
• Rinse aid dosage setting at a very low level.
• No special salt is being used despite the high degree of water hardness.
• Water softener system setting is at a very low level.
• Salt compartment cap not closed well.
Won’t dry no need for dry
• A programme without a dry operation has been selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.
If there are rust stains on the dishes
• Stainless-steel quality of the dishes washed is insufcient.
• High rate of salt in the wash water.
• Salt compartment cap not properly closed.
• Too much salt spilt into the sides and into the machine while lling it with salt.
• Poor mains grounding.
Call an authorised service if the problem still persists after the controls or in case of any malfunction
not described above.
PRACTICAL AND USEFUL INFORMATION
1- When you won’t be using your machine for an extended period
• Unplug the machine and then turn the water off.
• Leave the door slightly ajar in order to prevent the formation of unpleasant smells.
• Keep the machine interior clean.
2- Eliminating water droplets
• Wash the dishes with the intensive programme.
• Take all of the metal containers in the machine out.
• Do not add detergent.
3- If you properly place your dishes into the machine, you will be using it in the best way in
terms of energy consumption, washing and drying performance.
4- Clean all rough waste before you place dirty dishes to the machine.
5- Operate the machine after it is completely full.
6- Use pre-washing program only when necessary.
7- Observe program information and average consumption values table when selecting a
program.
8- Since the machine will reach high temperatures, it should not be placed near a refrigerator.
9- If the appliance is located in a place where the risk of freezing exists, you must completely drain
the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose
from the tap and allow the interior water to drain.
EN-27
DISPOSAL OF YOUR OLD MACHINE
This symbol on the product or package implies that the product should not be treated as domestic waste.
Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will
help avoid damage to the environment and risks to public health.
Recycling materials will help natural resources to be preserved. For more detailed information regarding recycling
of this product, please contact your local authority or the shop where you purchased the product from.
EN-28
Waterside Drive, Langley, Berkshire, SL3 6EZ, UNITED KINGDOM
52175937 R20
Loading...
