CHAPTER-1: EXPLANATION OF PRODUCT
Technical specications 5
Conformity with the standards and test data 5
CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS
Recycling 6
Safety information 6
R e c o m m e n d a t i o n s 8
Items not suitable for dishwashing 8
CHAPTER-3: INSTALLING THE MACHINE
Positioning the machine 8
Water connections 9
Water inlet hose 9
Water outlet hose 9
Electrical connection 10
Prior to using the machine 11
CHAPTER-4: PREPARING THE MACHINE FOR USE
The importance of water decalcication 11
Filling with salt 11
Testing strip 11
Adjusting salt consumption 12
Detergent usage 12
Filling the detergent compartment 12
Combined detergent 13
Filling with rinse aid and making the setting 13
CHAPTER-5: LOADING YOUR DISHWASHER
Dish rack 14
Alternative basket loads 16
CHAPTER -6: PROGRAMME DESCRIPTIONS
Programme items 17
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME
Switching on the machine 20
Programme follow-up 20
Changing a programme 21
Changing a programme with resetting 21
Switching the machine off 21
CHAPTER-8: MAINTENANCE AND CLEANING
Filters 23
Spray arms 23
Hose lter 23
CHAPTER-9: FAILURE CODES AND WHAT TO DO İN CASE OF FAILURE 24
CHAPTER-10: PRACTICAL AND USEFUL INFORMATION 25
Dear Customer,our goal is to offer you, high quality products that exceed your expectations. Your appliance is
produced in modern facilities and is carefully tested for quality.
Before using your appliance, carefully read this guide which includes basic information for safe installation,
maintenance and use.
The operating instructions apply to several models. Differences may therefore occur.
EN-3
CHAPTER -1: EXPLANATION OF PRODUCT
1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
12
Turbo Drying Unit:
This system provides
better drying performance
for your dishes.
7. Control panel
8. Detergent and rinse aid dispenser
9. Salt dispenser
10. Upper basket track latch
11. Upper cutlery basket
Ceiling Spray
Arm:
It provides better
washing for the
dishes at upper
basket.
13
14
Interior light :
Provides illumination
inside the dishwasher
helping with loading
and un-loading.
EN-4
CHAPTER -1: TECHNICAL SPECIFICATIONS
Technical specifications
Capacity 15 place settings
Height 820 mm - 870 mm
Width 598 mm
Depth 550 mm
Net Weight 38 kg
Electricity input 220-240 V, 50 Hz
Total Power 1900 W
Heating Power 1800 W
Pump Power 100 W
Drain Pump Power W
Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A
Conformity with the standards and Test data / EU Declaration
of Conformity
This product meets the requirements of all applicable EU directives with the corresponding harmonised standards, which provide for CE marking.
Please visit www.sharphomeappliances.com for an electronic copy of this user
manual.
EN-5
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS
SAFETY INFORMATION AND RECOMMENDATIONS
Recycling
• The recyclable materials are used in certain components and packaging.
• Plastic parts are marked with international abbreviations: (>PE< , >PS< ,
>POM<, >PP<, )
• Cardboard parts have been produced from recycled paper which should be
disposed of into waste paper collection containers for recycling.
• Such materials are not suitable for garbage bins. They should be delivered to
recycling centres instead.
• Contact relevant centres in order to obtain information on methods and points
of disposal.
Safety Information
When you take delivery of your machine
• If you see any damage on your machine’s packaging, please contact the
authorised service.
• Unwrap the packaging materials as indicated and dispose of them in
accordance with the rules in force.
Points to pay attention during machine installation
• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the
instructions.
• This machine should only be installed and repaired by an authorised service
technian.
• Only original spare parts should be used with the machine.
• Before installing, be sure that the machine is unplugged.
• Check whether the indoor electrical fuse system is connected according to
the regulations.
• All electrical connections must match the values on the rating plate.
• Be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection.
The plug should be comfortably accessible after installation.
• After installation, run it unloaded for the first time.
In daily use
• This machine is for household use; do not use it for any other purpose.
Commercial usage of the dishwasher will void the warranty.
• Do not get up, sit or place a load when the door is open, it may fall over.
• Never use a detergent and rinse agent which is not produced specifically for
dishwashers.Our company will not be liable for this.
• The water in the machine’s washing section is not drinking water. Do not drink
it.
• Due to danger of explosion, do not put any chemical dissolving agents such
as solvents into the machine's washing section.
EN-6
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS
• Check whether plastic items are heat-resistant before washing.
•This appliance can be used by children aged 8 years and over and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance should not be
carried out by children without supervision.
• Do not put unsuitable and heavy items above the baskets capacity into your
machine. Our company will not be liable for any damage on the internal parts.
• The door must not open while the machine is operating. In any case, the
safety device ensures that the machine stops if the door is opened.
• Do not leave the door open, to avoid accidents.
• Place knives and other sharp-ended objects in the cutlery basket in bladedown position.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or competent technican in order to prevent a hazard.
• If the Energy Save option is selected as “Yes”, The door will be opened at
the end of the programme. Do not force the door shut to avoid harm to the
auto door mechanism for 1 minute. The door must be open for 30 minutes for
effective drying.(in models with an auto door opening system)
Warning: Do not stand in front of the door after the signal for the auto-open
sounds.
For your children’s safety
• After removing the machines packaging, make sure that the packaging
material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep children away from detergents and rinse agents.
• Keep children away from the machine while it is open as there may still be
cleaning substance residues inside the machine.
• Be sure that your old machine does not pose any threat to your children.
Children are known to have gotten themselves locked in old machines.
To prevent such a situation, break your machines doorlock and tear off the
electrical cables.
In case of malfunctioning
• Any repairs performed by anyone other than authorized service staff will result
out of scope warranty to your machine.
• Prior to any repair work on the machine, be sure that the machine is cut off
from the power supply. Switch off the fuse or unplug the machine. Do not pull by
the cable when unplugging. Make sure to turn off the water tap.
EN-7
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS
Recommendations
• For energy and water saving, remove coarse residues on your dishes before
placing the dishes into the machine. Start your machine after having fully
loaded it.
• Use the pre-wash programme only whenever necessary.
• Place such hollow items as bowls, glasses and pots into the machine in such
a way so they face down.
• You are recommended not to load into your machine any dishes different or
more than indicated.
Items not suitable for dish washing:
• Cigarette ashes, candle wax, polish, paint, chemical substances, iron-alloy
materials;
• Forks, spoons and knives with wooden,bone, ivory or nacre-coated handles;
glued items,items soiled with abrasive, acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated containers.
• Aluminium and silver objects (they may discolour, become dull).
• Certain delicate glass types, porcelains with ornamental printed patterns
as they fade even after the first wash; certain crystal items as they lose their
transparency over time, adhered cutlery that is not heat-resistant, lead crystal
glasses, cutting boards, items manufactured with synthetic fibres;
• Absorbent items such as sponges or kitchen rags are not suitable for
dishwashing.
Warning: Make sure to purchase dishwasher-safe sets in your future
purchases.
INSTALLING THE MACHINE
Positioning the machine
When determining the installation place, ensure an accessible place for easy
loading and unloading of dishes.
Do not put your machine in any location where there is a probability of the
room temperature falling below 0°C.
Before positioning, take the machine out of its packaging by following the
warnings located on the packaging.
Position the machine close to a water tap or drain. You need to site your
machine, taking into consideration that its connections cannot be altered
once they are made.
Do not grip the machine by its door or panel in order to move it.
Take care to leave sufficient clearance from all sides of the machine to
comfortably move it back and forth during cleaning. Make sure that the water
inlet and outlet hoses do not get squeezed while positioning the machine.
Also, make sure that the machine does not stand on the electrical cable.
Adjust the machine’s adjustable feet so that it can stand level and balanced.
The proper positioning of the machine ensures problem-free opening and
closing of the door.
EN-8
CHAPTER -3: INSTALLING THE MACHINE
If the door of the machine does not close properly, check if the machine is stable
on the floor on which it stands; if not, adjust the feet and ensure its stable position.
Water connection
İndoor plumbing must be suitable for installing a dishwasher. We also recommend
that you fit a filter at the entrance of your house or apartment so as to avoid any
damage to your machine as a result of any contamination (sand, clay, rust etc.)
that might be occasionally carried in through the main water supply or the indoor
plumbing, and to forestall such complaints as yellowing and the formation of
deposits after washing.
Water inlet hose
Do not use the water inlet hose of your old machine. Use
the new hose supplied with your machine. If you connect
a new or long - unused water inlet hose to your machine,
run water through it for a while before making the
connection. Connect the water inlet hose directly to the
water inlet tap. The pressure supplied by the tap should
be at a minimum of 0.03 Mpa and and at a maximum of
1 Mpa. If the water pressure is above 1 Mpa, a pressurerelief valve should be fitted in between.
After making connections, the tap should be turned on fully and checked for
water tightness. For the safety of machine, turn off the water inlet tap after
finishing each wash programme.
NOTE: An aquastop water spout is used in some
models. In the event of using Aquastop, a dangerous
tension exists. Do not cut Aquastop water spout. Do
not let it get folded or twisted.
Water outlet hose
The water drain hose can be connected either directly
to the water drain hole or to the sink outlet spigot.
Using a special bent pipe (if available), the water can
be drained directly into the sink via hooking the bent
pipe over the edge of the sink. This connection should
be between 50 and 110 cm from the floor plane.
EN-9
CHAPTER -3: INSTALLING THE MACHINE
Warning: When a drain hose longer than 4 m is used, the dishes may
remain dirty. In such a case, our company will not accept liability.
Electrical connection
The grounded plug of your machine should be connected to an grounded outlet
supplied by a suitable voltage and current. If there is no grounding installation,
have a competent electrician carry one out. In the event of usage without
installed grounding, our company will not be liable for any loss of usage that
may occur.
The indoor fuse current value should be 10-16 A.
Your machine is set to 220-240 V. If the power supplyvoltage in your location
is 110 V, connect a transformer of 110/220 V and 3000 W in between. The
machine should not be plugged in during positioning.
Always use the coated plug supplied with your machine.
Operation in low voltage will cause a decline in washing quality.
The machine’s electrical cable should be replaced by an authorised service or
an authorised electrician only. Failure to do so may lead to accidents.
For safety purposes, always make sure to disconnect the plug when a wash
programme is finished.
In order to avoid an electric shock, do not unplug when your hands are wet.
When disconnecting your machine from the main supply, always remove by
the plug. Never pull on the cord itself.
EN-10
CHAPTER -4: PREPARING THE MACHINE FOR USE
SALT
Prior to using the machine for the rst time
• Check whether the electricity and supply water specications match the values indicated by the installation
instructions for the machine.
• Remove all packaging materials inside the machine.
• Set the water softener.
• Add 1 kg salt into the salt compartment and ll with water up to a level at which it will almost overow.
• Fill the rinse aid compartment.
PREPARING THE MACHINE FOR USE
The importance of water decalcication
For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime
residues will remain on the dishes and the interior equipment. This will negatively affect your machine’s
washing, drying and shining performance. For this reason, a softener system used on dishwashers. The
softener system has to be refreshed so that it operates with the same performance also during the next wash.
For this purpose, dishwasher salt is used.
Filling with salt (IF AVAILABLE)
1
3
softener salt in machine is sufcient, check the transparent section on the salt compartment cap. There is
sufcient salt if the transparent section is green. Salt has to be added if it is not green.
Testing strip
The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will
increase when the system is correctly set. To nd out the water hardness level of water in your area, contact your
local water board or determine water hardness level by using the test strip(if available).
Open
the
testing
strip
Run
water
through
your
tap for
1 min.
Use softener salt specically produced for
use in dishwashers. To add softener salt, rst
remove the lower basket and then open the salt
compartment cap by turning it counter clockwise.
(1) (2) At rst use ll the compartment with 1kg
salt and water (3) at overowing level If available.
Using a funnel (4) will make lling easier. Ret
the cap and close it. After every 20th-30th wash,
add salt into your machine until it lls up (approx.
1 kg) Fill the salt compartment with water at rst
use only. We recommend to use smallgrained or
powder softener salt. Do not put table salt into your
machine. Otherwise, the function of the softener
compartment may decrease over time. When you
start machine, the salt compartment gets lled
with water. There fore, put the softener salt prior
to starting your machine. This way, overowing
salt gets immediately cleaned up through the
wash operation. If you will not wash any dishes
immediately after putting salt, then run a short
washing program with an empty machine in order
to avoid corrosion on your machine due to the salt
overow while lling in the salt container. In order
to understand whether or not the amount of
Keep
the
testing
strip in
water
for
1.sec.
Shake the
testing strip
after taking
it out of
water
Water
Make your machine’s water hardness setting
for 1
according to the result obtained through the testing
min.
strip.
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
2
4
No Lime
Very low lime
content
Low
lime content
Medium
lime content
Lime content
High lime content
EN-11
CHAPTER -4: PREPARING THE MACHINE FOR USE
Adjusting salt consumption
Water
hardness
level
1 0-5 0-9 0-6 L1 is seen on display.
2 6-11 10-20 7-14 L2 is seen on display.
3 12-17 21-30 15-21 L3 is seen on display.
4 18-22 31-40 22-28 L4 is seen on display.
5 23-31 41-55 29-39 L5 is seen on display.
6 32-50 56-90 40-63 L6 is seen on display.
Adjust the water hardness setting of your machine according to the level specied on the test strip.
NOTE: Hardness level is adjusted to level 3 as a factory setting.
After restting the machine, with the door open;
While touching the program button 3 turn on the machine with the power button. 1
Continue to touch the program button until “SL” appears on the display. 2
Release the program touch button when “SL” disappears from the display. 2
The current water hardness setting will appear on the display. 2
Press the program touch button 3 to select the desired level according to Table of Water Hardness Level
Settings.
At any pressure on the program touch button 3 will increment the hardness level.
The level changes from Level 6 to Level 1 when the program button 3 is pressed.
To save the setting to memory, power off the machine. 1
Detergent usage
Use a detergent specically designed for use in domestic dishwashers.
You can nd powder,gel,and tablet detergents that have been designed for household dishwashers.
Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry
places out of reach of your children.
Do not overll the detergent compartment; otherwise it may cause scratches on your glasses as well as lead to
a poorly dissolved detergent.
Should you need more information concerning the detergent you will use, contact the detergent manufacturers
directly.
Filling the detergent compartmentv
Push the latch to open the detergent container as shown in the image. 1 The Detergent pod has level lines
inside. The Detergent pod can take a total of 40 cm
the larger compartment b 25 cm3 if dishes are heavily soiled or less 15 cm3.2 If dishes have been kept dirty for a
very long time with, dried food waste on them or the dishwasher has been overloaded pour a 5cm3 of detergent
into the prewash compartment and start the machine. You may have to add more detergent into your machine,
depending on the degree of soil and on the water hardness level in your area.
German
hardness
level dH
1
French
hardness
level dF
3
British
hardness
level dE
2
Hardness Level Indicator
3
of detergent. Open the dishwasher detergent and pour into
1
2
DETERGENT
EN-12
CHAPTER -4: PREPARING THE MACHINE FOR USE
Combined detergents
Combined detergents may include various properties in them. Before using a detergent, please read and follow
the instructions well. Generally, combined detergents produce sufcient results only under certain conditions.
Points to consider when using these types of products:
• Check the specications of the product whether it is combined or not.
• Check if the detergent used is appropriate for the hardness of the main water supply.
• Read the instructions of the products on the packagings.
• Always put the tablets into the detergent compartment in the detergent dispenser.
• You need to contact the manufacturers and nd out about the suitable conditions of use.
• If you use appropriate products, they can ensure savings in salt and/or rinse agent consumption.
• The scope of the warranty for your machine does not cover any complaints caused by the use of these types
of detergents.
Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse
agent into your machine and adjust the water hardness setting and the rinse aid setting to the lowest position.
The solubility of the tablet detergents produced by different companies can vary depending on
the temperature and time. Therefore, the use of such detergents in short programmes is not
Warning: Should any problem, which you have not encountered before arise with the use of this type of
detergents, contact the detergent manufacturers directly.
When you stop using combined detergents
• Fill the salt and rinse agent compartments.
• Adjust the water hardness setting to the highest position and run an empty-wash.
• Adjust the water hardness level.
• Set the suitable rinse agent setting.
Filling with rinse agent and making the setting
To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse
aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and
wipe up any spills.
In order to change the rinse aid level, follow the below steps before turning on the machine:
• Touch the programme button and hold it down.
• Turn on the machine.
• Hold down the programme button until “rA” disappears.Rinse aid set follows water hardness set.
• The machine will display the current setting.
• Set the level by touching the programme button.
• Switch off the machine to save the setting.
The factory setting is “4”.
If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your
dishes, decrease the level.
recommended. It is more suitable to use powder detergents for such programmes.
Level Brightener Dose Indicator
1 Rinse-aid not dispensed r1 is shown on the display
2 1 dose is dispensed r2 is shown on the display
3 2 doses are dispensed r3 is shown on the display.
4 3 doses are dispensed r4 is shown on the display.
5 4 doses are dispensed r5 is shown on the display.
EN-13
CHAPTER-5: LOADING YOUR DISHWASHER
LOADING YOUR DISHWASHER
Place dishes properly into the machine. There are two seperate baskets to load dishes into your machine.The
lower basket is for round and deep items. The upper basket is for thin and narrow items. You are recommended
to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, place long-handle and
sharp-pointed knives with their sharp points facing down or horizontally on the baskets.
Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms
from spinning.
1
Dish rack
You can place different sizes of glasses under these racks thanks
to the adjustable height feature. You can use racks in 2 different
heights.

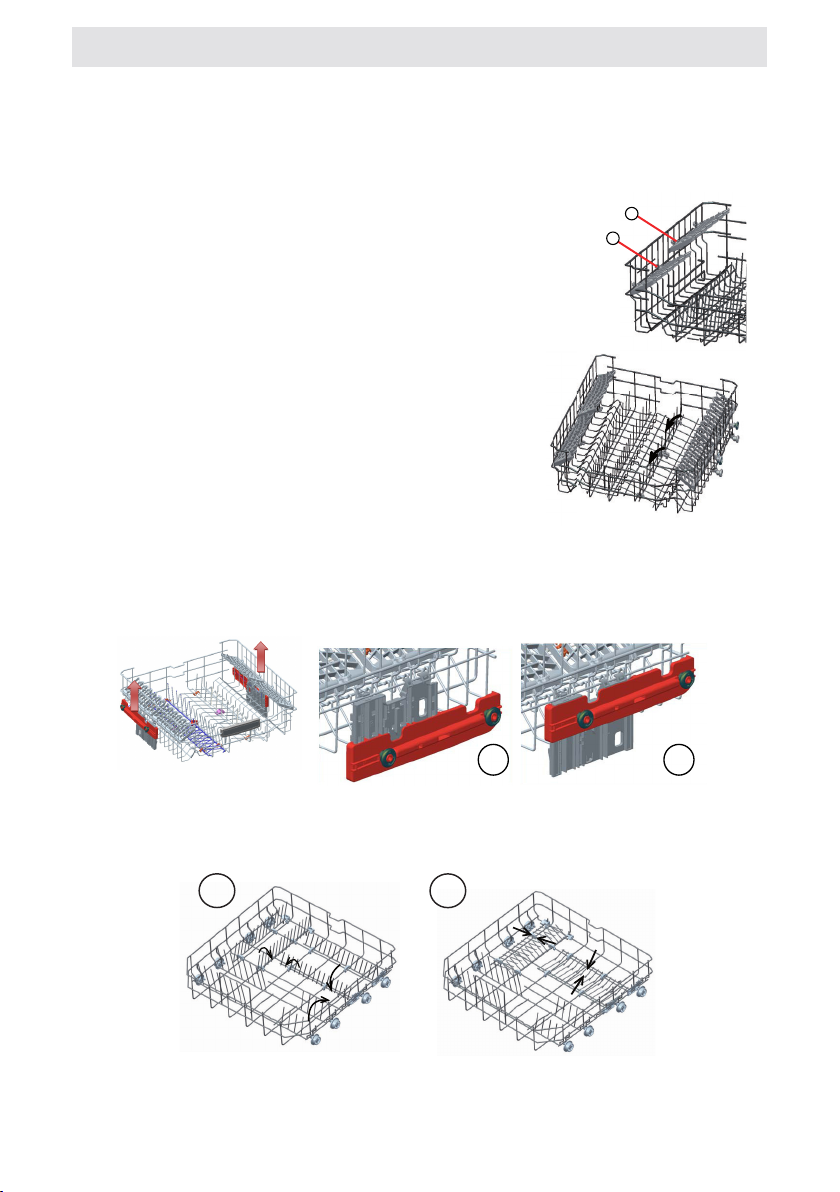

Foldable racks
Foldable racks on the upper basket are designed in order to let
you place big items easier such as pots, pans, etc. If required,
each part can be folded separately, or all of them can be folded
and larger spaces can be obtained. To adjust the foldable racks,
either raise them upwards,or fold them down.
Top basket height adjustment while it is full
The basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the
height of your top basket upwards or downwards, without removing it from your machine when it is full, and create
large spaces at the top or bottom area of your machine as needed. The basket of your machine is set to the upper
position in factory setting. In order to raise your basket, hold it from both sides and pull it upwards. In order to
lower it, hold it from both sides again, and leave it. In the loaded basket adjustment mechanism, make sure that
both sides are in the same position. (up or down)
2
1 2
Lower basket
Folding racks
In the lower basket of the machine, there are four folding racks that are designed to allow you to make it easier
to place big items such as pots, pans, etc. If required, each part can be folded separately, or all of them can be
folded and larger spaces can be obtained. To adjust them , raise them upwards, or fold down.
1
2
EN-14
CHAPTER-5: LOADING YOUR DISHWASHER
Upper Cutlery Basket
The upper cutlery basket is designed for you to place forks, spoons and knives, long utensils and small items
Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with
the basket after washing.
The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper basket, you can take out the left or right part of the upper cutlery basket in order to obtain more space.
Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket.
EN-15
CHAPTER-5: LOADING YOUR DISHWASHER

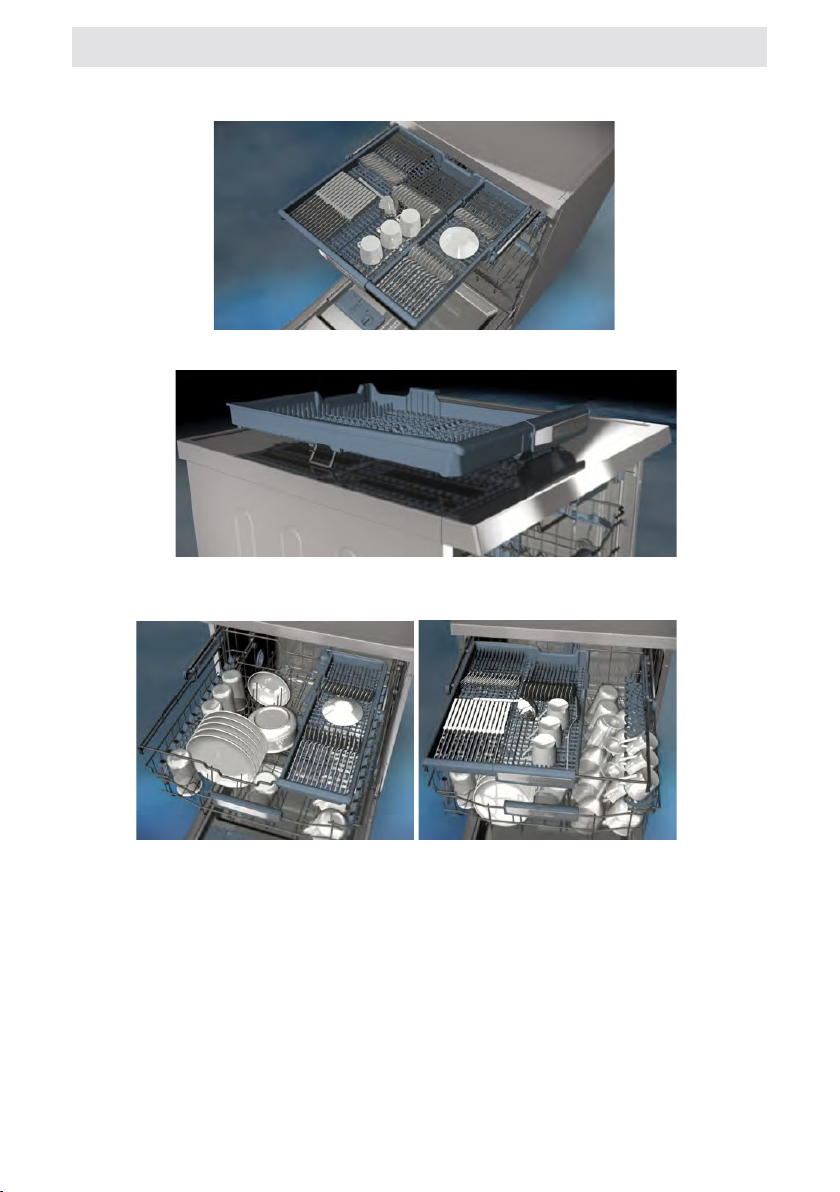

Alternative basket loads
Lower Basket
Top basket
Incorrrect loads
Important Note for Test Laboratories
For detailed information on performance tests, please contact following address:
“dishwasher@standardtest.info” . In your email, please provide the model name and serial
number (20 digits) which you can nd on the appliance door.
EN-16
CHAPTER -6: PROGRAMME DESCRIPTIONS
Programme items
Programme No
Programme
names and
temperatures
Type of food
waste
Level of soil light medium medium
Detergent
amount
B: 25 cm
3
15 cm
3
A: 5 cm
Quickwash
(P1)
Pre-wash
to rinse and
loosen residue
awaiting full
load then select
a programme
Quick 30’
40°C( P2 )
Coffee, milk,
tea, cold meats,
vegetables, not
kept for long
Eco
(reference ) ( P3)
Coffee, milk, tea, cold
meats, vegetables ,
not kept for long
A+B A+B A+B
3
/
30°C Wash 40°C Wash 50°C Wash 40°C Wash
Hot rinse Cold Rinse Cold Rinse 65°C Wash
End Hot rinse Hot rinse 45°C Wash
End Dry Hot rinse
End Dry
Dual Wash
60°C ( P4)
Soups, sauces,
pasta, eggs, pilaf,
potato and oven
dishes, fried foods
End
Programme
duration
(min.)
Electricity
consumption
(kW hours)
Water
consumption
(liters)
Warning: Short programmes do not include a drying step. The values declared above are the values obtained
under laboratory conditions according to relevant standards. These values can change depending on the conditions of product’s use and environment (network tension, water pressure, water input temperature and ambient
temperature).
14 30 195 112
0,57 0,88 0,84 1,43
7,7 10,9 9 15,4
EN-17
CHAPTER -6: PROGRAMME DESCRIPTIONS
Programme items
Programme
No
Programme
names and
temperatures
Type of food
waste
Express 50’
65°C ( P5)
Soups, sauces,
pasta, eggs,
potato and oven
dishes, fried
foods
Hygiene 60°C (P6)
Dishes with
dense dirt waiting
for a long time or
requiring hygienic
washing
Level of soil medium heavy light heavy
Detergent
amount
B: 25 cm
3
15 cm
A: 5 cm
A+B A+B A+B A+B
3
/
3
65°C Wash 60°C Wash Automatically adjust the washing time with
Warmish Rinse 65°C Wash
Hot rinse Cold Rinse
End 50°C Wash
Hot rinse
Dry
End
Auto Delicate
30-50°C(P7)
Automatically adjust the washing time with
temperature and amount of water by determining
the soil level of dishes
temperature and amount of water by determining
the soil level of dishes
Auto Intensive
50-70°C(P8)
Programme
duration
(min.)
Electricity
consumption
(kW hours)
Water
consumption
(liters)
**Only powder detergent should be used in cycle of Quickwash programme.
*** You can wash your dishes through washing performance A by using cycle of Super 50 min.
50 154 77-91 124-179
1,29 1,75 0,81-0,96 1,22-1,8
10,7 18,5 10,6-17,7 12,3-24,6
EN-18
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A
(1)
)
PROGRAMME
(10
(2)
(11) (
1.) Power On/Off Touch Button
After the Power On/Off touch is pressed, two dashes appear in the program display. Touch the ‘’On/Off touch button’’ with your ngertip for 1 sec to turn the machine on or off.
2.) Program Touch Button
Use the Program touch button to select a suitable program for your dishes.
3.) Program Display
The program display indicates the length of the programs and the remaining time during the program. You can
also follow-up the selected programs by this display.
4.) Delayed Start Touch Button
You can delay the start time of a selected program from 1 to 19 hours by pressing the delayed start touch button of
the machine. When the delayed start touch button is pressed, “1h” appears on the program display. If you continue
pressing the delay timer touch button, the time will increment from 1 to 19 shown on the display. The delayed start
can be activated by selecting the delay time and the desired washing program with the Program touch button. It
is also possible to select the program rst and the delayed start afterwards, depending on the last value entered.
To cancel delayed start, either select the delay timer as ‘’0h’’, or hold the program touch button for 3 seconds. The
display will inform you how many seconds you need to hold the button by “3-2-1..” to cancel the delay.
Note: If the delay touch button is pressed and held, the delay timer starts changing faster (the rate of change is
proportional to the hold pressing time). When the delayed start touch button is pressed for a long period of time,
the counter stops at “h:00”.
5.)Energy Save Touch Button
The energy save option activates the door opening system at the end of the program. The auto door
opening system provides the required drying performance at low rinsing temperatures and reduces
energy consumption.
6.)½ Half Load Touch Button
Using the function ½ , three sorts of washing up can be done those being lower basket, upper basket
and both baskets.
3
)
(9)
(4) (5)
(8)
(6) (7)
If you have a small quantity of dishes in the machine and if you have to wash them,
you can activate the semi-lling function available for some of the programs. If you have
dishes in both baskets, press the ½ key and select both lamps are lit.
If you only have dishes in the upper basket, press the ½ key and select the upper lamp
illuminated. As this will only wash items in the upper basket, make sure that there are no
items in the lower basket.
If you only have dishes in the lower basket, press the ½ key and select the lower lamp
illuminated. As this will only wash items in the lower basket, make sure that there are no items
in the upper basket.
Note : If you have used an extra feature on the latest washing program, this feature will remain active on the
next washing program until the machine is switched off and on again. If you do not want to use this feature on
the newly selected washing program, press the selected feature button again, and check that the lamp on the
button goes off.
Note: “When a program that is incompatible with the Extra silent & fast option is selected, when the button is press
the a buzzer sound is heard whilst indicates that the selected option is not available.
EN-19
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A
(1)
)
PROGRAMME
7.) Extra Fast Touch Button
This washes the dishes with more pressure, thus shortening the time of the selected program and provides more
economical water usage.
Note: This option can only be selected at the beginning of the program.
8.) Extra Silent Touch Button
Washes the dishes with less pressure, thus provides more sensitive and silent washing.
Note: “When a program that is incompatible with the Extra silent & fast option is selected,
when the button is pressed a buzzer sound is heard which indicates that the selected option is not available.
9.) Tablet Detergent Touch Button ( 3 in 1 button )
Press the tablet detergent touch button when you use combined detergents that include salt and rinse aid.
10.) Salt Warning Indicator
To determine whether there is sufcient softening salt in the machine, check to see if the Salt warning light on the
display is lit. When Salt warning light starts coming on, add salt to the salt compartment.
11.) Rinse aid Warning Indicator
To determine if there is sufcient rinse aid in the machine check the rinse aid warning light on the display. When
the rinse aid warning light starts coming on, add rinse aid to the rinse aid compartment.
End of Program
The machine makes a buzzer sound 5 times when the program is completed. When the door is opened after the
selected washing program is completed, the buzzer activation will end and a ‘0’ character is showed on display.
Note: Each time the machine is switched on, the Eco program and Energy save option are set to Cross-Out
default and previously chosen options are cancelled. When selecting programs other than Eco, the Energy save
icon will go out.
Operating your machine
(10
(2)
(11) (
Switching on the machine
1- Touch the power On/Off key.
When the machine is powered on,when the On/Off touch button (1) is pressed, two dashes appear in the
program display.
2- When selecting a program with the program touch button (2), the program selected ( P1,P2,etc ) appears on
the program display , from (P1 to P8) and the duration of the program are displayed alternately for 3 sec. for the
program and then 1 sec. for the duration time.
3- “If desired, you can choose additional functions. (4-9)
4- Close door.The program starts automatically.
Note:If you decide not to start to machine after selecting the program, press the on/off touch button (1). The
machine will be ready for the new program selection when you press on/off touch button (1) again. Select the
new program by pressing the program touch button (2).
Program follow-up
- If you have a “iLED” function in your dishwasher model, you can follow the program via InfoLED. During
machine is working you can see the light from iLED, when the program is completed iLED turns off.
- When the door is opened after the selected washing program is completed, the buzzer activation will end and
a ‘0’ character is showed on display (3).
- If the door is opened during washing cycle, the remaining time of the selected program is shown on the display
(3).
- The machine makes a buzzer sound 5 times when the program is completed.
3
)
(4) (5)
(9)
(8)
(6) (7)
EN-20
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A
(1)
)
PROGRAMME
Changing a programme
To change the program while a wash program is going.
1- Open the door and select a new program by pressing the Program touch button (2).
2- After closing the door, the newly selected new program start from the point where the original program
reached, but with the new parameters (temperature, cycles) of the new program.
Note: When opening the door of the machine in order to stop the washing program before it has completed, rst
carefully open the door slightly in order to avoid water spillage
Changing a programme with resetting
To cancel a program currently in progress or in a standby position.
1- Open the door of the machine. The last selected program will appear on the display (3).
2- Press and hold the program touch button (2) for 3 seconds. The display (3) will count from ‘’3 to 1’’ and then
show ‘’0:01” to indicate that cancelling is ready.
3- After the door is closed, the discharge process starts. The machine will empty the
water in it for about 30 seconds. When the program is cancelled, the machine will
make a buzzer sound 5 times.
Note: When the door of the machine is opened in order to stop the washing program
before it has completed, rst carefully open the door slightly in order to avoid water spillage.
Operating your machine
(10
(2)
(11) (
Switching the machine off
After the program has nished, switch the machine off by using the Power On/Off touch button (1).
Note: To improve the drying performance, after the buzzer sound indicating. The end of the wash program
stops, leave the door of the machine ajar in order to hasten the drying or select an energy save option before
starting a program to speed up the drying performance.
Note: If the machine door is opened during washing or the power is cut off, the machine will restart the program
when the door is closed or the power is restored.
3
)
(9)
(4) (5)
(8)
(6) (7)
Program & option comparibility
Option Delayed
Programs
Prewash X X X - -
Quick 30’ X X X - -
Eco X X X X X
Dual Wash X X X X X
Super 50’ X X X - -
Hygiene X X X - -
Auto Delicate X X X - -
Start
Half load
(modes)
Tablet Extra
Fast
Extra
Silent
Auto
Intensive
“-“ Function cannot be selected “x” function can be selected.
Extra fast and Extra silent can’t be selected at the same time.
X X X - -
EN-21
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A
(1)
)
PROGRAMME
Compatibility between options
Options Half load Tablet Start delay Extra Fast Extra Silent Energy Save
Half load
Tablet OK
Start delay OK OK
Extra Fast OK OK OK
Extra
Silent
Energy
Save
How to change from “ECO MODE” to “NORMAL MODE” for Inner Light option:
1- Open the dishwasher door and press the Power On/Off touch button. (1) (If it is in OFF position)
2- Press ‘’Tablet/Energy Save’’and “Delayed start”.(4) touch buttons simultaneously for 5 seconds.
3- *“IL0” will be shown in the display (3) for 2 seconds to show the “Normal Mode” is selected for inner light option.
4- After “Normal Mode” is selected, the inner light will be ON as long as the machine is energized and machine
door is open.
How to change from “NORMAL MODE” to “ECO MODE” for Inner Light option:
1- Open the dishwasher door and press the Power On/Off touch button.(1) (If it is in OFF position)
2- Press ‘’Tablet/Energy Save’’and “Delayed start” (4) touch buttons simultaneously for 5 seconds.
3- “IL1” will be shown in the display (3) for 2 seconds to show the “Eco Mode” is selected for inner light option. Also
inner light turns OFF and ON again (blinks momentarily) to show this selection is activated.
4- After “Eco Mode” is selected, the inner light will be ON for 4min and then turns OFF. If any user intervention
occurs such as pressing touch buttons, Eco Mode cycle will start from the beginning (inner light is ON for 4min and then
becomes OFF again)
Note: Factory setting for inner light are set to ‘’IL1’’.
-
OK OK OK
OK OK OK OK OK
OK OK OK OK OK
-
OK OK OK OK
-
OK OK OK
- -
- -
OK
OK
-
(10
(2)
(11) (
Buzzer sound set up
The buzzer sound level can be adjusted.
1- Press the Power On/Off touch button”.(1) (if it is in OFF position).
2- Press the “Tablet/Energy Save” (5) and “½ Half Load Button” (6) touch buttons for 3 seconds at the same
time to set the level.
3- While pressing “Tablet/Energy Save” (5) and “½ Half Load Button”(6) touch buttons (during 3 seconds.),
display shows character of countdowning from 3 to 1.
• If volume adjustment is done the first time, at the end of 3 seconds, “S03” is shown in the display.
• If volume adjustment is done before, At the end of 5 seconds, the last set level is shown on the display (from
‘’S00’’ to ‘’S03’’).
The user can increase or decrease the voice level with ’’Tablet’’ and “½ Half Load Button”.(6) touch buttons. The
characters must be as follows;
- To increase the level of the buzzer sound
1) Press “ ½ Half Load Button” touch button. (6)
2) Display (3) changes from “S00” to “S03”
- To decrease the level of the buzzer sound
1) Press “Tablet/Energy Save” touch button. (5)
2) Display (3) changes from “S03” to “S00”. “S00” means that all buzzers are off.
4- To exit volume control mode ,switch off the machine.
The last volume level was set is stored in memory.
Note: From sound level ‘’3’’ to ‘’1’’, the loudness level is reduced by stages depending on the sound level.
3
)
(4) (5)
EN-22
(9)
(8)
(6) (7)
CHAPTER -8: MAINTENANCE AND CLEANING
Cleaning the machine in regular intervals prolongs the machines service life.
Oil and lime may accumulate in the machines washing section. In the event of such accumulation;
-Fill the detergent compartment without loading any dishes into the machine, run the machine at high
temperature. In the event this is not sufcient, use special cleansing material.
Cleaning the seals in the machine door,
-Wipe the seals regularly by using a dampened cloth.
Cleaning the machine,
Clean the lters and spray arms at least once a week.
Unplug your machine and turn off its tap before starting the cleaning.
Wipe with a ne cleaning material and a dampened cloth.
Filters
If any food wastes have remained on the coarse and ne lters, remove the lters and clean them thoroughly
under the water tap.
a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter

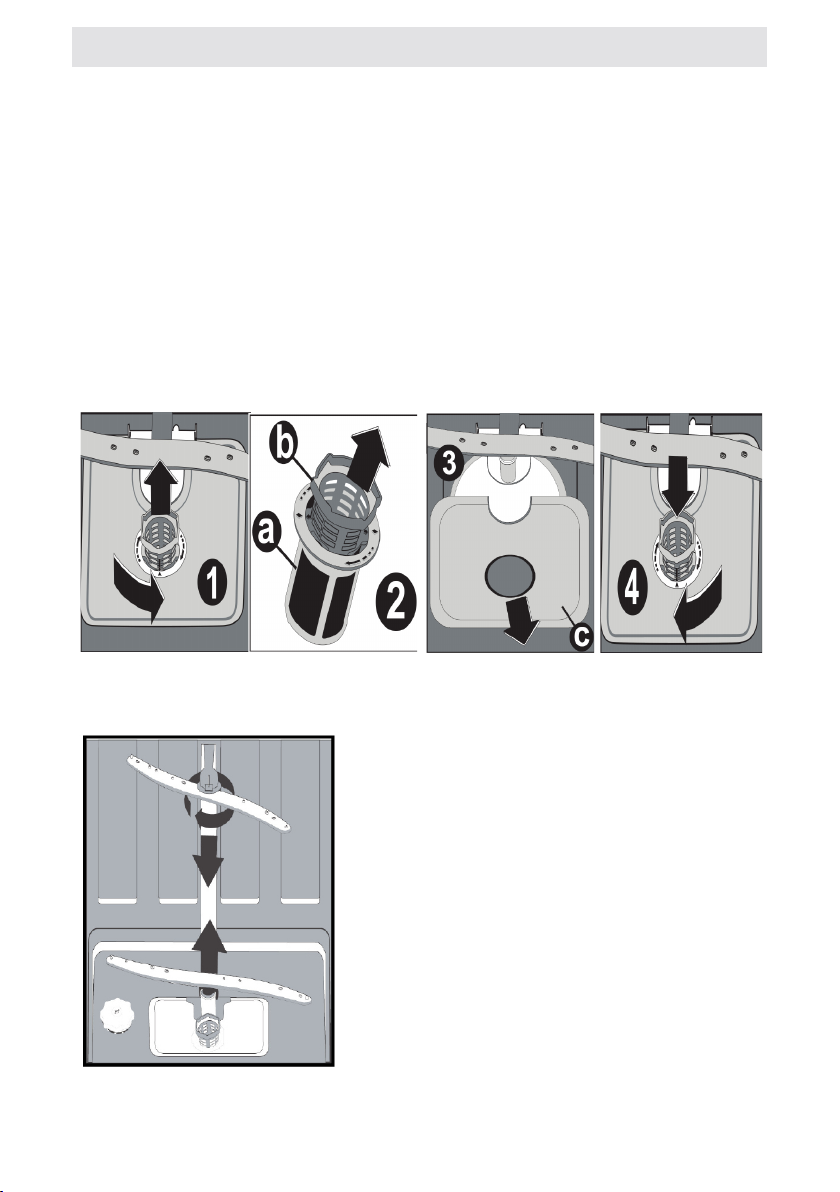

To remove and clean the lter combination, turn it counter clockwise and take it out by lifting upwards.1
Pull and remove the metal/plastic lter. 2 Then pull the coarse lter out of the micro lter. 3 Rinse it with lots
of water under the tap. Ret the metal/plastic lter. Insert the coarse lter into the micro lter in a way that the
marks correspond to one another. Attach the micro lter into the metal/plastic lter and turn to the direction of
the arrow.It is locked when the arrow on the micro lter can be seen from across. 4
• Never use your dishwasher without any lter.
• The incorrect tting of the lter will reduce the washing effectiveness.
• Clean lters are very important in terms of the proper running of the machine.
Spray arms
Check the holes for the upper and lower spray arms. If there is any clogging, remove the spray arms and clean
them under water.
You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by
turning the nut to the left. Be sure that the nut is perfectly tightened when retting the upper spray arm.
Hose lter
Check the lter and the hose from time to time and clean them
to prevent yellowing and formation of deposits after washing. To
clean the lter, rst turn off your tap and then remove the hose.
After removing the lter from the hose, clean it under the tap.
Insert the cleaned lter back into its place inside the hose. Ret
the hose.
EN-23
CHAPTER -9: FAILURE CODES AND WHAT TO DO IN CASE OF
FAILURE
ERROR
CODE
If one of the program monitor lights is on and start/Pause light is on and off,
Your machines door is open, shut the door.
If the programme won’t start
• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet lter and the machine lters are not clogged.
If the lamps “Wash/Dry” and “End” keep ashing
• The water overow alarm is active
• Turn off your tap and contact the Sharp help desk.
If the control lamps won’t go out after a wash operation
Check if the Power On/Off button is released.
If detergent residues are left in the detergent compartment
Detergent has been added when the detergent compartment was wet.
If water is left inside the machine at the end of the programme
• The water drain hose is clogged or twisted.
• The lters are clogged.
• The programme is not nished yet.
If the machine stops during a wash operation
• Power failure.
• Water inlet failure.
• Program can be on standby mode.
If shaking and hitting noises are heard during a wash operation
• Dishes placed incorrectly.
• Spray arm hitting the dishes.
If there are partial food wastes left on the dishes
• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
• Small amount of detergent added.
• An unsuitable, weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly tted.
• Water drain pump clogged.
ERROR
DESCRIPTION
Inadequate water
F5
supply
Error of continuous
F3
water input
The waste water in the
F2
machine cannot be
discharged.
F8 Heater error • Contact service.
Alarm is active against
F1
water overow
FE Faulty electronic card • Contact for service.
Overheating error
(temperature in the
F7
machine is
too high)
F9 Divisor position error
F6 Faulty heater sensor • Contact for service.
CONTROL
• Make sure the water input tap is totally open and that there is no
water cut.
• Close the water input tap, separate the water input hose from the
tap and clean the lter at the connection end of the hose.
• Restart your machine, contact for service if the error resumes.
• Close the tap.
• Contact for service.
• Water discharge hose is clogged.
• The lters of your machine might be clogged.
• Power off-on your machine and activate the program
cancellation command.
• If the error continues, contact for service.
• Power off your machine and close the tap.
• Contact for service.
• Contact for service.
• Contact for service.
EN-24
CHAPTER -10: PRACTICAL AND USEFUL INFORMATION
If there are whitish stains on the dishes
• insufcient detergent is being used
• Rinse aid dosage setting at a very low level.
• No special salt is being used despite the high degree of water hardness.
• Water softener system setting is at a very low level.
• Salt compartment cap not closed well.
Won’t dry no need for dry
• A programme without a dry operation has been selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.
If there are rust stains on the dishes
• Stainless-steel quality of the dishes washed is insufcient.
• High rate of salt in the wash water.
• Salt compartment cap not properly closed.
• Too much salt spilt into the sides and into the machine whilst lling it with salt.
• Poor mains grounding.
Call an authorised service if the problem still persists after the controls or in case of any malfunction not
described above.
PRACTICAL AND USEFUL INFORMATION
1- When you won’t be using your machine for an extended period
• Unplug the machine and then turn the water off.
• Leave the door slightly ajar in order to prevent the formation of unpleasant smells.
• Keep the machine interior clean.
2- Eliminating water droplets
• Wash the dishes with the intensive programme.
• Take all of the metal containers in the machine out.
• Do not add detergent.
3- If you properly place your dishes into the machine, you will be using it in the best way in
terms of energy consumption, washing and drying performance.
4- Clean all rough waste before you place dirty dishes to the machine.
5- Operate the machine after it is completely full.
6- Use a pre-washing program only when necessary.
7- Observe program information and average consumption values table when selecting a
program.
8- Since the machine will reach high temperatures, it should not be placed near a refrigerator.
9- If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that
has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the
interior water to drain.
The dishwasher contains biocidal product in the PP sump lter to prevent bacterial growth.
Active Substance: zinc pyrithione (CAS No: 13463-41-7)
EN-25
DISPOSAL OF YOUR OLD MACHINE
This symbol on the product or package implies that the product should not be treated as domestic waste. Instead,
it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will
contribute to avoid potential negative results regarding environment and human health. Recycling materials will
help natural resources be preserved. For more detailed information regarding recycling of this product, please
contact your local authority, domestic waste disposal service or the shop where you purchased the product from.
EN-26
Register your product here
WWW.SHARPHOMEAPPLIANCES.COM,
by registering with Sharp you become part of
our For Life promise to always be there for you
and your appliance.
EN-27
%100 recycleable paper
52252158 R35
Loading...
