PORTABLE CD STEREO SYSTEM
MODEL
QT-MP3W
OPERATION MANUAL
Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.
/
Wiring diagram of this model is subject to change for improvement without prior notice.
Wiring diagram of this model is subject to change for improvement without prior notice.
Wiring diagram of this model is subject to change for improvement without prior notice.
Wiring diagram of this model is subject to change for improvement without prior notice.
Wiring diagram of this model is subject to change for improvement without prior notice.
Wiring diagram of this model is subject to change for improvement without prior notice.
Wiring diagram of this model is subject to change for improvement without prior notice.
Wiring diagram of this model is subject to change for improvement without prior notice.
QT-MP3W

Special notes

WARNINGS

When the FUNCTION switch is set at TAPE/STAND-BY position, mains voltage is still present inside the unit.
This unit contains no user serviceable parts. Never remove covers unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period.
To prevent fire or shock hazard, do not expose this appliance to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
Note:
Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Please refer to the relevant laws in your country.

General Information

CAUTION:
This product is classified as a CLASS 1 LASER product.
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
Laser Diode Properties Material: AIGaAs Wavelength: 790 nm Emission Duration: continuous Laser Output: max. 0.6 mW
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
WARNUNG-UNSICHTBARE LASERSTRAHLUNG WENN GERÄT GEÖFFNET. NICHT IN DIE STRAHLUNG SCHAUEN ODER DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.
ATTENTION-RAYON LASER INVISIBLE EN CAS D'OUVERTURE. NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES INSTRUMENTS OPTIQUES.
/
1

Special Note

Contents

QT-MP3W
Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribu­tion channels), revenue-generating streaming applications (via Inter­net, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand appli­cations and the like) or on revenue-generating physical media (com­pact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Accessory

Please confirm that the following accessory is included.

AC power lead 1
Note:
Only the above accessory is included.

Page

General Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 5
Preparation for Use
Operation with AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation with batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Basic Operation
Sound control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . . . .7 - 8
Advanced CD or MP3/WMA disc playback . . . . . . . . . . . . . 9 - 10
MP3/WMA folder mode (only for MP3/WMA files) . . . . . . . . . . 11
Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Tape Playback
Listening to a cassette tape. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tape Recording
Recording to a cassette tape. . . . . . . . . . . . . . . . . . . . . . . . 14 - 15
Advanced Feature
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 - 17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
General Information
2
QT-MP3W

Precautions

General
Use the unit on a firm, level surface free from vibration.
Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity and electronic/electrical equip­ment (home computers, facsimiles, etc.) which generate electrical noise.
Do not place anything on top of the unit.
Do not expose the unit to moisture, to temperatures higher than
C (140˚F) or to extremely low temperatures.
60
˚
If your system does not work properly, disconnect the AC power lead from the wall socket. Plug the AC power lead back in, and then turn on your system.
In case of an electrical storm, unplug the unit for safety.

General Information

3
Hold the AC power lead by the head when removing it from the wall socket, as pulling the lead can damage internal wires.
The AC power lead is used as disconnect device and shall always remain readily operable.
Do not remove the outer cover, as this may result in electric shock. Re­fer internal service to your local SHARP service facility.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Attention should be drawn to the environmental aspects of battery disposal.
This unit should only be used within the range of 5˚C - 35˚C (41˚F - 95˚F).
Warning:
The voltage used must be the same as that specified on this unit. Us­ing this product with a higher voltage other than that which is speci­fied is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any dam­age resulting from use of this unit with a voltage other than that which is specified.
Volume control
The sound level at a given volume setting depends on speaker effi­ciency, location, and various other factors. It is advisable to avoid ex­posure to high volume levels. Do not turn the volume on to full at switch on and listen to music at moderate levels.

Controls and indicators

21 3 4 5 6 7 8 9 10 11
ON
/
Front panel
Reference page
1. Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14
2. FM Stereo Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Folder Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
4. Power on Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. Folder Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
6. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7. Repeat/Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8. Fast Reverse/Track Down Button . . . . . . . . . . . . . 8, 9, 10, 11
9. Fast Forward/ Track Up Button . . . . . . . . . . . . . . 8, 9, 10, 11
10. Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
11. Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9, 10, 11
QT-MP3W
12345
U
M
L
O
E
V
• M
I
N
MAX •
X-BASS
OFFON
TAPE (STAND-BY)
CD
RADIO
FUNCTION
MIC
PAUSE
STOP/EJECT F.FWD REWIND PLAY RECORD
10 11 12 13 14 15
9
678
N
I
G
N
U
T
z
KH
z
H
M
0
160
8
0
1
1400
6
1200
0
1
4
1000
0
1
2 0 1
0
80
0 0 1
700
• AM
6
E
S
O
L
C
/
H
S
U
P
N
E P O
9
• FM
600
2
9
0 9
530
8
8
AM
BAND
M
F
Top panel
Reference page
1. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. X-Bass On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. Function switch . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 12, 13, 14
5. CD Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. CD Door Open Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. Tuner Band Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 14
8. Tuning Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9. Build-in Mic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10. Tape Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14, 15
11. Tape Stop/Eject Button . . . . . . . . . . . . . . . . . . . . . . 13, 14, 15
12. Tape Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . . . 13
13. Tape Rewind Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
14. Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
15. Tape Record Button . . . . . . . . . . . . . . . . . . . . . . . . . 13, 14, 15

General Information

4
QT-MP3W

Controls and indicators (continued)

General Information

Back panel
1. FM Stereo/Mono mode/Beat Cancel Selector . . . . . . . 12, 14
2. Battery Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3. Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. AC Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Display
1. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10, 11
5. Repeat mode Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
7. Random Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reference page
Reference page
5

Operation with AC power

AC 110-127/220-240 V, 50/60 Hz
To AC INPUT
To a wall socket
Check the setting of the AC voltage selector located on the rear panel before plugging the unit into a wall socket. If necessary, adjust the selector to correspond the AC power voltage used in your area.
AC plug adaptor:
In areas (or countries) where a wall socket as shown in illustration is used, connect the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug adaptor is not included in areas where the wall socket and AC power plug can be directly connected (see illustration 1).
Notes:
If the unit will not be used for a long period of time, remove the AC power lead from the wall socket.
Connection of the AC power lead to the unit disconnects the batteries.
Use only the supplied AC power lead. Using other power leads may cause an electric shock or fire.
1
2
2

Operation with batteries

2
3
4
1
7
1 Disconnect the AC power lead, and remove the battery com-
partment cover.
2 Insert 8 "D", size batteries (UM/SUM-1, R20, HP-2 or similar)
into the battery compartment.
Insert the batteries according to the direction indicated on the rear panel.
When inserting or removing the batteries, push them towards the battery terminals.
Installing the batteries incorrectly may cause the unit to malfunction.
3 Replace the battery compartment cover.
Battery replacement:
Replace the batteries when they become weak and/or recording or playback is impaired. This may occur even though radio broadcasts are audible.
Notes:
Replace all old batteries with new ones at the same time.
Do not mix old and new batteries.
Remove the batteries if they are weak or if the unit will not be used for long periods of time. This will prevent potential damage due to battery leakage.
Batteries are not included.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
5
6
8
QT-MP3W

Preparation for Use

6
QT-MP3W

Sound Control

Listening to a CD or MP3/WMA disc

M
U
L
E
O
V
• M
IN
X
A
M
U
M
L
O
E
V
• M
IN
X
A
M
X-BASS
OFFON
TAPE (STAND-BY)
CD
RADIO
FUNCTION
MIC
PAUSE
STOP/EJECT F.FWD REWIND PLAY RECORD
E
S
O
L
C
/
H
S
U
P
O
U
T
• AM
• FM
BAND
N
E
P
X-BASS

Basic Operation

OFFON
Volume:
Turn the VOLUME control to increase or decrease the volume.
Extra bass (X-BASS)
Press the X-BASS button to emphasise bass sound.
This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.
MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss
N
I
G
N
in sound quality.
This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and VBR files.
z H K
z
H
M
0 0 6
1
8
0
1
0
0 4 1
0 0 2
6
1
0
1
0
0 0
4
1
0
1
2 0 1
0
0
8
0
0 1
0 0 7
6 9
0
0 6
2
9
0 9
0
3
5
8
8
M
A
M
F
Bitrate which is supported by MP3 is 32 ~ 320 kbps.
WMA: WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Win­dows Media Player.
"MP3" and "WMA" indicator will light up after the unit reads information on an MP3 or WMA disc.
Bitrate which is supported by WMA is 64 ~ 160 kbps.
7
OPEN
P
U
S
H
/
C
L
O
S
E

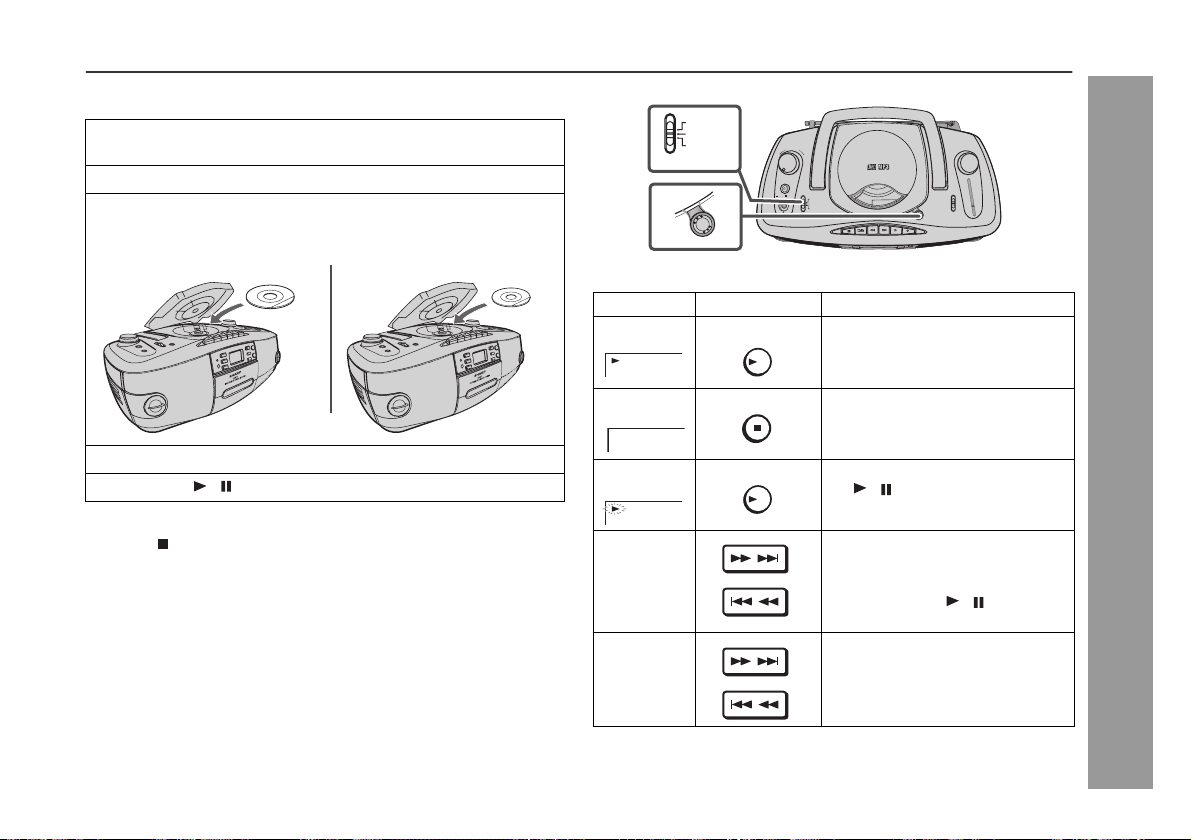

Playback
1 Set the FUNCTION switch to CD, Power "ON" indicator will
lights up.
2 Press the OPEN button to open CD door. 3 Place the disc on the spindle, label side up.
Be sure to place 8 cm (3") disc in the middle of the disc spindle.
FUNCTION
TAPE (STAND-BY)
CD
RADIO
QT-MP3W
U
L
M
O
E
V
• M
IN
X
MA
X-BASS
OFFON
TAPE (STAND-BY)
CD
RADIO
FUNCTION
MIC
PAUSE
STOP/EJECT F.FWD REWIND PLAY RECORD
N
I
N
G
U
T
z H K
z H M
0 0 6 1
8 0
1
0
0 4 1
0
0
2
6
1
0 1
0 0 0
4
1
0
1
2 0
1
0 0 8
0 0 1
0
0 7
• AM
6 9
E
• FM
S
O
L
C
/
H
S
U
P
0
0 6
2
9
0 9
0 3 5
8 8
M A
BAND
M
F
N
E P O
12 cm (5")
8 cm (3")
Various disc functions
Function Main unit Operation
Play Press in the stop mode.
/II
Stop Press in the playback mode.
4 Close the CD door by firmly pushing the right corner of it. 5 Press the / button to start playback.
To stop playback:
Press the button.
To remove the disc:
In the stop mode, press the OPEN button to open the CD door.
Caution:
Do not place two discs in the spindle.
Do not play disc with special shapes (heart- or octagon-
shaped). It may cause malfunctions.
If TV or radio interference occurs during CD operation, move the
Pause Press in the playback mode. Press
/II
Track up/ Track down
the / button to resume play- back from the paused point.
Press in the playback or stop mode.
If you press the button in the stop mode, press the / button to start the desired track.
Fast for­ward/Fast reverse
Press and hold down in the play­back mode.
Release the button to resume playback.

CD or MP3/WMA disc Playback

unit away from the TV or radio.
If a disc is damaged, dirty, or loaded upside down, the disc will not
play back.
Note:
Rewritable multi session disc which writing is not finished, can still
be played.
8
QT-MP3W

Advanced CD or MP3/WMA disc playback

Repeat play and Random play
All tracks or a programmed sequence can be continuously repeated. The track on the disc can be played in random order automatically.
1 Whilst a disc is stop or playing,
press the REPEAT/RANDOM button to Repeat 1.
RANDOM
2 Each time the button is pressed, the repeat play mode
changes in the following order.
The repeat play mode changes as follows on CD.
REPEAT 1 REPEAT ALL
REPEAT
WMA
REPEAT ALL
WMA
RANDOMNORMAL
The repeat play mode changes as follows on MP3/WMA disc.
REPEAT 1 REPEAT FOLDER REPEAT ALL
REPEAT
FOLDER

CD or MP3/WMA disc Playback

WMA
REPEAT
FOLDER
WMA
WMA
RANDOMNORMAL
FOLDER
WMA
WMA
9
REPEAT
RANDOM
REPEAT ALL
FOLDER
FOLDER
RANDOM
Notes:
If you press the button during random play, you can move
to the track selected next by the random operation. On the other hand, the button does not allow you to move to the previ­ous track. The beginning of the track being played will be located.
In random play, the unit will select and play tracks automatically.
(You cannot select the order of the tracks.)
Caution:
After performing repeat or random play, be sure to press the but­ton. Otherwise, the disc will play continuously.
Programmed play for CD or MP3/WMA disc
without folder
You can choose up to 20 selections for playback in the order you like.
1 Whilst in the stop mode, press the
MEMORY button to enter the programming save mode.
MEMORY
2 Select a track by pressing the or
button.
MEMORY
MEMORY
Selected track number
3
Press the MEMORY button to save the track number
MEMORY
.
4 Repeat steps 2 - 3 for other tracks and programmed number
will automatic increase. Up to 20 tracks can be programmed.
"_ _ _" indicator will display on LCD after programmed up to 20 tracks. If you make a mistake, the programmed tracks can be cleared by pressing the button twice.
5 Press the / button to start playback.
QT-MP3W
Programmed play for CD or MP3/WMA disc with
folder
1 For MP3/WMA CD with folder, to-
tal folder number will be display.
Folder number
2 Whilst in the stop mode, press
the MEMORY button to enter the programmed save mode.
3 Select a track by pressing the
FOLDER ( or ) button to de­sire folder.
Folder number
Press the or button to select the desire track.
Track number
4 Press the MEMORY button to
save the track number.
MEMORY
FOLDER
MEMORY
FOLDER MEMORY
MEMORY
MEMORY
5 Repeat steps 2 - 3 for other tracks and programmed num-
ber will automatic increase. Up to 20 tracks can be pro­grammed.
"_ _ _" indicator will display on LCD after programmed up to 20 tracks. If you make a mistake, the programmed tracks can be cleared by pressing the button twice.
6 Press the / button to start playback.
To cancel the programmed play mode:
Whilst in the stop mode and the "MEMORY" indicator is lit, press the
button. The "MEMORY" indicator will disappear and all the pro-
grammed contents will be cleared.

Notes:

When open the CD compartment, the programme is automatically
cancelled.
After you change the function from CD to another, the pro-
grammed selections will be cleared.
During programme operation, random play is not possible.
Notes:
This unit only supports "MPEG-1 Audio Layer-3" format.
(Sampling Frequency is 32, 44.1, 48kHz) "MPEG-2 Audio Layer-3", "MPEG-2.5 Audio Layer-3" and MP1, MP2 format are not supported.
Playback order for MP3 files may differ sometimes depending on
the writing software used during file download.
Bitrate which is supported by MP3 is 32~320 kbps, WMA is
64~160 kbps.
For MP3/WMA files, please put ".MP3" ".WMA" extension. Files
cannot be played back if there is no MP3/WMA extension.
Playlists are not supported on this unit.Copyright protected WMA files cannot be played back.

CD or MP3/WMA disc Playback

10
QT-MP3W
MP3/WMA folder mode (only for MP3/WMA files)
To playback MP3/WMA (Windows Media Audio) file
There are many music sites on the internet that you can download MP3/WMA (Windows Media Audio) music files. Follow the instructions from the website on how to download the music files. You can then playback these downloaded music files by burning them to a CD-R/RW disc. Your downloaded song/files are for personal use only. Any other
usage of the song without owner’s permission, is against the law.
About folder playback order

If MP3/WMA files are recorded in several folders, only total folder will be display.

The folder and file order information which is recorded on the disc de­pends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.

CD or MP3/WMA disc Playback

Procedure to playback MP3/WMA disc
To playback CD-R/RW.
1 Press the OPEN button, and load a MP3/WMA disc.
After disc is loaded, the disc info will be displayed.
FOLDER
Total folder
2 Whilst in stop or play mode, press the FOLDER ( or )
button to select desired playback folder.
FOLDER Indicator
FOLDER
FOLDER Number
3 Select desired track to be played back by pressing the
or button.
4
Whilst in stop mode, press the Playback will start.
/
button.
5 To stop playback, press the button.
11

Listening to the radio

U
M
L
O
E
V
• M
I N
MAX •
X-BASS
OFFON
TAPE (STAND-BY)
CD

RADIO

FUNCTION
MIC
TAPE (STAND-BY)
CD
RADIO
FUNCTION
FM ST MONO
12
BEAT CANCEL
PAUSE
STOP/EJECT F.FWD REWIND PLAY RECORD
/
H
S
U
P
QT-MP3W
N
I
N
G
U
T
ON
N
I
G
N
U
T
z
H
K
MHz
0 0
6
1
108
0 0 4
1
0
0 2
1
106
0
0 0 1
104
102
0
0 8
100
0 0 7
• AM
E
S
O
L
C
N E P
O
96
• FM
0
0
6
92
90
0 3
5
88
M
A
BAND
FM
1 Set the FUNCTION switch to RADIO. 2 Set the BAND SELECTOR switch to FM or AM. 3 Turn the TUNING control to tune in to a desired station. 4 Set the FM MODE switch to FM (ST) to receive FM stereo
/
transmission whilst listening to FM. If the reception is weak, set it to FM (MONO). The sound becomes clearer.
Notes:
FM stereo indicator will light on when reception is good.Power on indicator will light up when FUNCTION switch set to
RADIO.
Display will become blank in radio mode.
Radio
BAND
• AM
• FM
Aerial adjustment:
FM AM
ON
/
S
H A
R
P
After use:
Set the FUNCTION switch to TAPE [STAND-BY].
Beat cancel switch:
If a whistling noise occurs when recording from an FM or AM station, set the BEAT CANCEL switch to 1 or 2, whichever gives the best reception.
12
QT-MP3W

Listening to a cassette tape

Cassette Tape
Before playback: For playback, use normal or low-noise tapes for
the best sound. (Metal or CrO tapes are not recommended.)
Do not use C-120 tapes or poor-quality tapes, as
they may cause malfunctions.
Before loading a tape into the cassette compartment,
tighten the slack with a pen or a pencil.
TAPE (STAND-BY)
CD
RADIO
FUNCTION
ON
PAUSE STOP/EJECT F.FWD REWIND PLAY RECORD
/

Tape Playback

1 Set the FUNCTION switch to TAPE. 2 Open the cassette compartment by pushing the STOP/
EJECT / button.
3 Load a cassette into the cassette compartment with the
side to be played facing up.
4 Press the PLAY button. 5 To advance the tape, press the STOP/EJECT / button,
then press the F.FWD button. To rewind, press the STOP/EJECT / button, then press the REWIND but­ton.

To interrupt playback:

Press the PAUSE button during playback. Press the PAUSE button again to resume playback.

To stop playback:

Press the STOP/EJECT / button.

Precautions:

Be sure not to press the PLAY and REWIND buttons simul-
taneously, or the tape will become damaged.
Before changing from one tape operation to another, press the
STOP/EJECT / button.
Do not press the PAUSE button whilst the fast forward or rewind
operations are in progress. The F.FWD or REWIND but­ton will not be released when the tape end is reached. Once this occurs, press the STOP/EJECT / button.
Notes:
Power on indicator will not light up in Tape/Stand-by mode.Display will become blank in tape mode.Power on indicator will light up when tape play operation is
perform.
Tape play button will automatically released when the end of the
tape has been reached.
Fast forward or rewind button cannot automatically released when
the end of the tape has been reached. Make sure to press the STOP/EJECT / button when the end of the tape has been reached.
13

Recording to a cassette tape

QT-MP3W
Before recording:
When recording important selections, make a preliminary test to
ensure that the desired material is properly recorded.
SHARP is not liable for damage or loss of your recording arising
from malfunction of this unit.
The volume and sound controls can be adjusted with no effect
on the recorded signal (Variable Sound Monitor).
For recording, use only normal tapes. Do not use metal or
CrO tapes.
Erase-prevention tab of cassette tapes:
When recording on a cassette tape, make sure that the erase-
prevention tabs are not removed. Cassettes have removable tabs that prevent accidental recording or erasing.
To protect the recorded sound, remove the tab after recording.
Cover the tab hole with adhesive tape to record on the tape with­out the tab.
Side A
Tab for side B
Tab for side A
TAPE (STAND-BY)
FUNCTION
CD
RADIO
MIC
PAUSE STOP/EJECT F.FWD REWIND PLAY RECORD
ON
/
Recording from the radio
1 Set the FUNCTION switch to RADIO. 2 Set the BAND SELECTOR switch to FM or AM. 3 Tune in to the station to be recorded. 4 Load a blank cassette into the cassette compartment with
the side to be recorded on facing up.
5 Press the PAUSE button. 6 Press the RECORD button. 7 Press the PAUSE button again to begin recording.

To stop recording: Press the STOP/EJECT / button.

Note:
Play and record buttons will automatically released when the end of tape has been reached.
Beat cancel switch:
If a whistling noise occurs when recording from an FM or AM station, set the BEAT CANCEL switch to 1 or 2, whichever gives the best re­ception.

Tape Recording

14
QT-MP3W

Recording to a cassette tape (continued)

Recording from the built in microphone
1 Set the FUNCTION switch to TAPE.
2 Load a cassette into the cassette compartment. 3 Press the PAUSE button.
4 Press the RECORD button. 5 Press the PAUSE button again to begin recording.

Notes:

Monitoring of the recording is not possible.Recording from the built-in microphone is not in stereo.Cassette play and record buttons will automatically release when
the end of the tape has been reached.
Recording from CD
1 Set the FUNCTION switch to CD.
2 Load a blank cassette into the cassette compartment with
the side to be recorded on facing up.

Tape Recording

3 Press the PAUSE button. 4 Press the RECORD button. 5 Press the PAUSE button again to begin recording. 6 When press the STOP/EJECT / button during recording,
display will appear, but CD still spinning.
Programmed track recording from CD
1 Select the memories track you want to record. 2 After memories the selected track, press the RECORD
button. The recording for memory track will begin until end.
3 After recording is completed, disc will stop to rotate, but
tape still rotating.
4 Press the STOP/EJECT / button to stop recording.
Note:
Cassette play and record buttons will automatically release when
the end of tape has been reached.
Enhancing your system
Headphone
Before plugging in or unplugging the headphones, make sure the
volume level is reduced.
Be sure your headphones have a 3.5 mm (1/8") diameter plug and
are between 16 ohms and 50 ohms impedance. The recommend­ed impedance is 32 ohms.
When headphones are connected, the speakers are disconnected
automatically. Adjust the VOLUME control for desired volume.
U
M
L
O
E
V
• M
I N
MAX •
X-BASS
OFFON
TAPE (STAND-BY)
CD
RADIO
FUNCTION
MIC
PAUSE
STOP/EJECT F.FWD REWIND PLAY RECORD
/
H
S
U
P
N
I
N
G
U
T
z H K
z H M
0 0 6
1
8 0 1
0 0 4
1
0
0 2
6
1
0
1
0 0 0
4
1
0
1
2
0
1
0 0
8
0 0 1
0 0 7
• AM
6
9
E
S
O
• FM
L
C
N E P
O
0
0
6
2
9
0
9
0 3
5
8 8
M
A
BAND
M F
15
7 To stop the CD spinning, press the CD button.

Troubleshooting chart

QT-MP3W
Many potential problems can be resolved by the owner without call­ing a service technician. If something is wrong with this product, check the following before calling your authorised SHARP dealer or service centre.
General
Symptom Possible cause
When a button is pressed,
the unit does not respond.
No sound is heard. Is the volume level set to "0"?
Set the unit to the power stand-
by mode and then turn it back on.
Are the headphones connected?
CD player
Symptom Possible cause
Playback does not start. Is the disc loaded upside down?Playback stops in the
middle or is not performed properly.
Playback sounds are
skipped, or stopped in the middle of a track.
Does the disc satisfy the
standards?
Is the disc distorted or
scratched?
Is the unit located near excessive
vibrations?
Is the disc very dirty?Has condensation formed inside
the unit?
Tuner
Symptom Possible cause
The radio makes unusual
noises continuously.
Is the unit placed near the TV or
computer?
Is the FM aerial placed properly?
Move the aerial away from the AC power lead if it's located near­by.
Cassette deck
Symptom Possible cause
Cannot record. Is the erase-prevention tab re-
Cannot record tracks with
proper sound quality.
Cannot erase completely.
Sound skipping.Cannot hear treble.
Sound fluctuation.
Cannot remove the tape. If a power failure occurs during
moved?
Is it a normal tape? (You cannot
record on a metal or CrO tape.)
Is there any slack?
Is the tape stretched?
Are the capstan, pinch roller, or
head dirty?
playback, the heads remain en­gaged with the tape. Do not open the compartment with great force.
Condensation
Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.). Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.
If trouble occurs
When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again. 2 If the unit is not restored in the previous operation, unplug and
plug in the unit, and then turn the power on.

References

16
QT-MP3W
A
B C
ED

Troubleshooting chart (continued)

Maintenance

Before transporting the unit
Remove CD from the unit. Make sure there is no CD in the disc spindle. Then, set the unit to the power stand-by mode. Carrying the unit with disc left inside can damage the unit.
Care of compact discs
Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player. Do not write on either side of the disc, particularly the non-label
side from which signals are read. Do not mark this surface.
Keep your discs away from direct sunlight, heat, and excessive
moisture.
Always hold the CDs by the edges. Fingerprints, dirt, or water on
the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

References

NO YES
Correct
Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.
Caution:
Do not use chemicals for cleaning (petrol, paint thinner, etc.). It
may damage the cabinet finish.
Do not apply oil to the inside of the unit. It may cause
malfunctions.
Cleaning the lens and tape-handling parts
Do not touch the laser pickup lens. If finger prints or dust accumu-
late on the pickup, clean it gently with a dry cotton swab.
Dirty head, capstan or pinch roller can cause poor sound and tape
jams. Clean these parts with a cotton swab moistened with com­mercial head/pinch roller cleaner or isopropyl alcohol.
When cleaning the head, pinch roller, etc., unplug the unit which
contains high voltages.
After long use, the deck's head and capstan may become magne-
tised, causing poor sound. Demagnetise these parts once every 30 hours of playing/recording time by using a commercial tape head demagnetiser. Read the demagnetiser's instructions care­fully before use.
Laser pickup lens Pinch roller Capstan Recording/Playback head Erase head
17

Specifications

QT-MP3W
As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.
General
Power source AC 110 - 127/ 220 - 240 V, 50/60 Hz
Power consumption
Output power RMS : 4 W (2 W + 2 W)
Speakers 9 cm (3-1/2") full range speaker x 2
Dimensions Width: 410 mm (16-1/8")
Weight 2.7 kg (5.9 lbs.) without battery
DC12V ["D" size (UM/SUM-1, R20 or HP-
2) battery x 8]
Power on: 13 W Power stand-by: 1.4 W
(DC OPERATION, 10% T.H.D)
Height: 150 mm (6") Depth: 245 mm (9-1/2")
Radio
Frequency range FM: 88 - 108 MHz
AM: 531 - 1602 kHz
Tape recorder
Frequency response 80 - 8,000 Hz (Normal tape)
Signal/noise ratio 40 dB
Wow and flutter 0.3% (WRMS)
Motor DC 9 V electric governor
Bias system AC bias
Erase system Magnet erase
CD player
Type Compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
D/A converter 1-bit D/A converter
Frequency response
pickup
60 - 20,000 Hz

References

18
SHARP CORPORATION
92L01TMP300010 06H R KI 1
