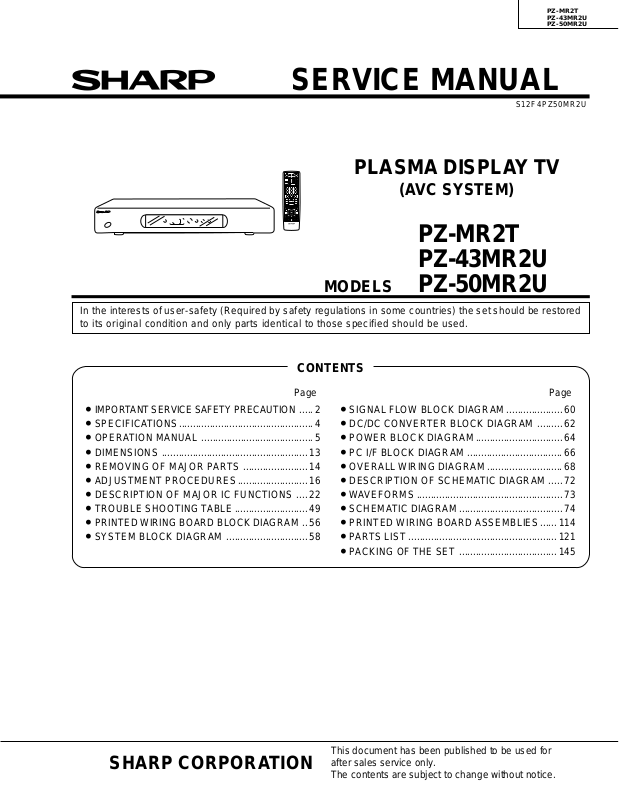

SHARP PZ4350MR2U, PZ-43MR2U, PZ-50MR2U Service Manual

PZ-MR2T PZ-43MR2U PZ-50MR2U

SERVICE MANUAL

S12F4PZ50MR2U

PLASMA DISPLAY TV

(AVC SYSTEM)

PZ-MR2T PZ-43MR2U

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

PZ-50MR2U

CONTENTS

Page

» IMPORT ANT SER VICE SAFETY PRECAUTION .....2

» SPECIFICATIONS................................................4

» OPERA TION MANUAL ........................................5

» DIMENSIONS ....................................................13

» REMOVING OF MAJOR PARTS .......................14

» ADJUSTMENT PROCEDURES.........................16

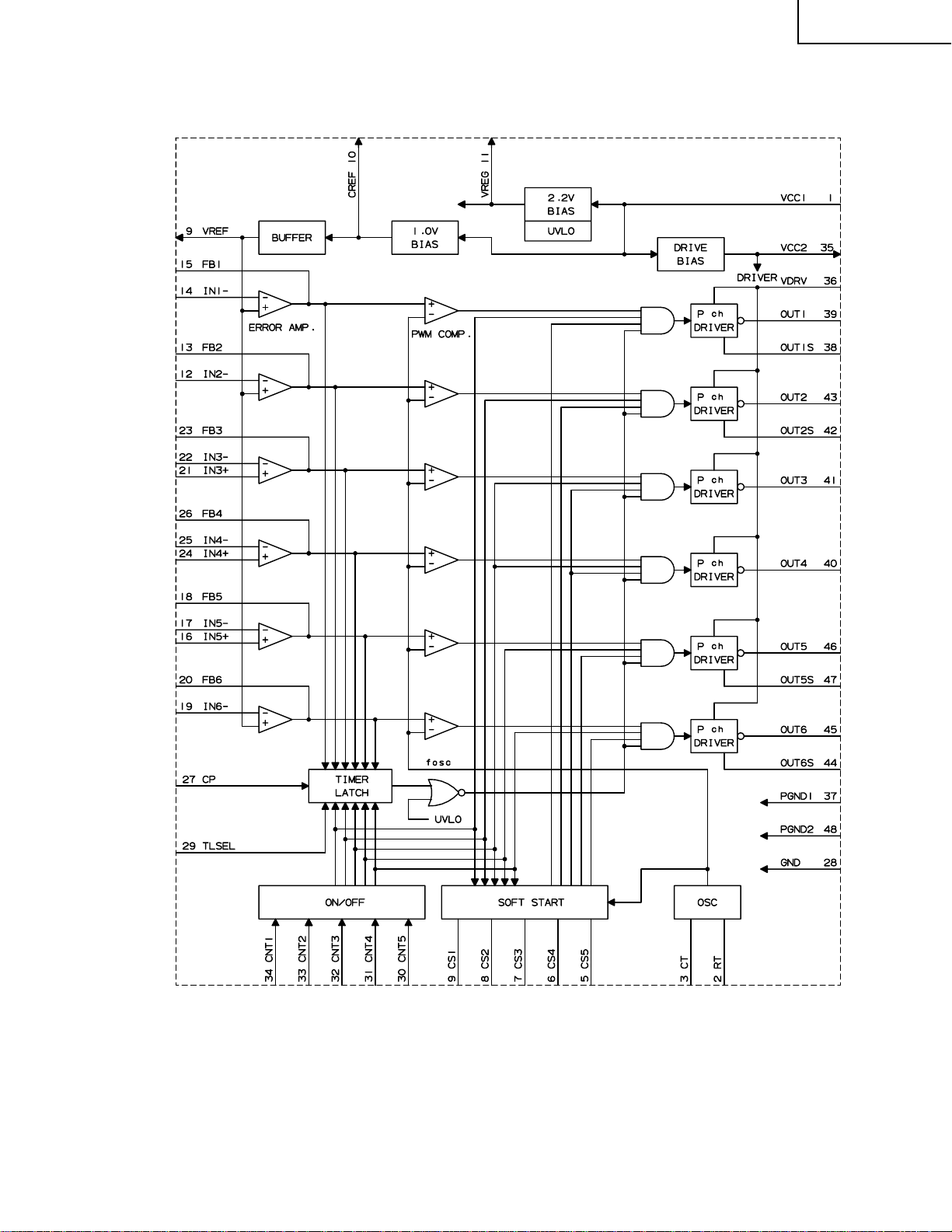

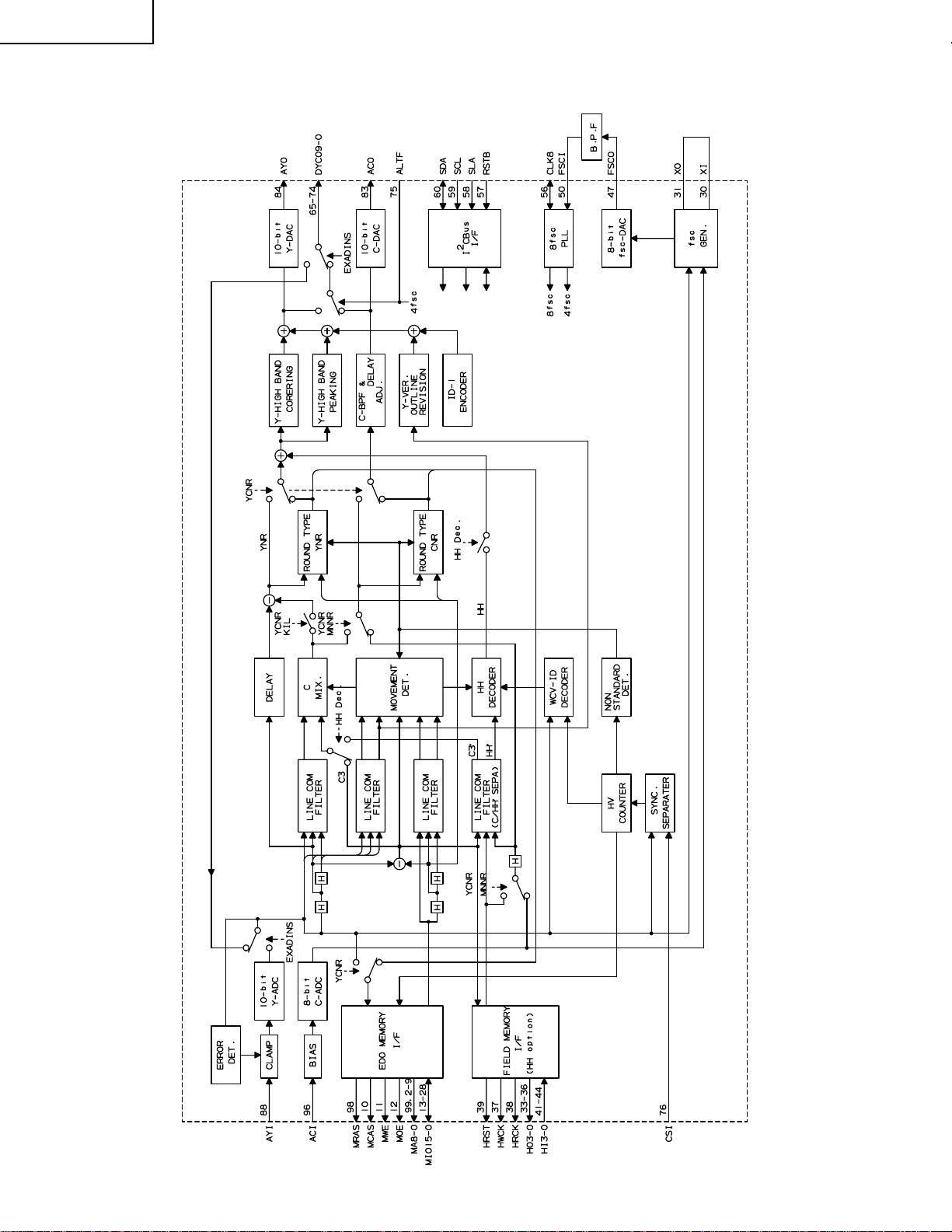

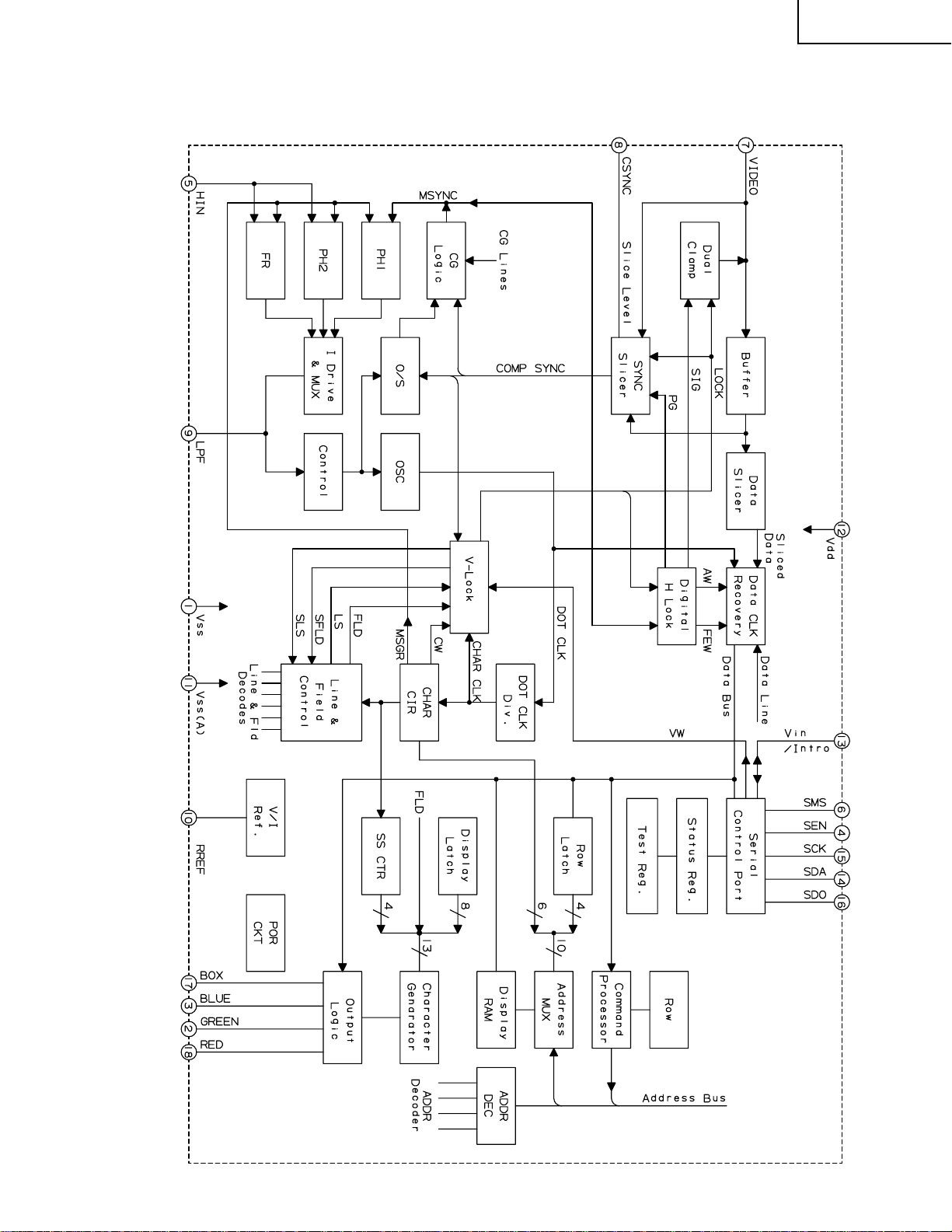

» DESCRIPTION OF MAJOR IC FUNCTIONS ....22

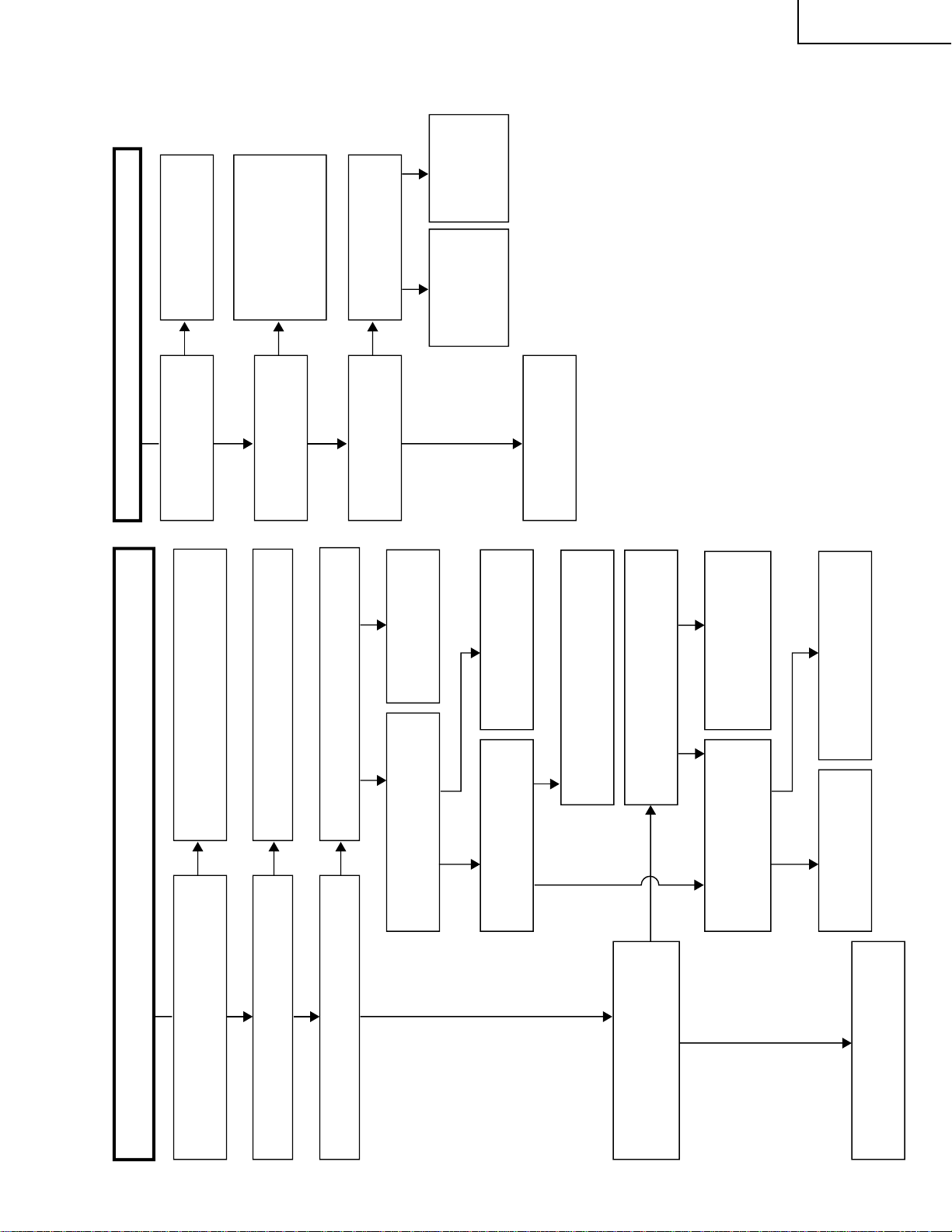

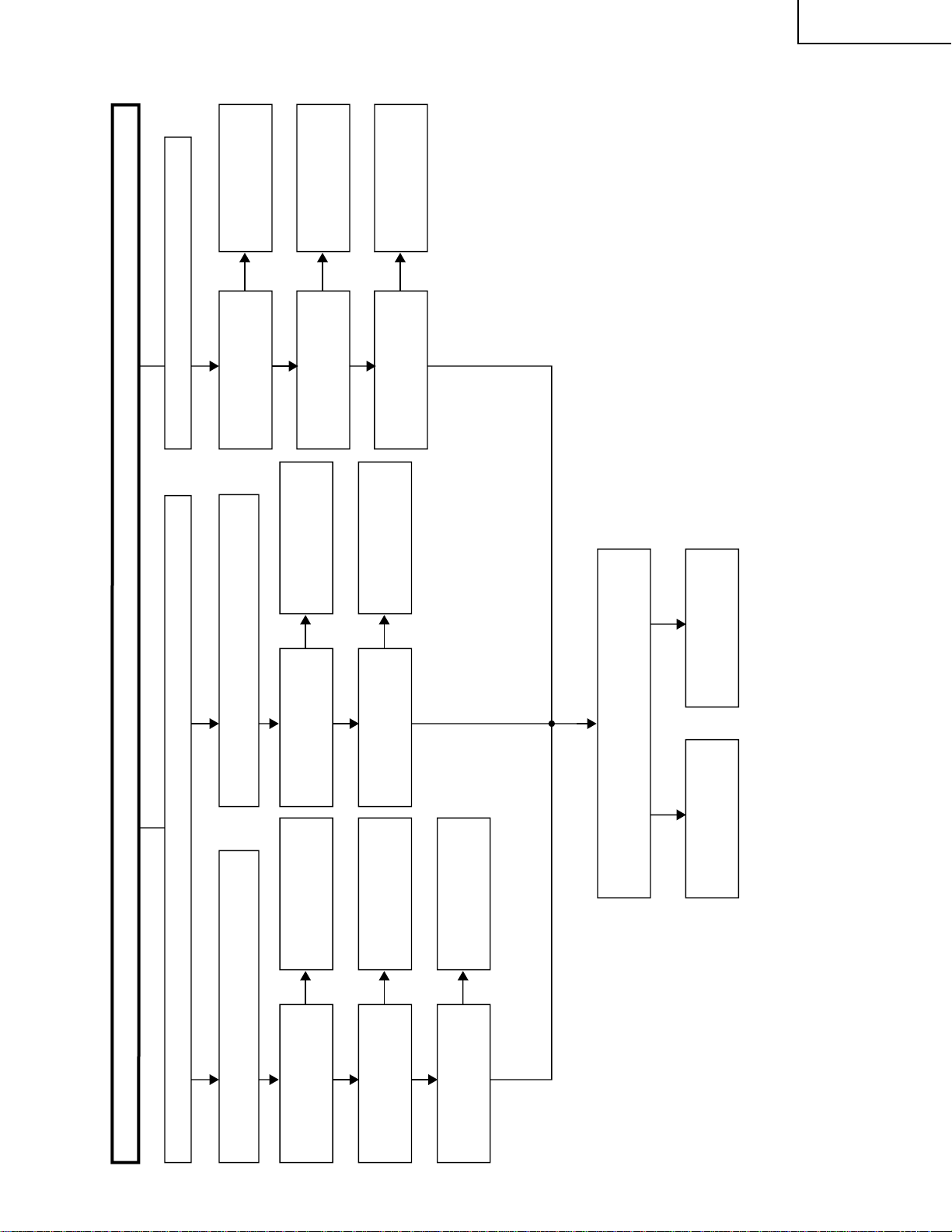

» TROUBLE SHOOTING TABLE..........................49

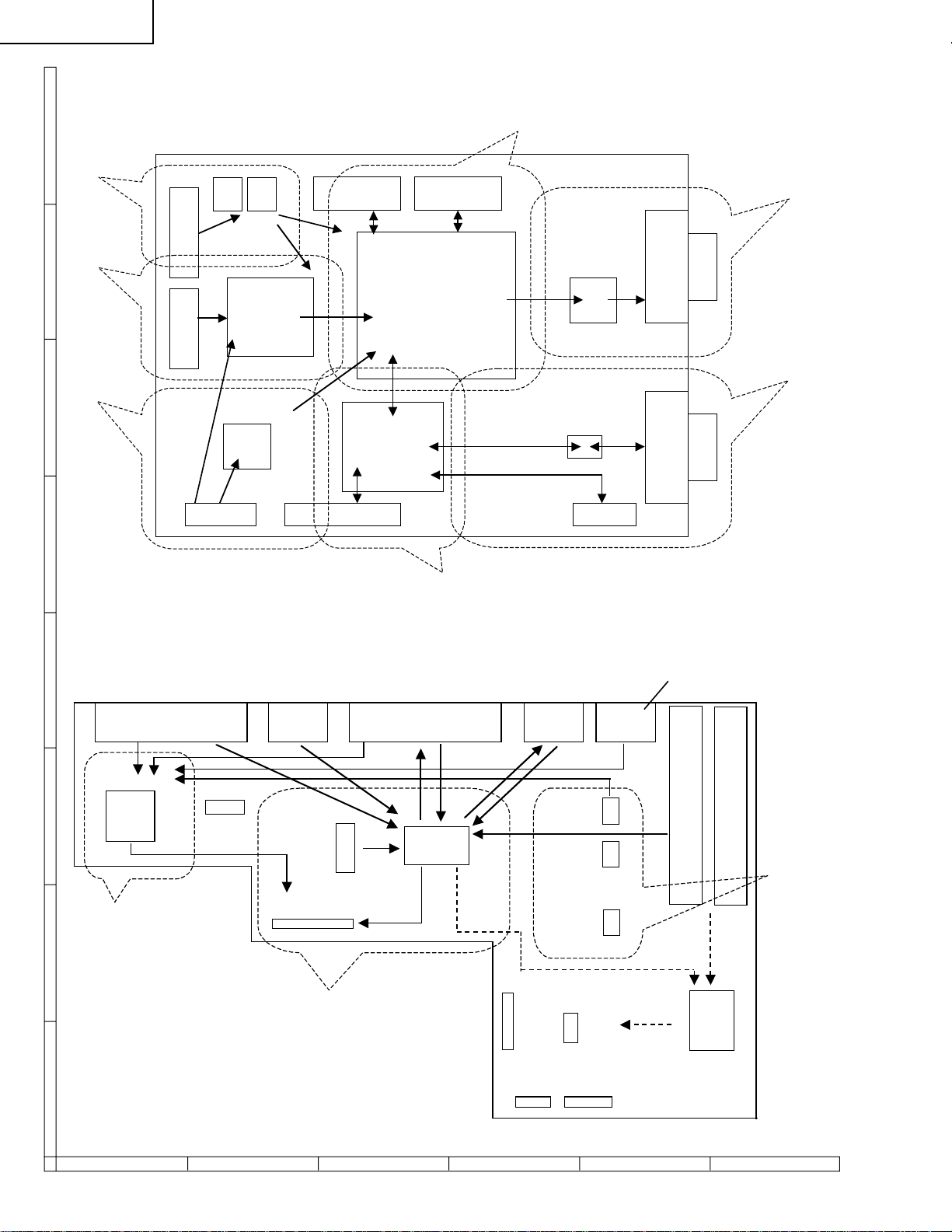

» PRINTED WIRING BOARD BLOCK DIAGRAM .. 56

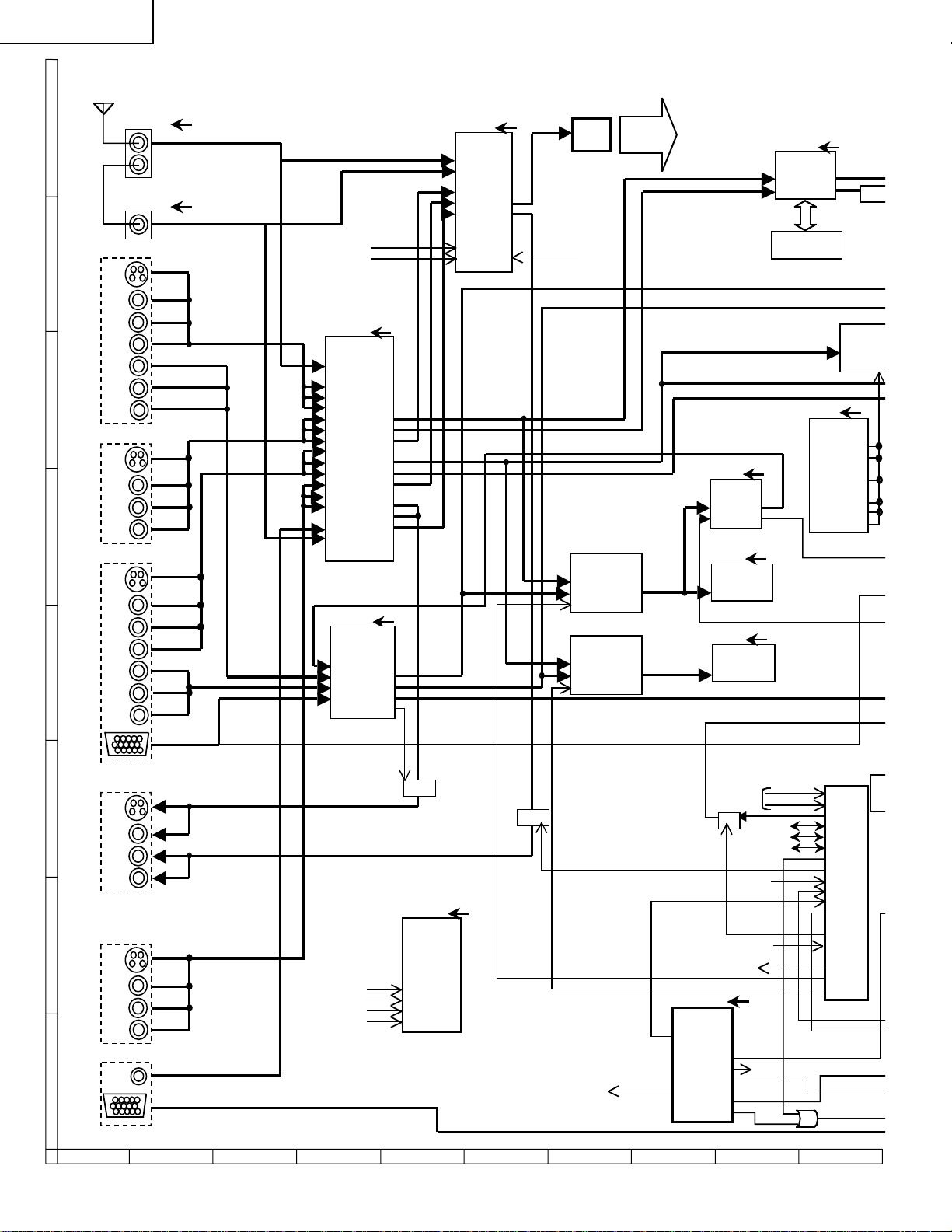

» SYSTEM BLOCK DIAGRAM ............................. 58

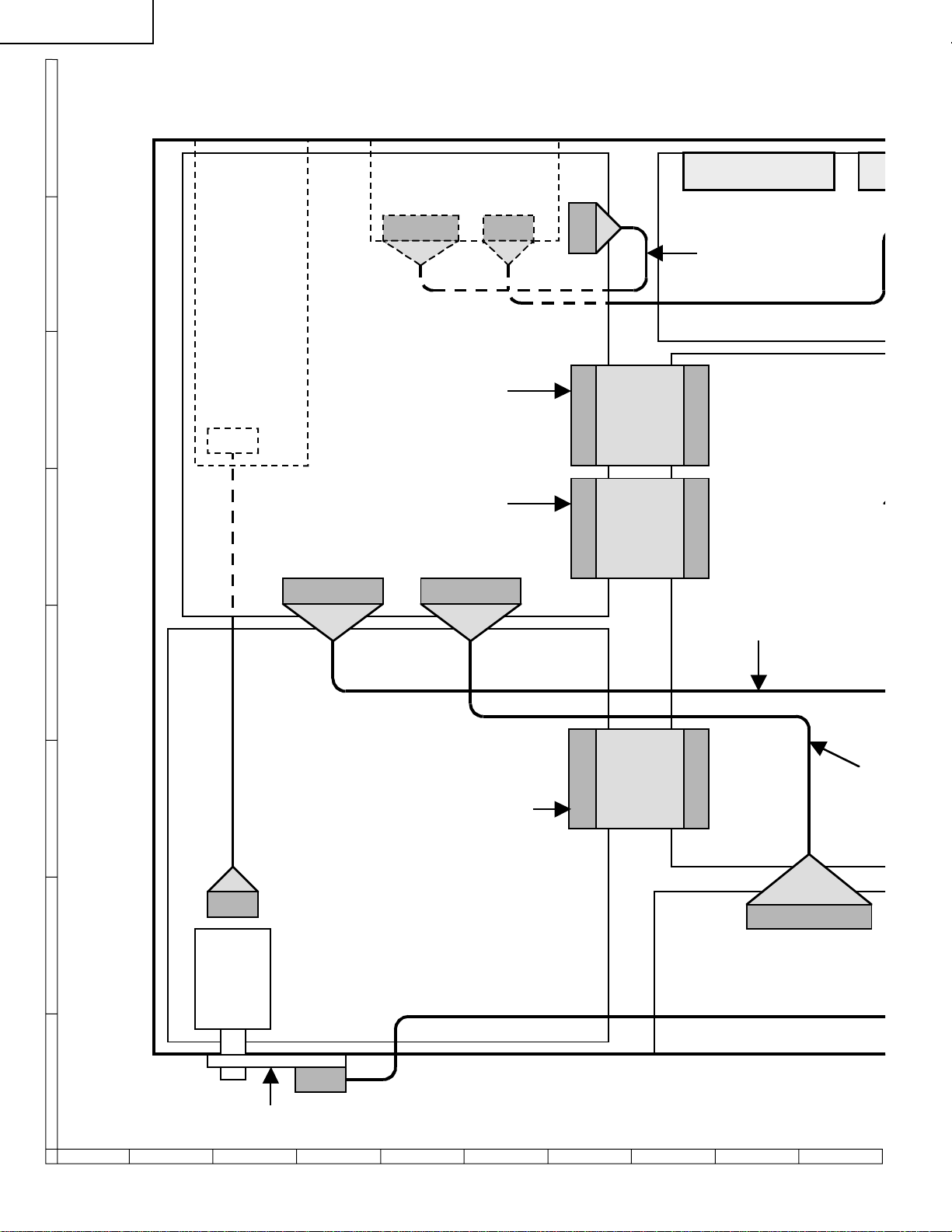

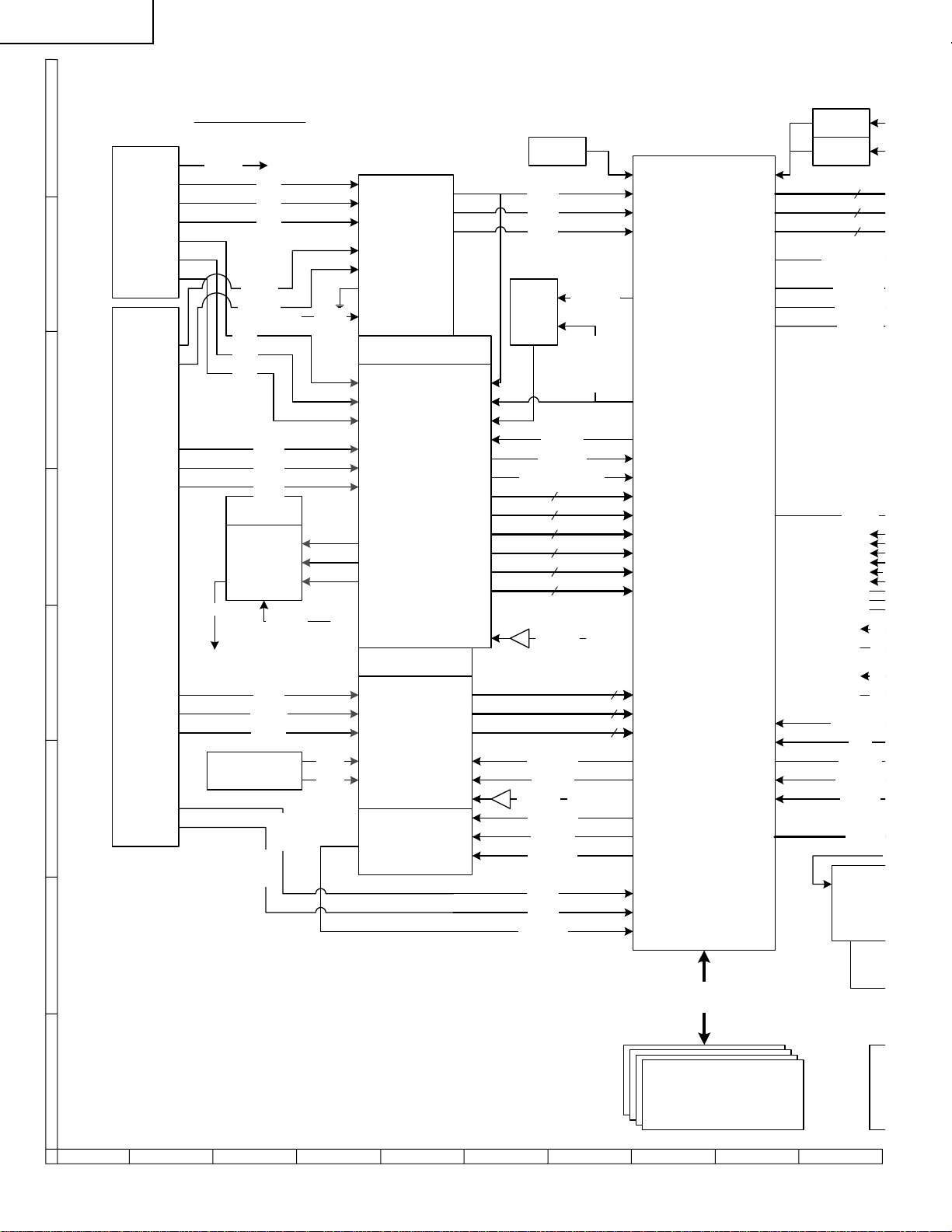

» SIGNAL FLOW BLOCK DIAGRAM....................60

» DC/DC CONVERTER BLOCK DIAGRAM .........62

» POWER BLOCK DIAGRAM...............................64

» PC I/F BLOCK DIAGRAM ..................................66

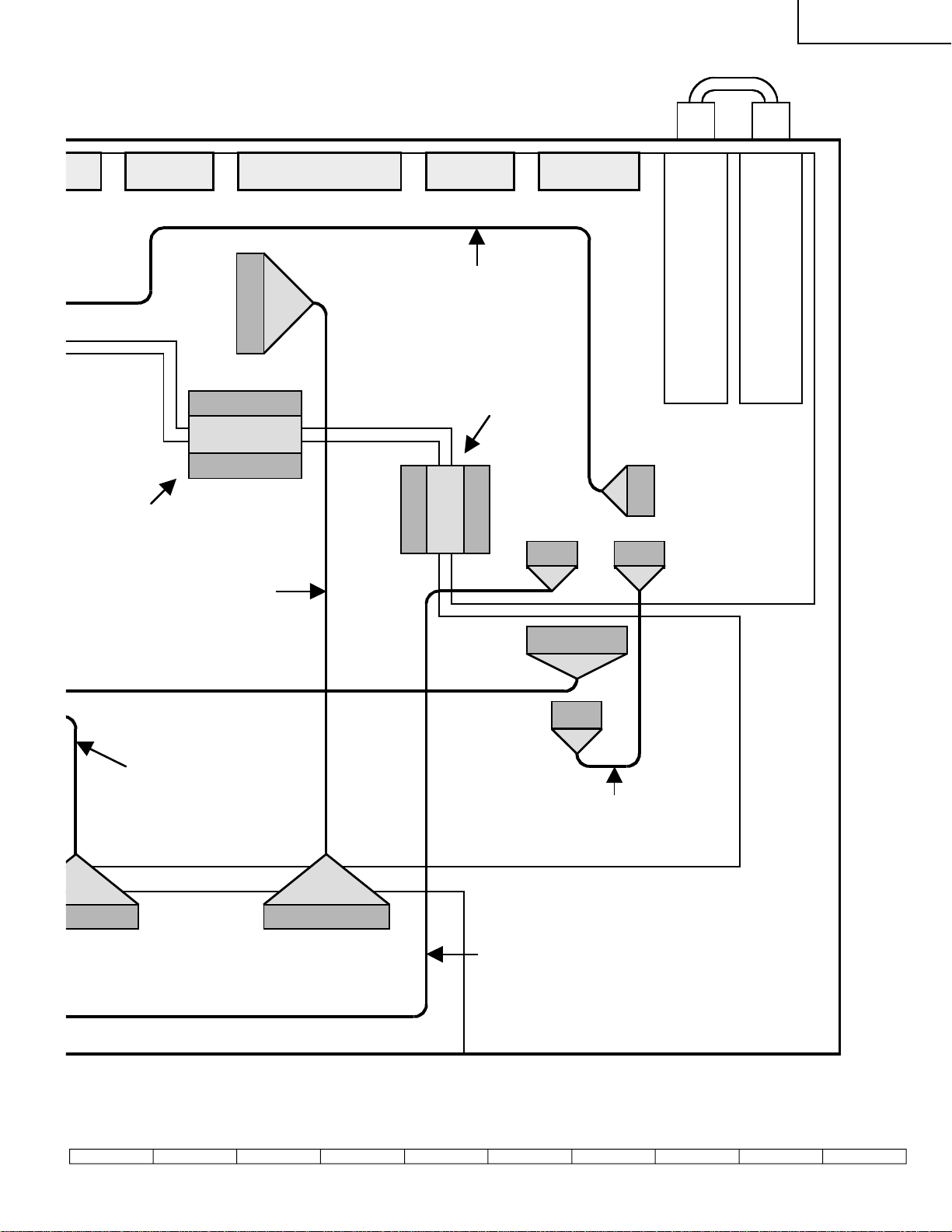

» OVERALL WIRING DIAGRAM...........................68

» DESCRIPTION OF SCHEMATIC DIAGRAM .....72

» WAVEFORMS ....................................................73

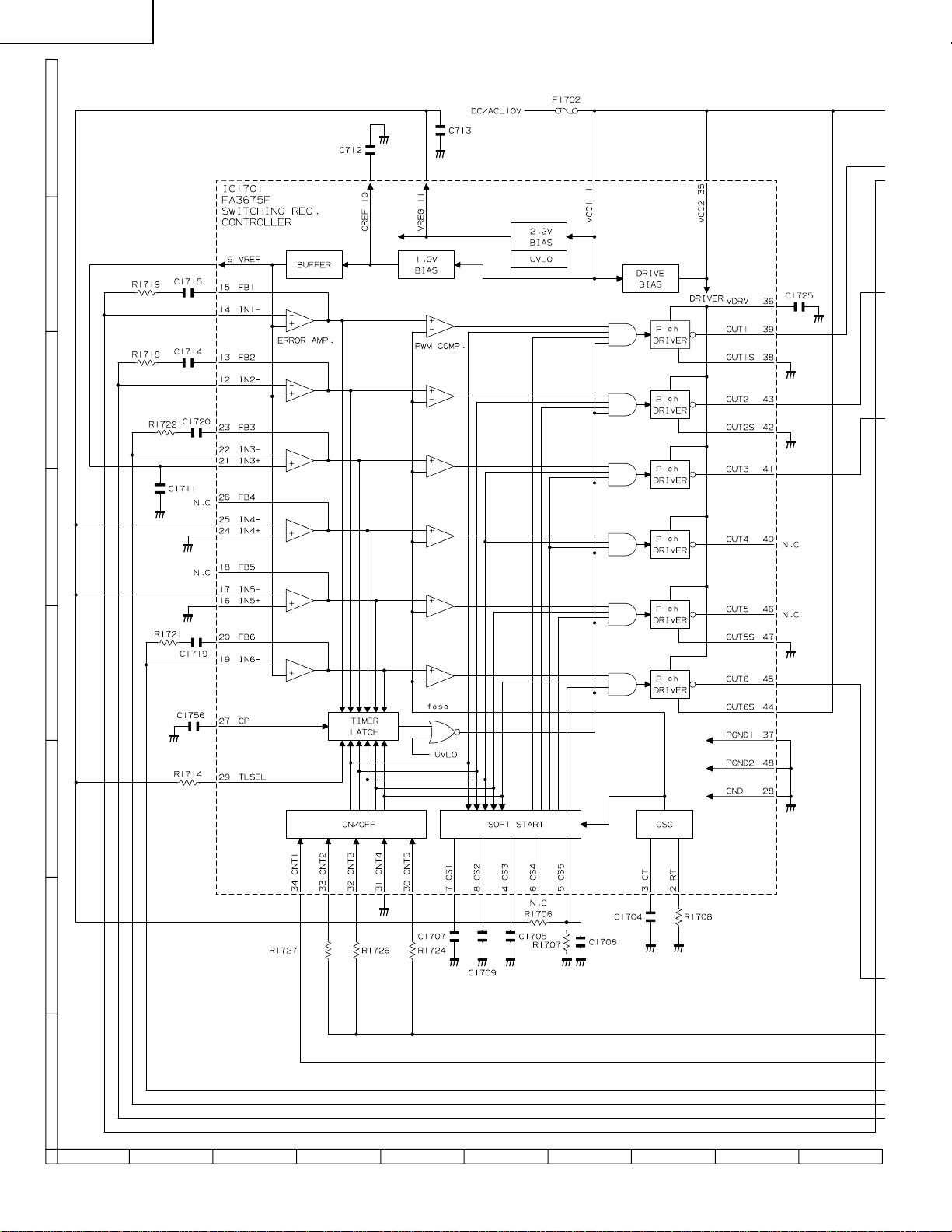

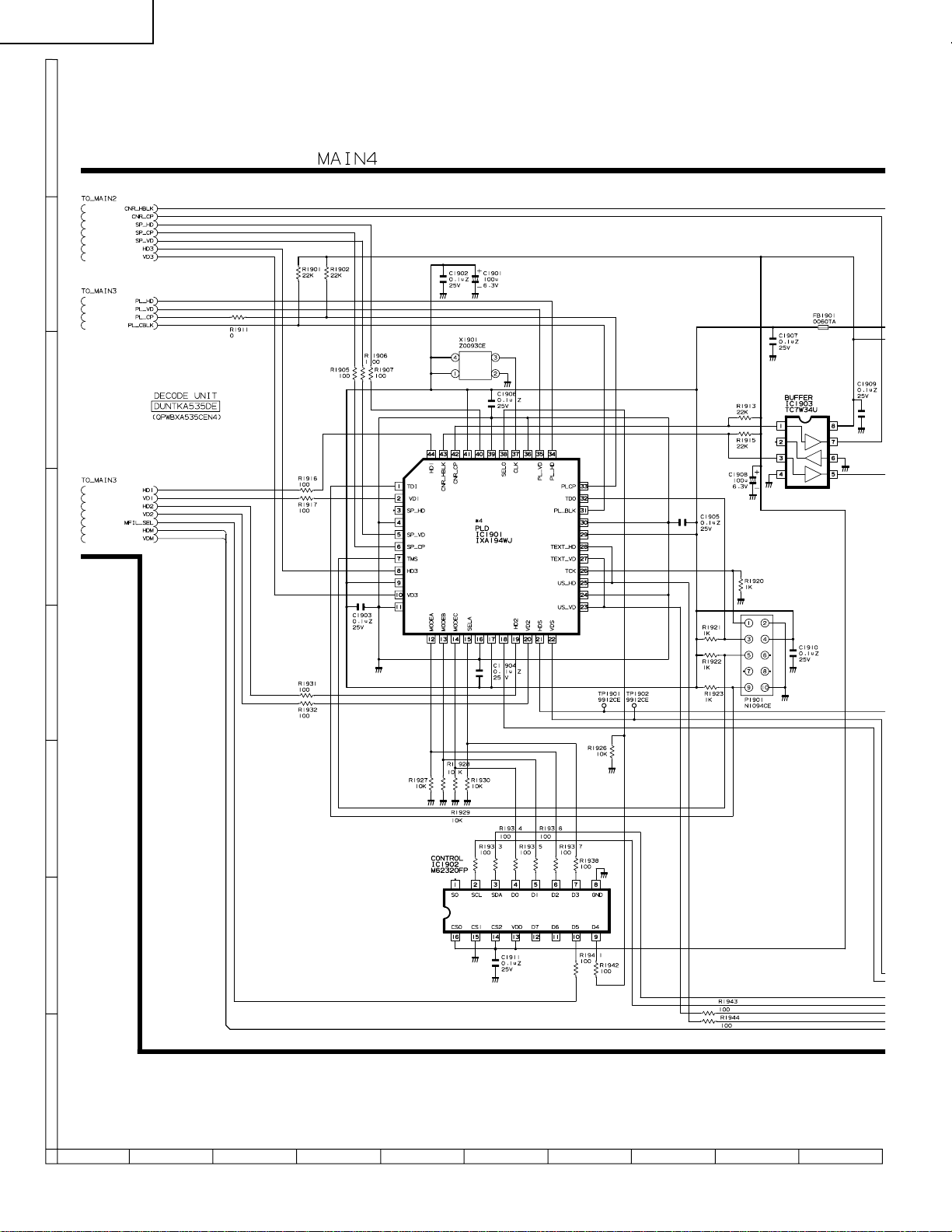

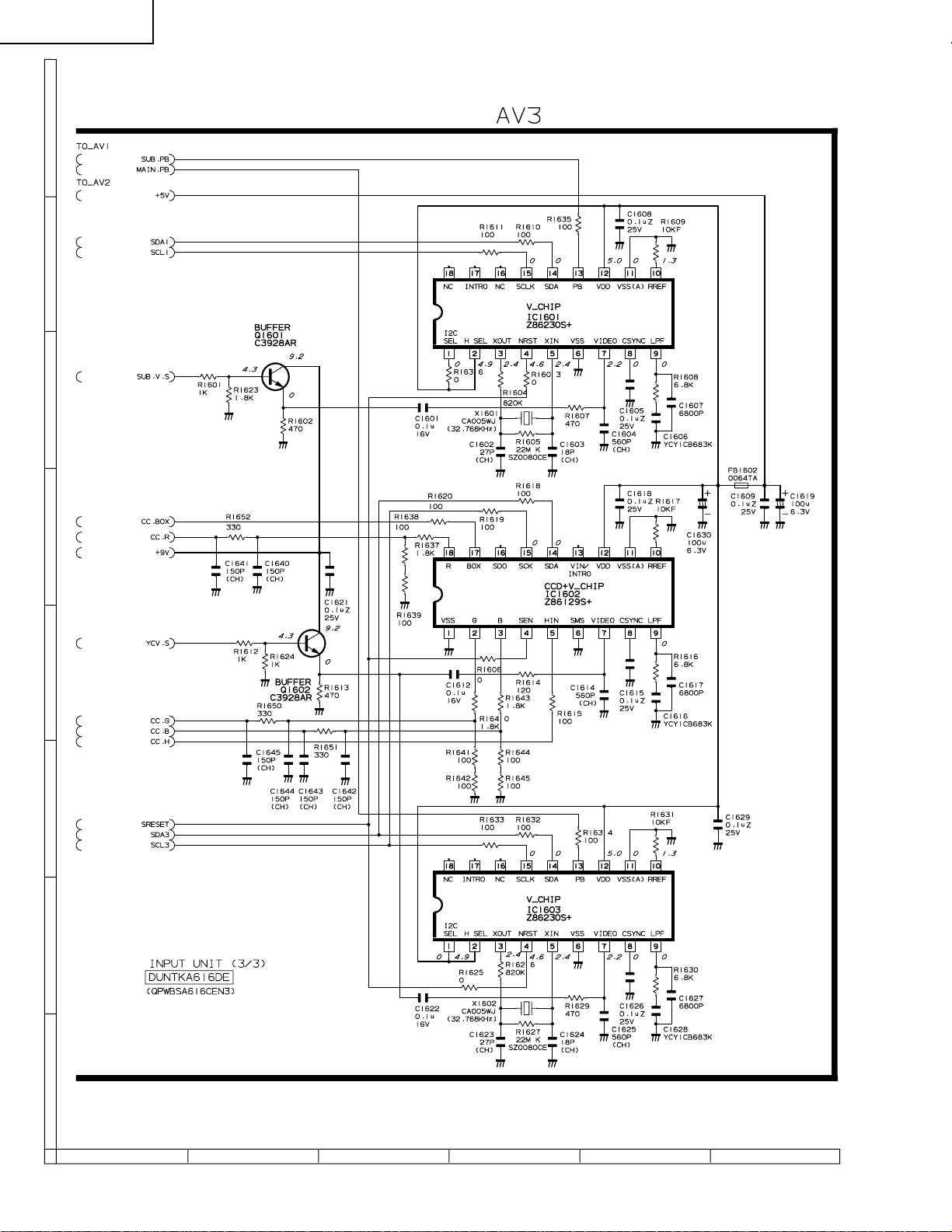

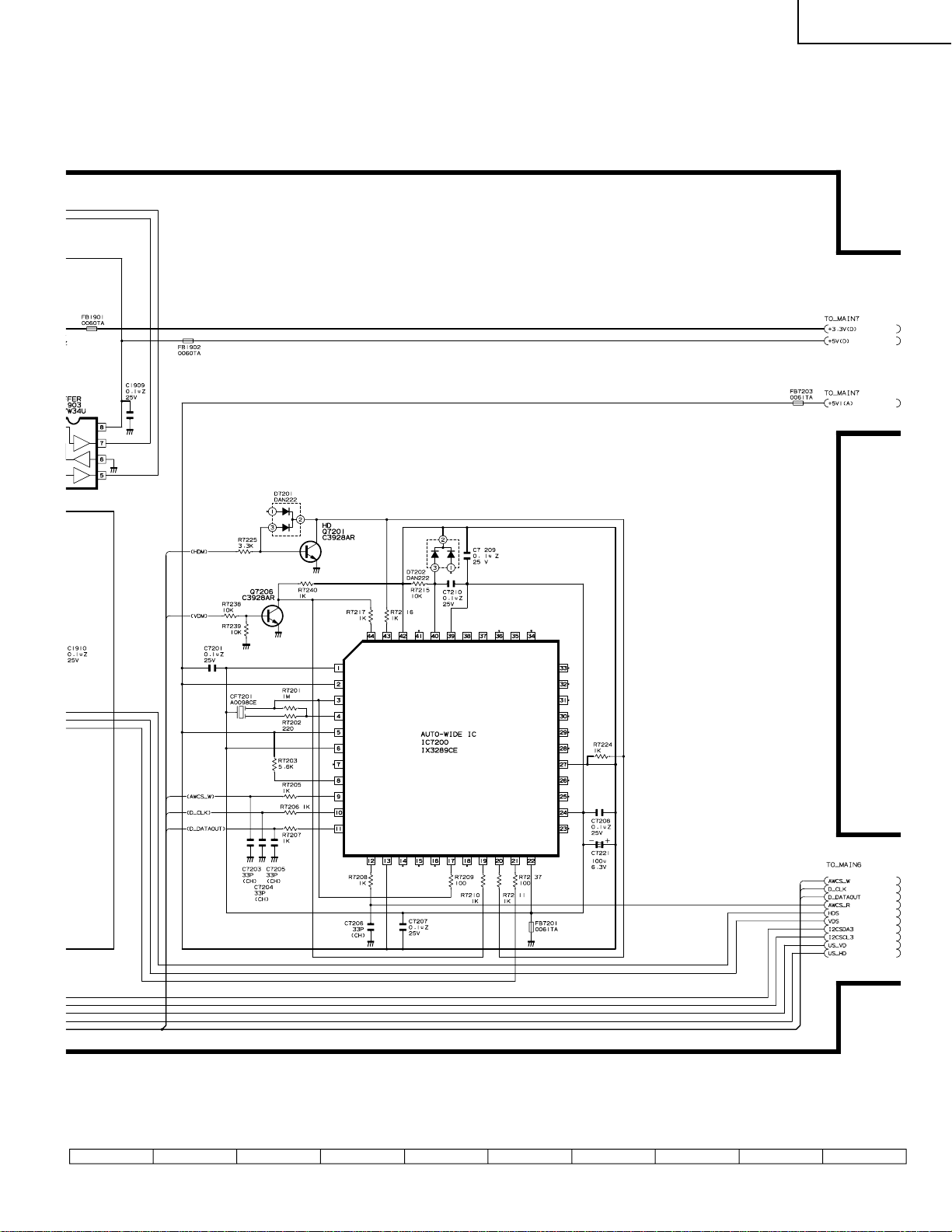

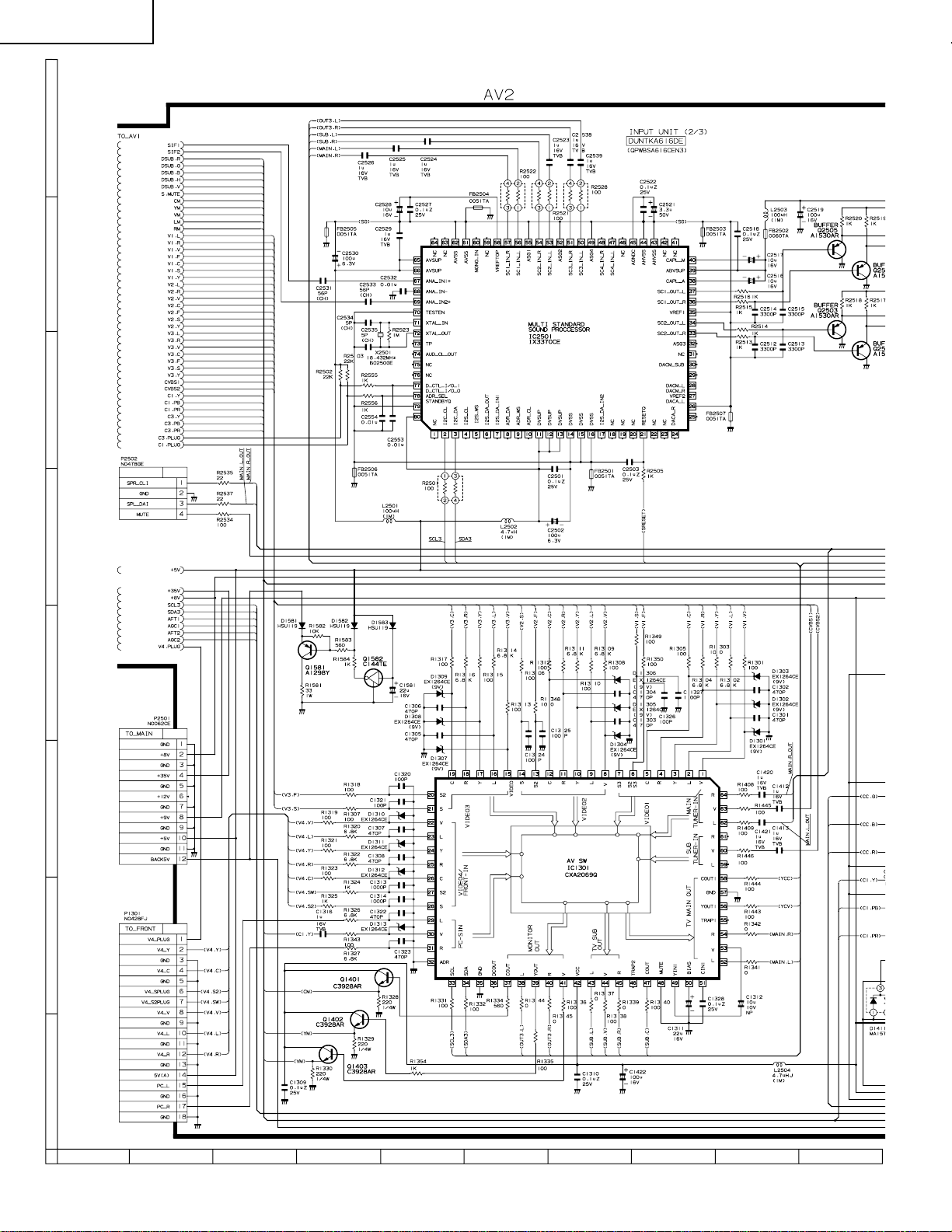

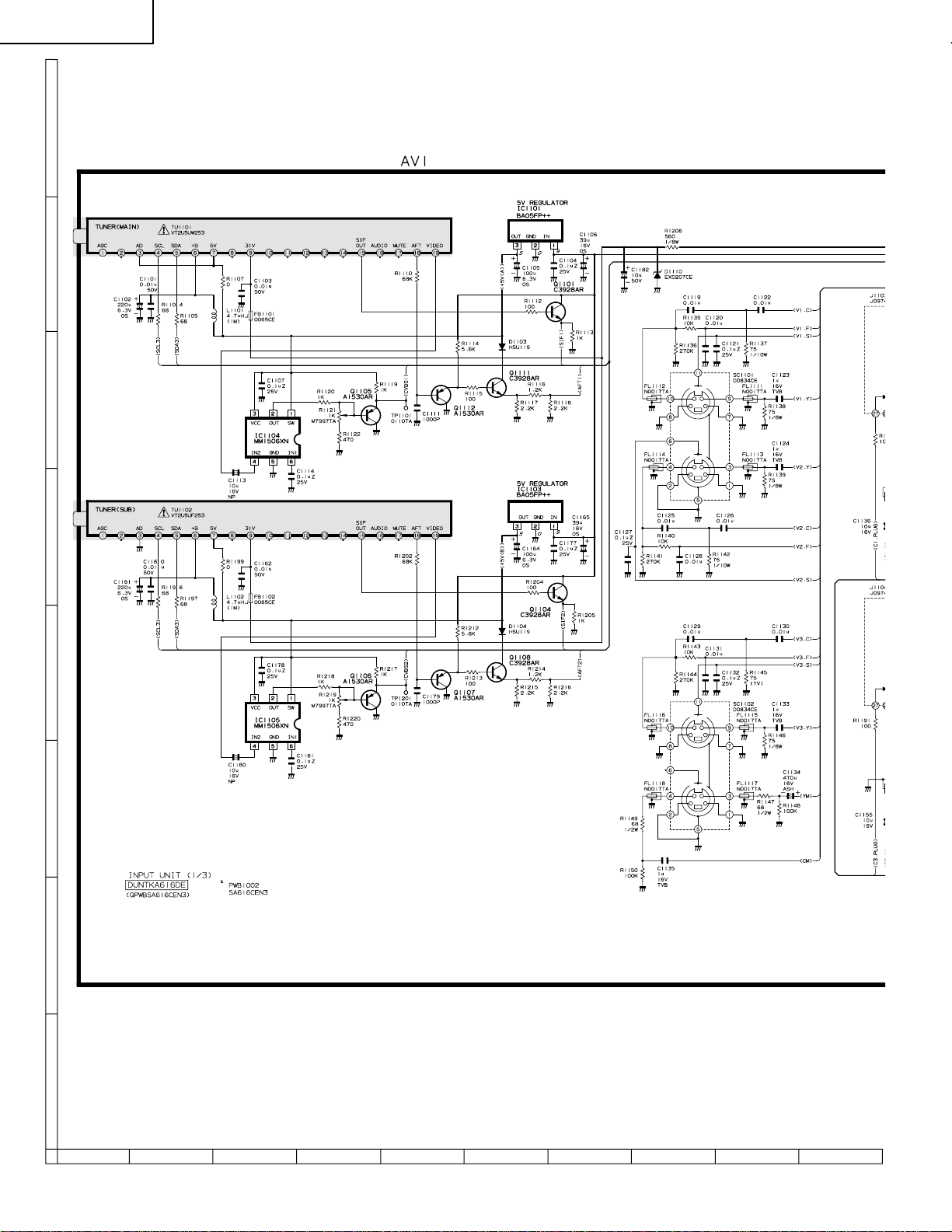

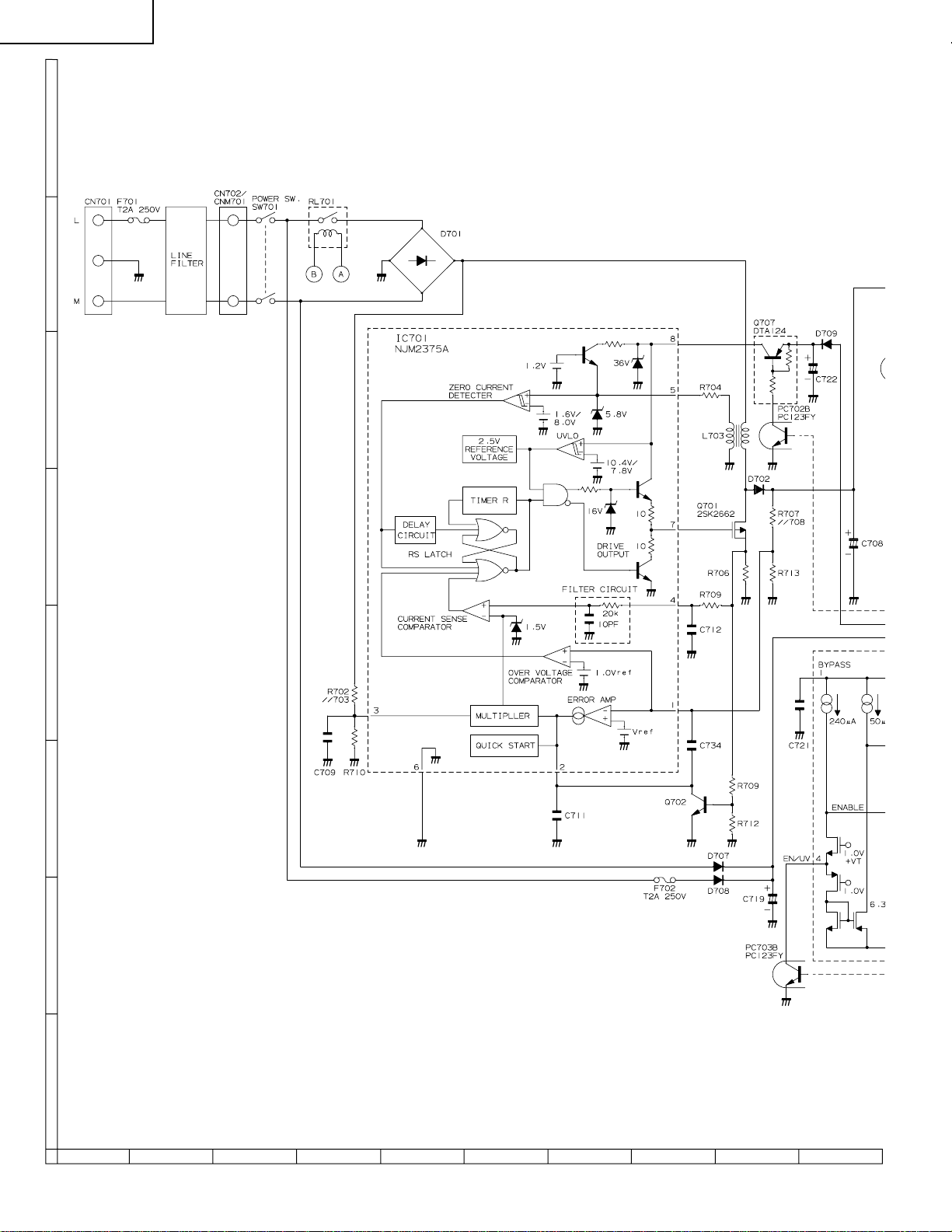

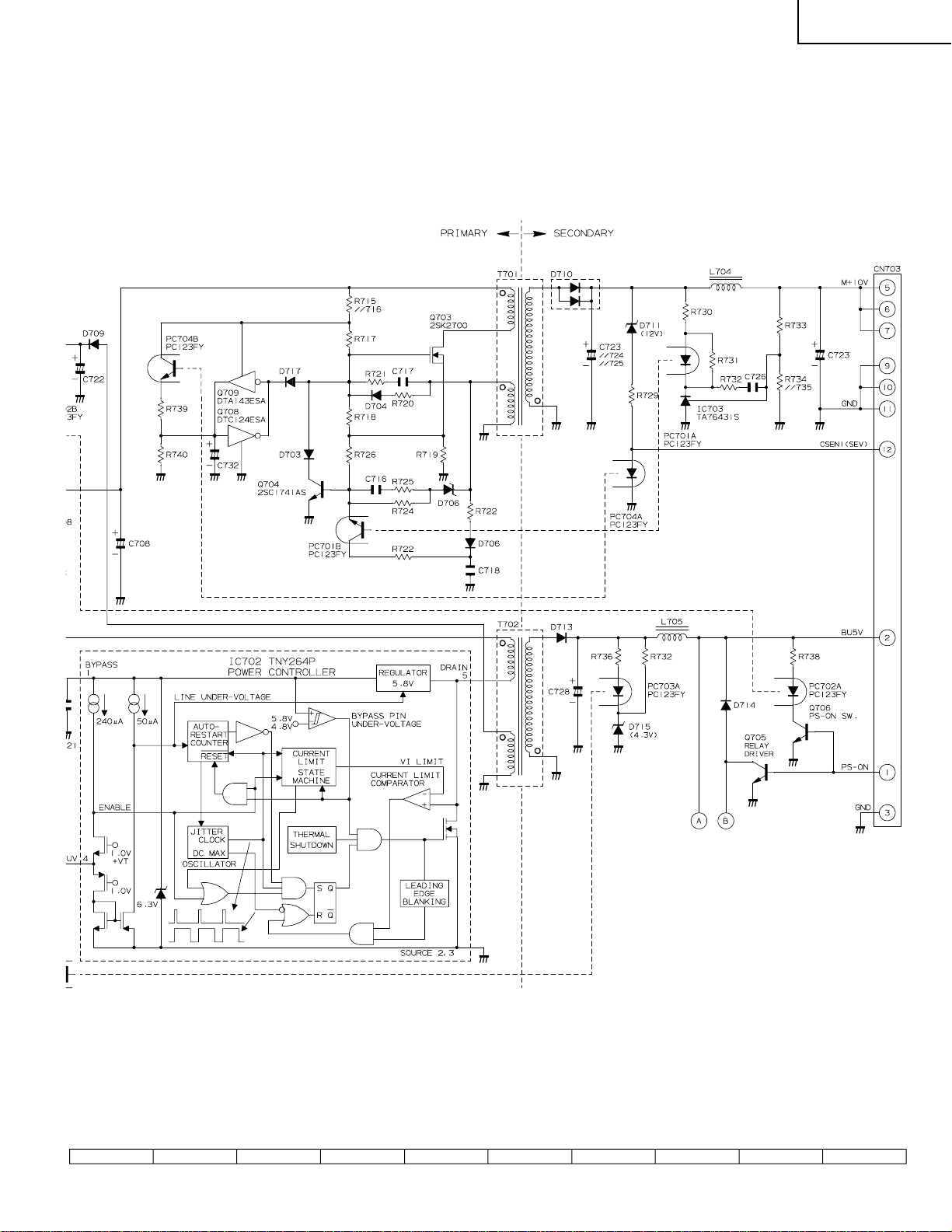

» SCHEMA TIC DIAGRAM.....................................74

» PRINTED WIRING BOARD ASSEMBLIES...... 114

» P ARTS LIST .....................................................121

» P ACKING OF THE SET ...................................145

Page

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

PZ-MR2T

2 2

PZ-43MR2U PZ-50MR2U

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be perfomed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE REPLACE ONLY WITH SAME TYPE FUSE. F701 (T2A,

A V

250V), F702 (T2A, 250V), F1702 (T4AL, 250V) FUSE.

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:

1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

» Plug the AC cord directly into a 110~240 volt AC outlet,

and connect the DC power cable into the receiver's DC jack. (Do not use an isolation transformer for this test).

» Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.

» Use an AC voltmeter having with 5000 ohm per volt,

or higher, sensitivity or measure the AC voltage drop across the resisor.

» Connect the resistor connection to all exposed metal

parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.) Any reading of 35V peak (this corresponds to 0.7 milliamp. peak AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner.

DVM

AC SCALE

1.5k ohm 10W

0.15 µF

TEST PROBE

TO EXPOSED METAL PARTS

CONNECT TO KNOWN EARTH GROUND

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in Plasma Display television have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical

and shaded areas in the

Schematic Diagrams

For continued protection, replacement parts must be identical to those used in the original circuit. The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards.

components having such features are identified by “ å”

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

Replacement Parts List

and

PZ-MR2T

PZ-43MR2U PZ-50MR2U

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants.

AVERTISSEMENT

1. N'entreprendre aucune modification de tout circuit. C'est dangereux.

2. Débrancher le récepteur avant toute réparation.

PRECAUTION: POUR LA PROTECTION CONTINUE CONTRE LES RISQUES D'INCENDIE, REMPLACER LE FUSIBLE P AR UN FUSIBLE DE MEME TYPE F701

A V

(T2A, 250V), F702 (T2A, 250V), F1702 (T4AL, 250V).

VERIFICA TIONS CONTRE L'INCEN-DIE ET LE CHOC ELECTRIQUE

Avant de rendre le récepteur à l'utilisateur, effectuer les vérifications suivantes.

1. Inspecter tous les faisceaux de câbles pour s'assurer que les fils ne soient pas pincés ou qu'un outil ne soit pas placé entre le châssis et les autres pièces métalliques du récepteur.

2. Inspecter tous les dispositifs de protection comme les boutons de commande non-métalliques, les isolants, le dos du coffret, les couvercles ou blindages de réglage et de compartiment, les réseaux de résistancecapacité, les isolateurs mécaniques, etc.

3. S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la fuite de courant, de la facon suivante:

• Brancher le cordon d'alimentation directem-ent à une prise de courant de 110-240V. (Ne pas utiliser de transformateur d'isolation pour cet essai).

• A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ 10 watts en parallèle avec un condensateur de 0,15µF en série avec toutes les pièces métalliques exposées du coffret et une terre connue comme une conduite électrique ou une prise de terre branchée à la terre.

• Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour mesurer la chute de tension en travers de la résistance.

• Toucher avec la sonde d'essai les pièces métalliques exposées qui présentent une voie de retour au châssis (antenne, coffret métallique, tête des vis, arbres de commande et des boutons, écusson, etc.) et mesurer la chute de tension CA en-travers de la résistance. T outes les vérifications doivent être refaites après avoir inversé la fiche du cordon d'alimentation. (Si nécessaire, une prise d'adpatation non polarisée peut être utilisée dans le but de terminer ces vérifications.) Tous les courants mesurés ne doivent pas dépasser 0,5 mA. Dans le cas contraire, il y a une possibilité de choc électrique qui doit être supprimée avant de rendre le récepteur au client.

DVM

ECHELLE CA

AC SCALE

1.5k ohm 10W

0.15 µF

0.15µF

TEST PROBE

SONDE D'ESSAI

AUX PIECES METALLIQUES EXPOSEES

BRANCHER A UNE TERRE CONNUE

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans les téléviseurs présentent des caractéristiques spéciales relatives à la sécurité, qui ne sont souvent pas évidentes à vue. Le degré de protection ne peut pas être nécessairement augmentée en utilisant des pièces de remplacement étalonnées pour haute tension, puissance, etc. Les pièces de remplacement qui présentent ces caractéristiques sont identifiées dans ce manuel; les pièces électriques qui présentent ces particularités sont

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

identifiées par la marque " å " et hachurées dans la liste des pièces de remplacement et les diagrammes schématiques. Pour assurer la protection, ces pièces doivent être identiques à celles utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas les mêmes caractéristiques que les pièces recommandées par l'usine, indiquées dans ce manuel, peut provoquer des électrocutions, incendies, radiations X ou autres accidents.

PZ-MR2T PZ-43MR2U PZ-50MR2U

Specifications

Item AVC System, Model: PZ-50MR2U, PZ-43MR2U, PZ-MR2T

Color System TV

Function

Terminals S-VIDEO in, AV in, COMPONENT in

Monitor Out Terminal OSD Language English/French/Spanish Other Features Power Requirement Dimensions Weight Accessories

Cercuit type Tuner

Audio multiplex Rear

Front

VHF/UHF CATV

INPUT 1 INPUT 2 S-VIDEO in, AV in INPUT 3

Antenna 75 UNBAL, F Type for VHF/UHF/CATV in INPUT 4 PC INPUT Rear

American TV standard NTSC system PLL full synchronous detection, PLL digital synthesizer system VHF 2–13ch, UHF 14–69ch

1–125ch BTSC system

S-VIDEO in, AV in, COMPONENT in, RGB in

S-VIDEO, AV in

15 Pin mini D-Sub, Audio in

S-VIDEO out, AV out, Audio (Variable, Fixed)

Picture & Picture, Still image, Dual Tuner System AC 110–240 V, 50/60 Hz, 40 W (0.6 W Standby) 16 15/16 (W) 2 25/32 (H) 13 (D) inch (430 (W), 70 (H), 330 (D) mm)

9.7 lbs(4.4 kg) Power Cord, Remote control unit, Two AA size batteries, System Cable,

Operation manual

• Design and specifications are subject to change without notice.

Operation Manual

AVC System

Front view

INPUT 4 terminal (VIDEO)

PZ-MR2T PZ-43MR2U PZ-50MR2U

STANDBY/ON indicator

POWER button

PC INPUT terminal (ANALOG RGB)

PC INPUT terminal (AUDIO)

INPUT 4 terminal (S-VIDEO)

Door knob

INPUT 4 terminals (AUDIO)

CLEAR button*

How to open the door.

* If you’re having problems operating the AVC System and want to return to normal screen, even when it stays

on (the indicator lights green), press CLEAR on the AVC System. Pressing CLEAR resets the System as shown below.

• AV MODE resets to STANDARD

• TV channel returns to initial channel setting(Air:2ch, Cable:1 or 2ch)

• Twin picture resets to normal

• Audio setting initializes

• SRS resets to Off.

• Image position initializes

• Pressing CLEAR will not work if the System is in standby mode (indicator lights red).

• Pressing CLEAR will not delete channel preset or secret number

. See Page for initialising factory preset settings when

you know your secret number. See Page for initialising factory preset values when you have forgotten your secret number.

Rear view

Antenna input terminal (A)

Antenna input terminal (B)

ANT-A ANT-B

ANT/CABLE 75OUT

USE FOR HDTV SIGNALS ONLY.

NOT INTENDED FOR USE WITH

COMPUTERS

Antenna output terminal

INPUT 3 COMPONENT video terminals

B, PR)

(Y, P

INPUT 3 terminal (VIDEO)

INPUT 3 terminal (S-VIDEO)

USE FOR HDTV SIGNALS ONLY. NOT INTENDED FOR USE WITH

COMPUTERS

HD INPUT

MONITOR OUTPUT

INPUT 3

S-VIDEO

MONITOR OUTPUT terminal (S-VIDEO)

HD INPUT terminal

MONITOR OUTPUT

terminal (VIDEO) MONITOR OUTPUT terminals (AUDIO L/R)

COMPONENT

BPR

VIDEO R-AUDIO-L

INPUT 3 terminals (AUDIO L/R)

INPUT 1 terminal (S-VIDEO)

INPUT 1 terminal (VIDEO)

COMPONENT

BPR

S-VIDEO VIDEO R-AUDIO-L

INPUT 2 terminals (AUDIO L/R)

INPUT 2 terminal (VIDEO)

INPUT 2 terminal (S-VIDEO)

INPUT 1 COMPONENT terminals (Y, P

B, PR)

INPUT 1 terminals (AUDIO L/R)

after RS-232C terminal

INPUT 1

INPUT 2

RS-232C

DISPLAY OUTPUT-2

DISPLAY OUTPUT-2 terminal

DISPLAY OUTPUT-1

AC INPUT

110V - 24OV

AC INPUT terminal

terminal

PZ-MR2T PZ-43MR2U PZ-50MR2U

Remote control unit

12 13

2 3

4 5

POWER

MODE

VIEW

MODE

DISPLAY

123

456 789

7 8

VOL CH

–

MENU TV/SAT/DVD RETURN

SOURCE DTV/SAT

POWER

ABCD

POWER

• When using the remote control unit, point it at the Plasma Display TV(Panel Unit).

Mode switch

TV VCRCBL

DVD

/SAT

/LD

/DTV

ANT-A/B

INPUT

FRONT

SURROUND

MTS CC

TWIN


SELECT

SUB TWIN CH

FREEZE

INPUT

SLEEP LEARN

EDIT/

100

FLASHBACK

MUTE

DTV/DVD TOP

SET/

ENTER

VCR REC

FAVORITE CH

INPUT VOL– VOL+

RECEIVER

GUIDE

DTV/SAT

INFO

15 16

ENT

22 23

Set the mode switch to TV.

1TV POWER: Switch the Plasma Display TV power on or

off.

2 FRONT SURROUND: Set SRS and FOCUS Sound

System mode.

3 AV MODE:Select an audio or video setting.

4 VIEW MODE: Select the scr een size. 5 DISPLAY:Display the channel information. 6 SLEEP:Set the SLEEP timer. 7 FLASHBACK: Return to the previous channel or input

external mode.

8VOL

: Set the volume. 9 MENU:Display the menu screen. 10 MENU RETURN: Return to the previous menu screen. 11 12 ANT-A/B: Select the antenna. (A, B)

13 INPUT: Select an input sour ce of the Plasma Display

TV. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, PC)

: When pressed all buttons on the remote control unit

will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in dark places.

15 MTS: Select the MTS/SAP. 16 CC: Display captions during closed-caption source. 17 TWIN CH buttons

TWIN PICTURE:Set the twin picture mode.

FREEZE: Set the still image. Press again to return to

normal screen.

SELECT: Select the active screen. SUB INPUT: Select an input sour ce of sub screen.

TWIN CH 18 0 – 9: Set the channel. 19 100 ENT: Select the three digit mode. Execute a

command of the channel.

20 CH

: Select the channel. 21 MUTE: Mute the sound. 22 SET/ENTER: Execute a command. 23 FAVORITE CH

A, B, C, D: Select any of four preset channels. (See

page for details to set the FAVORITE CH.) While watching you can toggle the set channels by pressing A, B, C and D.

24 LED for transmission confirmation

(AV mode: ST ANDARD, DYNAMIC, MOVIE, GAME, USER. PC mode: ST ANDARD, USER.)

: Select a desired item on the setting screen.

Press again to return to normal screen.

: Select the channel of sub screen.

Preparation

Connecting the system

Connecting the system cable, the power cor d and the speaker cables to the Plasma Displa y TV (Panel

Unit)

Plasma Display TV (Panel Unit) (rear view)

Black

Red

PZ-MR2T PZ-43MR2U PZ-50MR2U

Speaker cable

(bottom view)

(WHITE)

(GRAY)

Red

Black

System cable

Speaker cables (GRAY

GRAY with white stripe)

• Two speaker cables of different lengths are supplied. As shown in the diagram, connect the longer speaker cable to the left speaker and the shorter to the right.

Connecting the system cable and the power cord to the AVC System

Power cord

As you apply pressure to this part, insert the speaker cable. It is important to match polarity when connecting the speaker cables to the terminals.

Insert the speaker cable

Lift up the snap clip.

Insert the wire into the hole of the connector.

Lower the snap clip to grip the wire in place.

System cable

(GRAY)

(WHITE)

AVC System (rear view)

COMPONENT

BPR

HD INPUT

INPUT 3

S-VIDEO

VIDEO R-AUDIO-L

ANT-A ANT-B

ANT/CABLE 75OUT

MONITOR OUTPUT

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE POWER CORD CONNECTED.

COMPONENT

BPR

S-VIDEO VIDEO R-AUDIO-L

INPUT 1

INPUT 2

RS-232C

DISPLAY OUTPUT-2

DISPLAY OUTPUT-1

AC INPUT

110V - 24OV

Power cord

PZ-MR2T PZ-43MR2U PZ-50MR2U

preparation

How to route cables

A system cable clamp and five speaker cable clamps are included with the system for cable management. Follow the diagram below for correct cable management.

As viewed from the rear of the display.

Speaker cable

Speaker cable clamp

System cable

Wedge the power cord and the system cable into the groove on the stand.

Stick the speaker cable clamps

– ) to the surface as shown.

(

Power cord

Speaker cable clamp

System cable clamp

System cable

preparation

Using the remote control unit

Use the remote control unit by pointing it towards the remote sensor window. Objects between the remote control unit and sensor window may pr event proper operation.

Cautions regarding remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote sensor window of the Plasma Display TV(Panel Unit) is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Plasma Display TV(Panel Unit), or operate the remote control unit closer to the remote sensor window.

Inserting the batteries

If the remote control unit fails to operate Plasma Display TV functions, replace the batteries in the remote control unit.

PZ-MR2T PZ-43MR2U PZ-50MR2U

1 Open the battery cover. 2 Insert batteries (two AA size

3 Close the battery cover.

batteries, supplied with product).

• Place batteries with their terminals corresponding to the ( indicators in the battery compartment.

) and ( )

Cautions regarding batteries

Improper use of batteries can result in chemical leakage or explosion. Be sur e to follow the instructions below.

• Do not use manganese batteries. When you replace the batteries, use alkaline ones.

• Place the batteries with their terminals corresponding to the (

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause

chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you used the remote control unit for an extended period of time, remove the batteries from it.

) and ( ) indicators.

• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PROTECTION GUIDELINES THAT APPLY IN YOUR COUNTRY OR AREA.

PZ-MR2T PZ-43MR2U PZ-50MR2U

Using external equipment

You can connect many types of external equipment to your Plasma Display TV, like a DVD player, VCR, Digital tuner, computer, game console and camcorder. To view external source images, select the input source from

INPUT on the remote control unit or on the Plasma Display TV(Panel Unit).

Digital tuner

S-VIDEO

RGB

ANT-A ANT-B

AV Receiver

(Built-in T uner Amp)

DVD player

S-VIDEO

Y/P

INPUT 3

S-VIDEO

B/PR

COMPONENT

VIDEO R-AUDIO-L

BPR

COMPONENT

BPR

S-VIDEO VIDEO R-AUDIO-L

S-VIDEO

Y/PB/P

INPUT 1

INPUT 2

RS-232C

DISPLAY OUTPUT-2

DISPLAY OUTPUT-1

AC INPUT

110V - 24OV

AVC System (rear view)

HD INPUT

ANT/CABLE 75OUT

MONITOR OUTPUT

S-VIDEO

VCR

AVC System (front view)

PC-AUDIO

Game console/

Computer

ANALOG RGB

S-VIDEO

• To protect all equipment, always turn off the AVC System before connecting to a DVD player, VCR, Digital tuner, computer, game console, camcorder or other external equipment.

• Please refer to the relevant operation manual (DVD player, computer, etc.) carefully before making connections.

Camcorder

PZ-MR2T PZ-43MR2U PZ-50MR2U

Appendix

RS-232C port specifications

Computer Control of the Plasma Display TV (Panel Unit)

• When a program is set, the display can be controlled from the computer using the RS-232C terminal. The input signal (computer/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.

•

Attach an RS-232C cable cross-type (commercially available) to the supplied Din-D/sub RS-232C for the

connections.

• This operation system should be used by a person who is accustomed to using computers.

Communication conditions

Set the RS-232C communications settings on the computer to match the display's communications conditions. The display's communications settings are as follows:

Baud rate: Data length: Parity bit:

Stop bit:

Flow control:

9,600 bps

8 bits None 1 bit None

Communication procedure

Send the control commands from the computer via the RS-232C connector. The display operates according to the received command and sends a response message to the computer. Do not send multiple commands at the same time. Wait until the computer receives the OK response before sending the next command.

Command format

Eight ASCII codes CR

C1 C2 C3 C4 P1 P2 P3 P4

Parameter

Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that four values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.) No problem to input any numerical value for “x” on the table.

Command 4-digits:Command. The text of four characters. Parameter 4-digits:Parameter 0 – 9, x, blank, ?

Return codeCommand 4-digits Parameter 4-digits

0 0009

–

30 100 0055

When “?” is input for some commands, the present setting value responds.

? ????

PZ-MR2T PZ-43MR2U PZ-50MR2U

Appendix

Response code format

Normal response

Return code (0DH)

Problem response (communication error or incorrect command)

ERR

Return code (0DH)

Command table

• About the command except being indicated here, it is outside the guarantee range of operation.

CONTROL ITEM COMMAND

POWER SETTING It shifts to standby. INPUT SELECTION A TOGGLE

INPUT SELECTION B

AV MODE SELECTION

VOLUME POSITION

WIDEMODE

SRS

TWIN PICTURE

CHANNEL

ANT-A/B CC

TV INPUT1-4 PC INPUT 1

INPUT 3

H-POSITIONH-POSITION

V-POSITION

CLOCK PHASE

DIRECT CHANNEL

CH UP CH DOWN

POWR

ITGD ITVD IAVD IPCD INP1

INP3

AVMD

VOLM HPOS

VPOS

CLCK PHSE

WIDE

SRSS

TWIN

DCCH

CHUP CHDW ANTS CLCP

PARAMETER

(Toggle)

Input terminal number (1–4)

AUTO

AUTO AV-Y/C COMPONENT AUTO AV-Y/C COMPONENT RGB (Toggle) STANDARD DYNAMIC MOVIE GAME USER Volume (0–60) AV mode. (± 15) PC mode. (± 90) AV mode. (± 30) PC mode. (± 60) Only PC mode. (± 90) Only PC mode. (± 20) (Toggle) [AV] Side Bar [AV] S.Stretch [AV] Zoom [AV] Stretch [AV] Normal [PC] Full [PC] Dot by Dot [PC] Dot by Dot (W) [PC] (Toggle)

(Toggle) OFF SRS FOCUS FOCUS

SRS One screen Twin screens The channel number of TV (1~125)

The channel number of TV 1 The channel number of TV 1 (Toggle) (Toggle) OFF CC1 CC2 T1 T2

–

CONTROL CONTENTS

It input-switches by the toggle. (It is the same as an input change key) It input-switches to TV. (A channel remains as it is. (Last memory)) It input-switches to INPUT1~INPUT4. It input-switches to PC. An input change is also included.

Although it can choose now, it is toggle operation in inside.

Toggle operation.

An input change is included if it is not TV display. In Air, 2–69ch is effective. In Cable, 1–125ch is effective. If it is not TV display, it will input-switch to TV. If it is not TV display, it will input-switch to TV. Change toggle operation of tuner A/B. Toggle operation of a closed caption.

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

• As long as that from which the parameter (

) in the table is a numerical value, it may write anything.

Dimensions

PZ-MR2T PZ-43MR2U PZ-50MR2U

(Unit: mm)

PZ-MR2T PZ-43MR2U PZ-50MR2U

REMOVING OF MAJOR PARTS

1. Remove the six lock screws from the back of the top cabinet. Slide the top cabinet backward and detach it.

2. Remove the three lock screws from the front panel. Undo the three hooks at the top and the four hooks at the bottom, and detach the front panel.

3. Remove the two hexagonal shafts from the front shield. Undo the four hooks on both sides and detach the front shield.

4. Remove the three lock screws from the front unit and detach this unit.

5. Remove the one lock screw from the LED unit and detach this unit.

6. Remove the PC I/F unit and SR unit assemblies. 6-1. Remove the two hexagonal shafts each from the system cable (white) terminal and the RS-232C terminal,

both on the PC I/F unit. 6-2. Remove two lock screws from the system cable (gray) terminal also on the SR unit. 6-3. Remove the two lock screws from the PC I/F unit bracket. 6-4. Remove the four lock screws from the PC I/F unit and SR unit assemblies. Take out these assemblies. 6-5. Remove the three lock screws from the brackets of the PC I/F unit and SR unit assemblies. Detach the

shield. 6-6. Remove the six lock screws from the PC I/F unit. Detach this unit from the bracket. 6-7. Remove the two lock screws from the SR unit. Detach this unit from the bracket.

7. Remove the seven lock screws from the main unit and detach this unit.

6-4

PC I/F Unit

SR Unit

Front Unit

6-7

6-6

Power Unit

9-2

6-5

Main Unit

EMC Unit

Top cabinet

6-1

9-1

6-1

8-4

8-3

AV Unit

8-1

8-2

LED Unit

Bottom cabinet

8. Remove the AV unit. 8-1. Remove the coaxial cable from the antenna terminal. 8-2. Remove the three lock screws from the antenna terminals 8-3. Remove the six lock screws from the AV unit. 8-4. Remove the six lock screws from the AV unit and detach this unit.

9. Remove the EMC unit assemblies. 9-1. Remove the two lock screws from the EMC unit bracket. 9-2. Remove the two lock screws from the EMC unit and detach this unit.

10. Remove the three lock screws from the power unit and detach this unit.

PZ-MR2T PZ-43MR2U PZ-50MR2U

ADJUSTMENT PROCEDURES

ËË

Ë Procedure for turning ON the power

ËË

1. Connecting the system

(1)Using the system cable, interconnect the plasma display and the AVC system. (2)Connect the plasma display to the AC power source. (3)Connect the AVC System to the AC power source.

2. Procedure for turning ON the power

(1)Turn ON the AC power switch located on the plasma display.

The power indicator on the plasma display will start blinking in red. (When the AC power switch on the AVC System is not ON, the power indicator on the plasma display always blinks in red.)

(2)Turn ON the power switch located on the AVC System.

The power indicator on the AVC System will be illuminated in green. Simultaneously , the power indicator on the plasma display will change from blinking in red to illumination in green. Now the system has started up.

(3)If the power indicators on the AVC System and on the plasma display are both illuminated in red, press the

power key located on the remote controller and the power button located on the plasma display. The power indicators on the plasma display and on the AVC System will change from red to green. Now the system has started up.

ËË

Ë Procedure for upgrading the AVC System software

ËË

(1)With the power being OFF, open the top cabinet of the AVC System and then set the slide switch from the

NORMAL position to the WRITE position by inserting an insulated stick into the cutout located between the WHITE port on the rear of the shield case for the PC I/F unit and the RS-232C port. (Or the software may be upgraded by calling the process adjustment mode and using CENTER PROG UPDATE on the process adjustment menu screen. This is discussed later.)

(2)Connect a program-installed PC to the AVC system using the RS-232C cross cable. (For the details of the

program, see Appendix.) (3)Open the MS-DOS window on the PC and then go to the directory in which the software is installed. (4)Start up the system to which the AVC System and plasma display have been connected. (5)Run “vup.bat (tentative name)” at the MS-DOS prompt. The software will be upgraded. (6)Load the file “civic_XXXXa.bhx main.bhx osd.bhx (tentative name)”.

It will take a couple of minutes until the file has been loaded. Never turn OFF the power or operate the system

during this rewriting period. (7)After the file has been loaded, turn OFF the plasma display and the AVC System, and then return the slide

switch in the above step (1) back from the WRITE position to the NORMAL position. Now the software has been

upgraded.

ËË

Ë Procedure for adjusting each part of the AVC System

ËË

1. The adjustments were made to the best settings at factory. If any setting deviates or if any readjustment is

regarded as necessary when any part has been replaced, perform the following steps.

2. Any parameter that has been changed in the process adjustment mode is stored on the memory. If any

readjustment is required, write down the current value before changing it.

3. Use a stable AC power source.

4. If the program is upgraded, it will take approximately 1 minute for the EEPROM to be initialized before any

video appears. Therefore, you will need to wait for this time period. Do not turn OFF the power or operate the

system during the period.

5. If the program is rewritten, preferably write down the parameters that have been changed within the process

adjustment (see “OSD menu and parameters displayed at manual adjustment”), initialize the EEPROM, and

then reenter the recorded values.

PZ-MR2T PZ-43MR2U PZ-50MR2U

ËË

Ë Entering a special mode

ËË

1. Entering the process adjustment mode With the system being ON, turn OFF the main power of the plasma display. Next holding down the INPUT SELECT

and CH UP buttons on the plasma display itself, turn ON the main power again. Now the adjustment mode screen shows up.

2. Adjustments in the adjustment process mode [Steps]

Make adjustments using the process adjustment mode buttons, listed below.

[Description]

Following the items displayed on the process adjustment menu screen, adjust the settings given in their adjustment tables.

3. Procedure for making factory settings [Steps]

In the process adjustment mode, move the cursor to the line “INDUSTRY INIT” onscreen. T urn ON with the VOL key and press the SET/ENTER key. (Within the adjustment process, the channel settings remain unchanged. Once you exit the process adjustment mode, the channel settings entered in the delivery adjustment mode become valid.)

[Description]

The user’s adjustment parameters and others will be set to the default values. Keep in mind that the channel settings will also be initialized.

ËË

Ë Exiting the process adjustment mode

ËË

To exit the process adjustment mode, turn off the AVC System power.

ËË

Ë OSD menu and parameters displayed at manual adjustment

ËË

» The default values may slightly differ depending upon the program version to be rewritten. » The settings are not initialized to the default values by merely rewriting the program. (See the paragraph for

Procedure for adjusting each part of the AVC System.)

(1)Descriptions of special buttons in process adjustment mode

(All on the remote controller) Cursor UP key : Returns to the previous page. Cursor DOWN key: Proceeds to the next page. Vol UP key : Increases the adjusted value by 1. V ol DOWN key : Decreases the adjusted value by 1. Cursor RIGHT key : Increases the adjusted value by 10. Cursor LEFT key : Decreases the adjusted value by 10. CH UP key : Moves up the cursor. CH DOWN key : Moves down the cursor .

(2)Process adjustment menu table

The items displayed on the menu screen must be written down before replacing the EEPROM at the AVC System side.

ËË

Ë Procedure for replacing the PC I/F unit

ËË

Before replacing the PC I/F unit, write down the items displayed on each menu screen of the adjustment process. If the I/F unit is completely broken and the above items cannot be jotted down in advance, follow the instructions in “Adjustment procedures and items” and make all adjustments.

PZ-MR2T PZ-43MR2U PZ-50MR2U

(2)Organization of process adjustment screen

Page Input Source Distinguish Signal HDCP

1/16 INPUT1 No SIG HDCP:ON

+Badj3.3V

+Badj2.5V KEY WRITE INDUSTRY INIT CENTER Version OSD version CVIC Version MONITOR version PANEL Version FLASH version MONITOR Model MODEL select MAIN MODEL select AV Model Select MONITOR ST ANDBY TYPE

The example of a display

128 024 OFF OFF MR MAIN E 2001/11/14A MR OSD 2001/09/06A W2001/10/02 17.28 X2001/10/02 V2001/09/12 09.12 F6 91xx

-00

-01 11

2 1

Parameter display

+B Adj3.3V

+B Adj2.5V

SUB N358 Y

SUB N358 COLOR GAIN

SUB N358 TINT

N358 Y CONTRAST

N358 COLOR GAIN

MAIN CR GAIN N358

N358 TINT

MAIN CONTRAST 15K

MAIN SUB BRIGHT 15K

COMP 15K Y CONTRAST

COMP 15K COLOR GAIN

MAIN CR GAIN COMP 15K

COMP HDTV CONTRAST

COMP HDTV SUB BRIGHT

PEAK ACL SW

Setting range

0 ~ 255 0 ~ 255 0~ 63 0~ 63 0~ 63 0~ 63 0~ 63 0 ~ 255 0~ 63 0~ 63 0~ 15 0~ 63 0~ 63 0 ~ 255 0~ 63 0~ 63 OFF/ON

Description

3.3 V adjustment

2.2 V adjustment Sub N358 Y level adiustment Sub N358 color gain adjustment Sub N358 tint adjustment Main N358 Y contrast adjustment Main N358 color gain adjustment Main N358 Cr level adjustment Main N358 Tint adjustment Main Contrast adjustment (15k) Main sub bright adjustment (15k) COMP 15k Y level adjustment COMP 15k Color gain adjustment COMP 15k Cr level adjustment COMP HDTV contrast level adjustment COMP HDTV black level adjustment

The values for the above parameters should be written down before the EEPROM is replaced on the A VC System.

PZ-MR2T PZ-43MR2U PZ-50MR2U

ËË

Ë Procedures before and after replacing the PC I/F unit

ËË

1) Before replacing the PC I/F unit, write down the values for the parameters listed on the 2nd and 3rd pages of the Adjustment Process A screen. If the values for the parameters cannot be written down because the PC I/F unit is completely broken or for any other reason, make all the adjustments in accordance with the paragraph for Adjustment procedure and parameters, rather than the following procedures. (End) Set the parameters listed on the 2nd and 3rd pages of the Adjustment Process A screen to the values you have written down.

ËË

Ë Adjustment parameters

ËË

1) Analog adjustment

(1) Prior adjustment for AVC system chassis

Adjustment item Description Adjustment procedure

1 Process adjustment

mode

Call the process adjustment mode.

2 AVC center 3.3V

adjustment

3 AVC center 2.5V

adjustment

(2)

N358 signal adjustment

Adjustment item Description Adjustment procedure

1 Setup

2 Tuner level adjustment

3 MAIN N358 Y

CONTRAST adjustment

Connect DC voltmeter to TP1702.

Connect DC voltmeter to TP1701.

» MAIN side » SUB side

Adjust output voltage of DC/DC 3.3 V line to

3.25 ±0.01 V. Adjust output voltage of DC/DC 2.5 V line to

2.6 ±0.01 V.

1. Receive the SPLIT FIELD color bar signal. white 100%, 75% color bar, modulation

1. Adjust the V-LEVEL (R1 121) control so that the tuner output (TP1101) on the AV PWB (DUNTKA616) should be

1.0 ±0.02 Vp-p.

2. Adjust the V -LEVEL (R1219) control so that the tuner output (TP1201) on the AV PWB (DUNTKA616) should be

1.0 ±0.02 Vp-p.

1.0Vp-p

1. Adjust TB1274_MAIN output (pin (1) of P801) to 0.7 ±0.01 Vp-p.

0.7Vp-p

4 MAIN N358 COLOR

GAIN adjustment

5 MAIN N358 TINT

adjustment

1. Adjust TB1274_MAIN output (pin (3) of P801) so that the level shown below should be 0.3 ±0.01 Vp-p.

0.3Vp-p

1. Adjust TB1274_MAIN output (pin (3) of P801) so that the waveform should become as shown below.

Smoothed

PZ-MR2T

0.3Vp-p

0.9Vp-p

0.68Vp-p

0.7Vp-p

PZ-43MR2U PZ-50MR2U

Adjustment item Description Adjustment procedure

6 MAIN N358 Cr level

adjustment

1. Adjust TB1274_MAIN output (pin (5) of P801) so that the level shown below should be 0.3 ±0.01 Vp-p.

7 MAIN N358

CONTRAST

Peak ACL: OFF Check DC Tran 01

adjustment

Press the TWIN PICTURE key.

8 SUB N358 Y LEVEL

adjustment

9 SUB N358 COLOR

GAIN adjustment

(3) Component 15 kHz signal adjustment

Adjustment item Description Adjustment procedure

1 Setup

1. T urn of f the PEAK ACL control. Adjust the output (TP815) of IC810 to have 1.1 Vp-p from the pedestal level. Adjusted value: 1.1 ±0.02 V

1. Select the special TWIN PICTURE settings for adjustment (so that the same video source is reflected on MAIN/SUB).

1. Adjust TB1274_SUB output (TP806) to 0.9 ±0.02 Vp-p.

1. Adjust TB1274_SUB output (TP805) so that the level shown below should be 0.68 ±0.01 Vp-p.

1. Select the component 15 kHz source (100% white color bar signal).

2 COMPONENT

15 kHz Y level adjustment

3 COMPONENT

15 kHz COLOR GAIN adjustment

4 COMPONENT

15 kHz Cr level adjustment

1. Adjust TB1274_MAIN output (pin (1) of P801) to 0.7 ±0.01 Vp-p.

1. Adjust TB1274_MAIN output (pin (3) of P801) so that the level shown below should be 0.7 ±0.01 Vp-p.

1. Adjust TB1274_MAIN output (pin (5) of P801) so that the level shown below should be 0.7 ±0.01 Vp-p.

(4) Component HDTV signal adjustment

Adjustment item Description Adjustment procedure

1 Setup

PZ-MR2T PZ-43MR2U PZ-50MR2U

1. Select the component HDTV source (100% white color bar signal).

2 COMPONENT

HDTV CONTRAST

Peak ACL: OFF

1. T urn of f the PEAK ACL control. Adjust the output (TP815) of IC810 to have 1.1 ±0.02 Vp-p from the pedestal level.

adjustment

2. Factory settings

Adjustment item Description Adjustment procedure

1 INDUSTRY INIT

Then turn off the AC power supply of the AVC System. (Be careful not to use the power switches of the remote controller and panel unit.)

IC1401 AV SWITCH

IC1102

P1301 CONNECTOR

Check the PEAK ACL is "ON" and DC Tran is "00". Press the Delivery Setup key on the remote controller. Or position the cursor on the INDUSTRY INIT line, set the line to ON with the VOL key, and then press the ENTER key. The adjustment is finished when the line turns OFF.

IC1301 AV SWITCH

SC1102J1104SC1101J1103

IC1602 CCD

IC1601 V-CHIP

SC1103

TP1101

TU1102 U/V TUNER

TU1101 U/V TUNER

SC1502 CONNECTOR

TP806 TP805

SC1501 CONNECTOR

P1901 PROGRAMMING CONNECTOR

TP815

P1502 CONNECTOR

IC802 SUB VIDEO CHROMA

IC1901 PLD

IC403 CONTROL

IC803 RGB DECODER

IC7002 MEMORY

SC1401 CONNECTOR

IC402 SUB COMB FILTER

IC604 SYNC SEPARATE

P801

IC801 MAIN VIDEO CHROMA

SC1503 CONNECTOR

SC1504 CONNECTOR

IC7001 Y/C SEPERATE

L1718

L1708

L1710

P2503 CONNECTOR

TP1701

IC1502 DAC

IC1603 V-CHIP

SC1402 CONNECTOR

TP1201

P2502 CONNECTOR

P1703 CONNECTOR

T1701

R1219

P2501 CONNECTOR

P1702 CONNECTOR

L1711

R1121

IC2501 MULTI SOUND

TP1702

IC1502 DAC

PZ-MR2T PZ-43MR2U PZ-50MR2U

DESCRIPTION OF MAJOR IC FUNCTIONS

Æ Description of Main ICs

»»

» IC1301 (CXA2069Q)

»»

This IC is a 7-input, 3-output selector. The video signals other than those for the PC and components, which have been input from each input connector and the tuner, and all the audio signals are sent to the IC1301 and then selected. The video signals sent to the IC1301 are then input to the YC separation circuits, IC7001 (main) and IC402 (sub). The audio signals are input to the PC I/F Unit via IC2501 (sound processor).

»»

» IC1401 (MM1519XQ)

»»

This IC is a 4-input, 3-output video selector for component input. The VIDEO-1/3 Y/Pb/Pr signals, RGB component input and TV signal are input to the IC1401. The output signals go to the main, sub, and component channels.

»»

» IC2501 (IX3370CE)

»»

This IC is used to decode audio signals. It serves as both the S-IF decoder and the selector for the input audio data.

»»

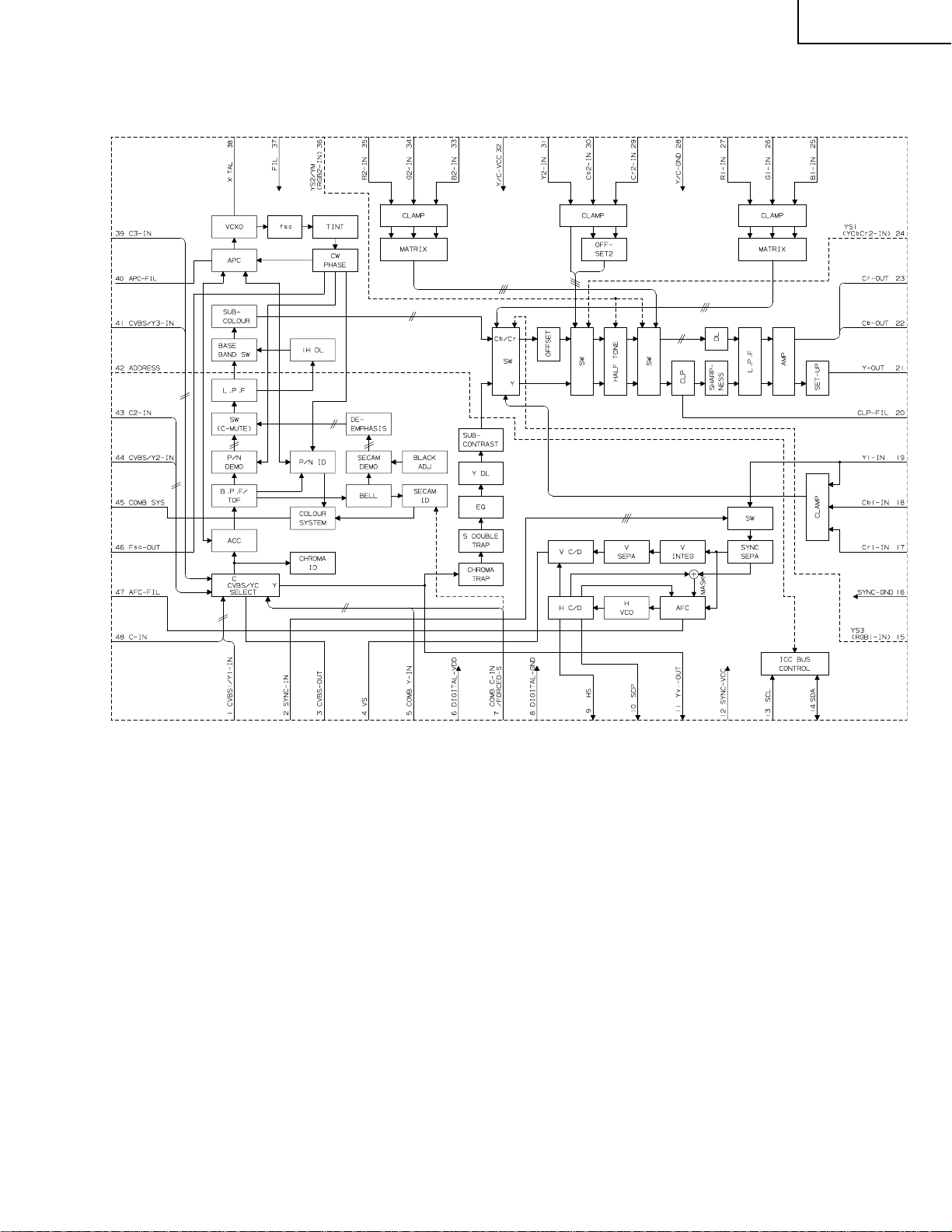

» IC801/IC802 (TB1274AF)

»»

This IC is intended for color TV brightness, chroma demodulation and sync processing. It receives the main and sub brightness signals and color signals from IC7001 (main) and IC402 (sub) in the preceding stage, and gives out color difference signals.

»»

» IC803 (CXA2101Q)

»»

With a high-performance picture correction circuit incorporated, this IC consists of a base band video signal processing section for color difference input and a video switch (including HV sync signal processing). Input selection is performed by INPUT-SEL (IIC BUS). The Y/Pb/Pr signals of Y/Cb/Cr/HD and their respective HV sync signals are input to each line. As the multi-scanning compliance range, a horizontal scanning frequency of 15-60 kHz can be input.

»»

» IC1901 (IXA194WJ)

»»

This IC is FPGA for the synchronizing system. It creates sand castle pulses for IC803 and generates horizontal blanking signals.

»»

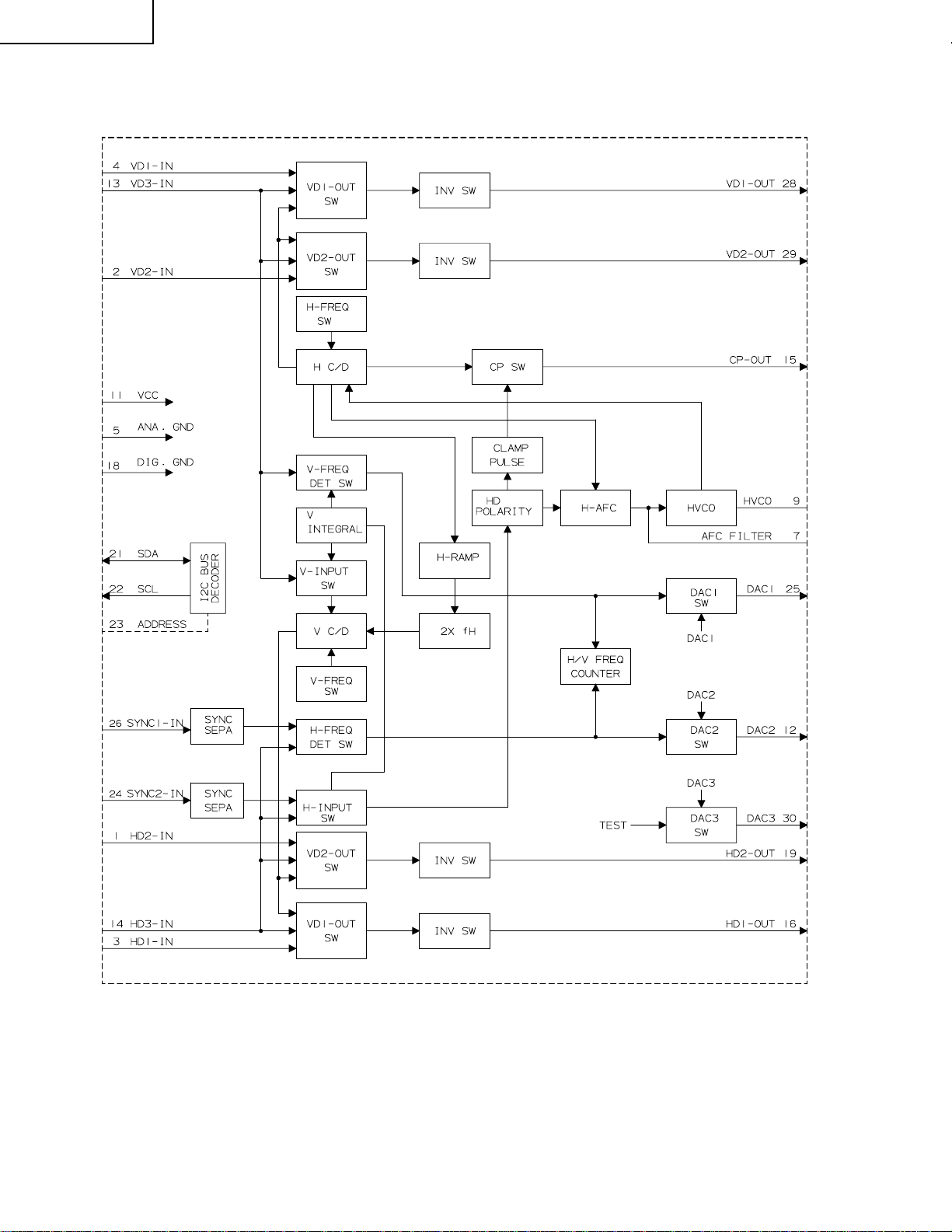

» IC604 (TA1318AF)

»»

This IC synchronizes TV component signals. The IC604 incorporates the necessary functions for measuring the frequency of input signals and synchronous replay into a single chip, and is applicable for horizontal synchronous replay (15.75, 31.5, 33.75, and 45 kHz) and vertical synchronous replay (525I, 525P, 625I, 750P, 1125I, 1125P, PAL 100 Hz, and NTSC 120 Hz).

»»

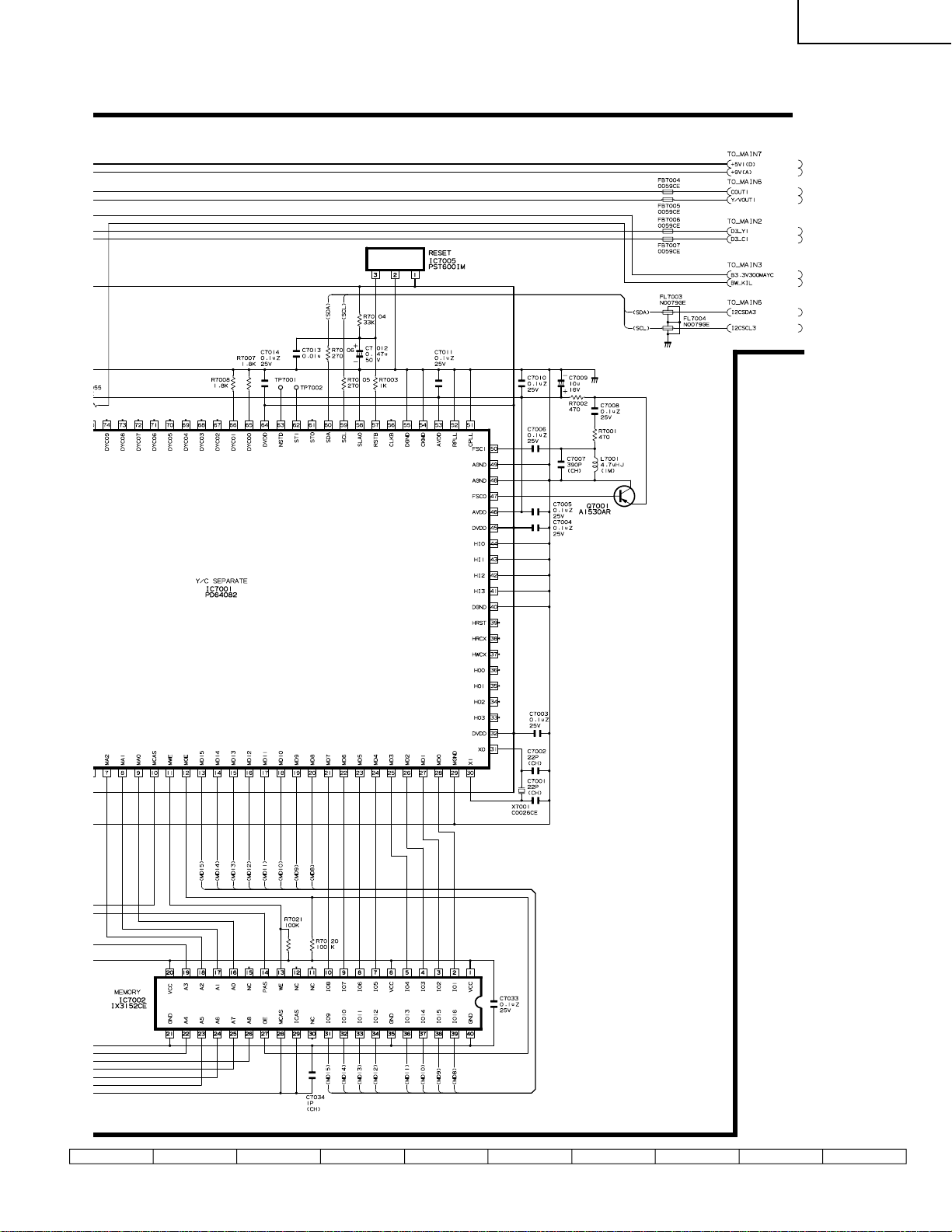

» IC7001 (PD64082)

»»

Through 3-dimensional NTSC signal processing, the PD64082 performs high-precision Y/C separation for main video signals sent from the IC1301. In combination with a 4Mbit EDO (Hyper Page Mode) DRAM, this IC forms 3-dimensional Y/C separation and YNR/CNR system.

»»

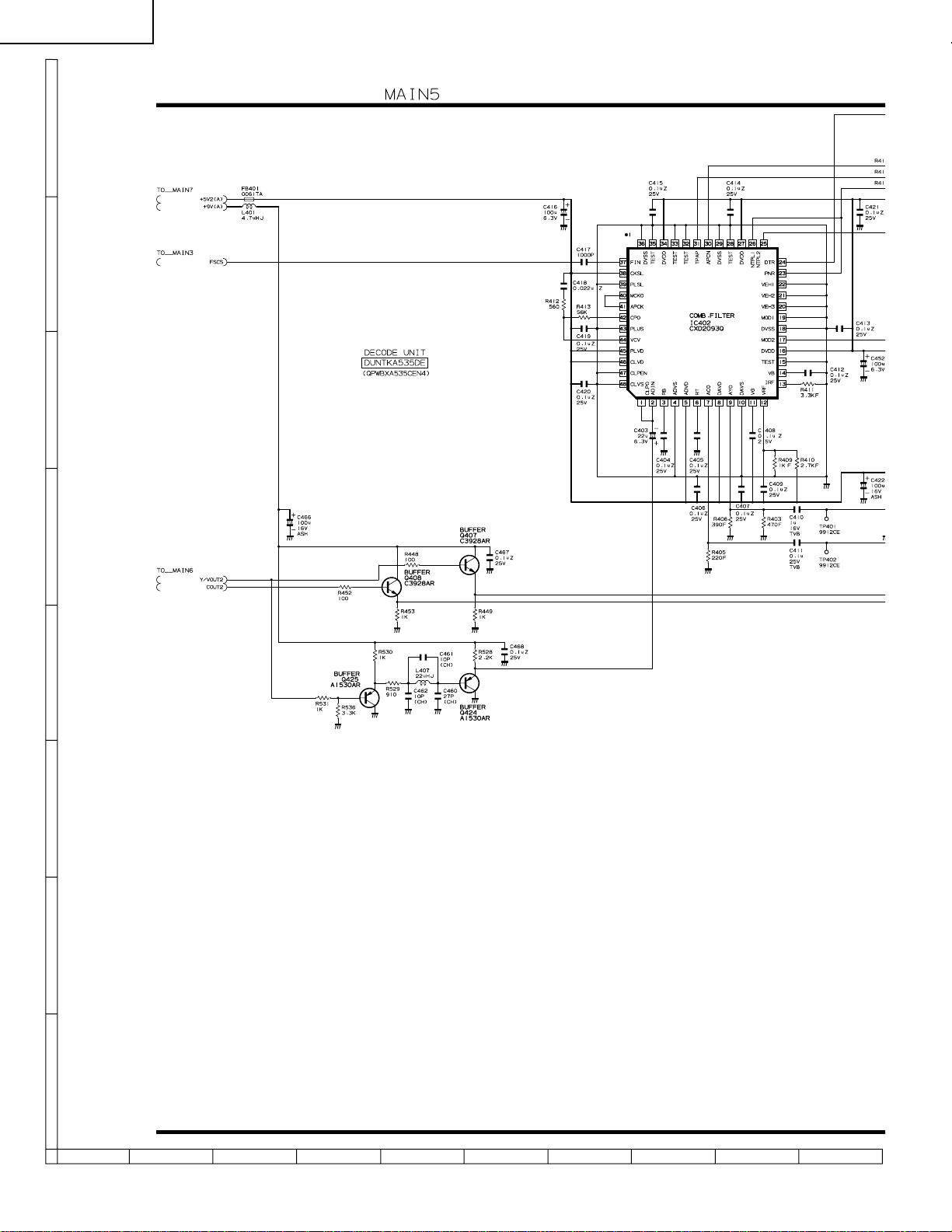

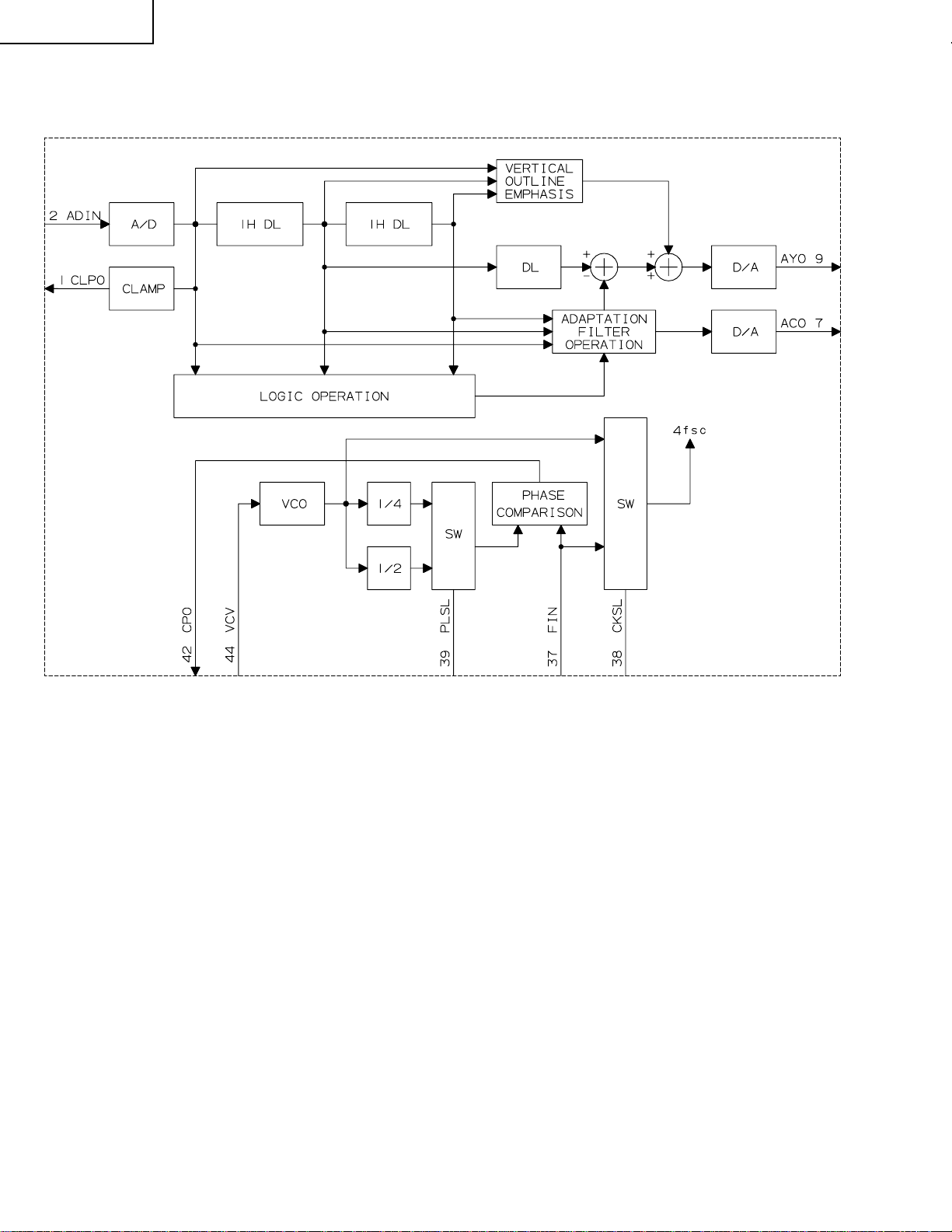

» IC402 (CXD2093Q)

»»

This IC is a comb filter in the applicable field. Being a single high-precision Y/C chip, the 3-line comb filter performs the Y/C separation of the sub channel video signals that have been output from IC1301.

»»

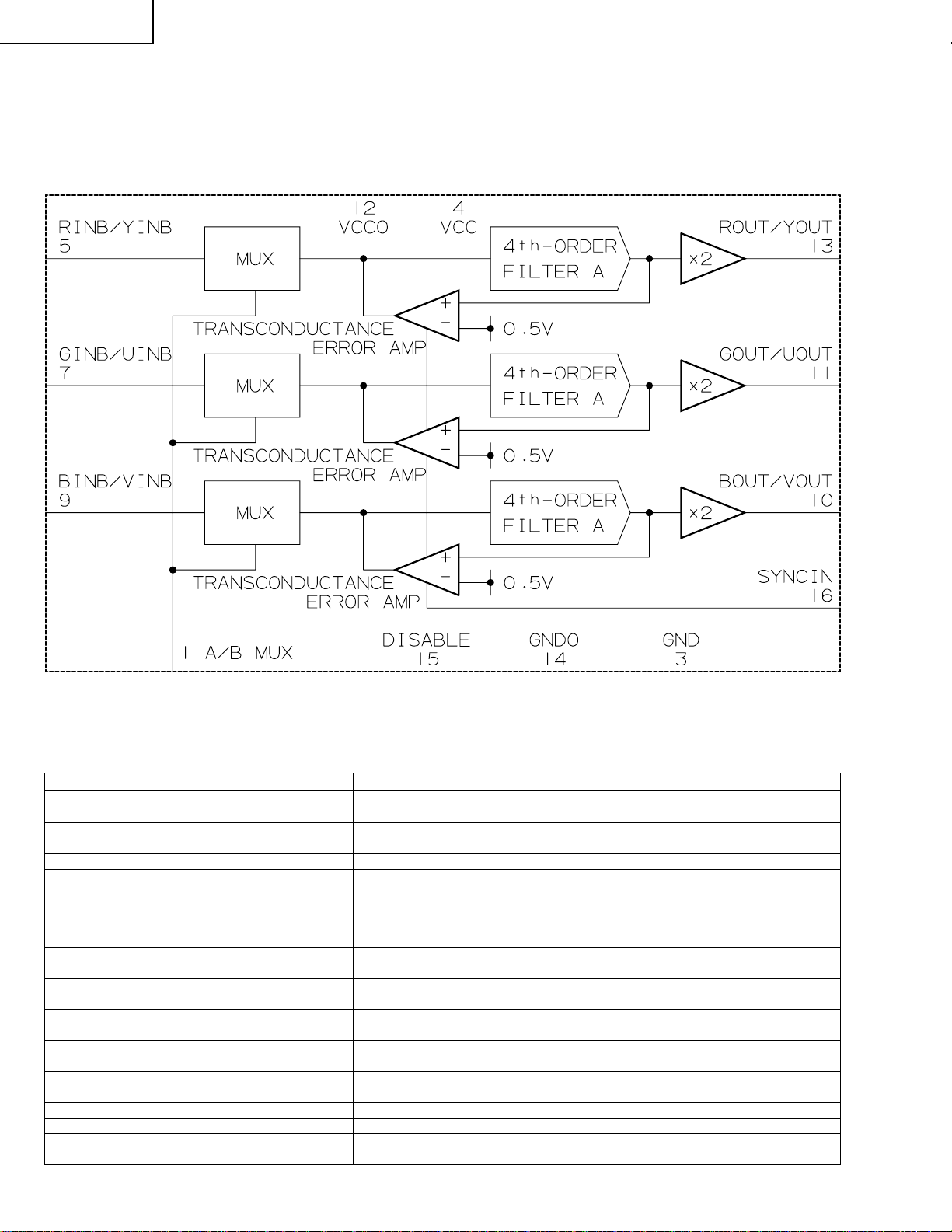

» IC804/IC810 (IX3473CE)

»»

The IC804 is a 6.7 MHz low-pass filter, incorporating a 6 dB amplifier, for the sub screen. The IC810, on the other hand, is a 6.7 MHz low-pass filter, also incorporating a 6 dB amplifier, for the main screen (for SDTV).

»»

» IC811 (IX3474CE)

»»

This IC is a 30 MHz low-pass filter, incorporating a 6 dB amplifier, for the main screen (for HDTV).

PZ-MR2T PZ-43MR2U PZ-50MR2U

»»

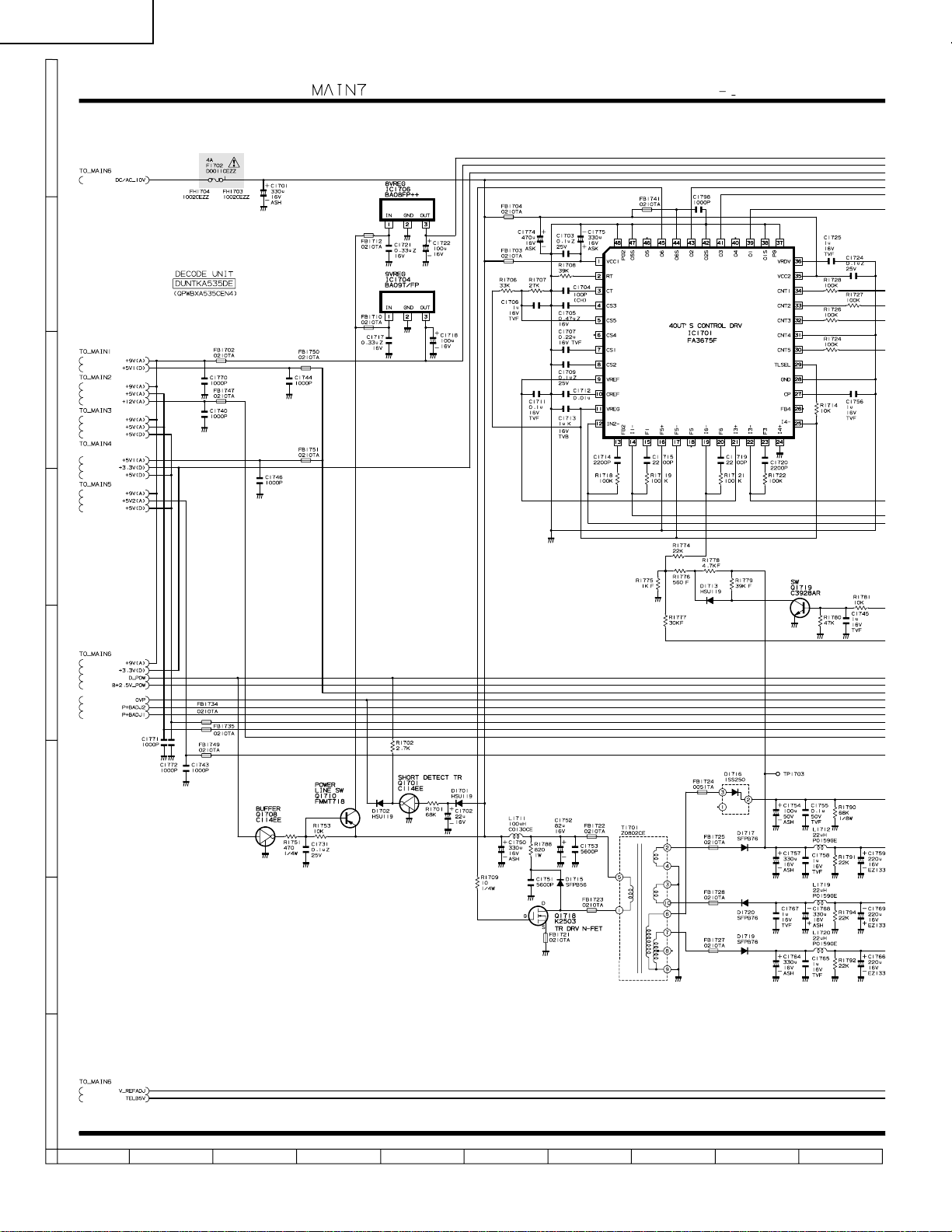

» IC1701 (FA3675CE)

»»

This IC is designed to control the 6-channel PWM switching regulator. With 5 step-up switching regulator lines incorporated, the IC converts +10V to +2.5V, +3.3V and +5.8V. Also with a step-down switching regulator line incorporated, the IC converts +10V to +6.0V , -5.0V, +12V and +35V. The lines are individually turned on and off.

»»

» IC1602 (Z86129S)

»»

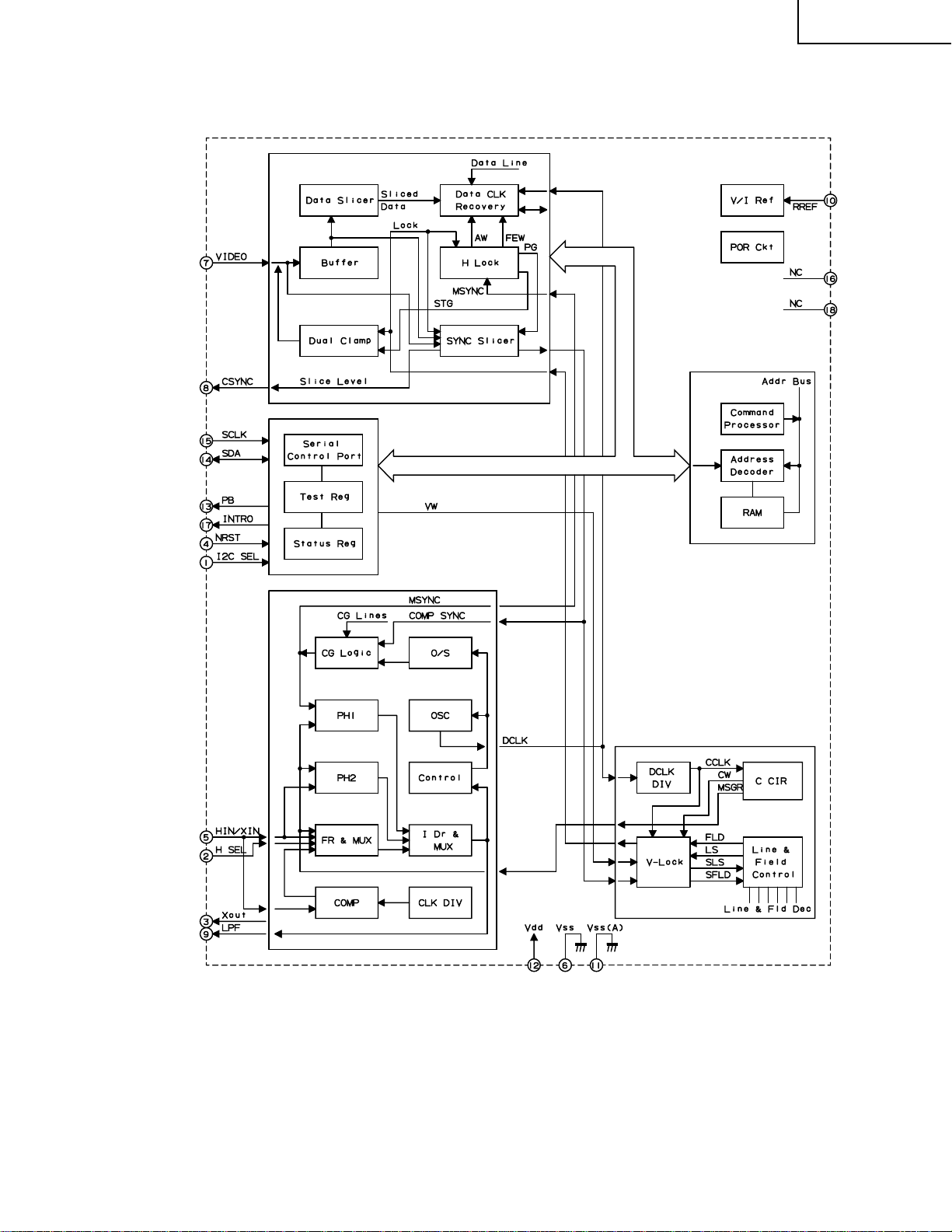

The Z86129S is built in the TV decoder circuit and serves to process the vertical blanking interval (VBI) data that has come from the video signal field of the data corresponding to the transmission format defined by EIA-608. The data flowing along Line 21 is composed of the data of some multiplexed data channels. Field 1 has 4 data channels: 2 caption channels and 2 text channels. Field 2 has 5 additional data channels: 2 caption channels, 2 text channels and expansion data service (XDS) channel. On any of these 9 data channels, the data transmitted can be recovered and displayed.

»»

» IC1601/IC1603 (Z86230S)

»»

The Z86230S functions for the process expansion data service (XDS) in Field 2 during the vertical blanking interval (VBI). The XDS data is processed in order to specify the Program Blocking (PB) signal or recovered XDS data packets. The on-chip XDS filter in the Z86230S enables to recover the XDS data packets only for programming. The Z86230S is compatible with monitors (Picture-In-Picture) for violence blocking and other XDS data service.

PZ-MR2T PZ-43MR2U PZ-50MR2U

Æ Description of Functions of Main ICs on PC I/F Unit

»»

» IC4 (CXA3506R)

»»

This IC is an A/D converter that incorporates a 3-channel, 8-bit, 120 MSPS amplifier and PLL. It is used for the video signals input to the I/F board on the main channel in the 1-screen and 2-screen modes, and also for the video signals input from the front for the PC. The video signals (analog RGB) from the CN6 are input to IN1 of IC4. For the PC, the video signals (analog RGB) from CN8 are input to IN2 of IC4. The input video signals are converted into digital signals and then sent to IC25.

»»

» IC310 (TLC5733A)

»»

This IC is a 3-channel, 8-bit, 20 MSPS A/D converter. It is used for the sub-channel of the video signals input to the PC I/F Unit in the 2-screen mode. The video signals (analog Y, Cb, Cr) from CN6 are input to IC310. The video signals input to this IC are converted into digital signals and then sent to IC25.

»»

» IC25 (IX3434CE)

»»

This IC performs the I/P conversion and scaling to match the digitalized video with the output resolution, and also the data conversion. It has two input lines, V0 and V1. The V0 line is used to process the RGB, composite, and skirt signals input to the 480i and 580i components for the sub-channel in the 2-screen mode. The V1 line is used to process all the signals as well as V1 for the main channel in the 1-screen and 2-screen modes. The IC25 detects what resolution is input from the input synchronizing signal; creates H synchronization in accordance with the frequency division ratio; creates the clamp signal in accordance with the input synchronizing signal; and performs the data matrix conversion. The video signals input to this IC is sent to IC413.

»»

» IC413 (SiL168)

»»

This IC is a panel link transmitter. It converts the 8-bit RGB video data output from IC25 into the differential TMDS signals and then digitally transmits the converted signals to the monitor. The TMDS signals are transmitted at the frequency 10 times higher than the clock frequency.

»»

» IC1 (IX3270CE)

»»

This IC is a 1-chip RISC microprocessor. It performs communication with the monitor and operates the system. The IC1 also controls each IC in the AVC System and partially manages the power source.

»»

» IC405 (uPD4721)

»»

This IC is an RS-232 line driver receiver conforming to the EIA/TIA-232-E standard. The IC405, when connected to a PC, allows for externally controlling the system. It is also applicable for upgrading IC1.

PZ-MR2T PZ-43MR2U PZ-50MR2U

» The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.

Ë VHiCXA2069Q-1 (ASSY: IC1301)

» S2-Compatible, 7-Input/3-Ouput AV Switch

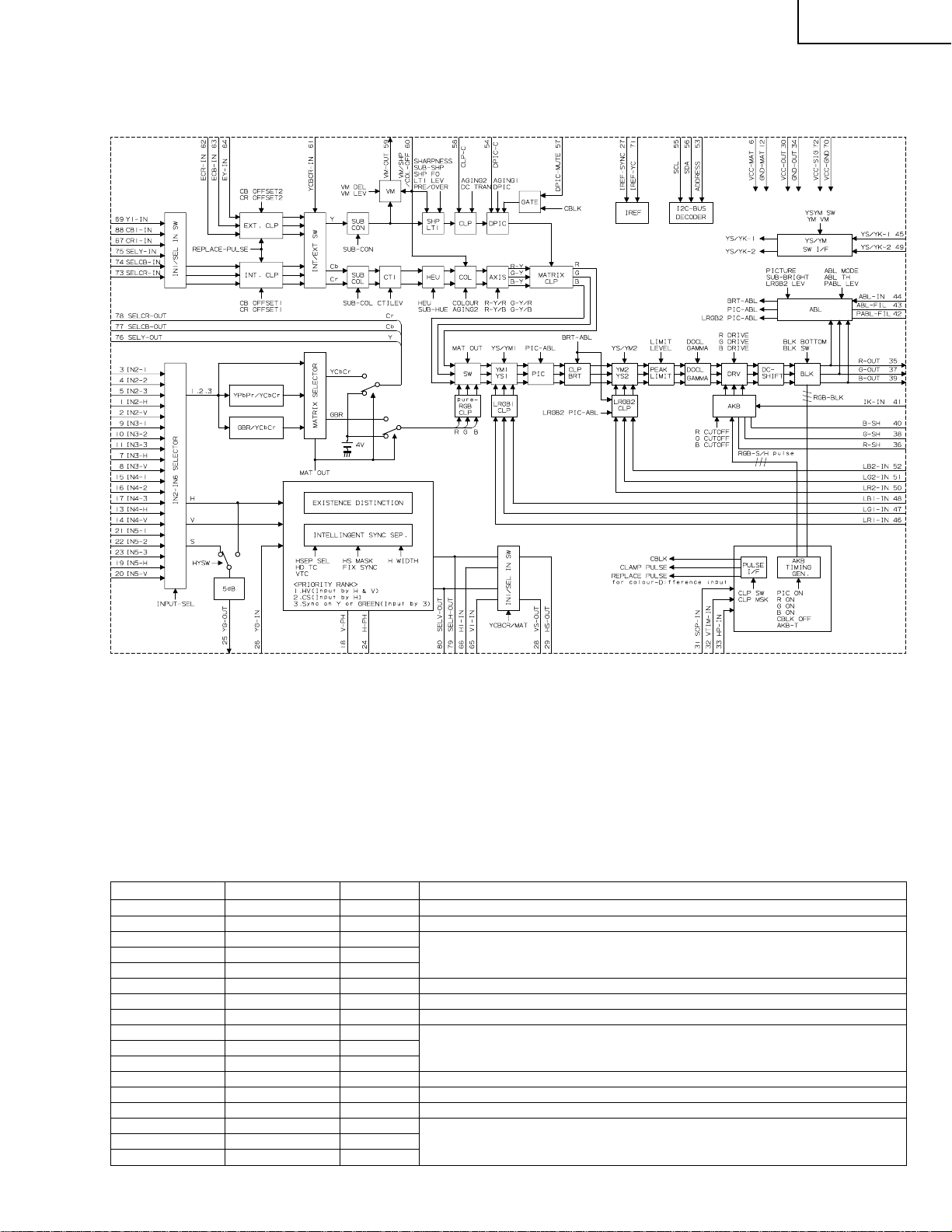

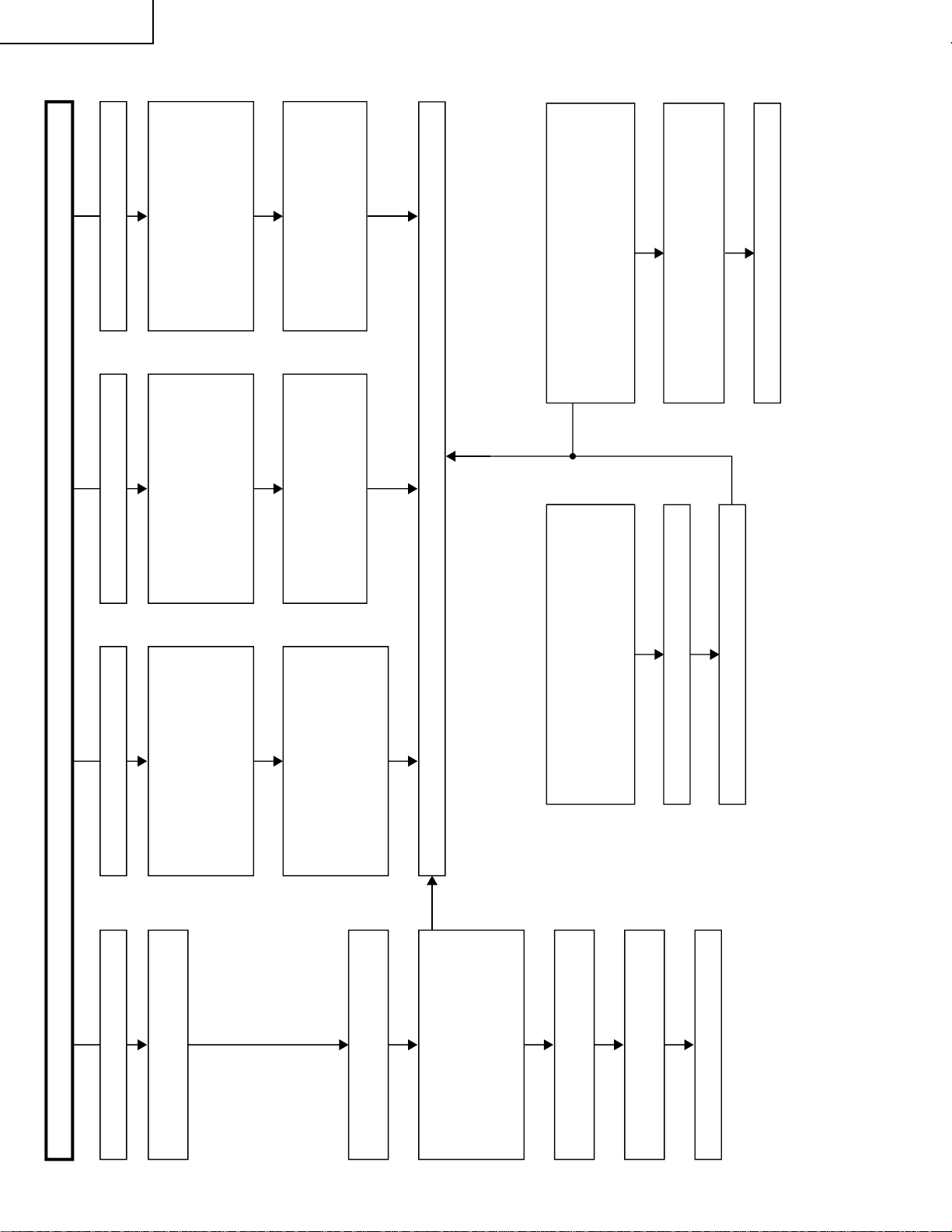

» Block Diagram

PZ-MR2T PZ-43MR2U PZ-50MR2U

» Pin Function

Pin No. Pin Name I/O Pin Function

63 1 8 15 22 30 60 3 10 17 24 49 5 12 19 26 51 62, 2 9, 16 23, 29 59, 64 4, 11 18, 25 31, 61 53 41 44

56 39 58 47 37 52 43 38 54 45 40 6 13 20 27 7 14 21 28 32

33 34 36

55 46 48

TV V1 V2 V3 V4 V5 V6 Y1 Y2 Y3 Y4 YIN1 C1 C2 C3 C4 CIN1 LTV, LV1 L V2, LV3 L V4, LV5 L V6, RTV RV1, RV2 RV3, RV4 RV5, RV6 VOUT1 VOUT3 V/YOUT2

YOUT1 YOUT3 COUT1 COUT2 COUT3 LOUT1 LOUT2 LOUT3 ROUT1 ROUT2 ROUT3 S2-1 S2-2 S2-3 S2-4 S-1 S-2 S-3 S-4 ADR

SCL SDA DC OUT

TRAP1 TRAP2 MUTE

BIAS

I I I I I I I I I I I I I I I I I I I I I I I

I O O O

O O O O O O O O O O O

I O

Video signal input. Composite video signal input

Y/C-separated signal input terminal for luminance signal input. YIN1 to feed in the Y/C-separated signal of VOUT1 output.

Y/C-separated signal input terminal for chrominance signal input. CIN1 to feed in the Y/C-separated signal of VOUT1 output.

Audio signal input terminal.

Video signal output terminal for composite video signal output.

Video signal output terminal for selection between composite video signal output and luminance signal output by I2C Bus control. Video signal output terminal for luminance signal output.

Video signal output terminal for chrominance signal output.

Audio signal output terminal.

Used to detect C signal-superimposed, S2-compatible DC level. 4:3 video signal when below 1.3V. 4:3 letterbox signal when between 1.3V and 2.5V. 16:9 image squeeze signal when above 2.5V. To be pulled down to GDN at 100KΩ to produce 4:3 video signal when open. Used to switch between composite video and S signals. Detection results to be written in status register. S signal when below 3.5V. Composite video signal when above 3.5V . To be pulled up to 5V at 100KΩ to produce composite video signal when open.

Used to select I2C Bus slave address. 90H when below 1.5V. 92H when above 2.5V. 90H also when the terminal is open. I2C Bus signal input terminal. I2C Bus signal input terminal. Used to feed out S2-compatible DC level to be superimposed on COUT3 output. DC to be superimposed by connecting to COUT3 output via a capacitor. Control to be made by I2C Bus. S2-specified output impedance of 10 ±3KΩ to be realized by adding an external resistance of 4.7KΩ. Subcarrier trap circuit to be connected.

Audio signal output mute terminal. Mute off when below 1.3V. Mute on when above

2.5V. Mute off when the terminal is open. Internal reference bias (Vcc/2) terminal. To be connected to GND with a capacitor in between.

Ë VHiMM1519XQ-1(IC1401)

» Component Input Video Switch

» Block Diagram

PZ-MR2T PZ-43MR2U PZ-50MR2U

» Pin Function

Pin No. Pin Name I/O Pin Function

1 2 3 11 12 13 21 22 23 4, 14, 39, 45, 52, 58 51 5 15 53 59 24 6, 8, 16, 18, 33, 35, 37, 41, 43, 47, 49, 54, 56, 60, 62 7 9 17 19 55 57 61 63 10 20 32 64 25 26 27 28 29 30 31 34 36 38 40 42 44 46 48 50

VIDEO 1-L1 VIDEO 1-L2 VIDEO 1-L3 VIDEO 2-L1 VIDEO 2-L2 VIDEO 2-L3 VIDEO 3-L1 VIDEO 3-L2 VIDEO 3-L3 VCC

AVCC VIDEO 2-Y VIDEO 3-Y TUNER-Y VIDEO 1-Y DGND GND

VIDEO 2-Pb VIDEO 2-Pr VIDEO 3-Pb VIDEO 3-Pr TUNER-Pb TUNER-Pr VIDEO 1-Pb VIDEO 1-Pr VIDEO 2-SW VIDEO 3-SW MONO-SW VIDEO 1-SW ADDRESS SDA SCL DVCC L3 OUT L2 OUT L1 OUT Pr OUT 3 Pb OUT 3 Y OUT 3 Pr OUT 2 Pb OUT 2 Y OUT 2 Pr OUT 1 Pb OUT 1 Y OUT 1

—

— —

I/O

— O O O O O O O O O O O O

Line input of D-terminal

Analog power supply (9V)

Y -signal input

GND

Pb, Pr signal input

Switch line of D-terminal

Slave address select pin Data input of I2C bus Clock input of I2C bus Digital power supply (5V) Line output for monitor

Video signal output

Ë RH-iX3370CEN1 (ASSY: IC2501)

» Multi Standard Sound Processor

» Block Diagram

PZ-MR2T PZ-43MR2U PZ-50MR2U

» Pin Function

Pin No. Pin Name I/O Pin Function

1 2 3 4 5 6 7 8 9 10 11, 12, 13 14, 15, 16 17 18, 19, 20 21 22, 23 24 25 26 27 28 29 30 31, 32 33 34 35 36 37 38 39 40 41, 42 43, 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61, 62 63, 64 65, 66 67 68 69 70 71 72 73 74 75, 76 77 78 79 80

NC I2C_CL I2C_DA I2S_CL I2S_WS I2S_DA_OUT I2S_DA_IN1 ADR_DA ADR_WS ADR_CL DVSUP DVSS I2S_DA_IN2 NC RESETQ NC DACA_R DACA_L VREF2 DACM_R DACM_L NC DACM_SUB NC SC2_OUT_R SC2_OUT_L VREF1 SC1_OUT_R SC1_OUT_L CAPL_A AHVSUP CAPL_M NC AHVSS AGNDC NC SC4_IN_L SC4_IN_R ASG4 SC3_IN_L SC3_IN_R ASG2 SC2_IN_L SC2_IN_R ASG1 SC1_IN_L SC1_IN_R VREFTOP NC MONO_IN AVSS NC AVSUP ANA_IN1+ ANA_INANA_IN2+ TESTEN XTAL_IN XTAL_OUT TP AUD_CL_OUT NC D_CTR_I/O_1 D_CTR_I/O_0 ADR_SEL STANDBYQ

—

I/O I/O I/O I/O

O O O — —

—

— O O — O O — O — O O — O O — — — — — — —

—

— —

— — —

O — O —

I/O I/O

Not connected I2C clock I2C data I2S clock I2S word strobe I2S data output

I2S1 data input ADR data output ADR word strobe ADR clock Digital power supply 5V Digital ground I2S2-data input Not connected Power-on-reset Not connected Headphone out, right Headphone out, left Reference ground 2 Loudspeaker out, right Loudspeaker out, left Not connected Subwoofer output Not connected SCART 2 output, right SCART 2 output, left Reference ground 1 SCART 1 output, right SCART 1 output, left Volume capacitor AUX Analog power supply 8V Volume capacitor MAIN Not connected Analog ground Analog reference voltage Not connected SCART 4 input, left SCART 4 input, right Analog Shield Ground 4 SCART 3 input, left SCART 3 input, right Analog Shield Ground 2 SCART 2 input, left SCART 2 input, right Analog Shield Ground 1 SCART 1 input, left SCART 1 input, right Reference voltage IF A/D converter Not connected Mono input Analog ground Not connected Analog power supply 5V IF input 1 IF common(can be left vacant, only if IF input 1 is also not in use) IF input 2(can be left vacant, only if IF input 1 is also not in use) Test pin Crystal oscillator

Test pin Audio clock output (18.432MHz) Not connected D_CTR_I/O_1 D_CTR_I/O_0 I2C Bus address select Stand-by (low-active)

+ 116 hidden pages
