PN-E471 PN-E421

LCD MONITOR

OPERATION GUIDE

Contents

Part Names .......................................................................3

Basic Operation ...............................................................5

Menu Items .......................................................................7

Displaying the menu screen .........................................7

List of menu items ........................................................8

Menu item details .......................................................10

Adjustments for PC screen display ............................16

Initialization (Reset)/Functional Restriction Setting

(FUNCTION) ....................................................................17

Controlling the Monitor with a PC (RS-232C) ..............18

PC connection ............................................................18

Communication conditions .........................................18

Communication procedure .........................................18

Setting of the GAMMA user data ................................21

RS-232C command table ...........................................22

Controlling the Monitor with a PC (LAN) .....................29

Settings to connect to a LAN ......................................29

Controlling with a PC ..................................................31

Troubleshooting .............................................................37

Specications ................................................................38

This guide contains instructions regarding operation, settings, and similar details. For instructions regarding connection and installation, refer to the included Operation Manual.

Manual Scope

- Microsoft, Windows and Internet Explorer are registered trademarks of Microsoft Corporation.

- HDMI, the HDMI Logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing

LLC.

- Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

- This product comes with RICOH Bitmap Fonts produced and sold by RICOH COMPANY, LTD.

- All other brand and product names are trademarks or registered trademarks of their respective holders.

- Language of OSD menu used in this manual is English by way of example.

- Illustrations in this manual may not exactly represent the actual product or display.

- This manual assumes use in horizontal orientation, except where specically noted.

Front view

2 345

When the PN-ZB01 (optional) is attached

18171615 19

10 11

2120 2423

Part Names

1. LCD panel

2. Remote control sensor

3. Input switch (See page 5.)

4. Power switch

5. Power LED

TIPS

• Use a pointed object such as a pen tip to press the

switches at the front of the monitor.

Rear view

1. AC input terminal

2. Main power switch

3. PC/AV HDMI input terminal

4. PC D-sub input terminal

5. Audio input terminal

6. Audio output terminals

7. RS-232C output terminal

8. RS-232C input terminal

9. Optional terminal

This terminal is provided for possible future (optional) function expansion. Offering of this terminal is not a guarantee that future expanded functionality will be provided.

10. Expansion terminal cover

Additional input/output terminals are available by attaching the PN-ZB01 interface expansion board (optional).

11. Optional attachment section

Caution

• Consult your SHARP dealer for attachment/detachment of

optional parts.

• Do not open the expansion terminal cover by yourself. There are high voltage parts inside the cover which may cause an electric shock.

This section is used to connect optional hardware for function expansion. Offering this attachment location is not a guarantee that future compatible hardware attachments will be released.

12. Speakers

13. Handles

14. Vents

When the PN-ZB01 (optional) is attached

15. PC/AV DVI-D input terminal

16. PC/AV DVI-D output terminal

17. LAN terminal

18. External speaker terminals

19. Audio 1 input terminals

20. Audio 2 input terminals

21. PC RGB input terminals

22. AV component input terminals

23. AV video input terminal

24. AV S-video input terminal

Part Names

2 3

Remote control unit

1. Signal transmitter

2. POWER button

3. DISPLAY button (See page 5.)

4. MUTE button (See page 5.)

5. VOL +/- buttons (See page 5.) BRIGHT +/- buttons (See page 5.) Cursor control (

6. INPUT button (See page 5.)

7. MODE button (See page 5.)

8. SIZE button (See page 5.)

9. MENU button (See page 5.)

/ / / ) buttons

Basic Operation

LAN

V OLUME 15

BRIGHT 15

1. INPUT (Input mode selection)

The menu is displayed. Press mode, and press

to enter.

* You can select the input terminal by pressing the input

switch of the monitor.

Input mode Video Audio

PC D-SUB PC D-sub input terminal PC HDMI AV HDMI

PC/AV HDMI input terminal PC/AV HDMI input terminal

or to select the input

Audio input terminal

3. MODE (Color mode selection)

Each time you press this button, the color mode changes in the following order:

STD (Standard) → VIVID → sRGB → STD...

• sRGB applies to PC input only.

sRGB is international standard of color representation

specied by IEC (International Electrotechnical

Commission). Color conversion is made in taking account of liquid crystal’s characteristics and represents color tone close to its original image.

4. SIZE (Screen size selection)

The menu is displayed. Press

or to select the screen size. (See page 6.)

5. MUTE

Turns off the volume temporarily. Press the MUTE button again to turn the sound back to the previous level.

6. MENU

Displays and turns off the menu screen (see page 7).

7. VOL +/- (Volume adjustment)

Pressing

or displays the VOLUME menu when the

menu screen is not displayed.

When the PN-ZB01 (optional) is attached

Input mode Video Audio

PC DVI-D PC HDMI PC D-SUB PC RGB AV DVI-D AV HDMI AV COMPONENT AV S-VIDEO AV S-video input terminal AV VIDEO AV video input terminal

PC/AV DVI-D input terminal PC/AV HDMI input terminal PC D-sub input terminal PC RGB input terminals PC/AV DVI-D input terminal PC/AV HDMI input terminal AV COMPONENT input terminals

*1 Select the terminal to be used in HDMI of INPUT SELECT.

(See page 12.)

Press or to adjust the volume of the sound.

* If you do not press any buttons for about 4 seconds, the

VOLUME menu automatically disappears.

8. BRIGHT +/- (Backlight adjustment)

Pressing

or displays the BRIGHT menu when the menu

screen is not displayed.

Press or to adjust the brightness.

* If you do not press any buttons for about 4 seconds, the

BRIGHT menu automatically disappears.

*2 Select the terminal for AUDIO SELECT which is used for

audio input. (See page 12.)

*3 Select the terminal to be used in DVI of INPUT SELECT.

(See page 12.)

*4 Select the terminal to be used in BNC of INPUT SELECT.

(See page 12.)

2. DISPLAY

Displays monitor information. When you press this button again, the display disappears. When the PN-ZB01 (optional) is attached, the display changes

from INFORMATION1 → INFORMATION2 → clear display,

and so on every time you press this button.

• The display disappears automatically after about 15

seconds.

•

is displayed during LAN communication.

• If

is displayed in red, there is a duplicate IP address.

Basic Operation

Switching the screen size

Even when the screen size is changed, the display may remain the same depending on the input signal.

WIDE PC input Displays image so it lls the entire screen.

AV input An image with a 4:3 aspect ratio is stretched to ll the entire

screen.

ZOOM 1

ZOOM 2

NORMAL

Dot by Dot

*: With a monitor of screen resolution 1600 x 1200 or 1920 x 1200, selecting Dot by Dot displays the NORMAL screen.

TIPS

• Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial

or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be careful.

• When “Enlarge” is set, the screen size is xed to “WIDE” mode.

• When dual-screen display is selected, the screen size cannot be changed.

• The appearance of the original video may change if you select a screen size with a different aspect ratio than the original

image (e.g. TV broadcast or video input from external equipment).

• When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this

monitor, the edge of the image may be lost or appear distorted. If you wish to respect the creator’s intentions, set the screen

size to “NORMAL”.

• When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen

size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the edges of the screen. This is due to the characteristics of the software, and is not a malfunction.

• Depending on the original image size, black bands may remain at the edges of the screen.

PC input An image with a 4:3 aspect ratio is enlarged to ll the entire screen

without changing the aspect ratio. The edges of the image may be

AV input

PC input Use this size if ZOOM 1 cuts off the subtitles.

AV input

PC input Displays image so it lls the screen without changing the aspect

AV input Displays the entire image of the aspect ratio of 4:3 without

PC input Displays the dots of the signals input from the connected PC as

AV input Displays the dots of the input signals as the corresponding dots on

cut off.

ratio of the input signals.

changing the aspect ratio.

the corresponding dots on the screen. *

the screen.

Menu Items

1920x1080

V: 60 Hz H: 67.5 kHz

AUTO CLOCK PHASE H-POS V-POS H-SIZE V-SIZE H-RESOLUTION V-RESOLUTION RESET

SCREEN


AUDIO

SETUP

OPTION

ENLARGE

PIP/PbyP

600

610

37 50

50 1920 1080

SCREEN 1/1

END···[MENU]

PC D-SUB

AUTO

CONTRAST

BLACK LEVEL TINT COLORS SHARPNESS

84 30 30 12

1/2


SCREEN


AUDIO

SETUP

OPTION

ENLARGE

PIP/PbyP

OK···[MENU]

1920x1080

V: 60 Hz H: 67.5 kHz

PC D-SUB

AUTO

CONTRAST

BLACK LEVEL TINT COLORS SHARPNESS

1/2


SCREEN


AUDIO

SETUP

OPTION

ENLARGE

PIP/PbyP

OK···[MENU]

V: 60 Hz H: 67.5 kHz

1920x1080

PC D-SUB

AUTO

CONTRAST

BLACK LEVEL TINT COLORS SHARPNESS

1/2


SCREEN


AUDIO SETUP

OPTION

ENLARGE

PIP/PbyP

OK···[MENU]

V: 60 Hz H: 67.5 kHz

1920x1080

PC D-SUB

1 3 2

Displaying the menu screen

Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu items. See pages 10 to 13 for details of each menu items.

Caution

• Do not turn the main power switch off while the menu items

are being displayed. Doing so may initialize the settings.

Example of operation

(Adjusting CONTRAST in the PICTURE menu)

1. Press

to display the menu screen.

TIPS

• The menu will differ depending on the input mode.

• The menu screen will close automatically if no operation is

performed for about 15 seconds. (DATE/TIME SETTING, SCHEDULE and LAN SETUP screens will close in about 4 minutes.)

Menu screen display

1 Name of the menu 2 Input mode 3 An item being selected (highlighted) 4 Screen resolution of input signal, and other data.

2. Press or to select PICTURE, and press .

PICTURE menu is displayed.

3. Press

or to select CONTRAST.

4. Press or to adjust the setting.

TIPS

• Items that cannot be selected appear in gray. (e.g. Function not supported by the current input signal)

For items that have , press , make settings and then press

5. Press

twice to close the menu screen.

Menu Items

List of menu items

The displayed menu items vary depending on whether or not the PN-ZB01 (optional) is attached.

○: Item is available, -: Item is not available.

Menu Item

SCREEN AUTO ○ ○

CLOCK ○ ○ PHASE ○ ○ H-POS ○ ○ V-POS ○ ○ H-SIZE ○ ○ V-SIZE ○ ○ H-RESOLUTION ○ ○ V-RESOLUTION ○ ○ RESET ○ ○

PICTURE AUTO ○ ○

CONTRAST ○ ○ BLACK LEVEL ○ ○ TINT ○ ○ COLORS ○ ○ SHARPNESS ○ ○ ADVANCED FLESH TONE ○ ○

3D-NR ○ ○ MPEG-NR ○ ○ 3D-Y/C - ○ C.M.S.-HUE ○ ○ C.M.S.-SATURATION ○ ○

C.M.S.-VALUE ○ ○ COLOR MODE ○ ○ WHITE BALANCE ○ ○ PRESET ○ ○ R-CONTRAST ○ ○ G-CONTRAST ○ ○ B-CONTRAST ○ ○ COPY TO USER ○ ○ GAMMA ○ ○ RESET ○ ○

AUDIO TREBLE ○ ○

BASS ○ ○ BALANCE ○ ○ RESET ○ ○

SETUP OSD H-POSITION ○ ○

OSD V-POSITION ○ ○ MONITOR (for PN-E421 only) ○ ○ MONAURAL AUDIO ○ ○ LANGUAGE ○ ○ POWER ON DELAY ○ ○ STANDBY MODE ○ ○ HDMI SETTING HDMI AUTO VIEW ○ ○

HDMI RGB INPUT RANGE ○ ○ HOT PLUG CONTROL HDMI ○ ○

DVI - ○ RS-232C/LAN SELECT - ○ ID No. SET ○ ○ BAUD RATE ○ ○ LAN SETUP - ○ SPEAKER SELECT - ○ OPTION DC OUT SETTING ○ ○

PN-ZB01 (optional)

Not attached Attached

Menu Items

Menu Item

OPTION DATE/TIME SETTING ○ ○

SCHEDULE ○ ○ INPUT SELECT DVI - ○

BNC - ○

HDMI ○ ○ AUDIO SELECT PC DVI-D - ○

PC HDMI ○ ○

PC D-SUB - ○

PC RGB - ○

AV DVI-D - ○

AV HDMI ○ ○

AV COMPONENT - ○

AV S-VIDEO - ○

AV VIDEO - ○ INPUT SIGNAL 480 LINES ○ ○

768 LINES ○ ○

1050 LINES ○ ○

ZOOM2 SPECIAL SETTING ○ ○ SCAN MODE ○ ○ POWER MANAGEMENT ○ ○ COLOR SYSTEM - ○ AUDIO OUTPUT ○ ○ AUDIO INPUT LEVEL ○ ○ SELF ADJUST ○ ○ AUTO INPUT CHANGE ○ ○

ENLARGE ENLARGE H ○ ○

ENLARGE V ○ ○ ENLARGE-POS H ○ ○ ENLARGE-POS V ○ ○ BEZEL H ○ ○ BEZEL V ○ ○ H-POS ○ ○ V-POS ○ ○

PIP/PbyP PIP MODES ○ ○

PIP SIZE ○ ○ PIP H-POS ○ ○ PIP V-POS ○ ○ PIP BLEND ○ ○ PIP SOURCE - ○ SOUND CHANGE ○ ○ MAIN POS ○ ○ PbyP2 POS ○ ○ AUTO OFF ○ ○

PN-ZB01 (optional)

Not attached Attached

TIPS

• Some items may not be displayed depending on the input mode.

Menu Items

Menu item details

The menu will differ depending on the input mode.

SCREEN

AUTO (PC D-SUB/PC RGB)

The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted. Pressing Use this automatic adjustment when you use the PC D-sub input terminal or PC RGB input terminals to display a PC

screen for the rst time or when you change the setting of

the PC. (See page 16.)

CLOCK (PC D-SUB/PC RGB)

Adjusts frequency for sampling clock for applicable video.

Adjust when there is ickering in the form of vertical stripes.

When using the adjustment pattern (see page 16), make adjustments so that no vertical stripe noise appears in it.

PHASE (PC D-SUB/PC RGB)

Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/

or there are ickers at corners.

When using the adjustment pattern (see page 16), make adjustments so that no horizontal stripe noise appears in it.

* Adjustments to PHASE should be made only after CLOCK

H-POS

Adjust the horizontal position of the image.

V-POS

Adjust the vertical position of the image.

H-SIZE

Adjust the horizontal size of the image.

V-SIZE

Adjust the vertical size of the image.

H-RESOLUTION (PC D-SUB/PC RGB)

Sets proper horizontal resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

V-RESOLUTION (PC D-SUB/PC RGB)

Sets proper vertical resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

RESET

Resets the values of the SCREEN menu items to the factory preset values.

Select “ON” and then press

performs adjustment.

has been correctly set.


AUTO (PC D-SUB/PC RGB)

The CONTRAST and BLACK LEVEL are automatically adjusted.

Pressing

CONTRAST

Adjusts the brightness of the image.

BLACK LEVEL

Adjusts the entire brightness of the video signals.

TINT

Adjusts the hue. Selecting + changes the color towards green, and selecting - changes it towards magenta.

COLORS

Adjusts the color intensity.

SHARPNESS

Adjusts the sharpness of the image.

ADVANCED (AV input)

You can adjust more specically. (See page 16.)

COLOR MODE

Changes the color mode on the screen. The color mode on the screen can also be changed using a remote control unit. (See page 5.) * sRGB is PC input only. See page 5 for details.

WHITE BALANCE

THRU .............. Displays the input signal level as is. (for PC

PRESET ......... Selects the color temperature using PRESET.

USER .............. Used for adjusting R-CONTRAST,

PRESET

Selects the color temperature when the WHITE BALANCE is set to PRESET. The setting values are shown for reference. The color temperature of the screen varies over time. This function is not intended to keep the color temperature constant.

R-CONTRAST

Adjusts red component when the WHITE BALANCE is set to USER.

G-CONTRAST

Adjusts green component when the WHITE BALANCE is set to USER.

B-CONTRAST

Adjusts blue component when the WHITE BALANCE is set to USER.

COPY TO USER

Copies the value set for PRESET to the USER setting.

Select “ON” and then press

GAMMA

Select a gamma value. USER sets the gamma value transferred by the user. (See page 21.)

RESET

Resets the values of the PICTURE menu items to the factory preset values.

Select “ON” and then press

performs adjustment.

DVI-D/PC HDMI only)

G-CONTRAST, and B-CONTRAST respectively.

Menu Items

AUDIO

TREBLE

Adjusts the volume of treble-level sound.

BASS

Adjusts the volume of bass-level sound.

BALANCE

Adjusts the balance of the audio sound between right and left.

RESET

Resets the values of the AUDIO menu items to the factory preset values. Select “ON” and then press .

SETUP

OSD H-POSITION

Adjusts the horizontal display position of menu screen.

OSD V-POSITION

Adjusts the vertical display position of menu screen.

MONITOR (for PN-E421 only)

Select the installation direction of the monitor.

LANDSCAPE ............Horizontal orientation

PORTRAIT ...............Vertical orientation

MONAURAL AUDIO

Outputs audio signals as monaural.

LANGUAGE

Sets the display language for the menu screen.

POWER ON DELAY

You can delay the screen display after the monitor is turned on. The period can be set up to 60 seconds in units of one second. When this function is activated, the power LED

ashes (at approx. 1 second interval) in orange. This function is disabled when 0 is specied.

STANDBY MODE

When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed in standby mode. When LOW POWER is selected, current consumption is reduced while the monitor is in standby mode. Note, however, that the startup time from standby mode becomes longer. Also, certain RS-232C commands cannot be used in standby mode, and control via LAN will be disabled. (See pages 22 and 29.)

HDMI SETTING

HDMI AUTO VIEW

......................... When ON is selected, the screen size is

adjusted automatically according to the screen size control signal included in the video signal input from the AV HDMI input terminal.

HDMI RGB INPUT RANGE

......................... Sets the type of HDMI signals when using

the AV HDMI input mode. When AUTO is selected, the type is set automatically.

HOT PLUG CONTROL

Sets whether to use hot plug control for the PC/AV HDMI and PC/AV DVI-D input terminals.

RS-232C/LAN SELECT

Selects the method with which to control the monitor from the computer.

ID No. SET

Assigns ID numbers to monitors connected in a daisy chain (see page 19), using RS-232 cables. The numbers 1 to 255 are available for ID numbers.

If “0” is set, the system regards this as the state where no ID

number is set.

BAUD RATE

Selects the communication speed used for RS-232C communication.

LAN SETUP

Congures the settings to control the monitor from the

computer via LAN. (See page 29.)

SPEAKER SELECT

Selects the speaker to be used.

OPTION DC OUT SETTING

Normally, leave this setting as OFF. When using an optional part, if instruction appears, change the setting accordingly.

Menu Items

OPTION

DATE/TIME SETTING

Set the date and time. Press time, and press

Set the date in “Year/Month/Day” order.

Set the time on a 24-hour basis.

SCHEDULE (See page 15.)

You can set the time to switch the monitor on and off.

INPUT SELECT

Select the input mode to be used in PC/AV DVI-D input terminal, PC/AV HDMI input terminal and PC RGB/AV component input terminals.

AUDIO SELECT

Selects the terminal used to input audio signals in each input mode.

INPUT SIGNAL (PC D-SUB/PC RGB)

If a computer connected to the PC D-sub/PC RGB input terminal outputs any of the following resolutions, make a selection from the following options.

480 LINES .......... AUTO, 640x480 or 848x480

768 LINES ..........AUTO, 1024x768, 1280x768, or 1360x768

1050 LINES ........1400x1050 or 1680x1050

ZOOM2 SPECIAL SETTING (See page 14.)

SCAN MODE (AV input)

Sets the scan mode used for AV mode input.

MODE1 ............... Over-scan display

MODE2 ...............Under-scan display

MODE3 ............... Under-scan display when the input signal

Even when MODE1 is selected, under-scan display is used when the input signal is 1080i/p and the screen size is Dot by Dot.

POWER MANAGEMENT

POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal standby mode.

COLOR SYSTEM (AV S-VIDEO/AV VIDEO)

Select the color system of the AV equipment which is connected to AV S-video and AV video input terminal. (AUTO / PAL / PAL-60 / SECAM / NTSC3.58 / NTSC4.43) When AUTO is selected, the color system is automatically set according to the input signal.

AUDIO OUTPUT

Sets the volume of sound output from the audio output terminals.

VARIABLE .......... You can adjust the volume using VOLUME.

FIXED .................Fixes the sounds.

AUDIO INPUT LEVEL

Selects the maximum audio input level of the audio input terminal.

SELF ADJUST

On a PC D-SUB/PC RGB screen, specify whether to perform screen adjustment automatically or not. When ON is selected, the screen is automatically adjusted when its resolution is 800 x 600 or higher and the timing of input

signals changes. “ADJUSTING” appears on the screen

during the adjustment. Depending on the signal, adjustment may not be possible. In this case select OFF. (Perform manual adjustment of the screen.)

or to change the numerical values.

is 1080i/p. Otherwise, over-scan display

or to select the date and

AUTO INPUT CHANGE

Specify whether to change inputs automatically. When ON is selected and no signal is present in the selected input mode, AUTO INPUT CHANGE automatically changes the selected mode to another mode where a video signal is present. When video signals exist in multiple input modes, the switching priority is as follows: PC D-SUB, PC HDMI and AV HDMI When the PN-ZB01 (optional) is attached: PC DVI-D, PC HDMI, PC D-SUB, PC RGB, AV DVI-D, AV HDMI, AV COMPONENT, AV S-VIDEO and AV VIDEO (Input mode switching may take 15 seconds or more, depending on the connected equipment. Input signals may not be detected properly and a priority may change, depending on the connected equipment or video signals.)

ENLARGE (PC input)

ENLARGE H

Sets the number of screen splits (number of monitors) in the horizontal direction used for the enlargement. (See page 14.)

ENLARGE V

Sets the number of screen splits (number of monitors) in the vertical direction used for the enlargement. (See page 14.)

ENLARGE-POS H / ENLARGE-POS V

Specify the split screen to be displayed when the enlargement function is used. (See page 14.)

BEZEL H / BEZEL V

Sets the frame width of the display when the enlargement function is used.

H-POS

Adjust the horizontal position of the enlarged screen.

V-POS

Adjust the vertical position of the enlarged screen.

Menu Items

Main screen

Sub

screen

Main

screen

Sub

screen

Main screen

Sub

screen

PIP/PbyP

PIP MODES

Sets the display method.

OFF .........Displays one screen.

PIP ...........Displays a sub screen inside a main screen.

PbyP ........Displays a main screen and a sub screen in a line.

PbyP2 ......

Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

PIP SIZE

Sets the size of the sub screen in PIP mode.

PIP H-POS

Adjusts the horizontal position of the sub screen in PIP mode.

PIP V-POS

Adjusts the vertical position of the sub screen in PIP mode.

PIP BLEND

In PIP mode, use this menu item to display the sub screen transparently.

PIP SOURCE

Selects the input signal of the sub screen in PIP, PbyP, or PbyP2 mode.

SOUND CHANGE

Sets the sound which is output in PIP, PbyP, or PbyP2 mode. If the main screen is displayed as a full screen by the AUTO OFF function, the sound for the main screen is output even

when the sound for the sub screen is specied.

MAIN POS

Sets the position of the main screen in PbyP or PbyP2 mode.

PbyP2 POS

Sets the position of the sub screen in PbyP2 mode.

AUTO OFF

Sets the display method when no signals for the sub screen are input in PIP, PbyP, or PbyP2 mode.

MANUAL .......

Displays a main screen and a black sub screen.

AUTO ............Displays the main screen as a full screen.

TIPS

• When WHITE BALANCE is set to THRU, BLACK LEVEL,

CONTRAST, TINT, COLORS and GAMMA cannot be set.

• If COLOR MODE is set to sRGB or VIVID, the following

items cannot be set. WHITE BALANCE, PRESET, R-/G-/B-CONTRAST, COPY TO USER, and GAMMA

• If GAMMA is set to USER, the following items cannot be

set. WHITE BALANCE, PRESET, R-/G-/B-CONTRAST, and COPY TO USER

• STANDBY MODE cannot be set to LOW POWER when

SCHEDULE is effective or when OFF is selected for LED in FUNCTION.

Dual screen display

You can display the screens of the PC input signal and AV input signal simultaneously.

Set this function with “PIP MODES” in the PIP/PbyP menu.

PIP

A sub screen is displayed inside a main screen.

PbyP

A main screen and a sub screen are displayed in a line.

PbyP2

Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

* The currently selected input signal is displayed on the main

screen.

* You cannot simultaneously display the screens of signals

of the same type, such as two types of PC input signals or two types of AV input signals.

* The dual screen display cannot be used with the

combination of PC DVI-D and AV HDMI or of AV DVI-D and PC HDMI.

TIPS

• You might infringe on a copyright of the author which is

protected by copyright law when you display the images of the computer screen and television/VCR simultaneously for

prot-making or to show the image to the public.

• The screen size for dual-screen display is the same as

the screen size for single-screen display. The Dot by Dot screen is displayed in NORMAL size except when it is set as the PIP main screen.

• When dual-screen display is selected, the AUTO INPUT

CHANGE function is disabled.

• When dual-screen display is selected, the screen cannot

be enlarged.

• When dual-screen display is selected, the INPUT SELECT

options cannot be set.

Menu Items

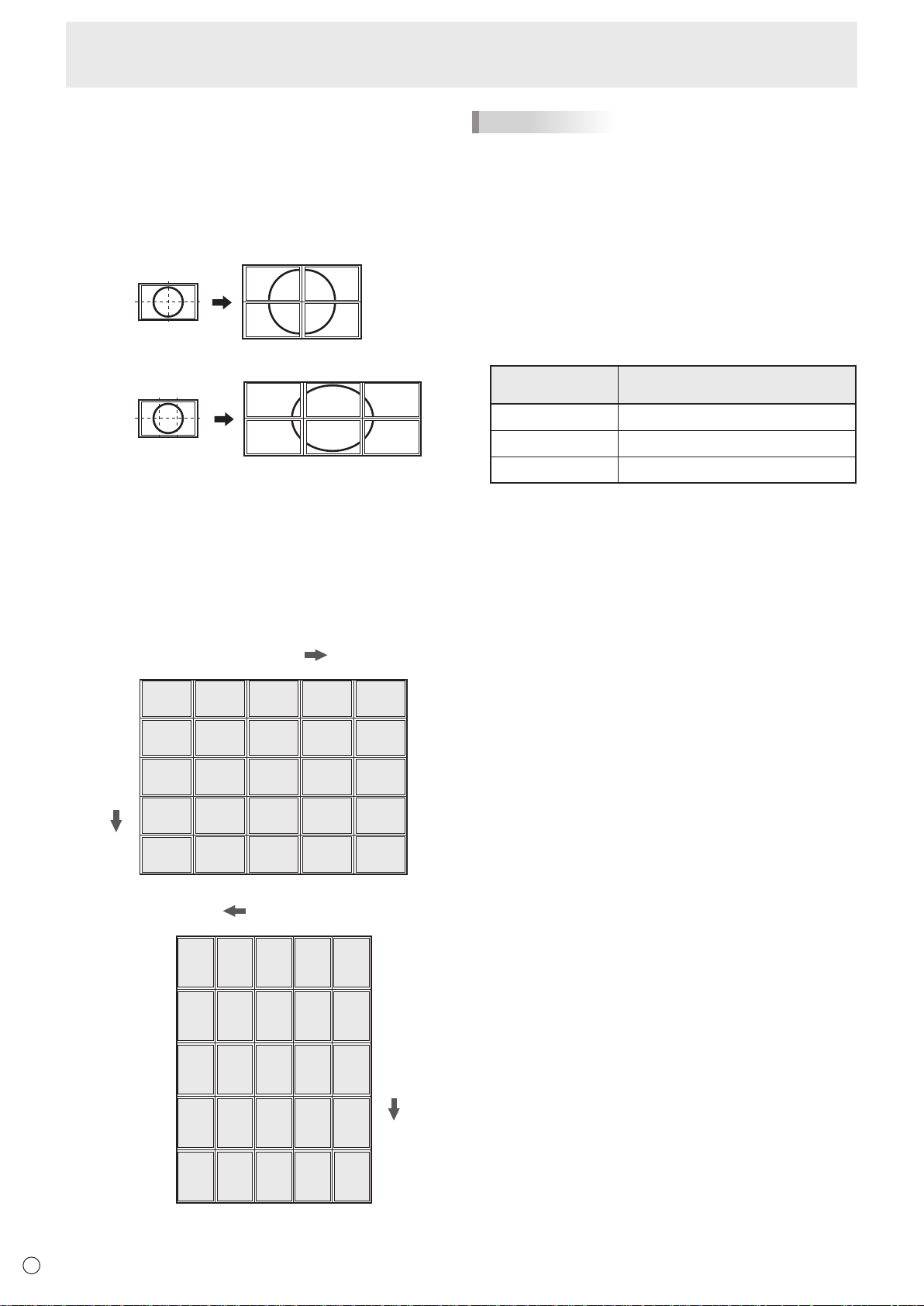

(Example) Horizontal direction: 2 monitors Vertical direction: 2 monitors

Horizontal direction: 3 monitors Vertical direction: 2 monitors

ENLARGE H

(1,2)

(1,3)

(1,4)

(2,2)

(2,3)

(2,4)

(3,2)

(3,3)

(3,4)

(4,2)

(4,3)

(4,4)

(1,1)1(2,1)2(3,1)

(5,2)

(5,3)

(1,5)(2,5) (3,5)(4,5) (5,5)

(5,4)

(5,1)

(4,1)

ENLARGE V

(2,1)(3,1)(4,1)

(2,2)(3,2)(4,2)

(2,3)(3,3)(4,3)

(2,4)(3,4)(4,4)

(1,1)

(1,2)

(1,3)

(2,5)(3,5)

(5,1)

(5,2)

(5,3)

(5,4)

(5,5) (4,5)(1,5)

(1,4)

ENLARGE H

Enlarge

• You can align several monitors and integrate them into a

single large screen to display.

• Up to ve monitors can be aligned in both the horizontal

and vertical directions.

• Each monitor displays enlarged views of separated images.

TIPS

• AV input signals cannot be used for the Enlarge function.

• When Enlarge is used, the AUTO INPUT CHANGE function

is disabled.

• To cancel the enlargement, set 1 for ENLARGE H and

ENLARGE V respectively.

ZOOM2 SPECIAL SETTING

If you connect a laptop computer with any of the following screen resolutions and black bands appear around the screen, set ZOOM2 SPECIAL SETTING of INPUT SIGNAL on the OPTION menu to ON and then select ZOOM2 in the SIZE setting. This displays the area inside the black band.

Laptop computer

Corresponding signal*

resolution 1280x800 1280x1024, 1280x960, 1400x1050*

1280x600 1280x720

Setting procedure

In the ENLARGE menu, set ENLARGE H/V and ENLARGE-POS H/V. (See page 12.)

1. Set the number of monitors aligned in the horizontal direction in ENLARGE H.

2. Set the number of monitors aligned in the vertical direction in ENLARGE V.

3. Set the section of the separated image to be displayed on each monitor in ENLARGE-POS H and ENLARGE-POS V.

In horizontal orientation

In vertical orientation (for PN-E421 only)

1024x600 1024x768

*1: This setting is effective only when the screen resolution,

including the black band, is one of the resolutions listed above.

*2: Use the automatic screen adjustment.

* The numbers in parentheses are the setting values in

(ENLARGE-POS H, ENLARGE-POS V) format.

SCHEDULE

No. POWER DAY OF THE WEEKTIME INPUT

XXXX/XX/XX XXX XX:XX:XX

(2)

OK…[MENU]

1920x1080

V: 60 Hz H: 67.5 kHz

(1)

(3) (4) (5)

PC D-SUB

Menu Items

SCHEDULE

You can set the time to switch the monitor on and off.

Set this function with “SCHEDULE” in the OPTION menu. (See

page 12.)

1. Press or to select the SCHEDULE number, and press

2. Set the SCHEDULE. (See the description below.)

Press

or to select items, and press or to

change the setting.

3. Press

SCHEDULE becomes effective.

Caution

• Do not switch off the main power after setting the

SCHEDULE.

• Specify the correct date and time. (See page 12.) SCHEDULE does not function unless the date and time are

specied.

• Check regularly that the set date and time are correct.

• When STANDBY MODE is LOW POWER, SCHEDULE

cannot be set.

TIPS

• Up to 8 SCHEDULE items can be registered.

• Setting the SCHEDULE ashes the power LED alternately

in red and orange in standby mode.

• A SCHEDULE that has a large number has precedence

over that of a small number when schedules overlap.

(1)

●: SCHEDULE effective

: SCHEDULE not effective

(2) POWER

ON : Switches the monitor on at the specied time. OFF : Switches the monitor off at the specied time and puts

the monitor in standby mode.

(3) DAY OF THE WEEK

Species the day of the week to execute the SCHEDULE.

ONLY ONCE:

Executes the SCHEDULE once on the specied day.

Specify the day of the week to execute the SCHEDULE.

EVERY WEEK:

Executes the SCHEDULE on the specied day of the week

every week. Specify the day of the week to execute the SCHEDULE.

Periodic setting such as “Monday through Friday” is also

possible.

EVERY DAY:

Executes the SCHEDULE every day regardless of the day of the week.

(4) TIME

Species the time to execute the SCHEDULE.

Set the time on a 24-hour basis.

(5) INPUT

the screen at the previous power-off appears. Input modes displayed on DVI, HDMI and BNC depend on INPUT SELECT settings.

Species the input mode at power-on. When not specifying,

Menu Items

ADVANCED items (AV input) (See page 10

for additional Menu item details.)

FLESH TONE

Adjust the hue control.

3D-NR

Reduce the noise of playback images on video. Setting a higher level reduces more noise. However, it may cause blurring on an image.

MPEG-NR

Reduce block noise caused by digital compression.

3D-Y/C (AV VIDEO)

Specify whether to perform 3-dimension Y/C separation. If dot interference or cross-color is occurring in fast-motion

scenes, selecting “OFF” may improve the image quality.

C.M.S.-HUE

Adjusts color tone with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

C.M.S.-SATURATION

Adjusts color vividness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

C.M.S.-VALUE

Adjusts color brightness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

TIPS

• When FLESH TONE is set to LOW or HIGH, C.M.S.-HUE/

-SATURATION/-VALUE cannot be set.

Adjustments for PC screen display

Automatic adjustment

When you use the PC D-sub input terminal or PC RGB input

terminals to display a PC screen for the rst time, or when

you change the setting of the PC, use the automatic screen adjustment.

1. Switch the input to PC D-SUB or to PC RGB and display

the adjustment pattern. (See the description below.)

2. Press menu.

3. Press

4. Press

The automatic adjustment is complete in several seconds.

5. Press

TIPS

• If the screen cannot be adjusted properly with one

automatic adjustment, repeat the automatic adjustment two or three times. Try manual adjustment if necessary.

Screen display for adjustment

Before making adjustments in the SCREEN menu or PICTURE menu, display an image to brighten the entire screen. If you are using a Windows PC, use the adjustment pattern on the supplied CD-ROM.

Opening the adjustment pattern

The following example is performed in Windows XP.

1. Load the supplied CD-ROM into the computer’s CDROM drive.

2. Open the CD-ROM in [My Computer].

3. Double-click [Adj_uty.exe].

The adjustment pattern will appear. Adjust the screen automatically or manually.

and use or to display the SCREEN

and select “AUTO”. .

twice to close the menu screen.

4. Whenadjustmentisnished,pressthe[Esc]onthe

computer’s keyboard to quit the adjustment program.

5. Eject the CD-ROM from the CD-ROM drive.

TIPS

• If the display mode on the computer you are using is

65,000 colors, the color levels in the color pattern may appear differently or grayscale may appear to be colored.

(This is due to the specications of the input signal and is

not a malfunction.)

OFF

UNLOCKED

ON LED OFF

MONITOR

FUNCTION

1/1

ALL RESET

ADJUSTMENT LOCK RS-232C OSD DISPLAY LED TEMPERATURE ALERT STATUS ALERT POWER BUTTON

CONTROLLER INPUT

END…[MENU]

Initialization (Reset)/Functional Restriction Setting (FUNCTION)

You can return the settings to their factory-preset values and restrict operations.

1. After pressing

2. Select and set the items.

for about 5 seconds, press , ,

, and in that order.

ALL RESET

Resets the settings to the factory default settings. Press

, select ALL RESET, and then press .

After initialization, turn the main power switch off and then back on.

When the PN-ZB01 (optional) is attached, press select the resetting method, and then press

ALL RESET1 ....Resets all the settings to the factory

default settings.

ALL RESET2 ....Returns all settings to the factory default

settings except for the following items: LAN SETUP, RS-232C/LAN SELECT, ID No. SET, BAUD RATE, NETWORK, MAIL, SERVICE & SUPPORT, and SNMP (See page 11, and pages 33 to

36.)

ADJUSTMENT LOCK

You can disable operations on the monitor and the remote control unit that use buttons. OFF ...Enables operation.

1.........Disables all operations other than turning power

on/off and FUNCTION.

2.........Only the FUNCTION operation is enabled.

Disables all operations other than FUNCTION (not even power on/off).

RS-232C (RS-232C/LAN when the PN-ZB01 (optional) is attached)

Species whether to allow control via RS-232C or LAN

(see pages 18 and 29).

OSD DISPLAY

Hides/shows menus. The FUNCTION screen cannot be hidden.

LED

Species whether to light the power LED.

OFF cannot be selected when STANDBY MODE is LOW POWER.

TEMPERATURE ALERT

Selects the notication method for an abnormal

temperature.

OFF ..............Do not notify about an abnormal

temperature.

OSD & LED ..When an abnormal temperature is

detected, the power LED ashes in red

and green alternately and the screen displays a message: TEMPERATURE.

LED...............When an abnormal temperature is

detected, the power LED ashes in red

and green alternately.

STATUS ALERT

Selects the notication method for a hardware error.

OFF ..............Do not notify about the error.

OSD & LED ..When a hardware error is detected, the

power LED ashes in red and the screen

displays a message: STATUS [xxxx].

LED...............When a hardware error is detected, the

power LED ashes in red.

POWER BUTTON

Normally, leave this setting as MONITOR. When using an optional part, if instruction appears, change the setting accordingly.

CONTROLLER INPUT

Normally, you do not need to change this setting. When using an optional part, if instruction appears, change the setting accordingly.

3. Press

TIPS

to return to the normal screen.

• When both abnormal temperature and hardware error are detected, the hardware error notication overrides.

Controlling the Monitor with a PC (RS-232C)

RS-232 straight cable (commercially available)

To COM port

RS-232C input terminal

RS-232 straight cables (commercially available)

First monitor Second monitor

To COM port

RS-232C input terminal

RS-232C output terminal

C1 C2 C3 C4 P1 P2 P3 P4

Return code

Command field

(4 prescribed

alphanumerical characters

)

Parameter field

(4 character string comprised of:

0-9, +, -, space, ?)

You can control this monitor from a PC via RS-232C (COM port) on the PC. You can also connect multiple monitors via a daisy chain by using a PC. By assigning ID numbers to each monitor (see page 19), you can make input mode selection/adjustment or

can check the status of a specic monitor.

Precautions when the PN-ZB01 (optional) is attached

• To control the monitor via RS-232C, set RS-232C/LAN

SELECT to RS-232C.

• You cannot use RS-232C and LAN control simultaneously.

PC connection

One-to-one connection with a PC

Connect with RS-232 straight cable between the PC’s COM port (RS-232C connector) and the RS-232C input terminal on the monitor.

Communication conditions

Set the RS-232C communication settings on the PC to match the monitor’s communication settings as follows:

Baud rate * Data length 8 bits Flow control None Parity bit None

* Set to the same baud rate as the BAUD RATE setting of

SETUP menu. (Initial setting: 9600 bps)

* When connecting multiple monitors in a daisy chain, set all

monitors to the same BAUD RATE.

Stop bit

1 bit

Communication procedure

Command format

When a command is sent from the PC to the monitor, the monitor operates according to the received command and sends a response message to the PC.

Daisy chain connection…

Connect with RS-232 straight cable between the PC’s COM port (RS-232C connector) and the RS-232C input terminal on

the rst monitor. Next, connect RS-232 straight cable to the rst monitor’s

RS-232C output terminal and to the second monitor’s RS-232C input terminal. Connect in the same way to the third and subsequent monitors. Up to 25 monitors can be connected. (Depending on the length of the cable used and the surrounding environment.)

Advanced operation

Example: VOLM0030 VOLM

* Be sure to input 4 characters for the parameter. Pad with

spaces (“ (“

Wrong : VOLM30 Right : VOLM 30

When inputting a negative value, specify a numerical value in three digits.

Example: AUTR-009

Do not use spaces for MPOS, DATE, and SC01 through

SC08. Specify parameters using a specied number of

characters.

Example: MPOS010097

If a command has “R” listed for “DIRECTION” in the “RS-232C command table” on page 22, the current value can be returned by using “?” as the parameter.

Example:

VOLM ? ? ? ? ←

30 ←

* If an ID number (see page 19) has been assigned

(For example, ID number = 1).

VOLM 30 001 ←

”) if necessary.

” is a return code (0D

? ←

, 0AH or 0DH))

From PC to monitor (How much

is current volume setting?).

From monitor to PC (Current volume setting: 30).

From PC to monitor. From monitor to PC.

Controlling the Monitor with a PC (RS-232C)

O K

Return code (0DH, 0AH)

O K SPC 0 0 1

ID number of responding monitor

Space (20

Return code (0DH, 0AH)

R R E

Return code (0DH, 0AH)

R R E SPC 0 0 1

ID number

Space (20H)

Return code (0DH, 0AH)

I W T A

Return code (0DH, 0AH)

E C D K O L

Return code (0D

H, 0AH)

U N S E L E C T E D

Return code (0D

H, 0AH)

VOLM0020 OK

INPS0001 WAIT

Interval of 100 ms or more

xample]

ID number: 1 ID number: 2 ID number: 3 ID number: 4

xample]

ID number: 3 ID number: 2 ID number: 4 ID number: 1

Response code format

When a command has been executed correctly

A response is returned after a command is executed.

* If an ID number has been assigned

When a command has not been executed

* If an ID number has been assigned

TIPS

• “ERR” is returned when there is no relevant command or

when the command cannot be used in the current state of the monitor.

• If communication has not been established for reasons

such as a bad connection between the PC and monitor, nothing is returned (not even ERR).

• If no monitor has been assigned the designated ID number

(e.g. if the command IDSL0002 with ID number: 2 is found), no response is returned.

If execution of the command is taking some time

is used, but no monitor

Communication interval

• After OK or ERR is returned, you must send the following

commands.

To set a timeout for the command response, specify 10

seconds or longer. When connecting multiple monitors in a daisy chain, set the timeout to at least the product of the monitor’s position from the computer multiplied by 10 seconds. Example) 3rd monitor from computer: 30 seconds or longer.

• Provide an interval of 100 ms or more between the

command response and the transmission of the next command.

TIPS

• When executing ALL RESET, set the timeout period to 30

seconds or longer.

• When turning the power on while the POWER ON DELAY

function is in use, set the timeout period to the POWER ON DELAY period + 10 seconds or longer.

Advanced operation

This section explains commands for daisy chain connection. The basic communication procedure is the same as in the

“One-to-one connection with a PC” section.

ID numbers

You can assign a unique ID number to each monitor (see page 11). This allows you to control a particular monitor in a daisy chain of monitors. You can assign ID numbers either from the menu screen (using the remote control) or from the PC using RS-232 cable.

When the following commands are used, “WAIT” is returned.

In this case, a value will be returned if you wait a while. Do not send any command during this period. No ID number is attached to WAIT response.

• Commands which return WAIT:

1. When repeater control is used

2. When an IDSL or IDLK command is used

3. When one of the following commands is used: RSET, INPS, ASNC, WIDE, EMAG, EPOS, PXSL, POWR, AGIN, MWIN, MWIP, MWPP, ESTG, EMHV, EPHV, ESHV

When control via RS-232C is locked (to prevent use) using the operation lock function (see page 17)

When RS-232C/LAN SELECT is set to LAN

If monitors are connected as shown above, you can

execute commands like “Set the volume of the monitor with ID 4 to 20”.

When controlling monitors linked in a daisy chain by designating ID numbers, you should basically avoid any duplication of ID numbers. ID numbers do not have to be assigned in ascending order starting from the PC. They can also be connected as shown below.

Controlling the Monitor with a PC (RS-232C)

ID number: 1 ID number: 2 ID number: 3 ID number: 4

xample]

ID number: 1 ID number: 2 ID number: 3 ID number: 4

Commands for ID control

The command examples shown on this page assume the following connection and ID number set up.

IDST ......... A monitor receiving this command sets its own ID

number in the parameter eld.

Example:

IDST0001

The ID number of this monitor is set to 1.

TIPS

001 ←

You can automatically assign ID numbers by using the IDST

command with the Repeater control (see “Repeater control”

on page 21).

For example, using the command “IDST001+” automatically

sets the ID numbers, as shown below.

IDST001 + ←

ID setting command with repeater control

WAIT

001 ←

OK OK 002 ← OK 003 ← OK 004 ←

“OK” response from ID number: 1

“OK” response from ID number: 2

“OK” response from ID number: 3

“OK” response from ID number: 4 (End)

IDSL ........The parameter of this command sets the ID number

of the monitor. The monitor is subject to the next command.

Example:

IDSL0002 ←

WAIT ← OK 002 ←

VOLM0030 ← WAIT ← OK 002 ← VOLM0020 ←

OK 001 ←

The next command is for the monitor with ID number: 2.

Searching for monitor with ID number: 2

Found monitor with ID number: 2 Sets volume of monitor with ID

number: 2 to 30. Processing OK response from monitor with ID

number: 2 Sets volume to 20. The volume of the monitor with ID

number: 1 (the one directly connected to the PC) is set to 20.*

* The IDSL command is effective only once, for the

immediately succeeding command.

IDLK ........

The parameter of this command sets the ID number of the monitor. The monitor is subject to all subsequent commands.

Example:

IDLK0002 ←

WAIT ← OK 002 ←

VOLM0030 ← WAIT ←

Following commands are for the monitor with ID number: 2.

Searching for monitor with ID number: 2

Found monitor with ID number: 2 Sets volume of monitor with ID

number: 2 to 30.* Processing

OK 002 VOLM0020 ←

Sets volume of monitor with ID number: 2 to 20.*

WAIT

002

OK IDLK0000 ← WAIT ← OK 002 ←

Canceling xed ID number setting

Canceling IDLK Cancelation complete

VOLM0010

The volume of the monitor with ID number:

001 ←

1 (the one directly connected to the PC) is set to 10. (IDLK is canceled.)

* The IDLK command remains effective until it is

canceled, or power is shut off.

IDCK ........Provides screen display of the ID number currently

assigned to a monitor, and the ID number currently set for IDLK (if any).

Example:

(After executing IDLK0002)

IDCK0000

ID : 001 IDLK : 002

IDCK000 + WAIT ID : 001 IDLK : 000 ID : 002 IDLK : 000 ID : 003 IDLK : 000 ID : 004 IDLK : 000

(Parameter has no meaning.)

←

Returned response. The ID number is also displayed on the

←

monitor screen. Repeater control. (If a command

←

is used with repeater control, ID designation using IDSL or IDLK is canceled.)

Repeater control

xample]

Set 1

Set 2 Set 3Set 4

C1 C2 C3 C4 P1 P2 P3 P4

…

S1 S2

Command field

Block number (01 to 16)

Data fieldChecksum field

UGRW01000000010002 … 0031C0

Command

Block number

32 pieces of data Checksum

One piece of data consists

of 4 digits.

This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use Repeater control function without assigning ID numbers.

Controlling the Monitor with a PC (RS-232C)

Setting of the GAMMA user data

To transfer the GAMMA user data

Use the user data transfer commands (UGRW, UGGW and UGBW). For each of the R, G and B colors, divide the total 512 pieces of user data into 16 blocks, and transfer 32 pieces of data with each command.

* If monitors are connected as shown above, you can

execute a command like “Set all monitors’ input settings to PC D-SUB”.

Repeater control is achieved by setting the FOURTH

CHARACTER of the parameter to “+”.

Example:

VOLM030 + ←

In repeater control, responses are returned by all the connected monitors. If you want to determine that a value has been returned by a

specic set, assign ID numbers to each monitor in advance.

When some monitors do not return their responses, the probable cause is that the monitors could not receive the command or command processing is not complete. Do not send a new command.

Example: (When 4 monitors are connected, and

assigned ID numbers: 1 through 4) VOLM030 + WAIT OK

001 002

003

004 ← If 4 monitors are connected in

Repeater control can also be used for reading settings.

Example:

VOLM ? ? ? +

WAIT

001

10 20

002 003

004

Sets volume of all monitors to 30.

a chain, reliable operation can be ensured by sending a new command only after a reply has been returned by 4th (last) monitor.

Volume settings for all monitors are returned.

Example: To transfer the data of block 1 (0 to 31 levels)

of red (R) data

* If data is less than 4 digits, add a “0” (zero) to make it 4

digits.

* The checksum eld is the character string (ASCII) data of

lower-order one byte which indicates the sum of the block number and 32 pieces of data in hexadecimal (0 to F).

Saving the GAMMA user data

Use the user data save command (UGSV) to save the transferred user data in the monitor. If the data is not saved, it will be cleared when:

• The main power switch is off

• STANDBY MODE is LOW POWER and the monitor enters

standby mode

Activating the GAMMA user data

To activate the transferred user data, select USER for GAMMA of the PICTURE menu, or send the corresponding RS-232C command.

Checking the GAMMA user data

Use the user data read commands (UGRR, UGGR and UGBR) to return 512 pieces of user data for each of the R, G and B colors. Divide the data into 16 blocks and return 32 pieces of data with each command. The value to be returned is not the value stored in the monitor, but the value in the temporary memory for display. (These values are the same when the user data save command (UGSV) above has been sent.)

TIPS

• The user data is not initialized by RESET of the PICTURE

menu. To initialize the user data, use ALL RESET of the FUNCTION menu. The GAMMA user data initialize command (UGRS) allows the initialization of the user data only.

TIPS

• If repeater control is used during ID designation (IDSL,

IDLK), the ID designation is canceled.

• When LOW POWER is selected for STANDBY MODE,

repeater control cannot be performed in standby mode.

Controlling the Monitor with a PC (RS-232C)

RS-232C command table

How to read the command table

Command: Command eld (See page 18.) Direction: W When the “Parameter” is set in the parameter eld (see page 18), the command functions as described

R The returned value indicated under “Reply” can be obtained by setting “????”, “

Parameter: Parameter eld (See page 18.)

Reply: Response (Returned value)

*1: “●” indicates a command which can be used in power standby mode regardless of the STANDBY MODE

“○” indicates command which can be used in power standby mode when STANDBY MODE is set to

*2: PN-ZB01 (optional) limitations (A) When PN-ZB01 (optional) is not attached, (B) When PN-ZB01 (optional) is attached.

○ : The command can be used.

- : Error (ERR)

Power control/Input mode selection

Function

POWER CONTROL POWR W 0

INPUT MODE SELECTION INPS W 0 Toggle change for input mode. Terminals not selected in INPUT SELECT

under “Control/Response Contents”.

?” or “???+”

(repeater control) in the parameter eld (see page 18).

setting. STANDARD. (It cannot be used in the power standby mode when LOW POWER is selected.)

“–” indicates a command which cannot be used in power standby mode.

Command Direction

R 0 Standby mode

R 1 PC DVI-D

Parameter Reply Control/Response contents *1

Switches to standby mode.

1 Returns from standby mode.

1 PC DVI-D

2 PC D-SUB 3 AV COMPONENT

4 AV VIDEO 6 PC RGB

7 AV DVI-D

8 AV S-VIDEO 9 AV HDMI

10 PC HDMI

1 Normal mode 2 Input signal waiting mode

cannot be selected.

“ERR” when AV DVI-D is selected for DVI of INPUT SELECT.

“ERR” when PC RGB is selected for BNC of INPUT SELECT.

“ERR” when AV COMPONENT is selected for BNC of INPUT SELECT.

“ERR” when PC DVI-D is selected for DVI of INPUT SELECT.

“ERR” when PC HDMI is selected for HDMI of INPUT SELECT.

“ERR” when AV HDMI is selected for HDMI of INPUT SELECT.

2 PC D-SUB 3 AV COMPONENT 4 AV VIDEO 6 PC RGB 7 AV DVI-D 8 AV S-VIDEO 9 AV HDMI

10 PC HDMI

(A) (B)

● ○ ○

○ ○

●

○ ○

● ○ ○

○

○ ○ ○

○ ○

SCREEN menu

Function

AUTO ASNC W 1 When the input mode is PC D-SUB, PC RGB. CLOCK CLCK WR 0-1200 0-1200 When the input mode is PC D-SUB, PC RGB.

PHASE PHSE WR 0-63 0-63 When the input mode is PC D-SUB, PC RGB. POSITIONING POSITION OF

SIZE POSITION OF

RESOLUTION

RESET ARST W 1

THE LONGEST DIRECTION

POSITION OF THE SHORTEST DIRECTION

THE LONGEST DIRECTION

POSITION OF THE SHORTEST DIRECTION

LONGEST DIRECTION RESOLUTION

SHORTEST DIRECTION RESOLUTION

Command Direction

HPOS WR 0-100 0-100 0-800 on PC D-SUB, PC RGB.

VPOS WR 0-100 0-100 0-200 on PC D-SUB, PC RGB.

HSIZ WR 0-100 0-100

VSIZ WR 0-100 0-100

HRES WR 300-1920 300-1920 When the input mode is PC D-SUB, PC RGB.

VRES WR 200-1200 200-1200

Parameter Reply Control/Response contents *1

Varies depending on the signal.

Only even numbers are valid for parameters. Varies depending on the signal.

(A) (B)

○ ○

Controlling the Monitor with a PC (RS-232C)

PICTURE menu

Function

AUTO AGIN W 1 When the input mode is PC D-SUB, PC RGB. CONTRAST CONT WR 0-60 0-60 0-127 on PC D-SUB, PC RGB. BLACK LEVEL BLVL WR 0-60 0-60 0-127 on PC D-SUB, PC RGB. TINT TINT WR 0-60 0-60 COLORS COLR WR 0-60 0-60 SHARPNESS SHRP WR 0-24 0-24 ADVANCED

(When the input mode is AV.)

COLOR MODE BMOD WR 0 0 STD

WHITE BALANCE THRU CTMP WR 0 0 When the input mode is PC DVI-D/PC HDMI.

COPY TO USER CPTU W 0 Copies a preset value to the user setting. GAMMA GAMM WR 0-2 0-2 0: 1.8, 1: 2.2, 2: 2.4

RESET ARST W 2

FLESH TONE FLES WR 0-2 0-2 0: OFF, 1: LOW, 2: HIGH 3D-NR TDNR WR 0-2 0-2 0: OFF, 1: LOW, 2: HIGH MPEG-NR MPNR WR 0-1 0-1 0: OFF, 1: ON 3D-Y/C YCSP WR 0-1 0-1 0: OFF, 1: ON (When the input mode is AV VIDEO) C.M.S.-HUE CMHR WR -10-10 -10-10 R

C.M.S.SATURATION

C.M.S.-VALUE CMVR WR -10-10 -10-10 R

PRESET 1-17 1-17 From 1: approximately 3,000K to 15: approximately 10,000K

USER 99 99 R-CONTRAST CRTR WR 0-256 0-256 “ERR” when CTMP is not set to 99. G-CONTRAST CRTG WR 0-256 0-256 B-CONTRAST CRTB WR 0-256 0-256

Command Direction

CMHY Y CMHG G CMHC C CMHB B CMHM M CRST W 1 Resets the hue. CMSR WR -10-10 -10-10 R CMSY Y CMSG G CMSC C CMSB B CMSM M CRST W 2 Resets the saturation.

CMVY Y CMVG G CMVC C CMVB B CMVM M CRST W 3 Resets the brightness.

Parameter Reply Control/Response contents *1

2 2 VIVID 3 3 sRGB (When the input mode is PC)

(500K steps) 16: approximately 5,600K, 17: approximately 9,300K

4-5 4-5 4: USER, 5: 2.0

(A) (B)

○

AUDIO menu

Function

TREBLE AUTR WR -5-5 -5-5 BASS AUBS WR -5-5 -5-5 BALANCE AUBL WR -10-10 -10-10 RESET ARST W 3

Command Direction

Parameter Reply Control/Response contents *1

○

(A) (B)

○ ○

Controlling the Monitor with a PC (RS-232C)

SETUP menu

Function

OSD H-POSITION OSDH WR 0-100 0-100 OSD V-POSITION OSDV WR 0-100 0-100 MONITOR (for PN-E421 only) STDR WR 0-1 0-1 0: LANDSCAPE, 1: PORTRAIT MONAURAL AUDIO MONO WR 0-1 0-1 0: OFF, 1: ON LANGUAGE LANG WR 14 14 ENGLISH

POWER ON DELAY PWOD WR 0 0 OFF

STANDBY MODE STBM WR 0-1 0-1 0: STANDARD, 1: LOW POWER

HDMI SETTING HDMI AUTO VIEW HDAW WR 0-1 0-1 0: OFF, 1: ON

HOT PLUG CONTROL (DVI) HPCT WR 0-1 0-1 0: OFF, 1: ON HOT PLUG CONTROL (HDMI) HPCH WR 0-1 0-1 0: OFF, 1: ON RS-232C/LAN SELECT CTLS WR 0-1 0-1 0 : RS-232C 1 : LAN ID NUMBER ID NO. SETTING IDST W 0-255 Sets the monitor’s ID number. (“0” means “no ID number”.)

BAUD RATE BAUD WR 0-2 0-2 0: 9600bps, 1: 19200bps, 2: 38400bps SPEAKER SELECT SPSL WR 0-1 0-1 0: Internal speaker, 1: External speaker OPTION DC OUT SETTING DCOT WR 0-2 0-2 0: OFF, 1: MODE1, 2: MODE2

HDMI RGB INPUT RANGE

ID NO. SETTING (ONCE)

ID NO. SETTING (SUBSEQUENT)

ID CHECK IDCK W 0 ID : xxx

Command Direction

HDRA WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED

R 0-255 Returns the monitor’s ID number.

IDSL W 1-255 Sets a monitor ID number.

IDLK W 1-255 Sets a monitor ID number.

Parameter Reply Control/Response contents *1

1 1 DEUTSCH 2 2 FRANÇAIS 3 3 ITALIANO 4 4 ESPAÑOL 5 5 РУССКИЙ 6 6

1-60 1-60 ON

0 Clears the ID number if one has been designated.

IDLK : yyy

(“ERR" when SCHEDULE is effective or OFF is selected for LED.)

This ID number is only effective for the command immediately after this command.

This ID number is effective for the next and all subsequent commands after this command.

Displays monitor’s own ID number and the selected ID number on the screen.

(A) (B)

○ ○

○

○ ○

○

○ ○ ○ ○ ○-○

○ ○ ○

○ ○ ○ ○-○

○ ○

○

Controlling the Monitor with a PC (RS-232C)

OPTION menu

Function

DATE/TIME SETTING DATE WR SCHEDULE SC01-

INPUT SELECT DVI DVSL WR 0-1 0-1 0: PC DVI-D, 1: AV DVI-D

AUDIO SELECT PC DVI-D ASDP WR 1-3 1-3 1: AUDIO, 2: AUDIO 1, 3: AUDIO 2

INPUT RESOLUTION (PC)

INPUT RESOLUTION (AV) ZOOM2 SPECIAL SETTING

(PC D-SUB, PC RGB) SCAN MODE SCAN WR 0-2 0-2 0: MODE1, 1: MODE2, 2: MODE3 (When the input mode is AV) POWER MANAGEMENT (PC) PMNG WR 0-1 0-1 0: OFF, 1: ON POWER MANAGEMENT (AV) PMAV WR 0-1 0-1 0: OFF, 1: ON COLOR SYSTEM CSYS WR 0-5 0-5 0: AUTO, 1: PAL, 2: PAL-60, 3: SECAM, 4: NTSC3.58, 5: NTSC4.43 AUDIO OUTPUT AOUT WR 0-1 0-1 0: VARIABLE, 1: FIXED AUDIO INPUT LEVEL AIVP WR 0-1 0-1 0: 1.0Vrms, 1: 0.5Vrms SELF ADJUST AADJ WR 0-1 0-1 0: OFF, 1: ON AUTO INPUT CHANGE AINC WR 0-1 0-1 0: OFF, 1: ON

BNC BNSL WR 0-1 0-1 0: PC RGB, 1: AV COMPONENT HDMI HDSL WR 0-1 0-1 0: PC HDMI, 1: AV HDMI

PC D-SUB ASAP WR 1-3 1-3 1: AUDIO

PC HDMI ASHP WR 0-1 0-1 0: HDMI, 1: AUDIO

PC RGB ASCP WR 1-3 1-3 1: AUDIO, 2: AUDIO 1, 3: AUDIO 2 AV DVI-D ASDA WR 1-3 1-3 1: AUDIO, 2: AUDIO 1, 3: AUDIO 2 AV HDMI ASHA WR 0-1 0-1 0: HDMI, 1: AUDIO

AV COMPONENT ASCA WR 1-3 1-3 1: AUDIO, 2: AUDIO 1, 3: AUDIO 2 AV S-VIDEO ASSA WR 1-3 1-3 1: AUDIO, 2: AUDIO 1, 3: AUDIO 2 AV VIDEO ASVA WR 1-3 1-3 1: AUDIO, 2: AUDIO 1, 3: AUDIO 2 RESOLUTION CHECK PIXEL SETTING

(PC D-SUB, PC RGB)

RESOLUTION CHECK

Command Direction

SC08

PXCK R - Returns current resolution in the form of hhh, vvv. PXSL WR 1 1 768) 1360 x 768

RESO R - 480i, 480p, 1080i, 720p, 1080p, VGA , etc. Z2SP WR 0-1 0-1 0: OFF, 1: ON

WR ABCDEFFGGH ABCDEFFGGH Schedule of a specied number

Parameter Reply Control/Response contents *1

AABBCCDDEE AABBCCDDEE

2-3 2-3 2: AUDIO 1, 3: AUDIO 2 -

2 2 768) 1280 x 768 3 3 768) 1024 x 768 5 5 480) 848 x 480 6 6 480) 640 x 480 7 7 1050) 1680 x 1050 8 8 1050) 1400 x 1050 9 9 768) AUTO

10 10 480) AUTO

AA: Year, BB: Month, CC: Day, DD: Time, EE: Minute

A: Schedule 0= Not effective, 1 = Effective B: Power 0 = OFF, 1 = ON C: Day of the week 1 0 = Only once, 1 = Every week, 2 = Every day D: Day of the week 2 0 = Sunday, 1 = Monday through 6 = Saturday, 9 = Not exist E: Day of the week 3 0 = Sunday, 1 = Monday through 6 = Saturday, 9 = Not exist F: Time 00-23 G: Minute 00-59

H: Input 0 = Not specied, 1 = PC DVI-D/AV DVI-D,

“ERR” when LOW POWER is selected for STANDBY MODE.

2: AUDIO 1, 3: AUDIO 2 -

2 = PC D-SUB, 3 = PC RGB/AV COMPONENT, 4 = AV VIDEO, 5 = AV S-VIDEO, 6 = PC HDMI/AV HDMI

(A) (B)

○

○ ○

○

○ ○ ○

○

○ ○

○ ○ ○-○ ○ ○

○ ○

○

Controlling the Monitor with a PC (RS-232C)

2 x 2 4 x 4 5 x 53 x 3

012

345

678

13 14

2 x 2 4 x 4 5 x 53 x 3

3813

9141924

ENLARGE menu (When the input mode is PC)

Function

ENLARGE MODE EMAG WR 0-4 0-4 0: OFF, 1: 2 x 2, 2: 3 x 3, 3: 4 x 4, 4: 5 x 5

BEZEL WIDTH WIDTH OF THE

SHORTER SIDE WIDTH OF THE

LONGER SIDE

IMAGE POSITION (M x N) EPHV WR 11-55 11-55 Species values in the order of ENLARGE POSITION IN LONGEST/

IMAGE POSITION (2 x 2) EPOS WR 0-3 0-3 See the description below. IMAGE POSITION (3 x 3) EPOS WR 0-8 0-8 IMAGE POSITION (4 x 4) EPOS WR 0-15 0-15 IMAGE POSITION (5 x 5) EPOS WR 0-24 0-24 ENLARGED

SCREEN POSITIONING

THE LONGEST DIRECTION

THE SHORTEST DIRECTION

ENLARGE/IMAGE POSITION SETTING ESTG WR XXYY XXYY XX: ENLARGE MODE (Same as EMAG), YY: IMAGE POSITION (Same

• IMAGE POSITION (EPOS) setting

In horizontal orientation

Command Direction

EMHV WR 11-55 11-55 1 x 1 (OFF) to 5 x 5 (“m x n” is expressed as “mn”, where m and n are

Parameter Reply Control/Response contents *1

the numbers of monitors specied for the longest direction and the

shortest direction respectively.)

BEZH WR 0-100 0-100

BEZV WR 0-100 0-100

SHORTEST DIRECTION.

EPSH WR -999-999 -999-999 The setting range depends on the ENLARGE MODE setting and the

IMAGE POSITION.

EPSV WR -999-999 -999-999

as EPOS)

ESHV WR XXYY XXYY XX: ENLARGE MODE (Same as EMHV), YY: IMAGE POSITION (Same

as EPHV)

(A) (B)

○ ○

In vertical orientation (for PN-E421 only)

Controlling the Monitor with a PC (RS-232C)

PIP/PbyP menu

Function

PIP MODES MWIN WR 0-3 0-3 0: OFF, 1: PIP, 2: PbyP, 3: PbyP2 PIP SIZE MPSZ WR 1-12 1-12 PIP POS THE LONGEST

PIP POS LD+SD BATCH MPOS W 0-100,0-100 Specify the position in MPOSxxxyyy format.

PIP BLEND MWBL WR 0-15 0-15 PIP SOURCE MWIP WR 1 1 PC DVI-D

SOUND CHANGE MWAD WR 1-2 1-2 1: MAIN, 2: SUB MAIN POS (Main screen) MWPP WR 0-1 0-1 0: POS1, 1: POS2 PbyP2 POS (Sub screen) MW2P WR 0-2 0-2 0: POS1, 1: POS2, 2: POS3 AUTO OFF MOFF WR 0-1 0-1 0: MANUAL, 1: AUTO

DIRECTION THE SHORTEST

DIRECTION

Command Direction

MHPS W 0-100

R 0-100

MVPS W 0-100

R 0-100

R 0-100,0-100 Returns a response in (xxx,yyy) format.

Parameter Reply Control/Response contents *1

(xxx: Longer side, yyy: Shorter side position)

2 2 PC D-SUB 3 3 AV COMPONENT 4 4 AV VIDEO 6 6 PC RGB 7 7 AV DVI-D 8 8 AV S-VIDEO 9 9 AV HDMI

10 10 PC HDMI -

○ ○ ○ ○ ○ ○

○

○ ○

○

○ ○ ○ ○

(A) (B)

○ ○

○

○ ○ ○ ○ ○

○

Initialization/Functional Restriction Setting (FUNCTION) menu

Function

ALL RESET RSET W 0 0: ALL RESET -

ADJUSTMENT LOCK ALCK WR 0-2 0-2 0: OFF OSD DISPLAY LOSD WR 0-1 0-1 0: ON, 1: OFF LED OFLD WR 0-1 0-1 0: ON, 1: OFF

TEMPERATURE ALERT TALT WR 0-2 0-2 0: OFF, 1: OSD & LED, 2: LED STATUS ALERT SALT WR 0-2 0-2 0: OFF, 1: OSD & LED, 2: LED POWER BUTTON PBTN WR 0-1 0-1 0: MONITOR, 1: CONTROLLER CONTROLLER INPUT PCIP WR 0-2 0-2 0: D-SUB, 1: HDMI (“ERR” when MONITOR is selected for POWER

Command Direction

Parameter Reply Control/Response contents *1

0-1 0: ALL RESET 1, 1: ALL RESET 2 - -

“ERR” when LOW POWER is selected for STANDBY MODE.

BUTTON.) 2: DVI-D (“ERR” when MONITOR is selected for POWER BUTTON.)

(A) (B)

○

○ ○

○

○ ○ ○ ○ ○

○ ○ ○ ○-○

○

Controlling the Monitor with a PC (RS-232C)

Others

Function

SCREEN SIZE (PC) WIDE WR 1-5 1-5 1: WIDE, 2: NORMAL, 3: Dot by Dot, 4: ZOOM1, 5: ZOOM2 SCREEN SIZE (AV) WIDE WR 1-5 1-5 1: WIDE, 2: ZOOM1, 3: ZOOM2, 4: NORMAL, 5: Dot by Dot VOLUME VOLM WR 0-31 0-31 MUTE MUTE WR 0-1 0-1 0: OFF, 1: ON INFORMATION MODEL INF1 R Value

SERIAL NO SRNO R Value BRIGHT VLMP WR 0-31 0-31 TEMPERATURE SENSOR DSTA R 0 Internal temperature normal

TEMPERATURE ACQUISITION ERRT R Value Temperature at temperature sensors 1 through 3 are returned in the

CAUSE OF LAST STANDBY MODE STCA W 0 Initialization

Command Direction

R 0 No detectable error has occurred

Parameter Reply Control/Response contents *1

1 Internal temperature abnormal (Standby mode) 2 Internal temperature abnormal (Temperature is normal now, but it was

abnormal during operation.) 3 Internal temperature abnormal (Brightness of the backlight decreases.) 4 Temperature sensor abnormal

following forms:

[Sensor 1], [Sensor 2], [Sensor 3]

Indicates a temperature sensor abnormality when “126” is returned.

1 Standby mode by POWER button 2 Main power off by the main power switch 3 Standby mode by RS-232C or LAN 4 Waiting mode by No Signal 6 Standby mode by abnormal temperature 8 Standby mode by SCHEDULE setting

(A) (B)

○ ○ ○

● ○

●

○ ○

○

●

Commands for setting of the GAMMA user data

Function

RED GAMMA DATA TRANSFER UGRW W aaxxxx GREEN GAMMA DATA TRANSFER UGGW W BLUE GAMMA DATA TRANSFER UGBW W

RED GAMMA DATA READ UGRR W 1-16 xxxx GREEN GAMMA DATA READ UGGR W 1-16 BLUE GAMMA DATA READ UGBR W 1-16 USER DATA INITIALIZE UGRS W 0 Initialize the user data. USER DATA SAVE UGSV W 0 Save the user data in the monitor.

Command Direction

Parameter Reply Control/Response contents *1

xxxxcc

··· (xxxx: 32 pieces) aa: 01-16 xxxx: 0000-1023 cc: 00-FF

xxxx

··· (xxxx: 32 pieces) xxxx: 0000-1023

aa: Block number xxxx: 32 pieces of user data cc: Checksum (ASCII data) of the block number and user data

xxxx: User data of 32 pieces

(A) (B)

○ ○ ○

Hub

LAN terminal

LAN cable (commercially available, straight)

Network (LAN)

Controlling the Monitor with a PC (LAN)

When the PN-ZB01 (optional) is attached, your monitor can be connected to a LAN allowing you to control it from a PC on the LAN.

You can also congure the monitor to send e-mail notication

when it has a problem. The connection requires a commercially available LAN cable (UTP cable, Category 5, straight through).

TIPS

• You must assign an IP address to the monitor by following the procedures in “Settings to connect to a LAN”. (See the

description on the right.)

• Your PC must be installed with Internet Explorer (version 6.0

or later).

• To control the monitor via LAN, set RS-232C/LAN SELECT

to LAN. (See page 11.)

• You cannot use RS-232C and LAN control simultaneously.

Initializing personal information

• When the PN-ZB01 (optional) is attached, personal

information such as e-mail addresses can be registered in the monitor. Before transferring or disposing of the monitor, initialize all settings by selecting ALL RESET 1. (See page 17.) Note that ALL RESET 2 will not initialize e-mail addresses and other settings.

Settings to connect to a LAN

Set the monitor’s IP address and subnet mask to match the settings of your LAN. These settings can be made on either the monitor or a PC connected to the monitor.

The settings depend on the conguration of your LAN. Ask

your LAN administrator for details.

■Tosetonthemonitor

Set RS-232C/LAN SELECT on the SETUP menu to LAN, and then set the LAN SETUP options. (See page 11.)

After setting each item, select SET and press

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to ON. To set the address manually, set this to OFF.

IP ADDRESS

If the DHCP CLIENT is set to OFF, specify an IP address. Press

change the values.

SUBNET MASK

If the DHCP CLIENT is set to OFF, specify the subnet mask. Press

change the values.

DEFAULT GATEWAY

If the DHCP CLIENT is set to OFF, specify the default gateway.

If you are not using a gateway, specify “0.0.0.0”.

Press change the values.

RESET

Resets the values of the LAN settings to the factory preset values.

Select ON and then press

or to select items, and press or to

30E30

LAN cable (commercially available, crossover

)

To LAN terminal

LAN terminal

Controlling the Monitor with a PC (LAN)

■TosetfromaPC

When the monitor is connected to a PC, LAN settings can be

congured via PC.

Set up process

(1) Connect your monitor to a PC (2) Specify the PC’s IP address

(3) Congure the monitor’s LAN settings

(1) Connecting your monitor to a PC

Connect a commercially available crossover LAN cable (UPT cable, Category 5) to the LAN port on the PC and this monitor.

7. Temporarily change the IP address and subnet mask. To access the monitor as it is shipped from the factory, set as follows.

• IP Address: 192.168.150.3

• Subnet Mask: 255.255.255.0

• Default Gateway: (leave blank)

8. Click [OK] and then reboot the PC.

TIPS

• This monitor is factory preset as shown below.

IP Address : 192.168.150.2 Subnet Mask : 255.255.255.0 Default Gateway : 0.0.0.0

(2) Specifying the PC’s IP address

To congure the monitor’s LAN settings, you must temporarily

change the settings on the PC. This explanation is based on Windows XP.

1. Log on to the PC with an administrator account.

2. Click [Start], and then click “Control Panel”.

3. Click “Network and Internet Connections”, and then click “Network Connections”.

If you are using the classic display style, double-click on

“Network Connections”.

4. Right click on “Local Area Connection” and from the menu, click “Properties”.

5. Click “Internet Protocol (TCP/IP)”, and then click “Properties”.

6. Make a note of the current IP address, subnet mask, and default gateway settings. Make sure you write this information now as you will be changing the IP address, subnet mask, and default gateway settings back to these settings afterwards.

(3)Conguringthemonitor’sLANsettings

Access the monitor using Internet Explorer.

Controlling the monitor

1. Turn the power ON to the monitor.

2. Set RS-232C/LAN SELECT on the SETUP menu to LAN. PC operation

3. Launch Internet Explorer, in the “Address” box type

“http://192.168.150.2/” and press the Enter key.

You will be prompted to enter a user name and password.

4. Leave the user name and password boxes blank and click

[OK].

31E31

Controlling the Monitor with a PC (LAN)

5. Click on “LAN SETUP” under NETWORK.

6. Specify the “DHCP CLIENT”, “IP ADDRESS”,etc.

Controlling with a PC

■Basicoperation

You use Internet Explorer on a PC on the LAN to control the monitor.

1. Launch Internet Explorer on the PC.

In the “Address” box, type “http://” followed by your monitor’s IP address followed by “/”, then press the Enter key.

When prompted to enter a user name and password, type

the user name and password that you specied in the

security settings (see page 33), and click [OK]. If you did not make any security settings, leave the spaces blank and click on [OK].

3. You can check, control, and change the monitor’s status

and settings by clicking the menu items on the left side of the screen.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an

address automatically, change this setting to “ON”. To set the address manually, set this to “OFF”.

IP ADDRESS

If the DHCP CLIENT is set to “OFF”, specify an IP

address.

SUBNET MASK

If the DHCP CLIENT is set to “OFF”, specify the subnet

mask.

DEFAULT GATEWAY

If the DHCP CLIENT is set to “OFF”, specify the default

gateway.

If you are not using a default gateway, specify “0.0.0.0”.

7. When the setting is changed, click [Apply].

8. Check the message and click [OK].

9. Exit Internet Explorer.

10.

Restore the PC’s IP address jotted in Step 6, “(2)

Specifying the PC’s IP address”.

11.

Connect the monitor and the PC to the LAN.

Caution

• Wait 10 seconds after clicking [OK] before proceeding.

• When operating using the remote control unit or similar,

click [Refresh].

• If you see an [Apply] button next to a setting, click it after

you change that setting.

TIPS

• See pages 32 to 36 for details on each setting.

• If you click [Refresh] before the screen nishes updating the current display, the “Server Busy Error” will appear.

Wait for a moment before operating your monitor again.

• You cannot operate the monitor while it is warming up.

• If “DHCP CLIENT” is set to “ON”, press

control unit two times and then check the monitor’s IP address.

on the remote

32E32

Controlling the Monitor with a PC (LAN)

■INFORMATION

Information about this monitor appears.

■CONTROL

You can control the operations corresponding to the buttons (

) on the remote control unit. (See page 5.)

■ADJUSTMENT

You can adjust these settings which are also available on the monitor’s menu.

• SCREEN (See page 10.)

• PICTURE (See Page 10.)

• PICTURE (ADVANCED) (See Page 16.)

• AUDIO (See page 11.)

• SETUP (See page 11.)

• OPTION (See page 12.)

• SCHEDULE (See page 15.)

• ENLARGE (See page 12.)

• PIP/PbyP (See page 13.)

• FUNCTION (See page 17.)

TIPS

• In standby mode, Power ON is the operation available.

• MONITOR POWER turns the monitor power ON/

OFF regardless of the POWER BUTTON setting in the FUNCTION menu.

33E33

Controlling the Monitor with a PC (LAN)

■NETWORK(LANSETUP)

This screen allows you to set the settings necessary when the monitor is connected to a LAN.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an

address automatically, change this setting to “ON”. To set the address manually, set this to “OFF”.

IP ADDRESS

If the DHCP CLIENT is set to “OFF”, specify an IP address.

SUBNET MASK

If the DHCP CLIENT is set to “OFF”, specify the subnet

mask.

DEFAULT GATEWAY

If the DHCP CLIENT is set to “OFF”, specify the default

gateway.

If you are not using a default gateway, specify “0.0.0.0”.

DNS SERVER

Specify the DNS server address.

If you are not using a DNS server, specify “0.0.0.0”.

RESET

Clicking [Execute] returns all of the LAN SETUP settings to the factory-preset values except for the DNS SERVER setting.

■NETWORK(SECURITY)

This screen allows you to specify the security-related settings.

USER NAME / PASSWORD

Sets up a user name and password to restrict access to this monitor. After entering a user name and password, click [Apply].

ACCEPT IP ADDRESS

You can limit access to this monitor by registering IP addresses of PCs that should have access.

To limit access, specify the option “From only specic IP addresses”. Otherwise, to allow access from any PC, specify “All IP Addresses”.

IP ADDRESS 1 to 3

If “ACCEPT IP ADDRESS” is set to “From only specic IP addresses”, enter the IP addresses that you want to allow.

TIPS

• The USER NAME and PASSWORD can be up to 8

alphanumeric characters or symbols.

• To cancel the user name and/or password after it has been

set, make the box empty and click [Apply].

34E34

Controlling the Monitor with a PC (LAN)

■NETWORK(GENERAL)

This screen allows you to specify the general LAN settings.

MONITOR NAME

Specify a name for this monitor as it should appear on the Internet Explorer screen.

AUTO LOGOUT TIME

Specify the time (in minutes) to elapse before automatically disconnecting this monitor from the network. Specify in minutes from 1 to 65535. A value of ‘0’ will disable this function.

DATA PORT

Specify the TCP port number to use for exchanging data with the monitor. Specify a value from 1025 to 65535.

SEARCH PORT

Specify the port number to use when searching for this monitor. Specify a value from 1025 to 65535.

INSTALLATION INFORMATION (NAME/LOCATION)

Specify the information to display for this monitor in the Internet Explorer window.

TIPS

• The MONITOR NAME can be up to 16 alphanumeric

characters or symbols.

• Enter up to 50 characters in the NAME eld in the

INSTALLATION INFORMATION.

• Enter up to 100 characters in the LOCATION eld in the

INSTALLATION INFORMATION.

■MAIL(ORIGINATOR)

This screen allows you to congure the e-mail sent periodically

or when the monitor has an error.

The settings depend on the conguration of your LAN. Ask

your LAN administrator for details.

SMTP SERVER

Specify the SMTP server address for sending e-mail.

* When using a domain name, make sure to specify the

DNS server as well. (See page 33.)

ORIGINATOR E-MAIL ADDRESS

Specify the e-mail address for this monitor. This address becomes the e-mail address of the originator.

ORIGINATOR NAME

Specify the name for the originator.

This name appears in the “Originator Name” eld of the

e-mail.

AUTHENTICATION

Specify the authentication method to use when sending e-mail.

POP SERVER

If the “AUTHENTICATION” method is “POP before SMTP”,

specify the POP server address.

ACCOUNT NAME / PASSWORD

If the “AUTHENTICATION” method is “POP before SMTP”,

specify the account name and password to connect to the POP server.

TIPS

• You can enter up to 64 alphanumeric characters or symbols

for the ORIGINATOR E-MAIL ADDRESS, ORIGINATOR NAME, ACCOUNT NAME, and PASSWORD.

• The SMTP SERVER and POP SERVER can be up to 64

characters.

The following characters can be used: a-z, A-Z, 0-9, - , .

35E35

Controlling the Monitor with a PC (LAN)

■MAIL(RECIPIENT)

This screen allows you to specify the recipients of the e-mail sent periodically or when the monitor has an error.

RECIPIENT E-MAIL ADDRESSES

Specify the e-mail addresses to send error notication e-mail

to.

CONDITION

Specify the conditions to send mails. When you check PERIODICAL, specify the date and time to send the mails in the PERIODICAL setting.

CONFIRMATION

Sends test e-mail.

This allows you to conrm that the e-mail settings are congured properly.

AttachthelogletoaTEMPERATURE/HARDWAREerror

e-mail

When this option is checked, a log is added to the mail which

noties a temperature or status error.

■MAIL(PERIODICAL)

When PERIODICAL for CONDITION of MAIL (RECIPIENT) is checked, set the date and time to send the mail.

DAY OF THE WEEK

Specify the day of the week to send the periodical mails.

TIME

Specify the time of the day to send the periodical mails.

Caution

• Do not turn off the main power when you set to send the

periodical mails.

• Specify the correct date and time. (See page 12.) If the date and time settings are incorrect, the periodical mail is not sent properly.

• Regularly conrm that the specied date and time is

correct.

• When LOW POWER is selected for STANDBY MODE,

periodical mails will not be sent in standby mode.

TIPS

• The RECIPIENT E-MAIL ADDRESSES can be up to 64

alphanumeric characters or symbols.

36E36

Controlling the Monitor with a PC (LAN)

■SNMP

You can congure settings related to SNMP.

Caution

• After you set SNMP, click [Switch the main power of

monitor off and on now.] or turn off the monitor and then turn it on again with the main power switch. When the monitor restarts, wait about 30 seconds and then start the next operation.

TIPS

• Depending on the SNMP settings, a short delay may occur

before the SNMP is usable. (About 2 minutes)

• Up to 16 alphanumeric letters and symbols can be used for

the community name, user name and password.

■SERVICE&SUPPORT (URL INFORMATION)

You can display a specic URL in the URL INFORMATION eld on the INFORMATION screen when an error occurs in

the monitor. (See page 32.)

SNMP SETTING

Set whether to enable or disable SNMP.

VERSION

Set the version of the SNMP to be supported.

COMMUNITY NAME 1 to 3

Set the name of the community required for the access.

USER 1 to 3

Set the user name, password, authentication method and other options required for access.

TRAP SETTING

Set whether to enable or disable the trap function. When this function is enabled, a trap will be sent when the monitor is turned on.

TRAP WHEN AUTHENTICATION FAILS

Set whether the trap function sends a notication when

authentication fails.

TRAP ADDRESS & PORT NO.

Set the destination address and port number of the

notication sent by the trap function.

URL INFORMATION

Enter the URL to display on the INFORMATION screen when an error occurs on the monitor. Up to 64 alphanumeric characters or symbols can be used.

CONDITION

Specify the condition to display the URL.

CONFIRMATION

The home page of the specied URL is displayed.

You can check whether the URL you entered is correct.

TIPS

• It is also possible to specify the message text, such as the

name of a contact or a telephone number, to be displayed instead of the linked URL.

Troubleshooting

If you are experiencing any problem with your display, before calling for service, please review the following troubleshooting tips.

There is no picture or sound.

• Is the power cord disconnected?

• Is the main power switch off?

• Is the monitor in standby mode (the power LED illuminating in orange)?

• Make sure correct input mode is selected. (See page 5.)

• If any external equipment is connected, make sure the

equipment is operating (playing back).

Remote control does not work.

• Are the batteries inserted with polarity (+,-) aligned? (See

Operation manual.)

• Are the batteries exhausted?

• Point the remote control unit toward the monitor’s remote

control sensor.

• Is the menu display hidden or is operation disabled? (See

page 17.)

Sound from left and right speakers is reversed. Sound is heard from only one side.

• Are audio cables connected properly?

• Make sure audio cables for external speakers are

connected properly: left and right cables may be reversed or one of the two cables may not be connected.

• Check the setting of BALANCE for AUDIO menu. (See

page 11.)

There is a picture but no sound.

• Is the sound muted?

• Make sure the volume is not set to minimum.

• Are audio cables connected properly?

• Is the setting of AUDIO SELECT on the OPTION menu correct? (See page 12.)

• Is the setting of SPEAKER SELECT on the SETUP menu correct?

Unstable video.

• The signal may be incompatible.

• Try the automatic screen adjustment when the PC D-sub

input terminal or PC RGB input terminals are used.

The video from the PC/AV HDMI input terminal does not appear properly.

• Is the setting for HDMI of INPUT SELECT on the OPTION menu correct? (See page 12.)

• Is the HDMI cable HDMI standard compliant? The monitor

will not work with cables that are not standard compliant.

• Is the input signal compatible with this monitor? (See page

41.)

The video from the PC/AV DVI-D input terminal does not appear properly.

• Is the setting for DVI of INPUT SELECT on the OPTION menu correct? (See page 12.)

• Is the input signal compatible with this monitor? (See page

41.)

• Turn off the power to the connected equipment and then

turn the power on again.

• If the monitors are connected in a daisy chain, turn off the

power to all the monitors connected in a daisy chain and then turn the power on again.

The video from the PC RGB input terminals or AV component input terminals does not appear properly.

• Is the setting for BNC of INPUT SELECT on the OPTION menu correct? (See pagae 12.)

• Is the input signal compatible with this monitor? (See page

41.)

Control buttons do not work. There is no picture.

• Load noises from outside may be interfering with normal

operation. Turn off the power and turn it on after waiting at least 5 seconds, and then check the operation.

The input mode changes automatically.

• When the AUTO INPUT CHANGE is ON and no signal

is present in a selected input mode, the AUTO INPUT CHANGE automatically changes the selected mode to a mode where a video signal is present.

The input mode may change in the following cases:

- When a computer is in standby mode.

- When video play is stopped with a playback device.

PowerLEDashesred.

“STATUS [xxxx]” appears in the corner of the screen.

• Hardware has a problem. Turn off the monitor and request

repair from your SHARP dealer. (When STATUS ALERT is set to OSD & LED. This varies depending on the setting.)

When “AUTO DIMMING” is displayed.

• When the internal temperature of the monitor rises

excessively, the brightness of the backlight automatically decreases in order to prevent a further temperature rise. If

you attempt to use

monitor is in this state, “AUTO DIMMING” is displayed and

you cannot change the brightness.

• Remove the cause of the excessive temperature rise.

The monitor makes a cracking sound.

• You may occasionally hear a cracking sound from the

monitor. This happens when the cabinet slightly expands and contracts according to change in temperature. This does not affect the monitor’s performance.

ThePowerLEDisashinginredandgreenalternately. When “TEMPERATURE” is displayed in the corner of the screen.

• When the internal temperature of the monitor rises

excessively, the brightness of the backlight decreases automatically in order to prevent high-temperature-

related problems. When this occurs, “TEMPERATURE” is displayed on the screen and the Power LED ashes red

and green alternately. (When TEMPERATURE ALERT is set to OSD & LED. This varies depending on the setting.)

• If the internal temperature rises further, the monitor

automatically enters standby mode. (The Power LED

continues ashing red and green alternately.)

• Remove the cause of the excessive temperature rise.

- If the monitor enters standby mode due to a rise in

temperature, to return to normal display, turn the power switch off and then back on again. The monitor, however, will enter standby mode again if the cause of the temperature rise is not eliminated.

- Check whether the monitor is placed at a location where

a quick rise in temperature is likely. Internal temperature rises quickly if the vents on the monitor are blocked.

- Internal temperature rises quickly if dust accumulates

inside the monitor or around the vents. Remove dust if possible. Ask Sharp dealer about removing internal dust.

to adjust the brightness while the

Specications

ProductSpecications

Model PN-E471 PN-E421 LCD component

Max. resolution (pixels) Max. colors

Pixel pitch Viewing angle Screen active area inch (mm) Computer input signal Sync signal

Video color system Plug and play Power management Input terminals

When PN-ZB01 (optional) is attached

Output terminals

When PN-ZB01 (optional) is

PC/AV PC

Audio Serial (RS-232C)

PC/AV PC AV

Audio Audio Serial (RS-232C)

PC/AV External speaker 10 W + 10 W

Digital Analog

Digital Analog Composite video S-video Component BNC (Y, Cb/Pb, Cr/Pr) *1 x 1

Digital

attached

LAN terminal

[

When PN-ZB01 (optional) is attached

]

Speaker output 10 W + 10 W Power requirement AC 100 V - 240 V, 50/60 Hz

Operating temperature

Operating humidity 20% to 80% (no condensation) Power consumption

Factory Setting (Audio input: enabled / disabled) Maximum (Audio input: enabled / disabled) Input signal waiting mode

When PN-ZB01 (optional) is attached

Standby mode Factory Setting (Audio input: enabled / disabled) Maximum (Audio input: enabled / disabled) Input signal waiting mode

Standby mode

Dimensions (excluding protrusions) inch (mm)

Weight lbs. (kg)

47" Class [46-15/16 inch (119.3cm)

diagonal] TFT LCD

42" Class [42-1/16 inch (106.7cm)

diagonal] TFT LCD 1920 x 1080 Approx. 1.06 billion colors

0.542 mm (H) × 0.542 mm (V) 0.485 mm (H) × 0.485 mm (V)

178° right/left/up/down (contrast ratio ≥ 10)

40-15/16 x 23 (1039.7 x 584.8) 36-5/8 x 20-5/8 (930.2 x 523.3)

Digital (DVI 1.0 standard-compliant), Analog RGB (0.7 Vp-p) [75 Ω]

Horizontal/vertical separate (TTL: positive/negative), Sync-on-green, Composite sync (TTL: positive/negative) NTSC (3.58MHz)/NTSC (4.43MHz)/PAL/PAL-60/SECAM VESA DDC2B VESA DPMS, DVI DMPM HDMI x 1 Mini D-sub 15 pin, 3 rows x 1

3.5 mm mini stereo jack x 1 D-sub 9 pin x 1 DVI-D 24 pin (HDCP compatible) x 1 BNC

x 1

*1*

BNC x 1 x 1

RCA pin (L/R) x 2 RCA pin (L/R) x 1 D-sub 9 pin x 1 DVI-D 24 pin x 1

[6 Ω]

10 BASE-T/100 BASE-TX

32°F to 104°F (0°C to 40°C)

225 W / 230 W 195 W / 200 W

255 W / 260 W 220 W / 225 W

2 W / 2 W 2 W / 2 W

225 W / 235 W 200 W / 205 W

260 W / 265 W 225 W / 230 W

4.8 W / 4.5 W 5 W / 4.5 W

Approx. 42-5/8 (W) x 4-3/8 (D) x 24-3/4 (H) (1,083 x 111 x 628) Approx. 56.2 (25.5)

[

When PN-ZB01 (optional) is

attached: Approx. 57.3 (26)

]

Approx. 38-5/16 (W) x 4-15/16 (D)

x 22-5/16 (H) (973 x 126 x 566)

Approx. 48.5 (22)

[When PN-ZB01 (optional) is

attached: Approx. 49.6 (22.5)]

*1 Cannot be used simultaneously. *2 Does not support plug and play. *3 When AUTO INPUT CHANGE is set to OFF. *4 When STANDBY MODE is set to STANDARD. When STANDBY MODE is set to LOW POWER, PN-E471: 0.8 W, PN-E421: 0.8 W. *5 Temperature condition may change when using the display together with the optional equipments recommended by SHARP.

In such cases, please check the temperature condition specied by the optional equipments. As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from

these values in individual units.

Specications

42-5/8 [1083]

Opening width (41-1/16 [1043])

38-1/16 [967]

Opening height

(23-1/8 [588])

24-3/4 [628]

7-7/8 [200]

VESA holes *

Unit: inch [mm]

4-3/8

[111]

1-7/16

[37]

2-11/16

[69]

7-7/8

[200]

7-7/8

[200]

3-15/16

[100]

3-15/16 [100]

38-5/16 [973]

33-9/16 [852]

Opening width (36-3/4 [934])

Opening height

(20-3/4 [527])

22-5/16 [566]

VESA holes *

Unit: inch [mm]

4-15/16

[126]

2-5/8

[66]

7-7/8 [200]

1-1/2

[38]

7-7/8

[200]

7-7/8

[200]

3-15/16

[100]

3-15/16 [100]

Dimensional Drawings

Note that the values shown are approximate values.

[

PN-E471]

When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method.

SHARP recommends using M6 screws and tighten the screws. Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch (8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times or more the weight of the monitor.

[

PN-E421]

When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method.

Specications

Power management

This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in order for the monitor’s power management function to work.

DPMS: Display Power Management Signaling

DPMS Screen

ON STATE Display STANDBY

SUSPEND Yes No

OFF STATE No No

display

Power

consumption*

260 W*

225 W*

2*3

2 W*

2 W*2*

Hsync Vsync

Yes Yes

No Yes

DMPM: Digital Monitor Power Management

DMPM Screen

Monitor ON Display

Active OFF No display

Power

consumption*

260 W*

225 W*

2 W*2*

*1 Upper value: PN-E471, Lower value: PN-E421. *2 When PN-ZB01 (optional) is not connected. *3 When AUTO INPUT CHANGE is set to OFF.

DDC (plug and play)

The monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters

is exchanged between the two. This function can be used if the computer supports DDC and it has been congured to detect

plug-and-play monitors. There are several types of DDC, depending on the communication method used. This monitor supports DDC2B.

Compatible signal timing (PC)

VESA

Wide

US TEXT Sun

Screen resolution Hsync VsyncDot frequency

Digital

640 × 480

800 × 600

848 × 480

1024 × 768

1152 × 864

1280 × 768

1280 × 800 1280 × 960

1280 × 1024

1360 × 768

1400 × 1050

1600 × 1200

1680 × 1050

1920 × 1200

1280 × 720

1920 × 1080

720 × 400

1024 × 768

1152 × 900

1280 × 1024

1600 × 1000

31.5kHz

37.9kHz

37.5kHz

35.1kHz

37.9kHz

48.1kHz

46.9kHz

31.0kHz

48.4kHz

56.5kHz

60.0kHz

67.5kHz

47.8kHz

60.3kHz

49.7kHz

60.0kHz

64.0kHz

80.0kHz

47.7kHz

65.3kHz

75.0kHz

65.3kHz

74.0kHz

44.7kHz

66.3kHz

67.5kHz

31.5kHz

48.3kHz

53.6kHz

56.6kHz

61.8kHz

71.8kHz

71.7kHz

81.1kHz

68.6kHz

60Hz 72Hz 75Hz 56Hz 60Hz 72Hz 75Hz 60Hz 60Hz 70Hz 75Hz 75Hz 60Hz 75Hz 60Hz 60Hz 60Hz 75Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 70Hz 60Hz 66Hz 70Hz 66Hz

76.2Hz

67.2Hz 76Hz 66Hz

25.175MHz

31.5MHz

36.0MHz

40.0MHz

50.0MHz

49.5MHz

33.75MHz

65.0MHz

75.0MHz

78.75MHz

108.0MHz

79.5MHz

102.25MHz

83.5MHz

108.0MHz

135.0MHz

85.5MHz

121.75MHz

162.0MHz

146.25MHz

154.0MHz

74.4MHz

148.5MHz

28.3MHz

64.13MHz

70.4MHz

74.25MHz

94.88MHz

108.23MHz

117.01MHz

134.99MHz

135.76MHz

Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Analog

(D-SUB/RGB*

)

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

DVI*

HDMI

Yes Yes Yes

Yes Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

*1 Displays a reduced image. *2 Available when the PN-ZB01 (optional) is attached.

Specications

* All are compliant only with non-interlaced. * Depending on the connected PC, images may not be displayed properly even if the compatible signal described above is input. * The frequency values for the Sun are reference values.

Compatible signal timing (AV)

1920 × 1080p 24Hz - Yes -

1920 × 1080i 50Hz Yes Yes Yes

1280 × 720p 50Hz Yes Yes Yes

720 × 576p 50Hz Yes Yes Yes 720 × 480p 59.94Hz Yes Yes Yes

640 × 480p(VGA) 59.94Hz Yes Yes -

720(1440) × 576i 50Hz - Yes Yes 720(1440) × 480i 59.94Hz - Yes Yes

* Available when the PN-ZB01 (optional) is attached.

Screen resolution Frequency DVI-D* HDMI Component*

50Hz Yes Yes Yes

59.94Hz Yes Yes Yes 60Hz Yes Yes Yes

60Hz Yes Yes Yes

60Hz Yes Yes -

60Hz - Yes Yes

Specications

PC/AV DVI-D input terminal pins

(DVI-D 24 pin)

No. Function No. Function

1 TMDS data 2- 13 N.C. 2 TMDS data 2+ 14 +5V 3 TMDS data 2/4 shield 15 GND 4 N.C. 16 Hot-plug detection 5 N.C. 17 TMDS data 06 DDC clock 18 TMDS data 0+ 7 DDC data 19 TMDS data 0/5 shield 8 N.C. 20 N.C.

9 TMDS data 1- 21 N.C. 10 TMDS data 1+ 22 TMDS clock shield 11 TMDS data 1/3 shield 23 TMDS clock+ 12 N.C. 24 TMDS clock-

PC D-sub input terminal pins

(Mini D-sub 15 pin)

PC/AV HDMI input terminal pins

(HDMITM Connector)

No. Function No. Function

1 TMDS data 2+ 11 TMDS clock shield 2 TMDS data 2 shield 12 TMDS clock3 TMDS data 2- 13 CEC 4 TMDS data 1+ 14 N.C. 5 TMDS data 1 shield 15 SCL 6 TMDS data 1- 16 SDA 7 TMDS data 0+ 17 DDC/CEC GND 8 TMDS data 0 shield 18 +5V 9 TMDS data 0- 19 Hot-plug detection

10 TMDS clock+

RS-232C input terminal pins

(D-sub 9 pin)

No. Function No. Function

1 Red video signal input 9 +5V

2 Green video signal input 10 GND

3 Blue video signal input 11 N.C.

4 N.C. 12 DDC data

5 GND 13 Hsync signal input

6 GND for red video signal 14 Vsync signal input

7 GND for green video signal 15 DDC clock

8 GND for blue video signal

PC/AV DVI-D output terminal pins

(DVI-D 24 pin)

No. Function No. Function

1 TMDS data 2- 13 N.C.

2 TMDS data 2+ 14 +5V

3 TMDS data 2/4 shield 15 GND

4 N.C. 16 Hot-plug detection

5 N.C. 17 TMDS data 0-

6 DDC clock 18 TMDS data 0+

7 DDC data 19 TMDS data 0/5 shield

8 N.C. 20 N.C.

9 TMDS data 1- 21 N.C. 10 TMDS data 1+ 22 TMDS clock shield 11 TMDS data 1/3 shield 23 TMDS clock+ 12 N.C. 24 TMDS clock-

No. Function No. Function

1 N.C. 6 N.C. 2 Transmitted data 7 N.C. 3 Received data 8 N.C. 4 N.C. 9 N.C. 5 GND

RS-232C output terminal pins

(D-sub 9 pin)

No. Function No. Function

1 N.C. 6 N.C. 2 Received data 7 N.C. 3 Transmitted data 8 N.C. 4 N.C. 9 N.C. 5 GND

PN-E471E421 G EN10B(2)

Sharp PN-E471, PN-E421 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Part Names

Basic Operation

Menu Items

Displaying the menu screen

List of menu items

Menu item details

Adjustments for PC screen display

Initialization (Reset)/Functional Restriction Setting (FUNCTION)

Controlling the Monitor with a PC (RS-232C)

PC connection

Communication conditions

Communication procedure

Setting of the GAMMA user data

RS-232C command table

Controlling the Monitor with a PC (LAN)

Settings to connect to a LAN

Controlling with a PC

Troubleshooting
