Smart, Fluid, and Built for Impact—
Sharp BIG PAD with a Featherlight Touch
Sharp delivers a breakthrough in capacitive touch-panel technology—the PN-80TC3A interactive touchscreen monitor with a featherlight touch. Using this interface is so intuitive and responsive that it feels like writing on a conventional whiteboard.
The PN-80TC3A revolutionises the way you collaborate with colleagues or classmates. It allows you to display and freely annotate a huge variety of documents, with up to four people able to write onscreen at the same time.
Now, whether in the boardroom or the classroom, you can share your message with more precision than ever.
Intuitive Input Experience
Simultaneous Writing for Up to 4 People SHARP Pen Software
The PN-80TC3A lets you capture ideas at
the moment of creation. Recognising up to
10 touch points, it allows up to four people
to write at the same time with a finger or
touch pen. Each pen boasts a thin 3.5 mm
tip that makes it easier to add detailed
notes that remain legible when printed out.
Note: Two touch pens are bundled with the PN-80TC3A.
Pressure sensor
Function button
(page up/
page down)
Function button
(right mouse click/
SHARP Pen Soware link)
Touch Pen
Featherlight Touch for Precise and Smooth Operation
Say goodbye to unintended input and writing errors. Thanks to the
PN-80TC3A’s precise position detection, only intentional input from
fingers and touch pens appears on the display. Employing Sharp’s
original capacitive touch technology—which achieves high sensitivity
and precision by reducing the noise level to one-eighth that of
conventional models—the PN-80TC3A eliminates unwanted noise to
deliver a clear onscreen signal.
Regular touch-panel drive
Large amount of noise Reduced noise
Sensing frequency comparison
PN-80TC3A
PN-L802B
Sharp’s unique touch-panel drive
Approx.
200%
A Fluid, Smart, and Responsive Interface
The touch pen links with SHARP Pen
Soware to help you write with an
uninterrupted flow. Furthermore, you can
use the included eraser to delete unwanted
content without switching functions—just
as you would with a regular whiteboard.
Display, Write, and Share Information
In overlay mode, you can write onscreen annotations directly onto photos,
videos, PDFs, and documents such as Microso® Excel®, Word, and
PowerPoint®. Text and graphics written on the board can be stored in USB
memory* or sent directly via e-mail to selected recipients.
Note: Documents displayed in the background of the board during overlay mode cannot be
accessed directly.
* Saved as PDF, BMP, JPEG, or PNG files.
Handwriting Recognition
The PN-80TC3A features a handwriting recognition* function that converts
selected onscreen handwriting into standard text. It can also automatically
recognise and reproduce handwritten shapes such as circles, triangles, and
squares. This convenient function makes it easy to utilise onscreen content
to make a legible record of your meeting or lesson.
* Works with languages supported by SHARP Pen Software.
Presentation Support Tool
SHARP Pen Soware links smoothly with the PowerPoint application. During
slideshow presentations, you can perform various control operations, such
as returning to a previous slide without using a right-click.
* Compatible applications: Microsoft PowerPoint 2007/2010/2013/2016
SHARP Touch Viewing Software
SHARP Touch Viewing Soware* is a touch-operated onscreen user
interface that lets you easily manipulate dierent types of files,
including Microso® Oice applications, videos, and web pages. Being
able to simultaneously open and handle a variety of file types allows
you to have more active meetings.
* Access the downloader on the bundled CD-ROM to install the software.
Previous
page
Next
page
Pen Eraser
SHARP
Pen
Soware
ClosePoint
Multi Board Function
Up to three PN-80TC3A units can be connected and used to display
sequential pages that can be navigated by swiping side to side. With the
Multi Board function*, meeting participants are better able to grasp the
overall flow of a presentation.
* Multi Board function allows one PN-80TC3A to be touch-operated. For more advanced usage,
touch-operation can be activated on the combined three units. Consult with your local
authorised Sharp dealer or representative for details.
Smartly Designed for Easy Connectivity
Touch-Operated Onscreen Display
Pressing the Touch Menu button brings
up an onscreen menu that lets you
easily switch input sources, change
volume level, or turn the touchscreen
function on and o—all from the front
of the PN-80TC3A and all without the
need for a remote controller.
Touch Menu buttonPower button
Frontside Access to USB Port
For increased convenience when the panel is
mounted on a wall, the PN-80TC3A features a
USB input on the front that connects to the
set-top box on the back of the unit. Now there’s
no need to reach around the back of the monitor
when you want to connect a peripheral device.
Note: The set-top box is sold separately.
USB Port
Installation of Web Cameras
The PN-80TC3A supports installation of
a web camera in any one of seven
positions*, giving you the flexibility to
find the optimal set-up to match your
room layout and seating arrangements.
* The camera mount cannot be attached in the bottom-centre position when the tray is
attached. To attach the camera mount there, it is necessary to remove the tray mount fitting.
Work Smarter with SHARP Display Connect
SHARP Display Connect*1 soware supports eective and multifaceted
communication. By enabling connection with mobile devices*
Display Connect facilitates interactive presentations, lively discussions,
and paperless meetings in both business and educational settings.
SHARP Display Connect enables the following interactive functions on the
PN-80TC3A and mobile devices connected via wireless LAN:
• sharing of onscreen content
• transfer of files
• interactive onscreen writing and drawing
• remote control of the PN-80TC3A from mobile devices
Up to 50 mobile devices*2 can be connected simultaneously.
Files can be transferred between mobile devices even if they are not
connected to the PN-80TC3A.
Users can capture onscreen images and save them on their mobile devices
to make personally annotated memos.
SHARP Display Connect also connects two BIG PAD on the same network
(intranet, VPN, etc.) to enable larger-scale interactive communications.
LCD monitor:
PN-80TC3A used with bundled soware CD-ROM: Max. 50
PC
Tablet
Smartphone
2
, SHARP
A Variety of Input and Output Terminals
The PN-80TC3A comes standard-equipped with a wealth of input and
output terminals—located on the side and bottom of the monitor—to
enable easy connection with a wide variety of equipment.
MFP Connectivity
Documents and colour images scanned from a compatible Sharp MFP
can be imported directly to the SHARP Pen Soware for display on the
PN-80TC3A. For added convenience, image data shown onscreen—
including notations—can be saved to a PC or sent directly to an MFP for
printout.
*1 Access the downloader on the bundled CD-ROM to install the soware.
*2 OS requirements (as of March 2017): Host: Windows® 7, Windows 8.1, Windows 10; Client:
Windows 7, Windows 8.1, Windows 10, Mac® OS X® v10.7, v10.8, v10.9, v10.10, v10.11,
macOS® v10.12, Android™ 2.3–7.1, iOS® 6–10. Please comply with the license agreements of
your OS and installed applications. Connecting 26 or more mobile devices requires at least
two LAN access points.
Other Value-Adding Functions
• Multiple displays can be wall mounted together
• Safe design incorporating rounded corners
• Thin, lightweight, and fully flat screen
• Built-in speakers
• Anti-glare film to minimise reflections
Safe design

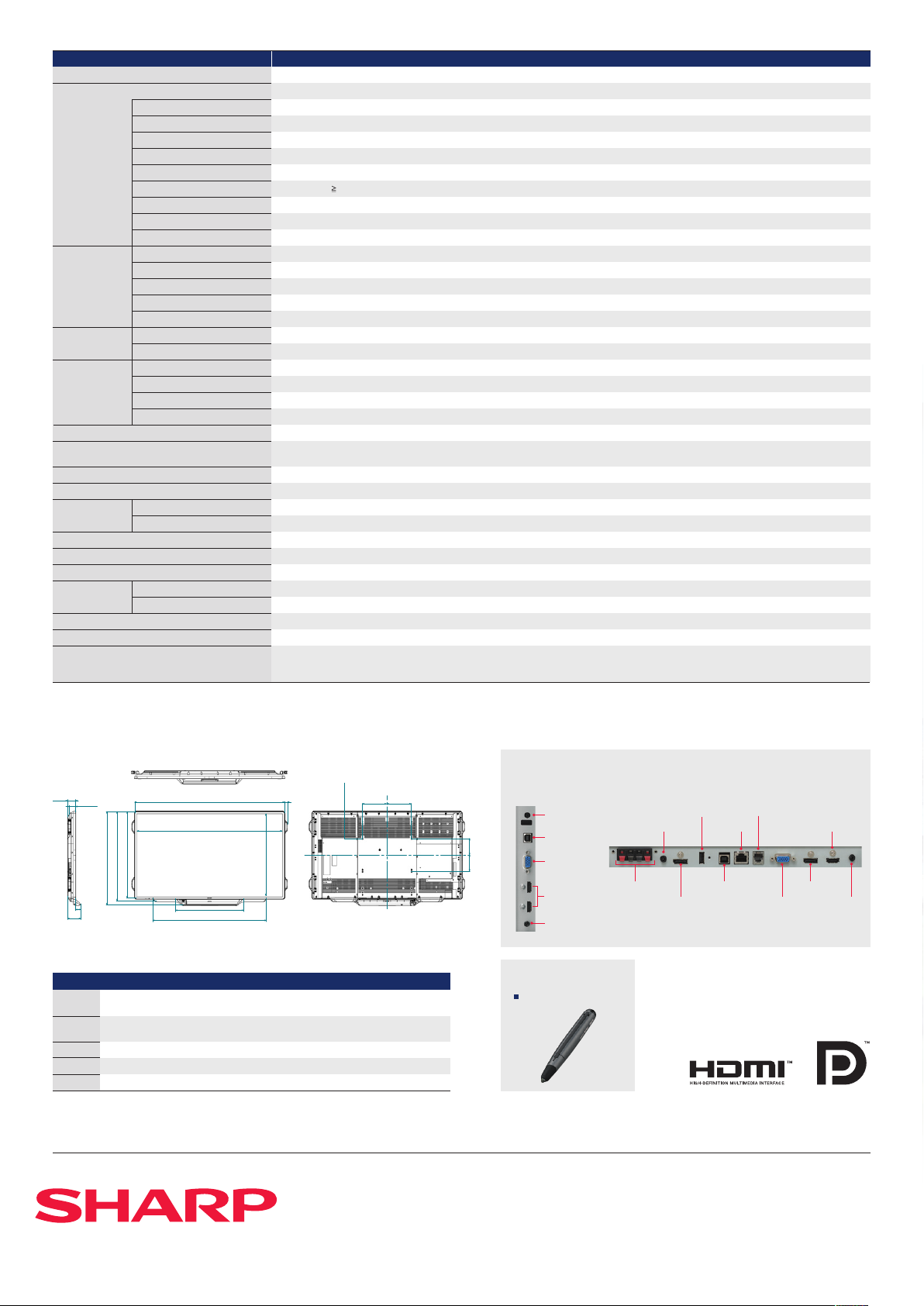

Specifications
Model Name PN-80TC3A
Installation
LCD Panel
Max. Resolution
Max. Display Colours (approx.)
Pixel Pitch (H x V)
Max. Brightness (average)*
Contrast Ratio
Viewing Angle (H/V)
Active Screen Area (W x H) (approx.)
Response Time
Backlight
Touchscreen Touch Technology
PC Connection Port
Power Supply
Multi Touch
Protection Glass
Touch Pen Communication
Function Button
Computer Input Video
Synchronisation
Plug & Play
Power Management
Video Colour System
Input Terminals*
Output Terminals*
Input/Output Terminals*
5
5
5
Speaker Output Built-in
External
Mounting
Power Supply
Power Consumption
Environmental Operating Temperature
Conditions
Operating Humidity
Dimensions (W x D x H) (approx.) (display only)
Weight (approx.)
Main Accessories
*1 UV2A stands for Ultraviolet-induced Multi-domain Vertical Alignment, a photo-alignment technology that ensures uniform alignment of liquid crystal molecules. *2 Brightness depends on input mode and other picture settings.
Brightness level will decrease slightly over the lifetime of the product. Due to the physical limitations of the equipment, it is not possible to maintain a precisely constant level of brightness. *3 Including AG film on the front and AR
film on the back. *4 Approximate distance at which the glass panel can withstand the impact of a 500-gram iron ball dropped on its center. *5 Use a commercially available connection cable for PC and other video connections.
*6 Analogue PC, video, and component video are switchable (on bottom interface); use the menu to select. Video and component video connections require conversion cable via mini D-sub 15-pin jack. *7 Requires the bundled
RS-232C conversion cable. *8 Only command control.
Landscape / Portrait
80-inch widescreen (203.2 cm diagonal) UV
2A*1
LCD
1,920 x 1,080 pixels
1.06 billion colours
0.923 x 0.923 mm
2
300 cd/m
2
4,000 : 1
176°/176° (CR 10)
1,771.2 x 996.3 mm (69
3
/4" x 39 1/4")
4 ms (grey to grey, avg.)
LED, full array
Capacitive touch technology
USB 2.0 (type B) x 2
Supplied from main unit
10 points
Thickness: Approx. 3.8 mm*
3
Shock resistance: 130 cm*
4
Wireless communication method (capacitive touch technology)
Yes
Analogue RGB (0.7 Vp-p) [75Ω], DisplayPort™ 1.1a
Horizontal/vertical separation (TTL: positive/negative), Sync on green (D-sub 15-pin only), Composite sync (TTL: positive/negative)
VESA DDC2B
VESA DPMS
NTSC (3.58 MHz, 4.43 MHz), PAL, PAL60, SECAM
PC analogue: Mini D-sub 15-pin x 2*
6
1*
, Component video x 1*6, DisplayPort (HDCP compatible, PC signal compatible) x 1, RS-232C x 1*7*8
6
, HDMI™ (HDCP and 1080p compatible, PC/AV signal compatible) x 3, 3.5 mm-diameter mini stereo jack x 2, Video x
3.5 mm-diameter mini stereo jack x 1, DisplayPort (HDCP compatible) x 1
LAN port (10Base-T/100Base-TX) x 1
10 W + 10 W
10 W + 10 W (6Ω)
VESA (4 points), 600 x 400 mm pitch, M6 screw
100V – 240V AC, 50/60 Hz
280 W
5˚C to 35˚C
20% to 80% RH (no condensation)
1,850 x 96 x 1,072 mm (72
13
/16" x 3 3/4" x 42 3/16")
77 kg (169.8 lbs)
AC power cord, remote control unit, battery (AA size) x 2, set-up manual, blank sticker, cable clamps x 7, camera mount, USB cable (3.0 m),
USB extension cable (1.8 m), eraser, pen tray, touch pen (with function button) x 2, pen adaptor, touch pen battery (AAA size) x 2,
SHARP Display Connect soware CD-ROM, RS-232C conversion cable (3.5 mm-diameter mini stereo jack) x 1
Dimensions
96
80
(3 3/4)
1
(3
/8)
)
)
)
16
16
/
16
/
3
/
9
7
1,072 (42
1,106 (43
1,154 (45
65 (2 9/16)
5
/16)
161 (6
Units: mm (inch)
* Screen dimensions
* To use the VESA-standard mounting bracket, use M6 screws that are 8 to 10 mm plus the thickness of the bracket.
1,850 (72 13/16) 35 (1 3/8)
1,792* (70 9/16)
1
844 (33
1,408 (55 7/16)
)
16
/
13
1,012* (39
/4)
Windows® PC System Requirements
PC
CPU
OS
Memory
Hard disk
* Use in desktop mode
Microso, Windows, Excel, and PowerPoint are either registered trademarks or trademarks of Microso Corporation in the US and/or other countries. Mac, OS X, and macOS are trademarks of Apple Inc., registered in the U.S. and other countries. Android is
a trademark of Google Inc. iOS is a trademark or registered trademark of Cisco in the US and other countries and is used under license. DisplayPort and the DisplayPort Compliance Logo are trademarks owned by the Video Electronics Standards
Association in the US and other countries. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. Intel,
Intel Core, and Celeron are trademarks of Intel Corporation in the US and/or other countries. All other brand names and product names may be trademarks or registered trademarks of their respective owners. All screen images appearing in this brochure
are simulated. Design and specifications are subject to change without prior notice.
PC/AT compatible machine with USB 2.0 port and screen resolution of 1,920 x 1,080
(CD-ROM drive required for installation)
Intel® Celeron® B810E 1.6 GHz or higher
Intel® Core™ i7-3517UE 1.7 GHz or higher recommended
Windows® 7 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 10 (32-bit/64-bit)*
2 GB or more
200 MB or more free space (additional space required for saving data)
VESA holes*
300
(11 13/16)
300
(11 13/16)
Input/Output Terminals
(Side) (Bottom)
Control
)
8
/
7
200
(7
)
8
/
7
200
(7
(RS-232C input)
USB (for PC)
PC analogue
input RGB
(D-sub)
PC/AV input
(HDMI)
Audio input
External speakers
Option
PN-ZL03A : Touch Pen
USB (for pen adaptor)
Audio output
DisplayPort output
LAN port
USB (for PC)
PC analogue input
(D-sub)
Option terminal
PC/AV input (HDMI)
DisplayPort input
Audio input
Distributed by:
©SHARP CORPORATION (JUL. 2017)
Loading...
