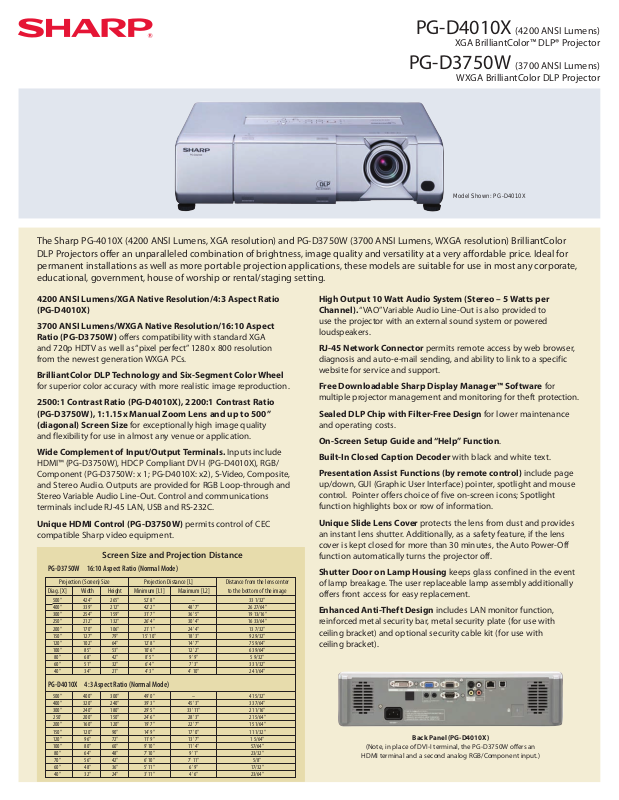

Sharp PG-D3750W, PG-D4010X Specification
PG-D4010X (4200 ANSI Lumens)
XGA BrilliantColor™ DLP® Projector
PG-D3750W (3700 ANSI Lumens)
WXGA BrilliantColor DLP Projector
Model Shown: PG-D4010X
The Sharp PG-4010X (4200 ANSI Lumens, XGA resolution) and PG-D3750W (3700 ANSI Lumens, WXGA resolution) BrilliantColor
DLP Projectors oer an unparalleled combination of brightness, image quality and versatility at a very aordable price. Ideal for
permanent installations as well as more portable projection applications, these models are suitable for use in most any corporate,
educational, government, house of worship or rental/staging setting.
4200 ANSI Lumens/XGA Native Resolution/4:3 Aspect Ratio
(PG-D4010X)
3700 ANSI Lumens/WXGA Native Resolution/16:10 Aspect
Ratio (PG-D3750W)
offers compatibility with standard XGA
and 720p HDTV as well as “pixel perfect” 1280 x 800 resolution
from the newest generation WXGA PCs.
BrilliantColor DLP Technology and Six-Segment Color Wheel
for superior color accuracy with more realistic image reproduction.
2500:1 Contrast Ratio (PG-D4010X), 2200:1 Contrast Ratio
(PG-D3750W), 1:1.15x Manual Zoom Lens and up to 500”
(diagonal) Screen Size
for exceptionally high image quality
and flexibility for use in almost any venue or application.
Wide Complement of Input/Output Terminals.
Inputs include
HDMI™ (PG-D3750W), HDCP Compliant DVI-I (PG-D4010X), RGB/
Component (PG-D3750W: x 1; PG-D4010X: x2), S-Video, Composite,
and Stereo Audio. Outputs are provided for RGB Loop-through and
Stereo Variable Audio Line-Out. Control and communications
terminals include RJ-45 LAN, USB and RS-232C.
Unique HDMI Control (PG-D3750W)
permits control of CEC
compatible Sharp video equipment.
Screen Size and Projection Distance
PG-D3750W 16:10 Aspect Ratio (Normal Mode)
Projection (Screen) Size Projection Distance [L] Distance from the lens center
Diag. [X] Width Height Minimum [L1] Maximum [L2] to the bottom of the image
500" 424" 265" 52' 8" – 33 1/32"
400" 339" 212" 42' 2" 48' 7" 26 27/64"
300" 254" 159" 31' 7" 36' 5" 19 13/16"
250" 212" 132" 26' 4" 30' 4" 16 33/64"
200" 170" 106" 21' 1" 24' 4" 13 7/32"
150" 127" 79" 15' 10" 18' 3" 9 29/32"
120" 102" 64" 12' 8" 14' 7" 7 59/64"
100" 85" 53" 10' 6" 12' 2" 6 39/64"
80" 68" 42" 8' 5" 9' 9" 5 9/32"
60" 51" 32" 6' 4" 7' 3" 3 31/32"
40" 34" 21" 4' 3" 4' 10" 2 41/64"
PG-D4010X 4:3 Aspect Ratio (Normal Mode)
500" 400" 300" 49' 0" – 4 15/32"
400" 320" 240" 39' 3" 45' 3" 3 37/64"
300" 240" 180" 29' 5" 33' 11" 2 11/16"
250' 200" 150" 24' 6" 28' 3" 2 15/64"
200" 160" 120" 19' 7" 22' 7" 1 51/64"
150" 120" 90" 14' 9" 17' 0" 1 11/32"
120" 96" 72" 11' 9" 13' 7" 1 5/64"
100" 80" 60" 9' 10" 11' 4" 57/64"
80" 64" 48" 7' 10" 9' 1" 23/32"
70" 56" 42" 6' 10" 7' 11" 5/8"
60" 48" 36" 5' 11" 6' 9" 17/32"
40" 32" 24" 3' 11" 4' 6" 23/64"
High Output 10 Watt Audio System (Stereo – 5 Watts per
Channel).
“VAO” Variable Audio Line-Out is also provided to
use the projector with an external sound system or powered
loudspeakers.
RJ-45 Network Connector
permits remote access by web browser,
diagnosis and auto-e-mail sending, and ability to link to a specific
website for service and support.
Free Downloadable Sharp Display Manager™ Software
for
multiple projector management and monitoring for theft protection.
Sealed DLP Chip with Filter-Free Design
for lower maintenance
and operating costs.
On-Screen Setup Guide and “Help” Function
Built-In Closed Caption Decoder
with black and white text.
Presentation Assist Functions (by remote control)
.
include page
up/down, GUI (Graphic User Interface) pointer, spotlight and mouse
control. Pointer offers choice of five on-screen icons; Spotlight
function highlights box or row of information.
Unique Slide Lens Cover
protects the lens from dust and provides
an instant lens shutter. Additionally, as a safety feature, if the lens
cover is kept closed for more than 30 minutes, the Auto Power-Off
function automatically turns the projector off.
Shutter Door on Lamp Housing
keeps glass confined in the event
of lamp breakage. The user replaceable lamp assembly additionally
offers front access for easy replacement.
Enhanced Anti-Theft Design
includes LAN monitor function,
reinforced metal security bar, metal security plate (for use with
ceiling bracket) and optional security cable kit (for use with
ceiling bracket).
(Note, in place of DVI-I terminal, the PG-D3750W offers an
HDMI terminal and a second analog RGB/Component input.)
Back Panel (PG-D4010X)
PG-D4010X / PG-D3750W
Specifications
Model Number PG-D4010X PG-D3750W
Display Device Single 0.7" DLP chip x 1 Single 0.65" DLP chip x 1
Native Resolution/Aspect Ratio XGA (1024 x 768) / 4:3 WXGA (1280 x 800) / 16:10
Brightness 4,200 ANSI Lumens 3,700 ANSI Lumens
Contrast Ratio 2500:1 2200:1
Manual Zoom/Focus Lens 1.15x Zoom (f = 21.0 ~ 24.2mm), F2.5 ~ 2.7
Screen Size (Min/Max) 40” (102cm) to 500” (1,270cm) diagonal
Input Signals – Computer RGB UXGA** / WSXGA+* * / SXGA+* UXGA**/ WSXGA+**/ SXGA+*
WXGA *1 / XGA / SVGA / VGA WXGA / XGA / SVGA / VGA
Mac 21" / 19" / 16" / 13" Mac 21" / 19" / 16" / 13"
Input Signals – DTV/HDTV 1080p / 1080i / 720p / 576p / 576i / 540p / 480p / 480i ; NTSC / PAL / SECAM
Input Terminals 1 - DVI-I (RGB/HDCP); 1 - Computer/Component 1 – HDMI™; 2 - Computer Component
(mini D-sub 15 pin); 1 - S-Video (mini DIN 4 pin); (mini D-sub 15 pin); 1 - S-Video (mini DIN 4 pin);
1 - Composite Video (RCA pin type); 1 - Stereo 1 - CompositeVideo (RCA pin type); 1 - Stereo
Audio (3.5mm stereo mini jack); Audio (3.5mm stereo mini jack);
1 - Stereo Audio (RCA L/R) 1 – Stereo Audio (RCA L/R)
Output Terminals 1 - Computer / Component (mini D-sub 15-pin);
1 - Stereo Variable Audio Line Out (3.5mm stereo mini jack)
Control and Communications Terminals LAN (RJ-45); USB (type B); RS-232C (mini D-sub 9 pin)
Control System Compatibility Crestron®, AMX®, Extron®, Bitlogix®
Closed Caption Yes (CC1, CC2)
On-Screen Display Languages English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Russian,
Polish, Hungarian, Turkish, Arabic, Persian, simplied Chinese, Korean, Japanese
Horizontal/Vertical Frequency 15 – 110 kHz (H) / 45 – 85 Hz (V)
Audio System Stereo – 5 Watts per Channel (total 10 Watts)
Fan Noise 35 dB (Bright), 30 dB (Eco+Quiet)
Lamp Module AN-D400LP or AN-D400LP/1 (330 W, user replaceable with front access)
Estimated Lamp Life 2000 hours (Bright), 3000 hours (Eco+Quiet)
Power Source 100 – 240V, 50/60 Hz, 4.5 A input current
Power Consumption (Standby) 429 W (10.2W) at 100V AC; 408 W (10.8 W) at 240V AC429 W (10.6W) at 100V AC; 408 W (11.2 W) at 240V AC
Operating/Storage Temperature 41ºF to 95ºF (+5ºC to 35ºC) / -4ºF to 140ºF (-20ºC to +60ºC)
IR Wireless Remote Control Yes – with Presentation Assist Functions (page up/down, graphic
user interface [GUI] pointer, spotlight and mouse control)
Heat Dissipation 1610 BTU / hour with AV 100V (Bright), 1200 BTU / hour with AC 100V (Eco+Quiet)
1530 BTU / hour with AV 240V (Bright), 1150 BTU / hour with AC 240V (Eco+Quiet)
Safety Approval UL, FCC Class A
Main Body Dimensions W x H x D 15-3/4" x 4-15/16" x 13-13/64" (400 x 100 x 335 mm)
Weight (Approx.) 12.8 lbs. (5.8 kg)
Included Accessories Wireless Remote Control; two AA Batteries; 6’ AC Power Cord; 10' RGB Signal Cable;
Operation Manual, CD-ROM
Optional Accessories AN-XGCM55 Ceiling Mount Bracket; AN-EP101B Ceiling Mount Extension Tube; AN-JT200 Angle-Mount
Joint for ceiling mount; AN-CMCSS16 16" Security Cable System (for use with ceiling mount); AN-CMCSS46
46" Security Cable System (for use with ceiling mount); AN-C3CP2 3-RCA to 15-pin D-sub cable (10'); AN-MR2
Remote IR Receiver (for forward/back presentation control in ceiling mount installations); AN-D400WCC Hard-Shell
Wheeled Storage Bag; AN-D400SC “ATA” Style Shipping Case
UPC 074000365766 074000365773
Limited Warranty*3 3 Years Parts and Labor including 3 Years “ER” 24-Hour Turnaround
Express Repair. (90 day warranty on user-replaceable projection lamp.)
*1 Compatible in intelligent compression
*2 Analog RGB signal only
*3 See warranty statement included with product, or as PDF download at www.sharpusa.com
Design and Specications are subject to change without notice.
Sharp and related trademarks are trademarks or registered trademarks of Sharp Corporation and/or its afliated entities.
DlP, the DlP logo, DlP medallion and Brilliantcolor are trademarks or registered trademarks of texas instruments.
HDMI, the HDMI Logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
licensing llc. all other trademarks are the property of their respective owners.
SharP ElEctronicS corPoration
Professional Display Division
Sharp Plaza, Mahwah, nJ 07495-1163
For more information call: 1-866-4-ViSUal (1-866-484-7825)
www.sharpusa.com/projectors
© 2009 Sharp Electronics corporation. all rights reserved. Printed in the U.S.a. 7-22-09 lc-02-355
