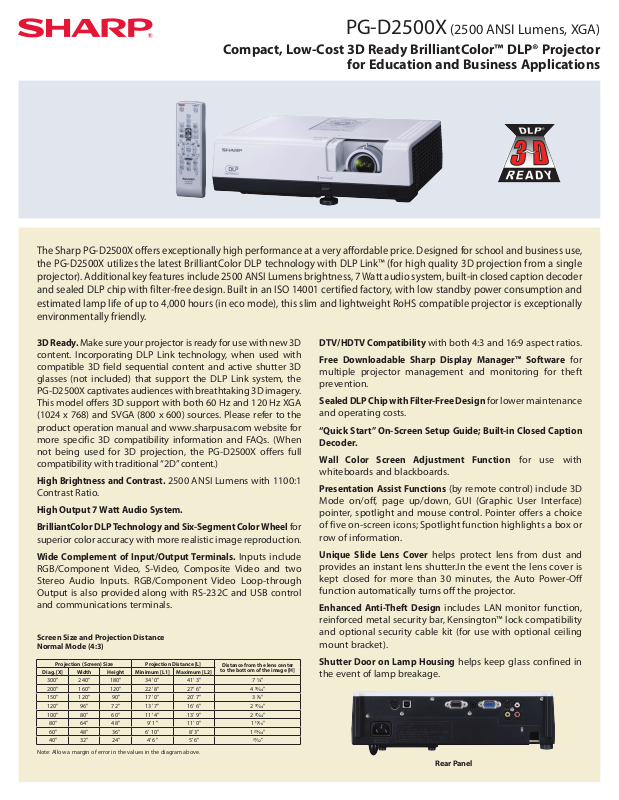

PG-D2500X (2500 ANSI Lumens, XGA)
Compact, Low-Cost 3D Ready BrilliantColor™ DLP® Projector
for Education and Business Applications
The Sharp PG-D2500X offers exceptionally high performance at a very affordable price. Designed for school and business use,
the PG-D2500X utilizes the latest BrilliantColor DLP technology with DLP Link™ (for high quality 3D projection from a single
projector). Additional key features include 2500 ANSI Lumens brightness, 7 Watt audio system, built-in closed caption decoder
and sealed DLP chip with filter-free design. Built in an ISO 14001 certified factory, with low standby power consumption and
estimated lamp life of up to 4,000 hours (in eco mode), this slim and lightweight RoHS compatible projector is exceptionally
environmentally friendly.
3D Ready.
Make sure your projector is ready for use with new 3D
content. Incorporating DLP Link technology, when used with
compatible 3D field sequential content and active shutter 3D
glasses (not included) that support the DLP Link system, the
PG-D2500X captivates audiences with breathtaking 3D imagery.
This model offers 3D support with both 60 Hz and 120 Hz XGA
(1024 x 768) and SVGA (800 x 600) sources. Please refer to the
product operation manual and www.sharpusa.com website for
more specific 3D compatibility information and FAQs. (When
not being used for 3D projection, the PG-D2500X offers full
compatibility with traditional “2D” content.)
High Brightness and Contrast.
2500 ANSI Lumens with 1100:1
Contrast Ratio.
High Output 7 Watt Audio System.
BrilliantColor DLP Technology and Six-Segment Color Wheel
for
superior color accuracy with more realistic image reproduction.
Wide Complement of Input/Output Terminals.
Inputs include
RGB/Component Video, S-Video, Composite Video and two
Stereo Audio Inputs. RGB/Component Video Loop-through
Output is also provided along with RS-232C and USB control
and communications terminals.
Screen Size and Projection Distance
Normal Mode (4:3)
Projection (Screen) Size Projection Distance [L]
Diag. [X] Width Height Minimum [L1] Maximum [L2]
300" 240" 180" 34' 0" 41' 3" 7 ¼"
200" 160" 120" 22' 8" 27' 6" 4 ⁄"
150" 120" 90" 17' 0" 20' 7" 3 ⁄"
120" 96" 72" 13' 7" 16' 6" 2 ⁄"
100" 80" 60" 11' 4" 13' 9" 2 ⁄"
80" 64" 48" 9' 1" 11' 0" 1 ⁄"
60" 48" 36" 6' 10" 8' 3" 1 ⁄"
40" 32" 24" 4' 6" 5' 6" ⁄"
Note: Allow a margin of error in the values in the diagram above.
Distance from the lens center
to the bottom of the image [H]
DTV/HDTV Compatibility
Free Downloadable Sharp Display Manager™ Software
with both 4:3 and 16:9 aspect ratios.
for
multiple projector management and monitoring for theft
prevention.
Sealed DLP Chip with Filter-Free Design
for lower maintenance
and operating costs.
“Quick Start” On-Screen Setup Guide; Built-in Closed Caption
Decoder.
Wall Color Screen Adjustment Function
for use with
whiteboards and blackboards.
Presentation Assist Functions
(by remote control) include 3D
Mode on/off, page up/down, GUI (Graphic User Interface)
pointer, spotlight and mouse control. Pointer offers a choice
of five on-screen icons; Spotlight function highlights a box or
row of information.
Unique Slide Lens Cover
helps protect lens from dust and
provides an instant lens shutter.In the event the lens cover is
kept closed for more than 30 minutes, the Auto Power-Off
function automatically turns off the projector.
Enhanced Anti-Theft Design
includes LAN monitor function,
reinforced metal security bar, Kensington™ lock compatibility
and optional security cable kit (for use with optional ceiling
mount bracket).
Shutter Door on Lamp Housing
helps keep glass confined in
the event of lamp breakage.
Rear Panel
Page 2
PG-D2500X (2500 ANSI Lumens, XGA)
Specifications
Model Number PG-D2500X
3D Ready Yes. Compatible with DLP Link™ Technology
Display Device 0.55" DLP® Chip x 1 with BrilliantColor™ Technology
Color Wheel 6-Segment
Native Resolution/Aspect Ratio XGA (1024 x 768) / 4:3
Brightness/Contrast Ratio 2500 ANSI Lumens / 1100:1
Manual Zoom/Focus Lens 1:1.2x Zoom (f = 19.0~22.7mm), F 2.4~2.6
Screen Size (Min/Max) 40" (102cm) to 300" (762cm) diagonal
Input Signals - Computer RGB UXGA*
Input Signals - DTV/HDTV 1080p, 1080i, 720p, 576i, 540p, 480p, 480i; NTSC, PAL, SECAM
Input Terminals 1 - Computer/Component (mini D-sub 15 pin); 1 - S-Video (mini DIN 4 pin); 1 - Composite Video
(RCA pin type); 1 - Stereo Audio (3.5mm stereo mini jack); 1 - Stereo Audio (RCA L/R)
Output Terminals 1 - Computer/Component (mini D-sub 15-pin) loop-through output
Control and Communications Terminals USB (type B); RS-232C (mini DIN 9-pin)
Control System Compatibility Crestron®, AMX®, Extron®, Bitlogix®
Closed Caption Yes (CC1, CC2)
On-Screen Display Languages English, German, Spanish, French, Dutch, Italian, Swedish, Portuguese, Russian,
Polish, Hungarian, Turkish, Arabic, Persian, simplified Chinese, Korean, Japanese
Horizontal/Vertical Frequency 15 - 110 kHz (H) / 45 - 85 Hz (V)
Audio System 7 Watts (Monaural)
Fan Noise (Eco+Quiet Off/On) 35 dB / 30 dB
Lamp Module AN-D350LP or AN-D350LP/1 ; 210 Watt DC, User-Replaceable
Estimated Lamp Life Up to 2000 Hours (Eco+Quiet: Off); Up to 4000 Hours (Eco+Quiet: On)
Power Source 100 - 240V, 50/60 Hz, 2.8A current
Power Consumption 274W @ 100V (0.32W standby mode); 265W @ 240V (0.77W standby mode)
Operating/Storage Temperature 41°F to 95°F (+5°C to 35°C) / -4°F to 140°F (-20°C to +60°C)
IR Wireless Remote Control Yes - with presentation assist functions (3D on/off, page up/down,
graphic user interface (GUI) pointer, spotlight and mouse control)
Picture Modes Standard, Presentation, sRGB, Movie, Game
Heat Dissipation "940 BTU / hour with AC 100V (Eco+Quiet: Off ), 740 BTU / hour with AC 100V (Eco+Quiet: On);
910 BTU / hour with AC 240V (Eco+Quiet: Off ), 720 BTU / hour with AC 240V (Eco+Quiet: On)"
Safety Approval UL, FCC Class A
Main Body Dimensions (W x H x D) 11-52/64 x 3-1/8 x 9-19/64 (300 x 79 x 236 mm)
Weight 6.2 lbs. (2.8 kg)
Included Accessories Wireless Remote Control; two AA Batteries, 6' AC Power Cord;
10' RGB Signal Cable; Operation Manual, CD-ROM
Optional Accessories AN-XRCM30 Ceiling Mount Bracket; AN-EP101B Ceiling Mount Extension Tube; AN-JT200
Angle-Mount Joint for ceiling mount; AN-CMCSS16 16" Security Cable System (for use with ceiling
mount); AN-CMCSS46 46" Security Cable System (for use with ceiling mount and extension tube);
AN-C3CP2 3-RCA (component video) to 15-pin D-sub cable (10'); AN-A1RS RS-232C Adapter; AN-MR2
Remote IR Receiver (for forward/back presentation control in ceiling mount installations);
AN-C500SB Light Duty Storage Bag; AN-D200WCC Hard-Shell Wheeled Storage Bag.
UPC 074000365858
Limited Warranty*
2
3 Years Parts and Labor including 3 Years of "ER" 24-hour turnaround Express Repair.
90 day warranty on user-replaceable projection lamp.
*1 Compatible in intelligent compression
*2 See warranty statement included with product, or as PDF download at www.sharpusa.com
Design and Specifications are subject to change without notice.
Sharp and related trademarks are trademarks or registered trademarks of Sharp Corporation and/or its affiliated entities.
DLP, the DLP logo, DLP Link, DLP medallion and BrilliantColor are trademarks or registered trademarks of Texas Instruments.
Crestron is a registered trademark of Crestron Electronics, Inc. AMX is a registered trademark of AMX Corporation. Bitlogix is a registered trademark of Bitlogix Software LLC.
Kensington is a U.S. registered trademark of ACCO World Corporation with issued registrations and pending applications on other countries throughout the world.
All other trademarks are the property of their respective owners.
SHARP ELECTRONICS CORPORATION
Professional Display Division
Sharp Plaza, Mahwah, NJ 07495-1163
For more information call: 1-866-4-VISUAL (1-866-484-7825)
www.sharpusa.com/projectors
© 2010 Sharp Electronics Corporation. All rights reserved. Printed in the U.S.A. 01-10 LC-02-360
1
, SXGA+*1,SXGA*1, WXGA*1, XGA, SVGA / Mac 21"*1, 19", 16", 13"
