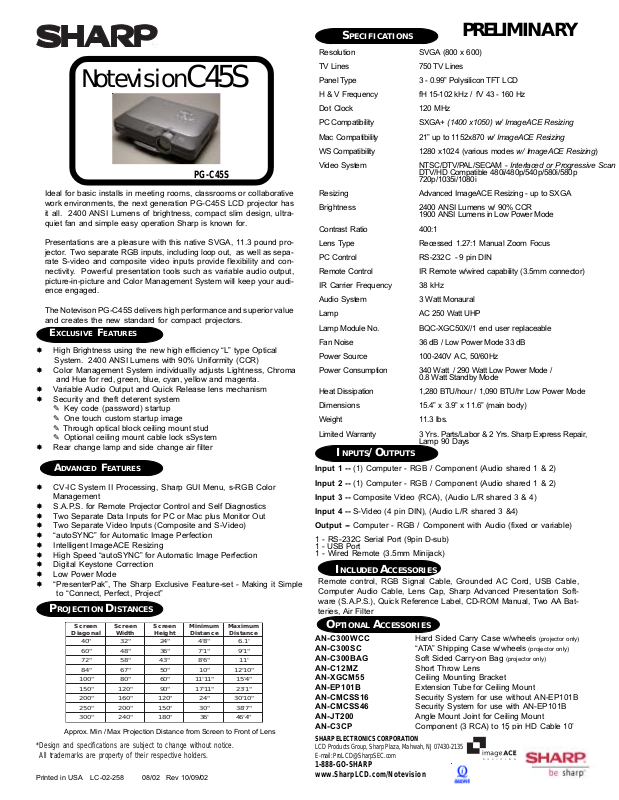

Sharp PG-C45S Service Manual

NotevisionC45S

PG-C45S

Ideal for basic installs in meeting rooms, classrooms or collaborative
work environments, the next generation PG-C45S LCD projector has
it all. 2400 ANSI Lumens of brightness, compact slim design, ultra­quiet fan and simple easy operation Sharp is known for.

Presentations are a pleasure with this native SVGA, 11.3 pound pro­jector. Two separate RGB inputs, including loop out, as well as sepa­rate S-video and composite video inputs provide flexibility and con­nectivity. Powerful presentation tools such as variable audio output,
picture-in-picture and Color Management System will keep your audi­ence engaged.

The Notevison PG-C45S delivers high performance and superior value
and creates the new standard for compact projectors.

EXCLUSIVE FEATURES

✸ High Brightness using the new high efficiency “L” type Optical

System. 2400 ANSI Lumens with 90% Uniformity (CCR)

ADVANCED FEATURES

✸ Color Management System individually adjusts Lightness, Chroma

and Hue for red, green, blue, cyan, yellow and magenta.

✸ Variable Audio Output and Quick Release lens mechanism
✸ Security and theft deterent system

✎ Key code (password) startup
✎ One touch custom startup image
✎ Through optical block ceiling mount stud
✎ Optional ceiling mount cable lock sSystem

✸ Rear change lamp and side change air filter

ADVANCED FEATURES

✸ CV-IC System II Processing, Sharp GUI Menu, s-RGB Color

Management

✸ S.A.P.S. for Remote Projector Control and Self Diagnostics
✸ Two Separate Data Inputs for PC or Mac plus Monitor Out
✸ Two Separate Video Inputs (Composite and S-Video)
✸ “autoSYNC” for Automatic Image Perfection
✸ Intelligent ImageACE Resizing
✸ High Speed “autoSYNC” for Automatic Image Perfection
✸ Digital Keystone Correction
✸ Low Power Mode
✸ “PresenterPak”, The Sharp Exclusive Feature-set - Making it Simple

to “Connect, Perfect, Project”

PROJECTION DISTANCES

neercS

lanogaiD

"04"23"42"8'4'1.6
"06"84"63"1'7"1'9
"27"85"34"6'8'11
"48"76"05"01"01'21

"001"08"06"11'11"4'51
"051"021"09"11'71"1'32
"002"061"021"42"01'03
"052"002"051"03"7'83
"003"042"081'63"4'64

Approx. Min / Max Projection Distance from Screen to Front of Lens

*Design and specifications are subject to change without notice.
All trademarks are property of their respective holders.

Printed in USA LC-02-258 08/02 Rev 10/09/02

neercS

htdiW

ADVANCED FEATURES

neercS

thgieH

muminiM

ecnatsiD

mumixaM

ecnatsiD

SPECIFICATIONS

Resolution SVGA (800 x 600)

TV Lines 750 TV Lines

Panel Type 3 - 0.99” Polysilicon TFT LCD

H & V Frequency fH 15-102 kHz / fV 43 - 160 Hz

Dot Clock 120 MHz

PC Compatibility SXGA+ (1400 x1050) w/ ImageACE Resizing

Mac Compatibility 21” up to 1152x870 w/ ImageACE Resizing

WS Compatibility 1280 x1024 (various modes w/ ImageACE Resizing)

Video System NTSC/DTV/PAL/SECAM - Interlaced or Progressive Scan

Resizing Advanced ImageACE Resizing - up to SXGA

Brightness 2400 ANSI Lumens w/ 90% CCR

Contrast Ratio 400:1

Lens Type Recessed 1.27:1 Manual Zoom Focus

PC Control RS-232C - 9 pin DIN

Remote Control IR Remote w/wired capability (3.5mm connector)

IR Carrier Frequency 38 kHz

Audio System 3 Watt Monaural

Lamp AC 250 Watt UHP

Lamp Module No. BQC-XGC50X//1 end user replaceable

Fan Noise 36 dB / Low Power Mode 33 dB

Power Source 100-240V AC, 50/60Hz

Power Consumption 340 Watt / 290 Watt Low Power Mode /

Heat Dissipation 1,280 BTU/hour / 1,090 BTU/hr Low Power Mode

Dimensions 15.4” x 3.9” x 11.6” (main body)

Weight 11.3 lbs.

Limited Warranty 3 Yrs. Parts/Labor & 2 Yrs. Sharp Express Repair,

DTV/HD Compatible 480i/480p/540p/580i/580p
720p/1035i/1080i

1900 ANSI Lumens in Low Power Mode

0.8 Watt Standby Mode

Lamp 90 Days

PRELIMINARY

INPUTS/OUTPUTS

Input 1 -- (1) Computer - RGB / Component (Audio shared 1 & 2)

Input 2 -- (1) Computer - RGB / Component (Audio shared 1 & 2)

Input 3 -- Composite Video (RCA), (Audio L/R shared 3 & 4)

Input 4 -- S-Video (4 pin DIN), (Audio L/R shared 3 &4)

Output -- Computer - RGB / Component with Audio (fixed or variable)

1 - RS-232C Serial Port (9pin D-sub)
1 - USB Port
1 - Wired Remote (3.5mm Minijack)

INCLUDED ACCESSORIES

Remote control, RGB Signal Cable, Grounded AC Cord, USB Cable,
Computer Audio Cable, Lens Cap, Sharp Advanced Presentation Soft­ware (S.A.P.S.), Quick Reference Label, CD-ROM Manual, Two AA Bat­teries, Air Filter

OPTIONAL ACCESSORIES

AN-C300WCC Hard Sided Carry Case w/wheels (projector only)
AN-C300SC “ATA” Shipping Case w/wheels (projector only)
AN-C300BAG Soft Sided Carry-on Bag (projector only)
AN-C12MZ Short Throw Lens
AN-XGCM55 Ceiling Mounting Bracket
AN-EP101B Extension Tube for Ceiling Mount
AN-CMCSS16 Security System for use without AN-EP101B
AN-CMCSS46 Security System for use with AN-EP101B
AN-JT200 Angle Mount Joint for Ceiling Mount
AN-C3CP Component (3 RCA) to 15 pin HD Cable 10’
