OPERATION MANUAL
Introduction
MODEL
PG-B10S
Basic Operation
Projection
Functions
Using the
Menu
LCD PROJECTOR
Connections
Screen Setup
Appendix
IMPORTANT
For your assistance in reporting the loss or theft of your
Projector, please record the Serial Number located on
the bottom of the projector and retain this information.
Before recycling the packaging, please be sure that
you have checked the contents of the carton thoroughly
against the list of “Supplied accessories” on page 9.
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/
EEC.
Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/
68/EWG.
Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la
directive 93/68/CEE.
Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG, gewijzigd door 93/68/EEG.
Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillæg nr. 93/68/EEC.
Quest’ apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/EEC, come emendata dalla
direttiva 93/68/EEC.
Model No.: PG-B10S
Serial No.:
Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão corrigida
pela directiva 93/68/CEE.
Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por medio de la
93/68/CEE.
Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC så som kompletteras av 93/68/
EEC.
Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i endringen 93/68/EEC.
Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/68/EEC.
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should
the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked
above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the
mains plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of
in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a serious
electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
or and of the same rating as
• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by
the letter E or by the safety earth symbol
or coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured
black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured
red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian,
Dutch, Portuguese, Chinese (Traditional Chinese and Simplified Chinese) and Korean. Carefully read through
the operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch,
Italienisch, Niederländisch, Portugiesisch, Chinesisch (Traditionelles Chinesisch und einfaches Chinesisch) und
Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois,
espagnol, italien, néerlandais, portugais, chinois (chinois traditionnel et chinois simplifié) et coréen. Veuillez lire
attentivement ces instructions avant de faire fonctionner le projecteur.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska,
italienska, holländska, portugisiska, kinesiska (traditionell kinesiska och förenklad kinesiska) och koreanska. Läs
noga igenom bruksanvisningen innan projektorn tas i bruk.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español,
italiano, holandés, portugués, chino (chino tradicional y chino simplificado) y coreano. Lea cuidadosamente las
instrucciones de operación antes de utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano,
olandese, portoghese, cinese (cinese tradizionale e cinese semplificato) e coreano. Leggere attentamente le
istruzioni per l’uso prima di usare il proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans,
Nederlands, Portugees, Chinees (Traditioneel Chinees en Vereenvoudigd Chinees) en Koreaans. Lees de
handleiding zorgvuldig door voor u de projector in gebruik neemt.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano,
Holandês, Português, Chinês, (Chinês Tradicional e Chinês Simplificado) e Coreano. Leia cuidadosamente
todas as instruções de operação antes de operar o projetor.
Before using the projector, please read this operation manual carefully.
Introduction
Introduction
ENGLISH
There are two important reasons for prompt warranty registration of your new SHARP Projector, using
the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
U.S.A. ONLY
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
See bottom of projector.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
WARNING:
DO NOT REMOVE COVER.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
U.S.A. ONLY
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
The enclosed computer cable must be used with the device. The cable is provided to ensure that the device
complies with FCC Class A verification.
U.S.A. ONLY
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
-1
WARNING:
The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode.
During normal operation, when putting the projector into the standby mode always use the STANDBY button on the
projector or on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord.
DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD.
FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.
PRODUCT DISPOSAL
This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of
these materials may be regulated due to environmental considerations. For disposal or recycling information,
please contact your local authorities or, if you are located in the United States of America, the Electronic Industries
Alliance: www.eiae.org .
Caution Concerning Lamp Replacement
See “Replacing the Lamp” on page 65.
LAMP REPLACEMENT CAUTION
BEFORE REMOVING THE SCREW, DISCONNECT POWER
CORD. HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL
BEFORE REPLACING THE LAMP. REPLACE WITH SAME
SHARP LAMP UNIT TYPE BQC-PGB10S//1 ONLY.
UV RADIATION : CAN CAUSE EYE DAMAGE. TURN OFF
LAMP BEFORE SERVICING.
HIGH PRESSURE LAMP : RISK OF EXPLOSION. POTENTIAL
HAZARD OF GLASS PARTICLES IF LAMP HAS RUPTURED.
HANDLE WITH CARE. SEE OPERATION MANUAL.
PRECAUTIONS A OBSERVER LORS
DU REMPLACEMENT DE LA LAMPE.
DEBRANCHER LE CORDON D’ALIMENTATION AVANT DE
RETIRER LA VIS. L’INTERIEUR DU BOITIER ETANT
EXTREMEMENT CHAUD, ATTENDRE 1 HEURE AVANT DE
PROCEDER AU REMPLACEMENT DE LA LAMPE.
NE REMPLACER QUE PAR UNE LAMPE SHARP DE TYPE
BQC-PGB10S//1.
RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES
YEUX. ETEINDRE LA LAMPE AVANT DE PROCEDER
A L’ENTRETIEN.
LAMPE A HAUTE PRESSION : RISQUE D’EXPLOSION.
DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS
D’ECLATEMENT DE LA LAMPE. A MANIPULER AVEC
PRECAUTION, SE REPORTER AU MODE D’EMPLOI.
This SHARP projector uses an LCD (Liquid Crystal Display) panel. This very sophisticated panel contains 480,000
× RGB) TFTs (Thin Film Transistors). As with any high technology electronic equipment such as large
pixels (
screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must
conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture
screen. This will not affect the picture quality or the life expectancy of the unit.
When Attaching the “QUICK GUIDE” Label
Attaching the “QUICK GUIDE” Label (supplied) on the
“QUICK GUIDE”
Label
projector will help you check the setup procedure. Be
sure to attach the “QUICK GUIDE” Label on the top
cabinet of the projector as shown in the drawing on the
right. Do not attach the “QUICK GUIDE” Label anywhere
else to avoid blocking an air intake or exhaust vent.
• Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe Acrobat is a trademark of Adobe Systems Incorporated.
• Macintosh is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• All other company or product names are trademarks or registered trademarks of their respective compa-
nies.
-2
How to Read this Operation Manual
••
• In this operation manual, the illustration and the screen display are simplified for explana-
••
tion, and may differ slightly from actual display.

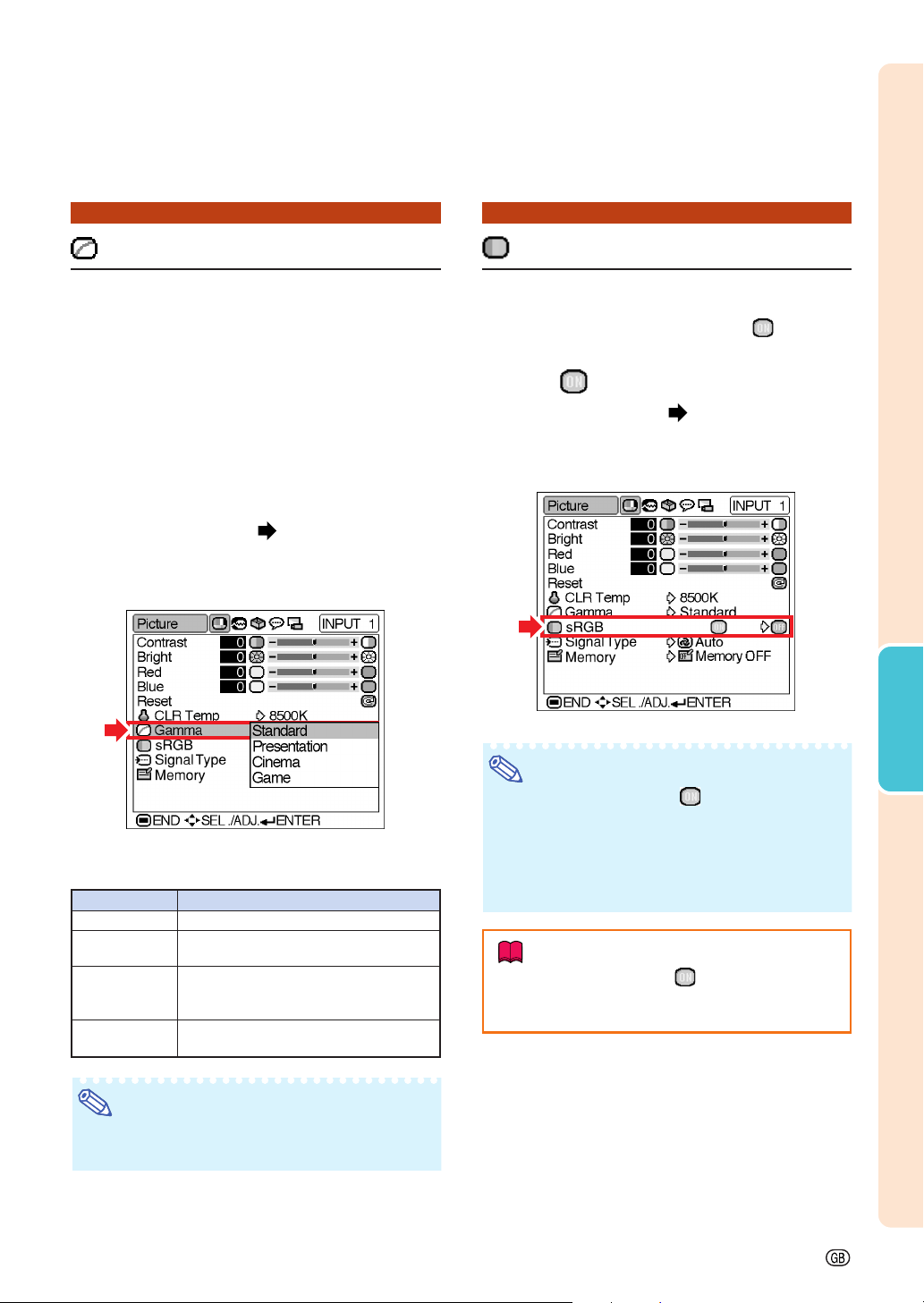

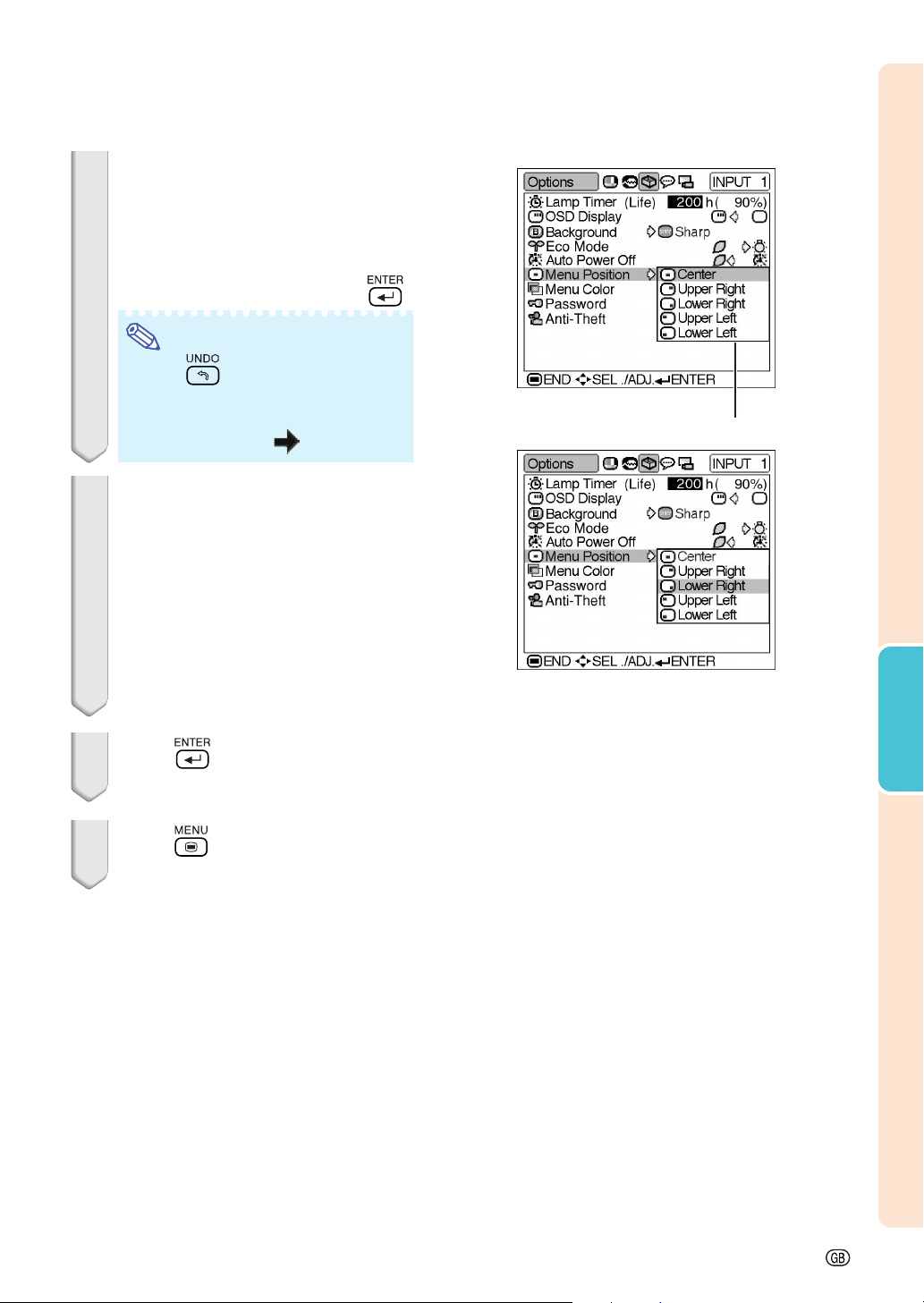

Using the Menu Screen
The menu screens allow you to adjust the image and various projector settings.
The menu can be operated to achieve two functions, adjustment and setting.
(For adjusting the menu items, see pages 32 and 33. For setting the menu items, see pages 34 and 35.)
Example: “Picture” menu screen for
INPUT 1 (RGB) mode
On-screen display
Menu Selections
(Adjustments)
•The following procedure is the operating
Button used in
this step
method in an adjustment menu.
•This operation can also be performed by using
the buttons on the projector.
1
Press .
•The “Picture” menu screen for the se-
lected input mode is displayed.
Note
•The on-screen display shown on the
right is displayed when the INPUT 1
(RGB) mode is selected.
\\
2
-32
||
Press
\ or
| to display the other
\\
||
menu screens.
•The menu icon for the selected menu
screen is highlighted.
Menu icon Menu screen
Fine Sync
Options
Language
PRJ Mode
Note
•The “Fine Sync” menu is not available
for INPUT 2 or 3.
•For items on the menus, see the tree
charts on pages 30 and 31.
ENTER button
UNDO
button
MENU button
', ", \, |
buttons
Menu icons
Buttons used in this
operation
Introduction
Info
........Indicates safeguards when using the projector.
........Indicates additional information on setup and operation.
Note
For Future Reference
Maintenance Troubleshooting Glossary
Page 60
Pages 71 and 72
Page 76
-3
Contents
Introduction
How to Read this Operation Manual.................. 3
Contents............................................................... 4
IMPORTANT SAFEGUARDS ............................... 6
How to Access the PDF Operation Manuals..... 8
Accessories ......................................................... 9
Part Names ........................................................ 10
Projector (Front and Top View) ................................ 10
About the Indicators on the Projector ......................11
Projector (Rear View) .............................................. 12
INPUT/OUTPUT Terminals and
Connectable Main Equipment ..........................13
Remote Control (Front View)................................... 14
Using the Remote Control ................................ 15
Usable Range ......................................................... 15
Inserting the Batteries .............................................15
Basic Operation
Setup and Projection ........................................ 16
Projection
Image Projection ............................................... 18
Turning the Projector on ......................................... 18
Switching the INPUT Mode ..................................... 19
Adjusting the Volume .............................................. 19
Displaying the Black Screen and
Turning off the Sound Temporarily ................... 20
Correcting Trapezoidal Distortion ............................20
Turning the Power off
(Putting the Projector into the Standby Mode).... 21
Adjusting the Lens .................................................. 22
Using the Adjustment Feet ..................................... 23

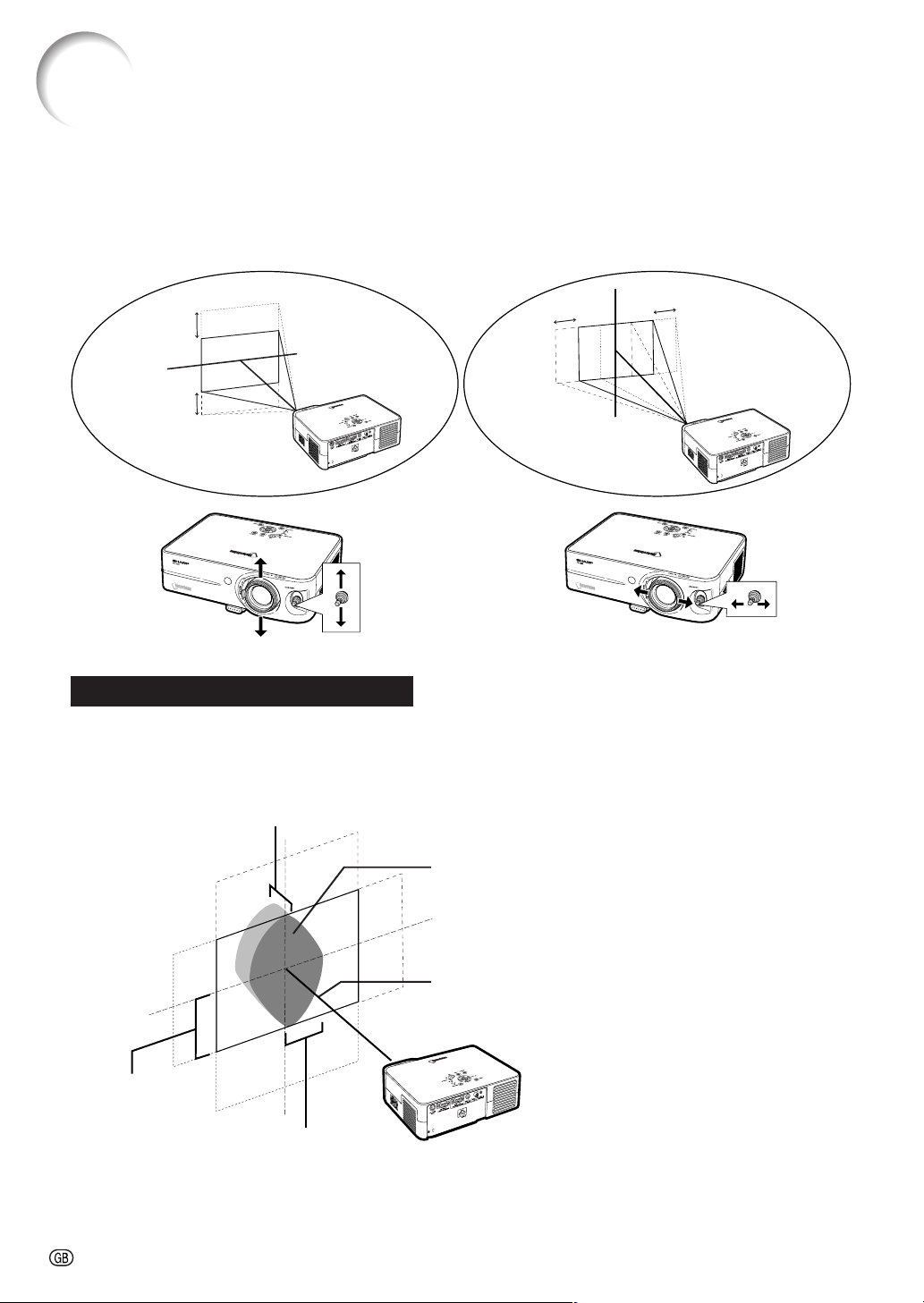

Variable Lens Shift Feature .............................. 24
Adjusting the Projected Image Position ................. 25
Functions
Resize Mode ...................................................... 26
Switching the Resize Mode .....................................26
Freeze and Enlarge Image ................................ 28
Freezing a Moving Image ....................................... 28
Displaying an Enlarged Portion of an Image ...........28
Keylock Function .............................................. 29
Locking the Operation Buttons ................................29
Taking the Keylock off .............................................. 29
Using the Menu
Menu Items ........................................................ 30
Using the Menu Screen .................................... 32
Menu Selections (Adjustments) .............................. 32
Menu Selections (Settings) ..................................... 34
Picture Adjustment ........................................... 36
Adjusting the Image ................................................ 36
CLR Temp (Adjusting the Color Temperature) ........ 36
Gamma (Gamma Correction) ..................................37
sRGB (sRGB Setting) .............................................. 37
Signal Type (Signal Type Setting) ............................ 38
Memory (Storing and Selecting the
Adjustment Settings) .........................................38
Computer Image Adjustment ........................... 39
Adjusting the Computer Image .............................. 39
Special Modes (Special Mode Settings) ................. 39
Auto Sync (Auto Sync Adjustment) ........................ 40
Signal Info (Checking the Input Signal) ................... 40
Using the “Options” Menu ............................... 41
Lamp Timer (Life)
(Checking the Lamp Life Status)....................... 41
OSD Display (Setting On-screen Display)............... 41
Video System (Setting the Video System) ............... 42
Background
(Selecting a Startup and Background Image) .... 42
Eco Mode (Setting the Eco Mode) .......................... 43
Auto Power Off (Auto Power Off Function) ............. 43
Menu Position
(Selecting the Menu Screen Position) ...............44
Menu Color (Selecting the Menu Color) ................. 44
Password (Setting a Password).............................. 45
If You Forget Your Password................................... 45
Anti-Theft (Setting the Anti-Theft) ............................ 46
Using the “Language” Menu ............................ 48
Selecting the On-screen Display Language ........... 48
Using the “PRJ Mode” Menu ........................... 49
Reversing the Projected Image .............................. 49
-4
Connections
Connecting the Projector to Other Devices ... 50
Before Connecting.................................................. 50
This projector can be connected to: ....................... 50
Connecting the Projector to a Computer .................51
Connecting to Video Equipment.............................. 52
Controlling the Projector Using a Computer............ 54

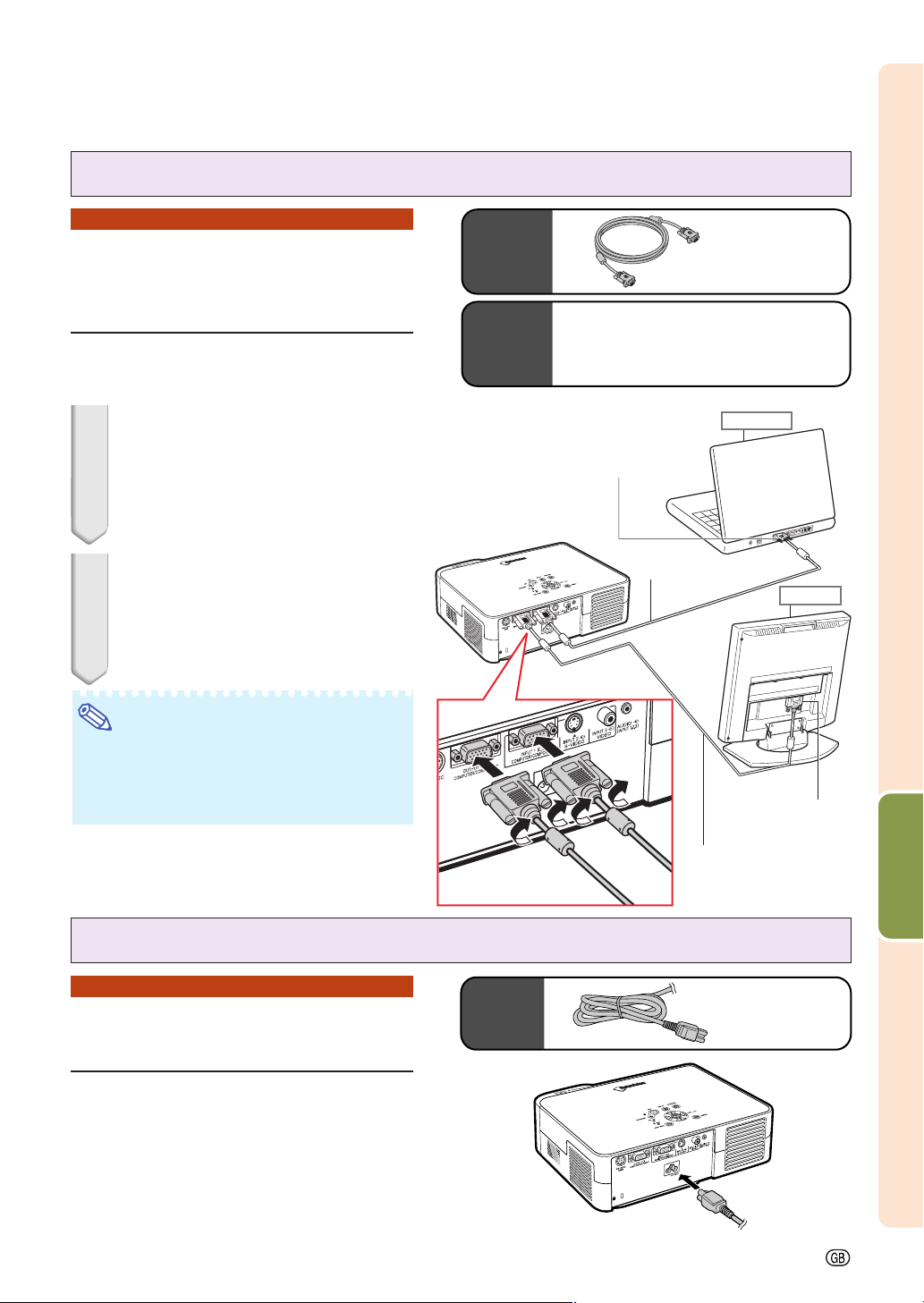

Connecting to a Monitor ......................................... 55
Connecting the Power Cord to the Projector ........... 55
Screen Setup

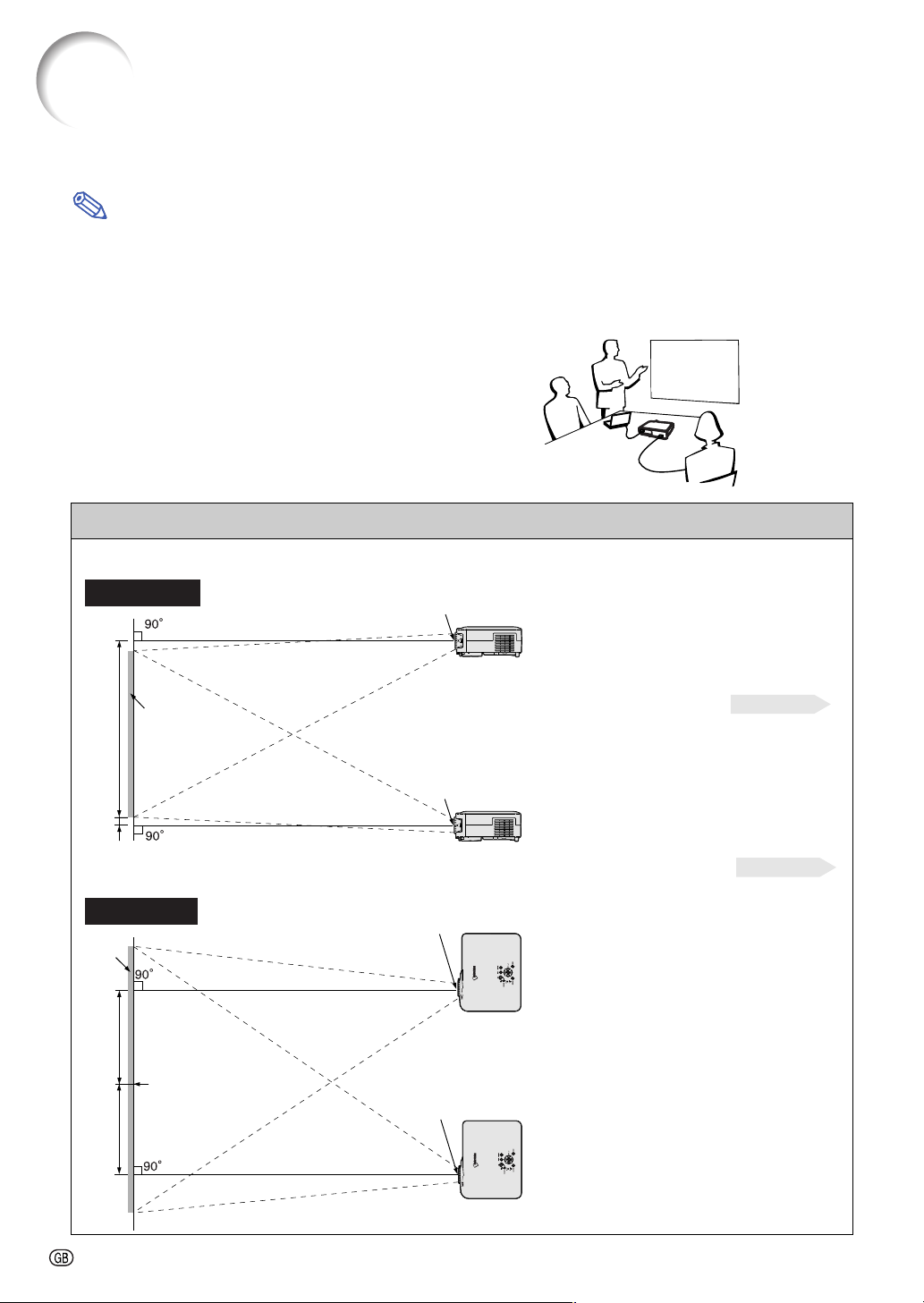

Setting up the Screen ....................................... 56
Screen Size and Projection Distance ...................... 57
Projecting a Revered Image ................................... 58
Appendix
Carrying the Projector ...................................... 59
How to Use the Carrying Case ................................59
Maintenance ...................................................... 60
Replacing the Air Filter ..................................... 61
Cleaning and Replacing the Air Filter ..................... 61
Maintenance Indicators .................................... 63
Regarding the Lamp ......................................... 65
Lamp ...................................................................... 65
Caution Concerning the Lamp ................................ 65
Replacing the Lamp ................................................65
Removing and Installing the Lamp Unit ................. 66
Resetting the Lamp Timer ....................................... 67

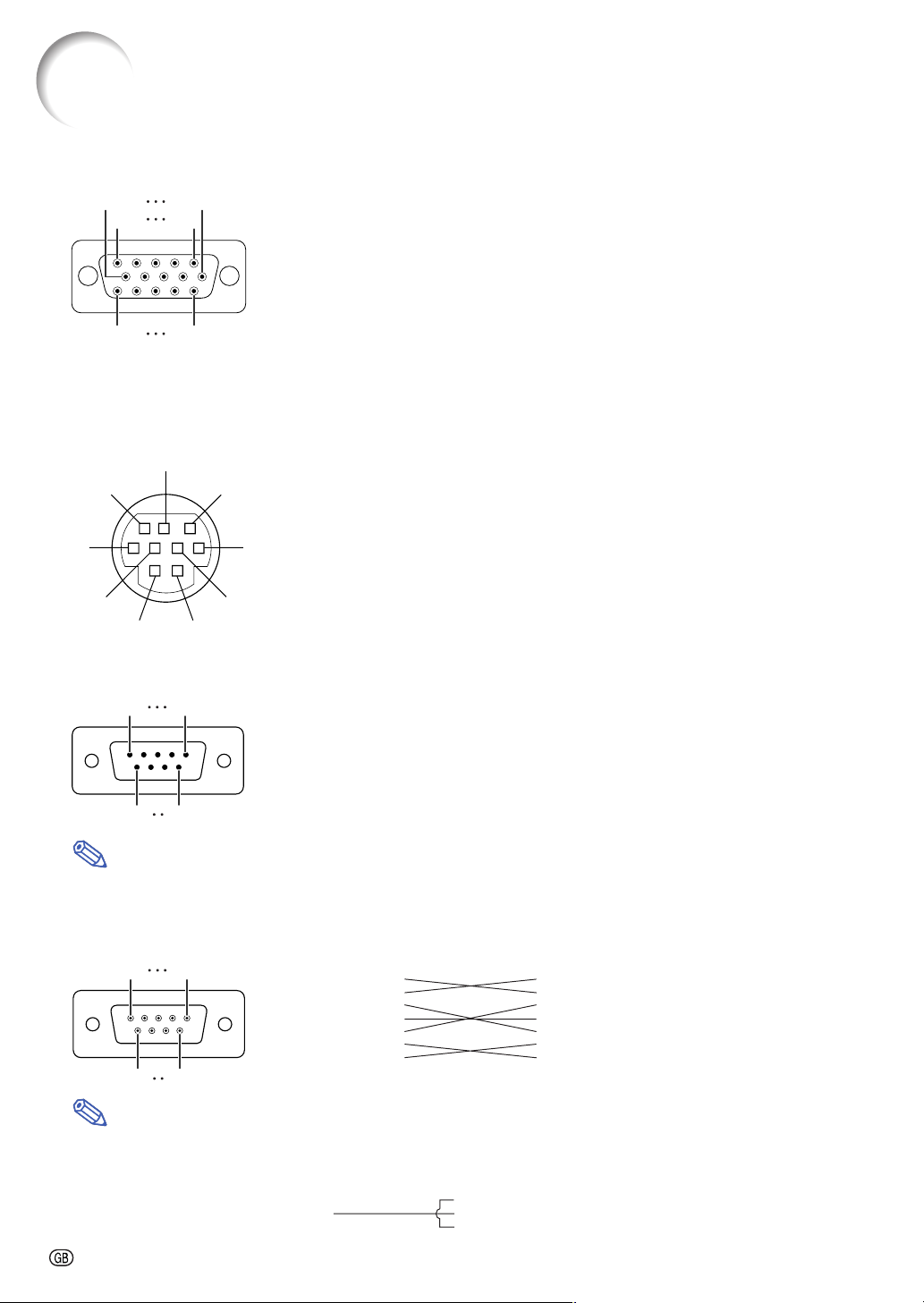

Connecting Pin Assignments .......................... 68
RS-232C Specifications and
Command Settings ...................................... 69
Computer Compatibility Chart ......................... 70
Troubleshooting ................................................ 71
For SHARP Assistance ..................................... 73
Specifications .................................................... 74
Dimensions ........................................................ 75
Glossary ............................................................. 76
Index ................................................................... 77
Introduction
-5
IMPORTANT SAFEGUARDS
CAUTION: Please read all of these instructions before you operate this product and save these
instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered and manufactured to
assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR
FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic
rules for its installation, use and servicing.
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for
future reference.
3. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
6. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended
by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the
manufacturer.
9. Transportation
A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the product and cart
combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization
This product is provided with one of the following types of
plugs. If the plug should fail to fit into the power outlet,
please contact your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a
grounding terminal.
This plug will only fit into a grounding type power
outlet.
-6
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
14. Lightning
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the product due to
lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to normal
operation.
e. If the product has been dropped or damaged in any
way.
f. When the product exhibits a distinct change in
performance, this indicates a need for service.
19. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
21.Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources such
as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
Be sure to read the following safeguards when setting up
your projector.
Introduction
Caution concerning the lamp unit
■ Potential hazard of glass particles if
lamp ruptures. In case of lamp rupture,
contact your nearest Sharp Authorized
Projector Dealer or Service Center for
a replacement.
See “Replacing the Lamp” on page 65.
BQC-PGB10S//1
Caution concerning the setup of the projector
■ For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed
in an area free from humidity, dust and cigarette smoke.
When the projector is subjected to these environments,
the lens must be cleaned more often. As long as the
projector is regularly cleaned, use in these environments will not reduce the overall operation life of the
unit. Internal cleaning should only be performed by a
Sharp Authorized Projector Dealer or Service Center.
Do not set up the projector in places exposed to
direct sunlight or bright light.
■ Position the screen so that it is not in direct sunlight or
room light. Light falling directly on the screen washes
out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a
sunny or bright room.
The projector may be safely tilted to a maximum
angle of 12 degrees.
■ Placement should be within ±12 degrees of horizontal.
■ If the cooling fan becomes obstructed, a protection cir-
cuit will automatically put the projector into the standby
mode. This does not indicate a malfunction. Remove
the projector power cord from the wall outlet and wait
at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power
cord back in and turn on the projector. This will return
the projector to the normal operating condition.
Caution regarding transportation of the projector
■ When transporting the projector, be sure not to subject
it to hard impact and/or vibration, as this can result in
damage. Take extra care with the lens. Before moving
the projector, be sure to unplug the power cord from
the wall outlet, and disconnect any other cables connected to it.
■ Do not carry the projector by holding the lens.
■ When transporting the projector, be sure to attach the
lens shipping block and the lens cap to the projector.
Other connected equipment
■ When connecting a computer or other audio-visual
equipment to the projector, make the connections AFTER unplugging the power cord of the projector from
the AC outlet and turning off the equipment to be connected.
■ Please read the operation manuals of the projector and
the equipment to be connected for instructions on how
to make the connections.
Using the projector in other countries
■ The power supply voltage and the shape of the plug
may vary depending on the region or country you are
using the projector in. When using the projector overseas, be sure to use an appropriate power cord for the
country you are in.
Do not subject the projector to hard impact and/
or vibration.
■ Take care with the lens so as not to hit or damage the
surface of the lens.
Rest your eyes occasionally.
■ Continuously watching the screen for long hours will
cause eye strain. Be sure to occasionally rest your eyes.
Avoid locations with extremes of temperature.
■ The operating temperature of the projector is from 41°F
to 95°F (+5°C to +35°C).
■ The storage temperature of the projector is from
–4°F to 140°F (–20°C to +60°C).
Do not block the exhaust and intake vents.
■ Allow at least 7 7/8 inches (20 cm) of space between
the exhaust vent and the nearest wall or obstruction.
■ Be sure that the intake vent and the exhaust vent are
not obstructed.
Temperature monitor function
■
If the projector starts to overheat
due to setup problems or blockage
of the air vents, “ ” and “ ”
will illuminate in the lower left corner of the picture. If the temperature continues to rise, the
lamp will turn off, the temperature warning indicator on
the projector will blink, and after a 90-second cooling-off
period the projector will enter the standby mode. Refer to
“Maintenance Indicators” on page 63 for details.
Info
• The cooling fan regulates the internal temperature, and
its performance is automatically controlled. The sound
of the fan may change during projector operation due
to changes in the fan speed. This does not indicate
malfunction.
• Do not unplug the power cord during projection or cool-
ing fan operation. This can cause damage due to rise
in internal temperature, as the cooling fan also stops.
-7
How to Access the PDF Operation Manuals
PDF operation manuals in several languages are included in the CD-ROM, so that you can
work with the projector, even if you do not have this manual. To utilize these manuals, you
need to install Adobe Acrobat Reader on your PC (Windows or Macintosh). If you have not
installed Acrobat Reader yet, you can install it from the CD-ROM.
To install Acrobat Reader from the CD-ROM
For Windows:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4 Double click the “ACROBAT” folder.
5 Double click the language (name of the folder)
that you want to install.
6 Double click the installation program and
follow the instructions on the screen.
For other operating systems:
Please download Acrobat Reader from the Internet (http://www.adobe.com).
For other languages:
If you prefer using Acrobat Reader for languages other than those included in the CD-ROM, please
download the appropriate version from the Internet.
For Macintosh:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3 Double click the “ACROBAT” folder.
4 Double click the language (name of the folder)
that you want to install.
5 Double click the installation program and
follow the instructions on the screen.
Accessing the PDF Manuals
For Windows:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4 Double click the “MANUALS” folder.
5 Double click the language (name of the
folder) that you want to view.
6 Double click the “B10” pdf file to access the
projector manuals.
For Macintosh:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3 Double click the “MANUALS” folder.
4 Double click the language (name of the
folder) that you want to view.
5 Double click the “B10” pdf file to access the
projector manuals.
Note
•If the desired pdf file cannot be opened by double clicking the mouse, start Acrobat Reader first, then
specify the desired file using the “File”, “Open” menu.
•See the “readme.txt” file on the CD-ROM for important information not included in this operation manual.
-8
Accessories
Supplied accessories
Remote control
RRMCGA187WJSA
Introduction
Two R-6 batteries
(“AA” size, UM/SUM-3, HP-7 or similar)
Power cord
(1)
For U.S., Canada, etc.
(6' (1.8 m))
QACCDA016WJPZ
*
(2) (3)
For Europe, except U.K.
(6' (1.8 m))
QACCVA006WJPZ
For U.K., Hong Kong and
Singapore
(6' (1.8 m))
QACCBA015WJPZ
*Use the power cord that corresponds to the wall outlet in your country.
RGB cable
(9'10" (3.0 m))
QCNWGA012WJPZ
Lens shipping
block (attached)
SPAKXA333WJZZ
Carrying case
GCASNA009WJSA
Projector manual and
technical reference
CD-ROM
UDSKAA039WJZZ
Lens cap (attached)
CCAPHA004WJ01
“QUICK GUIDE” label
TLABZA439WJZZ
(4)
For Australia, New
Zealand and Oceania
(6' (1.8 m))
QACCLA005WJPZ
Extra air filter
PFILDA010WJZZ
Operation manual
(this manual)
Optional accessories
■ 3 RCA to 15-pin D-sub cable (9'10'' (3.0 m)) AN-C3CP
■ Computer RGB cable (32'10'' (10.0 m)) AN-C10BM (15-pin mini D-sub male connector)
■ 5 BNC to 15-pin D-sub cable (9'10'' (3.0 m)) AN-C3BN
■ DIN-D-sub RS-232C adaptor (5
■ RS-232C serial control cable (32'10" (10.0 m)) AN-C10RS
■ Remote receiver AN-MR1EL
57
/64'' (15 cm)) AN-A1RS
Note
• Some of the cables may not be available depending on the region. Please check with your nearest Sharp
Authorized Projector Dealer or Service Center.
-9
Part Names
Numbers in refer to the main pages in this operation manual where the topic is explained.
Projector (Front and Top View)
INPUT button
For turning the power on.
ON button
Power indicator
STANDBY button
For putting the projector into the
standby mode.
Lamp indicator
Temperature warning
indicator
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
18
63
21
63
63
40
19
For switching input mode
1, 2 or 3.
KEYSTONE button
20
For entering the Keystone
Correction mode.
32
Adjustment buttons
('"\ |)
• For selecting menu items.
• For adjusting the Keystone
Correction when in the
Keystone Correction mode.
19
Volume buttons
For adjusting the speaker
sound level.
33
ENTER button
For setting items selected
or adjusted on the menu.
32
MENU button
For displaying adjustment
and setting screens.
Remote control
sensor
Zoom knob
Front adjustment foot
(on the bottom of
the projector)
HEIGHT ADJUST button
-10
15
22
23
23
Attaching and removing the lens cap
• Press on the two buttons of the lens cap
and attach it to the lens, then release the
buttons to lock it in place.
• Press on the two buttons of the lens cap
and remove it from the lens.
Focus ring
22
Intake vent
60
Speaker
Lens shift lever
24
About the Indicators on the Projector
Introduction
Power indicator
Green on/Red on
Red blinks
...
...
Normal
Abnormal (See page 63.)
Lamp indicator
Green on
Green blinks
Red on
...
Normal
...
...
The lamp is warming up.
Change the lamp. (See page 63.)
Temperature warning indicator
...
Off
Normal
Red on
...
The internal temperature is abnormally high.
(See page 63.)
Attaching and Removing the Lens Shipping Block
When attaching the lens shipping block, be sure to return the
lens shift lever to the center position. If the lens is shifted upward
or downward, the lens shipping block cannot be attached.
-11
Part Names
Numbers in refer to the main pages in this operation manual where the topic is explained.
Projector (Rear View)
INPUT 1 terminal
Terminal for
computer RGB and
component signals.
RGB OUTPUT
terminal
Terminal for
connecting a monitor.
RS-232C terminal
Terminal for controlling
the projector using a
computer.
Kensington
Security Standard
connector
51
55
54
INPUT 2 terminal
52
Terminal for
connecting video
equipment with an
S-video terminal.
INPUT 3 terminal
52
Terminal for
connecting video
equipment.
AUDIO INPUT
51
terminal
Shared audio input
terminal for INPUT
1, 2 and 3.
60
23
55
Exhaust vent
Rear adjustment
foot
(on the bottom of
the projector)
AC socket
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
-12
INPUT/OUTPUT Terminals and Connectable Main Equipment
Introduction
RS-232C terminal
Connecting the
computer to control the
projector.
(See page 54.)
INPUT 1 terminal
Connecting the computer.
(See page 51.)
Connecting video equipment
with component output
terminal (DVD player, DTV
decoder, etc.). (See page 53.)
INPUT 3 terminal
Connecting video equipment without
S-video output terminal. (See page 52.)
RGB OUTPUT terminal
Connecting the monitor
when you want to
simultaneously watch the
projection image on the
monitor. (See page 55.)
INPUT 2 terminal
Connecting video equipment with
S-video output terminal (VCR,
Laser disc player, etc.).
(See page 52.)
AUDIO INPUT terminal
Connecting an audio cable
(Shared audio input terminal
for INPUT 1, 2 and 3.) (See
page 51.)
-13
Part Names
Numbers in refer to the main pages in this operation manual where the topic is explained.
Remote Control (Front View)
For putting the projector into the
STANDBY button
standby mode.
KEYSTONE button
For entering the Keystone
Correction mode.
UNDO button
For undoing an operation or
returning to the previous display.
FORWARD/BACK buttons
Same function as the [Page Down]
and [Page Up] keys on a computer
keyboard when using the optional
Remote Receiver (AN-MR1EL).
ENLARGE (Enlarge/Reduce)
buttons
For enlarging or reducing part of
the image.
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
21
20
21
ON button
18
For turning the power on.
MENU button
32
For displaying adjustment and
setting screens.
Adjustment buttons
32
(' " \ |)
• For selecting menu items.
• For adjusting the Keystone
Correction when in the Keystone
Correction mode.
ENTER button
33
For setting items selected or
adjusted on the menu.
FREEZE button
28
For freezing images.
28
AV MUTE button
20
For temporarily displaying the
black screen and turning off the
sound.
40
RESIZE button
26
For switching the screen size
(NORMAL, BORDER, etc.).
For switching to the respective
INPUT buttons
input modes.
-14
19
Volume buttons
19
For adjusting the speaker sound
level.
Using the Remote Control
Usable Range
The remote control can be used to control
the projector within the ranges shown in the
illustration.
Introduction
Remote control sensor
30°
Note
•The signal from the remote control can be re-
flected off a screen for easy operation. However, the effective distance of the signal may
differ depending on the screen material.
When using the remote control:
•Be sure not to drop, expose to moisture or high
temperature.
•The remote control may malfunction under a
fluorescent lamp. In this case, move the projector away from the fluorescent lamp.
Inserting the Batteries
The batteries (two R-6 batteries (“AA” size,
UM/SUM-3, HP-7 or similar)) are supplied in
the package.
1 Press the ▲ mark on the cover
and slide it in the direction of the
arrow.
2 Insert the batteries.
•Insert the batteries making sure the po-
larities correctly match the
marks inside the battery compartment.
and
Remote
control
signal
transmitters
Remote control
30°
30°
23' (7 m)
3 Attach the cover and slide it un-
til it clicks into place.
Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.
Caution
•Insert the batteries making sure the polarities correctly match the and marks inside the battery compart-
ment.
•Batteries of different types have different properties, therefore do not mix batteries of different types.
•Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
•Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fluid from leaked batteries is harmful to skin, therefore be sure to first wipe them and then remove them
using a cloth.
•The batteries included with this projector may run down in a short period, depending on how they are kept. Be
sure to replace them as soon as possible with new batteries.
•Remove the batteries from the remote control if you will not be using the remote control for a long time.
-15
Setup and Projection
In this section, connection of the projector and the computer is explained as an example.
3 ON button
5 INPUT button
4 KEYSTONE button
4 Adjustment buttons
('"\ |)
3 ON button
4 KEYSTONE button
4 Adjustment buttons
('"\ |)
4 Zoom knob
4 Focus ring
4 Lens shift lever
4 HEIGHT ADJUST button
5 INPUT 1 button
1. Place the projector facing a wall or a screen
Page 56
2. Connect the projector to the computer and plug the power
cord into the AC socket of the projector
When connecting equipment other than the computer, see pages 13 and 50.
3. Turn the projector on
-16
Pages 51, 55
On the remote controlOn the projector
Page 18
4. Adjust the projected image
11
1 Bring the projected image into focus and adjust the projected image size
11
Focus
••
•
Bring the projected
••
image into focus
using the focus ring.
Zoom
••
•Adjust the
••
projected
image size
using the
zoom knob.
zoom out
zoom in
Basic Operation
Page 22
22
2 Adjust the projected image position and the projector angle
22
Projection position
••
•
Adjust the
••
projected
image position
using the lens
shift lever.
Angle
••
•
Adjust the
••
projector
angle using
the HEIGHT
ADJUST
button.
Page 25
33
3 Correct trapezoidal distortion
33
Correcting trapezoidal distortion using the Keystone Correction.
On the projector
On the remote
control
Compresses
upper side.
Compresses
lower side.
Page 22
Page 23
Page 20
5. Select the INPUT mode
Select the “INPUT 1” using the INPUT button on the projector or the INPUT 1 button on the remote control.
On the
projector
••
•When pressing on the projector, input mode switches in order of
••
••
•When using the remote control, press
••
On the remote
control
On-screen display (RGB)
//
to switch the INPUT mode.
On-screen display (Component)
INPUT 1 INPUT 2 INPUT 3
Page 19
.
-17
Image Projection
Turning the Projector on
Connect the required external equipment to the
projector before carrying out the following procedures.
(See page 50.
Info
•
The language preset at the factory is English.
If you want to change the on-screen display to
another language, reset the language according to the procedure on page
)
48
.
1 Plug the power cord into the wall
outlet.
•The power indicator illuminates red, and
the projector enters standby mode.
2 Press on the projector or
on the remote control.
•The power indicator illuminates green.
•After the lamp indicator illuminates, the
projector is ready to start operation.
Note
•
The lamp indicator illuminates, indicating
the status of the lamp.
Green: The lamp is ready.
Blinking in green: The lamp is warming up.
Red:
•If the projector is put into the standby
•When “Anti-Theft” is set, the keycode
input box will appear. Enter the keycode.
For details about the Anti-Theft function,
refer to “Anti-Theft (Setting the AntiTheft)” on page 46.
•When bringing the image into focus or
adjusting the projection image size, see
page 22.
•When adjusting the projection angle,
see “Using the Adjustment Feet” on
page 23 or “Variable Lens Shift Feature”
on page 24.
The lamp should be replaced.
mode and immediately turned on
again, the lamp indicator may take
some time to illuminate.
Power indicator
ON button
Lamp
indicator
ON button
▼Keycode input box
-18
Switching the INPUT Mode
Select the appropriate input mode for the connected equipment.
Press , or on the remote
control to select the INPUT mode.
••
•When pressing on the projector, input
••
mode switches in order of
INPUT 1 INPUT 2 INPUT 3
Note
•When no signal is received, “NO SIGNAL”
will be displayed. When a signal that the
projector is not preset to receive is received,
“NOT REG.” will be displayed.
•The INPUT mode is not displayed when
“OSD Display” of the “Options” menu is set
to “OFF”. (See page 41.)
About the INPUT mode
INPUT 1
(RGB/
Component)
INPUT 2
(S-Video)
INPUT 3
(Video)
Used for projecting images from
equipment that sends RGB signals or component signals connected to the RGB input terminal.
Used for projecting images
from equipment connected to
the S-VIDEO input terminal.
Used for projecting images
from equipment connected to
the VIDEO input terminal.
.
INPUT buttons
"On-screen Display of INPUT Mode (Example)
INPUT 1 mode
Using RGB
Using
Component
➝
➝
INPUT 2 mode
Using S-Video
➝
INPUT 3 mode
Using Video
Projection
Adjusting the Volume
Press or on the remote control to adjust the volume.
Note
•Pressing will lower the volume.
Pressing will raise the volume.
•On the projector, the volume can be ad-
justed by pressing or .
Volume buttons
-19
Image Projection
Displaying the Black
Screen and Turning off
the Sound Temporarily
Press on the remote control to
temporarily display a black screen
and turn off the sound.
Note
•Pressing again will turn the projected
image and sound back on.
Correcting Trapezoidal Distortion
When the image is projected either from the top
or from the bottom towards the screen at an
angle, the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion
is called Keystone Correction.
Note
•The Keystone Correction can be adjusted
up to an angle of approximately ±35 degrees
and the screen can also be set up to an
angle of approximately ±35 degrees (when
the resize mode is set to “NORMAL” (see
page 26)).
•The Keystone Correction cannot be ad-
justed in the lateral direction.
KEYSTONE
button
UNDO
button
AV MUTE button
', ", \, |
buttons
1 Press to enter the Key-
stone Correction mode.
•You can also use on the projector.
-20
"On-screen display (Keystone Correction mode)
2 Press ', ", \ and | to adjust
the Keystone Correction.
•You can also adjust the Keystone Cor-
rection using the
buttons on the projector.
Note
•
Press to return to the default setting.
•
Straight lines or the edges of images may
appear jagged while adjusting the image.
, , and
3 Press .
•The on-screen display of the Keystone
Correction mode will disappear.
•You can also use on the projector.
Note
•
You can use the same settings used in
NORMAL mode 4:3 for 16:9.
Compresses
upper side.
Compresses
lower side.
Projection
Turning the Power off
(Putting
the Projector into the Standby Mode)
1 Press on the projector or
STANDBY
on the remote control, then
press that button again while the
confirmation message is displayed, to put the projector into
the standby mode.
Note
•
If you accidentally pressed
STANDBY
or
jector into the standby mode, wait until
the confirmation message disappears.
2
Unplug the power cord from the AC
and do not want to put the pro-
outlet after the cooling fan stops.
Info
•
Do not unplug the power cord during projection or cooling fan operation. The cooling fan in this projector continues to run
for about 90 seconds after the projector
enters the standby mode. This can cause
damage due to rise in internal temperature, as the cooling fan also stops.
STANDBY
button
-21
Image Projection
Adjusting the Lens
The image is focused and adjusted to the desired size using the focus ring or zoom knob
on the projector.
1 Adjust the focus by rotating the
focus ring.
2 Adjust zooming by moving the
zoom knob.
Focus ringZoom knob
Zoom in
Indication of the Projection Image Size and Projection Distance
For details, see “Screen Size and Projection Distance” on page 57.
Example : NORMAL Mode (4:3)
Picture Size
-22
300"
200"
100"
84"
60"
48"
67"
×
36"
80"
×
50"
'1
5
160"
×
60"
7
"–
1
(1.8 m
×
"
'3
– 2.2 m
'2
8
(2
120"
"–
.5 m
1
)
0
240"
"
'2
3.1 m
–
'1
9
×180"
"–
0
(3.0
1
m
)
2
'2
3.7 m
–
1
"
'8
9
(6.0 m
Projection Distance
)
"
)
"
'7
4
2
"–
7.5 m
–
2
)
1
'
7
3
–
"
11.3 m
–
'6
9
.0 m
(9
ut
o
m
o
o
Z
Using the Adjustment Feet
The height of the projector can be adjusted
using the adjustment feet at the front and rear
of the projector.
When the screen is in a higher position than
the projector, the projection image can be
made higher by adjusting the projector.
1 Press HEIGHT ADJUST button.
•The front adjustment foot comes out.
2 Lift the projector to adjust its
height while pressing the
HEIGHT ADJUST button.
•The projector is adjustable up to approxi-
mately 12 degrees (5 steps).
•When lowering the projector, it may be
difficult to move the front adjustment foot
because the installation surface is difficult to slide. In this case, pull the projector back slightly and adjust its height.
3 Remove your hands from the
HEIGHT ADJUST button of the
projector after its height has
been finely adjusted.
HEIGHT ADJUST button
HEIGHT ADJUST button
HEIGHT
ADJUST
button
Front adjustment
foot
Projection
4 Use the rear adjustment foot to
make the projector level.
•The projector is adjustable ±1 degree
from the standard position.
Note
•When the height of the image is being ad-
justed by the adjustment feet, the image becomes distorted trapezoidally. In this case,
see “Correcting Trapezoidal Distortion” on the
page 20 to correct the trapezoidal distortion.
Info
•Do not press the HEIGHT ADJUST button
when the front adjustment foot comes out
without firmly holding the projector.
•Do not hold the lens when lifting or lower-
ing the projector.
•When lowering the projector, be careful not
to get your fingers caught in the area between the adjustment foot and the projector.
Rear adjustment
foot
-23
Variable Lens Shift Feature
In addition to the zoom function and adjustment of projection angle using the adjustment foot, it is possible
to move the lens up and down and left and right (360°) to adjust the projection position simply by moving the
lens shift lever on the front of the projector. This is a useful function in cases such as when the screen can
not be moved.
When moving upward or downward
Adjustable range
Adjustable range
When moving in the left and right direction
Lens shift lever
Adjustable range of the lens shift lever
The adjustable range using the lens shift lever has limitations.
The image can be adjusted as shown below.
Image center locus
Adjustable range
Adjustable range
Lens shift lever
Height of the projected
image × 50%
-24
Zooming axis
Adjustable range of
the image center
Image center
Width of the projected image × 30%
Adjusting the Projected Image Position
Adjust the projected image position
using the lens shift lever.
Info
•When using the projector (during projec-
tion), be sure not to subject the projector to
any impact. If the projector is subjected to
impact, the projection image may deviate
from the adjusted position.
•When transporting or carrying the projec-
tor, attach the lens shipping block and the
lens cap to the projector.
•When the angle is being adjusted using the
adjustment foot, deviation of the projected
image arising when carrying out lens shift
in the lateral direction can not be corrected
by the Keystone Correction.
Projection
-25
Resize Mode
This function allows you to modify or customize the resize mode to enhance the input image.
Depending on the input signal, you can choose “NORMAL”, “DOT BY DOT”, “BORDER” or
“STRETCH” image.
Switching the Resize Mode
UNDO button
Press .
•Pressing changes the display as shown on
pages 26 and 27.
•To return to the standard image, press
while
“RESIZE” is displayed on the screen.
COMPUTER
NORMAL
SVGA (800 × 600)
4:3 aspect ratio
Other aspect ratios
Input Signal
Computer
Resolution
lower than
SVGA
XGA (1024 × 768)
SXGA (1280 × 960)
SXGA+ (1400 × 1050)
SXGA (1280 × 1024)
1280 × 720
Image type
4:3 aspect ratio
800 × 600
750 × 600
—
NORMAL
Projects a full screen
image while maintaining
the aspect ratio.
***
**
SVGA
4:3 aspect ratio
RESIZE button
DOT BY DOT BORDER STRETCH
—
1024 × 768
1280 × 960
1400 × 1050
1280 × 1024
—
Output screen image
DOT BY DOT
Projects the original
resolution signal
of the image.
600 × 450
562 × 450
—
BORDER
Projects 4:3 image fully
in STRETCH (the following
column) image.
800 × 450
750 × 450
800 × 450
STRETCH
Projects 16:9 image
evenly over entire screen
(top/bottom blank bands).
Resolution
higher than
SVGA
4:3 aspect ratio
**
**
SXGA (1280 × 1024)
5:4 aspect ratio
1280 × 720
16:9 aspect ratio
Mode for projecting an image with the original aspect ratio without cutting any portions.
*
-26
*
: Cutout area on which images cannot be projected.
: Area where the signals are off screen.
VIDEO
480I, 480P,
NTSC, PAL, SECAM
540P, 720P, 1080I
• “STRETCH” is fixed when 540P, 720P or 1080I signals are entered.
Input Signal
4:3 aspect ratio.
Letter box, squeeze
16:9 aspect ratio
Image typeDVD / Video
NORMAL BORDER
800 × 600
—
NORMAL
Projects a full screen image.
**
4:3 aspect ratio
600 × 450
—
Output screen image
BORDER
Projects 4:3 image fully in
STRETCH (the following
column) image.
STRETCH
800 × 450
STRETCH
Projects 16:9 image evenly
over entire screen
(top/bottom black bands).
*
480I, 480P,
NTSC, PAL, SECAM
540P, 720P,
1080I (16:9)
Mode for projecting an image with the original aspect ratio without cutting any portions.
*
: Cutout area on which images cannot be projected.
: Area on which the image is not included in the original signals.
Letter box
Squeezed 16:9 image
Squeezed 4:3 image
16:9 aspect ratio
16:9 aspect ratio
(4:3 aspect ratio in
16:9 screen)
*
Functions
*
*
*
*
-27
Freeze and Enlarge Image
Note
Note
You can instantly freeze a moving image and enlarge a specific portion of an image with the remote
control. Using these functions, you can explain the image to the audience more effectively.
UNDO button
', ", \, |
buttons
ENLARGE
(Reduce/Enlarge)
buttons
FREEZE button
Freezing a Moving Image
1 Press .
•The projected image is frozen.
2 Press again to return to the
moving image from the currently
connected device.
Displaying an Enlarged Portion of an Image
1 Press .
•Pressing or enlarges or reduces
the projected image.
×1 ×4 ×9 ×16 ×36 ×64×2 ×3
-28
•You can change the location of the en-
larged image using ', ", \ and |.
2 Press to cancel the operation.
•The magnification then returns to ×1.
In the following cases, the image will return to the normal size (×1).
•When switching the INPUT mode.
•When
•When the input signal is changed.
•When the input signal resolution and re-
fresh rate (vertical frequency) change.
has been pressed.
Keylock Function
Use this function to lock the operation buttons on the projector.
ON button
Locking the Operation Buttons
Hold down on the projector for about
3 seconds while the projector is being
turned on.
Note
•The keylock function does not affect the opera-
tion with the remote control buttons.
•You cannot use the keylock function while the
projector is warming up.
""
"On-screen display
""
Taking the Keylock off
Hold down on the projector for about
3 seconds.
Note
•The keylock function does not affect the opera-
tion with the remote control buttons.
•You cannot use the keylock function while the
projector is warming up.
""
"On-screen display
""
Functions
-29
Menu Items
The following shows the items that can be set in the projector.
“Picture” menu
Main menu Sub menu
Page 36
Note
Contrast
Bright
Color
Tint
Sharp
Red
Blue
Reset
Page 36
CLR Temp
Page 36
Gamma
Page 37
sRGB [ON/OFF]
Page 37
Signal Type
Page 38
Memory
Page 38
+30−30
+30−30
+30−30
+30−30
+30−30
+30−30
+30−30
5500 K
6500 K
7500 K
8500 K
9300 K
10500 K
Standard
Presentation
Cinema
Game
Auto
RGB
Component
Memory 1
Memory OFF
Memory 5
When using the INPUT 1 mode:
•In the “Picture” menu of INPUT 1, “Color”, “Tint” and “Sharp” are only displayed when “Signal Type” is set
to “Component” or set to “Auto” and the input signal is recognized as a component signal.
•In the “Picture” menu of INPUT 1, “sRGB” is only displayed when “Signal Type” is set to “RGB” or set to
“Auto” and the input signal is recognized as an RGB signal.
When using the INPUT 2 or INPUT 3 mode:
•There is no “Signal Type” item in the “Picture” menu.
•In the “Picture” menu of INPUT 2 or INPUT 3, “Sharp” is adjustable between –3 and +3.
“Fine Sync” menu
+30−30
+15−15
+30−30
+30−30
Note
Fine Sync
Page 39
Clock
Phase
H-Pos
V-Pos
Reset
Page 39
Special Modes
Page 39
Auto Sync [ON/OFF]
Page 40
Signal Info
Page 40
When using the INPUT 1 mode:
•“Fine Sync” menu is only displayed when the projector input is INPUT 1.
-30
“Options” menu
Main menu Sub menu
Options
Note
When using the INPUT 1 mode:
•There is no “Video System” item in the “Options” menu.
“Language” menu
Page 41
Lamp Timer (Life)
Page 41
OSD Display [ON/OFF]
Page 41
Video System
Page 42
Background
Page 42
Eco Mode [Eco/Standard]
Page 43
Auto Power Off
[ON/OFF]
Page 43
Menu Position
Page 44
Menu Color
[Opaque/Translucent]
Page 44
Password
Page 45
Anti-Theft
Page 46
Auto
PAL
NTSC3.58
SECAM
NTSC4.43
PAL-M
PAL-N
PAL-60
Sharp
Blue
None
Center
Upper Right
Lower Right
Upper Left
Lower Left
Old Password
New Password
Reconfirm
Old Code
New Code
Reconfirm
Using the
Menu
“PRJ Mode” menu
Language
Page 48
PRJ Mode Front
Page 49
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
Rear
-31
Using the Menu Screen
The menu screens allow you to adjust the image and various projector settings.
The menu can be operated to achieve two functions, adjustment and setting.
(For adjusting the menu items, see pages 32 and 33. For setting the menu items, see pages 34 and 35.)
Example: “Picture” menu screen for
INPUT 1 (RGB) mode
Menu Selections
(Adjustments)
•The following procedure is the operating
method in an adjustment menu.
•This operation can also be performed by using
the buttons on the projector.
1 Press .
•The “Picture” menu screen for the se-
lected input mode is displayed.
Note
•The on-screen display shown on the
right is displayed when the INPUT 1
(RGB) mode is selected.
\\
2 Press
menu screens.
•The menu icon for the selected menu
screen is highlighted.
||
\ or
| to display the other
\\
||
Menu icon Menu screen
Fine Sync
Options
Language
PRJ Mode
ENTER button
UNDO
button
MENU button
', ", \, |
buttons
Menu icons
-32
Note
•The “Fine Sync” menu is not available
for INPUT 2 or 3.
•For items on the menus, see the tree
charts on pages 30 and 31.
''
3 Press
""
' or
" to select the item
''
""
you want to adjust.
•The selected item is highlighted.
Note
•To display a single adjustment item,
press after selecting the item.
Only the selected adjustment item will
be displayed.
When pressing ' or ", the following item (“Red” after “Bright”) will be
displayed.
•Press
screen.
4 Press
to return to the previous
\\
||
\ or
| to adjust the item
\\
||
selected.
•The adjustment is stored.
Using the
Menu
5 Press .
•The menu screen will disappear.
-33
Using the Menu Screen
Menu Selections
(Settings)
•The following procedure is the operating
method in a setting menu.
•This operation can also be performed by using
the buttons on the projector.
1 Press .
•The “Picture” menu screen for the se-
lected input mode is displayed.
ENTER button
UNDO
button
MENU button
Note
•The on-screen display shown on the
right is displayed when INPUT 1 (RGB)
mode is selected.
\\
2 Press
||
\ or
| to display the other
\\
||
menu screens.
•The menu icon for the selected menu
screen is highlighted.
Menu icon Menu screen
Fine Sync
Options
Language
PRJ Mode
', ", \, |
buttons
Menu icons
Example: “Options” menu screen for
INPUT 1 mode
-34
Note
•The “Fine Sync” menu is not available
for INPUT 2 or 3.
•For items on the menus, see the tree
charts on pages 30 and 31.
''
3 Press
item you want to set, and then
press
||
| to display the sub menu.
||
•The selected item is highlighted.
•When you select “Password” or “Anti-
Theft” on the “Options” menu, press
Note
•Press or \ to return to the pre-
vious screen.
•For some items, press \ or | to se-
lect the icon using “ ”.
4 Press
ting of the item displayed in the
sub menu.
""
' or
" to select the
''
""
''
""
' or
" to select the set-
''
""
.
Sub menu
Using the
Menu
5 Press .
•The item selected is set.
6 Press .
•The menu screen will disappear.
-35
Picture Adjustment
You can adjust the projector’s picture to your preferences using the “Picture” menu.
Adjusting the Image
Select the item on the “Picture” menu and
adjust the image.
Adjusting the menu screen Page 32
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
Description of Adjustment Items
Selectable items
Contrast
Bright
Color
Tint
Sharp
Red
Blue
Press \ Press |
for less contrast.
for less brightness.
for less color intensity.
for making skin tones purplish.
for less sharpness.
for weaker red.
for weaker blue.
for more contrast.
for more brightness.
for more color intensity.
for making skin tones greenish.
for more sharpness.
for stronger red.
for stronger blue.
CLR Temp (Adjusting the
Color Temperature)
Select “CLR Temp” on the “Picture” menu
and the desired color temperature setting.
Setting the menu screen Page 34
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
Description of Color Temperature Settings
Selectable settings
5500K
6500K
7500K
8500K
9300K
10500K
For lower color temperature for warmer,
reddish incandescent-like images.
For higher color temperature for cooler, bluish, fluorescent-like images.
Description
Note
•“Color”, “Tint” and “Sharp” are not displayed
when selecting INPUT 1 and setting the “Signal Type” to “RGB” or setting the “Signal Type”
to “Auto” and the input signal is recognized as
an RGB signal.
•“Red” and “Blue” cannot be adjusted when
“sRGB” is set to “ON”.
•“Sharp” can be adjusted when 480
I, 480P, 540P,
580I, 580P, 720P, 1035I or 1080I signals are
detected while “Signal Type” for INPUT 1 is set
to “Component” or set to “Auto” and the input
signal is recognized as a component signal.
•To reset all adjustment items, select “Reset” and
press
.
-36
Note
•Values for “CLR Temp” are only approximations.
•“CLR Temp” cannot be set when “sRGB” is set
to “ON”.
Gamma (Gamma Correction)
sRGB (sRGB Setting)
Gamma is an image quality enhancement function
that offers a richer image by brightening the darker
portions of the image without altering the brightness of the brighter portions.
When you are displaying images with frequent dark
scenes, such as a film or concert, or when you are
displaying images in a bright room, this feature
makes the dark scenes easier to see and gives the
impression of greater depth in the image.
Select “Gamma” on the “Picture” menu and
the desired gamma mode.
Setting the menu screen Page 34
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
Description of Gamma Modes
Selectable settings
Standard
Presentation
Cinema
Game
For standard image
Brightens darker portions of image for
more enhanced presentations.
Gives greater depth to darker portions
of image for a more exciting theater
experience.
For natural color gradation for playing
a game, etc.
Description
When you want to display the image in a natural
tint based on an original image from the computer, select “sRGB” and set it to “
” (ON).
Select “sRGB” on the “Picture” menu and
set it to “ ” (ON).
Setting the menu screen Page 34
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
Note
•When “sRGB” is set to “ ” (ON);
• Gamma is not available.
• “Red”, “Blue” or “CLR Temp” on the “Picture”
menu cannot be adjusted.
•For additional information about the sRGB func-
tion, visit “http://www.srgb.com/”.
Info
•When “sRGB” is set to “ ” (ON), the projected
image may become dark, but this does not indicate a malfunction.
Using the
Menu
Note
•Gamma is not available for INPUT 1 when
“sRGB” on the “Picture” menu is set to “ON”.
-37
Picture Adjustment
Signal Type
The signal type setting is preset to “Auto”;
however, in rare cases a clear picture may not
be displayed. In that case, select “RGB” or “Component” in accordance with the input signal.
Select “Signal Type” on the “Picture” menu
and set it to “Auto”, “RGB” or “Component”
for INPUT 1.
Setting the menu screen Page 34
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
(Signal Type Setting)
Memory
(Storing and Selecting
the Adjustment Settings)
Use this function to store the adjustment settings
on the “Picture” menu. No matter which input
mode or signal type is selected, you can select
and apply the settings you have stored in a
memory location.
Select “Memory” on the “Picture” menu and
the memory location where you want to store
the settings. Then adjust the setting items
on the “Picture” menu.
Setting the menu screen Page 34
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
Description of Signal Type Settings
Selectable settings
Auto
RGB
Component
-38
Input signals are automatically
recognized as RGB or Component.
Set when RGB signals are received.
Set when Component signals are
received.
Description
Description of Memory Positions
Selectable
settings
Memory 1
Memory 2
Memory 3
Memory 4
Memory 5
Memory OFF
Settings of all items on the “Picture”
menu can be stored in memory location.
The stored settings can be selected in
any input mode.
Besides “Memory 1” to “Memory 5”, other
settings on the “Picture” menu can be
stored for each input mode. The settings
stored in “Memory OFF” cannot be applied
when another input mode is selected.
Description
If you want to apply the stored settings on
the “Picture” menu, select “Memory” on the
“Picture” menu and the memory location
where you have stored the settings.
Note
•You can change the stored settings after se-
lecting the memory location for those settings.
Computer Image Adjustment
Using the “Fine Sync” menu, you can adjust the computer image, match the computer display mode, and check the input signal.
Adjusting the Computer Image
When “Auto Sync” is set to OFF or when vertical
stripes or flickering occur in portions of the
screen even if “Auto Sync” is set to ON, adjust
“Clock”, “Phase”, “H-Pos” or “V-Pos” to obtain
the best computer image.
Select the item on the “Fine Sync” menu
and adjust the computer image.
Adjusting the menu screen Page 32
Example: “Fine Sync” menu screen for
INPUT 1 mode
Special Modes (Special
Mode Settings)
Ordinarily, the type of input signal is detected and
the correct resolution mode is automatically selected. However, for some signals, the optimal
resolution mode in “Special Modes” on the “Fine
Sync” menu may need to be selected to match
the computer display mode.
Select “Special Modes” on the “Fine Sync”
menu and the appropriate resolution.
Setting the menu screen Page 34
Example: “Fine Sync” menu screen for
INPUT 1 mode
Using the
Menu
Description of Adjustment Items
Selectable items
Clock
Phase
H-Pos
V-Pos
adjust vertical noise.
adjust horizontal noise (similar to tracking
on your VCR).
center the on-screen image by moving it to
the left or right.
center the on-screen image by moving it up
or down.
Use \ and | to
Note
•You can automatically adjust the computer im-
age by setting “Auto Sync” on the “Fine Sync”
menu or pressing the AUTO SYNC button. See
next page for details.
•To reset all adjustment items, select “Reset” and
press
.
Note
•If your computer displays patterns which repeat
every other line (horizontal stripes), flickering may
occur which makes the image hard to see.
•When a DVD player or Digital Video is connected,
select 480P as the input signal.
•See “Signal Info (Checking the Input Signal)” on
the next page for information on the currently selected input signal.
-39
Computer Image Adjustment
Auto Sync (Auto Sync Adjust-
ment)
Used to automatically adjust a computer image.
Select “Auto Sync” on the “Fine Sync” menu
and set it to “ ”(ON) or “ ”(OFF).
Setting the menu screen Page 34
Example: “Fine Sync” menu screen for
INPUT 1 mode
Description of Auto Sync Adjustment
Selectable Settings
Auto Sync adjustment will occur when
ON
OFF
the projector is turned on or when the
input signals are switched, when
connected to a computer.
Auto Sync adjustment is not automatically performed.
Description
Signal Info (Checking the
Input Signal)
Select “Signal Info” on the “Fine Sync” menu
to check the current input signal information.
Checking the menu screen Page 34
Example: “Fine Sync” menu screen for
INPUT 1 mode
Note
•The projector will display the number of
scanned lines available from audio-visual
equipment such as a DVD player or Digital
Video.
Note
•Auto Sync adjustment is also performed by
pressing on the projector or
on the remote control.
•The Auto Sync adjustment may take some time
to complete, depending on the image of the
computer connected to the projector.
•When the optimum image cannot be achieved
with Auto Sync adjustment, use manual adjustments. (See page 39.)
-40
Using the “Options” Menu
You can use the “Options” menu to enhance the usage for the projector.
Lamp Timer (Life) (Check-
ing the Lamp Life Status)
You can confirm the cumulative lamp usage time
and the remaining lamp life (percentage).
Display the “Options” menu to check the
lamp life status.
Checking the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Description of Lamp Life
Lamp usage condition
Operated exclusively
in Eco mode ( )
Operated exclusively
in Standard mode ( )
Remaining lamp life
100% 5%
Approx. Approx.
4,000 hours 200 hours
Approx. Approx.
2,000 hours 100 hours
OSD Display (Setting On-
screen Display)
This function allows you to turn the on-screen
messages on or off.
Select “ ” (ON) or “ ” (OFF) in “OSD
Display” on the “Options” menu.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Description of “OSD Display” Settings
Selectable settings
(ON)
(OFF)
Displayed when the STANDBY button is pressed while
*
the keylock function is active.
All On-screen Displays are displayed.
INPUT/VOLUME/AV MUTE/FREEZE/
AUTO SYNC/ENLARGE/ “An invalid
button has been pressed.” / “All buttons on
Projector are locked.”* are not displayed.
Description
Using the
Menu
Note
• It is recommended that the lamp be changed
when the remaining lamp life becomes 5%.
For lamp replacement, contact your nearest
Sharp Authorized Projector Dealer or Service
Center.
• The table above indicates rough estimates in the
case of using only in each mode shown. Remaining lamp life changes within the range of the values shown depending on the frequency at which
“Eco Mode” is switched to “
“ ” (Standard mode) (see page 43).
” (Eco mode) and
-41
Using the “Options” Menu
Video System (Setting the
Video System)
The video input system mode is preset to “Auto”;
however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that
case, switch the video signal.
Select “Video System” on the “Options” menu
and the appropriate video system.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Description of Video Systems
Selectable settings
PAL
SECAM
NTSC4.43
NTSC3.58
When connected to PAL video
equipment.
When connected to SECAM video
equipment.
When reproducing NTSC signals in
PAL video equipment.
When connected to NTSC video
equipment.
Description
Background (Selecting a
Startup and Background Image)
Select “Background” on the “Options” menu and
the image displayed upon the projector’s startup
and when no signal is being sent to the projector.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Sharp
Blue
None
Description of Background Images
Selectable settings
Sharp
Blue
None
SHARP default image
Blue screen
Black screen
Note
• If the input signal has interference, the screen
will be displayed during interference.
Description
Note
• The video signal can only be set in INPUT 2 or
INPUT 3 mode.
• When the system mode is set to “Auto”, you
may not receive a clear picture due to signal
differences. Should this occur, switch to the
video system of the source signal.
-42
Eco Mode (Setting the Eco
Mode)
Auto Power Off (Auto
Power Off Function)
Select “ ” (Eco Mode) or “ ” (Standard
Mode) in “Eco Mode” on the “Options” menu.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Description of Eco Mode
Selectable settings
(Eco mode)
(Standard mode)
Brightness
90%
100%
Power consumption
(When using AC 100V)
170 W
185 W
Lamp life
Approx.
4,000 hours
Approx.
2,000 hours
Note
• Although lamp life and noise are improved when
“Eco Mode” is set to “
ness decreases by 10%.
• “Eco Mode” is factory preset to “
mode).
” (Eco mode), bright-
” (Standard
When no input signal is detected for more than
15 minutes, the projector will automatically enter the standby mode if set to “
The Auto Power Off function will be disabled if it
has been set to “ ” (OFF).
” (ON).
Select “ ” (ON) or “ ” (OFF) in “Auto
Power Off” on the “Options” menu.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Note
• When the Auto Power Off function is set to “ON”,
5 minutes before the projector enters the
standby mode, the message “Enter STANDBY
mode in X min.” will appear on the screen to
indicate the remaining minutes.
Using the
Menu
-43
Using the “Options” Menu
Menu Position (Selecting
the Menu Screen Position)
Select “Menu Position” on the “Options”
menu and the desired position for the menu
screen.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Description of Menu Positions
Selectable settings
Center
Upper Right
Lower Right
Upper Left
Lower Left
Displayed on the center of the image.
Displayed on the upper right of the image.
Displayed on the lower right of the image.
Displayed on the upper left of the image.
Displayed on the lower left of the image.
Description
Menu Color (Selecting the
Menu Color)
Select “ ” (Opaque) or “ ” (Translucent)
in “Menu Color” on the “Options” menu.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Description of Menu Colors
Selectable settings
Opaque
Translucent
The menu is displayed opaquely.
The menu is displayed translucently.
The part of the menu on the image
becomes transparent.
Description
-44
Password
A password must be set to activate the “AntiTheft” function (Page 46).
There is no factory preset for the password or
the “Anti-Theft” settings. In this way, anyone can
freely set a new password and “Anti-Theft” settings. It is therefore recommended that even if
you do not want to use the “Anti-Theft” function,
you at least set a password to prevent others
from setting the “Anti-Theft” function.
Select “Password” on the “Options” menu,
then press and follow the procedure below to enter the password.
Setting the menu screen Page 34
(Setting a Password)
If you want to change the password, follow
the procedure below.
''
1 Press
',
''
""
" and
""
||
| to enter the
||
password in “Old Password” and
press
2 Press
password and press
''
',
''
.
""
" and
""
||
| to set the new
||
.
3 Enter the new 4-digit password
again in “Reconfirm” and press
.
''
1 Press
number and then press
""
' or
" to select the desired
''
""
||
|.
||
Note
•If you do not want to set a password, leave the
2 Enter the 3 remaining digits and
press
.
fields in steps 2 and 3 blank and press
•To cancel the password settings, press .
.
3 Enter the password again in “Re-
confirm” and press
Note
•When a password is set, you need to enter the
password to change the “Anti-Theft” setting.
If You Forget Your Password
If you forget the password, delete it using the following procedure and set a new password.
Note
•
If is held down for more than 3 seconds, the operation buttons on the projector will be locked. (See page 29.)
•
You can only use the buttons on the projector to delete the password.
•
The password cannot be deleted using the above described procedures while the “Anti-Theft” function is set. If you
forget your password while the “Anti-Theft” function is activated, you will need to contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 73). You may need to bring your projector to them to restore the
projector to original factory condition (password and keycode reset).
Press
.
(VOL)
(VOL)
(VOL)
(VOL)
.
Using the
Menu
-45
Using the “Options” Menu
Anti-Theft
The anti-theft function prevents unauthorized use of
the projector. You can choose to use this function or
not. If you do not want to use this function, just do
not enter the keycode. Once the anti-theft function is
activated, users will need to enter the correct keycode
each time the projector is turned on. Failure to enter
the correct keycode will cause images to not be projected. The following procedures explain how to use
this function.
Setting the menu screen Page 34
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
(Setting the Anti-Theft)
3 Press any button you like on the re-
mote control or projector to set the
first digit in “New Code”.
Note
•The following buttons on the remote control and
projector cannot be set as keycodes:
• ON button
• STANDBY button
• ENTER button
• UNDO button
• MENU button
• FORWARD button
• BACK button
4 Enter the remaining 3 digits by
pressing any buttons you like.
If you want to set the keycode, follow the
procedure below.
1 Select “Anti-Theft” on the “Op-
tions” menu, then press
•The password input box will appear.
''
2 Press
',
''
""
" and
""
password.
•The keycode input box will appear.
" On-screen display (keycode)
-46
||
| to enter the
||
.
5 Enter the same keycode once more
in “Reconfirm”.
Note
When “Anti-Theft” is set, the keycode inputting box appears after the power is
turned on. When it appears, enter the right
keycode.
•Press the buttons on the remote control if the
buttons on the remote control are used for setting the keycode. In the same manner, press
the buttons on the projector if the buttons on
the projector are used for setting the keycode.
•“Anti-Theft” cannot be selected unless
“Password” is set. (See page 45.)
•When “Anti-Theft” is selected, the password in-
put box will appear. Enter the keycode after the
right password is entered.
Info
•
Once the function is activated, you must remember the correct keycode. We suggest you record
the keycode in a safe place where only authorized users have access. If you lose or forget
your keycode, you will need to contact your
nearest Sharp Authorized Projector Dealer or
Service Center (see page 73). You may need
to bring your projector to them to restore the
projector to original factory condition (password
and keycode reset).
If you want to change the keycode, follow
the procedure below.
Note
•When “Anti-Theft” is selected, the password in-
put box will appear. After the password has been
entered, you can change the keycode.
1 Press the buttons on the remote
control or the projector to enter the
preset 4-digit keycode in “Old
Code”.
2
Press any button you like on the remote control or the projector to enter the new keycode.
3 Enter the same 4-digit keycode in
“Reconfirm”.
If you want to clear the keycode input box,
follow the procedure below.
▼Keycode input box
Note
•When “Anti-Theft” is selected, the keycode in-
put box will appear.
•If no keycode is entered, the image will not be
displayed, even if the projector receives the input signal.
1 Press on the remote control or
on the projector to turn on the
projector.
2 Enter the keycode you set when the
keycode input box is displayed.
Note
•When entering the keycode, press the buttons
previously set on the projector or the remote
control.
Using the
Menu
Note
•If you do not want to set a keycode, leave the
keycode field blank in steps 2 and 3 and press
.
-47
Using the “Language” Menu
Selecting the On-screen Display Language
The on-screen display language of the projector can be
set to English, German, Spanish, Dutch, French, Italian,
Swedish, Portuguese, Chinese, Korean or Japanese.
Display the “Language” menu and select the
desired language as the on-screen display.
ENTER button
Example: “Language” menu screen for
INPUT 1 (RGB) mode
1
Press on the remote control.
•The “Picture” menu will be displayed.
2 Press \ or | to select the “Lan-
guage” menu icon.
•The “Language” menu will be displayed.
3
Press ' or " to select the desired
language, and then press
•The language you selected will be set as
the on-screen display.
.
MENU button
', ", \, |
buttons
4 Press .
•The “Language” menu will disappear.
Note
•This procedure can also be performed by using
the buttons on the projector.
-48
Using the “PRJ Mode” Menu
Reversing the Projected Image
You can reverse the projected image for various
applications using the “PRJ Mode” menu.
Display the “PRJ Mode” menu and select the
desired projection mode.
Example: “PRJ Mode” menu screen for
INPUT 1 (RGB) mode
ENTER button
MENU button
', ", \, |
buttons
1
Press on the remote control.
•The “Picture” menu will be displayed.
2
Press
\ or | to select the “PRJ
Mode” menu icon.
•The “PRJ Mode” menu will be displayed.
3
Press ' or " to select “Rear”, and
then press
•The projected image will be reversed.
Description of Projection Modes
Selectable settings
Front
Rear
4
Press .
•The “PRJ Mode” menu will disappear.
Note
•This function is used for the reversed image
setup. See page 58 for this setup.
•This procedure can also be performed by using
the buttons on the projector.
.
Description
Normal image
Reversed image
Using the
Menu
-49
Connecting the Projector to Other Devices
Before Connecting
Note
•
Before connecting, be sure to unplug the power cord of the projector from the AC outlet and turn off the devices
to be connected. After making all connections, turn on the projector and then the other devices.
When connecting a computer, be sure that it is the last device to be turned on after all the connections are made.
•Be sure to read the operation manuals of the devices to be connected before making connections.
This projector can be connected to:
A computer using:
■
An RGB cable and a ø3.5 mm stereo or mono audio cable (commercially available) (See page 51.)
■ A DIN-D-sub RS-232C adaptor (AN-A1RS) (sold
separately) and an RS-232C
serial control cable (AN-C10RS) (sold separately)
(See page 54.)
Component video or audio-visual equipment:
■ A VCR, Laser disc player or other audio-visual
equipment (See page 52.)
■ A DVD player or DTV* decoder (See page 53.)
*DTV is the umbrella term used to describe the new
digital television system in the United States.
A monitor using :
■ Two RGB cables (One is supplied, the other is
sold separately) (See page 55.)
Connecting the thumbscrew cables
■ Connect the thumbscrew cable making sure that
it fits correctly into the terminal. Then, firmly secure the connectors by tightening the screws on
both sides of the plug.
■ Do not remove ferrite cores attached to the RGB
cable.
-50
Ferrite core
Connecting the Projector to a Computer
Connecting to a Computer
Using the RGB Cable
1
Connect the projector to the computer using the supplied RGB cable.
•Secure the connectors by tightening the
thumbscrews.
2
To input an audio signal, connect
the projector to the computer using
a ø3.5 mm stereo or mono audio
cable (commercially available or
available as Sharp service part
QCNWGA038WJPZ).
Note
•
If the projector does not automatically detect
a RGB signal, the projected image will appear
distorted. To correct, change the menu setting
from “Auto” to “RGB”. The menu setting can
be found in the “Picture” menu. See page 38.
•
See page 70 “Computer Compatibility Chart”
for a list of computer signals compatible with
the projector. Use with computer signals other
than those listed may cause some of the functions to not work
A Macintosh adaptor may be required for use with
•
some Macintosh computers. Contact your nearest
Sharp Authorized Projector Dealer or Service Center.
•
Depending on the computer you are using,
an image may not be projected unless the signal output setting of the computer is switched
to the external output. Refer to the computer
operation manual for switching the computer
signal output settings.
•When using the ø3.5 mm mono audio cable,
the volume level will be half of when using
the ø3.5 mm stereo audio cable.
.
Supplied
accessory
Computer
RGB cable
1
ø3.5 mm stereo or mono audio
2
cable (commercially available or
available as Sharp service part
QCNWGA038WJPZ)
RGB cable
To RGB output terminal
To audio output terminal
Connections
“Plug and Play” function (when connecting to a 15-pin terminal)
■ This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC
compatible computer will communicate their setting requirements, allowing for quick and easy setup.
■ Before using the “Plug and Play” function, be sure to turn on the projector first and the connected
computer last.
Note
•The DDC “Plug and Play” function of this projector operates only when used in conjunction with a VESA
DDC compatible computer.
-51
Connecting the Projector to Other Devices
Connecting to Video Equipment
Connecting to Video
Equipment Using an
VCR or other audio-visual equipment
S-video, a Composite
Video or an Audio Cable
Using an S-video, video, or audio cable, a VCR,
laser disc player or other audio-visual equipment can be connected to INPUT 2, INPUT 3
and AUDIO input terminals.
1 Connect the projector to the
video equipment using an Svideo cable or a composite video
cable (both commercially available).
2 Connect the projector to the
video equipment using a ø3.5
mm minijack to RCA audio cable
(commercially available).
ø3.5 mm minijack to RCA audio cable
2
(commercially available)
Composite video cable
1
(commercially available)
S-video cable
1
(commercially available)
To S-video output terminal
To video output terminal
To audio output terminal
Note
•The INPUT 2 (S-VIDEO) terminal uses a video
signal system in which the picture is separated into color and luminance signals to realize a higher-quality image. To view a higherquality image, use a commercially available
S-video cable to connect the INPUT 2 terminal on the projector and the S-video output
terminal on the video equipment.
A ø3.5 mm minijack to RCA audio cable (com-
•
mercially available) is required for audio input.
-52
Connecting to Component
Video Equipment
Use a 3 RCA to 15-pin D-sub cable when connecting to the INPUT 1 terminal, component
video equipment such as DVD players and
DTV* decoders.
*DTV is the umbrella term used to describe the
new digital television system in the United
States.
1 Connect the projector to the
video equipment using the 3
RCA to 15-pin D-sub cable.
•Secure the connectors by tightening the
thumbscrews.
2 Connect the projector to the
video equipment using a ø3.5
mm minijack to RCA audio cable
(commercially available).
Note
•If the projector does not automatically de-
tect a COMPONENT signal, the projected
image will appear distorted. To correct,
change the menu setting from “Auto” to
“Component”. The menu setting can be
found in the “Picture” menu. See page 38.
•A ø3.5 mm minijack to RCA audio cable
(commercially available) is required for audio input.
Optional
cable
To analog component output terminal
DVD player or
* decoder
DTV
3 RCA to 15-pin D-sub cable
1
(sold separately)
ø3.5 mm minijack to RCA audio cable
2
(commercially available)
3RCA to 15-pin D-sub cable
AN-C3CP
(9'10" (3.0 m))
To audio output terminal
Connections
-53
Connecting the Projector to Other Devices
Controlling the Projector Using a Computer
Connecting to a
Computer Using a DIN-Dsub RS-232C Adaptor
and an RS-232C Serial
Control Cable
When the RS-232C terminal on the projector
is connected to a computer with a DIN-D-sub
RS-232C adaptor (sold separately) and an RS232C serial control cable (cross type, sold
separately), the computer can be used to control the projector and check the status of the
projector. See page 69 for details.
1 Connect a DIN-D-sub RS-232C
adaptor (sold separately) to an
RS-232C serial control cable
(sold separately).
2 Use the above cables to connect
the projector and the computer.
Note
•Do not connect the RS-232C cable to a port
other than the RS-232C terminal on the computer. This may damage your computer or
projector.
•Do not connect or disconnect an RS-232C
serial control cable to or from the computer
while it is on. This may damage your computer.
•The RS-232C function may not operate if
your computer terminal is not correctly set
up. Refer to the operation manual of the
computer for details.
•See page 68 for connection of an RS-232C
serial control cable.
Optional
cables
Computer
To RS-232C terminal
DIN-D-sub RS-232C adaptor
AN-A1RS
(5 57/64" (15 cm))
RS-232C serial control cable
AN-C10RS
(32'10" (10.0 m))
RS-232C serial
control cable
(sold separately)
DIN-D-sub
RS-232C
adaptor
(sold
separately)
-54
Connecting to a Monitor
Watching Images on
Both the Projector and a
Monitor
You can display computer images on both the
projector and a separate monitor using RGB
cables.
1 Connect the projector to the
computer using the supplied
RGB cable.
•Secure the connectors by tightening the
thumbscrews.
2 Connect the projector to the
monitor using the computer
RGB cable (sold separately).
•Secure the connectors by tightening the
thumbscrews.
Note
•Analog RGB signals as well as Component
signals can be output to the monitor.
•For this connection, computer RGB cable
(sold separately) is required.
Supplied
accessory
Optional
cable
Computer RGB cable
AN-C10BM
(32'10" (10.0 m))
To RGB input port
RGB cable
To the computer
To the monitor
RGB cable
Computer
Monitor
Computer RGB cable
(sold separately)
To RGB
input port
Connections
Connecting the Power Cord to the Projector
Supplied
Connecting the Power
Cord
Plug the supplied power cord into the
AC socket on the rear of the projector.
accessory
Power cord
-55
Setting up the Screen
Position the projector perpendicular to the screen with all feet flat and level to achieve an optimal image.
Note
•The projector lens should be centered in the middle of the screen. If the horizontal line passing through the
lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
•For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly
on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when
setting up the screen in a sunny or bright room.
•A polarizing screen cannot be used with this projector.
Standard Setup (Front Projection)
■ Place the projector at the required distance from
the screen according to the desired picture size.
(See page 57.)
Example of standard setup
Screen size : 100 inch (254 cm) STRETCH Mode : 16:9
Side View
Screen
" (145.2 cm)
64
/
11
H1 : 57
H2
1
/16"(-20.5 cm)
-8
Top View
Screen
" (65.8 cm)
32
/
29
25
:
Center of screen
W
Lens center
Lower lens shift
position
(High mount setup)
Lens center
Upper lens shift
position
(Desktop setup)
Lens center
Leftmost lens shift
position
Lens center
•The distance from the screen
to the projector may vary
depending on the size of the
screen. P.57
•
The default setting can be used,
when placing the projector in front
of the screen. If the projected image is reversed, readjust the setting to “Front” in the “PRJ Mode”
menu.
•Place the projector so that an
P.49
imaginary horizontal line that
passes through the center of the
lens is perpendicular to the
screen.
-56
Rightmost lens shift
position
Screen Size and Projection Distance
NORMAL Mode (4:3)
Picture (Screen) size Projection distance [L]
Distance from the lens center to
the bottom of the image [H]
Diag. [χ] Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]
300" (762 cm) 610 cm (240”) 457 cm (180") 9.0 m (29' 6") 11.3 m (37' 1") 458.1 cm (18023/64") 0 cm (0") ±181.1 cm(±7119/64")
250" (635 cm) 508 cm (200") 381 cm (150") 7.5 m (24' 7") 9.4 m (30' 10") 381.8 cm (1505/16") 0 cm (0") ±150.9 cm(±5913/32")
200" (508 cm) 406 cm (160") 305 cm (120") 6.0 m (19' 8") 7.5 m (24' 7") 305.4 cm (12015/64") 0 cm (0") ±120.7 cm(±47
150" (381 cm) 305 cm (120") 229 cm (90") 4.5 m (14' 9") 5.6 m (18' 4") 229.1 cm (9013/64") 0 cm (0") ±90.5 cm(±35 5/8")
100" (254 cm) 203 cm (80") 152 cm (60") 3.0 m (9'10") 3.7 m (12' 2") 152.7 cm (601/8") 0 cm (0") ±60.4 cm(±23
84" (213 cm) 171 cm (67") 128 cm (50") 2.5 m (8' 2") 3.1 m (10' 2") 128.3 cm (5033/64") 0 cm (0") ±50.7 cm(±19
72" (183 cm) 146 cm (58") 110 cm (43") 2.1 m (6'11") 2.7 m (8'10") 109.9 cm (4317/64") 0 cm (0") ±43.5 cm(±171/8")
60" (152 cm) 122 cm (48") 91 cm (36") 1.8 m (5'11") 2.2 m (7' 3") 91.6 cm (361/16") 0 cm (0") ±36.2 cm(±141/4")
1
40" (102 cm) 81 cm (32") 61 cm (24") 1.2 m (3'11") 1.5 m (4'11") 61.1 cm (24
χ
: Picture size (diag.) (in/cm)
L: Projection distance(m/ft)
L1: Minimum projection distance (m/ft)
L2: Maximum projection distance (m/ft)
H: Distance from the lens center to the bottom of the image (cm/in)
H1: Lower distance from the lens center to the bottom of the image (cm/in)
H2: Upper distance from the lens center to the bottom of the image (cm/in)
W: Distance from the lens center to the center of the image (cm/in)
STRETCH Mode (16:9)
Picture (Screen) size Projection distance [L]
The formula for picture size and projection distance
[m/cm]
L1 (m) =
L2 (m) =
H1 (cm) =
H2 (cm) =
W (cm) = ±
[Feet/inches]
L1 (ft) =
L2 (ft) =
H1 (in) =
H2 (in) =
W (in) = ±0.6036χ / 2.54
Distance from the lens center to
the bottom of the image [H]
/16") 0 cm (0") ±24.1 cm (±931/64")
0.0302χ – 0.035
0.0377χ – 0.035
χ
1.5271
0
χ
0.6036
(0.0302χ – 0.035) / 0.3048
(0.0377χ – 0.035) / 0.3048
1.5271χ / 2.54
0
Diag. [χ] Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]
300" (762 cm) 664 cm (261") 374 cm (147") 9.8 m (32' 2") 12.3 m (40' 4") 435.6 cm (1711/2") –61.4 cm (–2411/64") ±197.4 cm (±77
250" (635 cm) 553 cm (218") 311 cm (123") 8.2 m (26'11") 10.2 m (33' 6") 363.0 cm (142 29/32") –51.2 cm (–20 5/32") ±164.5 cm (±6449/64")
225" (572 cm) 498 cm (196") 280 cm (110") 7.4 m (24' 3") 9.2 m (30' 2") 326.7 cm (1285/8") –46.1 cm (–18 5/32") ±148.0 cm (±5817/64")
200" (508 cm) 443 cm (174") 249 cm (98") 6.5 m (21' 4") 8.2 m (26' 11") 290.4 cm (114
21
/64") –40.9 cm (–167/64") ±131.6 cm (±5113/16")
150" (381 cm) 332 cm (131") 187 cm (74") 4.9 m (16' 1") 6.1 m (20' ) 217.8 cm (853/4") –30.7 cm (–123/32") ±98.7 cm (±38
133" (338 cm) 294 cm (116") 166 cm (65") 4.3 m (14' 1") 5.4 m (17' 9") 193.1 cm (761/32") –27.2 cm (–1045/64"
106" (269 cm) 235 cm (92") 132 cm (52") 3.5 m (11' 6") 4.3 m (14' 1") 153.9 cm (6019/32") –21.7 cm (–835/64") ±69.7 cm (±277/16")
100" (254 cm) 221 cm (87") 125 cm (49") 3.3 m (10'10") 4.1 m (13' 5") 145.2 cm (5711/64") –20.5 cm (–85/64") ±65.8 cm (±25
92" (234 cm) 204 cm (80") 115 cm (45") 3.0 m (9'10") 3.7 m (12' 2") 133.6 cm (5219/32") –18.8 cm (–713/32") ±60.5 cm (±23
84" (213 cm) 186 cm (73") 105 cm (41") 2.7 m (8'10") 3.4 m (11' 2") 122.0 cm (481/32") –17.2 cm (–649/64") ±55.3 cm (±2149/64")
72" (183 cm) 159 cm (63") 90 cm (35") 2.3 m (7' 7") 2.9 m (9' 6") 104.6 cm (413/16") –14.7 cm (–525/32") ±47.4 cm (±18
60" (152 cm) 133 cm (52") 75 cm (29") 1.9 m (6' 3") 2.4 m (7' 10") 87.1 cm (3419/64") –12.3 cm (–427/32") ±39.5 cm (±15
40" (102 cm) 89 cm (35") 50 cm (20") 1.3 m (4' 3") 1.6 m (5' 3") 58.1 cm (22
χ
: Picture size (diag.) (in/cm)
L: Projection distance(m/ft)
L1: Minimum projection distance (m/ft)
L2: Maximum projection distance (m/ft)
H: Distance from the lens center to the bottom of the image (cm/in)
H1: Lower distance from the lens center to the bottom of the image (cm/in)
H2: Upper distance from the lens center to the bottom of the image (cm/in)
W: Distance from the lens center to the center of the image (cm/in)
The formula for picture size and projection distance
[m/cm]
L1 (m) =
L2 (m) =
H1 (cm) =
H2 (cm) =
W (cm) = ±
[Feet/inches]
L1 (ft) =
L2 (ft) =
H1 (in) =
H2 (in) =
W (in) = ±0.6579χ / 2.54
7
/8") –8.2 cm (–315/64") ±26.3 cm (±10
0.0329χ – 0.035
0.041χ – 0.035
χ
1.452
χ
–0.2047
χ
0.6579
(0.0329χ – 0.035) / 0.3048
(0.041χ – 0.035) / 0.3048
1.452χ / 2.54
–0.2047χ / 2.54
Distance from the lens
center to the center of
the image [W]
Distance from the lens
center to the center of
the image [W]
) ±87.5 cm (±34
33
/64")
25
/32")
61
/64")
23
/32")
55
/64")
29
/64")
29
/32")
13
/16")
21
/32")
35
/64")
23
/64")
Screen Setup
Note
•There may be an error of ± 3% in the above values.
•Values with a minus (–) sign indicate the distance from the lens center below the bottom of the image.
-57
Setting up the Screen
Projecting a Reversed Image
Projection from behind the Screen
■ Place a translucent screen between the projector and the
audience.
■ Reverse the image by setting “Rear” in the “PRJ Mode” menu.
(See page 49.)
When the image is projected from
behind the screen using the default
setting.
▼On-screen Display
Audience
Translucent screen
Projection Using a Mirror
■ Place a mirror (normal flat type) in front of the lens.
■ When the translucent screen is placed on between the mir-
ror and audience, set to “Front” in the “PRJ Mode” menu.
(See page 49.)
■ When the mirror is placed on the audience side, set to “Rear”
in the “PRJ Mode” menu. (See page 49.)
Audience
Set to “Front”
Translucent screen
Mirror
Audience
Info
•When using a mirror, be sure to carefully position both the
projector and the mirror so the light does not shine into the
eyes of the audience.
Set to “Rear”
Mirror
Set to “Rear”.
▼On-screen Display
The image is reversed.
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceiling-
mount bracket for this installation.
Before mounting the projector, contact your nearest Sharp
Authorized Projector Dealer or Service Center to obtain the
recommended ceiling-mount bracket (sold separately).
• AN-B10T ceiling-mount bracket, its AN-TK201 and
AN-TK202 extension tubes (for countries other than the
U.S.A.).
■ Be sure to adjust the position of the projector to match the
distance (H) from the lens center position (see page 57) to
the lower edge of the image, when mounting the projector on
the ceiling.
■ Do not mount the projector upside down.
-58
Carrying the Projector
How to Use the Carrying Case
When carrying the projector, attach the lens
cap and the lens shipping block to the lens,
and place it in the supplied carrying case.
1 Open the cover of the carrying
case.
2 Remove the inner padding from
the carrying case, and fold it in
the direction of the arrows.
3 Reinsert the inner padding into
the carrying case.
Info
•Be sure to insert the inner padding to
protect the lens and the projector.
4 Place the projector and the ac-
cessories in the carrying case.
Info
•Be sure to attach the lens cap and
the lens shipping block to protect the
lens. (See pages 10 and 11.)
•Be sure the projector has cooled
down sufficiently before placing it in
the case.
Info
•This carrying case is only for storing and
carrying the projector.
•Sending the projector in the carrying case
as a parcel may cause damage to the projector. If you send the projector in the carrying case as a parcel, be sure to place it
in a sturdy case and with enough shock
absorbing material to avoid any damage.
•Do not expose the carrying case or projec-
tor to direct sunlight, near heat sources, or
leave them in a car. The carrying case or
projector may change color or become deformed.
Lens cap
Adjust the
shoulder
strap.
Lens shipping block
Appendix
-59
Maintenance
Cleaning the projector
■ Be sure to unplug the power cord before cleaning
the projector.
■ The cabinet as well as the operation panel is made
of plastic. Avoid using benzene or thinner, as these
can damage the finish on the cabinet.
■ Do not use volatile agents such as insecticides on
the projector.
Do not attach rubber or plastic items to the projector for a long time.
The effects of some of the agents in the plastic may
cause damage to the quality or finish of the projector.
Thinner
Wax
■ Wipe off dirt gently with a soft flannel cloth.
M
ild d
etergent
Cleaning the lens
■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning
agents, as they may wear off the coating film on the
surface of the lens.
■ As the surface of the lens can easily get damaged,
be sure not to scrape or hit the lens.
Cleaning
Paper
Cleaning the exhaust and intake vents
■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.
Mild detergent
diluted with water
■ When the dirt is hard to remove, soak a cloth in a
mild detergent diluted with water, wring the cloth
well and then wipe the projector.
Strong cleaning detergents may discolor, warp or
damage the coating on the projector.
Make sure to test on a small, inconspicuous area
on the projector before use.
-60
Replacing the Air Filter
• This projector is equipped with air fil-
ters to ensure the optimal operating
condition of the projector.
• The air filters should be cleaned every
100 hours of use. Clean the filters more
often when the projector is used in a
dusty or smoky location.
• Ask your nearest Sharp Authorized Pro-
jector Dealer or Service Center to exchange the filter (PFILDA010WJZZ)
when it is no longer possible to clean.
Cleaning and Replacing the Air Filter
1 Press on the projector
STANDBY
or
on the remote control to
put the projector into the
standby mode.
•Wait until the cooling fan stops.
""
" Bottom view
""
Air filter (not removable)
""
" Front view
""
Air filter (removable)
STANDBY
STANDBY
button
STANDBY button
2 Disconnect the power cord.
•Unplug the power cord from the AC
socket.
3 Remove the filter cover.
•Turn the projector over. Loosen the user
service screw (1) that secures the filter cover. Pressing the tab, remove the
filter cover (2).
AC socket
User service screw
1
2
Tab
Appendix
-61
Replacing the Air Filter
4 Remove the air filter.
•Pick the air filter up with your fingers and
lift it out of the filter cover.
5 Clean the air filter.
•Clean the dust off the air filter and cover
with a vacuum cleaner extension hose.
6 Replace the air filter.
•Place the air filter underneath the tabs
on the filter cover.
7 Replace the filter cover.
•Align the tab on the filter cover and place
it while pressing the tab to close it (1).
Then tighten the user service screw (2)
to secure the filter cover.
Note
•Be sure the filter cover is securely installed.
The power will not turn on unless it is
correctly installed.
•If dust or dirt has collected inside the rear
and bottom air filters (not removable), clean
the filter with a vacuum cleaner extension
hose.
-62
Tab
1
2
User service screw
Maintenance Indicators
■ The warning lights on the projector indicate problems inside the projector.
■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate
red, and the projector will enter the standby mode. After the projector has entered the standby
mode, follow the procedures given below.
Temperature warning indicator
Lamp indicator
Power indicator
About the temperature warning indicator
If the temperature inside the
projector increases, due to
blockage of the air vents, or the
setting location, “
illuminate in the lower left corner of the picture. If
the temperature keeps on rising, the lamp will turn off
and the temperature warning indicator will blink, the
cooling fan will run for a further 90 seconds, and then
the projector will enter the standby mode. After
“ ” appears, be sure to perform the following
measures.
” will
About the lamp indicator
■ The lamp life becomes 0%, when used
for approximately 4,000 hours with “Eco
Mode” or when used for approximately
2,000 hours with “Standard Mode” (see
page 43).
■ When the remaining lamp life becomes
5% or less, “
on the screen. When the percentage becomes 0%, “ ” will change to “ ” (red),
the lamp will automatically turn off and
then the projector will automatically enter the standby mode. At this time, the
lamp indicator will illuminate in red.
■ If you try to turn on the projector a fourth
time without replacing the lamp, the projector will not turn on.
” (yellow) will be displayed
Maintenance indicator
Temperature
warning
indicator
Lamp
indicator
Power
indicator
Normal
Off
Green on
Green blinks
when the
lamp is
warming up.
Green on/
Red on
Abnormal
Abnormal
Red on/
Standby
Red on
Red on/
Standby
Red blinks
Condition
The internal
temperature is
abnormally high.
Time to change
the lamp.
The lamp does
not illuminate.
The power
indicator blinks
in red when the
projector is on.
Problem Possible Solution
• Relocate the projector to an area
• Blocked air intake
• Cooling fan break-
down
• Internal circuit failure
• Clogged air intake
• Remaining lamp life
becomes 5% or less.
• Burnt-out lamp
• Lamp circuit failure
• The filter cover or
lamp unit cover is
open.
with proper ventilation.
• Clean the air filter of the projector.
(See page 61.)
• Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 73)
for repair.
• Carefully replace the lamp. (See
page 66.)
• Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 73)
for repair.
• Please exercise care when
replacing the lamp.
• Securely install the cover.
• If the power indicator blinks in red
even when the filter cover and
lamp unit cover is securely
installed, contact your nearest
Sharp Authorized Projector Dealer
or Service Center for advice.
Appendix
-63
Maintenance Indicators
Info
•If the temperature warning indicator illuminates, and the projector enters the standby mode, follow the pos-
sible solutions on the previous page and then wait until the projector has cooled down completely before
plugging in the power cord and turning the power back on. (At least 5 minutes.)
•If the power is turned off for a brief moment due to power outage or some other cause while using the
projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and
the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the
AC outlet and then turn the power on again.
•If you want to clean the air vents during projector operation, be sure to put the projector into the standby
mode. After the cooling fan has stopped, clean the vents.
•The cooling fan keeps the internal temperatures of the projector constant and this function is controlled
automatically. The sound of the cooling fan may change during operation because the fan speed may change
and this is not a malfunction.
•Do not unplug the power cord after the projector has entered the standby mode and while the cooling fan is
running. The cooling fan runs for about 90 seconds.
-64
Regarding the Lamp
Lamp
■ It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality.
The lamp life (percentage) can be checked with the on-screen display. See page 41.
■ For lamp replacement, please consult your nearest Sharp Authorized Projector Dealer or Service
Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service
of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer
or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Caution Concerning the Lamp
■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure
largely varies depending on the individual lamp and/or the condition and the frequency of use. It is
important to note that failure can often result in the bulb cracking.
■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In
case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to remove the damaged lamp and assure safe operation.
U.S.A. ONLY
Replacing the Lamp
Caution
•Do not remove the lamp unit immediately after operation of the projector. The lamp will be hot and touching
it can lead to burn or injury.
•Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool
before removing the lamp unit.
■ If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair. Purchase a replacement lamp unit of type BQCPGB10S//1 from your nearest Sharp Authorized Projector Dealer or Service Center. Then carefully
change the lamp by following the instructions described in this section. If you wish, you may have
the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.
Appendix
-65
Regarding the Lamp
Removing and Installing the Lamp Unit
Info
•Be sure to remove the lamp unit using the
handle. Be sure not to touch the glass surface of the lamp unit or the inside of the
projector.
•To avoid injury to yourself and damage to
the lamp, be sure to carefully follow the
steps below.
•Do not loosen other screws except for the
lamp unit cover and lamp unit.
•Please refer to the installation manual in-
cluded with the lamp unit.
1 Press on the projector
STANDBY
or
on the remote control to
put the projector into the
standby mode.
•Wait until the cooling fan stops.
Warning!
•Do not remove the lamp unit from the
projector right after use. The lamp will
be very hot and may cause burn or
injury.
Lamp
unit
STANDBY button
BQC-PGB10S//1
STANDBY
STANDBY
button
2 Disconnect the power cord.
•Unplug the power cord from the AC
socket.
•Leave the lamp until it has fully cooled
down (about 1 hour).
3 Change the air filter.
•Change the air filter whenever you in-
stall the lamp unit (see pages 61 and
62).
4 Remove the lamp unit cover.
•Turn the projector over. Loosen the user
service screw (1) that secures the lamp
unit cover. Pressing the tab, remove the
lamp unit cover (2).
-66
AC socket
User
service screw
Tab
1
2
5 Remove the lamp unit.
•Loosen the securing screws from the
lamp unit. Hold the lamp unit by the
handle and pull it in the direction of the
arrow. At this time, keep the lamp unit
horizontal and do not tilt it.
6 Insert the new lamp unit.
•Press the lamp unit firmly into the lamp
unit compartment. Fasten the securing
screws.
7 Replace the lamp unit cover.
•Align the tab on the lamp unit cover (1)
and place it while pressing the tab (2)
to close it. Then tighten the user service screw (3) to secure the lamp unit
cover.
Info
•If the lamp unit and lamp unit cover are not
correctly installed, the power will not turn
on, even if the power cord is connected to
the projector.
Handle
Securing screws
3
1
2
User service screw
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
1 Connect the power cord.
•Plug the power cord into the AC socket
of the projector.
2 Reset the lamp timer.
•
While simultaneously
and on the projector, press
and on the projector.
•“LAMP 0000H” is displayed, indicating
that the lamp timer is reset.
Info
•Make sure to reset the lamp timer only
when replacing the lamp. If you reset the
lamp timer and continue to use the same
lamp, this may cause the lamp to become
damaged or explode.
holding down
AC socket
ON button
buttons
Appendix
AUTO SYNC
button
-67
Connecting Pin Assignments
INPUT 1 and OUTPUT RGB Signal Terminal: 15-pin Mini D-sub female connector
RGB Input
10
15
6
5
1
11
1. Video input (red)
2. Video input (green/sync on green)
3. Video input (blue)
4. Not connected
5. Not connected
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. Not connected
12. Bi-directional data
13. Horizontal sync signal: TTL level
14. Vertical sync signal: TTL level
15. Data clock
RS-232C Terminal: 9-pin Mini DIN female connector
8
9
6
5
7
3
4
21
Pin No. Signal Name I/O Reference
1 Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 Not connected
5 SG Signal Ground Connected to internal circuit
6 Not connected
7 RS Connected to Pin 8
8 CS Connected to Pin 7
9 Not connected
Component Input
1. PR (CR)
2. Y
3. PB (CB)
4. Not connected
5. Not connected
6. Earth (P
7. Earth (Y)
8. Earth (P
9. Not connected
10. Not connected
11. Not connected
12. Not connected
13. Not connected
14. Not connected
15. Not connected
)
R
)
B
DIN-D-sub RS-232C adaptor: 9-pin D-sub male connector
Pin No. Signal Name I/O Reference
15
69
1 Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 Not connected
5 SG Signal Ground Connected to internal circuit
6 Not connected
7 RS Connected to internal circuit
8 CS Connected to internal circuit
9 Not connected
Note
•Pin 8 (CS) and Pin 7 (RS) are short circuited inside the projector.
RS-232C Cable recommended connection: 9-pin D-sub female connector
Pin No. Signal Pin No. Signal
51
96
1CD 1 CD
2RD 2 RD
3SD 3 SD
4ER 4 ER
5SG 5 SG
6DR 6 DR
7RS 7 RS
8CS 8 CS
9CI 9 CI
Note
•Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling
device (e.g. PC).
Projector
Pin No.
4
5
6
PC
Pin No.
4
5
6
-68
RS-232C Specifications and Command Settings
PC control
A computer can be used to control the projector by connecting an RS-232C serial control cable (cross type,
sold separately) to the projector. (See page 54 for connection.)
Communication conditions
Set the serial port settings of the computer to match that of the table.
Signal format: Conforms to RS-232C standard. Parity bit: None
Baud rate: 9,600 bps Stop bit: 1 bit
Data length: 8 bits Flow control: None
Basic format
Commands from the computer are sent in the following order: command, parameter, and return code. After
the projector processes the command from the computer, it sends a response code to the computer.
Command format
C1 C2 C3 C4 P1 P2 P3 P4
Command 4-digit Parameter 4-digit
Response code format
Normal response
Info
O K
Return code (0DH)
•When controlling the projector using RS-232C commands from a computer, wait for at least 30 seconds after
the power has been turned on, and then transmit the commands.
•When more than one code is being sent, send each command only after the response code for the previous
command from the projector is verified.
Problem response (communication error or incorrect command)
E R R
Return code (0DH)
Return code (
0DH)
Commands
Example: When turning on the projector, make the following setting.
POWR _ 1__
CONTROL CONTENTS
Standby
Power On
INPUT1
INPUT2
INPUT3
INPUT1 SIGNAL TYPE : AUTO
INPUT1 SIGNAL TYPE : RGB
INPUT1 SIGNAL TYPE : COMPONENT
Lamp Usage Time (hour)
Remaining Lamp Life (Percentage)
Lamp Status
Unit Status
BUTTONS & REMOTE CONTROL KEY
Model Name Check
AV Mute Off
AV Mute On
Auto Sync Start
COMMAND
P
O
W
P
O
W
I
R
G
I
V
E
I
V
E
I
A
S
I
A
S
I
A
S
T
L
T
T
L
T
T
L
P
T
A
B
T
N
A
I
M
B
I
M
B
A
D
J
R
R
B
D
D
I
I
I
T
L
S
N
M
K
K
S
PARAMETER
OK or ERR
_
_
_
0
OK or ERR
_
_
_
1
OK or ERR
_
_
_
1
OK or ERR
_
_
_
1
OK or ERR
_
_
_
2
OK or ERR
_
_
_
0
OK or ERR
_
_
_
1
OK or ERR
_
_
_
2
0~9999
_
_
_
1
0~100
_
_
_
1
0:Off, 1:On, 2:Retry, 3:Waiting, 4:Lamp Error
_
_
_
1
0:Normal, 1:Temp High, 2:Fan Err,
_
_
_
1
4:Filter or lamp Cover Err, 8:Lamp Life 5% or less,
16:Lamp Burnt-out, 32:Lamp Not Lit,
64:Temp Abnormally High
PROJECTOR NAME
_
_
_
1
OK or ERR
_
_
_
0
OK or ERR
_
_
_
1
OK or ERR
_
_
_
1
→
←
RETURN
Note
•If an underbar (_) appears in the parameter column, enter a space. If an asterisk (*) appears, enter a
value in the range indicated in brackets under CONTROL CONTENTS.
ProjectorComputer
OK
Appendix
-69
Computer Compatibility Chart
Computer
•Multiple signal support
Horizontal Frequency: 15–70 kHz, Vertical Frequency: 43–85 Hz, Pixel Clock: 12–108 MHz
•Compatible with sync on green signal
•SXGA+, SXGA and XGA compatible in intelligent compression
•Intelligent Compression and Expansion System resizing technology
The following is a list of modes that conform to VESA. However, this projector supports other signals
that are not VESA standards.
PC/MAC/WS Resolution VESA Standard
640 × 350
640 × 400
720 × 350
VGA
720 × 400
640 × 480
PC
800 × 600
SVGA
1,024 × 768
XGA
1,152 × 864
SXGA
1,280 × 1,024
1,400 × 1,050
MAC 13"
MAC 16"
MAC 19"
MAC 21"
SXGA+
VGA
SVGA
XGA
SXGA
640 × 480
832 × 624
1,024 × 768
1,152 × 870
Horizontal Frequency
(kHz)
27.0
31.5
37.5
27.0
31.5
37.9
27.0
31.5
27.0
31.5
37.9
26.2
31.5
34.7
37.9
37.5
43.3
31.4
35.1
37.9
46.6
48.1
46.9
53.7
35.5
40.3
48.4
56.5
60.0
68.7
55.0
66.2
67.5
64.0
64.0
34.9
49.7
60.2
68.7
Vertical Frequency
(Hz)
60
70
85
60
70
85
60
70
60
70
85
50
60
70
72
75
85
50
56
60
70
72
75
85
43
50
60
70
75
85
60
70
75
60
60
67
75
75
75
Display
✔
✔
Upscale
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
True
Intelligent Compression
Upscale
Intelligent Compression
Note
• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD)
mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in
“CRT only” mode. Details on how to change display modes can be found in your notebook computer’s
operation manual.
• When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen.
• When projecting the RGB interlace signal using INPUT 1 with “Signal Type” set to “Auto” or “RGB”, the
image may not be projected as desired. In this case, select either INPUT 2 (S-Video) or INPUT 3 (Video).
DTV
Signal Vertical Frequency (Hz)Horizontal Frequency (kHz)
-70
480
480P
540P
580
580P
720P
1035
1035
1080
1080
I
I
I
I
I
I
15.7
31.5
33.8
15.6
31.3
45.0
28.1
33.8
28.1
33.8
60
60
60
50
50
60
50
60
50
60
Troubleshooting
Problem
No picture and no sound
or projector does not start.
Sound is heard but no
picture appears.
Color is faded or poor.
Picture is blurred;
noise appears.
Check
• Projector power cord is not plugged into the wall outlet.
• Power to the external connected devices is off.
• The selected input mode is wrong.
• The AV MUTE function is working.
• Cables incorrectly connected to rear panel of the projector.
• Remote control batteries have run out.
•
External output has not been set when connecting notebook computer.
• The filter cover or the lamp unit cover is not installed correctly.
• Cables incorrectly connected to the rear panel of the projector.
• “Bright” is set to minimum position.
• Picture adjustments are incorrectly set.
(Video Input only)
• Video input system is incorrectly set.
(INPUT 1 only)
• Input signal type (RGB/Component) is incorrectly set.
• Adjust the focus.
• The projection distance exceeds the focus range.
(Computer Input only)
• Perform “Fine Sync” Adjustments (“Clock” Adjustment)
• Perform “Fine Sync” Adjustments (“Phase” Adjustment)
• Noise may appear depending on the computer.
• Cables incorrectly connected to rear panel of projector.
• Volume is set to minimum.
Page
55
—
19
20
51-55
15
51
61,66
51-55
36
36
42
38
22
57
39
39
—
51-55
19
Picture appears but no
sound is heard.
An unusual sound is
occasionally heard
from the cabinet.
Maintenance
indicator illuminates.
The projector cannot be
turned on or put into the
standby mode using the
ON or STANDBY button
on the projector.
• If the picture is normal, the sound is due to cabinet shrinkage
caused by room temperature changes. This will not affect
operation or performance.
• See “Maintenance Indicators”.
• The keylock is set.
If the keylock is set to ON, all the buttons are locked.
—
63
29
Appendix
-71
Troubleshooting
Picture is green on
INPUT 1 COMPONENT.
Picture is pink (no green)
on INPUT 1 RGB.
Picture is dark.
Picture is too bright and
whitish.
CheckProblem Page
• Change the input signal type setting.
• The lamp indicator is illuminating in red. Replace the lamp.
• Picture adjustments are incorrectly set.
38
63
36
-72
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, first refer to the
“Troubleshooting” section on pages 71 and 72. If this operation manual does not answer
your question, please contact the SHARP Service departments listed below.
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
lcdsupport@sharpsec.com
http://www.sharplcd.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation Mexico
Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin American
Group
(305) 264-2277
www.servicio@sharpsec.com
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
0161-205-2333
custinfo@sharp-uk.co.uk
http://www.sharp.co.uk
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
hotlineced@sef.sharp-eu.com
http://www.sharp.fr
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia
Pty. Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
(09) 634-2059, (09) 636-6972
http://www.sharpnz.co.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
ckng@srs.global.sharp.co.jp
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
dcmktg@srh.global.sharp.co.jp
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
helpdesk@smef.global.sharp.co.jp
Spain Sharp Electronica Espana, S.A.
93 5819700
sharplcd@sees.sharp-eu.com
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
cattaneo@sez.sharp-eu.com
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
vision.support@sen.sharp-eu.com
http://www.sharp.se
Austria Sharp Electronics Austria (Ges.m.b.H.)
0043 1 727 19 123
pogats@sea.sharp-eu.com
http://www.sharp.at
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
svc@stcl.global.sharp.co.jp
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
lcd@sharp-korea.co.kr
http://www.sharpkorea.co.kr
Appendix
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
service@sharp-oa.com
-73
Specifications
Product type
Model
Video system
Display method
LCD panel
Lens
Projection lamp
Component input/output
signal (INPUT1)
Horizontal resolution
Computer RGB input/output
signal (INPUT 1)
S-video input signal
(INPUT 2)
Video input signal
(INPUT 3)
Computer control signal (RS-232C)
Pixel clock
Vertical frequency
Horizontal frequency
Audio input signal
Audio output
Speaker system
Rated voltage
Input current
Rated frequency
Power consumption
Power consumption (standby)
Heat dissipation
Operating temperature
Storage temperature
Cabinet
I/R carrier frequency
Dimensions (approx.)
Weight (approx.)
Supplied accessories
Replacement parts
LCD Projector
PG-B10S
NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/
DTV480I/DTV480P/DTV540P/DTV580I/DTV580P/DTV720P/DTV1035I/DTV1080I/
DTV1080I-50
LCD panel × 3, RGB optical shutter method
Panel size: 0.55" (14.0 mm) (8.5 [H] × 11.2 [W] mm)
No. of dots: 480,000 dots (800 [H] × 600 [V])
1–1.25 × zoom lens, F1.6–1.9, f = 16.8–20.9 mm
130 W AC lamp
15-pin mini D-sub connector
Y: 1.0 Vp-p, sync negative, 75 Ω terminated
PB: 0.7 Vp-p, 75 Ω terminated
PR: 0.7 Vp-p, 75 Ω terminated
520 TV lines (DTV720P)
15-pin mini D-sub connector
RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated
HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative)
VERTICAL SYNC. SIGNAL: Same as above
4-pin mini DIN connector
Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω
terminated
9-pin mini DIN connector
12–108 MHz
43–85 Hz
15–70 kHz
ø3.5 mm minijack: AUDIO, 0.5 Vrms, more than 22 kΩ (stereo)
1.0 W (monaural)
2.8 cm round × 1
AC 100–240 V
1.9 A
50/60 Hz
185 W (Standard mode)/170 W (Eco mode) with AC 100 V
175 W (Standard mode)/160 W (Eco mode) with AC 240 V
4 W (AC 100 V) – 6 W (AC 240 V)
695 BTU/hour (Standard mode)/640 BTU/hour (Eco mode) with AC 100 V
660 BTU/hour (Standard mode)/600 BTU/hour (Eco mode) with AC 240 V
41°F to 95°F (+5°C to +35°C)
–4°F to 140°F (–20°C to +60°C)
Plastic
38 kHz
11 37/64" × 3 5/8" × 8 3/4" (294 (W) × 92 (H) × 222 (D) mm) (main body only)
11 39/64" × 4 11/64" × 9 11/32" (294.5 (W) × 105.8 (H) × 237 (D) mm) (including adjustment foot
and projecting parts)
6.0 lbs. (2.7 kg)
Remote control, Two R-6 batteries, Power cord for U.S., Canada etc. (6', 1.8 m), Power cord
for Europe, except U.K. (6', 1.8 m), Power cord for U.K., Hong Kong and Singapore (6', 1.8
m), Power cord for Australia, New Zealand and Oceania (6', 1.8 m), RGB cable (9'10",
3.0 m), Carrying case, Lens cap (attached), Extra air filter, Lens shipping block (attached),
Projector manual and technical reference CD-ROM, “QUICK GUIDE” label, Operation manual
Lamp unit (Lamp/cage module) (BQC-PGB10S//1), Remote control (RRMCGA187WJSA),
Two R-6 batteries (“AA” size, UM/SUM-3, HP-7, or similar), Power cord for U.S., Canada etc.
(QACCDA016WJPZ), Power cord for Europe, except U.K. (QACCVA006WJPZ), Power cord
for U.K., Hong Kong and Singapore (QACCBA015WJPZ), Power cord for Australia, New
Zealand and Oceania (QACCLA005WJPZ), RGB cable (QCNWGA012WJPZ), Carrying case
(GCASNA009WJSA), Lens cap (CCAPHA004WJ01), Air filter (PFILDA010WJZZ), Lens shipping block (SPAKXA333WJZZ), Projector manual and technical reference CD-ROM
(UDSKAA039WJZZ), “QUICK GUIDE” label (TLABZA439WJZZ), Operation manual (TINSA917WJZZ)
As a part of policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be
some deviations from these values in individual units.
-74
Dimensions
Units: inches (mm)
Side View Side View
3
(15)
32
/
19
(222)
4
/
8
Rear View
Top View
37
11
/
64
(294)
ø 65
17
2
/
32
(64)
Front View
Bottom View
(194.5)
64
/
43
7
(92)
8
/
5
3
(49.5)
64
/
61
1
(48.8)
64
/
59
1
(43.2)
(49.7)
(57)
64
/
32
4
/
/
45
1
31
1
1
2
25
2
/
64
(60.4)
45
7
/
64
(195.6)
11
8
/
64
(207.4)
1
17
2
/
32
(64.2)
27
3
/
64
(86.6)
1
/
8
(28.5)
9
2
/
16
(65)
(99.5)
64
/
59
3
(189.5)
(206.5)
32
/
64
/
15
9
7
8
Appendix
25
1
/
32
(45)
-75
Glossary
Anti-Theft
If the “Keycode” set in the projector is not correctly
entered, the projector will not operate even if signals are entered.
Aspect Ratio
Width and height ratio of an image. The normal
aspect ratio of a computer and video image is 4:3.
There are also wide images with an aspect ratio
of 16:9 and 21:9.
Auto Sync
Optimizes projected computer images by automatically adjusting certain characteristics.
Background
Initial setting image projected when no signal is
being output.
Border
Projects a 4:3 image fully within a 16:9 screen by
keeping the aspect ratio at 4:3.
Clock
Clock adjustment is used to adjust vertical noise
when clock level is incorrect.
CLR Temp (Color temperature)
Function that can be used to adjust the color temperature to suit the type of image input to the projector. Decrease the color temperature to create
warmer, reddish images for natural flesh tones,
or increase to create cooler, bluish images for a
brighter picture.
Dot by dot
Mode that projects images in their native resolution.
Gamma
Image quality enhancement function that offers a
richer image by brightening the darker portions of
the image without altering the brightness of the
brighter portions. You can select four different
modes: STANDARD, PRESENTATION, CINEMA
and GAME.
Intelligent compression
High quality resizing of lower and higher resolution images to fit the projector’s native resolution.
Keylock
Mode that can lock the operation of projector buttons to prevent unauthorized adjustment.
Keystone Correction
Function to digitally correct a distorted image
when the projector is set up at an angle, smoothens out jaggies on keystone images and compresses the image not only horizontally but vertically keeping the 4:3 aspect ratio.
Lens shift
Function to adjust the position of the projection
image by using the lens shift lever to move the
lens from side to side and up and down (360°).
Password
A password is set so that changes cannot be made
in the “Anti-Theft” setting.
Phase
Phase shift is a timing shift between isomorphic
signals with the same resolution. When phase level
is incorrect, the projected image typically displays
horizontal flicker.
Resize
Allows you to modify or customize the picture display mode to enhance the input image. You can
select four different modes: NORMAL, DOT BY
DOT, BORDER and STRETCH.
sRGB
An international standard of color reproduction
regulated by the IEC (International
Electrotechnical Commission). As the fixed color
area has been decided by the IEC, the color
changes according to LCD features, so that the
images are displayed in a natural tint based on
an original image, when “sRGB” is set to “ON”.
Stretch
Mode that stretches the 4:3 image horizontally to
display it fully on a 16:9 screen.
-76
Index
AC socket ............................................................ 55
Adjustment buttons .............................................. 32
Air filter ................................................................. 61
Anti-Theft ............................................................. 46
Aspect ratio .......................................................... 26
AUDIO INPUT terminal........................................ 51
Auto Power Off ..................................................... 43
Auto Sync (Auto Sync adjustment) ..................... 40
AUTO SYNC button ............................................. 40
AV MUTE button .................................................. 20
BACK button ........................................................ 14
Background .......................................................... 42
Batteries ............................................................... 15
Blue ......................................................................36
BORDER.............................................................. 26
Bright.................................................................... 36
Carrying case....................................................... 59
Clock .................................................................... 39
CLR Temp (Color Temperature)........................... 36
Color .................................................................... 36
Computer Image Adjustment............................... 39
Contrast ............................................................... 36
DIN-D-sub RS-232C adaptor .............................. 54
DOT BY DOT ....................................................... 26
Eco Mode ............................................................. 43
ENLARGE buttons ............................................... 28
ENTER button...................................................... 33
Exhaust vent ........................................................60
Fine Sync ............................................................. 39
Focus ring ............................................................ 22
FORWARD button ............................................... 14
FREEZE button.................................................... 28
Front adjustment foot........................................... 23
Gamma ................................................................ 37
H-Pos ................................................................... 39
HEIGHT ADJUST button ..................................... 23
INPUT 1 terminal ................................................. 51
INPUT 1 – 3 modes ............................................. 19
INPUT 2 terminal ................................................. 52
INPUT 3 terminal ................................................. 52
INPUT button ....................................................... 19
Intake vent ........................................................... 60
Kensington Security Standard connector............ 12
Keycode ...............................................................46
Keylock ................................................................ 29
KEYSTONE button .............................................. 20
Keystone Correction ............................................ 20
Lamp .................................................................... 65
Lamp indicator ..................................................... 63
Lamp Timer (Life)................................................. 41
Language (on-screen display language) ............. 48
Lens cap .............................................................. 10
Lens shift ............................................................. 24
Lens shift lever ..................................................... 24
Lens shipping block ............................................. 11
Memory ................................................................ 38
MENU button ....................................................... 32
Menu Color .......................................................... 44
Menu Position ......................................................44
NORMAL.............................................................. 26
ON button ............................................................ 18
Optional accessories ............................................. 9
Options ................................................................. 41
OSD Display ........................................................ 41
Password ............................................................. 45
PDF ........................................................................ 8
Phase ................................................................... 39
Picture Adjustment .............................................. 36
Power cord ........................................................... 55
Power indicator ....................................................63
PRJ mode (Reversing Projected Images)
Rear adjustment foot ........................................... 23
Red ...................................................................... 36
Remote control .................................................... 14
Remote control sensor ........................................ 15
Replacing the lamp .............................................. 65
RESIZE button .....................................................26
RGB cable............................................................ 51
RGB OUTPUT terminal ....................................... 55
RS-232C terminal ................................................54
Sharp ................................................................... 36
Signal Info ............................................................ 40
Signal Type .......................................................... 38
Special Modes ..................................................... 39
sRGB ................................................................... 37
STANDBY button ................................................. 21
STRETCH ............................................................ 26
Supplied accessories............................................. 9
Temperature warning indicator ............................63
Tint ....................................................................... 36
UNDO button ....................................................... 21
Video System ....................................................... 42
Volume buttons .................................................... 19
V-Pos ................................................................... 39
Zoom knob ........................................................... 22
