Sharp NAR0061 User Manual
Sidekick 3
Reference Guide
27-3017-01 Rev. 01 - Release 3.1 - 23th August 2006Release 3.1 - 23th August 20063.1 - 23th August 2006
Copyright © 2006 Danger, Inc. All rights reserved.
2 Contents
Contents
Welcome! 6
I. Device Basics 8
Opening and Closing the Display 8
Phone Controls 9
Control Buttons 11
Sound Controls 13
Mini Music Player 13
Volume Controls 14
Wireless On/Off Control 14
Display Controls 15
Battery Charger 15
Removable Battery 17
SIM Card Slot 18
Memory Card Slot 18
USB 1.1 Port 19
Wrist Strap Holder 19

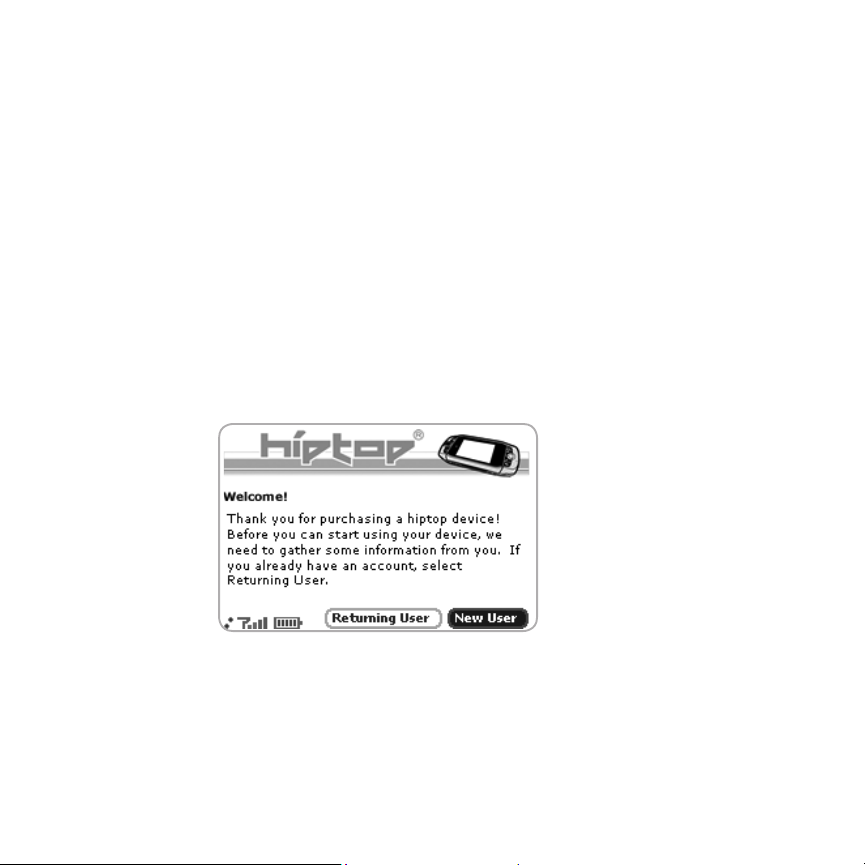

II. Registration 20
III. Setting Up Your Device 24
Bluetooth® Technology Setup 24
Backgrounds 25
Backlighting 25
Key Guard Mode 26
Enter Key Guard Mode 26
Change Default Key Guard Idle Time 26
Device Privacy Code 27
Sound Profiles 27
Application Customisation 28
Default Locale (Language) Setting 28
IV. The Device Interface 29
The Jump Screen 29
Menus 30
Title Bar and Indicators 31
Type and Edit Text 33
Navigate in Text Boxes 33
Delete Text 33
Cut, Copy, Paste, Undo 34
AutoText 34
Type Special Unicode Characters 35
V. The Desktop Interface 36
VI. Using the Applications 38
Phone
Make a Phone Call 38
Use Bluetooth Hands-Free Headset or Car Kit 39
Answer a Phone Call 39
Add a Number to Your Speed Dial List 40
Contents 3
Check Your Voice Mail 40
Change Your Phone Ringtone 41
Import Contacts from Your SIM Card 41
Text Messaging
Send a Text Message 42
Web Browser
Browse the Web 43
Bookmark a Web Page 43
E-mail
Send an E-mail Message 44
Get E-mail from External Accounts 44
Get E-mail Using Your Device’s Web Browser 48
Attach a Photo to an E-mail Message 48
Address Book
Add a Contact to the Address Book 49
Import Address Book Contacts 50
Set and Send “My vCard” 51
Send any Contact’s vCard 52
Calendar
Add an Event to Calendar 52
Notes
Create a Note 53
Send a Note 53
To Do
Add a Task 54
4 Contents
Camera
Take a Photo 54
Send Photos by E-mail or Multimedia Message 55
SonicBOOM Music Player
Copy Music to the Memory Card 56
Play Songs 57
Create a Playlist 58
Catalogue
Download Items from the Catalogue 59
Manage Your Downloaded Items 60
Multimedia Messaging
Send a Multimedia Message 61
Instant Messaging
Sign On 62
Send an Instant Message 63
Switch Between IM Conversations 63
VII. Keyboard Shortcuts 64
VIII. Troubleshooting 65
IX. Handling and Safety Precautions 69
Battery Handling 69
Device Handling and Use 70
Battery Charger Handling 71
X. Regulatory and Compliance Information 72
Contents 5
Note
Welcome!
Thank you for buying a Sidekick 3 device. Your Sidekick will change
the way you communicate, get organised and stay connected.
Your Sidekick connects seamlessly to wireless networks, allowing
you to browse the Internet, exchange instant messages and send and
receive e-mails with image attachments and multimedia messages
with voice notes. Other features include a full-featured phone,
personal information management (PIM) applications, access to
a personal Web portal (the “Desktop Interface”), entertainment
applications, a built-in megapixel camera, and a music player.
For the latest instructions, open the online version of this Reference
Guide by clicking Help on the Desktop Interface.
6 Welcome!
Welcome! 7
This is what you will find in the box:
Sidekick 3 device
Removable battery
USB cable
Battery charger (wall adapter)
Hands-free stereo headset
Wrist strap
Carrying case
Sidekick Start Guide
Sidekick Reference Guide
If any of these items are missing, please contact T-Mobile’s Customer Care
Department.
Now, let’s get started!
Warning
Device Basics
Opening and Closing the Display
To open the display, press your left thumb on the lower-left corner of the
display and gently push up in a clockwise direction. The display will spring
smoothly into the open position.
Alternatively, use your right index finger to push down gently on the upper-right
corner of the display. The screen will spring into the open position.
The normal operating position of the device is horizontal, with the trackball on the
right, as shown above.
To close the display, reverse the motion to pivot the display counter-clockwise and
snap it into the closed position.
Do not open or close the display in the wrong direction as this may damage your
device. Stop if you feel any resistance; the display should spring smoothly into
position. Protect the display from scratches by always using the carrying case to
transport your device.
I.
8 Device Basics
Phone Controls
VOLUME BUTTONS + -
DIAL PAD
SEND CALL
END CALL
MUTE BUTTON
(while on phone)
HEADSET
DIAL PAD Use the keyboard dial pad to dial a number with one hand.
END CALL and SEND CALL buttons During a phone call, press to end the call
or to clear the screen of a number you’ve typed. Press to call the phone number
you’ve typed or highlighted in a list. Press with no number typed to display a list
of recently-dialled numbers.
SPEAKER When using the device as a handset, place the
speaker to your ear.
MICROPHONE When you are using the phone,
speak into the microphone.
VOLUME buttons The volume buttons are
located under the JUMP button. While on a
phone call, press + to increase and - to
decrease volume. Use the shoulder buttons
to turn Mute or Speakerphone on and off.
Device Basics 9
SPEAKERPHONE BUTTON
(while on phone)
SPEAKER
SPEAKER
VOLUME BUTTONS
MICROPHONE
Note
10 Device Basics
BLUETOOTH HANDS-FREE HEADSET OR CAR KIT To use a Bluetooth hands-free
headset or car kit, do the following:
1 Press JUMP to open the Jump screen. Press MENU to open the menu, then
select Bluetooth to open the submenu. Make sure Bluetooth features are “on”.
(There should be a Turn Bluetooth Off menu item.)
2 When you are in your car, make sure your hands-free headset or car kit is ready
to pair by following the manufacturer’s instructions. On your Sidekick, go into
the Phone application. Press MENU and select Settings > Pairing.
3 From the Pairing dialog box, select your Bluetooth hands-free headset or car
kit from the list of devices (you may have to wait a few seconds while the list
populates with Bluetooth devices). If prompted, type the device’s PIN code,
then press DONE to dismiss the PIN Code dialog box.
4 By default, your call’s sound will go through the device handset. To send or
receive your call using a Bluetooth device, press MENU and select Transfer
Sound to, then select your Bluetooth device from the submenu.
You can transfer the call’s sound either before or during a call.
5 Place your call.
6 When finished with your call, press END CALL .
STEREO HEADSET Always connect your stereo headset to your device before
making/receiving a call. To use the button:
n Press the button once to answer a call and a second time to end it.
n During a call, press once to answer a second incoming call and put the first
caller on hold.
n With two active calls, press the button once to end the foreground call and press
again to resume the background call.
Control Buttons
MENU
JUMP
TRACKBALL + SEND/END
CANCEL
DONE
TRACKBALL Pressing the trackball selects a highlighted item or opens a pop-
up menu. Roll the trackball up/down/left/right to reverse/advance the current
selection through the “selectable” items on a screen or Web page. Rolling the
trackball right/left with a folder highlighted will open/collapse the folder contents.
Adjust the vertical and horizontal speed of the trackball from the Jump Menu >
Settings > Trackball screen.
SEND/END buttons When not using the phone, press these buttons to page up
or down .
DONE button Pressing DONE takes you back through the screens you were
previously viewing, until you reach the Jump screen. On a screen or in a dialog box,
press DONE to save your changes and dismiss the screen or dialog box. If a menu
is open, press DONE to close it.
CANCEL button Pressing CANCEL dismisses any changes you have made to a
screen or dialog box.
MENU button Pressing MENU opens a menu of actions you can take on the current
screen. If you press MENU and nothing opens, this means there are no menu
actions available for the current screen.
JUMP button Pressing JUMP takes you back to the Jump screen, your starting
point for launching all the device applications.
Device Basics 11
