Sharp ML-4550 User Manual

This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this manual.

• ML-4550, ML-4551N, and ML-4551ND are trademarks of Samsung Electronics Co., Ltd.

• Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Centronics is a trademark of Centronics Data Computer Corporation.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• PCL and PCL 6 are trademarks of Hewlett-Packard company.

• Microsoft, Windows, Windows 98, Windows Me, Windows 2000, Windows NT 4.0, Windows XP, and Windows 2003 are registered trademarks of Microsoft Corporation.

• PostScript 3 is a trademark of Adobe System, Inc.

• UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc.

• TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

contact SAMSUNG worldwide

If you have any comments or questions regarding Samsung products, contact the Samsung customer care center.

COUNTRY CUSTOMER CARE CENTER WEB SITE

ARGENTINE 0800-333-3733 www.samsung.com/ar AUSTRALIA 1300 362 603 www.samsung.com AUSTRIA BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be BRAZIL 0800-124-421

CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca CHILE 800-SAMSUNG (726-7864 ) www.samsung.com/cl CHINA 800-810-5858

COLOMBIA 01-8000-112-112 www.samsung.com/co COSTA RICA 0-800-507-7267 www.samsung.com/latin CZECH

REPUBLIC

DENMARK 70 70 19 70 www.samsung.com/dk

0800-SAMSUNG (726-7864)

4004-0000

010- 6475 1880

844 000 844 www.samsung.com/cz

Distributor pro Českou republiku : Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4

www.samsung.com/at

www.samsung.com

www.samsung.com.cn

COUNTRY CUSTOMER CARE CENTER WEB SITE

INDONESIA 0800-112-8888 www.samsung.com ITALIA 800-SAMSUNG (726-7864) www.samsung.com JAMAICA 1-800-234-7267 www.samsung.com/latin JAPAN 0120-327-527 www.samsung.com/jp LATVIA 800-7267 www.samsung.com/lv LITHUANIA 8-800-77777 www.s amsung.com/lt LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be MALAYSIA 1800-88-9999 www.samsung.com/my MEXICO 01-800-SAMSUNG (726-

7864)

NETHERLANDS

NEW ZEALAND NICARAGUA 00-1800-5077267 NORWAY 815-56 480 www.samsung.com/no PANAMA 800-7267 www.samsung.com/latin

0900-SAMSUNG (726-7864 € 0,10/Min)

0800SAMSUNG (726-7864) www.samsung.com/nz

www.samsung.com

www.samsung.com/nl

ECUADOR 1-800-10-7267 www.samsung.com/latin EL SAL VADOR 800-6225 www.sam s u ng .c om/ lat in ESTONIA 800-7267 www.s amsung.ee KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz KYRGYZSTAN FINLAND 030-6227 515 www.samsung.com/fi FRANCE 3260 SAMSUNG 08 25 08 65

GERMANY 01805 - SAMSUNG (726-

GUATEMALA 1-800-299-0013 www.samsung.com/latin HONDURAS 800-7919267 HONG KONG 3698-4698 www.samsung.com/hk HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com INDIA 3030 8282

00-800-500-55-500

www.samsung.com

65 (€ 0,15/min)

www.samsung.com

7864 (€ 0,14/Min)

www.samsung.com

1800 110011

PHILIPPINES 1800-10-SAMSUNG (726-

7864)

POLAND 0 801 801 881

022-607-93-33 PORTUGAL 80820-SAMSUNG (726-7864) www.samsung.com/pt PUERTO RICO 1-800-682-3180 www.samsung.com/latin REP.

DOMINICA EIRE 0818 717 100 www.samsung.com/ie RUSSIA 8-800-555-55-55 www.samsung.com SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/sg SLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.com/sk SOUTH

AFRICA SPAIN 902 10 11 30 www.samsung.com SWEDEN 0771-400 200 www.samsung.com/se

1-800-751-2676 www.samsung.com/latin

0860-SAMSUNG (726-7864 ) www.samsung.com

www.samsung.com/ph

www.samsung.com/pl

COUNTRY CUSTOMER CARE CENTER WEB SITE

SWITZERLAND 0800-SAMSUNG (726-7864) www.samsung.com/ch TADJIKISTAN 8-10-800-500-55-500 TAIWAN 0800-329-999 www.samsung.com THAILAND 1800-29-3232

02-689-3232

TRINIDAD & TOBAGO

TURKEY 444 77 1 1 www.samsung.com U.A.E 800-SAMSUNG (726-7864)

U.K 0845 SAMSUNG (726-7864) www.samsung.com U.S.A. 1-800-SAMSUNG (726-7864) www.samsung.com/us UKRAINE 8-800-502-0000 www.samsung.com UZBEKISTAN 8-10-800-500-55-500 www.samsung.com.uz VENEZUELA 0-800-100-5303 VIETNAM 1 800 588 889 www.samsung.com

1-800-SAMSUNG (726-7864) www.samsung.com/latin

8000-4726

www.samsung.com/th

www.samsung.com

www.samsung.com/latin

1. Introduction

Special features ...................................................................................................................................................... 1.1

Printer overview ...................................................................................................................................................... 1.3

Finding more information ........................................................................................................................................ 1.4

Selecting a location ................................................................................................................................................. 1.5

2. System setup

Using control panel menus ...................................................................................................................................... 2.1

Menu overview ........................................................................................................................................................ 2.2

Printing a demo page .............................................................................................................................................. 2.8

Changing the display language ............................................................................................................................... 2.8

Using toner save mode ........................................................................................................................................... 2.8

Changing the font setting ........................................................................................................................................ 2.8

3. Software overview

Supplied software .................................................................................................................................................... 3.1

Printer driver features .............................................................................................................................................. 3.2

System requirements .............................................................................................................................................. 3.2

4. Network setup

Introduction ............................................................................................................................................................. 4.1

Supported operating systems ................................................................................................................................. 4.2

Configuring TCP/IP ................................................................................................................................................. 4.2

Configuring EtherTalk ............................................................................................................................................. 4.2

Configuring IPX frame types ................................................................................................................................... 4.3

Setting Ethernet speed ............................................................................................................................................ 4.3

Restoring the network configuration ........................................................................................................................ 4.3

Printing a network configuration page ..................................................................................................................... 4.3

5. Loading print media

Selecting print media ............................................................................................................................................... 5.1

Loading paper ......................................................................................................................................................... 5.4

Selecting an output location .................................................................................................................................... 5.8

6. Basic printing

Printing a document ................................................................................................................................................ 6.1

Canceling a print job ............................................................................................................................................... 6.1

7. Ordering supplies and accessories

Toner cartridges ...................................................................................................................................................... 7.1

Accessories ............................................................................................................................................................. 7.1

How to purchase ..................................................................................................................................................... 7.1

8. Maintenance

Printing information pages ...................................................................................................................................... 8.1

Cleaning the printer ................................................................................................................................................. 8.1

Maintaining the toner cartridge ................................................................................................................................ 8.3

Maintenance parts ................................................................................................................................................... 8.7

9. Troubleshooting

Clearing paper jams ................................................................................................................................................ 9.1

Troubleshooting checklist ........................................................................................................................................ 9.5

Understanding the status LED ................................................................................................................................ 9.6

Understanding display messages ........................................................................................................................... 9.6

Toner cartridge-related messages .......................................................................................................................... 9.8

Solving general printing problems ........................................................................................................................... 9.9

Solving print quality problems ............................................................................................................................... 9.11

Common Windows problems ................................................................................................................................ 9.13

Common PostScript problems .............................................................................................................................. 9.13

Common Linux problems ...................................................................................................................................... 9.14

Common Macintosh problems .............................................................................................................................. 9.14

10. Installing accessories

Precautions when installing accessories ............................................................................................................... 10.1

Installing a dual in-line memory module (DIMM) ................................................................................................... 10.1

Installing a network interface card ......................................................................................................................... 10.3

Using the hard disk ............................................................................................................................................... 10.4

11. Specifications

Printer specifications ............................................................................................................................................. 11.1

Important Precautions and Safety Information

When using this machine, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to people:

1 Read and understand all instructions.

2 Use common sense whenever operating electrical appliances.

3 Follow all warnings and instructions marked on the machine and in the literature

accompanying the machine.

4 If an operating instruction appears to conflict with safety information, heed the

safety information. You may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales or service representative for assistance.

5 Unplug the machine from the AC wall socket before cleaning. Do not use liquid or

aerosol cleaners. Use only a damp cloth for cleaning.

6 Do not place the machine on an unstable cart, stand or table. It may fall, causing

serious damage.

7 Your machine should never be placed on, near or over a radiator, heater, air

conditioner or ventilation duct.

8 Do not allow anything to rest on the power cable. Do not locate your machine

where the cords will be abused by persons walking on them.

9 Do not overload wall outlets and extension cords. This can diminish performance,

and may result in the risk of fire or electric shock.

17 The Power cord supplied with your machine should be used for safe operation. If

you are using a cord which is longer than 2 m with 110 V machine, then it should

be 16 AWG

18 SAVE THESE INSTRUCTIONS.

or bigger.

Environmental and Safety Consideration

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is certified as a Class I laser product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance, or prescribed service condition.

ARNING

Never operate or service the printer with the protective cover removed from Laser/ Scanner assembly. The reflected beam, although invisible, can damage your eyes. When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

10 Do not allow pets to chew on the AC power or PC interface cords.

11 Never push objects of any kind into the machine through case or cabinet

openings. They may touch dangerous voltage points, creating a risk of fire or shock. Never spill liquid of any kind onto or into the machine.

12 To reduce the risk of electric shock, do not disassemble the machine. Take it to a

qualified service technician when repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly could cause electric shock when the unit is subsequently used.

13 Unplug the machine from the PC and AC wall outlet, and refer servicing to

qualified service personnel under the following conditions:

• When any part of the power cord, plug, or connecting cable is damaged or frayed.

• If liquid has been spilled into the machine.

• If the machine has been exposed to rain or water.

• If the machine does not operate properly after instructions have been followed.

• If the machine has been dropped, or the cabinet appears damaged.

• If the machine exhibits a sudden and distinct change in performance.

14 Adjust only those controls covered by the operating instructions. Improper

adjustment of other controls may result in damage, and may require extensive work by a qualified service technician to restore the machine to normal operation.

15 Avoid using this machine during a lightning storm. There may be a remote risk of

electric shock from lightning. If possible, unplug the AC power for the duration of the lightning storm.

Ozone Safety

During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.

If you need additional information about ozone, please contact your nearest Samsung dealer.

16 If you continuously print multiple pages, the surface of the output tray may become

hot. Be careful not to touch the surface, and keep children away from the surface.

1 AWG: American Wire Gauge

Power Saver

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

AUTION

responsible for compliance could void the user’s authority to operate the equipment.

Changes or modifications not expressly approved by the manufacturer

Recycling

Please recycle or dispose of packaging materials for this product in an environmentally responsible manner.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symbolises Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:

January 1, 1995: Council Directive 73/23/EEC Approximation of the

laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

Radio Frequency Emissions

FCC Regulations

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

Replacing the Fitted Plug (for UK Only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.

Please contact the people from you purchased the machine. The 13 amp plug is the most widely used type in the UK and should be suitable.

However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.

Warning If you cut off the moulded plug, get rid of it straight away . Y ou cannot rewire the plug and you may receive an electric shock if you plug it

into a socket.

MPORTANT WARNING

The wires in the mains lead have the following color code:

• Green and Yellow: Earth

• Blue: Neutral

•Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do the following:

Y ou must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.

Y ou must connect the blue wire to the pin which is marked with the letter “N” or colored black.

Y ou must connect the brown wire to the pin which is marked with the letter “L” or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

You must earth this machine.

iii

OPENSSL LICENSE

ORIGINAL SSLEAY LICENSE

permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list

of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this

list of condition s and the follow ing disc laimer in the docu menta tion and/o r other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must

display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http:// www.openssl.org/)"

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to

endorse or promote products deri ved from this softwa re wi tho ut

5. prior written permission. For written permission, please contact openssl-

core@openssl.org.

6. Products derived from this software may not be called "OpenSSL" nor may

"OpenSSL" appear in their names without prior written permission of the OpenSSL Project.

7. Redistributions of any form whatsoever must retain the following

acknowledgment: "Th is pro duc t inc lud es so ftw are deve lop ed by the Open SSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young(eay@cryptsoft.c om). This product inc ludes software written by Tim Hudson (tjh@cryptsoft.com).

(eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL.

This library is free for commer cial and non-co mmercial use as lon g as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it th e RC4, RSA, l hash, DES , etc., code; n ot just th e SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution an d use i n sourc e and bi nary forms, with o r without m odifica tion, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the followi ng dis claim er.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditio ns and th e followin g discla imer in th e docum entation a nd/or othe r materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following ac knowledgement: "This product include s cryptographic software written by Eric Young (ea y@cryp tso ft.c om )" Th e word ' cr ypt ogra phi c' can be left out if the rouines from the library being used are not cryptographic related:-).

4. If you include any Windows specific code (or a derivative thereof) from the apps directory (appl ication code ) you must in clude an ac knowle dgement: " This product includes software written by Tim Hudson (tjh@cryptsoft.com)"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and dis trib uti on terms for any publica lly available version or deriv at ive of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

1 Introduction

Congratulations on the purchase of your printer!

This chapter includes:

• Special features

• Printer overview

• Finding more information

• Selecting a location

Special features

Your new printer is equipped with several special features that improve the print quality. You can:

Print with excellent quality and high speed

• You can print up to 1200 x 1200 dpi effective output. See the Software Section.

• Your printer prints A4-sized paper at up to 43 ppm and letter-sized paper at up to 45 ppm. For duplex printing, your printer prints A4-sized paper at up to

29 ipm

Handle paper flexibly

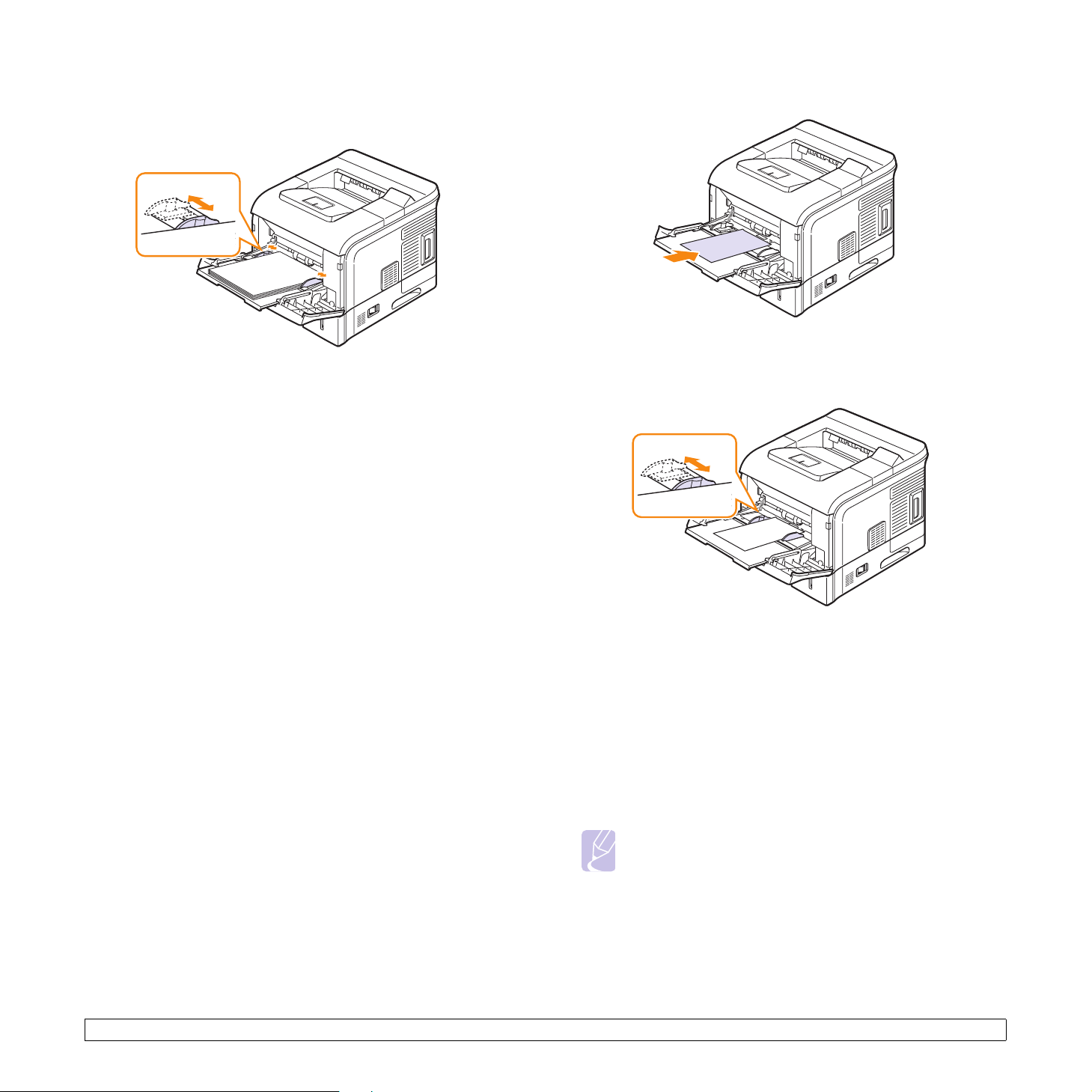

• The multi-purpose tray supports letterheads, envelopes, labels, transparencies, custom-sized materials, postcards, and heavy paper. The multipurpose tray holds up to 100 sheets of plain paper.

• The 500-sheet standard tray 1 supports plain paper in various sizes.

• The 500-sheet optional tray support plain paper in various sizes. You can install up to 3 additional trays.

• Two output tray; select either the output tray (facedown) or the rear cover (face-up) for the most convenient access.

• Straight-through paper path capability from the multi-purpose tray to the rear cover.

Create professional documents

•Print Watermarks. You can customize your documents with words, such as “Confidential.” See the Software Section.

•Print Posters. The text and pictures of each page of your document are magnified and printed across the sheet of paper and can then be taped together to form a poster. See the Software Section.

and letter-sized paper at up to 30 ipm.

1.1 <

a. pages per minute b. images per minute

Introduction>

Save time and money

• This printer allows you to use toner save mode to

1 2

save toner. See page 2.8.

• You can print on both sides of the paper to save paper (double-sided printing) if you use the ML-

3 4

4551ND or install the optional duplex unit in the ML-4550 and ML-4551N.

• You can print multiple pages on a single sheet of paper to save paper (N-Up printing). See the Software Section.

• You can use preprinted forms and letterhead with plain paper. See the Software Section.

• This printer automatically conserves electricity by substantially reducing power consumption when not in use.

Expand the printer capacity

• Your printer has 128 MB of memory which can be expanded to 512 MB. See page 10.1.

•A Network interface enables network printing. You can add an optional network interface card to the ML-4550. The ML-4551N and ML-4551ND come with a built-in network interface, 10/100 Base TX.

• You can add 500-sheet optional trays to your printer. These trays let you add paper to the printer less often.

• A PostScript 3 Emulation* (PS) enables PS printing.

Use the optional hard disk

You can install an optional hard disk in your printer.

• The 40 GB hard disk can store the data from your computer in the print queue. This decreases the workload of the computer.

• You can use various print features, such as storing a job in the hard disk, proofing a job, and printing private documents.

• You can manage the print jobs in the print queue of the printer hard disk.

For details, see page 10.4.

Print in various environments

• You can print in Windows 98/Me/NT 4.0/2000/XP/2003.

• Your printer is compatible with Linux and Macintosh.

• Your printer comes with both Parallel and USB interfaces.

• You can also use a network interface. The ML-4551N and ML4551ND come with a built-in network interface, 10/100 Base TX. However, you need to install the optional wired network interface card to the ML-4550.

Printer features

The table below lists a general overview of features supported by your printer.

(I: Installed, O: Option)

Features ML-4550 ML-4551N ML-4551ND

IEEE 1284 Parallel I I I

USB 2.0 I I I

* Zoran IPS Emulation compatible with PostScript 3

* 136 PS3 fonts

• Contains UFST and MicroType from Monotype Imaging Inc..

1.2 <

Network Interface

OI I

(Ethernet 10/100 Base TX)

Hard Disk O O O

PostScript* Emulation I I I

Duplex Unit O O I

Optional Tray 2 O O O

Optional Tray 3 O O O

Optional Tray 4 O O O

Introduction>

Front view

Printer overview

Rear view

output tray

control panel

control board cover

tray 1

optional tray 2

optional tray 3

optional tray 4

* The figure above shows an ML-4551ND

with all available options.

handle

paper level indicator

multi-purpose tray

top cover

output support

multi-purpose tray paper width guides

multi-purpose tray extension

power switch

rear cover

duplex unit

power receptacle

* The figure above shows an ML-4551ND

with all available options.

parallel port

USB port

network port

1.3 <

Introduction>

Control panel overview

Finding more information

You can find information for setting up and using your printer from the following resources, either printed or onscreen.

Menu: Enters Menu mode and scrolls through the available

menus.

Scroll buttons: Scroll through the options available in the

selected menu, and increase or decrease values.

OK: Confirms the selection on the display.

Back: Sends you back to the upper menu level.

Ton er Sa ve: Allows you to save on toner by using less toner

in printing.

Demo: Prints a demo page.

Stop: Stops an operation at any time.

Status: Indicates the status of your printer. See page 9.6.

Quick Install Guide

Online User’s Guide

Network Printer User’s Guide

Printer Driver Help

Provides information on setting up your printer and, therefore, be sure to follow the instructions in the guide to get the printer ready.

Provides you with step-by-step instructions for using your printer’s full features, and contains information for maintaining your printer, troubleshooting, and installing accessories.

This user’s guide also contains the Software Section providing you with information on how to print documents with your printer on various operating systems, and how to use the supplied software utilities.

Note

• You can access the user’s guides in other languages from the Manual folder on the printer driver CD.

Contained on the network utilities CD, provides you with information on setting up and connecting your printer to a network.

Provides you with help information on printer driver properties and instructions for setting up the properties for printing. To access a printer driver help screen, click Help from the printer properties dialog box.

1.4 <

Samsung Website

Introduction>

If you have Internet access, you can get help, support, printer drivers, manuals, and order information from the Samsung website,

www.samsungprinter.com

Selecting a location

Select a level, stable place with adequate space for air circulation. Allow extra space for opening covers and trays.

The area should be well-ventilated and away from direct sunlight or sources of heat, cold, and humidity. Do not set the printer close to the edge of your desk or table.

Clearance space

Front: 482.6 mm (enough

space so that trays can be opened or removed)

Back: 320 mm (enough space to allow opening of the rear cover or the duplex unit)

Right: 100 mm (enough space to allow opening of the control board cover)

Left: 100 mm (enough space for ventilation)

1.5 <

Introduction>

2 System setup

This chapter shows menus you can set and provides basic settings for your printer.

This chapter includes:

• Using control panel menus

• Menu overview

• Printing a demo page

• Changing the display language

• Using toner save mode

• Changing the font setting

Using control panel menus

A number of menus are available to make it easy for you to change the printer settings. The diagram on the next column shows the menus and all of the menu items available in each menu. The items in each menu and the options you can select are described in more detail in the tables beginning on page 2.2.

Accessing control panel menus

You can control your printer from the printer’s control panel. You can also set the control panel menus while printing.

1 Press Menu until the menu you want appears on the bottom line of

the display and press OK.

2 Press the Scroll buttons until the desired menu item appears and

press OK.

3 If the menu item has sub menus, repeat step 2.

4 Press the Scroll buttons to access the desired setting option or the

required value.

5 Press OK to save your selection.

An asterisk (*) appears next to the selection on the display, indicating that it is now the default.

6 Press Stop to return to Standby mode.

Note

• Print settings made from the printer driver on a connected computer override the settings on the control panel.

2.1 <

System setup>

Menu overview

The control panel menus are used to configure the printer. The control panel provides access to the foling menus.

The menus are listed based on the ML-4550 printer. The menus in the colored characters appear only when the optional items are installed.

Note

• The default settings and available values of your printer could be differ from this guide.

Job manager menu

This menu is available when the optional hard disk is installed.

0.Job Manage.

(See page 10.6.)

Active Job Store Job

3. Paper

(See page 2.4.)

Copies Paper Size Paper Type Paper Source Tray Chaining

4. Graphic

(See page 2.4.)

Resolution Darkness

7. Network

(See page 2.7.)

TCP/IP EtherTalk NetWare Ethernet Speed Clear Setting Network Info

a. Available with an optional hard disk. b. Available with an optional duplex unit in the ML-4550 or ML-4551N. c. Available with an optional network interface card for the ML-4550.

1. Information

(See page 2.2.)

Menu Map Configuraton Demo Page

Stored Job Usage Page Completed Job

PCL Font List PS3 Font List EPSON Font

2. Layout

(See page 2.3.)

Orientation Simplex Margin

Duplex Duplex Margin

5. System Setup

(See page 2.5.)

Date & Time Form Menu Select Form

Language Power Save Auto Continue Altitude Adj. Auto CR Job Timeout Maintenance Clear Setting

6. Emulation

(See page 2.6.)

Emulation Type Setup

Item Explanation

Active Job This menu shows the print jobs waiting to be

printed. See page 10.7.

Store Job This menu shows the print jobs stored in the

installed hard disk. See page 10.6.

1. Information menu

This menu allows you to print printer information pages that give details about the printer and its configuration.

Item Explanation

Menu Map The menu map shows the layout and current

settings of the control panel menu items.

Configuraton The configuration page shows the printer ’s

current configuration.

Demo Page The demo page allows you to check if your

printer properly performs printing. See page

2.8.

Stored Job The stored job page shows the print file list

stored in the optional hard disk.

Note

• This menu item is available when the optional hard disk is installed.

Usage Page The usage page contains the total number of

pages printed by person or group. This page can be used for cost accounting.

Note

• This menu item is available when the optional hard disk is installed.

Completed Job The Completed Job page shows the list of

completed print jobs. The list contains up to 50 files from the latest print jobs.

PCL Font List PS3 Font List EPSON Font

The font sample list shows all of the fonts currently available for the selected language.

2.2 <

System setup>

2. Layout menu

Use the 2. Layout menu to define all settings relating to output.

Item Explanation

Orientation

Values: Portrait, Landscape

Choose the default orientation of the print image on the page.

Item Explanation

Duplex

Values: Off, Long Edge, Short Edge

To print on both sides of paper, choose the binding edge as follows.

•

Long Edge Short Edge

•

: Flip on the long edge.

: Flip on the short edge.

Simplex Margin

Portrait

Values: Top Margin: 0, Left Margin: 0

Landscape

Set the margin of print meterials for one-sided printing. You can increase or decrease the value in

0.1 mm increments.

• Top Margin: Set the top margin, from 0 to 250 mm.

• Left Margin: Set the left margin, from 0 to 164 mm.

Duplex Margin

Long Edge in the Portrait orientation

Short Edge in the Portrait orientation

Long Edge in the Landscape orientation

Short Edge in the Landscape orientation

Select Off to print on one side of the paper.

Note

• In the ML-4550 and ML-4551N, this menu item is available when the optional duplex unit is installed.

Values: Top Margin/ Left Margin: 5.0, Short Binding/ Long Binding: 0

In this menu, you can set the margins for doublesided printing. You can increase or decrease the value in 0.1 mm increments.

• Top M a r g i n : Set the top margin, from 0.0 to 9.9 mm.

• Left Margin: Set the left margin, from 0.0 to 9.9 mm.

• Short Binding: Set the bottom margin of the back of the page for short binding, from 0 to 22 mm.

• Long Binding: Set the right margin of the back of the page for long binding, from 0 to 22 mm.

Note

• In the ML-4550 and ML-4551N, this menu item is available when the optional duplex unit is installed.

2.3 <

System setup>

3. Paper menu

Graphic menu

Use the 3. Paper menu to define all settings relating to print meterials such as paper feed and exit, as well as size and type the specific print meterials you are using with your printer.

Item Explanation

Copies

Values: 1 ~ 999

Set the default number of copies by selecting any number from 1 to 999.

Paper Size

Values: A4, A5, A6, JIS B5, ISO B5, Letter, Legal, Executive, No.10 Env., Monarch Env., DL Env., C5 Env., C6 Env., US Folio, Oficio, Custom Paper

Depending on the paper source or duplex setting, available options vary.

Select the paper size currently loaded in the tray.

Paper Type

Values: Plain Paper, Bond, Transparency, Envelope, Labels, CardStock, Preprinted, Color Paper, Thick, Thin

Select the paper type currently loaded in the tray.

Paper Source

Values: Tray 1, Tray 2, Tray 3, Tray 4, MP Tray, Manual Tray, Auto

Use the 4. Graphic menu to change settings affecting the quality of the printed characters and images.

Item Explanation

Resolution

Values: 600dpi-Normal, 1200dpi-Best

Specify the number of dots printed per inch (dpi). The higher the setting, the sharper printed characters and graphics.

• If your print jobs are mostly text, select

Normal for the highest quality printing.

• Select

1200dpi-Best when your job contains

600dpi-

bitmapped images, such as scanned photos or some graphics, that will benefit from enhanced line screening.

Darkness

Values: Normal, Light, Dark

You can lighten or darken the print on the page by changing the toner density setting. The

Normal

setting usually produces the best result. Use the

Light

toner density setting to save toner.

Tray Chaining

Select which tray you want to use.

Auto

• If you select

, the printer can automatically

determine the source.

•Select MP Tray or Manual Tray to use the multi- purpose tray. If you select Manual Tray, you need to press OK each time you print a page.

• Tray 2, Tray 3, or Tray 4 is available only when the corresponding tray is installed.

Values: Off, On

When you select any other value except Auto from Paper Source and the selected tray is empty, you can set the printer automatically to print from other trays.

If this menu item is set to Off, the default LED lights red and the printer doesn’t work until you insert paper into the specified tray.

2.4 <

System setup>

System Setup menu

Use the 5. System Setup menu to configure a variety of printer features.

Item Explanation

Date & Time

Form Menu

Select Form

Language

Power Save

Auto Continue

See page 10.6 and 10.7.

Note

• This menu item is available when the optional hard disk is installed.

Values: English, FRANCAIS, Espanol, Portugues E., Portugues B., Deutsch, Italiano...

This setting determines the language of the text that appears on the control panel display and information printing.

Values: [ 5 ] Min, [ 10] Min, [ 15 ] Min, [ 30 ] Min, [ 60 ] Min, [ 120 ] Min

When the printer does not receive data for an extended period of time, power consumption is automatically lowered. You can set how long the printer waits before going to power save mode.

Values: Off, On

This item determines whether or not the printer continues printing when it detects the paper unmatched to your paper setting.

• Off: If a paper mismatch occurs, an error message will remain on the display and the printer will remain off-line until you insert the correct paper.

• On: If the paper mismatch occurs, an error message will display. The printer will go offline for 30 seconds, then automatically clear the message and continue printing.

Item Explanation

Job Timeout

Values:[0-1800] sec:15

You can set the length of time the printer waits before printing the last page of a print job that does not end with a command to print the page.

When a print time-out occurs, the printer prints the page in the print buffer.

Maintenance This item allows you to maintain your printer.

•

Clean Drum

: Cleans the OPC drum of the toner cartridge and produces a cleaning sheet with toner debris on it.

Clean Fuser

•

: Cleans the fuser unit inside of the printer and produces a cleaning sheet with toner debris on it.

CLR Empty MSG.: Prevents the Ton e r Low

•

Replace Toner message from appearing on the

display. Once you have selected On, this setting will be permanently written to the memory of the toner cartridge, and this menu will be disappeared from the

Maintenance

menu.

•

Supplies Life

: Allows you to check how many pages have been printed and how much toner are left in the cartridge.

Clear Setting This menu item allows you to restore the printer’s

factory default settings.

Altitude Adj.

Auto CR

Values: Plain, High, Higher, Highest

You can optimize print quality according to your altitude.

Values: LF, LF+CR

This item allows you to append the required carriage return to each line feed.

Refer to the following samples:

AA BB CC

LF LF+CR

AA BB CC

2.5 <

System setup>

Emulation menu

Use the 6. Emulation menu to configure printer language emulation.

Item Explanation

Emulation Type

Setup

PCL

This menu sets the PCL emulation configuration. You can set the font type, symbol type, lines per page, and font size.

Item Explanation

Typeface

Values: Auto, PCL, PostScript, EPSON, HEXDUMP, PS3, IBM ProPrint

The printer language defines how the computer communicates with the printer.

If you select Auto, your printer can change the printer language automatically.

Values: PCL, PostScript, EPSON

See the following tables to configure properties of the printer language.

Values: PCL1 ~ PCL54

You can select the standard font to be used in PCL emulation.

• PCL1~PCL7’s interval between letters is fixed, and PCL8~PCL45’s interval is proportional to the font type and font size. You can adjust the font size of PCL1~PCL7 using the Pitch item, and PCL8~PCL45 can do using

Point Size

item.

• PCL46~PCL54’s interval and font size are fixed.

Item Explanation

Pitch

Values: 0.44 ~ 99.99 (0.01 unit)

When you select one between PCL1 and PCL7 from the

Typeface

menu, you can determine the font size by setting the number of characters that will print in one horizontal inch of type. The default value, 10 is the best size.

Lines

Values: [5 ~ 128]:64

This item allows you to set vertical spacing from 5 to 128 lines for the default paper size. The default number of lines may differ according to the paper size and printing orientation.

PostScript

This menu provides you with the Print PS Error menu item.

Item Explanation

Print PS Error

Values: On, Off

You can select whether or not your printer prints an error list when a PS error occurs.

• Select On to print PS 3 emulation errors. If an error occurs, the job stops processing, the error message prints, and the printer flushes the job.

• If this menu is set to Off, the job is flushed without an indication of the error.

EPSON

This menu sets the EPSON emulation configuration.

Symbol

Point Size

Courier

Values: ROMAN8 ~ PCCYRIL

This item selects the symbol set to be used in PCL emulation. The symbol is the group of numbers, marks, and special signs being used when printing letters.

Depending on the Typeface setting, available symbol sets vary.

Values: 4.00 ~ 999.75 (0.25 unit)

When you select one between PCL8 and PCL45 from the

Typeface

menu, you can determine the font size by

setting the height of the characters in the font.

Values: Regular, Dark

This item lets you select the version of Courier font to use.

2.6 <

Item Explanation

Font

Values: SANSERIF, ROMAN

You can select the default font will be used in EPSON emulation.

Character Set

Values: USA, FRANCE, GERMANY, UK, DENMARK1, SWEDEN, ITALY, SPAIN1, JAPAN, NORWAY, DENMARK2, SPAIN2, LATIN

This item allows you to select a character set of the desired language.

Character Tab.

Values: ITALIC, PC437US, PC850

This item selects the character set.

System setup>

Item Explanation

Pitch

Values: 10, 12, 17.14, 20

You can determine the font size by setting the number of characters that will print in one horizontal inch of type.

LPI

Values: 6, 8

You can set the number of lines printed in one vertical inch.

Auto Wrap

Values: Off, On

This item determines whether or not the printer automatically performs line feed when the data overflows the printable area of the print meterials.

Network menu

This menu lets you configure the network interface installed in your printer. You can reset the network interface and print a configuration page. For details, see page 4.1.

Item Explanation

TCP/IP

Values: DHCP, BOOTP, Static

This item allows you to manually set the TCP/IP addresses or receive the addresses from the network.

• DHCP: The DHCP server allots the IP address to you automatically.

• BOOTP: The BOOTP server allots the IP address to you automatically.

• Static: You can enter IP Address, Subnet Mask, and Gateway manually.

EtherTalk

NetWare

Ethernet Speed

Clear Setting

Values: Off, On

This item lets you select whether or not you use the EtherTalk protocol. Select On to use the protocol.

Values: Auto, 802.2, 802.3, Ethernet II, SNAP, Off

This item lets you select the IPX frame type.

• Auto: You can set the printer to select the frame type automatically.

• 802.2: Select this value to use the IEEE 802.2 frame type.

• 802.3: Select this value to use the IEEE 802.3 frame type.

• Ethernet II: Select this value to use the Ethernet 2 frame type.

• SNAP: Select this value to use the SNAP frame type.

• Off: You can disable the NetWare protocol.

Values: Auto, 10M Half, 10M Full, 100M Half, 100M Full

This item allows you to select the ethernet speed.

This item performs a simple reset and restores the factory default settings for the network configuration. This setting will only take effect after you restart the printer.

2.7 <

Network Info

System setup>

This item prints a page showing the network parameters you set.

Printing a demo page

Changing the font setting

After setting up your printer, print a demo page to make sure that the printer is operating correctly.

Press and hold Demo for about 2 seconds.

Or,

1 Press Menu and then OK when 1. Information appears.

2 Press the Scroll buttons until Demo Page appears and press OK.

3 Press OK when Yes appears.

A demo page prints out.

Changing the display language

To change the language that is displayed on the control panel, follow these steps:

1 Press Menu until 5. System Setup appears on the bottom line of

the display and press OK.

2 Press the Scroll buttons until Language appears and press OK.

3 Press the Scroll buttons to select the language you want and press

OK.

4 Press Stop to return to Standby mode.

Using toner save mode

Your machine has preset the font for your region or country. If you want to change the font which you prefer or set the font under special condition such as the DOS environment, you can change the font setting as follows:

1 Press Menu on the control panel until you see 6. Emulation

feature.

2 Press OK to access the font setting.

3 Press the left/right arrow until Setup displays.

4 Press the left/right arrow until PCL displays.

5 Press the left/right arrow until Symbol displays.

6 Press the left/right arrow until your preferred font displays.

7 Press OK.

8 Press Stop to return to machine ready mode.

Note

Following information shows the proper font list for corresponding languages.

•Russian: CP866, Cyrillic

•Hebrew: 15Q, 8H, 0H (Israel only)

•Greek: GREEK, PC737

•Arabic & Farsi: ARABIC8, WINARABIC, PC864, FARSI,

ISOARABIC.

Toner save mode allows the printer to use less toner on each page. Activating this mode extends the life of your toner cartridge and reduces your cost per page beyond what one would experience in the normal mode, but it reduces print quality. This setting is not available with the 1200dpi-Best setting.

There are two ways to enable this mode:

Using the control panel button

Press Toner Save on the control panel. The printer must be in Standby mode; the Status LED lights green and Ready is shown on the display.

• If the button backlight is on, the mode is enabled and the printer uses less toner to print a page.

• If the button backlight is off, the mode is disabled and the printer prints in normal mode.

From the software application

You can set toner save mode from the printer properties window on your printer driver. See the Software Section.

2.8 <

System setup>

3 Software overview

This chapter gives you an overview of the software that comes with your printer. Further details about installing and using the software are exed in the Software Section.

This chapter includes:

• Supplied software

• Printer driver features

• System requirements

Supplied software

You must install the printer software using the supplied CDs after you have set up your printer and connected it to your computer.

Each CD provides you with the following software:

CD Contents

printer software CD

Windows • Printer driver: Use this driver to

take full advantage of your printer’s features.

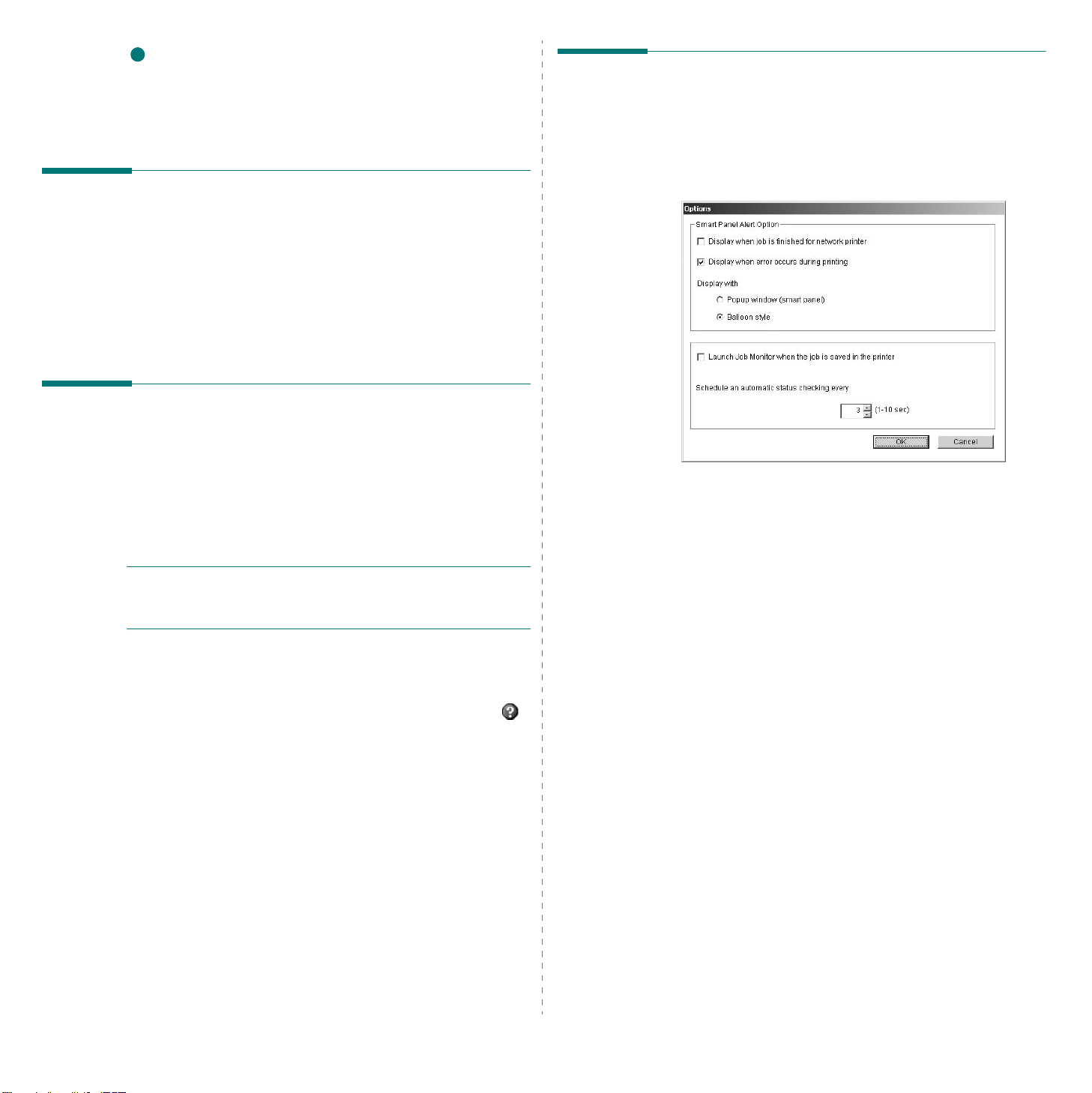

• Smart Panel: This program allows you to monitor the printer’s status and alerts you when an error occurs during printing.

• Direct Printing Utility: This program allows you to print PDF files easily.

• Postscript Printer Description (PPD) file: Use the PostScript driver to print documents with complex fonts and graphics in the PostScript language.

• User’s Guide in PDF

Linux • Printer driver: Use this driver to

run your printer from a Linux computer and print documents.

• Smart Panel: This program allows you to monitor the printer’s status and alerts you when an error occurs during printing.

3.1 <

network utilities CD

(ML-4551N, ML-4551ND only)

Software overview>

Macintosh • Postscript Printer Description

(PPD) file: Use this file to run your printer from a Macintosh computer and print documents.

• Smart Panel: This program allows you to monitor the printer’s status and alerts you when an error occurs during printing.

Windows • SyncThru™ Web Admin Service:

Use this web-based program to remotely manage, monitor, and troubleshoot network printers.

• Set IP: Use this program to set your printer’s TCP/IP addresses.

• Network Printer User’s Guide in PDF

Printer driver features

System requirements

Your printer drivers support the following standard features:

• Paper source selection

• Paper size, orientation and media type

• Number of copies

In addition, you can use various special printing features. The following table shows a general overview of features supported by your printer drivers:

Feature

Toner save O O

Print quality option

Poster printing

Multiple pages per sheet (N-up)

Fit to page printing

Scale printing O O O O

Different source for first page

Watermark O X X X

Overlay O

PCL 6 PostScript

Windows Windows Macintosh Linux

OOOO

O O O O

OOOO

O XOX

X X X

(2, 4)

X X X

Before you begin, ensure that your system meets the following requirements:

Windows

Item Requirements Recommended

Operating system

CPU Windows 98/

RAM Windows 98/

Free disk space

Internet Explorer

Windows 98/Me/NT 4.0/2000/XP/2003

Pentium II

Me/NT 4.0/2000

Windows XP/ 2003

Me/NT 4.0/2000

Windows XP/ 2003

Windows 98/ Me/NT 4.0/2000

Windows XP/ 2003

5.0 or higher

400 MHz or higher

Pentium III 933 MHz or higher

64 MB or more 128 MB

128 MB or more 256 MB

300MB or more 1GB

1GB or more 5GB

Pentium III 933 MHz

Pentium IV 1GHz

Note

• For Windows NT 4.0/2000/XP/2003, users who have an administrator right can install the software.

Note

• Overlay is not supported in Windows NT 4.0.

3.2 <

Software overview>

Linux

Item Requirements

Operating system • Red Hat 8.0 ~ 9.0

• Fedora Core 1 ~ 3

• Mandrake 9.2 ~ 10.1

• SuSE 8.2 ~ 9.2

Processor Pentium IV 1 GHz or higher

RAM 256 MB or higher

Free disk page 1 GB or higher

Software • Linux Kernel 2.4 or higher

• Glibc 2.2 or higher

• CUPS

• SANE

Macintosh

Item Requirements

Operating system 8.6 ~ 9.2 and 10.1 ~ 10.4

RAM 128 MB

Free disk space 200 MB

Connection USB interface, Network interface

3.3 <

Software overview>

4 Network setup

This chapter gives you step-by-step instructions for setting up your printer for network connections.

This chapter includes:

• Introduction

• Supported operating systems

• Configuring TCP/IP

• Configuring IPX frame types

• Setting Ethernet speed

• Restoring the network configuration

• Printing a network configuration page

Introduction

Once you have connected your printer to a network with an RJ-45 Ethernet cable, you can share the printer with other network users.

You need to set up the network protocols on the printer to use it as your network printer. Protocols can be set up by the following two methods:

Via network administration programs

You can configure your printer’s print server settings and manage the printer via the following programs that came with your printer:

• SyncThru™ Web Admin Service: A web-based printer management solution for network administrators. SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network printers from any site with corporate intranet access.

• SyncThru™ Web Service: A web server embedded to your network print server, which allows you to configure the network parameters necessary for the printer to connect to various network environments.

• SetIP: A utility program allowing you to select a network interface and manually configure the addresses for use with the TCP/IP protocol.

For further details, refer to the user’s guide on the network utilities CD that came with your printer.

Via the control panel

You can set up the following basic network parameters through the printer’s control panel:

• Configure TCP/IP

• Configure IPX frame types for NetWare

• Configure EtherTalk

4.1 <

Network setup>

Supported operating systems

The following table shows the network environments supported by the printer:

Item Requirements

Network interface • 10/100 Base-TX

5 Set the first byte between 0 and 255 using the Scroll buttons and

press OK to move to the next byte.

Repeat this to complete the address from the 1st byte to the 4th byte.

6 When you have finished, press OK.

7 Repeat step 5 and 6 to configure the other TCP/IP parameters:

Subnet Mask and Gateway address.

Network operating system

Network protocols • NetWare IPX/SPX

Dynamic addressing server

• IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange

• TCP/IP: Transmission Control Protocol/Internet Protocol

• DHCP: Dynamic Host Configuration Protocol

• BOOTP: Bootstrap Protocol

• Novell NetWare 4.x, 5.x, 6.x

• Windows 98/Me/NT 4.0/2000/XP/2003

• Various Linux OS

• Mac OS 10.3 and above (TCP/IP only)

• TCP/IP

•EtherTalk

•HTTP 1.1

•SNMP

• DHCP, BOOTP

Configuring TCP/IP

Your printer can be set up with a variety of TCP/IP network information, such as an IP address, a subnet mask, a gateway, and DNS addresses. There are several ways in which your printer can be assigned a TCP/IP address, depending on your network.

• Static addressing: A TCP/IP address is assigned manually by the system administrator.

• Dynamic addressing via BOOTP/DHCP (default): A TCP/IP address is assigned automatically by the server.

8 Press Stop to return to Standby mode.

Dynamic addressing (BOOTP/DHCP)

To have a TCP/IP address assigned automatically by the server, take the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press OK when TCP/IP appears.

3 Press the

4 Press

Scroll

buttons until

Stop

to return to Standby mode.

DHCP

BOOTP

appears and press

Configuring EtherTalk

EtherTalk is AppleTalk used in an Ethernet network. This protocol is widely used in Macintosh network environments. To use EtherTalk, take the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the

3 Press the

4 Press

Scroll

buttons until EtherTalk appears and press OK.

Scroll

buttons until On appears and press OK.

Stop

to return to Standby mode.

Note

• Before configuring TCP/IP, you need to set the network protocol to TCP/IP.

Static addressing

To enter a TCP/IP address from your printer’s control panel, take the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press

2 Press OK when TCP/IP appears.

3 Press the Scroll buttons until Static appears and press OK.

4 Press OK when IP Address appears.

4.2 <

Network setup>

Configuring IPX frame types

Restoring the network configuration

To use IPX/SPX protocol networks (for example, Novell NetWare), the format of the network communication frames must be specified for the printer. In most cases, you can keep the Auto setting. However, you can manually set the frame type format, if required. Take the following step to change the frame type format:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until NetWare appears and press OK.

3 Press the Scroll buttons until the desired frame type appears.

• Auto: Automatically senses and limits the frame type to the first one detected.

• 802.2: Limits the frame type to IPX over IEEE 802.2 with IEEE

802.3 frames. All others will be discarded.

• 802.3: Limits the frame type to IPX over IEEE 802.3 frames. All others will be discarded.

• Ethernet II: Limits the frame type to IPX over Ethernet Frames. All others will be discarded.

• SNAP: Limits the frame type to IPX over SNAP with IEEE 802.3 frames. All others will be discarded.

• Off: Disables the IPX/SPX protocol.

4 Press OK to save the selection.

5 Press Stop to return to Standby mode.

You can return the network configuration to its default settings.

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Clear Setting appears and press

OK.

3 Press OK when Yes appears to restore the network configuration.

4 Power the printer off and back on.

Printing a network configuration page

The network configuration page shows how the network interface card on your printer is configured.

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Network Info appears and press OK.

3 Press OK when Yes appears.

The network configuration page prints out.

Setting Ethernet speed

You can select the communication speed for Ethernet connections.

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Ethernet Speed appears and press

OK.

3 Press the Scroll buttons until the speed you want appears and

press OK.

4 Press Stop to return to Standby mode.

4.3 <

Network setup>

5 Loading print media

This chapter will help you understand types of paper you can use with your printer and how to properly load paper in the different paper trays for the best print quality.

This chapter includes:

• Selecting print media

• Loading paper

• Selecting an output location

Selecting print media

You can print on a variety of print media, such as plain paper, envelopes, labels, and transparencies. Always use print media that meet the guidelines for use with your printer. Print media that does not meet the guidelines outlined in this user’s guide may cause the following problems:

• Poor print quality

• Increased paper jams

• Premature wear on the printer

Properties, such as weight, composition, grain, and moisture content, are important factors that affect the printer’s performance and the output quality. When you choose print media, consider the following:

• Desired outcome: The print media you choose should be appropriate for your project.

• Size: You can use any size media that fits easily within the paper adjusters of the paper tray.

• Weight: Your printer supports print media weights as follows:

- 16 to 28 lb bond (60 to 105 g/m

tray 3, tray 4

- 16 to 50 lb bond (60 to 190 g/m

- 20 to 24 lb (75 to 90 g/m

• Brightness: Some print media are whiter than others and produce sharper, more vibrant images.

• Surface smoothness: The smoothness of the print media affects how crisp the printing looks on the paper.

) for the tray 1 and optional tray 2,

) for the multi-purpose tray

) for the duplex printing

Notes

• Some print media may meet all of the guidelines in this section and still not produce satisfactory results. This may be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Samsung has no control.

• Before purchasing large quantities of print media, ensure that it meets the requirements specified in this user’s guide.

Caution

• Using print media that does not meet these specifications may cause problems, requiring repairs. Such repairs are not covered by Samsung’s warranty or service agreements.

5.1 <

Loading print media>

Supported sizes of paper

Type Size Dimensions Weight

Plain paper Letter 216 x 279 mm (8.5 x 11 inches) • 60 to 105 g/m2 (16 to 28 lb

Legal 216 x 356 mm (8.5 x 14 inches)

Folio 216 x 330.2 mm (8.5 x 13 inches)

bond) for the tray

• 60 to 190 g/m bond) for the multi-purpose tray

(16 to 50 lb

Oficio 216 x 343 mm (8.5 x 13.5 inches)

A4 210 x 297 mm (8.27 x 11.69 inches)

JIS B5 182 x 257 mm (7.18 x 10.12 inches)

ISO B5 176 x 250 mm (6.93 x 9.84 inches)

Executive 184.2 x 266.7 mm (7.25 x 10.5 inches)

A5 148.5 x 210 mm (5.85 x 8.27 inches)

A6 105 x 148.5 mm (4.13 x 5.85 inches)

Envelope Envelope B5 176 x 250 mm (6.93 x 9.84 inches) 60 to 90 g/m

(16 to 24 lb) 10 sheets of 75 g/m2 (20 lb)

Envelope Monarch 98.4 x 190.5 mm (3.88 x 7.5 inches)

Envelope COM-10 105 x 241 mm (4.12 x 9.5 inches)

Envelope DL 110 x 220 mm (4.33 x 8.66 inches)

Envelope C5 162 x 229 mm (6.38 x 9.02 inches)

Capacity

• 500 sheets of 75 g/m

(20 lb bond) paper for the tray

• 100 sheets for the multipurpose tray

in the multi-purpose tray

Envelope C6 114 x 162 mm (4.49 x 6.38 inches)

Transparency Letter, A4 Refer to the Plain paper section 138 to 146 g/m

(37 to 39 lb) 50 sheets of 75 g/m2 (20 lb)

in the multi-purpose tray

Labels Letter, Legal, Folio,

Oficio, A4, JIS B5,

Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lb) 25 sheets of 75 g/m2 (20 lb)

in the multi-purpose tray ISO B5, Executive, A5, A6

Card stock Letter, Legal, Folio,

Oficio, A4, JIS B5,

Refer to the Plain paper section 60 to 190 g/m

(16 to 50 lb) 10 sheets of 75 g/m2 (20 lb)

in the multi-purpose tray ISO B5, Executive, A5, A6

Minimum size (custom) 76 x 127 mm (3 x 5 inches) 60 to 190 g/m2 (16 to 50 lb) Refer to the above Capacity

sections

Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)

a. If media weight is over 28 lb (105 g/m2), use the multi-purpose tray. b. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.

Print media for duplex printing

Type Size Weight

Plain paper A4, Letter, Oficio, Legal, and Folio 75 ~ 90 g/m

(20 to 24 lb)

5.2 <

Loading print media>

Guidelines for selecting and storing print media

Guidelines for special print media

When selecting or loading paper, envelopes, or other print media, keep these guidelines in mind:

• Always use print media that conform with the specifications listed on the next column.

• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.

• For the best print quality, use only high quality copier grade paper specifically recommended for use in laser printers.

• Avoid using the following media types:

- Paper with embossed lettering, perforations, or a texture that is too

smooth or too rough

- Erasable bond paper

- Multi-paged paper

- Synthetic paper and thermally reactive paper

- Carbonless paper and Tracing paper.

• Use of these types of paper could result in paper jams, chemical smells, and damage to your printer.

• Store print media in its ream wrapper until you are ready to use it. Place cartons on pallets or shelves, not on the floor. Do not place heavy objects on top of the paper, whether it is packaged or unpackaged. Keep it away from moisture or other conditions that can cause it to wrinkle or curl.

• Store unused print media at temperatures between 15

C and 30o C (59o F to 86o F). The relative humidity should be between 10% and 70%.

• Store unused print media in a moisture-proof wrap, such as a plastic container or bag, to prevent dust and moisture from contaminating your paper.

• Load special media types one sheet at a time through the multipurpose tray to avoid paper jams.

• To prevent print media, such as transparencies and label sheets, from sticking together, remove them as they print out.

Media type Guidelines

Envelopes • Successful printing on envelopes depends

upon the quality of the envelopes. When selecting envelopes, consider the following factors:

- Weight: The weight of the envelope paper should not exceed 90 g/m

(24 lb) or jamming

may occur.

- Construction: Prior to printing, envelopes should lie flat with less than 6 mm (0.25 inches) curl, and should not contain air.

- Condition: Envelopes should not be wrinkled, nicked, or otherwise damaged.

- Temperature: You should use envelopes that are compatible with the heat and pressure of the printer during operation.

• Use only well-constructed envelopes with sharp and well creased folds.

• Do not use stamped envelopes.

• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.

• Do not use damaged or poorly made envelopes.

• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.

Acceptable

5.3 <

Unacceptable

• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the printer’s fusing temperature of 195° C (383° F) for

0.1 second. The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.

• For the best print quality, position margins no closer than 15 mm (0.6 inches) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams meet.

Loading print media>

Media type Guidelines

Transparencies • To avoid damaging the printer, use only

transparencies designed for use in laser printers.

• Transparencies used in the printer must be able to withstand 195° C (383° F), the printer’s fusing temperature.

• Place them on a flat surface after removing them from the printer.

• Do not leave them in the paper tray for long periods of time. Dust and dirt may accumulate on them, resulting in spotty printing.

• To avoid smudging caused by fingerprints, handle them carefully.

• To avoid fading, do not expose printed transparencies to prolonged sunlight.

• Ensure that transparencies are not wrinkled, curled, or have any torn edges.

Labels • To avoid damaging the printer, use only labels

designed for use in laser printers.

• When selecting labels, consider the following factors:

- Adhesives: The adhesive material should be

stable at 195° C (383° F), the printer’s fusing temperature.

- Arrangement: Only use labels with no

exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.

- Curl: Prior to printing, labels must lie flat with

no more than 13 mm (5 inches) of curl in any direction.

- Condition: Do not use labels with wrinkles,

bubbles, or other indications of separation.

• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components.

• Do not run a sheet of labels through the printer more than once. The adhesive backing is designed for only a single pass through the printer.

• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

Preprinted paper

• Letterhead must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer’s fusing temperature of 195° C (383° F) for 0.1 second.

• Letterhead ink must be non-flammable and should not adversely affect printer rollers.

• Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes during storage.

• Before you load preprinted paper, such as forms and letterhead, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

Loading paper

Load the print media you use for the majority of your print jobs in the tray

1. The tray 1 can hold a maximum of 500 sheets of 75 g/m2 (20 lb) plain paper.

You can purchase optional trays and attach them below the standard tray to load an additional 500 sheets of paper for each tray. You can attach up to three additional trays. For order information for optional trays, see page 7.1.

The paper level indicator on the front of the tray 1 and the optional trays shows the amount of paper currently left in the tray. When the tray is empty, the indicator of the bar is completely lowered.

Full

Empty

Card stock or custom-sized materials

• Do not print on media smaller than 76 mm (3 inches) wide or 127 mm (5 inches) long.

• In the software application, set margins at least

6.4 mm (0.25 inches) away from the edges of the material.

5.4 <

Loading print media>

Using the standard tray or the optional trays

Load the print media you use for the majority of your print jobs in the standard tray. The standard tray can hold a maximum of 500 sheets of

75 g/m

To load paper, pull open the tray and load paper with the side to be printed on face down.

You can load letterhead paper with the design side face down. The top edge of the sheet with the logo should be placed at the front of the tray.

(20 lb) paper.

2 Squeeze the paper length guide and slide it to the correct position

for the paper size you are loading, which is marked at the bottom of the tray.

paper length guide

3 Squeeze the paper width guides and slide them to the desired

paper size marked at the bottom of the tray.

Notes

• If you experience problems with paper feed, place one sheet at a time in the multi-purpose tray.

• You can load previously printed paper. The printed side should be facing up with an uncurled edge at the front of the tray. If you experience problems with paper feed, turn the paper around. Note that the print quality is not guaranteed.

Changing the size of the paper in the tray

The tray is preset to Letter or A4 size, depending on your country. To change the size, you need to adjust the paper guides.

1 Push the back plate of the tray outwards completely so that it can

extend the length of the tray.

paper width guide

Notes

• Do not push the paper width guide far enough to cause the media to warp.

• If you do not adjust the paper width guide, it may cause paper jams.

4 Load paper with the print side down.

5.5 <

Loading print media>

Using the multi-purpose tray

The multi-purpose tray can hold special sizes and types of print media, such as transparencies, postcards, note cards, and envelopes. It is useful for single page printing on letterhead or colored paper.

To load paper in the multi-purpose tray:

1 Pull the multi-purpose tray down towards you and pull the multi-

purpose tray extension to hold longer paper.

• Envelopes: Flap side down and with the stamp area on the top left side.

Note

• To print on envelopes, you must open the rear cover and push the fuser levers upwards. The print quality will be enhanced.

2 If you are using paper, flex or fan the edge of the paper stack to

separate the pages before loading.

For transparencies, hold them by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems.

3 Load the paper with the side to be printed on facing up.

• Transparencies: Print side up and the top with the adhesive strip entering the printer first.

• Labels: Print side up and the top short edge entering the printer first.

• Preprinted paper: Design side up and the top edge entering the printer first.

• Card stock: Print side up and the short edge entering the printer first.

• Previously printed paper: Previously printed side down and an uncurled edge entering the printer first.

Note

• Make sure that you have not loaded too much print media. The print media buckles if you load a stack that is too deep or if you push it in too far.

Caution

• When you print on special media like envelopes, labels, transparencies, or cards, the output location should be the rear cover. Open the rear cover to use it. See page 5.8.

Depending on the media type you are using, keep the following loading guidelines:

5.6 <

Loading print media>

4 Squeeze the multi-purpose tray paper width guides and adjust

them to the width of the paper. Do not force too much, or the paper will be bent, which will result in a paper jam or skew.

5 When you print a document, set the paper source and type in the

software application. See the Software Section.

For information about setting the paper source and type on the control panel, see page 2.4.

6 After printing, put the multi-purpose tray extension back to its place

and close the multi-purpose tray.

Tips on using the multi-purpose tray

• Load only one size of print media at a time in the multi-purpose tray.

• To prevent paper jams, do not add paper when there is still paper in the multi-purpose tray. This also applies to other tray.

• Print media should be loaded face up with the top edge going into the multi-purpose tray first and be placed in the center of the tray.

• Always load only the print media specified in page 5.2 to avoid paper jams and print quality problems.

• Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose tray.

• When you print on 76 mm x 127 mm (3 x 5 inches) sized media on the multi-purpose tray, open the rear cover for straight paper path to avoid paper jams.

• When you print on transparencies, open the rear cover. If not they may tear while exiting the printer.

Using manual feed mode

You can manually load a sheet of print media in the multi-purpose tray if you select Manual Feed in the Source option from the Paper tab when you change print settings to print a document. See the Software Section. Manually loading paper can be helpful when you want to check the print quality after each page is printed.

This loading procedure is almost the same as the procedure for loading in the multi-purpose tray, except you load paper sheet-by-sheet in the tray, send print data to print the first page, and press OK on the control panel to print each following page.

1 Load the paper with the side to be printed on facing up.

2 Squeeze the multi-purpose tray paper width guides and adjust

them to the width of the paper. Do not force too much, or the paper will be bent, which will result in a paper jam or skew.

3 When you print a document, set the paper source to Manual Feed

and select the appropriate paper size and type in the software application. See the Software Section.

4 Print a document.

The display shows a message prompting you to load paper and press OK.

5 Press OK.

The printer picks up the print media and prints. After one page is printed, the message appears again.

Note

• If you do not press the button, after a pause the printer will automatically pick the print media.

6 Insert the next sheet into the multi-purpose tray and press OK.

Repeat this step for every page to be printed.

5.7 <

Loading print media>

Selecting an output location

The printer has two output locations; the rear cover (face up) and the output tray (face down).

rear cover

output tray

The printer sends output to the output tray by default. To use the output tray, make sure that the rear cover is closed.

Printing to the output tray (Face down)

The output tray collects paper face down, in the order in which the sheets were printed. The tray should be used for most print jobs.

Printing to the rear cover (Face up)

Using the rear cover, paper comes out of the printer face up.

Printing from the multi-purpose tray to the rear cover provides a straight paper path. Using the rear cover might improve the output quality with special print media.

To use the rear cover, open it by pulling down and pull the rear cover extension.

Notes

• If paper coming out of the output tray has problems, such as excessive curl, try printing to the rear cover.

• To avoid paper jams, do not open or close the rear cover while the printer is printing.

Caution

• The fuser area inside the rear cover of your printer becomes very hot when in use. Take care when you access this area.

5.8 <

Loading print media>

6 Basic printing

This chapter explains common printing tasks.

This chapter includes:

• Printing a document

• Canceling a print job

Printing a document

This printer allows you to print from various Windows, Macintosh, or Linux applications. The exact steps for printing a document may vary depending on the application you use.

For details about printing, see the Software Section.

Canceling a print job

If the print job is waiting in a print queue or print spooler, such as the printer group in Windows, delete the job as follows:

1 Click the Windows Start button.

2 For Windows 98/Me/NT 4.0/2000, select Settings and then

Printers.

For Windows XP/2003, select Printers and Faxes.

3 Double-click the Samsung ML-4550 Series PCL 6 or Samsung

ML-4550 Series PS icon.

4 From the Document menu, select

Me) or

Cancel (Windows NT 4.0/2000/XP/2003).

Note

• You can access this window simply by double-clicking the printer icon at the bottom right corner of the Windows desktop.

You can also cancel the current job by pressing Stop on the control panel of your printer.

Cancel Printing (Windows 98/

6.1 <

Basic printing>

7 Ordering supplies and

accessories

This chapter provides information on purchasing toner cartridges and accessories available for your printer.

• Toner cartridges

• Accessories

• How to purchase

Toner cartridges

When the toner runs out, you can order the following types of toner cartridges for your printer:

Type Yield

Standard yield 10,000 pages ML-D4550A

High yield 20,000 pages ML-D4550B

a. Declared yield value in accordance with ISO/IEC 19752.

Part number

Accessories

You can purchase and install accessories to enhance your printer’s performance and capacity.

The following accessories are available for your printer:

Accessory Description Part number

Optional Tray If you are experiencing

frequent paper supply problems, you can attach additional 500 sheet trays up to three. You can print documents on various sizes and types of print media.

DIMM Extends your printer’s

memory capacity.

Ethernet 10/100 Base TX Wired Network Printer Interface Card

Duplex Unit Allows you to print on

Hard Disk Allows you to enhance

Allows you to connect your printer to a network environment using the wired network card.

both sides of the paper.

the printer ’s capability and print in various ways.

ML-S4550A

• ML-MEM150: 128 MB

• ML-MEM160: 256 MB

ML-NWA20N

ML-3560U1

ML-HDK210

To order Samsung-authorized supplies or accessories, contact your local Samsung dealer or the retailer where you purchased your printer, or visit www.samsungprinter.com information on calling for technical support.

7.1 <

Ordering supplies and accessories>

How to purchase

and select your country/region for

8 Maintenance

This chapter provides information for maintaining your printer and the toner cartridge, as well as suggestions for high-quality and economical printing.

This chapter includes:

• Printing information pages

• Cleaning the printer

• Maintaining the toner cartridge

• Maintenance parts

Printing information pages

From the printer’s control panel, you can print pages that give detailed information about the printer. They can help you check your printer’s status and maintain the printer.

1 Press Menu until Information appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until the information page you want

appears and press OK.

3 Press OK when Yes appears.

A page prints out.

Cleaning the printer

During the printing process, paper, toner, and dust particles can accumulate inside the printer. This buildup can cause print quality problems, such as toner specks or smearing. Your printer has a cleaning mode that can correct and prevent these types of problems.

Caution

• Cleaning the cabinet of the printer with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or crack the cabinet.

Cleaning the outside of the printer

Clean the cabinet of the printer with a soft, lint-free cloth. You can dampen the cloth slightly with water, but be careful not to let any water drip onto or into the printer.

Cleaning the inside of the printer

There are two methods to clean the inside of the printer:

• Clean the inside manually.

• Print a cleaning sheet, which can be done from the control panel.

Cleaning the inside of the printer manually

1 Turn the printer off and unplug the power cord. Wait for the printer

to cool down.

8.1 <

Maintenance>

2 Open the top cover and pull the toner cartridge out. Set it on a

clean flat surface.

4 Gently swab the long strip of glass (LSU) inside the top of the

cartridge cavity and check for dirt or dust.

Caution

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.

• Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.

3 With a dry lint-free cloth, wipe away any dust and spilled toner from

the toner cartridge area and the toner cartridge cavity.

Note

• The long strip of glass is hard to locate.

5 Locate the PTL lens by flipping up the guide feed and gently swab

the lens with the pointed white cotton.

PTL lens

Caution

• While cleaning the inside of the printer, be careful not to touch the transfer roller, located underneath the toner cartridge. Oil from your fingers can cause print quality problems.

8.2 <

Maintenance>

6 Clean a feed sensor with a cotton bud.

Feed Sensor

7 Reinsert the toner cartridge and close the top cover.

8 Plug in the power cord and turn the printer on.

Printing a cleaning sheet

If you are experiencing blurred, faded, or smeared printouts, you can clear the problem by printing a cleaning sheet, provided by your printer. You can print:

• OPC cleaning sheet: cleans the OPC drum of the toner cartridge.

• Fuser cleaning sheet: cleans the fuser unit inside the printer.

This process will produce a page with toner debris, which should be discarded.

Maintaining the toner cartridge

Toner cartridge storage

To get the most from the toner cartridge, keep the following guidelines in mind:

• Do not remove the toner cartridge from its package until ready for use.

• Do not refill the toner cartridge. The printer warranty does not cover damage caused by using a refilled cartridge.

• Store toner cartridge in the same environment as the printer.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minute.

Expected cartridge yield

The toner cartridge yield depends on the amount of toner that print jobs require. density of the pages you print on, and the number of pages may be affected by operating environment, printing interval, media type, and media size. If you print a lot of graphics, you may need to change the cartridge more often.

Saving toner

To save toner, press Toner Save on the control panel. The button backlight turns on.

Using this feature extends the life of the toner cartridge and reduce your cost per page, but it also reduces print quality.

The actual number may also be different depending on the print

1 Make sure that the printer is turned on with paper loaded in the tray.

2 Press Menu until System Setup appears on the bottom line of the

display and press OK.

3 Press the Scroll buttons until Maintenance appears and press

OK.

4 Press the Scroll buttons until

and press OK.

Your printer automatically picks up a sheet of paper from the tray and prints out a cleaning sheet with dust or toner particles on it.

Clean Fuser or Clean Drum appears

8.3 <

Maintenance>

Checking the remaining toner

You can check the level of toner left in the cartridge.

If you are having print quality problems, this can help you determine if the problem is caused by low toner.

1 Press Menu until System Setup appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Maintenance appears and press

OK.

3 Press the Scroll buttons until Supplies Life appears and press

OK.

4 Press the Scroll buttons until Toner Remains appears and press

OK.

The display shows the percentage of the remaining toner.

Note

While the following messages are appearing on the display, the sub-menu(s) under Supplies Life can be changed:

- Invalid Toner, NonGenuine Toner, Replace Toner, Toner Exhausted

Redistributing toner cartridge

When the toner cartridge is near the end of its life:

• White streaks and light printing occur.

• Toner Low appears on the display.

•The Status LED blinks red.

If this happens, you can temporarily reestablish print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner.

1 Open the top cover.

2 Pull the toner cartridge out.

Caution

• Avoid reaching too far into the printer. The fusing area may be hot.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.

• Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.

3 Thoroughly shake the cartridge 5 or 6 times to distribute the toner

evenly inside the cartridge.

8.4 <

Note

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

Maintenance>

4 Hold the toner cartridge by the handle and slowly insert the

cartridge into the opening in the printer.

Tabs on the sides of the cartridge and corresponding grooves within the printer will guide the cartridge into the correct position until it locks into place completely.

5 Close the top cover. Make sure that the cover is securely closed.

2 Pull the toner cartridge out.

3 Remove the new toner cartridge from its bag.

Replacing the toner cartridge

When the toner cartridge is completely empty:

• Toner Empty appears on the display.

•The Status LED lights red.

At this stage, the toner cartridge needs to be replaced. For order information for toner cartridges, see page 7.1.

1 Open the top cover.

Caution

• Do not use sharp objects, such as a knife or scissors, to open the toner cartridge package. They might scratch the drum of the cartridge.

8.5 <

Maintenance>

4 Locate the sealing tape at the end of the toner cartridge. Carefully

pull the tape completely out of the cartridge and discard it.

Note

• The sealing tape should be longer than 60 cm when correctly removed.

• Holding the toner cartridge, pull the sealing tape straight to remove it form the cartridge. Be careful not to cut the tape. If this happens, you cannot use the toner cartridge.

• Refer to the helpful pictures on the cartridge wrapping paper.

5 Remove the flexible plastic holder out of the toner cartridge.

Caution

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.

• Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.

7 Hold the toner cartridge by the handle and slowly insert the

cartridge into the opening in the printer.

Tabs on the sides of the cartridge and corresponding grooves within the printer will guide the cartridge into the correct position until it locks into place completely.

6 Thoroughly shake the cartridge 5 or 6 times to distribute the toner

evenly inside the cartridge.

Thoroughly roll the cartridge to assure maximum copies per cartridge. Save the box and the plastic bag for shipping.

8.6 <

8 Close the top cover. Make sure that the cover is securely closed.

Maintenance>

Clearing the Toner Low Replace Toner message

When the Ton e r Low Replace Toner message appears you can configure not to see this message again not to disturb you.

1 Press Menu until System Setup appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Maintenance appears and press OK.

3 Press the Scroll buttons until CLR Empty Msg. appears and press

OK.

4 Select On and press OK.

5 Now the Ton e r Lo w Replace Toner message does not appear but

the Replace Toner message will remain for reminding you that the new cartridge needs to be installed for quality.

Caution

•Once you have selected On, this setting will be permanently written to the memory of the toner cartridge, and this menu will be disappeared from the Maintenance menu.

Maintenance parts

To avoid print quality and paper feed problems resulting from worn parts and to maintain your printer in top working condition, the following items will need to be replaced when the specified number of pages have been printed or when the life span of each item has expired.

Items Yield (Average)

Transfer roller 150,000

Fuser unit 150,000

Paper feeding roller 150,000

Rubber pad 150,000

Samsung highly recommends that an authorized service provider, dealer or the retailer where you bought printer performs this maintenance activity.

8.7 <

Maintenance>

9 Troubleshooting

Clearing paper jams

This chapter provides helpful information for what to do if you encounter an error while using your printer.

This chapter includes:

• Clearing paper jams

• Troubleshooting checklist

• Understanding the status LED

• Understanding display messages

• Toner cartridge-related messages

• Solving general printing problems

• Solving print quality problems

• Common Windows problems

• Common Macintosh problems

• Common PostScript problems

• Common Linux problems

Note

• When removing paper that is jammed in the printer, if possible always pull the paper in the direction that it normally moves so as not to damage internal components. Always pull firmly and evenly; do not jerk the paper. If the paper tears, ensure that all fragments of paper are removed; otherwise a jam will occur again.

When a paper jam occurs, the Status LED lights red. Open and close the top cover. The jammed paper automatically exits the printer.

If the paper does not exit, check the display on the control panel. The message indicating the corresponding location of the paper jam appears. Refer to the table below to locate the paper jam and to clear it:

Message Location of Jam Go To

Paper Jam 0

Open/Close Door

Paper Jam 1

Open/Close Door

Paper Jam 2

Check Inside

Paper Exit Jam 1

Open/Close Door

In the paper feed area

(tray 1, optional tray 2, optional tray 3, optional tray 4, multi-purpose tray)

Around the toner cartridge page 9.3

In the paper exit area page 9.4

Between the toner cartridge and the paper exit area

the next column

page 9.3

9.1 <

Paper Tray 2 Jam

Open Tray 2

Paper Tray 3 Jam

Open Tray 3

Paper Tray 4 Jam

Open Tray 4

Duplex Jam 0a Check Inside

Duplex Jam 1

Open/Close Door

a. Available with the optional duplex unit in the ML-4550 and ML-4551N.

Troubleshooting>

In the optional tray 2 page 9.2

In the optional tray 3 page 9.2

In the optional tray 4 page 9.2

In the duplex area page 9.4

In the duplex area page 9.5

In the paper feed area

In the optional tray

In the tray 1

1 Pull the tray 1 open.

2 Remove the jammed paper by gently pulling it straight out. Make

sure that all of the paper is properly aligned in the tray 1.

1 Pull the optional tray open.

2 Remove the jammed paper from the printer.

If the paper does not move when you pull, or if you do not see the paper in this area, stop and go to step 3.

3 Pull the upper tray half way out.

4 Pull the jammed paper straight up and out.

If the paper does not move when you pull, or if you do not see the paper in this area, check the fuser area around the toner cartridge. See page 9.3.

3 Insert the tray 1 into the printer until it snaps into place. Printing

automatically resumes.

9.2 <

5 Fully insert the trays back into the printer. Printing automatically

resumes.

Troubleshooting>

In the multi-purpose tray

1 If the paper is not feeding properly, pull the paper out of the printer.

2 Carefully lift up the guide feed.

guide feed

2 Open and close the top cover to resume printing.

Around the toner cartridge

Note

• The fuser area is hot. Take care when removing paper from the printer.

1 Open the top cover and pull the toner cartridge out.

3 Remove the jammed paper by gently pulling it straight out.

If you do not see the jammed paper or if there is any resistance removing the paper, stop pulling and go to the paper exit area. See page 9.4.

4 Flip down the guide feed.

Caution

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.

• Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.

9.3 <

Troubleshooting>

5 Replace the toner cartridge and close the top cover. Printing

automatically resumes.

Note

• If it is difficult to reinstall the toner cartridge, make sure that the guide feed has been flipped back down into position.

In the duplex unit area

If the duplex unit is not inserted correctly, paper jam may occur. Make sure that the duplex unit is inserted correctly.

In the ML-4550 and ML-4551N, the optional duplex unit should be installed.

In the paper exit area

1 Open and close the top cover. The jammed paper is automatically

ejected from the printer.

2 Gently pull the paper out of the output tray.

If you do not see the jammed paper or if there is any resistance when you pull, stop and go to the next step.

3 Open the rear cover.

4 By pusing the fuser levers upwards, loosen the jammed paper.

Then gently pull the paper straight out.

Duplex jam 0

1 Pull the duplex unit out of the printer.

2 Locate the jammed paper and remove it.

5 Put the fuser levers to their original position and close the rear

cover. Printing automatically resumes.

9.4 <

3 Insert the duplex unit into the slot.

4 Open and close the top cover. The printer will resume printing.

Troubleshooting>

Duplex jam 1

1 Open the rear cover.

Troubleshooting checklist

If the printer is not working properly, consult the following checklist. If the printer does not pass a step, follow the corresponding suggested solutions.

Condition Suggested solutions

2 Gently pull the jammed paper straight up.

3 Close the rear cover.

4 Open and close the top cover. The printer will resume printing.

Tips for avoiding paper jams

By selecting the correct media types, most paper jams can be avoided. When a paper jam occurs, follow the steps outlined on page 9.1.

• Follow the procedures on page 5.5. Ensure that the adjustable guides are positioned correctly.

• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside wall of the tray.

• Do not remove paper from the tray while your printer is printing.

• Flex, fan, and straighten paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in a tray.

• Use only recommended print media. See page

• Ensure that the recommended print side of print media is facing down in the tray, or facing up in the multi-purpose tray.

5.1

Make sure that the Status LED on the control panel lights green and Ready is shown on the display.

Print a demo page to verify that the printer is feeding paper correctly. See page 2.8.

Check the demo page to see if it printed correctly.

Print a short document from a software application to verify that the computer and printer are connected and are communicating correctly.

If completing the checklist does not resolve the printer problem, check the following troubleshooting sections.

• If the Status LED is off, check the power cord connection. Check the power switch. Check the power source by plugging the power cord into another outlet.

• If the Status LED lights red, check the display message. See page 9.6.

• If a demo page does not print, check the paper supply in the tray.

• If the paper jams in the printer, see page

9.1.

• If an error message appears on the display, see page 9.6.

If there is a print quality problem, see page

9.11.

• If the page does not print, check the cable connection between the printer and the computer.

• Check the print queue or print spooler to see if the printer has been paused.

• Check the software application to ensure that you are using the proper printer driver and communication port. If the page is interrupted during printing, see page 9.9.

• “Understanding the status LED” on page

9.6.

• “Understanding display messages” on page 9.6.

• “Solving general printing problems” on page 9.9.

• “Common Windows problems” on page

9.13.

• “Common PostScript problems” on page

9.13.

• “Common Linux problems” on page 9.14.

• “Common Macintosh problems” on page

9.14.

9.5 <

Troubleshooting>

Understanding the status LED

Understanding display messages

Status Description

Off • The printer is off-line and cannot print.

• The printer is in power save mode. When data is received, it switches to on-line automatically.

Green On The printer is on-line and can receive data

from the computer.

Blinking • When the backlight blinks slowly, the printer

is receiving data from the computer.

• When the backlight blinks quickly, the printer is printing data.

Red On • The toner is totally exhausted. Remove the

old toner cartridge and install a new one. See page 8.5.

• A paper jam has occurred. To solve the problem, see page 9.1.

• The top cover is open. Close the top cover.

• There is no paper in the tray. Load paper in the tray.

• The toner cartridge installed is not a genuine cartridge, and you selected Stop at the NonGenuine Toner prompt. See page 9.6.

• The lifespan of the toner cartridge is reached, and you selected Stop at the Toner Exhausted prompt. See page 9.6.

• The printer has stopped printing due to a major error. Check the display message. See page 9.6 for details on the meaning of the error message.

Blinking • A minor error is occurring and the printer is

waiting for the error to be cleared. Check the display message. When the problem is cleared, the printer resumes printing.

• The toner cartridge is low. Order a new toner cartridge. You can temporarily improve print quality by redistributing the toner. See page

8.4.

Messages appear on the Smart Panel program window or the control panel display to indicate the printer’s status or errors. Refer to the tables below to understand the messages’ meaning and correct the problem if necessary. Messages and their meanings are listed in alphabetical order.

Note

• When you call for service, it is very convenient to tell the service representative the display message.

Message Meaning Suggested solutions

ADC Not

Confirm Error

Door Open The top cover or rear

Duplex Jam 0 Check Inside

Duplex Jam 1 Open/Close Door

Fuser Door Open The fuser door is not

Fuser is Cleaning Your printer is

Inner Temp. Open

Cycle Power

Inner Temp. Error

Cycle Power

There is a problem in your printer system.

cover is not securely latched.

Paper has jammed during duplex printing.

securely latched.

printing a Cleaning sheet now.

There is a problem in your printer system.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

Close the cover until it locks into place.

Clear the jam. See page 9.4.

Clear the jam. See page 9.5.

Open the rear cover and close the fuser door until it locks into place.

Please wait a few minutes.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

9.6 <

Troubleshooting>

Message Meaning Suggested solutions

Load

[Size] In [Tray]

Load Manual Press Cont Key

Low Heat Error

Cycle Power

LSU Motor Error

Cycle Power

MP Tray

Paper Empty

OPC is Cleaning Your pr i n t e r is

Open Heat Error

Cycle Power

Out-Bin Full The output tray is

Over Heat Error

Cycle Power

The paper size specified in the printer properties does not match the paper you are loading.

The multi-purpose tray is empty in manual feed mode.

There is a problem in the fuser unit.

A problem has occurred in the LSU (Laser Scanning Unit).

There is no paper in the multi-purpose tray.

printing a cleaning sheet now.

There is a problem in the fuser unit.

full.

There is a problem in the fuser unit.

Load the correct paper in the tray.

Load a sheet of print media and press You need to press

each page to be

printed.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

Load paper in the multi-purpose tray. See page 5.6.

Please wait a few minutes.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

It can hold up to 250 sheets of plain paper. Once the paper is removed from the output tray, the printer resumes printing.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

Paper Jam 0

Open/Close Door

Paper Jam 1

Open/Close Door

Paper Jam 2

Check Inside

Paper [Tray] Jam

Open [Tray]

Printing... The printer is

Ready The printer is on-line

Self Diagnostic LSU

Self Diagnostic Temperature

Sleeping... The printer is in

[Tray]

Cassette Out

[Tray]

Paper Empty

Warming Up Please Wait...

Paper has jammed in the feeding area of the tray.

Paper has jammed in the fuser area.

There are toner powders on a feed sensor.

Paper has jammed in the paper exit area.

Paper has jammed in the displayed optional tray.

printing jobs.

and ready to print.

The LSU (Laser Scanning Unit) in your printer is checking some problems detected.

The engine in your printer is checking some problems detected.

power save mode.

The displayed tray is open.

There is no paper in the tray.

Your printer is warming up now.

Clear the jam. See page 9.2.

Clear the jam. See page 9.3.

Clean a feed sensor. see page 8.1.

Clear the jam. See page 9.4.

Clear the jam. See page 9.2.

Complete your printing.

Use your printer.

Please wait a few minutes.

When data is received, it switches to on-line automatically.

Close the tray until it locks into place.

Load paper in the tray. See page 5.5.

Please wait a few minutes.

Paper Exit Jam 1

Open/Close Door

Paper has jammed before reaching to the exit sensor.

Clear the jam. See page 9.3.

9.7 <

Troubleshooting>

Toner cartridge-related messages

Message Meaning Suggested solutions

Install Toner A toner cartridge is not installed. Install a toner cartridge.

Invalid Toner The toner cartridge you have

installed is not for your printer.

Toner Low The toner cartridge is almost

empty.

NonGenuine Toner

Stop

NonGenuine Toner

Replace Toner1

NonGenuine Toner

Replace Toner

Toner Low

Replace Toner

Replace Toner The toner in the cartridge has run

The toner cartridge installed is not a genuine cartridge.

The toner in the cartridge has run out.

out.

Install a Samsung-genuine toner cartridge, designed for your printer.

Take out the toner cartridge and thoroughly shake it. By doing this, you can temporarily reestablish printing operations.

You can select either Stop or Continue. If you do not select any, the printer will work as Stop is selected.

If you select Stop, you cannot print until the genuine cartridge is installed. However, you can still print any kind of reports.

If you select Continue, you can keep printing but the quality cannot be guaranteed, and the product support is no longer provided.

If you want to change the selection, turn the printer off and on to have this message appear again, and then re-select Stop or Continue.

This message appears when you selected Stop at the NonGenuine Toner prompt.

Install the genuine toner cartridge.

This message appears when you selected Continue at the NonGenuine Toner prompt.

Install the genuine toner cartridge.

Install a new genuine toner cartridge.

You can keep printing but the quality cannot be guaranteed, and the product support is no longer provided.

You can configure not to see the Toner Low Replace Toner message. See page 8.4.

This message appears when you turned off the Toner Low Replace Toner message. See

page 8.4.

Install a new genuine toner cartridge.

You can keep printing but the quality cannot be guaranteed, and the product support is no longer provided.

Toner Exhausted

Stop

Toner Exhausted

Replace Toner1

Toner Exhausted

Replace Toner

The lifespan of the toner cartridge is reached.

You can select either Stop or Continue. If you do not select any, the printer will work as Stop is selected.

If you select Stop, you cannot print until the genuine cartridge is installed.

If you select Continue, you can keep printing but the quality cannot be guaranteed, and the product support is no longer provided.

If you want to change the selection, turn the printer off and on to have this message appear again, and then re-select Stop or Continue.

This message appears when you selected Stop at the Toner Exhausted prompt.

Install the genuine toner cartridge.

This message appears when you selected Continue at the Toner Exhausted prompt.

Install the genuine toner cartridge.

9.8 <

Troubleshooting>

Solving general printing problems

Condition Possible cause Suggested solutions

For problems with the operation of your printer, refer to the table for suggested solutions.

Condition Possible cause Suggested solutions

The printer does not print.

The printer is not receiving power.

The printer is not selected as the default printer.

The printer cover is not closed.

Paper is jammed. Clear the paper jam. See page

No paper is loaded.

The toner cartridge is not installed.

The printer may be in manual feed mode and out of paper.

The connection cable between the computer and the printer is not connected properly.

The connection cable between the computer and the printer is defective.

The port setting is incorrect.

Check the power cord connections. Check the power switch and the power source.

Select

Samsung ML-4550

Series

PCL 6 or

4550 Series

printer.

Close the printer cover.

9.1.

Load paper. See page 5.4.

Install the toner cartridge.

Check the display message, add paper to the multi-purpose tray, and press OK on the printer’s control panel.

Disconnect the printer cable and reconnect it.

If possible, attach the cable to another computer that is working properly and try to print a document. You can also try using a different printer cable.

Check the Windows printer setting to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the printer is attached to the correct one.

Samsung ML-

PS as your default

The printer does not print.

(Continued)

Printer selects print media from the wrong paper source.

Paper does not feed into the printer.

Print job is extremely slow.

The printer may be configured incorrectly.

The printer driver may be incorrectly installed.

The printer is malfunctioning.

The paper source selection in the printer properties may be incorrect.

Paper has not been loaded correctly.

There is too much paper in the tray.

The paper is too thick.

The job may be very complex.

Check the printer properties to ensure that all of the print settings are correct.

Reinstall the printer driver; See the Software Section. Try printing a test page.

Check the display message on the control panel to determine if the printer is indicating a system error.

For many software applications, the paper source selection is found under the Paper tab within the printer properties. Select the correct paper source. See the Software Section.

Remove paper from the tray and reload it correctly.

Check that the paper size guides are set correctly.

Remove excess paper from the tray.

Use only paper that meets printer specifications.

Reduce the complexity of the page(s) or try adjusting the print quality settings.

To adjust the print quality settings, reduce the resolution. If you have set the resolution to

1200 dpi (Best), change it to 600 dpi (Normal). See the Software Section.

Change the port setting to the USB or network port to improve print speed.

Your printer prints A4-sized paper at 43 ppm and lettersized paper at 45 ppm. If you use the ML-4551ND and install an option duplex unit in the ML- 4550 or ML-4551N, your printer prints A4-sized paper at 29 ipm and letter-sized paper at 30 ipm in the duplex printing mode.

9.9 <

Troubleshooting>

Condition Possible cause Suggested solutions

Print job is extremely slow.

(Continued)

Half the page is blank.

The paper keeps jamming.

If using Windows 98/Me, the Spooling Setting may be set incorrectly.

The computer may have insufficient random-access memory (RAM).

The page layout is too complex.

The page orientation setting may be incorrect.

The paper size and the paper size settings do not match.

There is too much paper in the tray.

An incorrect type of paper is being used.

An incorrect output method is being used.

From the Settings and click the

Series choose Properties, click the Details tab, and then choose

the Spool Settings button. Select the desired spool setting.

Install more memory in your printer. See page 10.1.

Simplify the page layout and remove any unnecessary graphics from the document.

Install more memory in your printer. See page 10.1.

Change the page orientation in your application. See the Software Section.

Ensure that the paper size in the printer driver settings matches the paper in the tray.

Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use.

Remove excess paper from the tray.

If printing on special media, use the multi-purpose tray and open the rear cover.

Use only paper that meets printer specifications.

If printing on special media, use the multi-purpose tray and open the rear cover.

Special print media, such as thick paper, should not be printed using the output tray (face-down). Use the rear cover (face-up) instead.

Start

menu, choose

Printers

Samsung ML-4550

PCL 6 printer icon,

. Right-

The printer prints, but the text is wrong, garbled, or incomplete.

Pages print, but are blank.

The illustrations print incorrectly in Adobe Illustrator.

The printer cable is loose or defective.

The wrong printer driver was selected.

The software application is malfunctioning.

The operating system is malfunctioning.

The toner cartridge is defective or out of toner.

The file may have blank pages.

Some parts, such as the controller or the board, may be defective.

The setting in the software application is wrong.

Disconnect and reconnect the printer cable. Try a print job that you have already printed successfully. If possible, attach the cable and printer to another computer and try a print job that you know works. Finally, try a new printer cable.

Check the application’s printer selection menu to ensure that your printer is selected.

Try printing a job from another application.

If printing from Windows (any version), exit to a DOS prompt and verify functionality with the following command: At a C:\ prompt, type Dir LPT1, and press

Enter

. (This assumes

you are connected to LPT1.)

Exit Windows and reboot the computer. Turn the printer off and then back on again.

Redistribute the toner cartridge. See page 8.4.

If necessary, replace the toner cartridge. See page 8.5.

Check the file to ensure that it does not contain blank pages.

Contact a service representative.

Select Download as Bitmap in the

Advanced Options

of the graphic properties. Print the document again.

window

There may be debris inside the printer.

Open the top cover and remove the debris.

9.10 <

Troubleshooting>

Solving print quality problems

B bCcC c B bCcC c B bCcC c B bCcC c

B bCcC c

AaB bC c AaB bC c AaB bC c AaB bC c AaB bC c

Condition Suggested solutions

Dirt inside of the printer or improper paper loading may reduce print quality. See the table below to troubleshoot problems.

Condition Suggested solutions

Light or faded print

AaAaBb AaAaBb AaAaBb

AaAaBb AaAaBb

Toner spots • The paper may not meet specifications (for

AaBbCc AaBbCc AaBbCc

If a vertical white streak or faded area appears on the page:

• The toner supply is low. You may be able to temporarily extend the toner cartridge life. See page 8.4. If this does not improve print quality, install a new toner cartridge.

• The paper may not meet paper specifications (for example, the paper is too moist or too rough). See page 5.3.

• If the entire page is light, the print resolution setting is too light or toner save mode is on. Adjust the print resolution and toner save mode in the printer properties. See the Software Section.

• If the entire page is faded with "Toner Low Replace Toner" message on LCD, set "CLR Empty Msg." to "On" referring to page 8.7. In this case, you can keep printing but the quality cannot be guaranteed, and the product support is no longer provided.

• A combination of faded or smeared defects may indicate that the printer needs cleaning. See page 8.1.

• The surface of LSU may be dirty. Clean the LSU. See page 8.2.

example, the paper is too moist or too rough). See page 5.3.

• The transfer roller or paper path may be dirty. See page 8.1.

AaBbCc AaBbCc

Dropouts If generally rounded, faded areas occur

randomly on the page:

AaBbCc AaBbCc

AaBbCc AaBbCc AaBbCc

Vertical lines If black vertical streaks appear on the page:

AaB bC c AaB bC c AaB bC c AaB bC c AaB bC c

Gray background

AaBbCc AaBbCc

AaBbCc AaBbCc AaBbCc

Toner smear • Clean the inside of the printer. See page 8.1.

• A single sheet of paper may be defective. Try reprinting the job.

• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper. See page 5.3.

• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.

• The toner cartridge may be defective. See “Vertical repetitive defects” on the next page.

• If these steps do not correct the problems, contact a service representative.

• The drum inside the toner cartridge has probably been scratched. Install a new toner cartridge. See page 8.5.

If white vertical streaks appear on the page:

• The surface of the LSU part inside the printer may be dirty. Clean the LSU. See page 8.2.

If the amount of background shading becomes unacceptable, the procedures below may fix the problem.

• Change to lighter weight pages. See page 5.3.

• Check the printer’s environment; very dry (low humidity) or high humidity (higher than 80% RH) conditions can increase the amount of background shading.

• Remove the old toner cartridge and install a new one. See page 8.5.

• Check the type and quality. See page 5.2.

• Remove the toner cartridge and install a new one. See page 8.5.

9.11 <

Troubleshooting>

Condition Suggested solutions

Vertical repetitive defects

AaB bC c AaB bC c

AaB bC c AaB bC c AaB bC c

Background scatter

If marks repeatedly appear on the printed side of the page at even intervals:

• The toner cartridge may be damaged. If a repetitive mark occurs on the page, print a cleaning sheet several times to clean the cartridge; see page 8.3. After the printout, if you still have the same problems, install a new toner cartridge. See page 8.5.

• Parts of the printer may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a service representative.

Background scatter results from bits of toner distributed on the printed page.

• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.

• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.

• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or via the printer properties window.

Curl or wave • Ensure that the paper is loaded properly.

• Check the type and quality. Both high temperature and humidity can cause paper curl. See page 5.2.

• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.

• Try printing to the rear cover (face-up).

Wrinkles or creases

Back of printouts are dirty

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See page

5.2.

• Open the rear cover and try printing to the rear cover (face-up).

• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.

• The transfer roller may be dirty. See page 8.1.

• Check for leaking toner. Clean the inside of the printer.

Misformed characters

Page skew • Ensure that the paper is loaded properly.

BbC

AaBbC

AaBbCc

• If characters are improperly formed and producing hollowed images, the paper stock may be too slick. Try a different paper. See page 5.3.

• If characters are improperly formed and producing a wavy effect, the scanner unit may need service. Verify that it also occurs on a demo page (see page 2.8). For service, contact a service representative.

• Check the paper type and quality. See page

5.2.

• Ensure that the paper or other media is loaded correctly and the guides are not too tight or too loose against the paper stack.

aBbCc

9.12 <

Solid color or Black pages

Loose toner • Clean the inside of the printer.

Troubleshooting>

• The toner cartridge may not be installed properly. Remove the cartridge and reinsert.

• The toner cartridge may be defective and need replacing. Install a new toner cartridge.

• The printer may require repair. Contact a service representative.

• Check the paper type and quality. See page

5.2.

• Install a new toner cartridge. See page 8.5.

• If the problem persists, the printer may require repair. Contact a service representative.

Condition Suggested solutions

Character Voids Character voids are white areas within

characters that should be solid black:

• If you are using transparencies, try another type of transparency. Because of the composition of the transparency, some character voids may be normal.

• You may be printing on the wrong surface on the paper. Remove the paper and turn it around.

• The paper may not meet paper specifications. See page 5.3.

Horizontal stripes

AaBbCc AaBbCc

AaBbCc AaBbCc AaBbCc

Curl If the printed paper is curled or paper does not

If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly. Remove the cartridge and reinsert.

• The toner cartridge may be defective. Install a new toner cartridge. See page 8.5.

• If the problem persists, the printer may require repair. Contact a service representative.

feed into the printer:

• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.

• Try printing to rear cover (face up).

“Error Writing to LPTx” message appears.

“General Protection Fault”, “Exception OE”, “Spool32”, or “Illegal Operation” messages appear.

“Fail To Print,” “A printer timeout error occurred,” messages appear.

Note

• Refer to Microsoft Windows 98/Me/NT 4.0/2000/XP/2003 User’s Guide that came with your PC for further information on Windows error messages.

• Ensure that the cables are connected correctly, the printer is on.

• If bi-directional communication is not turned on in the driver, it will also cause this message.

Close all other applications, reboot Windows, and try printing again.

These messages may appear during printing. Just keep waiting until the printer finishes printing. If the message appears in standby mode or after printing has been completed, check the connection and/or whether an error has occurred.

Common PostScript problems

The following situations are PostScript language specific and may occur when several printer languages are being used.

An unknown image repetitively appears on a next few sheets or loose toner, light print or contamination occurs.

Your printer is probably being used at an altitude of 2,500 m (8,200 ft) or above.

The high altitude may affect the print quality such as loose toner or light imaging. You can set this option through Printer Settings Utility or Printer Tab in printer driver’s properties. Refer to the Software Section for details.

Common Windows problems

Condition Suggested solutions

“File in Use” message appears during installation.

Exit all software applications. Remove all software from the StartUp Group, then restart Windows. Reinstall the printer driver.

9.13 <

Note

• To receive a printed or screen displayed message when PostScript errors occur, open the Print Options window and click the desired selection next to the PostScript errors section.

Condition Possible cause Suggested solutions

PostScript file can not be printed.

“Limit Check Error” message appears.

Troubleshooting>

The PostScript driver may not be installed correctly.

The print job was too complex.

• Print a configuration page and verify that the PostScript version is available for printing.

• Install the PostScript driver; to installing the PS printer driver, see the Software Section.

• If problem consists, contact a service representative.

You might need to reduce the complexity of the page or install more memory.

Condition Possible cause Suggested solutions

Condition Suggested solutions

A PostScript error page prints.

The optional tray 2 (tray 3 or tray 4) is not selected in the driver.

When print a document in Macintosh with Acrobat Reader

6.0 or higher, colors print incorrectly.

Print job may not be PostScript.

The printer driver has not been configured to recognize the optional tray 2 (tray 3 or tray

4).

The resolution setting in the printer driver may not be matched with that in Acrobat Reader.

Make sure that the print job is a PostScript job. Check to see whether the software application expected a setup or PostScript header file to be sent to the printer.

Open the PostScript driver properties, select the Device Settings tab, and set the Tray2 (Tray3 or Tray4) option of the

Installable Options section to Installed.

Make sure that the resolution setting in your printer driver matches that in Acrobat Reader.

Common Linux problems

Please avoid changing print job parameters (via LPR GUI, for example) while a print job is

in progress. Known versions of CUPS server I encounter error “Unable to open mfp port device file!” when printing a document.

break the print job whenever print options are

changed and then try to restart the job from

the beginning. Since Unified Linux Driver

locks mfp port while printing, the abrupt

termination of the driver keeps the port locked

and therefore unavailable for subsequent print

jobs. If this situation occurred, please, try to

release the mfp port.

Common Macintosh problems

Condition Suggested solutions

The printer does not print a document from Acrobat Reader.

The document has printed, but the print job has not disappeared from the spooler in Mac OS 10.3.2.

Change the Print Method option to Print as Image when you print from Acrobat Reader.

Update your Mac OS to OS 10.3.3 or higher.

Condition Suggested solutions

• Check if the printer driver is installed in your system. Open Unified Driver Configurator and switch to the Printers tab in Printers configuration window to look at the list of available printers. Make sure that your machine is displayed on the list. If not, please, invoke Add new printer wizard to set

The printer doesn’t

print.

up your device.

• Check if the printer is started. Open Printers configuration and select your machine on the printers list. Look at the description in the Selected printer pane. If its status contains “(stopped)” string, please, press the OK button. After that normal operation of the printer should be restored. The "stopped" status might be activated when some problems in printing occurred.

The printer does not print a document from Illustrator on IPP printing.

Change the Data type option in the Adobe Illustrator print menu to Binary.

Or, you can use Appletalk printing.

9.14 <

Troubleshooting>

10 Installing accessories

Precautions when installing accessories

Your printer is a full-featured laser printer that has been optimized to meet the majority of your printing needs. Recognizing that each user may have different requirements, however, Samsung makes several accessories available to enhance the printer’s capabilities.

This chapter includes:

• Precautions when installing accessories

• Installing a dual in-line memory module (DIMM)

• Installing a network interface card

• Using the hard disk

Disconnect the power cord:

Never remove the control board cover while the printer is plugged in.

To avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external accessories.

Discharge static electricity:

The control board and internal accessories (network interface card, DIMM, and hard disk) are sensitive to static electricity. Before installing or removing internal accessories, discharge static electricity from your body by touching something metal, such as the metal back plate on any device plugged into a grounded power source. If you walk round before finishing installation, discharge any static electricity once again.

Installing a dual in-line memory module (DIMM)

Your printer has a dual in-line memory module (DIMM) slot. Use this DIMM slot to install additional memory.

Your printer has 128 MB of memory which can be expanded to 512 MB. For information about ordering optional DIMMs, see page 7.1.

1 Turn the printer power off and unplug the power cord and printer

cable from the printer.

2 Remove the duplex-slot cover or the duplex unit from the back of

the printer.

10.1 <

Installing accessories>

duplex-slot cover

3 Grasp the control board cover and remove it.

7 Close the control board cover by aligning the groove on it with the

notch on the printer and sliding it.

4 Take out a new DIMM from its plastic bag.

5 Locate the extra DMM slot and align the notch on the DIMM with

the groove at the DIMM slot, holding the DIMM by its edges.

notch

groove

6 Push the DIMM into the printer until it snaps into place. Make sure

that the latches fit over the notches located on either side of the DIMM.

8 Reinstall the duplex-slot cover or the duplex unit.

9 Reconnect the power cord and printer cable, and turn the printer

on.

Setting the memory in the PostScript printer properties

After installing the DIMM, you need to select it in the printer properties of the PostScript printer driver to enable its use.

1 Make sure that the PostScript printer driver is installed on your

computer. To install the PostScript printer driver, see the Software

Section.

2 Click the Windows Start menu.

3 For Windows 98/Me/NT 4.0/2000, select Settings and then

Printers.

For Windows XP/2003, select Printers and Faxes.

4 Select the Samsung ML-4550 Series PS printer.

5 Click the right mouse button on the printer icon and select

Properties.

6 For Windows 98/Me, select the Device Option tab.

For Windows NT 4.0/2000/XP/2003, select the Device Settings tab.

10.2 <

7 Select the amount of memory you installed from Printer Memory in

the Installable Options section.

For Windows 98, select Installable Options → VMOption →

change setting for:NMOption → change memory.

8 Click OK.

Installing accessories>

Removing a DIMM

To expand the printer memory to 512 MB, you need to remove the preinstalled 128 MB DIMM and install two 256 MB DIMMs into the DIMM slots.

Push the latches at both ends of the DIMM slot away to remove the DIMM and pull out the DIMM.

latch

DIMM

2 Remove the duplex-slot cover or the duplex unit from the back of

the printer.

duplex-slot cover

3 Grasp the control board cover and remove it.

Installing a network interface card

The ML-4551N and ML-4551ND are equipped with wired network interface cards, allowing you to use your printer on a network.

To use the ML-4550 in network environments, you need to buy an optional network interface card. For order information, see page 7.1.

Review the precautions on page 10.1 and then follow this procedure to install a network interface card in your printer.

1 Turn the printer power off and unplug the power cord and printer

cable from the printer.

Note

• Knowing the connectors’ name and location will make it easy to install the accessories.

1 2

hard disk connector

wired network connector

10.3 <

Installing accessories>

4 Align the connector on the wired network interface card with the

connector on the control board. Push the card firmly into the connector on the control board until it is completely and securely in place.

Using the hard disk

Installing the hard disk allows the data from your computer to be sent to the print queue of the printer hard disk. This decreases the workload of the computer. You can also use various print features, such as storing a job in the hard disk, proofing a job, and printing private documents.

wired network connector

wired network interface card

5 Insert and tighten the two screws supplied with your network card.

Installing the hard disk

For order information, see page 7.1.

Review the precautions on page 10.1.

1 Turn the printer power off and unplug the power cord and printer

cable from the printer.

2 Remove the duplex-slot cover or the duplex unit from the back of

the printer.

duplex-slot cover

3 Grasp the control board cover and remove it.

6 Close the control board cover by aligning the groove on it with the

notch on the printer and sliding it.

7 Reinstall the duplex-slot cover or the duplex unit.

8 Reconnect the power cord and printer cable (if necessary), and turn

the printer on.

10.4 <

Installing accessories>

4 Align the connector on the hard disk with the connector on the

control board. Push the hard disk in until it is latched into place.

5 Fasten the four screws supplied with your new hard disk.

Setting the hard disk in the printer properties

After installing the hard disk, you need to select it in the printer properties to enable its use. Take the following steps:

1 Click the Windows Start menu.

2 For Windows 98/Me/NT 4.0/2000, select Settings and then

Printers.

For Windows XP/2003, select Printers and Faxes.

3 Select the Samsung ML-4550 Series PCL 6 printer icon or

Samsung ML-4550 Series PS printer icon.

4 Click the right mouse button on the printer icon and select

Properties.

5 In PCL 6 Properties, click the Printer tab and then check Optional

Hard Disk Drive (HDD).

In PS Properties, click the Device Option or Device Settings tab and set the Optional Hard Disk Drive (HDD) option to Installed.

6 Click OK.

6 Close the control board cover by aligning the groove on it with the

notch on the printer and sliding it.

7 Reinstall the duplex-slot cover or the duplex unit.

8 Reconnect the power cord and printer cable, and turn the printer

on.

9 Print a configuration page from the control panel to check if the

hard disk is correctly installed. See page 8.1.

10.5 <

Installing accessories>

Printing with the optional hard disk

After installing the optional hard disk, you can use advanced printing features, such as storing or spooling a print job to the hard disk, proofing a job, and specifying of printing a private job in the printer properties window.

Once you have stored files in the hard disk, you can easily print or delete the stored files using the control panel of your printer.

Setting the time and date

1 Press Menu until System Setup appears on the bottom line of the

display and press OK.

2 Press OK when Date & Time appears.

3 Press the Scroll buttons until the digit you want appears and press

OK.

You can enter from 2000 to 2065 in the year input section. The cursor moves to the next position.

4 Repeat step 3 until all digits appear correctly.

5 Press OK.

Storing a job

You can store jobs in the installed hard disk.

1 Open the file you want to store.

2 Select Print from the File menu. The Print window displays.

3 Click Properties. If you see Setup, Print or Options, click the

button instead.

4 Click the Extra tab and click Print and Hold.

5 Select the print mode you want from the drop-down list.

• Normal: prints in normal mode.

• Proof: prints the first file and after a pause prints the next file.

• Confidentical: stores the files, securing them with a password.

• Store: stores the file to the hard disk.

• Spool: spools the file into the hard disk and prints it from the hard disk queue.

• Delay: prints the file at a specified time.

2 Press the Scroll buttons until Store Job appears and press OK.

3 Press the Scroll buttons until the user’s name and file name you

want appear and press OK.

4 If the select file is a confidential print job, enter the specified 4-digit

password.

Press the Scroll buttons to enter the first digit and press OK. The cursor automatically moves to the next digit position. Enter the 2nd, 3rd, and 4th digit in the same way.

5 When Print appears, press OK.

If you enter the incorrect password, Invalid Password appears. Reenter the correct password.

6 Press the Scroll buttons until the number of copies you want

appears and press OK.

7 Press OK. Printing starts.

Deleting a stored job

You can delete jobs currently stored in the hard disk.

1 Press Menu until Job Manage. appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Store Job appears and press OK.

3 Press the Scroll buttons until the user’s name and file name you

want appear and press OK.

4 If the select file is a confidential print job, enter the specified 4-digit

password.

Press the Scroll buttons to enter the first digit and press OK. The cursor automatically moves to the next digit position. Enter the 2nd, 3rd, and 4th digit in the same way.

5 Press the Scroll buttons until Delete appears and press OK.

If you enter the incorrect password, Invalid Password appears. Reenter the correct password.

6 When Yes appears, press OK.

6 Enter the user’s name and file name.

7 Click OK until the Print window is displayed.

8 Click OK or Print to start printing.

Printing a stored job

You can print jobs currently stored in the hard disk.

1 Press Menu until Job Manage. appears on the bottom line of the

display and press OK.

10.6 <

Installing accessories>

Controlling the active job queue

All of the print jobs waiting to be printed are listed in the Active Job Queue in the order you sent them to the printer. You can delete a job from the queue before printing, or promote a job to print sooner.

To delete a file from the queue:

1 Press Menu until Job Manage. appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Active Job appears and press OK.

3 Press the Scroll buttons until the user’s name and file name you

want appear and press OK.

4 If the select file is a confidential print job, enter the specified 4-digit

password.

Press the Scroll buttons to enter the first digit and press OK. The cursor automatically moves to the next digit position. Enter the 2nd, 3rd, and 4th digit in the same way.

5 Press the Scroll buttons until Cancel appears and press OK.

If you enter the incorrect password, Invalid Password appears. Reenter the correct password.

6 Press the Scroll buttons until Yes appears and press OK.

To promote a file from the queue:

You can select a job waiting in the Active Job Queue and change its print order so that it can be printed sooner.

1 Press Menu until Job Manage. appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Active Job appears and press OK.

3 Press the Scroll buttons until the user’s name and file name you

want appear and press OK.

4 If the select file is a confidential print job, enter the specified 4-digit

password.

Press the Scroll buttons to enter the first digit and press OK. The cursor automatically moves to the next digit position. Enter the 2nd, 3rd, and 4th digit in the same way.

5 Press the Scroll buttons until Promote appears and press OK.

If you enter the incorrect password, Invalid Password appears. Reenter the correct password.

To print a file immediately:

You can print a job scheduled to be printed at a specified time immediately. In this case, the job currently printing is stopped and the selected job will be printed. This function is available when the job is scheduled for later printing.

3 Press the Scroll buttons until the user’s name and file name you

want appear and press OK.

4 If the select file is a confidential print job, enter the specified 4-digit

password.

Press the Scroll buttons to enter the first digit and press OK. The cursor automatically moves to the next digit position. Enter the 2nd, 3rd, and 4th digit in the same way.

5 Press the Scroll buttons until Release appears and press OK.

This option appears only when you select a Delay print job. See page 10.6.

If you enter the incorrect password, Invalid Password appears. Reenter the correct password.

Printing using the form files

You can store up to 10 form files in the hard disk and make them printed with your document.

First, you need to create a form file using the printer driver. See the

Software Section.

1 Press Menu until System Setup appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Form Menu appears and press OK.

3 Press the Scroll buttons until the form you want appears and press

OK.

• Off: prints in normal mode.

• Single Form: prints all page using the first form.

• Double Form: prints the front page using the first form and the back page using the second form.

4 Press Back to return to the upper menu level.

5 Press the Scroll buttons until Select Form appears and press OK.

6 Press OK when 1st Form appears.

7 Press the Scroll buttons until the form file you want appears and

press OK.

If you select Double Form, continue the next step.

8 Press the Scroll buttons until 2nd Form appears and press OK.

9 Press the Scroll buttons until the form file for the second form

appears and press OK.

1 Press Menu until Job Manage. appears on the bottom line of the

display and press OK.

2 Press the Scroll buttons until Active Job appears and press OK.

10.7 <

Installing accessories>

11 Specifications

Printer specifications

Item Specifications and Description

Printing speed

Resolution Up to 1200 x 1200 dpi

Up to 43 ppm in A4 (45 ppm in Letter) Duplex: 29 ipm (A4); 30 ipm (Letter)

Warm-up time

First print out time

Power rating

Power consumption

Noise level

Toner cartridge yield

Duty cycle

Weight ML-4550,

Package weight

Less than 45 seconds

8.5 seconds (From Ready) Sleep mode: 35 seconds

110 - 127 VAC or 220 - 240 VAC See the Rating label on the machine for the correct voltage, hertz and current of your machine.

Average: 650 W Power save mode: Less than 13 W

Standby mode: Less than 35 dBA Printing mode: Less than 57 dBA

10,000 or 20,000 pages.

Monthly: Up to 200,000 pages

ML-4551N

ML-4551ND 23.5 Kg (including

ML-4550, ML-4551N

ML-4551ND Paper: 3.0 Kg, Plastic: 0.8 Kg

21.6 Kg (including consumables)

consumables)

Paper: 2.8 Kg, Plastic: 0.7 Kg

11.1 <

External dimensions (W x D x H)

Operating environment

Printer language PCL 6d, PostScript 3, IBM ProPrinter, EPSON

Memory

Display 16 characters x 2 lines

Specifications>

ML-4550, ML-4551N

ML-4551ND 15.6 X 19.7 X 13.9 inches

Temperature: 50° F to 90° F (10° C to 32.5° C) Humidity: 20% to 80% RH

128 MB (Max. 512 MB)

128, or 256 MB optional memory available.

Use only the Samsung-approved DIMM.

128 MB: ML-MEM150 256 MB: ML-MEM160

15.6 X 17.8 X 13.9 inches (396 X 453 X 353 mm)

(396 X 501 X 353 mm)

Item Specifications and Description

Fonts 1 bitmap, 45 scalable, 136 PostScript 3 fonts,

Bar Code fonts, OCR fonts

Interface • IEEE 1284 Bidirectional Parallel Standard

- Modes supported: Compatible, Nibble, Byte, ECP

• USB Interface Standard

- USB 2.0 compliant

- 480 Mbps 1 port

• Network Interface

- ML-4551N, ML-4551ND: enthernet 10/100 Base TX wired LAN

OS compatibility

• Windows 98/Me/NT 4.0/2000/XP/2003

• Various Linux OS

• Mac 8.6 ~ 9.2/10.1 ~ 10.4

Printer drivers

• PCL driver: Windows 98/Me/NT 4.0/2000/XP/

2003

• Various Linux OS

• PostScript driver: Windows 98/Me/NT 4.0/

2000/XP/2003, Macintosh OS 8.6 ~ 9.2/

10.1 ~ 10.4

Options

ML-4550 500-sheet trays, ethernet 10/

100 Base TX wired LAN, hard disk, duplex unit, DIMM

ML-4551N, 500-sheet trays, hard disk,

duplex unit, DIMM

ML-4551ND 500-sheet trays, hard disk,

DIMM

a. Print speed will be affected by operating system used, computing perfor-

mance, application software, connection method, media type, media size, and

job complexity. b. Sound pressure Level, ISO7779 c. Average cartridge yield declared in accordance with ISO/IEC 19752.

The number of pages may be affected by operating environment, printing

interval, media type, and media size. d. Compatible with PCL6 Version 2.1 e. Please visit www.samsungprinter.com

to download the latest software version.

11.2 <

Specifications>

INDEX

accessories

installing

10.1

DIMM hard disk network interface card/device

order information

10.4

7.1

cleaning

8.3

drum inside

8.1

outside cleaning sheet, print component location control panel

buttons 1.4

menus

status LED

8.1

8.3

1.3

2.1

9.6

demo page, print 2.8 DIMM, install display language, change

control panel display messages drum, clean

10.1

2.8

9.6

8.3

error messages 9.6

hard disk

installing

use

10.6

10.4

10.3

installing accessories

10.4

10.1

10.3

hard disk memory network interface card/device

jam, clear 9.1

Linux problems 9.14 loading paper

multi-purpose tray 5.6

5.5

tray

Macintosh problems 9.14 maintenance parts manual feed mode memory multi-purpose tray

10.1

8.7

5.7

5.6

network interface card/device, install 10.3 network setup

EtherTalk 4.2 IPX frame types operating systems TCP/IP

4.2

4.3

4.2

output location, select 5.8 output tray

5.8

paper guidelines 5.3 paper jam, clear
