Sharp LC60-LE751EK232, LCxx-LE651 LC60-LE751K Schematic

October 2013
LC-xxLE651 / 751K
Training Notes
Issued by:
CE After Sales Service
Training Notes
MODELS:
LC39LE651K LC39LE751K LC50LE651K
July 2011
LC50LE751K
LC60LE751K
Note – Please use the ZOOM feature to view the presentation.
Speech bubbles are training notes. Click to access the notes
Issued by:
CE After Sales Service
Contents
1. Model introduction
2. New Technologies
3. Block Diagrams
4. Schematic Diagrams
5. PWB’s
October 2013
6. Service Mode
7. Logging Errors
Issued by:
CE After Sales Service
Model Introduction
LE751K Series:
Aquos LED series
• 1080 HD Panel with Active Motion 200
• Sharp Edge LED (Top-Bottom), FULL HD TV, 3D ready:
751: DVB-T/T2/C
Aquos Net+ Based on MMH • Mobile App.
USB Mediaplayer - • USB REC - Timeshift
DLNA Renderer (MW 2.0 soon)
• You Tube V3 (Leanback 4 soon) • IP Control
• Broadcaster certification: BBC iPlayer
October 2013
• USB Keyboard support • USB Mouse support (from V1.43.5) Sizes: 39”,50” and 60”.
Type of cabinet: Type of Stand: Silver
Bottom speakers
• Silver Colour.
• Control button Unit: Touch type.
MODELS: LC39LE751K, LC50LE751K, LC60LE751K
Issued by:
CE After Sales Service
Model Introduction
Important Specification Notes:
• Super MVA( 39” 50” Innolux) and X-Gen (60” Sharp)
LED Full HD Panel (1920 x 1080, 6 ms: 39” 50”, 4ms: 60”)
4 x HDMI 1.4 inputs (DVI compatible, up to 1080p
24/50/60Hz, 3D mode)
Service connector (Ø 3.5 mm jack)
• Wireless Lan Ready (Included USB adapter: AN-WUD630).
• CEC ready (basic mode)
3 USB 2.0 terminal:
o Type: Host (A-type socket). o Devices compatible: USB Memory, USB card reader,HDD (Mass Storage class), USB Keyboard, USB Mouse.
o Features: Software update, Media Player,
Smartloader, Wi-Fi, 3D glasses charge, Keyboard & Mouse support on MMH portal.
• Media Player features: Photo, Video, Music.
• 3D ready • ARC in HDMI1 input
• YouTube (Leanback 4) CI+ V1.3.
2.0 Speaker System • DLNA Certified
DIVX HD
October 2013
Issued by:
CE After Sales Service
Model Introduction
LE651K Series:
Aquos LED series
• 1080 HD Panel with Active Motion 200
• Sharp Edge LED (Top-Bottom), FULL HD TV, 3D ready:
751: DVB-T/T2/C
Aquos Net+ Based on MMH • Mobile App.
USB Mediaplayer - • USB REC - Timeshift
DLNA Renderer (MW 2.0 soon)
• You Tube V3 (Leanback 4 soon) • IP Control
• Broadcaster certification: BBC iPlayer
October 2013
• USB Keyboard support • USB Mouse support (from V1.43.5) Sizes: 39”,50” and 60”.
Type of cabinet: Type of Stand: Black
Bottom speakers
Black Colour.
• Control button Unit: Touch type.
MODELS: LC39LE651K, LC50LE651K, LC60LE651K
Issued by:
CE After Sales Service
Model Introduction
Important Specification Notes:
• Super MVA( 39” 50” Innolux) and X-Gen (60” Sharp)
LED Full HD Panel (1920 x 1080, 6 ms: 39” 50”, 4ms: 60”)
4 x HDMI 1.4 inputs (DVI compatible, up to 1080p
24/50/60Hz, 3D mode)
Service connector (Ø 3.5 mm jack)
• Wireless Lan Ready (Optional USB adapter: AN-WUD630).
• CEC ready (basic mode)
3 USB 2.0 terminal:
o Type: Host (A-type socket). o Devices compatible: USB Memory, USB card reader,HDD (Mass Storage class), USB Keyboard, USB Mouse.
o Features: Software update, Media Player,
Smartloader, Wi-Fi, 3D glasses charge, Keyboard & Mouse support on MMH portal.
• Media Player features: Photo, Video, Music.
• 3D ready • ARC in HDMI1 input
• YouTube (Leanback 4) CI+ V1.3.
2.0 Speaker System • DLNA Certified
DIVX HD
October 2013
Issued by:
CE After Sales Service
Model Introduction
October 2013
LE751K
LE651K
Issued by:
CE After Sales Service
Model Introduction
October 2013
Remote Control Units
Accessories
Issued by:
CE After Sales Service
Model Introduction
Part Number Comparison Table LE651K
October 2013
Issued by:
CE After Sales Service
Model Introduction
Part Number Comparison Table LE751K
October 2013
Issued by:
CE After Sales Service
New Technologies
YouTube Leanback
YouTube leanback is a new way to watch YouTube videos on your
TV. With simple controls and full screen viewing, Leanback makes watching videos on Youtube as effortless as watching TV.
It is designed to make watching YouTube feel a bit like watching a personalized TV channel with a really slick program guide that can be controlled by keyboard if you are using PC. Videos display in
full-screen mode, and you press the Up Arrow key to search and
the Down Arrow key to reach playback controls, a feed of videos tailored to your interests (which are search results if you’ve just searched) and a browsable directory of videos in major categories.
October 2013
Issued by:
CE After Sales Service
October 2013
New Technologies
LCN (Logic Channel Number)
The purpose of the Logical Channel Descriptor (LCN) is to provide a broadcaster assigned virtual
channel number or label. The role of the LCN is to enable user presentation of service numbers in a convenient and familiar form. To avoid conflicting allocation of LCNs:
The logical_channel_number should be unique across all the networks that cover the same geographical region.
The same logical channel number should be reused only in non-adjacent regions
Regional variants of a service may nevertheless use the same logical channel number.
Program sorting is done using LCN. The logical channel descriptor may be inserted once in the second descriptor loop of the NIT. The logical channel number should be unique within the same network_id (except when its value is zero) but may be re-used for regional variants of a service, normally under different network_ids. Hence the number is not unique within the original network. The logical channel number does not take into account the service
type.
This descriptor can be found inside NIT
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
New Technologies
October 2013
Issued by:
CE After Sales Service
October 2013
Block Diagrams
39/50” System Block Diagram
Issued by:
CE After Sales Service
October 2013
Block Diagrams
60” System Block Diagram
Issued by:
CE After Sales Service
October 2013
Block Diagrams
1. General ICs Information
DUNTKF135WE (Main Unit)

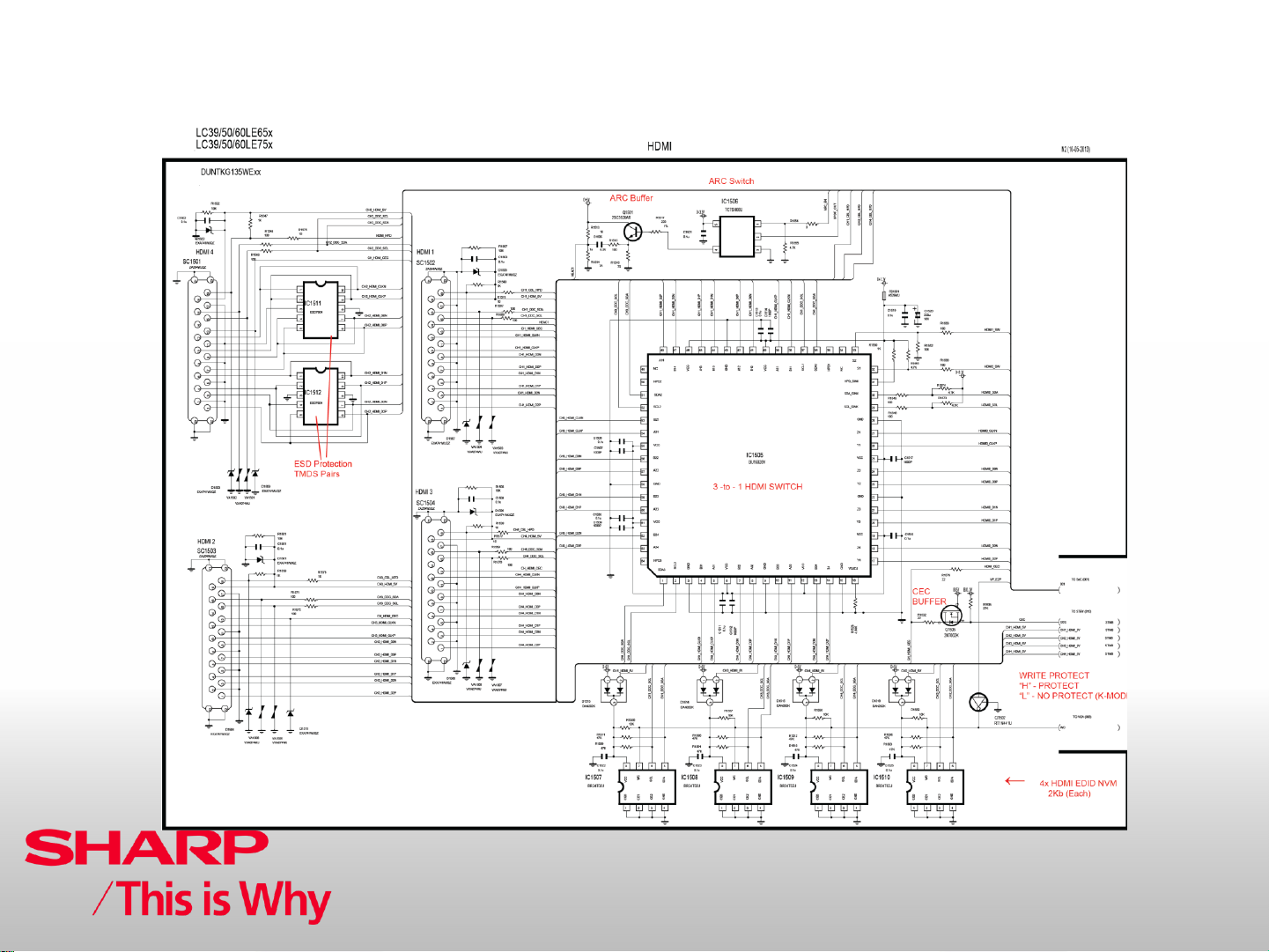

IC 1505: HDMI Switch 3 inputs to 1 output.
Part number: BU16028KV (ROHM) Sharp code: VHIBU16028K-1Q
http://www.rohm.com/products/databook/video/pdf/bu16006kv-e.pdf
Features:
Supports 2.25 Gbps Signaling Rate for 480i/p, 720p, and 1080i/p Resolution to 12-Bit Color Depth. Compatible with HDMI 1.3a. 5V Tolerance to all DDC and HPD_SINK Inputs. Integrated Switchable 50ΩΩReceiver Termination. Integrated DDC buffer. Integrated Equalizer circuit to adapt long cable.
Major IC Information
Issued by:
CE After Sales Service
October 2013
Block Diagrams
IC 2701: Audio Power Amplifier.
Part number: STA333BW13TR (ST MICRO)
Sharp code: VHISTA333BW-1L.
http://www.st.com/internet/com/TECHNICAL_RESOURCES/TECHNICAL_LITERATURE/DATASHEET/CD00166760.pdf
Features: Wide-range supply voltage, 4.5 V to 21.5 V. Three power output configurations: o 2 channels of ternary PWM (2 x 20 W into 8 Ω at 18 V) + PWM output. o 2 channels of ternary PWM (2 x 20 W into 8 Ω at 18 V) + ternary stereo line-out. o 2.1 channels of binary PWM (left, right, LFE) (2 x 9 W into 4 Ω +1 x 20 W into 8 at 18 V). FFX with 100-dB SNR and dynamic range. Scalable FFX modulation index.
Selectable 32- to 192-kHz input sample rates.
I2C control with selectable device address. Digital gain/attenuation +48 dB to -80 dB with 0.5-dB/step resolution. Soft volume update with programmable ratio. Individual channel and master gain/attenuation.
Major IC Information…cont
Issued by:
CE After Sales Service
October 2013
Block Diagrams
Features…cont Dynamic range compression (DRC) or anti-clipping mode. Audio presets:
o 15 preset crossover filters.
o 5 preset anti-clipping modes. o Preset night-time listening mode. Individual channel soft/hard mute. Independent channel volume and DSP bypass. I2S input data interface. Input and output channel mapping.
Automatic invalid input-detect mute.
Up to 5 user-programmable bi-quads by channel. Three coefficients banks for EQ presets storing with fast recall via I2C interface. Bass/treble tones and de-emphasis control. Selectable high-pass filters for DC blocking. Advanced AM interference frequency switching and noise suppression modes. Sub channel mix into left and right channels. Selectable high- or low-bandwidth noise-shaping topologies. Selectable clock input ratio. 96-kHz internal processing sample rate. Thermal overload and short-circuit protection technology Video apps: 576 x fs input mode supported.
Major IC Information…cont
Issued by:
CE After Sales Service
October 2013
Block Diagrams
Major IC Information…cont
IC 2702: Headphone Amplifier.
Part number: TS488IQT (ST MICRO) Sharp code : RH-IXD542WJZZY.
Features: Pop and click noise protection circuitry. Operating range from VCC = 2.2 V to 5.5 V.
Standby mode active low (TS488) or high (TS489).
Output power:
– 120 mW at 5 V, into 16 Ω with 0.1% THD+N max (1 kHz). – 55 mW at 3.3 V, into 16 Ω with 0.1% THD+N max (1 kHz).
Low current consumption: 2.7 mA max at 5 V. High signal-to-noise ratio. Ultra-low standby current consumption: 10 nA typical. Unity-gain stable.
High crosstalk immunity: 102 dB (F = 1 kHz). Short-circuit protection circuitry.
PSRR: 70 dB typ. (F = 1 kHz), inputs grounded at 5 V.
http://www.st.com/st-web-ui/static/active/en/resource/technical/document/datasheet/CD00083715.pdf
The TS488/9 is an enhancement of TS486/7 that eliminates pop and click noise and reduces the number of external passive components. The TS488/9 is a dual audio power amplifier capable of driving, in single-ended
mode, either a 16 Ω or a 32 Ω stereo headset. Capable of descending to low voltages, it delivers up to 31mW per channel (into 16 Ω loads) of continuous average power with 0.1% THD+N in the audio bandwidth from a 2.5 V
power supply.
Issued by:
CE After Sales Service
October 2013
Block Diagrams
Major IC Information…cont
IC9552: USB 2.0 Hi-Speed Hub Controller
Part number: USB2514B-AEZG (SMSC) Sharp code: VHI2514BAEZ-1Q
http://www.smsc.com/Downloads/SMSC/Downloads_Public/Data_Sheets/251xb.pdf
The SMSC USB251x hub is a family of low-power, OEM configurable, MTT (multi transaction translator) 1 hub controller IC products for embedded USB solutions. The “x” in the part number indicates the number of downstream ports available. The SMSC hub supports low-speed, fullspeed, and hi-speed (if operating as a hi-speed hub) downstream devices on all of the enabled downstream ports.
Features
Full power management with individual or ganged power control of each downstream port. Fully integrated USB termination and pull-up/pull-down resistors. Supports a single external 3.3 V supply source; internal regulators provide 1.2 V or 1.8 V internal core voltage.
On-chip driver for 24 MHz crystal resonator or external 24/48 MHz clock.
Customizable vendor ID, product ID, and device ID. ESD protection up to 4 kilovolts on all USB pins. Supports self- or bus-powered operation. USB251xB2 and USB251xBi products support the USB Battery Charging specification. Package: 36-pin QFN (6x6 mm).
Issued by:
CE After Sales Service
October 2013
Block Diagrams
Major IC Information…cont
IC 3501, IC3502 & IC 3503: 2Gb 16Bits DDR3-1600 SDRAM
Part number: MT41J128M16JT-125:K (MICRON)
Sharp code: RH-IXD538WJZZQ
http://www.micron.com/~/media/Documents/Products/Data%20Sheet/DRAM/2Gb_DDR3_SDRAM.pdf
DDR3 SDRAM uses double data rate architecture to achieve high-speed operation. The double data rate architecture is an 8n-prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O pins. A single read or write operation for the DDR3 SDRAM effectively consists of a single 8n-bit-wide, four-clock cycle data transfer at the internal DRAM core and eight corresponding n-bit-wide, one half-clock-cycle data transfers at the I/O pins. The differential data strobe (DQS, DQS#) is transmitted externally, along with data, for use in data capture at the DDR3 SDRAM input receiver. DQS is center-aligned with data for WRITEs. The read data is transmitted by the DDR3 SDRAM and edge-aligned to the data strobes. The DDR3 SDRAM operates from a differential clock (CK and CK#). The crossing of CK going HIGH and CK# going LOW is referred to as the positive edge of CK. Control, command, and address signals are registered at every positive edge of CK. Input data is registered on the first rising edge of DQS after the WRITE preamble, and output data is referenced on the first rising edge of DQS after the READ preamble.
Read and write accesses to the DDR3 SDRAM are burst-oriented. Accesses start at a selected location and continue for
a programmed number of locations in a programmed sequence. Accesses begin with the registration of an ACTIVATE command, which is then followed by a READ or WRITE command. The address bits registered coincident with the ACTIVATE command are used to select the bank and row to be accessed. The address bits registered coincident with the READ or WRITE commands are used to select the bank and the starting column location for the burst access.
Issued by:
CE After Sales Service
