Sharp LC-46LE530X, LC-40LE530X, LC-60LE630X User Manual

MODEL

LC-40LE530X
LC-46LE530X
LC-60LE630X

LCD COLOUR TELEVISION

OPERATION MANUAL

Contents

Supplied accessories .................................................1

Dear SHARP customer ...............................................1

Important information ................................................1

Important Safety Precautions ...................................2

Trademarks ................................................................. 2

Attaching the stand unit — 40/46LE530X ................. 3

Attaching the stand unit — 60LE630X ......................4

Angle adjustment (only for 40/46LE530X) ................5

Setting the TV .............................................................5

Connecting external devices ..................................... 6

Remote control unit....................................................7

Part names ..................................................................8

Turning the TV on/off .................................................. 9

Supplying electric power to the antenna .................9

Initial auto installation ................................................ 9

Checking Signal information .....................................9

Auto installation ........................................................ 10

Programme setup ..................................................... 10

Selecting a preset AV mode ....................................12

Menu operation ........................................................12

Picture menu ............................................................. 13

Audio menu ...............................................................13

ECO menu .................................................................14

Setup menu ...............................................................14

Page Page

Supplied accessories

Remote control unit

“AA” size battery (g2)

Option menu .............................................................16

Digital setup menu ...................................................18

Programme Guide ....................................................19

Info ............................................................................. 19

ATV (Analogue)/DTV/RADIO buttons ...................... 20

Switching the analogue audio format ....................20

EPG ............................................................................ 22

Picture and still image .............................................23

Wide Mode ................................................................23

Teletext function .......................................................24

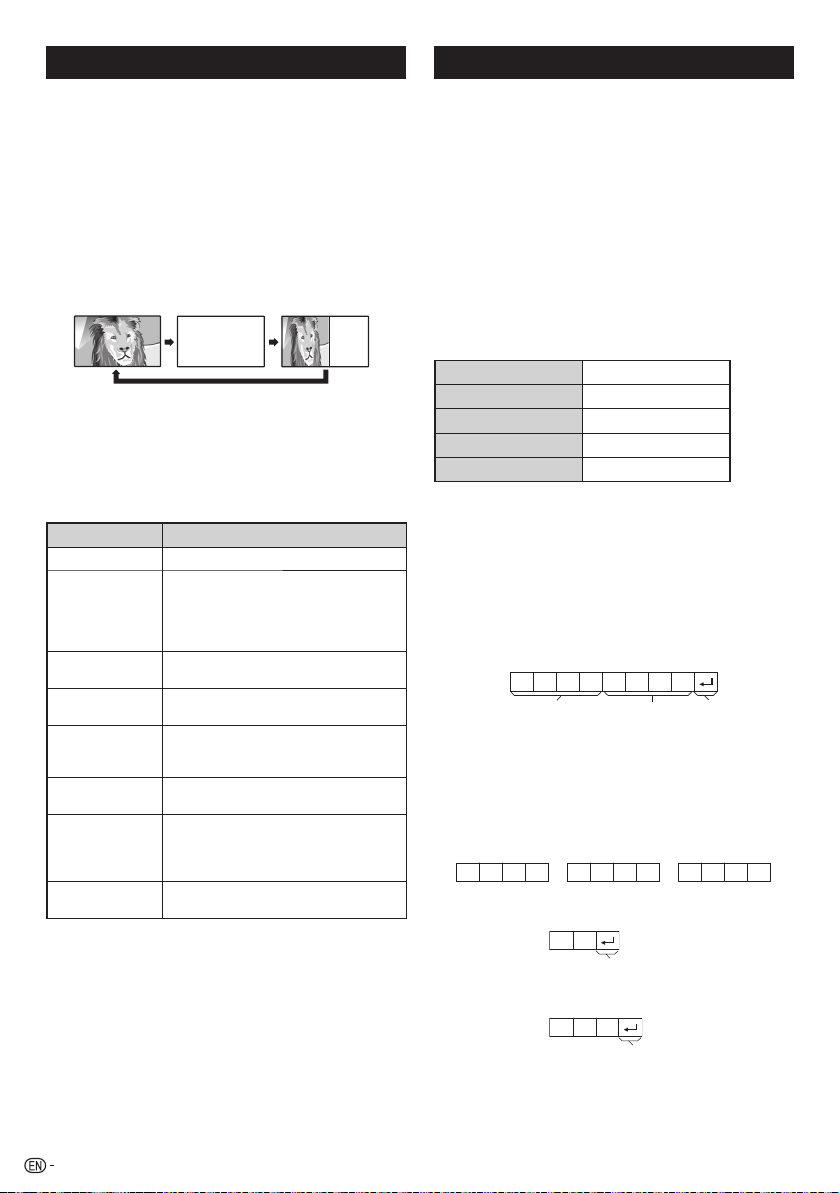

PC Control of the TV ................................................24

PC compatibility chart .............................................25

RS-232C commands list ..........................................25

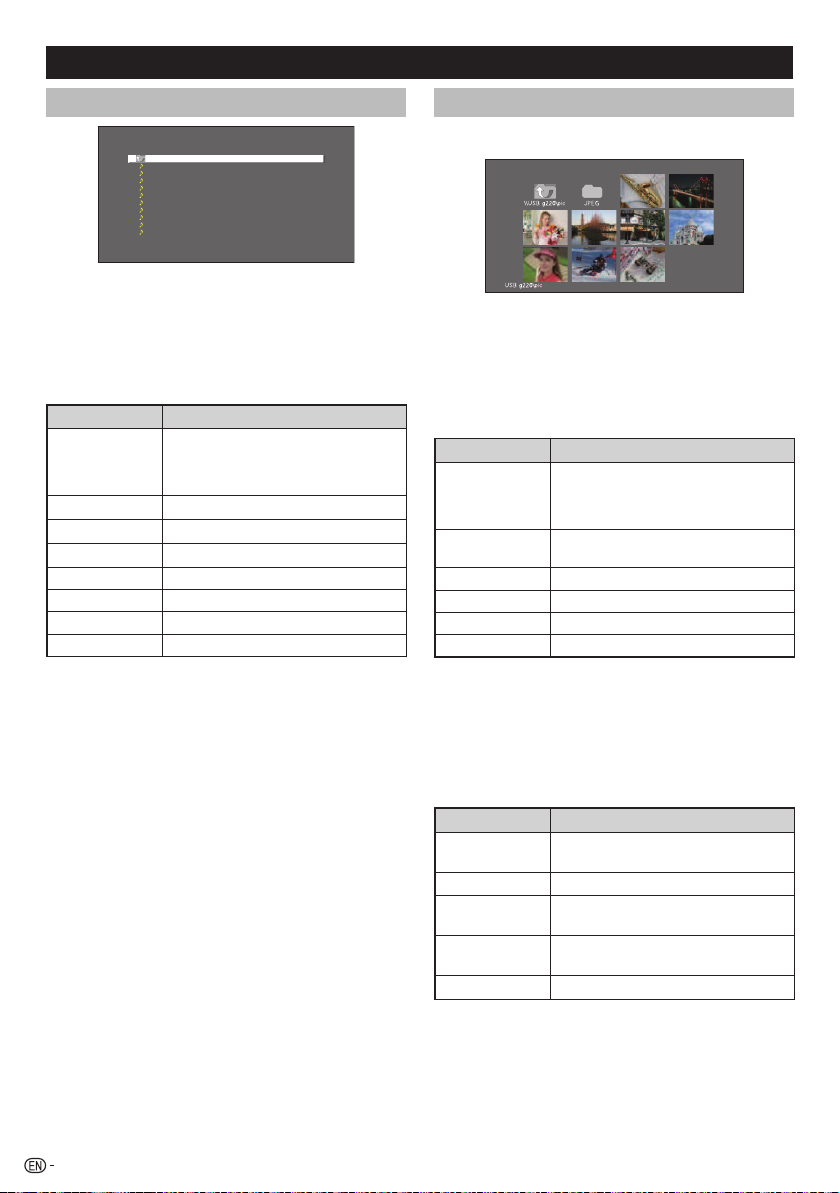

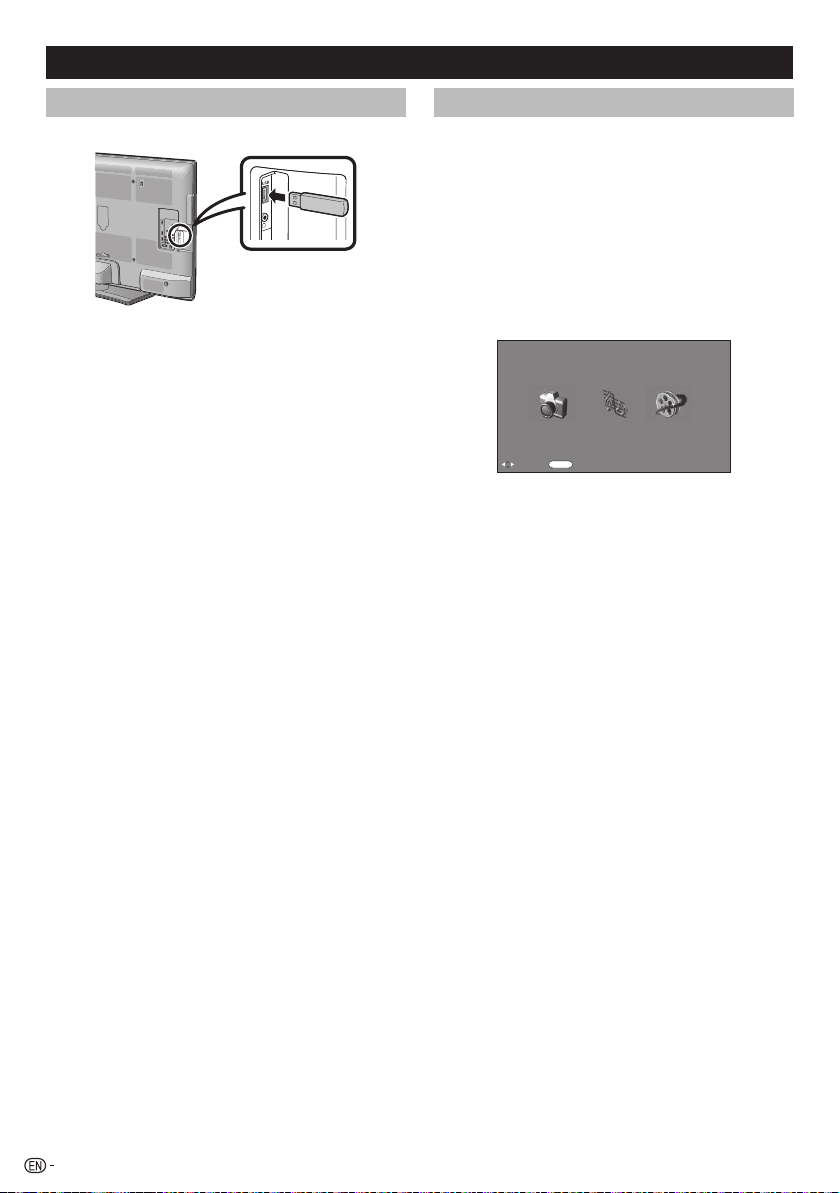

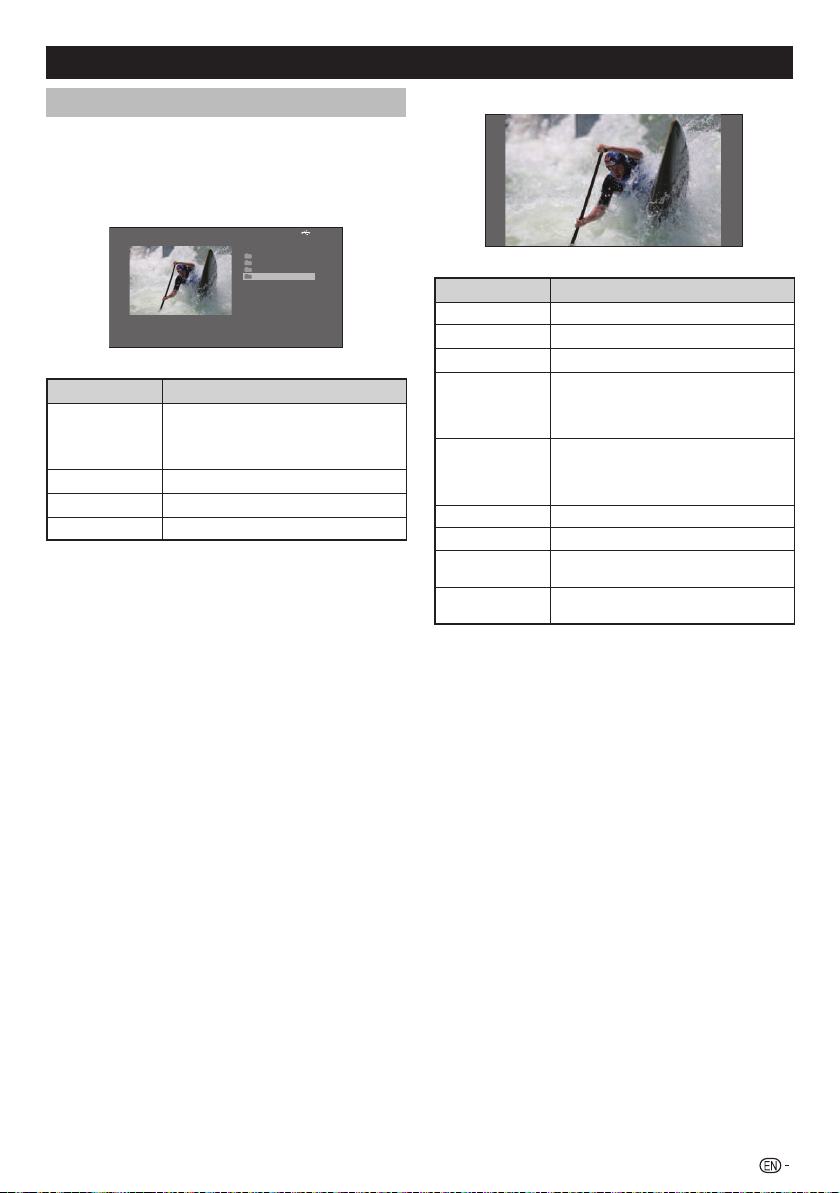

USB Media Player ..................................................... 26

Appendix ...................................................................30

Specifications ...........................................................31

Protection against overturning — 40/46LE530X....32

Protection against overturning — 60LE630X ......... 32

Removing the stand– 40/46LE530X ........................33

Removing the stand– 60LE630X ..............................33

Mounting the TV on a wall .......................................34

Dimensional drawings..............................................35

CLEARING THE PASSWORD ................................... 36

Operation manual

Stand unit

LC-40LE530X LC-46LE530X

LC-60LE630X

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of
trouble-free operation of your product, please read the Important Safety Precautions carefully before using
this product.

Important information

This product qualifies for ENERGY STAR when “Home” is selected for “TV location”.
Setting “TV Location” to “Home” allows the TV to achieve an energy-saving status for household use.

1

Important Safety Precautions

• Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a soft damp cloth to clean the product.
Do not use liquid cleaners, aerosol cleaners or chemical cloth to clean it, as such materials may damage the product.

• Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool
and in a wet basement.

• Do not place vases or any other water-filled containers on this product.
The water may spill onto the product causing fire or electric shock.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in
serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use
only the mounting hardware recommended by the manufacturer.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor
surface can cause the product to fall from the cart.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and
openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product
on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in
installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a sharp
object. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products
(including amplifiers).

• To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

• Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take special care
near children and pets.

• The LCD panel is a very high technology product with 2,073,600 pixels, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue,
green or red.
This is within product specifications and does not constitute a fault.

• Precautions when transporting the TV
When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry the TV
by two people holding it with two hands — one hand on each side of the TV.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT terminal on
the rear of the product.

• If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the supporting furniture.

• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the

television to a suitable support.

• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

Trademarks

• TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc.
TruSurround HD technology is incorporated under license from SRS Labs, Inc.

• SRS TruSurround HD™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich
bass, high frequency detail and clear dialog.

•

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• Products that have earned the ENERGY STAR® are designed to protect the environment through energy efficiency.

• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

•

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on­Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete your registration.

2

Attaching the stand unit — 40/46LE530X

• Before performing work, spread cushioning over the surface
on which you will be laying the TV. This will prevent it from
being damaged.

CAUTION

• Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation

of the stand may result in the TV falling over.

1 Confirm that there are screws with the stand unit.

For 40 inch models
(three long screws, three middle screws and one
short screw)

For 46 inch models
(four long screws, four middle screws and one
short screw)

2 Attach the supporting post for the stand unit onto

the base using the long screws with a screwdriver
as shown.

Supporting

post

4 Insert and tighten middle screws into the holes on

the rear of the TV.

 40 inch models  46 inch models

5 Attaching the stand cover.

1

Insert the stand cover.

2

Insert and tighten a short screw into the hole of the
stand cover.

NOTE

• To detach the stand unit, perform the steps in reverse order.

• A screwdriver is not supplied with this product.

 40 inch models  46 inch models

3 Insert the stand into the openings on the bottom

of the TV (hold the stand so it will not drop from
the edge of the base area).

Soft cushion

 40 inch models  46 inch models

3

Attaching the stand unit — 60LE630X

• Before performing work, spread cushioning over the surface
on which you will be laying the TV. This will prevent it from
being damaged.

CAUTION

• Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation

of the stand may result in the TV falling over.

1 Confirm that there are screws with the stand unit.

For 60 inch models
(Eight long screws and four short screws)

4 Attaching the stand cover.

1

Insert the stand cover.

2

Insert and tighten four short screws into the holes of
the stand cover.

2 Attach the supporting post for the stand unit onto

the base using the long screws with a screwdriver
as shown.

Supporting

post

Front

3 Insert the stand into the openings on the bottom

of the TV (hold the stand so it will not drop from
the edge of the base area).

Soft cushion

NOTE

• To detach the stand unit, perform the steps in reverse order.

• A screwdriver is not supplied with this product.

4

Angle adjustment (only for 40/46LE530X)

The TV can be rotated up to 15 degrees to the right or left.

15°

15°

Front

NOTE

Adjust the screen with both hands. Place one hand on the TV and rotate the screen while holding the bottom of the
stand (the black part in the above illustration) with your other hand.

Setting the TV

Connecting the antenna cable

To enjoy a clearer picture, use an outdoor antenna.

Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)

Antenna cable
(commercially available)

Room antenna terminal
(75-ohm type)

CAUTION

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC
CORD CONNECTED.

• The illustrations used throughout this manual are based on LC-46LE530X.

To antenna terminal

5

Connecting external devices

You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player,
Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from INPUT on the
remote control unit or INPUT on the TV.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital TV STB
(Set Top Box), PC or other external equipment.

• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

Connecting a VCR, game console or camcorder

A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using the
INPUT 4/INPUT 5 or INPUT 6 terminals.

When using composite cable
(commercially available)

VCR/Game
console/

Camcorder

VIDEO

AUDIO

L

R

When using component cable
(commercially available)

Y

P

B

(CB)

VCR/Game

P

R

(CR)

console/

Camcorder

L

AUDIO

R

Connecting a DVD player/Digital TV STB (Set Top Box)

You can use the HDMI 1/ HDMI 2/ HDMI 3 or INPUT 6 terminals when connecting to a DVD player/Digital TV STB (Set
Top Box) and other audiovisual equipment.

When using HDMI-certified cable
(commercially available)

When using component cable
(commercially available)

AUDIO

Y

P

B

(CB)

P

R

(CR)

L

R

DVD player/
Digital TV
STB (Set Top
Box)

DVD player/
Digital TV
STB (Set Top
Box)

Connecting a PC

You can use the PC terminals when connecting to a PC.

Using Digital Audio Output

It is possible to output audio through the DIGITAL AUDIO
OUTPUT terminal. PCM audio outputs from the terminal.

ANALOG

RGB

Optical fibre cable
(commercially available)

PC

To optical digital input of

AUDIO

(L/R)

NOTE

• The DIGITAL AUDIO OUTPUT terminal usually outputs the same audio from the speakers (The audio of the content you are viewing
is output from the terminal).

• The DIGITAL AUDIO OUTPUT terminal does not output some signals, depending on devices and software.

• The illustrations used throughout this manual are based on LC-46LE530X.

6

external audio devices

Remote control unit

1

2

3
4

5
6

7

8

9
10
11

1 POWER (STANDBY/ON)

To switch the power on and off (See page 9).

2 0 – 9

Set the channel.
TELETEXT mode: Set the page (See page 24).

3 A (Flashback)

Press A to return to the previous selected channel or external
input mode.

4 ATV

Press to access ATV mode (See page 20).

5 DTV

Press to access DTV mode (See page 20).

6 EPG

DTV mode: To display EPG (Electronic Programme Guide)
screen (See pages 22 to 23).

7 a/b/c/d (Cursor)

Select a desired item on the setting screen.

ENTER

Execute a command.

8 EXIT

Return to the default screen.

9 Colour (Red/Green/Yellow/Blue)

TELETEXT mode: Select a page (See page 24).

0 FREEZE

Freeze a motion picture on the screen (See page 23).

Q INFO

DTV mode: Display the programme information (See page 19).

W DISPLAY

Display the channel or input information.

12

13

14
15

16
17
18

19

20

SLEEP

Set the Sleep timer.

0hr.30min. 1hr.00min.

Off

AV MODE

Select an audio and video setting (See page 12).

WIDE

Change the wide image mode (See page 23).

MPX

Select the sound multiplex mode.

e (Mute)

Press e s Mutes sound.
Press e again s Restores sound.
Mute will be cancelled after 30 minutes. However, the TV will not
suddenly output loud sound as the volume level will be set to 0
automatically. Increase the volume level by pressing VOL k.

E VOLk/VOLl

Set the volume.
(VOLk) Increase the volume.
(VOLl) Decrease the volume.

R CHa/CHb

TV input mode: Select the channel.
(CHa) Increase the channel number.
(CHb) Decrease the channel number.
TELETEXT mode: Select the page (See page 24).

T INPUT (INPUT SOURCE)

Select an input source.

Y GUIDE

DTV mode: Display the programme list (See page 19).

U RADIO

Press to access RADIO mode (See page 20).

I MENU

Display the menu screen.

O RETURN

MENU mode: Return to the previous menu screen.

P m (TELETEXT)

Select the TELETEXT mode (all TV image, all TEXT image, TV/
TEXT image) (See page 24).

k (Reveal hidden for TELETEXT)

TELETEXT mode: Display hidden characters (See page 24).

[ (SUBTITLE for TELETEXT)

To turn the subtitles on (See page 24).

3 (Hold)

TELETEXT mode: Stop updating Teletext pages automatically.
Press 3 again to release the hold mode (See page 24).

1 (Subpage)

Display the Teletext subpage directly when in Teletext mode
(See page 24).

v (Top/Bottom/Full)

TELETEXT mode: Set the area of magnification
(See page 24).

2hr.30min.

1hr.30min.

2hr.00min.

Inserting the battery

Before using the TV for the first time, insert a “AA” size battery (supplied). When the battery become depleted and the
remote control fails to operate, replace the battery with new “AA” size battery.

1 Open the battery cover. 2 Insert the supplied “AA” size battery. 3 Close the battery cover.

• Place batteries with their terminals corresponding to the

CAUTION

• Battery (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Do not mix batteries of different types.

• Do not mix old and new batteries.

(e) and (f) indications in the battery compartment.

7

Part names

TV (Front)

TV (Rear)

14

6

7

8

9

15

16

POWER indicator

Remote control sensor

OPC sensor

17

18

13

SLEEP indicator

OPC indicator

Light off Power off
Lighted (Red) The TV is in standby

Lighted (Green) The TV is on.

1 POWER (On/Off) button
2 MENU button
3 INPUT button

1

4 Channel up (r)/down (s)

2

3

4

5

buttons

5 Volume up (e)/down (f) buttons
6 HDMI 1 terminal*
7 HDMI 2 terminal
8 HDMI 3 terminal
9 RS-232C terminal
10 INPUT 4/INPUT 5 terminals
11 DIGITAL AUDIO OUTPUT

terminal

12 INPUT 6 terminals
13 AUDIO OUT terminals
14 AUDIO IN (R/L) terminal
15 PC terminals*
16 Antenna input terminal
17 USB terminal
18 Headphone jack (

• The speakers do not output
volume when headphones are
plugged in.

mode.

3.5 mm)

10 11 12

* The HDMI1 and PC terminals can both use the same audio input terminal. However, the proper item must be selected in the “PC

audio select” menu. (See page 16.)

• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

• The illustrations used throughout this manual are based on LC-46LE530X.

Regarding the headphone jack

• Use headphones with a stereo mini plug (Ø 3.5 mm).

• Be sure to unplug headphones from the jack when they are not
in use.

• The speakers do not output volume when headphones are
plugged in.

• The “Audio” menu cannot be operated when headphones are
plugged in.

8

Volume display when headphones are plugged in

20

Turning the TV on/off

Turning on/off the power

• To turn on the power
Press POWER on the TV (After a few seconds, an image
appears with sound).

• To turn off the power
Switch it off by pressing POWER on the TV.

Standby mode

• To standby mode
If the TV is switched on, you can switch it to standby by
pressing POWER on the remote control.

• Switching on from standby
From standby, press POWER on the remote control.

NOTE

• If you are not going to use this TV for a long period of time, be
sure to remove the AC cord from the AC outlet.

• Minor power is consumed when the unit is in standby mode.

Supplying electric power to the antenna

When you set-up the DTV antenna for the first time, or
connect the antenna to a community antenna, you need
to proceed to set the antenna by following this manual.

1 Press DTV to access DTV mode.
2 Press MENU and the MENU screen displays.
3 Press c/d to select “Setup”.
4 Press a/b to select “Digital programme setup”

and then press ENTER.

5 Press a/b to select “Antenna power” and then

press ENTER.

6 Press c/d to select “Yes” and then press

ENTER.

Selected item Description

Yes

No

Select “Yes” when your antenna is set-up
and connected independently.

Select “No” when you do not need to
supply voltage to your antenna, i.e. when
your antenna is connected to a community
antenna (The factory default setting of this
function is “No”).

Initial auto installation

When the TV powers on for the first time after purchase,
the initial auto installation wizard appears. Follow the
menus and make the necessary settings one after
another.

1 Press POWER on the TV.

• The initial auto installation wizard appears.

2 Press c/d to select “HOME” or “STORE”, and

then press ENTER.
Press c/d to select your country channels listed
on the screen, and then press ENTER.
Press a/b/c/d to select “DTV”, “ATV” or “ATV
+ DTV”, and then press ENTER.
Press a/b to select the desired sound system,
and then press ENTER.

• Sound system is selectable when the signal search is set
to “ATV” or “ATV + DTV” mode only.

• Auto installation will be executed.

• You do not need to do anything during the auto search.

• HOME: “STANDARD” will be the default value for the “AV
mode” setting.

• STORE: “DYNAMIC (FIXED)” will be the default value for
the “AV mode” setting. If the “AV mode” is changed, the
TV will automatically switch back to “DYNAMIC (FIXED)”
when there is no further change to TV setting for 30
minutes.

• To change the STORE mode to HOME mode, please
refer to page 14 to reset the unit.

Checking Signal information

If you install a DVB-T antenna for the first time or relocate
it, you should adjust the alignment of the antenna to
receive a good reception while checking the antenna
setup screen.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Digital programme setup”,

and then press ENTER.

9

Checking Signal information
(Continued)

■ Checking Signal information

Press a/b to select “Signal information”.

Auto search

Manual search

Manual adjust

Signal information

Antenna power

Channel number

Signal strength

Current Maximum

Signal quality

Current Maximum

68

100

100

98

98

4 Position and align the antenna so that the

maximum possible values for “Signal strength”
and “Signal quality” are obtained.

NOTE

• The values of “Signal strength” and “Signal quality” indicate
when to check the appropriate alignment of the antenna.

Auto installation

You can run auto installation again, even after setting up
the preset channels.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Auto installation”, and then

press ENTER.

4 If you have already set the password, enter it here.

• See page 14 for setting a password.

5 Press c/d to select “Yes”, and then press

ENTER.

6 Press a/b/c/d to select “DTV”, “ATV” or “ATV

+ DTV”, and then press ENTER.
Press a/b to select the desired sound system,
and then press ENTER.

• Sound system is selectable when the signal search is set
to “ATV” or “ATV + DTV” mode only.

You do not need to do anything during the auto
search. Press MENU to exit.

Programme setup

Digital settings

You can reconfigure DTV services settings automatically
or manually.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Digital programme setup”,

and then press ENTER. If you have already set the
password, enter it here.

• See page 14 for setting a password.

4 Press a/b to select the desired menu item, and

then press ENTER.

5 Press c/d to select “Yes”, and then press

ENTER.

■ Auto search (Digital)

Use this menu to add new services automatically after
auto installation has been completed.

■ Manual search (Digital)

Add new services within a specified frequency band.

• Press c/d to select the frequency and then press ENTER.

■ Manual adjust (Digital)

Configure various settings for each service using the
Colour (R, G, B) buttons.

Digital programme setup]

1 Press a/b to select desired service.
2 Press the colour button on the remote control

corresponding with the item you want to
reconfigure.

• Each time the colour button is pressed, you can switch
the corresponding operation on/off.

Buttons for Manual adjust operation

Remote

Menu

Lock R

CH Skip G

Sort B

items

control

buttons

Description

When the service is locked, you must
enter your password whenever you
tune to the service.

Services with “Skip” are passed over
when pressing r/s in the TV/
remote control unit.

The item position of services can be
sorted.

10

Programme setup (Continued)

The item position of services can be sorted

1 Press a/b to select the service whose item

position you want to move, and then press B.

DTV 005 Maori Television

DTV 022 Parliament TV

DTV 100 Freeview I HD

2 Press a/b to move it to the desired position, and

then press ENTER.

DTV 100 Freeview I HD

DTV 022 Parliament TV

DTV 005

Maori Television

3 Repeat steps 1 and 2 until all desired service

items are sorted.

Analogue settings

■ Auto search (Analogue)

You can also automatically search by performing
the procedure below. This is the same function as
programme auto search in auto installation.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Analogue programme

setup”, and then press ENTER.

4 If you have already set the password, enter it here.

• See page 14 for setting a password.

5 Press a/b to select “Auto search”, and then

press ENTER.

6 Press c/d to select “Yes”, and then press

ENTER.
Press a/b to select the desired sound system,
and then press ENTER.
You do not need to do anything during the auto
search. Press MENU to exit.

■ Manual adjust (Analogue)

You can set some channel item manually.

1 Repeat steps 1 to 4 in Auto search.
2 Press a/b to select “Manual adjust”, and then

press ENTER.

3 Press c/d to select “Yes”, and then press

ENTER.

4 Press a/b/c/d to select the channel you want

to edit, and then press ENTER.

• The selected channel information displays.

5 Press a/b to select the desired menu, and then

press ENTER.

6 Press a/b or c/d to select the desired item or

adjust the item to the desired level. Press ENTER
if necessary.

Search

The next channel will be search in order.

Fine

You can adjust the frequency to your desired position.

NOTE

• Adjust while checking the background picture as a reference.

• Instead of pressing c/d to adjust the frequency, you can set

by directly entering the frequency number of the channel with

0 — 9.

EXAMPLE

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s ENTER.

Colour system

Select the optimum colour system to receive (Auto, PAL,
SECAM, NTSC 4.43, PAL-60).

Sound system (Broadcasting system)

Select the optimum sound system (Broadcasting system)
to receive (B/G, D/K, I).

Label

To enter the name of the channel. Maximum 5
alphanumeric can be input.

• Press a/b/c/d: To select a desired alphanumeric, and

then press ENTER.
Repeat until the name is fully spelt out.

Search

Fine

Colour system

Auto

[ ]

B/G

[ ]

Sound system

Label

[ ]

Booster

Skip

Lock

• To exit, select END and then press ENTER.

• If the wrong alphanumeric is entered, select CLEAR to clear,
and then press ENTER.

Booster

Enhance the picture quality during weak signal. It is not
recommended to turn on during strong signal condition.
It may induced unwanted noise (On, Off).

Skip

Channels with “Skip” set to “On” are passed over when
using CHr/s even if selected while watching the
image from the TV.

Lock

You can block the viewing of any channel.

NOTE

• See “Child lock” for setting a password.

• If “Lock” is set to “On” for a channel, “Child lock has been
activated” is displayed when you select the channel, and the
image and sound of the channel is blocked.

• When pressing ENTER while “Child lock has been activated”
is displayed, password input menu will be displayed. Inputting
the correct password lifts the child lock temporarily until the
power is turned off.

Off

[ ]

Off

[ ]

Off

[ ]

Broadcasting station name settings

ABCDEFGHIJ

KLMNOPQRST

UVWXYZ+–._

0123456789

CLEAR

BACK

END

11

Programme setup (Continued)

■ Sort (Analogue)

Channel position can be sorted freely.

1 Repeat steps 1 to 4 in Auto search.
2 Press a/b to select “Sort”, and then press

ENTER.

3 Press c/d to select “Yes”, and then press

ENTER.

4 Press a/b/c/d to select the channel you want

to move, and then press ENTER.

5 Move it to the desired position by pressing

a/b/c/d, and then press ENTER.

6 Repeat the steps 4 and 5 until all desired channels

are sorted.

■ Erase programme (Analogue)

The individual programme can be erased.

1 Repeat steps 1 to 4 in Auto search.
2 Press a/b to select “Erase programme”, and

then press ENTER.

3 Press c/d to select “Yes”, and then press

ENTER.

4 Press a/b/c/d to select the channel you want

to erase, and then press ENTER.

5 Press ENTER to erase the channel.
6 Repeat the steps 4 and 5 until all desired channels

are erased.

Selecting a preset AV mode

“AV mode” gives you several viewing options to choose
from to best match the system environment, which
can vary due to factors like room-brightness, type of
programme watched or the type of image input from
external equipment.

1 Press AV MODE.
2 Each time you press AV MODE, the mode

changes.

• You can also switch the mode in the “AV mode” menu
on the “Picture” menu screen.

Selected item Description

STANDARD

MOVIE

GAME

PC

USER

DYNAMIC
(FIXED)

DYNAMIC

NOTE

• You can select a different AV mode item for each input mode
(For example, select STANDARD for TV input and DYNAMIC
for VIDEO input).

• During PC input mode, only “STANDARD”, “PC” and “USER”
can be selected under the AV mode selection.

For a highly defined image in a normally
bright room.

For a movie.

For game play.

For PC (Available only when inputting an
HDMI or PC signal).

Allows the user to customise settings as
desired. You can set the mode for each
input source.

Changes the image and sound settings
to the factory preset values. No
adjustments are allowed.

For a clear-cut image emphasising high
contrast for sports viewing.

12

Menu operation

1

Press MENU and the MENU screen displays.

2 Press c/d to select the desired menu (Picture,

Audio, ECO, Setup, Option, Digital setup).

3 Press a/b to select the desired menu item.

Press ENTER to proceed if necessary.

4 Press a/b or c/d to select the desired item or

adjust the item to the desired level. Press ENTER
if necessary.

Picture menu


AV mode

OPC

Backlight

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

Audio

[]

+16

]

[

+30

[

]

0

]

[

4

+

[

]

0

]

[

2

+

–16

0

–30

–30

–30

–10

■ OPC (Optical Picture Control) setting

You can set the TV to automatically adjust the screen to
suitable backlight brightness according to the lighting
conditions.

Selected item Description

On:Display

On

Off

NOTE

• Make sure no object obstructs the OPC sensor, which could
affect its ability to sense surrounding light.

Displays the OPC effect on the screen while
adjusting the brightness of the screen.

Automatically adjusts.

The brightness is fixed at the value set in
“Backlight”.

■ Picture adjustments

Selected item

Backlight

Contrast

Brightness

Colour

Tint

Sharpness

c button d button

The screen dims

For less contrast For more contrast

For less brightness For more brightness

For less colour intensity

Skin tones become
purplish

For less sharpness For more sharpness

■ Advanced

Colour temp. (Colour Temperature)

Adjusts the colour temperature to give the best white
image.

Selected item Description

High
Mid-High
Middle
Mid-Low
Low

White with bluish tone

White with reddish tone

Quick shoot

Use Quick shoot to view fast-action images more clearly
(On, Off).

NOTE

• Quick shoot may cause image noise. If this occurs, set the
function to “Off”.

Film mode

Automatically detects a film-based source (originally
encoded at 24/25 frames/second, depending on the
vertical frequency), analyses it then recreates each still
film frame for high-definition picture quality (On, Off).

ECO

[

]

STANDARD

[

]

Off

+16

+40

+30

+30

+30

+10

The screen
brightens

For more colour intensity

Skin tones become
greenish

Active contrast

Automatically adjusts the contrast of an image according
to the scene (On, Off).

3D-Y/C

Provides high quality images with minimal dot crawl and
cross colour noise (On, Off).

NOTE

• 3D-Y/C is not selectable depending on the input signal type.

• 3D-Y/C may not operate depending on the input signal type
or noisy input signal.

Monochrome

For viewing images in monochrome (On, Off).

DNR (Digital Noise Reduction)

Reduces noise on screen and produces a clearer video
image (Off, High, Low, Auto).

NOTE

•

For resetting all Picture adjustment items to factory preset
values, press a/b to select “Reset”, press ENTER,
press c/d to select “Yes”, and then press ENTER.

Audio menu

Setup

+15

+15

R

[

]

Off

[On]

Decrease audio
from the left speaker

[ 0]

[ 0]

[ 0]

ECO

–15

–15

L

Audio

STANDARD

Treble

Bass

Balance

SRS TS HD

Bass enhancer

Reset

■ Audio adjustments

Selected item

Treble

Bass

Balance

c button d button

For weaker treble For stronger treble

For weaker bass For stronger bass

Decrease audio from
the right speaker

■ SRS TruSurround (TS) HD™

You can enjoy SRS TruSurround HD™ sound, the same
as you were in movie theatre.

Using SRS TS HD on the menu screen

You can produce SRS TruSurround HD™ effects from
the “Audio” setting.

Selected item Description

SRS TruSurround HD™ creates a high

On

Off

quality surround sound experience,
when watching DVD movies and TV
programmes broadcast in surround sound.

Outputs the normal sound.

■ Bass enhancer powered by SRS Labs, Inc.

This function allows you to enjoy bass-enhanced sound.

Selected item Description

On

Off

NOTE

• For resetting all Audio adjustment items to the factory preset
values, press a/b to select “Reset”, press ENTER, press
c/d to select “Yes”, and then press ENTER.

Bass enhancer function is on.

Outputs the normal sound.

13

ECO menu

]

MENU [ECO

ECO

No signal off

4

Power management

No operation off

Ecology

■ No signal off

You can set the TV to automatically power off in about
15 minutes after the TV goes into a state of receiving no
programme signals, such as the end of a broadcast day
(Enable, Disable).

• Five minutes before the power shuts down, the remaining
time displays every minute.

NOTE

• “Disable” is the factory preset value.

• When a TV programme finishes, and the TV receives signal
input, this function may not operate.

■ Power management (PC input mode only)

You can set the TV to automatically power off when no
image is displayed on PC.

Selected item Description

Off

Mode1

Mode2

■ No operation off

You can set the TV to automatically power off when no
TV operation is performed for more than 3 hours
(30 min., 3 hr., Disable).

• Five minutes before the power shuts down, the remaining
time displays every minute.

NOTE

• “Disable” is the factory preset value.

■ Ecology

When set to “Yes”, the TV activates the following power
saving mode.

• “OPC” set to “On” (Page 13).

• “No signal off” set to “Enable” (Page 14).

• “Power management” set to “Mode1” (Page 14).

• “No operation off” set to “3 hr.” (Page 14).

• “Quick start” set to “Off” (Page 16).

NOTE

• Ecology mode cannot be deactivated by selecting “No”. Each
setting must be changed individually to deactivate Ecology
mode.

Setup

• No power management

• Factory preset value.

• If no signal inputs for approximately

• 8 minutes, the power shuts down.

• Even if you start using the PC and the
signal inputs again, the TV stays off.

• The TV turns on again by pressing
POWER (See page 9).

• If no signal inputs for approximately

• 8 seconds, the power shuts down.

• When you start using the PC and the
signal inputs again, the TV turns on.

• The TV turns on again by pressing
POWER (See page 9).

[

Enable

Option

]

[

]

3hr.

Setup menu

]

MENU [Setup

Setup

Auto installation

4

Analogue programme setup

Digital programme setup

Child lock

Input skip

4

Input label

Position

4

HDMI auto view

WSS

4:3 mode

Quick start

Text language

Identification

Reset

Option

[

Panorama

[

West Europe

[On]

[

Off

Digital setup

]

]

]

■ Child lock (ATV and DTV input mode only)

Allows you to use a password to protect certain settings
from being accidentally changed.

Setting a password

1 Repeat steps 1 to 2 in Menu operation.
2 Press a/b to select “Child lock”, and then press

ENTER.

3 If you already set the password, enter it here.

4 Press a/b to select “Change password”, and

then press ENTER.

5 Enter the 4-digit number as a password using 0

— 9.

Change password

Clear password

Parental rating

Enter your new password. Use 4 digits

– – – –

New password

– – – –

Reconfirm

6 Enter the same 4-digit number as in step 5 to

confirm.

NOTE

• To view a locked channel (Lock setting in Analogue
programme setup “Manual adjust” is set to “On”), you must
enter a password. When you select a locked channel, “Child
lock has been activated” is displayed.

• Press ENTER to display the password input window.

Clearing the password

Allow you to clear your password.

1 Repeat steps 1 to 3 in Setting a password.
2 Press a/b to select “Clear password”, and then

press ENTER.

3 Press c/d to select “Yes”, and then press

ENTER.

14

Setup menu (Continued)

Parental rating

This function allows TV channels to be restricted.
It prevents children from watching violent or sexual
scenes that may be considered inappropriate.

1 Repeat steps 1 to 3 in Setting a password.
2 Press a/b to select “Parental rating”, and then

press ENTER.

3 Press a/b to select your desired rating, and then

press ENTER.

When the country setting is set to “Australia”.

Selected item Description

General and
above (G)

Parental
guidance and
above (PG)

Mature and
above (M)

Mature adult
and above (MA)

Adult violence
and above (AV)

Restricted and
above (R)

No block (–)

When the country setting is set to “New Zealand”.

Block 5 age and below

Block 11 age and below

Block 13 age and below

Block 15 age and below

Block 17 age and below

Block 18 age and below

No block

■ Input skip

This setting allows you to skip the HDMI or PC input on
the input source selection operation.

HDMI1

HDMI2

HDMI3

PC

Content is not offensive to most viewers.

Content is such that parents may
not want their children to view the
programme.

Mature audience only. This programme
is specifically designed to be viewed by
adults and therefore may be unsuitable
for children under 15.

Mature adult only. Mature audience only.
This programme is specifically designed
to be viewed by adults and therefore
may be unsuitable for children under 15.

Not for children under age 15. Strong
elements of sex and/or violence.

Not for children under age 18. Strong
elements of sex and/or violence.

Cancel the blocking.

Skip input selection of HDMI

Yes No

■ Input label

You can assign each input source a label as you prefer.

1 Press INPUT to select the desired input source.
2 Press MENU and the MENU screen displays.
3 Press c/d to select “Setup”.
4 Press a/b to select “Input label”, and then press

ENTER.

5 Press a/b/c/d to select a desired

alphanumeric, and then press ENTER.
Repeat until the name is fully spelt out. Maximum
6 alphanumeric can be input.

External equipment name settings

ABCDEFGHIJ

KLMNOPQRST

UVWXYZ+–._

0123456789

To exit, select END and then press ENTER.
If the wrong alphanumeric is entered, select

CLEAR to clear, and then press ENTER.

NOTE

• You cannot change labels if the input source is ATV and DTV.

■ Position

For adjusting a picture’s horizontal and vertical position.

Selected item Description

H-Position

V-Position

Reset

■ HDMI auto view (HDMI input mode only)

Selected item Description

Enable/Disable

■ WSS

WSS allows a television to switch automatically among
the different screen formats (On, Off).

NOTE

• Try to set WIDE mode if an image does not switch to the
correct screen format. When the broadcast signal contains no
WSS information, the function will not work even if enabled.

• Not available for COMPONENT, PC and HDMI signal.

CLEAR

BACK

END

Centres the image by moving it to the left
or right.

Centres the image by moving it up or
down.

Reset position to factory preset values.

Set whether or not to use WIDE MODE
based on signal recognition, including an
HDMI signal.

15

■ 4:3 mode

The WSS signal has 4:3 auto-switching that allows you
to select between Panorama and Normal.

Selected item Description

Panorama

Normal

Wide image without side bars

Normal range keeping 4:3 or 16:9 aspect
ratio

WSS signal 4:3 screen

4:3 mode “Panorama” 4:3 mode “Normal”

■ Quick start

You can reduce the TV’s start-up time after turning on
the power with the remote control unit.

Selected item Description

On

Off

The TV quickly starts up from standby,

8.5 W or more of power consumption is
required during standby.

Power consumption is less than 1W.

■ Text language

Select from among 3 kinds of language: West Europe,
Arabic, Farsi.

NOTE

• Teletext can display only when it is sent by a network. Not
used to convert between languages.

■ Identification

You can check the current version of the software on the
screen.

■ Reset

If complex adjustments are made and the settings
cannot be restored to normal, you can reset the settings
to the factory preset values.

NOTE

• If you execute “Reset”, all the settings such as Picture, Audio
and Programme will be reset to the factory preset values.

Option menu

Option

PC audio select

Output volume select

Auto volume

Clear voice

Digital audio output

Audio only

4

Game play time

4

Colour system

4

Fine sync.

DivX (R) Reg. Code

Version up

■ PC audio select

When using the PC terminal or HDMI1 terminal, you
must select which terminal uses the AUDIO (R/L) jack for
analogue audio input.

Selected item Description

When connecting devices (including a

HDMI1

PC

NOTE

• You must set this to “PC” when connecting devices (including
a PC) with an HDMI-certified cable to the HDMI 1 terminal. If
“HDMI1” is set, there will be no sound output.

PC) with DVI/HDMI cable to the HDMI
1 terminal and inputting analogue audio
signals from the AUDIO (R/L) jack.

When connecting a PC to the PC
terminal, and inputting analogue audio
signals from the AUDIO (R/L) jack.

■ Output volume select

Allows you to select what controls the audio output.

Selected item Description

• Sound via speakers is adjusted with

Fixed

Variable

NOTE

• During “Output volume select” is set to “Variable”, all Audio
menu item cannot be adjusted.

• Sound via the AUDIO OUT terminal is

• Sound via the AUDIO OUT terminal

• Sound via speakers is muted.

■ Auto volume

Different sound sources, fairly often do not have the
same volume level, for example the changing from movie
to the advertisements. Auto volume solves this problem
and equalises the volume levels (On, Off).

■ Clear voice

This function emphasises speech against background
noise for greater clarity (On, Off).

NOTE

• Clear voice only work when SRS TS HD is “On”.

Digital setup

[HDMI1]

[Fixed]

[On]

[On]

[PCM]

VOL k/l on the remote control unit
or the TV.

not adjustable and constantly outputs.

is adjusted with VOL k/l on the
remote control unit or the TV.

16

Option menu (Continued)

■ Digital audio output

This function allows you to select your favourite audio
output system.

Selected item Description

PCM

Dolby Digital

■ Audio only

When listening to music from a music programme, you
can set the display off and enjoy audio only.

Selected item Description

On

Off

NOTE

• When you make operations that change the picture on the TV
such as by changing the input source, the Audio only function
is set to “Off”.

■ Game play time

This function displays the elapsed game time so you do
not lose track of the time.
To display the elapsed time, select “GAME” under
“AV mode” for the input mode of the terminal connected
to the game console before starting the game.

Selected item Description

On

Off

■ Colour system

You can change the colour system to one that is
compatible with the image on the screen (Auto, PAL,
SECAM, NTSC 3.58, NTSC 4.43, PAL-60).

NOTE

• If “Auto” is selected, colour system for each channel is
automatically set. If an image does not display clearly, select
another colour system (e.g. PAL).

• “Colour system” is selectable only when inputting a
composite signal.

■ DivX (R) Reg. Code

Please see page 29.

■ Version up

This function is only for service personnel to use for
software updates.

The optical output format is normally in
PCM.

Dolby Digital audio will be output when
there is a Dolby Digital audio signal. The
output will be in PCM when there is no
Dolby Digital audio signal.

Audio is output without screen image.

Both screen images and audio are
output.

The elapsed time is displayed every
30 minutes when you switch to GAME
mode in external input mode.

Hides the time.

■ Fine sync. (PC input mode only)

Adjusting the PC image automatically

Auto sync.

This function enables the screen to be automatically
adjusted to its best possible condition when the
analogue terminals of the TV and PC are connected with
a commercially available RGB cable, etc.

NOTE

• Auto sync. is likely to succeed when an input PC image has
wide vertical stripes (e.g. pattern with high contrast stripes, or
cross-hatched).
It may fail when an input PC image is solid (low contrast).

• Be sure to connect the PC to the TV and switch it on before
starting Auto sync.

Adjusting the PC image manually

Ordinarily you can easily adjust the picture as necessary
to change image position using Auto sync. In some
cases, however, manual adjustment is needed to
optimise the image.

Selected item Description

H-Position

V-Position

Clock

Phase

NOTE

• For resetting all adjustment items to the factory preset values,
press a/b to select “Reset”, press ENTER, press c/d to
select “Yes”, and then press ENTER.

• Images may not be displayed properly depending on the
settings and/or input signals.

Centres the image by moving it to the left
or right.

Centres the image by moving it up or
down.

Adjusts when the image flickers with
vertical stripes.

Adjusts when characters have low
contrast or when the image flickers.

Input signal

• Some input signals may have to be registered manually
to display properly.

• The pairs of input signals (resolutions) in the list below
are not distinguishable when received. In such case,
you have to set the correct signal manually. After
setting once, it will display when the same signal
(resolution) is input again.

1280 g 768 1360 g 768

17

Digital setup menu

Option

Audio language

Subtitle language

Hearing impaired

Time zone

Summer time

OAD setup

■ Selecting the language

Set up to two preferred multi audio languages to display
if the audio languages are available.

Digital setup

[Off]

[Off]

[Off]

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Digital setup”.
3 Press a/b to select “Audio language”, and then

press ENTER.

4 Press a/b to select “1st Language” or “2nd

Language”, and then press ENTER.

5 Press a/b/c/d to select the desired language,

and then press ENTER.

NOTE

• If audio for the selected languages is not included in a
received broadcast, audio will not be output for that language.

■ Displaying subtitles for the hearing impaired

You can display subtitles for the hearing impaired in
the Teletext broadcast if the subtitle languages are
available.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Digital setup”.
3 Press a/b to select “Subtitle language”, and then

press ENTER.

4 Press a/b to select “1st Language” or “2nd

Language”, and then press ENTER.

5 Press a/b/c/d to select the desired language,

and then press ENTER.

NOTE

• If subtitles for the selected language are not included in
a received broadcast, subtitles will not be shown for that
language.

■ Switching subtitle languages (DVB Subtitle)

Each time you press [ on the remote control, the
subtitle switches when the broadcast contains subtitle
information.

Set “Hearing impaired” to “On”

(Hearing impaired) 1st Language

ssssssss

Off

2nd Language

Set “Hearing impaired” to “Off”

1st Language 2nd Language

ssss

Off

NOTE

• This function is valid only if broadcaster is transmitting
multilingual subtittles.

(Hearing impaired)

■ Time zone

This function enables you to select your local time zone.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Digital setup”.
3 Press a/b to select “Time zone”, and then press

ENTER.

4 Press c/d to select the desired time zone and

then press ENTER.

• This function lets you select the right time zone in case the
time displayed in the EPG does not match the local time of
your area.

■ Summer time

When the Summer time is set to “On”, the Standard
Time is plus one hour (Auto, On, Off).

■ OAD setup

• This function is for automatically download the data
for the version update software over digital broadcasts
when the “OAD setup” is set to “On”.

• To download, follow the instructions when the
download message appears during a digital broadcast.

NOTE

• Do not disconnect the AC cord when the software
upgrade is in progress, as this may cause the upgrade
to fail. If problem arises ask a qualified service
personnel before the software upgrade period expires.

18

Programme Guide

You can check the current schedule of DTV events and
view detailed information about current events.

1 Press GUIDE to display the programme guide list.
2 Press a/b to display your desired programme,

and then press ENTER.

• When you press ENTER, the TV jumps to the channel.

Channel list

020 ABC HDTV

Dorothy The Dinosaur

002 ABC TV Sydne

020 ABC HDTV

021 ABC2

022 ABC TV

Select channel
Page up/down

ENTER

: Enter

R

[Mon.] 18/6 13:27

13:23 - 13:30

Dorothy The Dinosaur

Dorothy The Dinosaur

Gardening Australia

Dorothy The Dinosaur

RETURN

: Back Exit

Program informati..

MENU

3 Press R to view programme information.
4 Press RETURN or MENU to exit.

Info

While watching DTV you can check the extended
programme information on the screen using INFO on the
remote control.

1

ABC2

People Dimensions

2

13:30 - 14:00

3

Input Info.

Video : 576i

4

Audio : MPEG

5

Age : 09

6

General INFO screen

1 Station name
2 Title
3 Time for the current programme
4 Video system
5 Audio system (Dolby D or MPEG)
6 Parental rating

• If there is more information, pressing a/b allows you to go
to the next page or return to the previous page.

• You can cancel this info by pressing INFO or EXIT.

19

ATV (Analogue)/DTV/RADIO buttons

Use the following buttons on the remote control to
operate the menu.

ATV: Press to switch to ATV mode. After switching from
DTV, radio or external input mode to ATV mode, the TV
jumps to the most recently viewed ATV channel.

DTV: Press to switch to DTV mode. After switching from
ATV, radio or external input mode to DTV mode, the TV
jumps to the most recently viewed DTV channel.

RADIO: Press to switch to radio mode. After switching
from DTV, ATV or external input mode to radio mode, the
TV jumps to the most recently tuned radio channel.

When you watch the TV for the first time

When the TV powers on for the first time after purchase,
perform the auto installation.

ATV (Analogue TV)

You can run the auto installation to set channels
automatically.

1 To watch the analogue TV, select “Auto

installation” from Setup menu (See page 10).

2 After setting the channels, you can select a

channel using CH a/b or 0 – 9 on the remote
control unit (See page 7).

DTV

When the TV accesses to DTV mode for the first time,
you need to run the auto search. To scan all available
services in your area, follow the procedures below.

1 To watch DTV broadcasts, select “DTV” from auto

installation menu (See page 10).

2 After setting the channels, you can select a

channel using CH a/b or 0 – 9 on the remote
control unit (See page 7).

Switching the analogue audio format

You can switch between multiple audio modes
when watching a multiple audio or stereo broadcast
programme.

In the NICAM TV broadcasts
When receiving a stereo signal

Each time you press MPX, the mode switches between
NICAM STEREO and MONO.

Stereo mode

BBC1

ATV ATV

01

PAL
NICAM

B/G

STEREO

When receiving a bilingual signal

Each time you press MPX, the mode switches among
NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

Bilingual mode

BBC1

ATV ATV

01

PAL
NICAM

ATV ATV

PAL PAL

B/G

CH A

BBC1

01

B/G

MONO

When receiving a monaural signal

Each time you press MPX, the mode switches between
NICAM MONO and MONO.

Monaural mode

BBC1

ATV ATV

01

PAL
NICAM

B/G

MONO

PAL

PAL
NICAM

NICAM

PAL

BBC1

01

MONO

BBC1

01

CH B

BBC1

01

CH AB

BBC1

01

MONO

B/G

B/G

B/G

B/G

20

Switching the analogue audio
format (Continued)

In the TV mode of A2 TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between
STEREO and MONO.

Stereo mode

BBC1

ATV ATV

01

STEREO

B/G

PAL PAL

When receiving a bilingual signal

Each time you press MPX, the mode switches among
CH A, CH B and CH AB.

Bilingual mode

BBC1

ATV ATV

01

PAL PAL

CH A

B/G

BBC1

ATV

01

CH AB

B/G

PAL

When receiving a monaural signal

When you press MPX, “MONO” displays.

Monaural mode

BBC1

ATV

01

PAL

B/G

MONO

BBC1

01

MONO

BBC1

01

CH B

B/G

B/G

NOTE

• “BBC1”, “01” and “PAL” are tentative network name, channel
and colour system.

21

EPG

What is an EPG?

An “EPG (Electronic Programme Guide)” is a programme schedule, which is displayed on the TV screen. The EPG is
broadcasted together with DTV. The TV screen shows the EPG when the viewer presses EPG on the remote control,
provided that the TV is receiving the digital broadcasting signal. The EPG enables you to search for a programme, do
timer view the programme schedule in detail.

Basic Operation

■ Display the EPG screen

1 Press EPG.

3

2 Press c/d/R/G to select the time span you want to search.

• Continue to press d to display programmes in the next time span.

3 Press a/b to select the desired programme.

■ Close the EPG screen

4 Press EPG again or MENU to exit.

NOTE

• For “New Zealand delivery model”, the EPG screen and operation differ due to the use of MHEG EPG. The EPG screen and
operation vary depending on the broadcasts.

[Tue.] 19 [Wed.] 20 [Thurs.] 21 [Fri.] 22 [Sat.] 23 [Sun.] 24 [Mon.]

002 ABC TV Sydney Play School

13:30 - 13:55

ABC TV Syd..002

ABC HDTV

ABC2

ABC TV

: Select

020

021

022

ENTER

Play School

Play School

People Dimensions

Play School

: Enter

13:30 14:30

...

...

...

MENU

: End

Previous d..

R

Australia Wide

Next dayGScheduleYReminder

2

DTV

2

B

Reminder timer setting

You can schedule a reminder for future programmes. Channel will automatically change on time as scheduled.

1 Press EPG.
2 Press a/b/c/d/R/G to select the programme you want to watch.
3 Press B to set reminder time.

4 Press ENTER to save reminder timer.

• “Timer Save Success” will display.

NOTE

• “Timer Overlap” will display if same time is set twice.

• “Timer Past” will display if past time is set.

5 Press ENTER to display the reminder schedule list.

6 Press MENU or EPG to exit.

22

EPG (Continued)

Viewing the reminder schedule list

1

Press EPG.

2 Press Y to display the reminder schedule list.
3 Press a/b to display next or previous screen.
4 Press MENU or EPG to exit.

Cancelling the reminder timer
setting

1

Press EPG.

2 Press Y to display the reminder schedule list.
3 Press a/b to select a programme you want to

cancel.

4 Press R to delete a programme from reminder list.
5 Press MENU or EPG to exit.

Picture and still image

You can freeze a motion picture on the Display.

1 Press FREEZE.

• A still image displays.

2 Press FREEZE or RETURN again to exit still

image.

NOTE

• The still image automatically goes out after 30 minutes.

• FREEZE doesn’t function for PC input (all resolution).

Wide Mode

Auto Selection

If you set “WSS” and “4:3 mode” in the Setup menu, the
optimum WIDE mode is automatically chosen for every
broadcast containing the WSS information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup menu
to “On” (See page 15).

“4:3 mode” menu

To set the type of the wide screen, select “Panorama” or
“Normal” in the 4:3 mode menu (See page 16).

4:3 mode set to “Panorama” 4:3 mode set to “Normal”

NOTE

• If the broadcast signal contains no WSS information, Auto
Selection will not function even when the WSS option is
enabled.

Manual Selection

You can select different picture sizes that account for the
kind of each picture.

1 Press WIDE.

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable for the
type of video signal currently received.

2 Press WIDE or a/b while the WIDE MODE menu

displays on the screen.

• As you toggle down the options, each mode is
immediately reflected on the TV.

Selected item Description

Normal

Zoom14:9

Panorama

Full

Cinema16:9

Cinema14:9

Dot by Dot

Underscan

NOTE

• Some picture size may not be displayable depending on the
input signal.

For 4:3 “standard” pictures. A side bar
appears on each side.

For 14:9 letterbox pictures. A thin side
bar appears on each side, and you may
also see bars on the top and bottom
with some programmes.

In this mode the picture is progressively
stretched toward each side of the
screen.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.

For 14:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.

Displays an image with the same number
of pixels on the screen (only when
receiving a 1080i/1080p/SXGA/SXGA+
signal)

Display with an Underscan image only
when receiving a 720p signal. Display
with the High-Definition image adjusted
optimally. Noise may appear on the edge
of the screen with some programmes.

23

Teletext function

What is Teletext?

Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
News, weather reports, sports information, stock
exchange prices and programme previews are among
the many services available.

Turning on and off Teletext

1 Select a TV channel or external input source

providing the Teletext programme.

2 Press m to display the Teletext.
3 Each time you press m, the screen switches as

shown below.

TELETEXT

NOTE

• If you select a programme with no Teletext signal, “No teletext
available.” is displayed.

• The same message displays during other modes if no Teletext
signal is available.

• New Zealand delivery model can receive MHEG data
broadcasting.

Button functions

Buttons Description

CH (r/s)

Colour (Red/
Green/Yellow/
Blue)

0 — 9

v (Top/
Bottom/Full)

k (Reveal
hidden
TELETEXT)

3 (Hold)

[ (Subtitle for

TELETEXT)

1 (Subpage)

NOTE

• Teletext can display only when it is sent by network. Not used
to convert between languages.

Increase or decrease the page number.

You can select a group or block of pages
displayed in the coloured brackets at
the bottom of the screen by pressing
the corresponding Colour (Red/Green/
Yellow/Blue) on the remote control unit.

Directly select any page from 100 to 899
by using 0 — 9.

Switch the Teletext image to Top, Bottom
or Full.

To reveal hidden information such as an
answer to a quiz.

To stop updating Teletext pages
automatically or release the hold mode.

Display the subtitle during Teletext page.

• Subtitle will not be displayed when
the service does not contain subtitle
information.

Display the subpage during Teletext
page.

TELETEXT

PC Control of the TV

• When a programme is set, the TV can be controlled
from the PC using the RS-232C terminal.
The input signal (PC/video) can be selected, the
volume can be adjusted and various other adjustments
and settings can be made, enabling automatic
programmed playing.

• Attach an RS-232C cable cross-type (commercially
available) to the Din/D-sub RS-232C for the
connections.

NOTE

• This operation system should be used by a person who is
accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC
to match the communications conditions of the TV. The
communications settings of the TV are as follows:

Baud rate:

Data length:

Parity bit:

Stop bit:

Flow control:

Communication procedure

Send the control commands from the PC via the
RS-232C connector.
The TV operates according to the received command
and sends a response message to the PC.
Do not send multiple commands at the same time. Wait
until the PC receives the OK response before sending
the next command.

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Command 4-digits Parameter 4-digits Return code

Command 4-digits: Command. The text of four characters.
Parameter 4-digits: Parameter 0 – 9, space, ?

Parameter

Input the parameter values, aligning left, and fill with
space(s) for the remainder (Be sure that four values are
input for the parameter).
When the input parameter is not correct, “ERR” returns
(Refer to “Response code format”).

0

Response code format

Problem response (communication error or incorrect
command)

9,600 bps

8 bits

None

1 bit

None

0009

Normal response

OK

Return code (0DH)

ERR

Return code (0DH)

a 30

24

PC compatibility chart

Horizontal
Frequency

31.5 kHz 70 Hz

31.5 kHz 60 Hz

37.9 kHz 60 Hz

48.4 kHz 60 Hz

47.7 kHz 60 Hz

64.0 kHz 60 Hz

65.3 kHz 60 Hz

VGA

SVGA

XGA

WXGA

SXGA

SXGA+

Resolution

720 g 400
640 g 480

800 g 600
1,024 g 768
1,360 g 768

1,280 g 1,024
1,400 g 1,050

DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Corp.

Vertical

Frequency

VESA

Standard

✔✔✔

✔✔✔

✔✔✔

✔✔✔

✔✔✔

✔✔✔

RS-232C commands list

Commands

• Commands not indicated here are not guaranteed to operate.

CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS

POWER SETTING

INPUT
SELECTION A

CHANNEL

AV MODE
SELECTION

NOTE

• If an underbar (_) appears in the parameter column, enter a
space.

• If an asterisk (*) appears, enter a value in the range indicated
in brackets under CONTROL CONTENTS.

P O W R 0 _ _ _ POWER OFF (STANDBY)

ITGD____

I T V D _ _ _ _ ATV (CHANNEL FIXED)

I D T V _ _ _ _ DTV (CHANNEL FIXED)

IAVD*___

DCCH * * _ _

C H U P _ _ _ _ ATV CHANNEL UP

C H D W _ _ _ _ ATV CHANNEL DOWN

DTVD* * * _

D T U P _ _ _ _ DTV CHANNEL UP

D T D W _ _ _ _ DTV CHANNEL DOWN

A V M D 0 _ _ _ TOGGLE

A V M D 1 _ _ _ STANDARD

A V M D 2 _ _ _ MOVIE

A V M D 3 _ _ _ GAME

A V M D 4 _ _ _ USER

A V M D 5 _ _ _ DYNAMIC (FIXED)

A V M D 6 _ _ _ DYNAMIC

AVMD7__ _PC

INPUT SWITCHING (TOGGLE)

INPUT 1f7 (1f7)

ATV DIRECT CHANNEL
(1f99)

DTV DIRECT CHANNEL
(1f999)

CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS

VOLUME V O L M * * _ _ VOLUME (0-60)

POSITION

WIDE MODE

MUTE

SRS TS HD

AUDIO CHANGE

SLEEP TIMER

TEXT

HPOS * * * _

HPOS * * * _

VPOS * * *_

VPOS * * *_

CLCK* * * _

PHSE * * * _

W I D E 0 _ _ _ TOGGLE (AV)

W I D E 1 _ _ _ NORMAL (AV)

W I D E 2 _ _ _ ZOOM 14:9 (AV)

W I D E 3 _ _ _ PANORAMA (AV)

W I D E 4 _ _ _ FULL (AV)

W I D E 5 _ _ _ CINEMA 16:9 (AV)

W I D E 6 _ _ _ CINEMA 14:9 (AV)

W I D E 7 _ _ _ NORMAL (PC)

W I D E 9 _ _ _ FULL (PC)

W I D E 1 0 _ _ DOT BY DOT (AV/PC)

W I D E 1 1 _ _ UNDERSCAN (AV)

M U T E 0 _ _ _ TOGGLE

M U T E 1 _ _ _ MUTE ON

M U T E 2 _ _ _ MUTE OFF

A C S U 0 _ _ _ SRS TS HD TOGGLE

A C S U 1 _ _ _ SRS TS HD ON

A C S U 2 _ _ _ SRS TS HD OFF

A C H A _ _ _ _ TOGGLE

O F T M 0 _ _ _ OFF

O F T M 1 _ _ _ SLEEP TIMER 30 MIN

O F T M 2 _ _ _ SLEEP TIMER 1 HOUR

OFTM3_ _ _

O F T M 4 _ _ _ SLEEP TIMER 2 HOUR

OFTM5_ _ _

T E X T 0 _ _ _ TEXT OFF

T E X T 1 _ _ _ TEXT CHANGE TOGGLE

DCPG * * * _

Analogue

(D-Sub)

Digital (HDMI)

✔✔

H-POSITION (AV) (–10f010)

H-POSITION (PC) (000f180)

V-POSITION (AV) (–20f020)

V-POSITION (PC) (000f120)

CLOCK (000f180)

PHASE (000f015)

SLEEP TIMER 1 HOUR
30 MIN

SLEEP TIMER 2 HOUR
30 MIN

DIRECT PAGE JUMP
(100f899)

25

USB Media Player

Connecting a USB device

Connect a USB device to the TV as shown below.

• The TV automatically switches to the USB mode when
a USB device is inserted in the USB terminal.

• Depending on the USB device, the TV may not be able
to recognise the contained data.

• Use only alphanumeric characters for naming files.

• File names over 80 characters (may vary depending on
character set) may not be displayed.

• Do not disconnect a USB device or memory card
from the TV while transferring files, when a screen is
switching to another or before you exit “USB” mode.

• Do not connect and disconnect a USB device from the
TV repeatedly.

CAUTION

• Do not use a USB extension cable when connecting a USB
device to the USB terminal of the TV.

• Using a USB extension cable may prevent the TV from
performing correctly.

USB media

Press INPUT to select the “USB” mode or the TV
automatically switches to the USB mode when a USB
device is connected to the TV.

USB media

In this mode, you can enjoy viewing photos, listening to
music and watching videos from external USB devices.

NOTE

• You cannot enter the USB mode when there is no USB
device.

• “Wide mode” is fixed during “Photo mode”, “Music mode”
and “Movie mode”.

■ Selecting modes

USB media player

Select mode

Photo mode Music mode Movie mode

ENTER

:Select

:Enter

1 Press c/d to select among “Photo mode”,“Music

mode” and “Movie mode”.

2 Press ENTER.

26

USB Media Player (Continued)

Movie mode

1

Press c/d to select “Movie mode”, and then
press ENTER.

2 Press a/b to select the desired folder or

directory, and then press ENTER.

3 Press a/b to select the desired video.

Select movie

Movie1.avi
XXX MBytes
XXX x XXX

Buttons for video mode

Buttons Description

When selecting a folder icon: Enter this

ENTER

a/b (Cursor)

c/d (Cursor)

RETURN

directory.
When selecting a video file: Display the
video in full screen.

Select a desired item.

Page up/down.

Return to the USB select mode.

File name

Folder 1
Folder 2
Folder 3

Movie 1

1/1

■ Viewing video

USB

Buttons for full screen display operation

Buttons Description

ENTER

a (Cursor)

b (Cursor)

d (Cursor)

c (Cursor)

RETURN

B button

R button

G button

Play/Pause the video.

Go to the previous file.

Go to the next file.

The FWD speed changes every time
you press d. After playing to the end,
the player goes to the next file and starts
to play.

The REW speed changes every time
you press c. After going back to the
beginning, the player starts to play the
same file.

Return to the video list screen.

Reveal/hide the guide display.

Each time you press R button on the
remote control, the subtitle switches.

Each time you press G button on the
remote control, the mode switches.

27

USB Media Player (Continued)

Music mode

Select music

File name
USB g220\Audio\mp3

\USB g220\Audio\mp3

SONG_01.MP3
SONG_02.MP3
SONG_03.MP3
SONG_04.MP3
SONG_05.MP3
SONG_06.MP3
SONG_07.MP3
SONG_08.MP3
SONG_09.MP3
SONG_10.MP3

Playing:

1 / 1 Page

Time

3:05
3:15
3:02
6:05
4:52
9:25
3:13
3:23
3:33
3:43

1 Press c/d to select “Music mode”, and then

press ENTER.

2 Press a/b to select the desired folder, and then

press ENTER.

3 Press a/b to select the desired music, and then

press ENTER.

Buttons for music mode

Buttons Description

When selecting a folder icon: Enter this

ENTER

a/b (Cursor)

c (Cursor)

d (Cursor)

RETURN

R button

G button

B button

NOTE

• When there are invalid music files, the g mark will be

displayed for the file.

• The displayed play time may differ slightly from the actual play
time depending on the files.

directory.
When selecting a music file: Play the
music.

Select a desired item.

Page up.

Page down.

Return to the USB select mode.

Stop music.

Play/Pause music.

Audio only.

Photo mode

■ Viewing thumbnails

Select photo

1/1 Page

1 Press c/d to select “Photo mode”, and then

press ENTER.

2 Press a/b/c/d to select the desired folder, and

then press ENTER.

3 Press a/b/c/d to select the desired photo, and

then press ENTER.

Buttons for thumbnail operations

Buttons Description

When selecting a folder icon: Enter this

ENTER

a/b/c/d
(Cursor)

R button

G button

Y button

B button

NOTE

• When there are invalid photo files, the g mark will be

displayed for the file.

• You can see the file name, shooting date, file size and pixel
size of the selected photo in the lower-left corner of the
screen (shooting date is only available in the EXIF file format).

■ Viewing photos in full screen

Buttons for full screen display operation

Buttons Description

c/d (Cursor)

RETURN

R button

G button

B button

NOTE

• Rotating photos only applies to the temporarily selected item
and this setting is not saved.

directory.
When selecting a photo thumbnail:
Display the photo in full screen.

Select a desired item.

Previous page.

Next page.

Selecting BGM (Background music).

Slide show.

Go to the previous/next photo in the
same directory.

Return to the USB select mode.

Rotate the photo by 90 degrees to
the left.

Rotate the photo by 90 degrees to
the right.

Reveal/hide the guide display.

28

USB Media Player (Continued)

DivX® setup

This is the function to confirm your registration code.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Option”.
3 Press a/b to select “DivX (R) Reg. Code”, and then press ENTER.

• Copy the 10 digit code down.

■ DivX® VOD Code

You need to visit the DivX main page to register your TV. Please follow the online instruction to create DivX account and
DivX registration video download.
Your registration is complete when you play the DivX registration video on TV.

■ DivX® Deactivate VOD Code

You can find the deregistration code (8~10 digit). Please use this code to deactivate on DivX website.

NOTE

• Visit www.DivX.com for more information about DivX® VOD.

List of files compatible with USB mode

USB device

File system

Photo file format

Music file format

File extension Container Video

*.avi AVI

*.mkv MKV

*.mp4 MP4

*.vob VOB MPEG2

*.mpg/*.mpeg PS

*.rm/*.rmvb RM RM codec

*.ts/*.trp/*tp TS

*.divx DivX DivX 3.11/4/4.12/5.x/6

*.dat DAT

NOTE

• Progressive format jpeg files are not supported.

• Files in USB 1.1 devices may not be played properly.

• Operation using USB hubs is not guaranteed.

• The compatibility of USB HDDs may not be guaranteed.

• Some video file formats may not be played depending on the file.

• Files may not be playable depending on the bitrate.

USB Memory, USB card reader (Mass Storage class)

FAT/FAT32/NTFS

JPEG (.jpg) (DCF2.0 compliant)

MP3 (.mp3)
Bitrate: 32 k, 40 k, 48 k, 56 k, 64 k, 80 k, 96 k, 112 k, 128 k, 160 k, 192 k, 224 k, 256 k,
320 kbps
Sampling frequency: 32 k, 44.1 k, 48 kHz

Video file format

DivX 3.11/4/4.12/5.x/6

XviD

H.264

MPEG2

H.264
MPEG2
MPEG1

DivX 3.11/4/4.12/5.x/6

XviD

H.264

MPEG2
MPEG1

H.264
MPEG2

MPEG2
MPEG1

29

Appendix

Troubleshooting

The problems described below are not always caused by malfunctions. Check the TV again before having the TV
serviced.

Problem Possible solution

• No power. • Check if you pressed POWER on the remote control unit (See page 9).

• Unit cannot be operated. • External influences such as lightning, static electricity, etc., may cause improper

• Remote control unit does not
operate.

• Picture is cut off. • Is the image position correct? (See page 17.)

• Strange colour, light colour, or
dark, or colour misalignment.

• Power is suddenly turned off. • The unit’s internal temperature has increased.

• No picture. • Is the connection to external equipment correct? (See page 6.)

• No sound. • Is the volume too low? (See page 7.)

• The TV sometimes makes a
cracking sound.

If the indicator on the TV lights up red, press POWER.

• Is the AC cord disconnected?

• Has the power been turned on? (See page 9.)

operation. In this case, operate the unit after first turning the power off the TV or
unplugging the AC cord and re-plugging it in after 1 or 2 minutes.

• Is battery inserted with polarity (e, f) aligned? (See page 7.)

• Is battery worn out? (Replace with new battery.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light shining on the remote control sensor?

• Are screen mode adjustments such as picture size made correctly? (See pages 16, 17
and 23.)

• Adjust the picture tone (See page 13).

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting (See pages 11 and 17).

• Check the input signal setting (See page 17).

• Check the HDMI auto view setting (See page 15).

Remove any objects blocking the vent or clean.

• Check the ECO setting (See page 14).

• Is the sleep timer set? (See page 7.)

• Has the input signal setup been performed correctly after connection? (See page 17.)

• Is the correct input selected?

• Is the picture adjustment correct? (See page 13.)

• Is the antenna connected properly? (See page 5.)

• Is “On” selected in “Audio only”? (See page 17.)

• Make sure that headphones are not connected.

• This is not a malfunction. This happens when the cabinet slightly expands and contracts
according to changes in temperature. This does not affect the TV’s performance.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This
is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: f20°C to e60°C.

30

Specifications

Item Model

LCD panel

Resolution

Video colour system PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV function TV-standard Analogue PAL: B/G, D/K, I SECAM: B/G, D/K, K/K

Receiving
channel

TV-tuning system Auto Preset 99 ch

Viewing angles H : 176º V : 176º

Audio amplifier

Speakers

Terminals Rear Antenna input

OSD language English

Power requirement AC 110 — 240 V, 50/60 Hz

Power consumption 97 W (0.5 W Standby) 116 W (0.5 W Standby) 190 W (0.5 W Standby)

Dimensions without stand (mm)

Weight without stand (with stand) 14 kg (16.5 kg) 19 kg (22.5 kg) 29.5 kg (32.5 kg)

Operating temperature 0 °C — 40 °C

* The HDMI1 and PC terminals can both use the same audio input terminal.

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units. There
may be some deviations from these values in individual units.

STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G

HDMI 1 HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,

HDMI 2 HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,

HDMI 3

INPUT 4

INPUT 5

INPUT 6 AUDIO in, COMPONENT in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz,

AUDIO OUT Audio out

AUDIO IN (R/L) (HDMI1/PC) Ø 3.5 mm jack*

PC 15 pin mini D-sub, AUDIO in (common use with HDMI 1) (Ø 3.5 mm jack)

USB USB

RS-232C 9 pin D-sub male connector

DIGITAL AUDIO OUTPUT

Headphones Ø 3.5 mm jack

with stand (mm)

Digital DVB-T

VHF/UHF 44.25—863.25 MHz

CATV S1—S41ch (including Hyperband)

Optional accessory

• Additional optional accessories may be available in the near
future.
When purchasing, please read the newest catalogue for
compatibility and check the availability.

CAUTION

• This TV should be mounted on the wall only with the listed (SHARP) wall mount bracket. The use of other wall mount brackets may
result in an unstable installation and may cause serious injuries.

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service personnel. Customers
should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in
accident or injury.

• Carefully read the instructions that come with the bracket before beginning work.

LC-40LE530X LC-46LE530X LC-60LE630X

40o (1016 mm) UV2A &
BLACK TFT LCD

2,073,600 pixels (1920 g 1080)

10 W g 2

3.4 g 15 cm 2pcs 3.2 g 15 cm 2pcs
UHF/VHF 75 q DIN type

1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz), AUDIO in (common use with
PC) (Ø 3.5 mm jack)

1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz)

VIDEO in, AUDIO in

1080I/50Hz, 1080I/60Hz)

Optical Digital Audio Output

959 (W) g 605 (H) g 89 (D)
959 (W) g 642 (H) g 257 (D)

46o (1168 mm) UV2A &
BLACK TFT LCD

1

1093 (W) g 682 (H) g 89 (D) 1383 (W) g 838 (H) g 72 (D)
1093 (W) g 719 (H) g 293 (D) 1383 (W) g 871 (H) g 333 (D)

60o (1525 mm) UV2A &
BLACK TFT LCD

Part name Model number

Wall mount bracket

(for LC-40LE530X)

Wall mount bracket

(for LC-46LE530X/LC-60LE630X)

AN-37AG2+

AN-37P30

AN-52AG4

31

Protection against overturning — 40/46LE530X

There is a danger of the product overturning in the case
of a disaster or sudden collision. Carry out the following
tip-resistant measurement for your safety.

Anchoring the TV to the wall or a pillar

1 Affix the TV to the wall or a pillar using extra strong

ties and cup hooks.

Protection against overturning — 60LE630X

There is a danger of the product overturning in the case
of a disaster or sudden collision. Carry out the following
tip-resistant measurement for your safety.

Anchoring the TV to the wall or a pillar

1 Affix the TV to the wall or a pillar using extra strong

ties and cup hooks.

 Cup hook (commercially available)
 Tie (commercially available)
 Clamps (attached)

Fixing the TV to the table

1 Place the TV on the table.
2 Pull the attached restraining bracket out so that it

is at a 90 degrees angle.

3 Insert commercially available screws in the holes

of the restraining bracket and tighten the screws
to secure the TV to the table.

• Use commercially available screws to firmly secure the
TV.

 Restraining bracket (attached)
 Screws (commercially available)

CAUTION

• As this product is heavy, use a table that is wide
enough to support the product and capable of
withstanding the product’s weight. The table should be
set where it will not be overturned.

• Be sure to use at least two people when moving the TV.

 Cup hook (commercially available)
 Tie (commercially available)
 Clamps (attached)

Fixing the TV to the table

1 Place the TV on the table.
2 Pull the attached restraining bracket out so that it

is at a 90 degrees angle.

3 Insert commercially available screws in the holes

of the restraining bracket and tighten the screws
to secure the TV to the table.

• Use commercially available screws to firmly secure the
TV.

 Screws (commercially available)
 Restraining bracket (attached)

CAUTION

• As this product is heavy, use a table that is wide
enough to support the product and capable of
withstanding the product’s weight. The table should be
set where it will not be overturned.

• Be sure to use at least two people when moving the TV.

32

Removing the stand– 40/46LE530X

For wall mounting with the optional bracket (AN-52AG4
or AN-37AG2) remove the stand.

Before setting TV on the wall

• Remove the connected cables (DVD, VCR, etc) from the
terminals.

• Detach the four caps at the 4 locations on the rear of the TV.

1 Unfasten the screw at the location on the rear of

the stand cover and remove the stand cover.

Removing the stand– 60LE630X

For wall mounting with the optional bracket (AN-52AG4)
remove the stand.

Before setting TV on the wall

• Remove the connected cables (DVD, VCR, etc) from the
terminals.

• Detach the four caps at the 4 locations on the rear of the TV.

1 Unfasten the screws at the 4 locations on the rear

of the stand.

2 1 Unfasten the screws at the 3 or 4 locations on

the stand.

2 Detach the stand from the TV.

 40 inch models  46 inch models

NOTE

• To attach the stand, perform the above steps in reverse order.

• As the TV is very heavy, be careful when moving it.

2 Detach the stand from the TV (hold the stand so it

will not drop from the edge of the base area).

NOTE

• To attach the stand, perform the above steps in reverse order.

• As the TV is very heavy, be careful when moving it.

33

Mounting the TV on a wall

To use this TV mounted on a wall, remove the AC cord holder and the screws at the 4 locations on the rear of the TV,
and then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV.

Only for LC-46LE530X

• This TV should be mounted on a wall only with the wall mount bracket and attachment* available from SHARP (See
page 31). The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.

• Mounting the LCD colour TV requires special skills and should only be performed by qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.

• You can ask qualified service personnel about using an optional bracket and attachment* to mount the TV to a wall.

• When you mount the TV on a wall, you should attach the supporting post.

• Detach the AC cord holder on the rear of the TV before mounting the TV on a wall.

* Only for 40 inch models

Hanging on the wall

AN-52AG4 or AN-37AG2 wall mount bracket
(see the bracket instructions for details).

About setting the TV angle

Vertical mounting Angular mounting

34

AN-52AG4

(LC-60LE630X)

AN-52AG4

(LC-46LE530X)

AN-37AG2

(LC-40LE530X)

Dimensional drawings

LC-40LE530X

1

*

642

605

65

885.6

Unit: mm

257

257

47

89

3

*

4

*

19°

20°

53

234

332

959

2

*

2

*

100

498.2

362

460

300

124

300

174

I

The projecting operation buttons

J

Active area

K

Including tip prevention brackets when stored

L

Including tip prevention brackets when attached

LC-46LE530X

1

*

1018.1

682

719

19

I

The projecting operation buttons

J

Active area

K

Including tip prevention brackets when stored

L

Including tip prevention brackets when attached

*

2

215

1093

525

400

2

*

572.7

132

123

400

*

293

*

299

200

400

128 320

286

47

89

3

4

20°

55

263375

35

Dimensional drawings (Continued)

LC-60LE630X

1383

1

*

1329.1

871

838

536

400

52

1

*

747.6

470

230

400

149

333

383

Unit: mm

2

*

26.4

72

5

*

6

*

4

*

3

*

5°

393443

155

114 168

I

Active area

J

Thinnest part

K

Thickest part

215

L

Each dimension (*2 to *3) excludes terminal projections

M

Including tip prevention brackets when stored

N

Including tip prevention brackets when attached

CLEARING THE PASSWORD

If you forget the password, clear the password using the following procedure.

1 Press MENU to display the MENU screen, and then press c/d to select

“Setup”.

2 Press a/b to select “Child lock”, and then press ENTER and the

password input screen display.

3 If you enter “3001” using 0 – 9, the “Child lock” setting menu will be

displayed.

4 Enter the 4-digit number as a password using 0 – 9. The new password is

now set.

The Password is

NOTE

• As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar place.

36

.

Printed in Malaysia
TINS-F214WJZZ
11P07-MA-NG
