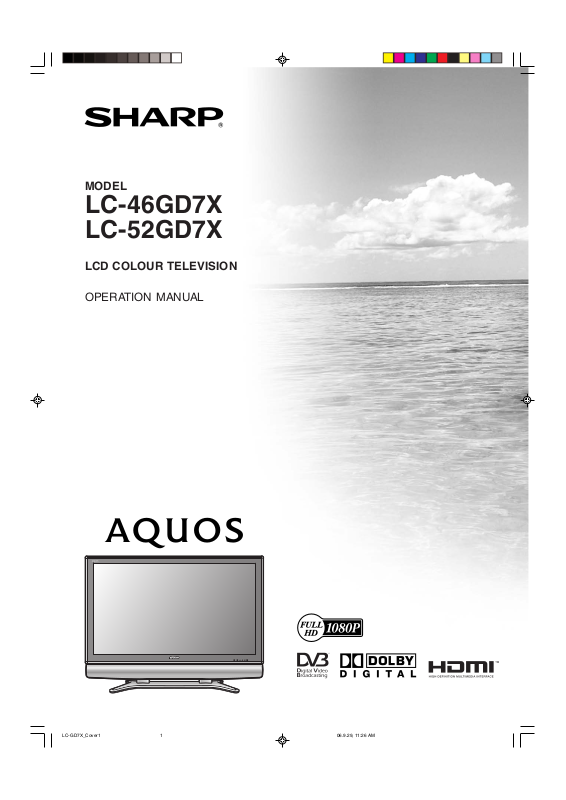

MODEL

LC-46GD7X LC-52GD7X

LCD COLOUR TELEVISION

OPERATION MANUAL

LC-46GD7X LC-52GD7X

LCD COLOUR TELEVISION

OPERATION MANUAL

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.

Dear SHARP customer …………………………………… 1 Contents …………………………………………………… 1 Trademarks ………………………………………………… 2 Important Safety Precautions ………………………… 3 Supplied accessories …………………………………… 4 Preparation ………………………………………………… 5

Inserting the batteries ………………………………… 5 Using the remote control unit ………………………… 5

Cautions regarding remote control unit ……… 5 Setting the TV ………………………………………… 6 Setting the TV on the wall …………………………… 7 Removing the stand …………………………………… 7 Protection against overturning ……………………… 8 Basic connection ……………………………………… 9

Connecting to an antenna ……………………… 9

Connecting to the AC outlet …………………… 9 Connecting a VCR, game console or camcorder … 10 Connecting a DVD player …………………………… 10 Connecting a Digital TV STB (Set Top Box) ………… 11 Connecting a PC ……………………………………… 11

Part names ………………………………………………… 12

TV (Front) ……………………………………………… 12 TV (Rear) ……………………………………………… 13 Remote control unit …………………………………… 14

Watching TV ……………………………………………… 15

Turning on the power ………………………………… 15 Turning off the power ………………………………… 15 Simple button operations for changing channels … 15 Using Flashback (A) on the remote control unit … 16 Using MPX on the remote control unit ……………… 16 Simple button operation for changing

volume/sound …………………………………… 17 Sleep timer …………………………………………… 17 ANALOG/DTV/RADIO buttons ……………………… 18

Basic adjustment settings ……………………………… 19

Menu operation buttons ……………………………… 19 On-Screen Display …………………………………… 19 Menu items (TV/DTV/INPUT1-3) …………………… 20 Menu items (HDMI/DVI) ……………………………… 20 Auto installation ……………………………………… 21 Programme setup……………………………………… 21

Auto search ……………………………………… 21 Manual setting for each channel ……………… 22

Search tuning………………………………… 22 Fine tuning …………………………………… 22 Colour system ……………………………… 23 Sound system (Broadcasting system) …… 23 Labelling channels ………………………… 23 Skipping channels ………………………… 24 Setting the child lock ……………………… 24

Password setting for child lock (for TV/DTV

input mode) See page 39. Sort ………………………………………………… 24 Erase Programme ………………………………… 25

AV MODE selection …………………………………… 26 OPC (Optical Picture Control) setting ……………… 26 Picture adjustments …………………………………… 27 Advanced ……………………………………………… 28

Colour temperature ……………………………… 28 Black ……………………………………………… 28 Quick Shoot ……………………………………… 28 3D-Y/C …………………………………………… 28 Monochrome ……………………………………… 29 Film Mode ………………………………………… 29 Range of OPC …………………………………… 29

Audio adjustment ……………………………………… 30

Surround…………………………………………… 30

Power Control ………………………………………… 31

Contents

Basic adjustment settings (Digital) …………………… 32

DTV input mode menu items ………………………… 32 Selecting DTV mode ………………………………… 32 Programme Guide …………………………………… 33 Info ……………………………………………………… 33 Favourite Programme List …………………………… 33 Programme List ……………………………………… 34 Favourite & Lock ……………………………………… 34 Parental Rate…………………………………………… 34 Installation ……………………………………………… 35 Auto Search …………………………………………… 35 Manual Adjust ………………………………………… 35 Quick Search ………………………………………… 36 Reset Data ……………………………………………… 36 Video Setup …………………………………………… 36 Digital Output ………………………………………… 37 Multilingual …………………………………………… 37 Time Setup …………………………………………… 37 I-Plate Setup (Information Plate Setup) …………… 38 Information …………………………………………… 38 S/W Update (SERVICE ONLY) ……………………… 38

Useful adjustment settings ……………………………… 39

Password setting for child lock

(for TV/DTV input mode) ………………………… 39

Speaker Setup ………………………………………… 40

Connecting external speakers ………………… 40

External Audio Bypass ………………………… 40 Input Skip ……………………………………………… 41 Input Signal (PC input mode only) ………………… 41 Auto Sync. adjustment (PC input mode only) ……… 42 Fine Sync. adjustment (PC input mode only) ……… 42 Input Label …………………………………………… 43 Image position ………………………………………… 43 Wide Screen Signalling (WSS) ……………………… 44 Picture aspect ratio …………………………………… 44 Standby Mode ………………………………………… 45 Reset …………………………………………………… 45 WIDE mode (for TV/AV input mode) ………………… 46 WIDE mode (for PC input mode) …………………… 47 Audio Only ……………………………………………… 48 DNR (Digital Noise Reduction) ……………………… 48 HDMI Setup …………………………………………… 48 Language setting for on-screen display …………… 49 Identification …………………………………………… 49 Colour system setting ………………………………… 49

Using external equipment ……………………………… 50

Displaying an external equipment image ………… 50 Displaying a DVD image (Example) ………………… 50 Input Select …………………………………………… 50

Useful features …………………………………………… 51

Freezing images ……………………………………… 51 Teletext language setting …………………………… 51 Teletext function ……………………………………… 52

Appendix ………………………………………………… 54

Troubleshooting ……………………………………… 54 Troubleshooting (DTV) ………………………………… 54 RS-232C port specifications ………………………… 55 PC compatibility chart ………………………………… 56 Specifications ………………………………………… 57 Optional accessories ………………………………… 57 Removing the speakers ……………………………… 58

Dimensional drawings …………………………………… 59

Trademarks

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• “HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

Important Safety Precautions

• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

• Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

• Do not place vases or any other water-filled containers on this product. The water may spill onto the product causing fire or electric shock.

• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources—Keep the product

away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

• To prevent fire, never place any

type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard,

do not place the AC power cord under the TV set or other heavy items.

• Do not place heavy objects on this

product or stand on it. Doing so could cause injury if the product overturns. Take special care near children and pets.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

• Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

The LCD panel is a very high technology product with 6,220,880 thin film transistors, giving you fine picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue, green or red. This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

Be sure to always carry the TV by two people holding it with two hands—one hand on each side of the TV.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• Install the product in a place where the AC cord can be easily unplugged from an AC outlet and the AC INPUT terminal on the rear of the product.

Supplied accessories

Make sure the following accessories are provided with the product.

Remote control unit “AAA” size battery (g2)

Page 14 Page 5

Cable clamp (g2)

AC cord

Page 6

Operation manualCable clamp

Page 6

Safety restraints

Restraining brackets

NOTE

• Always use the AC cord supplied with the TV.

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations.

• The illustrations used throughout this manual are based on LC-46GD7X.

Screws for brackets

Page 8

Clamps Screws for

Page 6

clamps

Preparation

Inserting the batteries

Before using the TV for the first time, insert two “AAA” size batteries (supplied). When the batteries become depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover. 2 Insert two supplied “AAA” size

batteries.

• Place batteries with their terminals

corresponding to the (e) and (f) indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

3 Close the battery cover.

Using the remote control unit

Use the remote control unit by pointing it towards the remote sensor window. Objects between the remote control unit and sensor window may prevent proper operation.

Cautions regarding remote control unit

• Do not subject the remote control unit to shock. In addition, do not soak the remote control unit with liquids, or place it in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote sensor window of the TV is under direct sunlight or strong lighting. In such case, change the angle of the lighting or TV, or operate the remote control unit closer to the remote sensor window.

5 m

30˚30˚

Remote control sensor

Preparation

Setting the TV

Notes on installing the TV

• Avoid direct sunlight and place the TV in a well-ventilated location.

• Place the TV in a level location.

Removing the terminal cover

TV (rear view)

Press down the hooks to remove the cover toward you.

Connecting the AC cord, antenna, and external equipment to the TV

See pages 9 to 11 for connecting antennas and external equipment, such as VCR and DVD player.

AC outlet

AC cord

• Place the TV close to the AC outlet, and keep the power plug within reach.

Bundling the cables and closing the terminal cover

Insert the cable clamps in the hole on the TV as shown.

Cable clamp

Preparation

Setting the TV on the wall

• You can mount the TV on the wall, using the optional AN-37AG2/AN-52AG1 bracket.

• For details, refer to the instructions supplied with the optional bracket.

CAUTION

• This TV should be mounted on the wall only with the AN-37AG2/AN-52AG1 (SHARP) wall mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using an optional bracket to mount the TV

•

You can ask a qualified service personnel about using an optional AN-37AG2/AN-52AG1 bracket to mount the TV to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-37AG2/AN-52AG1 wall mount bracket. (See the bracket instructions for details.)

Vertical mounting Angular mounting

NOTE

• Detach the cable clamps on the rear of the TV when using the optional mount bracket.

About setting the TV angle and height adjustment

0˚

AN-37AG2 AN-52AG1

Removing the stand

For wall mounting with the optional bracket, remove the stand.

Before attaching/detaching the stand

• Before detaching (or attaching) the stand, unplug the AC cord from the AC outlet.

• Remove all terminal covers and connected cables.

• Make sure two or more people perform the operation.

For AN-52AG1

1 0°/5°/10°/15°/20°

for LC-46GD7X (0°/5°/10°/15° for LC-52GD7X)

2 -5/0/+5 cm

(can be moved 5 cm up or down)

CAUTION

• Do not remove the stand from the TV unless using an optional bracket to mount it.

Unfasten the four screws used to secure the stand in place.

Detach the stand from the TV. (Hold the stand so it will not drop from the edge of the base area.)

NOTE

• To attach the stand, perform the above steps in reverse order.

Preparation

Protection against overturning

There is a danger of the product overturning in the case of a disaster or sudden collision. Carry out the following tip-resistant measurement for your safety.

Anchoring the TV to the wall or a pillar

Fix the product with the 2 clamps (supplied), using the screws (supplied).

Fix the TV to the wall using extra strong ties (commercially available).

View from the top

Cup hook (commercially available)

Wall

Tie (commercially available)

Clamps (supplied)

Screws for attaching clamps (supplied)

Fixing the TV to the table

Restraining

brackets

(supplied)

Place the TV onto a table. Attach the two supplied restraining brackets to the stand with the four supplied screws.

Screws (supplied)

Table

Screws (commercially available)

Insert commercially available screws in the holes of the restraining brackets from the top and tighten the screws to secure the TV to the table.

• Use commercially available screws of the proper size to firmly secure the TV.

CAUTION

• As this product is heavy, use a table that is wide enough to support the product and capable of withstanding the

product’s weight. The table should be set where it will not be overturned.

• Be sure to use at least two people when moving the TV.

Preparation

Simple operations for watching a TV programme

Basic connection

Connecting to an antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for coaxial cable.

Standard DIN45325 plug (IEC169-2) 75-ohm coaxial cable (round cable)

(commercially available)

Antenna cable

Room antenna terminal (75-ohm type)

Connecting to the AC outlet

To antenna

terminal

Rear view

Antenna input terminal (ANALOGUE)

Antenna input terminal (DTV)

AC outlet

NOTE

• Always turn off the power of the TV when connecting the AC cord.

• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.

Preparation

You can connect many types of external equipment to your TV, like a VCR, DVD player, HDTV tuner, game console and camcorder. To view external source images, select the input source from TV/VIDEO on the remote control unit or TV/VIDEO on the TV.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a VCR, DVD player, HDTV tuner, game console, camcorder or other external equipment.

• Please refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

Connecting a VCR, game console or camcorder

A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using the INPUT 3 terminals.

When using S-VIDEO cable (commercially available).

S-VIDEO

VIDEO

AUDIO

VCR/ Game console/ Camcorder

When using composite cable (commercially available).

S-VIDEO

VIDEO

AUDIO

VCR/ Game console/ Camcorder

NOTE

• When the S-video terminal and video terminals are both used, the S-video input takes priority over the video terminals only when “Auto” is selected in “Input Select” setting.

• You can also connect the game console to INPUT 1 or 2 terminals to enjoy clearer picture.

Connecting a DVD player

You can use the INPUT 1/INPUT 2 (component) or INPUT 4/INPUT 5 (HDMI) terminal when connecting to a DVD player and other audiovisual equipment.

NOTE

• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 5.

• When using component cable, select “COMPONENT” for “Input Select” in the menu.

When using HDMI cable (commercially available).

When using component cable (commercially available).

DVD player

(CB)

(CR)

AUDIO

DVD player

Preparation

Connecting a Digital TV STB (Set Top Box)

You can use the INPUT 1/INPUT 2 (component) or INPUT 4/INPUT 5 (HDMI) terminal when connecting to a Digital TV STB and other audiovisual equipment.

NOTE

• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 5.

• When using component cable, select “COMPONENT” for “Input Select” in the menu.

When using HDMI cable (commercially available).

When using component cable (commercially available).

(CB)

(CR)

Digital TV STB

AUDIO

Digital TV STB

Connecting a PC

You can use the INPUT 6 (DVI) terminal when connecting to a PC.

When using DVI cable (commercially available).

DVI-I

AUDIO

(L/R)

Part names

TV (Front)

Channel up (r)/down (s) buttons

Volume up (+)/down (–) buttons

TV/VIDEO button

POWER (On/Off) button

Remote control sensor

OPC sensor

POWER indicator

Regarding the headphone jack

• Use headphones with a stereo mini plug (Ø 3.5 mm).

• Be sure to unplug headphones from the jack when they are not in use.

• The speakers do not output volume when headphones are plugged in.

• Audio adjustments (page 30) do not affect the audio of connected headphones.

• You can set the volume to different levels for each input source.

Headphone jack

OPC indicator*

SLEEP timer indicator

Volume display when headphones are plugged in

*OPC: Optical Picture Control

(See page 26.)

Part names

TV (Rear)

AC INPUT terminal

INPUT 4 (HDMI)

terminal

INPUT 5 (HDMI)

terminal

INPUT 6 terminals

INPUT 5 (AUDIO)

terminals

SERVICE ONLY terminal*

DIGITAL AUDIO OUTPUT terminal (To optical digital input of external audio devices)

INPUT 1 terminals

INPUT 2 terminals

MONITOR OUT

terminals

INPUT 3 terminals

Antenna input terminal (DTV)

RS-232C terminal

*Usually do not connect anything to this terminal as it is reserved only for service personnel.

Antenna input terminal (ANALOGUE)

Part names

Remote control unit

5 6

7 8

12 13

NOTE

• When using the remote control unit, point it at the TV.

1 POWER (STANDBY/ON)

To switch the power on and off. (See page 15.)

2 0–9

TV/DTV/External input mode: Set the channel. (See page 15.) TELETEXT mode: Set the page. (See pages 15, 52 and 53.)

3 A (Flashback)

Press to return to the previous image in normal viewing mode. (See page 16.)

4 DTV MENU

DTV mode: Display DTV Menu screen. (See page 32.)

18 19

20 21

25 26

5 MPX

Select the sound multiplex mode. (See page 16.)

6 e (Mute)

Mute the sound. (See page 17.)

7VOLk/VOLl

Set the volume. (See page 17.)

8 GUIDE

DTV mode: Display the programme list. (See page 33.)

9 SURROUND

Select Surround settings. (See page 30.)

10 EXIT

Turn off the On Screen Display.

11 AV MODE

Select a video setting. (See page 26.)

12 WIDE

Change the wide image mode. (See pages 46 and 47.)

13 FAV.

DTV mode: Display the favourite programme list. (See page 33.)

14 m (TELETEXT)

ANALOGUE mode: Select the TELETEXT mode. (all TV image, all TEXT image, TV/TEXT image) (See pages 52 and

53.) DTV mode: Select the TELETEXT mode. (all TV image, TEXT image)

k (Reveal hidden for TELETEXT)

TELETEXT mode: Display hidden characters. (See page 52.)

[ (SUBTITLE for TELETEXT)

TV/INPUT mode: To turn the subtitles on and off. (See page 53.)

3 (Hold)

TELETEXT mode: Stop updating Teletext pages automatically. Press 3 again to release the hold mode. (See pages 52 and 53.)

1 (Subpage)

TELETEXT mode: Display the Teletext subpage directly. (See page 53.)

v (Top/Bottom/Full)

TELETEXT mode: Set the area of magnification. (See page

52.)

15 TV/VIDEO (INPUT SOURCE)

Select an input source. (TV, DTV, INPUT1, INPUT2, INPUT3, INPUT4, INPUT5, INPUT6) (See pages 10, 43 and 50.)

16 ANALOG

To display analogue screen. (See page 18.)

DTV

Press to access DTV mode while watching other input sources, and vice versa. (See page 18.)

RADIO

Press to access RADIO mode. (See page 18.)

17 DISPLAY

Display the programme information.

18 SLEEP

Set the Sleep timer. (See page 17.)

19 CHr/CHs

TV/DTV input mode: Select the channel. (See page 15.) TELETEXT mode: Select the page. (See pages 52 and 53.)

20 INFO

DTV mode: Display the information plate screen. (See page 33.)

21 MENU

Display the menu screen. (See page 19.)

22 a/b/c/d (Cursor)

Select a desired item on the setting screen. (See pages 19 and 32.)

ENTER

Execute a command. (See pages 19 and 32.)

23 RETURN

MENU mode: Return to the previous menu screen. (See pages 19 and 32.)

24 Colour (Red/Green/Yellow/Blue)

TELETEXT mode: Select a page. (See page 52.)

25 OPC

To switch the OPC function on and off. (See page 26.)

26 FREEZE

Freeze a motion picture on the screen. (See page 51.)

27 INPUT1/INPUT2/INPUT3/INPUT4/INPUT5/INPUT6

Directly select and output the signal from the INPUT1 to INPUT6 terminal.

Watching TV

Turning on the power

Press POWER on the TV.

• POWER indicator (Green): The TV is on. (After a few seconds, an image appears with sound.)

• After turning the power “ON” by pressing POWER on the TV, you can turn the power ON/OFF by pressing POWER on the remote control.

POWER button

POWER indicator

Turning off the power

Press POWER on the remote control.

• The TV enters standby mode and the image on the screen disappears.

• The POWER indicator on the TV changes from green to red.

Press POWER on the TV.

• The POWER indicator on the TV turns off.

• When the TV is turned off by POWER on the TV, you cannot turn on the power by pressing POWER on the remote control.

Simple button operations for changing channels

You can change channels in several ways.

Using CHr/son the remote control unit

• Press CHr to increase the channel number.

• Press CHs

NOTE

• CHr/s on the TV operates the same as CHr/son

the remote control unit.

Using 0 – 9 on the remote control unit

Select the channels directly by pressing buttons 0 to

to decrease the channel number.

POWER indicator

Off

Red

Green

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.

• Minor power is consumed when the TV is turned off by POWER on the TV or when the TV is in standby mode.

Power off

The TV is in standby mode.

The TV is on.

POWER button

To select a 1-digit channel (e.g. channel 2):

• Press 0, followed by 2. To select a 2-digit channel (e.g. channel 12):

• Press 1, followed by 2.

When viewing Teletext information

View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9.

Watching TV

PA L B/G

MONO

BBC2

Using Flashback (A) on the remote control unit

Press A to switch the currently tuned channel to the previously tuned channel. Press A again to switch back to the currently tuned channel.

Press A to toggle between the currently selected input source and the previously selected one.

Press A to return to the previous page in TELETEXT mode.

Using MPX on the remote control unit

When receiving a monaural signal

Each time you press MPX, the mode switches between NICAM MONO and MONO.

Monaural mode

NICAM

BBC2

PA L B/G

MONO

BBC2

PA L B/G

MONO

In the TV mode of A2 TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between STEREO and MONO.

Stereo mode

BBC2

PA L B/G

STEREO

BBC2

PA L B/G

MONO

When receiving a bilingual signal

Each time you press MPX, the mode switches among CH A, CH B and CH AB.

Bilingual mode

In the NICAM TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between NICAM STEREO and MONO.

Stereo mode

NICAM

BBC2

PA L B/G

STEREO

BBC2

PA L B/G

MONO

When receiving a bilingual signal

Each time you press MPX, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

Bilingual mode

BBC2

PA L B/G

CH A

BBC2

PA L B/G

CH B

PA L B/G

CH AB

When receiving a monaural signal When you press MPX, “MONO” displays.

Monaural mode

NOTE

• “BBC2”, “99” and “PAL” are tentative network name, channel and colour system.

BBC2

PA L

NICAM NICAM

B/G

CH A

BBC2

PA L B/G

MONO

NICAM

BBC2

PA L B/G

CH B

BBC2

PA L B/G

CH AB

Watching TV

Simple button operation for changing volume/sound

NOTE

• Within 30 minutes after pressing e, press one of the buttons below to cancel the mute.

—VOL —e

• Mute will be cancelled after 30 minutes. However, the

TV will not suddenly output loud sound as the volume level will be set to 0 automatically. Increase the volume level by pressing VOLk.

f/VOL

Press e again within 30 minutes to cancel the mute.

• Before 30 minutes, the volume level returns to the previous setting.

Sleep timer

Allows you to set a time when the TV automatically switches to standby.

Press SLEEP.

• Remaining time displays when sleep timer has been set.

Sleep Timer: Remain 2 hr. 00 min.

Changing the volume

You can change the volume on the TV or on the remote control unit.

• To increase the volume, press VOL

• To decrease the volume, press VOL

NOTE

• “TV”, “DTV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4”, “INPUT5 and “INPUT6” modes can store volume adjustment values separately.

Using Mute (e) on the remote control unit

e mutes the current sound output.

Press e.

• The sound is silenced.

•“M” has been displayed on the screen for 30

minutes.

Mute

Each time you press SLEEP, the remaining time switches as shown below.

0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min.

Off

NOTE

• The sleep timer indicator on the TV lights up when the time has been set.

• When the time has been set, countdown automatically starts.

• Five minutes before the preset of time expires, the remaining time displays each minute.

• Select “Off” by pressing SLEEP to cancel the sleep timer.

2 hr. 30 min. 2 hr. 00 min.

Watching TV

ANALOG/DTV/RADIO buttons

Use the following buttons on the remote control to operate the menu.

When you watch the TV for the first time

When the TV powers on for the first time after purchase, perform the auto installation.

Analogue TV

You can run the auto installation to set channels automatically.

To watch the analogue TV, select “Auto Installation” from Setup menu. (See page 21.)

After setting the channels, you can select a channel using CH r/s or 0-9 on the remote control unit. (See page 15.)

DTV

When the TV accesses to DTV mode for the first time, you need to run the auto search. To scan all available services in your area, follow the procedures below.

To watch DTV broadcasts, select “Auto Search” from Installation menu. (See page

35.)

ANALOG: Press to switch to analogue mode.

After switching from DTV, radio or external input mode to analogue mode, the TV jumps to the most recently viewed analogue channel.

DTV: Press to switch to DTV mode. After

switching from analogue, radio or external input mode to DTV mode, the TV jumps to the most recently viewed DTV channel.

After setting the channels, you can select a channel using CH r/s or 0-9 on the remote control unit. (See page 15.)

RADIO: Press to switch to radio mode. After

switching from analogue, DTV or external input mode to radio mode, the TV jumps to the most recently tuned radio channel.

Basic adjustment settings

Menu operation buttons

Use the following buttons on the remote control to operate the menu.

On-Screen Display

(Example)

...

[

Option

Audio Only

DNR

Input Select

Colour System

Input Select

1 Item displayed in yellow

• This indicates the item currently selected.

• Press ENTER to go to the adjustment screen for this item.

2 Item in brackets

• This indicates the current setting for the item.

3 Item displayed in white

• This indicates an item can be selected.

4 Item displayed in grey

• This indicates that the item cannot be selected. *There are various reasons why items cannot

be selected, but the main reasons are as follows:

1. Nothing is connected to the selected input terminal.

2. The function is not compatible with the current input signal.

[VIDEO]

[Auto]

]

2 3

MENU: Press to open or close the menu

screen.

a/b/c/d: Press to select a desired item on the

screen or adjust a selected item.

ENTER: Press to go to the next step or

complete the setting.

RETURN: Press to return to the previous step.

ENTER

: Select : Enter

RETURN

: Back

: End

The bar above is an operational guide for the remote control. The bar will change in accordance with each menu setting screen.

NOTE

• Menu options differ in the selected input modes, but the operating procedures are the same.

• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens.

Basic adjustment settings

Menu items (TV/DTV/INPUT1-3)

List of menu items to help you with operations


OPC ................................................ Page 26

Backlight ........................................ Page 27

Contrast ......................................... Page 27

Brightness ..................................... Page 27

Colour ............................................ Page 27

Tint ................................................. Page 27

Sharpness ...................................... Page 27

Advanced

Colour Temp. ....................... Page 28

Black .................................... Page 28

Quick shoot ......................... Page 28

3D-Y/C .................................. Page 28

Monochrome ....................... Page 29

Film Mode ............................ Page 29

Range of OPC...................... Page 29

Audio

Treble.............................................. Page 30

Bass ............................................... Page 30

Balance .......................................... Page 30

Surround ........................................ Page 30

Menu items (HDMI/DVI)

List of menu items to help you with operations


OPC ................................................ Page 26

Backlight ........................................ Page 27

Contrast ......................................... Page 27

Brightness ..................................... Page 27

Colour ............................................ Page 27

Tint ................................................. Page 27

Sharpness ...................................... Page 27

Advanced

Colour Temp. ....................... Page 28

Black .................................... Page 28

Quick shoot ......................... Page 28

Monochrome ....................... Page 29

Film Mode ............................ Page 29

Range of OPC...................... Page 29

Audio

Treble.............................................. Page 30

Bass ............................................... Page 30

Balance .......................................... Page 30

Surround ........................................ Page 30

Power Control

No Signal Off ................................. Page 31

No Operation Off ........................... Page 31

Setup

Auto Installation ............................ Page 21

Programme Setup .................. Pages 21-25

Child Lock ...................................... Page 39

Speaker Setup ............................... Page 40

Input Skip....................................... Page 41

Input Label ..................................... Page 43

Position .......................................... Page 43

WSS ................................................ Page 44

4:3 Mode ........................................ Page 44

Standby mode ............................... Page 45

Language ....................................... Page 49

Text Language ............................... Page 51

Identification.................................. Page 49

Reset .............................................. Page 45

Option

Audio Only ..................................... Page 48

DNR ................................................ Page 48

Input Select.................................... Page 50

Colour System............................... Page 49

Power Control

No Signal Off ................................. Page 31

No Operation Off ........................... Page 31

Setup

Speaker Setup ............................... Page 40

Input Skip....................................... Page 41

Input Signal ................................... Page 41

Auto Sync. ..................................... Page 42

Input Label ..................................... Page 43

Fine Sync. ...................................... Page 42

Position .......................................... Page 43

Standby mode ............................... Page 45

Language ....................................... Page 49

Reset .............................................. Page 45

Option

Audio Only ..................................... Page 48

DNR ................................................ Page 48

Input Select.................................... Page 50

HDMI Setup .................................... Page 48

NOTE

• Some menu items may not be displayed depending on the selected input source.

Basic adjustment settings (Analogue)

Auto installation

You can run auto installation again, even after setting up the preset channels.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Auto Installation”, and then press ENTER.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Speaker Setup

Input Skip

Position

WSS

4:3 Mode

Standby Mode

Language

Text Language

Identification

Reset

Auto Installation

[Panorama]

[English]

[West Europe]

[Mode1]

]

[On]

If you have already set the password, enter it here. If not, enter the factory preset password “1234”.

• See page 39 for setting a password.

––––

Programme setup

You can run the auto search procedure again at any time by accessing the Setup menu and Programme Setup. Channels can be tuned automatically or manually.

Auto search

You can also automatically search by performing the procedure below. This is the same function as programme auto search in auto installation.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press ENTER. If you have already set the password, enter it here. If not, enter the factory preset password “1234”.

• See page 39 for setting a password.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Speaker Setup

Input Skip

Position

WSS

4:3 Mode

Standby Mode

Language

Text Language

Identification

Reset

Programme Setup

[Panorama]

[Mode1]

[English]

[West Europe]

]

[On]

Press a/b to select “Auto Search”, and then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

Press a/b to select the desired language listed on the screen, and then press ENTER. After this setting, auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting

You do not need to do anything during the auto search.

NOTE

• After performing step 6, the menu screen shown in step 3 will reappear. Do not turn off the TV before then, because the TV is saving the data found.

Press c/d to select “Yes”, and then press ENTER.

• Auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting

NOTE

• After performing step 5, the menu screen shown in step 3 will reappear. Do not turn off the TV before then, because the TV is saving the data found.

Basic adjustment settings (Analogue)

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

[179.25]

[Auto]

[B/G]

[Off]

[SAT.1]

[Off]

179.25 MHz

[

Setup

...

Programme Setup

]

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

[179.25]

[Auto]

[B/G]

[Off]

[SAT.1]

[Off]

179.25 MHz

Store

Cancel

Manual setting for each channel

You can set some channel items manually. They are Search, Fine (TV frequency), Colour sys., Sound sys., Label (Network name), Skip and Lock (Child Lock).

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press ENTER. If you have already set the password, enter it here. If not, enter the factory preset password “1234”.

• See page 39 for setting a password.

Press a/b to select “Manual Adjust”, and then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

Search tuning

Press a/b/c/d to select the channel you want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Search”, and then press ENTER.

Press a/b to select item and press ENTER.

• Next: Search the next channel.

• Store: Memorise the current display channel.

• Cancel: Return to the previous screen. (The search result will not be stored.)

Fine tuning

Programme Setup “Manual Adjust” menu

01 SAT.1 02 PR07 03 KABEL

You can select one of the following settings.

1 Search (See page 22.) 2 Fine (See page 22.) 3 Colour system (See page 23.) 4 Sound system (See page 23.) 5 Label (See page 23.) 6 Skip (See page 24.) 7 Lock (See page 24.)

Press a/b/c/d to select the channel you want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Fine”, and then press ENTER.

Press c/d to adjust the frequency, and then press ENTER.

• Adjust while checking the background picture as a reference.

• Instead of the method above, you can also set by directly entering the frequency number of the channel with 0 – 9.

• When setting a frequency on the “Fine” screen, the last figure of the frequency needs to be “0” or “5”.

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s ENTER.

Basic adjustment settings (Analogue)

Manual setting for each channel (continued)

Colour system

Press a/b/c/d to select the channel you want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Colour sys.”, and then press ENTER.

• Receivable colour systems are listed.

Colour system menu

...

[

Setup

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Programme Setup

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

Press a/b to select the optimum colour system, and then press ENTER.

]

Auto

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

Labelling channels

When a TV channel sends its Network Name, the auto installation detects the information and assigns a name to it. However, you can change individual channel names.

Press a/b/c/d to select the channel you want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Label”, and then press ENTER.

• Alphabets and numbers are listed.

Labelling menu

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b/c/d to select each character

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

– _

0123456789

CLEAR

BACK

END

of the new name for the channel, and then press ENTER.

Sound system (Broadcasting system)

Press a/b/c/d to select the channel you want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Sound sys.”, and then press ENTER.

• Receivable sound systems (Broadcasting systems) are listed.

Sound system menu

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b to select the optimum sound

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

system, and then press ENTER.

B/G

D/K

Repeat until the name is fully spelt out.

• The name can be 5 characters or less.

• When you want to set a channel name of less than 5 characters, select “END”, then press ENTER to exit from the labelling menu.

Basic adjustment settings (Analogue)

Manual setting for each channel (continued)

Skipping channels

Channels with “Skip” set to “On” are passed over when using CHr/s even if selected while watching the image from the TV.

Press a/b/c/d to select the channel you want to edit, and then press ENTER.

• The selected channel information will be displayed.

Press a/b to select “Skip”, and then press ENTER.

• Skip menu displays.

Skip menu

...

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

[

Setup

Programme Setup

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

]

Off

Sort

Channel positions can be sorted freely.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press ENTER. If you already set the password, enter it here.

• See page 39 for setting a password.

Press a/b to select “Sort”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

Press a/b/c/d to select the channel you want to move, and then press ENTER.

Press a/b to set “Skip” to “On”, and then press ENTER.

Setting the child lock

You can block the viewing of any channel.

Press a/b/c/d to select the channel you want to edit, and then press ENTER.

• The selected channel information will be displayed.

Press a/b to select “Lock”, and then press ENTER.

• Child lock menu will be displayed.

Lock menu

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b to set “Lock” to “On”, and then press ENTER.

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

Off

Move it to the desired position by pressing a/b/c/d, and then press ENTER.

Repeat the steps 6 and 7 until all desired channels are sorted.

Sort menus

01 SAT.1

0106SAT.1 KABEL

02 03 04 05

01 SAT.1 02 KABEL

01 SAT.1 KABEL02

NOTE

• See page 39 for setting a password.

• If “Lock” is set to “On” for a channel, “Child lock has been activated.” is displayed when you select the channel, and the image and sound of the channel is blocked.

• When pressing ENTER while “Child lock has been activated.” is displayed, password input menu will be displayed. Inputting the correct password lifts the child lock temporarily until the power is turned off.

01 KABEL

01 KABEL SAT.102

Basic adjustment settings (Analogue)

Erase Programme

The individual programme can be erased.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press ENTER. If you already set the password, enter it here.

• See page 39 for setting a password.

Press a/b to select “Erase Programme”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

Press a/b/c/d to select the channel you want to erase, and then press ENTER.

• A message screen pops up.

Press c/d to select “Yes”, and then press ENTER to erase the selected programme. All the subsequent programmes move up.

Repeat the steps 6 and 7 until all desired channels are erased.

Erase programme menus

01 SAT.1

SAT.1

Pro702 KABEL03 04 05

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

02 Pro7

01 SAT.1 03 KABELPro702

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

04 05

02 KABEL

01 SAT.1 02 KABEL

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

03 04 05

Basic adjustment settings (Analogue/Digital)

AV MODE selection

AV MODE gives you 7 viewing options to choose from to best match the system environment, which can vary due to factors like room-brightness, type of programme watched or the type of image input from external equipment.

Using AV MODE on the remote control unit

When the input source is TV, INPUT1, 2 or 3 terminals (Example)

AV MODE: STANDARD

AV MODE: DYNAMIC

AV MODE: DYNAMIC (Fixed)

When the input source is INPUT4, 5 or 6 terminals (Example)

AV MODE: STANDARD

Press AV MODE.

• Present AV MODE displays.

Press AV MODE again before the mode displayed on the screen disappears.

• The mode changes as shown below.

AV MODE: MOVIE

AV MODE: GAME

AV MODE: USER [TV]

AV MODE: MOVIE

NOTE

• You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.)

OPC (Optical Picture Control) setting

You can set the TV to automatically adjust the screen to suitable backlight brightness according to the lighting conditions.

Using OPC on the remote control unit

Press OPC to switch the OPC function on and off.

Using OPC on the menu screen

Press MENU and the MENU screen displays.

AV MODE: DYNAMIC

AV MODE: DYNAMIC (Fixed)

Selected item

STANDARD

MOVIE

GAME

USER

DYNAMIC (Fixed)

DYNAMIC

AV MODE: GAME

AV MODE: PC

AV MODE: USER [ ]

Description

For a highly defined image in a normally bright room

For a movie Lowers image brightness for easier viewing. For PC. (Available only when inputting an

HDMI or DVI signal.) Allows the user to customise settings as

desired. You can set the mode for each input source.

Changes the image and sound settings to the factory preset values. No adjustments are allowed.

For a clear-cut image emphasising high contrast for sports viewing

Press c/d to select “Picture”.

Press a/b to select “OPC”.

Press c/d to select the desired item, and then press ENTER.

Selected item

Off

On: Display

The brightness is fixed at the value set in “Backlight” (See page 27).

Automatically adjusts

Displays the OPC effect on the screen while adjusting the brightness of the screen.

NOTE

• Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

Description

Basic adjustment settings (Analogue/Digital)

Picture adjustments

You can adjust the picture to your preference.

Follow the steps to adjust the picture.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

Adjustments items

[

]


Picture Audio

STANDARD

OPC

Backlight [+14] –16

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

Selected item cbutton

Backlight

Contrast

Brightness

Off On On: Display

[+30]

[0]

–30

[0]

–30

[0]

–30

[0]

–10

The screen dims

For less contrast

For less brightness

+16

+40

+30

+10

dbutton

The screen brightens

For more contrast

For more brightness

NOTE

• For resetting all adjustment items to factory preset values,

press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER.

Colour

Tint

Sharpness

For less colour intensity

Skin tones become purplish

For less sharpness

For more colour intensity

Skin tones become greenish

For more sharpness

NOTE

• Select “Advanced” and then press ENTER to set “Colour Temp.”, “Black”, “Quick shoot”, “3D-Y/C”, “Monochrome”, “Film Mode” or “Range of OPC”. See pages 28 and 29.

Basic adjustment settings (Analogue/Digital)

Advanced

Advanced setting enables you to set the picture adjustment in more detail. There are seven options you can choose from.

Colour temperature

Adjusts the colour temperature to give the best white image.

Black

For easier viewing, change the viewing depth by selecting a level for automatically adjusting the dark portion of an image.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “Colour Temp.”, and then press ENTER.

Press a/b to select the desired level, and then press ENTER.

Selected item

High Mid-High Middle Mid-Low Low

Description

White with bluish tone

White with reddish tone

Repeat steps 1 to 3 in Colour temperature.

Quick Shoot

Use Quick Shoot to view fast-action video more clearly.

Repeat steps 1 to 3 in Colour temperature.

Press a/b to select “Quick Shoot”, and then press ENTER.

Press c/d to select “Advanced”, and then press ENTER.

Selected item

Advanced Standard

NOTE

• Quick Shoot may cause image noise. If this occurs, set the function to “Standard”.

• Quick shoot is not selectable on 50Hz input signals, e.g. PAL 50Hz.

For obtaining a clear image Normal image

Description

3D-Y/C

Provides high quality images with minimal dot crawl and cross colour noise.

Repeat steps 1 to 3 in Colour temperature.

Press a/b to select “3D-Y/C”, and then press ENTER.

Colour Temp.

Black

Quick Shoot

3D – Y/C

Monochrome

Film Mode

Range of OPC

Standard

Fast

Slow

Selected item

On Off

Press a/b to select “Black”, and then press ENTER.

Press c/d to select “On”, and then press ENTER.

Colour Temp.

Black

Quick Shoot

3D - Y/C

Monochrome

Film Mode

Range of OPC

For high detail in black portions

No adjustment

On Off

Description

Press a/b to select the desired level, and then press ENTER.

Selected item

Standard Fast Slow

NOTE

• 3D-Y/C is not selectable depending on the input signal type.

• 3D-Y/C may not operate depending on the input signal type or noisy input signal.

Normal adjustment

For movie image

For still image

Description

Basic adjustment settings (Analogue/Digital)

Monochrome

For viewing a video in monochrome.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “Monochrome”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

Film Mode

Automatically detects a film-based source (originally encoded at 24/25 frames/second, depending on the vertical frequency), analyses it then recreates each still film frame for high-definition picture quality.

Repeat steps 1 to 3 in Monochrome.

Press a/b to select “Film Mode”, and then press ENTER.

Range of OPC

The brightness level range of the OPC sensor’s automatic adjustments can be set according to your preferences. The adjustment range of the OPC sensor can be set to a maximum of +16 and a minimum of

-16.

Selected item

Max. Min.

• The range of OPC can only be adjusted when the OPC is set to On.

• The maximum setting cannot be set to a smaller number than the minimum setting.

• The minimum setting cannot be set to a bigger number than the maximum setting.

• The maximum and minimum settings cannot be set to the same number.

• Depending on the brightness of the surrounding light, the OPC sensor might not operate if the adjustment range is small.

Repeat steps 1 to 3 in Monochrome.

Press a/b to select “Range of OPC”, and then press ENTER.

Press a/b to select “Max.” or “Min.”, and then adjust the item to the desired position.

Description

-15 through +16

-16 through +15

NOTE

• Film Mode is not selectable depending on the input signal type.

Press c/d to select “On”, and then press

ENTER.

NOTE

Basic adjustment settings (Analogue/Digital)

Audio adjustment

You can adjust the sound quality to your preference with the following settings.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

[

]

Audio

Audio Power Control

STANDARD

Treble

Bass

Balance

Surround

Reset

[0] –15

[0]

–15

[0]

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

+15

[Off]

Surround

When you set to “On”, you can enjoy surround sound, the same as if you were in a movie theatre.

Using SURROUND on the remote control unit

Press SURROUND to switch the Surround function on and off.

Selected item Description

Off

Makes it possible to enjoy natural, realistic surround sound.

Outputs the normal sound.

Using Surround on the menu screen

You can produce Surround effects from the “Audio” setting.

Selected item cbutton

Treble

Bass

Balance

For weaker treble

For weaker bass

Decrease audio from the right speaker

dbutton

For stronger treble

For stronger bass

Decrease audio from the left speaker

NOTE

• For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER.

• Audio menu items are greyed out when headphones are in use.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

Press a/b to select “Surround”, and then press ENTER.

...

[

Audio

Audio Power Control

Surround

]

STANDARD

+15

[Off]

Treble

Bass

Balance

Surround

Reset

Press c/d to select “On”, and then press

[0] –15

[0]

–15

[0]

ENTER.

NOTE

• Audio menu items are greyed out when headphones are in use.

Basic adjustment settings (Analogue/Digital)

Power Control

Power control setting allows you to save energy.

No Signal Off

When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes.

• “Disable” is factory preset value.

• When a TV programme finishes, this function may not operate.

No Operation Off

When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

• Power control menu displays.

Press a/b to select “No Signal Off”, and then press ENTER.

Press c/d to select “Enable”, and then press ENTER

• Five minutes before the power shuts down, remaining time displays every minute.

NOTE

• “Disable” is factory preset value.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

• Power control menu displays.

Press a/b to select “No Operation Off”, and then press ENTER.

Press c/d to select “Enable”, and then press ENTER.

• Five minutes before the power shuts down,

remaining time displays every minute.

NOTE

Basic adjustment settings (Digital)

DTV input mode menu items

List of DTV menu items to help you with operations

Programme Programme List ....................................................................................................... Page 34

Edit Channel

Setup

Option

NOTE

• The illustrations and on-screen displays in this manual are for explanation purposes and may vary slightly from the actual operations.

Installation Auto Search .................................................................. Page 35

System Setup

Information .............................................................................................................. Page 38

S/W Update (SERVICE ONLY) ................................................................................ Page 38

Favourite & Lock ........................................................... Page 34

Parental Rate................................................................. Page 34

Manual Adjust ............................................................... Page 35

Quick Search ................................................................ Page 36

Reset Data .................................................................... Page 36

Video Setup................................................................... Page 36

Audio Setup

Time Setup .................................................................... Page 37

I-Plate Setup.................................................................. Page 38

Digital Output ..............................Page 37

Multilingual ..................................Page 37

Selecting DTV mode

Press DTV MENU to directly display DTV menu screen.

DTV Menu > Programme

Programme

Setup

Option

DTV MENU: Press to open or close DTV menu screen.

a/b/c/d: Press to select a desired item on the screen

or adjust a selected item.

ENTER: Press to go to the next step or complete the setting.

RETURN: Press to return to the previous step.

Basic adjustment settings (Digital)

Programme Guide

You can check the schedule of DTV events and view detailed information about current or future events.

Press GUIDE to display the programme guide list.

Press a/b to display your desired programme, and then press ENTER.

• When you press ENTER, the TV jumps to the channel.

03-0001

BBC ONE

03-0002

BBC TWO

03-0030

CBBC Channel

03-0040

BBC NEWS 24

12-0021 ABC Melbour ne

Programme Guide

ABC 12:11 Now

ABC2 ( 11:04 - 12:03 ) [Montreux Jazz Festival 2003]

Next ABC2 ( 12:03 - 13:30 ) [The New Inventors]

Info

While watching DTV you can check the extended programme information on the screen using INFO on the remote control.

Favourite Programme List

When you are watching terrestrial TV channels, you can call up the Favourite Programme List using FAV. on the remote control.

Press FAV. to display the Favourite Programme List.

Press a/b to select your desired channel, and then press ENTER.

Favourite Programme List

0002

0030

0040

BBC TWO

CBBC Channel

BBC NEWS 24

15432

INFO

12-0021 11:52 TTX MpegJun.25 G

ABC Melbourne

ABC2

NOW : Montreux Jazz Festival 2003

11:04 - 12:03

NEXT : The New Inventors

General INFO screen

1 Current channel number 2 Date and current local

time

3 Teletext 4 Audio system

(Dolby D or MPEG)

5 Parental rate

NOTE

• While the I-Plate is still on the screen, you can press INFO on the remote control again to call up the extended programme information of the current TV channel.

• Press INFO again and you call up the extended information on the next programme.

• Pressing INFO again will not display the information for the next programme if “No Available Event Text” under “Next” is displayed.

6 Station name 7 Service name 8 Current programme

name

9 Time for the current

programme

0 Next programme name

NOTE

• Refer to “Favourite & Lock” to register channels to your Favourite Programme List. (See page 34.)

Changing channels within the Favourite Programme List

Repeat steps 1 and 2 in Favourite Programme List.

Select the registered channels in the Favourite Programme List using CHr/s on the remote control unit or the TV.

• The information plate pops up with the “ ” symbol on the left of the channel.

Selecting channels other than Favourite programmes

Directly input the number of the channel you want to watch using 0-9 on the remote control unit or select the channel from “Programme List” in the “Programme” menu.

Basic adjustment settings (Digital)

Programme List

You can select the desired programme from the programme list.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Programme”, and then press ENTER.

Press a/b to select “Programme List”, and then press ENTER.

Programme List

Edit Channel

TV Programme List

0001 BBC ONE

0002 BBC TWO

0030 CBBC Channel

0040 BBC NEWS 24

Press a/ b to select your desired programme number and name, and then press ENTER.

Favourite&Lock

Assign channels to Lock or to Favourite groups.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Programme”, and then press ENTER.

Press a/b to select “Edit Channel”, and then press ENTER. If you have already set the password, enter it here. If not, enter the factory preset password “1234”.

• See page 39 for setting a password.

Press a/b to select “Favourite & Lock”, and then ENTER.

Favourite & Lock

Parental Rate

CH No CH Name FAV Lock

03-0001

03-0002

03-0030

03-0040

BBC ONE

BBC TWO

CBBC Channel

BBC NEWS 24

Press c/d to select “Lock” or “Fav”, and then press ENTER.

Selected item

Lock

Fav.

When the channel is locked, you must enter your Password whenever you tune to the channel.

You can easily select your favourite channel from the Favourite Programme List.

NOTE

• Press ENTER again to cancel “FAV” ( ) or “Lock” ( ) settings.

Description

Parental Rate

This function allows TV channels to be restricted. It prevents children from watching violent or sexual scenes that may be considered inappropriate.

Selected item

General and above (G)

Parental Guidance and above (PG)

Mature and above (M)

Mature Adult and above (MA)

Adult Violence (AV)

Restricted and above (R)

No Block (-)

Repeat steps 1 to 3 in Favourite & Lock.

Press a/b to select “Parental Rate”, and then ENTER.

Favourite & Lock

Parental Rate

General and above

Parental Guidance and above

Mature and above

Mature Adult and above

Adult Violence

Press a/b to select your desired rating, and then press ENTER.

Description

Content is not offensive to most viewers.

Content is such that parents may not want their children to view the programme.

Mature Audience only. This programme is specifically designed to be viewed by adults and therefore may be unsuitable for children under 15.

Mature Adult only. Mature Audience only. This programme is specifically designed to be viewed by adults and therefore may be unsuitable for children under 15.

Not for children under age 15. Strong elements of sex and/or violence.

Not for children under age 18. Strong elements of sex and/or violence.

Cancel the blocking.

Press a/b to select your desired channel.

Basic adjustment settings (Digital)

Installation

The first time the receiver is powered on, “Database is empty” or “No Channel Available” will display on the screen. Under the main menu, select “Installation” and enter into the sub-menu.

Auto Search

You can automatically search for and download TV channels.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Setup”, and then press ENTER.

Press a/b to select “Installation”, and then press ENTER. If you have already set the password, enter it here. If not, enter the factory preset password “1234”.

• See page 39 for setting a password.

Press a/b to select “Auto Search”, and then press ENTER.

Manual Adjust

You can set some channel items manually.

Repeat steps 1 to 3 in Auto Search.

Press a/b to select “Manual Adjust”, and then press ENTER.

Press 0 – 9 or c/d to select a channel number.

Press a/b to select the desired menu item, and make sure the parameters are correct.

Auto Search

Manual Adjust

Quick Search

Reset Data

Channel No :

Frequency : 778000KHz

Signal Level :

Quality :

SNR :

94%

100%

25dB

Start Scan

Press c/d to select “Yes”, and then press

ENTER.

Auto search starts.

• Programme auto search

You do not need to do anything during the auto search.

NOTE

• Once the DTV signal is scanned, the channel number and programme name will be shown on the programme list.

• The indicator operates concurrently with scanning channels and shows the progress made.

Press a/b to select “Start Scan”, and then press ENTER.

NOTE

• If a signal locks in, “Start Scan” will change to “Get Channel Success”. Then you can press EXIT to leave the installation page and watch a programme or continue scanning for other channels. Anytime you watch a DTV channel and want to know the “Signal Level”, “Quality” or “SNR”, enter into this page.

• If a signal does not lock in, “Start Scan” will show “Timeout Error”. You can scan the signal again, or refer to the “Signal Level” and “Quality” for aligning the direction of the antenna to get the signal.

• Signal Level: The signal power or intensity from the broadcasted frequency. Quality: The clean level of the signal from the broadcasted frequency.

SNR: The rate of signal and noise to radiated frequency.

Basic adjustment settings (Digital)

Quick Search

If you live in the cities or regions listed in the “Quick Search” menu, you can scan all DTV channel signals.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Setup”, and then press ENTER.

Press a/b to select “Installation”, and then press ENTER. If you have already set the password, enter it here. If not, enter the factory preset password “1234”.

• See page 39 for setting a password.

Press a/b to select “Quick Search”, and then press ENTER.

Auto Search

Manual Adjust

Quick Search

Reset Data

Video Setup

This function allows you to select an output format.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Setup”, and then press ENTER.

Press a/b to select “System Setup”, and then press ENTER.

Press a/b to select “Video Setup”, and then press ENTER.

Video Setup

Audio Setup

Time Setup

I-Plate Setup

Output Format

Fix

Auto

Quick Search

Adelaide

Brisbane

Melbourne

Perth

Sydney

Press a/b to select your city or region listed on the screen, and the press ENTER.

NOTE

• If channel frequency is changed by the local TV station or a new channel comes up, you have to scan these channels using “Manual Adjust”.

Reset Data

Use this function to clear the channel data.

Repeat steps 1 to 3 in Quick Search.

Press a/b to select “Reset Data”, and then press ENTER.

Press a/b to select your desired item, and then press ENTER.

Selected item

Fix

Auto

Description

Displays every DTV broadcast converted to1080i.

Displays the DTV broadcast in the format it is received.

Press c/d to select “Yes”, and then press

ENTER.

Basic adjustment settings (Digital)

Digital Output

This function allows you to select your favourite audio output system.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Setup”, and then press ENTER.

Press a/b to select “System Setup”, and then press ENTER.

Press a/b to select “Audio Setup”, and then press ENTER.

Press a/b to select “Digital output”, and then press ENTER.

Digital Output

Multilingual

Digital Output

PCM

Dolby Digital

Multilingual

You can select a different audio language when the broadcast has different audio language.

Selected item

Repeat steps 1 to 4 in Digital Output.

Press a/b to select “Multilingual”, and then press ENTER.

Digital Output

Multilingual

Audio Language

Language (Dolby D)

Language 1 (Mpeg)

Press a/b to select your desired audio language, and then press ENTER.

Description

Press a/b to select your desired output system, and then press ENTER.

Selected item

PCM

Dolby Digital

The optical output format is normally in PCM.

Dolby Digital audio will be output when there is a Dolby Digital audio signal. The output will be in PCM when there is no Dolby Digital audio signal.

Description

Using Digital Audio Output

It is possible to output audio thought the DIGITAL AUDIO OUTPUT terminal. PCM audio outputs from the terminal.

Language (Dolby D)

Language (Mpeg)

You can enjoy Dolby Digital audio. Outputs Dolby Digital audio from the digital output.

You can enjoy Mpeg audio. Outputs PCM audio from the digital output regardless of the “Digital output” setting.

Time Setup

This function allows you to select your local time zone.

Repeat steps 1 to 3 in Digital Output.

Press a/b to select “Time Setup”, and then press ENTER.

Video Setup

Audio Setup

Time Setup

I-Plate Setup

Time Zone

NSW/ACT

Optical fibre cable (commercially available)

To optical digital input of external audio devices

Press c/d to select your local time zone, and then press ENTER.

Basic adjustment settings (Digital)

I-Plate Setup (Information Plate Setup)

This function allows you to configure the display time and time format for the information plate.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Setup”, and then press ENTER.

Press a/b to select “System Setup”, and then press ENTER.

Press a/b to select “I-Plate Setup”, and then press ENTER.

Press a/b to select your desired item.

Press c/d to select your desired value, and then press ENTER.

Video Setup

Audio Setup

Time Setup

I-Plate Setup

Display Time 5 sec

24 HRTime Format

Information

You can check the current version of the hardware and software on the screen.

Press DTV MENU to display the DTV menu screen.

Press a/b to select “Option”, and then press ENTER.

Press a/b to select “Information”, and then press ENTER.

Information

S/W Update

System Information

S/W Version : AUPI73T14 DT1r11t1f2G

Release Time : MAR 30 2006 19:00:35

S/W Update (SERVICE ONLY)

This function is only for service personnel to use for software updates.

Useful adjustment settings

Password setting for child lock (for TV/DTV input mode)

Allows you to use a password to protect certain settings from being accidentally changed.

Setting a password

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then press ENTER.

Resetting the password

Allows you to reset your password.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then press ENTER.

Enter the password.

––––

Press a/b to select “Reset”, and then press

ENTER.

Press c/d to select “Yes”, and then press ENTER.

Change password

Reset

If you already set the password, enter it here. If not, enter the factory preset password “1234”.

––––

Press a/b to select “Change password”, and then press ENTER.

Change password

Reset

New Password

Reconfirm

–––

–

––––

Enter the 4-digit number as a password using 0 – 9.

Change password

Reset

New Password

Reconfirm

–––

–

––––

Yes No

NOTE

• As a precautionary measure, make a note of your

password and keep it in a familiar place. If you lose or forget your password, initialise the TV to return all settings except for the TV channel settings to factory preset values. (See page 59.)

• This function is only available for TV/DTV input mode.

• To relock a channel which has been temporarily unlocked by inputting the correct password, turn power off and then on again.

Enter the same 4-digit number as in step 6 to confirm.

• “The new password was registered.” displays.

NOTE

• To view a locked channel (Lock setting in Programme Setup “Manual Adjust” is set to “On”), you must enter a password. (See page 24.) When you select a locked channel, a password prompt message pops up. Press

ENTER to display the password input window.

Useful adjustment settings

Speaker Setup

Connecting external speakers

Rear view

Press POWER on the top TV panel to turn it off.

Connect external speakers to the TV.

External Audio Bypass

External Audio Bypass automatically optimises the audio quality to suit internal (supplied) speakers.

Selected item

Yes

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Speaker Setup”, and then press ENTER.

Press a/b to select “External Audio Bypass”, and then press ENTER.

Press c/d to select “Yes” or “No”, and then press ENTER.

Description

When you are using your own speakers, output the original sound.

Sets the optimum audio for the internal (supplied) speakers.

LeftRight

External speakers

Connecting speaker cables

Push up the tab.

Insert the end of the cable

into the hole while pressing up on the tab.

Release the tab.

CAUTION

• Make sure external speakers have 4 ohm and 15 watt specifications.

• Speaker terminals and speaker cables have plus and minus polarities. Make sure that each polarity of terminals and cables is connected with the same polarity when connecting external speakers.

• Insert the speaker cable’s lead wire carefully so that it goes straight to the hole of the speaker terminal. The speaker cable needs to be firmly inserted until the speaker cable’s lead wire reaches the metal part of the speaker terminal.

Useful adjustment settings

Input Skip

This setting allows you to skip the HDMI or DVI input on the “Input Select” menu.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Skip”, and then press ENTER.

Press a/b to select the Input (INPUT4, INPUT5 or INPUT6) you wish to skip, and then press ENTER.

INPUT 4 (HDMI1)

INPUT 5 (HDMI2)

INPUT 6 (DVI)

Ye s

Input Signal (PC input mode only)

• Some input signals may have to be registered manually to display properly.

• The pairs of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again.

1360g7681024g768

NOTE

• You can only select the “Input Signal” on the Setup menu when receiving one of the 2 input signals listed above.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Signal” and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

Press MENU to exit.

Press a/b to select the desired input signal on the display.

1024 x 768

1360 x 768

(Example)

Useful adjustment settings

Auto Sync. adjustment (PC input mode only)

For automatically adjusting the PC image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Auto Sync.”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

• Auto Sync. starts and “Adjusting the image” displays.

...

[

Setup

Auto Sync.

]

NoYes

Fine Sync. adjustment (PC input mode only)

Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimize the image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Fine Sync.”, and then press ENTER.

Press a/b to select the specific adjustment item.

H-Pos. [ 90] – +

V-Pos.

Clock

Phase

Reset

[ 39]

[ 90]

[ 20]

–

30%

Press MENU to exit.

NOTE

• When Auto Sync. is successful, “Auto Sync completed successfully.” displays. If not, Auto Sync. failed.

• Auto Sync. may fail even if “Auto Sync completed successfully.” displays.

• Auto Sync. may fail if the computer image has low resolution, has unclear (black) edges, or is moved while executing Auto Sync.

• Be sure to connect the PC to the TV and switch it on before starting Auto Sync.

• Auto Sync. can be executed only when inputting analogue signals.

Selected item

H-Pos.

V-Pos.

Clock

Phase

Press c/d to adjust the item to your

Centres the image by moving it to the left or right.

Centres the image by moving it to the up or down.

Adjust when the image flickers with vertical stripes.

Adjust when characters have low contrast or when the image flickers.

Description

desired position.

• For resetting all adjustment items to the factory preset

values, press a/b to select “Reset”, and then press ENTER.

• “Clock” and “Phase” in the “Fine Sync” menu can be adjusted only when inputting analogue signals.

Press MENU to exit.

NOTE

Useful adjustment settings

Input Label

You can assign each input source a label you like.

Press TV/VIDEO to select the desired input source.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Label”, and then press ENTER.

Press a/b/c/d to select each character of the new name for the input source, and then press ENTER.

Image position

For adjusting a picture’s horizontal and vertical position.

Selected item

H-Pos.

V-Po s .

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Position”, and then press ENTER.

Press a/b to select “H-Pos.” or “V-Pos.”.

H-Pos. [0] –10 +10

V-Pos. [0] –20

Reset

Description

Centres the image by moving it to the left or right.

Centres the image by moving it to the up or down.

+20

DVD

– _

0123456789

(Example)

Repeat until the name is fully spelt out.

• The name can be 6 characters or less.

• When you want to set an input source name of less than 6 characters, select “END”, then press ENTER to exit from the labelling menu.

CLEAR

BACK

END

INPUT SOURCE

DTV

INPUT1

INPUT2

DVD

INPUT4

INPUT5

INPUT6

• For resetting all adjustment items to the factory preset values,

press a/b to select “Reset”, and then press ENTER.

• Adjustments are stored separately according to input

source.

Press c/d to adjust the item to your desired position.

NOTE

(Example)

NOTE

• You cannot change labels if the INPUT SOURCE is TV or DTV.

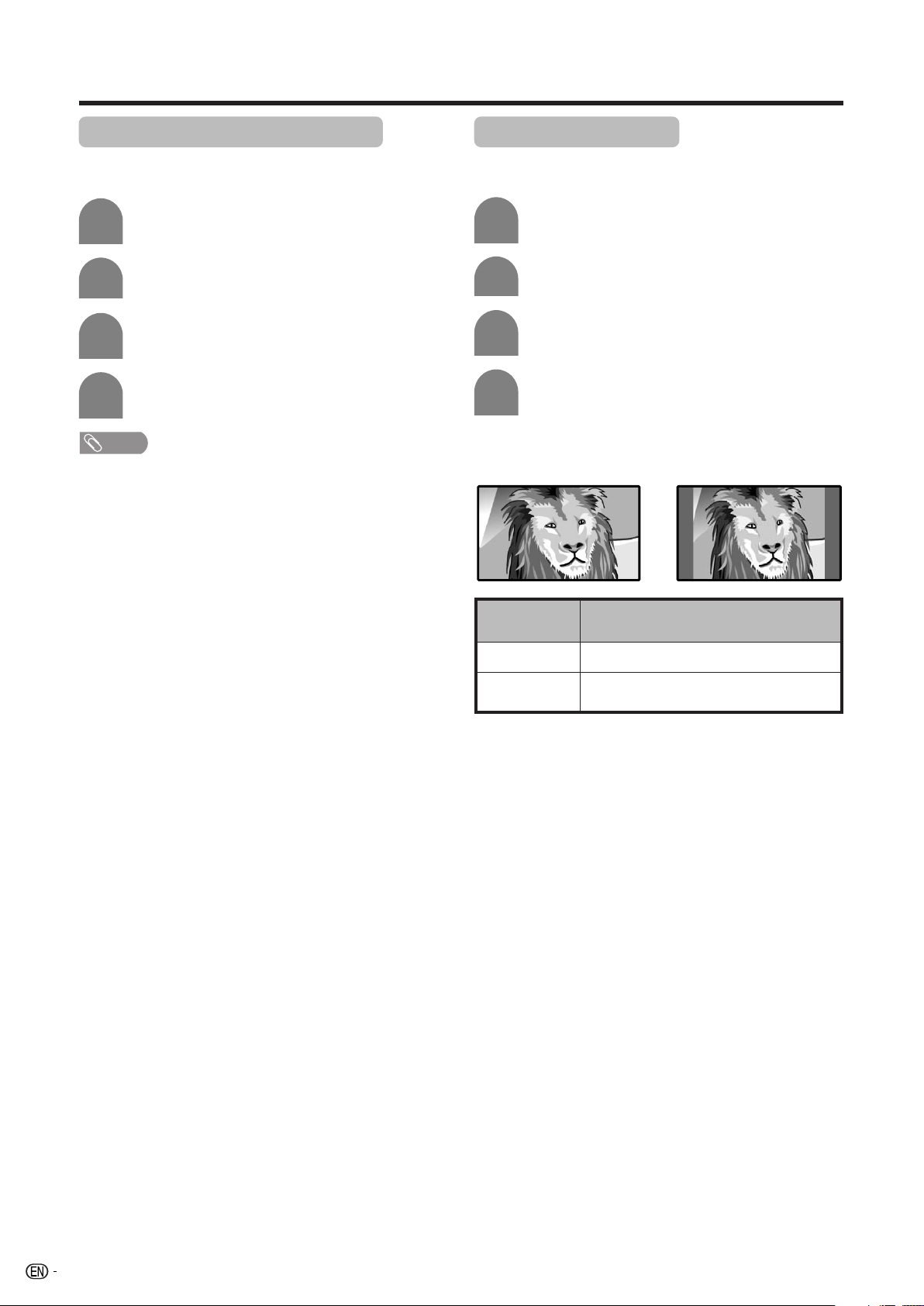

Useful adjustment settings

Wide Screen Signalling (WSS)

WSS allows a television to switch automatically among the different screen formats.

• Try to set WIDE mode if an image does not switch to the correct screen format. When the broadcast signal contains no WSS information, the function will not work even if enabled.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “WSS”, and then press ENTER.

Press c/d to select “On” or “Off”, and then press ENTER.

NOTE

Picture aspect ratio

The WSS signal has 4:3 auto-switching that allows you to select between Panorama and Normal.

4:3 mode “Panorama”

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “4:3 Mode”, and then press ENTER.

Press c/ d to select “Panorama” or “Normal”, and then press ENTER.

WSS signal 4:3 screen

4:3 mode “Normal”

Selected item Description

Panorama

Normal

Wide image without side bars

Normal range keeping 4:3 or 16:9 aspect ratio

Useful adjustment settings

Standby Mode

Standby Mode may be set to either start the TV quickly from standby or conserve energy while on standby.

Selected item Description

Mode1

Mode2

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Standby Mode”, and then press ENTER.

Press a/b to select “Mode1” or “Mode2”, and then press ENTER.

Starting the TV is quick from standby.

Power consumption is small during standby.

Press MENU to exit.

Reset

If complex adjustments are made and the settings cannot be restored to normal, you can reset the settings to the factory preset values.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Reset”, and then press ENTER.

• “Return to factory pre-settings.” displays on the screen.

Press c/d to select “Yes”, and then press ENTER.

• “Now, TV will restart automatically. OK?” displays on the screen.

Press c/d to select “Yes”, and then press ENTER.

• “Now initialising...” displays on the screen and blinks.

• After the reset has completed, the power shuts off and then comes back on. The screen will have returned to its original settings.

Now initialising...

NOTE

• The AV MODE will be set to “DYNAMIC”.

• The Programme Setup settings will not be changed.

• The Language settings will not be changed.

Useful adjustment settings

WIDE mode (for TV/AV input mode)

Manual Selection

WIDE MODE

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

4:3 Mode set to “Panorama”

4:3 Mode set to “Normal”

Press WIDE.

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable for the type of video signal currently received.

Press WIDE or a/b while the WIDE MODE menu displays on the screen.

• As you toggle down the options, each is immediately reflected on the TV.

Auto Selection

If you set “WSS” and “4:3 Mode” in the Setup menu on page 44, the optimum WIDE mode is automatically chosen for every broadcast containing the WSS information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup menu to “On”. (See page 44.)

“4:3 Mode” menu

To set the type of the wide screen, select “Panorama” or “Normal” in the 4:3 Mode menu. (See page 44.)

NOTE

• If the broadcast signal contains no WSS information, Auto Selection will not function even when the WSS option is enabled.

Selected item

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

Dot by Dot

Normal Zoom 14:9

Description

For 4:3 “standard” pictures. A side bar appears on each side.

For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.

In this mode the picture is progressively stretched toward each side of the screen.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Displays an image with the same number of pixels on the screen (only when receiving 1080i/1080p signal).

NOTE

Panorama

• Screen sizes may not toggle in the order illustrated on the left, depending on the input signal.

FullCinema 16:9Cinema 14:9

Useful adjustment settings

WIDE mode (for PC input mode)

You can select the screen size.

NOTE

• Connect the PC before making adjustments.

• Selectable screen size may vary with input signal type.

Screen size images.

Input Signal

1024g768 Keeps the original

aspect ratio in a full screen display.

Normal Dot by DotFullCinema

For viewing widescreen programs. The top and bottom of the image is slightly cropped.

Press WIDE.

• The WIDE MODE menu displays.

WIDE MODE

Normal

Cinema

Full

Dot by Dot

(Example)

Press WIDE or a/b to select a desired item on the menu.

An image fully fills the screen.

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Input Signal

1360g768

An image fully fills the screen.

Dot by DotFull

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Useful adjustment settings

Audio Only

When listening to music from a music programme, you can set the display off and enjoy audio only.

Selected item

Off

• When you make operations that change the picture on the TV such as by changing the input source, the Audio Only function is set to “Off”.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Only”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

Description

Audio is output without screen image.

Both screen images and audio are output.

NOTE

HDMI Setup

HDMI (High-Definition Multimedia Interface) terminal selection.

To watch an HDMI equipment image, select “INPUT4” or “INPUT5” using TV/VIDEO on the remote control unit or on the TV.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “HDMI Setup”, and then press ENTER.

• The HDMI Setup can be selected only when “INPUT4” or “INPUT5” is selected.

...

Option

Audio Only

DNR

HDMI Setup

[

Option

HDMI Setup

]

[Off]

DNR (Digital Noise Reduction)

Produces a clearer video image.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “DNR”, and then press ENTER.

Press a/b to select the desired level, and then press ENTER.

Off

High

Low

Press a/b to select the desired item, and then press ENTER.

HDMI Setup items

Signal Type

Auto View

Audio Select

Selectable items

RGB/YCbCr 4:4:4/ YCbCr 4:2:2

Enable/Disable

Digital/Analogue

Description

Select the video signal type from the HDMI terminal.

Set whether or not to use WIDE MODE based on signal recognition, including an HDMI signal.

Select “Digital” for audio signal via the HDMI terminal. Select “Analogue” for audio signal via the AUDIO jack.

Press a/b/c/d to select the desired setting, and then press ENTER.

NOTE

• Refer to your external equipment operation manual for the signal type.

• Item under “Signal Type” can be selected when the equipment is connected with a DVI-HDMI conversion cable.

• When the equipment is connected with an HDMI cable, items are automatically set and cannot be selected.

• “Audio Select” is only available for INPUT5.

Useful adjustment settings

Language setting for on-screen display

You can also select a language from setup menu. Select from among 3 languages: English, Chinese and Arabic.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Language”, and then press ENTER.

Press a/b to select the desired language listed on the screen, and then press ENTER.

Identification

You can check the current version of the software on the screen.

Colour system setting

You can change the colour system to one that is

compatible with the image on the screen.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Colour System”, and then press ENTER.

Press a/b to select a compatible video signal system of your equipment, and then press ENTER.

Auto

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

NOTE

• Factory preset value is “Auto”.

• If “Auto” is selected, colour system for each channel is automatically set. If an image does not display clearly, select another colour system (e.g. PAL, NTSC 4.43).

Using external equipment

Displaying an external equipment image

Explanation here is for the setting when connecting DVD to INPUT1 terminal.

NOTE

• Each time TV/VIDEO is pressed, the input source toggles.

• If the image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu.

• Refer to your external equipment operation manual for the signal type.

Displaying a DVD image (Example)

To watch a DVD image, select “INPUT1” using TV/VIDEO on the remote control unit or TV/VIDEO on the TV.

Input Select

Selecting input source

Can use for selecting the input source.

Selecting input signal type

For setting the signal type of external equipment.

Press TV/VIDEO on the remote control unit or TV/VIDEO on the TV.

Press TV/VIDEO on the remote control unit or TV/VIDEO on the TV to select the input source.

• An image from the selected source automatically displays.

• You can also select the input source by pressing a/b.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Input Select”, and then press ENTER.

Press a/b to select a signal type you want to set, and then press ENTER.

INPUT SOURCE

DTV

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5

INPUT6

Select the desired signal type on “Input Select” in the “Option” menu.

For INPUT1 signal

...

[

Option

Input Select

]

Auto

COMPONENT

VIDEO

Input source Selectable item

INPUT 1

INPUT 2

INPUT 3

NOTE

• If no (colour) image displays, try to change the other signal type.

• Check the operation manual of the external equipment for the signal type.

• When the signal type is set to “Auto”, the input terminal where cable is connected is automatically selected.

• When the signal type is set to “Auto” and multiple video signal cables are connected, the signal type is selected in the following prioritised order: INPUT 1/INPUT 2: COMPONENT s VIDEO INPUT 3: S-VIDEO s VIDEO

• When the signal type for “INPUT6” is set to “DIGITAL” or “ANALOGUE”, a “PC” or “AV” signal is automatically detected.

Auto, COMPONENT, VIDEO

Auto, S-VIDEO, VIDEO

Auto, DIGITAL, ANALOGUEINPUT 6

The setting is stored and can be selected.

Useful features

Freezing images

Allows you to capture and freeze one frame from a moving image that you are watching.

• This function does not work in INPUT 6.

• When this function is not available, “No still image display available.” will display.

• The still image automatically goes out after 30 minutes.

Press FREEZE.

• Capture one frame from a moving image.

Press FREEZE again to cancel the function.

NOTE

Teletext language setting

If Teletext information does not display correctly, perform the setting procedure below. Select from among 4 kinds of language tables: West Europe, East Europe, Greek/Turkish, Cyrillic. Each table is compatible with the Teletext languages listed below.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Text Language”, and then press ENTER.

Press a/b to select receivable teletext broadcasting language in your country, and then press ENTER.

...

[

Setup

Text Language

]

West Europe

East Europe

Greek/Turkish

Cyrillic

• West Europe - English, French, Scandinavian, Czech, German, Spanish, Italian

• East Europe - Polish, French, Scandinavian, Czech, German, Slovenian/Croatian, Italian, Rumanian

• Greek/Turkish - English, French, Scandinavian, Turkish, German, Spanish, Italian, Greek

• Cyrillic - English, Russian, Estonian, Czech, German, Spanish, Ukrainian, Lettish

NOTE

• Teletext can display only when it is sent by a network. Not used to convert between languages.

Useful features

Teletext function

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your TV receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather reports, sports information, stock exchange prices and programme previews are among the many services available.

Teletext mode

Teletext is turned on/off with m on the remote control unit. You can operate your TV in Teletext mode directly by inputting commands with the remote control unit.

TELETEXT

NOTE

• This dual screen cannot be displayed in DTV mode.

When viewing the Teletext information

• Press CHr to increase the page number.

• Press CHs to decrease the page number.

Turning on and off Teletext

Select a TV channel or external input source providing the Teletext programme.

Press m to display the Teletext.

Button functions

Colour (Red/Green/Yellow/Blue):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding Colour (Red/Green/

Yellow/Blue) on the remote control unit.

TELETEXT

Green

Red

0 – 9: Directly select any page from 100 to 899 by using 0 – 9 .

Yellow Blue

v (Top/Bottom/Full):

Each time you press v, the TELETEXT image switches as shown below.

Full (Displays in full screen)

Top (Displays in the upper half of the screen)

Bottom (Displays in the lower half of the screen)

Press m again to display the Teletext on the right screen and normal image on the left screen.

• Each time you press m, the screen switches

as shown upper right.

• If you select a programme with no Teletext signal, “No Teletext available.” is displayed.

• The same message displays during other modes if no Teletext signal is available.

NOTE

• This function is not available in DTV mode.

k (Reveal hidden for TELETEXT):

To reveal hidden information such as an answer to a quiz, press k.

• Press k again to hide the information.

3 (Hold):

To stop updating Teletext pages automatically, press 3.

• Press 3 again to release the hold mode.

Useful features

Displaying Subtitle

You can display several subtitles as they are transmitted.

Press [ to display the subtitle.

• Subtitle is updated by information sent by the broadcasting station.

•

To stop updating subtitle automatically, press

Displaying Subpages

You can display several subpages as they are transmitted.

• Subtitle will not be displayed when the service does not contain the subtitle information.

Press [ to exit the subtitle screen.

NOTE

Time display

You can display the time information included in the DTV and Teletext broadcasts.

NOTE

• Skip step 1 if receiving DTV broadcasts.

Select a TV channel providing Teletext information. (The time information is automatically captured.)

Press DISPLAY. The channel display will appear on the display.

Press DISPLAY again within the three-second interval the channel display is on the screen. Time information will display on the lower left of the screen for about three seconds.

• You cannot display subpage screens in DTV mode.

Press m to display Teletext.

Press 1 to display the subpage as shown below.

Subpage screen

–+

01 02 03 04 05

Select the desired subpage by using CHr/ CHs, Red or Green.

• 0 – 9 directly selects the desired subpage.

Press 1 to exit the subpage screen.

NOTE

0001184 /

• The time display cannot be stored once the power is

turned off. When you turn on the power, perform steps 1 to 4 again.

• If acquired successfully the time information will appear

in the upper-right corner of the screen by pressing MENU.

Even when you change the TV channel, you can display the time information with steps 2 to 3 above.

NOTE

Appendix

Troubleshooting

Problem Possible Solution

• No power.

• Unit cannot be operated.

• Remote control unit does not operate.

• Picture is cut off.

• Strange colour, light colour, or dark, or colour misalignment.

• Power is suddenly turned off.

• No picture.

• Check if you pressed POWER on the remote control unit. (See page 15.) If the indicator on the TV lights up red, press POWER.

• Is the AC cord disconnected? (See page 6.)

• Has the power been turned on? (See page 15.)

• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the power off the TV or unplugging the AC cord and re-plugging it in after 1 or 2 minutes.

• Are batteries inserted with polarity (e, f) aligned? (See page 5.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated to remote control sensor?

• Is the image position correct? (See page 43.)

• Are screen mode adjustments such as picture size made correctly? (See pages 44, 46 and 47.)

• Adjust the picture tone. (See pages 27 to 29 and 48.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 23 and 49.)

• Check the input signal setting. (See pages 41 and 50.)

• Check the HDMI Setup setting. (See page 48.)

• The unit’s internal temperature has increased. Remove any objects blocking vent or clean.

• Check the power control setting. (See page 31.)

• Is sleep timer set? (See page 17.)

• Is connection to other equipment correct? (See pages 10 and 11.)

• Has input signal setup been done correctly after connection? (See pages 41 and 50.)

• Is the correct input selected? (See page 50.)

• Is picture adjustment correct? (See pages 27 to 29.)

• Is the antenna connected properly? (See page 9.)

• Is “On” selected in “Audio Only”? (See page 48.)

• No sound.

• Is the volume too low? (See page 17.)

• Make sure that headphones are not connected. (See page 12.)

Troubleshooting (DTV)

Problem Possible Solution

• No picture or no sound.

• Block noise appears on the screen.

• DTV broadcasts cannot be received.

• A specific channel cannot be received.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. Storage temperature: –20°C to +60°C.

• Is the correct input source selected? (See page 50.)

• Is the antenna pointing in the correct direction?

• Check the Signal Level and Quality. (See page 35.)

• Are physical objects blocking the antenna?

• Is the antenna or antenna cable compatible with DTV broadcasts?

• Is the DTV antenna set up properly?

• Is the antenna cable connected properly? (See page 9.)

• Are the channel settings correct? (See pages 35 and 36.)

• Check the Signal Level and Quality. (See page 35.)

Appendix

RS-232C port specifications

PC Control of the TV

• When a programme is set, the TV can be controlled from the PC using the RS-232C terminal. The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-sub RS-232C for the

connections.

NOTE

• This operation system should be used by a person who is accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC to match the communications conditions of the TV. The communications settings of the TV are as follows:

Baud rate: Data length: Parity bit:

Stop bit:

Flow control:

9,600 bps

8 bits None 1 bit None

Communication procedure

Send the control commands from the PC via the RS-232C connector. The TV operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command.

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Parameter

Input the parameter values, aligning left, and fill with space(s) for the remainder. (Be sure that four values are input for the parameter.) When the input parameter is not correct, “ERR” returns. (Refer to “Response code format”.)

Command 4-digits: Command. The text of four characters. Parameter 4-digits: Parameter 0 – 9, space, ?

Return codeCommand 4-digits Parameter 4-digits

0009

– 30

100

0055

When “?” is input for some commands, the present setting value responds.

????

Appendix

Response code format

Normal response Problem response

Return code (0DH)

Commands

• Commands not indicated here are not guaranteed to operate.

(communication error or incorrect command)

ERR

Return code (0DH)

CONTROL ITEM COMMAND PARAMETER

POWER SETTING

INPUT SELECTION A

CHANNEL

INPUT SELECTION B

AV MODE SELECTION

POWER OFF (STANDBY)

INPUT SWITCHING (TOGGLE)

TV (CHANNEL FIXED)

DTV (CHANNEL FIXED)

INPUT1 – 6 (1 – 6)

TV DIRECT CHANNEL (1 – 99)

CHANNEL UP

CHANNEL DOWN

DTV DIRECT CHANNEL (1 – 999)

DTV CHANNEL UP

DTV CHANNEL DOWN

INPUT1 (AUTO)

INPUT1 (COMPONENT)

INPUT1 (VIDEO)

INPUT2 (AUTO)

INPUT2 (COMPONENT)

INPUT2 (VIDEO)

INPUT3 (AUTO)

INPUT3 (S-VIDEO)

INPUT3 (VIDEO)

AUTO

DIGITAL

ANALOGUE

TOGGLE

STANDARD

MOVIE

GAME

USER

DYNAMIC (Fixed)

DYNAMIC

CONTROL

CONTENTS

CONTROL ITEM COMMAND PARAMETER

VOLUME

POSITION

WIDE MODE

MUTE

SURROUND

AUDIO CHANGE

SLEEP TIMER

TEXT

VOLUME (0 – 60)

H-POSITION (AV) (ⳮ10 – Ⳮ10)

H-POSITION (PC) (0 – 180)

V-POSITION (AV) (ⳮ20 – Ⳮ20)

V-POSITION (PC) (0 – 100)

CLOCK (0 – 180)

PHASE (0 – 40)

TOGGLE (AV)

NORMAL (AV)

ZOOM 14:9 (AV)

PANORAMA (AV)

FULL (AV)

CINEMA 16:9 (AV)

CINEMA 14:9 (AV)

NORMAL (PC)

CINEMA (PC)

FULL (PC)

DOT BY DOT (PC)

TOGGLE

MUTE

MUTE OFF

SURROUND TOGGLE

SURROUND ON

SURROUND OFF

TOGGLE

OFF

SLEEP TIMER 30 MIN

SLEEP TIMER 1 HOUR

SLEEP TIMER 1 HOUR 30 MIN

SLEEP TIMER 2 HOUR

SLEEP TIMER 2 HOUR 30 MIN

TEXT OFF

TEXT ON (TOGGLE)

DIRECT PAGE JUMP (100 – 899)

CONTROL

CONTENTS

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

PC compatibility chart

Resolution

VGA

SVGA

Horizontal Frequency

720 g 400 640 g 480 640 g 480 640 g 480 800 g 600

31.5 kHz

37.9 kHz

37.5 kHz 75 Hz

35.1 kHz 56 Hz ✓

800 g 600 37.9 kHz 60 Hz ✓ 800 g 600 800 g 600

48.1 kHz

46.9 kHz

Vertical

Frequency

70 Hz 60 Hz 72 Hz

72 Hz 75 Hz

VESA

Standard

✓ ✓ ✓

✓ ✓

Resolution

XGA

WXGA

SXGA

Horizontal

Frequency

1024 g 768 1024 g 768 1024 g 768 1360 g 768

48.4 kHz

56.5 kHz

60.0 kHz

47.7 kHz 60 Hz

1280 g 1024 64.0 kHz 60 Hz 1400 g 1050 65.3 kHz 60 Hz

Vertical

Frequency

60 Hz 70 Hz 75 Hz

VESA

Standard

✓ ✓ ✓ ✓ ✓

✓SXGA+

Appendix

Specifications

Item

Model

LCD panel 46o (117 cm) Advanced Super View &

Number of dots 6,220,880 dots (1920 g 1080 g 3 dots)

Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV Function

Brightness 450 cd/m

Backlight life 60,000 hours (at Backlight Standard position)

Viewing angles H : 176° V : 176° Audio amplifier 15W g 2

Speakers 6.5 cm 4pcs, 2.0 cm 2 pcs

Terminals

OSD language English/Chinese/Arabic

Power Requirement AC 110–240 V, 50 Hz

Power Consumption

Weight

Operating Temperature 0°C - 40°C

Receiving Channel

Digital Terrestrial Broadcast

TV-Tuning System Auto Preset 99 ch

STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G

Rear

Side

Front

with Display, speakers and stand

Analogue

Digital DVB-T

VHF/UHF 44.25-863.25 MHz

CATV S1–S41ch (including Hyperband)

ANALOGUE ANTENNA IN

DIGITAL ANTENNA IN

INPUT 1

INPUT 2

INPUT 4 HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,

INPUT 5 HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,

INPUT 6 Ø 3.5mm jack (Audio input), DVI-I (DVI-I input)

MONITOR OUT VIDEO out, AUDIO out

RS-232C 9 pin D-sub male connector

DIGITAL AUDIO OUTPUT INPUT 3 VIDEO in, AUDIO in, S-VIDEO in

Headphones

Analogue

Digital

LC-46GD7X LC-52GD7X

BLACK TFT LCD

PAL: B/G, D/K, I SECAM: B/G, D/K, K/K

VHF/UHF 174–230 MHz, 520–582 MHz, 582–820 MHz

75 q DIN type 75 q DIN type

VIDEO in, AUDIO in, COMPONENT in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz)

1080I/60Hz, 1080P/50Hz, 1080P/60Hz)

1080I/60Hz, 1080P/50Hz, 1080P/60Hz), AUDIO in

Optical Digital audio output

Ø 3.5mm jack (Audio output)

English

274 W (0.9 W Standby) 299 W (0.9 W Standby)

31.5 kg 37.0 kgDisplay only

35.0 kg 41.0 kgwith Display and speakers

38.0 kg 44.0 kg

1 NTSC: MTV-Standard

52o (132 cm) Advanced Super View & BLACK TFT LCD

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Optional accessories

The listed optional accessories are available for the LCD colour TV. Please purchase them at your nearest shop.

• Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility and check the availability.

Part name Model number

Wall mount bracket (for LC-46GD7X/LC52GD7X)

AN-52AG1

AN-37AG2*

• You cannot change TV angles when you mount the TV on the wall using the AN-37AG2 wall mount bracket.

Appendix

Removing the speakers

The unit’s speakers can be attached and removed.

Before attaching/detaching the speakers

• Before detaching (or attaching) the speakers, unplug the AC cord from the AC outlet.

• Remove all terminal covers and connected cables.

• Make sure two or more people perform the operation when detaching (or attaching) the speakers.

Remove the two speaker terminal covers.

Unplug the speaker cables from the speaker terminals.

• Remove the speaker cables (2) while pushing in on the tabs on the speaker terminals (1).

Remove the two screws on both the left and right of the speaker unit.

• Place cushioning on both sides of the stand to avoid scratching or damaging to the speakers.

• To attach the speakers, perform the steps in reverse order.

• External speakers can also be attached to the TV. (See page 40.)

• When the unit’s speakers are already detached, the TV does not output volume unless external speakers are connected to the TV.

Lean the speakers slightly toward you (1) and lay them straight down onto the cushioning (2).

NOTE

Dimensional drawings

LC-46GD7X, LC-52GD7X

1022 (1155)

681 (761)

800 (800)

1128 (1264)

Unit: mm

NOTE

• Figures within parentheses are for LC-52GD7X.

131 (129) 125 (126)

853 (949)

99 (110)

100 (100)

200 (200)

(78)

576 (651)

517 (573)

360 (360)

200 (200)

CLEARING THE PASSWORD

If you forget the password, clear the password using the following procedure.

Press MENU to display the MENU screen, and then press c/d to select “Setup”.

Press a/b to select “Auto Installation”, “Programme Setup”, “Child Lock”, and the password input screen displays.

––––

Press and hold both CHr and VOLk on the TV simultaneously until the message appears on the screen.

• The password resets to the factory preset “1234”.

The Password is .

NOTE

• As a precautionary measure, make a note of your password above, scissor it from this manual, and keep it in a familiar place.

FOR LOCATION ENQUIRIES WITHIN

AUSTRALIA

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.au

OR CALL SHARP CUSTOMER CARE

1300 135 022

(LOCAL CALL COST APPLY WITHIN AUSTRALIA)

SHARP CORPORATION OF AUSTRALIA PTY LTD

SHARP APPROVED SERVICE CENTRE

www.sharp.net.nz

CONTACT YOUR SELLING DEALER/RETAILER

SPform019(JUNE 2004)

FOR LOCATION ENQUIRIES WITHIN

NEW ZEALAND

REGARDING YOUR LOCAL

VISIT OUR WEBSITE AT

OR CALL

SHARP CUSTOMER SERVICES

TELEPHONE: 09 573 0111

FACSIMILE: 09 573 0113

SHARP CORPORATION OF NEW ZEALAND LIMITED

This Sharp product is warranted against faults in materials and manufacture for a period of twelve (12) months from the date of original purchase.

If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre. These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

The owner is responsible for any transportation and insurance costs if the product has to be returned for repair.

This warranty does not extend to accessories or defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim.

This warranty is in addition to and in no way limits, varies or excludes any express and implied rights and remedies under any relevant legislation in the country of sale.

IMPORTANT

DO NOT RETURN THIS DOCUMENT TO SHARP

For your reference, please enter the particulars of your purchase below and retain, with your purchase documentation.

Model No.

Serial No.

Date of Purchase

Retailer

IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand

Printed on 100% post-consumer recycled paper.

SHARP CORPORATION OF

AUSTRALIA PTY. LIMITED

ABN 40 003 039 405

1 Huntingwood Drive

Huntingwood NSW2148

SHARP CORPORATION OF

NEW ZEALAND LIMITED

59 Hugo Johnston Drive

enrose, Auckland

SPform030 (JUNE 2004)

Printed in Japan TINS-C645WJZZ 06P10-JA-KG

Sharp LC-46GD7X, LC-52GD7X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Dear SHARP customer

Contents

Trademarks

Important Safety Precautions

Supplied accessories

Preparation

Inserting the batteries

Using the remote control unit

Cautions regarding remote control unit

Setting the TV

Setting the TV on the wall

Removing the stand

Protection against overturning

Basic connection

Connecting to an antenna

Connecting to the AC outlet

Connecting a VCR, game console or camcorder

Connecting a DVD player

Connecting a Digital TV STB (Set Top Box)

Connecting a PC

Part names

TV (Front)

TV (Rear)

Remote control unit

Watching TV

Turning on the power

Turning off the power

Simple button operations for changing channels

Using MPX on the remote control unit

Simple button operation for changing volume/sound

ANALOG/DTV/RADIO buttons

Basic adjustment settings

Menu operation buttons

On-Screen Display

Menu items (TV/DTV/INPUT1-3)

Menu items (HDMI/DVI)

Auto installation

Programme Setup

Auto search

Manual setting for each channel

Search tuning

Fine tuning

Colour system

Labelling channels

Sound system (Broadcasting system)

Skipping channels

Sort

Setting the child lock

Erase Programme

AV MODE selection

OPC (Optical Picture Control) setting

Picture adjustments

Advanced

Colour temperature

Black

Quick Shoot

3D-Y/C

Monochrome

Film Mode

Range of OPC

Audio adjustment

Surround

Power Control

Basic adjustment settings (Digital)

DTV input mode menu items

Selecting DTV mode

Programme Guide

Info

Favourite Programme List

Programme List

Favourite&Lock

Parental Rate

Installation

Auto Search

Manual Adjust

Quick Search
