Sharp LC-42D83X, LC-46D83X, LC-52D83X User Manual

MODEL

LC-42D83X
LC-46D83X
LC-52D83X

LCD COLOUR TELEVISION

OPERATION MANUAL

Cover_52D83X.indd 1Cover_52D83X.indd 1 2007/08/31 16:23:442007/08/31 16:23:44

Cover2_52D83X.indd 1Cover2_52D83X.indd 1 2007/08/31 16:23:042007/08/31 16:23:04

OPERATION MANUAL

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of
trouble-free operation of your product, please read the Important Safety Precautions carefully before
using this product.

Contents

Introduction

Dear SHARP customer ................................................................................................................. 1

Contents ......................................................................................................................................... 1

Important Safety Precautions ...................................................................................................... 4

Supplied accessories .................................................................................................................... 5

Trademarks .................................................................................................................................... 5

Preparation

Attaching the stand ....................................................................................................................... 6

Part names ..................................................................................................................................... 7

Before turning on the power ...................................................................................................... 10

Supplying electric power to the antenna ................................................................................. 11

Initial auto installation................................................................................................................. 11

Checking signal strength and channel strength ...................................................................... 12

Connecting external devices ..................................................................................................... 13

Inserting the batteries ................................................................................................................ 15

Using the remote control unit .................................................................................................... 15

Turning the TV on/off .................................................................................................................. 16

About Menu operations .............................................................................................................. 17

Watching TV

Setting channels automatically .................................................................................................. 20

Selecting programmes ............................................................................................................... 21

Adjusting the volume .................................................................................................................. 21

Menu language settings ............................................................................................................. 21

Setting channels to your preference ......................................................................................... 22

Useful viewing functions ............................................................................................................ 26

TV (Front/Side) ................................................................................................................. 7

TV (Rear) .......................................................................................................................... 8

Remote control unit ......................................................................................................... 9

Connecting a VCR, game console or camcorder .......................................................... 13

Connecting a DVD player .............................................................................................. 13

Connecting a STB (Satellite, Cable, etc.) ....................................................................... 14

Connecting a PC ............................................................................................................ 14

Cautions regarding the remote control unit ................................................................... 15

Turning on the power ..................................................................................................... 16

Turning off the power..................................................................................................... 16

What is Menu? ............................................................................................................... 17

Basic Menu operations .................................................................................................. 17

About the Guide Display ................................................................................................ 17

Menu items (TV/INPUT1-3) ............................................................................................ 18

Menu items (HDMI/RGB) ............................................................................................... 19

Digital settings ...............................................................................................................22

Manual setting for each channel (Analogue) .................................................................. 23

Sorting programmes ...................................................................................................... 25

Erasing programmes...................................................................................................... 25

Returning to the previously selected channel ................................................................ 26

Freezing the image ........................................................................................................ 26

Muting the audio temporarily ......................................................................................... 26

Outputting only audio .................................................................................................... 26

Switching the analogue audio format ............................................................................ 27

Switching the digital audio format ................................................................................. 27

Password setting for the child lock (for TV input mode) ................................................ 28

Parental Rate ................................................................................................................. 29

Programme Title Display ................................................................................................ 29

1

52D83X_en_a.indd 152D83X_en_a.indd 1 2007/08/31 16:24:192007/08/31 16:24:19

Contents

Watching TV (Continued)

Energy conservation settings .................................................................................................... 30

Picture size settings ................................................................................................................... 31

Selecting a preset AV MODE .....................................................................................................33

Manual picture settings .............................................................................................................. 34

Other picture settings ................................................................................................................. 36

Audio adjustment ........................................................................................................................ 38

Favourite Channel Setting .......................................................................................................... 41

ATV (Analogue)/DTV/RADIO buttons ........................................................................................ 42

EPG ............................................................................................................................................... 43

Selecting a programme using EPG ........................................................................................... 44

Timer recording using EPG ........................................................................................................ 46

Cancelling the timer recording .................................................................................................. 46

Settings when using external devices

Settings when using HDMI output devices ............................................................................... 47

Selecting the input source and signal type .............................................................................. 49

Labelling input sources .............................................................................................................. 50

Skipping HDMI/RGB input .......................................................................................................... 50

Colour system settings ............................................................................................................... 50

AQUOS LINK

Controlling HDMI devices using AQUOS LINK ......................................................................... 51

AQUOS LINK connection ............................................................................................................ 52

AQUOS LINK Setup ..................................................................................................................... 52

Operating an AQUOS LINK device ............................................................................................ 53

2

Key Lock ........................................................................................................................ 29

Auto power-off at a designated time ............................................................................. 30

Auto power-off after the end of broadcast .................................................................... 30

Auto power-off when there are no operations performed ............................................. 30

Ecology .......................................................................................................................... 30

Reducing the start-up time ............................................................................................ 30

Selecting the Wide Screen Signalling (WSS) picture size automatically ....................... 31

Selecting the Wide Screen Signalling (WSS) picture size manually .............................. 31

Selecting the picture size manually ............................................................................... 32

Picture adjustment ......................................................................................................... 34

Advanced picture settings ............................................................................................. 35

DNR (Digital Noise Reduction) ....................................................................................... 36

Adjusting the image position ......................................................................................... 36

Game Play Time ............................................................................................................. 36

Indicating time on the screen ........................................................................................ 37

Output Volume Select .................................................................................................... 38

Automatic Volume Adjustment ...................................................................................... 39

Clear Voice ..................................................................................................................... 39

Digital Audio Output ...................................................................................................... 39

Using Digital Audio Output ............................................................................................ 39

Programme Guide.......................................................................................................... 40

Info ................................................................................................................................. 40

EPG display settings ...................................................................................................... 43

Time Zone ......................................................................................................................43

Basic Operation ............................................................................................................. 44

Selecting a programme ................................................................................................. 44

Selecting input source ................................................................................................... 49

Selecting input signal type ............................................................................................. 49

Selecting the size of the picture for recording ............................................................... 49

Connecting an AQUOS BD Player/AQUOS Recorder via the AQUOS Audio speaker system

Connecting an AQUOS BD Player/AQUOS Recorder only ........................................... 52

AQUOS LINK Auto power on ......................................................................................... 52

Selecting recorder ......................................................................................................... 53

Using Genre Info. ........................................................................................................... 53

Listening with the AQUOS Audio speaker system ........................................................ 53

Listening with the AQUOS TV speaker system ............................................................ 54

Manually changing the AQUOS Audio speaker system’s sound mode ........................ 54

Playback of titles using AQUOS LINK .......................................................................... 54

Selecting media type for CEC-compatible recorder ...................................................... 55

One Touch Recording (DTV only) .................................................................................. 55

HDMI device selection ................................................................................................... 55

Recording via the AQUOS Recorder EPG (only for recorders) ...................................... 55

.... 52

52D83X_en_a.indd 252D83X_en_a.indd 2 2007/08/31 16:24:192007/08/31 16:24:19

Connecting a PC

HDMI Connection ........................................................................................................................ 56

Analogue Connection ................................................................................................................. 56

Displaying a PC image on the screen ....................................................................................... 57

Input resolution settings ............................................................................................................. 59

PC Control of the TV ................................................................................................................... 60

PC compatibility chart ................................................................................................................ 61

RS-232C commands list ............................................................................................................. 61

Teletext function

About Teletext ............................................................................................................................. 62

Teletext language setting ........................................................................................................... 63

Displaying Subpages .................................................................................................................. 63

Time display ................................................................................................................................. 63

Displaying Subtitles .................................................................................................................... 64

Switching subtitle languages (DVB Subtitle) ............................................................................ 64

Appendix

Troubleshooting .......................................................................................................................... 65

Troubleshooting-Digital broadcasting ...................................................................................... 65

Reset ............................................................................................................................................ 66

Information .................................................................................................................................. 66

Identifi cation ................................................................................................................................ 66

Specifi cations .............................................................................................................................. 67

Optional accessory ..................................................................................................................... 67

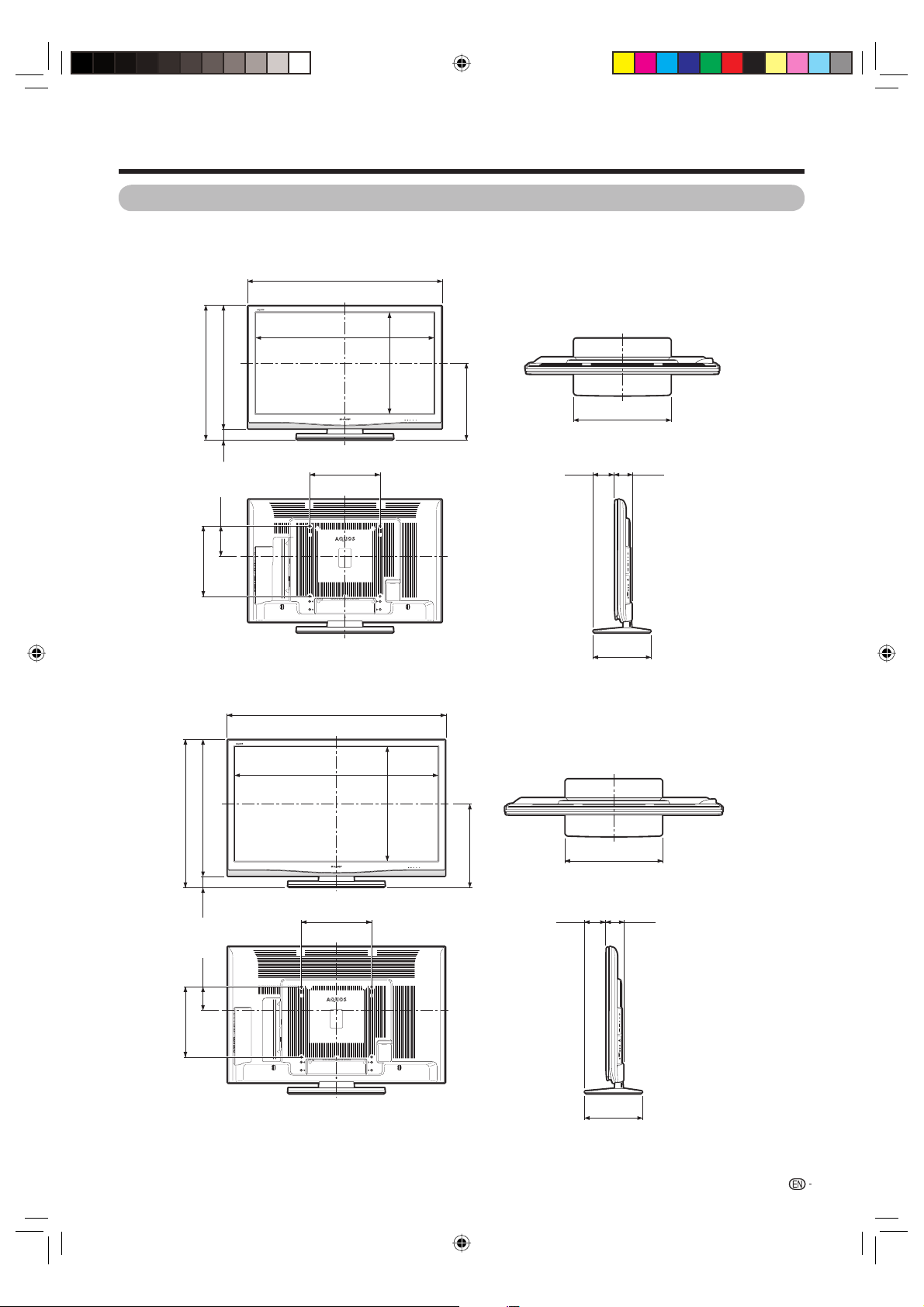

Dimensional drawings ................................................................................................................ 68

Mounting the TV on the wall ...................................................................................................... 70

CLEARING THE PASSWORD ..................................................................................................... 71

Information on the software license for this product .............................................................. 72

Selecting the picture size ............................................................................................... 57

Adjusting the PC image automatically ........................................................................... 58

Adjusting the PC image manually .................................................................................. 58

Selecting the input resolution ........................................................................................ 59

Message List .................................................................................................................. 66

Receiver Report ............................................................................................................. 66

Removing the stand ....................................................................................................... 70

Handling and precautions with the wall-mounted TV .................................................... 70

3

52D83X_en_a.indd 352D83X_en_a.indd 3 2007/08/31 16:24:202007/08/31 16:24:20

Important Safety Precautions

• Cleaning — Unplug the AC cord
from the AC outlet before cleaning
the product. Use a damp cloth to
clean the product. Do not use liquid
cleaners or aerosol cleaners.

• Water and moisture — Do not use
the product near water, such as
bathtub, washbasin, kitchen sink,
laundry tub, swimming pool and in a
wet basement.

• Do not place vases or any other
water-fi lled containers on this
product. The water may spill onto
the product causing fi re or electric
shock.

• Stand — Do not place the product
on an unstable cart, stand, tripod
or table. Doing so can cause the
product to fall, resulting in serious
personal injuries as well as damage
to the product. Use only a cart,
stand, tripod, bracket or table
recommended by the manufacturer
or sold with the product. When
mounting the product on a wall, be
sure to follow the manufacturer's
instructions. Use only the mounting
hardware recommended by the
manufacturer.

• The LCD panel used in this product
is made of glass. Therefore, it can
break when the product is struck
forcefully or with a sharp object. If
the LCD panel is broken, be careful
not to be injured by broken glass.

• Heat sources — Keep the product
away from heat sources such as
radiators, heaters, stoves and other
heat-generating products (including
amplifi ers).

• To prevent fi re, never place any type
of candle or naked fl ames on the
top or near the TV set.

• To prevent fi re or shock hazard, do
not place the AC power cord under
the TV set or other heavy items.

• Do not place heavy objects on this
product or stand on it. Doing so
could cause injury if the product
overturns. Take special care near
children and pets.

• When relocating the product
placed on a cart, it must be moved
with utmost care. Sudden stops,
excessive force and uneven fl oor
surface can cause the product to fall
from the cart.

• Ventilation — The vents and other
openings in the cabinet are designed
for ventilation. Do not cover or block
these vents and openings since
insuffi cient ventilation can cause
overheating and/or shorten the life
of the product. Do not place the
product on a bed, sofa, rug or other
similar surface, since they can block
ventilation openings. This product is
not designed for built-in installation;
do not place the product in an
enclosed place such as a bookcase
or rack, unless proper ventilation
is provided or the manufacturer's
instructions are followed.

The LCD panel is a very high technology product
with 6,220,800 thin fi lm transistors, giving you fi ne
picture details.
Due to the very large number of pixels, occasionally
a few non-active pixels may appear on the screen
as a fi xed point of blue, green or red.
This is within product specifi cations and does not
constitute a fault.

Precautions when
transporting the TV

Be sure to always carry the TV
by two people holding it with two
hands — one hand on each side
of the TV.

• Do not display a still picture for a long time, as this could
cause an afterimage to remain.

• Install the product on the place where the AC cord can
be unplugged easily from the AC outlet, or from the AC
INPUT terminal on the rear of the product.

4

52D83X_en_b.indd 452D83X_en_b.indd 4 2007/08/31 16:24:462007/08/31 16:24:46

Supplied accessories

Make sure the following accessories are provided with the product.

Remote control unit “AAA” size battery (g2) AC cord

Used with batteries inserted.

Page 9 Page 15 Page 10

Cable clamp

For bundling cables.

Page 10

Operation manual

Always use the AC cord supplied with
the TV.

Stand unit (LC-42D83X)

Stand base

Stand post

Put all parts of the stand unit together and then attach it to the TV.

Stand unit (LC-46D83X/LC-52D83X)

Stand base

Short screws (g4)

Hex key

Page 6

Short screws (g4)

Long screws (g4)

Cloth

Long screws (g4)

Stand post Hex key

Put all parts of the stand unit together and then attach it to the TV.

Page 6

Cloth

Trademarks

• TruSurround XT, SRS and
TruSurround XT technology is incorporated under license from SRS Labs, Inc.

• The DVB logo is the registered trademark of the Digital Video Broadcasting - DVB - project.

• Manufactured under license from Dolby Laboratories.

• “HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.”

52D83X_en_b.indd 552D83X_en_b.indd 5 2007/08/31 16:24:472007/08/31 16:24:47

®

symbol are trademarks of SRS Labs, Inc.

h

5

Preparation

Attaching the stand

• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

• Before performing work, spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.

CAUTION

• Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

Confi rm the 8 screws supplied with the TV.

1 3

Short screws (g4)

(used in step 3)

Attach the supporting post for the stand unit

2

onto the base as shown below.

LC-42D83X

LC-46D83X/LC-52D83X

Long screws (g4)

(used in step 2)

Long screw

Long screw

Hex
key

• To detach the stand, perform the steps in reverse order.

Insert the stand into the openings on the

1

bottom of the TV.

Insert and tighten the 4 short screws into

2

the 4 holes on the rear of the TV.

NOTE

Hex key

Short
screw

Soft
cushion

Hex
key

6

52D83X_en_b.indd 652D83X_en_b.indd 6 2007/08/31 16:24:472007/08/31 16:24:47

LC-42D83X

15°

15°

CAUTION

• Adjust the screen with both hands. Put one hand on
the TV and rotate the screen while steadying the stand
with your other hand.

The TV can be rotated up to 15 degrees to the right or left.

Preparation

Part names

TV (Front/Side)

POWER (On/Off) button

MENU button

TV/VIDEO button

Channel up (r)/down (s) buttons

Volume up (e)/down (f) buttons

Remote control sensor

OPC sensor

POWER indicator**

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the
actual operations.

• The Illustrations used throughout this manual are based on LC-42D83X.

52D83X_en_b.indd 752D83X_en_b.indd 7 2007/08/31 16:24:482007/08/31 16:24:48

SLEEP timer indicator

OPC indicator*

*OPC: Optical Picture Control (See page 34.)
** See page 16 for the TV status indicator.

7

Preparation

TV (Rear)

RS-232C terminal

INPUT 5 (HDMI)
terminal

INPUT 3 terminal

INPUT 4 (HDMI)
terminal

Headphone jack

SERVICE ONLY

terminal*

* Usually do not connect anything to this terminal as

it is reserved only for service personnel.

INPUT 6 (HDMI)
terminal

INPUT 7 (PC)
terminal

AC INPUT terminal

INPUT 2 terminal

INPUT 1 terminal

MONITOR OUTPUT terminal

Antenna input terminal

DIGITAL AUDIO
OUTPUT terminal

Regarding the headphone jack

• Use headphones with a stereo mini plug (Ø 3.5 mm).

• Be sure to unplug headphones from the jack when they are not
in use.

• The speakers do not output volume when headphones are
plugged in.

• The “Audio” menu cannot be operated when headphones are
plugged in.

• You can set the volume to different levels for each input source.

8

52D83X_en_b.indd 852D83X_en_b.indd 8 2007/08/31 16:24:482007/08/31 16:24:48

Volume display when headphones are plugged in

20

Preparation

Remote control unit

1

13

2

3

4
5
6
7
8
9

10

14

15
16
17
18
19
20
21

22

11

23

24

12

25

1 POWER (STANDBY/ON)

To switch the power on and off. (See page 16.)

2 0 – 9

Set the channel. (See page 21.)
TELETEXT mode: Set the page. (See pages 62 and 63.)

3 A (Flashback)

Press to return to the previous selected channel or external input

mode. (See page 26.)

4 ATV

Press to access ANALOGUE mode. (See page 42.)

5 DTV

Press to access DTV mode. (See page 42.)

6 MPX

Select the sound multiplex mode. (See page 27.)

7 VOLk/VOL

Set the volume. (See page 21.)

8 e (Mute)

Mute the sound. (See page 26.)

9 GUIDE

DTV mode: Display the programme list. (See page 40.)

l

10 EPG

DTV mode: To display EPG (Electronic Programme Guide) screen.

(See page 43 to 46.)

11 EXIT

Turn off the On-Screen Display.

12 OPC

To switch the Optical Picture Control on and off. (See page 34.)

AV MODE

Select a video setting. (See page 33.)

WIDE

Change the wide image mode. (See pages 32 and 57.)

FREEZE

Freeze a motion picture on the screen. (See page 26.)

13 m (TELETEXT)

Select the TELETEXT mode. (all TV image, all TEXT image, TV/

TEXT image) (See pages 62 to 64.)

(Reveal hidden for TELETEXT)

k

TELETEXT mode: Display hidden characters. (See page 62.)

(SUBTITLE for TELETEXT)

[

To turn the subtitles on and off. (See page 64.)

(Hold)

3

TELETEXT mode: Stop updating Teletext pages automatically.

Press 3 again to release the hold mode. (See pages 62 and 64.)

(Subpage)

1

Display the Teletext subpage directly. (See page 63.)

(Top/Bottom/Full)

v

TELETEXT mode: Set the area of magnifi cation. (See page 62.)

14 TV/VIDEO (INPUT SOURCE)

Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4,

INPUT 5, INPUT6, INPUT7 (PC)) (See pages 13, 47, 50 and 56.)

15 FAV.

Display the favourite channel setting. (See page 41.)

16 RADIO

Press to access RADIO mode. (See page 42.)

17 DISPLAY

Displays the channel or input information.
DTV mode: Displays the time information included in the DTV

broadcast.

TELETEXT mode: Displays the time information included in the

Teletext broadcast. (See page 63.)

18 CHr/CH

TV input mode: Select the channel. (See page 21.)
TELETEXT mode: Select the page. (See pages 62 and 63.)

19 SLEEP

Set the Sleep timer. (See page 30.)

20 INFO

DTV mode: Display the programme information. (See page 40.)

21 MENU

Display the menu screen. (See page 17.)

22 a/b/c/d (Cursor)

Select a desired item on the setting screen.

ENTER
Execute a command.

23 RETURN

MENU mode: Return to the previous menu screen. (See page 17.)

24 Colour (Red/Green/Yellow/Blue)

Select four preset favourite channels in four different categories.

(See page 41 for details.)

While watching, you can toggle the selected channels by pressing

R, G, B and Y.

TELETEXT mode: Select a page. (See page 62.)

25 AQUOS LINK buttons

If external equipment such as a AQUOS BD Player is connected

via HDMI cables and is AQUOS LINK compatible, you can use
these AQUOS LINK buttons. See pages 51 to 55 for details.

s

9

52D83X_en_b.indd 952D83X_en_b.indd 9 2007/08/31 16:24:492007/08/31 16:24:49

Preparation

Before turning on the power

Notes on installing the TV

• Avoid direct sunlight and place the TV in a well-ventilated location.

• Place the TV in a level location.

• Do not turn on the power of the TV before connecting the AC cord.

Connecting the antenna cable

1

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of
connections that are used for coaxial cable.

Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)

Antenna cable
(commercially available)

Room antenna terminal
(75-ohm type)

Connecting external devices

2

See pages 10, 13 and 14 for connecting antennas and external equipment, such as a VCR and DVD player.

Connecting the AC cord

3

AC outlet

• Place the TV close to the AC outlet, and keep the power plug within reach.

• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.

Bundling the cables

4

Insert the cable clamp in the hole on the TV as shown.

To antenna
terminal

TV (rear view)

AC cord

Cable clamp

CAUTION

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.

10

52D83X_en_b.indd 1052D83X_en_b.indd 10 2007/08/31 16:24:492007/08/31 16:24:49

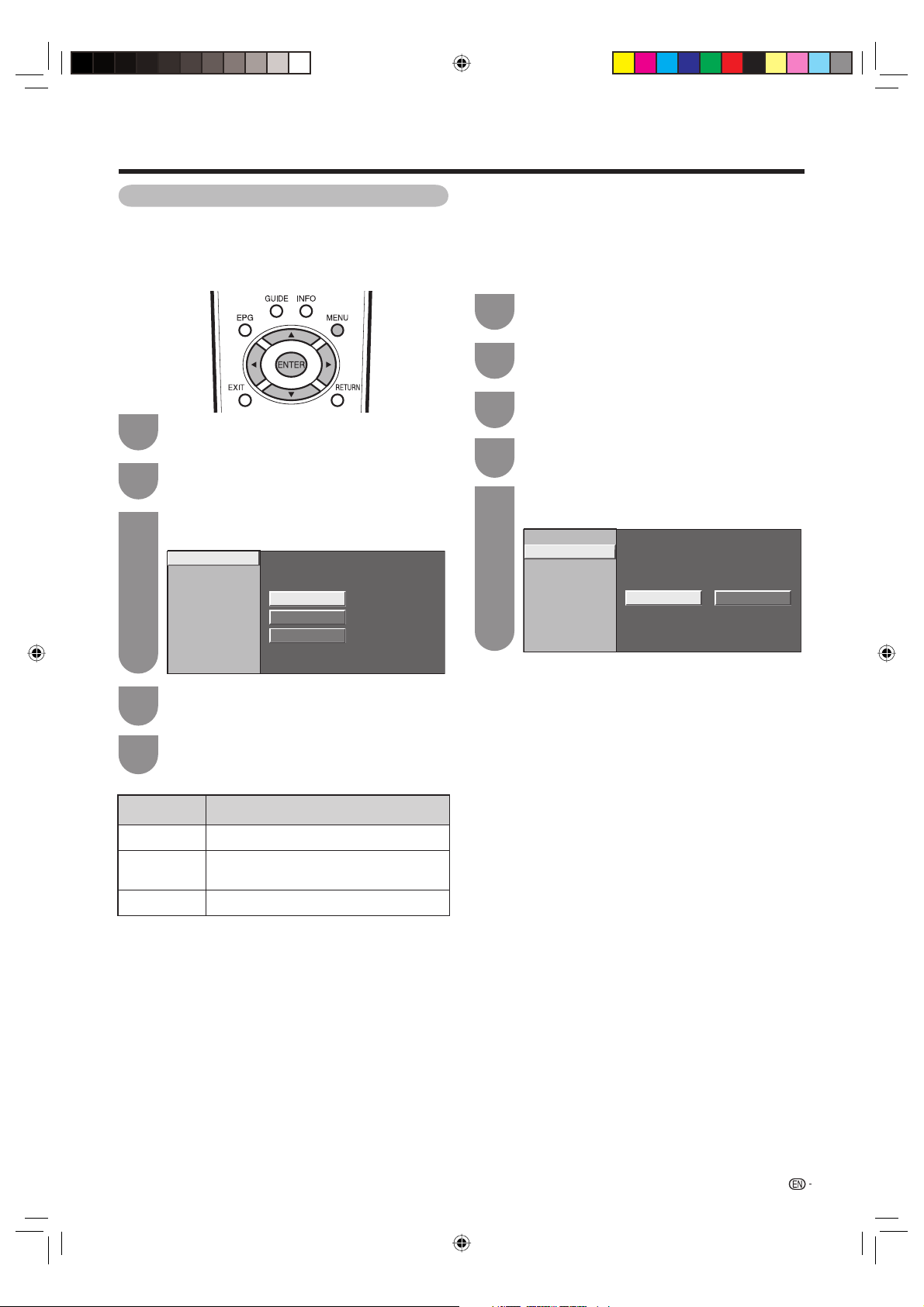

Preparation

Supplying electric power to the
antenna

When you set-up the DTV antenna for the fi rst time,
or connect the antenna to a community antenna, you
need to proceed to set the antenna by following this
manual.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Antenna Setup-

3

DIGITAL” and then press ENTER.

Press a/b to select “Supply Voltage” and

4

then press ENTER.

Initial auto installation

When the TV powers on for the fi rst time after purchase,
the initial auto installation wizard appears. Follow the
menus and make the necessary settings one after
another.

Confi rm the following before turning on the
power

• Is the antenna cable connected?

• Is the AC cord plugged in?

Press POWER on the TV.

1

• The initial auto installation wizard appears.

Setting the on-screen display language.

2

English

Press a/b to select the desired language,

3

and then press ENTER.

Press c/d to select “On” and then press

5

ENTER.

Selected item Description

On Select “On” when your antenna is set-up

Off Select “Off” when you do not need to

and connected independently.

supply voltage to your antenna, i.e. when
your antenna is connected to a community
antenna. (The factory default setting of this
function is “Off”.)

Press ENTER.

4

Major Analogue Channel settings are pre-set.

However, if there are any channel(s) that you

cannot receive with the factory pre-sets, please

perform “Auto Installation” in “Setup” section

(refer chapter “Watching TV” on manual).

Digital Search

• Major Analogue Channel settings are pre-set.
However, if there are any channel(s) that you
cannot receive with the factory pre-sets, please
perform “Auto Installation” in “Setup” section (See
page 20).

The TV searches for, sorts and stores all

5

the receivable TV stations according to their
settings and the connected antenna.

• To abort the initial auto installation in progress,
press END.

NOTE

• If you turn off the power on the TV after performing step 4,
the initial auto installation wizard does not appear. The auto
installation function allows you to execute the installation
again from the Setup menu. (Page 20)

• The initial auto installation wizard will go off if you leave the
TV unattended for 30 minutes before searching for channels
in step 5.

11

52D83X_en_b.indd 1152D83X_en_b.indd 11 2007/08/31 16:24:502007/08/31 16:24:50

Preparation

Checking signal strength and
channel strength

If you install a DVB-T antenna for the fi rst time or
relocate it, you should adjust the alignment of the
antenna to receive a good reception while checking
the antenna setup screen.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Antenna Setup-

3

DIGITAL”, and then press ENTER.

w Checking signal strength

Press a/b to select “Signal Strength”.

Supply Voltage

Signal Strength

Channel Strength

CH No. 21

Signal Strength

Current Max 0

Quality

Current Max 0 0

0

w Checking channel strength

Press a/b to select “Channel strength”, and
then press ENTER.

Supply Voltage

Signal Strength

Channel Strength

Position and align the antenna so that the

4

maximum possible values for “Signal Strength”
and “Quality” are obtained.

NOTE

• The values of “Signal Strength” and “Quality” indicate when
to check the appropriate alignment of the antenna.

2 6 5 . 2

CH No. 21

Signal Strength

Current Max 0

Quality

Current Max 0 0

MHz

0

12

52D83X_en_b.indd 1252D83X_en_b.indd 12 2007/08/31 16:24:502007/08/31 16:24:50

Preparation

Connecting external devices

You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player,
Digital TV STB (Set Top Box) and PC. To view input source images, select the input source from TV/VIDEO on
the remote control unit or TV/VIDEO on the TV.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV STB (Set Top Box), PC or other external equipment.

• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

Connecting a VCR, game console or camcorder

A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using
the INPUT 1/INPUT 2 (component) or INPUT 3 terminal.

When using component cable
(commercially available)

When using composite cable or S-VIDEO
cable (commercially available)

S-VIDEO

or

VIDEO

L

AUDIO

R

VCR/
Game console/

R – AUDIO – L

YP

(CB)

B

R

P

(CR)

Camcorder

VCR/Game console/Camcorder

Connecting a DVD player

You can use the INPUT 1/INPUT 2 (component) or INPUT 4/INPUT 5/INPUT 6 (HDMI) terminal when connecting
to a DVD player and other audiovisual equipment.

NOTE

• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 6. (See page 47.)

When using HDMI cable
(commercially available)

When using component cable
(commercially available)

DVD player

YP

R – AUDIO – L

(CB)

B

R

P

(CR)

DVD player

13

52D83X_en_b.indd 1352D83X_en_b.indd 13 2007/08/31 16:24:502007/08/31 16:24:50

Preparation

Connecting a STB (Satellite, Cable, etc.)

You can use the INPUT 1/INPUT 2 (component) or INPUT 4/INPUT 5/INPUT 6 (HDMI) terminal when connecting
to a STB (Satellite, Cable, etc.) and other audiovisual equipment.

NOTE

• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 6. (See page 47.)

When using HDMI cable
(commercially available)

When using component cable
(commercially available)

STB
(Set Top Box)

Connecting a PC

You can use the INPUT 7 (PC) terminal when connecting to a PC.

ANALOGUE

RGB

R – AUDIO – L

STB (Set Top Box)

YP

(CB)

B

R

P

(CR)

AUDIO

(L/R)

PC

14

52D83X_en_b.indd 1452D83X_en_b.indd 14 2007/08/31 16:24:502007/08/31 16:24:50

Preparation

Inserting the batteries

Before using the TV for the fi rst time, insert two “AAA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you fi nd any
chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

2 Insert the two supplied “AAA” size

batteries.

• Place batteries with their terminals
corresponding to the (e) and (f)
indications in the battery compartment.

3 Close the battery cover.

Using the remote control unit

Use the remote control unit by pointing it towards the
remote sensor window.
Objects between the remote control unit and sensor
window may prevent proper operation.

Remote control sensor

Cautions regarding the remote control unit

• Do not subject the remote control unit to shock.
In addition, do not soak the remote control unit with liquids or place it in

an area with high humidity.

• Do not install or place the remote control unit under direct sunlight.
The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote sensor
window of the TV is under direct sunlight or strong lighting. In such
cases, change the angle of the lighting or TV, or operate the remote
control unit closer to the remote sensor window.

30º

5 m

30º 30º

30º

15

52D83X_en_b.indd 1552D83X_en_b.indd 15 2007/08/31 16:24:512007/08/31 16:24:51

Preparation

Turning the TV on/off

Turning on the power

Press POWER on the TV.

• POWER indicator (Green): The TV is on. (After a few
seconds, an image appears with sound.)

• After turning the power “ON” by pressing POWER on the
TV, you can turn the power ON/OFF by pressing POWER
on the remote control.

POWER button

Turning off the power

POWER button

Press POWER on the remote control.

• The TV enters standby mode and the image on the screen
disappears.

• The POWER indicator on the TV changes from green to
red.

Press POWER on the TV.

• The POWER indicator on the TV turns off.

• When the TV is turned off by POWER on the TV, you
cannot turn on the power by pressing POWER on the
remote control.

POWER indicator

Light off Power off

Lighted (Red) The TV is in standby mode.

Lighted (Green) The TV is on.

POWER indicator

NOTE

• If you are not going to use this TV for a long period of time,
be sure to remove the AC cord from the AC outlet.

• Minor power is consumed when the unit is in standby
mode.

16

52D83X_en_c.indd 1652D83X_en_c.indd 16 2007/08/31 16:25:082007/08/31 16:25:08

Preparation

About Menu operations

What is Menu?

• You need to bring up the On-Screen Display to perform
settings for the TV. The On-Screen Display for the settings
is called “Menu”.

• The Menu enables various settings and adjustments. (See
pages 18 and 19.)

• The Menu can be operated with the remote control unit.

Basic Menu operations

Press MENU and the MENU screen displays.

1

[

]


MENU

Picture Audio Power Control Setup

DYNAMIC

OPC [Off]

Backlight [+14] –16

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

Press c/d to select the desired menu, and

2

then press ENTER.

[+30]

0

[0]

–30

[0]

–30

[0]

–30

[0]

–10

Audio Power Control

DYNAMIC

Treble

Bass

Balance

Surround

Reset

Press a/b to select the desired menu item.

3

Press ENTER to proceed if necessary.

Audio Power Control

[ 0] –15

[ 0]

–15

[ 0]

DYNAMIC

Treble

Bass

Balance

Surround

Reset

[ 0] –15

[ 0]

–15

[ 0]

+16

+40

+30

+30

+30

+10

+15

+15

L

L

R

+15

+15

R

Using the control panel of the TV

w

You can also operate the Menu using the control panel
of the TV.
Button operations on the control panel correspond to
the ones on the remote control as shown below.

TV control panel buttons Remote control buttons

TV/VIDEO ENTER

CH

r a

CH

s b

VOL

kd

VOL

lc

NOTE

• Menu options differ in the selected input modes, but the
operating procedures are the same.

• The screens in the operation manual are for explanation
purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.

About the Guide Display

The Guide Display at the bottom of the screen shows
operations with an On-Screen Display.

ENTER

: Select : Enter

RETURN

: Back

MENU

: End

Press a/b or c/d to select the desired item

4

or adjust the item to the desired level. Press
ENTER if necessary.

The bar above is an operational guide for
the remote control. The bar will change in

Press EXIT or MENU to exit the MENU.

5

Press RETURN as necessary to return to the

accordance with each menu setting screen.

previous MENUs.

17

52D83X_en_c.indd 1752D83X_en_c.indd 17 2007/08/31 16:25:092007/08/31 16:25:09

Preparation

Menu items (TV/INPUT 1-3)

List of menu items to help you with operations


OPC .............................................................................. Page 34

Backlight ..................................................................... Page 34

Contrast ....................................................................... Page 34

Brightness ................................................................... Page 34

Colour .......................................................................... Page 34

Tint ............................................................................... Page 34

Sharpness ................................................................... Page 34

Advanced

Colour Temp. ................................................... Page 35

Fine Motion Advanced .................................... Page 35

Film Mode ........................................................ Page 35

Active Contrast ............................................... Page 35

3D-Y/C ............................................................. Page 35

Monochrome ................................................... Page 35

Range of OPC .................................................. Page 35

Reset ............................................................................ Page 34

Audio

Treble ........................................................................... Page 38

Bass ............................................................................. Page 38

Balance ........................................................................ Page 38

Surround ...................................................................... Page 38

Reset ............................................................................ Page 38

Power Control

Option

AQUOS LINK Setup .................................................... Page 52

DNR .............................................................................. Page 36

Input Select ................................................................. Page 49

Output Volume Select ................................................ Page 38

Auto Volume ................................................................ Page 39

Clear Voice .................................................................. Page 39

Digital Audio Output ................................................... Page 39

Audio Only ................................................................... Page 26

Programme Title Display ........................................... Page 29

Time Display................................................................ Page 37

Game Play Time .......................................................... Page 36

Colour System ............................................................ Page 50

Key Lock ...................................................................... Page 29

Digital Setup

REC Picture Size......................................................... Page 49

EPG Setup ................................................................... Page 43

Subtitle ........................................................................ Page 64

Time Zone ................................................................... Page 43

Information

Message List ............................................................... Page 66

Receiver Report .......................................................... Page 66

No Signal Off ............................................................... Page 30

No Operation Off ........................................................ Page 30

Ecology ........................................................................ Page 30

Setup

Auto Installation .......................................................... Page 20

Programme Setup ...............................................Pages 22-25

Child Lock ................................................................... Page 28

Antenna Setup-DIGITAL............................................. Page 12

Input Skip .................................................................... Page 50

Input Label .................................................................. Page 50

Position ........................................................................ Page 36

WSS ............................................................................. Page 31

4:3 Mode ...................................................................... Page 31

Standby Mode ............................................................. Page 30

Language ..................................................................... Page 21

Text Language ............................................................ Page 63

Identifi cation ............................................................... Page 66

Reset ............................................................................ Page 66

NOTE

• Some menu items may not be displayed depending on the selected input source.

18

52D83X_en_c.indd 1852D83X_en_c.indd 18 2007/08/31 16:25:092007/08/31 16:25:09

Preparation

Menu items (HDMI/RGB)

List of menu items to help you with operations


OPC .............................................................................. Page 34

Backlight ..................................................................... Page 34

Contrast ....................................................................... Page 34

Brightness ................................................................... Page 34

Colour .......................................................................... Page 34

Tint ............................................................................... Page 34

Sharpness ................................................................... Page 34

Advanced

Colour Temp. ................................................... Page 35

Fine Motion Advanced .................................... Page 35

Film Mode ........................................................ Page 35

Active Contrast ............................................... Page 35

Monochrome ................................................... Page 35

Range of OPC .................................................. Page 35

Reset ............................................................................ Page 34

Audio

Treble ........................................................................... Page 38

Bass ............................................................................. Page 38

Balance ........................................................................ Page 38

Surround ...................................................................... Page 38

Reset ............................................................................ Page 38

Power Control

No Signal Off ............................................................... Page 30

No Operation Off ........................................................ Page 30

Ecology ........................................................................ Page 30

Setup

Input Skip .................................................................... Page 50

Input Signal ................................................................. Page 59

Auto Sync. ................................................................... Page 58

Input Label .................................................................. Page 50

Position ........................................................................ Page 36

Fine Sync. .................................................................... Page 58

HDMI Auto View .......................................................... Page 47

Standby Mode ............................................................. Page 30

Language ..................................................................... Page 21

Reset ............................................................................ Page 66

Option

AQUOS LINK Setup .................................................... Page 52

DNR .............................................................................. Page 36

HDMI Audio Select ..................................................... Page 48

Output Volume Select ................................................ Page 38

Auto Volume ................................................................ Page 39

Clear Voice .................................................................. Page 39

Audio Only ................................................................... Page 26

Time Display................................................................ Page 37

Game Play Time .......................................................... Page 36

Key Lock ...................................................................... Page 29

Information

Message List ............................................................... Page 66

Receiver Report .......................................................... Page 66

NOTE

• Some menu items may not be displayed depending on the selected input source.

19

52D83X_en_c.indd 1952D83X_en_c.indd 19 2007/08/31 16:25:102007/08/31 16:25:10

Watching TV

Setting channels automatically

You can run auto installation again, even after setting
up the preset channels.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

If you have already set the password, enter it

4

here.

• See page 28 for setting a password.

Press c/d to select “Yes”, and then press

5

ENTER.

Press a/b to select the desired language

6

listed on the screen, and then press ENTER.
You do not need to do anything during the
auto search.
Press MENU to exit.

Press a/b to select “Auto Installation”, and

3

then press ENTER.

...

[

Setup

MENU

Setup Option

Auto Installation

Programme Setup

Child Lock

Antenna Setup-DIGITAL

Input Skip

Position

WSS

4:3 Mode

Standby Mode

Language

Text Language

Identification

Reset

Auto Installation

[West Europe]

[Normal]

[Mode2]

[English]

]

[On]

20

52D83X_en_c.indd 2052D83X_en_c.indd 20 2007/08/31 16:25:102007/08/31 16:25:10

Watching TV

Selecting programmes Adjusting the volume

You can change channels in several ways.

Using CHr/s on the remote control unit

• Press CHr to increase the channel number.

• Press CHs to decrease the channel number.

NOTE

• CHr/s on the TV operates the same as CHr/s on

the remote control unit.

Changing the volume

You can change the volume on the TV or on the
remote control unit.

• To increase the volume, press VOLk.

• To decrease the volume, press VOLl.

Using 0 — 9 on the remote control unit
Select the channels directly by pressing buttons 0 to 9.

a

To select a 1-digit channel (e.g. channel 2):

• Press 0, followed by 2.
To select a 2-digit channel (e.g. channel 12):

• Press 1, followed by 2.

When viewing Teletext information

View a page directly which is 3-digit page number from
100 to 899 by pressing buttons 0 to 9.

20

NOTE

• “TV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4”, “INPUT5”,
“INPUT6” and “INPUT7” (PC) modes can store volume
adjustment values separately.

Menu language settings

You can also select a language from setup menu.
Select from among 4 languages: English, Simplifi ed
Chinese, Traditional Chinese and Arabic.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Language”, and then

3

press ENTER.

Press a/b to select the desired language

4

listed on the screen, and then press ENTER.

21

52D83X_en_c.indd 2152D83X_en_c.indd 21 2007/08/31 16:25:102007/08/31 16:25:10

Watching TV

Setting channels to your preference

You can run the auto search procedure again at any
time by accessing the Setup menu and Programme
Setup. Channels can be tuned automatically or
manually.

Digital Settings

You can reconfi gure DTV services settings
automatically or manually.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”

2

Press a/b to select “Programme Setup”, and

3

then press ENTER.

Press a/b to select “Digital Setting”, and then

4

press ENTER.

Press a/b to select the desired menu item,

5

and then press ENTER.

Press a/b to select the desired service.

1

Press the colour button on the remote control

2

corresponding with the item you want to
reconfi gure.

• The ✔ mark indicates the operation is set to on.
Each time the colour button is pressed, you can
switch the corresponding operation on/off.

Buttons for Manual Adjust operation

Menu items

Remote control

buttons

Description

Lock R When the service is

locked, you must enter
your password whenever
you tune to the service.

CH Skip G Services with a ✓ mark

are passed over when
pressing P r/s in the
TV/remote control unit.

EPG Skip Y Services with a ✓ mark

are passed over in the
Electronic Programme
Guide (EPG).

Sort B The item position of

services can be sorted.

Press a/b to select the service whose item

1

position you want to move, and then press B.

DTV 994 ✔ ✔ SIT 2

DTV 995 ✔ SIT 1

Press c/d to select “Yes”, and then press

6

ENTER.

w Additional Search

Use this menu to add new services automatically after
auto installation has been completed.

w Manual Search

Add new services within a specifi ed frequency band.

• Enter the frequency using 0 - 9 numeric buttons.

w Manual Adjust

Confi gure various settings for each service using the
Colour (R, G, Y, B) buttons.

...

[

Setup

: Lock

Service

No.

Programme Setup

Service
Name

SIT 3

G

: CH Skip

MENU

DTV 993

DTV 994 ✔ ✔ SIT 2

DTV 995 ✔ SIT 1

DTV 996 Monosco 576-2

DTV 997 Monosco 576-1

DTV 998 Color Bar 576i

DTV 999 HD Monosco

R

22

...

Digital Setting

Lock

Y

: EPG Skip

CH

Skip

...

Manual Adjust

EPG
Skip

B

: Sort

Old

LCN

]

Press a/b to move it to the desired position, and

2

then press ENTER.

DTV 994

DTV 995✔SIT 2

Repeat steps 1 and 2 until all desired service

3

SIT 1

✔✔

items are sorted.

52D83X_en_c.indd 2252D83X_en_c.indd 22 2007/08/31 16:25:112007/08/31 16:25:11

Watching TV

Manual setting for each channel (Analogue)

You can set some channel items manually. They are
Search, Fine (TV frequency), Colour sys., Sound sys.,
Label (Network name), Skip and Lock (Child Lock).

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Programme Setup”, and

3

then press ENTER. If you have already set the
password, enter it here.

• See page 28 for setting a password.

Press a/b to select “Digital Setting” or

4

“Analogue Setting”, and then press ENTER.

Press a/b to select “Manual Adjust”, and

5

then press ENTER.

Press c/d to select “Yes”, and then press

6

ENTER.

Programme Setup “Manual Adjust” menu

01 SAT.1 02 PR07 03 KABEL

Next

You can select one of the following settings.

Search (See page 23.)

1

Fine (See page 23.)

2

Colour sys. (See page 23.)

3

Sound sys. (See page 24.)

4

Label (See page 24.)

5

Skip (See page 24.)

6

Lock (See page 24)

7

Search tuning

Press a/b/c/d to select the channel you

1

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select item and press ENTER.

3

• Next: Search the next channel.

• Store: Memorise the current display channel.

• Cancel: Return to the previous screen. (The
search result will not be stored.)

Fine tuning

Press a/b/c/d to select the channel you

1

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Fine”, and then press

2

ENTER.

Press c/d to adjust the frequency, and then

3

press ENTER.

• Adjust while checking the background picture as
a reference.

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

• Instead of the method above, you can also set
by directly entering the frequency number of the
channel with 0 — 9.

• When setting a frequency on the “Fine” screen,
the last fi gure of the frequency needs to be “0” or
“5”.

a

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s ENTER.

Colour system

Press a/b/c/d to select the channel you

1

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Colour sys.”, and then

2

press ENTER.

• Receivable colour systems are listed.

[

MENU

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

[Off]

Colour system menu

...

Setup

Programme Setup

179.25 MHz

]

Press a/b to select “Search”, and then press

2

ENTER.

...

[

Setup

MENU

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

52D83X_en_c.indd 2352D83X_en_c.indd 23 2007/08/31 16:25:112007/08/31 16:25:11

Programme Setup

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

[Off]

]

179.25 MHz

Next

Store

Cancel

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b to select the optimum colour

3

system, and then press ENTER.

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

[Off]

SECAM

Auto

PAL

23

Watching TV

Manual setting for each channel (continued)

Sound system (Broadcasting system)

Press a/b/c/d to select the channel you

1

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Sound sys.”, and then

2

press ENTER.

• Receivable sound systems (Broadcasting systems)
are listed.

Sound system menu

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b to select the optimum sound

3

system, and then press ENTER.

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

[Off]

B/G

D/K

I

Labelling channels

When a TV channel sends its Network Name, the auto
installation detects the information and assigns a name
to it. However, you can change individual channel
names.

Press a/b/c/d to select the channel you

1

want to edit, and then press ENTER.

• The selected channel information displays.

Press a/b to select “Label”, and then press

2

ENTER.

• The alphabet and numbers are listed.

Labelling menu

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b/c/d to select each character of

3

the new name for the channel, and then

ENTER

Repeat until the name is fully spelt out.

4

• The name can be 5 characters or less.

• When you want to set a channel name of less
than 5 characters, select “END”.

[179.25]

[Auto]

A

[B/G]

[SAT.1]

[Off]

[Off]

B

K

L

U

V

0123456789

C

D

E

F

M

W

G

N

O

P

Q

X

Y

Z

+

CLEAR

I

J

H

BACK

S

T

R

_

.

END

press

.

Skipping channels

Channels with “Skip” set to “On” are passed over
when using CHr/s even if selected while watching
the image from the TV.

Press a/b/c/d to select the channel you

1

want to edit, and then press ENTER.

• The selected channel information will be displayed.

Press a/b to select “Skip”, and then press

2

ENTER.

• Skip menu displays.

Programme Setup

[Auto]

[B/G]

[Off]

[Off]

Skip menu

]

Off

On

...

[

Setup

MENU

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b to set “Skip” to “On”, and then

3

press ENTER.

[179.25]

[SAT.1]

Setting the child lock

You can block the viewing of any channel.

Press a/b/c/d to select the channel you

1

want to edit, and then press ENTER.

• The selected channel information will be displayed.

Press a/b to select “Lock”, and then press

2

ENTER.

• Child lock menu will be displayed

[179.25]

[Auto]

[B/G]

[SAT.1]

[Off]

[Off]

Lock menu

Off

On

Search

Fine

Colour sys.

Sound sys.

Label

Skip

Lock

Press a/b to set “Lock” to “On”, and then

3

press ENTER.

NOTE

• See page 28 for setting a password.

• If “Lock” is set to “On” for a channel, “Child lock has been
activated” is displayed when you select the channel, and
the image and sound of the channel is blocked.

• When pressing RETURN while “Child lock has been
activated” is displayed, password input menu will be
displayed. Inputting the correct password lifts the child lock
temporarily until the power is turned off.

24

52D83X_en_c.indd 2452D83X_en_c.indd 24 2007/08/31 16:25:122007/08/31 16:25:12

Watching TV

Sorting programmes

Channel positions can be sorted freely.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Programme Setup”, and

3

then press ENTER. If you have already set the
password, enter it here.

• See page 28 for setting a password.

Press a/b to select “Analogue Setting”, and

4

then press ENTER.

Press a/b to select “Sort”, and then press

5

ENTER.

Press c/d to select “Yes”, and then press

6

ENTER.

Press a/b/c/d to select the channel you

7

want to move, and then press ENTER.

Move it to the desired position by pressing

8

a/b/c/d

Repeat the steps 6 and 7 until all desired

9

channels are sorted.

, and then press ENTER.

Sort menus

01 SAT.1

Erasing programmes

The individual programme can be erased.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Programme Setup”, and

3

then press ENTER.

• See page 28 for setting a password.

Press a/b to select “Analogue Setting”, and

4

then press ENTER.

Press a/b to select “Erase Programme”, and

5

then press ENTER.

Press c/d to select “Yes”, and then press

6

ENTER.

Press a/b/c/d to select the channel you

7

want to erase, and then press ENTER.

• A message screen pops up.

Press c/d to select “Yes”, and then press

8

ENTER to erase the selected programme. All

the subsequent programmes move up.

Repeat the steps 6 and 7 until all desired

9

channels are erased.

Erase programme menus

01 SAT.1

0106SAT.1 KABEL

02 03 04 05

01 SAT.1 02 KABEL

01 SAT.1 KABEL02

01 KABEL

01 KABEL SAT.102

Next

Next

Next

01

SAT.1

Pro702 KABEL03 04 05

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

Next

02 Pro7

01 SAT.1 03 KABELPro702

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

01 SAT.1 02 KABEL

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

04 05

Next

02 KABEL

03 04 05

Next

25

52D83X_en_c.indd 2552D83X_en_c.indd 25 2007/08/31 16:25:122007/08/31 16:25:12

Watching TV

Useful viewing functions

Returning to the previously selected
channel

Press A to switch the currently tuned channel to the
previously tuned channel.
Press A again to switch back to the currently tuned
channel.

Press A to toggle between the currently selected
input source and the previously selected one.

Press A to return to the previous page in TELETEXT
mode.

Freezing the image

Allows you to capture and freeze one frame from a
moving image that you are watching.

Press FREEZE.

1

• Captures one frame from a moving image.

Press FREEZE again to cancel the function.

2

Muting the audio temporarily

Using Mute (e) on the remote control unit

mutes the current sound output.

e

Press e.

1

• The sound is silenced.

• “M” is displayed while the mute function is on.

Mute

NOTE

• Within 30 minutes after pressing e, press one of the
buttons below to cancel the mute.

— VOLl/VOL
—

e

• Mute will be cancelled after 30 minutes. However,
the TV will not suddenly output loud sound as the
volume level will be set to 0 automatically. Increase
the volume level by pressing VOLk.

Press e again within 30 minutes to cancel the

2

mute.

• Before 30 minutes, the volume level returns to the

k

previous setting.

Outputting only audio

When listening to music from a music programme, you
can set the display off and enjoy audio only.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

NOTE

• The still image automatically goes out after 30 minutes.

• When you make operations that change the picture on the

26

52D83X_en_d.indd 2652D83X_en_d.indd 26 2007/09/06 10:02:172007/09/06 10:02:17

Press a/b to select “Audio Only”, and then

3

press ENTER.

Press c/d to select “On”, and then press

4

ENTER.

Selected item Description

On Audio is output without screen image.

Off

NOTE

TV such as by changing the input source, the Audio Only
function is set to “Off”.

Both screen images and audio are output.

Watching TV

Switching the analogue audio format

You can switch between multiple audio modes
when watching a multiple audio or stereo broadcast
programme.

In the NICAM TV broadcasts
When receiving a stereo signal

Each time you press MPX, the mode switches
between NICAM STEREO and MONO.

Stereo mode

BBC1

ATV ATV

PAL
NICAM

01

B/G

STEREO

PAL

When receiving a bilingual signal

Each time you press MPX, the mode switches among
NICAM CH A, NICAM CH B, NICAM CH AB and
MONO.

Bilingual mode

BBC1

ATV ATV

PAL
NICAM

ATV ATV

PAL PAL

01

B/G

CH A

BBC1

01

B/G

MONO

PAL
NICAM

NICAM

BBC1

01

B/G

MONO

BBC1

01

B/G

CH B

BBC1

01

B/G

CH AB

When receiving a bilingual signal

Each time you press MPX, the mode switches among
CH A, CH B and CH AB.

Bilingual mode

BBC1

ATV ATV

PAL
NICAM

01

B/G

CH A

PAL

ATV

BBC1

01

B/G

CH AB

PAL

BBC1

01

B/G

CH B

When receiving a monaural signal
When you press MPX, “MONO” displays.

Monaural mode

BBC1

ATV

PAL

01

B/G

MONO

NOTE

• “BBC2”, “99” and “PAL” are tentative network name,
channel and colour system.

Switching the digital audio format

w If multi sound modes are received, each time you

press MPX the mode switches as follows.

(Example)

Audio (ENG) : STEREO

L/R LRLR

When receiving a monaural signal

Each time you press MPX, the mode switches
between NICAM MONO and MONO.

Monaural mode

BBC1

ATV ATV

PAL
NICAM

01

B/G

MONO

PAL

In the TV mode of A2 TV broadcasts
When receiving a stereo signal

Each time you press MPX, the mode switches
between STEREO and MONO.

Stereo mode

BBC1

ATV ATV

PAL PAL

01

B/G

STEREO

BBC1

01

B/G

MONO

BBC1

01

B/G

MONO

Audio (ENG) : CH A

CH A CH B CH AB

Audio (ENG) : MONO

Press c/d to select L or R sound when the

w

STEREO or DUAL MONO screen is displayed.

Audio (ENG) : STEREO

L/R L RLR

NOTE

• The sound mode OSD disappears in 6 seconds.

• Selectable items vary depending on the received
broadcasts.

27

52D83X_en_d.indd 2752D83X_en_d.indd 27 2007/08/31 16:25:312007/08/31 16:25:31

Watching TV

Password setting for the child lock (for TV
input mode)

Allows you to use a password to protect certain
settings from being accidentally changed.

Clearing the password

Allows you to clear your password.

Repeat steps 1 to 3 in Setting a password.

1

Enter the password.

2

Setting a password

Register a 4-digit password number to use the Child
Lock function.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Child Lock”, and then

3

press ENTER.

If you have already set the password, enter it

4

here.

Press a/b to select “Change password”, and

5

then press ENTER.

Change password

Clear password

Parental rating

New Password

Reconfirm

–––

–

––––

Press a/b to select “Clear password”, and

3

then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

4

Change password

Clear password

Parental rating

Yes No

NOTE

• As a precautionary measure, make a note of your
password and keep it in a familiar place. If you lose
or forget your password, initialise the TV to return all
settings except for the TV channel settings to factory
preset values. (See page 71.)

• This function is only available for TV input mode.

•

To relock a channel which has been temporarily unlocked by
inputting the correct password, turn power off and then on again.

Enter the 4-digit number as a password using

6

0 — 9.

Change password

Clear password

Parental rating

New Password

Reconfirm

Enter the same 4-digit number as in step 6 to

7

confirm.

• “The new password was registered” displays.

NOTE

• To view a locked channel (Lock setting in Programme
Setup “Manual Adjust” is set to “On”), you must enter
a password. (See page 24.) When you select a locked
channel, a password prompt message pops up. Press
RETURN to display the password input window.

28

52D83X_en_d.indd 2852D83X_en_d.indd 28 2007/08/31 16:25:322007/08/31 16:25:32

–––

–

––––

Watching TV

Parental Rate

This function allows TV channels to be restricted.
It prevents children from watching violent or sexual
scenes that may be considered inappropriate.

Repeat steps 1 to 3 in Setting a password.

1

Press a/b to select “Parental rating”, and

2

then press ENTER.

Press a/b to select your desired rating, and

3

then press ENTER.

Selected item Description

General and
above (G)

Parental
Guidance
and above
(PG)

Mature and
above (M)

Mature Adult
and above
(MA)

Adult
Violence and
above (AV)

Restricted
and above
(R)

No Block (-) Cancel the blocking.

Content is not offensive to most viewers.

Content is such that parents may
not want their children to view the
programme.

Mature Audience only. This programme
is specifically designed to be viewed by
adults and therefore may be unsuitable for
children under 15.

Mature Adult only. This programme is
specifically designed to be viewed by
adults and therefore may be unsuitable
for children under 15.

Not for children under age 15. Strong
elements of sex and/or violence.

Not for children under age 18. Strong
elements of sex and/or violence.

Key Lock

This function allows you to lock the buttons on the
TV or remote control in order to prohibit children from
changing the channel or volume.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Key Lock”, and then

3

press ENTER.

Press a/b to select “RC Control Lock”

4

or “Button Control Lock”, and then press

ENTER.

Selected item Description

Off Unlock the buttons.

RC Control
Lock

Button
Control Lock

NOTE

• You cannot set both “RC Control Lock” and “Button
Control Lock” at the same time.

Lock all buttons on the remote control.

Lock the buttons except the power
switch on the TV.

w Cancelling the lock

Press the MENU on the TV and set to “Off” to cancel
the “RC Control Lock”.
Press the MENU on the remote control and set to “Off”
to cancel the “Button Control Lock”.

• Refer to page 17 for menu operation using MENU button
on the TV.

Programme Title Display

This function allows you to display programme
information on the screen including the title and airtime
by tuning a channel.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Programme Title

3

Display”, and then press ENTER.

Press c/d to select “Yes”, and then press

4

ENTER.

NOTE

• The Programme Title Display function is only available for
the DTV mode.

29

52D83X_en_d.indd 2952D83X_en_d.indd 29 2007/08/31 16:25:322007/08/31 16:25:32

Watching TV

Energy conservation settings

Auto power-off at a designated time

This function is conveniently used when, for instance,
going to bed while watching TV.

Press SLEEP.

1

• Remaining time displays when sleep timer has
been set.

Sleep Timer: Remain 2 hr. 00 min.

Each time you press SLEEP, the remaining

2

time switches as shown below.

0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min.

Off

NOTE

•

The sleep timer indicator on the TV lights up when the time has been set.

•

When the time has been set, countdown automatically starts.

• Five minutes before the preset of time expires, the
remaining time displays each minute.

• Select “Off” by pressing SLEEP to cancel the sleep timer.

2 hr. 30 min. 2 hr. 00 min.

• “Disable” is the factory preset value.

When set to “Yes”, The TV activates the following
power saving mode.

• “OPC” set to “On” (Page 34)

• “Standby Mode” set to “Mode2” (Page 30)

• “No Signal Off” set to “Enable” (Page 30)

• “No Operation Off” set to “3 hr” (Page 30)

Auto power-off after the end of broadcast

You can set the TV to automatically power off in about
15 minutes after the TV goes into a state of receiving no
programme signals, such as the end of a broadcast day.

Press MENU and the MENU screen displays.

1

Press c/d to select “Power Control”.

2

• Power control menu displays.

Press a/b to select “No Signal Off”, and then

3

press ENTER.

Press

4

• Five minutes before the power shuts down, the
remaining time displays every minute.

NOTE

• “Disable” is the factory preset value.

•

When a TV programme finishes, this function may not operate.

to select “Enable”, and then press ENTER.

c/d

• Ecology mode cannot be deactivated by selecting “No”.

You can reduce the TV's start-up time after turning on
the power with the remote control unit.

Press c/d to select “Power Control”.

2

• Power control menu displays.

Press a/b to select “No Operation Off”, and

3

then press ENTER.

Press a/b to select “30 min.” or “3 hr.”, and

4

then press ENTER.

• Five minutes before the power shuts down, the
remaining time displays every minute.

NOTE

Ecology

Press MENU and the MENU screen displays.

1

Press c/d to select “Power Control”, and

2

then press ENTER.

• Power control menu displays.

Press a/b to select “Ecology”, and then

3

press ENTER.

Press c/d to select “Yes”, and then press

4

ENTER.

NOTE

Each setting must be changed individually to deactivate
Ecology mode.

Reducing the start-up time

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Standby Mode”, and

3

then press ENTER.

Auto power-off when there are no
operations performed

You can set the TV to automatically power off when no
TV operation is performed for more than 3 hours.

Press MENU and the MENU screen displays.

1

30

52D83X_en_d.indd 3052D83X_en_d.indd 30 2007/08/31 18:20:012007/08/31 18:20:01

Press c/d to select “Mode1” or “Mode2”, and

4

then press ENTER.

Selected item Description

Mode1 Starting the TV is quick from standby.

Mode2 Power consumption is small during standby.

Watching TV

Picture size settings

Selecting the Wide Screen Signalling
(WSS) picture size automatically

WSS allows a television to switch automatically among
the different screen formats.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “WSS”, and then press

3

ENTER.

Press c/d to select “On” or “Off”, and then

4

press ENTER.

NOTE

• Try to set WIDE mode if an image does not switch to the
correct screen format. When the broadcast signal contains
no WSS information, the function will not work even if
enabled.

Selecting the Wide Screen Signalling
(WSS) picture size manually

The WSS signal has 4:3 auto-switching that allows you
to select between Panorama and Normal.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “4:3 Mode”, and then

3

press ENTER.

Press c/d to select “Panorama” or “Normal”,

4

and then press ENTER.

WSS signal 4:3 screen

4:3 mode “Panorama” 4:3 mode “Normal”

Selected item Description

Panorama Wide image without side bars

Normal Normal range keeping 4:3 or 16:9 aspect

ratio

31

52D83X_en_d.indd 3152D83X_en_d.indd 31 2007/08/31 16:25:332007/08/31 16:25:33

Watching TV

Selecting the picture size manually

Manual Selection

You can select different picture sizes that account for
the kind of each picture.

Press WIDE.

1

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable
for the type of video signal currently received.

WIDE MODE

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

Press WIDE or a/b while the WIDE MODE

2

menu displays on the screen.

• As you toggle down the options, each mode is
immediately reflected on the TV.

Auto Selection

If you set “WSS” and “4:3 Mode” in the Setup menu on page
31, the optimum WIDE mode is automatically chosen for
every broadcast containing the WSS information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup
menu to “On”. (See page 31.)

“4:3 Mode” menu

To set the type of the wide screen, select “Panorama”
or “Normal” in the 4:3 Mode menu. (See page 31.)

4:3 Mode set to “Panorama” 4:3 Mode set to “Normal”

NOTE

•

If the broadcast signal contains no WSS information, Auto
Selection will not function even when the WSS option is enabled.

Selected item Description

Normal For 4:3 “standard” pictures. A side bar appears on each side.

Zoom 14:9

Panorama In this mode the picture is progressively stretched toward each side of the screen.

Full For 16:9 squeeze pictures.

Cinema 16:9 For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Cinema 14:9 For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Dot by Dot Displays an image with the same number of pixels on the screen (only when receiving a 1080i/1080p signal).

Underscan Display with an Underscan image only when receiving a 720p signal. Display with the High-Definition image

Normal

For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.

adjusted optimally. Noise may appear on the edge of the screen with some programmes.

NOTE

Zoom 14:9 Panorama

• Some picture sizes may not be
displayable depending on the
input signal.

Cinema 14:9 Cinema 16:9 Full

32

52D83X_en_d.indd 3252D83X_en_d.indd 32 2007/08/31 16:25:332007/08/31 16:25:33

Watching TV

Selecting a preset AV MODE

The AV MODE function enables you to select
appropriate settings for audio and video to account for
the system environment which can vary due to factors
like room brightness, type of programme watched or
the type of image input from external equipment.

Using AV MODE on the remote control unit

Press AV MODE.

1

• Present AV MODE displays.

Press AV MODE again before the mode

2

displayed on the screen disappears.

• The mode changes as shown below.

When the input source is TV, INPUT1, 2 or 3 terminal

AV MODE: STANDARD

(Example)

AV MODE: MOVIE

Selected item Description

STANDARD For a highly defi ned image in a normally

bright room

MOVIE For a movie

GAME Lowers image brightness for easier

viewing.

PC* For PC. (Available only when inputting an

HDMI or RGB signal.)

xvYCC** Produce realistic colour on the TV screen

unlike any other signal.

USER Allows the user to customise settings as

desired. You can set the mode for each
input source.

DYNAMIC
(Fixed)

Changes the image and sound settings to
the factory preset values. No adjustments
are allowed.

DYNAMIC For a clear-cut image emphasising high

contrast for sports viewing

NOTE

• The item marked with * is available only when selecting
“INPUT4”, “INPUT5”, “INPUT6” or “INPUT7” from the
INPUT SOURCE menu.

• The item marked with ** is available only when accepting
an xvYCC signal through an HDMI terminal.

AV MODE: DYNAMIC

AV MODE: DYNAMIC (Fixed)

AV MODE: GAME

AV MODE: USER [TV]

When the input source is INPUT4, 5, 6 or 7 terminal

(Example)

AV MODE: STANDARD

AV MODE: DYNAMIC

AV MODE: DYNAMIC (Fixed)

AV MODE: USER [ ]

AV MODE: MOVIE

AV MODE: GAME

AV MODE: PC

AV MODE: xvYcc

33

52D83X_en_e.indd 3352D83X_en_e.indd 33 2007/08/31 16:25:512007/08/31 16:25:51

Watching TV

Manual picture settings

Picture adjustment

You can adjust the picture to your preference.
Follow the steps to adjust the picture.

Press MENU and the MENU screen displays.

1

Press c/d to select “Picture”.

2

MENU

[

]


Picture Audio

DYNAMIC

OPC

Backlight [+14]

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

[+30]

[ 0]

[ 0]

[ 0]

[ 0]

[Off]

+

+

+

+

Selected item

OPC Sets whether or not the screen brightness

Backlight The screen dims The screen

Contrast For less contrast For more contrast

Brightness For less brightness

Colour For less colour

Tint Skin tones become

Sharpness For less sharpness

Advanced For fi ner picture adjustments. (See page

Reset Resets all picture adjustment items to the

button

c

is automatically adjusted according to
the lighting condition in the room. (OPC
setting: See this page.)

intensity

purplish

35).

factory preset values.

button

d

brightens

For more brightness

For more colour
intensity

Skin tones become
greenish

For more sharpness

w OPC (Optical Picture Control) setting

You can set the TV to automatically adjust the screen
to suitable backlight brightness according to the
lighting conditions.

Using OPC on the remote control unit

Press a/b to select the desired menu item.

3

Press ENTER to proceed if necessary.

Press a/b or c/d to select the desired item

4

or adjust the item to the desired level. Press

ENTER if necessary.

NOTE

• For resetting all adjustment items to factory preset values,
pressa/b to select “Reset”, press ENTER, press c/d to
select “Yes”, and then press ENTER.

• Select “Advanced” and then press ENTER to set “Colour
Temp.”, “Fine Motion Advanced”, “Film Mode”, “Active
Contrast”, “3D-Y/C”, “Monochrome” or “Range of OPC”.
See page 35.

34

Press OPC to switch the OPC function on and off.

Using OPC on the menu screen

Selected item Description

On: Display Displays the OPC effect on the screen

while adjusting the brightness of the
screen.

On Automatically adjusts

Off The brightness is fi xed at the value set in

“Backlight” (See this page).

NOTE

• Make sure no object obstructs the OPC sensor, which
could affect its ability to sense surrounding light.

52D83X_en_e.indd 3452D83X_en_e.indd 34 2007/08/31 16:25:522007/08/31 16:25:52

Watching TV

Advanced picture settings

The advanced settings enable you to set the picture
adjustment in more detail. There are seven options you
can choose from.

Press MENU and the MENU screen displays.

1

w Film Mode

Automatically detects a fi lm-based source (originally
encoded at 24/25 frames/second, depending on the
vertical frequency), analyses it then recreates each still
fi lm frame for high-defi nition picture quality.

Press c/d to select “Picture”.

2

Press a/b to select “Advanced”, and then

3

press ENTER.

Press a/b to select the desired menu, and

4

then press ENTER.

Colour Temp.

Fine Motion Advanced

Film Mode

Active Contrast

3D-Y/C

Monochrome

Range of OPC

Press a/b or c/d to select the desired level,

5

and then press ENTER.

High

Mid-High

Middle

Mid-Low

Low

w Colour Temp. (Colour temperature)

Adjusts the colour temperature to give the best white
image.

Selected item Description

High
Mid-High
Middle
Mid-Low
Low

White with bluish tone

White with reddish tone

w Fine Motion Advanced

Use Fine Motion Advanced to view fast-action images
more clearly.

NOTE

• Film Mode is not selectable depending on the input signal
type.

w Active Contrast

Automatically adjusts the contrast of an image according
to the scene.

w 3D-Y/C

Provides high quality images with minimal dot crawl and
cross colour noise.

Selected item Description

Standard Normal adjustment

Fast Set the optimum image quality for fast-

moving images.

Slow Set the optimum image quality for slow-

moving images.

Off No detecting

NOTE

• 3D-Y/C is not selectable depending on the input signal
type.

• 3D-Y/C may not operate depending on the input signal
type or noisy input signal.

w Monochrome

For viewing images in monochrome.

w Range of OPC

The brightness level range of the OPC sensor’s
automatic adjustments can be set according to your
preferences. The adjustment range of the OPC sensor
can be set to a maximum of +16 and a minimum of

-16.

Selected item Description

On For obtaining a clear image

Off No adjustment

52D83X_en_e.indd 3552D83X_en_e.indd 35 2007/08/31 16:25:522007/08/31 16:25:52

Selected item Description

Max. -15 through +16

Min. -16 through +15

NOTE

• This function is available only when the OPC setting is set
to On or On: Display.

• The maximum setting cannot be set to a smaller number
than the minimum setting.

• The minimum setting cannot be set to a bigger number
than the maximum setting.

• The maximum and minimum settings cannot be set to the
same number.

• Depending on the brightness of the surrounding light, the
OPC sensor might not operate if the adjustment range is
small.

35

Watching TV

Other picture settings

DNR (Digital Noise Reduction)

Reduces noise on the screen and provides a clearer
video image.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “DNR”, and then press

3

ENTER.

Press a/b to select the desired level, and

4

then press ENTER.

Off

High

Low

Adjusting the image position

For adjusting a picture's horizontal and vertical
position.

Press MENU and the MENU screen displays.

1

Game Play Time

This function displays the elapsed game time so you
do not lose track of the time.
To display the elapsed time, select “GAME” under “AV
MODE” for the input mode of the terminal connected
to the game console before starting the game.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Game Play Time”, and

3

then press ENTER.

Press c/d to select “On”, and then press

4

ENTER.

Selected item Description

On The elapsed time is displayed every 30

Off No adjustment

minutes when you switch to GAME mode
in external input mode.

Press c/d to select “Setup”.

2

Press a/b to select “Position”, and then

3

press ENTER.

Press a/b to select “H-Pos.” or “V-Pos.”.

4

H-Pos.

[ 0]

V-Pos.

[ 0]

Reset

Selected item Description

H-Pos. Centres the image by moving it to the left

V-Pos. Centres the image by moving it up or

Press c/d to adjust the item to your desired

5

position.

NOTE

•

For resetting all adjustment items to the factory preset values,
press a/b to select “Reset”, and then press ENTER.

• Adjustments are stored separately according to input

source.

36

or right.

down.

52D83X_en_f.indd 3652D83X_en_f.indd 36 2007/08/31 16:26:082007/08/31 16:26:08

Watching TV

Indicating time on the screen

w Time Display

This function allows you to display the clock time on
the lower right screen.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Time Display” and then

3

press ENTER.

Time Display Displaying the clock

Time Format

On

On (half-hourly)

Off

w Time Format

You can select the time format (either 24HR or AM/PM)
for the clock time.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Time Display” and then

3

press ENTER.

Press a/b to select “Time Format” and then

4

press ENTER.

Press c/d to select the desired time format.

5

and then press ENTER.

Time Display Time Format

Time Format

24HR AM/PM

Press a/b to select “Time Display” and then

4

press ENTER.

Press a/b to select “On” or “On (half-hourly)”

5

and then press ENTER.

Selected item Description

On Display the clock time.

On (half­hourly)

Off Hide the clock time.

Display the clock time in 30 minutes
increments.

37

52D83X_en_f.indd 3752D83X_en_f.indd 37 2007/08/31 16:26:092007/08/31 16:26:09

Watching TV

Audio adjustment

You can adjust the audio of the selected AV mode.

Press MENU and the MENU screen displays.

1

Press c/d to select “Audio”.

2

[

]

MENU

Audio

Audio Power Control

DYNAMIC

Treble

Bass

Balance

Surround

Reset

Press a/b to select the desired menu item.

3

Press ENTER to proceed if necessary.

Press a/b or c/d to select the desired item

4

or adjust the item to the desired level. Press

[0] –15

[0]

–15

[0]

L

ENTER if necessary.

Selected item

Treble For weaker treble For stronger treble

Bass For weaker bass For stronger bass

Balance Decrease audio from

NOTE

• For resetting all adjustment items to the factory preset

values, press a/b to select “Reset”, press ENTER, press

c/d to select “Yes”, and then press ENTER.

button

c

the right speaker

Decrease audio
from the left speaker

+15

+15

R

[Off]

dbutton

w Surround

When you set to “On”, you can enjoy surround sound,
the same as if you were in a movie theatre.

Output Volume Select

Allows you to select what controls the audio output.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Output Volume Select”,

3

and then press ENTER.

Press c/d to select “Fixed” or “Variable”, and

4

then press ENTER.

Variable Fixed

Selected item Description

Fixed • Sound via speakers is adjusted with VOL

Variable • Sound via the MONITOR OUTPUT

NOTE

• This setting is available only in TV input mode.

on the remote control unit or the

e/f

TV.

• Sound via the MONITOR OUTPUT
terminal is not adjustable and constantly
outputs.

terminal is adjusted with VOL e/f on
the remote control unit or the TV.

• Sound via speakers is muted.

Repeat steps 1 to 2 in Audio adjustment.

1

Press c/d to select “Surround”, and then

2

press ENTER.

Press c/d to select “On”.

3

Selected item Description

On Makes it possible to enjoy natural,

Off Outputs the normal sound.

38

52D83X_en_f.indd 3852D83X_en_f.indd 38 2007/08/31 16:26:092007/08/31 16:26:09

realistic surround sound.

Watching TV

Automatic Volume Adjustment

Different sound sources sometimes do not have the
same volume level, such as a programme and its
commercial breaks. The Automatic Volume Control
(Auto Volume) reduces this problem by equalizing
levels.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Auto Volume”, and then

3

press ENTER.

Press c/d to select “On”, and then press

4

ENTER.

Clear Voice

This function emphasises speech against background
noise for greater intelligibility. It is not recommended for
music sources.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Clear Voice”, and then

3

press ENTER.

Press a/b to select your desired output

4

system, and then press ENTER.

PCM

Dolby Digital

Selected item Description

PCM

Dolby Digital Dolby Digital audio will be output when

The optical output format is normally in PCM.

there is a Dolby Digital audio signal. The
output will be in PCM when there is no
Dolby Digital audio signal.

Using Digital Audio Output

It is possible to output audio through the DIGITAL AUDIO
OUTPUT terminal. PCM audio outputs from the terminal.

Optical fi bre cable
(commercially available)

Press c/d to select “On”, and then press

4

ENTER.

Digital Audio Output

This function allows you to select your favourite audio output system.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”, and then press

2

ENTER.

Press a/b to select “Digital Audio Output”,

3

and then press ENTER.

...

[

Option

MENU

AQUOS LINK Setup

DNR

Input Select

HDMI Audio Select

Output Volume Select

Auto Volume

Clear Voice

Digital Audio Output

Audio Only

Option

DigitaI Audio Output

]

[Off]

[Auto]

[Digital]

[Fixed]

[On]

[Off]

[PCM]

[Off]

NOTE

• The DIGITAL AUDIO OUTPUT terminal usually outputs the
same audio from the speakers. (The audio of the content
you are viewing is output from the terminal.)

• The DIGITAL AUDIO OUTPUT terminal does not output
some signals, depending on devices and software.

To optical digital input of external audio devices

39

52D83X_en_f.indd 3952D83X_en_f.indd 39 2007/08/31 16:26:102007/08/31 16:26:10

Watching TV

Programme Guide

You can check the current schedule of DTV events
and view detailed information about current events.

Press GUIDE to display the programme guide

1

list.

Press a/b to display your desired

2

programme, and then press ENTER.

• When you press ENTER, the TV jumps to the

channel.

[

]

CH LIST

DTV -TV

002 ABC TV Sydney 9:23 – 9:29

Global Grover

002

ABC TV Sydney

003

SBS

004

FTV Guide

009

NINE DIGITAL

TEN DIGITAL

010

TEN Guide

011

TEN HD

012

020 ABC HDTV

021 ABC 2

022 ABC TV

030 SBS HD

031 SBS 2

6/19 [Mon] 9:29

Global Grover

Global Grover

ABC Asia Pacific News

Global Grover

Info

While watching DTV you can check the extended
programme information on the screen using INFO on
the remote control.

Input info.

Video : --

Audio : STEREO

Age : -

Optic. REC : OK

• If there is more information, pressing a/b allows you to go
to the next page or return to the previous page.

40

52D83X_en_f.indd 4052D83X_en_f.indd 40 2007/08/31 16:26:102007/08/31 16:26:10

Watching TV

Favourite channel setting

This function allows you to program 4 favourite
channels, in 4 different categories. By setting the
favourite channels in advance, you can select your
favourite channels easily.

Using FAVOURITE CH on the remote control unit

Select the channel you want to register as a

1

favourite channel.

Press FAV.

2

Press a/b to select “Register”, and then

3

press ENTER.

Press a/b/c/d to select the position in the

4

category, and then press ENTER to register.

RGYB

ATV

01

DTV

010

DTV

011

Press c/d to select “Yes”, and then press

4

ENTER.

Ye s No

RGY B

ATV

01

DTV

010

DTV

011

ATV

01

Deleting a favourite channel

Press FAV and the favourite channel screen

1

displays.

Press a/b to select “1 Data Clear”, and then

2

press ENTER.

• To delete all the favourite channels, select “All
Data Clear”, and then skip to step 4.

Press a/b/c/d to select the position in the

3

category, and then press ENTER to register.

RGYB

ATV

01

DTV

010

DTV

011

ATV

01

41

52D83X_en_f.indd 4152D83X_en_f.indd 41 2007/08/31 16:26:102007/08/31 16:26:10

Watching TV

ATV (Analogue)/DTV/RADIO buttons

Use the following buttons on the remote control to
operate the menu.

When you watch the TV for the fi rst time

When the TV powers on for the fi rst time after
purchase, perform the auto installation.

ATV (Analogue TV)

You can run the auto installation to set channels
automatically.

To watch the analogue TV, select “Auto

1

Installation” from Setup menu. (See page 20.)

After setting the channels, you can select

2

a channel using CH r/s or 0—9 on the
remote control unit. (See page 21.)

DTV

When the TV accesses to DTV mode for the fi rst time,
you need to run the auto search. To scan all available
services in your area, follow the procedures below.

To watch DTV broadcasts, select “Digital

1

Search” from auto installation menu. (See page

11.)

After setting the channels, you can select

2

a channel using CH r/s or 0—9 on the
remote control unit. (See page 21.)

ATV: Press to switch to analogue mode. After
switching from DTV, radio or external input mode to
analogue mode, the TV jumps to the most recently
viewed analogue channel.

DTV: Press to switch to DTV mode. After switching
from analogue, radio or external input mode to DTV
mode, the TV jumps to the most recently viewed DTV
channel.

RADIO: Press to switch to radio mode. After switching
from DTV to radio mode, the TV jumps to the most
recently tuned radio channel.

42

52D83X_en_f.indd 4252D83X_en_f.indd 42 2007/09/04 15:52:402007/09/04 15:52:40

Watching TV

EPG

What is an EPG?

An “EPG (Electronic Programme Guide)” is a
programme schedule, which is displayed on the TV
screen. The EPG is broadcasted together with DTV.
The TV screen shows the EPG when the viewer
presses EPG on the remote control, provided that
the TV is receiving the digital broadcasting signal. The
EPG enables you to search for a programme, do timer
recording or view the programme schedule in detail.

EPG display settings

EPG (Electronic Programme Guide) is a programme
list that is displayed on the screen. With the EPG, you
can check the schedule of DTV/RADIO/DATA, view
detailed information about them, tune to an event
currently on-air and set a timer for future events.

Press MENU and the MENU screen displays.

1

Press c/d to select “Digital Setup”.

2

[

Digital Setup

MENU

Digital Setup Information

REC Picture Size

EPG Setup

Subtitle

Press a/b to select “EPG Setup”, and then

3

press ENTER.

...

EPG Setup

]

w Display Range Setup

The Display range setup allows you to select three
types of time spans for display on the screen.

Selected item Description

Mode1
(Wide Angle)

Mode2
(Zoom)

Mode3
(Vertical
Angle)

Display six hours of programme
information.

Display three hours of programme
information.

Change to the EPG display format with a
vertical time span.

w Genre Icon Setup

You can grey out or place a mark on desired genres
and smoothly search for programmes you frequently
watch.

Genre Icon List

Icon Genre Icon Genre

Movie Arts/Culture

News Current Affairs

Entertainment

Sport Information

Children’s Comedy

Music Drama

Education/
Information

Press a/b or c/d to select the desired item

4

or adjust the item to the desired level. Press
ENTER if necessary.

w EPG Setup (setting for receiving EPG

data)

The EPG data must be automatically captured while
the TV set is in standby mode. After setting to “Yes”,
it may take some time to turn off the power using the
remote control due to the process of the data capture.

NOTE

• If the TV main power is switched off, the EPG data will not
capture.

NOTE

• You can easily distinguish the Genre Icons by darkening or
lightening the icon’s shade.

Time Zone

This function enables you to select your local time
zone.

Press MENU and the MENU screen displays.

1

Press c/d to select “Digital Setup”.

2

Press a/b to select “Time Zone”, and then

3

press ENTER.

Press a/b to select the desired time zone

4

and then press ENTER.

• This function lets you select the right time zone in case the
time displayed in the EPG does not match the local time of
your area.

43

52D83X_en_f.indd 4352D83X_en_f.indd 43 2007/08/31 16:26:112007/08/31 16:26:11

Watching TV

Selecting a programme using EPG

Basic Operation

w Display the EPG screen

Press EPG.

EPG [DTV-TV]

TEN Digital

ABC TV Sydney

SBS

FTV Guide

TEN Digital

TEN Guide

TEN HD

2

w Display the EPG screen

ABC HDTV

ABC 2

ABC TV

SBS HD

SBS 2

SBS NEWS

SBS NEWS

D44

: Select : Enter

002

ABC TV Sydney Global Grover

9:23 – 9:29

002

007

010

012

030

061

062

340

351

994

995

996

997

998

999

ENTER

RETURN

10 11 12 13 14

9

Ba...

Pla...

Pla... Ba... Arr... Naked Scien… Catal… Parliament Qu…The… The…

ABC…

Stat… T… W… Se… Play S… G…

EPG

: Back

RGYB

: Exit Programme Info. Search By Genre Search By Date Timer List

Naked Scien… Catal… Parliament Qu…The… The…

Arr...

345

6/19[Tue] 9:28Today [Tue]20 [Wed]21 [Thu]22 [Fri]23 [Sat]24 [Sun]25 [Mon]26

1

1 Press c/d to select the time span you want to search.

• Continue to press d to display programmes in the next time span.

2 Press a/b to select the desired programme.

• If a or b are displayed on the left of the services, continue to
press a/b to display next or previous screen.

Selecting a programme

3 Check programme information

Press a/b/c/d to select the programme

1

you want to check.

Press R.

2

Programme Information

EPG [DTV-TV]

002

ABC TV Sydney Trot ro

9:23 – 9:29

TEN Digital

ABC TV Sydney

SBS

FTV Guide

TEN Digital

TEN Guide

TEN HD

ABC HDTV

ABC 2

SBS NEWS

D44

ENTER

: Select : Enter

Press ENTER to tune to the selected

3

programme.

Programme Info.

Back to EPG

R

10 11 12 13 14

9

002

007

010

012

030

061

062

340

351

998

999

RETURN

: Back

Ba...

Pla...

Pla... Ba... Arr... Naked Scien… Catal… Parliament Qu…The… The…

ABC…

Stat… T… W… Se… Play S… G…

EPG

: Exit

Trotro is a little donkey with a head full of ideas. He knows exactly what
he likes and doesn’t like. He’s a positive and engaging hero, with whom
young children will easily identify.

Next

B

Arr... Naked Scien… Catal… Parliament Qu…The… The…

6/19[Tue] 9:28Today [Tue]20 [Wed]21 [Thu]22 [Fri]23 [Sat]24 [Sun]25 [Mon]26

Close the EPG screen

w

Press EPG again.

44

52D83X_en_f.indd 4452D83X_en_f.indd 44 2007/08/31 16:26:122007/08/31 16:26:12

Watching TV

4 Search a programme in a category

Press G.

1

Press a/b to select the desired genre, and

2

then press ENTER.

Press a/b to select a programme you want

3

to watch, and then press ENTER.

EPG 6/19[Mon] 10:57[DTV-TV]

Search By Genre

Movie

News

Entertainment

Sport

Children’s

Music

Arts/Culture

Current Affairs

Education/Information

Information

Comedy

Drama

ENTER

: Select : Enter

RETURN

Today

[Tue]20 [Wed]2 [Thu]22 [Fri]23 [Sat]240 [Sun]25 [Mon]26

Today [AM]

ABC HDTV 020 Global Grover [Mon] 19/06 10 : 50 11 : 10

ABC TV 022 Global Grover [Mon] 19/06 11 : 05 11 : 20

: Back

EPG

: Exit

Back to EPG

R

5 Search for a programme by date/time

Press Y.

1

Press c/d to select the desired time span

2

and then press ENTER.

EPG [DTV-TV]

Search by Time

0 – 6 6 – 12 12 – 18 18 – 0

ENTER

: Enter

R

10 11 12 13 14

Ba...

Pla...

Pla... Ba... Arr... Naked Scien… Catal… Parliament Qu…The… The…

Stat… T… W… Se… Play S… G…

EPG

: Exit

Arr...

TEN Digital

ABC TV Sydney

SBS

FTV Guide

TEN Digital

TEN Guide

TEN HD

ABC HDTV

ABC 2

SBS 2

SBS NEWS

SBS NEWS

D44

ENTER

: Select : Enter

: Select Time

002

007

010

012

030

061

062

340

351

996

997

998

999

RETURN

: Back

9

ABC…

Today [PM] [Tue] 20 AM [Tue] 20 PM

Today

-ABC TV Sydney 002 Global Grover [Mon] 19/06 10 : 50 11 : 05

Next

Back to EPG

Naked Scien… Catal… Parliament Qu…The… The…

Enter +1 Week

G Y

Next

B

Next

B

6/19[Tue] 9:28Today [Tue]20 [Wed]21 [Thu]22 [Fri]23 [Sat]24 [Sun]25 [Mon]26

Press a/b to select the desired programme,

3

and then press ENTER.

NOTE

• When you select a programme outside of the current time
span, the timer setting screen displays. (Page 46)

45

52D83X_en_f.indd 4552D83X_en_f.indd 45 2007/08/31 16:26:122007/08/31 16:26:12

Watching TV

Timer recording using EPG

You can record TV programmes using data from the
EPG.

Press EPG.

1

Press a/b/c/d to select the programme

2

you want to record, and then press ENTER.

Press c/d to select the preferred timer

3

setting, and then press ENTER.

NoRecordWatc h

• If you select “No”, the TV returns to the EPG screen.

w Selecting “Watch” in the timer setup

screen

This setting allows you to switch to a programme at a
set time.

Press c/d to select “Watch”, and then press

1

ENTER.

Press c/d to select “Yes”, and then press

2

ENTER.

• The selected TV programme is marked with an icon.

Cancelling the timer recording

Press EPG.

1

Press a/b/c/d to select the programme on

2

timer setup, and then press ENTER.

Press c/d to select “Cancel” , and then press

3

ENTER.

w Cancelling using B button on the remote

control

Press EPG.

1

Press B to display the timer recording screen.

2

Press a/b to select a programme with a set

3

timer recording you want to change, and then
press ENTER.

Press c/d to select “Cancel” and then press

4

ENTER.

w Selecting “Record” in the timer setup

screen

This setting allows you to record a programme at a set
time.

Press c/d to select “Record”, and then press

1

ENTER.

Press c/d to select the preferred timer recording

2

type, and then press ENTER.

Selected item Description

AQUOS
LINK

VHS tape

NOTE

• Refer to pages 13 and 14 for connecting external devices.

• The selected TV programme is marked with an icon.

46

Record a programme at a set time when a device
compatible with AQUOS LINK is connected.

Record a programme at a set time when a device
compatible with VHS tape is connected.

52D83X_en_f.indd 4652D83X_en_f.indd 46 2007/08/31 16:26:122007/08/31 16:26:12

Settings when using external devices

Settings when using HDMI output devices

HDMI terminals can carry audio and visual signals to the TV with an HDMI certifi ed cable. When you want to
output the audio and picture from an HDMI output device on the TV, select “INPUT4”, “INPUT5” or “INPUT6” by
switching the input source.

Connecting an HDMI output device

HDMI cable
(commercially available)

HDMI output
device

HDMI (High-Defi nition Multimedia Interface)

w

Auto View

To watch an HDMI equipment image, select

1

“INPUT4”, “INPUT5” or “INPUT6” using TV/
VIDEO on the remote control unit or on the

TV.

Press MENU and the MENU screen displays.

2

Press c/d to select “Setup”.

3

Press a/b to select “HDMI Auto View”, and

4

then press ENTER.

• The HDMI Setup can be selected only when
“INPUT4”, “INPUT5” or “INPUT6” is selected.

...

[

Setup

MENU

Setup Option

Input Skip

Input Signal

Input Label

Position

HDMI Auto View

Standby Mode

Language

Reset

Press c/d to select the desired item, and

5

then press ENTER.

Selectable items

Enable/
Disable

HDMI Auto View

1360m768

Set whether or not to use WIDE MODE
based on signal recognition, including an
HDMI signal.

]

[Enable]

[Mode2]

[English]

Description

47

52D83X_en_f.indd 4752D83X_en_f.indd 47 2007/08/31 16:26:132007/08/31 16:26:13

Settings when using external devices

HDMI Audio Select

w

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “HDMI Audio Select”,

3

and then press ENTER.

• The HDMI Audio Select can be selected only
when “INPUT6” is selected.

...

[

Option

MENU

Option

AQUOS LINK

DNR

Input Select

HDMI Audio Select

Output Volume Select

Press c/d to select the desired setting, and

4

then press ENTER.

HDMI Audio Select

]

[Off]

[Auto]

[Digital]

[Fixed]

Selectable items

Digital/
Analogue

Select “Digital” for audio signal via the
HDMI terminal.
Select “Analogue” for audio signal via the
AUDIO jack.

Description

NOTE

• When the equipment is connected with an HDMI cable,
items are automatically set and cannot be selected.

• “HDMI Audio Select” is only available for INPUT6.

48

52D83X_en_f.indd 4852D83X_en_f.indd 48 2007/08/31 16:26:132007/08/31 16:26:13

Settings when using external devices

Selecting the input source and
signal type

Selecting input source

Can use for selecting the input source.

Using TV/VIDEO on the remote control unit or on
the TV.
TV/VIDEO allows you to choose from the available

input sources.

Selecting input signal type

For setting the signal type of external equipment.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Input Select”, and then

3

press ENTER.

Press a/b to select a signal type you want to

4

set, and then press ENTER.

Input source Selectable item

INPUT 1 Auto, COMPONENT, VIDEO

INPUT 2 Auto, COMPONENT, VIDEO

INPUT 3 Auto, S-VIDEO, VIDEO

NOTE

• If no (colour) image displays, try changing the other
signal type.

• Check the operation manual of the external equipment for
the signal type.

• When the signal type is set to “Auto”, the input terminal
where a cable is connected is automatically selected.

• When the signal type is set to “Auto” and multiple video
signal cables are connected, the signal type is selected in
the following prioritised order:

INPUT 1/INPUT 2: COMPONENTs VIDEO
INPUT 3: S-VIDEOs VIDEO

Press TV/VIDEO on the remote control unit or

1

on the TV.

Press TV/VIDEO on the remote control unit or

2

on the TV to select the input source.

• The image and sound from the selected source
are output on the TV.

• You can also select the input source by pressing

.

a/b

Selecting the size of the picture for recording

You can use this function to set the appropriate
picture size for recording a 16:9 format TV programme
broadcast via DTV.

Press MENU and the MENU screen displays.

1

Press c/d to select “Digital Setup”.

2

Press a/b to select “REC Picture Size”, and

3

then press ENTER.

Press c/d to select the desired picture size,

4

and then press ENTER.

Selected item Description

16:9 TV The TV displays the 16:9 format picture

4:3 TV The picture gets compressed in the

with black bands at the top and bottom
of the screen.

horizontal direction.

49

52D83X_en_f.indd 4952D83X_en_f.indd 49 2007/08/31 16:26:132007/08/31 16:26:13

Settings when using external devices

Labelling input sources Skipping HDMI/RGB input

You can assign each input source a label as you
prefer.

Press TV/VIDEO to select the desired input

1

source.

Press MENU and the MENU screen displays.

2

Press c/d to select “Setup”.

3

Press a/b to select “Input Label”, and then

4

press ENTER.

Press a/b/c/d to select each character of

5

the new name for the input source, and press
ENTER.

This setting allows you to skip the HDMI or RGB input
on the “Input Select” menu.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Input Skip”, and then

3

press ENTER.

Press a/b to select the Input (INPUT4 to

4

INPUT7) you wish to skip, and then press
ENTER.

INPUT 4 (HDMI)

INPUT 5 (HDMI)

INPUT 6 (HDMI)

INPUT 7 (RGB)

Yes

Press c/d to select “Yes”, and then press

5

ENTER.

Press MENU to exit.

6

No

DVD

A

B

C

D

E

F

G

H

I

K

L

M

N

O

P

U

V

W

0123456789

Repeat until the name is fully spelt out.

6

• The name can be 6 characters or less.

• When you want to set an input source name of
less than 6 characters, select “END”, then press
ENTER to exit from the labelling menu.

X

Y

Z

(Example)

Q

+

J

R

S

T

–_

.

INPUT SOURCE

TV

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5

DVD

INPUT7

(Example)

NOTE

• You cannot change labels if the input source is TV.

50

CLEAR
BACK

END

Colour system settings

You can change the colour system to one that is
compatible with the image on the screen.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “Colour System”, and

3

then press ENTER.

Press a/b to select a compatible video signal

4

system of your equipment, and then press
ENTER.

Auto

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

NOTE

• Factory preset value is “Auto”.

• If “Auto” is selected, colour system for input signal is
automatically set. If an image does not display clearly,
select another colour system (e.g. PAL, NTSC 4.43).

52D83X_en_f.indd 5052D83X_en_f.indd 50 2007/09/04 15:52:542007/09/04 15:52:54

AQUOS LINK

Controlling HDMI devices using AQUOS LINK

What is AQUOS LINK?

Using the HDMI CEC (Consumer Electronics Control) protocol, with AQUOS LINK you
can interactively operate compatible system devices (AV amplifi er, DVD, Blu-ray Disc
device) using a single remote control.

NOTE

• AQUOS LINK-compatible AQUOS BD Player, AQUOS Audio speaker system and AQUOS
Recorder are to be on sale after the release of this TV. (As of September 2007)

What you can do with AQUOS LINK

One Touch Recording (DTV only)

✔

You do not have to search for the remote control of your recording device. Press the
REC E or REC STOP H inside the fl ip cover to start/stop recording what you see
on the TV.

One Touch Play

✔

While the TV is in standby mode, it automatically turns on and plays back the image
from the HDMI source.

Single remote control operation

✔

The AQUOS LINK automatically recognises the connected HDMI device and you can
control the TV and the devices as if using a universal remote control.

Operating Title list of external devices

✔

In addition to displaying the TV’s own Timer list (page 43), you can also call up the
external player’s Top menu or AQUOS BD Player’s/AQUOS Recorder’s Title list
provided that the devices support AQUOS LINK.

Multiple control of HDMI devices

✔

You can select which HDMI device to operate using OPTION.

Controlling the AQUOS AUDIO speaker system

✔

You can adjust the volume and select the sound mode of the AQUOS AUDIO speaker
system.

NOTE

• Point the remote control toward the TV, not to the connected HDMI device.

• Video noise may occur depending on the type of HDMI cable used. Make sure to use a
certifi ed HDMI cable.

• Up to 3 HDMI recording devices, one AV amplifi er and two players can be connected using
this system.

• These operations affect the HDMI device selected as the current input source. If the device
does not operate, turn on the device and select the appropriate input source using TV/VIDEO.

• When you insert/remove HDMI cables or change connections, turn on all connected HDMI
devices before turning on the TV. Confi rm that picture and audio are correctly output by
selecting “INPUT4”, “INPUT5” or “INPUT6” from the INPUT SOURCE menu.

51

52D83X_en_f.indd 5152D83X_en_f.indd 51 2007/08/31 16:26:142007/08/31 16:26:14

AQUOS LINK

AQUOS LINK connection

First connect the AQUOS Audio speaker system or an AQUOS BD Player/AQUOS Recorder that supports the
HDMI CEC protocol.

NOTE

• Refer to the operation manual of the device to be connected for further details.

• After unplugging connection cables or changing the connection pattern, fi rst turn on the power of the TV with all relevant

device’s power turned on. Change the external input source by pressing TV/VIDEO, select the appropriate input source and
verify the audiovisual output.

• The cables illustrated in the following explanation are commercially available items.

Connecting an AQUOS BD Player/AQUOS Recorder via
the AQUOS Audio speaker system

Optical AUDIO

HDMI cable

AQUOS BD Player/
AQUOS Recorder

HDMI cable

AQUOS Audio

speaker system

cable

AQUOS LINK Setup

Connecting an AQUOS BD
Player/AQUOS Recorder only

HDMI cable

AQUOS BD Player/

AQUOS Recorder

AQUOS LINK Auto power on

If this is activated, the One Touch Play function is enabled.
While the TV is in standby mode, it automatically turns on
and plays back the image from the HDMI source.

Press MENU and the MENU screen displays.

1

Press c/d to select “Option”.

2

Press a/b to select “AQUOS LINK Setup”,

3

and then press ENTER.

52

52D83X_en_f.indd 5252D83X_en_f.indd 52 2007/08/31 16:26:142007/08/31 16:26:14

• The factory default for this item is “Off”.

Press a/b to select “Auto Power On”, and

4

then press ENTER.

Auto Power On

Selecting Recorder

Using Genre Info.

On Off

Press c/d to select “On”, and then press

5

ENTER.

Press MENU to exit.

6

NOTE

AQUOS LINK

Selecting recorder

You can select a recorder for the recording from several
connected recorders.

Repeat steps 1 to 3 in AQUOS LINK Auto

1

power on.

Press a/b to select “Selecting Recorder”,

2

and then press ENTER.

Auto Power On

Selecting Recorder

Using Genre Info.

Select the recorder, and then press ENTER.

3

Press MENU to exit.

4

NOTE

• If you have connected the AQUOS Audio speaker system
between the TV and an AQUOS Recorder, the input
source’s indication changes from “INPUT4” to “INPUT4
(Sub)” as it is shown below.

Auto Power On

Selecting Recorder

Using Genre Info.

Input Location

INPUT4

INPUT5

Input Location

INPUT4

INPUT4 (Sub)

INPUT5

[1. 0. 0. 0]

[1. 1. 0. 0]

[2. 0. 0. 0]

[1. 0. 0. 0]

[2. 0. 0. 0]

Using Genre Info.

This function allows you to automatically switch to
the appropriate sound mode depending on the genre
information included in the digital broadcast.

Repeat steps 1 to 3 in AQUOS LINK Auto

1

power on.

Operating an AQUOS LINK device

AQUOS LINK allows you to operate the HDMI­connected device with one remote control.

Press PLAY I to start playback of a title.

1

• See page 54, section “Playback of titles using
AQUOS LINK” if you want to start playback using

the list of the titles of the AQUOS BD Player/
AQUOS Recorder.

Press FWD J to fast forward.

2

Press REV G to reverse.
Press STOP H to stop.
Press POWER to turn the HDMI-connected

device on/off.

Listening with the AQUOS Audio speaker
system

You can opt to listen to the TV sound only from the
AQUOS Audio speaker system.

Press OPTION and the AQUOS LINK menu

1

screen displays.

Press a/b to select “By AQUOS AUDIO SP”,

2

and then press ENTER.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS AUDIO SP

By AQUOS SP

Sound mode change

Model select

• The sound from the TV speaker and headphone
terminal is silenced and only the sound from the
AQUOS Audio speaker system is audible.

• You can use VOL k/l and MUTE (e).

Press a/b to select “Using Genre Info.”, and

2

then press ENTER.

Press c/d to select “On”, and then press

3

ENTER.

53

52D83X_en_f.indd 5352D83X_en_f.indd 53 2007/08/31 16:26:152007/08/31 16:26:15

AQUOS LINK

Listening with the AQUOS TV speaker
system

You can opt to listen to the TV sound only from the
AQUOS TV speaker system.

Press OPTION and the AQUOS LINK menu

1

screen displays.

Press a/b to select “By AQUOS SP”, and

2

then press ENTER.

Manually changing the AQUOS Audio
speaker system’s sound mode

Press OPTION and the AQUOS LINK menu

1

screen displays.

Press a/b to select “Sound mode change”.

2

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS AUDIO SP

By AQUOS SP

Sound mode change

Model select

The sound mode changes every time you

3

press ENTER.

• Refer to the operation manual of the AQUOS
audio speaker system for details.

Playback of titles using AQUOS LINK

This section explains how to play back a title in the
AQUOS BD Player/AQUOS Recorder.

Select the appropriate external input.

1

Press OPTION and the AQUOS LINK menu

2

screen displays.

Press a/b to select “Top Menu/Title List”,

3

and then press ENTER.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS AUDIO SP

By AQUOS SP

Sound mode change

Model select

• The linked recorder now powers on and the TV
automatically selects the appropriate external
input source.

• The title list data from the connected AQUOS BD
Player/AQUOS Recorder displays.

Select the title with a/b/c/d, and then

4

press PLAY I to start playback.

54

52D83X_en_f.indd 5452D83X_en_f.indd 54 2007/08/31 16:26:152007/08/31 16:26:15

AQUOS LINK

Selecting media type for CEC-compatible
recorder

If your recorder has multiple storage media, select the
media type here.

Press OPTION and the AQUOS LINK menu

1

screen displays.

Press a/b to select “Media change”, and

2

then press ENTER.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS AUDIO SP

By AQUOS SP

Sound mode change

Model select

Select the desired medium, such as DVD or

3

HDD. The media type changes every time you
press ENTER.

One Touch Recording (DTV only)

With this function, you can easily record a programme
you are watching on the TV onto AQUOS LINK­compatible equipment by simply pressing REC E.

Check the following items before recording.

• Make sure the antenna cable is connected properly.

• Check if the recording media (HDD, DVD, etc.) has enough
capacity for recording a programme.

• Select the equipment for recording in “Model select”.

Press REC E to record a programme.

1

• The selected AQUOS LINK-compatible device
automatically detects the programme you are
watching on the TV and starts recording.

Press REC STOP H to stop recording.

2

HDMI device selection

If multiple HDMI devices are connected in a daisy
chain, you can specify which device to control here.

Press OPTION and the AQUOS LINK menu

1

screen displays.

Press a/b to select “Model select”, and then

2

press ENTER. The HDMI device changes
every time you press ENTER.

Recording via the AQUOS Recorder EPG
(only for recorders)

You can call up the CEC-compatible recorder’s EPG
and preset timer recordings using the TV’s remote
control.

Press OPTION and the AQUOS LINK menu

1

screen displays.

Press a/b to select “Recorder EPG”, and

2

then press ENTER.

• The external input source switches and the
recorder’s EPG is displayed.

AQUOS LINK Menu

Recorder EPG

Top Menu/Title List

Media change

By AQUOS AUDIO SP

By AQUOS SP

Sound mode change

Model select

Select the programme to record.

3

• Refer to the operation manual of the recorder for
details.

NOTE

• One Touch Recording cannot be performed unless the
device you select in “Model select” is AQUOS LINK
compatible.

55

52D83X_en_f.indd 5552D83X_en_f.indd 55 2007/08/31 16:26:152007/08/31 16:26:15

Connecting a PC

Use the PC terminals to connect a PC.

HDMI Connection

PC

HDMI cable

INPUT 4 or 5

(Commercially available)

PC

DVI/HDMI conversion cable

INPUT 6

(Commercially available)

Ø 3.5 mm stereo minijack cable

(Commercially available)

NOTE

• The PC INPUT terminals are DDC1/2B-compatible.

• Refer to page 61 for a list of PC signals compatible with the TV.

Analogue Connection

PC

RGB cable

(Commercially available)

INPUT 7

Ø 3.5 mm stereo minijack cable

(Commercially available)

PC

RGB/DVI conversion cable

(Commercially available)

Ø 3.5 mm stereo minijack cable

(Commercially available)

Signal names for 15-pin mini D-sub connector

5

4 321

10

9

15

141312

56

6

7

8

11

Pin No. Signal name Pin No. Signal name Pin No. Signal name

NOTE

• Macintosh adaptor may be required for use for some Macintosh computers.

• Pin No. 5 is not used for inputting the signal.

INPUT 7

R GND (Ground) Not connected
G GND (Ground) SDA
B GND (Ground) HD

Not connected +5V VD

CSYNC GND (Ground) SCL

52D83X_en_f.indd 5652D83X_en_f.indd 56 2007/08/31 16:26:162007/08/31 16:26:16

Connecting a PC

Displaying a PC image on the screen

Selecting the picture size

You can select the picture size as illustrated below.

a

Screen size images.

Input Signal CinemaNormal

Press WIDE.

1

• The WIDE MODE menu displays.

WIDE MODE

Normal

Cinema

Full

Dot by Dot

(Example)

Press WIDE or a/b to select a desired item

2

on the menu.

NOTE

• Connect the PC before making adjustments.

• Selectable screen size may vary with input signal type.

Full

Dot by Dot

1024g768

Input Signal

1360g768

Keeps the original
aspect ratio in a full
screen display.

Normal

Keeps the original
aspect ratio in a full
screen display.

For viewing wide
screen programs. The
top and bottom of
the image is slightly
cropped.

An image fully fi lls the
screen.

Full Dot by Dot

An image fully fi lls the
screen.

Detects the resolution
of the signal and
displays an image
with the same number
of pixels on the
screen.

Detects the resolution
of the signal and
displays an image
with the same number
of pixels on the
screen.

57

52D83X_en_f.indd 5752D83X_en_f.indd 57 2007/08/31 16:26:162007/08/31 16:26:16

Connecting a PC

Adjusting the PC image automatically Adjusting the PC image manually

This function enables the screen to be automatically
adjusted to its best possible condition when the
analogue terminals of the TV and PC are connected
with a commercially available DVI/D-sub conversion
cable, etc.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Auto Sync.”, and then

3

press ENTER.

Press c/d to select “Yes”, and then press

4

ENTER.

• Auto Sync. starts and “Adjusting the image”
displays.

...

MENU

[

Setup

Auto Sync.

]

NoYes

Ordinarily you can easily adjust the picture as
necessary to change image position using Auto Sync.
In some cases, however, manual adjustment is needed
to optimise the image.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Fine Sync.”, and then

3

press ENTER.

Press a/b to select the specifi c adjustment

4

item.

H-Pos. [ 90] ab

V-Pos.

[ 39]

ab

Clock

[ 90]

ab

Phase

[ 20]

ab

Reset

Selected item Description

30%

Press MENU to exit.

5

NOTE

• When Auto Sync. is successful, “Auto Sync completed
successfully” displays. If not, Auto Sync. failed.

• Auto Sync. may fail even if “Auto Sync completed
successfully” displays.

• Auto Sync. may fail if the computer image has low
resolution, has unclear (black) edges, or is moved while
executing Auto Sync.

• Be sure to connect the PC to the TV and switch it on
before starting Auto Sync.

• Auto Sync. can be executed only when inputting analogue
signals.

H-Pos. Centres the image by moving it to the left

V-Pos. Centres the image by moving it up or

Clock Adjusts when the image fl ickers with

Phase Adjusts when characters have low

Press c/d to adjust the item to your desired

5

position.

Press MENU to exit.

6

NOTE

• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press
ENTER.

• “Clock” and “Phase” in the “Fine Sync.” menu can be
adjusted only when inputting analogue signals.

or right.

down.

vertical stripes.

contrast or when the image fl ickers.

58

52D83X_en_f.indd 5852D83X_en_f.indd 58 2007/08/31 16:26:162007/08/31 16:26:16

Connecting a PC

Input resolution settings

Selecting the input resolution

• Some input signals may have to be registered manually to
display properly.

• The pairs of input signals (resolutions) in the list below are
not distinguishable when received. In such case, you have
to set the correct signal manually. After setting once, it will
display when the same signal (resolution) is input again.

1024 x 768 1360 x 768

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Input Signal” and then

3

press ENTER.

Press a/b to select the desired input signal

4

on the display.

1024 x 768

1360 x 768

(Example)

NOTE

• You can only select the “Input Signal” on the Setup menu
when receiving one of the 2 input signals listed above.

59

52D83X_en_f.indd 5952D83X_en_f.indd 59 2007/08/31 16:26:172007/08/31 16:26:17

Connecting a PC

PC Control of the TV

• When a programme is set, the TV can be controlled from the PC using the RS-232C terminal.

The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and

settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the Din/D-sub RS-232C for the connections.

NOTE

• This operation system should be used by a person who is accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC to match the communications conditions of the TV. The
communications settings of the TV are as follows:

Baud rate:

Data length:

Parity bit:

Stop bit:

Flow control:

9,600 bps

8 bits

None

1 bit

None

Communication procedure

Send the control commands from the PC via the RS-232C connector.
The TV operates according to the received command and sends a response message to the PC.
Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the
next command.

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Command 4-digits Parameter 4-digits Return code

Parameter

Input the parameter values, aligning left, and fi ll with space(s) for the remainder. (Be sure that four values are input for the
parameter.)
When the input parameter is not correct, “ERR” returns. (Refer to “Response code format”.)

Command 4-digits: Command. The text of four characters.
Parameter 4-digits: Parameter 0 — 9, space, ?

0

0009

a 30

100

0055

When “?” is input for some commands, the present setting value responds.

?

????

Response code format

Normal response

OK

Return code (0DH)

60

52D83X_en_g.indd 6052D83X_en_g.indd 60 2007/08/31 16:26:382007/08/31 16:26:38

Problem response (communication error or incorrect command)

ERR

Return code (0DH)

Connecting a PC

PC compatibility chart

Resolution

Horizontal

Frequency

VGA 640 g 480 31.5 kHz 60 Hz

SVGA 800 g 600 37.9 kHz 60 Hz

XGA 1024 g 768 48.4 kHz 60 Hz

WXGA 1360 g 768 47.7 kHz 60 Hz

SXGA 1280 g 1024 64.0 kHz 60 Hz

SXGA+ 1400 g1050 65.3 kHz 60 Hz

Vertical

Frequency

Analogue

(D-Sub)

Digital (HDMI) VESA Standard

✔✔✔

✔✔✔

✔✔✔

✔✔✔

✔✔✔

✔✔

NOTE

• This TV has only limited PC compatibility, correct operation can only be guaranteed if the video card conforms exactly to the
VESA 60Hz standard. Any variations from this standard will result in picture distortions.

DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered
trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of international Business
Machines Corp.

RS-232C commands list

Commands

• Commands not indicated here are not guaranteed to operate.

CONTROL ITEM COMMAND PARAMETER

0

R

W

O

POWER SETTING

INPUT SELECTION A

CHANNEL

INPUT SELECTION B

AV MODE
SELECTION

P

_

D

G

T

I

_

D

V

T

I

V

T

D

I

_

D

V

A

I

*

H

C

C

D

C

C

D

D

D

A

A

A

A

A

A

A

A

A

*

P

U

H

_

W

D

H

_

D

V

T

*

P

U

T

_

W

D

T

_

1

P

N

I

0

1

P

N

I

1

1

P

N

I

3

2

P

N

I

0

2

P

N

I

1

2

P

N

I

3

3

P

N

I

0

3

P

N

I

2

3

P

N

I

3

D

M

V

0

D

M

V

1

D

M

V

2

D

M

V

3

D

M

V

4

D

M

V

5

D

M

V

6

D

M

V

7

D

M

V

8

POWER OFF (STANDBY)

_

_

_

INPUT SWITCHING (TOGGLE)

_

_

_

TV (CHANNEL FIXED)

_

_

_

DTV (CHANNEL FIXED)

_

_

_

INPUT1—7 (1—7)

_

_

_

TV DIRECT CHANNEL (1—99)

_

_

*

CHANNEL UP

_

_

_

CHANNEL DOWN

_

_

_

DTV DIRECT CHANNEL (1-999)

_

*

*

DTV CHANNEL UP

_

_

_

DTV DHANNEL DOWN

_

_

_

INPUT1 (AUTO)

_

_

_

INPUT1 (COMPONENT)

_

_

_

INPUT1 (VIDEO)

_

_

_

INPUT2 (AUTO)

_

_

_

INPUT2 (COMPONENT)

_

_

_

INPUT2 (VIDEO)

_

_

_

INPUT3 (AUTO)

_

_

_

INPUT3 (S-VIDEO)

_

_

_

INPUT3 (VIDEO)

_

_

_

TOGGLE

_

_

_

STANDARD

_

_

_

MOVIE

_

_

_

GAME

_

_

_

USER

_

_

_

DYNAMIC (Fixed)

_

_

_

DYNAMIC

_

_

_

PC

_

_

_

xvYCC

_

_

_

CONTROL

CONTENTS

NOTE

• If an underbar (_) appears in the parameter column, enter a
space.

• If an asterisk (*) appears, enter a value in the range
indicated in brackets under CONTROL CONTENTS.

CONTROL ITEM COMMAND PARAMETER

VOLUME

POSITION

WIDE MODE

MUTE

SURROUND

AUDIO CHANGE

SLEEP TIMER

TEXT

M

L

O

V

S

O

P

H

S

O

P

H

S

O

P

V

S

O

P

V

K

C

L

C

E

S

H

P

E

D

I

W

W

W

W

W

W

W

W

W

W

W

W

M

M

M

A

A

A

A

O

O

O

O

O

O

D

0

E

D

I

1

E

D

I

2

E

D

I

3

E

D

I

4

E

D

I

5

E

D

I

6

E

D

I

7

E

D

I

8

E

D

I

9

E

D

I

1

E

D

I

1

E

T

U

0

E

T

U

1

E

T

U

2

U

S

C

0

U

S

C

1

U

S

C

2

A

H

C

_

M

T

F

0

M

T

F

1

M

T

F

2

M

T

F

3

M

T

F

4

M

T

F

5

T

X

E

T

0

T

X

E

T

1

G

P

C

*

VOLUME (0—60)

*

_

_

*

H-POSITION (AV) (fnn ~ nn)

*

_

*

*

H-POSITION (PC) (fnn ~ nn)

*

_

*

*

V-POSITION (AV) (fnn ~ nn)

*

_

*

*

V-POSITION (PC) (fnn ~ nn)

*

_

*

*

CLOCK (0—180)

*

_

*

*

PHASE (0—40)

*

_

*

*

TOGGLE (AV)

_

_

_

NORMAL (AV)

_

_

_

ZOOM 14:9 (AV)

_

_

_

PANORAMA (AV)

_

_

_

FULL (AV)

_

_

_

CINEMA 16:9 (AV)

_

_

_

CINEMA 14:9 (AV)

_

_

_

NORMAL (PC)

_

_

_

CINEMA (PC)

_

_

_

FULL (PC)

_

_

_

DOT BY DOT (AV/PC)

_

0

_

UNDERSCAN (AV)

_

1

_

TOGGLE

_

_

_

MUTE ON

_

_

_

MUTE OFF

_

_

_

SURROUND TOGGLE

_

_

_

SURROUND ON

_

_

_

SURROUND OFF

_

_

_

TOGGLE

_

_

_

OFF

_

_

_

SLEEP TIMER 30 MIN

_

_

_

SLEEP TIMER 1 HOUR

_

_

_

SLEEP TIMER 1 HOUR 30 MIN

_

_

_

SLEEP TIMER 2 HOUR

_

_

_

SLEEP TIMER 2 HOUR 30 MIN

_

_

_

TEXT OFF

_

_

_

TEXT ON (TOGGLE)

_

_

_

DIRECT PAGE JUMP (100—899)

_

*

*

CONTROL

CONTENTS

61

52D83X_en_g.indd 6152D83X_en_g.indd 61 2007/09/04 15:53:212007/09/04 15:53:21

Teletext function

About Teletext

What is Teletext?

Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
Your TV receives Teletext signals broadcast by a TV
network, and decodes them into graphical format for
viewing. News, weather reports, sports information,
stock exchange prices and programme previews are
among the many services available.

Teletext mode

Teletext is turned on/off with m on the remote control
unit. You can operate your TV in Teletext mode directly
by inputting commands with the remote control unit.

TELETEXT

TELETEXT

When viewing the Teletext information

• Press CHr to increase the page number.

• Press CHs to decrease the page number.

Button functions
Colour (Red/Green/Yellow/Blue):

You can select a group or block of pages displayed
in the coloured brackets at the bottom of the screen
by pressing the corresponding Colour (Red/Green/

Yellow/Blue) on the remote control unit.

Turning on and off Teletext

Select a TV channel or external input source

1

providing the Teletext programme.

Press m to display the Teletext.

2

Press m again to display the Teletext on

3

the right screen and normal image on the left
screen.

• Each time you press m, the screen switches as
shown to the upper right.

• If you select a programme with no Teletext signal,
“No Teletext available” is displayed.

• The same message displays during other modes if
no Teletext signal is available.

TELETEXT

Red Green Yellow Blue

0 — 9:
Directly select any page from 100 to 899 by using 0 — 9.

(Top/Bottom/Full):

v

Each time you press v, the TELETEXT image
switches as shown below.

Full (Displays in full screen)

Top (Displays in the upper half of the screen)

Bottom (Displays in the lower half of the screen)

(Reveal hidden for TELETEXT):

k

To reveal hidden information such as an answer to a
quiz, press k.

• Press k again to hide the information.

(Hold):

3

To stop updating Teletext pages automatically, press

3.

• Press 3 again to release the hold mode.

62

52D83X_en_g.indd 6252D83X_en_g.indd 62 2007/08/31 16:26:392007/08/31 16:26:39

Teletext function

Teletext language setting

If Teletext information does not display correctly,
perform the procedure below.
Select from among 4 kinds of language tables: West
Europe, East Europe, Greek/Turkish, Cyrillic.
Each table is compatible with the Teletext languages
listed below.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Text Language”, and

3

then press ENTER.

Press a/b to select receivable teletext

4

broadcasting language in your country.

...

[

Setup

MENU

• West Europe — English, French, Scandinavian,
Czech, German, Spanish, Italian

• East Europe — Polish, French, Scandinavian,
Czech, German, Slovenian/Croatian, Italian,
Rumanian

• Greek/Turkish — English, French, Scandinavian,
Turkish, German, Spanish, Italian, Greek

Text Language

]

West Europe

East Europe

Greek/Turkish

Cyrillic

Displaying Subpages

You can display subpages as they are transmitted.

Press m to display Teletext.

1

Press 1 to display the subpage as shown

2

below.

Subpage screen

–+

01 02 03 04 05

Select the desired subpage by using CHr/

3

CHs, Red or Green.

• 0 — 9 directly selects the desired subpage.

Press 1 to exit the subpage screen.

4

0001184/

Time display

You can display the time information included in the
Teletext broadcast.

• Cyrillic — English, Russian, Estonian, Czech,
German, Spanish, Ukrainian, Lettish

NOTE

• Teletext can display only when it is sent by a network. Not
used to convert between languages.

Select a TV channel providing Teletext

1

information.
(The time information is automatically

captured.)

Press DISPLAY. The channel display will

2

appear on the display.

Press DISPLAY again within the three-seconds

3

interval the channel display is on the screen.
Time information will display on the lower left of
the screen for about three seconds.

Even when you change the TV channel, you

4

can display the time information with steps 2
to 3 above.

NOTE

•

The time display cannot be stored once the power is turned
off. When you turn on the power, perform steps 1 to 4 again.

• If acquired successfully the time information will appear in

the upper-right corner of the screen by pressing MENU.

52D83X_en_g.indd 6352D83X_en_g.indd 63 2007/08/31 16:26:392007/08/31 16:26:39

63

Teletext function

Displaying Subtitles

You can display subtitles as they are transmitted.

Press [ to display the subtitle.

1

• Subtitle is updated by information sent by the
broadcasting station.

Press [ to exit the subtitle screen.

2

NOTE

• Subtitle will not be displayed when the service does not
contain subtitle information.

Switching subtitle languages (DVB
Subtitle)

Each time you press [ on the remote control, the
subtitle switches

Set “For hearing impaired” to “Yes”

w Displaying subtitles for the hearing

impaired

You can display subtitles for the hearing impaired in the
Teletext broadcast.

Press MENU and the MENU screen displays.

1

Press c/d to select “Digital Setup”.

2

Press a/b to select “Subtitle”, and then press

3

ENTER.

Press a/b to select “For hearing impaired”,

4

and then press ENTER.

Press c/d to select “Yes”, and then press

5

ENTER.

(For hearing impaired) 1st Language

••••••••

Off

Set “For hearing impaired” to “No”

2nd Language

1st Language 2nd Language

••••

Off

(For hearing impaired)

w Selecting the Language

Press MENU and the MENU screen displays.

1

Press c/d to select “Digital Setup”.

2

Press a/b to select “Subtitle”, and then press

3

ENTER.

Press a/b to select “1st Language” or “2nd

4

Language”, and then press ENTER.

Press a/b to select the desired language,

5

and then press ENTER.

64

52D83X_en_g.indd 6452D83X_en_g.indd 64 2007/08/31 16:26:402007/08/31 16:26:40

Appendix

Troubleshooting

The problems described below are not always caused by malfunctions. Check the TV again before having the TV
serviced.

Problem

• No power.

• Unit cannot be operated.

• Remote control unit does not
operate.

• Picture is cut off.

• Strange colour, light colour, or
dark, or colour misalignment.

• Power is suddenly turned off.

• No picture.

Possible Solution

• Check if you pressed POWER on the remote control unit. (See page 16.)
If the indicator on the TV lights up red, press POWER.

• Is the AC cord disconnected? (See page 10.)

• Has the power been turned on? (See page 16.)

• External infl uences such as lightning, static electricity, etc., may cause improper
operation. In this case, operate the unit after fi rst turning the power off the TV or
unplugging the AC cord and re-plugging it in after 1 or 2 minutes.

• Are batteries inserted with polarity (e, f) aligned? (See page 15.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fl uorescent lighting?

• Is a fl uorescent light shining on the remote control sensor?

• Is the image position correct? (See page 36.)

• Are screen mode adjustments such as picture size made correctly? (See pages 31,
32 and 57.)

• Adjust the picture tone. (See pages 34 to 36.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 23 and 50.)

• Check the input signal setting. (See page 59.)

• Check the HDMI Auto View setting. (See page 47.)

• The unit's internal temperature has increased.

Remove any objects blocking the vent or clean.

• Check the power control setting. (See page 30.)

• Is the sleep timer set? (See page 30.)

• Is the connection to external equipment correct? (See pages 13 and 14.)

•

Has the input signal setup been performed correctly after connection? (See page 59.)

• Is the correct input selected? (See page 50.)

• Is the picture adjustment correct? (See pages 34 to 36.)

• Is the antenna connected properly? (See page 10.)

• Is “On” selected in “Audio Only”? (See page 26.)

• No sound.

• The TV sometimes makes a
cracking sound.

• Is the volume too low? (See page 21.)

• Make sure that headphones are not connected. (See page 8.)

This is not a malfunction. This happens when the cabinet slightly expands and contracts

•
according to changes in temperature. This does not affect the TV's performance.

Troubleshooting-Digital broadcasting

The error message about reception of broadcast

The example of an error message

displayed on a screen

• Failed to receive broadcast.

• No broadcast now.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, offi ce), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the LCD panel to malfunction.

Storage temperature: f20°C to e60°C.

52D83X_en_h.indd 6552D83X_en_h.indd 65 2007/08/31 16:26:562007/08/31 16:26:56

Error code

E202

E203 • Check the broadcast time in the program guide.

• Check the antenna cable. Check that the antenna is correctly
setup.

Possible Solution

65

Appendix

Reset

If complex adjustments are made and the settings
cannot be restored to normal, you can reset the settings
to the factory preset values.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Reset”, and then press

3

ENTER.

If you have already set the password, enter it

4

here.

• “Return to factory pre-settings” displays on the
screen.

Press c/d to select “Yes”, and then press

5

ENTER.

• “Now, TV will restart automatically. OK?” displays
on the screen.

Press c/d to select “Yes”, and then press

6

ENTER.

• “Now initialising...” displays on the screen and
blinks.

• After the reset has completed, the power shuts
off and then comes back on. The screen will have
returned to its original settings.

Information

Message List

When a new broadcast station is detected, the
message is updated in the “Message List” of the
“Information” menu.

Reciever Report

Display reports regarding failures and changes for
timer settings.

Identifi cation

You can check the current version of the software on
the screen.

Now initialising...

66

52D83X_en_h.indd 6652D83X_en_h.indd 66 2007/08/31 16:26:572007/08/31 16:26:57

Appendix

Specifi cations

Model

Item

LCD panel

Number of dots 6,220,800 dots (1920 g 1080 g 3 dots)

Video Colour System

TV
Function

Brightness

Backlight life

Viewing angles

Audio amplifi er

Speakers 10 g 4 cm 4pcs

Terminals

OSD language

Power Requirement

Power Consumption

Weight

Operating Temperature

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for
product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production
units. There may be some deviations from these values in individual units.

TV-Standard

Receiving
Channel

TV-Tuning System

STEREO/BILINGUAL

Rear

VHF/UHF

CATV

ANTENNA IN

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

INPUT 6

INPUT 7 (PC input)

MONITOR OUT

RS-232C 9 pin D-sub male connector

DIGITAL AUDIO OUTPUT

without stand 22.0 kg

with stand

LC-42D83X

42o (1070 mm) Advanced
Super View & BLACK TFT LCD

PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

PAL: B/G, D/K, I SECAM: B/G, D/K, K/K

44.25—863.25 MHz

S1—S41ch (including Hyperband)

Auto Preset 99 ch

NICAM: B/G, I, D/K A2 stereo: B/G

450 cd/m

60,000 hours (at Backlight Standard position)

H : 176º V : 176º

15W g 2

UHF/VHF 75 q DIN type

VIDEO in, AUDIO in, COMPONENT in (480

VIDEO in, AUDIO in, COMPONENT in (480

S-VIDEO in, VIDEO in, AUDIO in

HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,
1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz)

HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,
1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz)

HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,
1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz), AUDIO in

15 pin mini D-sub, AUDIO in (Ø 3.5 mm jack)

VIDEO out, AUDIO out

Optical Digital Audio output

English/Simplifi ed Chinese/Traditional Chinese/Arabic

AC 110—240 V, 50/60 Hz

245 W (0.5 W Standby)

27.0 kg

0°C — 40°C

2

LC-46D83X LC-52D83X

46o (1170 mm) Advanced
Super View & BLACK TFT LCD

1

I

, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080

I

, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080

281 W (0.5 W Standby)

25.5 kg

30.5 kg

52o (1320 mm) Advanced
Super View & BLACK TFT LCD

I

/50Hz, 1080I/60Hz)

I

/50Hz, 1080I/60Hz)

307 W (0.5 W Standby)

29.5 kg

34.5 kg

Optional accessory

The listed optional accessory is available for the LCD colour
TV. Please purchase it at your nearest shop.

• Additional optional accessories may be available in the near
future. When purchasing, please read the newest catalogue for
compatibility and check the availability.

52D83X_en_h.indd 6752D83X_en_h.indd 67 2007/08/31 16:26:572007/08/31 16:26:57

Wall mount bracket

(for LC-42D83X/

LC-46D83X/

LC-52D83X)

Model numberPart name

AN-52AG4

67

Appendix

Dimensional drawings

LC-42D83X

933.2

64662

708

1004

526.2
409

Unit: mm

550

400

200

400

114

95

305

68

52D83X_en_h.indd 6852D83X_en_h.indd 68 2007/08/31 16:26:572007/08/31 16:26:57

Appendix

Dimensional drawings

LC-46D83X

760

400

698

62

175

1023.4

1101

400

575.6
434

Unit: mm

550

124 95

325

LC-52D83X

836

400

77462137

1157.0

1237

400

651.6
472

550

124 95

325

69

52D83X_en_h.indd 6952D83X_en_h.indd 69 2007/08/31 16:26:572007/08/31 16:26:57

Appendix

Mounting the TV on the wall

Removing the stand

For wall mounting with the optional bracket, remove the stand.

Before detaching/attaching the stand

• Before detaching (or attaching) the stand, unplug the AC cord from the AC outlet.

• Remove all terminal covers and connected cables.

• Lay the TV down on cushioning (such as a blanket) over a table.

• Make sure two or more people perform the operation.

CAUTION

• Do not remove the stand from the TV unless using an optional bracket to mount it.

Hex key

1

Unfasten the four screws used to secure the stand in place.

2

Detach the stand from the TV. (Hold the stand so

1

it will not drop from the edge of the base area.)

Remove the stand post from the stand base and

2

attach it to the TV.

Stand post

NOTE

• To attach the stand, perform the above steps in reverse order.

Handling and precautions with the wall-mounted TV

• You can mount the TV on the wall using the optional AN-52AG4 bracket.

• For details, refer to the instructions supplied with the optional bracket.

CAUTION

• This TV should be mounted on the wall only with the AN-52AG4 (SHARP) wall mount bracket. The use of other wall
mount brackets may result in an unstable installation and may cause serious injuries.

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualifi ed service
personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper
mounting or mounting that results in accident or injury.

Using an optional bracket to mount the TV

• You can ask a qualifi ed service personnel about using an optional AN-52AG4 bracket to mount the TV to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-52AG4 wall mount bracket.
(See the bracket instructions for details.)

About setting the TV angle

°

0

2

/

5

1

/

0

1

/

5

/

0

Vertical mounting Angular mounting

AN-52AG4

NOTE

• Detach the cable clamps on the rear of the TV when using the optional mount bracket.

70

52D83X_en_h.indd 7052D83X_en_h.indd 70 2007/08/31 16:26:572007/08/31 16:26:57

Appendix

CLEARING THE PASSWORD

If you forget the password, clear the password using the following procedure.

Press MENU to display the MENU screen, and then press c/d to

1

select “Setup”.

Press a/b to select “Auto Installation”, “Programme Setup”, “Child

2

Lock”, “Reset”, and the password input screen displays.

Press and hold both CHr and VOLk on the TV simultaneously until

3

the message appears on the screen.

The Password is .

NOTE

• As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar place.

71
