Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of
trouble-free operation of your product, please read the Important Safety Precautions carefully before
using this product.
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
• “HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.”
2
Important Safety Precautions
• Cleaning — Unplug the AC cord
from the AC outlet before cleaning
the product. Use a damp cloth to
clean the product. Do not use liquid
cleaners or aerosol cleaners.
• Water and moisture — Do not use
the product near water, such as
bathtub, washbasin, kitchen sink,
laundry tub, swimming pool and in a
wet basement.
• Do not place vases or any other
water-fi lled containers on this
product.
The water may spill onto the product
causing fi re or electric shock.
• Stand — Do not place the product
on an unstable cart, stand, tripod
or table. Doing so can cause the
product to fall, resulting in serious
personal injuries as well as damage
to the product. Use only a cart,
stand, tripod, bracket or table
recommended by the manufacturer
or sold with the product. When
mounting the product on a wall, be
sure to follow the manufacturer's
instructions. Use only the mounting
hardware recommended by the
manufacturer.
• The LCD panel used in this product
is made of glass. Therefore, it can
break when the product is struck
forcefully or with a sharp object. If
the LCD panel is broken, be careful
not to be injured by broken glass.
• Heat sources — Keep the product
away from heat sources such as
radiators, heaters, stoves and other
heat-generating products (including
amplifi ers).
• To prevent fi re, never place any type
of candle or naked fl ames on the
top or near the TV set.
• To prevent fi re or shock hazard, do
not place the AC power cord under
the TV set or other heavy items.
• Do not place heavy objects on this
product or stand on it. Doing so
could cause injury if the product
overturns. Take special care near
children and pets.
• When relocating the product
placed on a cart, it must be moved
with utmost care. Sudden stops,
excessive force and uneven fl oor
surface can cause the product to fall
from the cart.
• Ventilation — The vents and other
openings in the cabinet are designed
for ventilation. Do not cover or block
these vents and openings since
insuffi cient ventilation can cause
overheating and/or shorten the life
of the product. Do not place the
product on a bed, sofa, rug or other
similar surface, since they can block
ventilation openings. This product is
not designed for built-in installation;
do not place the product in an
enclosed place such as a bookcase
or rack, unless proper ventilation
is provided or the manufacturer's
instructions are followed.
The LCD panel is a very high technology product
with 3,147,264 thin fi lm transistors, giving you fi ne
picture details.
Due to the very large number of pixels, occasionally
a few non-active pixels may appear on the screen
as a fi xed point of blue, green or red.
This is within product specifi cations and does not
constitute a fault.
Precautions when
transporting the TV
Be sure to always carry the TV
by two people holding it with two
hands — one hand on each side
of the TV.
• Do not display a still picture for a long time, as this could
cause an afterimage to remain.
• Install the product on the place where the AC cord can
be unplugged easily from the AC outlet, or from the AC
INPUT terminal on the rear of the product.
3
Supplied accessories
Make sure the following accessories are provided with the product.
Remote control unit“AAA” size battery (g2)AC cord
Page 12Page 5Page 7
AC cord clampCable clamp
Page 7Page 7
Stand baseStand post
Short screws (g4)
Hex key
Cable tie
Page 7
Operation manualStand unit
Long screws
(g4)
Page 6
NOTE
• Always use the AC cord supplied with the TV.
• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the
actual operations.
• The illustrations used throughout this manual are based on LC-37PD5X.
4
Preparation
Inserting the batteries
Before using the TV for the fi rst time, insert two “AAA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.
1 Open the battery cover.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you fi nd any
chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.
2 Insert two supplied “AAA” size
batteries.
• Place batteries with their terminals
corresponding to the (e) and (f)
indications in the battery compartment.
3 Close the battery cover.
Using the remote control unit
Use the remote control unit by pointing it towards the
remote sensor window.
Objects between the remote control unit and sensor
window may prevent proper operation.
Remote control
sensor
Cautions regarding remote control unit
• Do not subject the remote control unit to shock.
In addition, do not soak the remote control unit with liquids, or place it in an
area with high humidity.
• Do not install or place the remote control unit under direct sunlight.
The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote sensor window
of the TV is under direct sunlight or strong lighting. In such case, change the
angle of the lighting or TV, or operate the remote control unit closer to the
remote sensor window.
5 m
30°30°
5
Preparation
Attaching the stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
Confi rm the 8 screws supplied with the TV.
13
2
Short screws (g4)
(used in step 2)
Set the post for the stand unit onto the
1
box.
Attach the base to the post.
2
Insert and tighten the 4 screws into the 4
3
holes on the bottom of the base.
Hex key
Screw
Long screws (g4)
(used in step3)
• To detach the stand, perform the steps in reverse order.
Insert the stand into the openings on the
1
bottom of the TV.
Insert and tighten the 4 screws into the 4
2
holes on the rear of the TV.
Hex key
Screw
NOTE
Soft cushion
6
Preparation
Setting the TV
Notes on installing the TV
• Avoid direct sunlight and place the TV in a well-ventilated location.
• Place the TV in a level location.
Connecting the AC cord, antenna, and external equipment to the TV
1
AC cord clamp
See pages 8 and 45—47 for
connecting antennas and
external equipment, such
as VCR and DVD player.
AC outlet
• Place the TV close to the AC outlet, and keep the power plug within reach.
Bundling the cables
2
Insert the cable clamp in the hole on the TV as shown.
Cable clamp
AC cord
Cable tie
CAUTION
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.
7
Preparation
Simple operations for watching a TV programme
Basic connection
Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for coaxial cable.
• Always turn off the power of the TV when connecting the AC cord.
• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.
8
Preparation
Setting the TV on the wall
• You can mount the TV on the wall, using the optional AN-37AG2 bracket.
• For details, refer to the instructions supplied with the optional bracket.
CAUTION
• This TV should be mounted on the wall only with the AN-37AG2 (SHARP) wall mount bracket. The use of other wall
mount brackets may result in an unstable installation and may cause serious injuries.
• Installing the Liquid Crystal Television requires special skill that should only be performed by qualifi ed service
personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper
mounting or mounting that results in accident or injury.
<Example>
Hanging on the wall
AN-37AG2 wall mount bracket.
(See the bracket instructions for details.)
Regarding the angle when
mounting the TV on the wall
• The maximum angle to which you
can tilt the wall-mounted TV is as
follows. Do not tilt it more than the
maximum angle.
LC-32PD5X
LC-37PD5X
0°, 5° or 10°
0° or 5°
• Tilt the wall-mounted TV slowly
Vertical mounting
Angular mounting
when adjusting its angle.
Removing the stand
For wall mounting with the optional bracket, remove the stand.
Before detaching/attaching the stand
• Before detaching (or attaching) the stand, unplug the AC cord from the AC outlet.
• Remove all terminal covers and connected cables.
• Lay the TV down on cushioning (such as a blanket) over a table.
• Make sure two or more people perform the operation.
CAUTION
• Do not remove the stand from the TV unless using an optional bracket to mount it.
1
Hex key
Unfasten the four screws used to secure the stand in
place.
NOTE
• To attach the stand, perform the above steps in reverse order.
2
Detach the stand from the TV.
(Hold the stand so it will not drop from the edge of
the base area.)
9
Part names
TV (Front)
Channel up (r)/down (s) buttons
Volume up (e)/down (f) buttons
TV/VIDEO button
POWER (On/Off) button
Remote control sensor
OPC sensor
POWER indicator
10
OPC indicator*
SLEEP timer indicator
*OPC: Optical Picture Control
(See page 24.)
Part names
TV (Rear)
RS-232C terminal
SYSTEM RESET**
RESET*
INPUT 3 (HDMI)
terminals
Antenna input terminal
(ANALOGUE)
Antenna input terminal
(DTV)
INPUT 1 terminals
SERVICE ONLY terminal***
DIGITAL AUDIO OUTPUT terminal
(To optical digital input of external audio devices)
INPUT 2 terminals
AC INPUT terminal
MONITOR OUTPUT
* Press RESET if the ANALOGUE TV cannot return to its original state after performing various operations.
This will reset the TV as shown below.
• “AV MODE” resets to “USER”.
• TV channel resets to channel 1.
• Sound volume is initialised.
• Image position is initialised.
** Press SYSTEM RESET if the TV does not operate after starting up.
*** Usually do not connect anything to this terminal as it is reserved only for service personnel.
NOTE
• Pressing RESET will not work if the TV is in standby mode (indicator lights red).
• Pressing RESET will not delete channel preset and password. See page 36 for resetting the password. See page 53 for
initialising to the factory preset values in case you forget your password.
• Pressing RESET will not reset the DTV settings.
terminals
• Still image mode deactivates.
• Teletext mode resets to normal.
• “Audio Only” setting resets to “Off”.
11
Part names

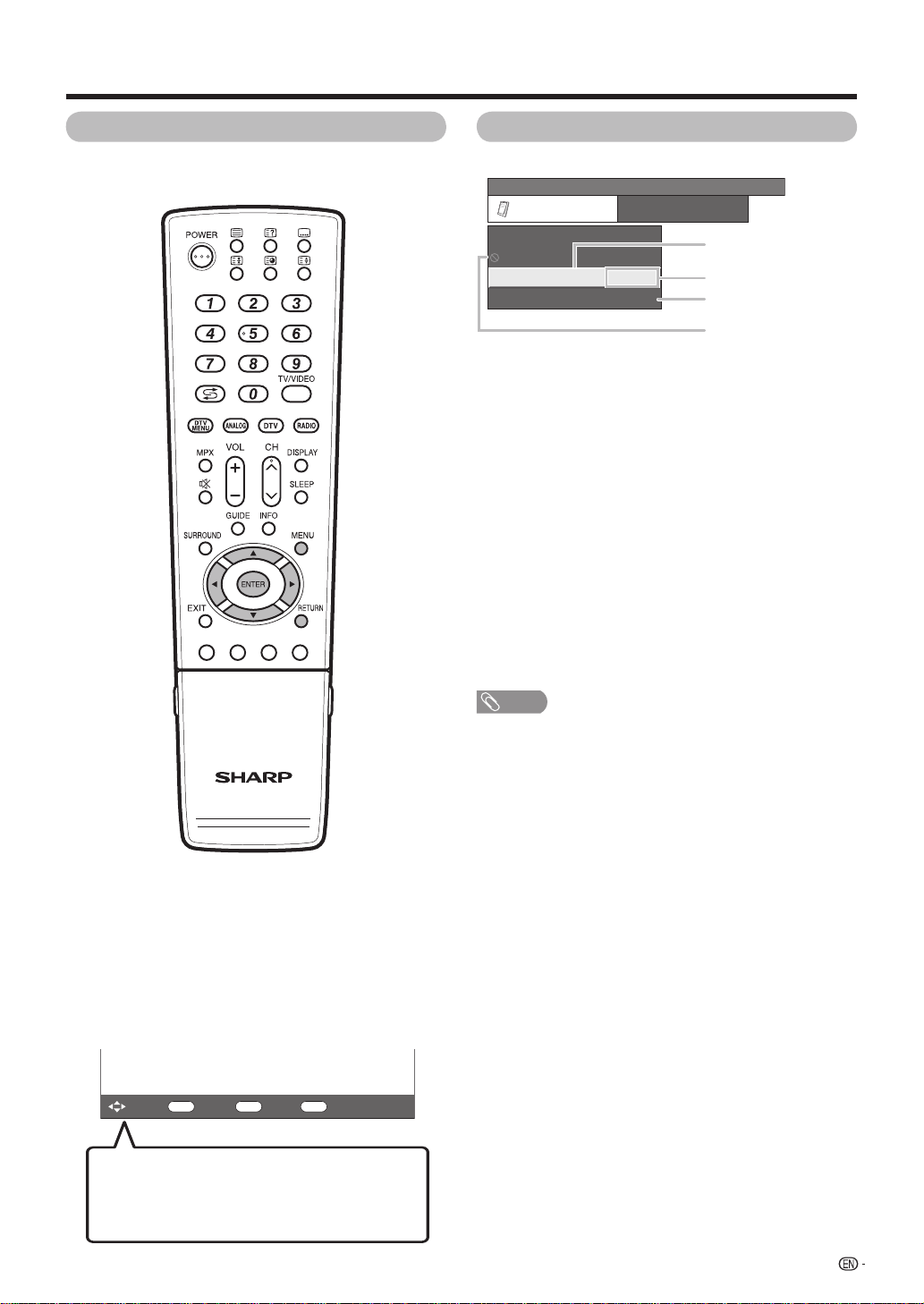

Remote control unit
1
14
2
3
4
5
6
7
8
9
15
16
17
18
19
20
21
22
10
23
24
11
12
13
NOTE
• When using the remote control unit, point it at the TV.
1 POWER (STANDBY/ON)
To switch the power on and off. (See page 13.)
2 0 – 9
TV/DTV/External input mode: Set the channel. (See page 13.)
TELETEXT mode: Set the page. (See pages 13, 43 and 44.)
3 A (Flashback)
Press to return to the previous channel or external input mode.
(See page 14.)
4 DTV MENU
DTV mode: Display DTV Menu screen. (See page 29.)
5 MPX
Select the sound multiplex mode. (See page 14.)
25
26
6 e (Mute)
Mute the sound. (See page 15.)
7 VOLk/VOL
Set the volume. (See page 15.)
8 GUIDE
DTV mode: Display the programme list. (See page 30.)
9 SURROUND
Select Surround settings. (See page 28.)
10 EXIT
Turn off the On-Screen Display.
11 AV MODE
Select a video setting. (See page 24.)

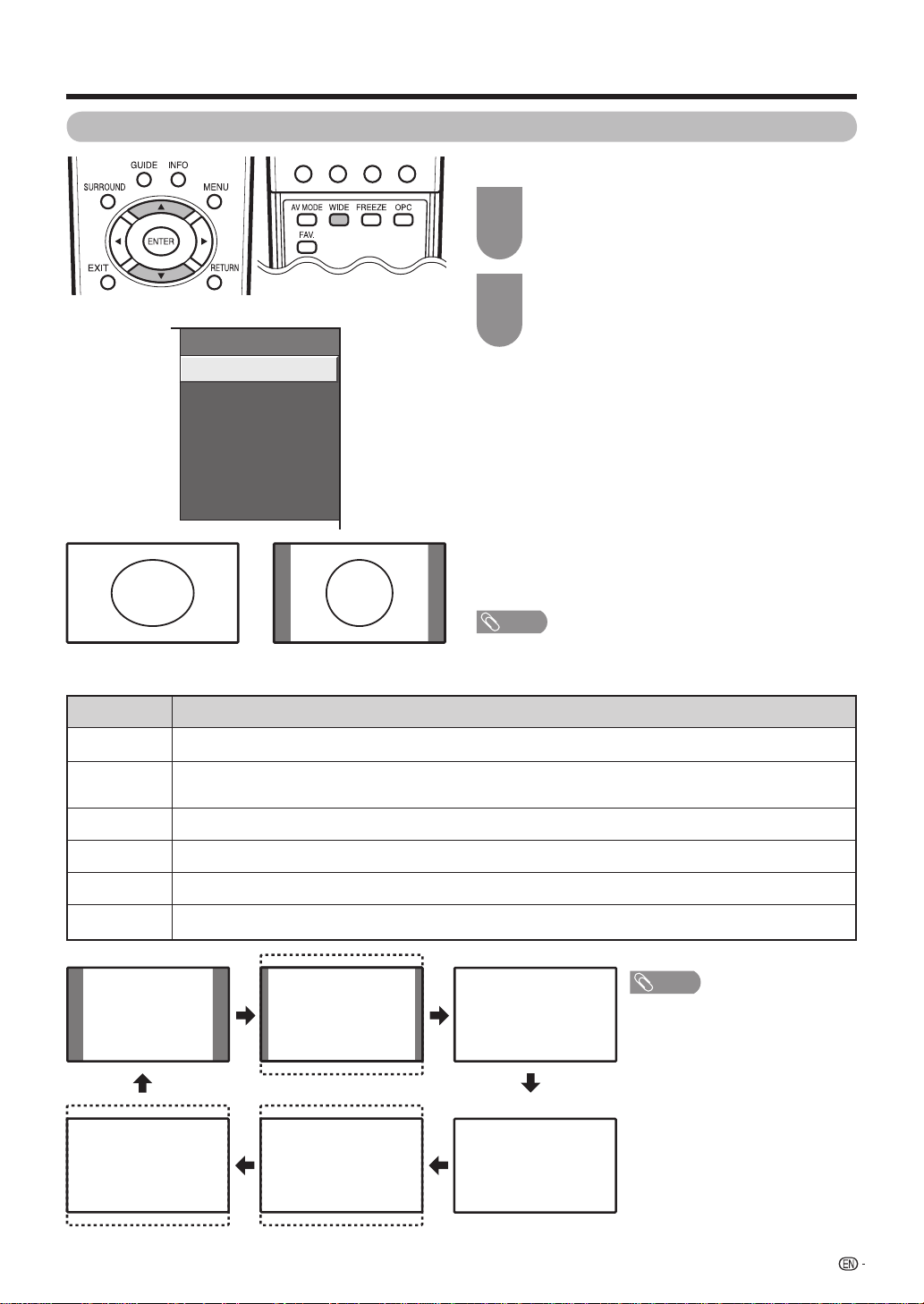

12 WIDE
Change the wide image mode. (See page 39.)
13FAV.DTV mode: Display the favourite programme list. (See page 30.)
14 m (TELETEXT)
ANALOGUE mode: Select the TELETEXT mode. (all TV image, all
TEXT image, TV/TEXT image) (See pages 43 and 44.)
DTV mode: Select the TELETEXT mode. (all TV image, TEXT
image)
k
TELETEXT mode: Display hidden characters. (See page 43.)
[
TV/INPUT mode: To turn the subtitles on and off. (See page 44.)
Press 3 again to release the hold mode. (See pages 43 and 44.)
1
TELETEXT mode: Display the Teletext subpage directly. (See
page 44.)
v
TELETEXT mode: Set the area of magnifi cation. (See page 43.)
15 TV/VIDEO (INPUT SOURCE)
Select an input source. (TV, DTV, INPUT 1, INPUT 2, INPUT 3) (See
pages 37, 41 and 45.)
16 ANALOG
Press to access ANALOGUE mode. (See page 16.)
DTVPress to access DTV mode. (See page 16.)
RADIOPress to access RADIO mode. (See page 16.)
17 DISPLAY
Display the channel or input information.
TELETEXT mode: Display the time information included in the
Teletext broadcast. (See page 44.)
18 SLEEP
Set the Sleep timer. (See page 15.)
19 CHr/CH
TV/DTV input mode: Select the channel. (See page 13.)
TELETEXT mode: Select the page. (See pages 43 and 44.)
20 INFO
DTV mode: Display the programme information. (See page 30.)
21 MENU
Display the menu screen. (See page 17.)
22 a/b/c/d (Cursor)
Select a desired item on the setting screen. (See pages 17 and
29.)
ENTERExecute a command. (See pages 17 and 29.)
23 RETURN
MENU mode: Return to the previous menu screen. (See pages 17
and 29.)
24 Colour (Red/Green/Yellow/Blue)
TELETEXT mode: Select a page. (See page 43.)
25 OPC
To switch the Optical Picture Control on and off. (See page 24.)
26 FREEZE
Freeze a motion picture on the screen. (See page 15.)
l
(Reveal hidden for TELETEXT)
(SUBTITLE for TELETEXT)
(Hold)
(Subpage)
(Top/Bottom/Full)
s
12
Watching TV
Turning on the power
Press POWER on the TV.
• POWER indicator (Green): The TV is on. (After a few
seconds, an image appears with sound.)
• After turning the power “ON” by pressing POWER on the
TV, you can turn the power ON/OFF by pressing POWER
on the remote control.
POWER button
POWER indicator
Turning off the power
Press POWER on the remote control.
• The TV enters standby mode and the image on the screen
disappears.
• The POWER indicator on the TV changes from green to
red.
Press POWER on the TV.
• The POWER indicator on the TV turns off.
• When the TV is turned off by POWER on the TV, you
cannot turn on the power by pressing POWER on the
remote control.
Simple button operations for
changing channels
You can change channels in several ways.
Using CHr/s on the remote control unit
• Press CHr to increase the channel number.
• Press CHs to decrease the channel number.
NOTE
• CHr/s on the TV operates the same as CHr/s on
the remote control unit.
Using 0 — 9 on the remote control unit
Select the channels directly by pressing buttons 0 to 9.
POWER indicator
OffPower off
Red
NOTE
• If you are not going to use this TV for a long period of time,
be sure to remove the AC cord from the AC outlet.
• Minor power is consumed when the TV is turned off by
POWER on the TV.
POWER button
The TV is in standby mode.
The TV is on.Green
a
To select a 1-digit channel (e.g. channel 2):
• Press 0, followed by 2.
To select a 2-digit channel (e.g. channel 12):
• Press 1, followed by 2.
When viewing Teletext information
View a page directly which is 3-digit page number from
100 to 899 by pressing buttons 0 to 9.
Channel display
Channel display changes approximately after 3
seconds as shown below.
(Example)
SAT.1
12
SAT.1
12
PAL
B/G
MONO
13
Watching TV
Using Flashback (A) on the remote
control unit
Press A to switch the currently tuned channel to the
previously tuned channel.
Press A again to switch back to the currently tuned
channel.
Press A to toggle between the currently selected
input source and the previously selected one.
Press A to return to the previous page in TELETEXT
mode.
Using MPX on the remote control
unit
When receiving a monaural signal
Each time you press MPX, the mode switches
between NICAM MONO and MONO.
Monaural mode
BBC2
99
NICAM
MONO
BBC2
99
MONO
In the TV mode of A2 TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between STEREO and MONO.
Stereo mode
BBC2
99
STEREO
BBC2
99
MONO
When receiving a bilingual signal
Each time you press MPX, the mode switches among
CH A, CH B and CH AB.
Bilingual mode
BBC2
99
CH A
BBC2
99
CH B
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between NICAM STEREO and MONO.
Stereo mode
BBC2
99
NICAM
STEREO
BBC2
99
MONO
When receiving a bilingual signal
Each time you press MPX, the mode switches among
NICAM CH A, NICAM CH B, NICAM CH AB and
MONO.
Bilingual mode
BBC2
99
NICAM
CH A
BBC2
99
MONO
BBC2
99
NICAM
CH B
BBC2
99
NICAM
CH AB
BBC2
99
CH AB
When receiving a monaural signal
When you press MPX, “MONO” displays.
Monaural mode
BBC2
99
MONO
NOTE
• “BBC2” and “99” are tentative network name and channel.
14
Watching TV
Simple button operation for
changing volume/sound
Changing the volume
You can change the volume on the TV or on the
remote control unit.
• To increase the volume, press VOLk.
• To decrease the volume, press VOLl.
20
NOTE
• “TV”, “DTV”, “INPUT1”, “INPUT2” and “INPUT3” modes
can store volume adjustment values separately.
Using Mute (e) on the remote control unit
mutes the current sound output.
e
Press e.
1
• The sound is silenced.
• “M” is displayed while the mute function is on.
Mute
Sleep timer
Allows you to set a time when the TV automatically
switches to standby.
Press SLEEP.
1
• Remaining time displays when sleep timer has
been set.
Sleep Timer: Remain 2 hr. 00 min.
Each time you press SLEEP, the remaining
2
time switches as shown below.
0 hr. 30 min.1 hr. 00 min.1 hr. 30 min.
Off
NOTE
• The sleep timer indicator on the TV lights up when the time
has been set.
• When the time has been set, countdown automatically
starts.
• Five minutes before the preset of time expires, the
remaining time displays each minute.
• Select “Off” by pressing SLEEP to cancel the sleep timer.
2 hr. 30 min.2 hr. 00 min.
Still image
You can freeze a motion picture on the screen.
NOTE
• Within 30 minutes after pressing e, press one of the
buttons below to cancel the mute.
— VOLl/VOL
—
e
• Mute will be cancelled after 30 minutes. However,
the TV will not suddenly output loud sound as the
volume level will be set to 0 automatically. Increase
the volume level by pressing VOLk.
Press e again within 30 minutes to cancel the
2
mute.
• Before 30 minutes, the volume level returns to the
k
previous setting.
Press FREEZE.
1
Press RETURN to exit still image.
2
NOTE
• The still image automatically goes out after 30 minutes.
• When you freeze the picture, an icon is displayed at the
lower left corner of the screen.
15
Watching TV

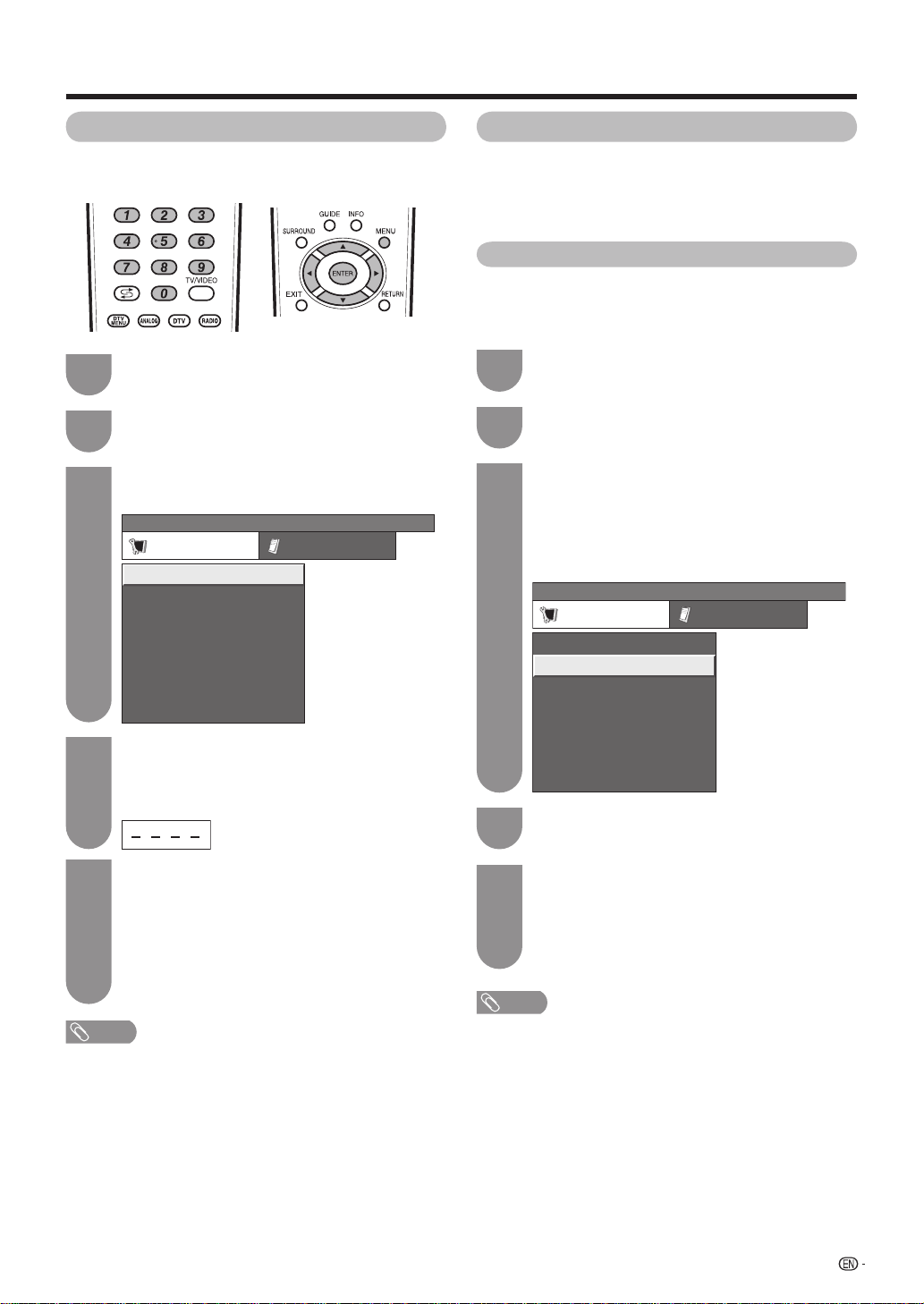

ANALOG/DTV/RADIO buttons
Use the following buttons on the remote control to
operate the menu.
When you watch the TV for the fi rst time
When the TV powers on for the fi rst time after
purchase, perform the auto installation.
Analogue TV
You can run the auto installation to set channels
automatically.
To watch the analogue TV, select “Auto
1
Installation” from Setup menu. (See page 19.)
After setting the channels, you can select
2
a channel using CH r/s or 0—9 on the
remote control unit. (See page 13.)
DTV
When the TV accesses to DTV mode for the fi rst time,
you need to run the auto search. To scan all available
services in your area, follow the procedures below.
To watch DTV broadcasts, select “Auto
1
Search” from Installation menu. (See page 32.)
After setting the channels, you can select
2
a channel using CH r/s or 0—9 on the
remote control unit. (See page 13.)
ANALOG: Press to switch to analogue mode. After
DTV: Press to switch to DTV mode. After
RADIO: Press to switch to radio mode. After
16
switching from DTV, radio or external input
mode to analogue mode, the TV jumps to
the most recently viewed analogue channel.
switching from analogue, radio or external
input mode to DTV mode, the TV jumps to
the most recently viewed DTV channel.
switching from analogue, DTV or external
input mode to radio mode, the TV jumps to
the most recently tuned radio channel.
Basic adjustment settings

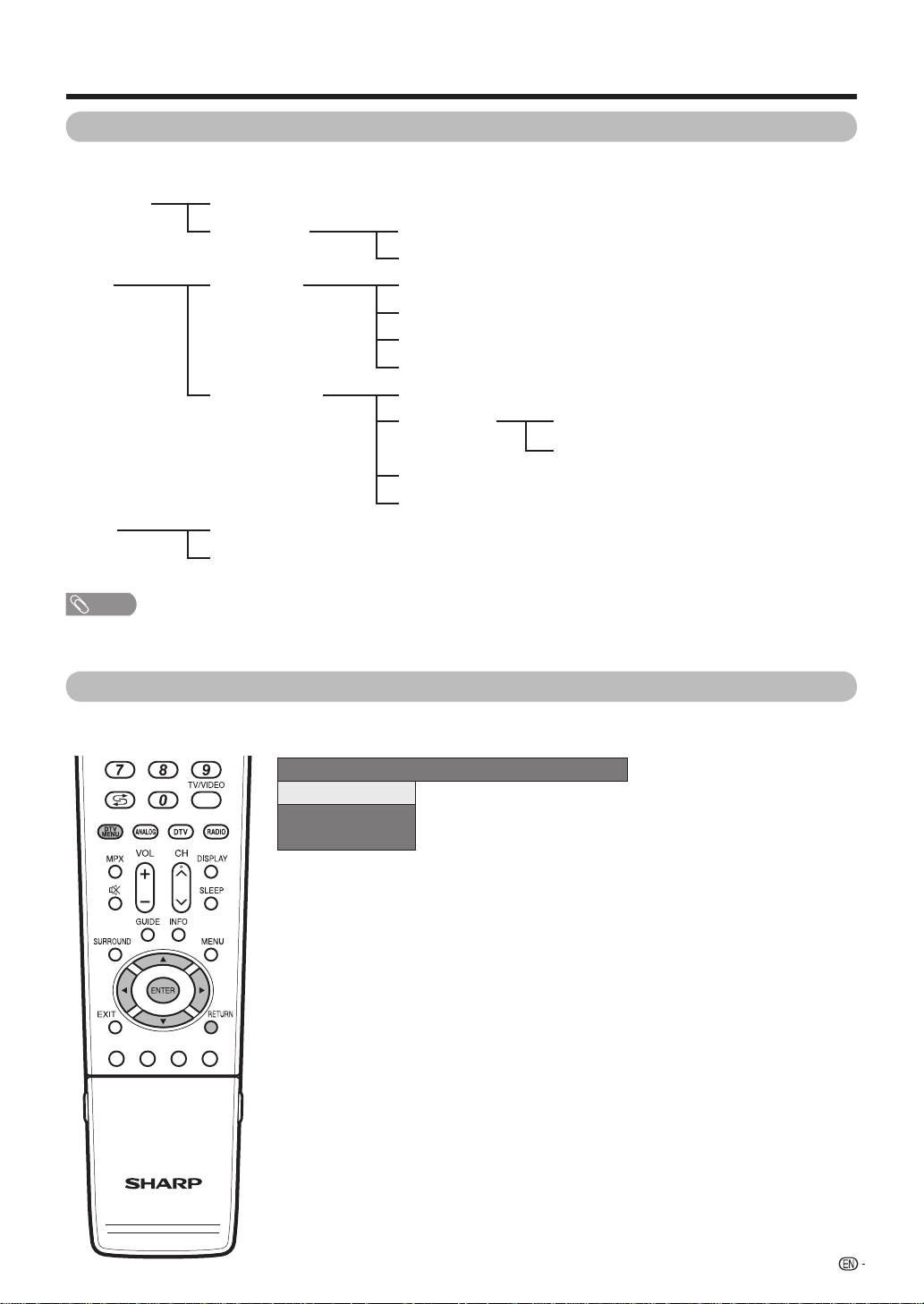

Menu operation buttons
Use the following buttons on the remote control to
operate the menu.
On-Screen Display
(Example)
...
[
Option
MENU
Option
Audio Only
DNR
Input Select
Colour System
Item displayed in yellow
1
Input Select
• This indicates the item currently selected.
• Press ENTER to go to the adjustment screen for this
item.
Item in brackets
2
• This indicates the current setting for the item.
Item displayed in white
3
• This indicates an item can be selected.
Item displayed in grey
4
• This indicates that the item cannot be selected.
* There are various reasons why items cannot be
selected, but the main reasons are as follows:
1. Nothing is connected to the selected input
terminal.
2. The function is not compatible with the current
input signal.
[VIDEO]
[AUTO]
]
1
2
3
4
MENU: Press to open or close the menu screen.
a/b/c/d
: Press to select a desired item on the
screen or adjust a selected item.
ENTER:Press to go to the next step or complete
the setting.
RETURN: Press to return to the previous step.
ENTER
: Select: Enter
RETURN
: Back
MENU
: End
The bar above is an operational guide for
the remote control. The bar will change in
accordance with each menu setting screen.
NOTE
• Menu options differ in the selected input modes, but the
operating procedures are the same.
• The screens in the operation manual are for explanation
purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.
17
Basic adjustment settings
Menu items (TV/DTV/INPUT1-2)
List of menu items to help you with operations
AV Mode ...................................................................... Page 24
• Some menu items may not be displayed depending on the
selected input source.
18
Basic adjustment settings (Analogue)
Auto installation
You can run auto installation again, even after setting
up the preset channels.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Auto Installation”, and
3
then press ENTER.
...
[
Setup
MENU
SetupOption
Auto Installation
Programme Setup
Child Lock
Position
WSS
4:3 Mode
If you have already set the password, enter it
4
here. If not, enter the factory preset password
Auto Installation
[Panorama]
[West Europe]Text Language
“1234”.
• See page 36 for setting a password.
]
[On]
Programme setup
You can run the auto search procedure again at any
time by accessing the Setup menu and Programme
Setup. Channels can be tuned automatically or
manually.
Auto search
You can also automatically search by performing
the procedure below. This is the same function as
programme auto search in auto installation.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you have already set the password, enter it
here. If not, enter the factory preset password
“1234”.
• See page 36 for setting a password.
...
[
Setup
MENU
SetupOption
Auto Installation
Programme Setup
Child Lock
Position
WSS
4:3 Mode
Press a/b to select “Auto Search”, and then
4
press ENTER.
Programme Setup
[Panorama]
[West Europe]Text Language
]
[On]
Press c/d to select “Yes”, and then press
5
ENTER.
• Auto search starts with the following order.
Programme auto search
1
Auto labelling
2
Auto sorting
3
You do not need to do anything during the
auto search.
NOTE
• After performing step 5, the menu screen shown in step 3
will reappear. Do not turn off the TV before then, because
the TV is saving the data found.
Press c/d to select “Yes”, and then press
5
ENTER.
• Auto search starts with the following order.
Programme auto search
1
Auto labelling
2
Auto sorting
3
NOTE
• After performing step 5, the menu screen shown in step 3
will reappear. Do not turn off the TV before then, because
the TV is saving the data found.
19
Basic adjustment settings (Analogue)
Manual setting for each channel
You can set some channel items manually. They are
Search, Fine (TV frequency), Colour sys., Sound sys.,
Label (Network name), Skip and Lock (Child Lock).
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you have already set the password, enter it
here. If not, enter the factory preset password
“1234”.
• See page 36 for setting a password.
Press a/b to select “Manual Adjust”, and
4
then press ENTER.
Press c/d to select “Yes”, and then press
5
ENTER.
Programme Setup “Manual Adjust” menu
01 SAT.102 PR0703 KABEL
Search tuning
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Search”, and then press
2
ENTER.
MENU
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
Press a/b to select item and press ENTER.
3
• NEXT: Search the next channel.
• STORE: Memorise the current display channel.
• CANCEL: Return to the previous screen. (The
search result will not be stored.)
Fine tuning
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Fine”, and then press
2
ENTER.
[
Setup
...
Programme Setup
[179.25]
[AUTO]
[B/G]
[SAT.1]
[Off]
[Off]
]
179.25MHz
NEXT
STORE
CANCEL
Next
You can select one of the following settings.
Search (See page 20.)
1
Fine (See page 20.)
2
Colour system (See page 21.)
3
Sound system (See page 21.)
4
Label (See page 21.)
5
Skip (See page 22.)
6
Lock (See page 22.)
7
Press c/d to adjust the frequency, and then
3
press ENTER.
• Adjust while checking the background picture as
a reference.
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
[179.25]
[AUTO]
[B/G]
[SAT.1]
[Off]
[Off]
179.25MHz
• Instead of the method above, you can also set
by directly entering the frequency number of the
channel with 0 — 9.
• When setting a frequency on the “Fine” screen,
the last fi gure of the frequency needs to be “0” or
“5”.
a
• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.
• 49.25 MHz: Press 4 s 9 s 2 s 5 s ENTER.
20
Basic adjustment settings (Analogue)
Manual setting for each channel (continued)
Colour system
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Colour sys.”, and then
2
press ENTER.
• Receivable colour systems are listed.
Colour system menu
...
[
Setup
MENU
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
Press a/b to select the optimum colour
3
system, and then press ENTER.
Programme Setup
[179.25]
[AUTO]
[B/G]
[SAT.1]
[Off]
[Off]
Sound system (Broadcasting system)
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Sound sys.”, and then
2
press ENTER.
• Receivable sound systems (Broadcasting systems)
are listed.
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
[179.25]
[AUTO]
[B/G]
[SAT.1]
[Off]
[Off]
]
AUTO
PAL
SECAM
NTSC 3.58
NTSC 4.43
PAL-60
Sound system menu
B/G
D/K
I
M
Labelling channels
When a TV channel sends its Network Name, the auto
installation detects the information and assigns a name
to it. However, you can change individual channel
names.
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Label”, and then press
2
ENTER.
• Alphabets and numbers are listed.
Labelling menu
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
Press a/b/c/d to select each character of
3
the new name for the channel, and then press
[179.25]
[AUTO]
[B/G]
[SAT.1]
[Off]
[Off]
A
B
C
D
E
F
G
H
K
L
M
N
U
0123456789
O
V
W
X
Y
P
Q
Z
+
I
R
S
–_
.
CLEAR
J
BACK
T
END
ENTER.
Repeat until the name is fully spelt out.
4
• The name can be 5 characters or less.
• When you want to set a channel name of less than
5 characters, select “END”, then press ENTER to
exit from the labelling menu.
Press a/b to select the optimum sound
3
system, and then press ENTER.
21
Basic adjustment settings (Analogue)
Manual setting for each channel (continued)
Skipping channels
Channels with “Skip” set to “On” are passed over
when using CHr/s even if selected while watching
the image from the TV.
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information will be displayed.
Press a/b to select “Skip”, and then press
2
ENTER.
• Skip menu displays.
...
[
Setup
MENU
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
Press a/b to set “Skip” to “On”, and then
3
press ENTER.
[179.25]
[AUTO]
[SAT.1]
Setting the child lock
You can block the viewing of any channel.
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information will be displayed.
Skip menu
Programme Setup
[B/G]
[Off]
[Off]
]
Off
On
Sort
Channel positions can be sorted freely.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you already set the password, enter it here.
• See page 36 for setting a password.
Press a/b to select “Sort”, and then press
4
ENTER.
Press c/d to select “Yes”, and then press
5
ENTER.
Press a/b/c/d to select the channel you
6
want to move, and then press ENTER.
Move it to the desired position by pressing
7
a/b/c/d
Repeat the steps 6 and 7 until all desired
8
channels are sorted.
, and then press ENTER.
Sort menus
01 SAT.1
0106SAT.1KABEL
02030405
Press a/b to select “Lock”, and then press
2
ENTER.
• Child lock menu will be displayed
Lock menu
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
Press a/b to set “Lock” to “On”, and then
3
press ENTER.
[179.25]
[AUTO]
[B/G]
[SAT.1]
[Off]
[Off]
Off
On
NOTE
• See page 36 for setting a password.
• If “Lock” is set to “On” for a channel, “Child lock has been
activated.” is displayed when you select the channel, and
the image and sound of the channel is blocked.
• When pressing ENTER while “Child lock has been
activated.” is displayed, password input menu will be
displayed. Inputting the correct password lifts the child lock
temporarily until the power is turned off.
22
Next
01 SAT.102 KABEL
01 SAT.1KABEL02
Next
01 KABEL
01 KABELSAT.102
Next
Basic adjustment settings (Analogue)
Erase Programme
The individual programme can be erased.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you already set the password, enter it here.
• See page 36 for setting a password.
Press a/b to select “Erase Programme”, and
4
then press ENTER.
Press c/d to select “Yes”, and then press
5
ENTER.
Press a/b/c/d to select the channel you
6
want to erase, and then press ENTER.
• A message screen pops up.
Press c/d to select “Yes”, and then press
7
ENTER to erase the selected programme. All
the subsequent programmes move up.
Repeat the steps 6 and 7 until all desired
8
channels are erased.
Erase programme menus
01 SAT.1
01
SAT.1
Pro702KABEL030405
0607080910
1112131415
1617181920
Next
02 Pro7
01 SAT.103 KABELPro702
0607080910
1112131415
1617181920
01 SAT.1 02 KABEL
0607080910
1112131415
1617181920
0405
Next
02 KABEL
030405
Next
23
Basic adjustment settings (Analogue/Digital)
AV MODE selection
AV MODE gives you six viewing options to choose
from to best match the system environment, which
can vary due to factors like room-brightness, type of
programme watched or the type of image input from
external equipment.
Using AV MODE on the remote control unit
Press AV MODE.
1
• Present AV MODE displays.
Press AV MODE again before the mode
2
displayed on the screen disappears.
• The mode changes as shown below.
AV MODE: STANDARD
AV MODE: DYNAMIC
AV MODE: USER
Using AV Mode on the menu screen
Press MENU and the MENU screen displays.
1
Press c/d to select “Picture” or “Audio”.
2
Press a/b to select “AV Mode”, and then
3
press ENTER.
Press a/b/c/d to select the desired item,
4
and then press ENTER.
Selected item
STANDARD
MOVIE
GAME
USER
DYNAMIC
For a highly defi ned image in a normally
bright room
For a movie
Lowers image brightness for easier
viewing.
Allows the user to customise settings as
desired. You can set the mode for each
input source.
For a clear-cut image emphasising high
contrast for sports viewing
AV MODE: MOVIE
AV MODE: GAME
Description
OPC (Optical Picture Control) setting
You can set the TV to automatically adjust the screen
to suitable backlight brightness according to the
lighting conditions.
Using OPC on the remote control unit
Press OPC to switch the OPC function on and off.
Using OPC on the menu screen
Press MENU and the MENU screen displays.
1
Press c/d to select “Picture”.
2
Press a/b to select “OPC”, and then press
3
ENTER.
Press a/b to select the desired item, and
4
then press ENTER.
Selected item
Off
On
On (Display)
NOTE
• Make sure no object obstructs the OPC sensor, which
could affect its ability to sense surrounding light.
The brightness is fi xed at the value set in
“Backlight” (See page 25).
Automatically adjusts
Displays the OPC effect on the screen
while adjusting the brightness of the
screen.
Description
NOTE
• You can select a different AV MODE item for each input
mode. (For example, select STANDARD for ANALOGUE TV
input and DYNAMIC for INPUT1.)
24
Basic adjustment settings (Analogue/Digital)
Picture adjustments
You can adjust the picture to your preference.
Follow the steps to adjust the picture.
Press MENU and the MENU screen displays.
1
Press c/d to select “Picture”.
2
Press a/b to select a specifi c adjustment
3
item.
Press c/d to adjust the item to your desired
4
position.
NOTE
• For resetting all adjustment items to factory preset values,
pressa/b to select “Reset”, press ENTER, press c/d to
select “Yes”, and then press ENTER.
Adjustments items
[
]
MENU
Selected item
Backlight
Contrast
Brightness
Colour
PictureAudio
AV Mode[STANDARD]
OPC
Backlight [+6]–8
Contrast
Brightness
Colour
Tint
Sharpness
Advanced
Reset
[+30]
[0]
[0]
[0]
[0]
–30
–30
–30
–10
c
0
button
The screen dims
For less contrast
For less brightness
For less colour
intensity
Tint
Skin tones become
purplish
[Off]
+8
+40
+30
+30
+30
+10
button
d
The screen
brightens
For more contrast
For more brightness
For more colour
intensity
Skin tones become
greenish
Sharpness
For less sharpness
For more sharpness
NOTE
• Select “Advanced” and then press ENTER to set “Colour
Temp.”, “Black”, “3D-Y/C”, “Monochrome”, “Film Mode” or
“I/P Setting”. See pages 26 and 27.
25
Basic adjustment settings (Analogue/Digital)
Advanced
Advanced setting enables you to set the picture
adjustment in more detail. There are six options you
can choose from.
Colour temperature
Adjusts the colour temperature to give the best white
image.
Press MENU and the MENU screen displays.
1
Press c/d to select “Picture”.
2
Press a/b to select “Advanced”, and then
3
press ENTER.
Press a/b to select “Colour Temp.”, and then
4
press ENTER.
Press a/b to select the desired level, and
5
then press ENTER.
Selected item
High
Mid-High
Middle
Mid-Low
Low
Black
For easier viewing, change the viewing depth by
selecting a level for automatically adjusting the dark
portion of an image.
Repeat steps 1 to 3 in Colour temperature.
1
Description
White with bluish tone
White with reddish tone
3D-Y/C
Provides high quality images with minimal dot crawl
and cross colour noise.
Repeat steps 1 to 3 in Colour temperature.
1
Press a/b to select “3D-Y/C”, and then press
2
ENTER.
Colour Temp.
Black
3D – Y/C
Monochrome
Film ModeFilm Mode
I/P Setting
Press a/b to select the desired level, and
3
then press ENTER.
Selected item
Off
Standard
Fast
Slow
NOTE
• 3D-Y/C is not selectable depending on the input signal
type.
• 3D-Y/C may not operate depending on the input signal
type or noisy input signal.
3D-Y/C off
Normal adjustment
For movie image
For still image
Description
Off
Standard
Fast
Slow
Press a/b to select “Black”, and then press
2
ENTER.
Press c/d to select “On”, and then press
3
ENTER.
Selected item
On
Off
26
Colour Temp.
Black
3D - Y/C
Monochrome
Film Mode
I/P Setting
For high detail in black portions
No adjustment
OnOff
Description
Basic adjustment settings (Analogue/Digital)
Monochrome
For viewing images in monochrome.
Press MENU and the MENU screen displays.
1
Press c/d to select “Picture”.
2
Press a/b to select “Advanced”, and then
3
press ENTER.
Press a/b to select “Monochrome”, and then
4
press ENTER.
Press c/d to select “On”, and then press
5
ENTER.
Film Mode
Automatically detects a fi lm-based source (originally
encoded at 24/25 frames/second, depending on the
vertical frequency), analyses it then recreates each still
fi lm frame for high-defi nition picture quality.
Repeat steps 1 to 3 in Monochrome.
1
Press a/b to select “Film Mode”, and then
2
press ENTER.
AV Mode selection
This option links to “AV Mode” in the Picture menu. (See
page 24.)
Audio adjustment
For each selected AV mode, you can adjust the
following three items: Treble, Bass, and Balance; to
your preferred setting. After choosing the AV mode
you want to adjust, next carry out audio adjustment.
Press MENU and the MENU screen displays.
1
Press c/d to select “Audio”.
2
Press a/b to select a specifi c adjustment
3
item.
[
]
MENU
Audio
AudioPower Control
AV Mode
Treble
Bass
Balance
Surround
Reset
[0]–15
[0]
–15
[0]
L
[STANDARD]
+15
+15
R
[Off]
Press c/d to select “On”, and then press
3
ENTER.
I/P Setting
Adjusting the image and input signal can give you a
more beautiful picture.
Repeat steps 1 to 3 in Monochrome.
1
Press a/b to select “I/P Setting”, and then
2
press ENTER.
Press c/d to select “Interlace” or
3
“Progressive”, and then press ENTER.
NOTE
• The picture is progressive scan when Film Mode is “On”.
Press c/d to adjust the item to your desired
4
position.
Selected item
Treble
Bass
Balance
NOTE
• For resetting all adjustment items to factory preset values,
press a/b to select “Reset”, press ENTER, press c/d
to select “Yes”, and then press ENTER.
button
c
For weaker treble
For weaker bass
Decrease audio from
the right speaker
button
d
For stronger treble
For stronger bass
Decrease audio
from the left
speaker
27
Basic adjustment settings (Analogue/Digital)
Surround
When you set to “On”, you can enjoy surround sound,
the same as if you were in a movie theatre.
Using SURROUND on the remote control unit
Press SURROUND to switch the Surround function
on and off.
Selected item
On
Off
Makes it possible to enjoy natural, realistic
surround sound.
Outputs the normal sound.
Using Surround on the menu screen
You can produce Surround effects from the “Audio”
setting.
Press MENU and the MENU screen displays.
1
Press c/d to select “Audio”.
2
Description
Power Control
Power Control setting allows you to save energy.
No Signal Off
When set to “Enable”, the power will automatically shut
down if no signal inputs for 15 minutes.
Press MENU and the MENU screen displays.
1
Press c/d to select “Power Control”.
2
• Power control menu displays.
Press a/b to select “No Signal Off”, and then
3
press ENTER.
Press c/d to select “Enable”, and then press
4
ENTER.
• Five minutes before the power shuts down,
remaining time displays every minute.
NOTE
• “Disable” is factory preset value.
• When a TV programme fi nishes, this function may not
operate.
No Operation Off
When set to “Enable”, the power will automatically shut
down if there is no operation for 3 hours.
Press MENU and the MENU screen displays.
1
Press a/b to select “Surround”, and then
3
press ENTER.
...
[
MENU
Press c/d to select “On”, and then press
4
ENTER.
28
Audio
AudioPower Control
AV Mode[STANDARD]
Treble
Bass
Balance
Surround
Reset
[0]–15
[0]
[0]
Surround
–15
L
]
+15
+15
R
[Off]
• “Disable” is factory preset value.
Press c/d to select “Power Control”.
2
• Power control menu displays.
Press a/b to select “No Operation Off”, and
3
then press ENTER.
Press c/d to select “Enable”, and then press
4
ENTER.
• Five minutes before the power shuts down,
remaining time displays every minute.
NOTE
Basic adjustment settings (Digital)
DTV input mode menu items
List of DTV menu items to help you with operations
ProgrammeProgramme List .........................................................................................................Page 31
• The illustrations and on-screen displays in this manual are for explanation purposes and may vary slightly from the actual
operations.
Selecting DTV mode
Press DTV MENU to directly display DTV menu screen.
DTV Menu > Programme
Programme
Setup
Option
DTV MENU: Press to open or close DTV menu screen.
a/b/c/d: Press to select a desired item on the screen or adjust a
ENTER: Press to go to the next step or complete the setting.
RETURN: Press to return to the previous step.
selected item.
29
Basic adjustment settings (Digital)

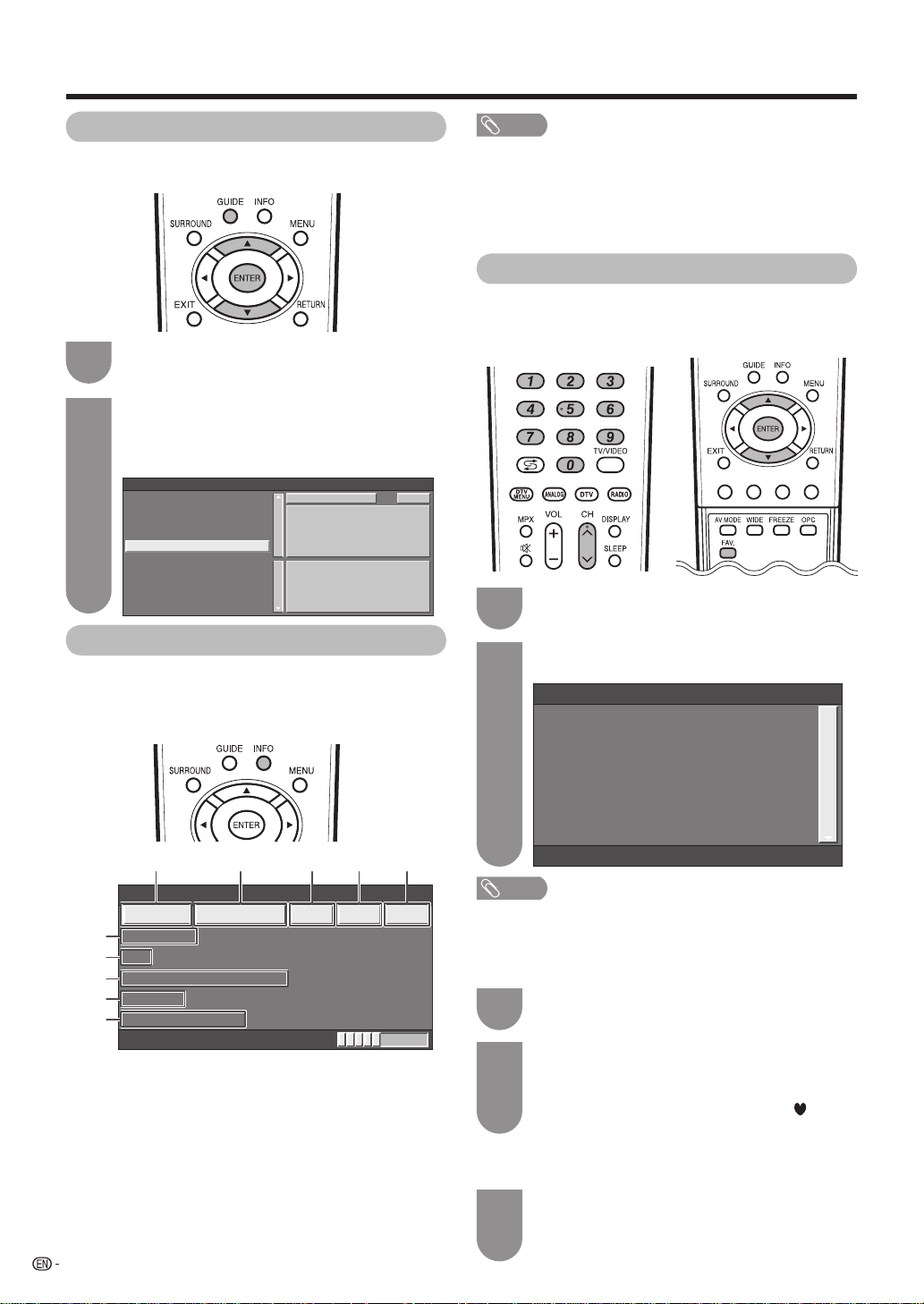

Programme Guide
You can check the schedule of DTV events and view
detailed information about current or future events.
Press GUIDE to display the programme guide
1
list.
Press a/b to display your desired
2
programme, and then press ENTER.
• When you press ENTER, the TV jumps to the
channel.
03-0001
BBC ONE
03-0002
BBC TWO
03-0030
CBBC Channel
03-0040
BBC NEWS 24
12-0021 ABC Melbourne
Programme Guide
ABC12:11
Now
ABC2 ( 11:04 - 12:03 )
[Montreux Jazz Festival 2003]
Next
ABC2 ( 12:03 - 13:30 )
[The New Inventors]
Info
While watching DTV you can check the extended
programme information on the screen using INFO on
the remote control.
NOTE
• While the I-Plate is still on the screen, you can press INFO on
the remote control again to call up the extended programme
information of the current TV channel.
• Press INFO again and you call up the extended information on the
next programme.
• Pressing INFO again will not display the information for the next
programme if “No Available Event Text” under “Next” is displayed.
Favourite Programme List
When you are watching terrestrial TV channels, you
can call up the Favourite Programme List using FAV.
on the remote control.
Press FAV. to display the Favourite
1
Programme List.
Press a/b to select your desired channel,
2
and then press ENTER.
Favourite Programme List
0002
0030
0040
BBC TWO
CBBC Channel
BBC NEWS 24
15432
INFO
12-002111:52TTXMpegJun.25G
6
ABC Melbourne
7
ABC2
8
NOW : Montreux Jazz Festival 2003
9
11:04 - 12:03
0
NEXT : The New Inventors
General INFO screen
Current channel number
1
Date and current local
2
time
Teletext
3
Audio system
4
(Dolby D or MPEG)
Parental rate
5
30
Station name
6
Service name
7
Current programme
8
name
Time for the current
9
programme
Next programme name
0
NOTE
• Refer to “Favourite & Lock” to register channels to your Favourite
Programme List. (See page 31.)
Changing channels within the Favourite
Programme List
Repeat steps 1 and 2 in Favourite
1
Programme List.
Select the registered channels in the Favourite
2
Programme List using CHr/s on the
remote control unit or the TV.
• The information plate pops up with the “ ”
symbol under the channel.
Selecting channels other than Favourite
programmes
Directly input the number of the channel you
1
want to watch using 0—9 on the remote
control unit or select the channel from
“Programme List” in the “Programme” menu.
Basic adjustment settings (Digital)
Programme List
You can select the desired programme from the
programme list.
Press DTV MENU to display the DTV menu
1
screen.
Press a/b to select “Programme”, and then
2
press ENTER.
Press a/b to select “Programme List”, and
3
then press ENTER.
Programme List
Edit Channel
TV Programme List
0001 BBC ONE
0002 BBC TWO
0030 CBBC Channel
0040 BBC NEWS 24
Press a/b to select your desired programme
4
number and name, and then press ENTER.
Favourite & Lock
Assign channels to Favourite or to Lock groups.
Press DTV MENU to display the DTV menu
1
screen.
Selected item
FAV
Lock
NOTE
• Press ENTER again to cancel “FAV” ( ) or “Lock” ( )
settings.
You can easily select your favourite
channel from the Favourite Programme
List.
When the channel is locked, you must
enter your password whenever you tune to
the channel.
Description
Parental Rate
This function allows TV channels to be restricted.
It prevents children from watching violent or sexual
scenes that may be considered inappropriate.
Repeat steps 1 to 3 in Favourite & Lock.
1
Press a/b to select “Parental Rate”, and then
2
ENTER.
Favourite & Lock
Parental Rate
Press a/b to select your desired rating, and
3
then press ENTER.
Selected item
Description
Press a/b to select “Programme”, and then
2
press ENTER.
Press a/b to select “Edit Channel”, and then
3
press ENTER.
If you have already set the password, enter it
here. If not, enter the factory preset password
“1234”.
• See page 36 for setting a password.
Press a/b to select “Favourite & Lock”, and
4
then press ENTER.
Favourite & Lock
Parental Rate
CH NoCH NameFAVLock
03-0001
03-0002
03-0030
03-0040
Press a/b to select your desired channel.
5
Press c/d to select “FAV” or “Lock”, and
6
then press ENTER.
BBC ONE
BBC TWO
CBBC Channel
BBC NEWS 24
General and
above (G)
Parental
Guidance and
above (PG)
Mature and
above (M)
Mature Adult
and above
(MA)
Adult Violence
(AV)
Restricted
and above (R)
No Block (-)
Content is not offensive to most viewers.
Content is such that parents may not want
their children to view the programme.
Mature Audience only. This programme
is specifi cally designed to be viewed by
adults and therefore may be unsuitable for
children under 15.
Mature Adult only. Mature Audience only.
This programme is specifi cally designed to
be viewed by adults and therefore may be
unsuitable for children under 15.
Not for children under age 15. Strong
elements of sex and/or violence.
Not for children under age 18. Strong
elements of sex and/or violence.
Cancel the blocking.
31
Basic adjustment settings (Digital)
Installation
The fi rst time the receiver is powered on, “Programme
list is empty” will display on the screen. Under the main
menu, select “Installation” and enter into the submenu.
Auto Search
You can automatically search for and download TV
channels.
Press DTV MENU to display the DTV menu
1
screen.
Press a/b to select “Setup”, and then press
2
ENTER.
Press a/b to select “Installation”, and then
3
press ENTER.
If you have already set the password, enter it
here. If not, enter the factory preset password
“1234”.
• See page 36 for setting a password.
Press a/b to select “Auto Search”, and then
4
press ENTER.
Press c/d to select “Yes”, and then press
5
ENTER.
Auto search starts.
6
• Programme auto search
You do not need to do anything during the
auto search.
NOTE
• Once the DTV signal is scanned, the channel number and
programme name will be shown on the programme list.
• The indicator operates concurrently with scanning channels
and shows the progress made.
Manual Adjust
You can set some channel items manually.
Repeat steps 1 to 3 in Auto Search.
1
Press a/b to select “Manual Adjust”, and then
2
press ENTER.
Press 0—9 or c/d to select a channel
3
number.
• Channel settings apply to channels 2-69.
Press a/b to select the desired menu item, and
4
make sure the correct frequency is selected.
Channel No :
Frequency : 778000KHz
Signal Level :
Quality :
SNR :
Press a/b to select “Start Scan”, and then
5
press ENTER.
NOTE
• If a signal locks in, “Start Scan” will change to “Get Channel
Success”. Then you can press EXIT to leave the installation
page and watch a programme or continue scanning for
other channels. Anytime you watch a DTV channel and
want to know the “Signal Level”, “Quality” or “SNR”, enter
into this page.
• If a signal does not lock in, “Start Scan” will show “Timeout
Error”. You can scan the signal again, or refer to the “Signal
Level” and “Quality” for aligning the direction of the antenna
to get the signal.
• Signal Level: The signal power or intensity from the
broadcasted frequency.
Quality: The clean level of the signal from the broadcasted
frequency.
SNR: The rate of signal and noise to radiated frequency.
3
94%
100%
25dB
Start Scan
32
Basic adjustment settings (Digital)
Quick Search
If you live in the cities or regions listed in the “Quick
Search” menu, you can scan all DTV channel signals.
Press DTV MENU to display the DTV menu
1
screen.
Press a/b to select “Setup”, and then press
2
ENTER.
Press a/b to select “Installation”, and then
3
press ENTER.
If you have already set the password, enter it
here. If not, enter the factory preset password
“1234”.
• See page 36 for setting a password.
Press a/b to select “Quick Search”, and then
4
press ENTER.
Auto Search
Manual Adjust
Quick Search
Reset Data
Quick Search
Adelaide
Brisbane
Melbourne
Perth
Sydney
Video Setup
This function allows you to select an output format.
Press DTV MENU to display the DTV menu
1
screen.
Press a/b to select “Setup”, and then press
2
ENTER.
Press a/b to select “System Setup”, and then
3
press ENTER.
Press a/b to select “Video Setup”, and then
4
press ENTER.
Video Setup
Audio Setup
Time Setup
I-Plate Setup
Output Format
Fix
Auto
Press a/b to select your desired item, and
5
then press ENTER.
Selected item
Fix
Displays every DTV broadcast converted
to1080i.
Description
Press a/b to select your city or region listed
5
on the screen, and then press ENTER.
NOTE
• If channel frequency is changed by the local TV station or a
new channel comes up, you have to scan these channels
using “Manual Adjust”.
Reset Data
Use this function to clear the channel data.
Repeat steps 1 to 3 in Quick Search.
1
Press a/b to select “Reset Data”, and then
2
press ENTER.
Press c/d to select “Yes”, and then press
3
ENTER.
Auto
Displays the DTV broadcast in the format
it is received.
33
Basic adjustment settings (Digital)

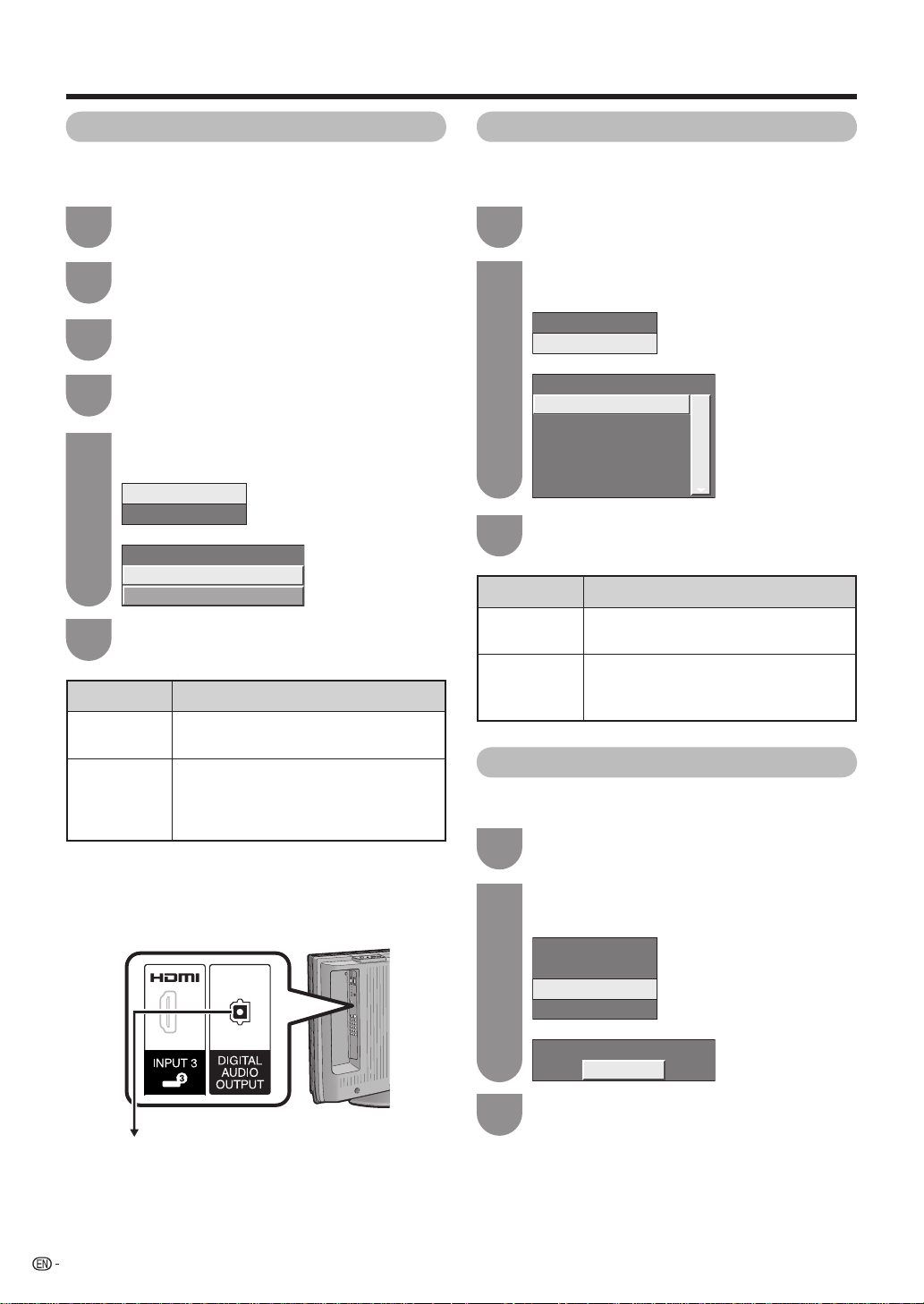

Digital Output
This function allows you to select your favourite audio
output system.
Press DTV MENU to display the DTV menu
1
screen.
Press a/b to select “Setup”, and then press
2
ENTER.
Press a/b to select “System Setup”, and then
3
press ENTER.
Press a/b to select “Audio Setup”, and then
4
press ENTER.
Press a/b to select “Digital Output”, and then
5
press ENTER.
Digital Output
Multilingual
Digital Output
PCM
Dolby Digital
Press a/b to select your desired output
6
system, and then press ENTER.
Selected item
PCM
Dolby Digital
The optical output format is normally in
PCM.
Dolby Digital audio will be output when
there is a Dolby Digital audio signal. The
output will be in PCM when there is no
Dolby Digital audio signal.
Using Digital Audio Output
It is possible to output audio through the DIGITAL
AUDIO OUTPUT terminal. PCM audio outputs from the
terminal.
Description
Multilingual
You can select a different audio language when the
broadcast has different audio language.
Repeat steps 1 to 4 in Digital Output.
1
Press a/b to select “Multilingual”, and then
2
press ENTER.
Digital Output
Multilingual
Audio Language
Language (Dolby D)
Language 1 (Mpeg)
Press a/b to select your desired audio
3
language, and then press ENTER.
Selected item
Language
(Dolby D)
Language
(Mpeg)
You can enjoy Dolby Digital audio. Outputs
Dolby Digital audio from the digital output.
You can enjoy Mpeg audio. Outputs PCM
audio from the digital output regardless of
the “Digital Output” setting.
Description
Time Setup
This function allows you to select your local time zone.
Repeat steps 1 to 3 in Digital Output.
1
Press a/b to select “Time Setup”, and then
2
press ENTER.
Video Setup
Audio Setup
Time Setup
I-Plate Setup
Optical fi bre cable
(commercially available)
To optical digital input of
external audio devices
34
Time Zone
NSW/ACT
Press c/d to select your local time zone, and
3
then press ENTER.
Basic adjustment settings (Digital)
I-Plate Setup (Information Plate
Setup)
This function allows you to confi gure the display time
and time format for the information plate.
Press DTV MENU to display the DTV menu
1
screen.
Press a/b to select “Setup”, and then press
2
ENTER.
Press a/b to select “System Setup”, and then
3
press ENTER.
Press a/b to select “I-Plate Setup”, and then
4
press ENTER.
Video Setup
Audio Setup
Time Setup
I-Plate Setup
Press a/b to select your desired item.
5
Press c/d to select your desired value, and
6
then press ENTER.
Display Time5 sec
24 HRTime Format
Information
You can check the current version of the hardware and
software on the screen.
Press DTV MENU to display the DTV menu
1
screen.
Press a/b to select “Option”, and then press
2
ENTER.
Press a/b to select “Information”, and then
3
press ENTER.
Information
S/W Update
System Information
S/W Version : AUPI73T14 DT1r11t1f2G
Release Time : MAR 30 2006 19:00:35
S/W Update (SERVICE ONLY)
This function is only for service personnel to use for
software updates.
35

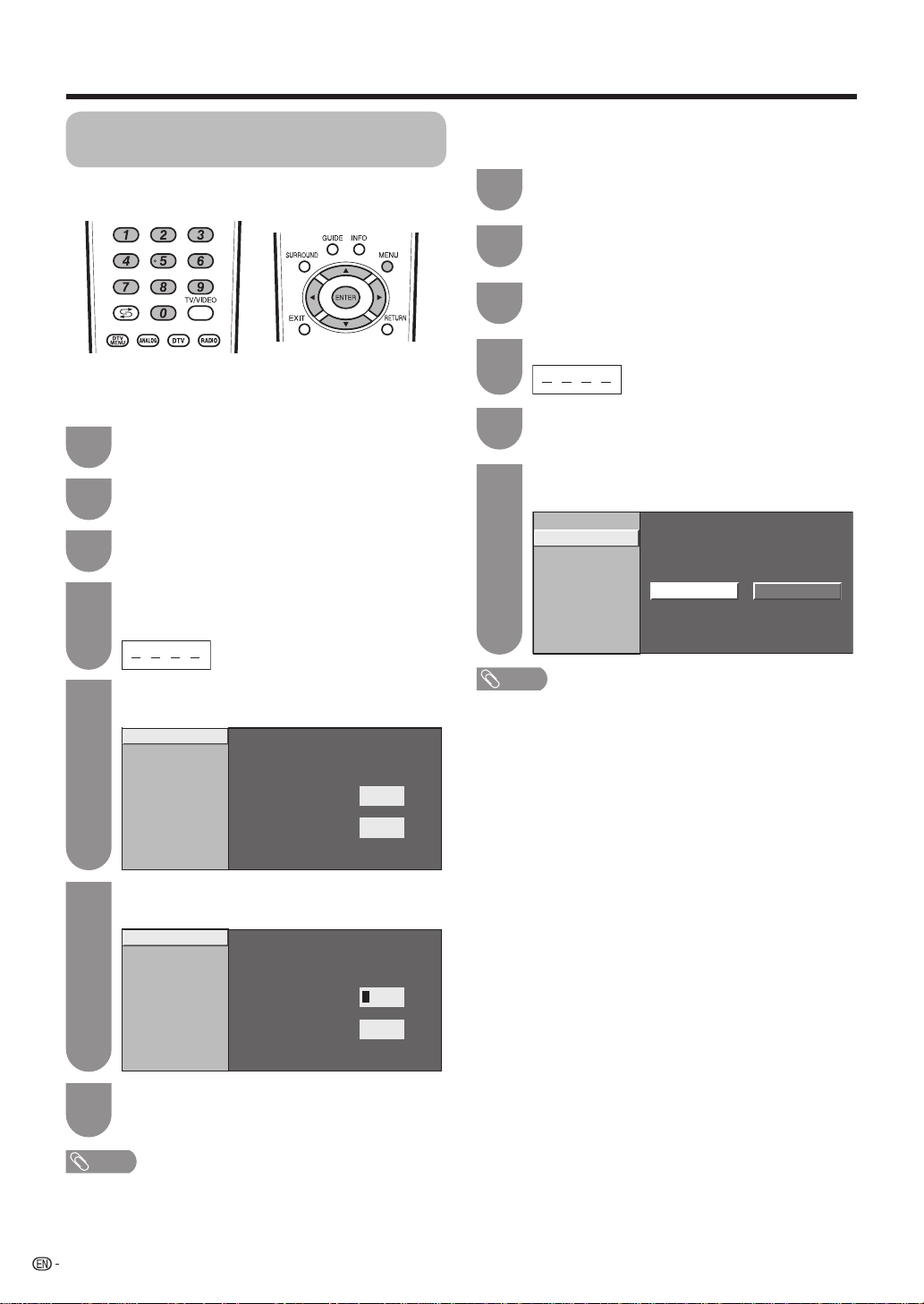

Useful adjustment settings
Password setting for child lock
(for TV/DTV input mode)
Allows you to use a password to protect certain
settings from being accidentally changed.
Setting a password
Register a 4-digit password number to use the Child
Lock function.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Child Lock”, and then
3
press ENTER.
If you already set the password, enter it here.
4
If not, enter the factory preset password
“1234”.
Resetting the password
Allows you to reset your password.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Child Lock”, and then
3
press ENTER.
Enter the password.
4
Press a/b to select “Reset”, and then press
5
ENTER.
Press c/d to select “Yes”, and then press
6
ENTER.
Change password
Reset
YesNo
Press a/b to select “Change password”, and
5
then press ENTER.
Change password
Reset
New Password
Reconfirm
Enter the 4-digit number as a password using
6
0 — 9.
Change password
Reset
New Password
Reconfirm
Enter the same 4-digit number as in step 6 to
7
confi rm.
• “The new password was registered.” displays.
NOTE
• To view a locked channel (Lock setting in Programme
Setup “Manual Adjust” is set to “On”), you must enter
a password. (See page 22.) When you select a locked
channel, a password prompt message pops up. Press
ENTER to display the password input window.
36
–
–
NOTE
• As a precautionary measure, make a note of your
password and keep it in a familiar place. If you lose
or forget your password, initialise the TV to return all
settings except for the TV channel settings to factory
preset values. (See page 53.)
–––
––––
–––
––––
• This function is only available for TV/DTV input mode.
• To relock a channel which has been temporarily unlocked
by inputting the correct password, turn power off and then
on again.
Useful adjustment settings
Input Label
You can assign each input source a label you like.
Press TV/VIDEO to select the desired input
1
source.
Press MENU and the MENU screen displays.
2
Press c/d to select “Setup”.
3
Press a/b to select “Input Label”, and then
4
press ENTER.
Press a/b/c/d to select each character of
5
the new name for the input source, and then
press ENTER.
DVD
A
B
C
D
E
F
G
K
L
M
N
U
V
0123456789
Repeat until the name is fully spelt out.
6
• The name can be 6 characters or less.
• When you want to set an input source name of
less than 6 characters, select “END”, then press
ENTER to exit from the labelling menu.
O
W
X
Y
P
Q
Z
+
(Example)
H
R
–_
CLEAR
I
J
BACK
S
T
.
END
Image position
For adjusting a picture's horizontal and vertical
position.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Position”, and then
3
press ENTER.
Press a/b to select “H-Pos.” or “V-Pos.”.
4
H-Pos.a10b10
[ 0]
V-Pos.a20
[ 0]
Reset
Selected item
H-Pos.
V-Pos.
Press c/d to adjust the item to your desired
5
position.
NOTE
• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press
ENTER.
• Adjustments are stored separately according to input
source.
Centres the image by moving it to the left
or right.
Centres the image by moving it up or
down.
Description
b20
INPUT SOURCE
TV
DTV
INPUT1
INPUT2
DVD
(Example)
NOTE
• You cannot change labels if the input source is TV or DTV.
37
Useful adjustment settings

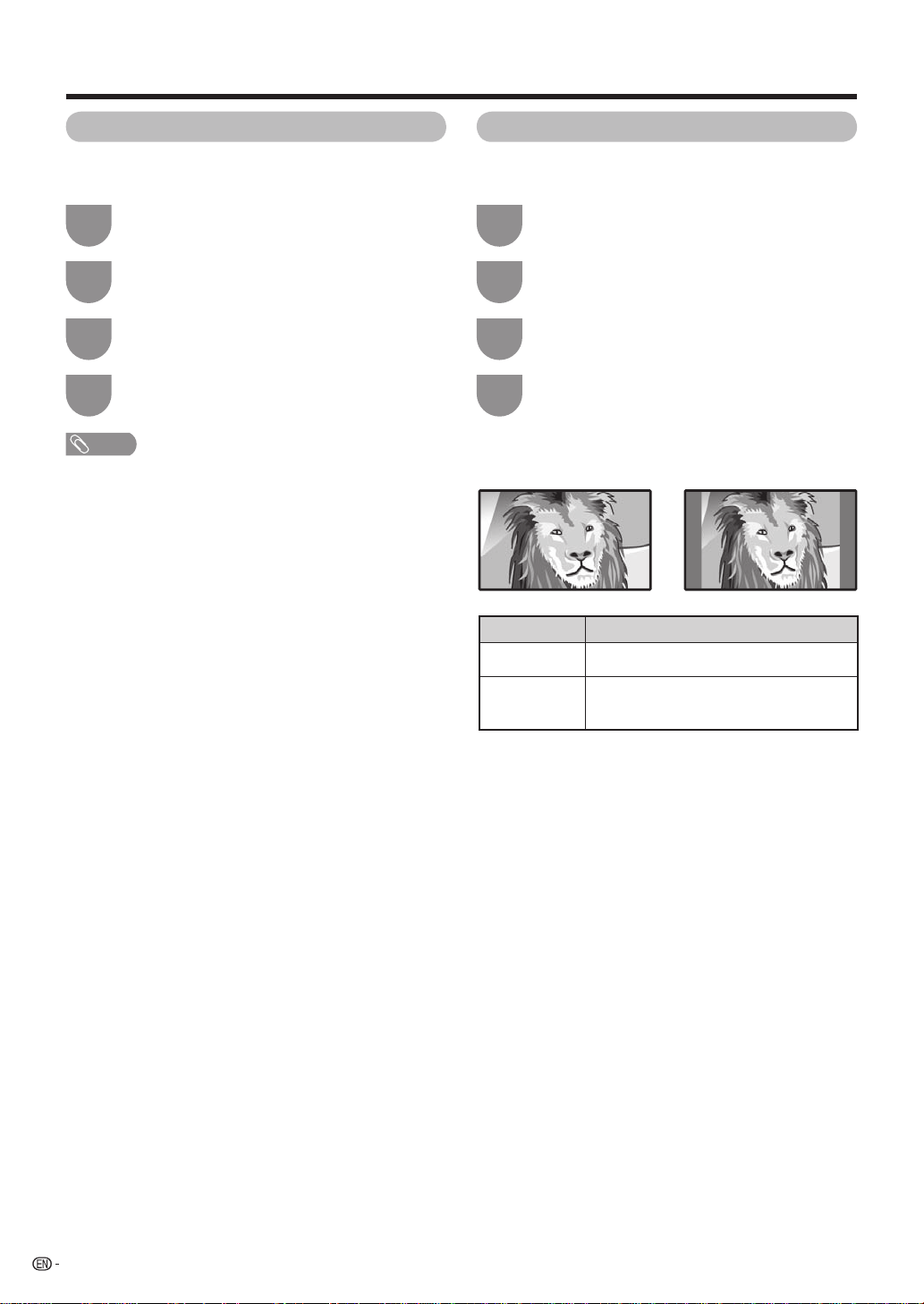

Wide Screen Signalling (WSS)
WSS allows a television to switch automatically among
the different screen formats.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “WSS”, and then press
3
ENTER.
Press c/d to select “On” or “Off”, and then
4
press ENTER.
NOTE
• Try to set WIDE mode if an image does not switch to the
correct screen format. When the broadcast signal contains
no WSS information, the function will not work even if
enabled.
Picture aspect ratio
The WSS signal has 4:3 auto-switching that allows you
to select between Panorama and Normal.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “4:3 Mode”, and then
3
press ENTER.
Press c/d to select “Panorama” or “Normal”,
4
and then press ENTER.
WSS signal 4:3 screen
4:3 mode “Panorama”4:3 mode “Normal”
Selected item
Description
Panorama
Normal
Wide image without side bars
Normal range keeping 4:3 or 16:9 aspect
ratio
38
Useful adjustment settings
WIDE mode
WIDE MODE
Normal
Zoom 14:9
Panorama
Full
Cinema 16:9
Cinema 14:9
Manual Selection
Press WIDE.
1
• The WIDE MODE menu displays.
• The menu lists the wide mode options selectable
for the type of video signal currently received.
Press WIDE or a/b while the WIDE MODE
2
menu displays on the screen.
• As you toggle down the options, each mode is
immediately refl ected on the TV.
Auto Selection
If you set “WSS” and “4:3 Mode” in the Setup menu
on page 38, the optimum WIDE mode is automatically
chosen for every broadcast containing the WSS
information.
“WSS” menu
To enable Auto Selection, set “WSS” in the Setup
menu to “On”. (See page 38.)
“4:3 Mode” menu
To set the type of the wide screen, select “Panorama”
or “Normal” in the 4:3 Mode menu. (See page 38.)
4:3 Mode set to “Panorama”4:3 Mode set to “Normal”
Selected item
Normal
Zoom 14:9
Panorama
Full
Cinema 16:9
Cinema 14:9
Normal
For 4:3 “standard” pictures. A side bar appears on each side.
For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and
bottom with some programmes.
In this mode the picture is progressively stretched toward each side of the screen.
For 16:9 squeeze pictures.
For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
Zoom 14:9Panorama
NOTE
• If the broadcast signal contains no WSS information, Auto
Selection will not function even when the WSS option is
enabled.
Description
NOTE
• Some screen sizes may not be
displayable depending on the
input signal.
Cinema 14:9Cinema 16:9Full
39
Useful adjustment settings
Audio Only
When listening to music from a music programme, you
can set the display off and enjoy audio only.
Press MENU and the MENU screen displays.
1
Press c/d to select “Option”.
2
Press a/b to select “Audio Only”, and then
3
press ENTER.
Press c/d to select “On”, and then press
4
ENTER.
Selected item
On
Off
NOTE
• When you make operations that change the picture on the
TV such as by changing the input source, the Audio Only
function is set to “Off”.
“INPUT3” using TV/VIDEO on the remote
control unit or on the TV.
Press MENU and the MENU screen displays.
2
Press c/d to select “Option”.
3
Press a/b to select “HDMI Setup”, and then
4
press ENTER.
• The HDMI Setup can be selected only when
“INPUT3” is selected.
...
[
Option
MENU
Option
Audio Only
DNR
HDMI Setup
Press a/b to select the desired item, and
5
then press ENTER.
HDMI Setup
]
[Off]
DNR (Digital Noise Reduction)
Produces a clearer video image.
Press MENU and the MENU screen displays.
1
Press c/d to select “Option”.
2
Press a/b to select “DNR”, and then press
3
ENTER.
Press a/b to select the desired level, and
4
then press ENTER.
Off
High
Low
HDMI Setup
items
Signal
Type
Auto View
Audio
Select
6
NOTE
• Refer to your external equipment operation manual for the
signal type.
• Item under “Signal Type” can be selected when the
equipment is connected with a DVI-HDMI conversion cable.
• When the equipment is connected with an HDMI cable,
items are automatically set and cannot be selected.
Selectable
items
RGB/
YCbCr4:4:4/
YCbCr4:2:2
Enable/
Disable
Digital/
Analogue
Select the video signal type
from the HDMI terminal.
Set whether or not to use
WIDE MODE based on signal
recognition, including an HDMI
signal.
Select “Digital” for audio signal
via the HDMI terminal.
Select “Analogue” for audio
signal via the AUDIO jack.
Description
Press a/b/c/d to select the desired setting,
and then press ENTER.
40
Useful adjustment settings
Input Select
Selecting input source
Can use for selecting the input source.
Press TV/VIDEO on the remote control unit or
1
TV/VIDEO on the TV.
Press TV/VIDEO on the remote control unit
2
or TV/VIDEO on the TV to select the input
source.
• An image from the selected source automatically
displays.
• You can also select the input source by pressing
.
a/b
Selecting input signal type
For setting the signal type of external equipment.
Press MENU and the MENU screen displays.
1
Press c/d to select “Option”.
2
Press a/b to select “Input Select”, and then
3
press ENTER.
Colour system setting
You can change the colour system to one that is
compatible with the image on the screen.
Press MENU and the MENU screen displays.
1
Press c/d to select “Option”.
2
Press a/b to select “Colour System”, and
3
then press ENTER.
Press a/b to select a compatible video signal
4
system of your equipment, and then press
ENTER.
AUTO
PAL
SECAM
NTSC 3.58
NTSC 4.43
PAL-60
NOTE
• Factory preset value is “AUTO”.
• If “AUTO” is selected, colour system for each channel is
automatically set. If an image does not display clearly,
select another colour system (e.g. PAL, NTSC 4.43).
Press a/b to select a signal type you want to
4
set, and then press ENTER.
Input source
INPUT 1
INPUT 2
NOTE
• If no (colour) image displays, try to change the other
signal type.
• Check the operation manual of the external equipment for
the signal type.
• When the signal type is set to “AUTO”, the input terminal
where cable is connected is automatically selected.
• When the signal type is set to “AUTO” and multiple video
signal cables are connected, the signal type is selected in
the following prioritised order:
INPUT 1/INPUT 2: COMPONENTs VIDEO
Selectable item
AUTO, COMPONENT, VIDEO
AUTO, COMPONENT, VIDEO
41
Useful features
Teletext language setting
If Teletext information does not display correctly,
perform the setting procedure below.
Select from among 4 kinds of language tables: West
Europe, East Europe, Greek/Turkish, Cyrillic.
Each table is compatible with the Teletext languages
listed below.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Text Language”, and
3
then press ENTER.
Press a/b to select receivable teletext
4
broadcasting language in your country, and
then press ENTER.
MENU
[
Setup
...
Text Language
]
West Europe
East Europe
Greek/Turkish
Cyrillic
• West Europe — English, French, Scandinavian,
Czech, German, Spanish, Italian
• East Europe — Polish, French, Scandinavian,
Czech, German, Slovenian/Croatian, Italian,
Rumanian
• Teletext can display only when it is sent by a network. Not
used to convert between languages.
42
Useful features
Teletext function
What is Teletext?
Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
Your TV receives Teletext signals broadcast by a TV
network, and decodes them into graphical format for
viewing. News, weather reports, sports information,
stock exchange prices and programme previews are
among the many services available.
Teletext mode
Teletext is turned on/off with m on the remote control
unit. You can operate your TV in Teletext mode directly
by inputting commands with the remote control unit.
TELETEXT
TELETEXT
NOTE
• This dual screen cannot be displayed in DTV mode.
When viewing the Teletext information
• Press CHr to increase the page number.
• Press CHs to decrease the page number.
Button functions
Colour (Red/Green/Yellow/Blue):
You can select a group or block of pages displayed
in the coloured brackets at the bottom of the screen
by pressing the corresponding Colour (Red/Green/
Yellow/Blue) on the remote control unit.
Turning on and off Teletext
Select a TV channel or external input source
1
providing the Teletext programme.
Press m to display the Teletext.
2
Press m again to display the Teletext on
3
the right screen and normal image on the left
screen.
• Each time you press m, the screen switches as
shown upper right.
• If you select a programme with no Teletext signal,
“No Teletext available.” is displayed.
• The same message displays during other modes if
no Teletext signal is available.
TELETEXT
RedGreen YellowBlue
0 — 9:
Directly select any page from 100 to 899 by using 0 —
9.
(Top/Bottom/Full):
v
Each time you press v, the TELETEXT image
switches as shown below.
Full (Displays in full screen)
Top (Displays in the upper half of the screen)
Bottom (Displays in the lower half of the screen)
NOTE
• This function is not available in DTV mode.
(Reveal hidden for TELETEXT):
k
To reveal hidden information such as an answer to a
quiz, press k.
• Press k again to hide the information.
(Hold):
3
To stop updating Teletext pages automatically, press 3.
• Press 3 again to release the hold mode.
43
Useful features
Displaying Subtitle
You can display several subtitles as they are
transmitted.
Press [ to display the subtitle.
1
• Subtitle is updated by information sent by the
broadcasting station.
• To stop updating subtitle automatically, press 3.
Press [ to exit the subtitle screen.
2
Displaying Subpages
You can display several subpages as they are
transmitted.
Press m to display Teletext.
1
NOTE
• Subtitle will not be displayed when the service does not
contain the subtitle information.
Time display
You can display the time information included in the
Teletext broadcast.
NOTE
• Skip step 1 if receiving DTV broadcasts.
Select a TV channel providing Teletext
1
information. (The time information is
automatically captured.)
Press DISPLAY. The channel display will
2
appear on the display.
Press DISPLAY again within the three-second
3
interval the channel display is on the screen.
Time information will display on the lower left of
the screen for about three seconds.
Even when you change the TV channel, you
4
can display the time information with steps 2
to 3 above.
NOTE
• The time display cannot be stored once the power is
turned off. When you turn on the power, perform steps 1 to
4 again.
• If acquired successfully the time information will appear in
the upper-right corner of the screen by pressing MENU.
44
Press 1 to display the subpage as shown
2
below.
Subpage screen
–+
01 02 03 04 05
Select the desired subpage by using CHr/
3
CHs, Red or Green.
• 0 — 9 directly selects the desired subpage.
Press 1 to exit the subpage screen.
4
NOTE
• You cannot display subpage screens in DTV mode.
0001184/
Using external equipment
You can connect many types of external equipment to your TV, like a VCR, DVD player, HDTV tuner, game
console and camcorder. To view external source images, select the input source from TV/VIDEO on the remote
control unit or TV/VIDEO on the TV.
Displaying an external equipment
Explanation here is for the setting when connecting
DVD to INPUT1 terminal.
CAUTION
• To protect all equipment, always turn off the TV before
connecting to a VCR, DVD player, HDTV tuner, game
console, camcorder or other external equipment.
NOTE
• See pages 45 to 47 for external equipment connection.
• Please refer to the relevant operation manual (VCR, DVD
player, etc.) carefully before making connections.
• Each time TV/VIDEO is pressed, the input source toggles.
• If the image does not come in clearly, you may need to
change the input signal type setting on the “Input Select”
menu.
• Refer to your external equipment operation manual for the
signal type.
Displaying a DVD image (Example)
To watch a DVD image, select “INPUT1” using
1
TV/VIDEO on the remote control unit or TV/
VIDEO on the TV.
INPUT SOURCE
TV
DTV
INPUT1
INPUT2
INPUT3
Select the desired signal type on “Input Select”
2
in the “Option” menu. (See page 41.)
For INPUT1 signal
...
[
Option
MENU
The setting is stored and can be selected.
Input Select
]
AUTO
COMPONENT
VIDEO
Connecting a VCR
You can use the INPUT 1 terminals when connecting a VCR and other audiovisual equipment.
To watch an image from this input terminal, you
need to select the input source (see page 45) and
the input signal type (see page 41).
Composite cable (VIDEO)
VIDEO
L
AUDIO
R
VCR
(commercially available)
Composite cable (AUDIO)
(commercially available)
45
Using external equipment

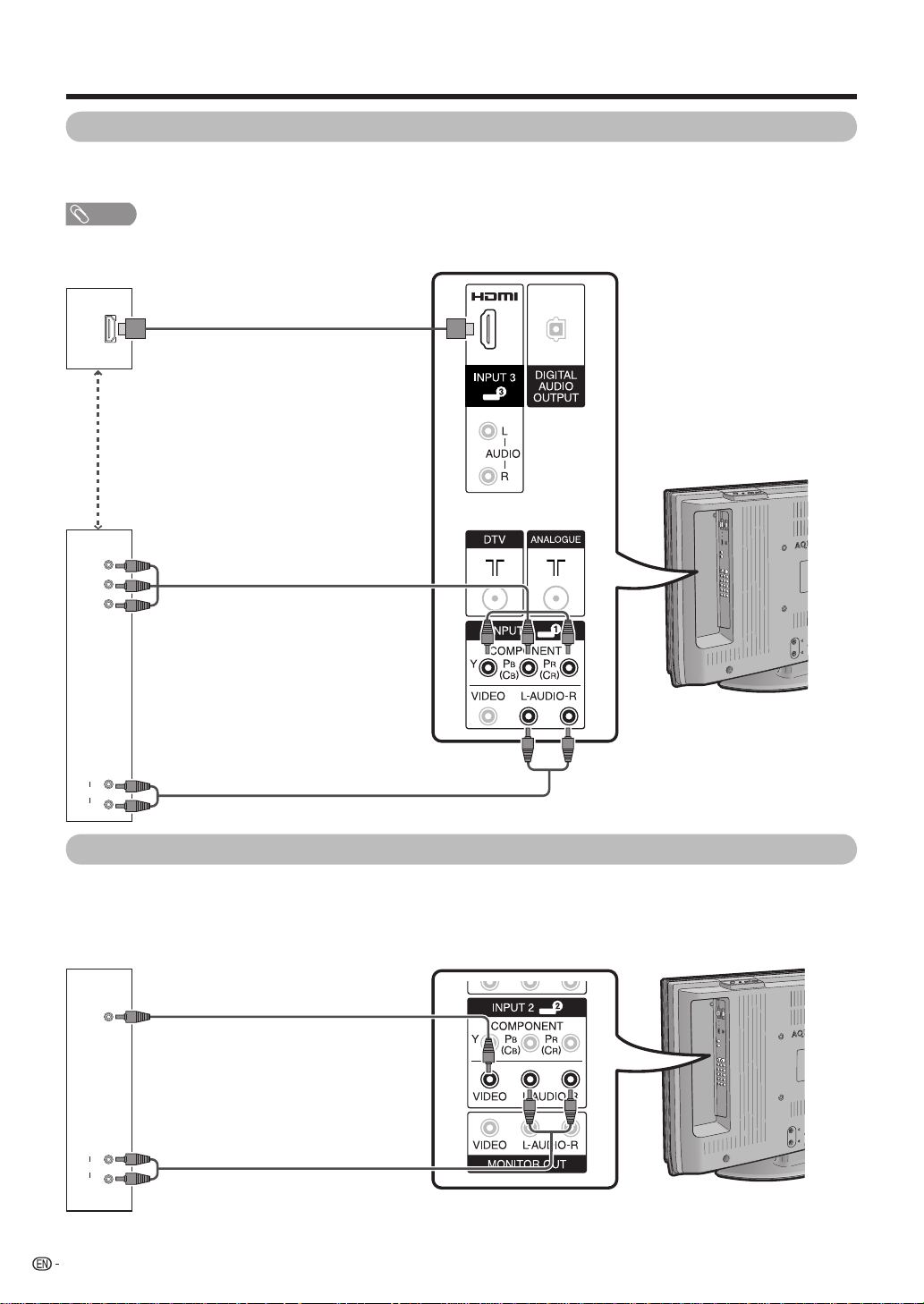

Connecting a DVD player
You can use the INPUT 1 or INPUT 3 (HDMI) terminals when connecting to a DVD player and other audiovisual
equipment.
NOTE
• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 3.
DVD player
HDMI
or
Y
PB
(CB)
PR
(CR)
L
AUDIO
R
HDMI Cable (commercially available)
Component cable
(commercially available)
When using component cable,
select “COMPONENT” for “Input
Select” in the menu.
Audio cable (commercially available)
To watch an image from this input
terminal, you need to select the input
source (see page 45) and the input
signal type (see page 41).
Connecting a game console or camcorder
A game console, camcorder and some other audiovisual equipment are conveniently connected using the INPUT
2 terminals.
Composite cable (VIDEO)
VIDEO
L
AUDIO
R
Game console/Camcorder
46
(commercially available)
Composite cable (AUDIO)
(commercially available)
To watch an image from this input terminal, you
need to select the input source (see page 45) and
the input signal type (see page 41).
Using external equipment

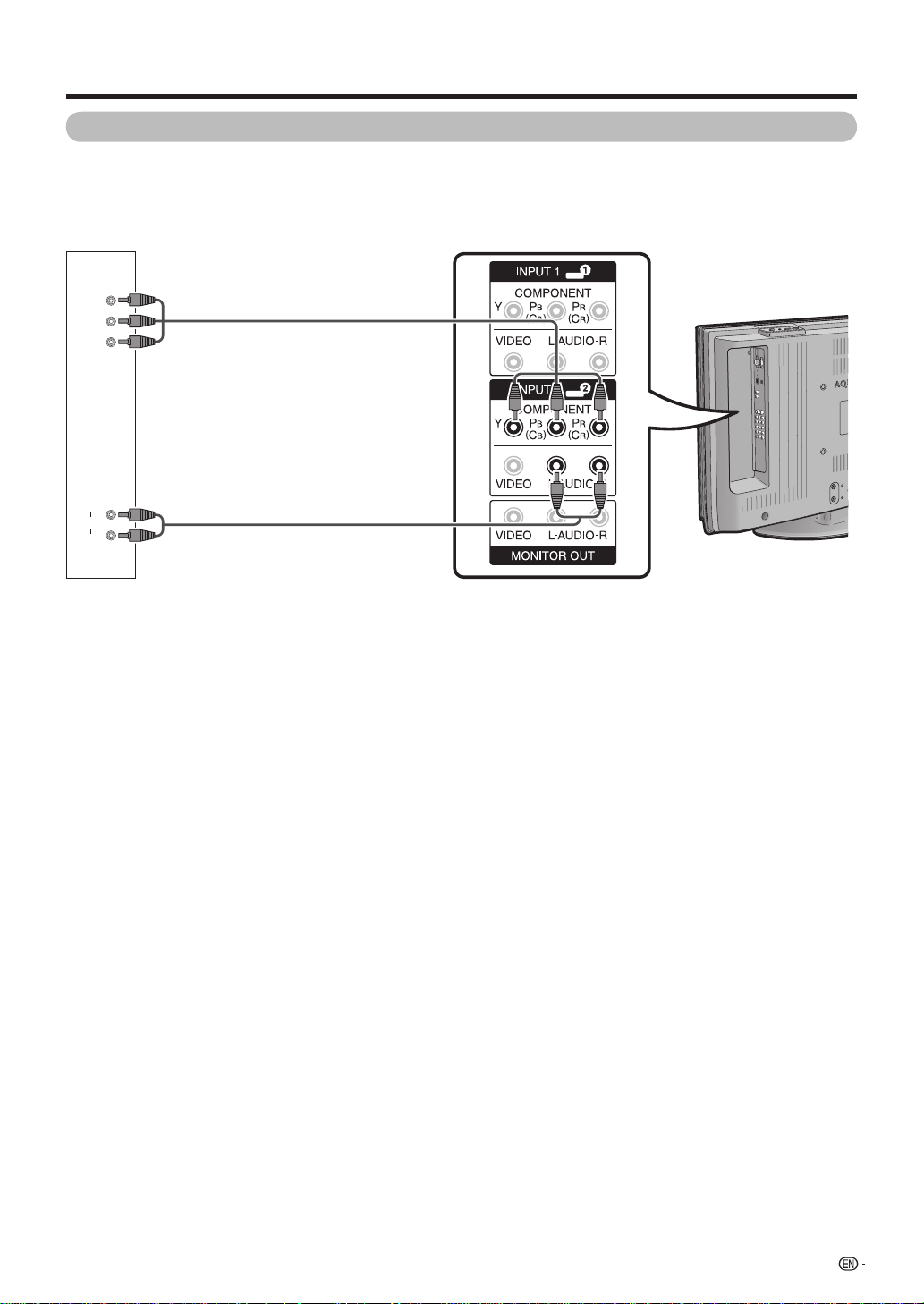

Connecting an HDTV tuner
You can use the INPUT 2 terminal when connecting to an HDTV tuner and other audiovisual equipment.
To watch an image from this input terminal, you
need to select the input source (see page 45) and
the input signal type (see page 41).
Y
B
P
(CB)
PR
(CR)
L
AUDIO
R
HDTV tuner
Component cable
(commercially available)
Audio cable
(commercially available)
When using component cable, select
“COMPONENT” for “Input Select” in the menu.
47
Appendix
Troubleshooting
Problem
• No power.
• Unit cannot be operated.
• Remote control unit does not
operate.
• Picture is cut off.
• Strange colour, light colour, or
dark, or colour misalignment.
• Power is suddenly turned off.
• No picture.
Possible Solution
• Check if you pressed POWER on the remote control unit. (See page 13.)
If the indicator on the TV lights up red, press POWER.
• Is the AC cord disconnected? (See page 7.)
• Has the power been turned on? (See page 13.)
• External infl uences such as lightning, static electricity, etc., may cause improper
operation. In this case, operate the unit after fi rst turning the power off the TV or
unplugging the AC cord and re-plugging it in after 1 or 2 minutes.
• Are batteries inserted with polarity (e, f) aligned? (See page 5.)
• Are batteries worn out? (Replace with new batteries.)
• Are you using it under strong or fl uorescent lighting?
• Is a fl uorescent light illuminated to remote control sensor?
• Is the image position correct? (See page 37.)
• Are screen mode adjustments such as picture size made correctly? (See pages 38
and 39.)
• Adjust the picture tone. (See pages 25 to 27 and 40.)
• Is the room too bright? The picture may look dark in a room that is too bright.
• Check the colour system setting. (See pages 21 and 41.)
• Check the input signal setting. (See page 41.)
• Check the HDMI Setup setting. (See page 40.)
• The unit's internal temperature has increased.
Remove any objects blocking vent or clean.
• Check the power control setting. (See page 28.)
• Is sleep timer set? (See page 15.)
• Is connection to other equipment correct? (See pages 45 to 47.)
• Has input signal setup been done correctly after connection? (See page 41.)
• Is the correct input selected? (See page 41.)
• Is picture adjustment correct? (See pages 25 to 27.)
• Is the antenna connected properly? (See page 8.)
• Is “On” selected in “Audio Only”? (See page 40.)
• No sound.
• Is the volume too low? (See page 15.)
Troubleshooting (DTV)
Problem
• No picture or no sound.
• Block noise appears on the
screen.
• DTV broadcasts cannot be
received.
• A specifi c channel cannot be
received.
• Is the correct input source selected? (See pages 41 and 45.)
• Is the antenna pointing in the correct direction?
• Check the Signal Level and Quality. (See page 32.)
• Are physical objects blocking the antenna?
• Is the antenna or antenna cable compatible with DTV broadcasts?
• Is the DTV antenna set up properly?
• Is the antenna cable connected properly? (See page 8.)
• Are the channel settings correct? (See pages 32 and 33.)
• Check the Signal Level and Quality. (See page 32.)
Cautions regarding use in high and low temperature environments
• When the unit is used in a low temperature space (e.g. room, offi ce), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.
• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: f20°C to e60°C.
48
Possible Solution
Appendix
RS-232C port specifi cations
PC Control of the TV
• When a programme is set, the TV can be controlled from the PC using the RS-232C terminal.
The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and
settings can be made, enabling automatic programmed playing.
• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-sub RS-232C for the
connections.
NOTE
• This operation system should be used by a person who is accustomed to using PCs.
Communication conditions
Set the RS-232C communications settings on the PC to match the communications conditions of the TV. The
communications settings of the TV are as follows:
Baud rate:
Data length:
Parity bit:
Stop bit:
Flow control:
9,600 bps
8 bits
None
1 bit
None
Communication procedure
Send the control commands from the PC via the RS-232C connector.
The TV operates according to the received command and sends a response message to the PC.
Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the
next command.
Command format
Eight ASCII codes e CR
C1 C2 C3 C4 P1 P2 P3 P4
Command 4-digitsParameter 4-digitsReturn code
Parameter
Input the parameter values, aligning left, and fi ll with space(s) for the remainder. (Be sure that four values are input for the
parameter.)
When the input parameter is not correct, “ERR” returns. (Refer to “Response code format”.)
Command 4-digits: Command. The text of four characters.
Parameter 4-digits: Parameter 0 — 9, space, ?
0
0009
a30
100
0055
When “?” is input for some commands, the present setting value responds.
?
????
49
Appendix
Response code format
Normal response
OK
Return code (0DH)
Problem response (communication error or incorrect command)
ERR
Return code (0DH)
Commands
• Commands not indicated here are not guaranteed to operate.
CONTROL ITEMCOMMAND PARAMETER
0
R
W
O
POWER SETTING
INPUT SELECTION A
CHANNEL
INPUT SELECTION B
AV MODE
SELECTION
P
_
D
G
T
I
_
D
V
T
I
_
V
T
D
I
D
V
A
I
*
H
C
C
D
C
C
D
D
D
A
A
A
A
A
A
*
P
U
H
_
W
D
H
_
D
V
T
*
P
U
T
_
W
D
T
_
1
P
N
I
0
1
P
N
I
1
1
P
N
I
3
2
P
N
I
0
2
P
N
I
1
2
P
N
I
3
D
M
V
0
D
M
V
1
D
M
V
2
D
M
V
3
D
M
V
4
D
M
V
5
_
POWER OFF (STANDBY)
_
_
_
INPUT SWITCHING (TOGGLE)
_
_
_
TV (CHANNEL FIXED)
_
_
_
DTV (CHANNEL FIXED)
_
_
_
INPUT1 – 3 (1 – 3)
_
_
_
TV DIRECT CHANNEL (1 – 99)
_
*
_
CHANNEL UP
_
_
_
CHANNEL DOWN
_
_
_
DTV DIRECT CHANNEL (1 – 999)
*
*
_
DTV CHANNEL UP
_
_
_
DTV CHANNEL DOWN
_
_
_
INPUT1 (AUTO)
_
_
_
INPUT1 (COMPONENT)
_
_
_
INPUT1 (VIDEO)
_
_
_
INPUT2 (AUTO)
_
_
_
INPUT2 (COMPONENT)
_
_
_
INPUT2 (VIDEO)
_
_
_
TOGGLE
_
_
_
STANDARD
_
_
_
MOVIE
_
_
_
GAME
_
_
_
USER
_
_
_
DYNAMIC
_
_
CONTROL
CONTENTS
CONTROL ITEMCOMMAND PARAMETER
VOLUME
POSITION
WIDE MODE
MUTE
SURROUND
AUDIO CHANGE
SLEEP TIMER
TEXT
M
L
O
V
S
O
P
H
S
O
P
V
E
D
I
W
E
D
I
W
E
D
I
W
E
D
I
W
E
D
I
W
E
D
I
W
E
D
I
W
E
T
U
M
E
T
U
M
E
T
U
M
U
S
C
A
U
S
C
A
U
S
C
A
A
H
C
A
M
T
F
O
M
T
F
O
M
T
F
O
M
T
F
O
M
T
F
O
M
T
F
O
T
X
E
T
T
X
E
T
G
P
C
D
CONTROL
CONTENTS
VOLUME (0 – 60)
*
*
_
_
H-POSITION (AV) (f10 –
*
*
_
*
*
*
_
V-POSITION (AV) (f20 –
*
_
0
1
2
3
4
5
6
0
1
2
0
1
2
_
0
1
2
3
4
5
0
1
*
TOGGLE (AV)
_
_
_
NORMAL (AV)
_
_
_
ZOOM 14:9 (AV)
_
_
_
PANORAMA (AV)
_
_
_
FULL (AV)
_
_
_
CINEMA 16:9 (AV)
_
_
_
CINEMA 14:9 (AV)
_
_
_
TOGGLE
_
_
_
MUTE ON
_
_
_
MUTE OFF
_
_
_
SURROUND TOGGLE
_
_
_
SURROUND ON
_
_
_
SURROUND OFF
_
_
_
TOGGLE
_
_
_
OFF
_
_
_
SLEEP TIMER 30 MIN
_
_
_
SLEEP TIMER 1 HOUR
_
_
_
SLEEP TIMER 1 HOUR 30 MIN
_
_
_
SLEEP TIMER 2 HOUR
_
_
_
SLEEP TIMER 2 HOUR 30 MIN
_
_
_
TEXT OFF
_
_
_
TEXT ON (TOGGLE)
_
_
_
DIRECT PAGE JUMP (100 – 899)
*
*
e10)
e20)
NOTE
• If an underbar (_) appears in the parameter column, enter a space.
• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.
50
Appendix
Specifi cations
Model
Item
LCD panel
Number of dots3,147,264 dots (1366 g 768 g 3 dots)
Video Colour System
TV
Function
Brightness
Backlight life
Viewing angles
Audio amplifi er
Speakers10 g 4 cm 4pcs
Terminals
Power Requirement
Power Consumption
Weight
Operating Temperature
• As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for
product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production
units. There may be some deviations from these values in individual units.
TV-Standard
Receiving
Channel
Digital Terrestrial Broadcast
TV-Tuning System
STEREO/BILINGUAL
Rear
VHF/UHF
CATV
ANALOGUE ANTENNA IN
DIGITAL ANTENNA IN
INPUT 1
INPUT 2
INPUT 3
MONITOR OUTPUT
RS-232C
DIGITAL AUDIO OUTPUT
without stand
with stand
LC-32PD5X
32o (80 cm) Advanced Super View &
BLACK TFT LCD
PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
PAL: B/G, D/K, I SECAM: B/G, D/K, K/K
44.25—863.25 MHz
S1—S41ch (including Hyperband)
VHF 48—80 MHz, VHF 149—429 MHz, UHF 429—860 MHz
Auto Preset 99 ch
NICAM: B/G, I, D/K A2 stereo: B/G MTS
450 cd/m
60,000 hours (at Backlight Standard position)
H : 176º V : 176º
10W g 2
75 q DIN type
75 q DIN type
VIDEO in, AUDIO in,
COMPONENT in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz)
VIDEO in, AUDIO in,
COMPONENT in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz)
The listed optional accessory is available for the LCD colour
TV. Please purchase it at your nearest shop.
• Additional optional accessories may be available in the near
future. When purchasing, please read the newest catalogue for
compatibility and check the availability.
Part name
Wall mount bracket
(for LC-32PD5X/
LC-37PD5X)
Model number
AN-37AG2
51

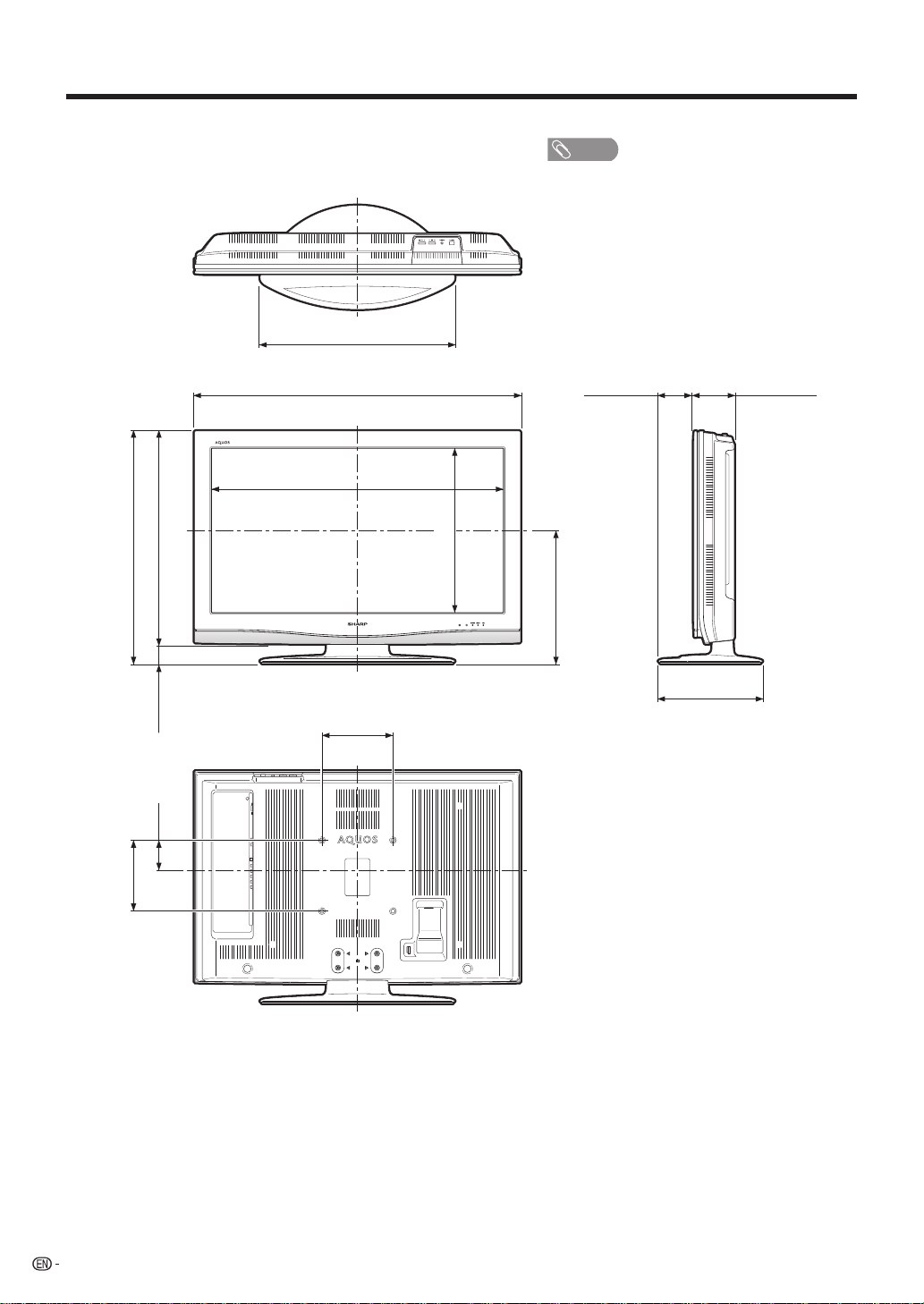

Dimensional drawings
LC-32PD5X, LC-37PD5X
700.4 (823
)
)
600
657
(
(
533
590.5
506 (542
797 (920
)
Unit: mm
NOTE
• Figures within parentheses are for LC-37PD5X.
)
)
)
464
(
395.1
)
377
(
343
100 (84
)
116 (116
)
)
57
(
57.5
85 (85)
200 (200)
200 (200)
250 (292
)
52
HOW TO SET THE FACTORY PRESETS
Turn off the TV by pressing POWER on the TV.
After waiting for about 1 minute, press and hold down RESET and press POWER on the TV to turn on the
TV.
All setting items (except TV channel) return to the factory presetting.
NOTE
• Password will be cleared after running the factory presetting operation.
You can run the Auto Installation again by using the following steps.
Turn on the power of the TV.
1
Press MENU. (Make sure the menu screen displays.)
2
Press c/d to select “Setup”.
3
Press a/b to select “Auto Installation”, and then press ENTER.
4
Press c/d to select “Yes”, and then press ENTER.
5
The Password is .
NOTE
• As a precautionary measure, make a note of your password above, scissor it from this manual, and keep it in a familiar place.
53
Memo
Memo
Memo
Printed on post-consumer recycled paper.
Printed in Malaysia
TINS-C984WJZZ
07P01-MA-NG
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
